ZIF-67 Anchored on MoS2/rGO Heterostructure for Non-Enzymatic and Visible-Light-Sensitive Photoelectrochemical Biosensing

by
Qiaolin Fan
,
Xiao Li
*,
Hui Dong
,
Zhonghua Ni
and
Tao Hu
*
School of Mechanical Engineering, Jiangsu Key Laboratory for Design and Manufacture of Micro-Nano Biomedical Instruments, Southeast University, Nanjing 211189, China
*
Authors to whom correspondence should be addressed.
Biosensors 2024, 14(1), 38; https://doi.org/10.3390/bios14010038
Submission received: 30 November 2023 / Revised: 30 December 2023 / Accepted: 9 January 2024 / Published: 12 January 2024
(This article belongs to the Special Issue Recent Advances in Hydrogels-Based Biosensors for Point-of-Care Testing)
Browse Figures
Versions Notes

Abstract

:
Graphene and graphene-like two-dimensional layered nanomaterials-based photoelectrochemical (PEC) biosensors have recently grown rapidly in popularity thanks to their advantages of high sensitivity and low background signal, which have attracted tremendous attention in ultrahigh sensitive small molecule detection. This work proposes a non-enzymatic and visible-light-sensitive PEC biosensing platform based on ZIF-67@MoS2/rGO composite which is synthesized through a facile and one-step microwave-assisted hydrothermal method. The combination of MoS2 and rGO could construct van der Waals heterostructures, which not only act as visible-light-active nanomaterials, but facilitate charge carriers transfer between the photoelectrode and glassy carbon electrode (GCE). ZIF-67 anchored on MoS2/rGO heterostructures provides large specific surface areas and a high proportion of catalytic sites, which cooperate with MoS2 nanosheets, realizing rapid and efficient enzyme-free electrocatalytic oxidation of glucose. The ZIF-67@MoS2/rGO-modified GCE can realize the rapid and sensitive detection of glucose at low detection voltage, which exhibits a high sensitivity of 12.62 μAmM−1cm−2. Finally, the ZIF-67@MoS2/rGO PEC biosensor is developed by integrating the ZIF-67@MoS2/rGO with a screen-printed electrode (SPE), which exhibits a high sensitivity of 3.479 μAmM−1cm−2 and a low detection limit of 1.39 μM. The biosensor’s selectivity, stability, and repeatability are systematically investigated, and its practicability is evaluated by detecting clinical serum samples.

1. Introduction

Glucose is an important biomarker in the clinical detection of hyperglycemia and diabetes. Up to now, there have been many methods for glucose detection, including fluorescence detection [1], Raman spectroscopy detection [2] and colorimetric methods [3], electrochemical detection [4,5,6], photoelectrochemical (PEC) detection [7], etc., by analyzing the correlation between different signals and glucose concentration. Among them, the PEC technique has received tremendous research interest due to its merits of fast response, low background signal, and high sensitivity, which have been extensively investigated in the fields of protein, nucleic acid, biomolecules, and metal ions [8,9,10,11]. Compared with the electrochemical method, it should work with a light source which is utilized to excite the electrode to produce photogenerated electron–hole pairs, and then the electrons are transferred to the surface of the electrode, achieving the conversion of photo energy to electrical energy.
The photogenerated charge carriers are critical to the photocurrent in the PEC detection process; hence, developing photoactive materials and constructing highly sensitive photoelectrode are significant in PEC research. Until now, semiconductors such as ZnO and TiO2 have been thoroughly studied due to their high activity, low cost, and stable chemical and physical properties [12,13]. While limited by their wide band gaps, they present poor absorption of visible light and rapid combination of photogenerated carriers. To solve these problems, many efforts have been made to broaden light absorption to the visible spectral region. Two-dimensional layered nanomaterials, such as graphene, reduced graphene oxide (rGO), and transition metal dichalcogenides (TMDs), are suitable candidates to build van der Waals heterostructures through a “bottom-up” strategy with high specific surface area, fast electron transfer rate, and good light harvest property [14]. Among them, MoS2 is one of the most typical TMDs with a tunable band gap greatly correlative to layer numbers (about 1.2~1.9 eV). Compared to semiconductor materials with a wide band gap, MoS2 can increase the absorption of visible light and promote charge transfer rates [15]. In addition, graphene or rGO earns a widespread reputation due to its excellent electron mobility and high specific surface area, which are suitable to conquer the high recombination of photogenerated electron –hole pairs. It is a promising approach to combine MoS2 with graphene or rGO and form a layered heterostructure, which will largely improve the absorption of visible light and accelerate the separation of electron–hole pairs at the same time.
Another efficient strategy to improve the sensitivity of PEC biosensors is to introduce promoters of signal amplification. Using enzyme-catalyzed substrate is an effective way to realize signal amplification by introducing enzymes on photoelectrodes to catalyze analytes and increase detection current. Glucose oxidase is highly selective and sensitive, can detect glucose quickly and accurately, and plays a key role in the production of many glucose sensors [16,17,18,19]. However, enzymes are susceptible to denaturation and are affected by temperature, pH, and environmental conditions, which is far from satisfactory to realize biosensing [20,21,22]. At present, many efforts have been made to explore enzyme-free and sensitive electrode materials. Notably, metal-organic frameworks (MOFs) are a class of crystalline porous materials with a periodic network structure formed by the self-assembly of inorganic metal centers and organic ligands; they demonstrate high electrocatalytic activity and selectivity toward glucose [23,24]. Among a series of MOFs, zeolitic imidazolate frameworks (ZIFs), which are topologically isomorphic with zeolites, inherit all the advantages of MOFs in the areas of electrocatalysis and biosensing [25]. Both MOFs and ZIFs are mainly prepared by conventional hydrothermal or solvothermal methods, which have deficiencies such as a long preparation time and complicated process. Therefore, it is necessary to develop an efficient material synthesis method to prepare enzyme-free electrode materials with a high performance in glucose detection. Microwave-assisted synthesis utilizes microwaves and the coupling of reaction media on materials to produce high-energy electromagnetic radiation and effective internal heating [26]. Compared with the traditional hydrothermal method, it demonstrates multiple benefits, including a higher heating efficiency, lower cost of synthetic material, more simple operation of a microwave synthesizer, and effective control of the reaction parameters, which can control the process of crystallization and obtain the desired structure and morphology [27,28].
Based on the above considerations, this work adopted a microwave-assisted synthesis method to synthesize a ZIF-67@MoS2/rGO enzyme-free photoelectrode in one step as well as and develop a visible-light-sensitive lab-on-chip PEC biosensing platform. Firstly, ZIF-67@MoS2/rGO was modified on GCE, and its high performance for glucose detection including a high sensitivity, wide detection range, and low detection limit were verified by PEC methods. The rGO serves as a carrier transport layer, and the heterostructure formed between rGO and MoS2 presents a photoelectrical transducer that generates and transports photocarriers. The synergy electrocatalytic effect between MoS2 and ZIF-67 proved to be crucial for glucose sensing and signal amplification. Then, a ZIF-67@MoS2/rGO PEC glucose biosensor was developed by integrating the photoactive materials with SPE, suggesting good potential for biochemical applications.

2. Materials and Methods

2.1. Reagents and Chemicals

Graphene oxide was purchased from Nanjing XFNANO (Nanjing, China). 2-methylimidazole, lactose, maltose, and fructose were purchased from Aladdin (Shanghai, China). Co(NO3)2•6H2O, L-Cysteine, Thiourea, NaOH, and NaCl were bought from HUSHI (Shanghai, China). Glucose was obtained from Shanghai Sigma Aldrich trading Co., Ltd. (Shanghai, China). All other reagents of guaranteed reagent (GR) level were obtained from Sigma. Double distilled water (ultra-pure conductivity of ≥18 MΩ) was used for all experimental analysis.

2.2. Instrumentation and Measurements

Scanning electron microscopy (SEM) was carried out on a FEI Quanta 200 microscope (FEI company, Hillsboro, USA). X-ray diffraction (XRD) and Raman spectra were acquired using Ultima IV (Rigaku Corporation, Tokyo, Japan) and WITec Alpha300R (WITec GmbH, Ulm, Germany), respectively. CV experiments were performed with a CHI 660D electrochemical workstation (Shanghai CH Instrument Company, Shanghai, China). A three-electrode configuration, using Ag/AgCl (3 M KCl saturated) as the reference electrode, platinum sheet as the counter electrode, and photoactive material-modified GCE as the working electrode, was adopted for electrochemical tests in a freshly prepared sodium hydroxide electrolyte solution (NaOH, 0.1 M). The light source was provided by xenon lamp illumination CEL-HXF300 (Beijing China Education Au-light Co., Ltd., Beijing, China). Optical filters UVIRCUT 420 (Beijing China Education Au-light Co., Ltd., Beijing, China) were used to obtain a visible-light of wavelength between 420 and 780 nm.

2.3. Synthesis of ZIF-67@MoS2/rGO Composite

First, 0.8 g thiourea and 0.4 g ammonium molybdate were measured and slowly poured into 10 mL of deionized water to make solution A. Next, 1.35 mM Co(NO3)2•6H2O and 8.1 mM 2-methylimidazole were dissolved in 4.5 mL of methyl alcohol evenly to form solution B. Then, 5 mL of graphene oxide was added to solution A, and solution B was slowly poured into solution A. The mixture was stirred at 900 rpm for 30 min and ultrasonized for 1 h, then it underwent microwave-assisted heating at 180 °C for 1 h. The product was centrifugated at 12,000 rpm to obtain precipitate, washed with methanol and ethanol alternately, and finally dried at 60 °C thoroughly to obtain ZIF-67@MoS2/rGO powder. In addition, MoS2 and MoS2/rGO were synthesized through the same procedures for comparison.

2.4. Preparation of ZIF-67@MoS2/rGO-Modified Photoelectrode

The obtained ZIF-67@MoS2/rGO powder was dissolved in ethanol solution, and 5 μL Nafion was added. The solution was ultrasonicated to dissolve evenly. The glassy carbon electrode (GCE) with a diameter of 4 mm was sanded and washed, then the as-prepared ZIF-67@MoS2/rGO-Nafion solution was dropped onto the electrode and dried at room temperature to make the ZIF-67@MoS2/rGO-modified glassy carbon electrode (ZIF-67@MoS2/rGO GCE). ZIF-67@MoS2/rGO powder was also dissolved in deionized water and modified on the screen-printed electrode (SPE) following the same procedure to make the ZIF-67@MoS2/rGO-modified screen-printed electrode (ZIF-67@MoS2/rGO SPE).

3. Results and Discussion

3.1. Materials Characterization

Figure 1a demonstrates a schematic diagram of the visible-light-sensitive PEC biosensing based on non-enzymatic ZIF-67@MoS2/rGO. In order to verify the rationality of this microwave-assisted hydrothermal synthesis method, SEM, XRD, and Raman spectroscopy were used to characterize MoS2, ZIF-67/MoS2, and ZIF-67@MoS2/rGO. SEM characterizations of MoS2, MoS2/rGO, and ZIF-67@MoS2/rGO are shown in Figure 1b–d. MoS2 synthesized by this method had a flower cluster-shaped structure, providing a large specific surface area for better light absorption. The introduction of rGO made the flower clusters transform to dense lamellas spreading over a layered microstructure, leading to a more extended structure of MoS2/rGO, which created rich pathways for charge transport. ZIF-67@MoS2/rGO demonstrated a distinct hierarchical geometric structure, which is a typical structure of ZIF-67. This morphology indicated that ZIF-67 totally covers MoS2/rGO hybrid nanosheets, and the change in morphology characteristics proved that the ZIF-67@MoS2/rGO composite structure was successfully synthesized. As shown in Figure 2a, the synthesis of ZIF-67@MoS2/rGO was further analyzed by X-ray diffraction (XRD). Furthermore, 36.8°, 39.98°, and 44.3° correspond to the peak value of MoS2, while 26.28° is the characteristic peak of rGO [29,30]. In addition to these peaks, the prominent peaks at 7.66°, 17.1°, 19.72°, and 25.42° in the composite material correspond to ZIF-67 [31].

3.2. Photoelectrochemical Property Characterization

Chronoamperometry was used to investigate the photocurrent of the GCEs modified with different photosensitive materials. We systematically optimized the experimental conditions, including the detection potential, optical power density, and pH of electrolytes (See Figure S2 for details). The detection potential, light source intensity, and pH value affect the recombination of photogenerated electrons and holes in photoelectrochemistry. Therefore, as shown in Figure S2a, the photocurrent response of ZIF-67@MoS2/rGO GCE to 0.5 mM glucose was comprehensively compared in a potential range of 0.1–0.5 V. At 0.1–0.3 V, and the photocurrent response of the electrode was greatly improved with the increase in detection potential, which was because the increased detection potential promoted the separation of photogenerated electrons and holes and improved the response of the electrode [32]. Above 0.3 V, the increase in the electrode photocurrent response slows down. We considered the trade-off effect between high photocurrent response and negative influences brought by high potential, and 0.3 V was finally selected as the detection potential for subsequent tests.
Light source intensity is very important to photocurrent response as the excitation device of photochemistry. In this paper, the optical power density of xenon lamp source was optimized, and different test light intensities of 70–100 mWcm−2 were selected to compare the photocurrent response of the electrode, as shown in Figure S2b. With the increase in optical power density, the photocurrent response increased and gradually reached light saturation. However, when the optical power density increased further, the sensitivity of electrode detection could not be improved. As there was no sacrificial agent added to the system, excessive light would produce a large number of holes, which could rapidly corrode the material or cause sample evaporation [33]. Therefore, 100 mWcm−2 was finally selected as the optimal light intensity for testing.
We also conducted PEC detection on electrolytes with different pH values, and the photocurrent responses with the pH values changing from 10 to 14 at 0.3 V were recorded in Figure S2c. As pH value continued to rise, OH− promoted the catalytic oxidation of glucose, increasing the photocurrent correspondingly. However, when the pH value increased to 1 M, the photocurrent signal showed a downward trend, which may be because the high NaOH concentration under light intensified the disproportionation reaction of glucose and reduced the glucose concentration in the system [34], resulting in a downward trend in photocurrent. Therefore, the electrolyte with a 0.1 M NaOH concentration was selected as the optimal test environment. In the subsequent investigation, 0.3 V was selected as the optimal applied potential, and 0.1 M NaOH was selected as the optimal test environment with 100 mWcm−2 light intensity.
In 0.1 M NaOH under visible-light on/off illumination, ZIF-67 GCE, ZIF-67/MoS2 GCE, and ZIF-67@MoS2/rGO GCE were tested containing 0.1 mM glucose and 0.2 mM glucose, respectively (Figure S3). As shown in Figure S3a, ZIF-67 GCE demonstrates a slight rise in photocurrent, which was due to a small amount of catalytic reaction between ZIF-67 and glucose in the alkaline environment. However, the photocurrent shows a downward trend immediately, and when the glucose concentration changes from 0.1 mM to 0.2 mM, current increment even declined to a small value. When ZIF-67 is combined with MoS2 (Figure S3b), as MoS2 is a narrow-band gap semiconductor with an appropriate band gap, it can better absorb light and generate photogenerated electron–hole pairs. At the same time, MoS2 has a certain number of catalytic sites, and so the current increments are more obvious and show a certain correlation with glucose concentration; meanwhile, due to the inferior conductivity of MoS2, photogenerated electron–hole pairs generated by MoS2 are more likely to recombined. When introducing rGO nanosheets, their high conductivity will promote electron transfer to GCEs quickly, largely restricting the combination of photogenerated charges, so the photocurrent responses of ZIF-67@MoS2/rGO GCE in Figure S3c are significantly improved. Finally, current increments at the potential of 0.3 V for ZIF-67-, ZIF-67/MoS2-, and ZIF-67@MoS2/rGO-modified GCEs in 0.1 mM and 0.2 mM glucose are summarized in Figure S3d, and are consistent with the above analysis. As shown in Figure S3, the photocurrent response of ZIF-67@MoS2/rGO GCE is more significant, indicating that it is crucial to decorate ZIF-67 on MoS2/rGO heterostructures for glucose detection.
To uncover the PEC biosensing mechanism of ZIF-67@MoS2/rGO, first the UV-visible absorption spectrum of MoS2 was measured by UV spectrophotometer, and multiple absorption peaks located at the visible-light range were identified, indicating MoS2 acts as the photoactive component (Figure 2b). The Tauc diagram of MoS2 was converted by its UV-visible absorption spectrum; the X-axis was Energy (hυ), which was 1240/wavelength; and the Y-axis was calculated on the basis of (αhυ)n = k(hυ − Eg) [35]. In this formula, n is 2, α is 2.303, and the band gap Eg of the material is finally obtained as 1.66 eV. The M-S diagram of MoS2 is shown in Figure 2c, and the value at the intersection between the M-S diagram and the X-axis is the flat band potential, which was calculated according to the conversion formula: E(NHE) = E(Ag/AgCl) + 0.2. In addition, the type of semiconductor was determined by the slope [36]. Hence, the results show that, in this work, MoS2 is an N-type semiconductor, with its Fermi energy level close to the conduction band and its conduction band at position ECB = −0.86 eV, together with its valence band at position EVB = 0.8 eV.
Figure 2d shows the reaction mechanism of the ZIF-67@MoS2/rGO photoelectrode. Through MoS2’s sufficient absorption of visible light, the photogenerated holes promote the oxidation of Co(II) and Co(III) to Co(III) and Co(IV) in ZIF-67, respectively. The processes can be expressed by the following formula:
Co(II)-ZIF + h+ → Co(III)-ZIF
Co(III)-ZIF + h+ → Co(IV)-ZIF
Subsequently, glucose is oxidized by Co(III) and Co(IV), and then hypervalent cobalt compounds are reduced to their original states. The catalytic mechanism of glucose under light conditions can be presumably proposed as the following equations:
Co(III)-ZIF + C6H12O6 → Co(II)-ZIF + C6H10O6 + H2O
Co(IV)-ZIF + C6H12O6 → Co(III)-ZIF + C6H10O6 + H2O
Photocurrent responses of ZIF-67@MoS2/rGO in 0.1 M NaOH containing 0.05–0.55 mM glucose (low concentration range, 0.1 mM as an interval) and 1.5–5.5 mM glucose (high concentration range, 1 mM as an interval) are plotted in Figure 3a. With the increase in glucose concentration, the photocurrent responses gradually increase and exhibit a good correlation with glucose concentration. The obtained photocurrents were fitted with the corresponding glucose concentration, and the result is shown in Figure 3b. The photocurrent responses of ZIF-67@MoS2/rGO have a good linear relationship in the concentration range of 0.05–4.5 mM, and their sensitivity is 12.62 μAmM−1cm−2. The limit of detection (LOD) was calculated as 3.9 μM (S/N = 3) according to the slope in the calibration curve of glucose detection and instrument noise. The repeatability and selectivity of ZIF-67@MoS2/rGO GCE are shown in Figures S4 and S5. Table S1 shows the comparison of ZIF-67@MoS2/rGO GCE and other photoelectrochemical glucose sensors [37,38,39,40,41,42], and the practical application of ZIF-67@MoS2/ rGO GCEs are investigated by testing glucose concentrations in human serum samples (Table S2).
In this work, a glucose biosensor based on a screen-printed electrode (SPE) was further developed. The as-synthesized ZIF-67@MoS2/rGO powder was dissolved in deionized water to make a 3 mg/mL aqueous solution of ZIF-67@MoS2/rGO, and 5 μL Nafion solution was added to the solution, which was fully dissolved in ultrasound. Then, 10 μL ZIF-67@MoS2/rGO was dropped on the working electrode and dried to obtain ZIF-67@MoS2/rGO SPE. As before, in 0.1 M NaOH under visible-light on/off illumination, the response photocurrent obtained at glucose concentrations of 0.1 mM, 0.3 mM, 0.5 mM, 1 mM, 2 mM, 3 mM, 4 mM, and 5 mM with an applied potential of 0.3 V were are in Figure 3c. The photocurrent responses to SPE also increased with the increase in glucose concentration. The obtained photocurrents were fitted with the corresponding glucose concentration, and the results are shown in Figure 3d. The ZIF-67@MoS2/rGO SPE has better glucose detection characteristics, and the photocurrent responses have a good linear relationship with glucose concentration ranging from 0.1 mM to 5 mM. The sensitivity was 3.479 μAmM−1cm−2 and the LOD was calculated as 1.39 μM (S/N = 3), according to the slope in the calibration curve of glucose detection and instrument noise. A comparison of the ZIF-67@MoS2/rGO SPE glucose sensor and other lab-on-chip PEC glucose sensors is shown in Table S3 [43,44,45,46,47], indicating that our strategy is competitive and feasible for PEC glucose sensing.

3.3. Interference Studies and Practical Applications

The selectivity of ZIF-67@MoS2/rGO SPE for glucose detection was evaluated by an interference test. In this experiment, 0.1 mM glucose with 0.5 mM sucrose, maltose, fructose, lactose, uric acid, and NaCl were added to 0.1 M NaOH solution, respectively. After stabilization, the photocurrent responses were recorded, as shown in Figure 4a. The results show that this photoelectrode has good selectivity for glucose detection. To further evaluate its repeatability, five different ZIF-67@MoS2/rGO SPEs were tested against 0.5 mM glucose in 0.1 M NaOH electrolyte, and the photocurrent responses at 0.3 V were recorded for comparison (Figure 4b). The relative standard deviations (RSD) of the photocurrent in response to 0.5 mM glucose were 1.5%, respectively, showing the acceptable repeatability of ZIF-67@MoS2/rGO SPEs.
The stability of ZIF-67@MoS2/rGO SPE in 0.1 M NaOH under long-term illumination was investigated. As shown in Figure 4c, after the cyclic test of 1400 s, the photocurrent response was still 98.6% of its initial value, which proves that ZIF-67@MoS2/rGO has good stability under long-term strong-light irradiation. Meanwhile, the photoelectrode was tested for 7 consecutive days, and the results are recorded in Figure 4d. The photocurrent response was still 94.3% of its initial value. Therefore, it can be concluded that ZIF-67@MoS2/rGO SPE can still maintain good performance after a certain period of daily storage, even if there is some occasional interference of ambient light.
The practical application of ZIF-67@MoS2/rGO SPE was investigated by testing glucose concentrations in human serum samples, which were provided by Zhongda Hospital in Nanjing, China. Before PEC testing, the cryo-preserved sample was thawed at room temperature, and a certain amount was added into 0.1 M NaOH with a pipetting gun to form 5% human serum sample. The spike and recovery method are employed, and the analytical results are listed in Table 1. The obtained results suggest that the developed PEC biosensor based on ZIF-67@MoS2/rGO SPE exhibits high suitability for glucose detection in genuine samples, offering high potential for practical applications in clinical diagnosis.
Compared with the electrochemical detection method, the PEC detection of glucose has lower background signal and a higher sensitivity due to its different excitation signal and detection signal. It further improves the convenience and instantaneity of detection when combined with the screen-printed electrode, which is simple to produce in bulk, and has a wide range of application prospects.

4. Conclusions

In this work, ZIF-67@MoS2/rGO was synthesized by a facile and one-step microwave-assisted hydrothermal method for the PEC detection of glucose. Due to the excellent visible-light absorption of MoS2 and the enhancement of photogenerated electron transfer characteristics of rGO, MoS2/rGO hybrid nanosheets constructed a suitable heterostructure for PEC biosensing. ZIF-67 anchored on MoS2/rGO composite could realize the efficient, enzyme-free, electrocatalytic oxidation of glucose, achieving a high sensitivity of 12.62 μAmM−1cm−2 based on GCEs. To further improve the portability and immediacy of glucose detection, ZIF67@MoS2/rGO was integrated with SPE to develop a lab-on-chip PEC biosensor. The as-prepared biosensor exhibited a competitive sensitivity of 3.479 μAmM−1cm−2 and low detection limit of 1.39 μM, which also demonstrates its outstanding selectivity, stability, and repeatability. Finally, clinical serum samples were tested to verify its practicability, and the obtained results suggest that this PEC biosensor has a good development prospect for clinical applications in quantitative detection of biomolecules.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/bios14010038/s1, Figure S1: Schematic diagram of the photoelectrochemical laboratory bench; Figure S2: Optimization of (a) detection potential; (b) optical power density; (c) pH; Figure S3: Photocurrent responses of (a) ZIF-67; (b) ZIF-67/MoS2; (c) ZIF-67@MoS2/rGO-modified GCEs in 0.1 mM and 0.2 mM glucose; (d) Current increment at the potential of 0.3 V (vs. Ag/AgCl) for ZIF-67, ZIF-67/MoS2 and ZIF-67@MoS2/rGO-modified GCEs in 0.1 mM and 0.2 mM glucose; Figure S4: The repeatability of the electrodes of ZIF-67@MoS2/rGO-modified GCEs; Figure S5: The selectivity of ZIF-67@MoS2/rGO-modified GCEs; Figure S6: The selectivity of ZIF-67@MoS2/rGO-modified SPEs; Table S1: The comparison of electrodes of ZIF-67@MoS2/rGO GCE and other photoelectrochemical glucose sensors; Table S2: Glucose detection in 5% human serum with ZIF-67@MoS2/rGO GCE; Table S3: The comparison of the ZIF-67@MoS2/rGO SPE and other photoelectrochemical glucose sensors.

Author Contributions

Conceptualization, X.L.; methodology, Q.F. and H.D.; validation, Q.F. and H.D.; formal analysis, H.D.; investigation, X.L.; resources, T.H.; data curation, Q.F. and X.L.; writing—original draft preparation, Q.F.; writing—review and editing, X.L. and T.H.; supervision, Z.N.; project administration, Z.N.; funding acquisition, X.L. and T.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China (Grant Nos.: 52305596, 52375564), Natural Science Foundation of Jiangsu Province (Grant No.: BK20231424).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Shen, Y.; Wang, Z.; Wang, Y.; Meng, Z.; Zhao, Z. A self-healing carboxymethyl chitosan/oxidized carboxymethyl cellulose hydrogel with fluorescent bioprobes for glucose detection. Carbohydr. Polym. 2021, 274, 118642. [Google Scholar] [CrossRef]
  2. Gao, Y.; Zhang, C.; Yang, Y.; Yang, N.; Lu, S.; You, T.; Yin, P. A high sensitive glucose sensor based on Ag nanodendrites/Cu mesh substrate via surface-enhanced Raman spectroscopy and electrochemical analysis. J. Alloys Compd. 2021, 863, 158758. [Google Scholar] [CrossRef]
  3. Ngo, Y.T.; Nguyen, P.L.; Jana, J.; Choi, W.M.; Chung, J.S.; Hur, S.H. Simple paper-based colorimetric and fluorescent glucose sensor using N-doped carbon dots and metal oxide hybrid structures. Anal. Chim. Acta 2021, 1147, 187–198. [Google Scholar] [CrossRef] [PubMed]
  4. Zhu, B.; Yu, L.; Beikzadeh, S.; Zhang, S.; Zhang, P.; Wang, L.; Travas-Sejdic, J. Disposable and portable gold nanoparticles modified-laser-scribed graphene sensing strips for electrochemical, non-enzymatic detection of glucose. Electrochim. Acta 2021, 378, 138132. [Google Scholar] [CrossRef]
  5. Balkourani, G.; Damartzis, T.; Brouzgou, A.; Tsiakaras, P. Cost effective synthesis of graphene nanomaterials for non-enzymatic electrochemical sensors for glucose: A comprehensive review. Sensors 2022, 22, 355. [Google Scholar] [CrossRef]
  6. Li, Z.; Liu, S. Recent advances in graphene-based electrical glucose monitoring. ChemRxiv 2023. [Google Scholar] [CrossRef]
  7. Senior, P.A. Glucose as a modifiable cause of atherosclerotic cardiovascular disease: Insights from type 1 diabetes and transplantation. Atherosclerosis 2021, 335, 16–22. [Google Scholar] [CrossRef]
  8. Tao, B.; Gao, B.; Li, J.; Miao, F.; Zhang, P.; Zang, Y. Photoelectrochemical sensor based on Au/ZnS/ZnO nanomaterials for selective detection of copper ions. Vacuum 2022, 204, 111378. [Google Scholar] [CrossRef]
  9. Kim, J.; Park, S.; Yang, H. Wash-free photoelectrochemical DNA detection based on photoredox catalysis combined with electroreduction and light blocking by magnetic microparticles. Talanta 2022, 253, 123872. [Google Scholar] [CrossRef]
  10. Ying, Y.; Zhou, M.; Dai, S.; Ma, M.; Deng, W.; Tan, Y.; Xie, Q. Au nanoparticles/SnO2/ZnIn2S4-based biosensor for photoelectrochemical/electrochemical dual-signal detection of RNase A by combining the enzymolysis of DNA probe and the generation of molybdophosphate precipitate. Sens. Actuators B Chem. 2022, 354, 131251. [Google Scholar] [CrossRef]
  11. Luo, J.; Shao, X.; Gong, Z.; Sun, X.; Ma, H.; Wu, D.; Fan, D.; Li, Y.; Wei, Q.; Ju, H. Achieving Z-scheme charge transfer through constructing Bi4Ti3O12/Pd@Au/Ag2S heterostructure for photoelectrochemical aptasensor of Hg2+ detection. Sens. Actuators B Chem. 2022, 369, 132385. [Google Scholar] [CrossRef]
  12. Wang, B.; Cao, J.T.; Liu, Y.M. Recent progress of heterostructure-based photoelectrodes in photoelectrochemical biosensing: A mini review. Analyst 2020, 145, 1121–1128. [Google Scholar] [CrossRef]
  13. Zhu, L.; Yin, Z.; Lv, Z.; Li, M.; Tang, D. Ultrasensitive photoelectrochemical immunoassay for prostate-specific antigen based on silver nanoparticle-triggered ion-exchange reaction with ZnO/CdS nanorods. Analyst 2021, 146, 4487–4494. [Google Scholar] [CrossRef]
  14. Das, S.; Robinson, J.A.; Dubey, M.; Terrones, H.; Terrones, M. Beyond graphene: Progress in novel two-dimensional materials and van der Waals solids. Annu. Rev. Mater. Res. 2015, 45, 1–27. [Google Scholar] [CrossRef]
  15. Zhang, J.; Gao, Y.; Liu, P.; Yan, J.; Zhang, X.; Xing, Y.; Song, W. Charge transfer accelerated by internal electric field of MoS2 QDs-BiOI p-n heterojunction for high performance cathodic PEC aptasensing. Electrochim. Acta 2021, 365, 137392. [Google Scholar] [CrossRef]
  16. Baghayeri, M.; Veisi, H.; Ghanei-Motlagh, M. Amperometric glucose biosensor based on immobilization of glucose oxidase on a magnetic glassy carbon electrode modified with a novel magnetic nanocomposite. Sens. Actuators B Chem. 2017, 249, 321–330. [Google Scholar] [CrossRef]
  17. Maity, D.; Minitha, C.R.; RT, R.K. Glucose oxidase immobilized amine terminated multiwall carbon nanotubes/reduced graphene oxide/polyaniline/gold nanoparticles modified screen-printed carbon electrode for highly sensitive amperometric glucose detection. Mater. Sci. Eng. C 2019, 105, 110075. [Google Scholar] [CrossRef]
  18. Asrami, P.N.; Mozaffari, S.A.; Tehrani, M.S.; Azar, P.A. A novel impedimetric glucose biosensor based on immobilized glucose oxidase on a CuO-Chitosan nanobiocomposite modified FTO electrode. Int. J. Biol. Macromol. 2018, 118, 649–660. [Google Scholar] [CrossRef]
  19. Gao, X.; Li, X.; Sun, X.; Zhang, J.; Zhao, Y.; Liu, X.; Li, F. DNA tetrahedra-cross-linked hydrogel functionalized paper for onsite analysis of DNA methyltransferase activity using a personal glucose meter. Anal. Chem. 2020, 92, 4592–4599. [Google Scholar] [CrossRef] [PubMed]
  20. Arul, P.; Gowthaman, N.S.K.; John, S.A.; Tominaga, M. Tunable electrochemical synthesis of 3D nucleated microparticles like Cu-BTC MOF-carbon nanotubes composite: Enzyme free ultrasensitive determination of glucose in a complex biological fluid. Electrochim. Acta 2020, 354, 136673. [Google Scholar] [CrossRef]
  21. Yadav, V.D.; Krishnan, R.A.; Jain, R.; Dandekar, P. In-situ silver nanoparticles formation as a tool for non-enzymatic glucose sensing: Study with an enzyme mimicking salt. Colloids Surf. A 2019, 580, 123715. [Google Scholar] [CrossRef]
  22. Zhao, Y.; Yang, J.; Shan, G.; Liu, Z.; Cui, A.; Wang, A.; Chen, Y.; Liu, Y. Photothermal-enhanced tandem enzyme-like activity of Ag2-xCuxS nanoparticles for one-step colorimetric glucose detection in unprocessed human urine. Sens. Actuators B Chem. 2020, 305, 127420. [Google Scholar] [CrossRef]
  23. Yang, J.; Yang, Y.W. Metal-organic frameworks for biomedical applications. Small 2020, 16, 1906846. [Google Scholar] [CrossRef]
  24. Yuan, A.; Lu, Y.; Zhang, X.; Chen, Q.; Huang, Y. Two-dimensional iron MOF nanosheet as a highly efficient nanozyme for glucose biosensing. J. Mater. Chem. B 2020, 8, 9295–9303. [Google Scholar] [CrossRef]
  25. Li, X.; Dong, H.; Fan, Q.; Chen, K.; Sun, D.; Hu, T.; Ni, Z. One-pot, rapid microwave-assisted synthesis of bimetallic metal–organic framework for efficient enzyme-free glucose detection. Microchem. J. 2022, 179, 107468. [Google Scholar] [CrossRef]
  26. Khan, N.R.; Rathod, V.K. Microwave assisted enzymatic synthesis of speciality esters: A mini-review. Process Biochem. 2018, 75, 89–98. [Google Scholar] [CrossRef]
  27. Kuang, H.; Zhang, H.; Liu, X.; Chen, Y.; Zhang, W.; Chen, H.; Ling, Q. Microwave-assisted synthesis of NiCo-LDH/graphene nanoscrolls composite for supercapacitor. Carbon 2022, 190, 57–67. [Google Scholar] [CrossRef]
  28. Mulvihill, M.J.; Beach, E.S.; Zimmerman, J.B.; Anastas, P.T. Green chemistry and green engineering: A framework for sustainable technology development. Annu. Rev. Environ. Resour. 2011, 36, 271–293. [Google Scholar] [CrossRef]
  29. Ahmad, K.; Shinde, M.A.; Song, G.; Kim, H. Fabrication of MoS2/rGO/AgNWs on PET substrate for flexible electrochromic devices. Synth. Met. 2022, 287, 117074. [Google Scholar] [CrossRef]
  30. Le, V.T.; Vasseghian, Y.; Doan, V.D.; Nguyen, T.T.T.; Vo, T.T.T.; Do, H.H.; Vu, K.B.; Vu, Q.H.; Lam, T.D.; Tran, V.A. Flexible and high-sensitivity sensor based on Ti3C2-MoS2 MXene composite for the detection of toxic gases. Chemosphere 2022, 291, 133025. [Google Scholar] [CrossRef]
  31. Xu, H.; Ye, K.; Yin, J.; Zhu, K.; Yan, J.; Wang, G.; Cao, D. In situ growth of ZIF-67 at the edge of nanosheet transformed into yolk-shell CoSe2 for high efficiency urea electrolysis. J. Power Sources 2021, 491, 229592. [Google Scholar] [CrossRef]
  32. Li, Z.; Dong, W.; Du, X.; Wen, G.; Fan, X. A novel photoelectrochemical sensor based on g-C3N4@CdS QDs for sensitive detection of Hg2+. Microchem. J. 2020, 152, 104259. [Google Scholar] [CrossRef]
  33. Han, F.; Song, Z.; Nawaz, M.H.; Dai, M.; Han, D.; Han, L.; Fan, Y.; Xu, J.; Han, D.; Niu, L. MoS2/ZnO-Heterostructures-Based Label-Free, Visible-Light-Excited Photoelectrochemical Sensor for Sensitive and Selective Determination of Synthetic Antioxidant Propyl Gallate. Anal. Chem. 2019, 91, 10657–10662. [Google Scholar] [CrossRef] [PubMed]
  34. Giaremis, S.; Katsikas, G.; Sempros, G.; Gjoka, M.; Sarafidis, C.; Kioseoglou, J. Ab initio, artificial neural network predictions and experimental synthesis of mischmetal alloying in Sm-Co permanent magnets. Nanoscale 2022, 14, 5824–5839. [Google Scholar] [CrossRef]
  35. Gao, N.; Yang, H.; Dong, D.; Dou, D.; Liu, Y.; Zhou, W.; Gao, F.; Nan, C.; Liang, Z.; Yang, D. Bi2S3 quantum dots in situ grown on MoS2 nanoflowers: An efficient electron-rich interface for photoelectrochemical N2 reduction. J. Colloid Interface Sci. 2022, 611, 294–305. [Google Scholar] [CrossRef]
  36. Li, F.; Cui, X.; Zheng, Y.; Wang, Q.; Zhou, Y.; Yin, H. Photoelectrochemical biosensor for DNA formylation based on WS2 nanosheets@polydopamine and MoS2 nanosheets. Biosens. Bioelectron. X 2022, 10, 100104. [Google Scholar] [CrossRef]
  37. Yang, W.; Wang, X.; Hao, W.; Wu, Q.; Peng, J.; Tu, J.; Cao, Y. 3D hollow-out TiO2 nanowire cluster/GOx as an ultrasensitive photoelectrochemical glucose biosensor. J. Mater. Chem. B 2020, 8, 2363–2370. [Google Scholar] [CrossRef]
  38. Chen, D.; Wang, X.; Zhang, K.; Cao, Y.; Tu, J.; Xiao, D.; Wu, Q. Glucose photoelectrochemical enzyme sensor based on competitive reaction of ascorbic acid. Biosens. Bioelectron. 2020, 166, 112466. [Google Scholar] [CrossRef]
  39. Zhang, X.; Xu, F.; Zhao, B.; Ji, X.; Yao, Y.; Wu, D.; Gao, Z.; Jiang, K. Synthesis of CdS quantum dots decorated graphene nanosheets and non-enzymatic photoelectrochemical detection of glucose. Electrochim. Acta 2014, 133, 615–622. [Google Scholar] [CrossRef]
  40. Yang, Y.; Yang, J.; He, Y.; Li, Y. A dual-signal mode ratiometric photoelectrochemical sensor based on voltage-resolved strategy for glucose detection. Sensor. Actuat. B-chem. 2021, 330, 129302. [Google Scholar] [CrossRef]
  41. Feng, C.; Xu, G.; Liu, H.; Lv, J.; Zheng, Z.; Wu, Y. A flow-injection photoelectrochemical sensor based on TiO2 nanotube arrays for organic compound detection. J. Electrochem. Soc. 2013, 161, H57–H61. [Google Scholar] [CrossRef]
  42. Yang, B.; Han, N.; Hu, S.; Zhang, L.; Yi, S.; Zhang, Z.; Wang, Y.; Chen, D.; Gao, Y. Cu/ZnO nano-thorn with modifiable morphology for photoelectrochemical detection of glucose. J. Electrochem. Soc. 2021, 168, 027516. [Google Scholar] [CrossRef]
  43. Du, J.; Yu, X.; Wu, Y.; Di, J. ZnS nanoparticles electrodeposited onto ITO electrode as a platform for fabrication of enzyme-based biosensors of glucose. Mater. Sci. Eng. C-Mater. 2013, 33, 2031–2036. [Google Scholar] [CrossRef] [PubMed]
  44. He, L.; Zhang, Q.; Gong, C.; Liu, H.; Hu, F.; Zhong, F.; Wang, G.; Su, H.; Wen, S.; Xiang, S.; et al. The dual-function of hematite-based photoelectrochemical sensor for solar-to-electricity conversion and self-powered glucose detection. Sensor. Actuat. B-chem. 2020, 310, 127842. [Google Scholar] [CrossRef]
  45. He, L.; Liu, Q.; Zhang, S.; Zhang, X.; Gong, C.; Shu, H.; Wang, G.; Liu, H.; Wen, S.; Zhang, B. High sensitivity of TiO2 nanorod array electrode for photoelectrochemical glucose sensor and its photo fuel cell application. Electrochem. Commun. 2018, 94, 18–22. [Google Scholar] [CrossRef]
  46. Yan, B.; Zhuang, Y.; Jiang, Y.; Xu, W.; Chen, Y.; Tu, J.; Wang, X.; Wu, Q. Enhanced photoeletrochemical biosensing performance from rutile nanorod/anatase nanowire junction array. Appl. Surf. Sci. 2018, 458, 382–388. [Google Scholar] [CrossRef]
  47. Liu, P.; Huo, X.; Tang, Y.; Xu, J.; Liu, X.; Wong, D.K. A TiO2 nanosheet-g-C3N4 composite photoelectrochemical enzyme biosensor excitable by visible irradiation. Anal. Chim. Acta 2017, 984, 86–95. [Google Scholar] [CrossRef] [PubMed]
Biosensors 14 00038 g001

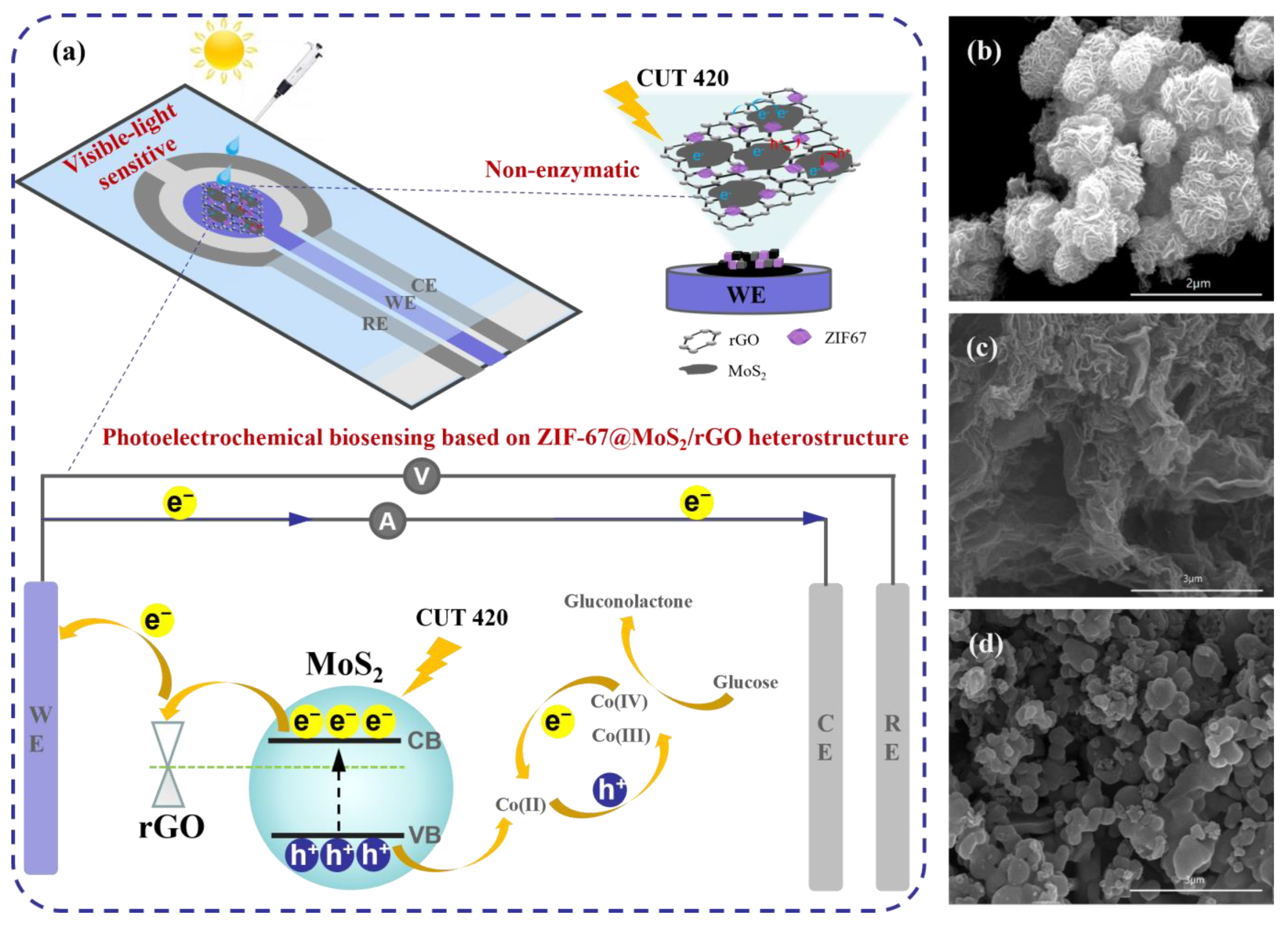

Figure 1. (a) Schematic diagram of the visible-light-sensitive PEC biosensing based on non-enzymatic ZIF-67@MoS2/rGO; SEM characterization of (b) MoS2, (c) MoS2/rGO, and (d) ZIF-67@MoS2/rGO.
Figure 1. (a) Schematic diagram of the visible-light-sensitive PEC biosensing based on non-enzymatic ZIF-67@MoS2/rGO; SEM characterization of (b) MoS2, (c) MoS2/rGO, and (d) ZIF-67@MoS2/rGO.
Biosensors 14 00038 g001
Biosensors 14 00038 g002

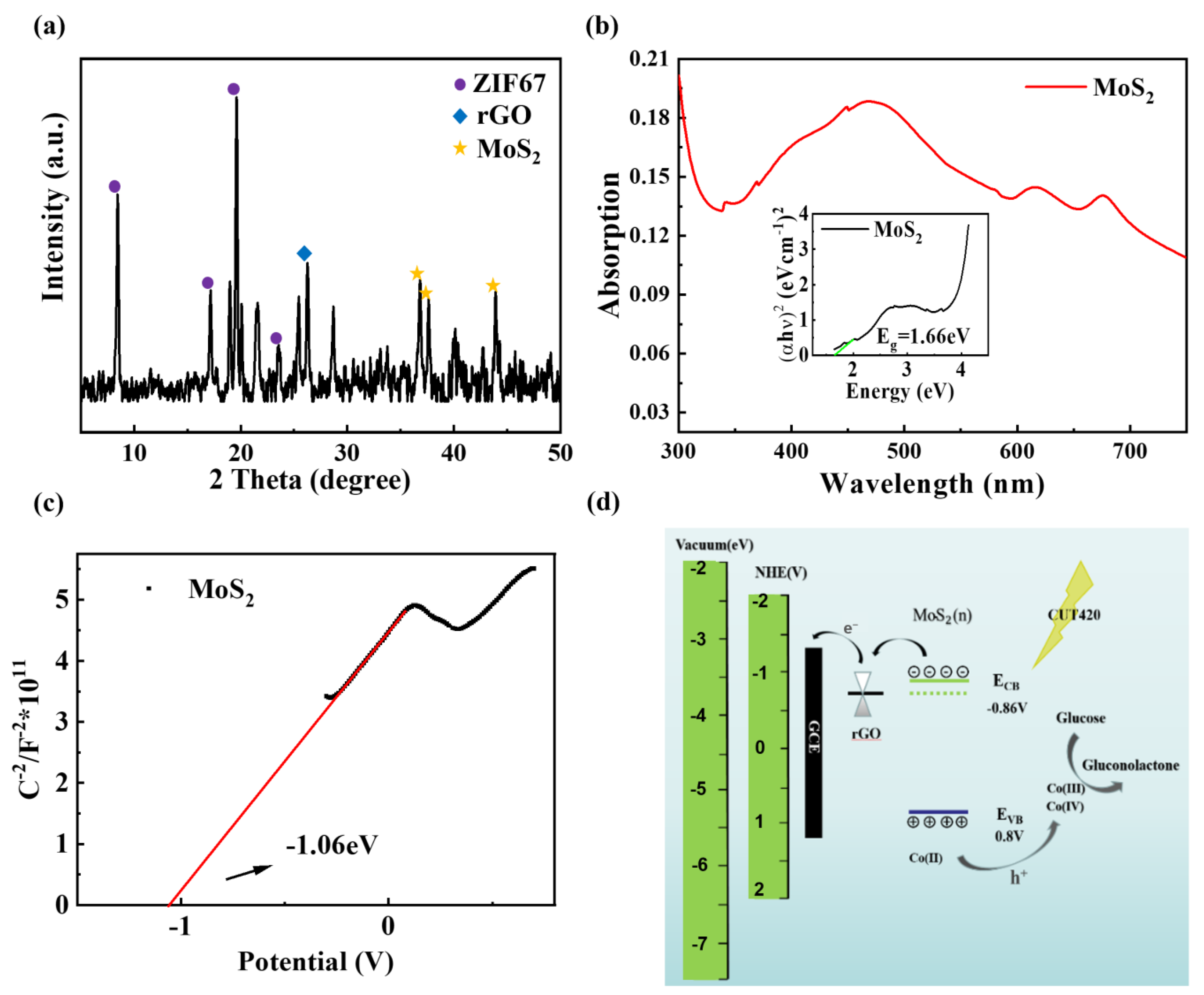

Figure 2. (a) XRD of ZIF-67@MoS2/rGO. (b) UV-visible absorption spectrum and Tauc diagram of MoS2; (c) M-S diagram of MoS2. (d) PEC biosensing mechanism diagram of ZIF-67@MoS2/rGO.
Figure 2. (a) XRD of ZIF-67@MoS2/rGO. (b) UV-visible absorption spectrum and Tauc diagram of MoS2; (c) M-S diagram of MoS2. (d) PEC biosensing mechanism diagram of ZIF-67@MoS2/rGO.
Biosensors 14 00038 g002
Biosensors 14 00038 g003

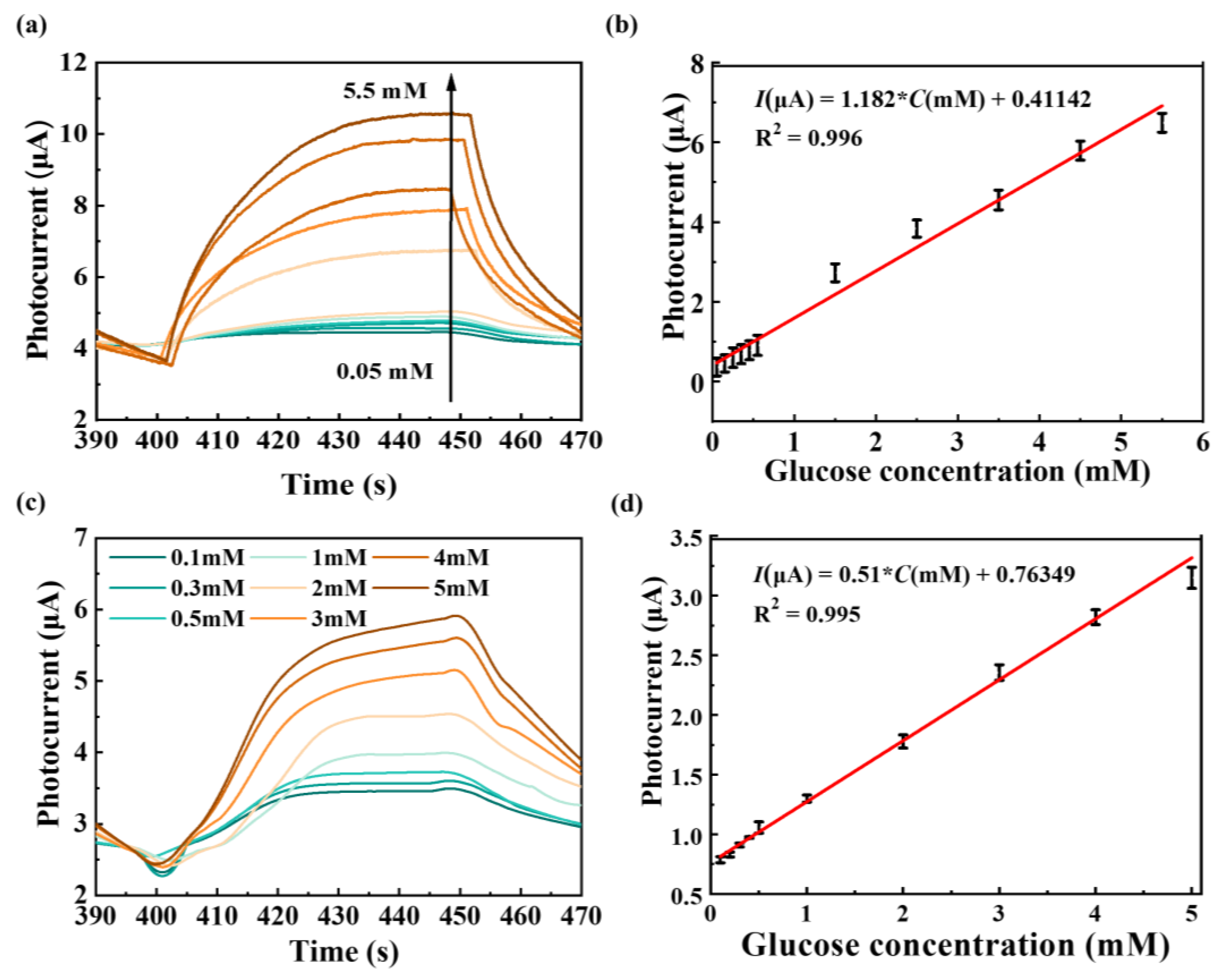

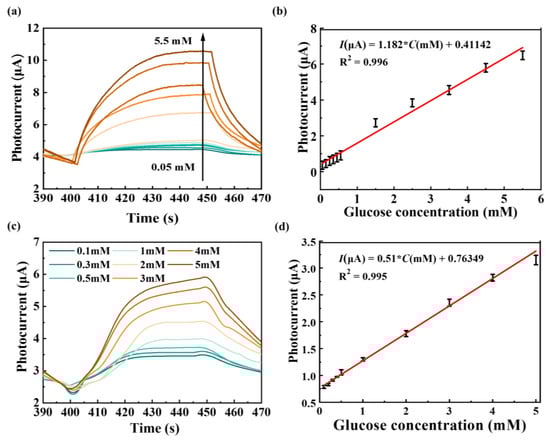

Figure 3. (a) The photocurrent–time curves of ZIF-67@MoS2/rGO GCEs with the successive injections of glucose into 0.1 M NaOH electrolyte. (b) The linear fitting of photocurrent vs. glucose concentration corresponding to (a). (c) The photocurrent–time curves of ZIF-67@MoS2/rGO SPEs with the successive injection of glucose into 0.1 M NaOH electrolyte. (d) The linear fitting of photocurrent vs. glucose concentration corresponding to (c).
Figure 3. (a) The photocurrent–time curves of ZIF-67@MoS2/rGO GCEs with the successive injections of glucose into 0.1 M NaOH electrolyte. (b) The linear fitting of photocurrent vs. glucose concentration corresponding to (a). (c) The photocurrent–time curves of ZIF-67@MoS2/rGO SPEs with the successive injection of glucose into 0.1 M NaOH electrolyte. (d) The linear fitting of photocurrent vs. glucose concentration corresponding to (c).
Biosensors 14 00038 g003
Biosensors 14 00038 g004

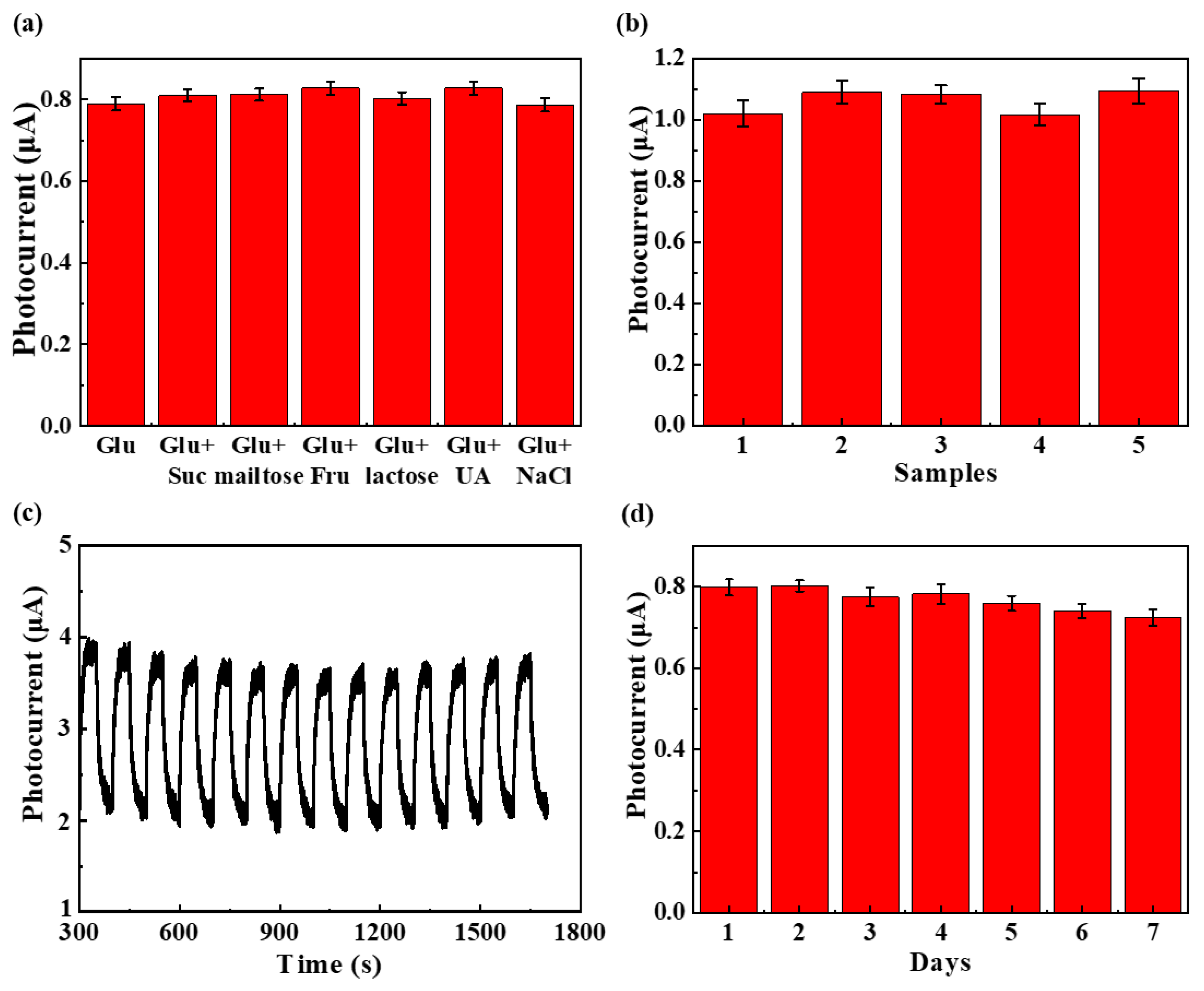

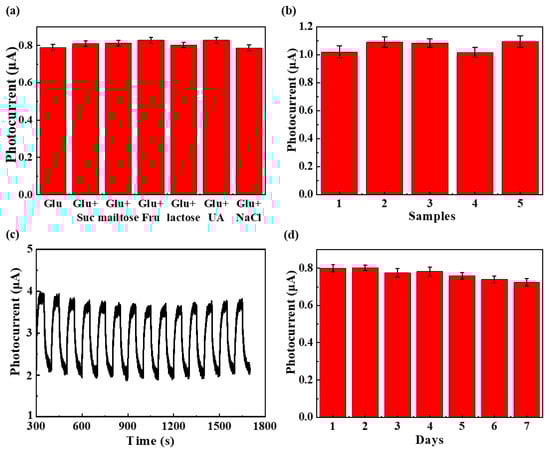

Figure 4. (a) Amperometric response of ZIF-67@MoS2/rGO SPE to 0.1 mM glucose with other interfering substances such as sucrose, maltose, fructose, lactose, uric acid, and NaCl in 0.1 M NaOH. (b) The repeatability of ZIF-67@MoS2/rGO SPEs to 0.5 mM glucose. Photocurrent responses of ZIF-67@MoS2/rGO SPE for (c) cyclic test of 1400 s. (d) Test for 7 consecutive days.
Figure 4. (a) Amperometric response of ZIF-67@MoS2/rGO SPE to 0.1 mM glucose with other interfering substances such as sucrose, maltose, fructose, lactose, uric acid, and NaCl in 0.1 M NaOH. (b) The repeatability of ZIF-67@MoS2/rGO SPEs to 0.5 mM glucose. Photocurrent responses of ZIF-67@MoS2/rGO SPE for (c) cyclic test of 1400 s. (d) Test for 7 consecutive days.
Biosensors 14 00038 g004
Table 1. PEC glucose detection in 5% human serum with ZIF-67@MoS2/rGO-modified SPE.
Table 1. PEC glucose detection in 5% human serum with ZIF-67@MoS2/rGO-modified SPE.
Real SampleFitted Value (μA)Scalar Addition (μA)Estimated Value (μA)Recovery (%)
10.7841.32.135103.9
20.8331.32.166102.5
30.7921.32.04596.4
