# Evaluation of the Chewing Pattern through an Electromyographic Device

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Development of a Device to Assess Chewing Behavior

#### 2.2. Sample Preparation and Characterization

- Number of chews (${n}_{chew}$ adimensional): the number of chews made by the subject (). The number of detected chewing cycles ${\u2206t}_{chew\_dx}$ is called ${n}_{chew\_dx}$. The whole process is repeated to calculate ${n}_{chew\_sx}$. The average of ${n}_{chew\_dx}$ and ${n}_{chew\_sx},$ gives an estimate of the number of chews ${n}_{chew}$:$${n}_{chew}=\frac{({n}_{chew\_dx}+{n}_{chew\_sx})}{2}$$
- Cycle Time (${t}_{cyc}$, second): the time spent on a single bite in seconds. ${t}_{cyc\_dx}$ is calculated as the ratio of the sum of all the time intervals of the chews ${\u2206t}_{chew\_dx}$ and the number of chews ${n}_{chew\_dx}$. The whole process is repeated to calculate ${t}_{cyc\_sx}$. The average of ${t}_{cyc\_dx}$ and ${t}_{cyc\_sx}$, gives an estimate of the cycle time ${t}_{cyc}$. This parameter is a good estimate of the chewing rate (in seconds). In the following, the full formula used to calculate ${t}_{cyc}$ is reported.$${t}_{cyc}=\frac{\left({t}_{cyc\_dx}+{t}_{cyc\_sx}\right)}{2}=\frac{\left(\frac{\sum {\u2206t}_{chew\_dx}}{{n}_{chew\_dx}}\right)+\left(\frac{\sum {\u2206t}_{chew\_sx}}{{n}_{chew\_sx}}\right)}{2}$$
- Chewing Time (${t}_{chew}$, second): the effective time in which the subject has chewed in seconds (), as expressed by the product between the number of chews and the cycle time, calculated according to the following equation:$${t}_{chew}=\frac{\left({t}_{chew\_dx}+{t}_{chew\_sx}\right)}{2}=\frac{\left({n}_{chew\_dx}\xb7{t}_{cyc\_dx}\right)+\left({n}_{chew\_sx}\xb7{t}_{cyc\_sx}\right)}{2}$$
- Work ($w$, volts * second): the estimated area under the masticatory signal. Right work ${w}_{dx}$ is the sum of the products between the mean voltage ($\overline{{v}_{dx}})$ and ${\u2206t}_{chew\_dx}.$ Dually, it is calculated as ${w}_{sx}$. The average between ${w}_{dx}$ and ${w}_{sx}$ is the work $w$.$$w=\frac{\left({w}_{dx}+{w}_{sx}\right)}{2}=\frac{\left(\sum \left(\overline{{v}_{dx}}\xb7{\u2206t}_{chew\_dx}\right)\right)+\left(\sum \left(\overline{{v}_{sx}}\xb7{\u2206t}_{chew\_sx}\right)\right)}{2}$$
- Work rate ($wr$, volt): indicates the power exerted by the masticatory muscles (in volts), which is expressed as the ratio between the work and chewing time. This feature is calculated as the ratio between the work and chewing time:$$wr=\frac{\left({wr}_{dx}+{wr}_{sx}\right)}{2}=\frac{\left((\frac{{w}_{dx}}{{t}_{chew\_dx}})\right)+\left((\frac{{w}_{sx}}{{t}_{chew\_sx}})\right)}{2}$$
- Asymmetry index ${i}_{as}$: is related to the number of chews of the masticatory, assessing whether it is balanced or not, and is calculated as follows:$${i}_{as}=mean\left({n}_{chew\_dx}\right)-mean\left({n}_{chew\_sx}\right)$$

- balanced if ${-1<i}_{as}<1$,
- slightly unbalanced to the right if ${0<i}_{as}<5$ or to left if ${-5<i}_{as}<0$
- unbalanced to the right ${i}_{as}>5$ or to the left if ${i}_{as}<-5$

#### 2.3. Statistics

## 3. Results

#### 3.1. Study Population

#### 3.2. Chewing Profiles of Smokers and Non-Smokers

#### 3.3. Graphical Clustering of the Chewing Profiles of Smokers and Non-Smokers

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Silverthon, D.U. Fisiologia: Un Approccio Integrato, 2nd ed.; Casa Editrice Ambrosiana: Rozzano, Italy, 2005. [Google Scholar]
- Hossain, D.; Imtiaz, M.H.; Sazonov, E. Comparison of Wearable Sensors for Estimation of Chewing Strength. IEEE Sens. J.
**2020**, 20, 5379–5388. [Google Scholar] [CrossRef] [PubMed] - Chung, J.; Oh, W.; Baek, D.; Ryu, S.; Lee, W.G.; Bang, H. Design and Evaluation of Smart Glasses for Food Intake and Physical Activity Classification. J. Vis. Exp.
**2018**, 2018, e56633. [Google Scholar] [CrossRef] - Selamat, N.A.; Ali, S.H.M. A Novel Approach of Chewing Detection based on Temporalis Muscle Movement using Proximity Sensor for Diet Monitoring. In Proceedings of the 2020 IEEE EMBS Conference on Biomedical Engineering and Sciences, IECBES 2020, Langkawi Island, Malaysia, 1–3 March 2021; Institute of Electrical and Electronics Engineers Inc.: New York, NY, USA, 2021; pp. 12–17. [Google Scholar] [CrossRef]
- Amft, O. A Wearable Earpad Sensor for Chewing Monitoring. In Proceedings of the Sensors, 2010 IEEE; Waikoloa, HI, USA, 1–4 November 2010, IEEE: New York, NY, USA, 2010. [Google Scholar]
- Shuzo, M.; Komori, S.; Takashima, T.; Lopez, G.; Tatsuta, S.; Yanagimoto, S.; Warisawa, S.; Delaunay, J.-J.; Yamada, I. Wearable Eating Habit Sensing System Using Internal Body Sound. J. Adv. Mech. Des. Syst. Manuf.
**2010**, 4, 158–166. [Google Scholar] [CrossRef] [Green Version] - Bi, Y.; Lv, M.; Song, C.; Xu, W.; Guan, N.; Yi, W. AutoDietary: A Wearable Acoustic Sensor System for Food Intake Recognition in Daily Life. IEEE Sens. J.
**2016**, 16, 806–816. [Google Scholar] [CrossRef] - Kalantarian, H.; Alshurafa, N.; Le, T.; Sarrafzadeh, M. Monitoring eating habits using a piezoelectric sensor-based necklace. Comput. Biol. Med.
**2015**, 58, 46–55. [Google Scholar] [CrossRef] - Farooq, M.; Sazonov, E. Segmentation and Characterization of Chewing Bouts by Monitoring Temporalis Muscle Using Smart Glasses with Piezoelectric Sensor. IEEE J. Biomed. Health Inform.
**2017**, 21, 1495–1503. [Google Scholar] [CrossRef] - Farooq, M.; Sazonov, E. Automatic Measurement of Chew Count and Chewing Rate during Food Intake. Electronics
**2016**, 5, 62. [Google Scholar] [CrossRef] [Green Version] - Farooq, M.; Sazonov, E. A Novel Wearable Device for Food Intake and Physical Activity Recognition. Sensors
**2016**, 16, 1067. [Google Scholar] [CrossRef] [Green Version] - Papapanagiotou, V.; Diou, C.; Zhou, L.; Boer, J.v.D.; Mars, M.; Delopoulos, A. A novel approach for chewing detection based on a wearable PPG sensor. IEEE Eng. Med. Biol. Soc.
**2016**, 2016, 6485–6488. [Google Scholar] - Papapanagiotou, V.; Diou, C.; Zhou, L.; Boer, J.V.D.; Mars, M.; Delopoulos, A. A Novel Chewing Detection System Based on PPG, Audio, and Accelerometry. IEEE J. Biomed. Health Inform.
**2017**, 21, 607–618. [Google Scholar] [CrossRef] - Wei, Y.; Minhad, K.N.; Selamat, N.A.; Ali, S.H.M.; Bhuiyan, M.A.S.; Ooi, K.J.A.; Samdin, S.B. A review of chewing detection for automated dietary monitoring. J. Chin. Inst. Eng.
**2022**, 45, 331–341. [Google Scholar] [CrossRef] - Hashii, K.; Tomida, M.; Yamashita, S. Influence of changing the chewing region on mandibular movement. Aust. Dent. J.
**2009**, 54, 38–44. [Google Scholar] [CrossRef] [PubMed] - Zhang, R.; Amft, O. Monitoring Chewing and Eating in Free-Living Using Smart Eyeglasses. IEEE J. Biomed. Health Inform.
**2018**, 22, 23–32. [Google Scholar] [CrossRef] [PubMed] - Zhang, R.; Actlab, O.A. Bite Glasses-Measuring Chewing Using EMG and Bone Vibration in Smart Eyeglasses. Available online: http://www.bitalino.com (accessed on 6 June 2023).
- Nicolas, E.; Veyrune, J.L.; Lassauzay, C.; Peyron, M.A.; Hennequin, M. Validation of video versus electromyography for chewing evaluation of the elderly wearing a complete denture. J. Oral Rehabil.
**2007**, 34, 566–571. [Google Scholar] [CrossRef] - Adachi, S.; Morikawa, K. Interface System Utilizing Musticatory Electromyogram. U.S. Patent US20100160808A1, 24 June 2010. [Google Scholar]
- Santos, K.W.; Echeveste, S.S.; Vidor, C.G.M. Influence of gustatory and olfactory perception in the oral. CoDAS
**2014**, 26, 68–75. [Google Scholar] [CrossRef] - Santos, K.; Maahs, M.A.P.; Vidor, D.C.G.M.; Rech, R.S. Masticatory Changes as a Result of Oral Disorders in Smokers. Int. Arch. Otorhinolaryngol.
**2014**, 18, 369–375. [Google Scholar] [CrossRef] [Green Version] - Reibel, J. Tobacco and oral diseases: Update on the evidence, with recommendations. In Medical Principles and Practice; Karger Publisher: Berlin, Germany, 2003; pp. 22–32. [Google Scholar] [CrossRef]
- Da Silva, G.R.; Rech, R.S.; Vidor, D.C.G.M.; dos Santos, K.W. Influence of Masticatory Behavior on Muscle Compensations During the Oral Phase of Swallowing of Smokers. Int. Arch. Otorhinolaryngol.
**2019**, 23, e317–e321. [Google Scholar] [CrossRef] [Green Version] - Brown, W.E.; Shearn, M.; Macfie, H.J.H. Method to investigate differences in chewing behaviour in humans: II. Use of electromyography during chewing to assess chewing behaviour. Science
**1993**, 25, 17–31. [Google Scholar] [CrossRef] - Abeltino, A.; Bianchetti, G.; Serantoni, C.; Ardito, C.F.; Malta, D.; De Spirito, M.; Maulucci, G. Personalized Metabolic Avatar: A Data Driven Model of Metabolism for Weight Variation Forecasting and Diet Plan Evaluation. Nutrients
**2022**, 14, 3520. [Google Scholar] [CrossRef] - Bianchetti, G.; Abeltino, A.; Serantoni, C.; Ardito, F.; Malta, D.; De Spirito, M.; Maulucci, G. Personalized Self-Monitoring of Energy Balance through Integration in a Web-Application of Dietary, Anthropometric, and Physical Activity Data. J. Pers. Med.
**2022**, 12, 568. [Google Scholar] [CrossRef] - Abeltino, A.; Bianchetti, G.; Serantoni, C.; Riente, A.; De Spirito, M.; Maulucci, G. Putting the Personalized Metabolic Avatar into Production: A Comparison between Deep-Learning and Statistical Models for Weight Prediction. Nutrients
**2023**, 15, 1199. [Google Scholar] [CrossRef] [PubMed]

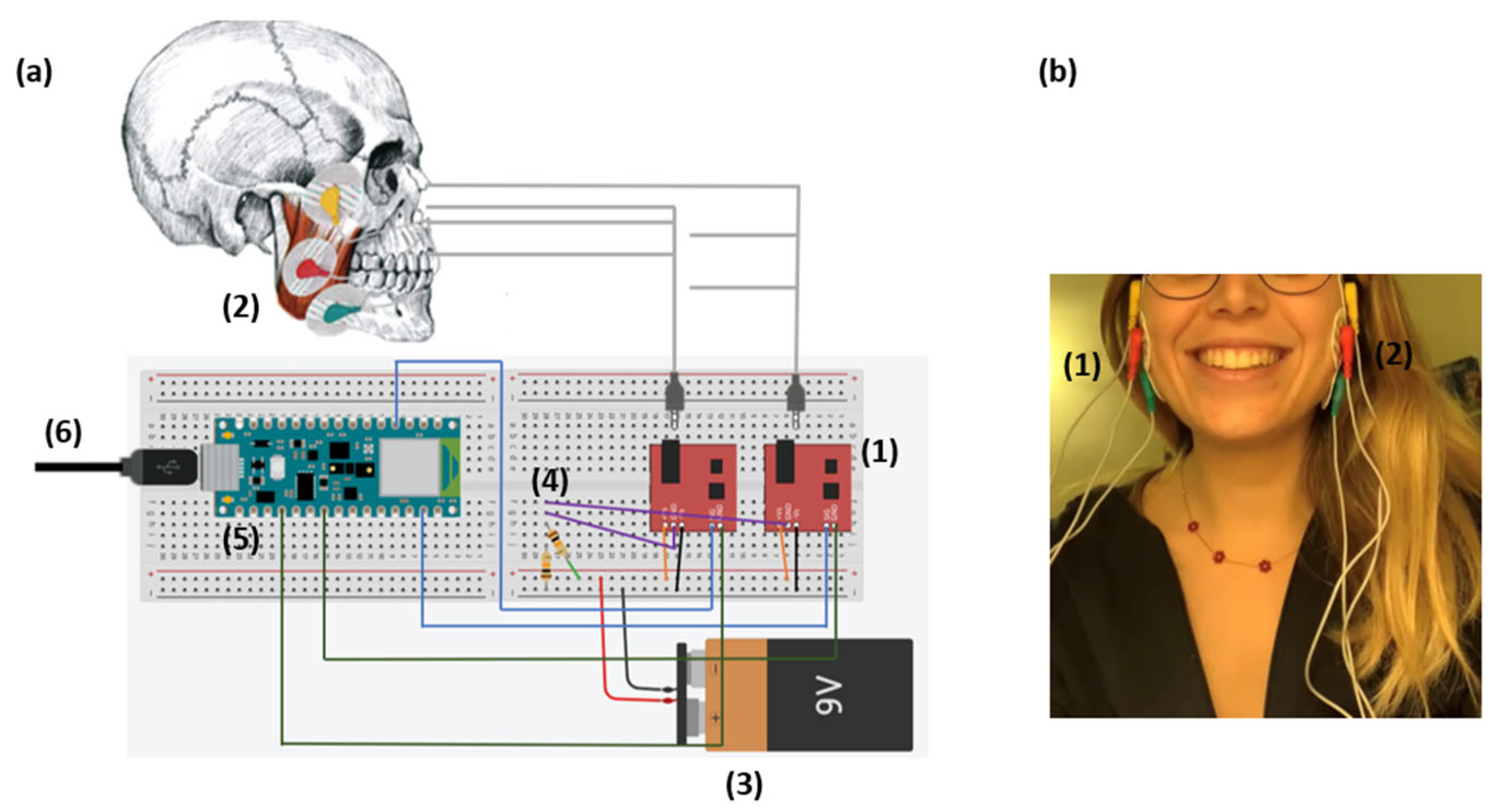

**Figure 1.**Chewing device. (

**a**) Scheme of the device and all the parts that it includes: (5) Arduino nano 33 BLE microprocessor connected to a PC via cable (6), two Arduino muscle v3 modules (1) connected to the microprocessor through a resistive divider (4) and a 9 volt battery (3). The signal is taken through the electrodes (2) connected to the Arduino muscle v3 modules. (

**b**) Placement of EMG electrodes on both the masseters of a subject (1–2): the red ones on the central part of the muscles, the green ones at the end of the masseters and the yellow ones on the cheekbones.

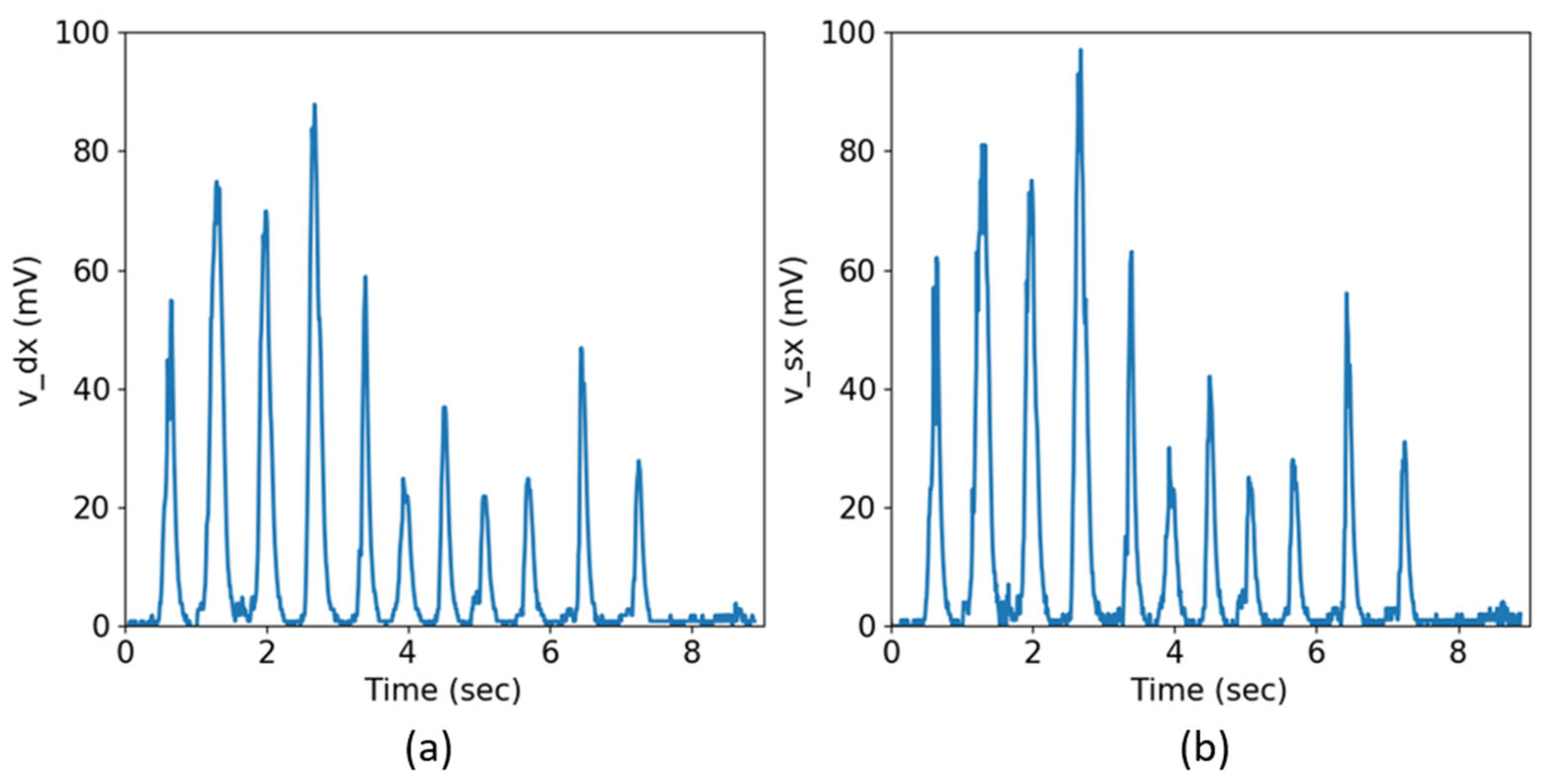

**Figure 2.**Chewing registration of the signals ${v}_{dx}\left(t\right)$ and ${v}_{sx}\left(t\right)$. The signals shown in the figures have been rectified, amplified and filtered by the circuit modules, and any bias has been eliminated via software. (

**a**) Right masseter activity ${v}_{dx}\left(t\right)$. (

**b**) Left masseter activity ${v}_{sx}\left(t\right)$.

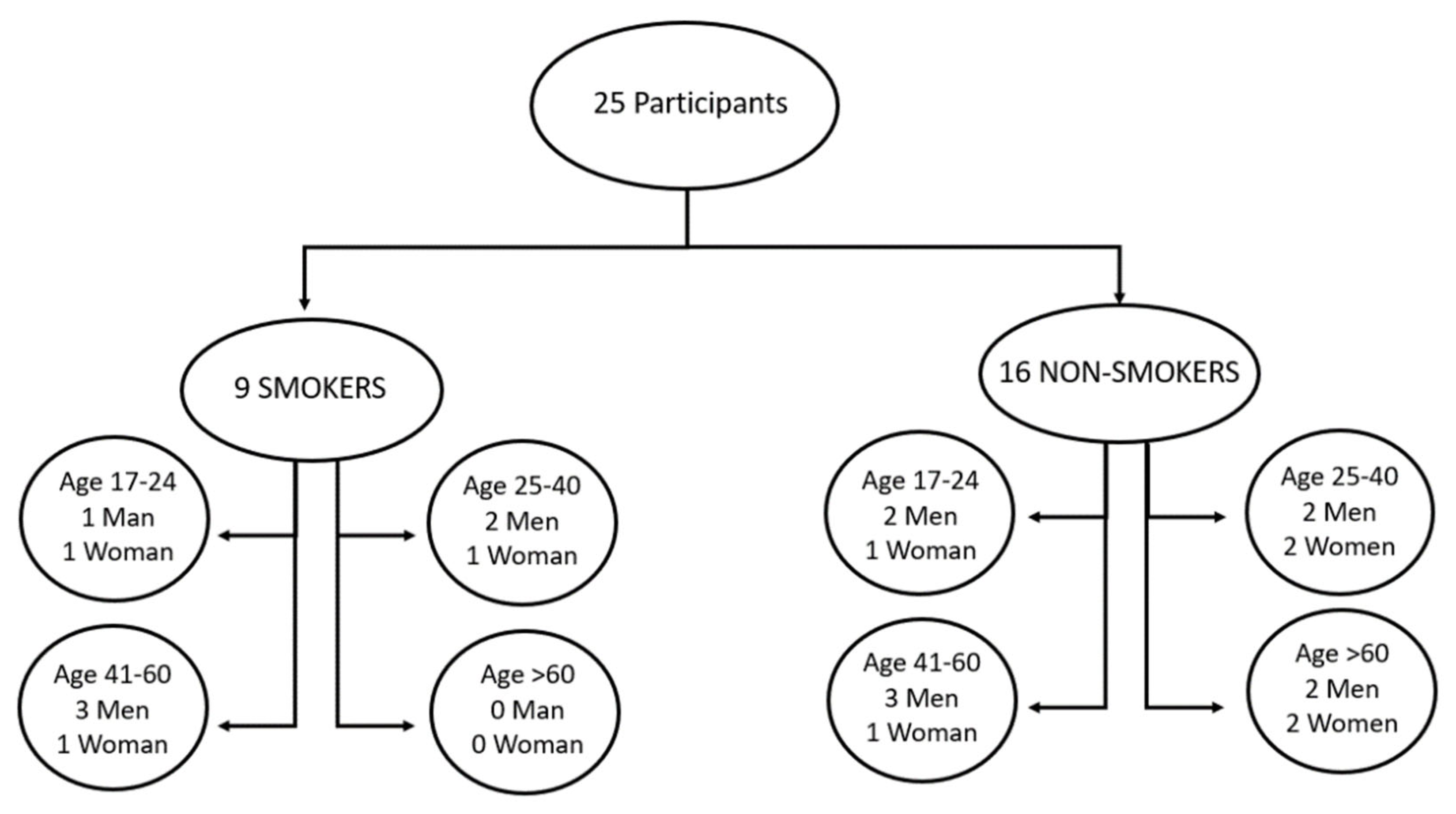

**Figure 3.**Characteristics of the group of people undergoing the test. The 25 subjects were divided into two macro-categories: smokers (9) and non-smokers (16). Each macro-category was divided into four sub-categories based on the age of the subjects (17–24, 25–40, 41–60, >60), of which the number of female (women) and male (men) subjects is indicated.

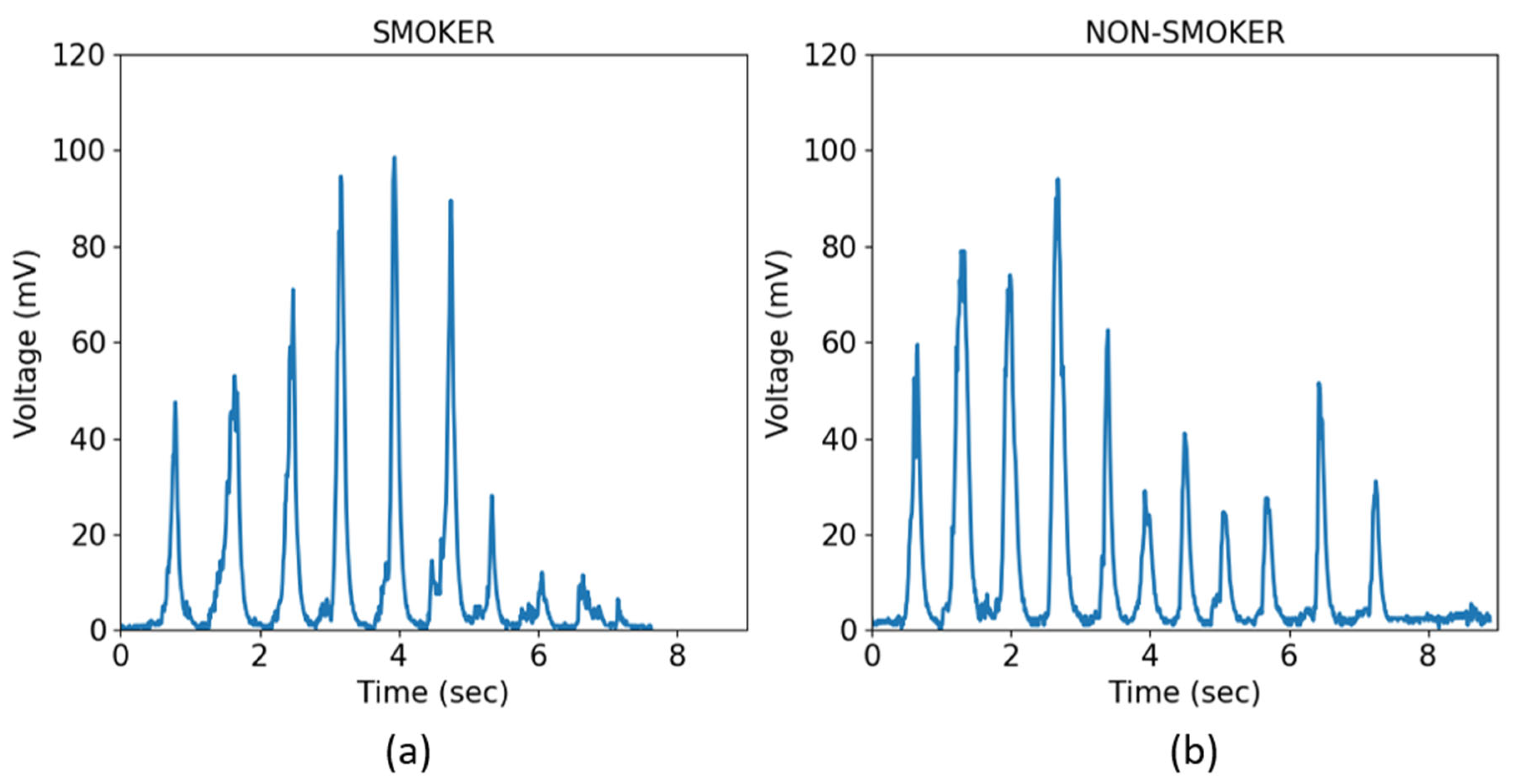

**Figure 4.**Examples of the chewing profiles of a smoker and a non-smoker. (

**a**) Chewing profile for the sample of bread of a smoker; (

**b**) Chewing profile for the sample of bread of a non-smoker. Chewing time and number of bites appear to be greater in the pattern of (

**b**).

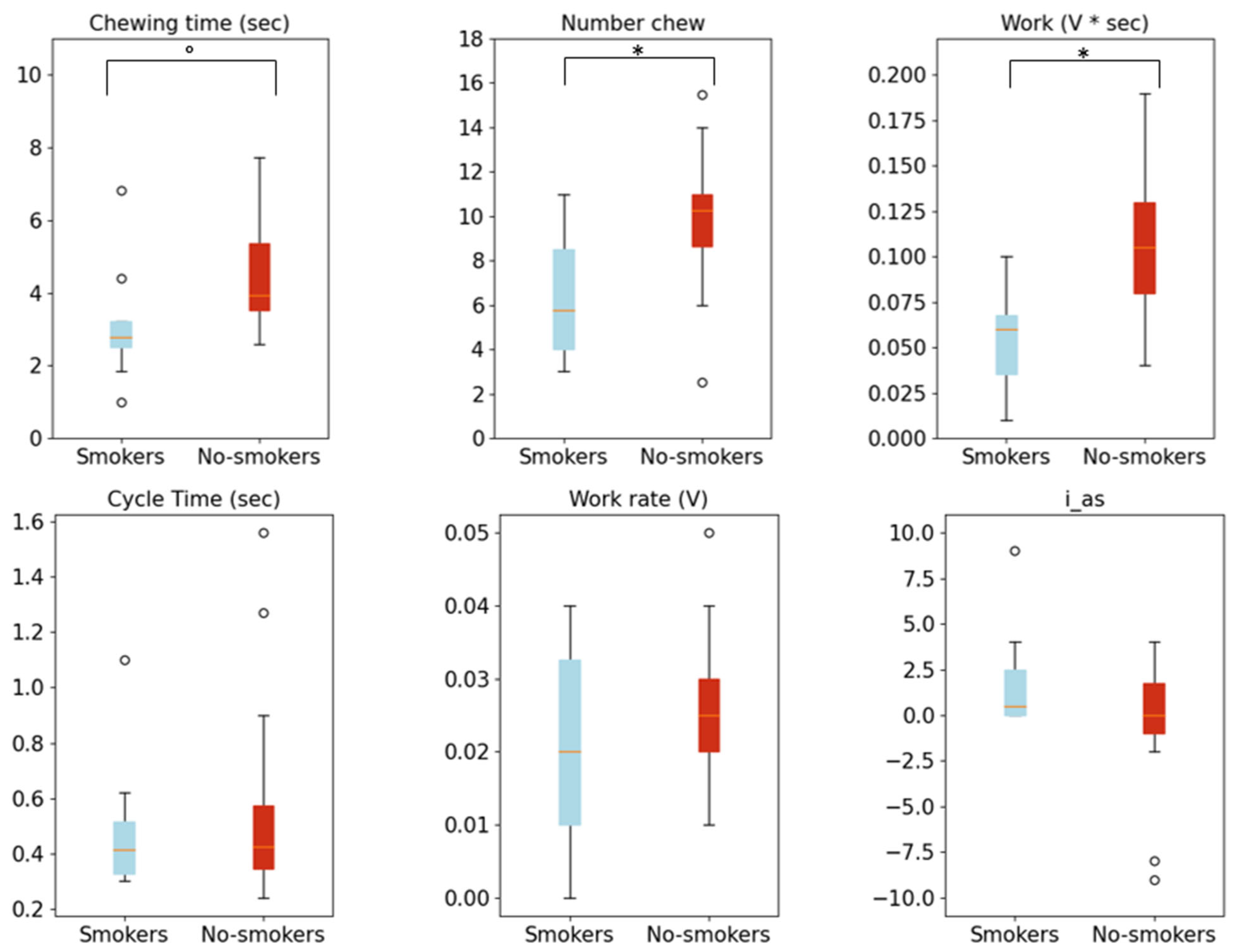

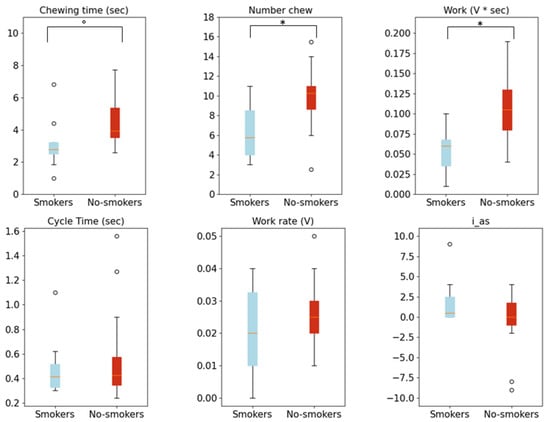

**Figure 5.**Boxplots of the chewing features of smokers (in blue) and non-smokers (in red): in the first row of the figure, there are the boxplots of chewing time, number of chews and work features; in the second row, there are boxplots of cycle time, work rate and asymmetry index. The asterisks represent a significance level ≤ 0.05. The dot represents a significance level ≤ 0.1.

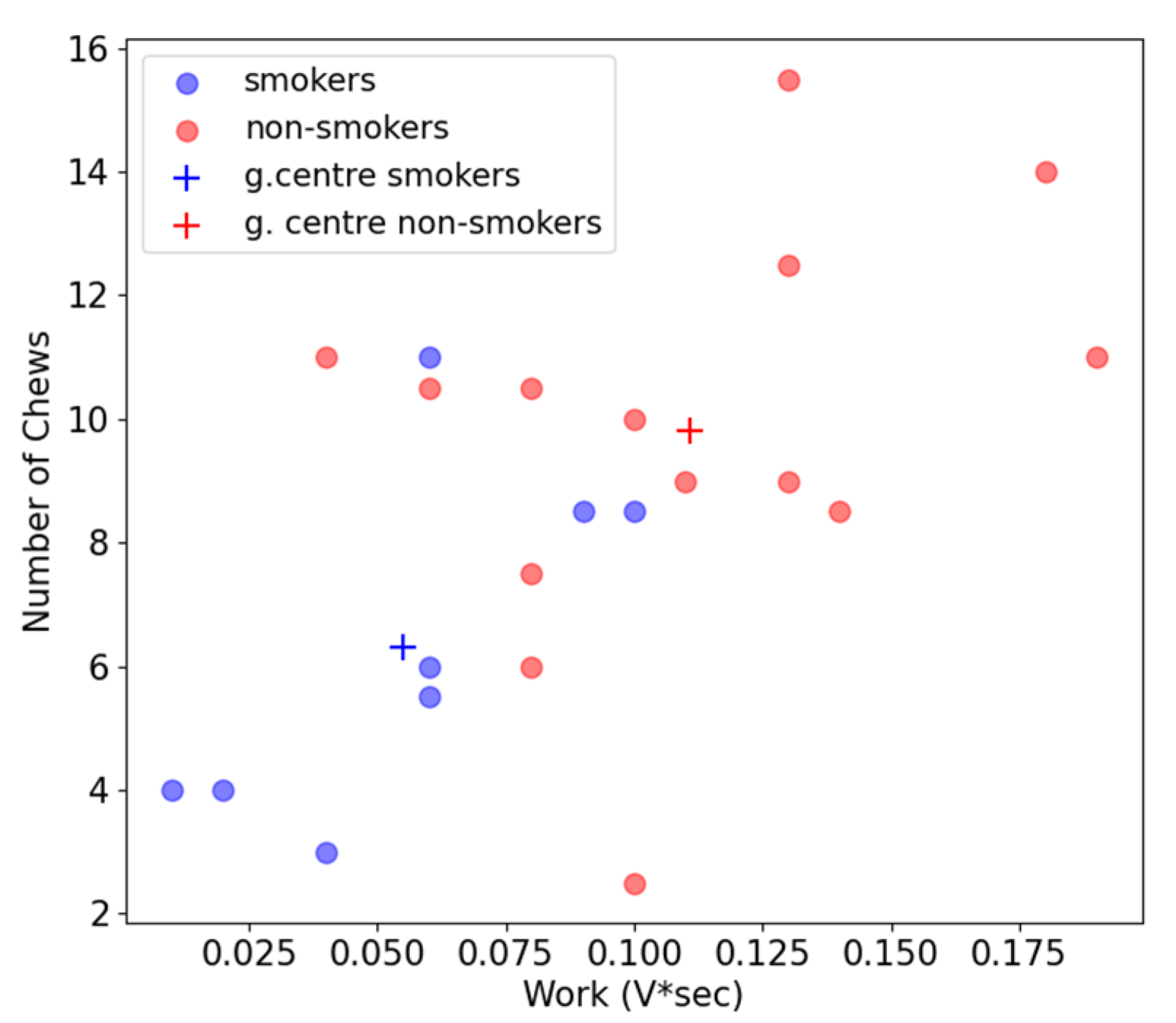

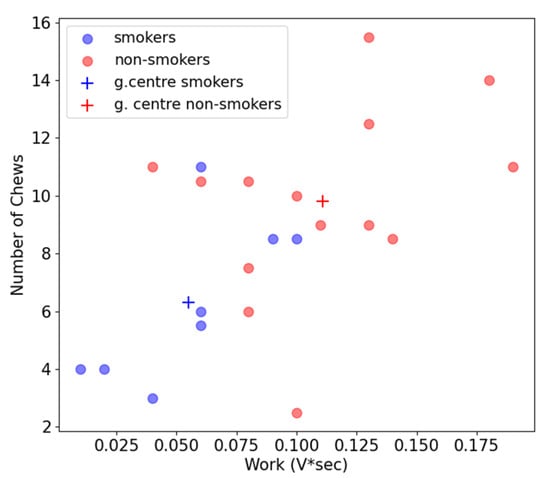

**Figure 6.**Representation of the data distribution in 2D space realized with ${n}_{chew}$ and w. The crosses in blue and red represent the geometric center of the distribution of smokers and non-smokers, respectively.

Food | Salt (100 g) | Fats (100 g) | Carbohydrates (100 g) | Proteins (100 g) | Sugars (100 g) | Fiber (100 g) |
---|---|---|---|---|---|---|

Bread | 0 | 6.5 | 58 | 10 | 4 | 2.5 |

Features | Mean Smokers | Standard Dev. Smokers | Mean Non-Smokers | Standard Dev. Non-Smokers | Statistical Test | p-Value ^{1} |
---|---|---|---|---|---|---|

Age | 43.88 | 14.4 | 46.79 | 20.73 | −0.33 | 0.32 |

Sex | 0.62 | 0.48 | 0.64 | 0.48 | 0.14 | 0.49 |

BMI | 25.64 | 3.02 | 24.38 | 2.02 | 1.11 | 0.16 |

${t}_{chew}$ | 3.15 | 1.66 | 4.39 | 1.39 | −1.78 | 0.07 ° |

${n}_{chew}$ | 6.31 | 2.6 | 9.82 | 3.13 | −2.56 | 0.02 * |

${t}_{cyc}$ | 0.5 | 0.25 | 0.57 | 0.38 | 53 | 0.34 |

$w$ | 0.06 | 0.03 | 0.11 | 0.04 | −3.12 | 0.01 * |

$wr$ | 0.02 | 0.01 | 0.03 | 0.01 | −0.99 | 0.17 |

${i}_{as}$ | 2 | 2.96 | −0.57 | 3.66 | 37 | 0.14 |

^{1}t-test and Mann–Whitney test based on Shapiro’s test for data normality. Statistically significant differences are reported in bold. (*) stands for p-value < 0.05; (°) stands for p-value $\le 0.1$
