Article

Viscosity-Sensitive Solvatochromic Fluorescent Probes for Lipid Droplets Staining

by
Mao-Hua Wang
,
Wei-Long Cui
,
Yun-Hao Yang
and
Jian-Yong Wang
*
State Key Laboratory of Biobased Material and Green Papermaking, Key Laboratory of Paper Science and Technology of Ministry of Education, Faculty of Light Industry, Qi Lu University of Technology, Shandong Academy of Sciences, Jinan 250353, China
*
Author to whom correspondence should be addressed.
Biosensors 2022, 12(10), 851; https://doi.org/10.3390/bios12100851
Submission received: 10 September 2022 / Revised: 3 October 2022 / Accepted: 7 October 2022 / Published: 9 October 2022
(This article belongs to the Special Issue Biosensing and Diagnosis)
Browse Figures
Review Reports Versions Notes

Abstract

:
Lipid droplets (LDs) are simple intracellular storage sites for neutral lipids and exhibit important impact on many physiological processes. For example, the changes in the polar microenvironment inside LDs could affect physiological processes, such as lipid metabolism and storage, protein degradation, signal transduction, and enzyme catalysis. Herein, a new fluorescent chemo-sensor (Couoxo-LD) was formulated by our molecular design strategy. The probe could be applied to effectively label intracellular lipid droplets. Intriguingly, Couoxo-LD demonstrated positive sensitivity to both polarity and viscosity, which might be attributed to its D-π-A structure and the twisted rotational behavior of the carbon–carbon double bond (TICT). Additionally, Couoxo-LD was successfully implemented in cellular imaging due to its excellent selectivity, pH stability, and low biotoxicity. In HeLa cells, the co-localization curve between Couoxo-LD and commercial lipid droplet dyes overlapped at 0.93. The results indicated that the probe could selectively sense LDs in HeLa cells. Meanwhile, Couoxo-LD can be applied for in vivo imaging of zebrafish.

Graphical Abstract

1. Introduction

Lipid droplets (LDs) serve as simple intracellular storage sites for neutral lipids and consist of a non-polar neutral lipid core [1]. Studies have shown that LDs are not only simple energy stores but also complex and dynamic multifunctional organelles [2]. For example, alterations in the polar microenvironment surrounding LDs affect physiological processes, such as lipid metabolism and storage, protein degradation, signal transduction, and enzyme catalysis [3]. Furthermore, previous studies reported that homeostasis of the LDs microenvironment was associated with diseases, such as obesity, cardiovascular disease, and diabetes mellitus [4,5,6]. Cancer cells exhibit a strong affinity for fatty acids and cholesterol, which are over-stored in lipid droplets. [7]. The high levels of LDs in tumors provide a potential means of monitoring and treating cancer [8]. Therefore, the tracking and monitoring of LDs are essential. In addition, LDs consist a unique structure (a single phospholipid membrane with a hydrophilic “head (group)” facing the cytoplasm and an internal storage of lipid cores, such as triglycerides and cholesterol esters [9,10]), i.e., a hydrophobic and viscous environment inside the lipid droplets. Theoretically, if the probe exhibits different fluorescence properties in these two microenvironments, they could be used as a tool for labeling LDs [11,12].
Fluorescence imaging has established itself as a beneficial tool for studying biological systems because of its high sensitivity, accessibility, non-invasiveness, and real-time and in situ detection of target molecules [13,14,15,16,17,18,19]. So far, several fluorescent probes for specifically imaging LDs have been reported [20,21,22,23,24,25,26,27]. For example, Yu et al., designed two heteroindole-based two-photon fluorescent probes and visualized the polarity of LDs at a cellular level and in zebrafish larvae [15]. However, there were only a few probes that were reported to respond positively to both the polarity and viscosity of lipid droplets. Therefore, there is a requirement to develop a strong color-changing LDs probe for sensing both polarity and viscosity [28,29].
Since Perkin et al. first synthesized artificial coumarins by chemical synthesis in 1868 [30], coumarin derivatives have been widely used in the design of small-molecule fluorescent sensors because of their good biocompatibility, controlled structure, and stable and strong fluorescence emission intensity [31,32,33,34,35,36,37,38,39,40,41]. Here, a solvent–chromogenic lipid droplets fluorescent probe, Couoxo-LD, was synthesized using benzoylglycine and coumarin fluorescent moiety. Couoxo-LD consisted an oxazolone and a coumarin derivative linked by a double bond. In optical characterization tests, the emission wavelength of the probe exhibited a significant red shift with increasing solvent polarity. The emission intensity of the probe increased with increasing solvent viscosity, showing regular polarity-viscosity-sensitive characteristics. The properties of good biocompatibility and pH stability were expressed in this probe. In addition, Couoxo-LD exhibited satisfactory lipid droplets targeting, possessed a high degree of overlap with commercial lipid droplets dye co-localization imaging, and had been successfully applied to cells and zebrafish imaging.

2. Synthesis of Probes

2.1. Reagents and Materials

The materials and reagents involved in the experiments were obtained commercially; furthermore, no secondary purification was carried out. The instruments used in the experiments were described in detail in the supporting materials.

2.2. Synthesis of Couoxo-LD

The synthesis of compound 1 was reported in detail in earlier work [42]. The synthetic design route of Couoxo-LD was shown in Scheme 1 and the specific synthesis was referred to in Ref. [43].
Compound 1 (7-(diethylaMino)-2-oxo-2H-chroMene-3-carbaldehyde) (49.1 mg, 0.2 mmol), compound 2 (benzoylglycine) (39.42 mg, 0.22 mmol), and triphenylphosphine (5.25 mg, 0.022 mmol) were dissolved in anhydrous acetic anhydride (54.14 mg 50 μL, 0.53 mmol) and stirred for 4 h at 130 °C. After completion of the reaction (thin-layer chromatography monitoring), reaction mixture was cooled to room temperature. Ethyl alcohol (95%, 5.0 mL) was added to produce a large amount of precipitation. The product was obtained by filtration and recrystallization from ethanol (66.81 mg, 86 %). 1H NMR (400 MHz, CDCl3) δ 9.17 (s, 1H), 8.13–8.07 (m, 2H), 7.63–7.57 (m, 1H), 7.56–7.49 (m, 3H), 7.43 (d, J = 8.9 Hz, 1H), 6.64 (dd, J = 9.0, 2.4 Hz, 1H), 6.41 (d, J = 2.4 Hz, 1H), 3.45 (q, J = 7.1 Hz, 4H), 1.25 (t, J = 7.1 Hz, 6H). 13C NMR (101 MHz, CDCl3) δ 166.74, 162.76, 161.37, 157.09, 152.31, 146.86, 133.16, 131.94, 131.40, 128.94, 128.14, 125.67, 125.27, 113.79, 110.03, 109.86, 97.34, 45.30, 12.52.

3. Result and Discussion

3.1. Probe Design and Discussion

As mentioned above, LDs are distinguished from the surrounding viscous environment due to their unique internal structure, namely a phospholipid monolayer and a lipid core composed of fatty acids. The large amount of water and inorganic ions as components of the cytoplasmic solute provides a polar environment around LDs. Meanwhile, the characteristic environments such as viscosity and non-polarity exhibited inside LDs serve as a reliable theory to support our development of efficient lipid droplets fluorescent probes.
Based on the above principles, we designed and constructed a fluorescent probe Couoxo-LD with a structure sensitive to both viscosity and polarity. Couoxo-LD, consisting of coumarin derivatives and benzoylglycine, possessed strong electronic push–pull properties. In addition, the coumarin scaffold was selected as the monomeric component of Couoxo-LD, giving the probe a certain lipophilicity and therefore a higher sensitivity to lipid droplets. By introducing a diethylamine electron donor, Couoxo-LD was designed as a molecule with a typical D-π-A structure. In conclusion, the solvent-altering effect of Couoxo-LD was the main reason for illuminating intracellular lipid droplets. In an aqueous environment, such as a cytoplasmic solute, the twisted rotational behavior (TICT) around the carbon–carbon double bond hindered the emission behavior of Couoxo-LD [44]. In contrast to this, in non-polar media, such as LDs, it would release a strong signal through the locally excited (LE) state. That is, the vinyl structure in Couoxo-LD allowed the free rotation of the probe molecule that was restricted by the environment, which affected the emission behavior of the probe (Scheme 1). The probe Couoxo-LD was characterized by 1H NMR and 13C NMR (Supplementary Figures S1 and S2).

3.2. Study of Photophysical Properties of Probes

The molecular probe that possessed a donor (D)-π-acceptor (A) structure exhibited a pronounced solvatochromic effect and its photophysical properties varied with solvent polarity. Therefore, the absorption and emission behaviors of Couoxo-LD in different polar solvents were investigated (Figure 1 and Figure S3), such as 1,4-dioxane, methanol (MeOH), dichloromethane (DCM), N,N-dimethylformamide (DMF), ethanol (EtOH), tetrahydrofuran (THF), toluene (Tol), dimethyl sulfoxide (DMSO), ethyl acetate (EtOAc), acetone, and acetonitrile (CH3CN).
As shown in Figure 1 and Figure S3, the spectral data of the probe in different polar solvents were firstly explored, and Couoxo-LD showed strong absorption and emission phenomena and exhibited red-shifted behavior. From the emission peak at 576 nm in toluene to 622 nm in dimethylsulfoxide, the emission peak of Couoxo-LD underwent a red shift of about 50 nm. Under 365 nm-UV irradiations, it was clearly seen that this probe with an electronic push–pull structure exhibited a clear solvent discoloration effect accompanied by a change in fluorescence color from blue (toluene) to orange-red (dimethylsulfoxide) (Figure 1a). The above presented results demonstrate the ICT effect of Couoxo-LD. As mentioned above, we evaluated the environment-sensitive and alike-solvent-discoloration effect of the Couoxo-LD by studying the emission behavior of Couoxo-LD under different solvent polarities. In particular, Couoxo-LD exhibited a strong positive solvent discoloration effect, which was consistent with the closely reported fluorophore [45]. Moreover, a gradual increase in the polarity parameter ET(30) from 33.9 kcal−1 to 55.4 kcal−1 molar concentration resulted in a continuous red shift of the maximum emission wavelength of the probe (Figure 1a). More significantly, we found that Couoxo-LD showed a satisfactory linear relationship between the emission peak in different polar solvents and the ET(30) of the solvent with their Pearson correlation coefficient of 0.991 (Figure 1b and Figure S3) and a slope of 4.1 nm ET(30) units. This was caused by the function of the intra-molecular charge transfer effect (ICT) from the electron-giving N,N-diethyl unit to the electron-accepting oxazol-5(4H) one. These results indicated that the Couoxo-LD photophysical properties were closely related to solvent polarity.
To verify the above conjecture, we performed density general function theory (DFT) calculations for Couoxo-LD, and based on them we further optimized the electron cloud around Couoxo-LD using the Gaussian’09 program and DFT-derived Multiwfn and VMD program models. The distribution of Couoxo-LD in the more polar PBS-buffered solvent and the distribution of HOMO and LUMO in the less polar dioxane solvent were also calculated (Figure 2). The results show that the energy band gap ΔE of Couoxo-LD in aqueous solution is smaller than that in dioxane solvent. Obviously, the larger the energy band gap ΔE, the smaller the wavelength of the maximum absorption peak because the energy required for the electron leap is large. It was further verified that the wavelength of the absorption peak of Couoxo-LD in a low-polarity solvent environment (dioxane) was smaller than that of the absorption peak in a high-polarity solution (PBS buffer).
Since the ΦF of Couoxo-LD depended strongly on the solvent’s properties (Table 1), the ΦF increased with increasing solvent polarity (Toluene to Acetone) and reached a maximum. The increase in ΦF due to charge transfer (negative solvatokinetic effect) could be explained by several mechanisms, such as proximity effects and conformational changes. The decrease in ΦF from DMSO to DMF (positive solvatokinetic effect) could be attributed to strong ICT interactions. As described in the literature [46], the fluorescence quantum yield of Couoxo-LD depended on the polarity of the solvent, as well as on specific solute–solvent interactions, such as hydrogen bonding and high photostability.

3.3. The Emission Behavior of the Probe in PBS and Dioxane

Furthermore, we investigated the spectroscopic testing of the probe in different volume ratios of PBS buffer–dioxane mixtures (Figure 3). From the above experiments, we discovered that the emission behavior of the probe was related to the polarity of the medium; therefore, we further explored the lipid solubility test of the probe in different polar environments. In the binary solvent system of PBS buffer and dioxane, increasing the proportion of PBS buffer (fw) from 40% to 100%, the fluorescence intensity of Couoxo-LD showed a trend of increasing and then rapidly decreasing. Its emission peak underwent a certain red shift, which we judged to be caused by the increased polarity of the solvent mixture. The emission of the probe decreased appreciably with the decrease of the lipid-soluble solvent. This might be due to the increasing content of the PBS buffer, in which the increased polarity of the solvent made Couoxo-LD more sensitive, masking the solubility of the probe to the lipid solvent. This results in a reduction in the emission intensity of Couoxo-LD and a red shift of the maximum emission peak. All these findings suggested that the optical properties of Couoxo-LD were closely related to the environmental polarity.

3.4. Probe Emission Behavior in Viscous Environments

We verified the viscosity-emitting behavior of Couoxo-LD in binary systems with different ratios of PBS buffer and glycerol. As shown in Figure 4a, the emission intensity gradually increased with the increase of glycerol content. We further explored the relationship between the probe in a medium with different volume ratios of PBS buffer–Glycerol and the maximum emission intensity. The emission intensity of Couoxo-LD increased exponentially with the viscosity of the system (Figure 4b), which was consistent with the D-π-A structure of the probe molecule we mentioned earlier. In a low-viscosity environment, the free intra-molecular rotation leads to a slackening of the excitation energy, which greatly attenuated the emission phenomenon. In high-viscosity environments, free rotation within the probe molecule was inhibited by the environment and the molecule released energy primarily by radiation, resulting in a significant enhancement of fluorescence emission from Couoxo-LD. Furthermore, the color change of Couoxo-LD in the mixed system was found to be affected by polarity in the study (Figure 4c,d). This could be due to the higher polarity of the solution in the pure-PBS-buffer environment. With the addition of glycerol, the polarity in the mixed system decreased. A shift from red to yellowish green occurred, while the spectrum underwent a blue shift. Finally, when the glycerol ration was increased to 100%, the polarity of the system was greater than the mixed polarity of both and a red shift in the spectrum occurred and the color changed back to red. These results showed that Couoxo-LD could successfully monitor changes in viscosity and respond to polarity.

3.5. Probe Stability Study

To verify whether the Couoxo-LD was adapted to the sophisticated environment inside living cells, we investigated the emission behavior of Couoxo-LD in phosphate buffer solutions over a wide range of pH values. The results showed that the fluorescence intensity of Couoxo-LD decreased slightly when decreasing the solution pH (Figure 5a). Overall, the fluorescence intensity of Couoxo-LD was observed to be almost identical in different pH environments, demonstrating that the probe was unaffected by pH. We then investigated the response of the probe Couoxo-LD under different interfering ion environments (Figure 5b). The ions and different small biomolecules were added to PBS buffer and dioxane solutions, respectively, and the results showed that the fluorescence intensity of the probe did not change significantly in the organic solvent dioxane and PBS buffer, indicating that the emission behavior of Couoxo-LD was almost unaffected by the other chemicals. Furthermore, the emission intensity of Couoxo-LD in PBS buffer remained almost unchanged after continuous irradiation with a 365 nm-UV lamp for 1000 s, while it remained at a high level in dioxane, although it decreased slightly (Figure 5c). The excellent photostability indicated that the probe Couoxo-LD possessed a strong resistance to photobleaching and photo bursts.

3.6. Probe Couoxo-LD for Bioimaging Applications

The cytotoxicity of the probe was tested by the standard MTT method (Supplementary Figure S5). Cells survival remained above 90% under incubation with a concentration of 20 μM Couoxo-LD, indicating that the cytotoxicity of Couoxo-LD was low and exhibited no significant impact on the cells testing. Encouraged by the excellent optical testing of the Couoxo-LD, we then estimated its cells imaging capabilities by laser scanning confocal (LSC) imaging techniques (Figure 6). BODIPY 493/503, a commercially available probe, was used for monitoring LDs as a control. We evaluated the absorption and emission spectra of Couoxo-LD and BODIPY (Supplementary Figure S6). Living HeLa cells were stimulated with oleic acid in order to generate more LDs. Figure 6d demonstrates the co-localization images of both dyes on intracellular lipid droplets. As anticipated, Couoxo-LD labeled intracellular lipid droplets well (Figure 6e,f). Furthermore, the Pearson’s correlation coefficient between Couoxo-LD and the commercial dye BODIPY was as high as 0.93. These results suggested that Couoxo-LD possessed a good ability to sense LDs in living HeLa cells.
Meanwhile, to investigate the response of the probe to intracellular polarity, we performed imaging tests on the probe. In the control group, HeLa cells were imaged after incubation with culture medium for 30 min. In the experimental group, the cells were further treated with a preconfigured H2O2 (500 μM, 20 μL) solution for 20 min on the basis of control cells. The H2O2 solution would kill the cells, leading to a decrease in the number of intracellular lipid droplets and resulting in a change in intracellular polarity. At this point, the fluorescence of the green channel diminished from bright green (Figure 7b,f), the fluorescence of the red channel was lighted up (Figure 7c,g), and the images of the combined channels also showed a change from green to orange fluorescence (Figure 7d,h).
Zebrafish have similar digestive systems to humans, such as the liver and intestines. Additionally, their methods of digestion and nutrient absorption transport are highly similar to humans. Therefore, using live zebrafish to model intestinal lesions could help to further study human-related diseases. Approximately 70% of the zebrafish yolk sac fraction is neutral lipid, and by utilizing the lipid-specific fluorescent staining of the zebrafish yolk sac (Figure 8b and Figure S8b), it was clearly observed that both dyes stained the zebrafish yolk sac. This indicates that Couoxo-LD can successfully label lipid droplets. Therefore, Couoxo-LD was informative for further studies on human physiology and pathology caused by abnormal expression of lipid droplets.

4. Conclusions

In this work, we designed a polar viscosity-sensitive fluorescent probe for targeting LDs. The probe Couoxo-LD was extremely sensitive to the polarity and viscosity of different media and showed intense fluorescence in LDs. In addition, the probe possessed splendid selectivity, low biotoxicity, and photostability. By artificially altering the external environment, Couoxo-LD could be competently used for discriminating changes in LDs polarity between living and post-mortem HeLa cells. Couoxo-LD was successfully applied for zebrafish imaging. Furthermore, lipid droplets co-localization imaging illustrated the accurate targeting of intracellular lipid droplets by Couoxo-LD. We believe that Couoxo-LD could be a powerful tool to study the processes associated with LDs.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/bios12100851/s1, Figure S1: 1H NMR (CDCl3) spectrum of Couoxo-LD; Figure S2: 13C NMR (CDCl3) spectrum of Couoxo-LD; Figure S3: normalized (a) absorption and (b) fluorescence spectra of Couxox-LD (10 µM, λex = 510 nm) in different solvents. (c,d) are photographs of Couoxo-LD (10 µM) in different solvents, under natural light, and with 365 nm handheld UV lamp irradiation, respectively; Figure S4: maximum emission wavelength of Couoxo-LD (10 µM, λex = 510 nm) versus liquid viscosity (PBS buffers–Glycerol) system; Figure S5: cytotoxicity assays of probe Couoxo-LD at different concentrations (0 μM; 2 μΜ; 5 μΜ; 10 μΜ; 20 μΜ; 30 μΜ) for HeLa cells; Figure S6: absorption and emission spectra of Couoxo-LD (solid line) and BODIPY (dashed line) in dioxane; Figure S7: fluorescence images of live HeLa cells incubated with different concentrations of Couoxo-LD at 37 °C for 30 min; Figure S8: fluorescence images of live zebrafish treated with BODIPY (5 μM). (a) Bright-field view; (b) green channel, λex = 405 nm, λem = 480–510 nm; (c) merged images. Scale bar. 500 μm.

Author Contributions

M.-H.W.: writing—original draft, methodology, investigation, fluorescence imaging, preparation, conceptualization and writing—review. W.-L.C.: fluorescence imaging, methodology, investigation, writing—original draft, preparation. Y.-H.Y.: fluorescence imaging, methodology, writing—original draft, preparation. J.-Y.W.: conceptualization, writing—review and editing, supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (21801145, 32000318).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Storey, S.M.; McIntosh, A.L.; Senthivinayagam, S.; Moon, K.C.; Atshaves, B.P. The phospholipid monolayer associated with perilipin-enriched lipid droplets is a highly organized rigid membrane structure. J. Appl. Physiol. Endocrinol. Metab. 2011, 301, E991–E1003. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Krahmer, N.; Farese, R.V.; Walther, T.C. Balancing the fat: Lipid droplets and human disease. EMBO Mol. Med. 2013, 5, 973–983. [Google Scholar] [CrossRef] [PubMed]
  3. Xiao, H.; Li, P.; Tang, B. Recent progresses in fluorescent probes for detection of polarity. Coordin. Chem. Rev. 2021, 427, 213582. [Google Scholar] [CrossRef]
  4. Olzmann, J.A.; Richter, C.M.; Kopito, R.R. Spatial regulation of UBXD8 and p97/VCP controls ATGL-mediated lipid droplet turnover. Proc. Natl. Acad. Sci. USA 2013, 110, 1345–1350. [Google Scholar] [CrossRef] [Green Version]
  5. Onal, G.; Kutlu, O.; Gozuacik, D.; Dokmeci Emre, S. Lipid Droplets in Health and Disease. Lipids Health Dis. 2017, 16, 128. [Google Scholar] [CrossRef] [Green Version]
  6. Zheng, X.; Zhu, W.; Ni, F.; Ai, H.; Yang, C. A specific bioprobe for super-resolution fluorescence imaging of lipid droplets. Sens. Actuat. B-Chem. 2018, 255, 3148–3154. [Google Scholar] [CrossRef]
  7. Beloribi-Djefaflia, S.; Vasseur, S.; Guillaumond, F. Lipid metabolic reprogramming in cancer cells. Oncogenesis 2016, 5, e189. [Google Scholar] [CrossRef] [Green Version]
  8. Qiu, B.; Ackerman, D.; Sanchez, D.J.; Li, B.; Ochocki, J.D.; Grazioli, A.; Bobrovnikova-Marjon, E.; Diehl, J.A.; Keith, B.; Simon, M.C. HIF2α-Dependent Lipid Storage Promotes Endoplasmic Reticulum Homeostasis in Clear-Cell Renal Cell Carcinoma. Cancer Discov. 2015, 5, 652–667. [Google Scholar] [CrossRef] [Green Version]
  9. Farese, R.V., Jr.; Walther, T.C. Lipid droplets finally get a little R-E-S-P-E-C-T. Cell 2009, 139, 855–860. [Google Scholar] [CrossRef] [Green Version]
  10. Martin, S.; Parton, R.G. Lipid droplets: A unified view of a dynamic organelle. Nat. Rev. Mol. Cell Biol. 2006, 7, 373–378. [Google Scholar] [CrossRef]
  11. Chowdhury, R.; Jana, B.; Saha, A.; Ghosh, S.; Bhattacharyya, K. Confocal microscopy of cytoplasmic lipid droplets in a live cancer cell: Number, polarity, diffusion and solvation dynamics. Med. Chem. Comm. 2014, 5, 536–539. [Google Scholar] [CrossRef]
  12. Chen, S.; Hong, Y.; Zeng, Y.; Sun, Q.; Liu, Y.; Zhao, E.; Bai, G.; Qu, J.; Hao, J.; Tang, B.Z. Mapping live cell viscosity with an aggregation-induced emission fluorogen by means of two-photon fluorescence lifetime imaging. Chem. Eur. J. 2015, 21, 4315–4320. [Google Scholar] [CrossRef]
  13. Biegas, K.J.; Swarts, B.M. Chemical probes for tagging mycobacterial lipids. Curr. Opin. Chem. Biol. 2021, 65, 57–65. [Google Scholar] [CrossRef]
  14. Zhan, Z.; Zhuang, W.; Lei, Q.; Li, S.; Mao, W.; Chen, M.; Li, W. A smart probe for simultaneous imaging of the lipid/water microenvironment in atherosclerosis and fatty liver. Chem. Commun. 2022, 58, 4020–4023. [Google Scholar] [CrossRef]
  15. Yu, C.; Guo, X.; Fang, X.; Chen, N.; Wu, Q.; Hao, E.; Jiao, L. Efficiently emissive, strongly solvatochromic and lipid droplet-specific, fluorescent probes for mapping polarity in vitro. Dyes Pigments 2022, 197, 109838. [Google Scholar] [CrossRef]
  16. Tan, P.; Zhuang, W.; Li, S.; Zhang, J.; Xu, H.; Yang, L.; Liao, Y.; Chen, M.; Wei, Q. A lipid droplet targeted fluorescent probe for high-efficiency image-guided photodynamic therapy of renal cell carcinoma. Chem. Commun. 2021, 57, 1046–1049. [Google Scholar] [CrossRef]
  17. Tian, H.; Sedgwick, A.C.; Han, H.H.; Sen, S.; Chen, G.R.; Zang, Y.; Sessler, J.L.; James, T.D.; Li, J.; He, X.P. Fluorescent probes for the imaging of lipid droplets in live cells. Coord. Chem. Rev. 2021, 427, 213577. [Google Scholar] [CrossRef]
  18. Hu, R.; Chen, B.; Wang, Z.; Qin, A.; Zhao, Z.; Lou, X.; Tang, B.Z. Intriguing “chameleon” fluorescent bioprobes for the visualization of lipid droplet-lysosome interplay. Biomaterials 2019, 203, 43–51. [Google Scholar] [CrossRef]
  19. Guo, L.; Tian, M.; Zhang, Z.; Lu, Q.; Liu, Z.; Niu, G.; Yu, X. Simultaneous Two-Color Visualization of Lipid Droplets and Endoplasmic Reticulum and Their Interplay by Single Fluorescent Probes in Lambda Mode. J. Am. Chem. Soc. 2021, 143, 3169–3179. [Google Scholar] [CrossRef]
  20. Ye, M.; Hu, W.; He, M.; Li, C.; Zhai, S.; Liu, Z.; Wang, Y.; Zhang, H.; Li, C. Deep imaging for visualizing nitric oxide in lipid droplets: Discovering the relationship between nitric oxide and resistance to cancer chemotherapy drugs. Chem. Commun. 2020, 56, 6233–6236. [Google Scholar] [CrossRef]
  21. Cho, M.K.; Seo, M.J.; Juvekar, V.; Jo, J.H.; Kim, W.; Choi, K.S.; Kim, H.M. Screening of Drug-Induced Steatosis and Phospholipidosis Using Lipid Droplet-Selective Two-Photon Probes. Anal. Chem. 2020, 92, 11223–11231. [Google Scholar] [CrossRef]
  22. Jiang, G.; Jin, Y.; Li, M.; Wang, H.; Xiong, M.; Zeng, W.; Yuan, H.; Liu, C.; Ren, Z.; Liu, C. Faster and More Specific: Excited-State Intramolecular Proton Transfer-Based Dyes for High-Fidelity Dynamic Imaging of Lipid Droplets within Cells and Tissues. Anal. Chem. 2020, 92, 10342–10349. [Google Scholar] [CrossRef]
  23. Zhang, X.; Yuan, L.; Jiang, J.; Hu, J.; du Rietz, A.; Cao, H.; Zhang, R.; Tian, X.; Zhang, F.; Ma, Y.; et al. Light-Up Lipid Droplets Dynamic Behaviors Using a Red-Emitting Fluorogenic Probe. Anal. Chem. 2020, 92, 3613–3619. [Google Scholar] [CrossRef] [Green Version]
  24. Wang, K.; Ma, S.; Ma, Y.; Zhao, Y.; Xing, M.; Zhou, L.; Cao, D.; Lin, W. Aurone Derivative Revealing the Metabolism of Lipid Droplets and Monitoring Oxidative Stress in Living Cells. Anal. Chem. 2020, 92, 6631–6636. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, X.; Qi, F.; Jiang, Z.; Yan, M.; Xu, L. Highly fluorescent bisboron complexes in both solution and solid-state: Synthesis, photophysical properties and lipid droplet imaging in living cells. Dyes Pigments 2021, 186, 108999. [Google Scholar] [CrossRef]
  26. Ren, W.; Wang, D.; Huang, W.; Li, J.; Tian, X.; Liu, Z.; Han, G.; Liu, B.; Han, M.Y.; Zhang, Z.; et al. Real-time tracking of lipid droplets interactions with other organelles by a high signal/noise probe. Dyes Pigments 2021, 191, 109366. [Google Scholar] [CrossRef]
  27. Dong, B.; Song, W.; Lu, Y.; Sun, Y.; Lin, W. Revealing the Viscosity Changes in Lipid Droplets during Ferroptosis by the Real-Time and In Situ Near-Infrared Imaging. ACS Sens. 2021, 6, 22–26. [Google Scholar] [CrossRef] [PubMed]
  28. Collot, M.; Fam, T.K.; Pichandi, A.; Faklaris, O.; Galli, T.; Danglot, L.; Klymchenko, A. Ultrabright and Fluorogenic Probes for Multicolor Imaging and Tracking of Lipid Droplets in Cells and Tissues. J. Am. Chem. Soc. 2018, 140, 5401–5411. [Google Scholar] [CrossRef] [Green Version]
  29. Luo, J.; Xie, Z.; Lam, J.W.; Cheng, L.; Chen, H.; Qiu, C.; Kwok, H.S.; Zhan, X.; Liu, Y.; Zhu, D.; et al. Aggregation–induced emission of 1-methyl-1,2,3,4,5-pentaphenylsilole. Chem. Commun. 2001, 18, 1740–1741. [Google Scholar] [CrossRef]
  30. Perkin, W.H., VI. On the artificial production of coumarin and formation of its homologues. J. Chem. Soc. 1868, 21, 53–63. [Google Scholar] [CrossRef]
  31. Jiang, J.; Tian, X.; Xu, C.; Wang, S.; Feng, Y.; Chen, M.; Yu, H.; Zhu, M.; Meng, X. A two-photon fluorescent probe for real-time monitoring of autophagy by ultrasensitive detection of the change in lysosomal polarity. Chem. Commun. 2017, 53, 3645–3648. [Google Scholar] [CrossRef]
  32. Bai, Y.; Shi, X.; Chen, Y.; Zhu, C.; Jiao, Y.; Han, Z.; He, W.; Guo, Z. Coumarin/BODIPY Hybridisation for Ratiometric Sensing of Intracellular Polarity Oscillation. Chem. Eur. J. 2018, 24, 7513–7524. [Google Scholar] [CrossRef]
  33. Jimenez-Sanchez, A.; Lei, E.K.; Kelley, S.O. A Multifunctional Chemical Probe for the Measurement of Local Micropolarity and Microviscosity in Mitochondria. Angew. Chem. Int. Ed. 2018, 57, 8891–8895. [Google Scholar] [CrossRef]
  34. Kahveci, B.; Menteşe, E. Microwave Assisted Synthesis of Coumarins: A Review From 2007 to 2018. Curr. Micro. Chem. 2019, 5, 162–178. [Google Scholar] [CrossRef]
  35. Long, L.; Huang, M.; Wang, N.; Wu, Y.; Wang, K.; Gong, A.; Zhang, Z.; Sessler, J.L. A Mitochondria-Specific Fluorescent Probe for Visualizing Endogenous Hydrogen Cyanide Fluctuations in Neurons. J. Am. Chem. Soc. 2018, 140, 1870–1875. [Google Scholar] [CrossRef]
  36. Chen, X.; Wang, H.; Ma, X.; Wang, M.; Zhang, Y.; Gao, G.; Liu, J.; Hou, S. Colorimetric and fluorescent probe for real-time detection of palladium (II) ion in aqueous medium and live cell imaging. Dyes Pigments 2018, 148, 286–291. [Google Scholar] [CrossRef]
  37. Ding, Y.; Zhao, S.; Wang, Q.; Yu, X.; Zhang, W. Construction of a coumarin based fluorescent sensing platform for palladium and hydrazine detection. Sens. Actuat. B-Chem. 2018, 256, 1107–1113. [Google Scholar] [CrossRef]
  38. Chen, W.; Pacheco, A.; Takano, Y.; Day, J.J.; Hanaoka, K.; Xian, M. A Single Fluorescent Probe to Visualize Hydrogen Sulfide and Hydrogen Polysulfides with Different Fluorescence Signals. Angew. Chem. Int. Ed. 2016, 55, 9993–9996. [Google Scholar] [CrossRef] [Green Version]
  39. Yang, L.; Su, Y.; Geng, Y.; Zhang, Y.; Ren, X.; He, L.; Song, X. A Triple-Emission Fluorescent Probe for Discriminatory Detection of Cysteine/Homocysteine, Glutathione/Hydrogen Sulfide, and Thiophenol in Living Cells. ACS Sens. 2018, 3, 1863–1869. [Google Scholar] [CrossRef]
  40. Kwon, N.; Hu, Y.; Yoon, J. Fluorescent Chemosensors for Various Analytes Including Reactive Oxygen Species, Biothiol, Metal Ions, and Toxic Gases. ACS Omega 2018, 3, 13731–13751. [Google Scholar] [CrossRef]
  41. Wang, K.N.; Liu, L.Y.; Mao, D.; Xu, S.; Tan, C.P.; Cao, Q.; Mao, Z.W.; Liu, B. A Polarity-Sensitive Ratiometric Fluorescence Probe for Monitoring Changes in Lipid Droplets and Nucleus during Ferroptosis. Angew. Chem. Int. Ed. 2021, 60, 15095–15100. [Google Scholar] [CrossRef]
  42. Cui, W.L.; Wang, M.H.; Chen, X.Q.; Zhang, Z.H.; Qu, J.; Wang, J.Y. A novel polarity-sensitive fluorescent probe for lighting up lipid droplets and its application in discriminating dead and living zebrafish. Dyes Pigments 2022, 204, 110433. [Google Scholar] [CrossRef]
  43. Punna Rao, A.M.L.; Sridhar Rao, A.; Saratchandra Babu, M.; Krishnaji Rao, M. Triphenylphosphine (PPh3) Catalyzed Erlenmeyer Reaction for Azlactones under Solvent-free Conditions. J. Heterocyclic. Chem. 2017, 54, 429–435. [Google Scholar] [CrossRef]
  44. Sasaki, S.; Drummen, G.P.C.; Konishi, G.i. Recent advances in twisted intramolecular charge transfer (TICT) fluorescence and related phenomena in materials chemistry. J. Mater. Chem. C 2016, 4, 2731–2743. [Google Scholar] [CrossRef] [Green Version]
  45. Wu, C.J.; Li, X.Y.; Zhu, T.; Zhao, M.; Song, Z.; Li, S.; Shan, G.G.; Niu, G. Exploiting the Twisted Intramolecular Charge Transfer Effect to Construct a Wash-Free Solvatochromic Fluorescent Lipid Droplet Probe for Fatty Liver Disease Diagnosis. Anal. Chem. 2022, 94, 3881–3887. [Google Scholar] [CrossRef]
  46. Marwani, H.M.; Asiri, A.M.; Khana, S.A. Spectral, stoichiometric ratio, physicochemical, polarity and photostability studies of newly synthesized chalcone dye in organized media. J. Lumin. 2013, 136, 296–302. [Google Scholar] [CrossRef]
Biosensors 12 00851 sch001 550

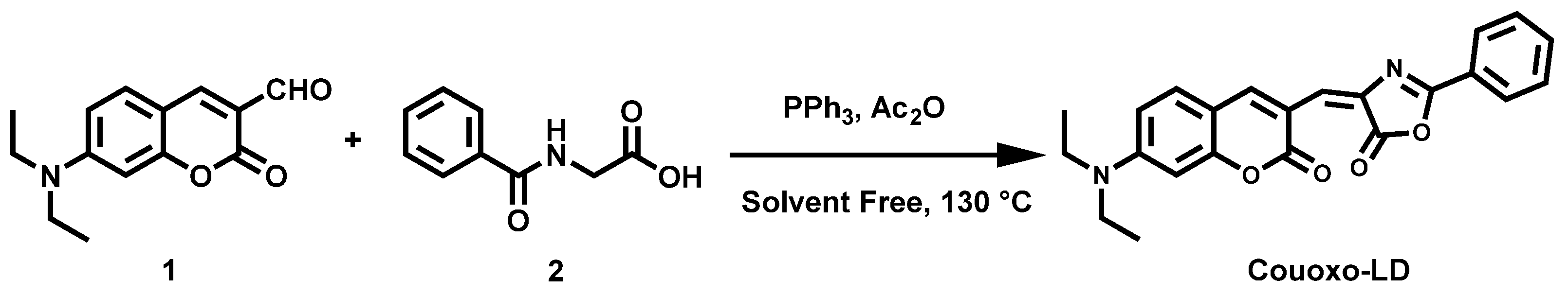

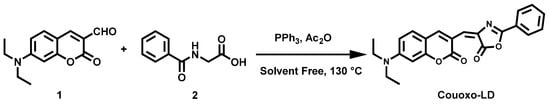

Scheme 1. Synthesis of Couoxo-LD.
Scheme 1. Synthesis of Couoxo-LD.
Biosensors 12 00851 sch001
Biosensors 12 00851 g001 550

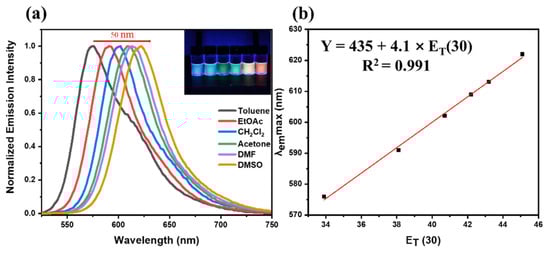

Figure 1. Normalized fluorescence spectra at 510 nm excitation. (a) Normalized fluorescence spectra in organic solvents with different polarities; a-Inner: Photographs of solvent discoloration with insertion of Couoxo-LD (10 μM). (b) For linearity between the maximum emission wavelength of the probe and the polarity of the solvent.
Figure 1. Normalized fluorescence spectra at 510 nm excitation. (a) Normalized fluorescence spectra in organic solvents with different polarities; a-Inner: Photographs of solvent discoloration with insertion of Couoxo-LD (10 μM). (b) For linearity between the maximum emission wavelength of the probe and the polarity of the solvent.
Biosensors 12 00851 g001
Biosensors 12 00851 g002a 550Biosensors 12 00851 g002b 550

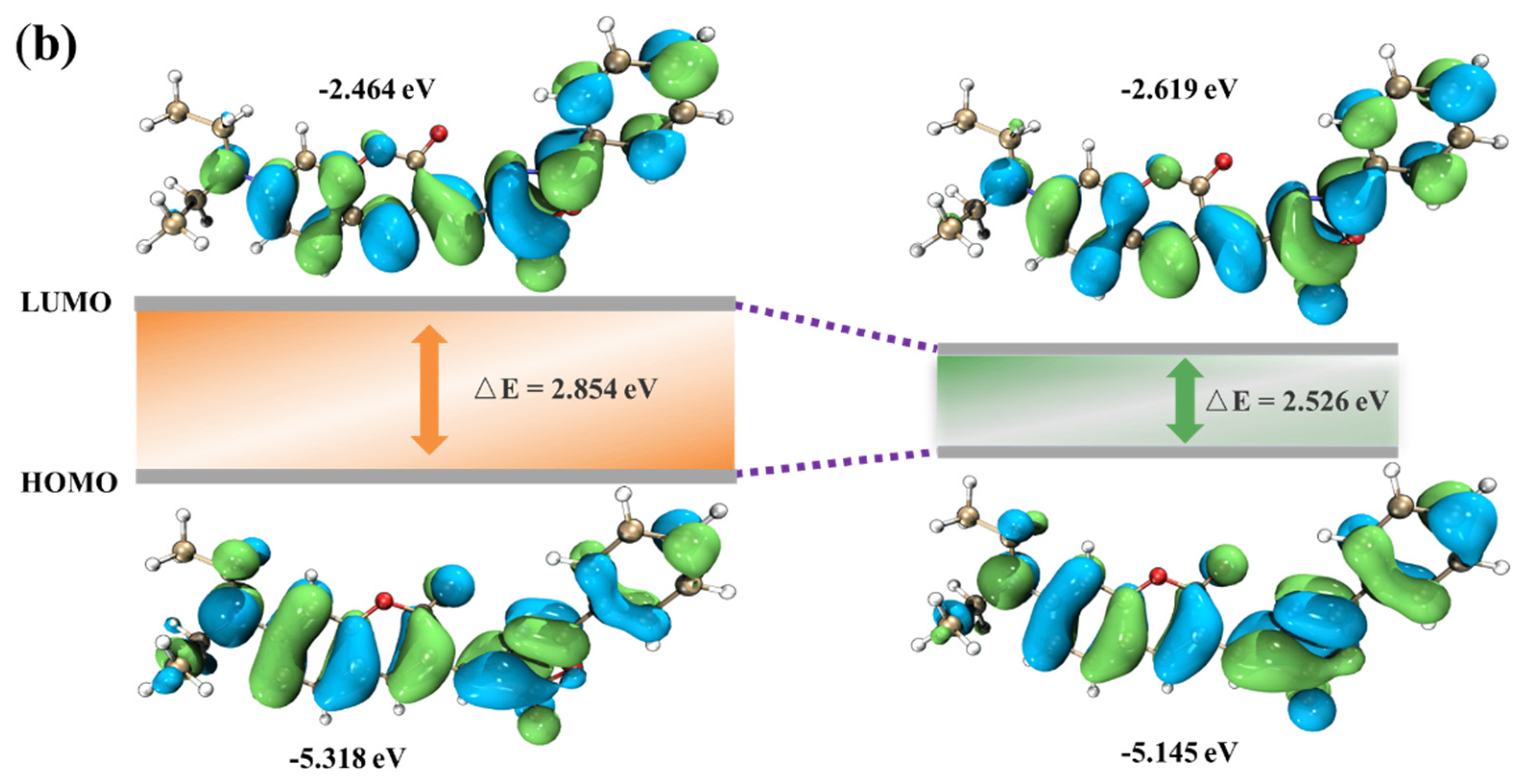

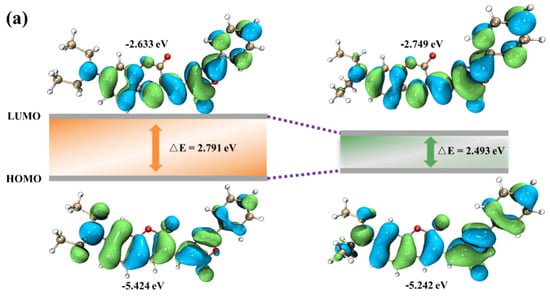

Figure 2. Molecular structure of Couoxo-LD and frontier molecular orbitals of the probe S0 and S1 states, calculated using Gaussian’09 at the TDB3L YP/6−31+G(d) level. (a) Used the PBS solvent model; (b) Used the Dioxane solvent model.
Figure 2. Molecular structure of Couoxo-LD and frontier molecular orbitals of the probe S0 and S1 states, calculated using Gaussian’09 at the TDB3L YP/6−31+G(d) level. (a) Used the PBS solvent model; (b) Used the Dioxane solvent model.
Biosensors 12 00851 g002aBiosensors 12 00851 g002b
Biosensors 12 00851 g003 550

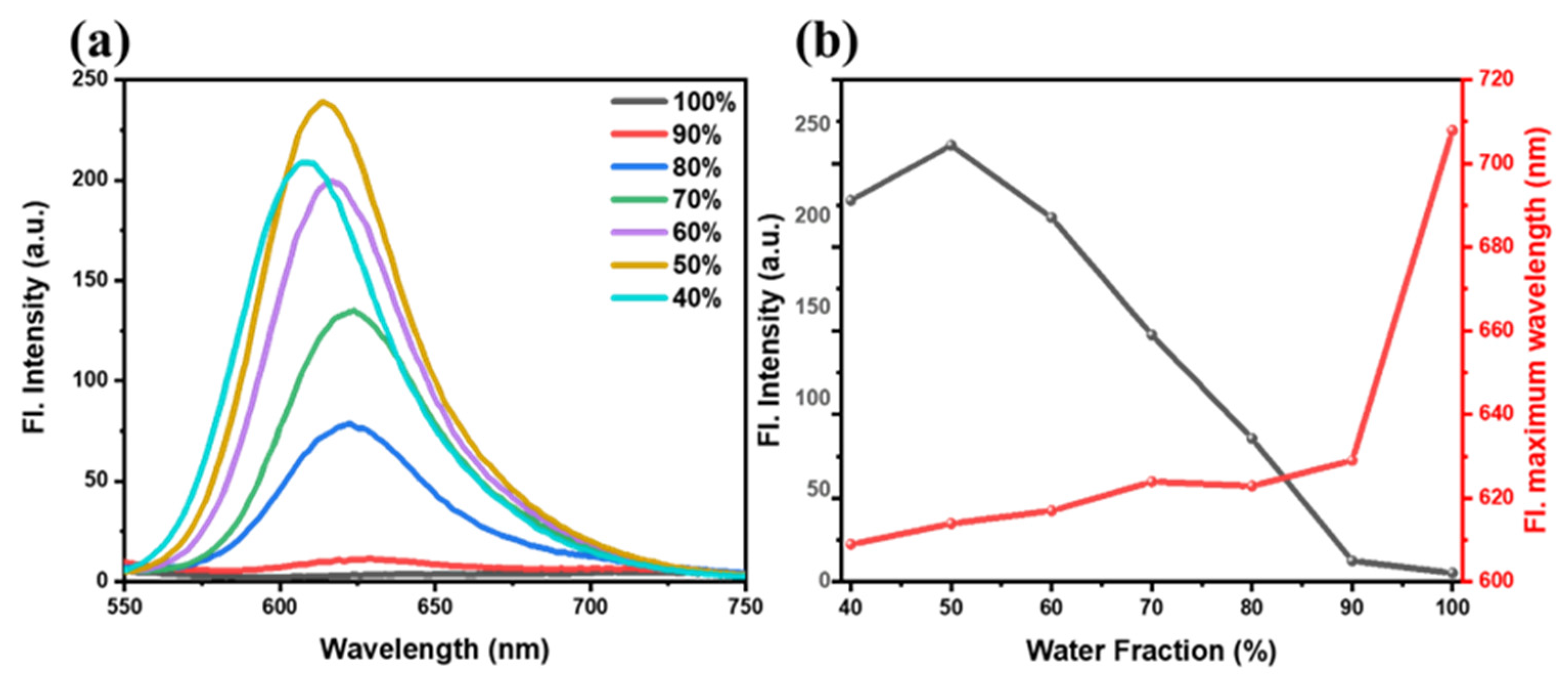

Figure 3. (a) Fluorescence emission spectra of Couoxo-LD (10 μM, λex = 510 nm) in the binary system of PBS buffer and dioxane. (b) Folding graph of maximum absorption and emission wavelengths of Couoxo-LD.
Figure 3. (a) Fluorescence emission spectra of Couoxo-LD (10 μM, λex = 510 nm) in the binary system of PBS buffer and dioxane. (b) Folding graph of maximum absorption and emission wavelengths of Couoxo-LD.
Biosensors 12 00851 g003
Biosensors 12 00851 g004 550

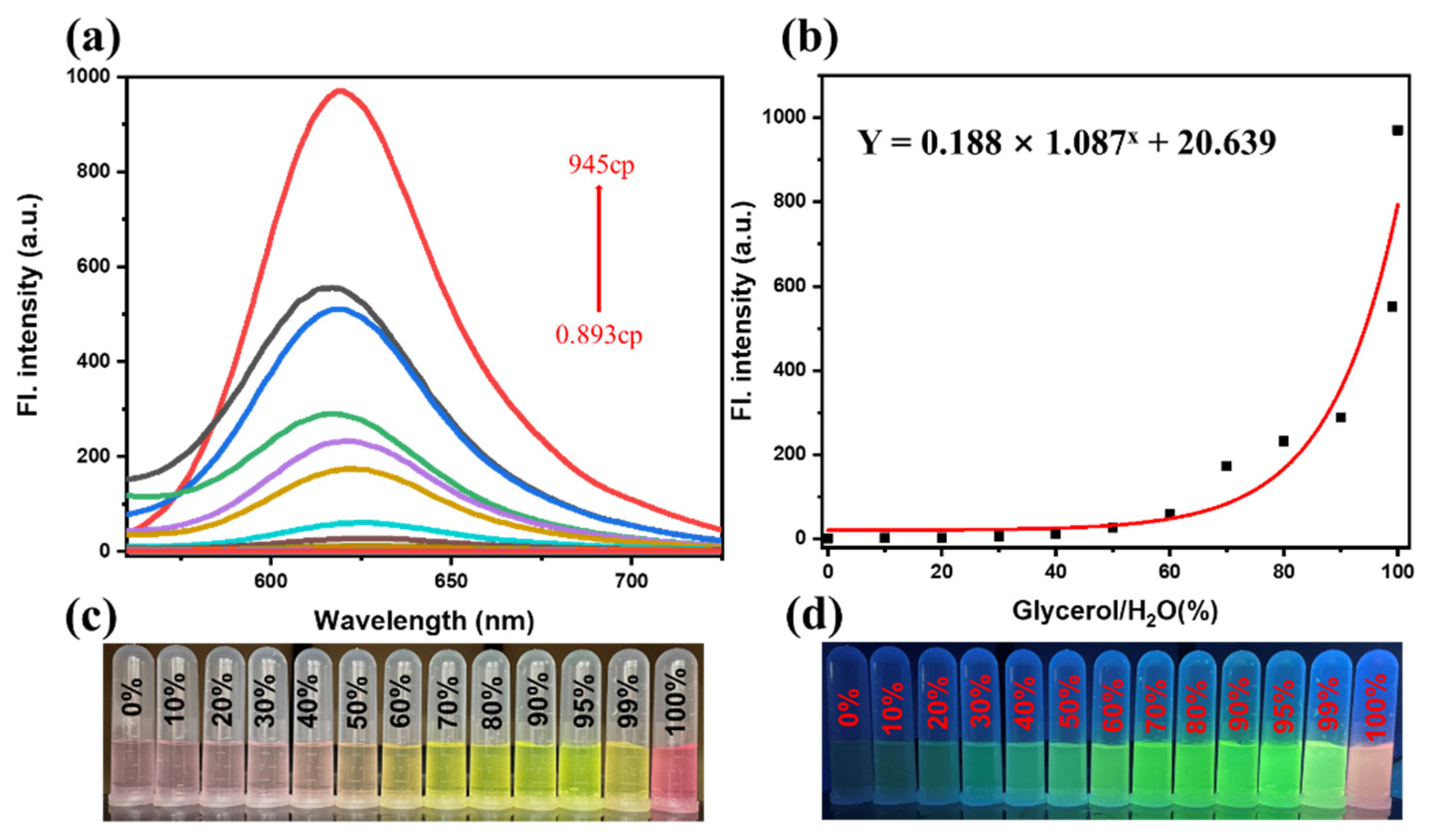

Figure 4. Couoxo-LD (10 µM, λex = 510 nm) in solution viscosity (PBS buffer–Glycerol system) (2 mL) versus fluorescence spectrum (a) and maximum emission wavelength (b). Images of Couoxo-LD in different PBS buffer–Glycerol mixture systems under natural light (c). Images of Couoxo-LD in different PBS buffer–Glycerol mixes under 365 nm UV light (d).
Figure 4. Couoxo-LD (10 µM, λex = 510 nm) in solution viscosity (PBS buffer–Glycerol system) (2 mL) versus fluorescence spectrum (a) and maximum emission wavelength (b). Images of Couoxo-LD in different PBS buffer–Glycerol mixture systems under natural light (c). Images of Couoxo-LD in different PBS buffer–Glycerol mixes under 365 nm UV light (d).
Biosensors 12 00851 g004
Biosensors 12 00851 g005 550

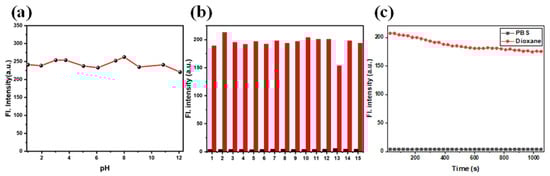

Figure 5. (a) The emission intensity of probe Couoxo-LD (10 µM, λex = 510 nm) in PBS buffer at various pH (1–12). (b) In PBS buffer, the fluorescent intensity of Couoxo-LD in (10 µM, λex = 510 nm, at 645 nm) and in Dioxane, Couoxo-LD (10 µM, λex = 510 nm, at 580 nm) upon addition of various species (10 µM) including: 1, Blank; 2, HS−; 3, NO2−; 4, CO32−; 5, HCO3−; 6, TBHP; 7, SO42−; 8, CI−; 9, Ca2+; 10, H2O2; 11, SO32−; 12, HSO3−; 13, GSH; 14, Mg2+; 15, Na+. (c) Couoxo-LD (10 µM, λex = 510 nm) emission pattern of continuous irradiation in PBS buffer and Dioxane solvent.
Figure 5. (a) The emission intensity of probe Couoxo-LD (10 µM, λex = 510 nm) in PBS buffer at various pH (1–12). (b) In PBS buffer, the fluorescent intensity of Couoxo-LD in (10 µM, λex = 510 nm, at 645 nm) and in Dioxane, Couoxo-LD (10 µM, λex = 510 nm, at 580 nm) upon addition of various species (10 µM) including: 1, Blank; 2, HS−; 3, NO2−; 4, CO32−; 5, HCO3−; 6, TBHP; 7, SO42−; 8, CI−; 9, Ca2+; 10, H2O2; 11, SO32−; 12, HSO3−; 13, GSH; 14, Mg2+; 15, Na+. (c) Couoxo-LD (10 µM, λex = 510 nm) emission pattern of continuous irradiation in PBS buffer and Dioxane solvent.
Biosensors 12 00851 g005
Biosensors 12 00851 g006 550

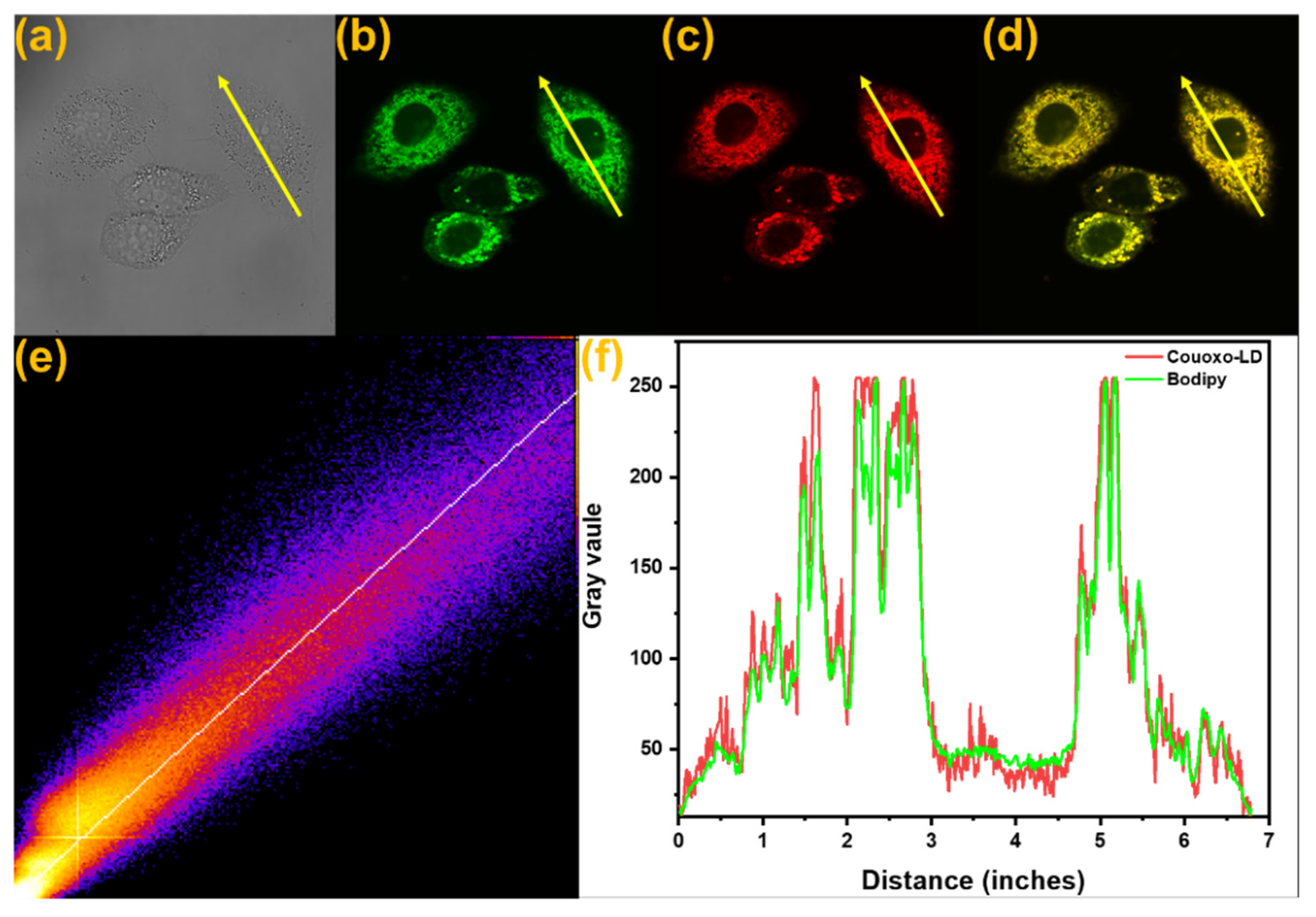

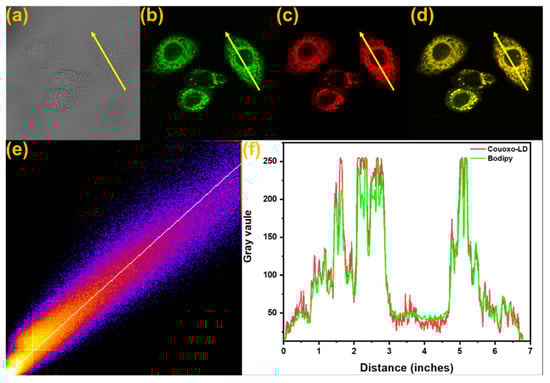

Figure 6. Fluorescence images of live HeLa cells incubated with Couoxo-LD (10 µM) and BODIPY (5 µM) for 30 min at 37 °C. (a) Bright-field image. (b) Emission of BODIPY (λex = 405 nm, 480–510 nm). (c) Emission of Couoxo-LD (λex = 405 nm, 600–650 nm). (d) Merged images. (e) The intensity scatter plot of (b) and (c). (f) Fluorescence intensity distribution within the rectangle.
Figure 6. Fluorescence images of live HeLa cells incubated with Couoxo-LD (10 µM) and BODIPY (5 µM) for 30 min at 37 °C. (a) Bright-field image. (b) Emission of BODIPY (λex = 405 nm, 480–510 nm). (c) Emission of Couoxo-LD (λex = 405 nm, 600–650 nm). (d) Merged images. (e) The intensity scatter plot of (b) and (c). (f) Fluorescence intensity distribution within the rectangle.
Biosensors 12 00851 g006
Biosensors 12 00851 g007 550

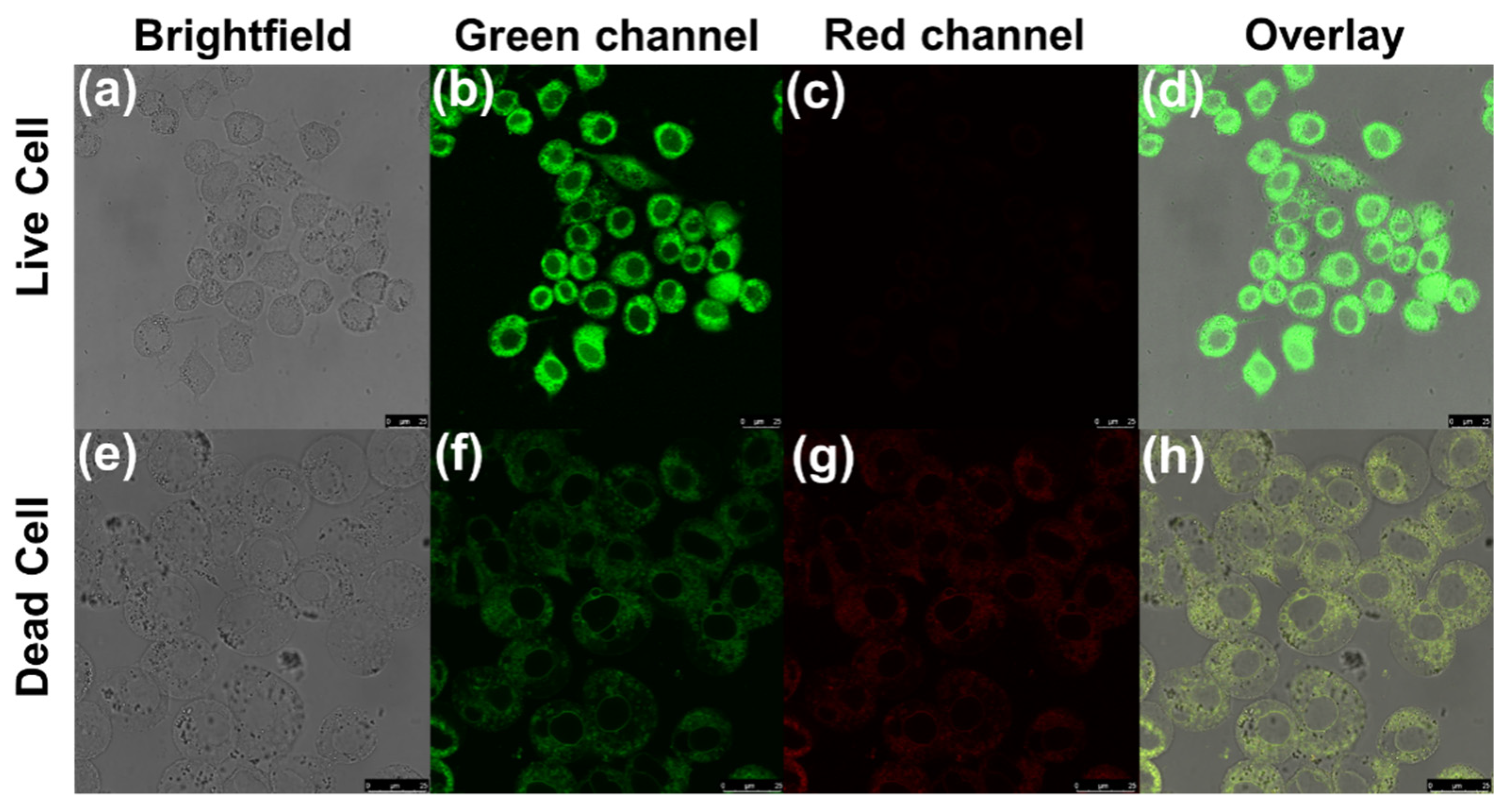

Figure 7. Fluorescent images of living (control) and dead (H2O2) HeLa cells treated with Couoxo-LD (10 μM). (a,e) Bright-field images; (b,f) Emission of BODIPY (λex = 405 nm, λem 480–510 nm). (c,g) Couoxo-LD (λex = 405 nm, λem 600–650 nm). (d,h) Merged images. Scale bar: 500 μm.
Figure 7. Fluorescent images of living (control) and dead (H2O2) HeLa cells treated with Couoxo-LD (10 μM). (a,e) Bright-field images; (b,f) Emission of BODIPY (λex = 405 nm, λem 480–510 nm). (c,g) Couoxo-LD (λex = 405 nm, λem 600–650 nm). (d,h) Merged images. Scale bar: 500 μm.
Biosensors 12 00851 g007
Biosensors 12 00851 g008 550

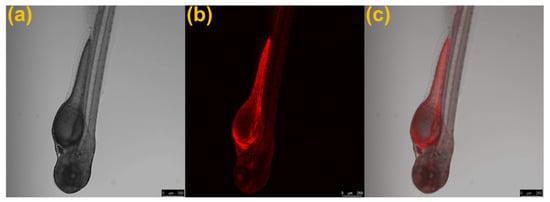

Figure 8. Fluorescent images of living zebrafish treated with Couoxo-LD (10 μM). (a) Bright field. (b) Red channel, λex = 405 nm, λem = 600–650 nm. (c) Merge images. Scale bar: 500 μm.
