Article

Simultaneous Detection of Dihydroxybenzene Isomers Using Electrochemically Reduced Graphene Oxide-Carboxylated Carbon Nanotubes/Gold Nanoparticles Nanocomposite

by
Angélica Domínguez-Aragón
1,
Rocio B. Dominguez
2 and
Erasto Armando Zaragoza-Contreras
1,*
1
Centro de Investigación en Materiales Avanzados, S.C., Miguel de Cervantes No. 120, Chihuahua C.P. 31136, Chih, Mexico
2
CONACyT-Centro de Investigación en Materiales Avanzados, S.C., Miguel de Cervantes 120, Chihuahua C.P. 31136, Chih, Mexico
*
Author to whom correspondence should be addressed.
Biosensors 2021, 11(9), 321; https://doi.org/10.3390/bios11090321
Submission received: 3 August 2021 / Revised: 1 September 2021 / Accepted: 2 September 2021 / Published: 7 September 2021
(This article belongs to the Special Issue State-of-the-Art Electrochemical Biosensors in Water and Environmental Monitoring)
Browse Figures
Versions Notes

Abstract

:
An electrochemical sensor based on electrochemically reduced graphene oxide (ErGO), carboxylated carbon nanotubes (cMWCNT), and gold nanoparticles (AuNPs) (GCE/ErGO-cMWCNT/AuNPs) was developed for the simultaneous detection of dihidroxybenzen isomers (DHB) hydroquinone (HQ), catechol (CC), and resorcinol (RS) using differential pulse voltammetry (DPV). The fabrication and optimization of the system were evaluated with Raman Spectroscopy, SEM, cyclic voltammetry, and DPV. Under optimized conditions, the GCE/ErGO-cMWCNT/AuNPs sensor exhibited a linear concentration range of 1.2–170 μM for HQ and CC, and 2.4–400 μM for RS with a detection limit of 0.39 μM, 0.54 μM, and 0.61 μM, respectively. When evaluated in tap water and skin-lightening cream, DHB multianalyte detection showed an average recovery rate of 107.11% and 102.56%, respectively. The performance was attributed to the synergistic effects of the 3D network formed by the strong π–π stacking interaction between ErGO and cMWCNT, combined with the active catalytic sites of AuNPs. Additionally, the cMWCNT provided improved electrocatalytic properties associated with the carboxyl groups that facilitate the adsorption of the DHB and the greater amount of active edge planes. The proposed GCE/ErGO-cMWCNT/AuNPs sensor showed a great potential for the simultaneous, precise, and easy-to-handle detection of DHB in complex samples with high sensitivity.

Graphical Abstract

1. Introduction

The simultaneous detection of dihydroxybenzene isomers (DHB), namely hydroquinone (HQ), catechol (CC), and resorcinol (RS), is of significant concern given their harmful effects on human health. However, due to their great versatility, it is expected that the worldwide production of DHB will continue to grow at a high pace, resulting in high exposure for the population through several pathways such as water and food contamination, environmental pollution, and cosmetic usage. For example, HQ is used in a wide range of industrial activities such as synthesis and formulation of rubbers and plastics, in food, and in cosmetics dedicated to skin lightening due to HQ inhibition over melanin production [1,2]. However, because HQ is a derivative of benzene, the consternation regarding its toxicity and carcinogenic behavior [3,4,5] has encouraged a significant number of investigations. HQ is also linked to depigmentation of the skin (vitiligium) and conditions in eyes, and in the respiratory system due to high exposure [1]. CC is also a DHB that can be used as an ingredient in cosmetics and pharmaceuticals industries [6]. When absorbed in the gastrointestinal tract, CC can produce renal tube destruction, liver function reduction, and strong central nervous system suppression when exposed to high doses [7]. RS is the third DHB, and has been related to angioneurotic edema, eczema, and urticaria [8]. After prolonged exposure to RS, suppression of thyroid hormone synthesis in humans, hematological abnormalities, carcinogenesis, and fatal cases of human fetus poisoning have been observed [9]. Since HQ, CC, and RS are generally used in the production of dyes, cosmetics, pesticides, and some medicines, the DHB often coexist in waste waters and natural waters. Therefore, they are classified as priority toxic pollutants for their high toxicity and the degradation-resistant properties in the environment [10,11].
Consequently, to mitigate their harmful effects on human health, it is of great importance to maintain control of DHB dosage in the recommended limits emitted by the different regulatory entities, such as the World Health Organization (WHO) [12]. Thus, the precise and fast detection of DHB is a major concern for the environmental analysis.
Conventional analytical techniques such as chromatography, fluorescence, and spectrometry are the first choice, but electrochemical multianalyte sensors can be a precise and easy-to-handle alternative for a quick and efficient simultaneous determination of DHB. Previously, biosensors based on polyphenol oxidase have been designed for phenol detection, achieving remarkable sensitivity and selectivity [13]. However, drawbacks such as low chemical and thermal stability along with high cost has promoted detection in non-enzymatic fashion [14]. However, due to their similar structure and closeness of oxidation potential, the multidetection of HQ, CC, and RS is not feasible with conventional electrodes such as glassy carbon electrodes (GCE), and surface modification is necessary. Intensive research work for novel chemically modified electrodes (CME) for multianalyte detection includes metal-organic frameworks (MOF) [15,16], conductive polymers [17], metal nanoparticles [18], cobalt-phthalocyanine [19], and carbon-based nanomaterials such as graphene and carbon nanotubes (CNT) [20,21].
Among them, hybrids of CNT and graphene have shown high potential for detecting redox molecules [22], given their improved conductivity, large surface area, and catalytic properties compared with either pristine CNTs or GO/graphene [23]. The strong π–π stacking interaction generated by the 3D network, formed by the combination of graphene of high charge density and CNTs of large surface area, enables synergistic effects with enhanced mechanical, optical, electrical, and electrochemical properties [24].
Usually, for ease of synthesis, multi-walled carbon nanotubes (MWCNT) are included instead of single-walled carbon nanotubes (SWCNT), showing porous structure, high surface area, excellent chemical stability, good mechanical properties, and ability to promote electron transfer reactions [25]. However, since MWCNT are insoluble, the processability for surface modification can be difficult. To overcome this, the carboxyl functionalization of MWCNT can enhance its hydrophilicity, making it more dispersible to prepare a uniform electrode layer. Carboxylated MWCNT (cMWCNT) have shown higher attachment properties due to the functional groups on their surface, which help to generate a more homogeneous surface with better electrochemical activity [26]. Additionally, the carboxylation of MWCNT produces an improved electrocatalytic activity in the material compared with unmodified CNT.
On the other hand, the preparation of CME by electrochemical techniques offers advantages such as environmental safety, simplified synthesis steps, and low reagent consumption. Carbon-based nanocomposites of electrochemically reduced graphene oxide (ErGO) and MWCNT can be prepared within a single step, avoiding common drawbacks such as agglomeration and restacking of layers. Moreover, the ErGO-MWCNT nanocomposite can be used as an excellent scaffold for catalytic nanomaterials deposition, such as gold nanoparticles (AuNPs) [20]. The AuNPs provide additional features such as excellent electrical properties, large surface-to-volume ratio, and high surface reaction activity, resulting in a high-performance electrode surface [27].
In this work, we propose a CME for simultaneous detection of HQ, CC, and RS using an ErGO-cMWCNT/AuNPs nanocomposite prepared by successive electrochemical steps. Surface characterization revealed a fast electron transfer rate constant, high charge transfer, and excellent analytical response towards the detection of DHB. The proposed sensor was also demonstrated for detection in environmental and cosmetic samples, showing excellent accuracy regarding the HQ, CC, and RS content.

2. Materials and Methods

2.1. Characterization

Morphology was analyzed with a JEOL 300-S (Tokyo, Japan) scanning electron microscope (SEM), and Raman spectroscopy was analyzed using a microspectrometer (Horiba, LabRAM-HR) (Horiba, Kyoto, Japan). A three-electrode arrangement, including a GCE (ø = 3 mm), a Pt wire, and an Ag/AgCl, were used as the working electrode, counter electrode, and reference electrode, respectively. Cyclic voltammetry (CV), electrochemical impedance spectroscopy (EIS), and differential pulse voltammetry (DPV) techniques were performed using an EmStat3 + blue (PalmSens, Houten, The Netherlands) potentiostat.

2.2. Materials and Reagents

HAuCl4.3H2O, K4[Fe(CN)6], K3[Fe(CN)6], HQ, CC, and RS were obtained from Sigma Aldrich (St. Louis, MO, USA). H2SO4 and HNO3 were provided from Fermont (Monterrey, Nuevo León, Mexico). Phosphate buffer solution (PBS) (0.01 M) was prepared from NaCl, KCl, Na2HPO4, and KH2PO4 (Sigma-Aldrich, St. Louis, MO, USA). GO was prepared using the Hummers method [28], and the cMWCNT were carboxylated by acid treatment [29]. A skin-lightening cosmetic cream at 4% of HQ (Bustillos Laboratory, Mexico D.F, Mexico) was obtained at a local store.

2.3. GCE Modification with ErGO-cMWCNT/AuNPs Nanocomposite

Prior to modification, GCE was polished with alumina suspension (0.05 µm) and rinsed with deionized water, followed by sonication in ethanol and deionized water. Then, 4 µL of GO (5 mg/mL) and cMWCNT (5 mg/mL) (1:1) mixture were drop cast on the GCE surface and allowed to dry. CV was carried out on the GCE/GO–cMWCNT in PBS (0.01 M, pH 7.4) at a potential window from −1.5 to 0.5 V and scan rate of 100 mV s−1 during 20 cycles of reduction. The modified electrode GCE/ErGO-cMWCNT was washed with distilled water and dried at room temperature.
The AuNPs were electrodeposited on the nanocomposite to increase the electrochemically active surface. Briefly, the AuNPs were electrodeposited from a 1 mM solution of HAuCl4 in 0.1 M H2SO4 using a constant potential of −0.5 V for 80 s.
Finally, the GCE/ErGO-cMWCNT/AuNPs was rinsed with distilled water and dried. AuNPs were also electrodeposited on GCE/ErGO, GCE/cMWCNT, and GCE using the same conditions to corroborate synergistic effects of the nanocomposite. Figure 1 illustrates the steps of the GCE modification.

2.4. Electrochemical Measurements and Real Sample Analysis

The electrochemical analysis was performed in a cell containing 25 mL of PBS 0.01 M at pH 7.0. Different concentrations of HQ, CC, and RS were measured both separately and simultaneously by DPV. The potential window was from −0.4 to 0.9 V at a scan rate of 0.05 V s−1. HQ, CC, and RC were detected simultaneously in tap water diluted in PBS (0.01 M, pH 7) (X10). A skin-lightening cream was diluted in PBS (0.01 M, pH 7) (X10) to obtain three concentrations of HQ. The cream was spiked with CC and RS to corroborate the simultaneous determination of these isomers.

3. Results and Discussion

3.1. Materials Characterization

3.1.1. SEM

The morphology of the ErGO-cMWCNT and ErGO-cMWCNT/AuNPs composites was characterized by SEM. The electrochemical reduction of GO over the GCE produced numerous interconnected layers partially folded and wrinkled, as observed in previous ErGO morphology [30]. ErGO sheets, partially wrinkled, were formed attached parallel to the electrode surface. ErGO-cMWCNT formed an interconnected porous network, increasing the surface roughness, as shown in Figure 2A. The ErGO-cMWCNT also served as a scaffold for growing well-dispersed AuNPs of around 20–30 nm in diameter, as observed in Figure 2B. AuNPs were equally prone to deposit over the basal plane of ErGO sheets and tubular cMWCNT, forming a favorable pathway in the composite for electronic transfer. The EDS analysis confirmed (Figure 2C) the presence of Au element in the nanocomposite.

3.1.2. Raman

Raman spectroscopy is important to characterize carbon-based materials such as graphene and MWCNT, since it provides information on structural defects. Figure 3 shows the D band around 1325 cm−1, which is related to the degree of defects and disorder in the graphene structure, and the G band around 1581 cm−1 corresponding to the sp2 vibrational plane of the bonded carbon atoms in a 2D hexagonal lattice [31]. The ID/IG ratio was calculated to determine the degree of disorder and the average size of sp2 domains in the prepared materials. The ID/IG ratios of GO, ErGO, ErGO-cMWCNT, and ErGO-cMWCNT/AuNps were 1.04, 1.53, 1.21, and 1.22, respectively. The ID/IG of GO confirms the presence of in-plane sp2 domains and sp3 hybridization due to the presence of oxygenated groups. The increased ratio in ErGO indicated the introduction of defects in the structure during the removal of oxygen functionalities after electrochemical reduction (Figure S1). ID/IG values for ErGO-cMWCNT and ErGO-cMWCNT/AuNPs are lower than of ErGO, which may indicate that cMWCNT and AuNPs reduced the defect density by filling the spaces left after the remotion of oxygen functionalities.

3.2. Electrochemical Characterization

Figure 4A shows the CVs of all CME and the bare GCE in [Fe(CN)6]−3/−4 as the redox probe to study the electrochemical behavior of the modified surfaces at a scan rate of 100 mV s−1. All the modifications showed well-defined redox peaks for the Fe(CN)6]−3/−4 redox couple. The values of the peak-to-peak separation (ΔEp) and the current intensity of the anodic peak (Ipa) were also determined for GCE (ΔEp = 219 mV, Ipa = 72 μA), GCE/AuNP (ΔEp = 109 mV, Ipa = 90 μA), GCE/ErGOAuNP (ΔEp = 109 mV, Ipa = 94.42 μA), GCE/cMWCNT/AuNPs (ΔEp = 89 mV, Ipa = 87 μA), and GCE/ErGO-cMWCNT/AuNPs (ΔEp = 89 mV, Ipa = 101 μA).
The bare GCE showed the largest ΔEp, which was significantly reduced with all the surface modifications, especially with ErGO-cMWCNT/AuNPs, which implies that the hybrid-based nanocomposite promotes a faster electronic transfer [32]. The results reveal great electrocatalytic features of GCE/ErGO-cMWCNT/AuNPs, due to the synergistic effect of AuNPs, ErGO, and cMWCNT, which improved the electron transfer rate, accelerating the oxidation/reduction response of the redox probe on the electrode surface [33].
The electrochemically active surface area of the various modified electrodes was evaluated using CV, varying the scan rates and using the [Fe(CN)6]−3/−4 solution (Figure S2). The surface area was calculated using the Randles–Sevick Equation (1):
Ipa = 2.69 × 105 A D½ n3/2 v½ C
where n is the number of electrons participating in the redox reaction (n = 1), A is the electroactive area (cm2), v is the scan rate (V s−1), and D and C are the diffusion coefficient (6.7 × 10−6 cm2 s−1) and the concentration (mol cm−3) of the redox probe, respectively [34]. The A was calculated using the slope of Ipa versus the root of scan rate (v1/2). The resulting electroactive surfaces were GCE (0.055 cm2), GCE/AuNP (0.081 cm2), GCE/ErGO/AuNPs (0.088 cm2), GCE/cMWCNT/AuNPs (0.095 cm2), and GCE/ErGO-cMWCNT/AuNPs (0.11 cm2).
The results showed that GCE/ErGO-cMWCNT/AuNPs had the most prominent active electrochemical area among the CMEs, increasing the active surface of the GCE by 100%. The ErGO-cMWCNT/AuNP improved electrochemical response can be attributed to the generation of 3D networks formed by interconnected carbon nanotube–graphene hybrids and AuNPs, with well-defined nanopores [24,35]. The nanostructures led to a synergistic effect in enhanced conductivity, electroactivity, and enlarged electroactive surface area with multiple active sites, making it optimal for transduction in electrochemical sensing.

3.3. Electrochemical Detection of Dihydroxybenzene Isomers

EIS is an effective tool for studying the electrode–electrolyte interface properties of CMEs. In the Nyquist graph, the semicircular section at high frequency permits calculating the charge transfer resistance (Rct), while the linear part at low frequency is associated with the diffusion control process [15]. Figure 4B shows the EIS of the CMEs recorded in 5 mM of [Fe(CN)6]−3/−4, showing values of the Rct of GCE (1788 Ω), GCE/AuNPs (135.28 Ω), GCE/ErGO/AuNPs (90 Ω), GCE/cMWCNT/AuNPs (26.97 Ω), GCE/ErGO-cMWCNT/AuNPs (24.2 Ω). The bare GCE has the largest Rct, but significantly decreased with all the modifications, especially with GCE/ErGO-cMWCNT/AuNPs, indicating that the incorporation of these materials improved the conductivity and led to faster charge transfer kinetics. These results evidenced the synergistic effect between ErGO, cMWCNT, and AuNPs, enabling a significant number of active sites for chemical reactions.
To study the electrochemical features of the DHB, the CME was tested in a PBS solution (0.01 M, pH 7) containing 0.2 mM of HQ, CC, and RS by CV and DPV. Figure 5A shows the CV of the electrodes. The overlapping redox peak of HQ and CC in GCE was attributed to the slow electron dynamics and limited diffusion of the isomers at the electrode surface [34]. The introduction of AuNPs and ErGO/AuNPs to the GCE induced a slight enhancement, which enabled the separation of the CC and HQ redox peak, showing three poorly defined oxidation peaks. In addition, the GCE modification with cMWCNT/AuNPs and ErGO-cMWCNT/AuNPs drastically improved the electrochemical performance, enabling the obtention of three well-separated oxidation peaks at 0.11 V, 0.22 V, and 0.6 V, attributed to the oxidation of HQ, CC, and RS. HQ and CC exhibited a reversible quinolinic form with a pair of redox peaks, while the oxidation reaction of RS is irreversible. This is attributed to the charge density, which is different in each isomer due to the position of the two hydroxyl functional groups on the benzene ring [33].
The electrochemical response of DHB at the different electrodes by DPV (Figure 5B) coincides appropriately with those measured by CV. It is clearly noticeable that the electrochemical activity of the GCE/ErGO-cMWCNT/AuNPs nanocomposite was superior for the detection of the three isomers than those at separate materials. The 3D network formed by the strong π–π stacking interaction between ErGO and cMWCNT, with well-defined nanopores and active catalytic sites of AuNPs, facilities the adsorption of the DHB and the electron transfer efficiency between the electroactive analytes and the CME. Additionally, to corroborate that carboxylation improves the electroactive performance of the pristine MWCNT, the nanocomposite was elaborated with either MWCNT or cMWCNT. The CME with the pristine MWCNT leads the separation of the CC and HQ oxidation peaks, but poorly defined (Figure 5C), whilst with cMWCNT (Figure 5D), showed separated and well-defined peaks for each DHB.
Moreover, the nanocomposite with the cMWCNT exhibited an increased current associated with the induction of the carboxylic groups to the MWCNT structure, facilitating the adsorption of organic molecules on the electrode surface. The π–π interaction between the phenyl structure of DHB and the hexagonal carbon structure and carboxyl groups of cMWCNT promotes the electron transfer [36]. It has been reported that the acid functionalization of MWCNT breaks the long nanotubes into shorter ones, increasing the number of edge plans, which provide a greater available area to the electroactive reactions, promoting a faster charge-transfer rate with better electrocatalytic activity [37,38]. Besides, the aggregation of graphene sheets was avoided not only by the π–π stacking interactions between the ErGO sheets and the walls of the cMWCNT but also by the steric barrier from the carboxylic groups of cMWCNT [39]. Moreover, the distribution of the cMWCNT on the graphene surface led to a larger anchoring surface area for AuNPs. Consequently, the highest electrocatalytic activity for the oxidation of HQ, CC, and RS was obtained with GCE/ErGO-cMWCNT/AuNPs nanocomposite, corroborating the synergistic effect of the components for enhancing electroactivity.

3.4. Effect of pH and Scan Rate

The electrochemical response of phenolic compounds is influenced by the pH because it affects the involvement of proton transference in the redox process [25]. Hence, the effect of pH on the electrochemical response of HQ, CC, and RS was evaluated by CV in the pH range of 5.5–8.0. Figure 6 shows the effects of the pH value on the electrochemical response of HQ, CC, and RS at the GCE/ErGO-cMWCNT/AuNPs. The potential of the oxidation peak Epa at the DHB isomers shifted negatively as the pH increased, demonstrating that the protons were directly involved in the redox process [40]. The regression equations for three DHB isomers are as follows: HQ: Epa (V) = −0.0578 pH + 0.5241 (R2 = 0.9929), CC: Epa (V) = −0.0575 pH + 0.6295 (R2 = 0.9917), and RS: Epa (V) = −0.0548pH + 0.999 (R2 = 0.9934).
The slopes of the three regression equations were −0.0578 V pH−1, −0.0575 V pH−1, and −0.0548 V pH−1 for HQ, CC, and RS, respectively. These values are very close to the theoretical value of −0.059 V pH−1 obtained from the Nernst equation.
The results indicated that an equal number of protons and electrons took place in the redox reaction of HQ, CC, and RS [41], which is in agreement with previous works [33,34]. Based on this, the reaction mechanism of the DHB isomers is illustrated in Figure 7. Furthermore, within the pH range from 5.5 to 8.0, the maximum current intensity was achieved at pH 7. Thus, to obtain optimal sensitivity and selectivity, pH 7.0 was chosen for the simultaneous detection of HQ, CC, and RS.
The electrooxidation process of DHB was studied by CV at scanning rates from 20 to 100 mV s−1 using 0.2 mM HQ, CC, and RS in 0.01M PBS, pH 7. As shown in Figure 8A, with the increasing scan rate, the redox peak currents of HQ, CC, and RS increased gradually. The linear relationship between the scan rate square and the anodic peak current (Figure 8B) confirmed that the electrooxidation process of the DHB at GCE/ErGO-cMWCNT/AuNPs is regulated by the diffusion-controlled electrochemical process [42]. The obtained regressions are expressed by HQ: Ipa (μA) = 59.128 v1/2 (V s−1)1/2 −3.8945 (R2 = 0.997), CC: Ipa (μA)= 81.139 v1/2 (V s−1)1/2 − 4.4874 (R2 = 0.9951), and RS: Ipa (μA) = 97.634 v1/2 (V s−1)1/2 + 1.2542 (R2 = 0.995).
Moreover, the potentials of the oxidation peaks of HQ, CC, and RS shifted to a more positive position, and the reduction peak potentials of HQ and CC shifted negatively with the increase in the scan rate. The shift of the peak potentials is associated with the size of the diffusion layer, which creates an internal resistance at the electrode–electrolyte interface [43]. Hence, the current is noticeably higher at the electrode surface when the potential is swept at higher scan rates [44].
According to Laviron’s theory [45], the charge-transfer coefficient (α) and the apparent heterogeneous electron transfer rate constant (Ks) were calculated. The details of the equations are shown in the Supplementary Material. The α was calculated to be 0.574, 0.6103, and 0.41, and the values of ks were 0.693 cm s−1, 0.973 cm s−1, and 0.49 s−1 for HQ, CC, and RS, respectively. These values show that the kinetics of charge-transfer are energetically favorable on the GCE/ErGO-cMWCNT/AuNPs surface.

3.5. Individual and Simultaneous Determination of HQ, CC, and RS

The quantitative analysis of HQ, CC, and RS on GCE/ErGO-cMWCNT/AuNPs was performed using DPV under optimized pH conditions. For single detection, the concentration of a given analyte was varied, and the other two were kept constant. Figure 9A shows the selective detection of HQ in the presence of 25 μM of CC and 50 μM of RS, with a typical response observed at 0.073 V. The peak current increased linearly with the HQ level in a range from 1.2 to 260 μM, while there was no evident increment in the response of the other analytes. Similarly, Figure 9B shows CC concentrations measured with 25 μM of HQ and 50 μM of RS in the solution. The peak current of CC was registered at 0.18 V, showing a linear response corresponding to CC concentrations without the interference of HQ and CC. The same behavior was observed for the current peak of RS at 0.58 V in the presence of 25 μM of HQ and 25 μM of CC, although a more comprehensive linear range was registered from 1.2 to 400 μM. The electrochemical reactions of the three DHB performed on the CME exhibited no influence on each other. The inset of Figure 9A–C exhibits the calibration curves of the anodic peak vs. the DHB concentration. The linear regression obtained for the single detection were HQ: Ipa (μA) = 124.57 CHQ (μM) + 18.28 (R2 = 0.992), CC: Ipa (μA) = 137.02 CCC (μM) + 12.39 (R2 = 0.993), and RS: Ipa (μA) = 41.27 CRS (μM) + 6.0 (R2 = 0.992). The detection limits obtained for the single detection were 0.66, 0.84, and 0.39 μ M for HQ, CC, and RS, respectively.
The performance of the GCE/ErGO-cMWCNT/AuNPs sensor for multianalyte detection was evaluated using simultaneous increasing concentrations of HQ, CC, and RS. The oxidation currents linearly increased in proportion to analyte concentrations. Three well-defined and distinct oxidation peaks for HQ, CC, and RS are observed in Figure 10A. As shown in Figure 10B–D, the linear ranges of HQ, CC, and RS were divided into two, one at low concentrations and the other at high concentrations, as shown in Table 1, resulting in higher sensitivities for lower concentrations. The high sensitivity observed at lower concentrations is related to a more significant number of active sites on the electrode surface, which are progressively reduced as the concentration increases, consequently decreasing sensitivity. However, the calculated LOD (3.3SD/S) of 0.39, 0.54, and 0.61 μM for HQ, CC, and RS, respectively, showed the remarkable performance of the GCE/ErGO-cMWCNT/AuNPs sensor and the effective synergistic effects of the nanocomposite. This confirms that the CME can be used for simultaneous detection of the three DHB without interference among them.
Table 2 shows the comparison of the electrochemical parameters obtained in this work with devices designed for multianalyte detection of DHB. The comparative data showed that the electroanalytical properties of this work are comparable or even better concerning previously reported electrochemical sensors for simultaneous DHB detection. For instance, the GCE/ErGO-cMWCNT/AuNPs proposed in this work displays a more extensive linear range to HQ, CC, and RS and lower LOD to HQ and CC than those similar based on a 3D carbon nanotube–graphene hybrid decorated with gold nanoparticles [20]. In this work, the functionalization of MWCNT with carboxylic functional groups played an essential role in the good sensitivity towards DHB, because in addition to generating excellent dispersion in solution and enabling uniform electrode layer, it facilitated the adsorption of the DHB in both the electrode surface and the great amount of active edge plans with improved electrocatalytic activity. In addition, Table 2 displays that GCE/ErGO-cMWCNT/AuNPs had a notable performance with lower LOD and more extensive linear range than other similar carbon-based materials reported in the literature, such as graphene screen-printed electrode [46], Au-Pd nanoflower/reduced graphene oxide nanocomposite [47], and Cu-porphyrin-poly(styrene sulfonate) functionalized graphene [48]. The high performance of GCE/ErGO-cMWCNT/AuNPs expressed the notable synergistic effects granted to the nanocomposite.

3.6. Reproduciblity and Stability

The reproducibility of the modified electrode GCE/ErGO-cMWCNT/AuNPs is crucial for the accurate monitoring of HQ, CC, and RS. Five electrodes were prepared by the same procedure and the electrochemical responses towards 0.2 mM of HQ, CC, and RS (Figure 11A) were compared. The results revealed that the relative standard deviations (RSD) of current peaks were 2.55%, 2.69%, and 2.81%, respectively. Thus, the electrode reproducibility was associated with better dispersion of the cMWCNT and the highly controlled electrochemical process for ErGO and AuNPs synthesis, which helps to generate a more homogeneous composite onto the electrode surface.
The stability of the GCE/ErGO-cMWCNT/AuNPs sensor was also studied; the electrode was kept at room temperature (25 °C) in the air for nine days. During this period, the DPV detection was carried out under the same conditions every day. The stability was calculated by comparing the percentage (%) of current retention of the initial response. The % retention to HQ, CC, and RS reached 89%, 86%, and 90% of the initial value, respectively, manifesting high stability.

3.7. Real Sample Analysis

To demonstrate the applicability of the GCE/ErGO-cMWCNT/AuNPs sensor for the simultaneous quantitative detection of the DHB isomers, tap water and a skin-lightening commercial cream were tested. The results are summarized in Table 3. The concentrations of the DHB were calculated from the calibration plot, and the samples were evaluated by triplicate. Table 3 shows the recoveries of the samples in tap water, found in the range of 104.7–113.64% for HQ, 104.88–106.08% for CC, and 101.58–110.09% for RS. The obtained recoveries of the cosmetic sample were calculated to be 101.9–103.09% for HQ, 99.59–103.59% for CC, and 99.59–105.09% for RS. The satisfactory results demonstrate the feasibility of using GCE/ErGO-cMWCNT/AuNPs for the electrochemical detection of HQ, CC, and RS in environmental and cosmetic samples. Hence, the results confirmed that the proposed method has the potential for timely implementation and good reliability for the multiple detections of HQ, CC, and RS from different matrices.

4. Conclusions

The GCE/ErGO-cMWCNT/AuNPs sensor presented a synergistic effect in enhanced conductivity, electroactivity, and enlarged electroactive surface area, associated with the 3D network formed by the strong π–π stacking interaction between ErGO and cMWCNT with well-defined nanopores, and the active catalytic sites of AuNPs. Additionally, the carboxylated MWCNT provided the nanocomposite with improved electrocatalytic properties towards the DHB detection compared to the pristine MWCNT. The GCE/ErGO-cMWCNT/AuNPs sensor allowed simultaneous detection of HQ, CC, and RS by monitoring their distinctive electrocatalytic oxidation current. The electrode provided acceptable linear ranges in the concentration range of 1.2–170 μM for HQ and CC and 2.4–400 μM for RS, as well as low detection limits for HQ, CC, and RS of 0.39 μM, 0.54 μM, and 0.61 μM, respectively. In addition, the electrochemical sensor showed good reproducibility, stability, and relevant results in the recovery rates of tap water and skin-lightening cosmetic cream. The results indicate that the proposed GCE/ErGO-cMWCNT/AuNPs electrochemical sensor has a great potential for the simultaneous, precise, and easy-to-handle detection of DHB in complex samples with high sensitivity.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/bios11090321/s1, Figure S1: Raman spectra of GO and ErGO, Figure S2: Cyclic voltammetry of (a) GCE/AuNPs, (c) GCE/cMWCNT/AuNPs, (e) GCE/ErGO/AuNPs, (g) GCE/ErGO-cMWCNT/AuNPs at different scan rates in 5.0 mM [Fe(CN)6]3−/4− containing PBS 0.01 M. The linear relationship between the anodic and cathodic peak currents versus root of the scan rate of (b) GCE/AuNPs, (d) GCE/cMWCNT/AuNPs, (f) GCE/ErGO/AuNPs, (h) GCE/ErGO-cMWCNT/AuNPs.

Author Contributions

A.D.-A.: investigation, methodology, formal analysis, writing—original draft. R.B.D.: conceptualization, validation, writing—review and editing. E.A.Z.-C.: writing—review and editing, supervision, funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This project was financed by the National Council for Science and Technology of Mexico (CONACYT), grant number CB2016-288802-Q.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We wish to thank CONACYT for the scholarship awarded to Angélica Domínguez-Aragón (701394). We also wish to thank the Laboratorio Nacional de Nanotecnología (CIMAV), Claudia Hernández, Miguel Orozco, Manuel Román, Pedro Pizá-Ruíz, Karla Campos for their valuable collaboration during this research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pifer, J.W.; Hearne, F.T.; Swanson, F.A.; O’Donoghue, J.L. Mortality study of employees engaged in the manufacture and use of hydroquinone. Int. Arch. Occup. Environ. Health 1995, 67, 267–280. [Google Scholar] [CrossRef]
  2. Tse, T.W. Hydroquinone for skin lightening: Safety profile, duration of use and when should we stop? J. Dermatol. Treat. 2010, 21, 272–275. [Google Scholar] [CrossRef]
  3. Trevors, J.T.; Basaraba, J. Toxicity of benzoquinone and hydroquinone in short-term bacterial bioassays. Bull. Environ. Contam. Toxicol. 1980, 25, 672–675. [Google Scholar] [CrossRef] [PubMed]
  4. DeCaprio, A.P. The toxicology of hydroquinone—Relevance to occupational and environmental exposure. Crit. Rev. Toxicol. 1999, 29, 283–330. [Google Scholar] [CrossRef]
  5. Hebeda, C.B.; Pinedo, F.J.; Bolonheis, S.M.; Ferreira, Z.F.; Muscará, M.N.; Teixeira, S.A.; Farsky, S.H.P. Intracellular mechanisms of hydroquinone toxicity on endotoxin-activated neutrophils. Arch. Toxicol. 2012, 86, 1773–1781. [Google Scholar] [CrossRef] [PubMed]
  6. Karim, F.; Fakhruddin, A.N.M. Recent advances in the development of biosensor for phenol: A review. Rev. Environ. Sci. Biotechnol. 2012, 11, 261–274. [Google Scholar] [CrossRef]
  7. Maleki, N.; Kashanian, S.; Maleki, E.; Nazari, M. A novel enzyme based biosensor for catechol detection in water samples using artificial neural network. Biochem. Eng. J. 2017, 128, 1–11. [Google Scholar] [CrossRef]
  8. Barbaud, A.; Modiano, P.; Cocciale, M.; Reichert, S.; Schmutz, J.L. The topical application of resorcinol can provoke a systemic allergic reaction. Br. J. Dermatol. 1996, 135, 1014–1015. [Google Scholar] [CrossRef] [PubMed]
  9. Lynch, B.S.; Delzell, E.S.; Bechtel, D.H. Toxicology review and risk assessment of resorcinol: Thyroid effects. Regul. Toxicol. Pharmacol. 2002, 36, 198–210. [Google Scholar] [CrossRef] [PubMed]
  10. Chen, D.; Zhou, H.; Li, H.; Chen, J.; Li, S.; Zheng, F. Self-template synthesis of biomass-derived 3D hierarchical N-doped porous carbon for simultaneous determination of dihydroxybenzene isomers. Sci. Rep. 2017, 7, 14985. [Google Scholar] [CrossRef] [Green Version]
  11. Zhou, H.-F.; Li, S.-X.; Wu, Y.-J.; Chen, D.-J.; Li, Y.-H.; Zheng, F.-Y.; Yu, H.-W. Nitrogen-doped carbon spheres surface modified with in situ synthesized Au nanoparticles as electrochemical selective sensor for simultaneous detection of trace nitrophenol and dihydroxybenzene isomers. Sens. Actuators B 2016, 237, 487–494. [Google Scholar] [CrossRef]
  12. Tanaka, K. Resorcinol. J. Synth. Org. Chem. Jpn. 1985, 43, 262. [Google Scholar] [CrossRef]
  13. Rodríguez, M.C.; Rivas, G.A. Glassy carbon paste electrodes modified with polyphenol oxidase: Analytical applications. Anal. Chim. Acta 2002, 459, 43–51. [Google Scholar] [CrossRef]
  14. Yuan, D.; Chen, S.; Hu, F.; Wang, C.; Yuan, R. Non-enzymatic amperometric sensor of catechol and hydroquinone using Pt-Au-organosilica@chitosan composites modified electrode. Sens. Actuators B Chem. 2012, 168, 193–199. [Google Scholar] [CrossRef]
  15. Ye, Z.; Wang, Q.; Qiao, J.; Xu, Y.; Li, G. In situ synthesis of sandwich MOFs on reduced graphene oxide for electrochemical sensing of dihydroxybenzene isomers. Analyst 2019, 144, 2120–2129. [Google Scholar] [CrossRef]
  16. Zheng, X.; Hu, Y.; Li, H.; Han, B.; Lin, R.; Huang, B. N-doped carbon nanotube frameworks modified electrode for the selective sensing of hydroquinone and catechol. J. Electroanal. Chem. 2020, 861, 113968. [Google Scholar] [CrossRef]
  17. Lu, J.Y.; Yu, Y.S.; Chen, T.B.; Chang, C.F.; Tamulevičius, S.; Erts, D.; Wu, K.C.W.; Gu, Y. Fabrication of an extremely cheap poly(3,4-ethylenedioxythiophene) modified pencil lead electrode for effective hydroquinone sensing. Polymers 2021, 13, 343. [Google Scholar] [CrossRef]
  18. Yang, J.; Deng, S.; Lei, J.; Ju, H.; Gunasekaran, S. Electrochemical synthesis of reduced graphene sheet-AuPd alloy nanoparticle composites for enzymatic biosensing. Biosens. Bioelectron. 2011, 29, 159–166. [Google Scholar] [CrossRef]
  19. Yin, D.; Liu, J.; Bo, X.; Guo, L. Cobalt-iron selenides embedded in porous carbon nanofibers for simultaneous electrochemical detection of trace of hydroquinone, catechol and resorcinol. Anal. Chim. Acta 2020, 1093, 35–42. [Google Scholar] [CrossRef]
  20. Chen, T.-W. Simultaneous Determination of Dihydroxybenzene Isomers using Glass Carbon Electrode Modified with 3D CNT-graphene Decorated with Au Nanoparticles. Int. J. Electrochem. Sci. 2019, 14, 7037–7046. [Google Scholar] [CrossRef]
  21. Butwong, N.; Kunawong, T.; Luong, J.H.T. Simultaneous Analysis of Hydroquinone, Arbutin, and Ascorbyl Glucoside Using a Nanocomposite of Ag@AgCl Nanoparticles, Ag2S Nanoparticles, Multiwall Carbon Nanotubes, and Chitosan. Nanomaterials 2020, 10, 1583. [Google Scholar] [CrossRef]
  22. Torrinha, Á.; Oliveira, T.M.B.F.; Ribeiro, F.W.P.; Correia, A.N.; Lima-Neto, P.; Morais, S. Application of Nanostructured Carbon-Based Electrochemical (Bio)Sensors for Screening of Emerging Pharmaceutical Pollutants in Waters and Aquatic Species: A Review. Nanomaterials 2020, 10, 1268. [Google Scholar] [CrossRef] [PubMed]
  23. Mani, V.; Chen, S.M.; Lou, B.S. Three dimensional graphene oxide-carbon nanotubes and graphene-carbon nanotubes hybrids. Int. J. Electrochem. Sci. 2013, 8, 11641–11660. [Google Scholar]
  24. Dang, V.T.; Nguyen, D.D.; Cao, T.T.; Le, P.H.; Tran, D.L.; Phan, N.M.; Nguyen, V.C. Recent trends in preparation and application of carbon nanotube–graphene hybrid thin films. Adv. Nat. Sci. Nanosci. Nanotechnol. 2016, 7, 033002. [Google Scholar] [CrossRef] [Green Version]
  25. Filik, H.; Avan, A.A. Review on applications of carbon nanomaterials for simultaneous electrochemical sensing of environmental contaminant dihydroxybenzene isomers. Arab. J. Chem. 2020, 13, 6092–6105. [Google Scholar] [CrossRef]
  26. Wang, X.; Yang, L.; Jin, X.; Zhang, L. Electrochemical determination of estrogenic compound bisphenol F in food packaging using carboxyl functionalized multi-walled carbon nanotubes modified glassy carbon electrode. Food Chem. 2014, 157, 464–469. [Google Scholar] [CrossRef]
  27. Carneiro, P.; Morais, S.; Pereira, M.C. Nanomaterials towards Biosensing of Alzheimer’s Disease Biomarkers. Nanomaterials 2019, 9, 1663. [Google Scholar] [CrossRef] [Green Version]
  28. Hummers, W.S.; Offeman, R.E. Preparation of Graphitic Oxide. J. Am. Chem. Soc. 1958, 80, 1339. [Google Scholar] [CrossRef]
  29. Hoa, L.M.T. Characterization of multi-walled carbon nanotubes functionalized by a mixture of HNO3/H2SO4. Diam. Relat. Mater. 2018, 89, 43–51. [Google Scholar] [CrossRef]
  30. Yu, H.; Li, R.; Song, K. Amperometric determination of nitrite by using a nanocomposite prepared from gold nanoparticles, reduced graphene oxide and multi-walled carbon nanotubes. Microchim. Acta 2019, 186, 624. [Google Scholar] [CrossRef]
  31. Kıranşan, K.D.; Topçu, E. Free-standing and Flexible MoS2/rGO Paper Electrode for Amperometric Detection of Folic Acid. Electroanalysis 2018, 30, 810–818. [Google Scholar] [CrossRef]
  32. Elgrishi, N.; Rountree, K.J.; McCarthy, B.D.; Rountree, E.S.; Eisenhart, T.T.; Dempsey, J.L. A Practical Beginner’s Guide to Cyclic Voltammetry. J. Chem. Educ. 2018, 95, 197–206. [Google Scholar] [CrossRef]
  33. Avan, A.A.; Filik, H. Simultaneous electrochemical sensing of dihydroxybenzene isomers at multi-walled carbon nanotubes aerogel/gold nanoparticles modified graphene screen-printed electrode. J. Electroanal. Chem. 2020, 878, 114682. [Google Scholar] [CrossRef]
  34. Yang, S.; Yang, M.; Yao, X.; Fa, H.; Wang, Y.; Hou, C. A zeolitic imidazolate framework/carbon nanofiber nanocomposite based electrochemical sensor for simultaneous detection of co-existing dihydroxybenzene isomers. Sens. Actuators B Chem. 2020, 320, 128294. [Google Scholar] [CrossRef]
  35. Laurila, T.; Sainio, S.; Caro, M.A. Hybrid carbon based nanomaterials for electrochemical detection of biomolecules. Prog. Mater. Sci. 2017, 88, 499–594. [Google Scholar] [CrossRef]
  36. Bi, H.; Li, Y.; Liu, S.; Guo, P.; Wei, Z.; Lv, C.; Zhang, J.; Zhao, X.S. Carbon-nanotube-modified glassy carbon electrode for simultaneous determination of dopamine, ascorbic acid and uric acid: The effect of functional groups. Sens. Actuators B Chem. 2012, 171–172, 1132–1140. [Google Scholar] [CrossRef]
  37. Moraes, F.C.; Cabral, M.F.; Mascaro, L.H.; MacHado, S.A.S. The electrochemical effect of acid functionalisation of carbon nanotubes to be used in sensors development. Surf. Sci. 2011, 605, 435–440. [Google Scholar] [CrossRef]
  38. Goulart, L.A.; De Moraes, F.C.; Mascaro, L.H. Influence of the different carbon nanotubes on the development of electrochemical sensors for bisphenol A. Mater. Sci. Eng. C 2016, 58, 768–773. [Google Scholar] [CrossRef] [PubMed]
  39. Yen, M.-Y.; Hsiao, M.-C.; Liao, S.-H.; Liu, P.-I.; Tsai, H.-M.; Ma, C.-C.M.; Pu, N.-W.; Ger, M.-D. Preparation of graphene/multi-walled carbon nanotube hybrid and its use as photoanodes of dye-sensitized solar cells. Carbon 2011, 49, 3597–3606. [Google Scholar] [CrossRef]
  40. Wu, F.; Zhao, J.; Han, D.; Zhao, S.; Zhu, R.; Cui, G. A three-electrode integrated electrochemical platform based on nanoporous gold for the simultaneous determination of hydroquinone and catechol with high selectivity. Analyst 2021, 146, 232–243. [Google Scholar] [CrossRef]
  41. Huang, R.; Liao, D.; Chen, S.; Yu, J.; Jiang, X. A strategy for effective electrochemical detection of hydroquinone and catechol: Decoration of alkalization-intercalated Ti3C2 with MOF-derived N-doped porous carbon. Sens. Actuators B Chem. 2020, 320, 128386. [Google Scholar] [CrossRef]
  42. Sheng, Z.H.; Zheng, X.Q.; Xu, J.Y.; Bao, W.J.; Wang, F.B.; Xia, X.H. Electrochemical sensor based on nitrogen doped graphene: Simultaneous determination of ascorbic acid, dopamine and uric acid. Biosens. Bioelectron. 2012, 34, 125–131. [Google Scholar] [CrossRef]
  43. Edris, N.M.M.A.; Sulaiman, Y. Ultrasensitive voltammetric detection of benzenediol isomers using reduced graphene oxide-azo dye decorated with gold nanoparticles. Ecotoxicol. Environ. Saf. 2020, 203, 111026. [Google Scholar] [CrossRef] [PubMed]
  44. Velmurugan, M.; Karikalan, N.; Chen, S.-M.; Cheng, Y.-H.; Karuppiah, C. Electrochemical preparation of activated graphene oxide for the simultaneous determination of hydroquinone and catechol. J. Colloid Interface Sci. 2017, 500, 54–62. [Google Scholar] [CrossRef]
  45. Laviron, E. General expression of the linear potential sweep voltammogram in the case of diffusionless electrochemical systems. J. Electroanal. Chem. 1979, 101, 19–28. [Google Scholar] [CrossRef]
  46. Aragó, M.; Ariño, C.; Dago, À.; Díaz-Cruz, J.M.; Esteban, M. Simultaneous determination of hydroquinone, catechol and resorcinol by voltammetry using graphene screen-printed electrodes and partial least squares calibration. Talanta 2016, 160, 138–143. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Chen, Y.; Liu, X.; Zhang, S.; Yang, L.; Liu, M.; Zhang, Y.; Yao, S. Ultrasensitive and simultaneous detection of hydroquinone, catechol and resorcinol based on the electrochemical co-reduction prepared Au-Pd nanoflower/reduced graphene oxide nanocomposite. Electrochim. Acta 2017, 231, 677–685. [Google Scholar] [CrossRef]
  48. Zhang, C.; Han, M.; Yu, L.; Qu, L.; Li, Z. Fabrication an electrochemical sensor based on composite of Cu-TCPP nanosheets and PSS functionalized graphene for simultaneous and sensitive determination of dihydroxybenzene isomers. J. Electroanal. Chem. 2021, 890, 115232. [Google Scholar] [CrossRef]
  49. Yang, S.; Yang, M.; Liu, Q.; Wang, X.; Fa, H.; Wang, Y.; Hou, C. An Ultrasensitive Electrochemical Sensor Based on Multiwalled Carbon Nanotube@Reduced Graphene Oxide Nanoribbon Composite for Simultaneous Determination of Hydroquinone, Catechol and Resorcinol. J. Electrochem. Soc. 2019, 166, B547–B553. [Google Scholar] [CrossRef]
  50. Deng, M.; Lin, S.; Bo, X.; Guo, L. Simultaneous and sensitive electrochemical detection of dihydroxybenzene isomers with UiO-66 metal-organic framework/mesoporous carbon. Talanta 2017, 174, 527–538. [Google Scholar] [CrossRef]
Biosensors 11 00321 g001 550

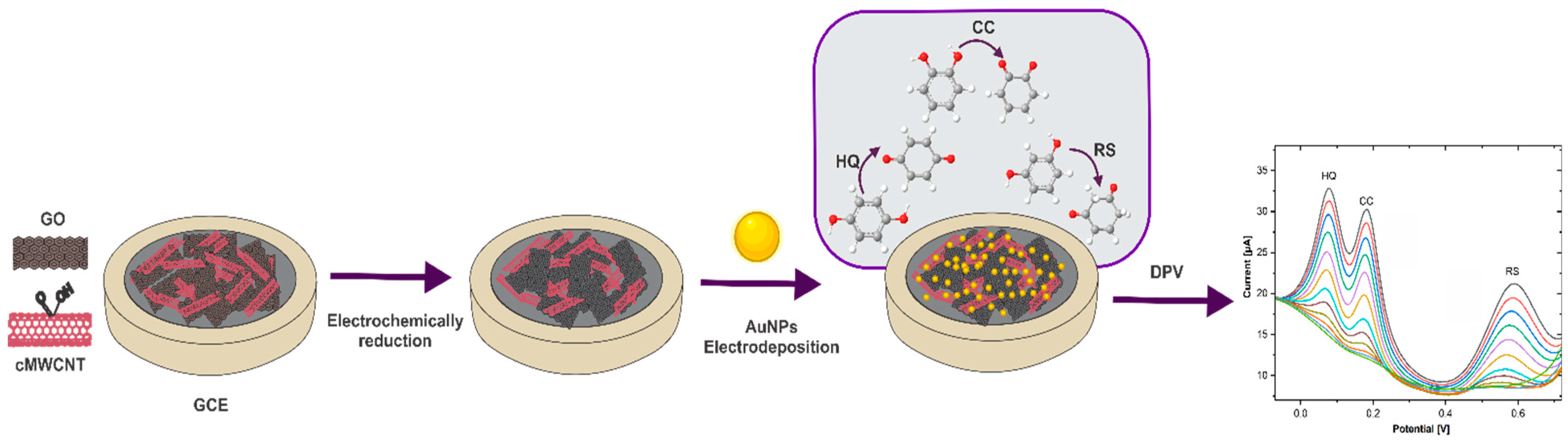

Figure 1. Scheme of the step-by-step preparation of the GCE/ErGO-cMWCNT/AuNPs sensor for simultaneous detection of DHB.
Figure 1. Scheme of the step-by-step preparation of the GCE/ErGO-cMWCNT/AuNPs sensor for simultaneous detection of DHB.
Biosensors 11 00321 g001
Biosensors 11 00321 g002 550

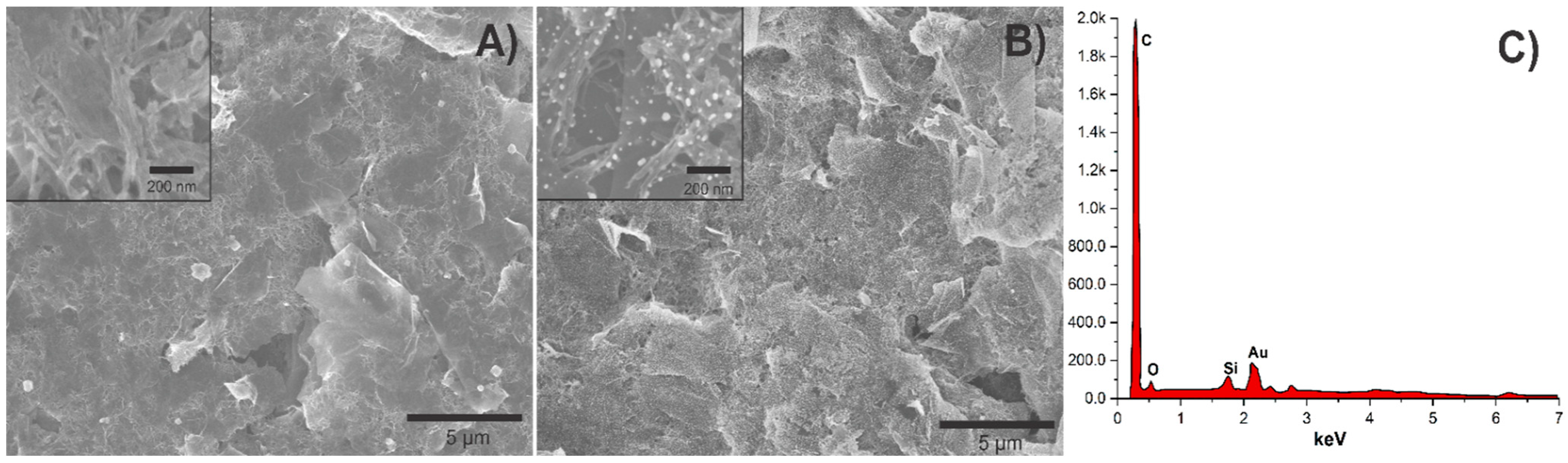

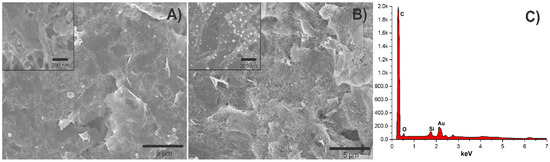

Figure 2. SEM images of (A) ErGO-cMWCNT, (B) ErGO-cMWCNT/AuNPs, and (C) EDS of ErGO-cMWCNT/AuNPs.
Figure 2. SEM images of (A) ErGO-cMWCNT, (B) ErGO-cMWCNT/AuNPs, and (C) EDS of ErGO-cMWCNT/AuNPs.
Biosensors 11 00321 g002
Biosensors 11 00321 g003 550

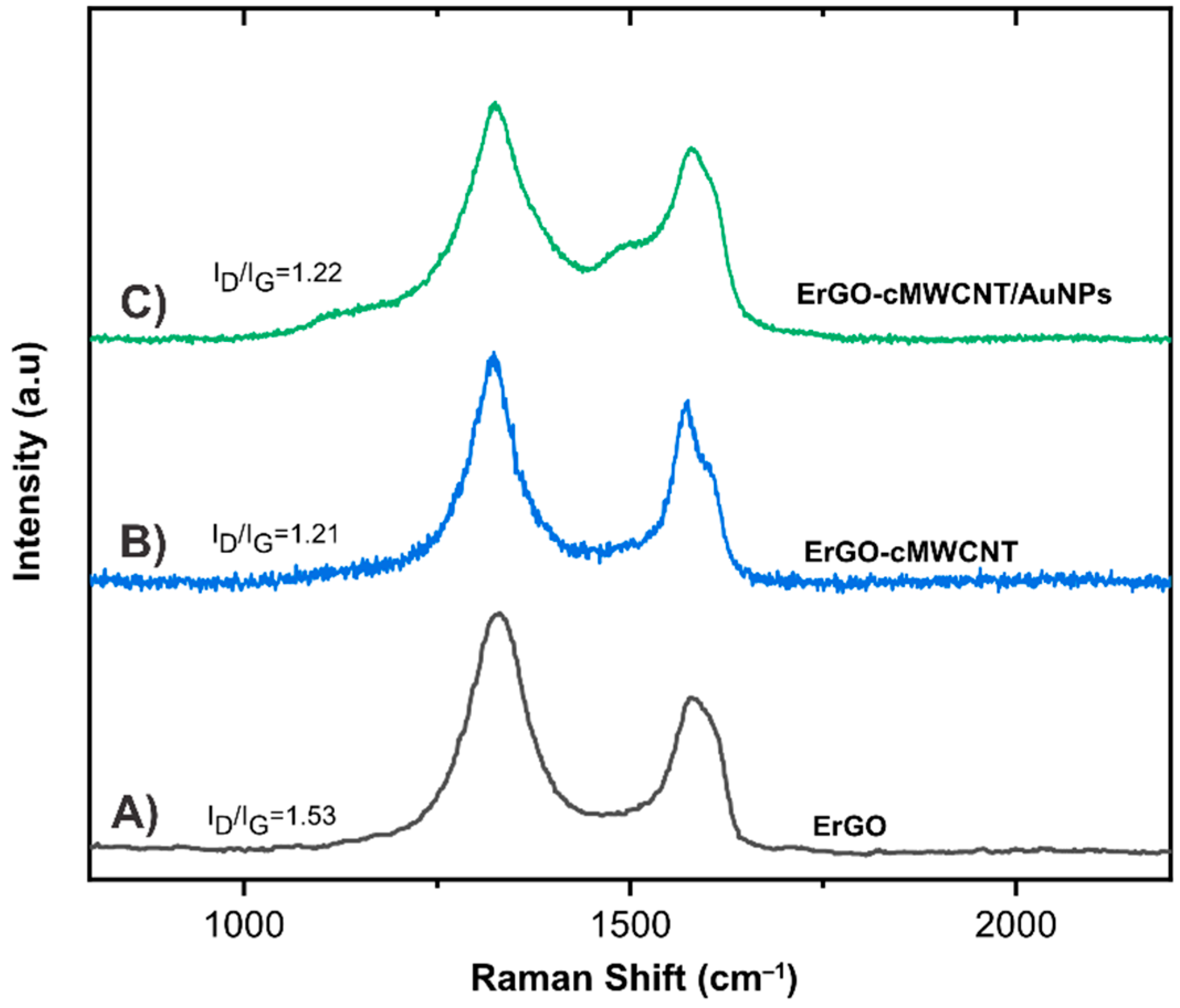

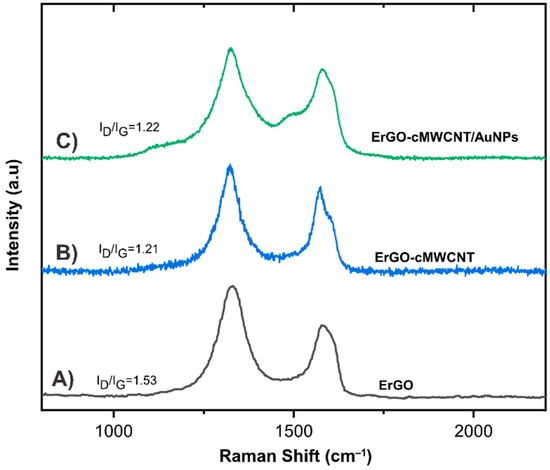

Figure 3. Raman spectra of (A) ErGO, (B)ErGO-cMWCNT, (C) ErGO-cMWCNT/AuNPs.
Figure 3. Raman spectra of (A) ErGO, (B)ErGO-cMWCNT, (C) ErGO-cMWCNT/AuNPs.
Biosensors 11 00321 g003
Biosensors 11 00321 g004 550

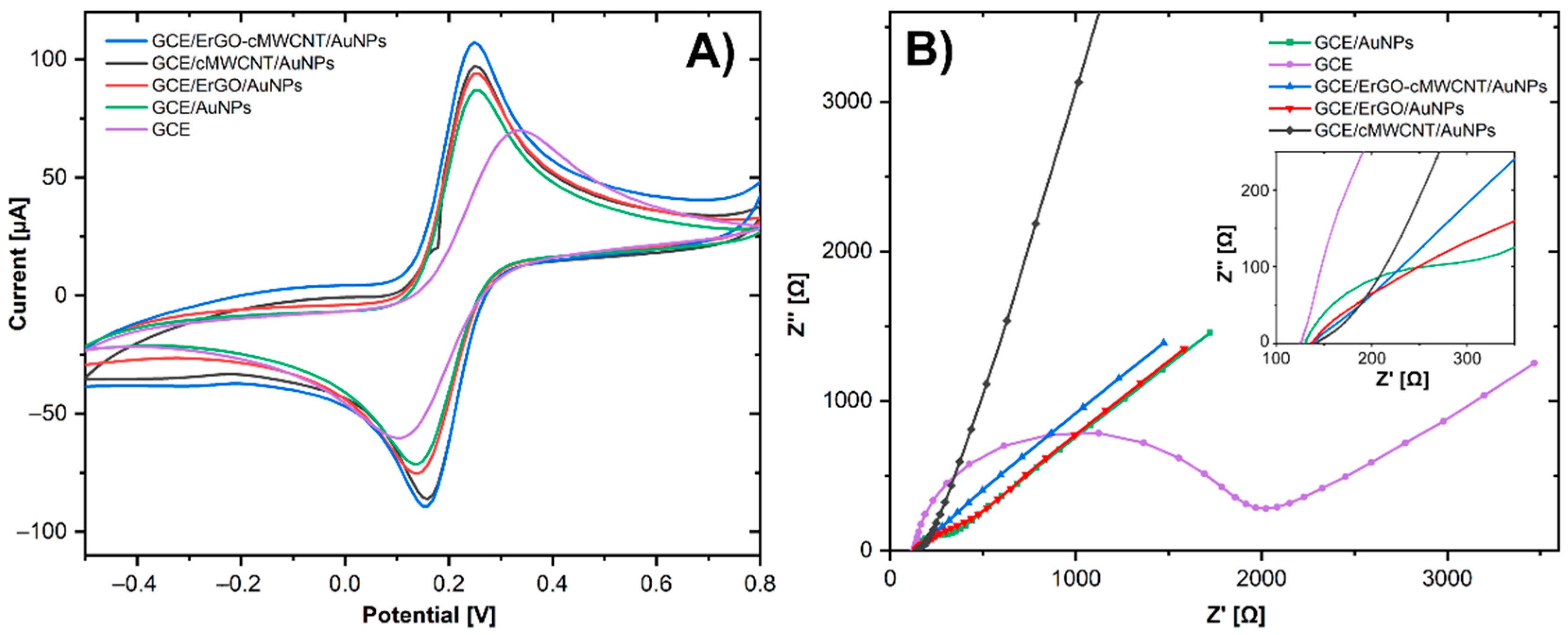

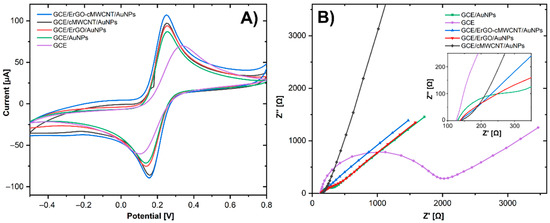

Figure 4. (A) CV in 5.0 mM [Fe(CN)6]−3/−4 containing PBS 0.01 M at 100 mV s−1, (B) EIS in 5.0 mM [Fe(CN)6]−3/−4 containing PBS 0.01 M.
Figure 4. (A) CV in 5.0 mM [Fe(CN)6]−3/−4 containing PBS 0.01 M at 100 mV s−1, (B) EIS in 5.0 mM [Fe(CN)6]−3/−4 containing PBS 0.01 M.
Biosensors 11 00321 g004
Biosensors 11 00321 g005 550

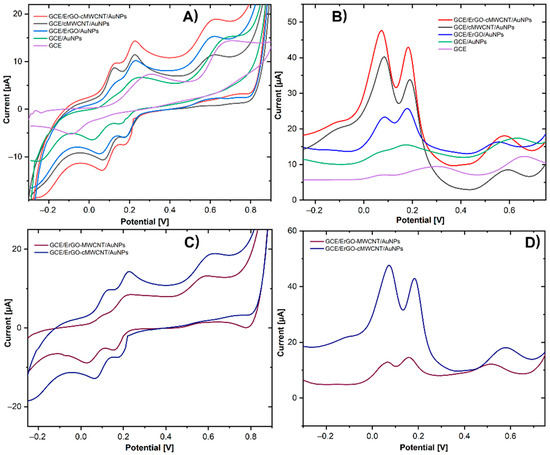

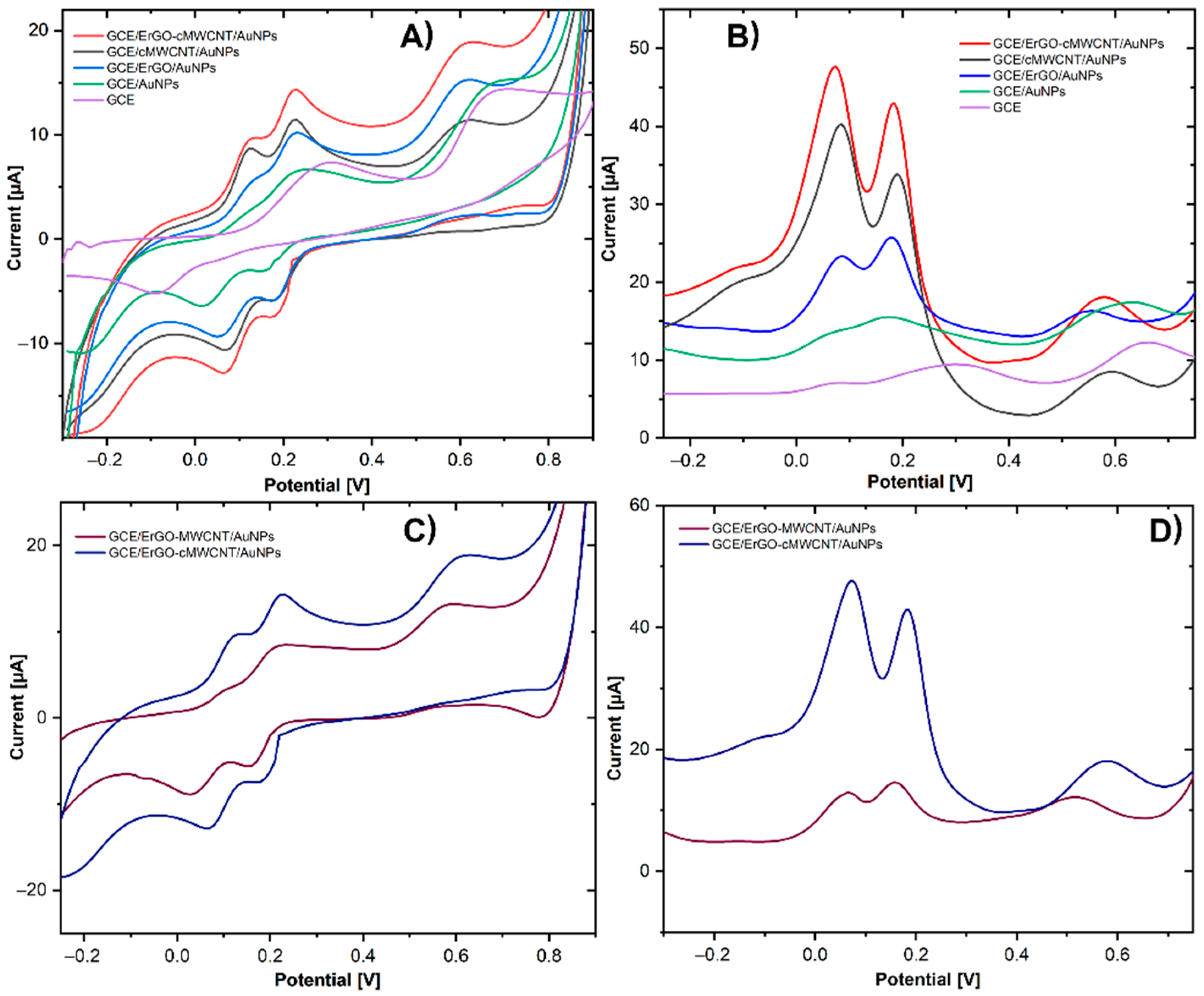

Figure 5. (A,C) Cyclic voltammetry of modified GCE electrodes in HQ, CC, and RS 0.2 mM in PBS 0.01 M at pH 7. (B,D) Differential pulse voltammetry of modified GCE electrodes in HQ, CC, and RS 0.2 mM in PBS 0.01 M at pH 7.
Figure 5. (A,C) Cyclic voltammetry of modified GCE electrodes in HQ, CC, and RS 0.2 mM in PBS 0.01 M at pH 7. (B,D) Differential pulse voltammetry of modified GCE electrodes in HQ, CC, and RS 0.2 mM in PBS 0.01 M at pH 7.
Biosensors 11 00321 g005
Biosensors 11 00321 g006 550

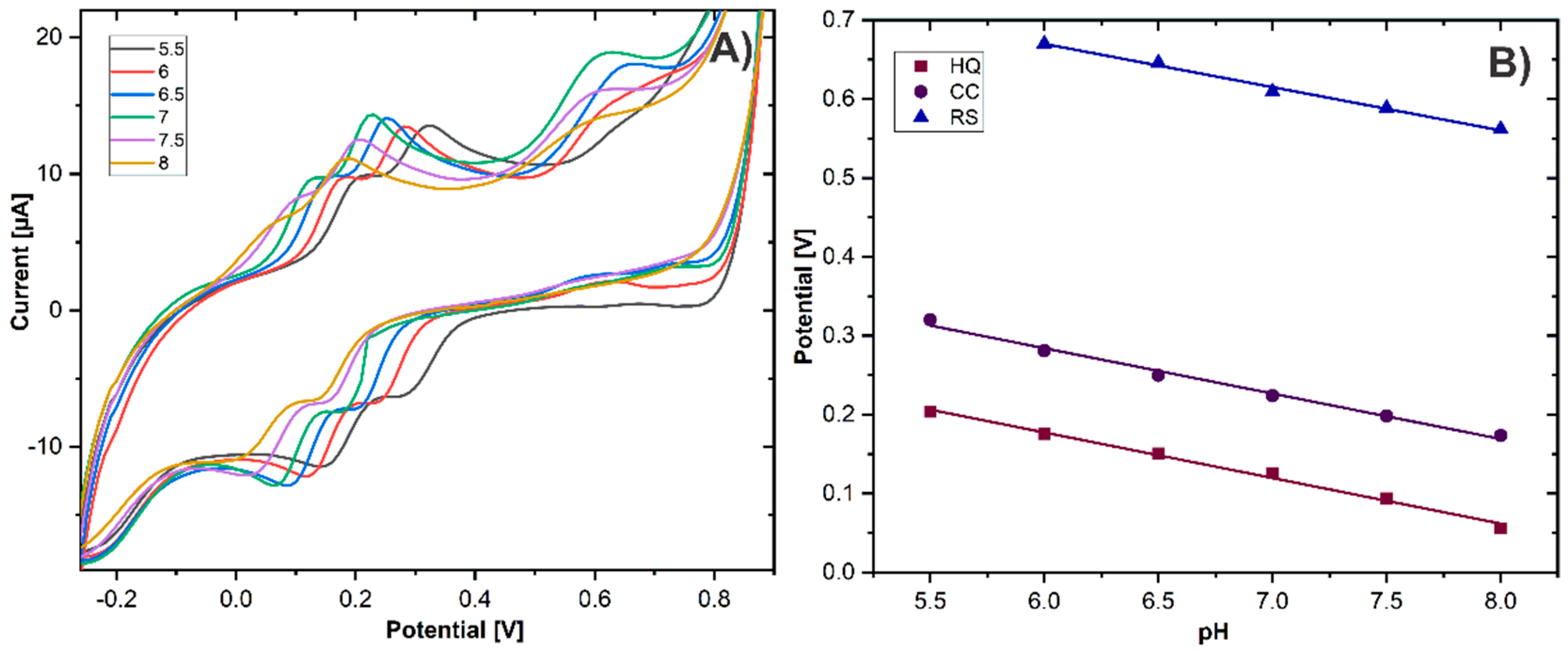

Figure 6. (A) Cyclic voltammetry of GCE/ErGO-cMWCNT/AuNPs for a mixture of 0.2 mM of HQ, CC, and RS in different pH solutions at 50 mV s−1. (B) Plots of effects of anodic peak potential vs. pH.
Figure 6. (A) Cyclic voltammetry of GCE/ErGO-cMWCNT/AuNPs for a mixture of 0.2 mM of HQ, CC, and RS in different pH solutions at 50 mV s−1. (B) Plots of effects of anodic peak potential vs. pH.
Biosensors 11 00321 g006
Biosensors 11 00321 g007 550

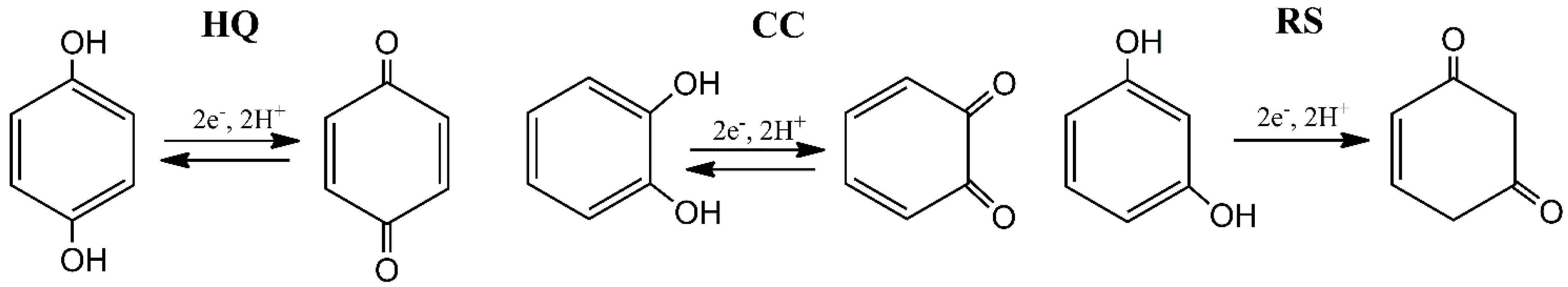

Figure 7. The electrooxidation mechanism of HQ, CC, and RS.
Figure 7. The electrooxidation mechanism of HQ, CC, and RS.
Biosensors 11 00321 g007
Biosensors 11 00321 g008 550

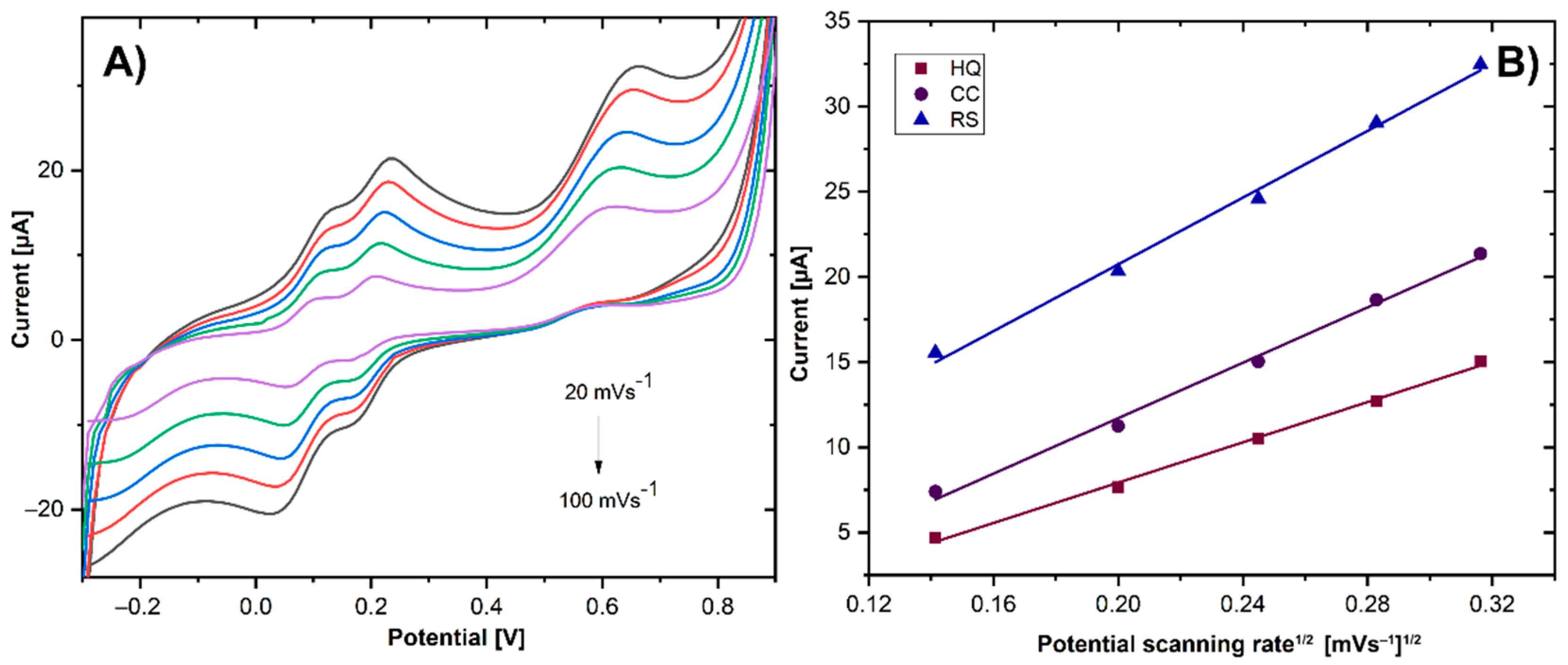

Figure 8. (A) Cyclic voltammetry of GCE/ErGO-cMWCNT/AuNPs in presence of HQ, CC, and RS at pH 7.0 with different scan rates. (B) Plots of effects of anodic peak potential vs. v1/2.
Figure 8. (A) Cyclic voltammetry of GCE/ErGO-cMWCNT/AuNPs in presence of HQ, CC, and RS at pH 7.0 with different scan rates. (B) Plots of effects of anodic peak potential vs. v1/2.
Biosensors 11 00321 g008
Biosensors 11 00321 g009 550

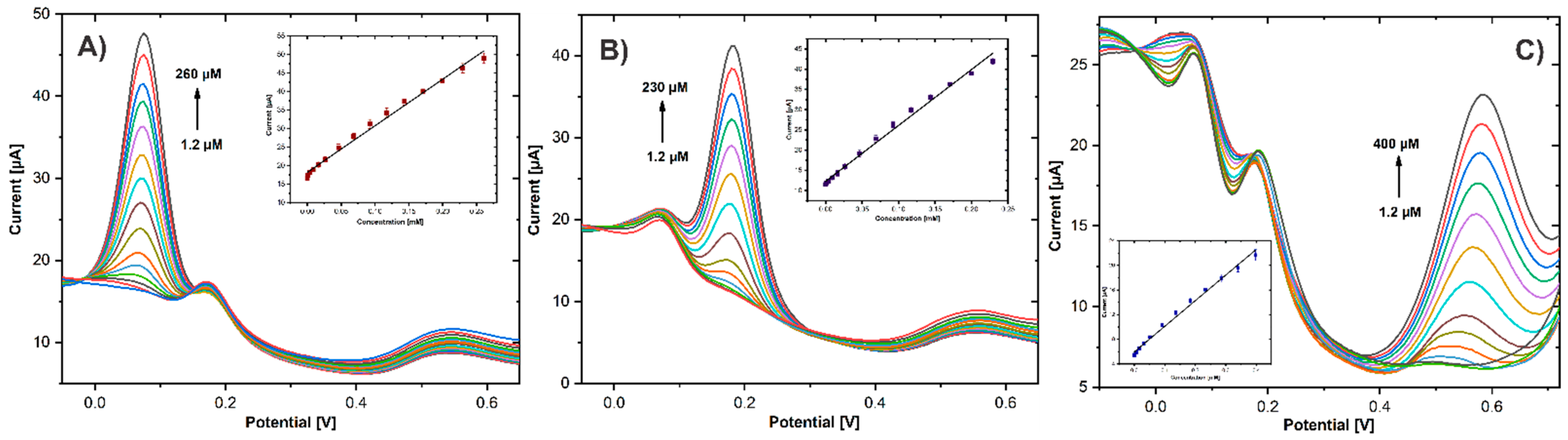

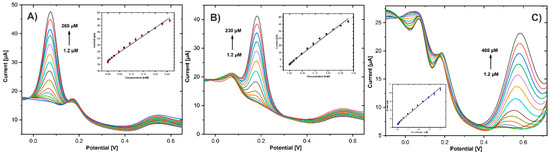

Figure 9. DPVs of GCE/ErGO-cMWCNT/AuNPs in 0.01 PBS (pH 7.0) containing (A) 25 μM CC, 50 μM RS, and different concentrations of HQ; (B) 25 μM HQ, 50 μM RS, and different concentrations of CC; (C) 25 μM HQ, 25 μM CC, and different concentrations of RS. Inset plots of the peak current as a function HQ, CC, and RS concentrations.
Figure 9. DPVs of GCE/ErGO-cMWCNT/AuNPs in 0.01 PBS (pH 7.0) containing (A) 25 μM CC, 50 μM RS, and different concentrations of HQ; (B) 25 μM HQ, 50 μM RS, and different concentrations of CC; (C) 25 μM HQ, 25 μM CC, and different concentrations of RS. Inset plots of the peak current as a function HQ, CC, and RS concentrations.
Biosensors 11 00321 g009
Biosensors 11 00321 g010 550

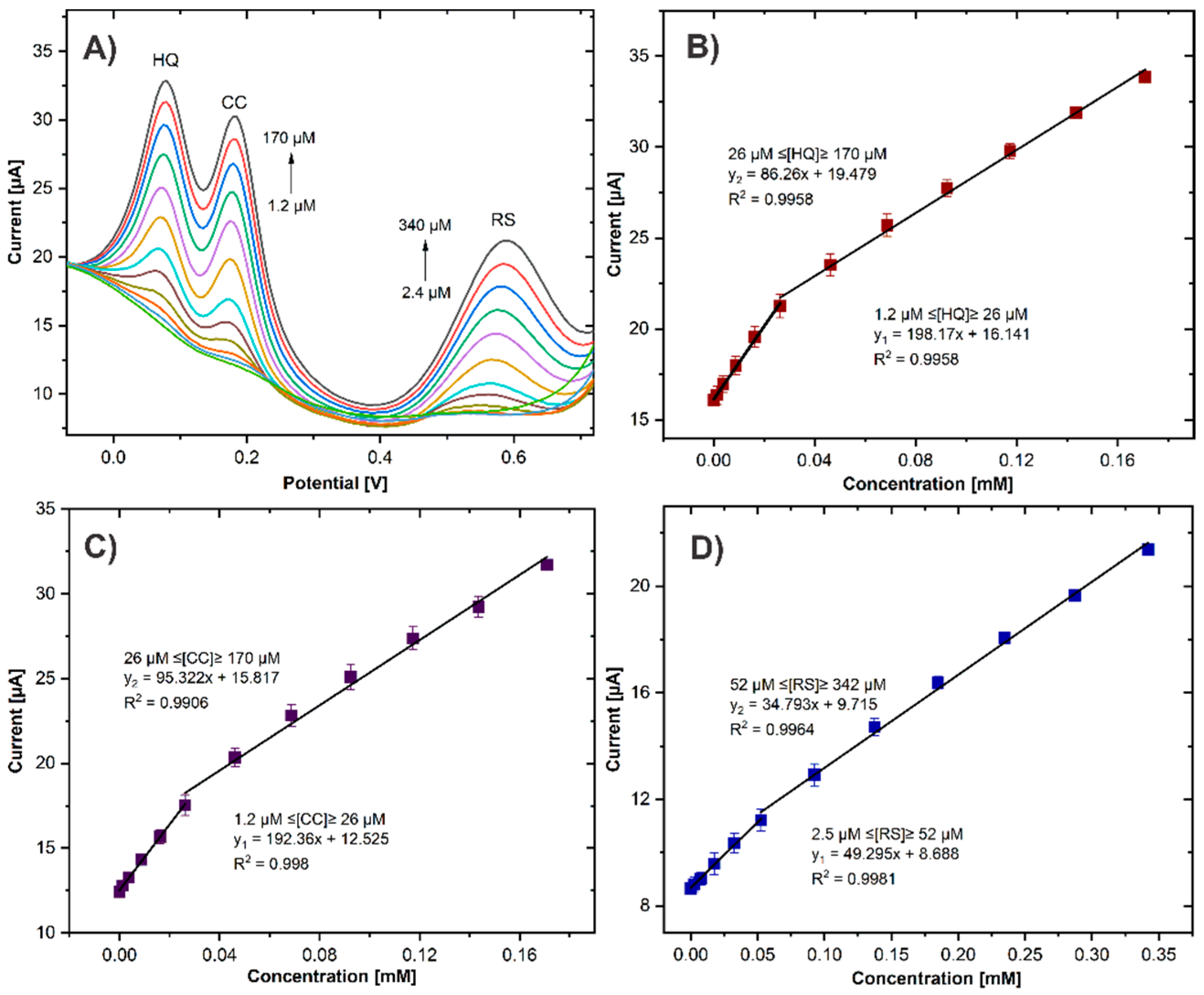

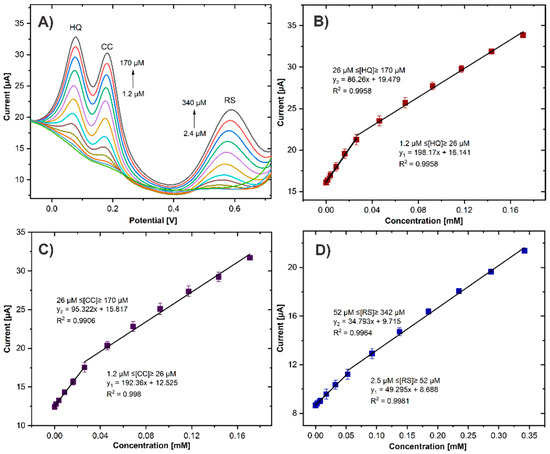

Figure 10. (A) DPVs of GCE/ErGO-cMWCNT/AuNPs in 0.01M PBS (pH 7.0) containing different concentrations of HQ, CC, and RS. (B–D) Plots of the oxidation peak currents as a function of HQ, CC, and RC concentrations, respectively.
Figure 10. (A) DPVs of GCE/ErGO-cMWCNT/AuNPs in 0.01M PBS (pH 7.0) containing different concentrations of HQ, CC, and RS. (B–D) Plots of the oxidation peak currents as a function of HQ, CC, and RC concentrations, respectively.
Biosensors 11 00321 g010
Biosensors 11 00321 g011 550

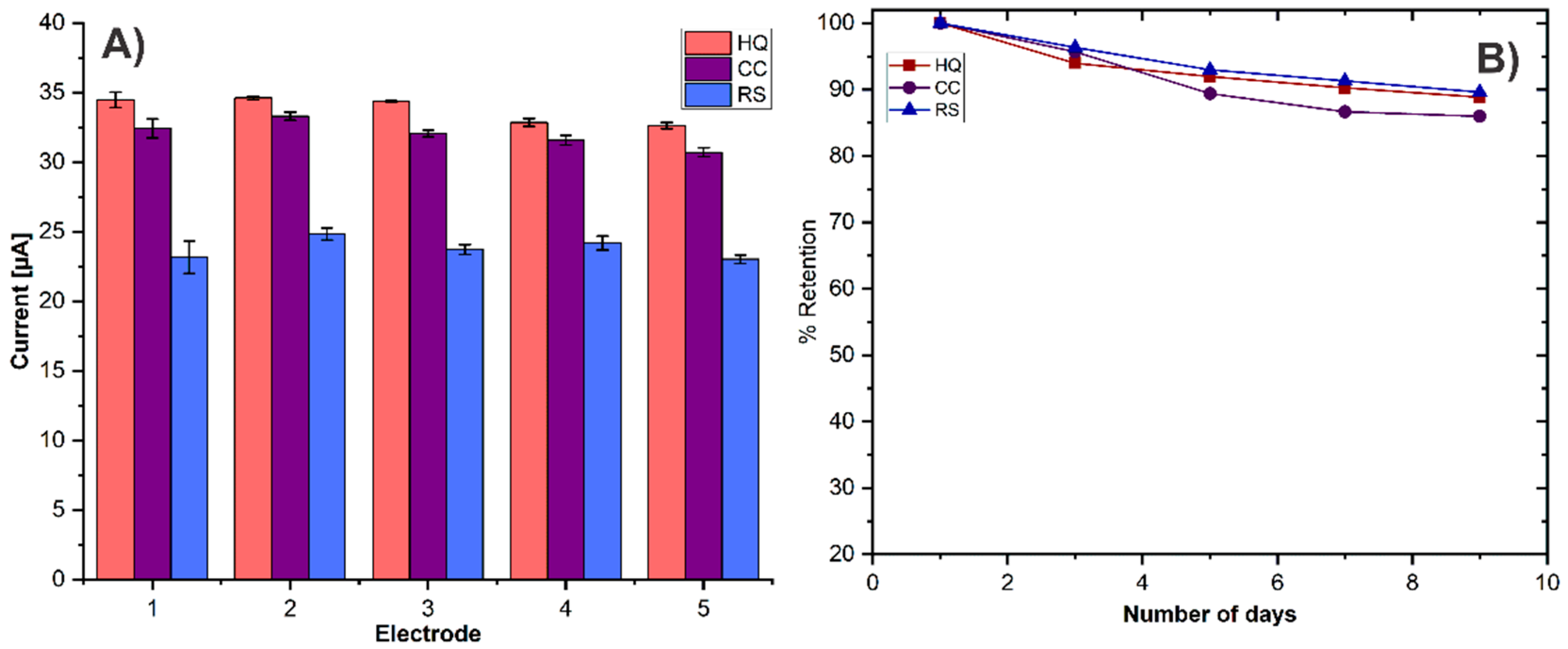

Figure 11. (A) Reproducibility of GCE/ErGO-cMWCNT/AuNPs of 5 different electrodes, (B) stability.
Figure 11. (A) Reproducibility of GCE/ErGO-cMWCNT/AuNPs of 5 different electrodes, (B) stability.
Biosensors 11 00321 g011
Table
Table 1. Analytical parameters of GCE/ErGO-cMWCNT/AuNPs sensor for multianalyte detection.
Table 1. Analytical parameters of GCE/ErGO-cMWCNT/AuNPs sensor for multianalyte detection.
AnalytePotential
(V)		Linear Range
(μM)		Sensitivity
(μA.mM.cm−2)		LOD
(μM)
HQ0.0731.2–26, 26–1701962, 8540.39
CC0.181.2–26, 26–1701904, 9220.55
RS0.582.5–52, 52–342488, 3440.61
Table
Table 2. Comparison of similar methods for the simultaneous determination of HQ, CC, and RS.
Table 2. Comparison of similar methods for the simultaneous determination of HQ, CC, and RS.
Modified ElectrodeReal SampleLinear Range (µM)Detection Limit (µM)References
HQCCRSHQCCRS
3D CNT-Gr/AuNPs/GCETap, river water2–802–802–800.80.950.1[20]
AuNPs/NfCAG/Gr-SPETap, mineral water0.2–750.2–500.2–1250.0140.0170.05[33]
ERGO-poly(PR)/AuNPs/GCEWastewater and cosmetic sample0.1–900.4–904–3500.0530.0530.079[43]
Gr/SPETap water1–501–501–502.71.72.4[46]
Au@PdNF/RGO/GCETap, river, and lake water1.6–1002.5–1002.0–1000.50.80.7[47]
PSS-Gr@Cu-TCPP/GCELake, tap water1–2000.08–1205–10010.085[48]
MWCNT@rGONR/GCETap, river water15–92115–110115–13013.891.735.77[49]
UiO-66/MC-3/GCETap, lake water0.5–1000.4–10030–4000.0560.0723.51[50]
GCE/ErGO-cMWCNT/AuNPsTap water, skin-lightening cream1.2–1701.2–1702.5–3420.390.540.61This work
MWCNT, multiwalled carbon nanotube; rGONR, reduced graphene; NfCAG, Nafion-multi-walled carbon nanotubes aerogel; AuNPs, gold nanoparticles modified; Gr-SPE, graphene screen-printed electrode; NF, Nanoflower; rGO, reduced graphene oxide; Cu-porphyrin, Cu-TCPP; PSS-Gr, poly(styrene sulfonate) functionalized graphene; ERGO-poly(PR), electrochemically reduced graphene oxide-poly(Procion Red MX-5B); MOF-UiO-66, zirconium-based; MC, mesoporous carbon.
Table
Table 3. Determination of HQ, CC, and RS in tap water and skin-lightening cream at the GCE/ErGO-cMWCNT/AuNPs (n = 3).
Table 3. Determination of HQ, CC, and RS in tap water and skin-lightening cream at the GCE/ErGO-cMWCNT/AuNPs (n = 3).
Scheme 3.Included (μM)Spiked (μM)Found (μM)Recovery (%)% RSD (n = 3)
Tap water HQCCRSHQCCRSHQCCRSHQCCRS
-0.050.050.10.0560.0520.105113.64105.40101.588.973.064.75
-0.10.10.20.110.1060.22110.46106.08110.094.421.143.21
-0.150.150.30.1570.1570.321104.70104.88107.188.543.465.22
Skin-lightening cream0.111 HQ-0.110.220.1140.1100.253103.09100.50105.091.926.121.09
0.14 HQ-0.140.280.1500.1450.286107.26103.58102.412.385.477.19
0.17 HQ-0.170.340.1730.1690.344101.7999.59101.1794.120.950.47
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Domínguez-Aragón, A.; Dominguez, R.B.; Zaragoza-Contreras, E.A. Simultaneous Detection of Dihydroxybenzene Isomers Using Electrochemically Reduced Graphene Oxide-Carboxylated Carbon Nanotubes/Gold Nanoparticles Nanocomposite. Biosensors 2021, 11, 321. https://doi.org/10.3390/bios11090321

AMA Style

Domínguez-Aragón A, Dominguez RB, Zaragoza-Contreras EA. Simultaneous Detection of Dihydroxybenzene Isomers Using Electrochemically Reduced Graphene Oxide-Carboxylated Carbon Nanotubes/Gold Nanoparticles Nanocomposite. Biosensors. 2021; 11(9):321. https://doi.org/10.3390/bios11090321

Chicago/Turabian Style

Domínguez-Aragón, Angélica, Rocio B. Dominguez, and Erasto Armando Zaragoza-Contreras. 2021. "Simultaneous Detection of Dihydroxybenzene Isomers Using Electrochemically Reduced Graphene Oxide-Carboxylated Carbon Nanotubes/Gold Nanoparticles Nanocomposite" Biosensors 11, no. 9: 321. https://doi.org/10.3390/bios11090321

APA Style

Domínguez-Aragón, A., Dominguez, R. B., & Zaragoza-Contreras, E. A. (2021). Simultaneous Detection of Dihydroxybenzene Isomers Using Electrochemically Reduced Graphene Oxide-Carboxylated Carbon Nanotubes/Gold Nanoparticles Nanocomposite. Biosensors, 11(9), 321. https://doi.org/10.3390/bios11090321

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
