Nanomaterials 2019, 9(9), 1294; https://doi.org/10.3390/nano9091294

Article
Fluorescence Characteristics of Aqueous Synthesized Tin Oxide Quantum Dots for the Detection of Heavy Metal Ions in Contaminated Water
1
College of Information Science and Technology, Dalian Maritime University, Linghai Road 1, Ganjingzi District, Dalian 116026, China
2
Institute of Agriculture Resources and Regional Planning, Chinese Academy of Agricultural Sciences, Beijing 100081, China
*
Authors to whom correspondence should be addressed.
Received: 14 August 2019 / Accepted: 6 September 2019 / Published: 10 September 2019

Abstract

:
Tin oxide quantum dots were synthesized in aqueous solution via a simple hydrolysis and oxidation process. The morphology observation showed that the quantum dots had an average grain size of 2.23 nm. The rutile phase SnO2 was confirmed by the structural and compositional characterization. The fluorescence spectroscopy of quantum dots was used to detect the heavy metal ions of Cd2+, Fe3+, Ni2+ and Pb2+, which caused the quenching effect of photoluminescence. The quantum dots showed the response of 2.48 to 100 ppm Ni2+. The prepared SnO2 quantum dots exhibited prospective in the detection of heavy metal ions in contaminated water, including deionized water, deionized water with Fe3+, reclaimed water and sea water. The limit of detection was as low as 0.01 ppm for Ni2+ detection. The first principle calculation based on the density function theory demonstrated the dependence of fluorescence response on the adsorption energy of heavy metal ions as well as ion radius. The mechanism of fluorescence response was discussed based on the interaction between Sn vacancies and Ni2+ ions. A linear correlation of fluorescence emission intensity against Ni2+ concentration was obtained in the logarithmic coordinates. The density of active Sn vacancies was the crucial factor that determined fluorescence response of SnO2 QDs to heavy metal ions.
Keywords:
tin oxide; quantum dot; heavy metal ion; water pollution; fluorescence; sensing mechanism

1. Introduction

Water pollution has become a grave concern throughout the world. Industrial wastewater discharge heavy metals, which are produced from factories fabricating metals, papers and chemicals [1,2,3]. These heavy metal ions bring severe risks to living creatures because most of them are non-biodegradable and toxic even at trace levels [4,5,6]. Most heavy metals are non-biodegradable and may accumulate in the aquatic and plant organisms [7]. The danger caused by heavy metals are biomagnified in the food web [8]. Fe3+ ions are one of the most fundamental elements in body and the excess of Fe3+ from the permissible limit could result in several severe diseases [9]. Pb2+ of extremely low concentration increases the risks of cardiovascular disease and cancer, especially in children [10]. It is toxic to cells after the interaction with calcium and zinc proteins, which are important in the process of cell signal transmission and gene expression [11,12,13]. Cd2+ has a high transferability from environment to plants by the absorption through roots, causing withered or dead plants [14,15]. High concentration intake of Ni2+ causes skin dermatitis, nausea, chronic asthma, coughing and cancer [16].
Therefore, it is urgent to develop a technique that is of high response, low limit of detection, simplicity in operation and capability of in situ detection. There are a few of techniques to detect heavy metal ions, such as atomic absorption spectroscopy (AAS) [17], inductively coupled plasma mass spectrometry (ICP-MS) [18] and fluorescence spectroscopy (FS) [19,20]. The quantum dot (QD) method, with grain size less than 5 nm, has fluorescence effects, which could be used in the detection of drugs [21], anions [22] and organic pollutants [23]. It also has prospects in the detection of heavy metal ions by using its characteristics of fluorescence.
The effect of fluorescence is a process where a QD emits light after it has absorbed electromagnetic radiation from a excitation source. The electrons in valence band are stimulated to reach conduction band by the excitation light. Then, when the electrons transit from conduction band to valence band, the fluorescence emission takes place as a kind of energy release [24]. It has been found that the fluorescence emission could be influenced by many factors, and one of them is the presence of heavy metal ions, which caus the quenching of fluorescence [25]. The ions of heavy metals can adsorb the released energy of the electron transition, interfering with the fluorescence emission. Therefore, the fluorescence nature of semiconductor QDs has been put into practice of heavy metal ion detection, even though the mechanism of fluorescence quenching is still of high complexity.
Several kinds of QDs have been synthesized, such as CdS [23], CdTe [26], ZnS [27] and their composites [28,29]. However, some of them contain toxic elements in themselves. The tin oxide (SnO2) QD is an environment-friendly semiconductor. It has the advantages of non-toxicity, chemical stability and low cost. Based on the optical characteristics, SnO2 photoluminescence sensors were developed for xanthene dyes [30], DNA [31] and 1,4 Bis ((2-Methyl) thio) Phenylamino methyl benzene Schiff [32]. However, there have been few reports of heavy metal ion detection by SnO2 sensors. There are some techniques to prepare SnO2 QDs. However, the organic reagents of oleic acid, toluene, oleylamine and hydrazine need to be used in the fabrication [33,34,35]. The organic compounds are harmful to human beings and the environment. They also increase the risk of operator poisoning and the cost of environmental remediation in factories. Therefore, it is expected to find a route to prepare SnO2 QDs with simple, cheap and environment-friendly fabrication. Furthermore, these SnO2 QDs are potentially applicable to the detection of heavy metal ions in contaminated water.
In the present work, SnO2 QDs were synthesized in the aqueous solution for the detection of heavy metal ions. Several characterizations were used to confirm the structure and composition of the prepared QDs. The detection of heavy metal ions was completed by using the fluorescence effect of QDs, which is quenched by the ions of Cd2+, Fe3+, Ni2+ and Pb2+. The mechanism of fluorescence quenching by the heavy metal ions is discussed in combination with the first principle calculation based on the density function theory.

2. Materials and Methods

SnO2 QDs were synthesized in the aqueous solution by a facial method [36]. Analytical reagents of SnCl2·2H2O (≥98.0%, Sinopharm Chemical Reagent Co., Ltd., Shanghai, China) and thiourea (CH4N2S, ≥99.0%, Sinopharm Chemical Reagent Co., Ltd., Shanghai, China) were used as raw materials. 2.257 g SnCl2·2H2O and 0.077 g CH4N2S were dissolved into deionized water of 50 mL. The stannous chloride transformed to stannous hydroxide during hydrolysis process and the suspension was stirred in a magnet stirring apparatus for 24 h at room temperature. In this process, the thiourea, as an accelerator, promoted the forward reaction by consuming HCl in the solution, as shown in Equation (1). Meanwhile, stannous hydroxide was oxidized by aerial oxygen with SnO2 QDs obtained, as shown in Equation (2):
SnCl 2 + 2 H 2 O Sn ( OH ) 2 + 2 HCl
2 Sn ( OH ) 2 + O 2 2 SnO 2 + 2 H 2 O
Thus, the aqueous SnO2 QD solution was acquired after the completion of hydrolysis and oxidation. The grain size and Zeta potential of the SnO2 QDs were analyzed by dynamic light scattering (DLS, Malvern Zetasizer Nano ZS 90, Malvern panalytical Ltd., Malvern, UK). The morphology was observed by high resolution transmission electron microscopy (HRTEM, JEM-3200FS, JEOL, Tokyo, Japan). The solution was dried to powder for X-ray diffraction (XRD, Rigaku D/MAX-Ultima, Rigaku, Tokyo, Japan) and X-ray photoelectron spectroscopy (XPS, Thermo Scientific ESCALAB 250 XI, ThermoFisher Scientific, Waltham, MA, USA). A fluorescence spectrometer (FLS-980, Edinburgh Instruments, Edinburgh, UK) was used to characterize the fluorescence performances of the SnO2 QDs. The wavelength of excitation in fluorescence characterization was 280 nm. The SnO2 QD solution was diluted to 0.002 mol/L of Sn atoms and it was incorporated with heavy metal ions of Cd2+, Fe3+, Ni2+ as well as Pb2+. The fluorescence response (S) was defined as the ratio of the maximum intensity of SnO2 QDs (F0) to the one of SnO2 QDs with heavy metal ion incorporation (F), as S = F0/F. The characterization of fluorescence was carried out immediately after the incorporation. In order to evaluate the applicability of SnO2 QDs in the practical detection of heavy metal ions, several types of background water were employed, namely, deionized water, reclaimed water and sea water. The sea water was collected from Xinghai Bay of Yellow Sea, Dalian, China. There were no Ni2+ ions in the deionized water and reclaimed water. The reclaimed water contained cations of Fe3+ (<0.3 mg/L) and Mn2+ (<0.1 mg/L) as well as several anions (<1.0 mg/L). The main composition of sea water included cations of Na+ (11.04 mg/L), K+ (0.40 mg/L), Ca2+ (0.42 mg/L) and Mg2+ (1.33 mg/L) as well as anions of Cl (19.86 mg/L) and SO42− (2.77 mg/L). Ni2+ was not taken into account because it was insignificant compared to other major solutes.

3. Results and Discussion

3.1. Structure and Morphology

The grain size distribution of the SnO2 QDs from DLS is shown in Figure 1. The grain size was from 2 to 10 nm. The peak appeared at 5.3 nm and approximate 90% of the grains were of the size within 4–6 nm. The morphology of the SnO2 QDs was observed by HRTEM, as shown in Figure 2. The prepared QDs have a uniform dispersion in the aqueous solution. The Zeta potential of the as-prepared sample was 17.3 mV and it was measured to be 17.1 mV after 3 months of storage at room temperature. Thus, the SnO2 QDs were stable in the aqueous solution for several months. The average grain size was measured to be 2.23 nm. The grain sizes of QDs were from 1.4 nm to 3.4 nm, and over 50% of them were between 2.0 to 2.5 nm. The characteristic spacing of 0.33 nm was observed, corresponding to the (110) planes of the rutile phase of SnO2.
Figure 3a shows the XRD pattern of the SnO2 powder, which was obtained from the dried aqueous solution with SnO2 QDs. Four main peaks of (110), (101), (211) and (112) were observed, in agreement with the rutile phase of SnO2. The lattice constants of SnO2 unit cells were evaluated to be a = b = 4.74677 Å and c = 3.18196 Å. The crystallite size of the QDs was calculated to be 2.3 nm according to the Scherrer’s formula. The size coincided with the grain size observed from HRTEM, but was smaller than the result of DLS size distribution in Figure 1. The deviation may be ascribed to the aggregation of QDs, which affected the light scattering during the DLS measurement. The XPS spectrum of the SnO2 QDs is shown in Figure 3b, which shows the presence of C 1s, O 1s and Sn 3d. The high solution pattern of Sn 3d shows two peaks of 487.3 eV and 495.6 eV, corresponding to the Sn 3d3/2 and Sn3d5/2, respectively. The spectrum is in good agreement with the standard pattern from the rutile SnO2 sample [37,38].

3.2. Fluorescence Response to Heavy Metal Ions

The fluorescence spectra of SnO2 QDs with various concentrations are shown in Figure 4, where the peak appears at the emission wavelength of 300 nm. Considering the excitation wavelength of 280 nm, the present SnO2 QDs show a low Stocks shift. The self-quenching property of QDs was observed when the Sn concentration increased. The heavy metal ion solutions of 100 ppm were incorporated with the SnO2 QDs and the incorporations result in the quenching of fluorescence, as shown in Figure 5. It was observed that Ni2+ and Fe3+ perform stronger attenuations to the fluorescence emission than other heavy metals. Figure 6a illustrates the fluorescence responses of SnO2 QDs to the various heavy metal ions. The QDs show responses to all the heavy metals, which may interact with QDs by interfering the electronic transition from conduction band to valence band. The Ni2+ incorporation stimulates the highest response of 2.48.
The detection of heavy metal ions is completed by the quenching of fluorescence. The quenching mechanism has been proven to be complex [39,40], in which the heavy metal ions interfere with the fluorescence emission by adsorbing the energy of electron transition from conduction band to valence band. The prepared SnO2 QDs have an emission peak at 300 nm, in agreement with the previous report [41]. The position of the emission peak remained the same after the incorporation of heavy metals, revealing that the band gap had not shifted. Thus, the fluorescence quenching may result from the variation of surface states of the QDs. The radius of Sn4+ ion was found to be 69 pm, while the heavy metals of Cd2+, Fe3+, Ni2+ and Pb2+ have the ion radii of 78, 64.5, 69 and 119 pm [42], as shown in Figure 6a,b. It was found that the radius difference between heavy metal ions with Sn4+ had the same relationship with the response of fluorescence quenching. The Ni2+ ion had the same radius as the Sn4+ ion and this could promote its interaction with the QD surface, where the crystal lattice is lacking in integrity. Therefore, Ni2+ ions perform as surface states on QDs and cause a strong fluorescence quenching. For the other heavy metal ions, their radii differed from Sn4+ and the radius difference would bring mismatches in crystal lattice when they interact with QD surface. Hence, the density of surface states would be limited, leaving the little fluorescence responses.
Figure 7 shows the fluorescence response of SnO2 QDs to Ni2+ with concentration of 0.01–500 ppm in the background solutions of deionized water, deionized water with 10 ppm Fe3+, reclaimed water and sea water. In the deionized water, the QDs reveal positive dependence of fluorescence response with Ni2+ concentration. The concentration linear range is from 10−2 to 500 ppm in the logarithmic coordinates. If the sensitivity is defined as the slope of fluorescence response against target pollutant concentration in the logarithmic coordinates, it is evaluated to be 0.073 for SnO2 QDs in deionized water for Ni2+ detection. However, the response appears to be degraded in the presence of 10 ppm Fe3+, which is competitive to Ni2+ in the deionized water. A similar dependence was also observed for the fluorescence response of QDs in reclaimed water, because it contains impurities of Fe3+ and Mn2+. They were also responsible for the non-linear correlation at the high Ni2+ concentration over 100 ppm. The limit of detection is the least concentration of target pollutant, which can stimulate detectable fluorescence response of SnO2 QDs. As shown in Figure 7, the limits of detection are 0.01 ppm with the responses of 1.26 and 1.01 in deionized water and reclaimed water, respectively. The fluorescence illustrated a different performance in case of the sea water background. The response is between 2.06 and 2.42 within the Ni2+ concentration range of 0.01–500 ppm, being less sensitive to the target ion. It would be ascribed to the cations of Na+, K+, Ca2+ and Mg2+ as well as anions of Cl and SO42, which may interfere with the detection of Ni2+ by their competitive interaction with SnO2 QDs.
Apart from the present SnO2 QDs, the Ni2+ detection has to be completed by other QDs in a variety of circumstances. Hydrophobic core/shell CdSe/ZnS QDs were used for Ni2+ sensing in organic solvent. A similar non-linear dependence of fluorescence response on Ni2+ concentration was observed [43]. In CdS QD sensors, the correlation was found to be linear at low concentration and it became non-linear when a high Ni2+ concentration was introduced [44]. Furthermore, the sensing performance was found to be dependent on pH condition [45]. Thioglycolic acid capped CdTe semiconductor in aqueous solution was applied as the fluorescence sensor, which could determine Ni2+ without any tangible influence of a few interfering ions [46]. Imidazole modified carbon dots were also employed for photoluminescence sensors with limit of detection of 0.93 × 10−3 mol/L [47]. Compared to those sensors, the present SnO2 QDs show promising properties to develop photoluminescence sensors, which take advantages of the chemical stability, non-toxicity and low cost. On the other hand, highly sensitive spectroscopic techniques, such as inductively coupled plasma mass spectrometry (ICP-MS), inductively coupled plasma optic emission spectrometry (ICP-OES) and square wave anodic stripping voltammetric (SWASV), provide precise results with low limit of detection [48,49,50]. For example, the limits of detection of ICP-OES are 1.2, 1.1, 1.0 and 6.3 µg/L for Cu2+, Zn2+, Cd2+ and Ni2+, respectively [48]. However, these techniques are usually of high cost and need complex operations by experienced staffs. The present photoluminescence sensor of SnO2 QDs would be beneficial to the design of in situ devices for heavy metal ions in contaminated water.
It is noted that selectivity is an essential characteristics in the detection of heavy metal ions, because they usually coexist in the contaminated water. However, the present SnO2 QDs show a fluorescence response to all of them. It is necessary to develop the ability to discriminate among heavy metal ions for a practical sensor. The technique using a neural network is one of the candidates for the potential device, which contains a sensor array with various sensing properties, e.g., sensors with various Sn concentrations. Each sensor in the array would be trained by a series of fluorescence responses to an individual type of heavy metal ion or a mixture of them. Then, the device would acquire the ability of discrimination to a specific type of heavy metal ion after a group of fluorescence responses is collected. In addition, the heavy metal ions of Cd2+, Fe3+, Ni2+ and Pb2+ were investigated in the present work because they are typical pollutants in the environment. These heavy metal ions are representative pollutants, which were used to develop SnO2 QD photoluminescence sensors. Other heavy metal ions, such as Cu2+, Zn2+, Fe2+, Mn2+ and Hg2+, will need to be investigated as target pollutants in further researches. There were four different background solutions in the present work, including deionized water, deionized water with 10 ppm Fe3+, reclaimed water and sea water. All of them were used to check the validity of SnO2 QDs in the detection of Ni2+. Although the prepared QDs were able to detect Ni2+ ions as a photoluminescence sensor, the sensor performances are different in those background solutions. Therefore, it was necessary to study the SnO2 QD properties in a diversity of background solutions so that it can be put into practical use.
It is known that the Stern-Volmer relationship describes the dependence of fluorescence response to the concentration of quencher, as S = F0/F= 1+kqτ0 [Q]. Here, kq is the quencher rate coefficient and τ0 is the lifetime of the emissive excited state without a quencher present. [Q] is the concentration of the quencher Q. Therefore, S is of linear dependence with [Q] provided that kq and τ0 are constants. The Stern-Volmer relationship is established based on a model involving double molecules. However, the intermolecular deactivation differs from the present detection, where several individual heavy metal ions interact with a QD assembled by a matrix of super cells. Therefore, the results in Figure 7 deviate from the linear correlation and the sensing mechanism needs further discussions.

3.3. First Principle Calculation

A first principle calculation has been employed for further discussion of the interaction between SnO2 QDs and heavy metal ions. The calculation was implemented based on the density function theory (DFT) in the Cambridge sequential total energy package (CASTEP) [51]. The Perdew-Burke-Ernzerhof (PBE) function was used to describe the exchange-correlation interaction in the generalized-gradient approximation (GGA). The structural model was established based on rutile SnO2 tetragonal unit cells with lattice constants of a = b = 4.7373 Å and c = 3.1864 Å [52]. The (110) plane with the lowest energy [53,54,55] was chosen as the surface interacted with heavy metal ions. The crystal plane was cleaved from the optimized system of SnO2, which contained 2 × 2 × 2 matrix of unit cells. A vacuum region of 10 Å was also employed to prevent the interaction between adjacent layers. The Brillouin zone was sampled using a 2 × 2 × 1 k-point Monkhorst-Pack mesh. In order to calculate the adsorption energy of heavy metal ions on SnO2 surface, one Sn atom was removed from the (110) crystal surface for a point defect as the adsorption site, as shown in Figure 8a. The system energy was indicated by Edef. Then, the heavy metal ions were introduced and one of them was adsorbed on the site of defect, as shown in Figure 8b. The system energy after interaction was denoted by Emetal. Thus, the adsorption energy (Eads) of the specific heavy metal ion on the SnO2 QD surface could be calculated according to Equation (3):
E a d s = E m e t a l E d e f
The calculation results of adsorption energy are listed in Table 1. Fe3+ and Ni2+ show large Eads values of 13.46 and 7.65 eV, while the adsorption energies for Cd2+ and Pb2+ are quite low. Therefore, the Fe3+ and Ni2+ ions are much easier to be interacted with SnO2 QDs and the conclusion is in agreement with the correlation between fluorescence response and ion radius. It was concluded that the fluorescence performance is dependent on the adsorption energy of heavy metal ions. However, an inverse correlation was observed between adsorption energy and fluorescence response for Fe3+ and Ni2+. It is known that the fluorescence response is the consequence of the quenching of energy emission during the transition of electrons from the conduction band to the valence band. There are several ways to release the energy, such as self-quenching, resonance energy transfer (RET), exciton coupling and photoinduced electron transfer (PET) [25]. Among these, PET involves the transfer of electrons between an excited fluorescence agent and a ground state species creating a charge separation [56]. When adsorbed on the site of Sn vacancy, divalent Ni2+ ions may have a stronger interference to PET than trivalent Fe3+ ions. Therefore, the SnO2 QDs show a more significant fluorescence to Ni2+ even though Fe3+ has greater adsorption energy.

3.4. Mechanism of Fluorescence Response

As shown in the structural model of the SnO2 system in Figure 8, the interaction between Ni2+ and SnO2 QDs is described by a Ni2+ ion entering a Sn vacancy on the QD surface. It is known that a Sn vacancy acts as an acceptor in SnO2 system and its ionization can be expressed by the Kroger-Vink notation, as shown in Equation (4):
V S n + 4 e V S n
where VSn and VSn⁗ are the Sn vacancy before and after ionization and e′ represents a free electron in the SnO2 grain. After being adsorbed on the SnO2 QD, the Ni2+ interacts with the Sn vacancy, as expressed in Equation (5):
V S n + N i N i S n
where Ni•• denotes a bivalence nickel ion and NiSn″ indicates a Ni ion occupying the Sn site with two electrons. A presumption was made that there are m Sn vacancies on the surface of a single SnO2 QD, which adsorbs t ions of Ni2+. Thus, the interaction between the SnO2 QD and Ni2+ ion is described by combining Equations (4) and (5), as shown in Equation (6):
m V S n + t N i + 4 m e k 1 k 1 ( m t ) V S n + t N i S n
where k1 and k−1 are the rate constants of the reversible reaction. Hence, Equation (7) is obtained at the equivalence state:
k 1 [ V S n ] m [ N i ] t [ e ] 4 m = k 1 [ V S n ] m t [ N i S n ] t
where [X] denotes the density of X for each reactant. Therefore, the density of electrons [e′] can be formulated as in Equation (8):
[ e ] = ( k 1 [ V S n ] m t [ N i S n ] t k 1 [ V S n ] m ) 1 / 4 m [ N i ] t / 4 m
Considering the rate constants of k1 and k−1 follow the Arrhenius equation, they are correlated to Eads, the adsorption energy of Ni2+ on SnO2 QDs, as shown in Equations (9) and (10):
k 1 = A exp ( E a d s k T )
k 1 = A exp ( E a d s k T )
where A is pre-exponential constant and k and T are the Boltzmann constant and temperature. Thus, Equation (8) can be rewritten as in Equation (11):
[ e ] = ( [ V S n ] m t [ N i S n ] t [ V S n ] m ) 1 / 4 m [ N i ] t / 4 m exp ( E a d s 2 m k T )
It is noted that the fluorescence emission results from the recombination of electrons and holes, as expressed in Equation (12):
h + e k 2 k 2 h ν
where k2 and k−2 are the rate constants and represents an emitted photon. Therefore, the fluorescence emission intensity (F) is proportional to the reaction rate of Equation (12). If α is the coefficient of the proportional correlation, Equation (13) can be obtained:
F = α k 2 [ h ] [ e ]
Therefore, the expression of F is obtained as Equation (14) and its logarithmic form is shown in Equation (15):
F = α k 2 [ h ] ( [ V S n ] m t [ N i S n ] t [ V S n ] m ) 1 / 4 m [ N i ] t / 4 m exp ( E a d s 2 m k T )
ln F = t 4 m ln [ N i ] + ln α k 2 [ h ] + 1 4 m ln [ V S n ] m t [ N i S n ] t [ V S n ] m E a d s 2 m k T
It is obvious that lnF is of linear dependence with logarithmic Ni2+ concentration provided that other parameters are constants. The slope of the linear correlation (n) could be found according to Equation (16). It infers that the slope is determined by the number of Sn vacancies and adsorbed Ni2+ ions on the SnO2 QD surface.
n = d ln F d ln [ N i ] = t 4 m
Figure 9 shows the correlation of fluorescence emission intensity against Ni2+ concentration in the logarithmic coordinates. The slope (n) is evaluated to be −0.073 from the linear fitting. Thus, t/m is equal to 0.29. It means that 71% of Sn vacancies on the surface are left vacant, while 29% of them are active to Ni2+ ions. Therefore, the fluorescence response of SnO2 QDs to heavy metal ions is controlled by the density of active Sn vacancies. Furthermore, it is likely to be correlated to several factors, such as adsorption energy and concentration of heavy metal ions as well as total density of surface Sn defects. It is known that n is proportional to t/m, where t and m are the number of Ni2+ ions and Sn vacancies on the surface. If Ni2+ is replaced by another metal ion, Equation (16) is still valid. In this case, however, F will be influenced, because its Eads value changes in Equation (15). Thus, the present mechanism of fluorescence response could be general for the detection of a series of heavy metal ions.

4. Conclusions

The SnO2 QDs were prepared in the aqueous solution by the hydrolysis and oxidation of SnCl2 source material. The average grain size of the QDs was 2.23 nm from HRTEM observation. The rutile phase SnO2 of the prepared QDs was confirmed from the XRD pattern, HRTEM observation and XPS spectrum. The fluorescence spectra of the SnO2 QDs show intensity peaked at an emission wavelength of 300 nm. The SnO2 QDs showed a fluorescence response to various heavy metal ions and the response of 2.48 was observed to be 100 ppm Ni2+. The fluorescence performance to Ni2+ were evaluated in the background solutions of deionized water, deionized water with Fe3+ ions, reclaimed water and sea water. The limit of detection was as low as 0.01 ppm for Ni2+. The prepared QDs showed a great potential in the sensor development for the detection of heavy metal ions in contaminated water. The first principle calculation demonstrated that Ni2+ and Fe3+ had an adsorption energy of 7.65 and 13.46 eV, respectively. The fluorescence response was found to be dependent on the adsorption energy as well as ion radius of heavy metal ions. The mechanism of fluorescence response was discussed based on the interaction between Sn vacancies and Ni2+ ions. The fluorescence emission intensity was formulated as a function of Ni2+ concentration. 71% of Sn vacancies on the surface were left vacant, while 29% of them are active to Ni2+ ions. The density of active Sn vacancies was the crucial factor that determined the fluorescence response of SnO2 QDs to heavy metal ions.

Author Contributions

Methodology, J.L., Q.Z., and W.X.; software, H.Z. and L.W.; validation, Y.B.; writing—original draft preparation, J.L. and Z.Z.; writing—review and editing, Q.Z. and G.J.; project administration, J.L.; funding acquisition, J.L. and Q.Z.

Funding

This work is financially supported by the National Natural Science Foundation of China (Grant No. 11704055, 31670516, 31470552), the Liaoning Natural Science Foundation (Grant No. 20180510021), the Dalian High-level Talents Innovation Supporting Program (Grant No. 2017RQ073), and the Fundamental Research Funds for the Central Universities (Grant No. 3132019212 and 3132019348).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Aziz, H.A.; Adlan, M.N.; Ariffin, K.S. Heavy metals (Cd, Pb, Zn, Ni, Cu and Cr(III)) removal from water in Malaysia: Post treatment by high quality limestone. Bioresour. Technol. 2008, 99, 1578–1583. [Google Scholar] [CrossRef] [PubMed]
  2. Kurniawan, T.A.; Chan, G.Y.S.; Lo, W.H.; Babel, S. Physico–chemical treatment techniques for wastewater laden with heavy metals. Chem. Eng. J. 2006, 118, 83–98. [Google Scholar] [CrossRef]
  3. Agouborde, L.; Navia, R. Heavy metals retention capacity of a non-conventional sorbent developed from a mixture of industrial and agricultural wastes. J. Hazard. Mater. 2009, 167, 536–544. [Google Scholar] [CrossRef] [PubMed]
  4. Ray, S.; Takafuji, M.; Ihara, H. Peptide-based surface modified silica particles: Adsorption materials for dye-loaded wastewater treatment. RSC Adv. 2013, 3, 23664–23672. [Google Scholar] [CrossRef]
  5. Musico, Y.L.F.; Santos, C.M.; Dalida, M.L.P.; Rodrigues, D.F. Improved removal of lead(II) from water using a polymer-based graphene oxide nanocomposite. J. Mater. Chem. A 2013, 1, 3789–3796. [Google Scholar] [CrossRef]
  6. Dutta, D.; Thiyagarajan, S.; Bahadur, D. SnO2 quantum dots decorated reduced graphene oxide nanocomposites for efficient water remediation. Chem. Eng. J. 2016, 297, 55–65. [Google Scholar] [CrossRef]
  7. Suk Hyun, J.; Byung Gil, M.; Young Gyu, J.; Won Seok, L.; Cheol, L.S. Removal of lead ions in aqueous solution by hydroxyapatite/polyurethane composite foams. J. Hazard. Mater. 2008, 152, 1285–1292. [Google Scholar]
  8. Zepeda, A.M.; Gonzalez, D.; Heredia, L.G.; Marquez, K.; Perez, C.; Pena, E.; Flores, K.; Valdes, C.; Eubanks, T.M.; Parsons, J.G. Removal of Cu2+ and Ni2+ from aqueous solution using SnO2 nanomaterial effect of: pH, time, temperature, interfering cations. Microchem. J. 2018, 141, 188–196. [Google Scholar] [CrossRef] [PubMed]
  9. Ramanan, V.; Subray, S.H.; Ramamurthy, P. A green synthesis of highly luminescent carbon dots from itaconic acid and their application as an efficient sensor for Fe3+ ions in aqueous medium. New J. Chem. 2018, 42, 8933–8942. [Google Scholar] [CrossRef]
  10. Hussein, H.; Farag, S.; Kandil, K.; Moawad, H. Tolerance and uptake of heavy metals by Pseudomonads. Process Biochem. 2005, 40, 955–961. [Google Scholar] [CrossRef]
  11. Claudio, E.S.; Godwin, H.A.; Magyar, J.S. Fundamental coordination chemistry, environmental chemistry, and biochemistry of lead(II). Cheminform 2003, 34, 1–144. [Google Scholar] [CrossRef]
  12. Magyar, J.S.; Tsu-Chien, W.; Stern, C.M.; Dye, D.F.; Rous, B.W.; Payne, J.C.; Bridgewater, B.M.; Ana, M.; Gerard, P.; Zaleski, J.M. Reexamination of lead(II) coordination preferences in sulfur-rich sites: Implications for a critical mechanism of lead poisoning. J. Am. Chem. Soc. 2005, 127, 9495–9505. [Google Scholar] [CrossRef] [PubMed]
  13. Bouton, C.M.; Frelin, L.P.; Forde, C.E.; Arnold, G.H.; Pevsner, J. Synaptotagmin I is a molecular target for lead. J. Neurochem. 2010, 76, 1724–1735. [Google Scholar] [CrossRef] [PubMed]
  14. Schützendübel, A.; Schwanz, P.; Teichmann, T.; Gross, K.; Langenfeld-Heyser, R.; Godbold, D.L.; Polle, A. Cadmium-induced changes in antioxidative systems, hydrogen peroxide content, and differentiation in Scots pine roots. Plant Physiol. 2001, 127, 887–898. [Google Scholar] [CrossRef] [PubMed]
  15. Claudia, C.; Enrico, M.; Catherine, K. Hyperaccumulation of cadmium and zinc in Thlaspi caerulescens and Arabidopsis halleri at the leaf cellular level. Plant Physiol. 2004, 134, 716–725. [Google Scholar]
  16. Ping, L.; Feng, X.; Qiu, G. Methylmercury exposure and health effects from rice and fish consumption: A review. Int. J. Environ. Res. Public Health 2010, 7, 2666–2691. [Google Scholar]
  17. Tokalioglu, S.; Kartal, S.; Elci, L. Determination of heavy metals and their speciation in lake sediments by flame atomic absorption spectrometry after a four-stage sequential extraction procedure. Anal. Chim. Acta 2000, 413, 33–40. [Google Scholar] [CrossRef]
  18. Rao, G.P.C.; Kalluru, S.; Yerra Koteswara, R.; Wang, M.C. Solid phase extraction of Cd, Cu, and Ni from leafy vegetables and plant leaves using amberlite XAD-2 functionalized with 2-hydroxy-acetophenone-thiosemicarbazone (HAPTSC) and determination by inductively coupled plasma atomic emission spectroscopy. J. Agric. Food Chem. 2006, 54, 2868–2872. [Google Scholar] [CrossRef]
  19. Zhuo, W.; Zhangrun, X.; Jianhua, W. Flow injection on-line solid phase extraction for ultra-trace lead screening with hydride generation atomic fluorescence spectrometry. Analyst 2005, 131, 141–147. [Google Scholar]
  20. Prete, A. Study of fluorescence quenching of mercaptosuccinic acid-capped CdS quantum dots in the presence of some heavy metal ions and its application to Hg(II) ion determination. Luminescence 2015, 29, 798–804. [Google Scholar]
  21. Wang, Y.Q.; Chao, Y.; Zhu, Z.H.; Hu, Y.Z. Cadmium telluride quantum dots as pH-sensitive probes for tiopronin determination. Anal. Chim. Acta 2008, 610, 50–56. [Google Scholar] [CrossRef] [PubMed]
  22. Ruedas-Rama, M.J.; Hall, E.A. A quantum dot-lucigenin probe for Cl-. Analyst 2008, 133, 1556–1566. [Google Scholar] [CrossRef] [PubMed]
  23. Li, H.; Han, C. Sonochemical synthesis of cyclodextrin-coated quantum dots for optical detection of pollutant phenols in water. Chem. Mater. 2008, 20, 6053–6059. [Google Scholar] [CrossRef]
  24. Rogach, A.L. Fluorescence energy transfer in hybrid structures of semiconductor nanocrystals. Nano Today 2011, 6, 355–365. [Google Scholar] [CrossRef]
  25. Luby, B.M.; Charron, D.M.; MacLaughlin, C.M.; Zheng, G. Activatable fluorescence: From small molecule to nanoparticle. Adv. Drug. Deliv. Rev. 2017, 113, 97–121. [Google Scholar] [CrossRef] [PubMed]
  26. Emril Mohamed, A.; Yuangang, Z.; Hsiao-Hua, Y.; Ying, J.Y. Ultrasensitive Pb2+ detection by glutathione-capped quantum dots. Anal. Chem. 2007, 79, 9452–9458. [Google Scholar] [CrossRef] [PubMed]
  27. Koneswaran, M.; Narayanaswamy, R. l-Cysteine-capped ZnS quantum dots based fluorescence sensor for Cu2+ ion. Sens. Actuators B Chem. 2009, 139, 104–109. [Google Scholar] [CrossRef]
  28. Maria Jose, R.R.; Hall, E.A.H. Azamacrocycle activated quantum dot for zinc ion detection. Anal. Chem. 2008, 80, 8260–8268. [Google Scholar]
  29. Maria Jose, R.R.; Hall, E.A.H. Multiplexed energy transfer mechanisms in a dual-function quantum dot for zinc and manganese. Analyst 2008, 134, 159–169. [Google Scholar]
  30. Nagarajan, N.; Paramaguru, G.; Vanitha, G.; Renganathan, R. Photosensitization of Colloidal SnO2 Semiconductor Nanoparticles with Xanthene Dyes. J. Chem. 2013, 2013, 7. [Google Scholar] [CrossRef]
  31. Liu, B.; Liu, J. Comprehensive Screen of Metal Oxide Nanoparticles for DNA Adsorption, Fluorescence Quenching, and Anion Discrimination. ACS Appl. Mat. Interfaces 2015, 7, 24833–24838. [Google Scholar] [CrossRef] [PubMed]
  32. Suvetha Rani, J.; Ramakrishnan, V. Interaction of Schiff base ligand with tin dioxide nanoparticles: Optical studies. Spectrochim. Acta Part A 2013, 114, 170–174. [Google Scholar] [CrossRef] [PubMed]
  33. Song, Z.; Xu, S.; Liu, J.; Hu, Z.; Gao, N.; Zhang, J.; Yi, F.; Zhang, G.; Jiang, S.; Liu, H. Enhanced catalytic activity of SnO2 quantum dot films employing atomic ligand-exchange strategy for fast response H2S gas sensors. Sens. Actuators B 2018, 271, 147–156. [Google Scholar] [CrossRef]
  34. Liu, H.; Xu, S.; Li, M.; Shao, G.; Song, H.; Zhang, W.; Wei, W.; He, M.; Gao, L.; Song, H. Chemiresistive gas sensors employing solution-processed metal oxide quantum dot films. Appl. Phys. Lett. 2014, 105, 766. [Google Scholar] [CrossRef]
  35. Babu, B.; Neelakanta Reddy, I.; Yoo, K.; Kim, D.; Shim, J. Bandgap tuning and XPS study of SnO2 quantum dots. Mater. Lett. 2018, 221, 211–215. [Google Scholar] [CrossRef]
  36. Liu, J.; Xue, W.; Jin, G.; Zhai, Z.; Lv, J.; Hong, W.; Chen, Y. Preparation of tin oxide quantum dots in aqueous solution and applications in semiconductor gas sensors. Nanomaterials 2019, 9, 240. [Google Scholar] [CrossRef]
  37. Stranick, M.A.; Moskwa, A. SnO2 by XPS. Surf. Sci. Spectra 1993, 2, 50–54. [Google Scholar] [CrossRef]
  38. Barreca, D.; Garon, S.; Tondello, E.; Zanella, P. SnO2 nanocrystalline thin films by XPS. Surf. Sci. Spectra 2000, 7, 81–85. [Google Scholar] [CrossRef]
  39. Moore, D.E.; Patel, K. Q-CdS Photoluminescence Activation on Zn2+ and Cd2+ Salt Introduction. Langmuir 2001, 17, 2541–2544. [Google Scholar] [CrossRef]
  40. Xie, H.Y.; Liang, J.G.; Zhang, Z.L.; Liu, Y.; He, Z.K.; Pang, D.W. Luminescent CdSe-ZnS quantum dots as selective Cu2+ probe. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2004, 60, 2527–2530. [Google Scholar] [CrossRef]
  41. Henry, J.; Mohanraj, K.; Sivakumar, G.; Umamaheswari, S. Electrochemical and fluorescence properties of SnO2 thin films and its antibacterial activity. Spectrochim. Acta Part A 2015, 143, 172–178. [Google Scholar] [CrossRef] [PubMed]
  42. Shannon, R. Revised effective ionic radii and systematic studies of interatomic distances in halides and chalcogenides. Acta Crystallogr. Sect. A 1976, 32, 751–767. [Google Scholar] [CrossRef]
  43. Baranov, A.V.; Orlova, A.O.; Maslov, V.G.; Toropova, Y.A.; Berwick, K. Dissociative CdSe/ZnS quantum dot-molecule complex for luminescent sensing of metal ions in aqueous solutions. J. Appl. Phys. 2010, 108, 37. [Google Scholar] [CrossRef]
  44. Mahapatra, N.; Panja, S.; Mandal, A.; Halder, M. A single source-precursor route for the one-pot synthesis of highly luminescent CdS quantum dots as ultra-sensitive and selective photoluminescence sensor for Co2+ and Ni2+ ions. J. Mater. Chem. C 2014, 2, 7373–7384. [Google Scholar] [CrossRef]
  45. Sui, C.X.; Liu, Y.F.; Li, P.A.; Zhang, D.; Xia, F. Determination of IO4 and Ni2+ ions using L-cysteine-CdTe/ZnS quantum dots as pH-dependent fluorescent probes. Anal. Methods 2013, 5, 1695–1701. [Google Scholar] [CrossRef]
  46. Zare, H.; Ghalkhani, M.; Akhavan, O.; Taghavinia, N.; Marandi, M. Highly sensitive selective sensing of nickel ions using repeatable fluorescence quenching-emerging of the CdTe quantum dots. Mater. Res. Bull. 2017, 95, 532–538. [Google Scholar] [CrossRef]
  47. Gong, Y.; Liang, H. Nickel ion detection by imidazole modified carbon dots. Spectrochim. Acta Part A 2019, 211, 342–347. [Google Scholar] [CrossRef] [PubMed]
  48. Silva, E.L.; Roldan, P.d.S.; Giné, M.F. Simultaneous preconcentration of copper, zinc, cadmium, and nickel in water samples by cloud point extraction using 4-(2-pyridylazo)-resorcinol and their determination by inductively coupled plasma optic emission spectrometry. J. Hazard. Mater. 2009, 171, 1133–1138. [Google Scholar] [CrossRef] [PubMed]
  49. Khadro, B.; Sikora, A.; Loir, A.S.; Errachid, A.; Garrelie, F.; Donnet, C.; Jaffrezic-Renault, N. Electrochemical performances of B doped and undoped diamond-like carbon (DLC) films deposited by femtosecond pulsed laser ablation for heavy metal detection using square wave anodic stripping voltammetric (SWASV) technique. Sens. Actuators B 2011, 155, 120–125. [Google Scholar] [CrossRef]
  50. Bansod, B.S.; Kumar, T.; Thakur, R.; Rana, S.; Singh, I. A review on various electrochemical techniques for heavy metal ions detection with different sensing platforms. Biosens. Bioelectron. 2017, 94, 443–455. [Google Scholar] [CrossRef]
  51. Milman, V.; Winkler, B.; White, J.A.; Pickard, C.J.; Payne, M.C.; Akhmatskaya, E.V.; Nobes, R.H. Electronic structure, properties, and phase stability of inorganic crystals: A pseudopotential plane-wave study. Int. J. Quantum Chem. 2015, 77, 895–910. [Google Scholar] [CrossRef]
  52. Wang, D.; Jin, J.; Xia, D.; Ye, Q.; Long, J. The effect of oxygen vacancies concentration to the gas-sensing properties of tin dioxide-doped Sm. Sens. Actuators B 2000, 66, 260–262. [Google Scholar] [CrossRef]
  53. Mulheran, P.A.; Harding, J.H. The stability of SnO2 surfaces. Modell. Simul. Mater. Sci. Eng. 1992, 1, 39–43. [Google Scholar] [CrossRef]
  54. Oviedo, J.; Gillan, M.J. Energetics and structure of stoichiometric SnO2 surfaces studied by first-principles calculations. Surf. Sci. 2000, 463, 93–101. [Google Scholar] [CrossRef]
  55. Chen, Y.; Qin, H.; Hu, J. CO sensing properties and mechanism of Pd doped SnO2 thick-films. Appl. Surf. Sci. 2018, 428, 207–217. [Google Scholar] [CrossRef]
  56. Kavarnos, G.J. Fundamental concepts of photoinduced electron transfer. Photoinduced Electron. Transf. I 1990, 21–58. [Google Scholar] [CrossRef]

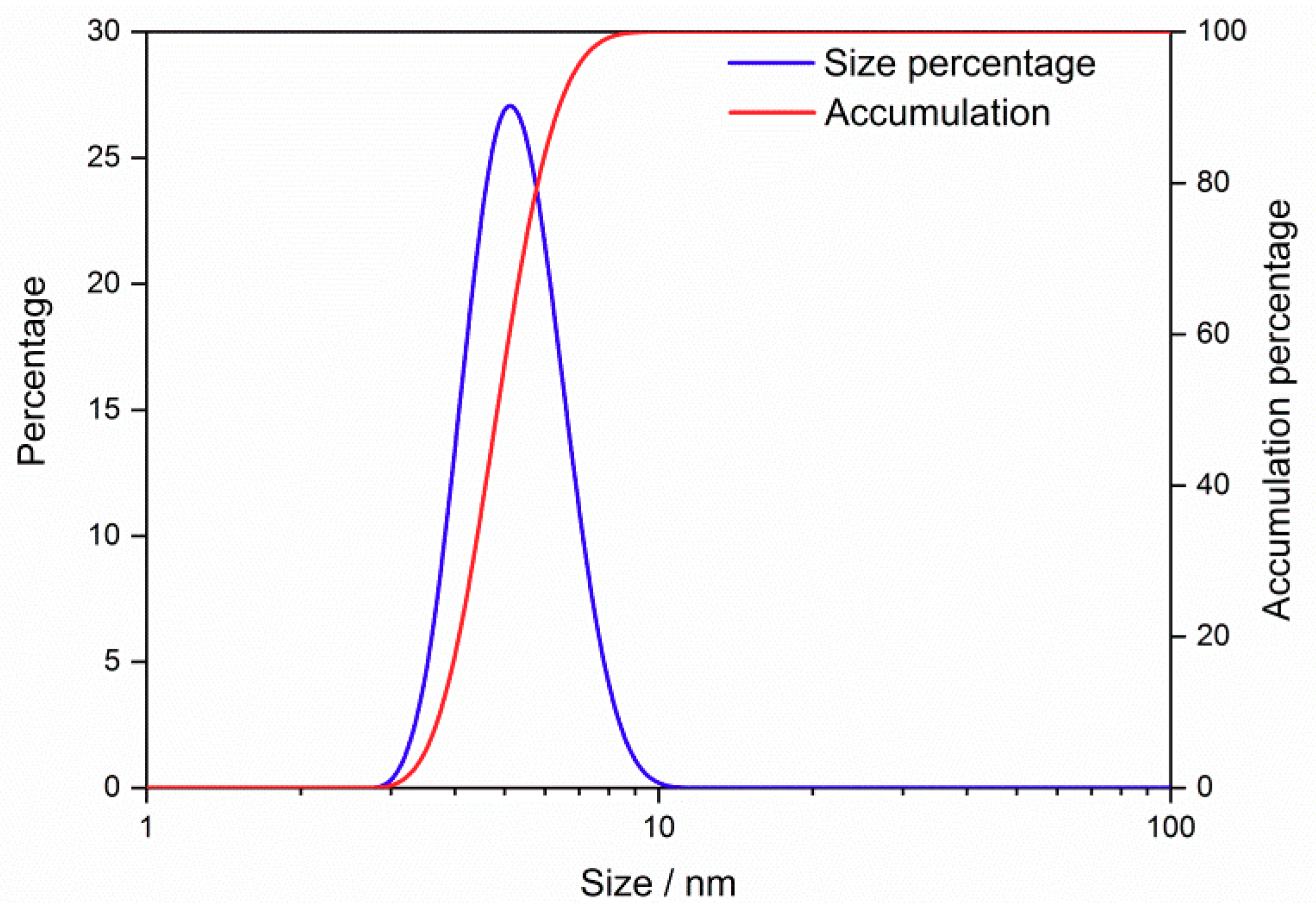

Figure 1. The grain size distribution of the SnO2 quantum dots in aqueous solution.
Figure 1. The grain size distribution of the SnO2 quantum dots in aqueous solution.
Nanomaterials 09 01294 g001
Figure 2. High resolution transmission electron microscopy image of the SnO2 quantum dots in the aqueous solution.
Figure 2. High resolution transmission electron microscopy image of the SnO2 quantum dots in the aqueous solution.
Nanomaterials 09 01294 g002

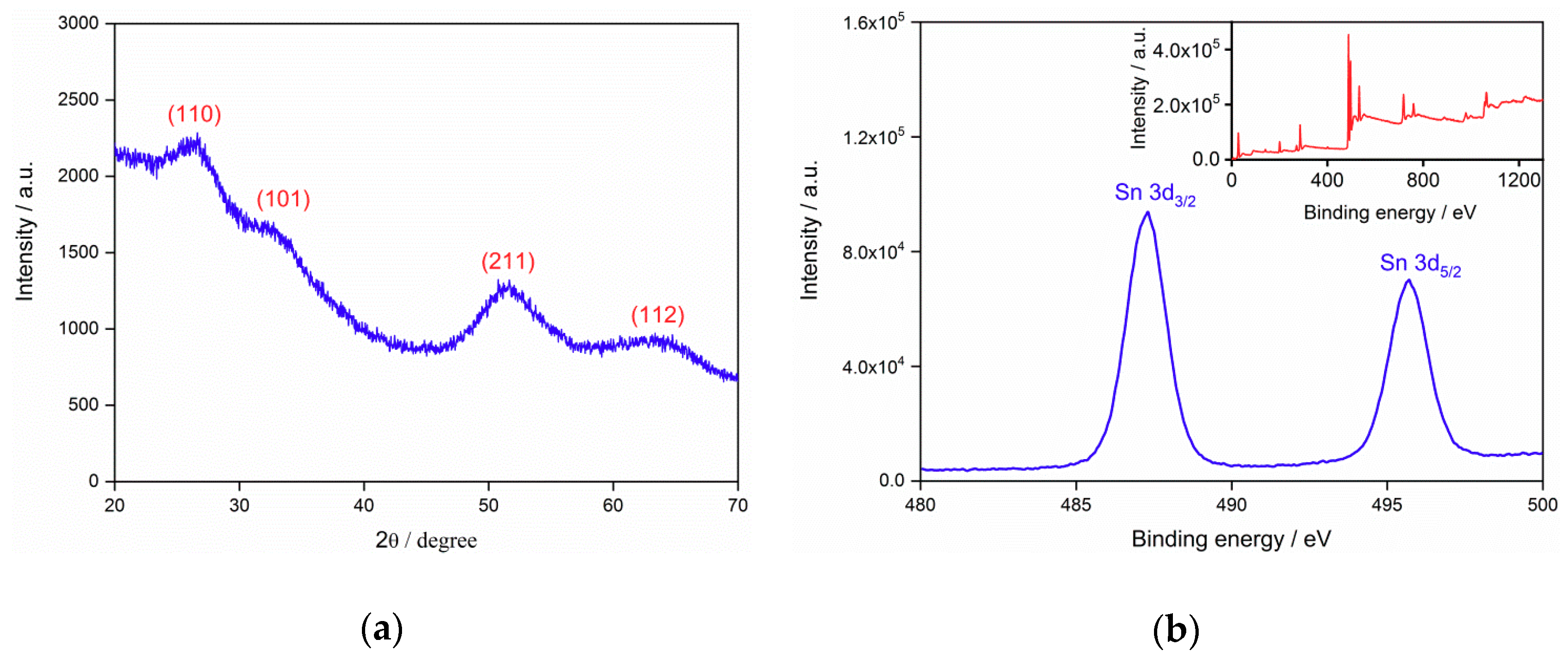

Figure 3. (a) X-ray diffraction (XRD) pattern of the SnO2 quantum dot powder; (b) X-ray photoelectron spectroscopy (XPS) spectrum of the SnO2.
Figure 3. (a) X-ray diffraction (XRD) pattern of the SnO2 quantum dot powder; (b) X-ray photoelectron spectroscopy (XPS) spectrum of the SnO2.
Nanomaterials 09 01294 g003
Figure 4. Dependence of fluorescence emission on the concentration of SnO2 quantum dots.
Figure 4. Dependence of fluorescence emission on the concentration of SnO2 quantum dots.
Nanomaterials 09 01294 g004
Figure 5. Fluorescence spectrum of SnO2 quantum dots before and after the incorporation of heavy metal ions.
Figure 5. Fluorescence spectrum of SnO2 quantum dots before and after the incorporation of heavy metal ions.
Nanomaterials 09 01294 g005

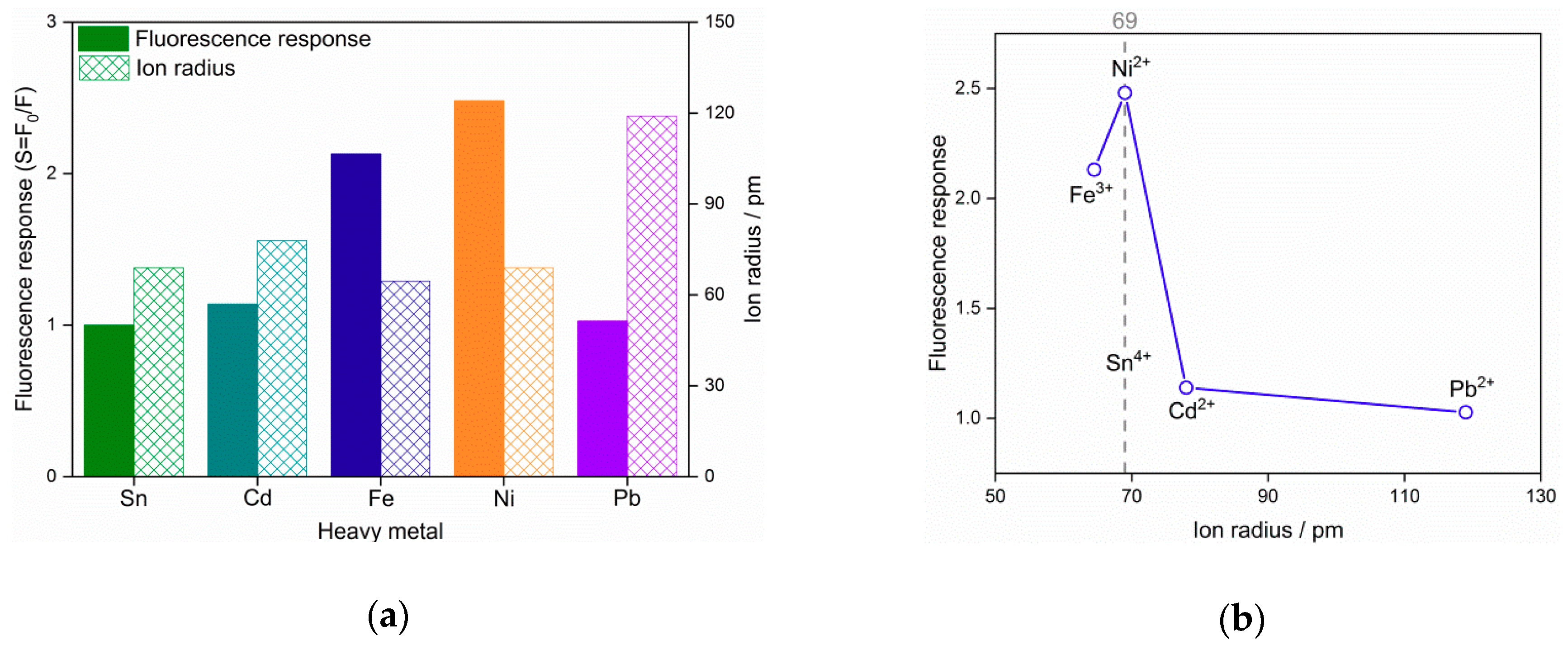

Figure 6. (a) Fluorescence response of the SnO2 quantum dots and ion radius of various types of heavy metals; (b) dependence of fluorescence response on the ion radius of heavy metals.
Figure 6. (a) Fluorescence response of the SnO2 quantum dots and ion radius of various types of heavy metals; (b) dependence of fluorescence response on the ion radius of heavy metals.
Nanomaterials 09 01294 g006
Figure 7. Fluorescence response of SnO2 quantum dots to Ni2+ ions of 0.01 to 500 ppm in the background solutions of deionized water, deionized water with 10 ppm Fe3+, reclaimed water and sea water.
Figure 7. Fluorescence response of SnO2 quantum dots to Ni2+ ions of 0.01 to 500 ppm in the background solutions of deionized water, deionized water with 10 ppm Fe3+, reclaimed water and sea water.
Nanomaterials 09 01294 g007

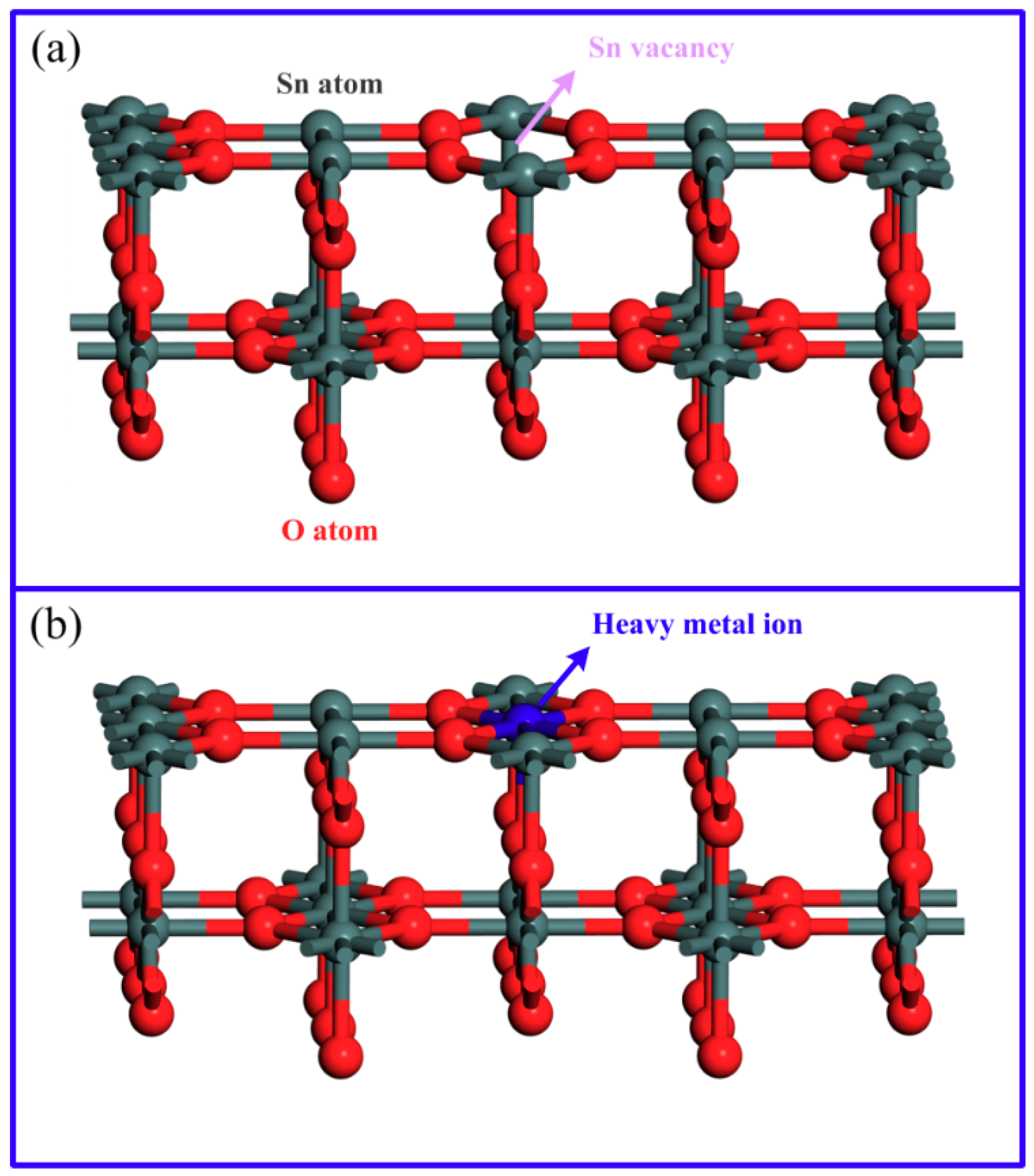

Figure 8. Structural model of rutile SnO2 system with one Sn vacancy (a) before and (b) after interaction with heavy metal ions. Atoms of each element are indicated by colors: gray for Sn, red for O and blue for heavy metal ions.
Figure 8. Structural model of rutile SnO2 system with one Sn vacancy (a) before and (b) after interaction with heavy metal ions. Atoms of each element are indicated by colors: gray for Sn, red for O and blue for heavy metal ions.
Nanomaterials 09 01294 g008
Figure 9. Logarithmic correlation of fluorescence emission intensity against Ni2+ concentration.
Figure 9. Logarithmic correlation of fluorescence emission intensity against Ni2+ concentration.
Nanomaterials 09 01294 g009
Table 1. Adsorption energies of heavy metal ions from first principle calculation based on the density function theory.
Table 1. Adsorption energies of heavy metal ions from first principle calculation based on the density function theory.
Heavy Metal IonAdsorption Energy (eV)Ion Radius (Å)Fluorescence Response
Cd2+4.21781.14
Fe3+13.4664.52.13
Ni2+7.65692.48
Pb2+5.391191.03
