2D In-Plane CuS/Bi2WO6 p-n Heterostructures with Promoted Visible-Light-Driven Photo-Fenton Degradation Performance

1
College of Chemistry and Chemical Engineering, Shaanxi Key Laboratory of Chemical Reaction Engineering, Yan’an University, Yanan 716000, China
2
State Key Laboratory of Organic-Inorganic Composites Beijing Key Laboratory of Electrochemical Process and Technology for Materials, Beijing University of Chemical Technology, Beijing 100029, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2019, 9(8), 1151; https://doi.org/10.3390/nano9081151
Received: 29 June 2019 / Revised: 6 August 2019 / Accepted: 9 August 2019 / Published: 11 August 2019

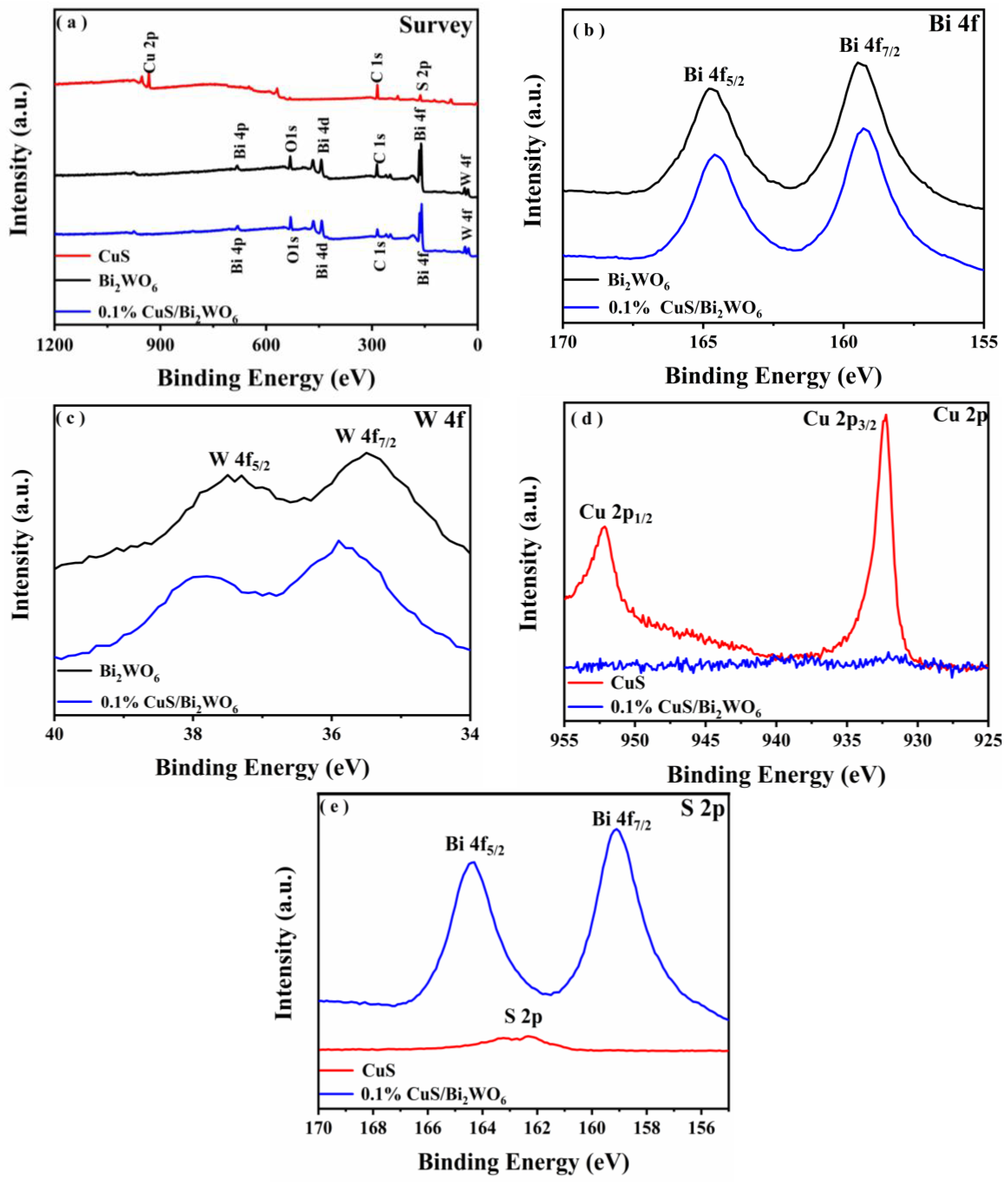

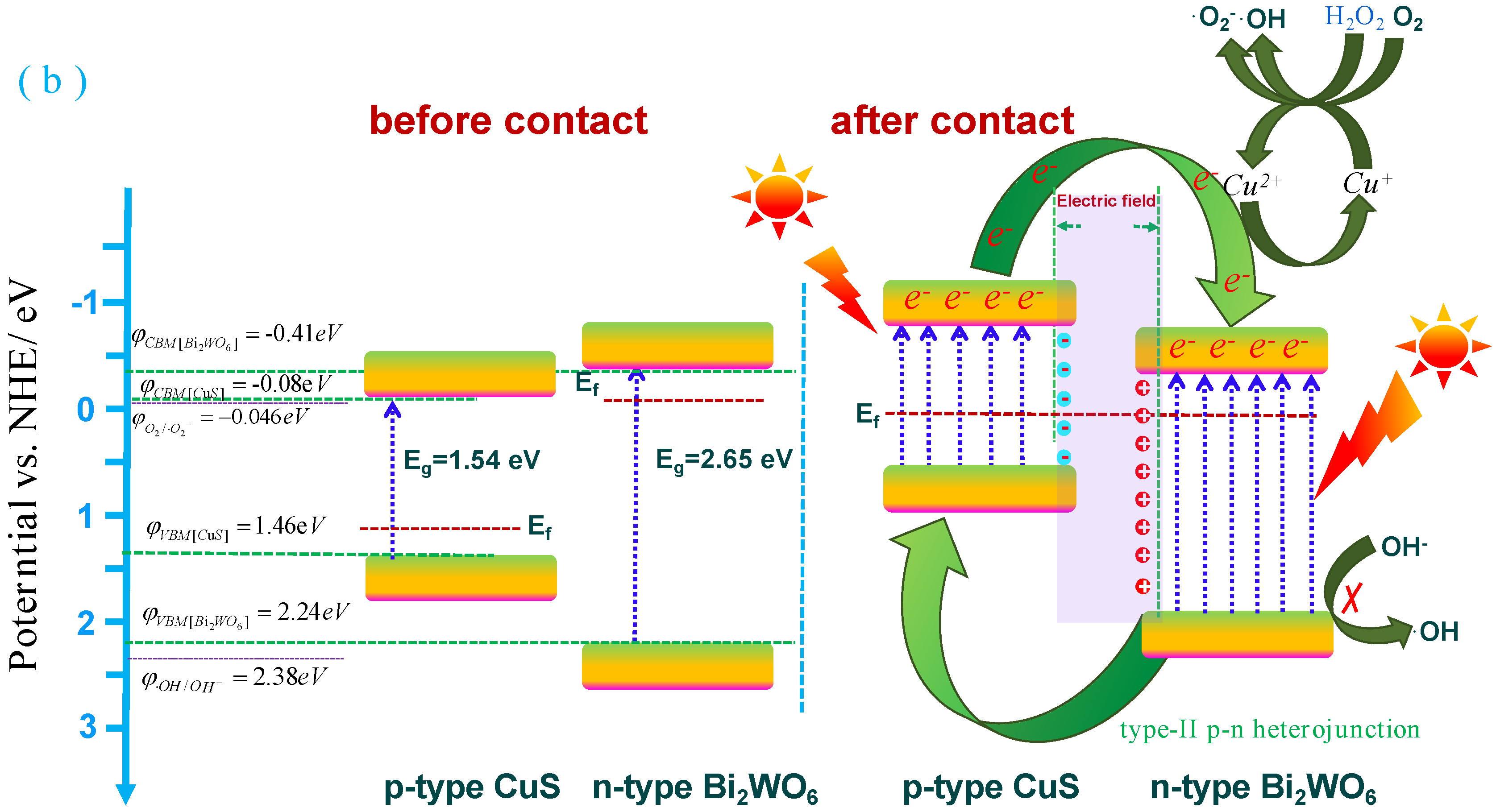

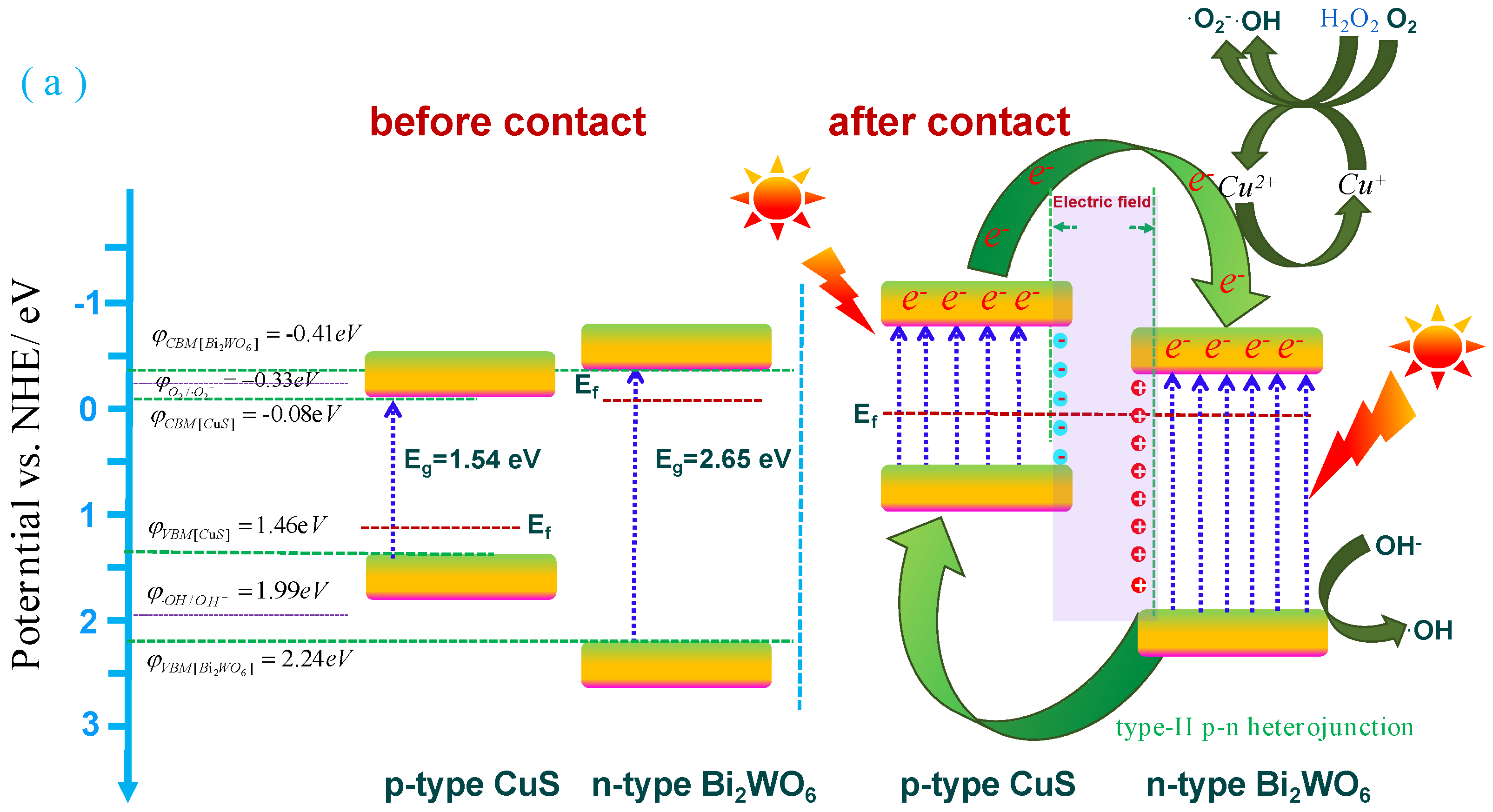

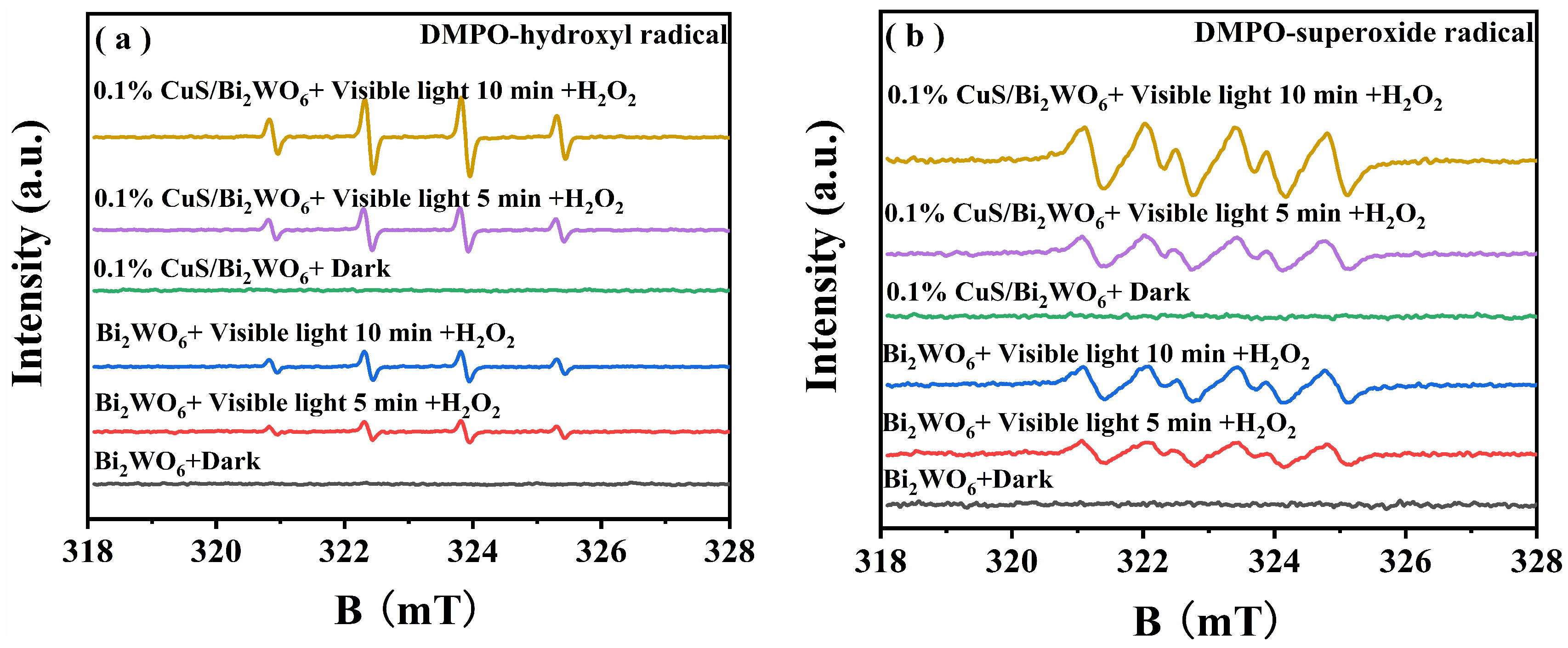

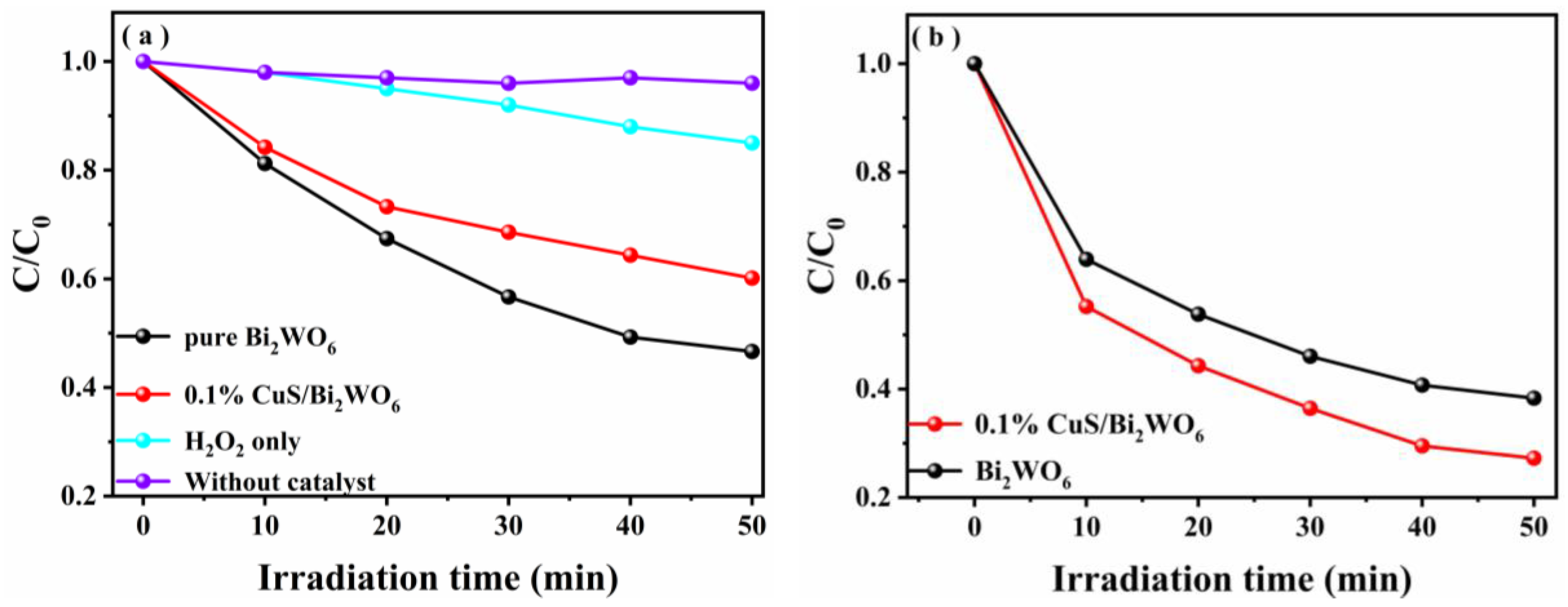

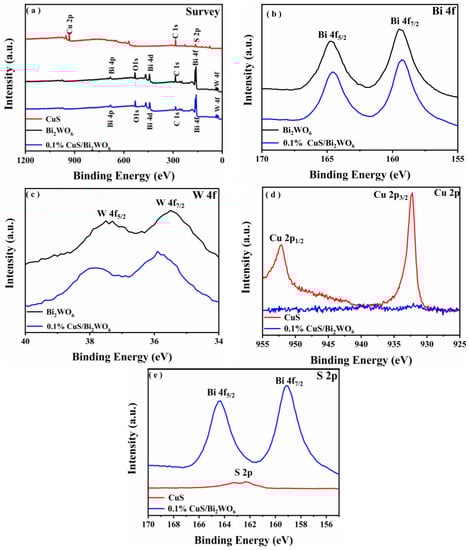

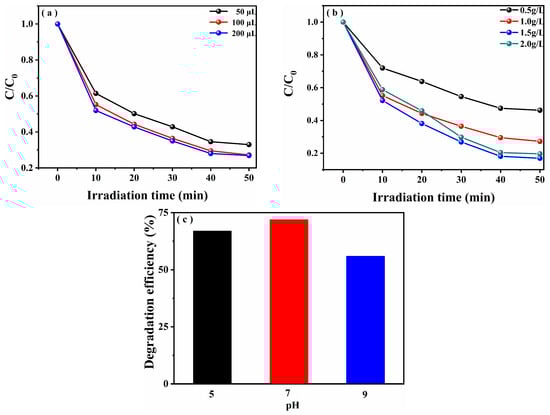

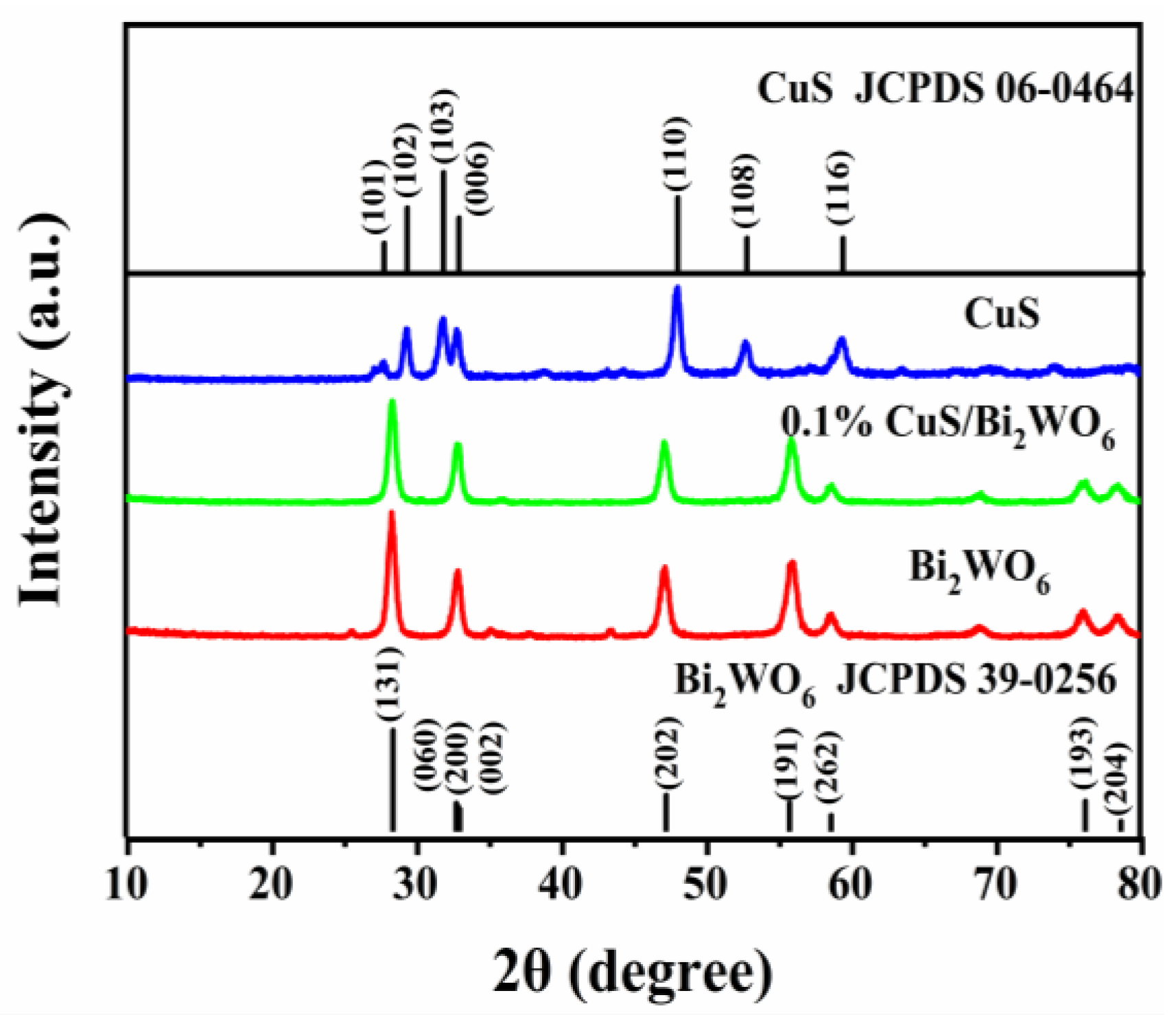

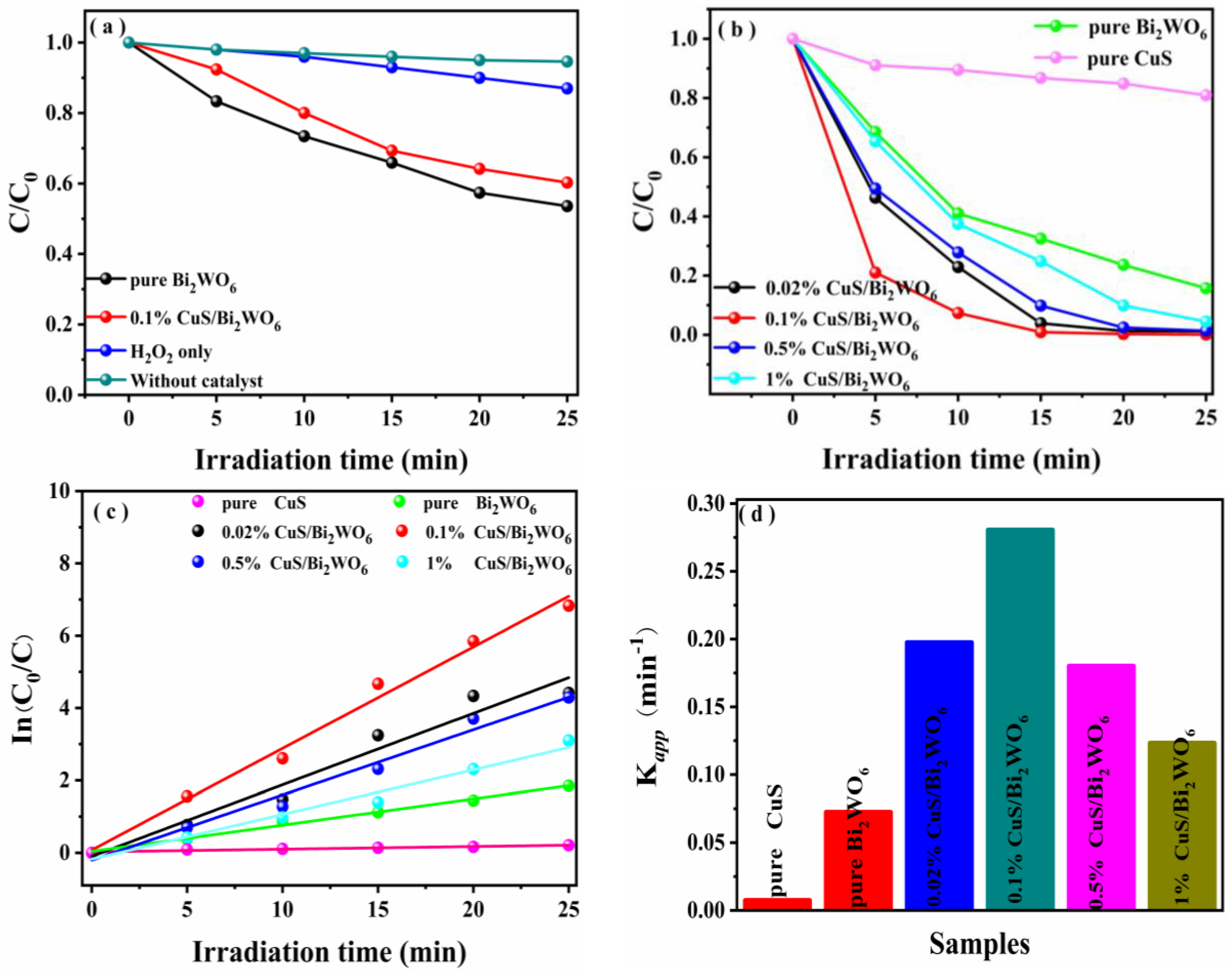

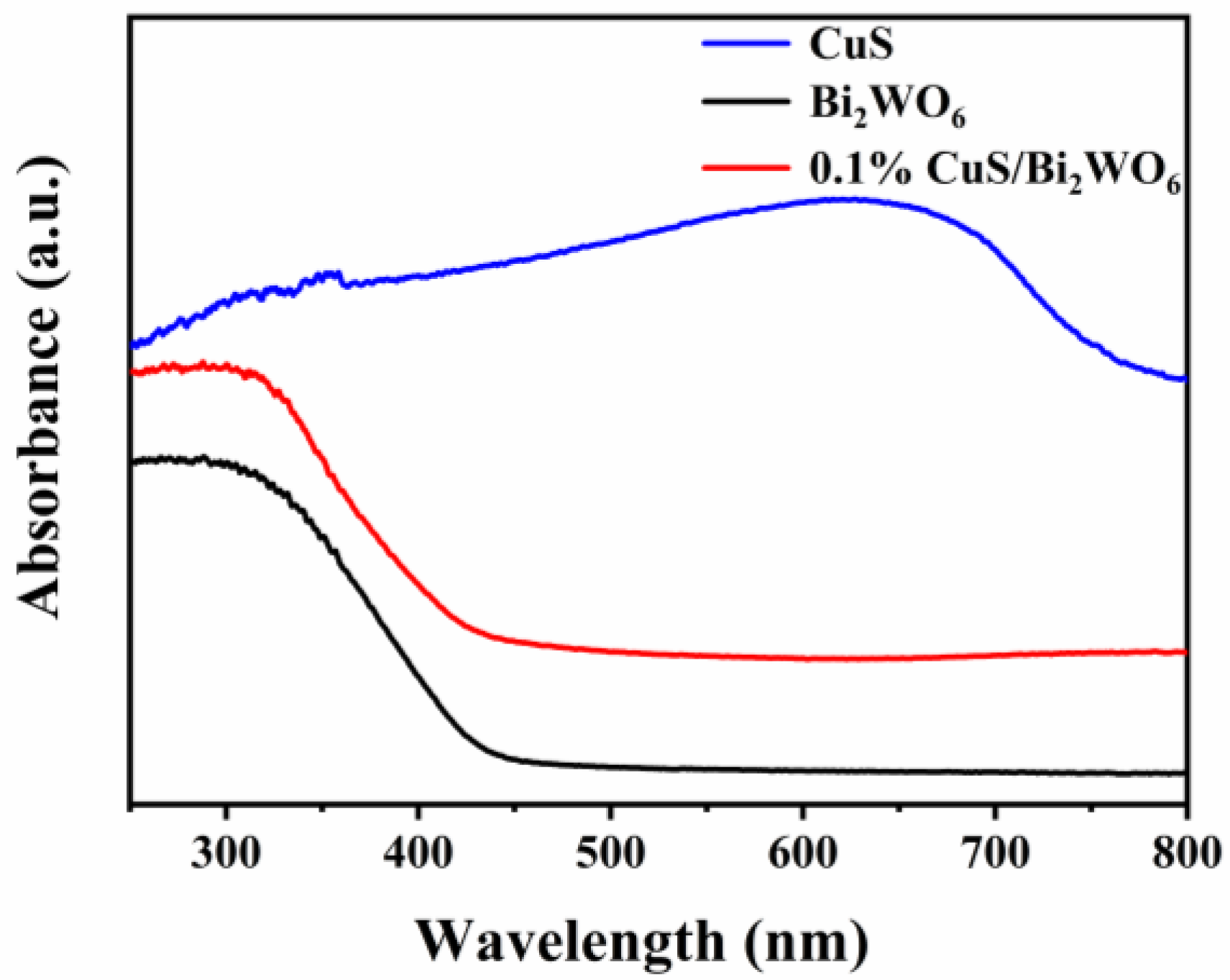

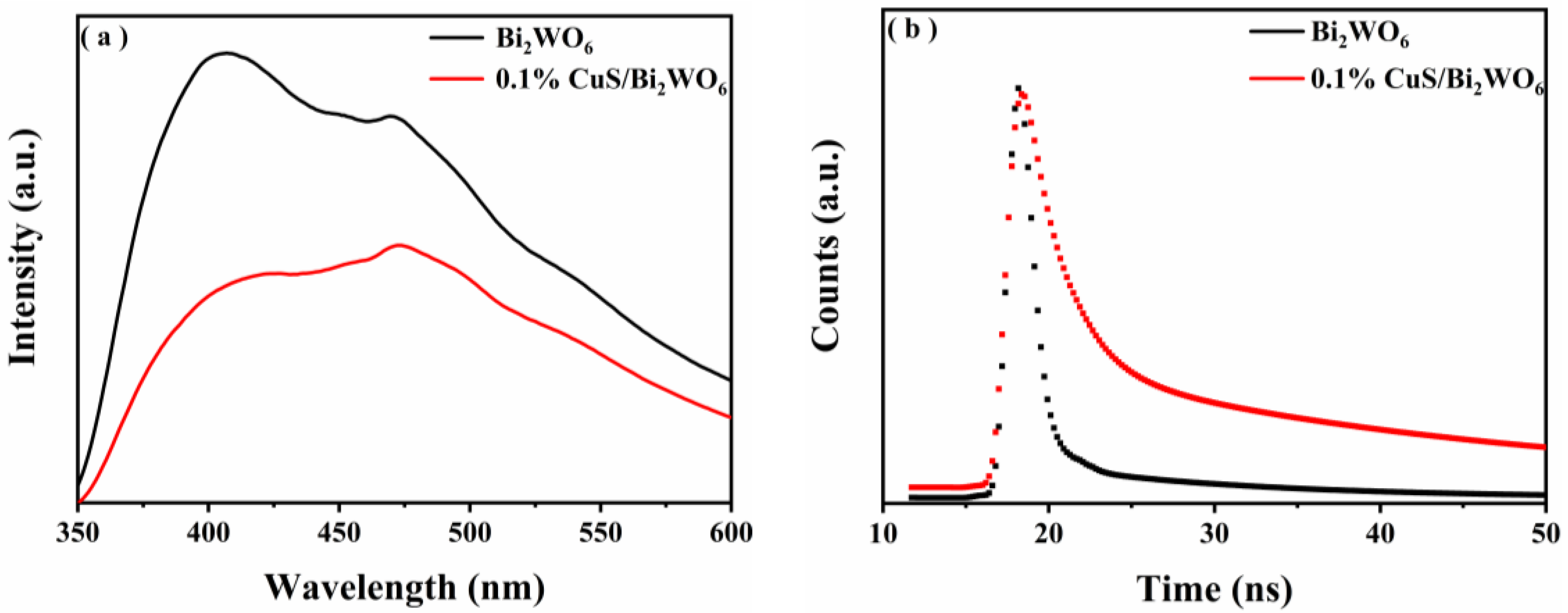

Photo-Fenton degradation of pollutants in wastewater is an ideal choice for large scale practical applications. Herein, two-dimensional (2D) in-plane CuS/Bi2WO6 p-n heterostructures have been successfully constructed by an in situ assembly strategy and characterized using XRD, XPS, SEM/TEM, EDX, UV-Vis-DRS, PL, TR-PL, ESR, and VB-XPS techniques. The XPS and the TEM results confirm the formation of CuS/Bi2WO6 heterostructures. The as-constructed CuS/Bi2WO6 showed excellent absorption in visible region and superior charge carrier separation efficiency due to the formation of a type-II heterojunctions. Under visible light irradiation, 0.1% CuS/Bi2WO6 heterostructure exhibited the best photo-Fenton-like catalytic performance. The degradation efficiency of Rhodamine B (RhB, 20 mg·L−1) can reach nearly 100% within 25 min, the apparent rate constant (kapp/min−1) is approximately 40.06 and 3.87 times higher than that of pure CuS and Bi2WO6, respectively. The degradation efficiency of tetracycline hydrochloride (TC-HCl, 40mg·L−1) can reach 73% in 50 min by employing 0.1% CuS/Bi2WO6 heterostructure as a photo-Fenton-like catalyst. The promoted photo-Fenton catalytic activity of CuS/Bi2WO6 p-n heterostructures is partly ascribed to its low carriers recombination rate. Importantly, CuS in CuS/Bi2WO6 heterostructures is conducive to the formation of heterogeneous photo-Fenton catalytic system, in which Bi2WO6 provides a strong reaction site for CuS to avoid the loss of Cu2+ in Fenton reaction, resulting in its excellent stability and reusability. The possible photo-Fenton-like catalytic degradation mechanism of RhB and TC-HCl was also elucidated on the basis of energy band structure analysis and radical scavenger experiments. The present study provides strong evidence for CuS/Bi2WO6 heterostructures to be used as promising candidates for photo-Fenton treatment of organic pollutants. View Full-Text
Keywords: Bi2WO6 nanosheets; photo-Fenton; degradation; visible light irradiation; 2D in-plane heterostructures Bi2WO6 nanosheets; photo-Fenton; degradation; visible light irradiation; 2D in-plane heterostructures
Show Figures

Graphical abstract

MDPI and ACS Style

Guo, L.; Zhang, K.; Han, X.; Zhao, Q.; Wang, D.; Fu, F. 2D In-Plane CuS/Bi2WO6 p-n Heterostructures with Promoted Visible-Light-Driven Photo-Fenton Degradation Performance. Nanomaterials 2019, 9, 1151.
