Open AccessArticle

Highly Stretchable and Self-Healing Strain Sensors Based on Nanocellulose-Supported Graphene Dispersed in Electro-Conductive Hydrogels

1
College of Materials Science and Engineering, Nanjing Forestry University, Nanjing 210037, China
2
College of Biology and Environment, Nanjing Forestry University, Nanjing 210037, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2019, 9(7), 937; https://doi.org/10.3390/nano9070937
Received: 18 May 2019 / Revised: 5 June 2019 / Accepted: 11 June 2019 / Published: 28 June 2019
  |
PDF [4126 KB, uploaded 28 June 2019]
  |

Abstract

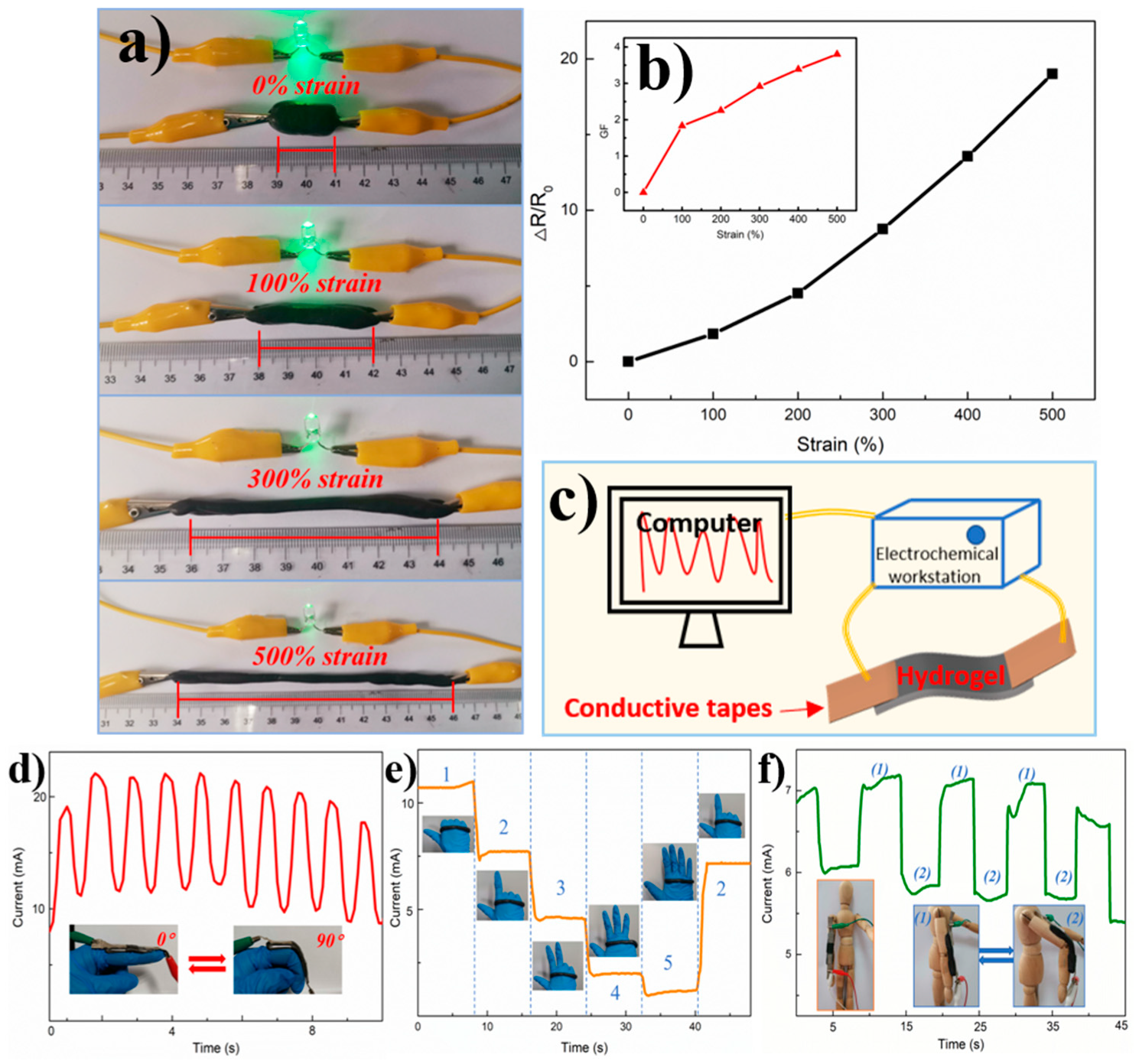

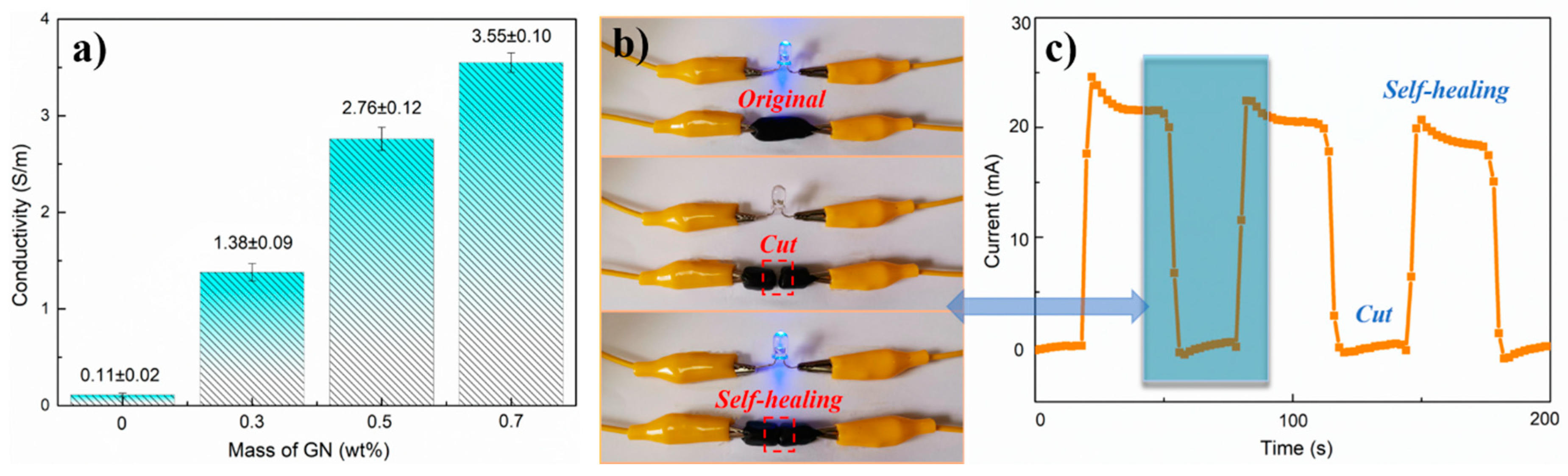

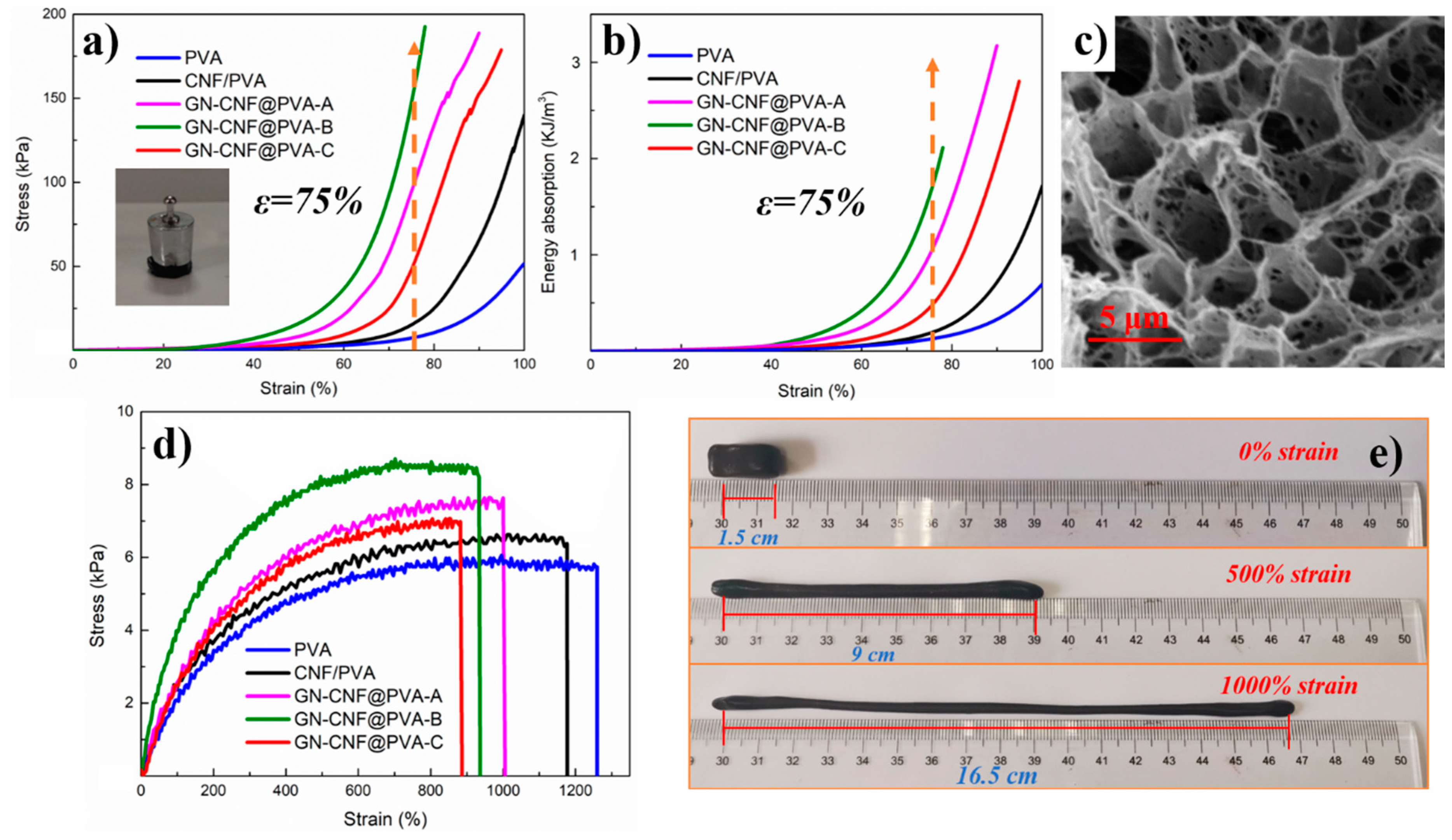

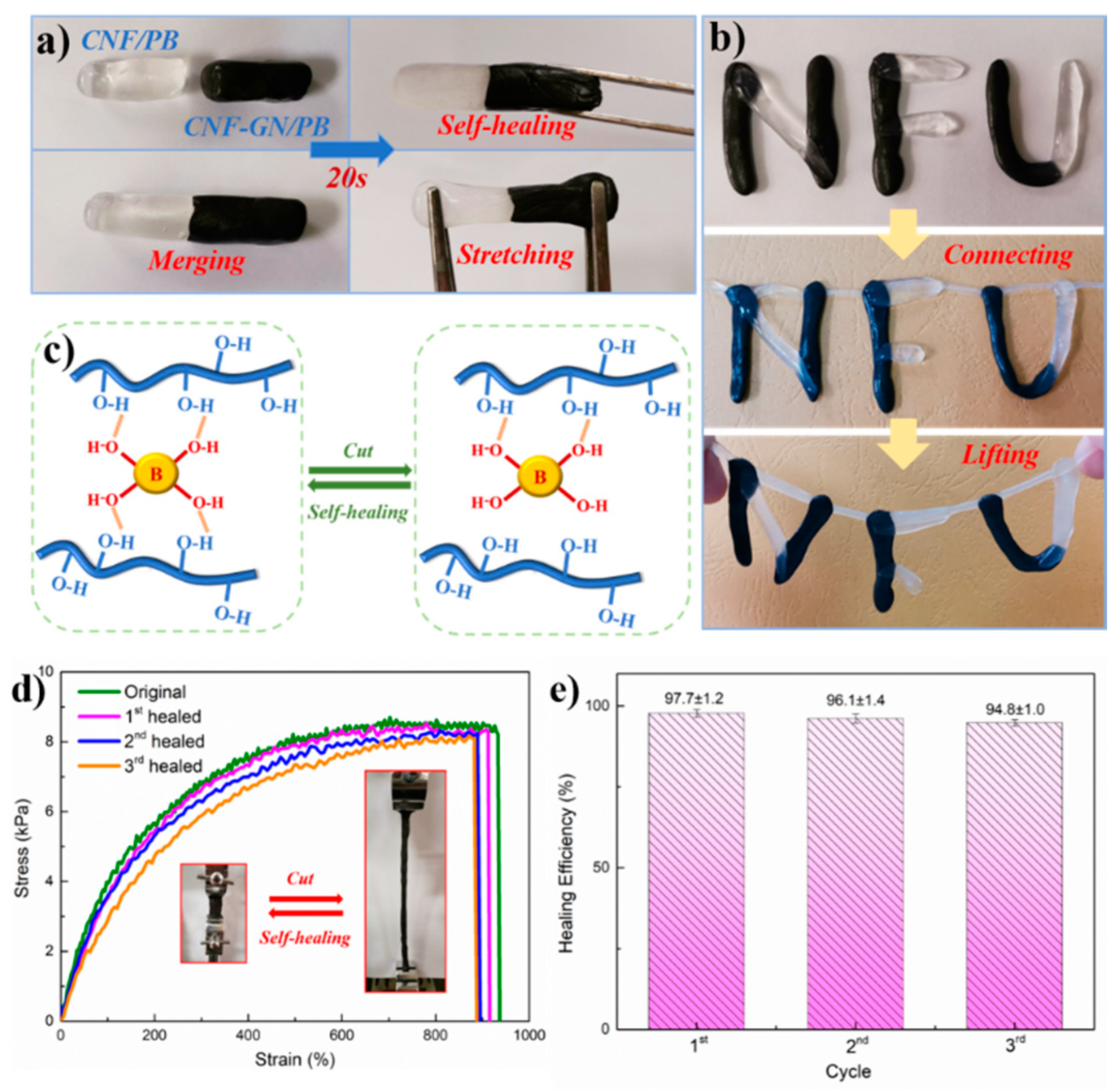

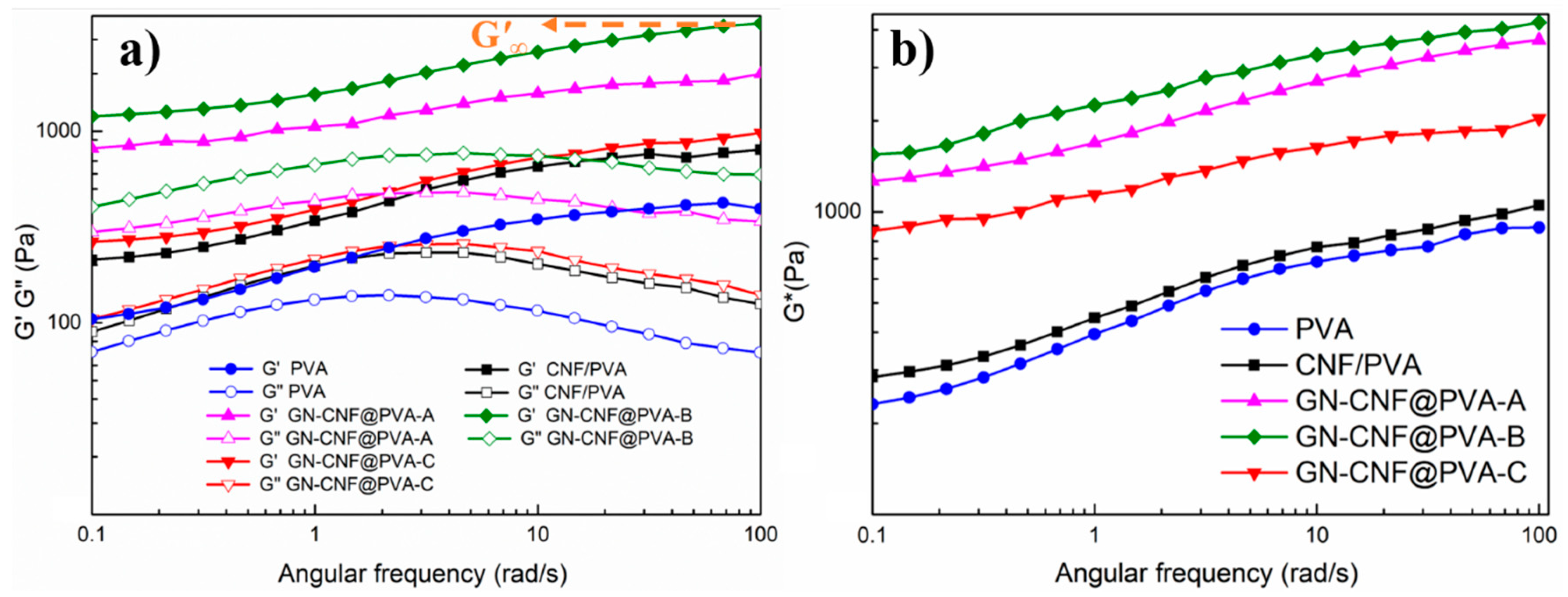

Intrinsic self-healing and highly stretchable electro-conductive hydrogels demonstrate wide-ranging utilization in intelligent electronic skin. Herein, we propose a new class of strain sensors prepared by cellulose nanofibers (CNFs) and graphene (GN) co-incorporated poly (vinyl alcohol)-borax ([email protected]) hydrogel. The borax can reversibly and dynamically associate with poly (vinyl alcohol) (PVA) and GN-CNF nanocomplexes as a cross-linking agent, providing a tough and flexible network with the hydrogels. CNFs act as a bio-template and dispersant to support GN to create homogeneous GN-CNF aqueous dispersion, endowing the [email protected] gels with promoted mechanical flexibility, strength and good conductivity. The resulting composite gels have high stretchability (break-up elongation up to 1000%), excellent viscoelasticity (storage modulus up to 3.7 kPa), rapid self-healing ability (20 s) and high healing efficiency (97.7 ± 1.2%). Due to effective electric pathways provided by GN-CNF nanocomplexes, the strain sensors integrated by [email protected] hydrogel with good responsiveness, stability and repeatability can efficiently identify and monitor the various human motions with the gauge factor (GF) of about 3.8, showing promising applications in the field of wearable sensing devices. View Full-Text
Keywords: nanocellulose; poly (vinyl alcohol); graphene; borax; hydrogel; self-healing; conductive; stretchable; viscoelasticity; strain sensor nanocellulose; poly (vinyl alcohol); graphene; borax; hydrogel; self-healing; conductive; stretchable; viscoelasticity; strain sensor
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
