Novel Porous Nitrogen Doped Graphene/Carbon Black Composites as Efficient Oxygen Reduction Reaction Electrocatalyst for Power Generation in Microbial Fuel Cell

1,2,*, 2, 1,2,* and 1,2
1
Key Laboratory of Reservoir Aquatic Environment, Chinese Academy of Sciences, Chongqing 400714, China
2
Chongqing Institute of Green and Intelligent Technology, Chinese Academy of Sciences, Chongqing 400714, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2019, 9(6), 836; https://doi.org/10.3390/nano9060836
Received: 5 May 2019 / Revised: 21 May 2019 / Accepted: 23 May 2019 / Published: 1 June 2019
  |
PDF [2174 KB, uploaded 1 June 2019]
  |

Abstract

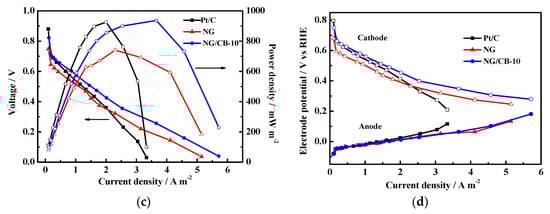

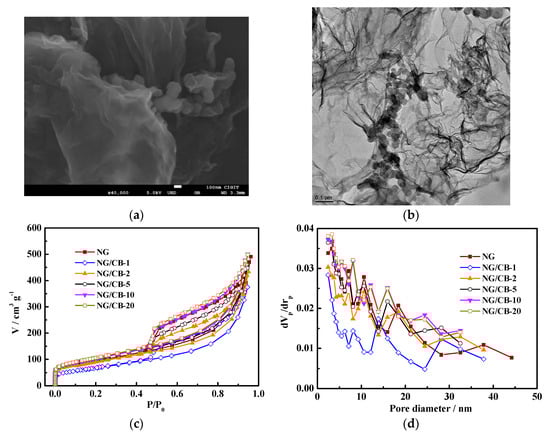

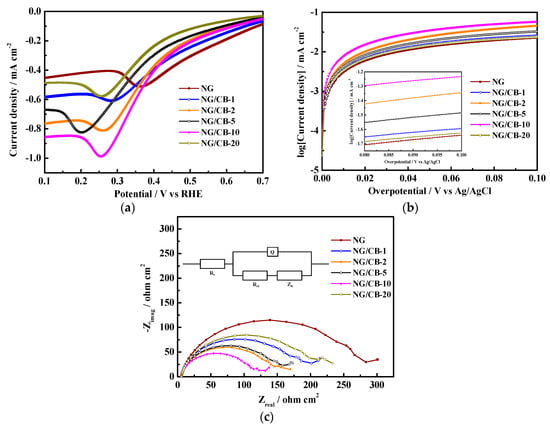

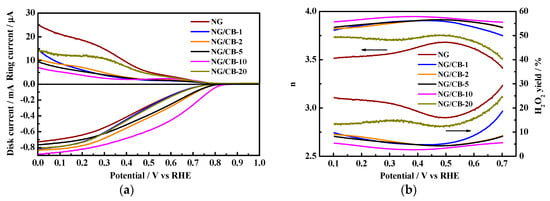

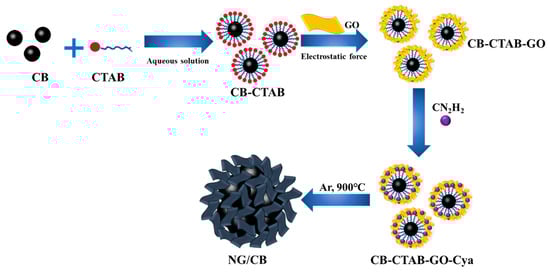

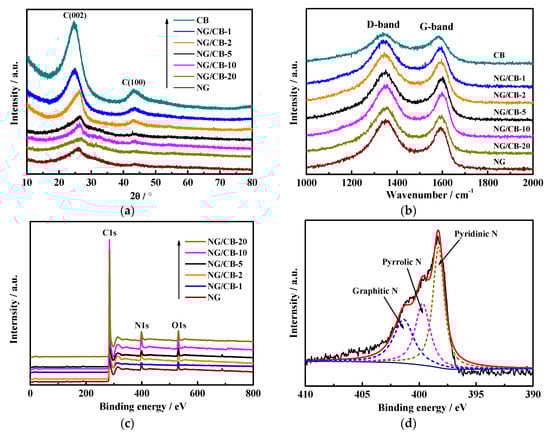

To improve the power generation of a microbial fuel cell (MFC), a porous nitrogen-doped graphene/carbon black (NG/CB) composite as efficient oxygen reduction reaction (ORR) electrocatalyst was successfully synthesized by pyrolyzing graphene oxide (GO) encapsulated CB with cetyltrimethyl ammonium bromide as a bridge. This concept-to-proof synthesis can be considered as a template-like method. Based on this method, one composite named as NG/CB-10 was acquired using the optimized GO-to-CB mass ratio of 10:1. Electrochemical tests demonstrate that NG/CB-10 can catalyze ORR in neutral-pH medium through a four-electron pathway with positively shifted the onset potential, the enhanced current density and reduced charge transfer resistance. CB addition also prolongs the stability of NG/CB-10. The enhancement in electrochemical performance of NG/CB-10 was attributed to the enlarged surface area, abundant mesopores and high content of pyridinic nitrogen. The maximum power density of MFC equipping NG/CB-10 as cathode electrocatalyst reached 936 mW·m−2, which was 26% higher than that of NG and equal to that of platinum/carbon. The cost of NG/CB-10 was reduced by 25% compared with that of NG. This work provides a novel method to synthesize promising ORR electrocatalyst for MFC in the future. View Full-Text
Keywords: template-like method; nitrogen-doped graphene; carbon black; oxygen reduction reaction; microbial fuel cell template-like method; nitrogen-doped graphene; carbon black; oxygen reduction reaction; microbial fuel cell
