Article

Active Pore-Edge Engineering of Single-Layer Niobium Diselenide Porous Nanosheets Electrode for Hydrogen Evolution

by
Jianxing Wang
,
Xinyue Liu
,
Ying Liu
and
Guowei Yang
*
State Key Laboratory of Optoelectronic Materials and Technologies, Nanotechnology Research Center, School of Materials Science & Engineering, School of Physics, Sun Yat-sen University, Guangzhou 510275, Guangdong, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(5), 751; https://doi.org/10.3390/nano9050751
Submission received: 6 March 2019 / Revised: 29 April 2019 / Accepted: 1 May 2019 / Published: 16 May 2019
Browse Figures
Versions Notes

Abstract

Two-dimensional transition-metal dichalcogenides (TMDs) possess interesting catalytic properties for the electrochemical-assisted hydrogen-evolution reaction (HER). We used niobium diselenide (NbSe2) as a representative TMD, and prepared single-layer NbSe2 porous nanosheets (PNS) by a double-sonication liquid-phase exfoliation, with H2O2 as a pore-forming agent. The single-layer NbSe2 PNS were drop-cast on carbon foam (CF) to fabricate a three-dimensional robust NbSe2 PNS/CF electrode. The NbSe2 PNS/CF electrode exhibits a high current density of −50 mA cm−2 with an overpotential of 148 mV and a Tafel slope of 75.8 eV dec−1 for the HER process. Little deactivation is detected in continuous CV testing up to 20,000 cycles, which suggests that this novel NbSe2 PNS/CF is a promising catalytic electrode in the HER application. The porous structure of single-layer NbSe2 nanosheets can enhance the electrochemical performance compared with that of pore-free NbSe2 nanosheets. These findings illustrate that the single-layer NbSe2 PNS is a potential electrocatalytic material for HER. More importantly, the electrochemical performance of the NbSe2 PNS/CF expands the use of two-dimensional TMDs in electrocatalysis-related fields.

Graphical Abstract

1. Introduction

The energy crisis has aroused extensive research interest in the search for sustainable energy-conversion systems that exhibit a high productivity and low cost. Hydrogen (H2) is one of the most promising candidates to replace fossil fuels in the future [1,2,3,4,5,6,7,8]. The electrochemical hydrogen-evolution reaction (HER) is considered to be the most important and promising route to produce hydrogen [9,10,11,12,13]. Platinum (Pt) and its alloys are the most electrochemically active and stable catalysts for HER. However, the high price and limited availability of Pt prevent its large-scale usage in practice [14]. Therefore, the development of nonprecious-metal catalysts that drive HER at a low overpotential with an excellent reaction efficiency is essential for large-scale production of hydrogen through electrochemical water splitting [15,16].
Recently, two-dimensional (2D) transition-metal dichalcogenides (TMDs), such as MoS2 and WS2, have attracted much attention because of their layer structure and excellent electrocatalytic properties [17]. The inherent contact resistance of TMD materials has not yet been optimized, especially for the trigonal prismatic (2H) basal plane. The crystalline strain and metallic octahedral (1T) sites are both important factors to modulate the catalytic activity of TMD nanosheets [18,19,20]. Therefore, an improvement of the conductivity and creation of active edge sites of the TMDs are expected to achieve a better HER performance.
In the thermodynamically stable 2H phase, MoS2, MoSe2, WS2 and WSe2 are semiconductors [21]. The NbSe2 belongs to the Group V transition metal dichalcogenides. NbSe2 has a similar crystalline structure to MoS2 and WS2. However, the NbSe2 TMDs with metallic conductivity have stolen the limelight [22]. The electrical resistivity of NbSe2 is only 10−4 Ω·cm, which is six orders of magnitude less than that of MoS2 [23]. The Group V NbSe2 TMDs are prized for their low-dimensional crystal structure and exhibit interesting electronic properties, such as superconductivity, charge density waves and Mott transition [24]. The layers of NbSe2 are stacked together through Van der Waals interactions and can be exfoliated into thin layers. First-principles calculations have suggested that single-layer NbSe2 has a charge density wave phase with a different periodicity compared with that of the bulk, as well as a larger gain of electronic energy, which result in a higher transition temperature [25]. However, the electrochemical and electrocatalytic properties of the single-layer Group V TMDs have not been well established.
Here, we prepared 3D single-layer NbSe2 porous nanosheets as advanced HER electrocatalysts. Strategies have been developed to promote the HER catalytic effect of NbSe2, which can increase the number of edge active sites significantly [4,26,27] and improve the electrical conductivity [28]. We fabricated single-layer NbSe2 porous nanosheets/carbon-foam electrode, which exhibited a Tafel slope of 75.8 eV dec−1 and an overpotential of −148 mV at a current density of −50 mA cm−2 in the HER process. The as-revealed catalytic performance of a single-layer NbSe2 PNS/carbon foam (CF) electrode outperforms most of the previously reported non-noble HER catalysts, such as MoS2-NbSe2 hybrid nanobelts with a Tafel slope of 79.5 eV dec−1 and an overpotential of −410 mV at a current density of −10 mA cm−2 [20], three-dimensional molybdenum sulfide sponges with a Tafel slope of 185 eV dec−1 and an overpotential of −30 mV at a current density of −10 mA cm−2 [29], and a three-dimensional MoS2/GO framework with an overpotential of −210 mV at a current density of −10 mA cm−2 [30]. Little deactivation has been detected in stability testing, even up to 20,000 cycles, which reveals the promising prospect of this novel single-layer NbSe2 porous nanosheets/carbon in massive electrochemical water splitting and hydrogen production.

2. Materials and Methods

NbSe2 pristine powder (99%, Alfa Aesar, Shanghai, China), sodium cholate (NaC) (99%, Alfa Aesar, Shanghai, China), Nb2O5 powder (99.99%, Alfa Aesar, Shanghai, China), carbon foam, Nafion solution (5 wt.%, Alfa Aesar, Shanghai, China), and state-of-the-art Pt-C (10 wt.% Pt, Alfa Aesar, Shanghai, China). Other chemicals were from SinoPharm (Shanghai, China) and used without further purification.
NbSe2 powder (starting concentration Ci = 8 mg mL−1) was dissolved in 200 mL of aqueous NaC solution (CNaC = 4 mg mL−1). To obtain a stable single-layer nanosheets dispersion and to avoid re-stacking, the initial mass ratio of NaC to TMD (CNaC/Ci) was kept at ~0.5, which is the optimized surfactant concentration ratio to drive efficient exfoliation. The initial dispersion was sonicated for 6 h at a 30% amplitude under pulsed mode with 2 s on and 2 s off while chilled using a double-jacketed water-cooling system and chiller. The resultant raw dispersions were subjected to a brief centrifugation step (TGL-16 centrifuge, Xiangyi Co. Ltd., Hunan, China) at 5000 rpm for 50 min to remove un-exfoliated material. The upper suspension was then subjected to another centrifugation step at 10,000 rpm for 30 min to separate the single-layer nanosheets (NSs) from the few-layer NSs. The collected single-layer nanosheets were sonicated again using the same conditions, except in a 2.5 vol% H2O2 to create pores on the nanosheets. Finally, the NbSe2 single-layer PNS were rinsed with 1200 mL of water to remove residual surfactant and H2O2 during the vacuum filtration.
Scanning electron microscopy (SEM, Auriga-4525, Carl Zeiss Inc., Oberkochen, Germany) and transmission electron microscopy (TEM, Tecnai G2 F30, FEI Inc., Eindhoven, The Netherlands, operated at 300 kV) were used to identify the morphology of the as-synthesized samples. To understand the surface chemical states of the superficial bonded elements, X-ray photoelectron spectroscopy with a monochromatic Al-Kα source (XPS, ESCA Lab250. Thermo Scientific, East Grinstead, UK) was conducted. Ultraviolet photoelectron spectroscopy (UPS, VG ESCALAB Mk II, Thermo Scientific, East Grinstead, UK) was performed using He I (21.2 eV) resonance line. The X-ray diffraction (XRD) pattern was recorded on a Rigaku D-MAX 2200 VPC (Rigaku Co., Tokyo, Japan) diffractometer with Cu-Kα as the radiation source (λ = 0.154 nm). Atomic force microscopy (AFM) images were obtained by using a Bruker Multimode V8 system (Dimension icon, Bruker Inc., Billerica, MA, USA) with the tapping mode after the samples had been deposited on a freshly cleaved mica surface by spin coating.
Typically, 5 mg of sample and 30 μL of Nafion solution (5 wt.%) were dispersed uniformly in 1 mL of a water–ethanol solution with a volume ratio of 4:1 by sonicating for 0.5 h to form a homogeneous ink. Then, 100 μL catalyst ink was loaded onto a carbon-foam electrode with a geometric area of 0.5 cm−2. The catalytic performances of the single-layer NbSe2 PNS/CF for HER were studied using a three-electrode configuration connected to a CH Instrument workstation at room temperature (25 °C). The NbSe2 PNS/CF electrode was used as the working electrode. An Ag/AgCl (sat. KCl) electrode and a graphite rod were used as the reference and counter electrodes, respectively. All measurements were performed in 0.5 M H2SO4 (aq.). All reported potentials were referenced to the reversible hydrogen electrode (RHE) through RHE calibration according to: E (RHE) = Eθ(Ag/AgCl sat.) + 0.198 + 0.059 pH. The polarization curves were obtained by sweeping the potential from −0.4 to 0.2 V versus the RHE at room temperature with a sweep rate of 5 mV s −1. The electrochemical impedance spectroscopy (EIS) measurements were performed in the same configuration at an open circuit potential of 210 mV over a frequency range from 100 kHz to 0.1 Hz at an amplitude of 2 mV. The resistance of 0.5 M H2SO4 is ∼15 Ω, which was determined by EIS.

3. Results

Liquid-phase sonication exfoliation is a powerful and scalable technique to produce few-layer TMD nanosheets [31,32,33,34,35]. Figure 1 illustrates the fabrication process of the single-layer NbSe2 PNS. Firstly, the NbSe2 pristine powders were exfoliated into few-layer nanosheets through the sonication liquid-phase exfoliation process. Secondly, porous structures in the plane of the prepared nanosheets were constructed through a second liquid-phase sonication process in H2O2. After double liquid-phase sonication, NbSe2 crystals in the powder were exfoliated into single-layer PNS.
NbSe2 powders tend to have a bulk structure with fewer edge sites, but single-layer NbSe2 PNS are almost 1 nm thickness and contain many holes in the plane. Therefore, the edge active sites of single-layer NbSe2 PNS are several orders of magnitude higher than those of the NbSe2 powders. The NbSe2 PNS solution which mixed with Nafion was drop-casted on the carbon foam (CF) to fabricate the NbSe2 PNS/CF electrode (Figure 2). The macropore-like structure of CF could increase the contact area of catalyst and electrolyte as well as improve the electrochemical property of the NbSe2 PNS [36].
To confirm this hypothesis, single-layer and porous nanosheets were investigated via X-ray powder diffraction (XRD) to identify the corresponding crystal structure. According to Figure 3a, several peaks of bulk NbSe2 are assigned to the hexagonal 2H-NbSe2 (JCPDS 65-3484). As a comparison, the NbSe2 PNS exhibit an obvious diffraction peak at 14.1°, which is related to the (002) peak of hexagonal NbSe2. In addition, the (002) peak of NbSe2 PNS shifts to the higher angle compared to that of bulk NbSe2 due to the partial transformation from 2H-NbSe2 to 1T-NbSe2 (Figure 3b). The similar phenomenon of 2H and 1T MoS2 monolayer has been reported in literature [37]. Besides this, the positive shift peak of NbSe2 PNS suggests the highly exfoliated effect of the NbSe2 nanosheets and the widened interlayer spacing of NbSe2 PNS owing to the strong exfoliating ability with the assistance of H2O2.
Figure 4a and Figure S1a reveal that the CF support exhibits a network porous structure, and the size of the holes ranges from dozens to hundreds of micrometers. The initial NbSe2 pristine powder is in the form of crystalline flakes with size of a few to dozens of micrometers (Figure S1b). Furthermore, the size of the NbSe2 PNS are smaller than that of the NbSe2 NS (Figure S1c,d), suggesting that the second liquid-phase sonication further broke the NbSe2 nanosheets to smaller pieces. The elemental distributions indicate the uniform distribution of elemental C, Nb and Se on the 3D NbSe2 PNS/CF surface, meaning that the NbSe2 PNS have been attached onto the CF (Figure 4d–f).
The thickness of the NbSe2 PNS was investigated by atomic force microscopy (AFM) and TEM. The AFM results in Figure 5a,b confirmed that single-layer NbSe2 PNS with thickness of ~1 nm were obtained. In comparison, the NbSe2 NSs thickness (~1.5 nm) is larger than the NbSe2 PNS (Figure S2d). The porous structure can also be clearly seen from Figure 5c, due to the etching effect of H2O2. The size of the nanosheets’ hole ranges from several to dozens of nanometers. The high-resolution TEM (HRTEM) image (Figure 4d) shows the lattice fringe of 0.31 nm was resulting from the (002) crystal planes of NbSe2. However, as shown in Figure S2, NbSe2 NSs without etching by H2O2 do not exhibit a hole structure in the nanosheets. Relative to the NbSe2 powder, the unsaturated edges of the exfoliated porous NbSe2 PNS structure are more active for proton adsorption and thus enhance the HER performance [28].
XPS was used to characterize the chemical composition and binding energy of the single-layer NbSe2 PNS and NbSe2 NSs. The XPS spectrum of Nb 3d for the single-layer NbSe2 PNS is shown in Figure 6a. The high-resolution spectrum shows 1T-NbSe2 peaks (blue line) around 203.2 and 206.0 eV, which corresponds to the Nb4+ 3d component. 2H-NbSe2 peaks (dark yellow line) at around 204.1 and 206.5 eV correspond to the Nb4+ 3d component. Peaks around 207.8 and 210.1 eV are attributed to Nb5+, indicating that oxidized valence of Nb5+ exists at the surface of nanosheets. The high-resolution XPS spectra of O 1s of NbSe2 PNS (Figure S7) shows two peaks at 529.6 and 532.0 eV, which are due to the lattice oxygen and the adsorption oxygen in the surface of catalyst, respectively. The high-resolution XPS spectrum of Se 3d for the single-layer NbSe2 PNS is shown in Figure 6b. Peaks at around 52.85 eV and 53.65 eV are attributed to Se 3d5/2 and Se 3d3/2 of 1T-NbSe2, respectively. Another two peaks at 54.9 eV and 55.7 eV can be assigned to Se 3d5/2 and Se 3d3/2 of 2H-NbSe2 [38]. In comparison, according to Se 3d core-level peaks of the NbSe2 NSs in Figure S3a, 2H-NbSe2 peaks around 54.7 eV and 55.7 eV should be related to Se 3d3/2 and Se 3d5/2. The Nb 3d core-level peaks of the NbSe2 NSs at 203.5 eV and 206.6 eV in Figure S3b should represent the Nb4+ 3d component. However, the XPS of NbSe2 NSs is not detected in the 1T phase in the nanosheets, which shows that part of the 2H phase can be transformed to the 1T phase during the second sonication process with the assistance of H2O2 [38]. The UPS of single-layer NbSe2 PNS was shown in Figure 6c. The working function (Φ) of NbSe2 PNS was calculated as 4.18 eV. When kinetic energy is used as the x-axis, the equation of the working function is Φ = hγ − (EFermi,k − ESE Cutoff, k). The photon energy of XPS monochromatic is 1.486 eV and EFermi,k is 1.486 eV. Hence, the value of Φ is equal to the value of ESE Cutoff, k.
The XPS spectra of NbSe2 PNS after 50 consecutive cyclic voltammetry sweeps and NbSe2 PNS after 25 h stability test were shown in Figure S8. The related XPS analysis results of NbSe2 PNS, NbSe2 PNS after 50 consecutive cyclic voltammetry sweeps, as well as NbSe2 PNS after 25 h stability test were summarized in Table 1. The Se/Nb ratio gradually decreases, and the content of O increases during the long-term electrochemical test, which illustrates that the NbSe2 is oxidized into niobium oxide during the electrochemical test. The NbSe2 NSs exhibits Nb4+ in NbSe2 (Figure S3), and no oxygen was detected. Also, the introduction of H2O2 brought substantial oxygen group on the surface of NbSe2, causing a high O/Nb ratio of 3.2 in the NbSe2 PNS. The O/Nb ratio was further increased to 5.5 after electrochemical test due to the oxidization process of NbSe2 to Nb2O5 at acidic media with constant applied potential.
The electrocatalytic HER activities of the NbSe2 PNS/CF were investigated by linear-sweep voltammetry (LSV) using a standard three-electrode setup in 0.5 M H2SO4 solution with a scan rate of 5 mV s−1. For comparison, the reference commercial Pt-C (10 wt. % Pt) was studied under the same condition. Figure 7a shows the LSV curves of various samples after IR compensation. Pure CF shows limited HER activity within the potential range of −0.4~0.2 V (versus RHE), whereas the Pt-C has the best catalytic performance. To achieve current densities of −50 mA cm−2, the exfoliated porous NbSe2 PNS/CF requires an overpotential of 148 mV. In contrast, the NbSe2 NSs/CF without porous structure and the NbSe2 bulk exhibits an inferior HER activity with a larger overpotential of 242 mV and 400 mV to drive the hydrogen-evolution current of −50 mA cm−2, respectively. Compared with the HER activities of the NbSe2 PNS/CF, NbSe2 NSs/CF and NbSe2 bulk/CF, it can be concluded that the porous nanosheets structure of the single-layer NbSe2 PNS indeed improve the catalyzed HER activity. A similar phenomenon has been reported in ultra-thin and porous MoSe2 nanosheets [39].
To understand the high HER activity of the NbSe2 PNS/CF, Tafel plots of various electrodes were studied (Figure 7b). The Tafel plots were derived from the quasi-static polarization curve to reflect the inherent mechanism of the HER process and the rate-determining step for the entire HER process. A smaller Tafel slope is referred to as a faster increase of hydrogen-generation rate [40]. The pure CF shows a large Tafel slope of ~300 mV dec−1 in the η range of 360–480 mV, which indicates that it is a less active HER catalyst. The Pt-C is the most active material with the smallest Tafel slope of 41 mV dec−1. The NbSe2 PNS/CF possesses a Tafel slope of 75.8 mV dec−1, which is smaller than those of 97.3 and 155 mV dec−1 for the NbSe2 NS/CF and NbSe2 bulk/CF, respectively, which demonstrates the more rapid HER kinetics of NbSe2 PNS/CF. The Tafel slope of NbSe2 PNS/CF is either close to or even better than the records of the three-dimensional TMD-based electrocatalysts (Table S1), such as MoS2-NbSe2 hybrid nanobelts (101.2 mV dec−1) [20], three-dimensional molybdenum sulfide sponges (185 mV dec−1) [29] and three-dimensional MoS2/GO frameworks (86.3 mV dec−1) [30]. The porous structure of the single-layer NbSe2 PNS can improve the catalytic activity toward better HER due to the additional edge sites along the margins of the hole. Furthermore, the unsaturated Se along the holes provides possible active sites for hydrogen-ion adsorption [28].
The excellent stability of electrocatalysts towards the HER is vital for future water-splitting systems. Figure 7c shows the continuous cycling performance of the NbSe2 PNS/CF electrode for 20,000 cycles at a scan rate of 50 mV s−1. At a current density of −50 mA cm−2, the overpotential of the NbSe2 PNS/CF shows a slight increase after 20,000 cycles. Consequently, the NbSe2 PNS/CF exhibits an ultra-high activity and a satisfied long-term cycle stability. Figure 7d shows the chronopotentiometric plot recorded for the NbSe2 PNS/CF at a constant current density of −50 mA cm−2. The potential of NbSe2 PNS/CF was maintained constant with little oscillation over 24 h, suggesting the high durability of the NbSe2 PNS/CF. The SEM and TEM images (Figure S5) show that the NbSe2 PNS maintain a 2D lamella structure and regular lattice fringes of 0.31 nm. The NbSe2 PNS after 20,000 cycles were surface partly oxidized to niobium pentoxide (Figure S4). The diffraction peaks were labelled as well numbers were assigned to the crystal planes of Nb2O5 (Figure S9, JCPDF 72-1121) while the diffraction peaks of NbSe2 PNS were maintained the same (15.0°, 22.6° and 29.2°). However, the NbSe2 PNS/CF after 20,000 cycles still exhibited an ultra-high electrochemical activity, which illustrates that the NbSe2 PNS/CF electrodes have a great long-term stability. To further confirm the active catalytic species in the NbSe2 PNS/CF electrode, the LSV curves of Nb2O5, NbSe2 PNS/CF, NbSe2 PNS/CF after 50 consecutive cyclic voltammetry sweeps and NbSe2 PNS/CF after 25 h stability test with the scan rate of 100 mV/s in 0.5 M H2SO4 were tested (see Figure S10). The XRD patterns of NbSe2 PNS/CF, NbSe2 PNS/CF after 50 consecutive cyclic voltammetry sweeps and NbSe2 PNS/CF after 25 h stability test were shown in Figure S4. Combining the XPS (Table 1) and XRD results (Figure S4), it can be concluded that the NbSe2 PNS in the electrode surface was gradually oxidized to Nb2O5 during the whole electrochemical test. The pure Nb2O5 exhibits a weak HER performance, which illustrates that the Nb2O5 is not an active catalytic species for hydrogen evolution reaction. The LSV curve of NbSe2 PNS/CF after 50 cycles almost coincided with the initial NbSe2 PNS/CF, while the NbSe2 PNS/CF after long-term stability test showed little current attenuation compared with the initial NbSe2 PNS/CF. The NbSe2 PNS/CF electrode exhibited the satisfied stability even when the electrode surface was gradually transferred to niobium oxide. Considering the low electrocatalytic performance of Nb2O5, the invariant electrocatalytic performance of NbSe2 PNS/CF electrode may be due to the high active of exposed NbSe2 catalyst.
Catalysis process is related to the interactions between the catalyst surface and the adsorbed species (reaction intermediates) [41]. Electrochemical active surface is also an important factor to reflect the electrocatalytic performance. The electrochemical double-layer capacitance (Cdl) is used to estimate the electrochemical active surface area for each system [42]. To measure the electrochemical capacitance of CF, NbSe2 bulk/CF, NbSe2 NSs/CF and NbSe2 PNS/CF, CVs with a potential range of ±100 mV versus open circuit potential (OCP), were scanned at 10, 40, 80, 200 and 400 mV s−1 (Figure S6). The OCP for CF, NbSe2 NSs/CF and NbSe2 PNS/CF are 0.15 V, 0.21 V, 0.18 V, respectively. Figure 7e shows the slope of the current density versus the scan rate. The measured Cdl were plotted as a function of scan rate via a linear fitting. The Cdl of NbSe2 PNS/CF is more than twice that of NbSe2 NSs/CF (5.35 versus 2.3 mF cm−2), whereas the Cdl of the NbSe2 bulk/CF and pure CF is only 0.61 and 0.19 mF cm−2, respectively. These results show that NbSe2 PNS/CF possesses more HER active sites than that of the NbSe2 NSs/CF because more basal planes were exposed in this typical porous structure. Thus, this beneficial distinct feature leads to a higher HER activity. Electrochemical impedance spectroscopy (EIS) analysis was carried out to investigate the charge-transfer resistance (Rct) of different samples. Figure 7f shows Nyquist plots of NbSe2 PNS, NbSe2 NSs and CF. The EIS profile can be fitted to two semicircles. The first high-frequency arches are related to the solid-solid interface resistance (Rct1), the second semicircles in the lower frequency range are associated with the electron transfer at the solid/electrolyte interface (Rct2) (inset in Figure 7f) [43]. The RS values of NbSe2 PNS/CF, NbSe2 NSs/CF, NbSe2 Bulk/CF and CF are similar (12~13 Ω), and the Rct1 value in each electrode is not significantly different (Rct1 is 7 Ω for NbSe2 NSs/CF, NbSe2 Bulk/CF and CF; Rct1 is 10 Ω for NbSe2 PNS/CF). NbSe2 PNS possesses a small Rct2 of 6.3 Ω, which is significantly lower than that of NbSe2 NSs of 191.7 Ω, NbSe2 bulk of 253.7 Ω, and CF of 298.4 Ω. The lower Rct indicates the rapid HER reaction kinetics, which may be attributed to the great conductivity and abundant active edge sites of the NbSe2 PNS.

4. Discussion and Conclusions

Single-layer porous NbSe2 nanosheets have been prepared via double-sonication liquid-phase exfoliation with the assistance of H2O2. The single-layer porous NbSe2 nanosheets were loaded on the CF surface as efficient electrocatalytic electrodes for HER. Compared with the NbSe2 NSs/CF and pure carbon foam, the NbSe2 PNS/CF exhibited excellent HER catalytic properties in acidic electrolyte with a low overpotential (−50 mA cm−2 at an overpotential of ~148 mV), and a small Tafel slope of 75.8 mV dec−1. The NbSe2 PNS/CF shows little deactivation in continuous CV testing up to 20,000 cycles. These results suggest the promise of this novel NbSe2 PNS/CF electrode in electrochemical water splitting for hydrogen production. The enhanced HER performance is attributed to the accelerated electrochemical reaction that results from the increased edge active sites. The good HER performance of the NbSe2 PNS/CF is attributed to the increased conductivity and the faster electron-transfer rate. This work provides a new insight into the future construction of high-performance HER electrocatalysts.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/9/5/751/s1, Figure S1: SEM images of the carbon foam, NbSe2 pristine powder, NbSe2 NSs and NbSe2 PNS.; Figure S2: Typical AFM image and corresponding thickness analysis of NbSe2 NSs, TEM and HRTEM images of NbSe2 NSs; Figure S3: The high-resolution XPS spectra of NbSe2 NSs Se 3d and Nb 3d; Figure S4: XRD patterns of NbSe2 PNS, NbSe2 PNS after 50 consecutive cycle voltammetry sweeps and NbSe2 after 25 h stability test PNS; Figure S5: The SEM image of NbSe2 PNS after stability test and the TEM image of NbSe2 PNS after stability test; Figure S6: Double-layer capacitance measurements for determining the electrochemically active surface areas of the CF, NbSe2 NSs/CF and NbSe2 PNS/CF; Figure S7: High-resolution XPS spectrum of O 1s of NbSe2 PNS; Figure S8: High-resolution XPS spectrum of NbSe2 PNS after 50 consecutive cyclic voltammetry sweeps; Figure S9: XRD patterns of Nb2O5; Figure S10: LSV curves of Nb2O5, NbSe2 PNS/CF, NbSe2 PNS/CF after 50 consecutive cyclic voltammetry sweeps and NbSe2 PNS/CF after 25 h stability test. Table S1: Comparison of HER performance in acid medium for NbSe2 PNS/CF with other recently reported non-noble-metal related HER catalysts.

Author Contributions

Conceptualization, J.W.; Funding acquisition, G.Y.; Methodology, X.L.; Supervision, G.Y.; Writing—original draft, J.W.; Writing—review & editing, Y.L.

Funding

This research was funded by the Program of National Basic Research Program of China (Project No. 2014CB931700) and the Science and Technology Planning Project of Guangdong Province (Project No. 2017B090918002) and State Key Laboratory of Optoelectronic Materials and Technologies.

Acknowledgments

The authors gratefully thank the State Key Laboratory of Optoelectronic Materials and Technologies for the instrument support.

Conflicts of Interest

There are no conflict to declare.

References

  1. Cortright, R.D.; Davda, R.R.; Dumesic, J.A. Hydrogen from Catalytic Reforming of Biomass-derived Hydrocarbons in Liquid Water. Nature 2002, 33, 964–967. [Google Scholar] [CrossRef]
  2. Wang, X.; Kolen’ko, Y.; Bao, X.; Kovnir, K.; Liu, L. One-Step Synthesis of Self-Supported Nickel Phosphide Nanosheet Array Cathodes for Efficient Electrocatalytic Hydrogen Generation. Angew. Chem. Int. Ed. 2015, 54, 8188–8192. [Google Scholar] [CrossRef] [PubMed]
  3. Jiao, Y.; Zheng, Y.; Jaroniec, M.; Qiao, S.Z. Design of Electrocatalysts for Oxygen-and Hydrogen-involving Energy Conversion Reactions. Chem. Soc. Rev. 2015, 44, 2060–2086. [Google Scholar] [CrossRef]
  4. Wang, X.; Li, W.; Xiong, D.; Petrovykh, D.; Liu, L. Bifunctional Nickel Phosphide Nanocatalysts Supported on Carbon Fiber Paper for Highly Efficient and Stable Overall Water Splitting. Adv. Fun. Mater. 2016, 26, 4067–4077. [Google Scholar] [CrossRef]
  5. Zheng, Y.; Jiao, Y.; Jaroniec, M.; Qiao, S.Z. Advancing the Electrochemistry of the Hydrogen-Evolution Reaction Through Combining Experiment and Theory. Angew. Chem. Int. Ed. 2015, 54, 52–65. [Google Scholar] [CrossRef]
  6. Subbaraman, R.; Tripkovic, D.; Chang, K.C.; Strmcnik, D.; Paulikas, A.P.; Hirunsit, P.; Chan, M.; Greeley, J.; Stamenkovic, V.; Markovic, N.M. Trends in Activity for the Water Electrolyser Reactions on 3d M (Ni,Co,Fe,Mn) Hydr(oxy)oxide Catalysts. Nat. Mater. 2012, 11, 550–557. [Google Scholar] [CrossRef]
  7. Gao, M.R.; Liang, J.X.; Zheng, Y.R.; Xu, Y.F.; Jiang, J.; Gao, Q.; Li, J.; Yu, S.H. An Efficient Molybdenum Disulfide/Cobalt Diselenide Hybrid Catalyst for Electrochemical Hydrogen Generation. Nat. Commun. 2015, 6, 5982–5984. [Google Scholar] [CrossRef] [PubMed]
  8. Tang, H.; Hessel, C.M.; Wang, J.; Yang, N.; Yu, R.; Zhao, H.; Wang, D. Two-Dimensional Carbon Leading to New Photoconversion Processes. Chem. Soc. Rev. 2014, 43, 4281–4299. [Google Scholar] [CrossRef]
  9. Ma, Z.; Zhao, Q.; Li, J.; Tang, B.; Zhang, Z.; Wang, X. Three-Dimensional Well-Mixed/Highly-Densed NiS-CoS Nanorod Arrays: An Efficient and Stable Bifunctional Electrocatalyst for Hydrogen and Oxygen Evolution Reactions. Electrochim. Acta 2018, 260, 82–91. [Google Scholar] [CrossRef]
  10. Seh, Z.W.; Kibsgaard, J.; Dickens, C.F.; Chorkendorff, I.; Nørskov, J.K.; Jaramillo, T.F. Combining Theory and Experiment in Electrocatalysis: Insights into Materials Design. Science 2017, 355, 146–148. [Google Scholar] [CrossRef] [PubMed]
  11. Lin, Z.; Li, J.; Zheng, Z.; Li, L.; Yu, L.; Wang, C.; Yang, G. A Floating Sheet for Efficient Photocatalytic Water Splitting. Adv. Energy Mater. 2016, 6, 1600510–1600516. [Google Scholar] [CrossRef]
  12. Bi, W.; Li, X.; Zhang, L.; Jin, T.; Zhang, L.; Zhang, Q.; Luo, Y.; Wu, C.; Xie, Y. Molecular Co-Catalyst Accelerating Hole Transfer for Enhanced Photocatalytic H2 Evolution. Nat. Commun. 2015, 6, 8647–8651. [Google Scholar] [CrossRef]
  13. Ma, Z.; Meng, H.; Wang, M.; Tang, B.; Li, J.; Wang, X. Porous Ni-Mo-S Nanowire Network Film Electrode as High-Efficiency Bifunctional Electrocatalyst for Overall Water Splitting. ChemElectroChem 2017, 4, 1–9. [Google Scholar] [CrossRef]
  14. Ma, Z.; Li, R.; Wang, M.; Meng, H.; Zhang, F.; Bao, X.; Tang, B.; Wang, X. Self-Supported Porous Ni-Fe-P Composite as An Efficient Electrocatalyst for Hydrogen Evolution Reaction in Both Acidic and Alkaline Medium. Electrochim. Acta 2016, 219, 194–203. [Google Scholar] [CrossRef]
  15. Lukowski, M.A.; Daniel, A.S.; Meng, F.; Forticaux, A.; Li, L.; Jin, S. Enhanced Hydrogen Evolution Catalysis from Chemically Exfoliated Metallic MoS2 Nanosheets. J. Am. Chem. Soc. 2013, 135, 10274–10277. [Google Scholar] [CrossRef]
  16. Ma, G.; He, Y.; Wang, M.; Zhu, F.; Tang, B.; Wang, X. An Efficient Route for Catalytic Activity Promotion via Hybrid Electrodepositional Modification on Commercial Nickel Foam for Hydrogen Evolution Reaction in Alkaline Water Electrolysis. Appl. Surf. Sci. 2014, 313, 512–523. [Google Scholar] [CrossRef]
  17. Kibsgaard, J.; Chen, Z.; Reinecke, B.N.; Jaramillo, T.F. Engineering the Surface Structure of MoS2 to Preferentially Expose Active Edge Sites for Electrocatalysis. Nat. Mater. 2012, 11, 963–969. [Google Scholar] [CrossRef]
  18. Voiry, D.; Yamaguchi, H.; Li, J.; Silva, R.; Alves, D.C.; Fujita, T.; Chen, M.; Asefa, T.; Shenoy, V.B.; Eda, G. Enhanced Catalytic Activity in Strained Chemically Exfoliated WS2 Nanosheets for Hydrogen Evolution. Nat. Mater. 2013, 12, 850–855. [Google Scholar] [CrossRef]
  19. Voiry, D.; Fullon, R.; Yang, J.; De, C.C.; Kappera, R.; Bozkurt, I.; Kaplan, D.; Lagos, M.J.; Batson, P.E.; Gupta, G. The Role of Electronic Coupling Between Substrate and 2D MoS2 Nanosheets in Electrocatalytic Production of Hydrogen. Nat. Mater. 2016, 15, 1003–1009. [Google Scholar] [CrossRef]
  20. Zhao, B.; Huang, J.; Fu, Q.; Yang, L.; Zhang, J.; Xiang, B. MoS2/NbSe2 Hybrid Nanobelts for Enhanced Hydrogen Evolution. J. Electrochem. Soc. 2016, 163, 384–387. [Google Scholar] [CrossRef]
  21. Xi, X.; Zhao, L.; Wang, Z.; Berger, H.; Forró, L.; Shan, J.; Mak, K.F. Strongly Enhanced Charge-Density-Wave Order in Monolayer NbSe2. Nat. Nanotech. 2015, 10, 765–769. [Google Scholar] [CrossRef] [PubMed]
  22. Chi, X.; Ambrosi, A.; Lazar, P.; Sofer, Z.; Pumera, M. Electrocatalysis of Layered Group 5 Metallic Transition Metal Dichalcogenides (MX2, M = V, Nb, and Ta; X = S, Se, and Te). J. Mater. Chem. A 2016, 4, 14241. [Google Scholar] [CrossRef]
  23. Tang, H.; Cao, K.; Wu, Q.; Li, C.; Yang, X.; Yan, X. Synthesis and Tribological Properties of Copper Matrix Solid Self-Lubricant Composites Reinforced with NbSe2 Nanoparticles. Cryst. Res. Technol. 2011, 46, 195–200. [Google Scholar] [CrossRef]
  24. Sipos, B.; Kusmartseva, A.F.; Akrap, A.; Berger, H.; Forro, L.; Tutis, E. From Mott State to Superconductivity in 1T-TaS2. Nat. Mater. 2008, 7, 960–965. [Google Scholar] [CrossRef] [PubMed]
  25. Calandra, M.; Mazin, I.I.; Mauri, F. Effect of Dimensionality on the Charge-Density-Wave in Few-Layers 2H-NbSe2. Phys. Rev. B 2009, 80, 241108. [Google Scholar] [CrossRef]
  26. Park, S.K.; Chung, D.Y.; Ko, D.; Sung, Y.; Piao, Y. Three-Dimensional Carbon Foam/N-Doped Graphene@MoS2 Hybrid Nanostructures as Effective Electrocatalysts for the Hydrogen Evolution Reaction. J. Mater. Chem. A 2016, 4, 12720–12725. [Google Scholar] [CrossRef]
  27. Tang, H.; Dou, K.; Kaun, C.C.; Kuang, Q.; Yang, S. MoSe2 Nanosheets and Their Graphene Hybrids: Synthesis, Characterization and Hydrogen Evolution Reaction Studies. J. Mater. Chem. A 2013, 2, 360–364. [Google Scholar] [CrossRef]
  28. Wang, H.; Lu, Z.; Xu, S.; Kong, D.; Cha, J.J.; Zheng, G.; Hsu, P.C.; Yan, K.; Bradshaw, D.; Prinz, F.B. Electrochemical Tuning of Vertically Aligned MoS2 Nanofilms and Its Application in Improving Hydrogen Evolution Reaction. Proc. Nat. Acad. Sci. USA 2013, 110, 19701–19706. [Google Scholar] [CrossRef]
  29. Chang, Y.; Wu, F.; Chen, T.; Hsu, C.; Chen, C.; Wiryo, F.; Wei, K.; Chiang, C.; Li, L. Three-Dimensional Molybdenum Sulfide Sponges for Electrocatalytic Water Splitting. Small 2014, 10, 895–900. [Google Scholar] [CrossRef] [PubMed]
  30. Zhou, W.; Zhou, K.; Hou, D.; Liu, X.; Li, G.; Sang, Y.; Liu, H.; Li, L.; Chen, S. Three-Dimensional Hierarchical Frameworks Based on MoS2 Nanosheets Self-Assembled on Graphene Oxide for Efficient Electrocatalytic Hydrogen Evolution. ACS Appl. Mater. Interf. 2014, 6, 21534–21540. [Google Scholar] [CrossRef] [PubMed]
  31. Santos, H.M.; Lodeiro, C.; Capelo-Martínez, J.L. The Power of Ultrasound. In Ultrasound in Chemistry: Analytical Applications; Capelo-Martínez, J.L., Ed.; Wiley: Weinheim, Germany, 2009; Volume 1, pp. 15–16. [Google Scholar]
  32. Backes, C.; Szydlowska, B.M.; Harvey, A.; Yuan, S.; Vega-Mayoral, V.; Davies, B.R.; Zhao, P.L.; Hanlon, D.; Santos, E.; Katsnelson, M.I. Production of Highly Monolayer Enriched Dispersions of Liquid-Exfoliated Nanosheets by Liquid Cascade Centrifugation. ACS Nano 2016, 10, 1589–1601. [Google Scholar] [CrossRef]
  33. Khan, U.; Neill, A.O.; Lotya, M.; De, S.; Coleman, J.N. High-Concentration Solvent Exfoliation of Graphene. Small 2010, 6, 864–871. [Google Scholar] [CrossRef]
  34. Lotya, M.; King, P.J.; Khan, U.; De, S.; Coleman, J.N. High-Concentration, Surfactant-Stabilized Graphene Dispersions. ACS Nano 2010, 4, 3155–3162. [Google Scholar] [CrossRef]
  35. Smith, R.J.; King, P.J.; Lotya, M.; Wirtz, C.; Khan, U.; De, S.; Neill, A.O.; Duesberg, G.S.; Grunlan, J.C.; Moriarty, G. Large-Scale Exfoliation of Inorganic Layered Compounds in Aqueous Surfactant Solutions. Adv. Mater. 2011, 23, 3944–3948. [Google Scholar] [CrossRef]
  36. Chung, D.Y.; Yoo, J.M.; Park, S.; Jung, G.Y.; Kang, J.S.; Ahn, C.Y.; Kwak, S.K.; Sung, Y. Edge-Terminated MoS2 Nanoassembled Electrocatalyst via In Situ Hybridization with 3D Carbon Network. Small 2018, 14, 1802191. [Google Scholar] [CrossRef] [PubMed]
  37. Yu, Y.; Nam, G.; He, Q.; Wu, X.; Liu, Z.; Gu, L.; Du, Y.; Huang, W.; Zhang, H. High Phase-Purity 1T′-MoS2- and 1T′-MoSe2-Layered Crystals. Nat. Chem. 2018, 10, 638–643. [Google Scholar] [CrossRef]
  38. Jin, Y.O.; Ji, H.L.; Han, S.W.; Chae, S.S.; Bae, E.J.; Kang, Y.H.; Choi, W.J.; Song, Y.C.; Lee, J.O.; Hong, K.B. Chemically Exfoliated Transition Metal Dichalcogenide Nanosheet-based Wearable Thermoelectric Generators. Energy Environ. Sci. 2016, 9, 1696–1705. [Google Scholar]
  39. Lei, Z.; Xu, S.; Wu, P. Ultra-Thin and Porous MoSe2 Nanosheets: Facile Preparation and Enhanced Electrocatalytic Activity Towards Hydrogen Evolution Reaction. Phys. Chem. Chem. Phys. 2016, 18, 70–74. [Google Scholar] [CrossRef] [PubMed]
  40. Li, Y.; Wang, H.; Xie, L.; Liang, Y.; Hong, G.; Dai, H. MoS2 Nanoparticles Grown on Graphene: An Advanced Catalyst for the Hydrogen Evolution Reaction. J. Am. Chem. Soc. 2011, 133, 7296–7299. [Google Scholar] [CrossRef]
  41. Song, F.; Hu, X. Ultrathin Cobalt-Manganese Layered Double Hydroxide is An Efficient Oxygen Evolution Catalyst. J. Am. Chem. Soc. 2014, 136, 16481–16484. [Google Scholar] [CrossRef]
  42. Gao, Y.Q.; Liu, X.Y.; Yang, G.W. Amorphous Mixed-Metal Hydroxide Nanostructures for Advanced Water Oxidation Catalysts. Nanoscale 2016, 8, 5015–5023. [Google Scholar] [CrossRef]
  43. Mccrory, C.C.; Jung, S.; Peters, J.C.; Jaramillo, T.F. Benchmarking Heterogeneous Electrocatalysts for the Oxygen Evolution Reaction. J. Am. Chem. Soc. 2013, 135, 16977–16987. [Google Scholar] [CrossRef]
Nanomaterials 09 00751 g001

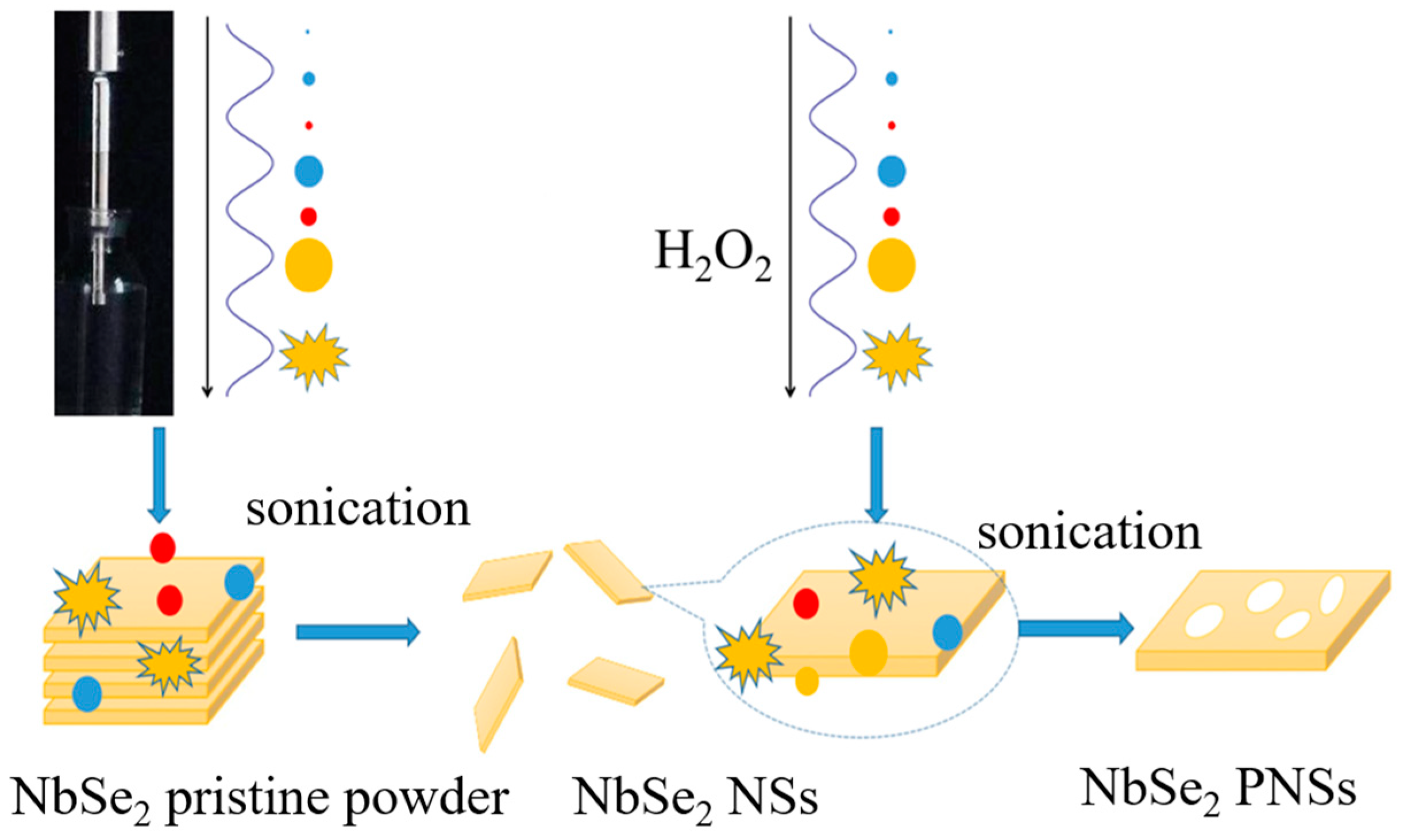

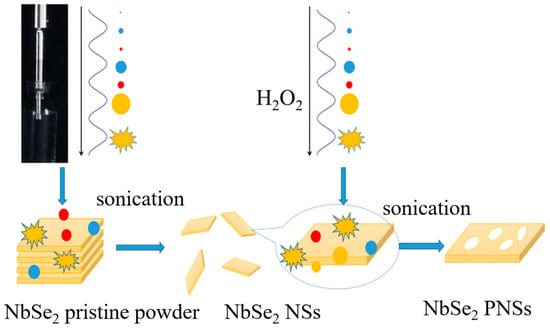

Figure 1. Schematic illustration of the process to prepare the single-layer porous NbSe2 nanosheets.
Figure 1. Schematic illustration of the process to prepare the single-layer porous NbSe2 nanosheets.
Nanomaterials 09 00751 g001
Nanomaterials 09 00751 g002

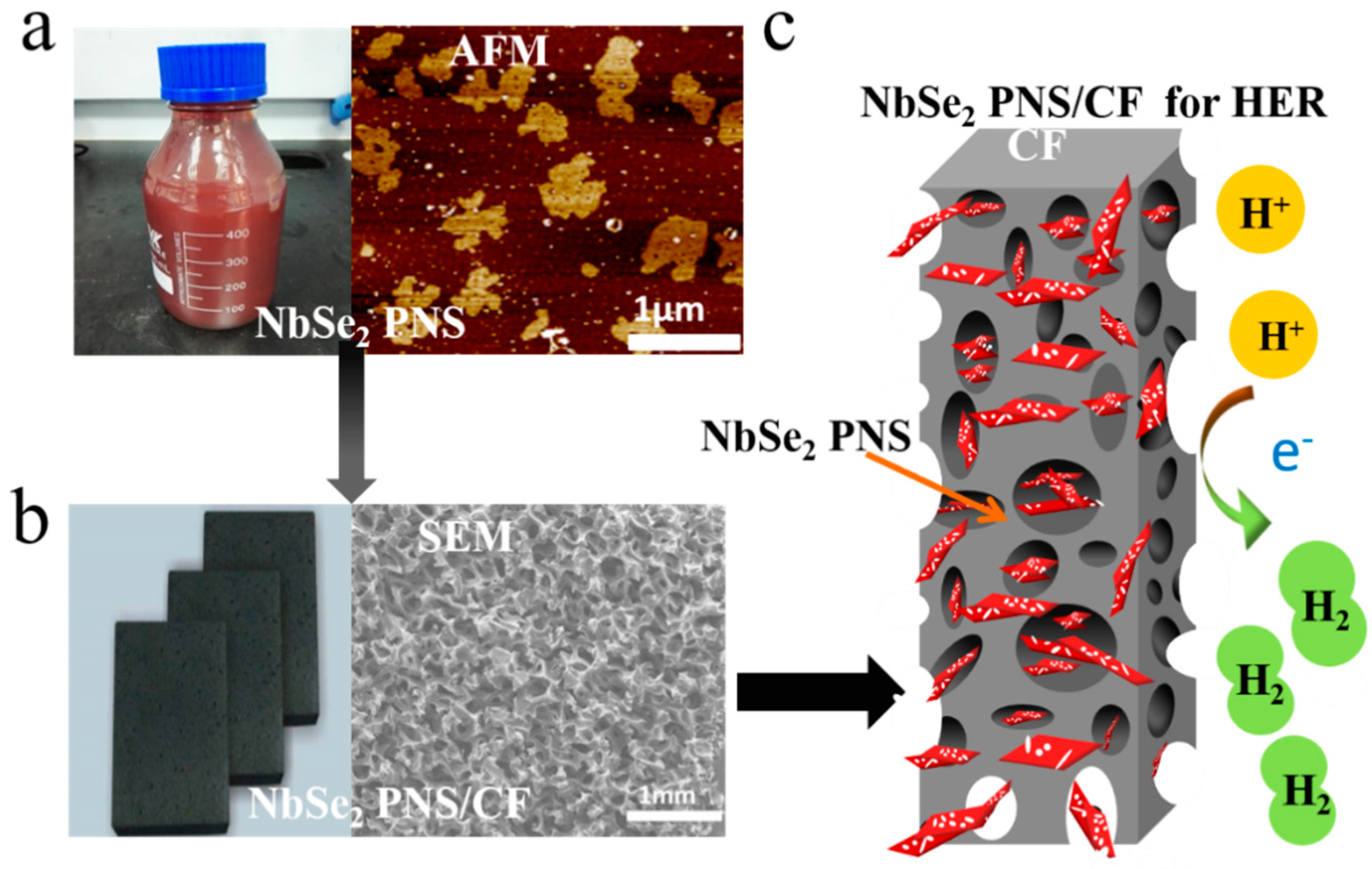

Figure 2. (a) Photograph of well dispersed NbSe2 porous nanosheets (PNS) solution and AFM image of scattered NbSe2 PNS. (b) Optical photograph and corresponding SEM image of as-developed NbSe2 PNS/carbon foam (CF) electrode. (c) Illustration of the NbSe2 PNS/CF electrode toward the hydrogen-evolution reaction (HER).
Figure 2. (a) Photograph of well dispersed NbSe2 porous nanosheets (PNS) solution and AFM image of scattered NbSe2 PNS. (b) Optical photograph and corresponding SEM image of as-developed NbSe2 PNS/carbon foam (CF) electrode. (c) Illustration of the NbSe2 PNS/CF electrode toward the hydrogen-evolution reaction (HER).
Nanomaterials 09 00751 g002
Nanomaterials 09 00751 g003

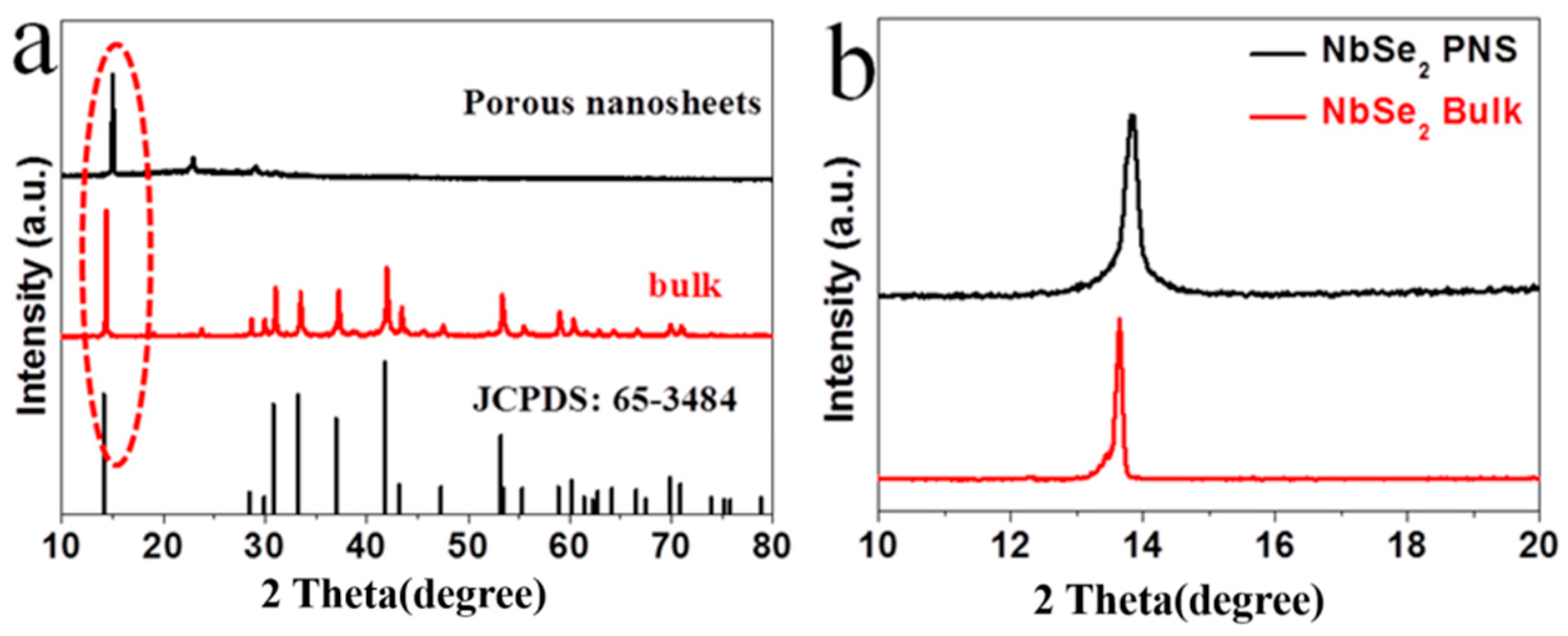

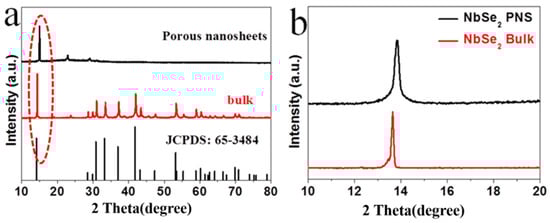

Figure 3. XRD patterns of (a) NbSe2 PNS and pristine powder NbSe2; (b) the amplifying district of circle in (a).
Figure 3. XRD patterns of (a) NbSe2 PNS and pristine powder NbSe2; (b) the amplifying district of circle in (a).
Nanomaterials 09 00751 g003
Nanomaterials 09 00751 g004

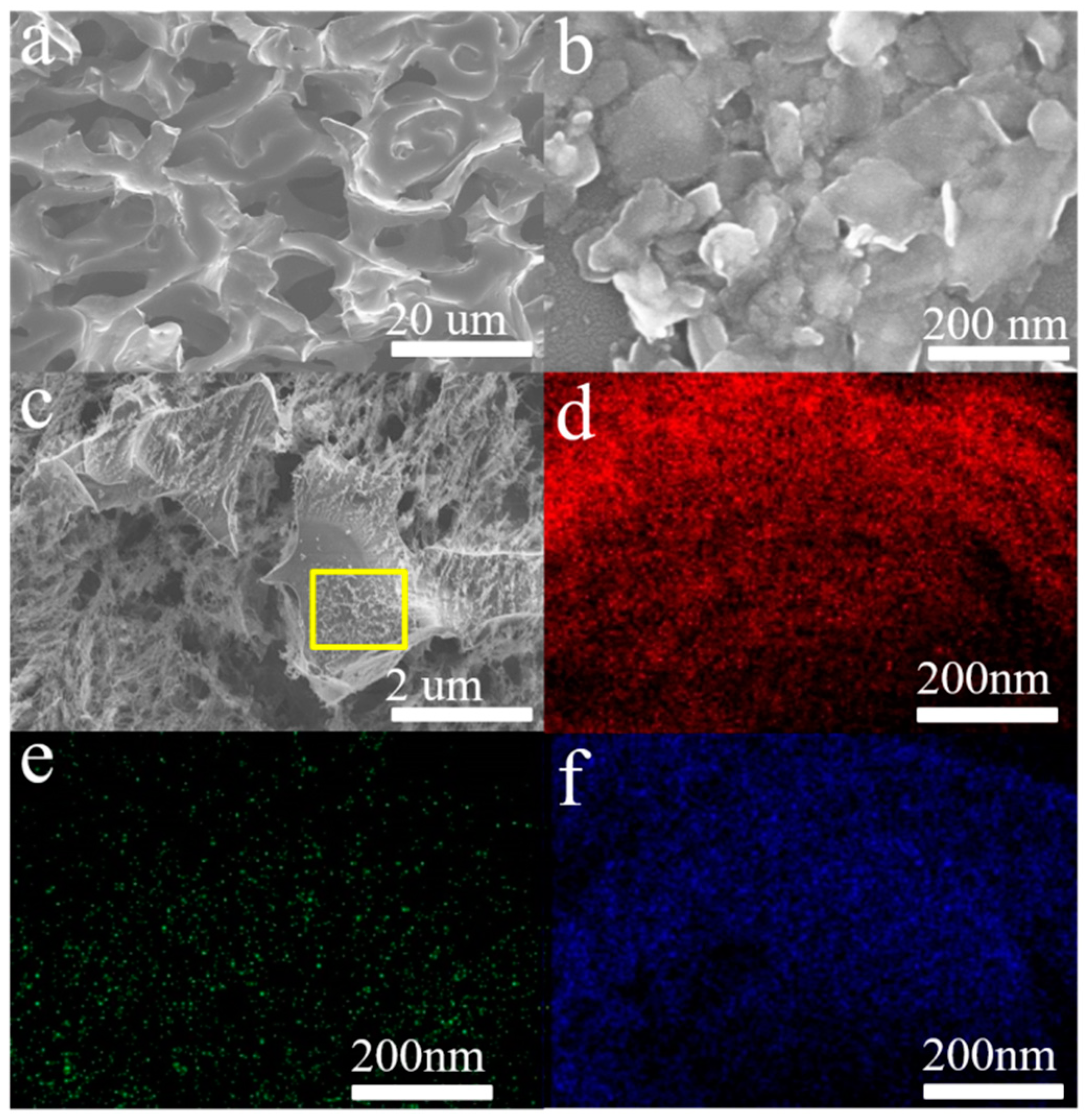

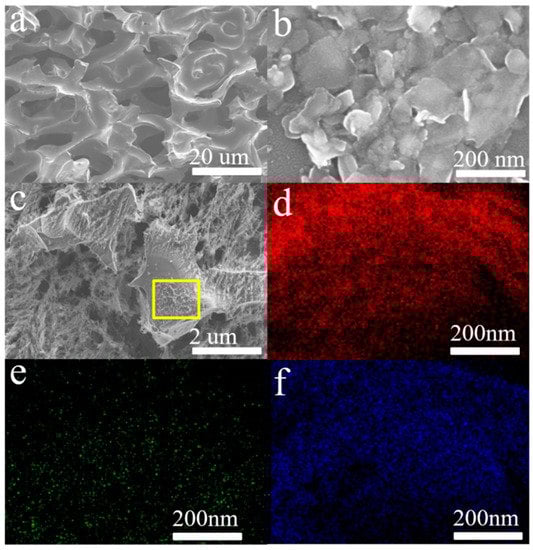

Figure 4. SEM images of the (a) bare carbon foam, (b) as-synthesized NbSe2 PNS and (c) 3D NbSe2 PNS/CF. (d–f) EDS mapping of Nb, Se, and C elements on the surface of NbSe2 PNS/CF (the region marked in (c)).
Figure 4. SEM images of the (a) bare carbon foam, (b) as-synthesized NbSe2 PNS and (c) 3D NbSe2 PNS/CF. (d–f) EDS mapping of Nb, Se, and C elements on the surface of NbSe2 PNS/CF (the region marked in (c)).
Nanomaterials 09 00751 g004
Nanomaterials 09 00751 g005

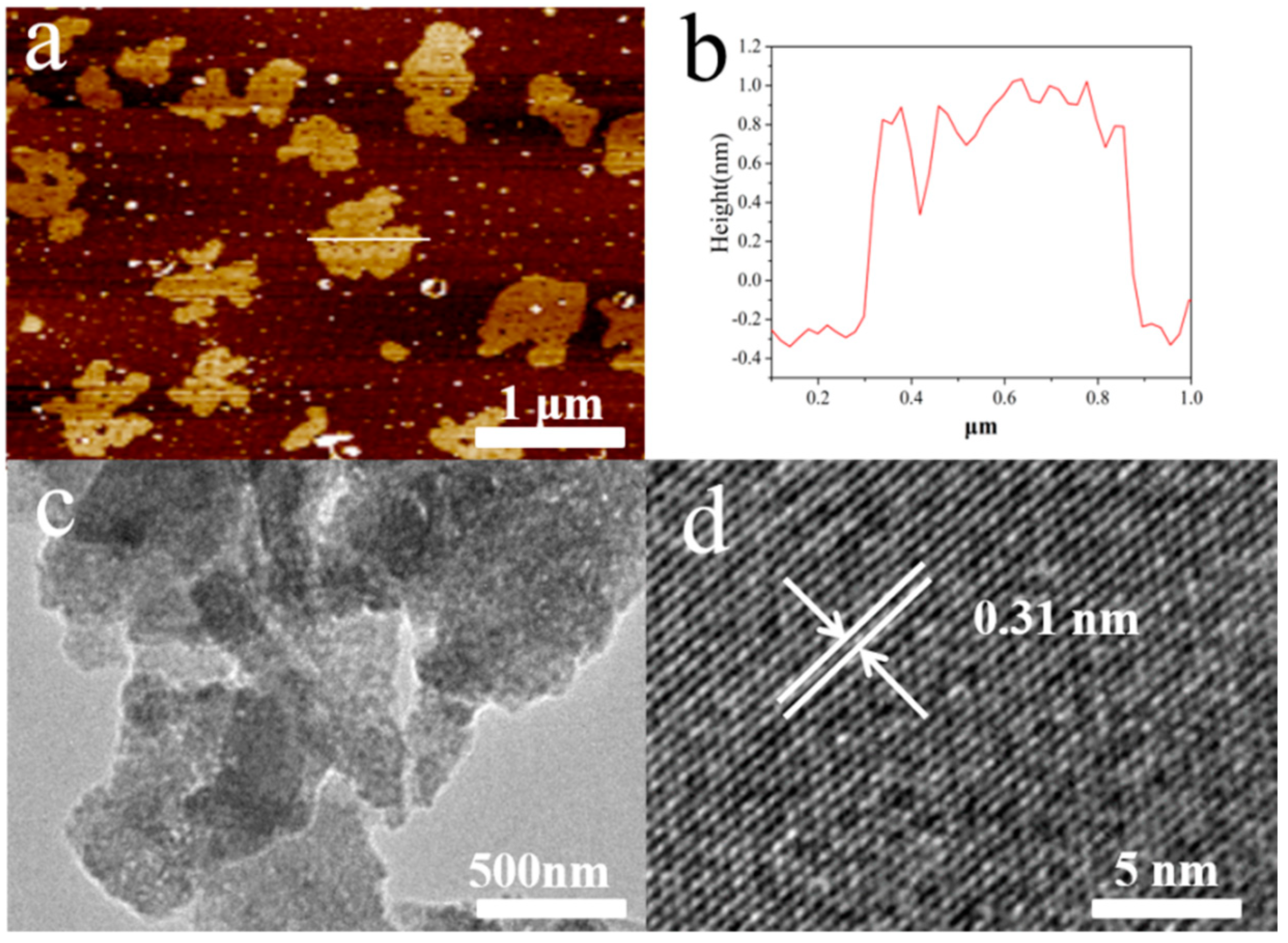

Figure 5. (a) AFM image and (b) the corresponding thickness distribution of NbSe2 PNS. (c) TEM and (d) HR-TEM images of NbSe2 PNS.
Figure 5. (a) AFM image and (b) the corresponding thickness distribution of NbSe2 PNS. (c) TEM and (d) HR-TEM images of NbSe2 PNS.
Nanomaterials 09 00751 g005
Nanomaterials 09 00751 g006

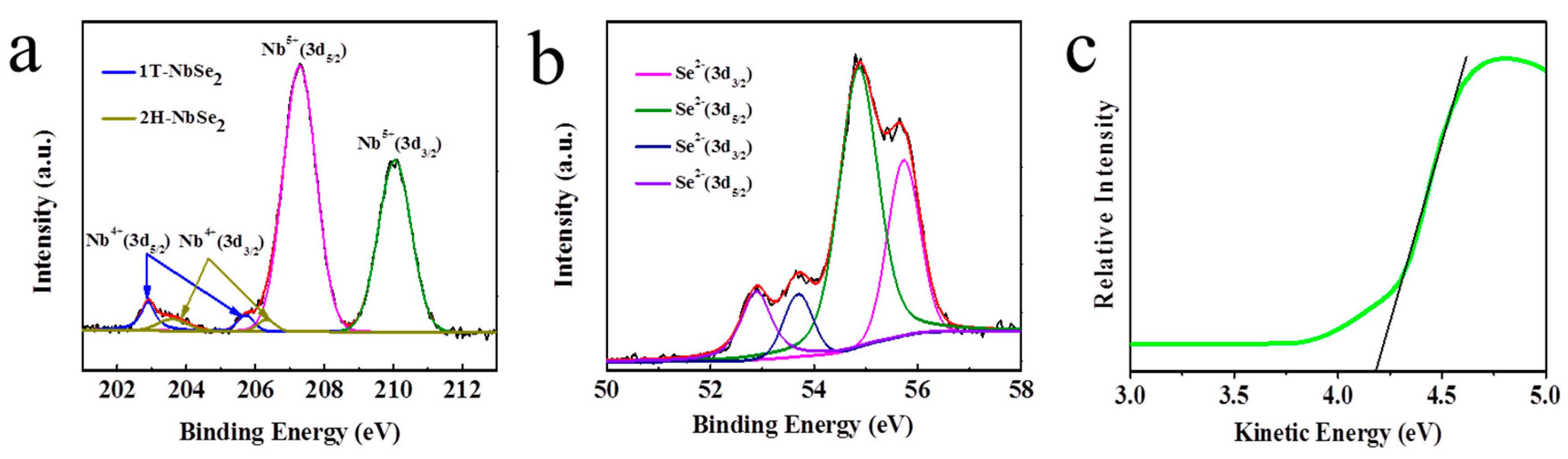

Figure 6. The high-resolution XPS spectra of single-layer NbSe2 PNS. (a) Se 3d and (b) Nb 3d spectra. (c) UPS spectrum of single-layer NbSe2 PNS.
Figure 6. The high-resolution XPS spectra of single-layer NbSe2 PNS. (a) Se 3d and (b) Nb 3d spectra. (c) UPS spectrum of single-layer NbSe2 PNS.
Nanomaterials 09 00751 g006
Nanomaterials 09 00751 g007

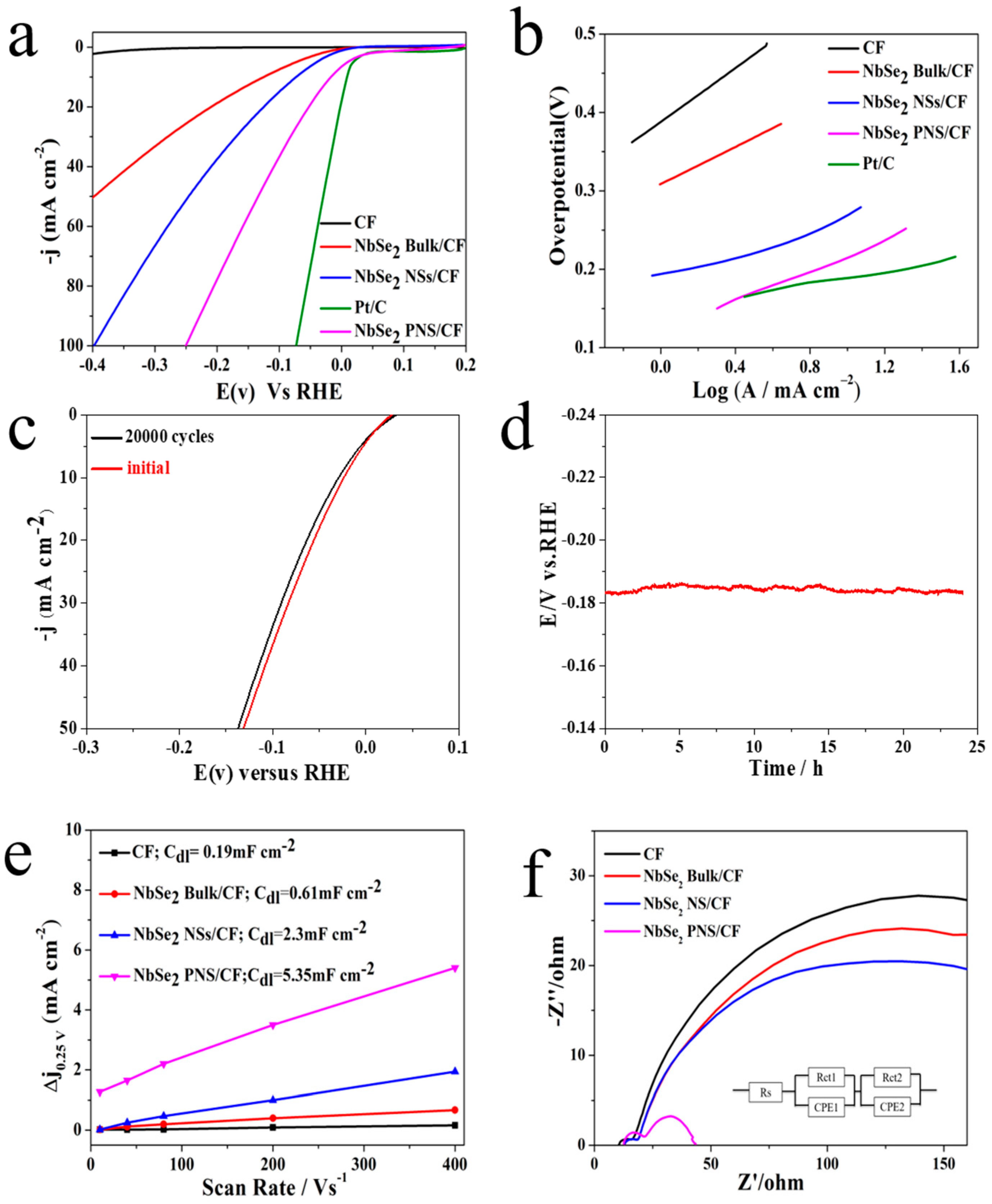

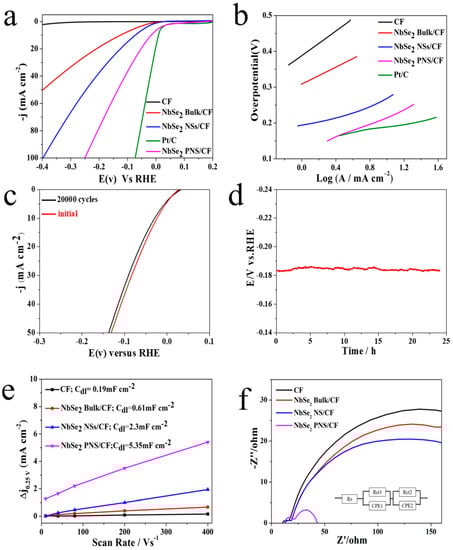

Figure 7. (a) LSV curves of the NbSe2 PNS/CF, NbSe2 NSs/CF, NbSe2 bulk/CF, Pt-C and bare CF at a scan rate of 5 mV s−1. (b) Tafel plots of the NbSe2 PNS/CF, NbSe2 NSs/CF, NbSe2 bulk/CF, Pt-C and bare CF. (c) Polarization curve comparison between initial and after 20,000 cycles of the NbSe2 PNS/CF at a scan rate of 50 mV s−1. (d) Chronopotentiometric curve recorded for the NbSe2 PNS/CF at a constant cathodic current density of 50 mA cm−2. (e) The slope of current density at open circuit potential (OCP) vs. scan rate. (f) Nyquist plots of NbSe2 PNS/CF, NbSe2 NSs/CF, NbSe2 bulk/CF and CF.
Figure 7. (a) LSV curves of the NbSe2 PNS/CF, NbSe2 NSs/CF, NbSe2 bulk/CF, Pt-C and bare CF at a scan rate of 5 mV s−1. (b) Tafel plots of the NbSe2 PNS/CF, NbSe2 NSs/CF, NbSe2 bulk/CF, Pt-C and bare CF. (c) Polarization curve comparison between initial and after 20,000 cycles of the NbSe2 PNS/CF at a scan rate of 50 mV s−1. (d) Chronopotentiometric curve recorded for the NbSe2 PNS/CF at a constant cathodic current density of 50 mA cm−2. (e) The slope of current density at open circuit potential (OCP) vs. scan rate. (f) Nyquist plots of NbSe2 PNS/CF, NbSe2 NSs/CF, NbSe2 bulk/CF and CF.
Nanomaterials 09 00751 g007
Table 1. The related XPS analysis results after standardization.
Table 1. The related XPS analysis results after standardization.
NbSe2 NSsNbSe2 PNSNbSe2 PNS after 50 cyclesNbSe2 PNS after 25 h
Nb 3d0.2850.1490.1780.126
Se 3d0.6440.3740.3390.174
O 1s0.0710.4760.4820.696
