An Easy Synthesis for Preparing Bio-Based Hybrid Adsorbent Useful for Fast Adsorption of Polar Pollutants

Dipartimento di Chimica, Università di Torino, Via P. Giuria 7, 10125 Torino, Italy
NIS Interdepartmental Centre, Università di Torino, Via P. Giuria 7, 10125 Torino, Italy
Authors to whom correspondence should be addressed.
Nanomaterials 2019, 9(5), 731;
Received: 16 April 2019 / Revised: 3 May 2019 / Accepted: 6 May 2019 / Published: 11 May 2019
(This article belongs to the Special Issue Sustainable and Safe Nano-Enabled Water Treatment Applications)


For the first time, γ-Al2O3 and Bio-Based Substances (BBS) hybrids (A-BBS) were prepared through a simple electrostatic interaction occurring between alumina, used as a support, and BBS (Bio-Based Substance from composted biowastes) carrying positive and negative charges, respectively. We evaluated the optimal amount of BBS to be immobilized on the support and the stability of the resulting A-BBS in order to use this novel hybrid material as an adsorbent for the removal of polar pollutants. Characterization was carried out by X-Ray Diffraction (XRD) for evaluating the crystal structure of the support, Fourier transform infrared spectroscopy (FT-IR) to evidence the presence of BBS on the hybrid material, thermogravimetric analysis (TGA) to measure the thermal stability of the hybrid materials and quantify the BBS amount immobilized on the support, N2 adsorption at 77 K for the evaluation of the surface area and porosity of the systems, Zeta potential measurements to evaluate the effect of BBS immobilization on the surface charge of the particles and choose the substrates possibly interacting with them. Firstly, we tested the adsorption capability of three samples differently coated with BBS toward cationic species considering various adsorbate/adsorbent ratio. Crystal Violet (CV) was chosen as model pollutant to compare the performance of the hybrid materials with those of other materials described in the literature. The adsorption data were modeled by Langmuir and Freundlich adsorption isotherms. Then, we studied the adsorption capability of the developed material towards molecules with different structures; for this purpose, two contaminants of emerging concerns (carbamazepine and atenolol) were tested. The results indicate that A-BBS could be applied in wastewater treatment for the removal of a significant amount of polar species. In addition, a comparison with literature data concerning CV adsorption was carried out in order to evaluate the environmental impact of synthetic routes used to prepare different adsorbents.

Graphical Abstract

1. Introduction

The removal of pollutants from urban and industrial wastewaters is one of the most important issues to be solved by modern research. In fact, water pollution has increased in the last decades by the virtue of the disposal of industrial effluents enriched with toxic species [1] which has hazardous effects on flora, fauna, and humans. Moreover, the growth of the world population results in a limitation of water supplies and scarcity of water resources, therefore the necessity of clean water has become fundamental for our society [1,2].
In the last decades, new chemicals were detected in wastewaters as a result of new industrial processes and increased consumption of pharmaceuticals and personal care products [3,4].
Among other pollutants, synthetic dyes [5] can be found in the effluent of many industries, including textile, plastic, printing, and dye manufacturing companies. In this group of contaminants, the cationic organic aromatic dyes are ones of the most present pollutants, released from industries, causing various harmful influences on aquatic bodies as well as organisms. Therefore their removal has been deeply studied in recent years [6,7].
Crystal violet (CV) belongs to this group of contaminants. It has been widely used as a dermatological agent and biological stain as well as a coloring agent for dyeing leather, silk, wool, paper, and cotton [6,7,8,9].
Several techniques have been used to remove organic pollutants and synthetic dyes from urban and industrial wastewaters such as membrane separation [2], biological [10] and electrochemical treatments [11], flocculation, liquid-liquid extraction [12], advanced oxidation processes (AOP) [13] and coagulation. Out of methods listed above, the adsorption technique [14] has attracted considerable attention because of the simple procedures needed, because no toxic substances are produced, because of ability to treat concentrated forms of the pollutants, and to reuse the spent adsorbent via regeneration. Moreover, it plays a central role in drinking water purification and wastewater treatments [3,7,15,16].
Mesoporous materials, thanks to their large and tunable porosity find potential applications in catalysis, encapsulation of proteins, filtration and separation of large molecules, membrane technology, drug delivery, dosing, sensing, among many others [17,18] Furthermore, their large specific surface area and huge number of adsorbing active sites suggest their possible application as adsorption materials [19].
In particular, alumina found various technological applications, i.e., as electrical insulator, presenting exceptionally high resistance to chemical agents, as well as giving an excellent performance as catalyst or support for many applications [20,21].
Mesoporous γ-Al2O3 has been not only widely applied in all the field mentioned above [17,21,22] but in recent years the chance to synthesize hybrid materials to enhance the useful properties of an oxide opens the way to very interesting opportunities. The literature reports that many oxides have been modified using organic moieties able to enhance the adsorption capacity of the original material. Among others, bio-based substances (BBS), extracted from composted green wastes, are very interesting macromolecules with a complex lignin-derived structure and characterized by several functional groups (they contain long aliphatic chains, aromatic rings, and several acid and basic functional groups such as carboxyl, primary and substituted amine and amide, carbonyl, hydroxyl, phenol, ether or ester [23,24]), appealing for their importance in the valorization of the organic refuses. BBS have been found to exhibit typical properties of anionic surfactants and polyelectrolytes [25,26] and have been used in the formulation of detergents, textile dyeing baths, emulsifiers, auxiliaries for soil/water remediation, flocculants, and dispersants, as binding agents and templates for ceramics manufacture, as well as for application in agriculture and animal husbandry [27]. BBS have been reported to bear chemical similarities with humic substances, and to exhibit enhanced adsorption capacity towards polar pollutants given the presence of several carboxylate and phenolic groups carrying negative charges at neutral pH, as well as photosensitizing properties [27] promoting significant mineralization of the organic carbon [24].
Hence, the aim of this study is to prepare new hybrid materials by surface immobilization of negatively charged BBS molecules on the positively charged surface of γ-Al2O3 taking advantage of electrostatic interactions occurring between them. After characterization and stability test, the materials were used as adsorbents and compared with other systems cited in the literature (reported in Table 1) to evaluate their adsorption capacity towards the cationic dye Crystal Violet (CV). Once identified the best adsorbing material for CV removal, two Contaminants of Emerging Concern (CECs) [28], namely Atenolol and Carbamazepine, were tested.

2. Experimental

2.1. Materials

γ-alumina was kindly supplied by Centro Ricerche FIAT (Orbassano (TO), Italy), the X-ray diffraction pattern confirms the expected crystalline structure of the material consistent with the reference card 01-075-0921 related to γ-Al2O3. As a simple electrostatic interaction of the support with the BBS molecules is not expected to modify the crystalline structure of the support, the hybrid sample diffractograms are not shown.
BBS were extracted from composted organic refuses (from urban public park trimming and home gardening residues) aged for more than 180 days supplied by ACEA Pinerolese Industriale (Pinerolo (TO), Italy) [23]. The extraction procedure was described elsewhere [53].
Crystal violet (CV) was purchased from Merck (Milan, Italy) and used without any further treatment to prepare solution in ultrapure MilliQ water for adsorption tests.
Carbamazepine and Atenolol were provided by Sigma-Aldrich (Milano, Italy) in analytical purity ≥99.0% and used in adsorption experiments.
All aqueous solutions for High-Performance Liquid Chromatography (HPLC) analysis were prepared using ultrapure water Millipore Milli-QTM (resistivity >18 MΩ). All chemicals were used without further purification.

2.2. Preparation of Hybrid Materials

The γ-Al2O3 particles were used as support for different amounts of BBS immobilized at their surface by simple electrostatic interaction occurring between the two components carrying opposite surface charges.
Hybrid materials were prepared by mixing 1 g of γ- Al2O3 in 20 mL of distilled water containing 0.1, 0.2, and 0.4 g of BBS under stirring for 24 h at 25 °C. The pH of solution was about 6.5 during the preparation. The samples were washed with 10 mL of distilled water for 10 min and every time centrifuged at 4000 rpm for 10 min. The washing solution was tested using UV-Vis spectrophotometer to evidence the presence of leached BBS molecules. The procedure was carried out several times, till the washing solution did not evidence the presence of BBS in the UV-Vis spectra. Drying process was performed in the oven at 40 °C for 24 h. Hybrid samples were named A-BBS0.1, A-BBS0.2, and A-BBS0.4, the reference pure alumina sample was indicated as A.

2.3. Characterization Methods

X-ray diffraction (XRD) analyses of alumina support was obtained using a X’Pert PRO MPD diffractometer from PANalytical (Royston, UK), equipped with Cu anode and working at 45 kV and 40 mA in a Bragg-Brentano geometry. In this study, the flat sample-holder configuration was used.
Fourier transform infrared (FTIR) spectra were recorded in transmission mode by means of a Bruker Vector 22 spectrophotometer equipped with Globar source, DTGS detector (Billerica, Massachusetts, USA), and working with 128 scans at 4 cm−1 resolution in the 4000–400 cm−1 range. Samples were dispersed in KBr (approximatively, sample: KBr weight ratio was 0.045).
Nitrogen adsorption-desorption experiments were carried out using an ASAP 2010 Micromeritics volumetric apparatus (Norcross, GA, USA). Before the measurements, the samples were outgassed at 40 °C for 24 h. Specific surface areas (SSA) were calculated using the Brunauer, Emmett and Teller (BET) method. Pore volumes (PV) and Pore Size Distribution (PSD) were determined by the Barrett, Joyner, and Halenda method [54] applied to the isotherm desorption branch.
Zeta potential measurements were performed on the instrument Zetasizer ZS90 by Malvern (Malvern, UK). 10 mg of BBS and hybrid materials were suspended in 20 mL of deionized water under constant stirring (400 rpm) for 15 min. The zeta potential measurements were performed starting from the natural pH of the suspension then decreasing it point by point by addition of 0.1 M HCl and successively increasing it with 0.1 M NaOH. A digital pH meter (Metrohm, model 827 pH lab, swiss mode, Herisau, Switzerland) was used to measure the pH of the solution.
Thermo-gravimetric analysis (TGA) was carried out using a TA Q600 (New Castle, DE, USA). Thermal analyses were performed with a heating ramp of 10 °C/min from RT to 600 °C under air in order to quantify the amount of BBS immobilized on γ-Al2O3 particles.

2.4. Adsorption Procedures

2.4.1. Analytical Instruments

UV-Vis spectrophotometer (Varian Cary 300 Scans, Agilent, Santa Clara, CA, USA) was used to determine the adsorption of CV (maximum absorbance at 584 nm).
A Merck-Hitachi liquid chromatographer (Knauer, Berlin, Germany) equipped with Rheodyne injector L-6200 and L-6200A pumps for high-pressure gradients, L-4200 UV-Vis detector, and a LiChrocart RP-C18 column (Merck, Milano, Italy, 12.5 cm × 0.4 cm) was used to determine the concentration of atenolol and carbamazepine during the experiments. The detection wavelength was set at 224 nm for atenolol and 284 nm for carbamazepine). Isocratic elution (1 mL min−1 flow rate) was carried out with 60% of phosphate buffer 1 × 10−2 M at pH 2.8 and 40% acetonitrile and retention times were 5 min.

2.4.2. Kinetic of CV Adsorption

The kinetic of the adsorption was followed contacting 10 ppm of CV with 20 mg of adsorbing hybrid materials (total volume 10 mL) at pH 6.5 (therefore, a CV:adsorbent ratio of 1:2 wt was applied to all the preliminary measurements). The mixture was stirred vigorously under isolated orbital mixing plate (rotation at 1000 rpm) keeping the temperature at 15 °C. The adsorption phenomenon was followed measuring every 10 min the absorbance of the dye in the supernatant after centrifugation (at 4000 rpm for 10 min) by means of a UV–Vis spectrophotometer. Although an equilibrium time of less than or equal to 10 min was evidenced, all the experiments were carried out leaving adsorbent and adsorptive in contact for 30 min. All the measurements (data not showed) were carried out in duplicate and the average data are reported.

2.4.3. CV Adsorption Study and Model Application

The adsorption experiments performed on the hybrid absorbents were carried out at 15 °C and pH = 6.5 (natural value of the suspensions in CV) modifying the relative amount of CV and adsorbent in order to explore a wide Ce range (10 to 100 mg of dye were mixed with 20 mg of adsorbents in 10 mL).
Adsorption studies were carried out using 20 mg of adsorbents in contact with 10 batches containing 10 mL of different concentration of CV aquatic solution (from 10 to 100 ppm). The batches were sealed and placed in a shaker for 30 min at 15 °C and pH = 6.5 to obtain the measurement of the adsorption capacity. The experiments were performed in duplicate and average values were reported.
The adsorption capacity was calculated by using Equation (1):
  q e = ( C 0 C e ) × V W
where C0 (mg/L) is the initial dye concentration and Ce (mg/L) is the concentration of dye at equilibrium, V (L) is the volume of dye concentration, W (g) is the mass of the adsorbent, and qe (mg/g) is the amount of dye CV adsorbed. The percentage removal of CV was calculated from the formulae given below:
R % = ( C 0 C e ) C 0 × 100
Freundlich and Langmuir models were applied to the experimental data.

Freundlich Model

The Freundlich model considers an adsorption taking place on a heterogeneous surface. The isotherm model can be represented by the following equation:
l n q e = l n K F + ( 1 n ) l n C e
where Ce is the adsorbate equilibrium concentration expressed in mg/L, q e is the amount of adsorbate in the adsorbent at equilibrium expressed in mg/g, KF is the Freundlich constant representing the affinity of the adsorptive towards the adsorbing material, 1/n is the Freundlich constant, representing the degree of affinity adsorptive/adsorbing material and indicating how much the adsorption process is favored (n < 1 indicates a poor adsorption and the desorption as the favored process, 1 < n < 2 indicates a good equilibrium between adsorption/desorption, 2 < n < 10 represents a very good adsorption going towards an irreversible phenomenon [55]).
KF and n can be determined from the linearized plot ln qe vs. Ce (not reported for the sake of brevity).

Langmuir model

The Langmuir model assumes the adsorption reaches a monolayer of coverage [56].
The general equation is
q e = q o b C e 1 + b C e
where C e is the adsorbate equilibrium concentration expressed in mg/L, C e is the adsorbate initial concentration expressed in mg/L, q e is the amount of adsorbate in the adsorbent at equilibrium expressed in mg/g, q o is the monolayer coverage capacities expressed in mg/g, K L is the Langmuir constant indicating the ratio of reagents and products at the equilibrium.
In the linearized form Equation (4) becomes
C e q e =   1 K L q o + C e q o
1 q e = 1 q o + 1 K L q o C e
The plot reporting 1 q e   vs   1 C e allows to obtain q0 and KL.
The value,
R L = 1 1 + K L C 0
indicates if the adsorption is unfavored (if R L > 1 ), if it shows a linear trend (if R L = 1 ) or if the adsorption is favored (if 0 < R L < 1 ).   R L = 0 indicates that the reaction is irreversible.

2.4.4. Contaminants of Emerging Concern (CECs) Adsorption Study

Kinetic studies were performed using 10 ppm of Atenolol and Carbamazepine in contact with 20 mg of A-BBS0.4 in a volume of 10 mL, at 20 °C and pH 6.5. Adsorption studies were performed using different amounts of Atenolol and Carbamazepine in contact with 20 mg of A-BBS0.4 in duplicate. The mixtures were kept under stirring at 20 °C, pH 6.5 and the residual amount of contaminants was measured at 30 min-contact time in order to obtain the adsorption isotherms.

3. Results and Discussion

3.1. Materials Characterization

3.1.1. FTIR Spectroscopy

The IR spectra of alumina before and after BBS immobilization were collected in order to assure BBS presence on hybrid alumina systems. The recorded spectra, together with the reference BBS spectrum, are reported in Figure 1. The pure alumina sample shows the presence of atmospheric water molecules interacting with the surface and producing a signal at 1630 cm−1HOH vibration) and a large absorption around 3500 cm−1OH vibrations), whereas the intense signal at low wavenumbers (<1000 cm−1) is due to alumina framework vibrations. Pure BBS shows again an intense signal at around 3500 cm−1 due to OH groups and atmospheric moisture interacting with the surface (νOH vibrations), a large signal at 1600 cm−1 due to both carbonyl (C=O) stretching and vibration of water molecules adsorbed at the surface (δHOH signal), and other two signals at 1400 and 1000 cm−1 due to carboxylic acid/C–H bending and OCO vibrations, respectively. Another very weak signal can be observed at around 3000 cm−1 due to CH stretching vibrations.
Specific signals due to BBS (evidenced in the Figure by vertical lines) are visible in the spectra of the hybrid materials at around 1600, 1400, and 1000 cm−1, whereas the less intense signals at around 3000 are not visible due to the small amount of BBS immobilized on the support. In any case, the presence of these absorptions confirms that alumina functionalization was carried out and, moreover, their increasing intensity suggests an increase of the amount of the functionalizing phase on the A support increasing the amount of BBS used during the material preparation. No modification of the signal positions was observed with respect to pure BBS (see curve A in the Figure), as expected for a simple electrostatic interaction occurring between alumina surface and BBS molecules. Moreover, it is possible to evidence an important contribute of the hydration layer on the hybrid samples surface, as witnessed by the growth of the signal at 1600 (δHOH vibration) and 3500 cm−1OH), given the polar nature of BBS molecules leading to a stronger interaction with atmospheric moisture.

3.1.2. Gas-Volumetric N2 Adsorption at 77K

The adsorption/desorption isotherms of all hybrid materials and reference non-modified sample are of the IV type (IUPAC classification) indicating that all materials are mesoporous (Figure 2A).
As it can be seen, the hysteresis loops of all the samples are very similar, although the height of the step decreases by increasing the amount of BBS, indicating a minor amount of mesopores after functionalization of the support. Nevertheless, the amount of BBS immobilized seems to be not enough to modify the featuring morphology of the material. The values of BET specific surface area of the materials are reported in Table 2 together with the total amount of mesopores, evaluated by BJH model on the desorption branch of the isotherms, whereas the pore size distribution curves are reported in Figure 2B. The specific surface area of the samples decreases increasing the amount of BBS, although to a very limited extent. This suggests that BBS is not immobilized at the external surface of the particles, since they do not act as aggregating agent between the single alumina particles, as the loss of specific surface area of the material after functionalization should be much higher. This indicates that BBS are allocated essentially into the mesopore empty space, probably because in that space the electrostatic interaction of the support with the molecule can be stronger. The pore size distribution curves allow obtaining other important details concerning the BBS–solid interaction. All samples show two families of mesopores, the first one quite narrow centered at 37 Å of width and another one very wide covering the values 20–180 Å of width. Both families of pores are affected by support functionalization because the large mesopores decrease in amount and width, the relative maximum shifting from 80 to 60 Å of width, whereas the smaller ones increase in intensity after functionalization. This feature suggests that the smallest pores are not involved in the functionalization, probably because of the limited dimensions, whereas BBS are placed into the largest pores, which are those decreasing in amount and size after functionalization causing the increase of the amount of the smallest ones. Also the fact that the hystheresis loops of the isotherms do not change shape after functionalization confirms again that BBS molecules enter into the pores sticking at the internal walls of the solid (causing a decrease of their size) rather than fixing at their entrance (causing the modification of the pore shape which is not observed indeed).

3.1.3. TGA

Figure 3, upper section, shows the results of TGA analysis on sample A before and after immobilization of BBS in the temperature range 40–650 °C under air, Figure 3, lower section, reports the curve related to BBS residual weight registered in the same conditions. As reported in the literature [57], BBS evidences two main regions of weight loss, the first in the range 40–220 °C related to physisorbed and chemisorbed water elimination, the second, occurring in two steps, in the range 220–650 °C related to the oxidation of BBS. Analogously, all the curves of A and hybrid materials present two important weight losses. The foster falls in the range 40–220 °C and is due to the removal of adsorbed water molecules: this contribution increases increasing the amount of BBS on the hybrid samples as a consequence of the increased interaction with atmospheric moisture given by the increased polarity of the materials. The latter falls in the range 220–650 °C and deserves some comments. Alumina sample possesses surface OH groups that can be partially eliminated via condensation reaction in form of water molecules at high temperature: the weight loss observed in the range 220–650 °C (1.1%) can be assessed to this phenomenon. Otherwise, the hybrid materials treated at high temperature can experience both the OH elimination via condensation reaction and the elimination of organic moieties through an oxidation reaction which forms CO2 and H2O. From the comparison of the four curves, it is possible to quantify the amount of the three contributions, namely adsorbed water molecules, amount of OH eliminated via condensation reaction and organic content, for the four samples as reported in Table 3.
The amount of BBS actually loaded onto the support is obtained by calculating the percentage of weight loss for A-BBS0.1, A-BBS0.2, and A-BBS0.4 in the range of 220 to 650 °C and subtracting that observed for A support in the same range. The amount of organic matter actually immobilized on hybrid samples depends on the concentration of the BBS solution used for the functionalization: in these experiments the maximum loading has been reached by A-BBS0.4 with 7.2% of organic matter immobilized.

3.1.4. Zeta Potential

The zeta potential measurements have been used in order to evaluate the surface charge of the support and its modification after BBS functionalization. This is a very important indication, dealing with adsorption, in order to forecast the type of substrate that can be subjected to efficient interaction with the materials.
Figure 4 shows the trend of zeta potential in the pH range 3–11. From the measured trends it is possible to conclude that reference A material possesses a positive surface charge in the range 4–7.9 and this makes easy an interaction of the solid with negatively charged substrates. At neutral pH, in particular, BBS molecules bring a negative charge given essentially by dissociated COOH and phenolic Ph-OH groups, therefore the interaction with the alumina positive solid surface occurs very easily. Consequently, the isoelectric point (IEP) of hybrid materials shifts to lower pH increasing the BBS loading.

3.2. Removal of Crystal Violet

3.2.1. Effect of CV Concentration

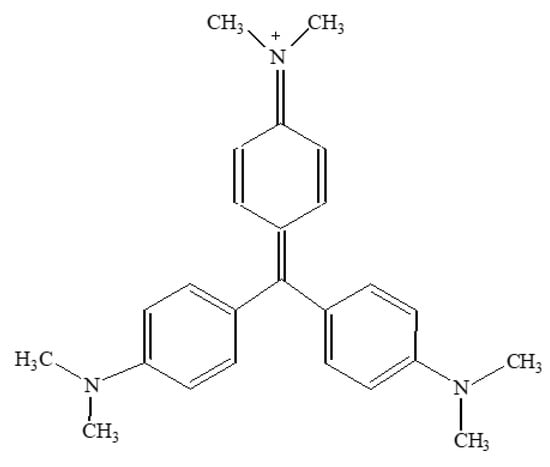

The chemical structure of CV is reported in Scheme 1.

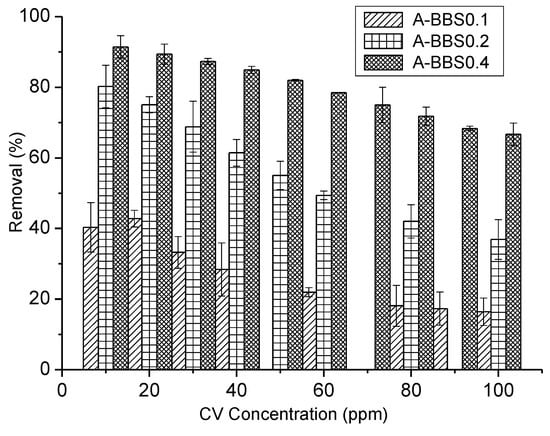

Different concentrations of dye from 10 to 100 ppm have been used for adsorption experiment keeping constant the amount of hybrid absorbents. Results reported in Figure 5 indicate that an increase of the dye concentration leads to a decrease in the amount of dye adsorbed from 43% to 17% for A-BBS0.1, from 80% to 37% for A-BBS0.2, and from 91% to 67% for A-BBS0.4. Although the removal decreases increasing CV concentration because of the adsorbing materials saturation, the amount of dye removed by A-BBS0.4 remains at the value of about 70%, indicating a very good performance. On this material the adsorption of atenolol and carbamazepine was performed.

3.2.2. Adsorption Isotherms and Model Application

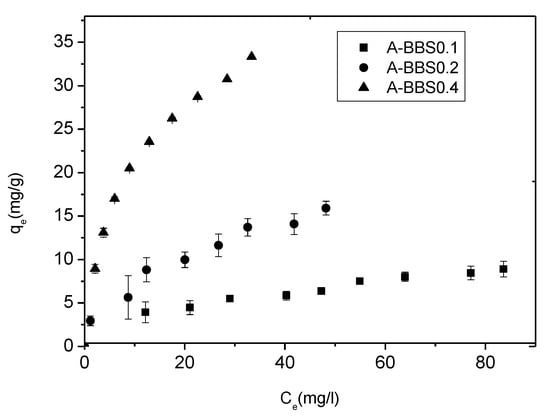

In Figure 6 the removal of CV by the hybrid adsorbents was reported in form of adsorption isotherms. Clearly A-BBS0.1 reached the saturation in our experimental conditions, whereas A-BBS0.2 and, even more, A-BBS0.4 are still far from the saturation.

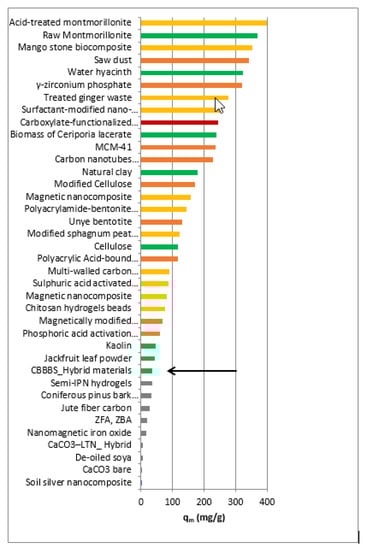

Langmuir and Freundlich models were applied to the experimental data and the most significant results are reported in Table 4. A very good fitting was obtained applying Langmuir model, as indicated by very high values of r2. qm obtained by this model defines the amount of CV saturating the samples (monolayer amount): the value obtained for the best adsorbent A-BBS0.4 corresponds to a maximum adsorption of about 35 mg/g. The RL values (always 0 < RL < 1) obtained for all the samples indicate a favored adsorption, as also suggested by Freundlich n values always higher than 2.

4. Removal of CECs

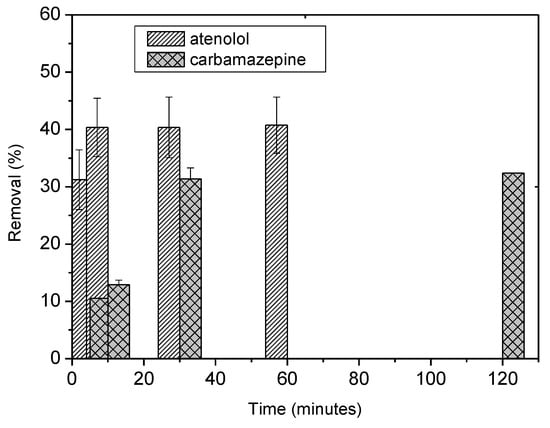

Figure 7 reports the kinetic of adsorption relative to two different CECs, Carbamazepine and Atenolol, whose structures are shown in Scheme 2. These CECs were chosen on the basis of their chemical structure: both molecules show positively charged structure at pH 6.5 [58], but while Atenolol possessed a branched aliphatic chain, Carbamazepine is a polyaromatic and more compact molecule.
The efficiency of the material remained acceptable with the larger polar molecule atenolol which is more easily adsorbed with 51% of removal in 30 min thanks to its polar structure and consequently stronger interaction with adsorbent, whereas in the case of carbamazepine only 32% of removal was reached in 30 min suggesting a worse affinity between the material and the polyaromatic substrate.
Langmuir and Freundlich models were also applied to CEC adsorption and the most significant results are reported in Table 5. Good fittings were observed applying both Langmuir and Freundlich models as indicated by very good values of r2. qm obtained by these models defines the amount of Carbamazepine and Atenolol saturating the samples (monolayer amount): the values obtained for the Carbamazepine and Atenolol correspond to maximum adsorption of about 3.06 and 3.26 mg/g respectively. A comparison study of capacity of adsorption for different adsorbents was performed and the results are reported in Table 6. Considering the literature, we have reached promising results in particular in the adsorption of Carbamazepine.

5. Conclusions

New hybrid absorbents were prepared following a very easy procedure and characterized via TGA, XRD, Zeta potential, FTIR spectroscopy, and nitrogen adsorption then, they were tested towards the removal of selected pollutants. BBS can functionalize the alumina surface given the electrostatic attraction of opposite charges carried by the two components. In this way, cationic pollutants can be captured by the negatively charged surface of the adsorbent. The electrostatic interaction is, therefore, the major driving force for the adsorption process, but the polarity of the pollutant molecules affects both kinetics and adsorbed amounts as less polar molecules interact at lower extent and in longer time.
The strength of these new hybrid materials is not so much in photocatalytic efficiency, (the comparison in CV removal is reported in Figure 8), as in the simplicity of preparation and in its definitely “green” way. In fact, not only the efficiency of the materials should be taken in account but also other aspects deserve to be considered, i.e., the easiness and the green aspects related to the materials preparation procedure and the energy and economic savings. In fact, several materials with very good performances reported in Table 1 are prepared following complex procedures and use of non-green processes. In order to perform this comparison, we considered only the materials with better performance in CV adsorption with respect to the A-BBS hybrid system and we classified them on the basis of the following aspects: energy consumption (calcination and/or thermal treatment at temperature higher than 200 °C), multistep/complex synthesis, use of non-green compounds (acids, bases, solvents and so on). In the classification we assigned a color code from green to orange to red considering the absence of these negative aspects or their simultaneous presence during the preparation. As evidenced in Figure 8, several materials possessing much better adsorption capacity with respect to the A-BBS system show an orange or red color, whereas only few, as A-BBS0.4, show the green color.
From this perspective, the A-BBS materials can be developed further and their performance optimized in view of their use in in-field applications.

Author Contributions

All the authors contributed the same way to the preparation of this paper.


This project has received funding from the European Union’s Horizon 2020 research and innovative programme under the Marie Sklodowska-Curie grant agreement No 645551.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Zhang, R.; Shen, B.; Li, C.; Zheng, C.; Hou, X. Integrating photochemical vapor generation with photo-oxidation trapping for effective mercury removal from polluted water and its on-line monitoring. Microchem. J. 2016, 129, 98–103. [Google Scholar] [CrossRef]
  2. Farsi, A.; Malvache, C.; De Bartolis, O.; Magnacca, G.; Kristensen, P.K.; Christensen, M.L.; Boffa, V. Design and fabrication of silica-based nanofiltration membranes for water desalination and detoxification. Microporous Mesoporous Mater. 2017, 237, 117–126. [Google Scholar] [CrossRef]
  3. Calza, P.; Zacchigna, D.; Laurenti, E. Degradation of orange dyes and carbamazepine by soybean peroxidase immobilized on silica monoliths and titanium dioxide. Environ. Sci. Pollut. 2016, 23, 23742–23749. [Google Scholar] [CrossRef]
  4. Richardson, S.D.; Ternes, T.A. Water Analysis: Emerging Contaminants and Current Issues. Anal. Chem. 2018, 90, 398–428. [Google Scholar] [CrossRef] [PubMed]
  5. Zhu, C.; Jiang, C.; Chen, S.; Mei, R.; Wang, X.; Cao, J.; Ma, L.; Zhou, B.; Wei, Q.; Ouyang, G.; et al. Chemosphere Ultrasound enhanced electrochemical oxidation of Alizarin Red S on boron doped diamond (BDD) anode: Effect of degradation process parameters. Chemosphere 2018, 209, 685–695. [Google Scholar] [CrossRef] [PubMed]
  6. Rai, P.; Gautam, R.K.; Banerjee, S.; Rawat, V.; Chattopadhyaya, M.; Chattoapadhyaya, M. Synthesis and characterization of a novel SnFe2O4 @activated carbon magnetic nanocomposite and its effectiveness in the removal of crystal violet from aqueous solution. J. Environ. Chem. Eng. 2015, 3, 2281–2291. [Google Scholar] [CrossRef]
  7. Li, S. Removal of crystal violet from aqueous solution by sorption into semi-interpenetrated networks hydrogels constituted of poly(acrylic acid-acrylamide-methacrylate) and amylose. Bioresour. Technol. 2010, 101, 2197–2202. [Google Scholar] [CrossRef]
  8. Hassanzadeh-Tabrizi, S.; Motlagh, M.M.; Salahshour, S. Synthesis of ZnO/CuO nanocomposite immobilized on γ-Al2O3 and application for removal of methyl orange. Appl. Surf. Sci. 2016, 384, 237–243. [Google Scholar] [CrossRef]
  9. Brião, G.V.; Jahn, S.L.; Foletto, E.L.; Dotto, G.L. Adsorption of crystal violet dye onto a mesoporous ZSM-5 zeolite synthetized using chitin as template. J. Colloid Interface Sci. 2017, 508, 313–322. [Google Scholar] [CrossRef] [PubMed]
  10. Rasool, K.; Lee, D.S. Effect of ZnO nanoparticles on biodegradation and biotransformation of co-substrate and sulphonated azo dye in anaerobic biological sulfate reduction processes. Int. Biodeterior. Biodegrad. 2016, 109, 150–156. [Google Scholar] [CrossRef]
  11. Wang, C.; Wang, F.; Xu, M.; Zhu, C.; Fang, W.; Wei, Y. Electrocatalytic degradation of methylene blue on Co doped Ti/TiO2 nanotube/PbO2 anodes prepared by pulse electrodeposition. J. Electroanal. Chem. 2015, 759, 158–166. [Google Scholar] [CrossRef]
  12. Muthuraman, G.; Teng, T.T.; Leh, C.P.; Norli, I. Extraction and recovery of methylene blue from industrial wastewater using benzoic acid as an extractant. J. Hazard. Mater. 2009, 163, 363–369. [Google Scholar] [CrossRef]
  13. Aguilar, Z.G.; Brillas, E.; Salazar, M.; Nava, J.L.; Sirés, I.; Sadornil, I.S. Evidence of Fenton-like reaction with active chlorine during the electrocatalytic oxidation of Acid Yellow 36 azo dye with Ir-Sn-Sb oxide anode in the presence of iron ion. Appl. Catal. B Environ. 2017, 206, 44–52. [Google Scholar] [CrossRef]
  14. Erto, A.; Chianese, S.; Lancia, A.; Musmarra, D. On the mechanism of benzene and toluene adsorption in single-compound and binary systems: Energetic interactions and competitive effects. Desalin. Water Treat. 2017, 86, 259–265. [Google Scholar] [CrossRef]
  15. Marković, D.D.; Lekić, B.M.; Rajaković-Ognjanović, V.N.; Onjia, A.E.; Rajaković, L.V. A New Approach in Regression Analysis for Modeling Adsorption Isotherms. Sci. World J. 2014, 2014, 930879. [Google Scholar] [CrossRef] [PubMed]
  16. Mittal, A.; Mittal, J.; Malviya, A.; Kaur, D.; Gupta, V. Adsorption of hazardous dye crystal violet from wastewater by waste materials. J. Colloid Interface Sci. 2010, 343, 463–473. [Google Scholar] [CrossRef]
  17. Nisticò, R.; Magnacca, G.; Jadhav, S.A.; Scalarone, D.; Sidorenko, A.S. Polystyrene-block-poly(ethylene oxide) copolymers as templates for stacked, spherical large-mesopore silica coatings: Dependence of silica pore size on the PS/PEO ratio. Beilstein J. Nanotechnol. 2016, 7, 1454–1460. [Google Scholar] [CrossRef]
  18. Molinari, A.; Magnacca, G.; Papazzoni, G.; Maldotti, A. HydrophobicW10O324−/silica photocatalyst for toluene oxidation in water system. Appl. Catal. B Environ. 2013, 138, 446–452. [Google Scholar] [CrossRef]
  19. Ghaemi, N.; Daraei, P. Enhancement in copper ion removal by [email protected]2O3 polymeric nanocomposite membrane. J. Ind. Eng. Chem. 2016, 40, 26–33. [Google Scholar] [CrossRef]
  20. Ghanizadeh, S.; Bao, X.; Vaidhyanathan, B.; Binner, J. Synthesis of nano α-alumina powders using hydrothermal and precipitation routes: A comparative study. Ceram. Int. 2014, 40, 1311–1319. [Google Scholar] [CrossRef]
  21. Deravanesiyan, M.; Beheshti, M.; Malekpour, A. Alumina nanoparticles immobilization onto the NaX zeolite and the removal of Cr (III) and Co (II) ions from aqueous solutions. J. Ind. Eng. Chem. 2015, 21, 580–586. [Google Scholar] [CrossRef]
  22. Morterra, C.; Magnacca, G. A case study: Surface chemistry and surface structure of catalytic aluminas, as studied by vibrational spectroscopy of adsorbed species. Catal. Today 1996, 27, 497–532. [Google Scholar] [CrossRef]
  23. Nisticò, R.; Barrasso, M.; Le Roux, G.A.C.; Seckler, M.M.; Sousa, W.; Malandrino, M.; Magnacca, G.; Le Roux, P.G.A.C. Biopolymers from Composted Biowaste as Stabilizers for the Synthesis of Spherical and Homogeneously Sized Silver Nanoparticles for Textile Applications on Natural Fibers. ChemPhysChem 2015, 16, 3902–3909. [Google Scholar] [CrossRef]
  24. Tummino, M.L.; Agostini, S.; Avetta, P.; Magnacca, G.; Prevot, A.B.; Testa, M.L.; Deganello, F.; Montoneri, E. Synthesis, characterization and environmental application of silica grafted photoactive substances isolated from urban biowaste. RSC Adv. 2015, 5, 47920–47927. [Google Scholar]
  25. Schramm, L.L.; Stasiuk, E.N.; Marangoni, D.G. 2 Surfactants and their applications. Annu. Rep. Sect. C (Phys. Chem.) 2003, 99, 3–48. [Google Scholar] [CrossRef]
  26. Magnacca, G.; Laurenti, E.; Vigna, E.; Franzoso, F.; Tomasso, L.; Montoneri, E.; Boffa, V. Refuse derived bio-organics and immobilized soybean peroxidase for green chemical technology. Process. Biochem. 2012, 47, 2025–2031. [Google Scholar] [CrossRef]
  27. Avetta, P.; Prevot, A.B.; Montoneri, E.; Bella, F.; Laurenti, E.; Arques, A.; Carlos, L. Waste Cleaning Waste: Photodegradation of Monochlorophenols in the Presence of Waste-Derived Photosensitizer. ACS Sustain. Chem. Eng. 2013, 1, 1545–1550. [Google Scholar] [CrossRef][Green Version]
  28. Musmarra, D.; Prisciandaro, M.; Capocelli, M.; Karatza, D.; Iovino, P.; Canzano, S.; Lancia, A. Ultrasonics Sonochemistry Degradation of ibuprofen by hydrodynamic cavitation: Reaction pathways and effect of operational parameters. Ultrason. Sonochem. 2016, 29, 76–83. [Google Scholar] [CrossRef] [PubMed]
  29. Bertolini, T.; Bertolini, T.C.R.; Izidoro, J.C.; Magdalena, C.P.; Fungaro, D.A. Adsorption of Crystal Violet Dye from Aqueous Solution onto Zeolites from Coal Fly and Bottom Ashes. Orbit. Electron. J. Chem. 2013, 5, 179–191. [Google Scholar] [CrossRef]
  30. Satapathy, M.K.; Das, P. Optimization of crystal violet dye removal using novel soil-silver nanocomposite as nanoadsorbent using response surface methodology. J. Environ. Chem. Eng. 2014, 2, 708–714. [Google Scholar] [CrossRef]
  31. Porkodi, K.; Kumar, K.V. Equilibrium, kinetics and mechanism modeling and simulation of basic and acid dyes sorption onto jute fiber carbon: Eosin yellow, malachite green and crystal violet single component systems. J. Hazard. Mater. 2007, 143, 311–327. [Google Scholar] [CrossRef] [PubMed]
  32. Ahmad, R. Studies on Adsorption of Crystal Violet Dye from Aqueous Solution onto Coniferous Pinus Bark Powder (CPBP). J. Hazard. Mater. 2009, 171, 767–773. [Google Scholar] [CrossRef] [PubMed]
  33. Pal, A.; Pan, S.; Saha, S. Synergistically improved adsorption of anionic surfactant and crystal violet on chitosan hydrogel beads. Chem. Eng. J. 2013, 217, 426–434. [Google Scholar] [CrossRef]
  34. Senthilkumaar, S.; Kalaamani, P.; Subburaam, C. Liquid phase adsorption of Crystal violet onto activated carbons derived from male flowers of coconut tree. J. Hazard. Mater. 2006, 136, 800–808. [Google Scholar] [CrossRef]
  35. Hamidzadeh, S.; Torabbeigi, M.; Shahtaheri, S.J. Removal of crystal violet from water by magnetically modified activated carbon and nanomagnetic iron oxide. J. Environ. Health Sci. Eng. 2015, 13, 8. [Google Scholar] [CrossRef]
  36. Singh, K.P.; Gupta, S.; Singh, A.K.; Sinha, S. Optimizing adsorption of crystal violet dye from water by magnetic nanocomposite using response surface modeling approach. J. Hazard. Mater. 2011, 186, 1462–1473. [Google Scholar] [CrossRef]
  37. Eren, E. Investigation of a basic dye removal from aqueous solution onto chemically modified Unye bentonite. J. Hazard. Mater. 2009, 166, 88–93. [Google Scholar] [CrossRef]
  38. Lee, C.-K.; Liu, S.-S.; Juang, L.-C.; Wang, C.-C.; Lin, K.-S.; Lyu, M.-D. Application of MCM-41 for dyes removal from wastewater. J. Hazard. Mater. 2007, 147, 997–1005. [Google Scholar] [CrossRef]
  39. Chakraborty, S.; De, S.; Dasgupta, S.; Basu, J.K. Adsorption study for the removal of a basic dye: Experimental and modeling. Chemosphere 2005, 58, 1079–1086. [Google Scholar] [CrossRef]
  40. Hemmati, F.; Norouzbeigi, R.; Sarbisheh, F.; Shayesteh, H. Malachite green removal using modified sphagnum peat moss as a low-cost biosorbent: Kinetic, equilibrium and thermodynamic studies. J. Taiwan Inst. Chem. Eng. 2016, 58, 482–489. [Google Scholar] [CrossRef]
  41. Liao, M.H.; Wu, K.Y.; Chen, D.H. Fast adsorption of crystal violet on polyacrylic acid-bound magnetic nanoparticles. Sep. Sci. Technol. 2004, 39, 1563–1575. [Google Scholar] [CrossRef]
  42. Sarma, G.K.; Gupta, S.S.; Bhattacharyya, K.G. Adsorption of Crystal violet on raw and acid-treated montmorillonite, K10, in aqueous suspension. J. Environ. Manag. 2016, 171, 1–10. [Google Scholar] [CrossRef]
  43. Kumar, R.; Ahmad, R. Biosorption of hazardous crystal violet dye from aqueous solution onto treated ginger waste (TGW). Desalination 2011, 265, 112–118. [Google Scholar] [CrossRef]
  44. Qiao, H.; Zhou, Y.; Yu, F.; Wang, E.; Min, Y.; Huang, Q.; Pang, L.; Ma, T. Effective removal of cationic dyes using carboxylate-functionalized cellulose nanocrystals. Chemosphere 2015, 141, 297–303. [Google Scholar] [CrossRef] [PubMed]
  45. Shoukat, S.; Bhatti, H.N.; Iqbal, M.; Noreen, S. Mango stone biocomposite preparation and application for crystal violet adsorption: A mechanistic study. Microporous Mesoporous Mater. 2017, 239, 180–189. [Google Scholar] [CrossRef]
  46. Sabna, V.; Thampi, S.G.; Chandrakaran, S. Adsorption of crystal violet onto functionalised multi-walled carbon nanotubes: Equilibrium and kinetic studies. Ecotoxicol. Environ. Saf. 2016, 134, 390–397. [Google Scholar] [CrossRef] [PubMed]
  47. Liu, W.; Jiang, X.; Chen, X. Synthesis and utilization of a novel carbon nanotubes supported nanocables for the adsorption of dyes from aqueous solutions. J. Solid State Chem. 2015, 229, 342–349. [Google Scholar] [CrossRef]
  48. Anirudhan, T.; Suchithra, P.; Radhakrishnan, P. Synthesis and characterization of humic acid immobilized-polymer/bentonite composites and their ability to adsorb basic dyes from aqueous solutions. Appl. Clay Sci. 2009, 43, 336–342. [Google Scholar] [CrossRef]
  49. Alhendawi, H.M.H.; Brunet, E.; Payán, E.R.; Juanes, O.; Ubis, J.C.R.; Al-Asqalany, M. Surfactant-assisted intercalation of crystal violet in layered γ-zirconium phosphate. Dye uptake from aqueous solutions. J. Incl. Phenom. Macrocycl. Chem. 2012, 73, 387–396. [Google Scholar] [CrossRef]
  50. Zhou, Y.; Wang, X.; Min, Y.; Ma, T.; Zhang, M.; Huang, Q.; Niu, J. Removal of Crystal Violet by a Novel Cellulose-Based Adsorbent: Comparison with Native Cellulose. Ind. Eng. Chem. 2014, 53, 5498–5506. [Google Scholar] [CrossRef]
  51. Zolgharnein, J.; Bagtash, M.; Shariatmanesh, T. Simultaneous removal of binary mixture of Brilliant Green and Crystal Violet using derivative spectrophotometric determination, multivariate optimization and adsorption characterization of dyes on surfactant modified nano-γ-alumina. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2015, 137, 1016–1028. [Google Scholar] [CrossRef]
  52. Liu, Y.; Jiang, Y.; Hu, M.; Li, S.; Zhai, Q. Removal of triphenylmethane dyes by calcium carbonate–lentinan hierarchical mesoporous hybrid materials. Chem. Eng. J. 2015, 273, 371–380. [Google Scholar] [CrossRef]
  53. Montoneri, E.; Boffa, V.; Savarino, P.; Perrone, D.G.; Musso, G.; Mendichi, R.; Chierotti, M.R.; Gobetto, R. Biosurfactants from Urban Green Waste. ChemSusChem 2009, 2, 239–247. [Google Scholar] [CrossRef]
  54. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodríguez-Reinoso, F.; Rouquerol, J.; Sing, K.S. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef][Green Version]
  55. García, E.R.; Medina, R.L.; Lozano, M.M.; Pérez, I.H.; Valero, M.J.; Franco, A.M.M.; Luque, R. Adsorption of Azo-Dye Orange II from Aqueous Solutions Using a Metal-Organic Framework Material: Iron-Benzenetricarboxylate. Materials 2014, 7, 8037–8057. [Google Scholar] [CrossRef]
  56. Esfandian, H.; Samadi-Maybodi, A.; Parvini, M.; Khoshandam, B. Development of a novel method for the removal of diazinon pesticide from aqueous solution and modeling by artificial neural networks (ANN). J. Ind. Eng. Chem. 2015, 35, 295–308. [Google Scholar] [CrossRef]
  57. Franzoso, F.; Nisticò, R.; Cesano, F.; Corazzari, I.; Turci, F.; Scarano, D.; Prevot, A.B.; Magnacca, G.; Carlos, L.; Mártire, D.O. Biowaste-derived substances as a tool for obtaining magnet-sensitive materials for environmental applications in wastewater treatments. Chem. Eng. J. 2017, 310, 307–316. [Google Scholar] [CrossRef]
  58. Calza, P.; Medana, C.; Padovano, E.; Giancotti, V.; Baiocchi, C. Identification of the unknown transformation products derived from clarithromycin and carbamazepine using liquid chromatography/high-resolution mass spectrometry. Rapid Commun. Mass Spectrom. 2012, 26, 1687–1704. [Google Scholar] [CrossRef]
  59. Punyapalakul, P.; Sitthisorn, T. Removal of ciprofloxazin and carbamazepine by adsorption on functionalized mesoporous silicates. World Acad. Sci. Eng. Technol. 2010, 45, 546–550. [Google Scholar]
  60. Akpinar, I.; Yazaydin, A.O. Rapid and Efficient Removal of Carbamazepine from Water by UiO-67. Ind. Eng. Chem. Res. 2017, 56, 15122–15130. [Google Scholar] [CrossRef]
  61. Park, J.; Hwa, K.; Lee, E.; Lee, S.; Cho, J. Sorption of pharmaceuticals to soil organic matter in a constructed wetland by electrostatic interaction. Sci. Total Environ. 2018, 635, 1345–1350. [Google Scholar] [CrossRef] [PubMed]
  62. Calisto, V.; Esteves, V.I. Adsorption of the antiepileptic carbamazepine onto agricultural soils. J. Environ. Monit. 2012, 14, 1597–1603. [Google Scholar] [CrossRef] [PubMed]
  63. Suriyanon, N.; Punyapalakul, P.; Ngamcharussrivichai, C. Mechanistic study of diclofenac and carbamazepine adsorption on functionalized silica-based porous materials. Chem. Eng. J. 2013, 214, 208–218. [Google Scholar] [CrossRef]
  64. Mallek, M.; Chtourou, M.; Portillo, M.; Monclús, H.; Walha, K.; Ben Salah, A.; Salvado, V. Granulated cork as biosorbent for the removal of phenol derivatives and emerging contaminants. J. Environ. Manag. 2018, 223, 576–585. [Google Scholar] [CrossRef] [PubMed]
  65. Haro, N.K.; Del Vecchio, P.; Marcilio, N.R.; Féris, L.A. Removal of atenolol by adsorption—Study of kinetics and equilibrium. J. Clean. Prod. 2017, 154, 214–219. [Google Scholar] [CrossRef]
  66. Kyzas, G.Z.; Koltsakidou, A.; Nanaki, S.G.; Bikiaris, D.N.; Lambropoulou, D.A. Removal of beta-blockers from aqueous media by adsorption onto graphene oxide. Sci. Total Environ. 2015, 537, 411–420. [Google Scholar] [CrossRef]

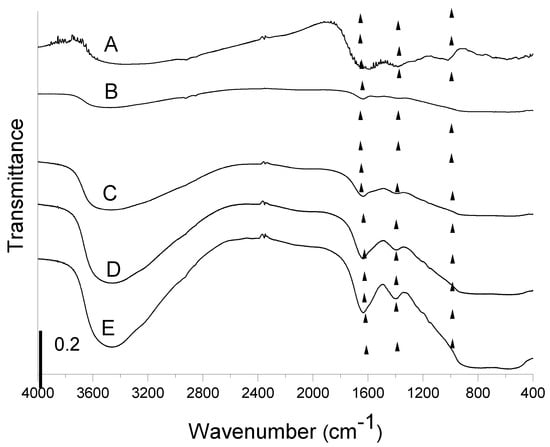

Figure 1. FTIR spectra of Bio-Based Substances (BBS) (curve A) pure gamma alumina (B), A-BBS0.1 (C), A-BBS0.2 (D), and A-BBS0.4 (E). The spectra were shifted for the sake of clarity, the vertical lines represent the most intense signals due to BBS.
Figure 1. FTIR spectra of Bio-Based Substances (BBS) (curve A) pure gamma alumina (B), A-BBS0.1 (C), A-BBS0.2 (D), and A-BBS0.4 (E). The spectra were shifted for the sake of clarity, the vertical lines represent the most intense signals due to BBS.
Nanomaterials 09 00731 g001

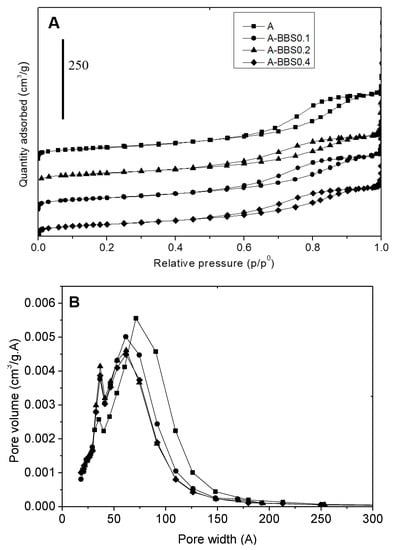

Figure 2. Nitrogen adsorption-desorption isotherms (section A) and BJH desorption pore size distribution (section B) of reference alumina (squares) and hybrid materials: A-BBS0.1 (circles), A-BBS0.2 (triangles), and A-BBS0.4 (diamond). In section A the curves were shifted for the sake of clarity.
Figure 2. Nitrogen adsorption-desorption isotherms (section A) and BJH desorption pore size distribution (section B) of reference alumina (squares) and hybrid materials: A-BBS0.1 (circles), A-BBS0.2 (triangles), and A-BBS0.4 (diamond). In section A the curves were shifted for the sake of clarity.
Nanomaterials 09 00731 g002

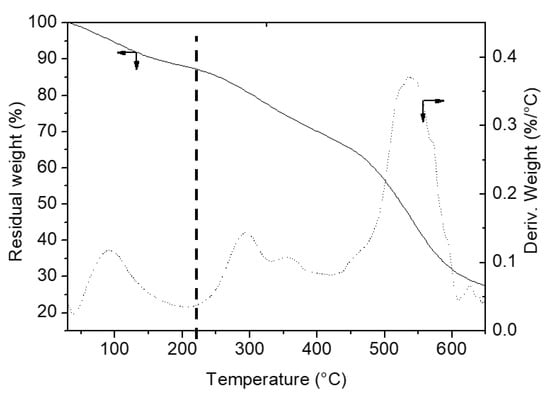

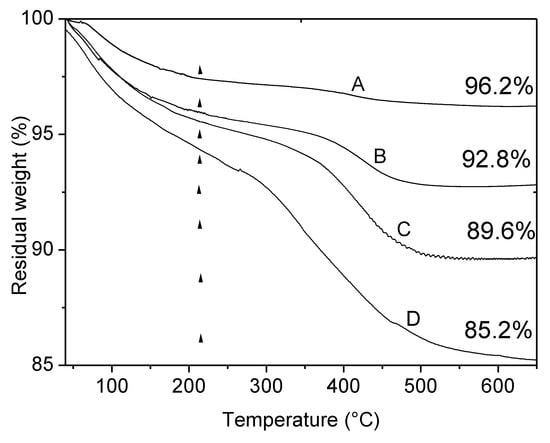

Figure 3. Thermogravimetric analysis (TGA) curves obtained in air. Upper section: A (curve A), A-BBS0.1 (B), A-BBS0.2 (C) and A-BBS0.4 (D); lower section: the residual weight (solid line) and derivative residual weight (dotted line) of BBS. The values indicated in the upper picture indicate the residual weight measured for the materials, the vertical dotted lines indicate the temperature of 220 °C used for the quantification of water and organics loss.
Figure 3. Thermogravimetric analysis (TGA) curves obtained in air. Upper section: A (curve A), A-BBS0.1 (B), A-BBS0.2 (C) and A-BBS0.4 (D); lower section: the residual weight (solid line) and derivative residual weight (dotted line) of BBS. The values indicated in the upper picture indicate the residual weight measured for the materials, the vertical dotted lines indicate the temperature of 220 °C used for the quantification of water and organics loss.
Nanomaterials 09 00731 g003aNanomaterials 09 00731 g003b

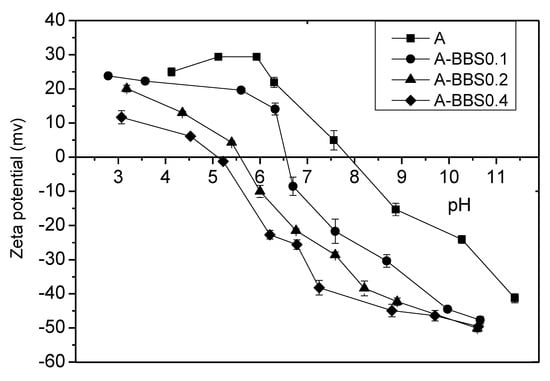

Figure 4. Zeta potential trends of A (squares), A-BBS0.1 (circles), A-BBS0.2 (triangles), and A-BBS0.4 (diamonds) as a function of pH.
Figure 4. Zeta potential trends of A (squares), A-BBS0.1 (circles), A-BBS0.2 (triangles), and A-BBS0.4 (diamonds) as a function of pH.
Nanomaterials 09 00731 g004
Scheme 1. Structure of Crystal Violet.
Scheme 1. Structure of Crystal Violet.
Nanomaterials 09 00731 sch001
Figure 5. Adsorption % of dye CV by different hybrid adsorbents A-BBS0.4, A-BBS0.2, and A-BBS0.1, versus initial dye concentration at 15 °C.
Figure 5. Adsorption % of dye CV by different hybrid adsorbents A-BBS0.4, A-BBS0.2, and A-BBS0.1, versus initial dye concentration at 15 °C.
Nanomaterials 09 00731 g005
Figure 6. Equilibrium isotherms for the adsorption of CV by different hybrid adsorbents in MilliQ water at 15 °C.
Figure 6. Equilibrium isotherms for the adsorption of CV by different hybrid adsorbents in MilliQ water at 15 °C.
Nanomaterials 09 00731 g006

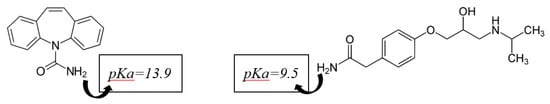

Scheme 2. Structure of Carbamazepine [59] (left side) and Atenolol (right side) and related pKa [60,61].
Scheme 2. Structure of Carbamazepine [59] (left side) and Atenolol (right side) and related pKa [60,61].
Nanomaterials 09 00731 sch002
Figure 7. Kinetic of removal of 10 ppm of Carbamazepine and Atenolol at 20 °C by 20 mg of A-BBS0.4 in 10 mL of solution expressed in removal percentage.
Figure 7. Kinetic of removal of 10 ppm of Carbamazepine and Atenolol at 20 °C by 20 mg of A-BBS0.4 in 10 mL of solution expressed in removal percentage.
Nanomaterials 09 00731 g007
Figure 8. Removal of CV from aqueous solution by A-BBS and adsorbents materials reported in the literature and listed in this work (Table 1). The colors have been assigned on the base of aspects related to possible upscaling of the processes involving the materials: energy consumption, multistep/complex synthesis, use of non-green compounds, as described in the text.
Figure 8. Removal of CV from aqueous solution by A-BBS and adsorbents materials reported in the literature and listed in this work (Table 1). The colors have been assigned on the base of aspects related to possible upscaling of the processes involving the materials: energy consumption, multistep/complex synthesis, use of non-green compounds, as described in the text.
Nanomaterials 09 00731 g008
Table 1. Removal of Crystal Violet (CV) from aqueous solutions by several adsorbents reported in the literature.
Table 1. Removal of Crystal Violet (CV) from aqueous solutions by several adsorbents reported in the literature.
Adsorbentsqm (Max Capacity) (mg/g)Ref.Temperature °CpH
Zeolite from fly ash19.6[29]255
Acid treated zeolite17.7[29]255
Magnetic nanocomposite158.73[6]506.5
Soil silver nanocomposite1.923[30]304.68
Jute fiber carbon27.99[31]309
Semi-IPN hydrogels35.09[7]257.4
Coniferous pinus bark powder (CPBP)32.78[32]308
Chitosan hydrogels beads76.9[33]307
Phosphoric acid activation carbon (PAAC)60.42[34]286
Sulphuric acid activated carbon (SAAC)85.84[34]286.04
Magnetically modified activated carbon67.1[35]209
Nanomagnetic iron oxide16.5[35]20–409
Magnetic nanocomposite81.7[36](10–50)8.5
Unye bentonite131[37]226.5
Saw dust341[39](15–50)neutral pH
Modified sphagnum peat moss121.95[40]206.5
Polyacrylic Acid-bound magnetic nano particles116[41]256
Acid-treated montmorillonite400.0[42]305.9
Treated ginger waste277.7[43](30–50)6.2
Carboxylate-functionalized cellulose nanocrystals243.9[44]306
Mango stone biocomposite352.79[45]338
Multi-walled carbon nanotubes90.52[46]256–8
Carbon nanotubes supported nanocables228.30[47](25–45)9
Polyacrylamide-bentonite composite144.60[48]306
γ-zirconium phosphate320.20*[49]259
Modified Cellulose169.9–218.8[50]509
Surfactant-modified nano-alumina254.3[51]254
6.34 *[52]256
CaCO3 bare3.35[52]256
De-oiled soya5[16]308
* The related amounts are not qm but refer to the following experimental conditions: In Ref. [49]: 500 mg of adsorbent in 523.3 mL of 1.5 × 10−2 M dye in water for a contact time of 48 h, Ref. [52]: 30 mg of adsorbent was poured in 5 mL of 0.1 mM of dye under stirring for 420 min.
Table 2. Texture features for reference and hybrid materials.
Table 2. Texture features for reference and hybrid materials.
MaterialsBET Specific Surface Area (m2/g)BJH Pore Volume (cm3/g)
Table 3. Weight losses observed for reference and hybrid materials.
Table 3. Weight losses observed for reference and hybrid materials.
Materials40–220 °C (Adsorbed Water %)220–650 °C (Organic Content and OH Groups Eliminated %)OH Groups Eliminated (%)Measured Organic Content (%) ± 0.1
Table 4. Langmuir and Freundlich model parameters calculated by linear fitting of the adsorption data.
Table 4. Langmuir and Freundlich model parameters calculated by linear fitting of the adsorption data.
Model A-BBS0.1 A-BBS0.2 A-BBS0.4
Langmuirqm (mg/g)8.920.5921.382.5035.090.61
KL (mg/L)0.0650.0200.0870.0480.090.090
RL0.898 0.861 0.763
FreundlichKF (mg/g) (L/mg)14.085.5828.5476.7567.548.455
Table 5. qm of adsorption of Contaminants of Emerging Concern (CECs) by A-BBS0.4.
Table 5. qm of adsorption of Contaminants of Emerging Concern (CECs) by A-BBS0.4.
Model Carbamazepine Atenolol
Langmuirqm (mg/g)3.06280.063.260.145
KL (mg/L)0.1190.0570.110.008
FreundlichKF (mg/g) (L/mg)0.4050.074.430.13
Table 6. Removal of organic pollutants from wastewater.
Table 6. Removal of organic pollutants from wastewater.
Adsorbentsqm (mg/g)Ref.CECTemperature (°C)pH
This studyAtenolol
Agricultural soils0.01[62]Carbamazepine259.2
Functionalized silica0.04[63]Carbamazepine257
Granulated cork1.84[64]Carbamazepine20±24.6
Activated carbon18.8[65]Atenolol256
Graphene oxide95[66]Atenolol252

Share and Cite

MDPI and ACS Style

Sadraei, R.; Paganini, M.C.; Calza, P.; Magnacca, G. An Easy Synthesis for Preparing Bio-Based Hybrid Adsorbent Useful for Fast Adsorption of Polar Pollutants. Nanomaterials 2019, 9, 731.

AMA Style

Sadraei R, Paganini MC, Calza P, Magnacca G. An Easy Synthesis for Preparing Bio-Based Hybrid Adsorbent Useful for Fast Adsorption of Polar Pollutants. Nanomaterials. 2019; 9(5):731.

Chicago/Turabian Style

Sadraei, Razieh, Maria Cristina Paganini, Paola Calza, and Giuliana Magnacca. 2019. "An Easy Synthesis for Preparing Bio-Based Hybrid Adsorbent Useful for Fast Adsorption of Polar Pollutants" Nanomaterials 9, no. 5: 731.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
