Enhanced Photocatalytic Degradation of Organic Dyes via Defect-Rich TiO2 Prepared by Dielectric Barrier Discharge Plasma

by
Yanqin Li
1,
Wei Wang
1,
Fu Wang
2,
Lanbo Di
3,
Shengchao Yang
1,
Shengjie Zhu
1,
Yongbin Yao
1,
Cunhua Ma
1,
Bin Dai
1 and
Feng Yu
1,*
1
Key Laboratory for Green Processing of Chemical Engineering of Xinjiang Bingtuan, School of Chemistry and Chemical Engineering, Shihezi University, Shihezi 832003, China
2
School of Environmental Science and Engineering, Shanghai Jiao Tong University, Shanghai 200240, China
3
College of Physical Science and Technology, Dalian University, Dalian 116622, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(5), 720; https://doi.org/10.3390/nano9050720
Submission received: 11 April 2019 / Revised: 5 May 2019 / Accepted: 7 May 2019 / Published: 9 May 2019
(This article belongs to the Special Issue Innovative Nanomaterials and Nanocomposites for Photocatalytic Removal of Organic Pollutants)
Browse Figures
Review Reports Versions Notes

Abstract

:
The dye wastewater produced in the printing and dyeing industry causes serious harm to the natural environment. TiO2 usually shows photocatalytic degradation of dye under the irradiation ultravilet light rather than visible light. In this work, a large number of oxygen vacancies and Ti3+ defects were generated on the surface of the TiO2 nanoparticles via Ar plasma. Compared with pristine TiO2 nanoparticles, the as-obtained Ar plasma-treated TiO2 (Ar-TiO2) nanoparticles make the energy band gap reduce from 3.21 eV to 3.17 eV and exhibit enhanced photocatalytic degradation of organic dyes. The Ar-TiO2 obtained exhibited excellent degradation properties of methyl orange (MO); the degradation rate under sunlight irradiation was 99.6% in 30 min, and the photocatalytic performance was about twice that of the original TiO2 nanoparticles (49%). The degradation rate under visible light (λ > 400 nm) irradiation was 89% in 150 min, and the photocatalytic performance of the Ar-TiO2 was approaching ~4 times higher than that of the original TiO2 nanoparticles (23%). Ar-TiO2 also showed good degradation performance in degrading rhodamine B (Rho B) and methylene blue (MB). We believe that this plasma strategy provides a new method for improving the photocatalytic activity of other metal oxides.

Graphical Abstract

1. Introduction

Printing and dyeing wastewater has caused serious pollution to the environment [1,2], and it is necessary to seek an effective treatment of printing and dyeing wastewater [3]. Semiconductor photocatalytic technology has attracted much attention due to its excellent application prospects in the fields of sewage treatment, air purification, cleaning and sterilization, and solar energy conversion [4,5,6]. It is also an advanced technology that uses solar energy to carry out chemical reactions in a mild environment [7,8,9]. Compared with the traditional pollutant treatment methods, it has the characteristics of mild reaction conditions, complete mineralization of pollutants, high efficiency and high stability, and no secondary pollution. Therefore, it is particularly important to construct an efficient photocatalyst with visible light response and to conduct an in-depth study of its mechanism.
Recently, photocatalysts have been catalytically active substances that can be used in the environment, including water or air purification, water splitting to produce hydrogen, carbon dioxide catalytic reduction and antibacterial action [10,11,12,13,14,15]. Among semiconductor materials, titanium dioxide (TiO2) is widely used as a photocatalyst due to its good oxidation and hydrophilic properties, excellent chemical durability and low cost [16,17,18,19]. However, TiO2 can only be activated by ultraviolet (UV) light (λ < 380 nm) due to its wide band gap (3.0–3.2 eV). UV light contains about 5% of solar energy reaching the land surface [20,21], and it is crucial to increase the photoabsorption range of TiO2 to improve solar energy utilization. TiO2 materials can achieve excellent optical absorption properties by doping [22,23,24,25,26,27].
To improve the photocatalytic performance of TiO2, some transition metal oxides were introduced into TiO2, such as FeOx [28], CuOx [29,30], NiO [31], CeO2 [32] and ZnO [33]. Metal doping could make electrons easier to excite and reduce the recombination of electron-hole pairs of TiO2 [34,35,36]. Furthermore, enhanced photo-response could be obtained by TiO2 with doping non-metals, such as N [37], C [38], F [39] and S [40]. In addition, the defects generated on the surface of TiO2 are able to effectively hinder the recombination of photogenerated electron-hole pairs. Surface defects of TiO2, for instance, Ti3+ defects and oxygen vacancies, promote the formation of the original intermediate band, which plays an important role in photoelectron capture [41].
Low temperature plasma can cause defects and oxygen vacancies on the catalyst surface to improve the catalytic efficiency [42,43,44]. The effect of treating the catalyst with low temperature plasma under different atmospheres is different. Nanowires and nanoparticles of TiO2 treated under a hot hydrogen atmosphere have better photocatalytic degradation of dye properties because of the presence of oxygen vacancies and Ti3+ forming an intermediate layer [45,46]. The application of oxygen and nitrogen plasma reduced the TiO2 powder and produced an intermediate state, resulting in an increase in its optical activity in the visible region [47]. The trapping of charge carriers, decreases the electron-hole recombination rate. However catalyst mechanisms, irradiation conditions and defects have not been fully explained.
Herein, we successfully prepared TiO2 nanoparticles by titanium alkoxide hydrolysis method, and etched them in Ar atmosphere with low temperature dielectric barrier discharge (DBD) plasma [48,49]. The results showed that the plasma-etched TiO2 nanoparticles had more oxygen vacancies and Ti3+ defects than of the original TiO2, and thus have excellent photocatalytic degradation properties under sunlight. We believe that DBD plasma provides a new strategy for etching the surface of catalysts.

2. Experimental Section

2.1. Sample Preparation

The TiO2 photocatalyst was prepared using an alkoxide hydrolysis process with titanium n-butoxide (Ti (OC4H9)4, AR, Macklin, Shanghai, China) used as the precursor for TiO2. 3 g of titanium n-butoxide was added to 100 g of ethanol (C2H5OH, AR, Fuyu Fine Chemical Co., Ltd., Tianjin, China) to obtain a mixed solution A; 5 g of deionized water was dissolved in 100 mL of absolute ethanol and stirred for 30 min to make it evenly mixed to obtain a homogeneous solution B; then the solution A was slowly dropped into solution B, and a white precipitate after about 5 min. The solution obtained was stirred vigorously for 1 h, aged for 12 h, and then the white precipitate was filtered, washed 4 times with the alcohol-water mixture, dried in a drying oven at 80 °C for 24 h, and then ground to obtain TiO2 nanoparticles. The dried powders were then calcined in air for 5 h with the temperature ranging from 30 to 450 °C. The pristine TiO2 obtained was separately subjected to plasma treatment in a dielectric barrier discharge (DBD) plasma reactor at a voltage of 50 V, a current of 1.5 A, and an Ar atmosphere for 20 min to obtain TiO2 (Ar-TiO2).

2.2. Catalyst Characterization

The catalyst crystal structure was identified by X-ray diffractometer (XRD) with Cu-Kα (40 kV, 40 mA, k = 1.5406 Å and 2θ range from 10–90°) radiation (Karlsruhe, Baden-Württemberg, German). The Raman spectrum was measured by Raman spectroscopy using a Renishaw inVia (Renishaw, London, UK) with a laser power of 5 mW and a laser excitation of 532 nm (wavenumber range 100–3200 cm−1). Using KBr as diluents, the Fourier transforms infrared spectra (FTIR) of the samples were collected with a Thermo spectrum system (Thermo Fisher Scientific, Massachusetts, MA, USA). The samples were subjected to X-ray photoelectron spectroscopy (XPS, Thermo Scientific Escalab 250Xi, Thermo Fisher Scientific, Massachusetts, MA, USA) by using Al Kα radiation (1486.6 eV). All binding energies were calibrated using the C1s peak (BE = 284.8 eV) as a standard. Morphology and microstructure were determined by transmission electron microscopy (TEM, Tecnai G2 F30 S-TWIN 200 KV, Hillsboro, OR, USA), high resolution TEM (HRTEM) and selective area electron diffraction (SAED). Measurement of electron paramagnetic resonance (EPR) spectra was performed at 300 K using a Bruker A200 EPR spectrometer (Bruker, Karlsruhe, Germany). The samples were subjected to UV-Vis testing using Shimadzu UV3600 (Shimadzu, Tokyo, Japan). Brunauer–Emmett–Teller (BET) surface area, pore volumes and pore diameter of the samples were determined by using a Micromeritics ASAP 2020C surface area and porosity analyzer (Micromeritics ASAP 2020 BET apparatus, Atlanta, Georgia, GA, USA). The samples were degassed for 4 h at 200 degrees and then analyzed using N2 adsorption-desorption in liquid nitrogen.

2.3. Photocatalytic Activity Measurements

Photocatalytic performance was investigated by using a 300 W Xeon lamp equipped with a 400 nm cut-off filter to degrade methyl orange (MO), rhodamine B (Rho B) and MB under sunlight and visible light. Water cooled the reactor, to keep the temperature at 25 °C. To put it simply, 50 mg photocatalyst was mixed with 100 mL 10 mg·L−1 organic dye solution, and the mixed solution was placed 20 cm away from the photosource. Meanwhile, the mixture was stirred stably. The sample solution was then collected every 30 min of irradiation. The solution collected was centrifuged at 10,000 rpm for 2 min, the mixed solution was separated, and the supernatant was extracted for ultraviolet testing. The dye solutions collected (MO, Rho B and MB) were subjected to absorbance detection using UV-Vis (TU-1900). The degradation efficiencies of MO, Rho B and MB were analyzed by changes in absorption peaks at 462, 554 and 660 nm. The degradation rates of MO, Rho B and MB are calculated by the formula ln (C0/C) = kt, where k is the reaction rate constant, C0 and C are the initial concentration of the dye and the concentration after the reaction time t.

2.4. Apparent Quantum Efficiency Measurement

The photocatalytic H2-production experiments were performed in a 300 mL sealed jacket beaker at ambient temperature and atmospheric pressure. In a typical photocatalytic experiment, 100 mg of Ar-TiO2 composite photocatalyst was suspended in 100 mL of aqueous solution containing methanol (20.0 V%) as sacrificial agents for trapping holes. Proper amount of H2PtCl6 aqueous solution was added in the above solution. Therefore, 3.0 wt% Pt, as a co-catalyst, was in-suit reduced during the photocatalytic hydrogen evolution reaction. Then, evacuation was performed with a vacuum pump to ensure that the reactor was under vacuum. A continuous magnetic stirrer was applied at the bottom of the reactor in order to keep the photocatalyst particles in suspension status during the whole experiment. After 0.5 h of irradiation, the chromatographic inlet was opened, and hydrogen was analyzed by gas chromatograph (GC7806, Beijing Shiwei Spectrum Analysis Instrument Co., Ltd., Beijing, China, TCD, with nitrogen as a carrier gas and 5 A molecular sieve column). All glassware was carefully rinsed with deionized water prior to use. The apparent quantum efficiency (AQE) was measured under the same photocatalytic reaction conditions. A Xe lamp source (300 W, 385 nm) was placed 10 cm directly above the reactor to serve as a light source to initiate a photocatalytic reaction. The optical power density of the Xe lamp source is measured by a strong optical power meter (CEL-NP2000) and the focused area on the beaker is 30 cm2. We measured and calculated the number of photons according to Equation (1):
n u m b e r p h o t o n s = F o c u s e d   i n t e n s i t y   ×   F o c u s e d   a r e a h v = F o c u s e d   i n t e n s i t y   ×   F o c u s e d   a r e a h c λ
We measured and calculated apparent quantum efficiencies (AQE) according to Equation (2): [50]
A Q E ( % ) = n u m b e r   o f   r e a c t e d   e l e c t r o n s   n u m b e r   o f   i n c i d e n t   p h o t o n s × 100 = number   of   evolve   H 2   molecules × 2 number   of   incident   photons × 100
where h is the Planck constant (J·s), c is Speed of light (m/s) and λ is the wavelength of linght (nm).

3. Results and Discussion

3.1. Physicochemical Properties of Catalysts

Figure 1a shows the XRD pattern of the original TiO2 and Ar-TiO2. It can be seen from the XRD pattern that only the diffraction peak of anatase has no other impurity peaks detected, indicating that the sample contains only anatase. Two samples showed similar peak positions, which were attributed to TiO2 (anatase, PDF#21-1272). The diffraction peaks: 2θ = 25°, 37.5°, 48.4°, 53.5°, 55.3° and 62.2° were assigned to the (101), (004), (200), (211) and (204) lattice planes. The XRD pattern of the modified TiO2 has a higher strength than the original TiO2, which indicated that the Ar plasma caused an improvement in the crystallinity of the modified TiO2. The broadened diffraction peaks indicated that the size of the nanocrystals is small [51]. There was no significant difference between the two samples.
Figure 1b shows the Raman spectrum of the original TiO2 and Ar-TiO2 in Ar atmosphere. The original sample peaks were: 146 cm−1 (Eg), 196 cm−1 (Eg), 399 cm−1 (B1g), 514 cm−1 (A1g or B1g) and 640 cm−1 (A1g) respectively typical Anatase phase [52,53,54]. The treated sample showed a scattering peak only at 146 cm−1 (Eg). The peak intensity and width of TiO2 treated with plasma in Ar atmosphere were lower and wider than those of the original TiO2. This indicated that there were some defects on the surface of TiO2 after plasma treatment [55]. The Raman scattering selection rule was broken, indicating the surface characteristics of the disordered phase [56]. Raman analysis showed that the molecular vibration of the surface crystallinity of TiO2 was seriously affected by the plasma treatment.
The FTIR spectra of the original and Ar-TiO2 are shown in Figure 1c. An absorption peak appearing near 523 cm−1 was due to the Ti-O-Ti bond of nano-titanium dioxide, and the absorption peaks at 3500–3000 cm−1 and 1630 cm−1 were caused by the tensile vibration of the hydroxyl group. The hydroxyl group was adsorbed on the surface of the material [57]. The C-O band (1437 cm−1) was detected due to the formation of CO2 on the surface of TiO2 [58,59].
X-ray photoelectron spectroscopy (XPS) demonstrates the defects and the chemical composition of Ar-TiO2. The XPS spectra of the elements O 1s and Ti 2p are shown in Figure 2b,c. In Figure 2b, O 1s was divided into three peaks, 530.0, 531.6 and 533.1 eV, respectively, which corresponds with lattice oxygen (Olatt), defect oxygen (Odef) and surface oxygen (Osurf) [60,61].
Figure 2b shows that, compared with the original TiO2, the Odef content in the Ar-TiO2 is significantly increased, indicating that the plasma effectively removed oxygen, and thus some oxygen vacancies are produced in the crystal lattice of TiO2. In calculation, the defect-oxygen content of the plasma-treated TiO2 was four times that of the original TiO2 (Table 1) [60].
Figure 2c presents the Ti 2p photoelectron spectra of TiO2, the Ti 2p peaks at 464.76, 463.7, 459.03, and 458.48 eV were observed corresponding to Ti4+ 2p1/2, Ti3+ 2p1/2, Ti4+ 2p3/2, and Ti3+ 2p3/2, respectively [55,62]. However, it can be seen that after the plasma treatment in the Ar atmosphere, the peaks of Ti4+ at 459.03 eV and 464.76 eV were shifted by 0.36 eV and 0.24 eV, and the content of Ti3+ peak was increased, implying that Ti3+ was generated as a result of the Ti4+ reduction. A large amount of Ti3+ and oxygen vacancy in Ar-TiO2 could make the coordination number of Ti-O-Ti and the surface lattice structure change, thus generating the defects [63]. According to the results of XPS analysis, the plasma-treated titanium dioxide had abundant defects and oxygen vacancies, which played a key role in the degradation of the photocatalyst.
Electron paramagnetic resonance (EPR) was used to further demonstrated oxygen vacancies and Ti3+ defects of the samples. The magnetization results recorded at 300 K clearly showed surface oxygen vacancies and unpaired spins electrons of Ti3+ 3d1 in the samples. Figure 2d shows the EPR results of the original TiO2 and Ar-TiO2. The index values of the g peaks at 1.95 and 2.004 corresponded to Ti3+ and oxygen vacancies in the TiO2 lattice, respectively [60,64,65]. The content of Ti3+ and oxygen vacancies in plasma treatment were significantly higher than that of the original TiO2, which was consistent with the analysis results of the XPS spectrum.
In order to test the optical performance of the photocatalyst, UV-Vis among 200 nm and 800 nm was surveyed. As shown in Figure 3a, all of the TiO2 photocatalysts showed the significant absorption of light in the ultraviolet region (<400 nm) and the light absorption of the Ar-TiO2 photocatalyst moved toward the visible region. The band gap of each sample was estimated by the simulation calculation, TiO2 was 3.21 eV and the Ar-TiO2 was 3.17 eV (inset of Figure 3a). This value is the effect of the extrapolation to zero (αhν) 1/2 curve on photon energy, where α is the absorption factor and hν is the light quantum energy [53,56]. Based on the XPS valence band (VB) spectrum (Figure 3b), the valence band position of Ar-TiO2 was 2.93 eV, which was lower than the original TiO2 (3.02 eV). These results indicated that the oxygen vacancies (or Ti3+ species) were produced during the Ar gas plasma treatment and caused the band gap of the Ar-TiO2 photocatalyst to be narrowed. The electronic band-gap structure and photocatalytic degradation mechanism of TiO2 samples were shown in Figure 4.

3.2. Morphological Characterization

In order to eliminate the impact of catalyst adsorption on photocatalytic performance, BET tests were carried out on the two materials. The N2 adsorption-desorption isotherms and Barrett-Joyner-Halenda (BJH) pore size distribution curves of TiO2 and Ar-TiO2 catalysts are shown in Figure 1d. Both catalyst isotherms are typical type IV isotherms, H1 type hysteresis loops, indicating that the International Union of Pure and Applied Chemistry (IUPAC) classification are a mesoporous material [66]. The BET surface areas of TiO2 and Ar-TiO2 were about 124.7 m2/g and 121.3 m2/g, respectively (Table 2), indicating that the specific surface areas of the two catalysts were not much different.
The pore size distribution (Figure 1d) was determined by the BJH method from the desorption branch of the isotherm, indicating that these TiO2 nanoparticles have a very pronounced mesoporous structure. The average pore diameters of TiO2 and Ar-TiO2 were 5.6 and 5.6 nm, respectively (Table 2). The mesoporous size distribution of the TiO2 nanoparticles and the mesoporous size distribution of the plasma-treated TiO2 nanoparticles were not greatly different, indicating that the pore size uniformity of the two materials were near same. The effect of physical adsorption on photocatalytic performance can be ruled out.
TEM and HRTEM images of TiO2 and Ar-TiO2 are shown in Figure 5. Figure 5a,d shown that there were no significant changes in the morphology of the TiO2 after the treatment, and both of them exhibit irregular large spherical nanoparticles. These irregular spherical nanoparticles consist of a plurality of small particles. As shown in Figure 5c, the TiO2 catalyst showed clear lattice fringes. The lattice spacing values were 0.352, 0.2378 and 0.189 nm, corresponding to the (101), (004) and (200) crystal faces of TiO2, respectively. However, in Figure 5f, after plasma treatment (Ar-TiO2), the surface of TiO2 changed significantly, localized regions were destroyed and uneven, lattice defects were generated, and many deformations occurred. The lattice can increase the amorphous crystal structure and oxygen vacancies [56]. Therefore, defects on the surface of the catalyst after plasma treatment expose more active sites, improving photocatalytic activity.

3.3. Photocatalytic Performance

The photocatalytic degradation experiments of MO, Rho B and MB dye solutions in TiO2 and Ar-TiO2 photocatalysts under sunlight and visible light (λ ≥ 400 nm) were estimated. In a typical photocatalytic reaction, TiO2 absorbs energy greater than its forbidden band width and excites electron-hole pairs in the conduction and valence bands. Then these segregated charges transfer to the catalyst surface to take part in the following photocatalytic degradation reaction. Above all, the strong active O species (O2−· and ·OH) produced in the photocatalytic process have superior redox properties and are used to degrade organic pollutants in water, resulting in an effective photocatalytic degradation reaction.
Figure 6a shows that the Ar-TiO2 (99.6% efficiency) photocatalyst achieved better MO degradation performance than TiO2 (49% efficiency) after 30 min of sunlight exposure. Degradation rate k (kt = ln(C0/C)), the degradation rate of the TiO2 sample was 0.66 h−1, and the degradation rate of Ar-TiO2 sample was 5.38 h−1. Similarly, Ar-TiO2 photocatalyst showed excellent performance in the degradation of MO solution after visible light (λ ≥ 400 nm) for 150 min (Figure 6b). The degradation rate of TiO2 was 0.26 h−1, and the degradation rate of Ar-TiO2 was 2.14 h−1. As shown in Figure 6c–f, similar results were obtained for additional degradation experiment of Rho B and MB under sunlight and visible light (λ ≥ 400 nm) illumination. The degradation rate after dye degradation is shown in Table 3.
Figure 6c,e show that the Ar-TiO2 sample has excellent removal performance in the degradation test of Rho B and MB solution under 120 min of sunlight, while the degradation efficiency of the TiO2 sample was relatively lower. Under sunlight, the degradation efficiency of Ar-TiO2 to MO was higher than that of Rho B and MB. Therefore, the photodegradation properties of the Ar-TiO2 sample depend on the dye used, MO (anionic dye), Rho B and MB (cationic dye). This was because the degradation efficiency of the catalyst is impacted by the pH value of the organic dye solution. The pH changed the surface electric charge of TiO2, which affected the adsorption of the organic dye on the surface of TiO2, and influenced the rate on reaction and changed the degradation performance of the photocatalyst [67]. The same test on photocatalyst under visible light (λ ≥ 400 nm) was performed. It can be seen from the Figure 6b,d,f that Ar-TiO2 catalyst exhibited excellent degradation performance in degrading MO, Rho B and MB under 150 min visible light irradiation. The excellent photocatalytic performance of the Ar-TiO2 sample was attributed to the reduction of the TiO2 band gap by plasma treatment, resulting in an expansion of the optical absorption range from the ultraviolet to the visible region, and an increase in the amount of active oxygen and Ti3+ defects.
The apparent quantum efficiencies (AQE) of the TiO2 and Ar-TiO2 catalysts was calculated by photocatalytic hydrogen production experiments under full-spectrum conditions. As shown in Table 4, the optical power density was 800 mW·cm−2 by the strong optical power meter measured. The number of incident photons were 4.615 × 1019 calculated by the Formula (1) calculated. As can be seen from Table 4, the sample of TiO2 exhibited a H2 evolution rates (HER) of 320 μmol·g−1·h−1 with a quantum efficiency of 41.7 % under UV light irradiation (λ = 385 nm) after 2.5 h. Compared with TiO2, the sample of Ar-TiO2 exhibited the highest H2 evolution rates (530 μmol·g−1·h−1) with a quantum efficiency of 69.0 %. It can be concluded Ar-TiO2 has higher light utilization efficiency.

4. Conclusions

In conclusion, low temperature DBD plasma was successfully employed to treat the surface of TiO2 nanoparticles in Ar atmosphere. The Ar-TiO2 obtained was used for photocatalytic degradation of organic dyes. The results indicated that a large number of oxygen vacancies and Ti3+ defects were subsequently generated to promote the decomposition of the reactant molecules, thereby improving the reaction efficiency. Plasma treatment shortened the width of the TiO2 band gap and expanded the light absorption range. The photocatalytic performance indicated that the plasma-treated TiO2 was much better than the original TiO2 nanoparticles in photocatalytic degradation of organic dyes under sunlight. Therefore, plasma can be an effective means to optimize photocatalytic degradation of TiO2 nanoparticles.

Author Contributions

F.Y. conceived, designed and administered the experiments. Y.L. contributed to the synthesis and characterization of materials. W.W., F.W., S.Z. and Y.Y. helped in collected and analyzed data. S.Y. helped to revise the grammar. L.D., B.D. and C.M gave conceptual advice. All authors analyzed, discussed the data and wrote the manuscript.

Funding

This work was financially supported the National Natural Science Foundation of China (No. 21663022).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, Y.; Zhu, M.; Li, Y.; Zhang, M.; Xue, X.; Shi, Y.; Dai, B.; Guo, X.; Feng, Y. Heteroatom-doped porous carbon from methyl orange dye wastewater for oxygen reduction. Green Energy Environ. 2017, 3, 172–178. [Google Scholar] [CrossRef]
  2. Song, C.; Zhao, J.; Li, H.; Liu, L.; Xuan, L.; Xing, H.; Liu, H.; Yu, Y. One-pot synthesis and combined use of modified cotton adsorbent and flocculant for purifying dyeing wastewater. ACS Sustain. Chem. Eng. 2018, 6, 6876–6888. [Google Scholar] [CrossRef]
  3. Vakili, M.; Rafatullah, M.; Salamatinia, B.; Abdullah, A.Z.; Ibrahim, M.H.; Tan, K.B.; Gholami, Z.; Amouzgar, P. Application of chitosan and its derivatives as adsorbents for dye removal from water and wastewater: A review. Carbohydr. Polym. 2014, 113, 115–130. [Google Scholar] [CrossRef] [PubMed]
  4. Nguyen, N.T.; Altomare, M.; Yoo, J.; Schmuki, P. Efficient photocatalytic H2 evolution: Controlled dewetting-dealloying to fabricate site-selective high-activity nanoporous au particles on highly ordered TiO2 nanotube arrays. Adv. Mater. 2015, 27, 3208–3215. [Google Scholar] [CrossRef]
  5. Nebel, C.E. Photocatalysis: A source of energetic electrons. Nat. Mater. 2013, 12, 780–781. [Google Scholar] [CrossRef]
  6. Murphy, C.J.; Buriak, J.M. Best Practices for the Reporting of Colloidal Inorganic Nanomaterials. Chem. Mater. 2015, 27, 4911–4913. [Google Scholar] [CrossRef]
  7. Hoque, M.; Guzman, M. Photocatalytic Activity: Experimental Features to Report in Heterogeneous Photocatalysis. Materials 2018, 11, 1990. [Google Scholar] [CrossRef]
  8. Boerigter, C.; Campana, R.; Morabito, M.; Linic, S. Evidence and implications of direct charge excitation as the dominant mechanism in plasmon-mediated photocatalysis. Nat. Commun. 2016, 7, 10545. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Wang, Y.; Sun, H.; Tan, S.; Feng, H.; Cheng, Z.; Zhao, J.; Zhao, A.; Wang, B.; Luo, Y.; Yang, J. Role of point defects on the reactivity of reconstructed anatase titanium dioxide (001) surface. Nat. Commun. 2013, 4, 2214. [Google Scholar] [CrossRef]
  10. Etacheri, V.; Valentin, C.D.; Schneider, J.; Bahnemann, D.; Pillai, S.C. Visible-light activation of TiO2 photocatalysts: Advances in theory and experiments. J. Photochem. Photobiol. C 2015, 25, 1–29. [Google Scholar] [CrossRef]
  11. Pelaez, M.; Nolan, N.T.; Pillai, S.C.; Seery, M.K.; Falaras, P.; Kontos, A.G.; Dunlop, P.S.M.; Hamilton, J.W.J.; Byrne, J.A.; O’Shea, K. A review on the visible light active titanium dioxide photocatalysts for environmental applications. Appl. Catal. B Environ. 2012, 125, 331–349. [Google Scholar] [CrossRef] [Green Version]
  12. Jenny, S.; Masaya, M.; Masato, T.; Jinlong, Z.; Yu, H.; Masakazu, A.; Bahnemann, D.W. Understanding TiO2 photocatalysis: Mechanisms and materials. Chem. Rev. 2014, 114, 9919–9986. [Google Scholar]
  13. Banerjee, S.; Dionysiou, D.D.; Pillai, S.C. Self-cleaning applications of TiO2 by photo-induced hydrophilicity and photocatalysis. Appl. Catal. B Environ. 2015, 176–177, 396–428. [Google Scholar] [CrossRef]
  14. Xu, F.; Zhang, J.; Zhu, B.; Yu, J.; Xu, J. CuInS2 sensitized TiO2 hybrid nanofibers for improved photocatalytic CO2 reduction. Appl. Catal. B Environ. 2018, 230, 194–202. [Google Scholar] [CrossRef]
  15. Chen, W.; Wang, Y.; Shangguan, W. Metal (oxide) modified (M= Pd, Ag, Au and Cu) H2SrTa2O7 for photocatalytic CO2 reduction with H2O: The effect of cocatalysts on promoting activity toward CO and H2 evolution. Int. J. Hydrogen Energy 2019, 44, 4123–4132. [Google Scholar] [CrossRef]
  16. Nakata, K.; Fujishima, A. TiO2 photocatalysis: Design and applications. J. Photochem. Photobiol. C 2012, 13, 169–189. [Google Scholar] [CrossRef]
  17. Hoffmann, M.R.; Martin, S.T.; Choi, W.; Bahnemann, D.W. Environmental applications of semiconductor photocatalysis. Chem. Rev. 1995, 95, 69–96. [Google Scholar] [CrossRef]
  18. Fujishima, A.; Zhang, X.; Tryk, D.A. Heterogeneous photocatalysis: From water photolysis to applications in environmental cleanup. Int. J. Hydrogen Energy 2007, 32, 2664–2672. [Google Scholar] [CrossRef]
  19. Wang, R.; Hashimoto, K.; Fujishima, A.; Chikuni, M.; Kojima, E.; Kitamura, A.; Shimohigoshi, M.; Watanabe, T. Light-induced amphiphilic surfaces. Nature 1997, 388, 431–432. [Google Scholar] [CrossRef]
  20. Chen, X.; Lei, L.; Huang, F. Cheminform abstract: Black titanium dioxide (TiO2) nanomaterials. Chem. Soc. Rev. 2015, 46, 1861–1885. [Google Scholar] [CrossRef]
  21. Xiaobo, C.; Clemens, B. The electronic origin of the visible-light absorption properties of C-, N- and s-doped TiO2 nanomaterials. J. Am. Chem. Soc. 2008, 130, 5018–5019. [Google Scholar]
  22. Shin, S.W.; Lee, J.Y.; Ahn, K.S.; Kang, S.H.; Jin, H.K. Visible light absorbing TiO2 nanotube arrays by sulfur treatment for photoelectrochemical water splitting. J. Phys. Chem. C 2015, 119, 13375–13383. [Google Scholar] [CrossRef]
  23. Gui-Sheng, L.; Die-Qing, Z.; Yu, J.C. A new visible-light photocatalyst: Cds quantum dots embedded mesoporous TiO2. Environ. Sci. Technol. 2009, 43, 7079–7085. [Google Scholar]
  24. Jiang, D.; Xu, Y.; Wu, D.; Sun, Y. Visible-light responsive dye-modified TiO2 photocatalyst. J. Solid State Chem. 2008, 181, 593–602. [Google Scholar] [CrossRef]
  25. Saji, G.; Suman, P.; Zhaoxia, J.; Henderson, B.L.; Tian, X.; Linjiang, L.; Zink, J.I.; Nel, A.E.; Lutz, M.D. Role of fe doping in tuning the band gap of TiO2 for the photo-oxidation-induced cytotoxicity paradigm. J. Am. Chem. Soc. 2011, 133, 11270–11278. [Google Scholar]
  26. Han, Y.X.; Yang, C.L.; Wang, M.S.; Ma, X.G.; Wang, L.Z. Enhancing the visible-light absorption of TiO2 with the use of key n, co, and na dopant concentrations. Energy Mater. Sol. Cells 2015, 132, 94–100. [Google Scholar] [CrossRef]
  27. Lee, H.U.; Lee, S.C.; Choi, S.H.; Son, B.; Lee, S.J.; Kim, H.J.; Lee, J. Highly visible-light active nanoporous TiO2 photocatalysts for efficient solar photocatalytic applications. Appl. Catal. B Environ. 2013, 129, 106–113. [Google Scholar] [CrossRef]
  28. Wan, H.; Yao, W.; Zhu, W.; Yi, T.; Ge, H.; Shi, X.; Tao, D. Fe-N co-doped SiO2 @TiO2 yolk-shell hollow nanospheres with enhanced visible light photocatalytic degradation. Appl. Surf. Sci. 2018, 444, 355–363. [Google Scholar] [CrossRef]
  29. Chen, S.; Li, X.; Zhou, W.; Zhang, S.; Fang, Y. Carbon-coated Cu-TiO2 nanocomposite with enhanced photostability and photocatalytic activity. Appl. Surf. Sci. 2019, 466, 254–261. [Google Scholar] [CrossRef]
  30. Aguirre, M.E.; Zhou, R.; Eugene, A.J.; Guzman, M.I.; Grela, M.A. Cu2O/TiO2 heterostructures for CO2 reduction through a direct Z-scheme: Protecting Cu2O from photocorrosion. Appl. Catal. B Environ. 2017, 217, 485–493. [Google Scholar] [CrossRef]
  31. She, H.; Zhou, H.; Li, L.; Wang, L.; Huang, J.; Wang, Q. Nickel-doped excess oxygen defect titanium dioxide for efficient selective photocatalytic oxidation of benzyl alcohol. ACS Sustain. Chem. Eng. 2018, 6, 11939–11948. [Google Scholar] [CrossRef]
  32. Hao, C.; Li, J.; Zhang, Z.; Ji, Y.; Zhan, H.; Xiao, F.; Wang, D.; Liu, B.; Su, F.; Hao, C. Enhancement of photocatalytic properties of TiO2 nanoparticles doped with CeO2 and supported on SiO2 for phenol degradation. Appl. Surf. Sci. 2015, 331, 17–26. [Google Scholar] [CrossRef]
  33. Zha, R.; Nadimicherla, R.; Guo, X. Ultraviolet photocatalytic degradation of methyl orange by nanostructured TiO2/ZnO heterojunctions. J. Mater. Chem. A 2015, 3, 6565–6574. [Google Scholar] [CrossRef]
  34. Khairy, M.; Zakaria, W. Effect of metal-doping of TiO2 nanoparticles on their photocatalytic activities toward removal of organic dyes. Egypt. J. Petrol. 2014, 23, 419–426. [Google Scholar] [CrossRef]
  35. Choi, H.J.; Kang, M. Hydrogen production from methanol/water decomposition in a liquid photosystem using the anatase structu re of cu loaded. Int. J. Hydrogen Energy 2007, 32, 3841–3848. [Google Scholar] [CrossRef]
  36. Ganesh, I.; Gupta, A.K.; Kumar, P.P.; Sekhar, P.S.; Radha, K.; Padmanabham, G.; Sundararajan, G. Preparation and characterization of Ni-doped TiO2 materials for photocurrent and photocatalytic applications. Sci. World J. 2012, 2012, 127326. [Google Scholar] [CrossRef]
  37. Burda, C.; Lou, Y.; Chen, X.; Samia, A.C.S.; Gole, J.L. Enhanced nitrogen doping in TiO2 nanoparticles. Nano Lett. 2003, 3, 1049–1051. [Google Scholar] [CrossRef]
  38. Jing, L.; Yong, W.; Huang, J.; Jie, F.; Cao, L.; Li, C. In situ synthesis of mesoporous c-doped TiO2 single crystal with oxygen vacancy and its enhanced sunlight photocatalytic properties. Dyes Pigment. 2017, 144, 203–211. [Google Scholar]
  39. Di, L.; Haneda, H.; Hishita, S.; Ohashi, N. Visible-light-driven N−F−codoped TiO2 photocatalysts. 2. Optical characterization, photocatalysis, and potential application to air purification. Chem. Mater. 2005, 17, 2596–2602. [Google Scholar]
  40. Ohno, T. Preparation of visible light active s-doped TiO2 photocatalysts and their photocatalytic activities. Water Sci. Technol. 2004, 265, 115–121. [Google Scholar] [CrossRef]
  41. Sonobe, T.; Yoshida, K.; Hachiya, K.; Bakr, M.A.; Kii, T.; Yoshikawa, S.; Ohgaki, H. Optical studies of the microwave-treated TiO2 photocatalyst by mir-fel. J. Sustain. Ener. Environ. 2011, 2, 27–29. [Google Scholar]
  42. Pylnev, M.; Chang, W.-H.; Wong, M.-S. Shell of black titania prepared by sputtering TiO2 target in H2 + Ar plasma. Appl. Surf. Sci. 2018, 462, 285–290. [Google Scholar] [CrossRef]
  43. Bonelli, T.S.; Pereyra, I. Low temperature rf plasma nitriding of self-organized TiO2 nanotubes for effective bandgap reduction. Appl. Surf. Sci. 2018, 442, 239–244. [Google Scholar] [CrossRef]
  44. Chung, K.H.; Jeong, S.; Kim, B.J.; An, K.H.; Park, Y.K.; Jung, S.C. Enhancement of photocatalytic hydrogen production by liquid phase plasma irradiation on metal-loaded TiO2/carbon nanofiber photocatalysts. Int. J. Hydrogen Energy 2018, 43, 11422–11429. [Google Scholar] [CrossRef]
  45. Zheng, Z.; Huang, B.; Lu, J.; Wang, Z.; Qin, X.; Zhang, X.; Dai, Y.; Whangbo, M.-H. Hydrogenated titania: Synergy of surface modification and morphology improvement for enhanced photocatalytic activity. Chem. Commun. 2012, 48, 5733–5735. [Google Scholar] [CrossRef]
  46. Wang, G.; Wang, H.; Ling, Y.; Tang, Y.; Yang, X.; Fitzmorris, R.C.; Wang, C.; Zhang, J.Z.; Li, Y. Hydrogen-treated TiO2 nanowire arrays for photoelectrochemical water splitting. Nano Lett. 2011, 11, 3026–3033. [Google Scholar] [CrossRef] [PubMed]
  47. Mohammadizadeh, M.R.; Bagheri, M.; Aghabagheri, S.; Abdi, Y. Photocatalytic activity of TiO2 thin films by hydrogen dc plasma. Appl. Surf. Sci. 2015, 350, 43–49. [Google Scholar] [CrossRef]
  48. Wang, Y.; Yu, F.; Zhu, M.; Ma, C.; Zhao, D.; Wang, C.; Zhou, A.; Dai, B.; Ji, J.; Guo, X. N-Doping of plasma exfoliated graphene oxide via dielectric barrier discharge plasma treatment for the oxygen reduction reaction. J. Mater. Chem. A 2018, 6, 2011–2017. [Google Scholar] [CrossRef]
  49. Zhao, D.; Yu, F.; Zhou, A.; Ma, C.; Dai, B. High-efficiency removal of NOx using dielectric barrier discharge nonthermal plasma with water as an outer electrode. Plasma Sci. Technol. 2018, 20, 014020. [Google Scholar] [CrossRef]
  50. Pan, D.; Han, Z.; Miao, Y.; Zhang, D.; Li, G. Thermally stable TiO2 quantum dots embedded in SiO2 foams: Characterization and photocatalytic H2 evolution activity. Appl. Catal. B Environ. 2018, 229, 130–138. [Google Scholar] [CrossRef]
  51. Pu, S.; Zhu, R.; Hui, M.; Deng, D.; Pei, X.; Fei, Q.; Wei, C. Facile in-situ design strategy to disperse TiO2 nanoparticles on graphene for the enhanced photocatalytic degradation of Rhodamine 6G. Appl. Catal. B Environ. 2017, 218, 208–219. [Google Scholar] [CrossRef]
  52. Han, E.; Vijayarangamuthu, K.; Youn, J.S.; Park, Y.K.; Jung, S.C.; Jeon, K.J. Degussa P 25 TiO2 modified with H2O2 under microwave treatment to enhance photocatalytic properties. Catal. Today 2017, 303, 305–312. [Google Scholar] [CrossRef]
  53. An, H.R.; Yong, C.H.; Kim, H.; Jin, Y.H.; Park, E.C.; Park, S.Y.; Jeong, Y.; Park, J.I.; Kim, J.P.; Lee, Y.C. Studies on mass production and highly solar light photocatalytic properties of gray hydrogenated-TiO2 sphere photocatalysts. J. Hazard. Mater. 2018, 358, 222–233. [Google Scholar] [CrossRef]
  54. Vinodkumar, E.; Yourey, J.E.; Bartlett, B.M. Chemically bonded TiO2-bronze nanosheet/reduced graphene oxide hybrid for high-power lithium ion batteries. ACS Nano 2014, 8, 1491–1499. [Google Scholar]
  55. Ullattil, S.G.; Periyat, P. A ‘one pot’ gel combustion strategy towards Ti3+ self-doped ‘black’ anatase TiO2-x solar photocatalyst. J. Mater. Chem. A 2016, 4, 5854–5858. [Google Scholar] [CrossRef]
  56. Kong, X.; Xu, Y.; Cui, Z.; Li, Z.; Liang, Y.; Gao, Z.; Zhu, S.; Yang, X. Defect enhances photocatalytic activity of ultrathin TiO2 (B) nanosheets for hydrogen production by plasma engraving method. Appl. Catal. B Environ. 2018, 230, 11–17. [Google Scholar] [CrossRef]
  57. Pillai, S.C.; Periyat, P.; George, R.; Mccormack, D.E.; Seery, M.K.; Hayden, H.; Colreavy, J.; Corr, D.; Hinder, S.J. Synthesis of high-temperature stable anatase TiO2 photocatalyst. J. Phys. Chem. C 2007, 111, 1605–1611. [Google Scholar] [CrossRef]
  58. Dzwigaj, S.; Arrouvel, C.; Breysse, M.; Geantet, C.; Inoue, S.; Toulhoat, H.; Raybaud, P. DFT makes the morphologies of anatase-TiO2 nanoparticles visible to ir spectroscopy. J. Catal. 2005, 236, 245–250. [Google Scholar] [CrossRef]
  59. Kang, I.C.; Zhanga, Q.; Shu, Y.; Satoa, T.; Saitoa, F. Preparation of a visible sensitive carbon doped tio2 photo-catalyst by grinding TiO2 with ethanol and heating treatment. Appl. Catal. B Environ. 2008, 80, 81–87. [Google Scholar] [CrossRef]
  60. Ou, G.; Xu, Y.; Wen, B.; Lin, R.; Ge, B.; Tang, Y.; Liang, Y.; Yang, C.; Huang, K.; Zu, D. Tuning defects in oxides at room temperature by lithium reduction. Nat. Commun. 2018, 9, 1302. [Google Scholar] [CrossRef]
  61. Qi, K.; Liu, S.Y.; Qiu, M.; University, N.; University, S. Photocatalytic performance of TiO2 nanocrystals with/without oxygen defects. Chin. J. Catal. 2018, 39, 867–875. [Google Scholar] [CrossRef]
  62. Hu, M.; Xing, Z.; Yan, C.; Li, Z.; Xu, Y.; Xiu, Z.; Zhao, T.; Yang, S.; Wei, Z. Ti3+ self-doped mesoporous black TiO2/SiO2/g-C3N4 sheets heterojunctions as remarkable visible-lightdriven photocatalysts. Appl. Catal. B Environ. 2018, 226, 499–508. [Google Scholar] [CrossRef]
  63. Xiaobo, C.; Lei, L.; Yu, P.Y.; Mao, S.S. Increasing solar absorption for photocatalysis with black hydrogenated titanium dioxide nanocrystals. Science 2011, 331, 746–750. [Google Scholar]
  64. Wanbiao, H.; Yun, L.; Withers, R.L.; Frankcombe, T.J.; Lasse, N.; Amanda, S.; Melanie, K.; Paul, S.; Bill, G.; Hua, C. Electron-pinned defect-dipoles for high-performance colossal permittivity materials. Nat. Mater. 2013, 12, 821–826. [Google Scholar]
  65. Lin, T.; Yang, C.; Wang, Z.; Yin, H.; Lü, X.; Huang, F.; Lin, J.; Xie, X.; Jiang, M. Effective nonmetal incorporation in black titania with enhanced solar energy utilization. Energy Environ. Sci. 2014, 7, 967. [Google Scholar] [CrossRef]
  66. Yunxia, Z.; Guanghai, L.; Yucheng, W.; Yuanyuan, L.; Lide, Z. The formation of mesoporous TiO2 spheres via a facile chemical process. J. Phys. Chem. B 2005, 109, 5478–5481. [Google Scholar]
  67. Kumar, A.; Pandey, G. A review on the factors affecting the photocatalytic degradation of hazardous materials. Mater. Sci. Eng. Int. J. 2017, 1, 106–114. [Google Scholar] [CrossRef]
Nanomaterials 09 00720 g001 550

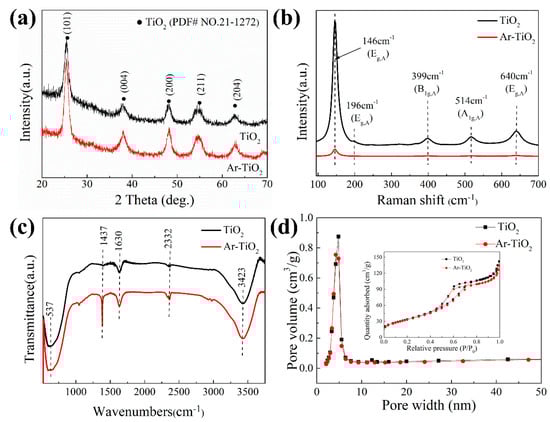

Figure 1. Spectra of (a) X-ray diffractometer (XRD) spectra, (b) Raman spectra, (c) Fourier transforms infrared spectra (FTIR) spectra and (d) BET spectra for the Ar-TiO2 and pristine TiO2 catalysts. Insert: the N2 adsorption-desorption isotherms.
Figure 1. Spectra of (a) X-ray diffractometer (XRD) spectra, (b) Raman spectra, (c) Fourier transforms infrared spectra (FTIR) spectra and (d) BET spectra for the Ar-TiO2 and pristine TiO2 catalysts. Insert: the N2 adsorption-desorption isotherms.
Nanomaterials 09 00720 g001
Nanomaterials 09 00720 g002 550

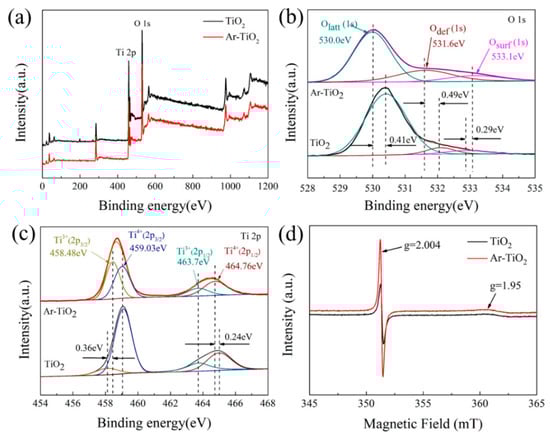

Figure 2. X-ray photoelectron spectroscopy (XPS) spectra of (a) survey spectra, (b) O 1s, (c) Ti 2p and (d) Electron paramagnetic resonance (EPR) spectra for the Ar-TiO2 and pristine TiO2 catalysts.
Figure 2. X-ray photoelectron spectroscopy (XPS) spectra of (a) survey spectra, (b) O 1s, (c) Ti 2p and (d) Electron paramagnetic resonance (EPR) spectra for the Ar-TiO2 and pristine TiO2 catalysts.
Nanomaterials 09 00720 g002
Nanomaterials 09 00720 g003 550

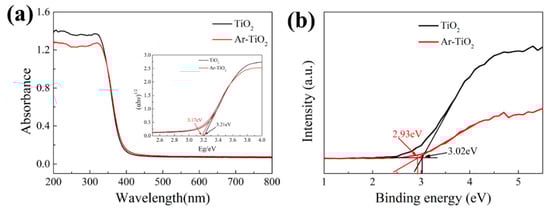

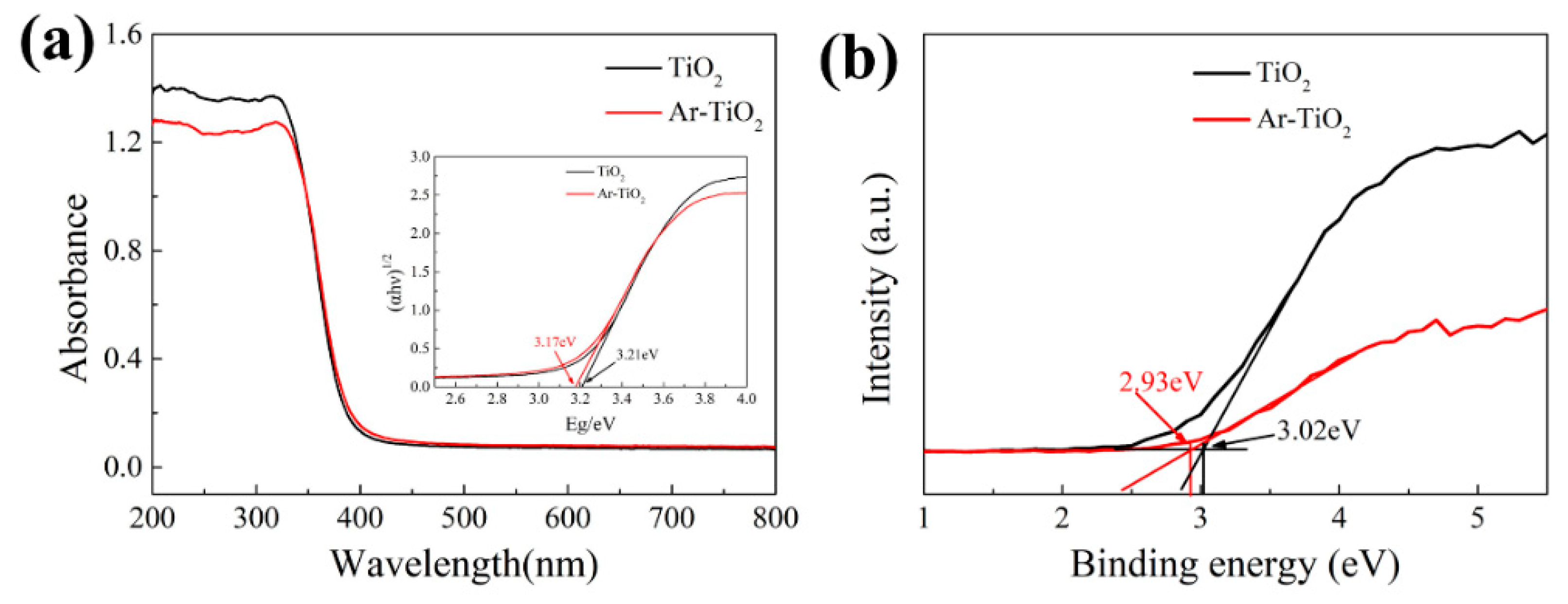

Figure 3. (a) Ultraviolet (UV)-visible absorption spectra DRS, the insets in Figure 3 (a) is the corresponding plots of transformed Kubelka-Munk function versus the energy of photon, (b) XPS valence band spectra.
Figure 3. (a) Ultraviolet (UV)-visible absorption spectra DRS, the insets in Figure 3 (a) is the corresponding plots of transformed Kubelka-Munk function versus the energy of photon, (b) XPS valence band spectra.
Nanomaterials 09 00720 g003
Nanomaterials 09 00720 g004 550

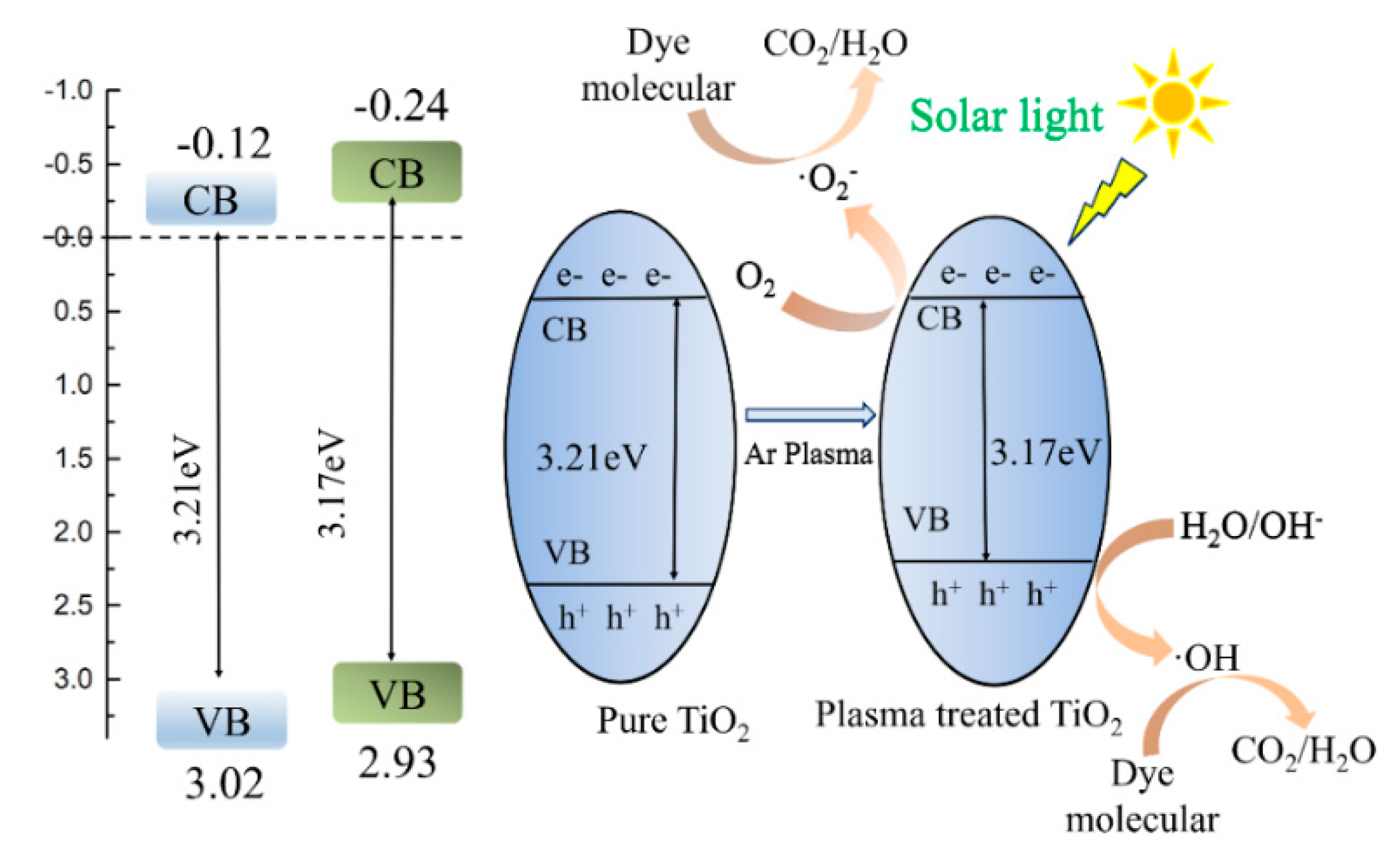

Figure 4. Schematic drawing illustrating the mechanism of charge separation and photocatalytic activity of the TiO2 photocatalyst under solar light irradiation.
Figure 4. Schematic drawing illustrating the mechanism of charge separation and photocatalytic activity of the TiO2 photocatalyst under solar light irradiation.
Nanomaterials 09 00720 g004
Nanomaterials 09 00720 g005 550
Figure 5. The results of transmission electron microscopy (TEM) of (a,b) TiO2 and (d,e) Ar-TiO2. High resolution TEM (HRTEM) image curves of (c) TiO2 (inset: SAED) and (f) Ar-TiO2 (insert: SAED).
Figure 5. The results of transmission electron microscopy (TEM) of (a,b) TiO2 and (d,e) Ar-TiO2. High resolution TEM (HRTEM) image curves of (c) TiO2 (inset: SAED) and (f) Ar-TiO2 (insert: SAED).
Nanomaterials 09 00720 g005
Nanomaterials 09 00720 g006 550

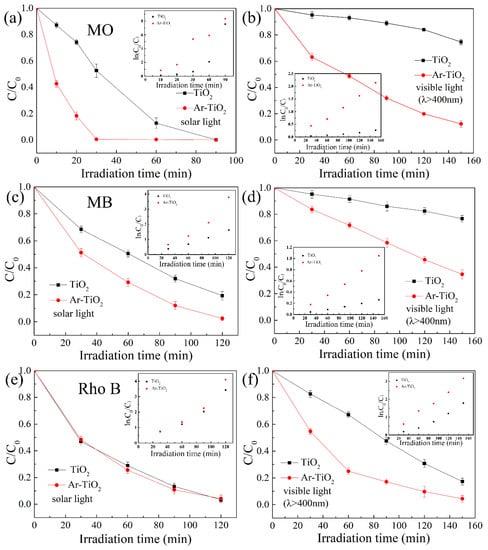

Figure 6. Removal of (a,b) methyl orange (MO), (c,d) methylene blue (MB) and (e,f) rhodamine B (Rho B) by TiO2 and Ar-TiO2 (inset: corresponding degradation rate images) under solar light and/or visible light (λ ≥ 400 nm) irradiation. Solution concentration: 10 mg/L; organic solution: 100 mL; catalyst: 50 mg.
Figure 6. Removal of (a,b) methyl orange (MO), (c,d) methylene blue (MB) and (e,f) rhodamine B (Rho B) by TiO2 and Ar-TiO2 (inset: corresponding degradation rate images) under solar light and/or visible light (λ ≥ 400 nm) irradiation. Solution concentration: 10 mg/L; organic solution: 100 mL; catalyst: 50 mg.
Nanomaterials 09 00720 g006
Table
Table 1. Surface atomic species on the surface of TiO2 and Ar-TiO2 catalysts.
Table 1. Surface atomic species on the surface of TiO2 and Ar-TiO2 catalysts.
SamplesSurface Atomic Concentration (%)
Ti3+/TiOdef/(Olatt + Odef + Osurf)
TiO220.96.0
Ar-TiO245.224.4
Table
Table 2. BET specific surface are, pore volume and pore size of TiO2 and Ar-TiO2 catalysts, respectively.
Table 2. BET specific surface are, pore volume and pore size of TiO2 and Ar-TiO2 catalysts, respectively.
SampleSurface Area (m2/g)Pore Volume (cm3/g)Pore Size (nm)
TiO2124.70.235.6
Ar-TiO2121.30.215.6
Table
Table 3. Degradation rates, k (h−1), of TiO2 and Ar-TiO2 after photocatalytic degradation of MO, MB and Rho B dyes.
Table 3. Degradation rates, k (h−1), of TiO2 and Ar-TiO2 after photocatalytic degradation of MO, MB and Rho B dyes.
TiO2Ar-TiO2
MOsolar light7.558.32
visible light (λ ≥ 400 nm)0.262.14
MB solar light1.623.78
visible light (λ ≥ 400 nm)0.261.05
Rho Bsolar light3.424.10
visible light (λ ≥ 400 nm)1.793.17
Table
Table 4. Apparent quantum efficiencies (AQE) and H2 evolution rates (HER) of the TiO2 and Ar-TiO2 catalysts at optical power density of 800 mW·cm−2 with incident photon number of 4.615 × 1019.
Table 4. Apparent quantum efficiencies (AQE) and H2 evolution rates (HER) of the TiO2 and Ar-TiO2 catalysts at optical power density of 800 mW·cm−2 with incident photon number of 4.615 × 1019.
SamplesTime (h)11.522.5
TiO2HER (μmol·g−1·h−1)98287306320
AQE (%)8.735.239.847.7
Ar-TiO2HER (μmol·g−1·h−1)240506524530
AQE (%)31.366.068.169

Share and Cite

MDPI and ACS Style

Li, Y.; Wang, W.; Wang, F.; Di, L.; Yang, S.; Zhu, S.; Yao, Y.; Ma, C.; Dai, B.; Yu, F. Enhanced Photocatalytic Degradation of Organic Dyes via Defect-Rich TiO2 Prepared by Dielectric Barrier Discharge Plasma. Nanomaterials 2019, 9, 720. https://doi.org/10.3390/nano9050720

AMA Style

Li Y, Wang W, Wang F, Di L, Yang S, Zhu S, Yao Y, Ma C, Dai B, Yu F. Enhanced Photocatalytic Degradation of Organic Dyes via Defect-Rich TiO2 Prepared by Dielectric Barrier Discharge Plasma. Nanomaterials. 2019; 9(5):720. https://doi.org/10.3390/nano9050720

Chicago/Turabian Style

Li, Yanqin, Wei Wang, Fu Wang, Lanbo Di, Shengchao Yang, Shengjie Zhu, Yongbin Yao, Cunhua Ma, Bin Dai, and Feng Yu. 2019. "Enhanced Photocatalytic Degradation of Organic Dyes via Defect-Rich TiO2 Prepared by Dielectric Barrier Discharge Plasma" Nanomaterials 9, no. 5: 720. https://doi.org/10.3390/nano9050720

APA Style

Li, Y., Wang, W., Wang, F., Di, L., Yang, S., Zhu, S., Yao, Y., Ma, C., Dai, B., & Yu, F. (2019). Enhanced Photocatalytic Degradation of Organic Dyes via Defect-Rich TiO2 Prepared by Dielectric Barrier Discharge Plasma. Nanomaterials, 9(5), 720. https://doi.org/10.3390/nano9050720

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
