Next Article in Journal
Recent Studies on Fluorinated Silica Nanometer-Sized Particles
Next Article in Special Issue
A Porous Carbon with Excellent Gas Storage Properties from Waste Polystyrene
Previous Article in Journal
Towards the Extraction of Radioactive Cesium-137 from Water via Graphene/CNT and Nanostructured Prussian Blue Hybrid Nanocomposites: A Review
Previous Article in Special Issue
Fabrication of Highly Conductive Porous Cellulose/PEDOT:PSS Nanocomposite Paper via Post-Treatment
Article Menu
Issue 5 (May) cover image

Export Article

Open AccessArticle

The Preparation and Catalytic Properties of Nanoporous Pt/CeO2 Composites with Nanorod Framework Structures

School of Science, MOE Key Laboratory for Non-equilibrium Synthesis and Modulation of Condensed Matter, Key Laboratory of Shaanxi for Advanced Functional Materials and Mesoscopic Physics, State Key Laboratory for Mechanical Behaviour of Materials, Xi’an Jiaotong University, Xi’an 710049, China
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(5), 683;
Received: 26 March 2019 / Revised: 15 April 2019 / Accepted: 23 April 2019 / Published: 2 May 2019
PDF [3489 KB, uploaded 2 May 2019]
  |     |

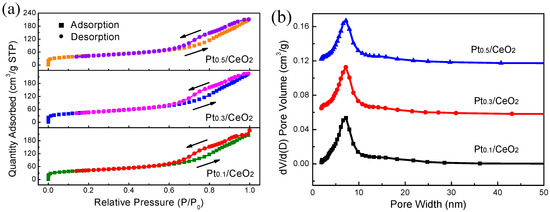

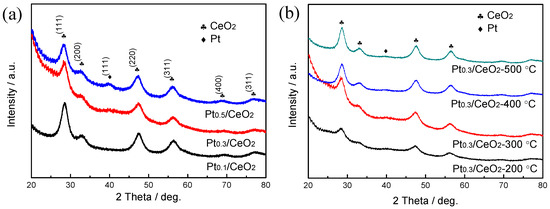

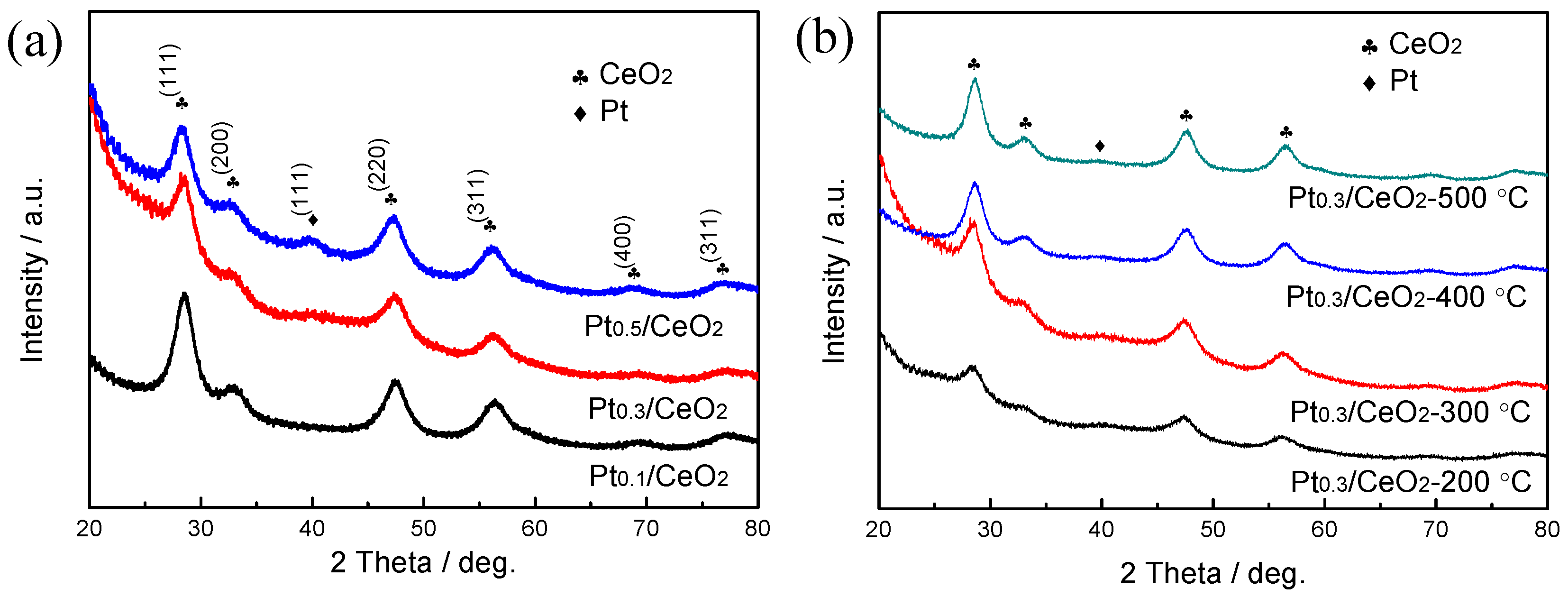

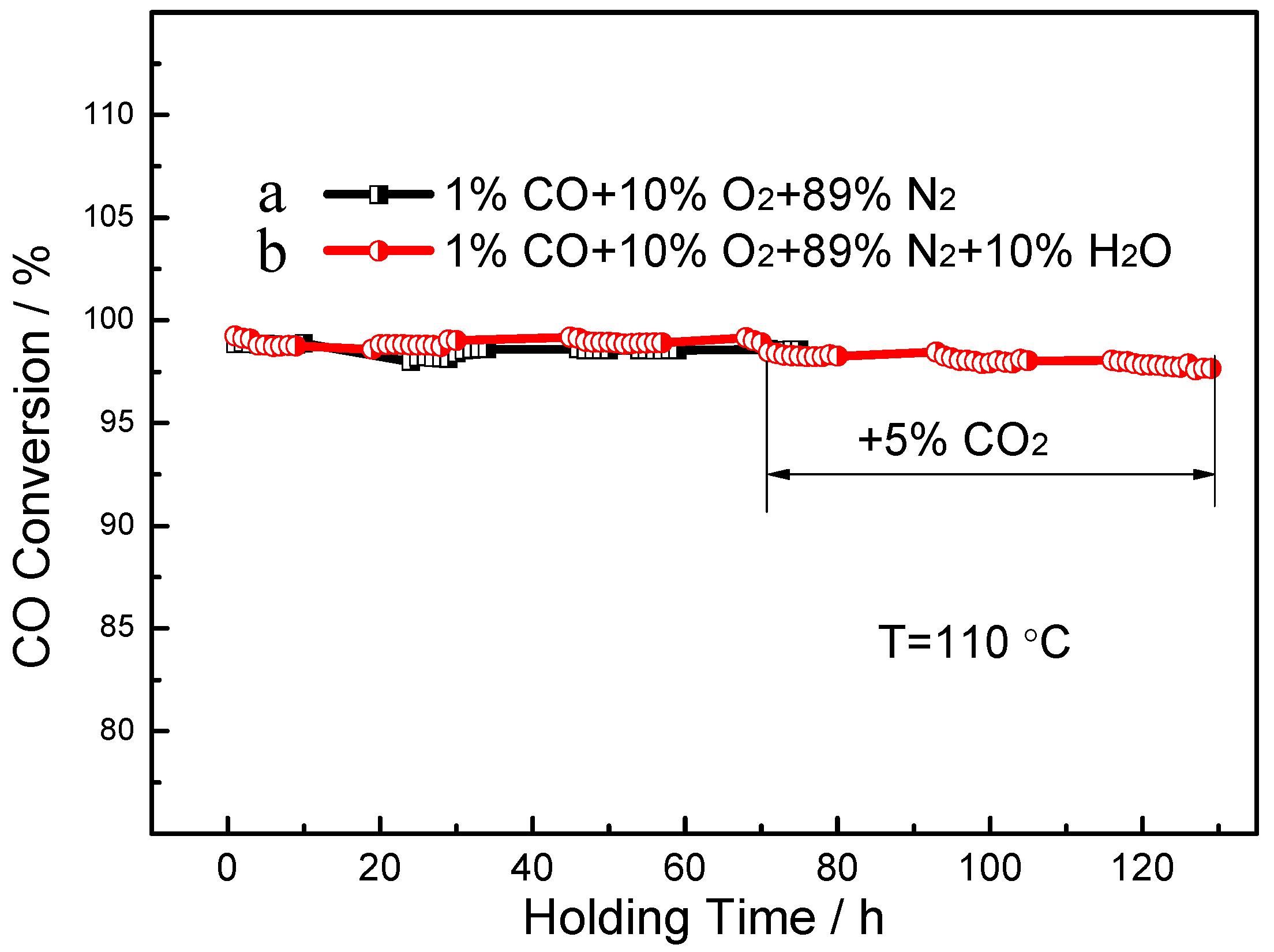

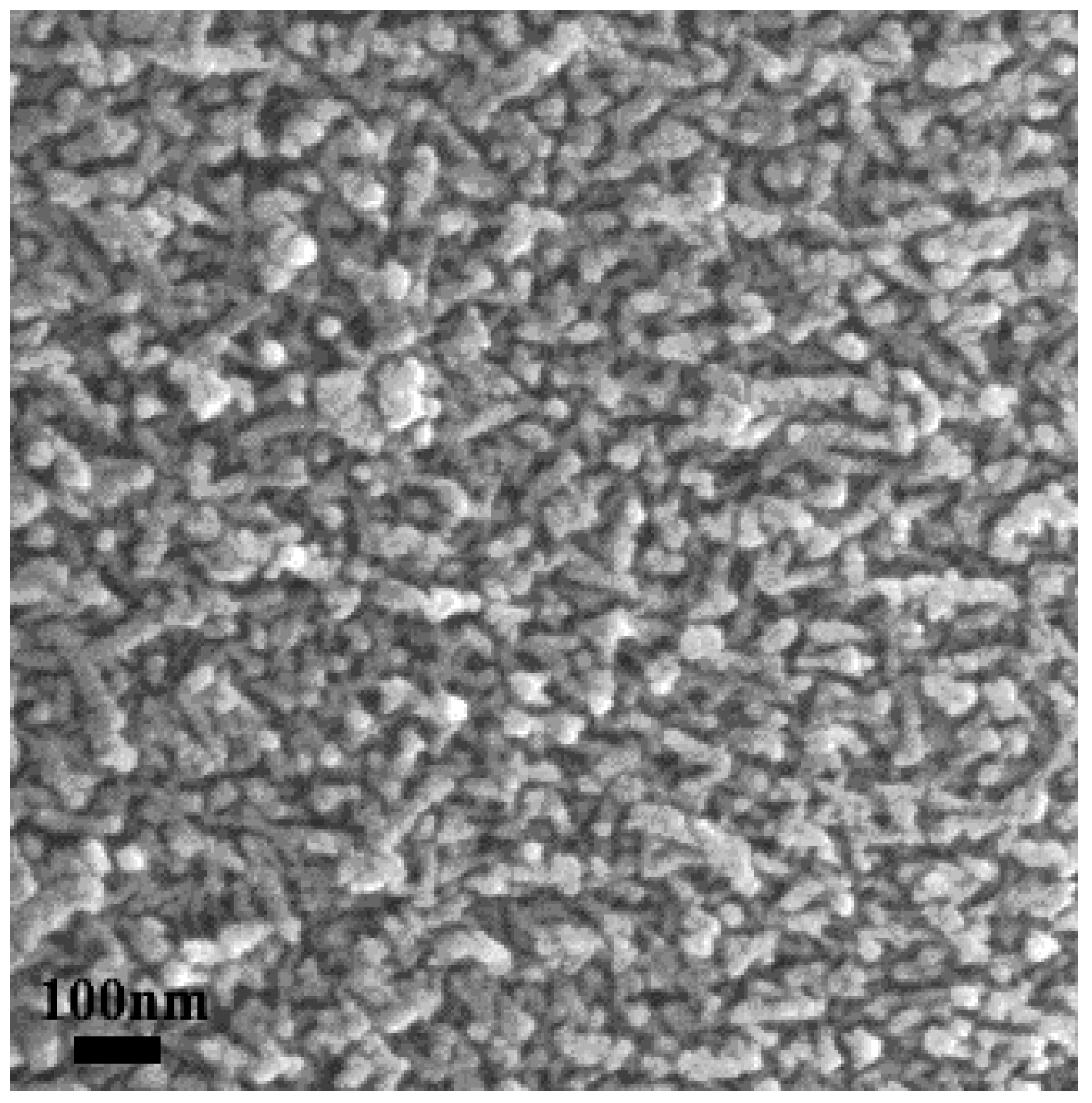

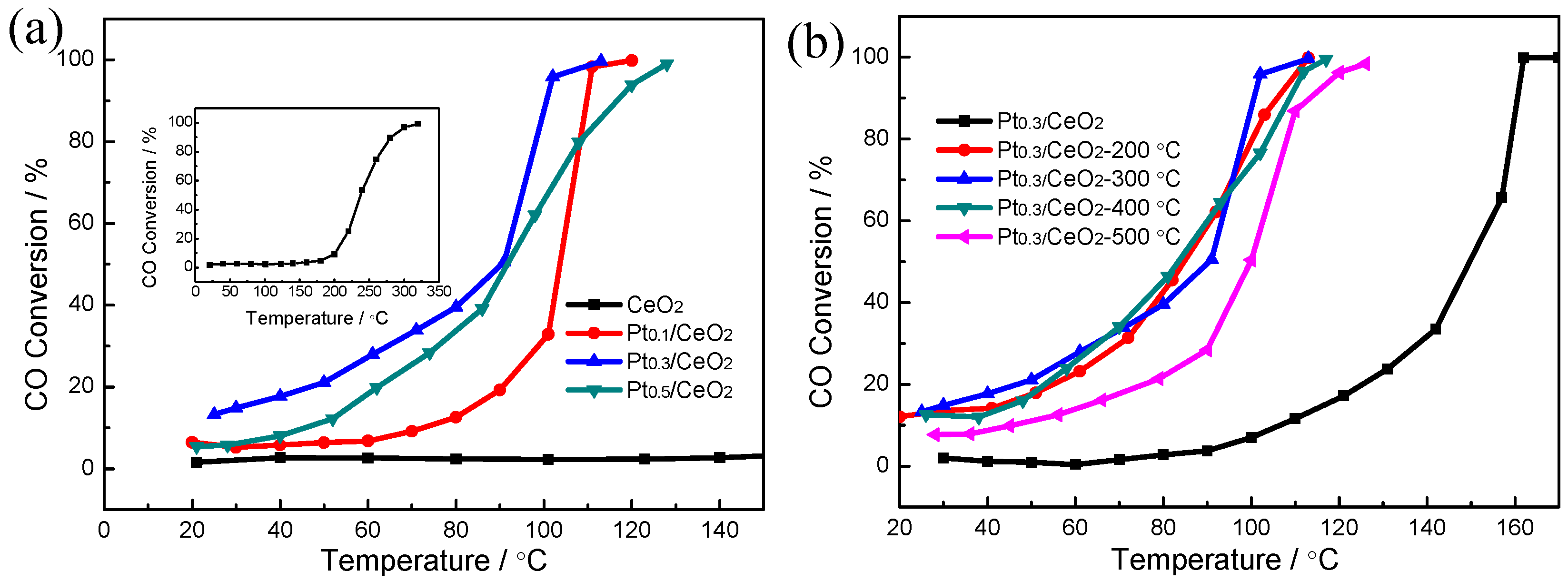

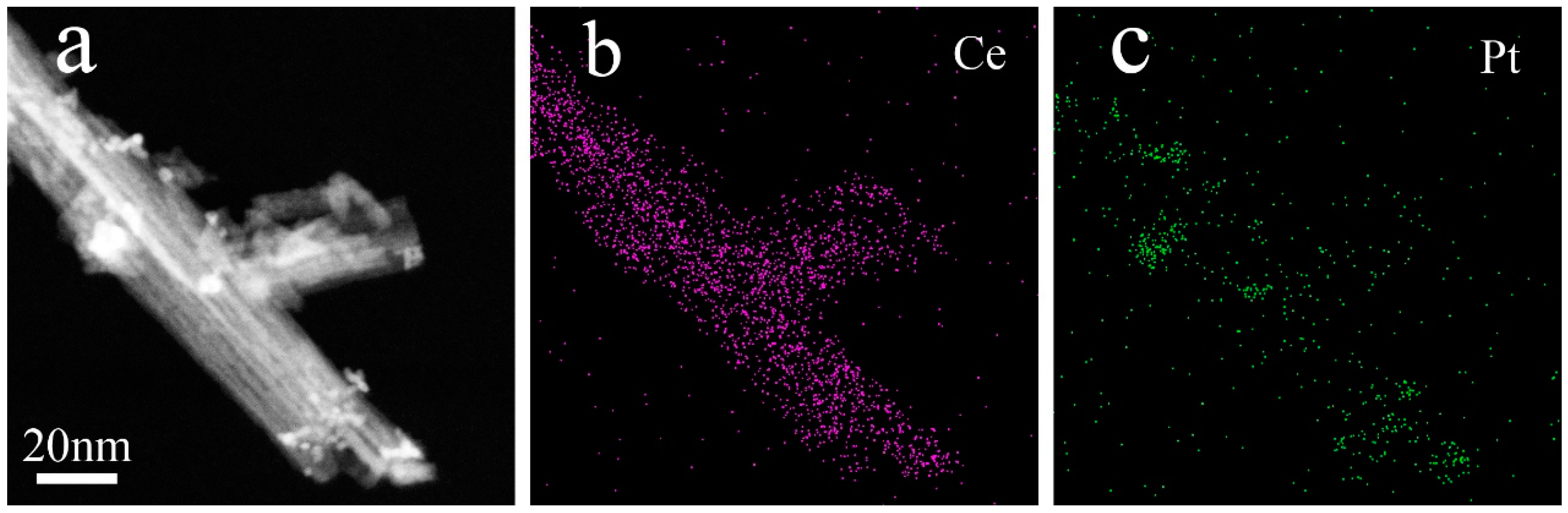

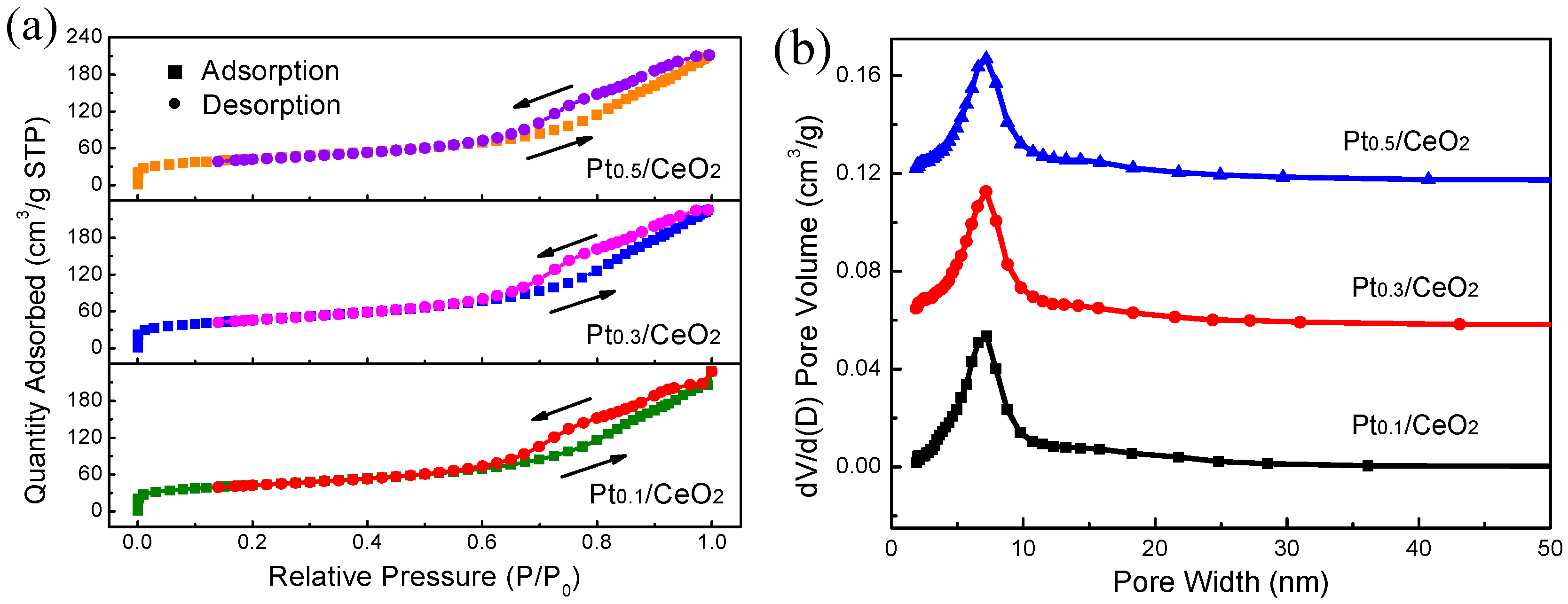

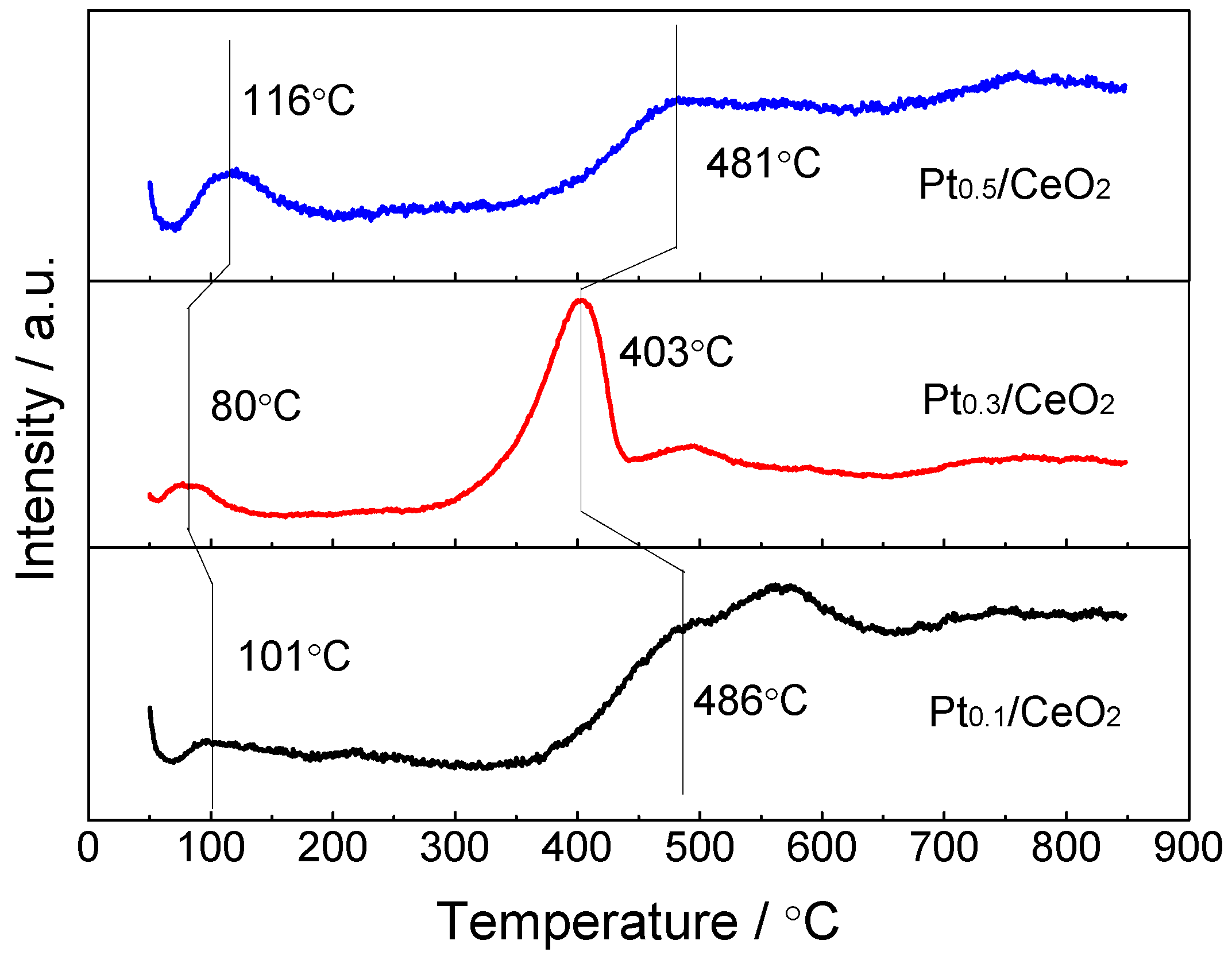

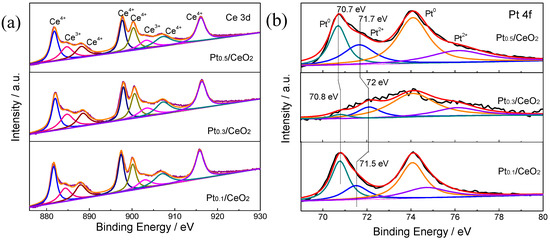

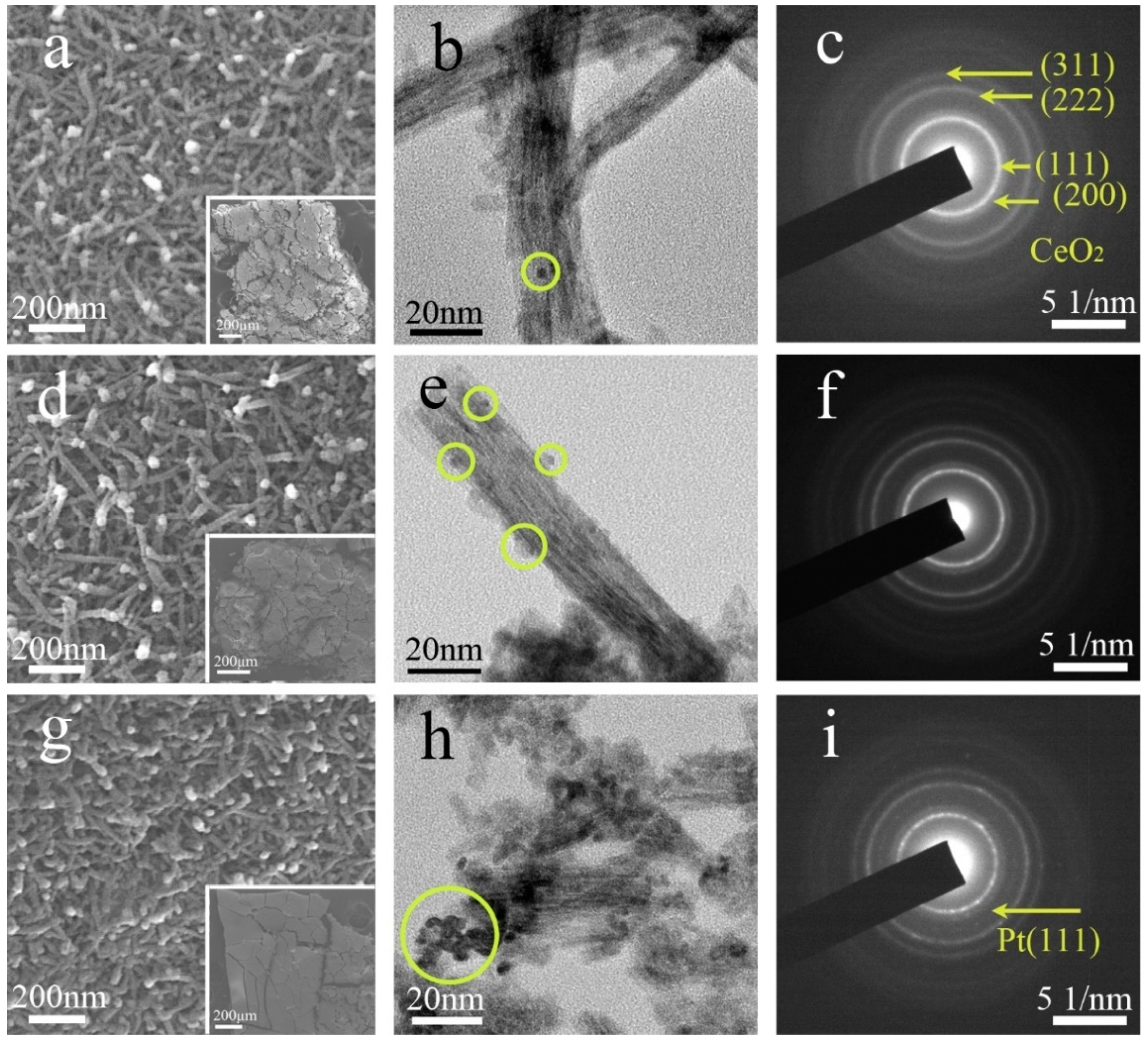

Pt/CeO2 catalysts with nanoporous structures were prepared by the facile dealloying of melt-spun Al92−XCe8PtX (X = 0.1; 0.3 and 0.5) ribbons followed by calcination. The phase compositions and structural parameters of the catalysts were characterized by X-ray diffraction (XRD), field emission scanning electron microscopy (FESEM) and high-resolution transmission electron microscopy (HRTEM). The specific surface area and pore size distribution were characterized by N2 adsorption–desorption tests. The catalytic properties were evaluated by a three-way catalyst (TWC) measurement system. The results revealed that the dealloyed samples exhibited a nanorod framework structure. The Pt nanoparticles that formed in situ were supported and highly dispersed on the CeO2 nanorod surface and had sizes in the range of 2–5 nm. For the catalyst prepared from the melt-spun Al91.7Ce8Pt0.3 ribbons, the 50% CO conversion temperature (T50) was 91 °C, and total CO could be converted when the temperature was increased to 113 °C. An X-ray photoelectron spectroscopy (XPS) test showed that the Pt0.3/CeO2 sample had a slightly richer oxygen vacancy; and a H2 temperature-programmed reduction (H2-TPR) test demonstrated its superior adsorption ability for reduction gas and high content of active oxygen species. The experiments indicated that the catalytic performance could be retained without any attenuation after 130 h when water and CO2 were present in the reaction gas. The favorable catalytic activities were attributed to the high specific areas and small pore and Pt particle sizes as well as the strong interactions between the CeO2 and Pt nanoparticles. The Pt nanoparticles were embedded in the surface of the CeO2 nanorods, inhibiting growth. Therefore, the catalytic stability and water resistance were excellent. View Full-Text
Keywords: dealloying; Pt/CeO2; nanorod framework; CO oxidation dealloying; Pt/CeO2; nanorod framework; CO oxidation

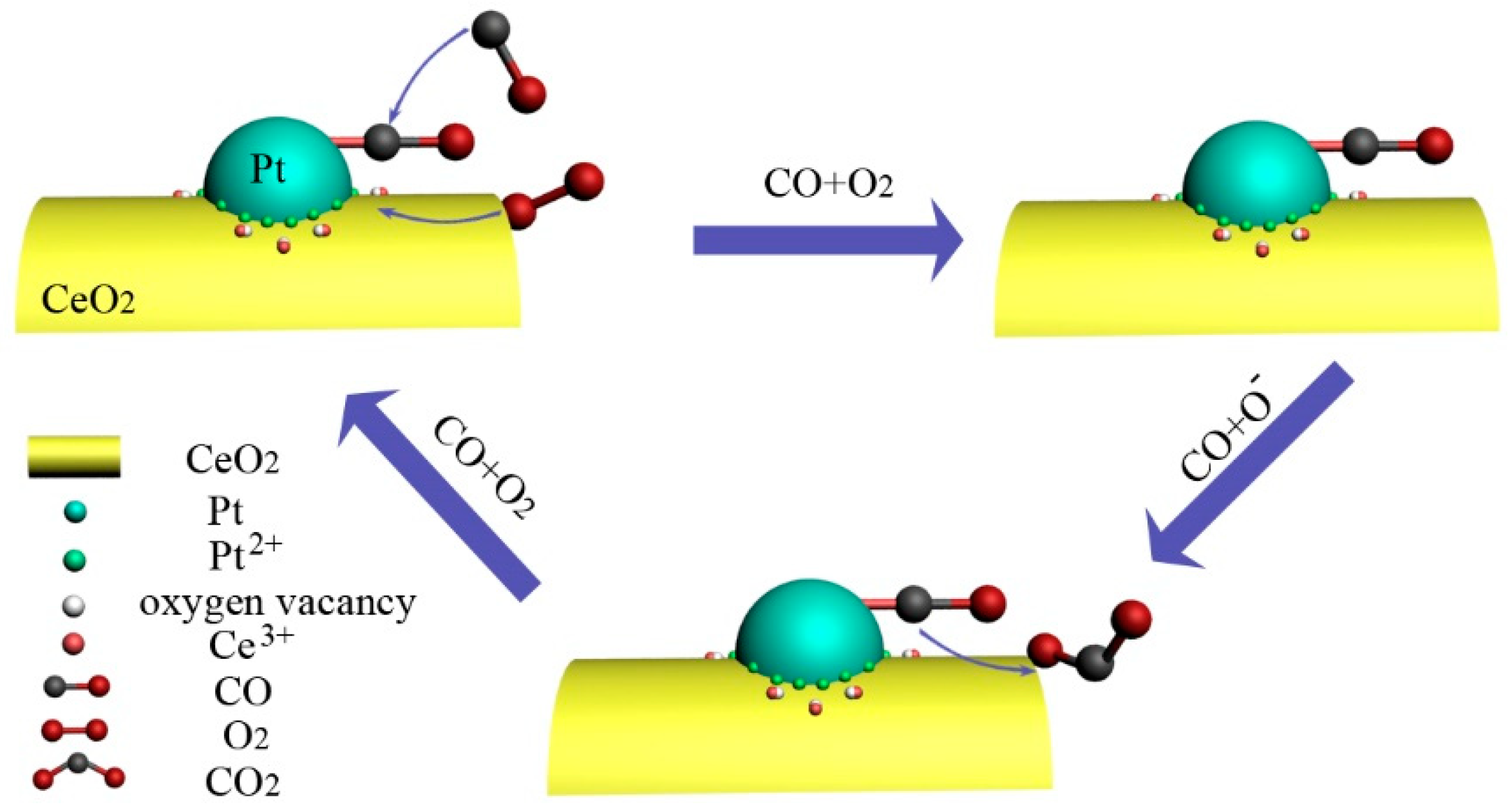

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Wang, H.; Duan, D.; Ma, C.; Shi, W.; Liang, M.; Wang, L.; Song, X.; Gao, L.; Sun, Z. The Preparation and Catalytic Properties of Nanoporous Pt/CeO2 Composites with Nanorod Framework Structures. Nanomaterials 2019, 9, 683.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Nanomaterials EISSN 2079-4991 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
