Nanomaterials 2019, 9(3), 408; https://doi.org/10.3390/nano9030408

A HfO2/SiTe Based Dual-Layer Selector Device with Minor Threshold Voltage Variation

1
College of Electronic Science, National University of Defense Technology, Changsha 410073, China
2
Key Laboratory of Microelectronic Devices & Integrated Technology, Institute of Microelectronics, Chinese Academy of Science, Beijing 100029, China
*
Author to whom correspondence should be addressed.
Received: 11 January 2019 / Revised: 4 March 2019 / Accepted: 8 March 2019 / Published: 11 March 2019
Full-Text   |   PDF [1258 KB, uploaded 11 March 2019]   |

Abstract

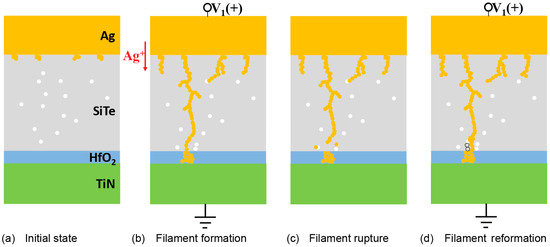

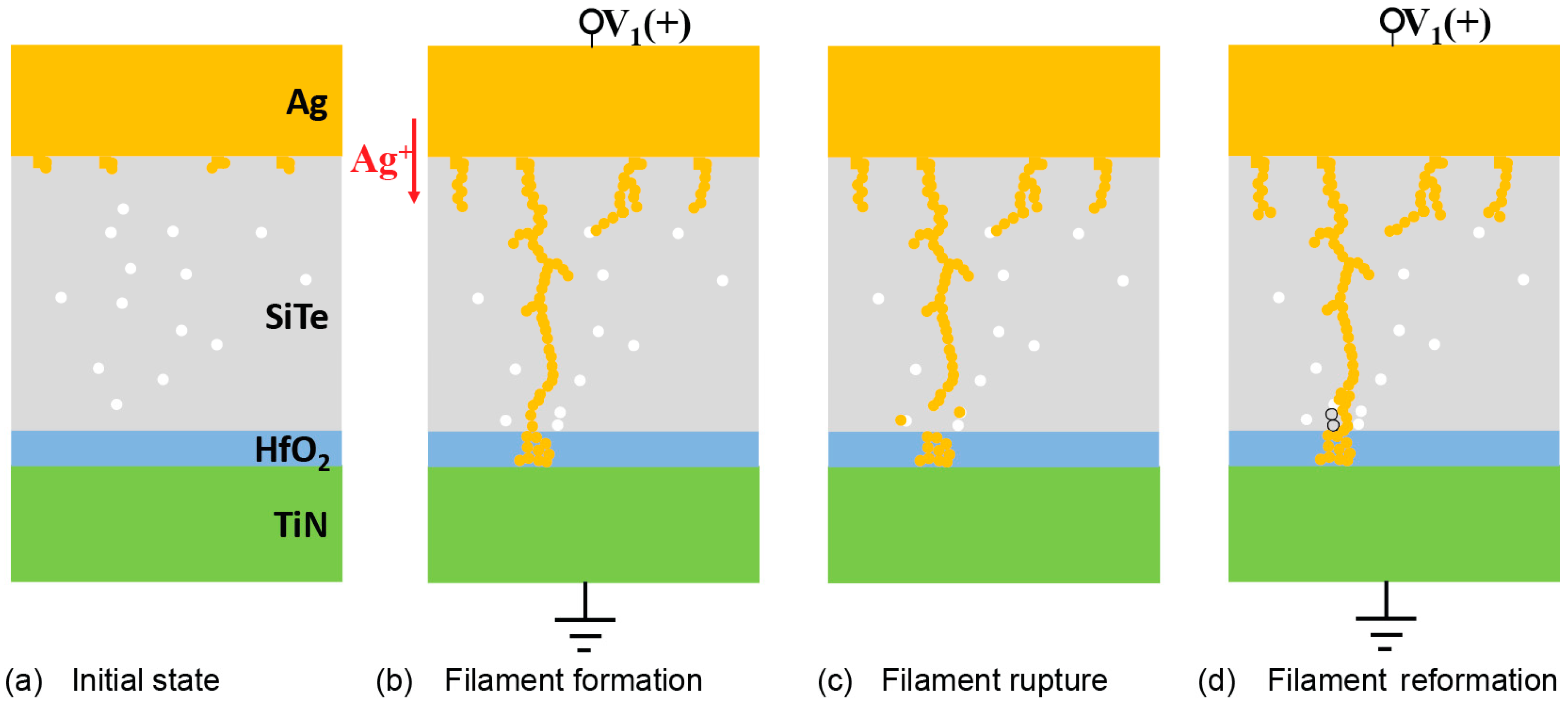

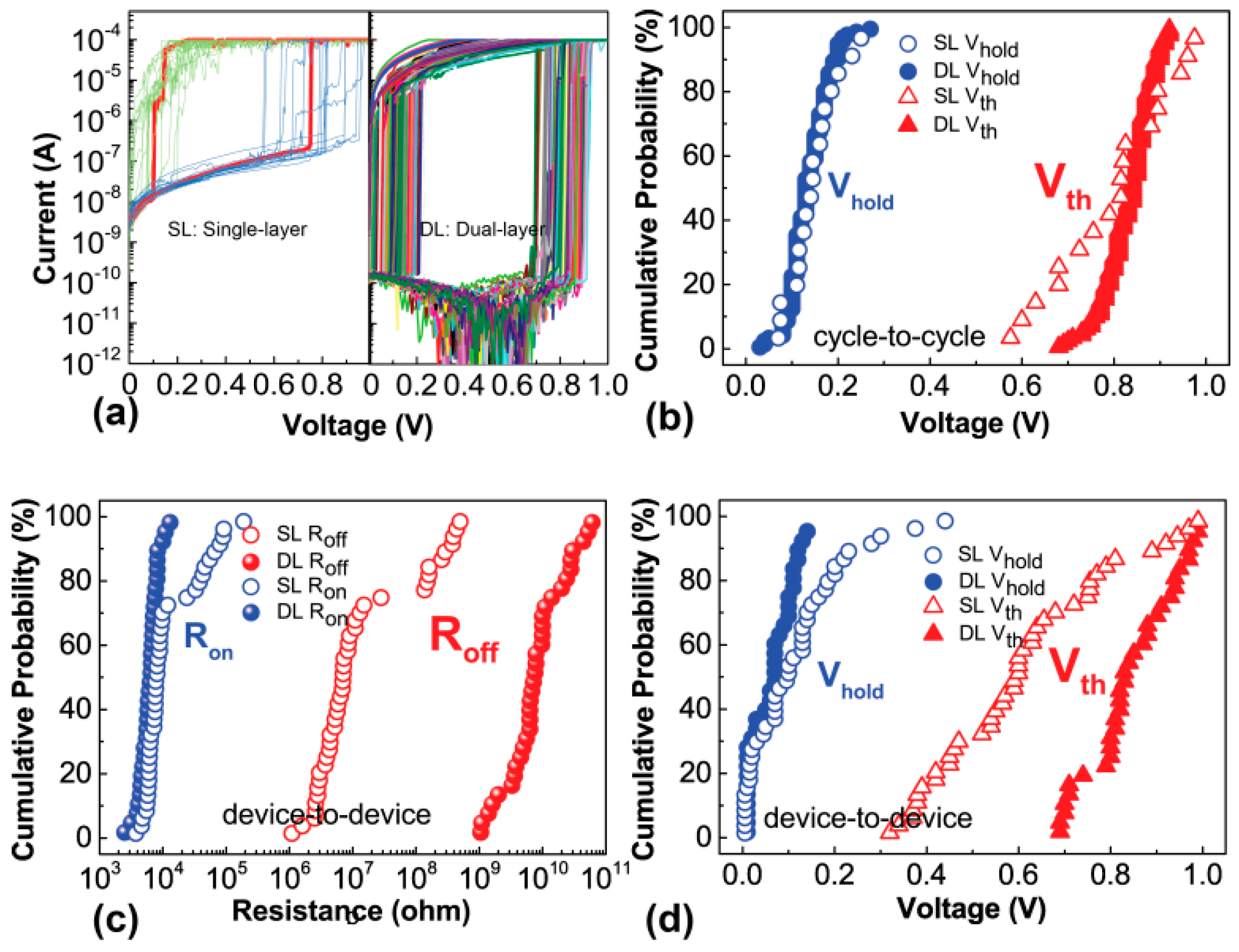

Volatile programmable metallization cell is a promising threshold switching selector with excellent characteristics and simple structures. However, the large variation of threshold voltage is a major problem for practical application. In this work, we propose a dual-layer structure to increase selectivity and improve the threshold voltage variation. Compared to single-layer devices, this dual-layer device exhibits higher selectivity (>107) and better threshold voltage uniformity with less than 5% fluctuation during 200 DC switching. The improvement is attributed to good control on the location of the filament formation and rupture after introducing a HfO2 layer. It is deduced that a major factor consists of the difference of Ag ions mobility between SiTe and HfO2 due to the grain boundary quantity. View Full-Text
Keywords: chalcogenide; memristor; resistive random access memory; dual-layer; threshold switching selector chalcogenide; memristor; resistive random access memory; dual-layer; threshold switching selector
Figures

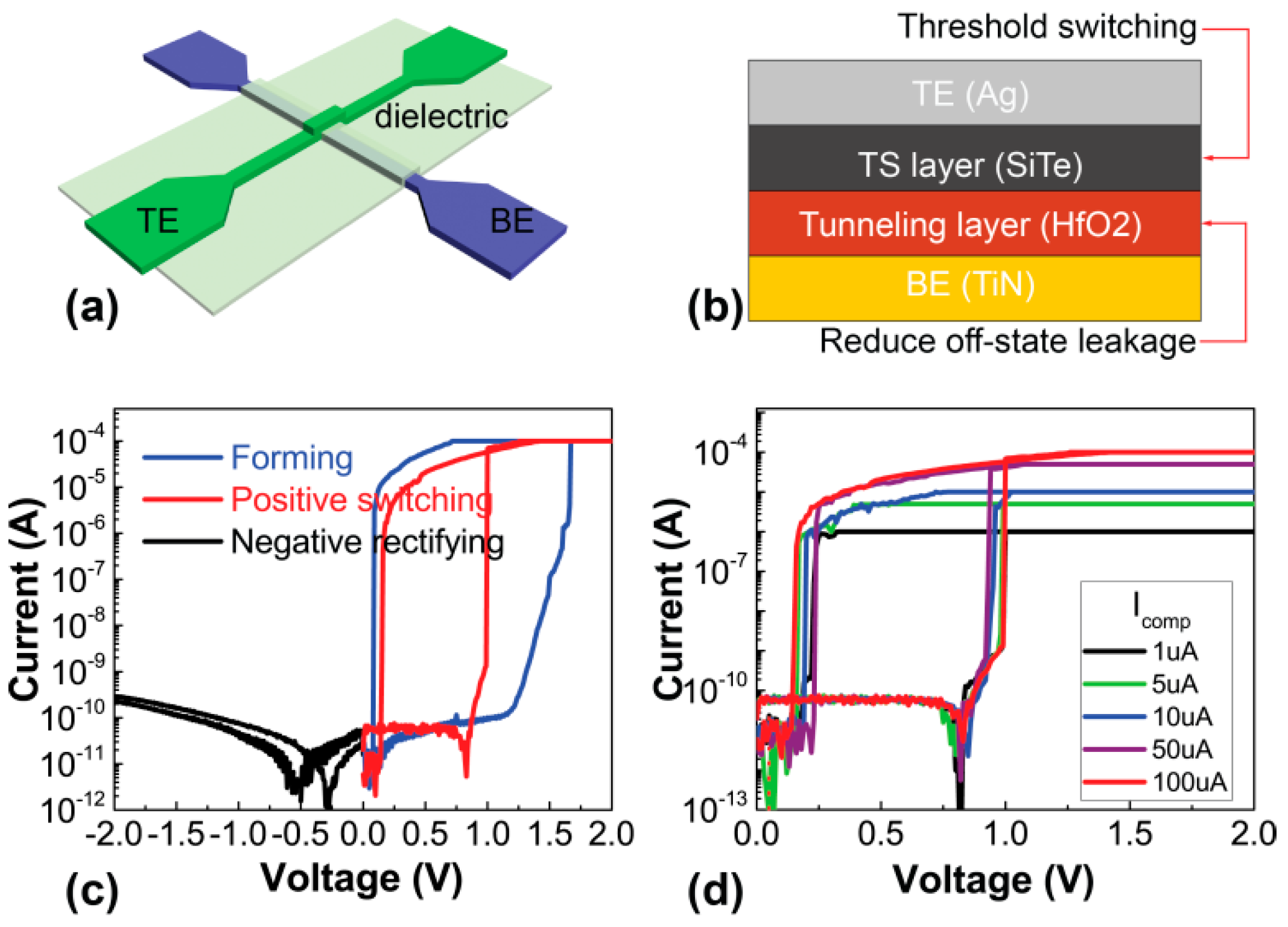

Figure 1
