Nanoparticles Assembled CdIn₂O₄ Spheres with High Sensing Properties towards n-Butanol

Abstract

Cd/In-glycerate spheres are synthesized through a simple solvothermal method. After thermal treatment, these Cd/In-glycerates can be converted into CdIn₂O₄ spheres. Many characterization methods were performed to reveal the microstructure and morphology of the CdIn₂O₄. It was found that pure CdIn₂O₄ phase was obtained for the Cd/In starting materials at ratios of 1:1.6. The CdIn₂O₄ spheres are composed by a large number of nanoparticles subunits. The CdIn₂O₄ sphere-based sensor exhibited a low detection limit (1 ppm), high response (81.20 to 500 ppm n-butanol), fast response (4 s) and recovery (10 s) time, good selectivity, excellent repeatability, and stability at 280 °C. Our findings highlight the possibility to develop a novel gas sensor based on CdIn₂O₄ for application in n-butanol detection with high performance.

1. Introduction

With the rapid development of society and progress in industry, the increasing air pollution is becoming an urgent global problem [1,2]. In particular, volatile organic compounds (VOCs) are harmful for both human health and environmental safety, as their concentration exceeds a critical threshold [3,4]. As a typical kind of VOC, n-butanol (CH₃(CH₂)₃OH) is an excellent solvent, organic synthesis raw material, and intermediate as well as an extracting agent, and is widely used in laboratories and industry [5]. A series of serious symptoms, such as dizziness, headache, somnolence, and dermatitis, etc., could be caused by an n-butanol atmosphere [6]. Therefore, the threshold limit value of n-butanol in the workplace has been specified to be below 200 mg/m³ (e.g., 200 mg/m³ and 152 mg/m³ for the United States) [7]. Moreover, explosion or fire may occur if 1.45–11.25% n-butanol is mixed in air when the temperature is higher than its flash point of 35 °C. Consequently, it is highly necessary to effectively detect n-butanol in laboratory and factory settings with fast speed and excellent selectivity. For now, several monitoring methods have been reported for n-butanol detection, in which metal oxide semiconductors such as SnO₂ [8], ZnO [9], WO₃ [10], Fe₂O₃ [6], and their hybrid-based gas sensors [11,12,13] have drawn considerable attention because of their advantages of sensing properties and low cost. Yet, it is still necessary to develop an n-butanol gas sensor based on novel sensing materials.

As is well known, CdIn₂O₄ is a typical n-type semiconductor, which is widely applied for materials of transparent conducting oxides (TCO), with a bandgap of 3.2 eV [14]. Studies on CdIn₂O₄ exhibited gas sensing performance to formaldehyde [15,16], ethanol [14,17,18], Cl₂ [19], acetone [20], petroleum gas [21], and H₂S [22] in nanoparticles, thin films, nanofibers, octahedrons, and so on. However, a great challenge must be overcome in order to synthesize a pure phase of CdIn₂O₄ with controllable morphology using a simple, low-cost method. Metal alkoxides appear to be a novel precursor-directed synthetic strategy to fabricate inorganic nanomaterials, in which the metal provides extra electrons to coordinate with the hydroxyl groups of alcohols to form stable compounds in solids [23]. Here, we developed a facile solvothermal method followed by a simple thermal treatment to synthesize CdIn₂O₄ spheres composed of nanoparticles using a novel precursor-mediate. The CdIn₂O₄ spheres were further applied as sensing materials for n-butanol detection, which exhibited excellent sensing performance. Moreover, the gas sensing mechanism for the CdIn₂O₄ based sensor has been discussed from the aspect of the surface chemical state.

2. Materials and Methods

2.1. Synthesis of CdIn₂O₄ Spheres

All of the chemical reagents including cadmium nitrate (Cd(NO₃)₂·4H₂O), indium nitrate (In(NO)₃·xH₂O), glycerol, and isopropanol were purchased from Aladdin Industrial, Inc. (Shanghai, China). All these chemicals were utilized as received without further purification. In addition, deionized water was involved in all experiments. In a typical synthesis of Cd-In precursor, 1 mmol Cd(NO₃)₂·4H₂O and different amounts of In(NO)₃·xH₂O (2 mmol, 1.6 mmol, and 1.2 mmol) were dissolved into the mixture of 10 mL glycerol and 50 mL isopropanol under vigorous stirring for 1 h. Then, the resulting mixture was transferred into a 100 mL Teflon autoclave (Yusheng Instrument, Shanghai, China), which was treated at 180 °C for 12 h. When it was cooling down, the white product (i.e., Cd-In precursor) was centrifuged several times with deionized water and ethanol. Then the powder was collected after drying at 60 °C in air. Finally, the yellow product was obtained by annealing the dried Cd-In precursor (grayish white in color) with a heating rate of 5 °C/min to 800 °C and kept at 800 °C for 1 h in air.

2.2. Materials Characterization

The crystal phase was examined by X-ray diffraction (XRD, Rigaku TTRIII, Rigaku Corporation, Tokyo, Japan). Cu K_α radiation (1.54056 Å) was used. The microstructure of CdIn₂O₄ was investigated with a field-emission scanning electron microscope (FESEM, FEI QUANTA 200, FEI Company, Hillsboro, OR, USA) and transmission electron microscopy (TEM, JEM-2100, JEOL, Tokyo, Japan). Thermogravimetric analysis (TGA) was performed in a flow of air from room temperature to 800 °C, taking a heating rate of 10 °C/min. The N₂ adsorption-desorption measurement was conducted at 77 K by a Micromeritics ASAP 2010 system (Micromeritics, Norcross, GA, USA) after degassing at 300 °C for 2 h. The chemical states of CdIn₂O₄ was recorded using X-ray photoelectron spectroscopy (XPS) (Thermo Fisher Scientific Co., Ltd., Waltham, MA, USA).

2.3. Sensor Fabrication and Testing

A slurry was formed by mixed the as-prepared CdIn₂O₄ with suitable deionized water. Then, it was coated onto a ceramic tube with 1 mm and 4 mm outer diameter and length, respectively. Two circle Au electrodes were separately pasted onto the two ends of the ceramic tube, which was further connected with four Pt wires. After being dried at 120 °C for 2 h, a thermal treatment was carried out in air 400 °C for 1 h to make good contact between the Au electrodes and sensing materials. After installing a Ni-Cr alloy wire into the tube, all wires were connected to a base to perform testing in a WS-30A system (Weisheng Instruments Co., Zhengzhou, China). CdIn₂O₄ is an n-type semiconductor, thus the sensor response can be calculated by the change in sensor resistance (R_a/R_g) in air (R_a) and target gas (R_g). The response time and recovery time are generally defined as the time for 90% of the initial equilibrium resistance change.

3. Results

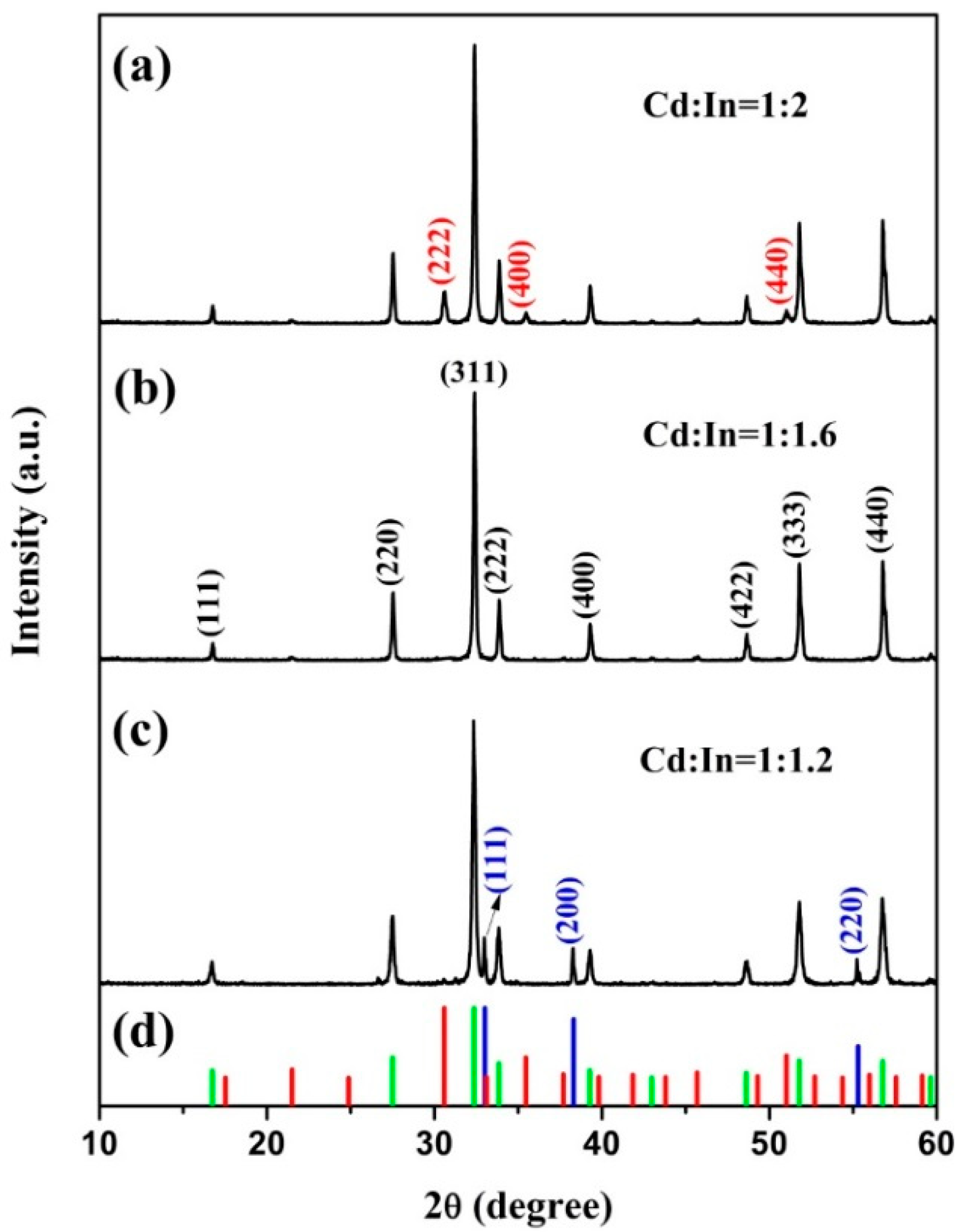

Previous reports have shown that the molar ratio of Cd/In in the initial materials could significantly affect the product purity [14,19,24]. Therefore, the typical Cd/In molar ratios of 1:2, 1:1.6, and 1:1.2 were studied based on our experimental strategy, which were characterized by XRD measurement, as displayed in Figure 1. It is evidenced that the observed diffraction peaks of the product can be well indexed to the cubic CdIn₂O₄ phase (JCPDS: 70-1680) for Cd:In = 1:1.6 in Figure 1b. However, the byproducts of In₂O₃ (JCPDS: 71-2195) appeared along with CdIn₂O₄ phase with a stoichiometric ratio of Cd:In = 1:1.2 (Figure 1a), due to the different coordinated capacity of glycerol with Cd²⁺ and In³⁺ ions. Meanwhile, CdO phase (JCPDS: 75-0592) could be detected when the Cd/In ratio was reduced to 1:1.2 of the starting materials (Figure 1c). Thus, the Cd/In molar ratio of 1:1.6 was suitable to synthesize pure CdIn₂O₄ using a solvothermal method followed by thermal treatment using glycerol and isopropanol as the mixed solvent, which will be mainly studied in the following.

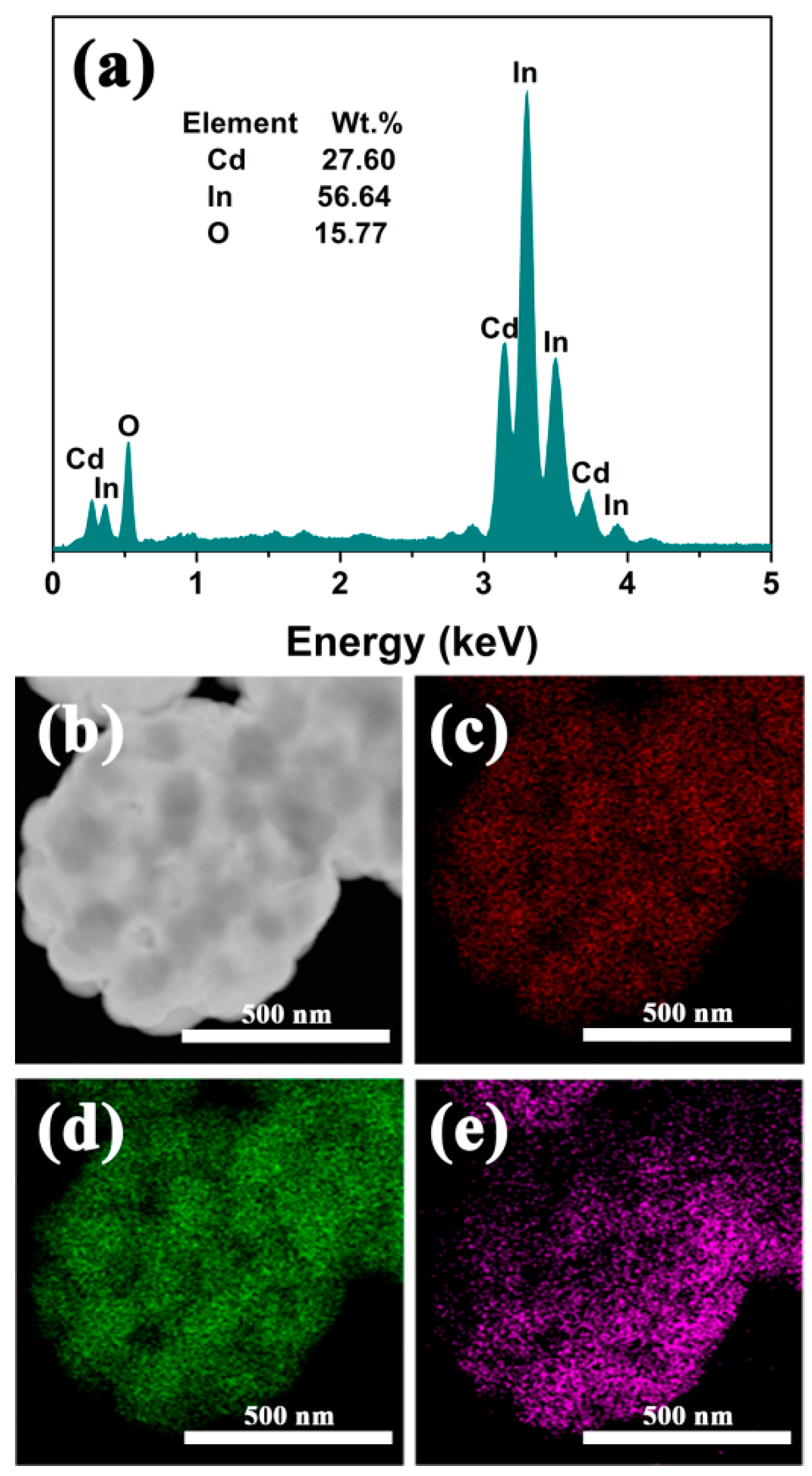

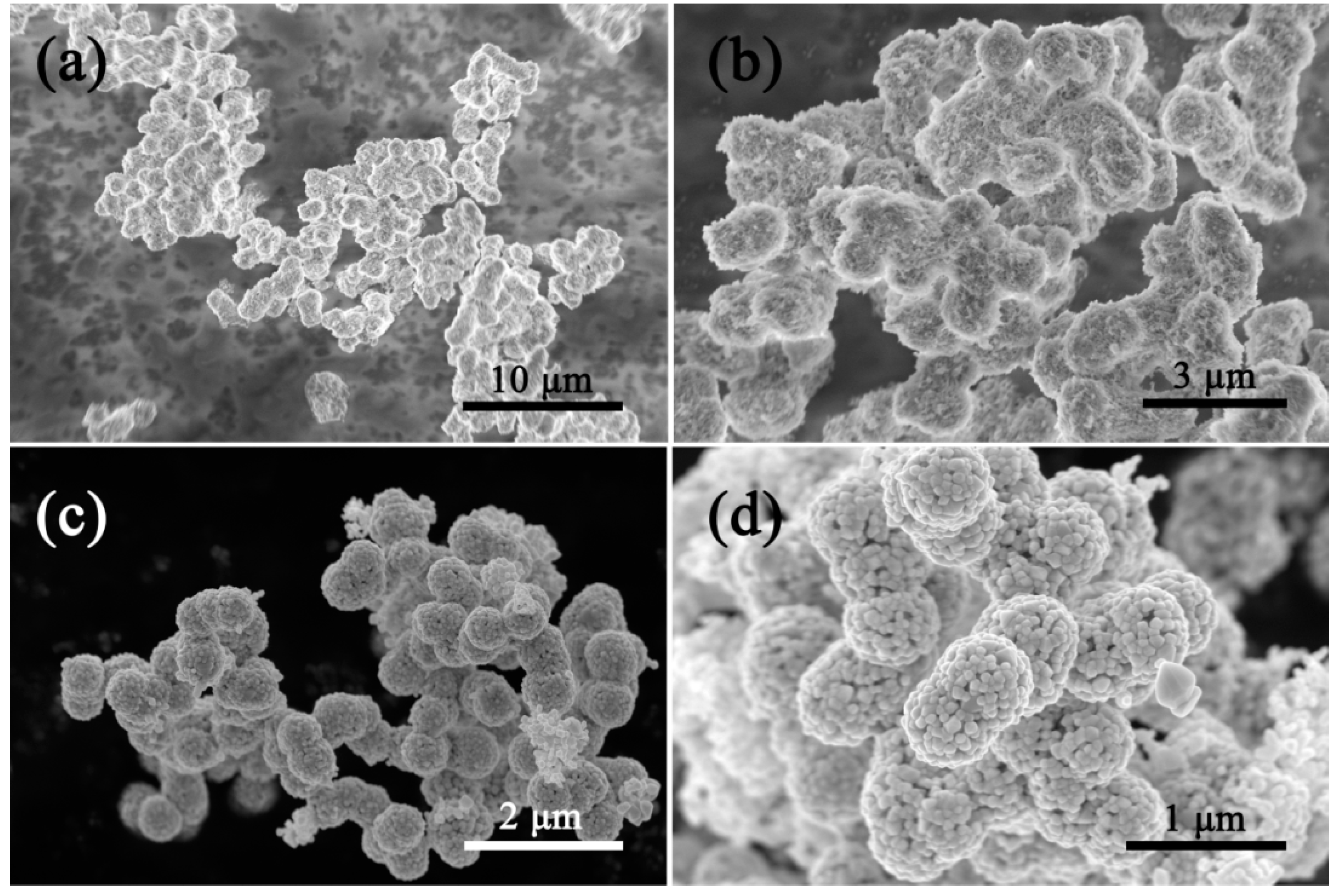

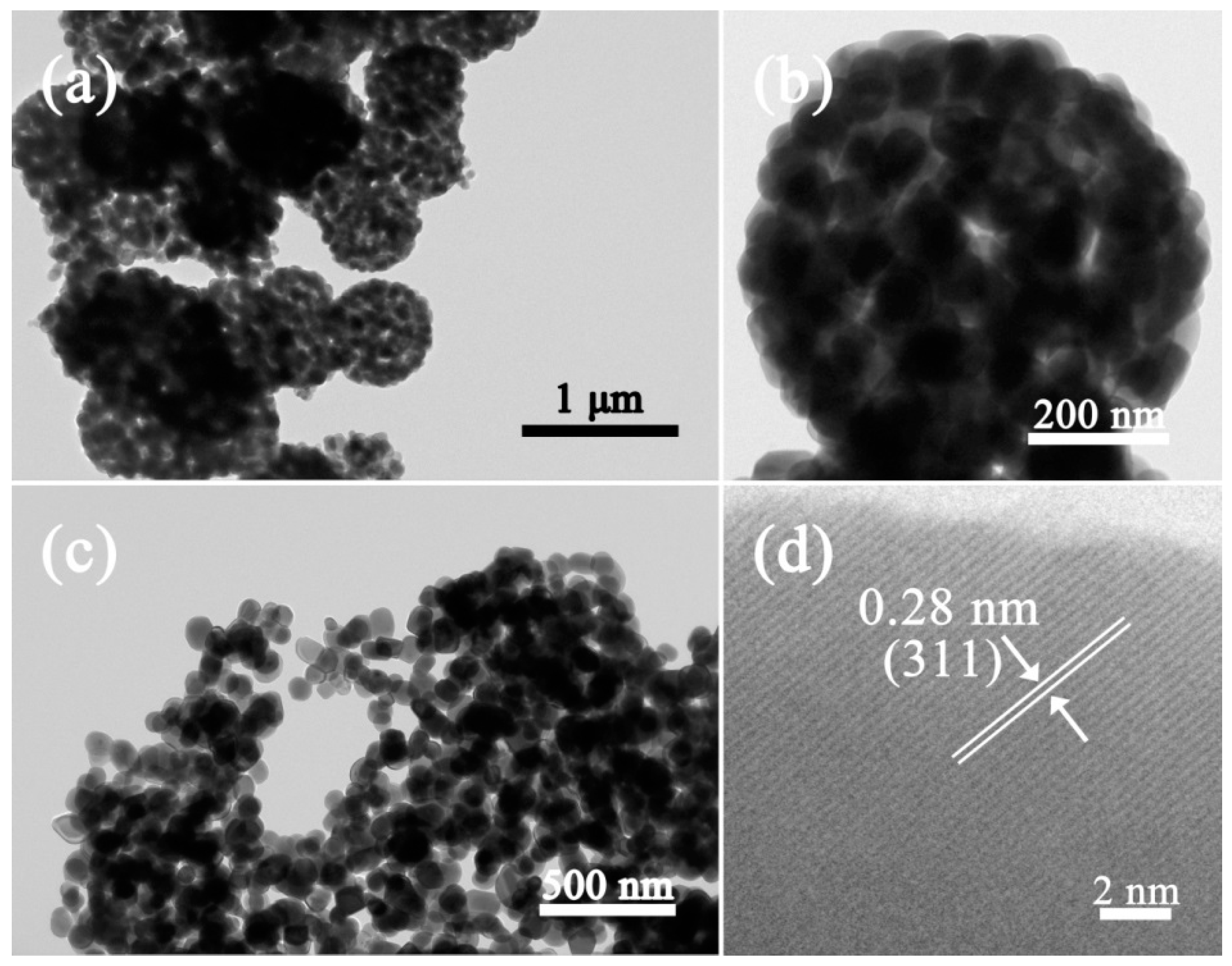

Figure 2 shows the morphologies of the Cd/In precursor and the as-formed pure CdIn₂O₄ spheres. The Cd/In precursor exhibits connected spheres with loose solids in nature (Figure 2a,b). After thermal treatment under air atmosphere, the CdIn₂O₄ is preserved with a connected structure of the Cd/In precursor, as shown in Figure 2c. The magnified observations in Figure 2d further reveal the CdIn₂O₄ sphere is composed of a lot of nanoparticles subunits. The nanoparticles are determined to be dozens to more than one hundred nanometers from the broken CdIn₂O₄ sphere, as depicted in Figure 3c. As displayed by TEM investigations in Figure 3a,b, the random cavities are elucidated by the clear contrast. A typical individual CdIn₂O₄ sphere has a diameter of about 650 nm (Figure 3b). In addition, the visible lattice spacing is about 0.28 nm from the High Resolution Transmission Electron Microscope (HRTEM) image (Figure 3d), corresponding to the distance between (311) crystal planes of cubic CdIn₂O₄. The Energy Dispersive X-Ray Spectroscopy (EDS) analysis in Figure 4a shows the existence of Cd (27.60 wt.%), In (56.64 wt.%) and O (15.77 wt.%), which is close to the stoichiometric quantities in CdIn₂O₄. At the same time, the EDS mapping reveals the homogeneous distribution of Cd, In, and O elements (Figure 4c–e) throughout a typical CdIn₂O₄ sphere (Figure 4b). As determined by N₂ adsorption-desorption measurement, these CdIn₂O₄ spheres posse a Brunauer–Emmett–Teller (BET) specific surface area of 10.68 m²/g with the pore sizes mostly around 30 nm (Figure 5). The relatively small specific surface area can be explained by the large accumulation of CdIn₂O₄ nanoparticles.

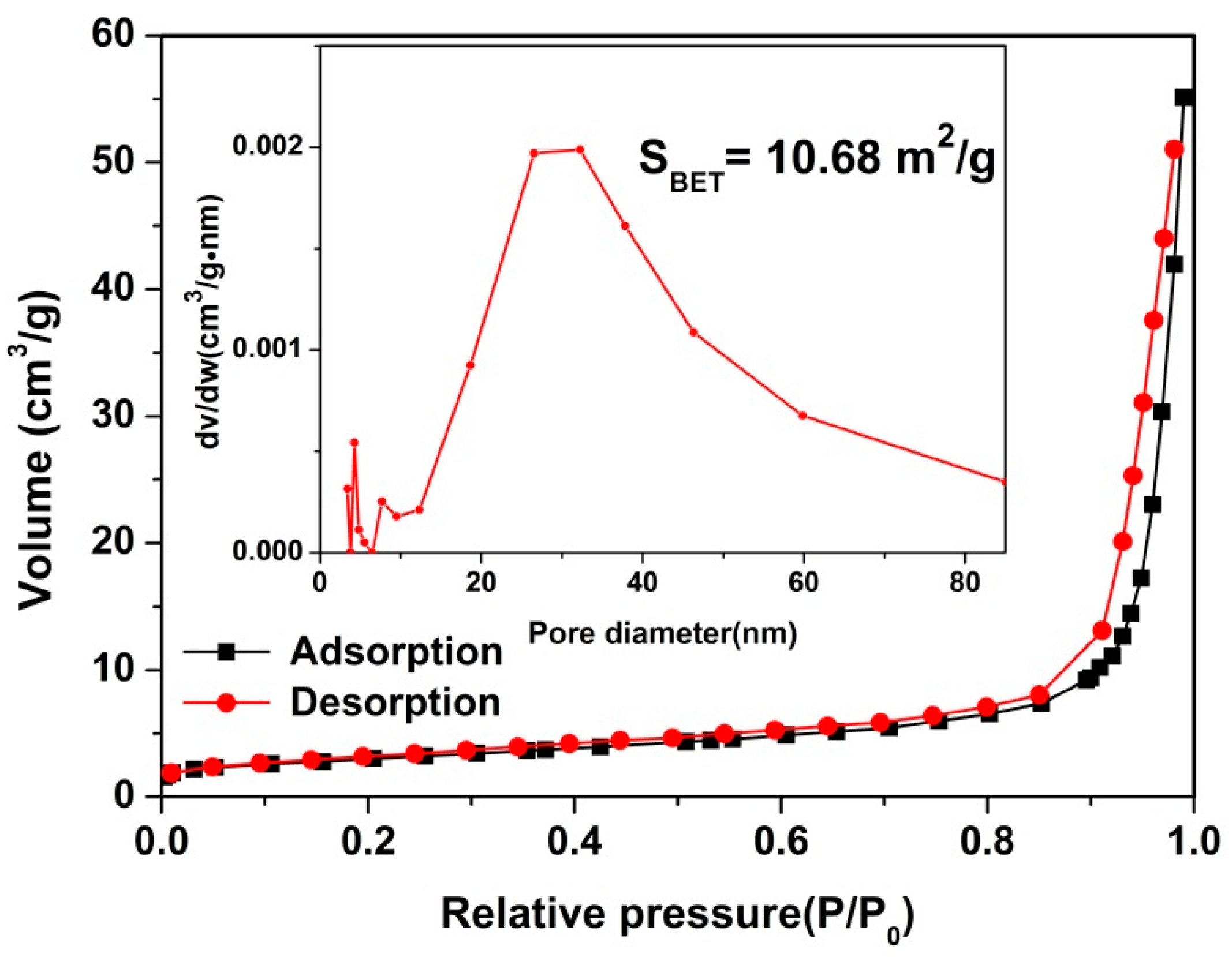

As a polyalcohol, glycerol contains three hydroxyl groups, which have a strong propensity to coordinate with metal ions to produce a stable structure [23]. Thus, the growth mechanism of CdIn₂O₄ spheres could be explained as follows. First, by coordinating with Cd and In ions, Cd/In-glycerate spheres were formed. Isopropanol played an important role in the formation of Cd/In-glycerate. In isopropanol, the metal ions are easily dissolved. Moreover, isopropanol can significantly reduce the viscosity of the reaction solution, resulting in the increase of the reaction opportunity between both Cd²⁺ and In³⁺ ions and glycerol. After thermal treatment at 800 °C, Cd/In-glycerate spheres were converted into nanoparticles and assembled CdIn₂O₄ spheres.

Figure 6 shows the TGA curve for the formation of CdIn₂O₄ in air with a heating rate of 10 °C/min. At the lower temperature ranges from room temperature to 225 °C, the Cd/In-glycerate exhibits 11.84% weight loss, which is attributed to the adsorbed or entrapped organic solvent, as well as water. A large weight loss of 14.01% occurs when the temperature further increases to 365 °C. Meanwhile, an exothermic effect can be noticed in the Differential Scanning Calorimeter (DSC) curve at 280.69 °C, suggesting the decomposition of the organic parts of the Cd/In-glycerate precursor [23,25]. Subsequently, a small loss of 3% in weight is observed at higher temperatures up to 600 °C, which is ascribed to the crystal of CdIn₂O₄. Thus, 28.85% weight loss is calculated in total after thermal treatment, due to the release of CO₂ and water vapor, leading to the conversion of smooth Cd/In-glycerate to nanoparticles assembled in CdIn₂O₄ spheres.

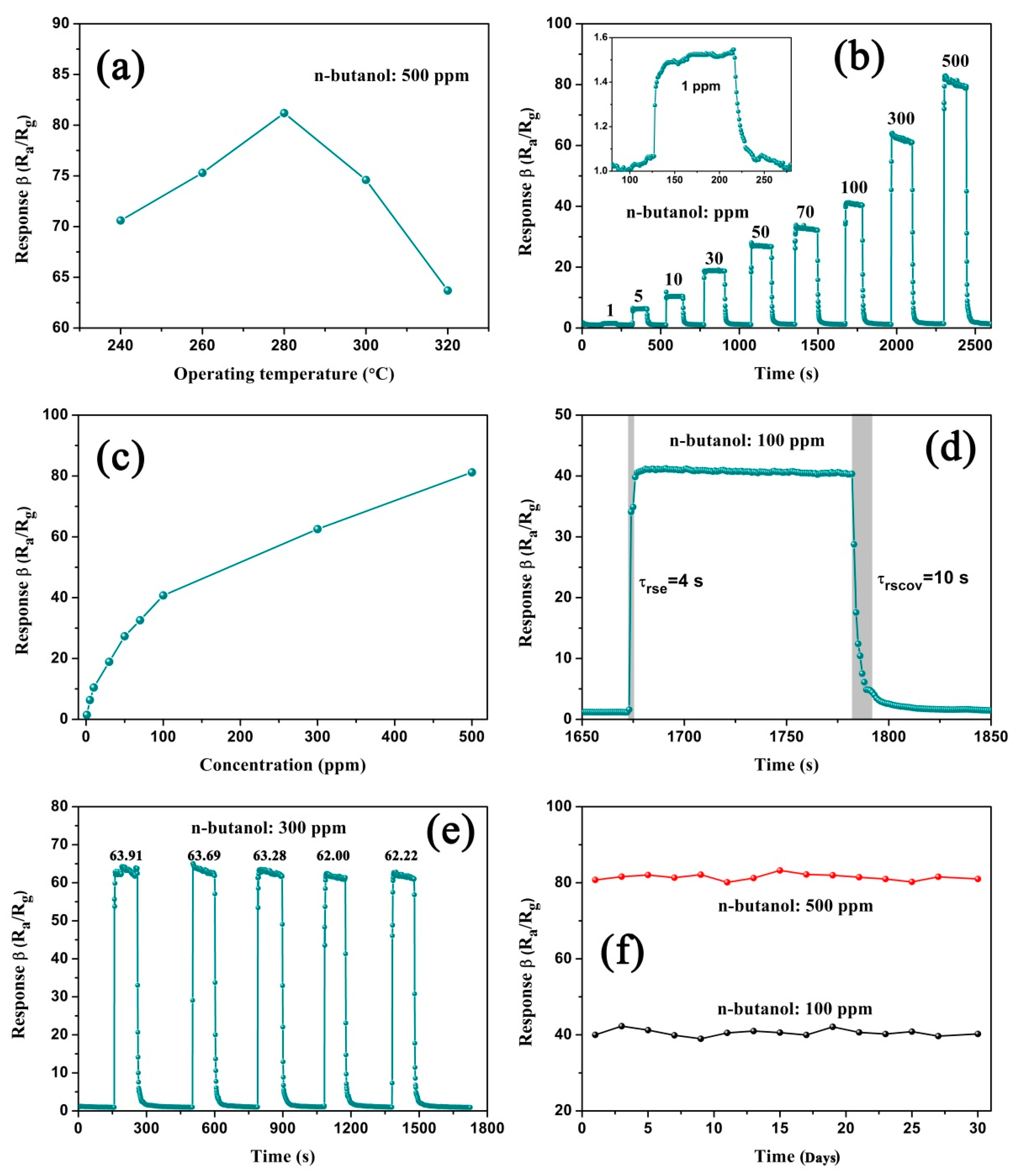

Based on the above structural features of CdIn₂O₄, it is expected to serve as a good gas-sensing material. Thus, the sensor device was fabricated using CdIn₂O₄ spheres as sensing materials, and n-butanol was selected as the detecting molecule. Because the operating temperature is a basic parameter for a gas sensor to determine the sensing performance, the gas responses to 500 ppm n-butanol were examined first (Figure 7a). Clearly, the response to n-butanol gas initially increases below 280 °C. Subsequently, it decreases when the temperature is further increased. With regard to the low temperature, the reaction between absorbed oxygen species on the CdIn₂O₄ surface and the gas molecules is not completely activated. However, the insufficient adsorption of gas molecules will reduce the response over high temperatures. Clearly, the maximum response of 81.20 is observed at 280 °C, which is considered the optimum temperature to investigate sensing-related properties in order to evaluate the gas sensor.

Figure 7b shows the dynamic response characteristics of a CdIn₂O₄ sphere-based gas sensor to various n-butanol concentrations ranging from 1 to 500 ppm, illustrating an increasing tendency with the tested gas concentrations. Specifically, the corresponding responses are 1.48, 6.35, 10.46, 18.92, 27.32, 32.57, 40.72, 62.54, and 81.20 to 1, 5, 10, 30, 50, 70, 100, 300, and 500 ppm n-butanol, respectively, as depicted in Figure 7c. Importantly, the detection limit of the sensor could reach 1 ppm n-butanol, as magnified in the inset of Figure 7b. As the n-butanol concentrations increase from 1 to 100 ppm, a big increase in response is observed. However, the gas response value gradually increases with respect to higher n-butanol concentrations, because the surface of sensing materials is largely covered by the gas molecules. Moreover, the fast response and recovery times of the sensor to n-butanol are found to be 4 s and 10 s (Figure 7d). On top of this, an excellent reversible response-recovery switch can be seen from the five reversible cycles of the sensor, based on CdIn₂O₄ spheres of up to 300 ppm n-butanol at 280 °C (Figure 7e). Taking the n-butanol concentrations of 100 ppm and 300 ppm as examples, long-term stability has been investigated. From Figure 7f, a slight fluctuation is observed for 30 days, suggesting excellent performance in stability.

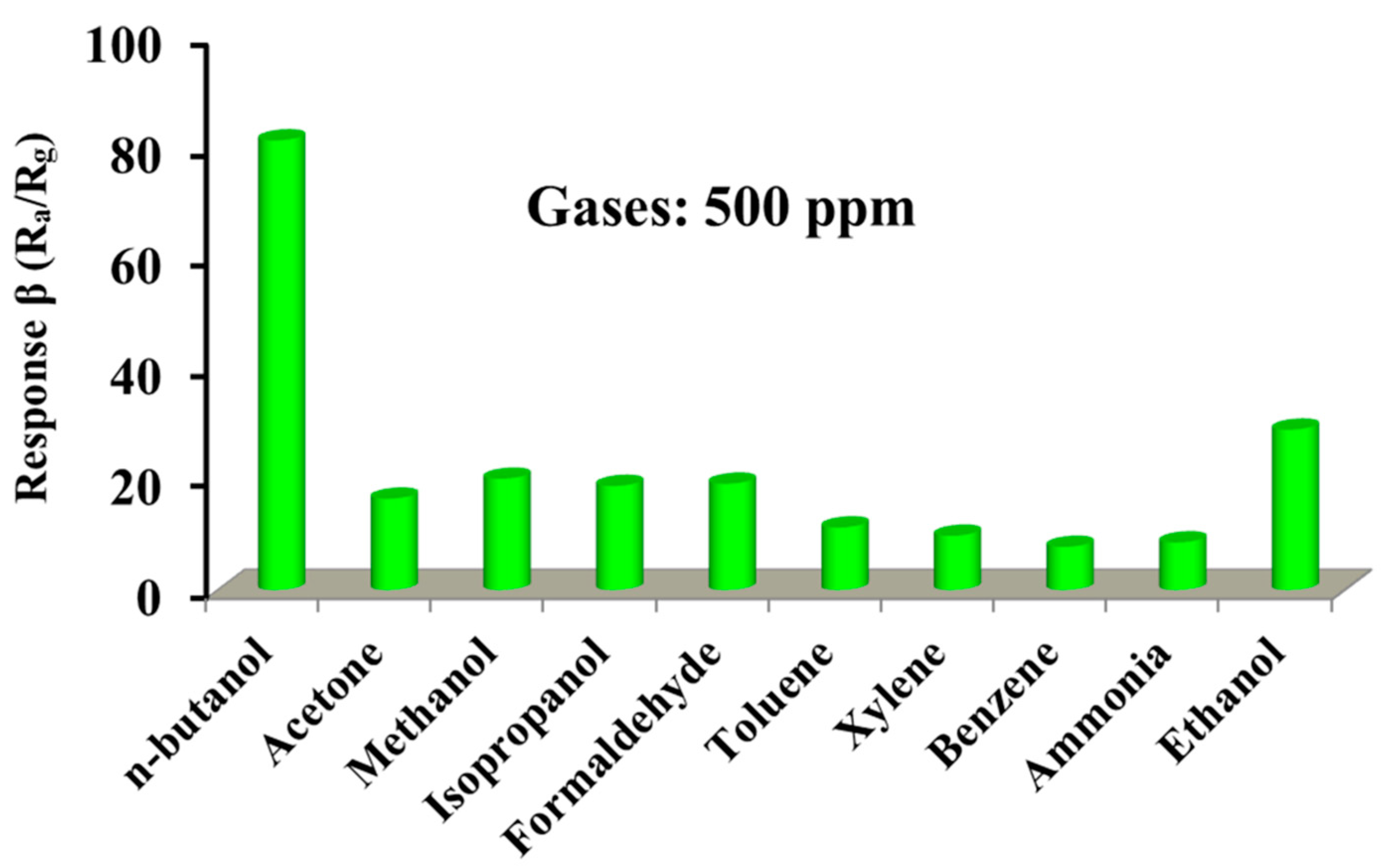

However, selectivity is also an important parameter in evaluating the comprehensive sensing properties. Therefore, the selectivity of our sensor was examined against other interference gases by measuring the response to 500 ppm acetone, methanol, isopropanol, formaldehyde, toluene, xylene, benzene, ammonia, and ethanol at optimum operating temperature, as shown in Figure 8. Clearly, the response to n-butanol is much higher than the interference gases, indicating a good selectivity. The good selectivity could be explained by the fact that the operating temperature of 280 °C provides sufficient energy to favor n-butanol gas molecule adsorbtion and desorbtion and react on the CdIn₂O₄ surface. At lower temperatures, insufficient energy is not in favor of reactions between gas molecules and absorbed oxygen species. However, the absorbed gas molecules could greatly decrease at relatively higher temperatures.

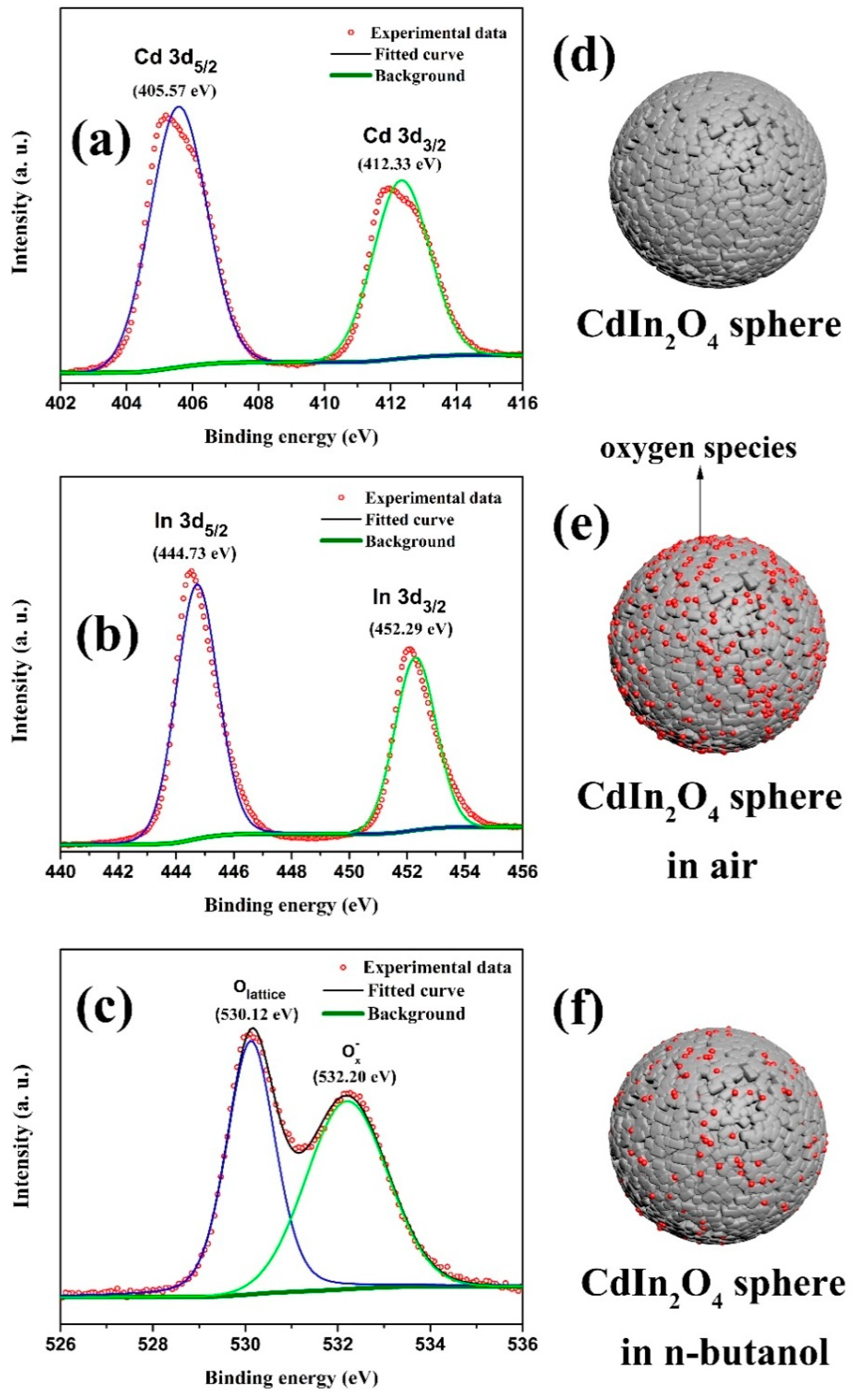

Taken together, the CdIn₂O₄ sphere-based gas sensor exhibits excellent gas-sensing properties towards n-butanol detection with respect to low detection limit, wide detecting range, high response, fast response and recovery times, as well as good stability. The pioneering work by Seiyama et al. revealed that the process of adsorption and desorption of VOC molecules produced a distinct change in electrical conductivity of semiconductors, which is the basic principle for gas sensors [26]. Thus, the gas sensitive mechanism was explored, as shown schematically in Figure 9d–f. As one of typical n-type semiconductor, the adsorbed oxygen molecules on the surface of CdIn₂O₄ will capture electrons from the conduction band to form active oxygen species (such as O²⁻, O⁻, and O₂⁻) [27], leading to an increase in the resistance (Figure 9e). When the CdIn₂O₄-based sensor is exposed to an n-butanol atmosphere, these oxygen species will react with n-butanol molecules, hence, the resistance will decrease by releasing the captured electrons back (Figure 9f). The variation in resistance is strongly dependent on the n-butanol concentrations. The chemical state of CdIn₂O₄ spheres were studied in detail by XPS measurement, as shown in Figure 9a–c, which confirms the component elements Cd, In, and O of the CdIn₂O₄ spheres. The XPS spectrum of Cd 3d shows that the two strong peaks at 405.57 eV and 412.33 eV are related to Cd 3d_5/2 and Cd 3d_3/2 in Figure 9a, respectively, demonstrating the Cd²⁺ of CdIn₂O₄ [28,29]. Meanwhile, two characteristic peaks in the In 3d spectrum located at the binding energy of 444.73 eV and 452.29 eV are assigned to In 3d_5/2 and In 3d_3/2 in Figure 9b, corresponding to the valence of In³⁺. Significantly, the adsorbed oxygen species are confirmed by the peak at the higher binding energy of 532.20 eV, apart from the lattice oxygen with a binding energy of 530.12 eV in the XPS spectrum of O 1 s (Figure 9c), which is reactive with the n-butanol molecules [30]. The plausible reactions are given in the following [31,32]:

$${\mathrm{O}}_2\left(\mathrm{gas}\right)\to {\mathrm{O}}_2\left(\mathrm{adsorbed}\right)$$

(1)

$${\mathrm{O}}_2{\left(\mathrm{adsorbed}\right)+\mathrm{e}}^{-}\to {\mathrm{O}}_2^{-}$$

(2)

$${\mathrm{O}}_2^{-}{+\mathrm{e}}^{-}\to 2{\mathrm{O}}^{-}$$

(3)

$${\mathrm{O}}^{-}{+\mathrm{e}}^{-}\to {\mathrm{O}}^{2-}$$

(4)

$${\mathrm{CH}}_3{{(\mathrm{CH}}_2)}_3\mathrm{OH}+12{\mathrm{O}}^{-}\to 4{\mathrm{CO}}_2{+5\mathrm{H}}_2{\mathrm{O}+12\mathrm{e}}^{-}$$

(5)

$${\mathrm{CH}}_3{{(\mathrm{CH}}_2)}_3\mathrm{OH}+12{\mathrm{O}}^{2-}\to 4{\mathrm{CO}}_2{+5\mathrm{H}}_2{\mathrm{O}+24\mathrm{e}}^{-}$$

(6)

In comparison to reports with respect to n-butanol gas sensors, as listed in

Table 1. Comparison of n-butanol sensing performance based on different nanomaterials.

Materials	Microstructures	Concentration (ppm)	T (°C)	Response	Response and Recovery Times (s)	Limit of Detection (ppm)	Ref.
SnO2	Hollow cubes	100	310	75.7	2.1/17 (20 ppm)	1	[8]
ZnO	Hollow spheres	100	385	57.6	23/13 (100 ppm)	10	[9]
α-Fe2O3	Shuttle-shaped	100	250	145	20/55 (50 ppm)	10	[6]
In2O3	Nanoparticles	50	140	97	45/65 (10 ppm)	5	[38]
CuO	Micro-sheets	1000	160	69.73	--	10	[5]
Co3O4	Porous	100	100	21	146/90 (100 ppm)	<5	[39]
CdIn2O4	Spheres	500	280	81.20	4/10 (100 ppm)	1	This work

, our CdIn₂O₄-based sensor exhibits comparable performance in response and recovery times and limit of detection. The response of CdIn₂O₄ towards n-butanol could be further enhanced by functionalizing noble nanoparticles (Pt, Pd, Au, and Ag) or their oxides (PdO and PtO₂) [33]. In addition, the CdIn₂O₄ spheres could be a backbone to couple with other sensing materials such as SnO₂, ZnO, In₂O₃, Fe₂O₃ etc., to create heterojunctions, thus the sensing properties can be greatly improved [34,35]. Moreover, suitable additives or templates (hard templates, soft templates, and bio-templates) may be introduced into the reacting system to tune the morphologies to increase the specific surface area of CdIn₂O₄ [36,37], which endows more reactive sites to favor the enhancement of sensing performance.

4. Conclusions

In summary, CdIn₂O₄ spheres were solvothermally synthesized using glycerol as coordinated agents. The effect of Cd/In molar ratios has been explored. The CdIn₂O₄ sphere-based gas sensor displays a low detection limit of 1 ppm with a response value of 1.48 and wide detecting range from 1 to 500 ppm at an operating temperature of 280 °C. Moreover, high selectivity against acetone, methanol, isopropanol, formaldehyde, toluene, xylene, benzene, ammonia, and ethanol is investigated. These results demonstrate that CdIn₂O₄ spheres represent a promising sensing material in detecting n-butanol gas.
