Controlled Growth of BiSI Nanorod-Based Films Through a Two-Step Solution Process for Solar Cell Applications
Division of Energy Technology, DGIST, Daegu 42988, Korea
*
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(12), 1650; https://doi.org/10.3390/nano9121650
Received: 28 October 2019 / Revised: 15 November 2019 / Accepted: 18 November 2019 / Published: 20 November 2019
(This article belongs to the Special Issue Nanostructures for Solar Cells and Photovoltaics)

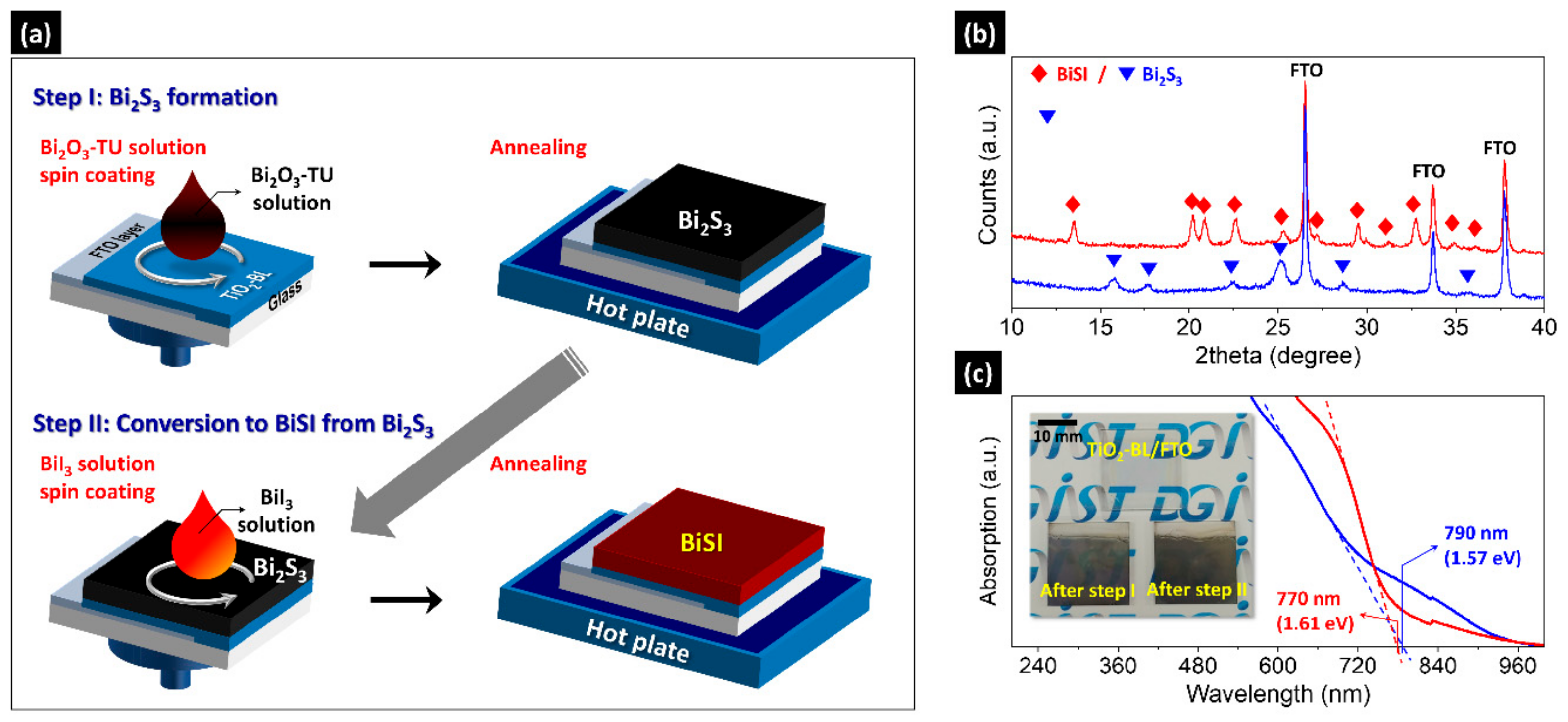

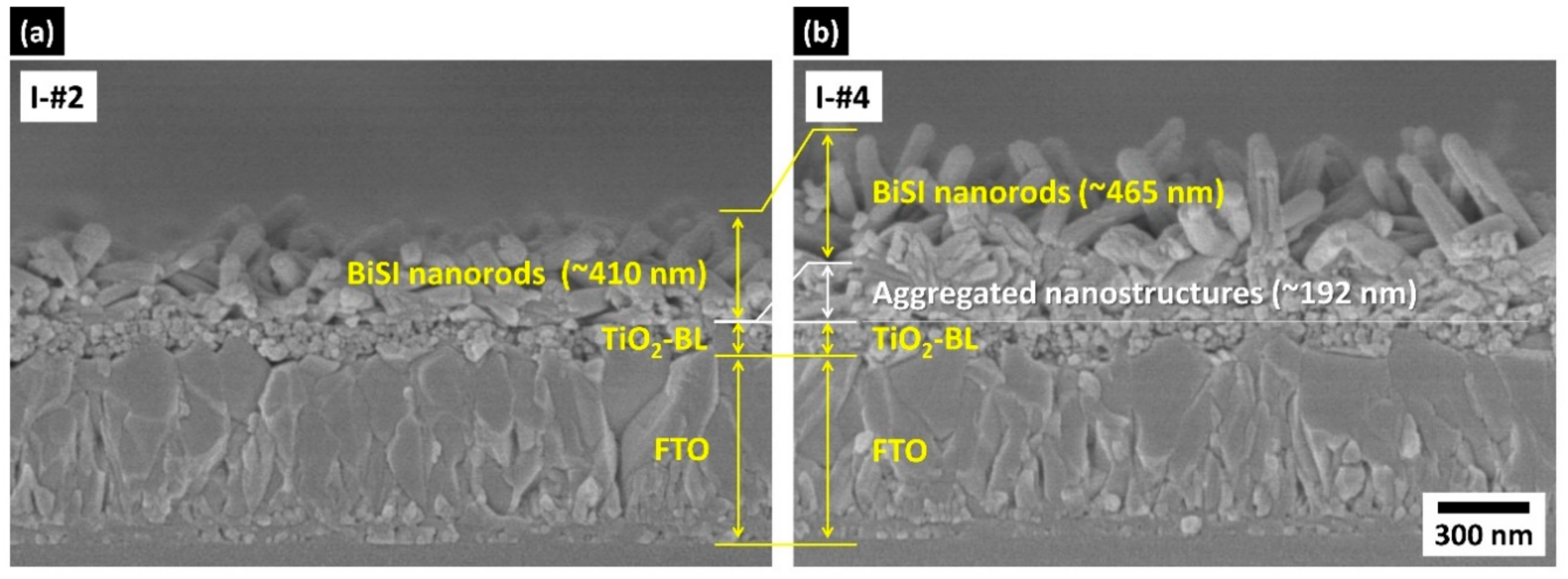

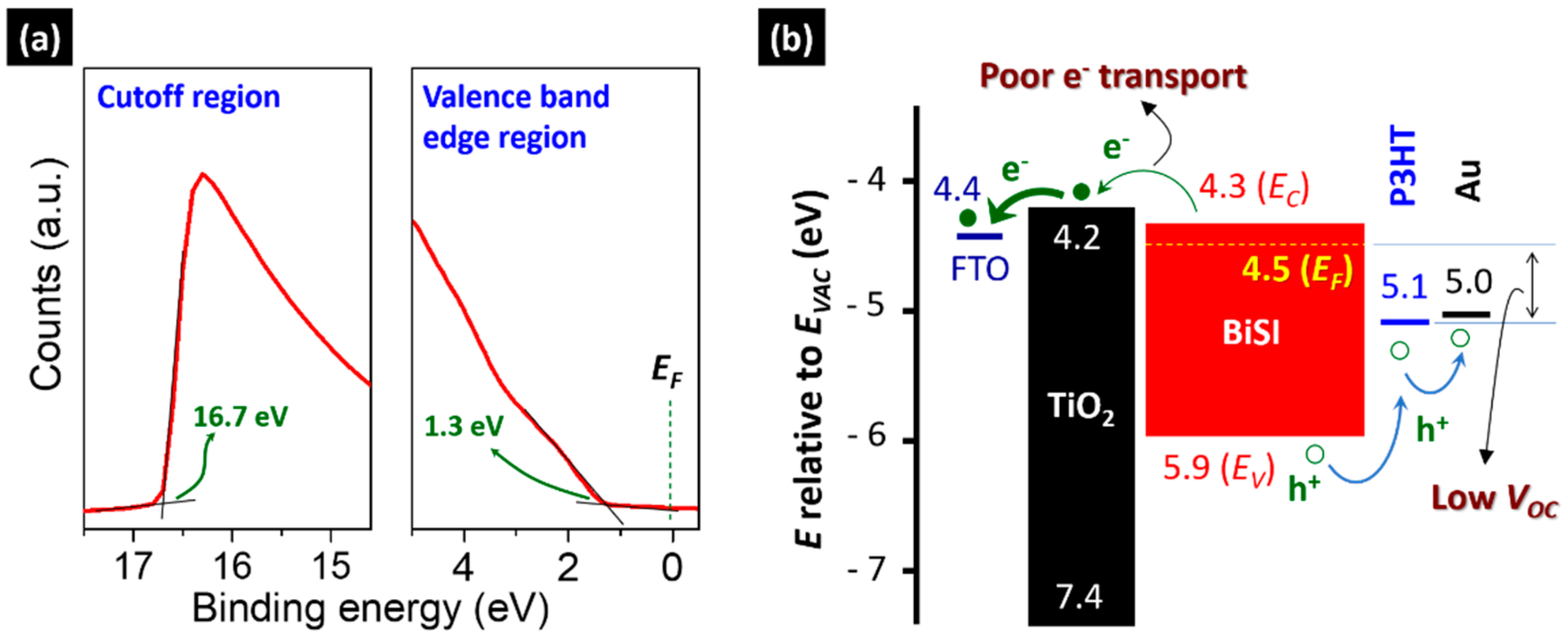

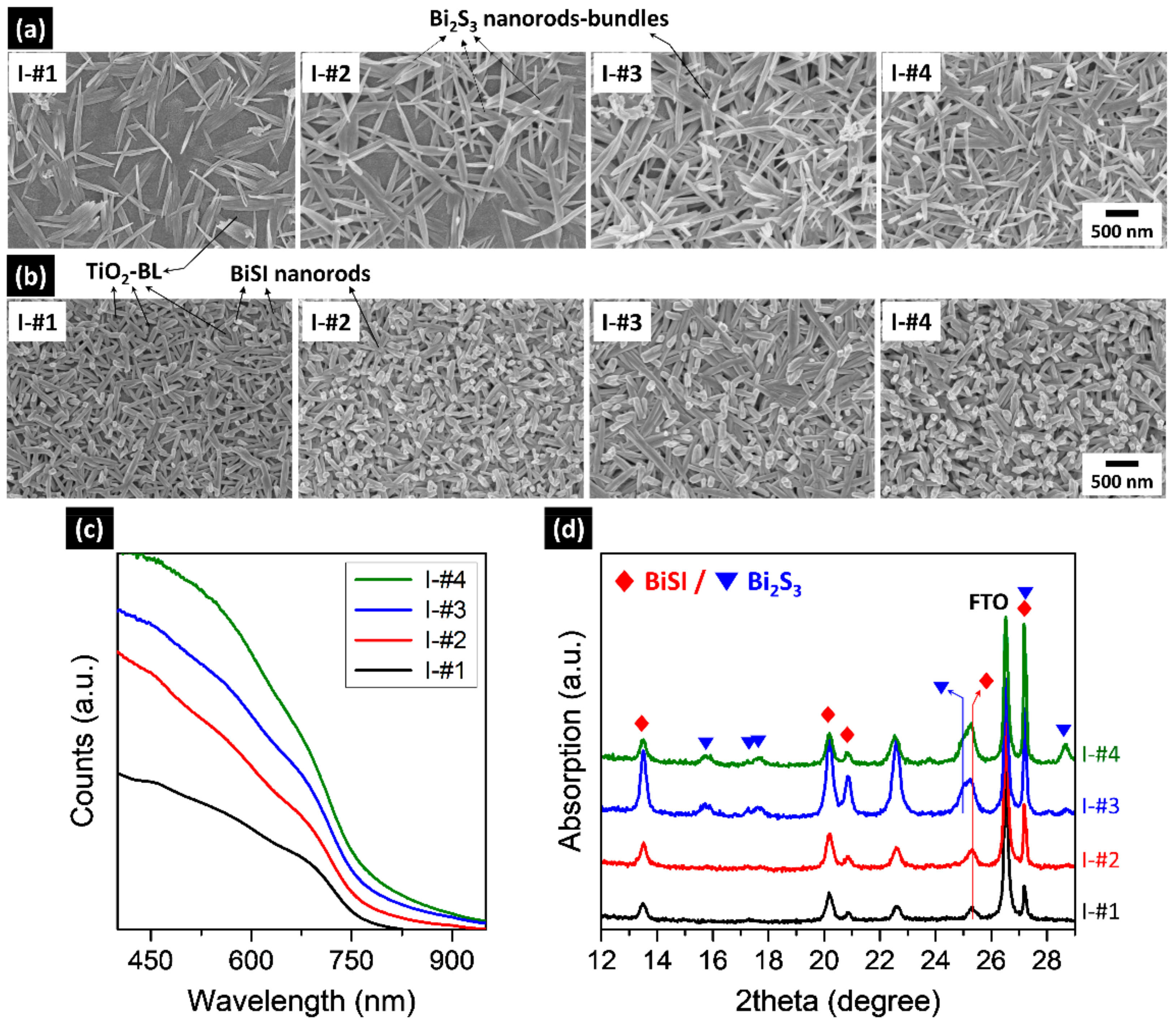

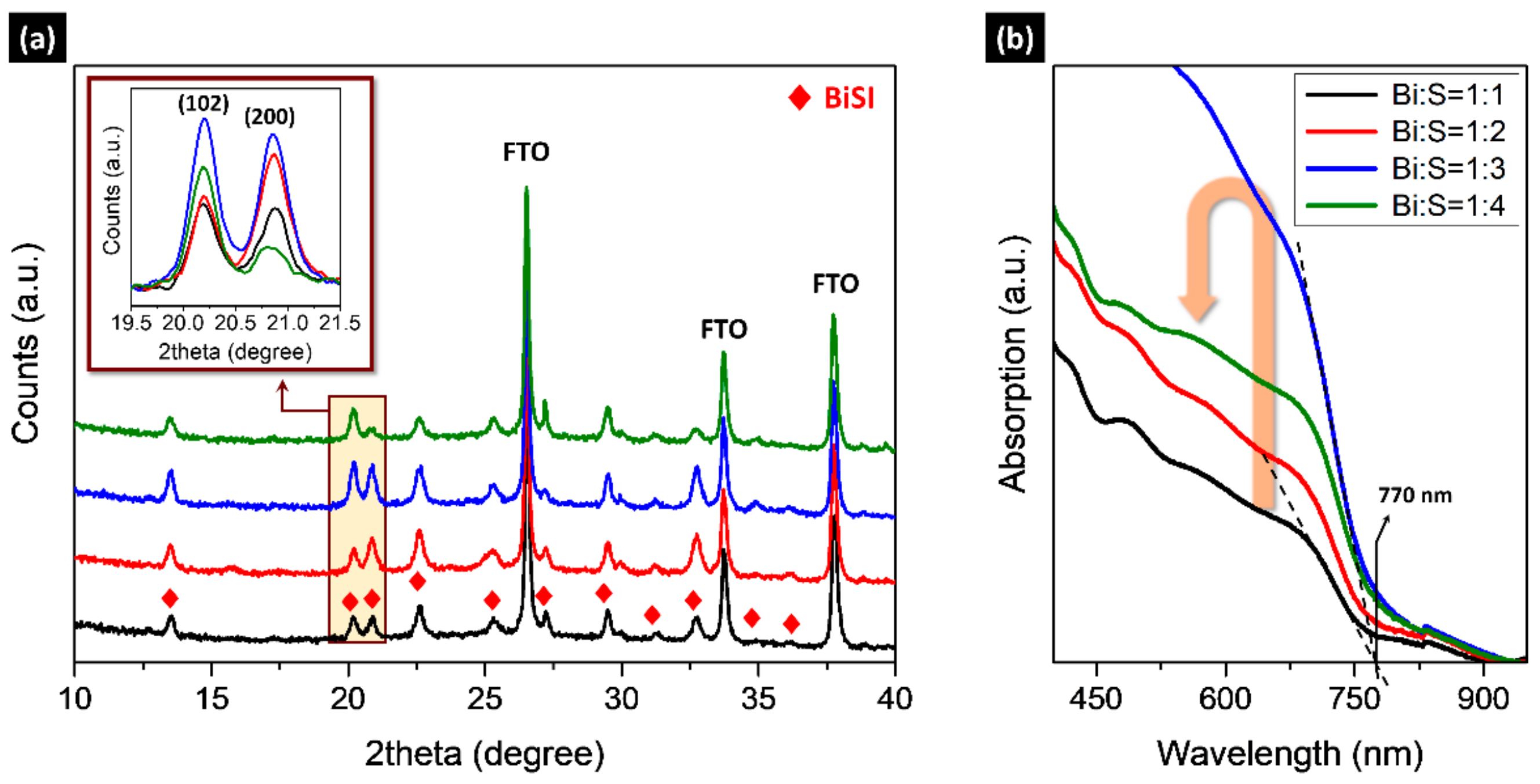

Pb-based hybrid perovskite solar cells, despite their advantages, face challenges in commercialization. In recent years, Bi-based chalcohalides are being considered as potential alternative candidates, however, their current device efficiency remains unsatisfactory. Herein, a two-step solution method is developed and applied to the fabrication of BiSI films. The method consists of the formation of Bi2S3 (step I) and its conversion to BiSI (step II). The Bi2S3 was fabricated by a thiol-amine solution process and the BiSI conversion was achieved by chemical reaction between the as-formed Bi2S3 and BiI3. It was found that the formation of BiSI was highly dependent on the Bi:S molar ratio of the Bi2O3-thiourea solution and the number of times of step I. The as-fabricated BiSI film had an optical band gap of 1.61 eV and exhibited nanorod morphology. In addition, the electronic structure is explored and discussed for solar cells applications.
Keywords:
bismuth chalcohalides; BiSI; Bi2S3; solution process; thiol-amine; solar cells
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
MDPI and ACS Style
Choi, Y.C.; Hwang, E. Controlled Growth of BiSI Nanorod-Based Films Through a Two-Step Solution Process for Solar Cell Applications. Nanomaterials 2019, 9, 1650.
Show more citation formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
- Supplementary File 1:
PDF-Document (PDF, 783 KB)
