Impact of Co2+ Substitution on Microstructure and Magnetic Properties of CoxZn1-xFe2O4 Nanoparticles

Physics Department, College of Science, Jouf University, Al-Jouf, Sakaka P.O. Box 2014, Saudi Arabia
Physics Department, Faculty of Science, Sohag University, 82524 Sohag, Egypt
Departments of Physical and Analytical Chemistry, and Organic and Inorganic Chemistry, University of Oviedo-CINN, 33006 Oviedo, Spain
Department of Materials Science and Metallurgical Engineering, University of Oviedo, Campus Universitario, 33203 Gijón, Spain
Chemistry Department, Faculty of Science, Sohag University, 82524 Sohag, Egypt
Chemistry Department, Faculty of Science, Taibah University, Madinah P.O. Box 344, Saudi Arabia
Authors to whom correspondence should be addressed.
Nanomaterials 2019, 9(11), 1602;
Received: 1 October 2019 / Revised: 25 October 2019 / Accepted: 9 November 2019 / Published: 11 November 2019


In the present work, we synthesized CoxZn1-xFe2O4 spinel ferrite nanoparticles (x= 0, 0.1, 0.2, 0.3 and 0.4) via the precipitation and hydrothermal-joint method. Structural parameters were cross-verified using X-ray powder diffraction (XRPD) and electron microscopy-based techniques. The magnetic parameters were determined by means of vibrating sample magnetometry. The as-synthesized CoxZn1-xFe2O4 nanoparticles exhibit high phase purity with a single-phase cubic spinel-type structure of Zn-ferrite. The microstructural parameters of the samples were estimated by XRD line profile analysis using the Williamson–Hall approach. The calculated grain sizes from XRPD analysis for the synthesized samples ranged from 8.3 to 11.4 nm. The electron microscopy analysis revealed that the constituents of all powder samples are spherical nanoparticles with proportions highly dependent on the Co doping ratio. The CoxZn1-xFe2O4 spinel ferrite system exhibits paramagnetic, superparamagnetic and weak ferromagnetic behavior at room temperature depending on the Co2+ doping ratio, while ferromagnetic ordering with a clear hysteresis loop is observed at low temperatures (5K). We concluded that replacing Zn2+ ions with Co2+ ions changes both the structural and magnetic properties of ZnFe2O4 nanoparticles.

Graphical Abstract

1. Introduction

The microstructural characterization of spinel-ferrites has been long discussed in the literature [1,2,3,4]. Such interests are justified by the potential applications of spinel-ferrites that involve spintronic and magnetic resonance imaging (MRI), gas sensors, magnetic recording, medical diagnostics, antibacterial agents and self-controlled magnetic hyperthermia [5,6,7,8]. Thanks to the spinel-ferrites’ exceptional electric and magnetic properties, they are promising significant future advancements in Lithium-Ion batteries, microwave electronics and catalysis [9,10,11]. The coercivity, remanent magnetization, saturation magnetization and anisotropy constant of the spinel-ferrites are found at the basis of many other applications [12].
The spinel ferrite structure features a cubic cell with eight formula units. The formula unit is denoted by (D)A(T)BO4, where D is the divalent transition metal cation, that is, D = Co, Ni, Mn, Cu, Zn, Mg. T is the iron trivalent cation, that is, Fe3+. Inside the cubic cell, the D2+ and Fe3+ metallic cations are positioned at two distinct interstitial sites (tetrahedral-A or octahedral-B site) [13,14,15,16].
The physicochemical properties of zinc and cobalt ferrites have been at the forefront of advanced research because of their potential use in medical and industrial applications [17,18,19,20]. The structure of ZnFe2O4 bulk compound is normal spinel ferrite. The diamagnetic Zn2+ ions occupancy of the tetrahedral A-sites renders all Fe3+ ions on the octahedral B-sites [21]. Moreover, ZnFe2O4 is a soft magnetic oxide due to the nonmagnetic properties of Zn2+ ions (0 μB). On the hand, the Co-based spinel ferrite (CoFe2O4) is a hard-magnetic oxide due to the large magnetic moments of Co2+ ions (3 μB). Cobalt ferrites exhibit a high coercivity (HC), moderate magnetization (Ms) and fine chemical stability. In addition, CoFe2O4 has an inverse spinel ferrite structure in which ferric ions are equally-distributed on the octahedral and tetrahedral sites. On the other hand, the divalent cobalt ions occupy the octahedral B-sites.
Scientists found that mixing Co–Zn ferrites compounds would result in a mixed spinel ferrite type structure [22]. Furthermore, the magnetic behavior of ZnFe2O4 is highly dependent on the distribution of the cations of the tetrahedral A sites and octahedral B sites in the spinel structure. Thus, the introduction of magnetic Co2+ ions changes the cation distribution in the host ferrite lattice and changes the properties of the parent ferrite material by modifying the super-exchange coupling of the tetrahedral and octahedral lattice sites [23,24,25,26]. Fabrication processes may be controlled to optimize the magnetic properties of spinel ferrite materials for specific uses. This reflects the interest in size-controlled synthesis of ferrite nanomaterials with limited size distributions and a variety of morphologies [27]. For example, Huma et al. [28] studied the synthesis and characterizations of Co2+ ions substituted zinc ferrites Co1-xZnxFe2O4 with different Co2+ doping ratios (x = 0.0–1.0) synthesized via the micro-emulsion technique. This research group observed that the crystalline size decreased from 41 nm to 19 nm as the Co2+ content increased from x = 0.0 to x = 1.0. They reported a ferromagnetic order at room temperature for all samples with an improvement in coercivity and saturation magnetization by increasing the concentration of Co2+ in the host structure. These results contradict other findings obtained by Gomea-Polo et al. [29], who investigated the same nanoferrite system prepared by the co-precipitation method. Their structure and magnetic study indicated that the particle size increases from 9.4 nm to 14.7 nm with the increase of the Co2+ content from 0.1 to 1.0, with superparamagnetic behavior at room temperature.
F. Gozuak et al. [30] reported the preparation of Co1-xZnxFe2O4 nanoferrites (x = 0.0–1.0) via PEG-assisted hydrothermal rout. In this study, the size of particles did not change linearly with the Co2+ doping ratio. The particle size decreased from 12.1 nm to 5.3 nm with the increase of the Co2+ content from 0.0 to 0.5 and then increased to 12.4 nm with an increase of Co2+ content to 0.7. Magnetic measurements showed transformation of magnetic configuration from superparamagnetic to ferromagnetic at room temperature as a result of introducing Co2+ ions in the ZnFe2O4 host lattice.
In this study, we used the precipitation and hydrothermal-joint method to prepare fine well-crystallized Co2+ doped zinc ferrite nanopowders. We found that this joint-method is favorable as it guarantees good physical homogeneity, narrow distribution of particle size and high production rates with low reaction temperature. Until now, there have been few studies on the magnetic behavior of Co2+ doped zinc ferrite nanoparticles below curie-temperature (TC) [31]. Thus, our work fulfills a need to investigate the magnetic properties of Co1-xZnxFe2O4 with different Co2+ doping ratios (0%, 10%, 20%, 30% and 40%) between 5K and 300K. Here, we studied the influence of various Co+2 doping ratios on the structure and magnetic properties of ZnFe2O4 nanomaterial and the corresponding interactions between the Fe3+ and Co2+ ions during the evolution process.

2. Materials and Methods

Co-doped zinc ferrites Co1-xZnxFe2O4 nanoparticles with different Co2+ doping ratios (0%, 10%, 20%, 30% and 40%) (Co_ (0, 1, 2, 3 and 4)) were synthesized by using stoichiometric molar amounts of Co (NO3)2·6H2O, Zn(NO3)2·6H2O and Fe(NO3)3·9H2O obtained from Sigma Aldrich Corporation (Germany). These materials were chromium, zinc and iron precursors, while NaOH pellets obtained from Alfa Aesar Corporation was the precipitating agent, and Polyethylene glycol 400 was used as a surfactant. Co_ (0, 1, 2, 3 and 4) samples were prepared via the precipitation and hydrothermal-joint method. The details of the sample preparation procedures have been presented in our previous work [21]. X-ray powder diffraction (XRPD) statistics of Co-doped zinc ferrites Co1-xZnxFe2O4 nanoparticles were investigated by a Philips X’pert MRD diffractometer with Cu Kα radiation wavelength of 1.5418 Å in the 2-Theta range from 10° to 80°. The energy dispersive X-ray spectroscopy (EDXS) analysis was carried out with a scanning electron microscope (SEM/EDXS-JEOL- 6610VL) operating at 2000 V. Transmission electron microscopy (TEM) and high-resolution HR-(TEM) investigations were performed with a JEOL-JEM-2100F microscope operating at 200 kV. The magnetic properties of the CoxZn1-xFe2O4 ferrite systems were measured using quantum design vibrating sample magnetometer (VSM) within the range of ± 50,000 Oe between 5 and 300 K.

3. Results and Discussion

3.1. XRPD Analysis

3.1.1. Phase Identification

The crystal structure of the synthesized Co_ (0, 1, 2, 3 and 4) samples with composition CoxZn1-xFe2O4 (x = 0, 0.1, 0.2, 0.3 and 0.4), respectively, were analyzed using the XRPD technique. The XRPD patterns of the CoxZn1-xFe2O4 samples with different Co doping ratios, i.e., 0–40% are shown in Figure 1.
The well-defined sharp diffraction peaks of all the samples indicates a high degree of crystallization of CoxZn1-xFe2O4 crystals. The observed peaks of the XRPD spectra features the expected Bragg peak solely for a single-phase spinel-type cubic structure of Zn-ferrite with Fd-3m space group (JCPDS file no. 022-1012). The absence of secondary crystalline phases reveals the high purity of the synthesized samples. This shows that Co atoms were successfully substituted into the lattice of Zn-ferrite. Table S1 summarizes the detected XRPD lines, their () angles, the calculated interplanar distances (dhkl), Miller indices (hkl) and the calculated pure broadening (βCorrect) for all samples. The interplanar distance values were calculated according to Bragg’s law:
n λ = 2 d h k l   s i n   θ ,
where n is the order of diffraction, λ is the X-ray wavelength and dhkl is the lattice spacing.

3.1.2. Microstructural Studies by Williamson–Hall (W–H) Method

Analyzing the X-ray peak profiles with the (W–H) method enables estimation of the crystallite size (i.e., coherently diffracting domains) and the lattice strain (i.e., the lattice parameters arising from crystal imperfections) by studying the peak width as a function of detector angle 2-Theta [32,33].
A Lorentzian model was used to fit the individual diffraction peaks for all samples using Origin 8.1 software and Lorentz function in the fitting procedure. According to the Lorentzian distribution function, the corrected broadening of a peak βCorrect is related to the observed broadening βObserved and the instrumental broadening βInstrumental by the following relation:
β C o r r e c t = β O b s e r v e d β I n s t r u m e n t a l
The observed line integral breadth was used to calculate the pure broadening of XRPD lines of our investigated samples. After the Lorentzian fitting of the spectral XRPD peaks in Figure S1, the line integral breadth for a specific peak is calculated from the integral normalized by the maximum intensity of that peak. The XRPD profile of a highly crystalline LaB6 (660a) was used as a Standard Reference Material (SRM) to calculate the instrumental broadening correction, in which the impact on broadening due to particle size is minimal. Table S1 reports the calculated values of the corrected broadening βCorrect for the XRD peaks.
According to the W–H approach, the broadening of the diffraction peaks is due to crystallite size (βD) and micro-strain (βε) contributions. Thus, the pure peak broadening (βCorrect) for the samples in under study read [34] as
β C o r r e c t = β D β ε = k λ D L   c o s θ + 4 ε L   t a n θ ,
β C o r r e c t   c o s θ = k λ D L   + 4 ε L   s i n θ
where k is the shape factor (~0.94), λ is the incident XRPD wavelength (~0.15418 nm), DL is the average crystallite size, and εL is the average micro-strain. Equation (4) assumes that the sample has an isotropic nature and the micro-strain is uniform in all (hkl) crystallographic planes. This equation represents the uniform deformation model (UDM) where the crystal is considered isotropic in nature [32,33].
The average crystallite size (DL) and the average micro-strain (εL) for all Co_ (0, 1, 2, 3 and 4) samples were calculated with Equation (4) and the results are in Table 1.
Equation (4) is a linear regression between (βCorrect cos θ) and (4 sin θ), where the DL and εL may be calculated from the intercept and the slope, as illustrated in Figure 2.
As reported in Table 1, the increase of the Co doping ratio from 0% to 40% increases the size of crystallites from 8.37 nm to 11.41 nm and decreases the micro-strain values from 6.1 × 10−3 to 3.6 × 10−3. Thus, an inverse relationship between the crystallite size (DL) and micro-strain (εL) exists. The quality of the sample crystals is estimated by calculating the dislocation density (δL). The δL values of the samples was determined using the relation [35,36]
δ L = 1 D L 2
Table 1 states that the dislocation density decreased with increasing the Co doping content. This behavior may be related to the improvement of the crystallization process because of Co-doping. The decrease of micro-strain leads to the increase in the crystallites size and the decrease of the dislocation density, as shown in Table 1. Co doping promotes the agglomeration of the small crystallites, that is, the coalescence of adjacent particles. Thus, the vacancies at the grain boundaries were shrunk. This in turn reduces the crystal defects of the synthesized Co_ (0, 1, 2, 3 and 4) samples including the micro-strain and dislocation density [37].
The lattice parameter (a) of CoxZn1-xFe2O4 spinel ferrite samples was calculated for the prominent peak (311) using the following equation [38]:
a = d h k l h 2 + k 2 + l 2
We observed that the lattice parameter depends on the Co-doping ratio, which monotonically decreases with increasing of the Co-doping content as reported in Table 1. This Co doping dependence of the lattice parameter is ascribed to the smaller ionic radius of the cobalt atom (0.58 Å) compared to the zinc atom (0.6 Å) [36]. Ultimately, the addition of more Co improves the crystallinity and reduces the crystal defects of the synthesized Co_ (0, 1, 2, 3 and 4) samples.

3.2. Electron Microscopy Analysis

In this work, we utilized SEM and EDXS techniques to analyze the chemical composition, the morphology and the particles size distribution of Co_(0, 1, 2, 3 and 4). The EDXS spectra and elemental mapping (Figure S2 and Figure 3) emphasize the homogeneous dispersion of Co in Co_(0, 1, 2, 3 and 4) samples.
SEM analysis verified the pure Co_(0, 1, 2, 3 and 4) sample nanoparticles had a sphere-like morphology at sizes below 20 nm, which increase as Co doping content increases (Figure S3). The CoxZn1-xFe2O4 nanoparticles distribution is mainly uniform and an agglomeration, due to particles magnetic dipole–dipole interactions, is observed [39]. The undoped ZnFe2O4 (Co0) and cobalt doped CoxZn1-xFe2O4 samples with x = 0.2 (Co_2) and 0.4 (Co_4) were selected for TEM studies. TEM micrographs (Figure 4a–c) of Co_0, Co_2 and Co_4 samples show the ~10 nm diameters of spherical particles.
Figure S4 displays histograms of sample particle-sizes for Co_0 (a), Co_2 (b) and Co_4 (c) estimated by binning greater than 200 particles. The solid blue line corresponds to the Log-normal distribution function fit with a mean size of 8.4(2), 9.8(1) and 10.2(1) nm and a variance of 0.30(2), 0.26(1) and 0.25(1), respectively. Apparently, the increase of Co2+ content leads to an increase of the particle’s size. The HRTEM micrographs shown in Figure 4d–f for the Co_0, Co_2 and Co_4 samples, indicate the superior crystallinity of these nanoparticles. In addition, analysis of Figure 4d–f concludes an interplanar spacing of 4.8 Å, 2.9 Å and 2.5 Å corresponding to (111), (220) and (311) atomic planes of ZnFe2O4 phase, respectively. The patterns of the selected area electron diffraction (SAED) in Figure 4g–i confirms the polycrystallinity of the samples under study. The pattern of all the rings have been indexed with reflections corresponding to space group Fd-3m. Moreover, all the SAED patterns are in excellent agreement with the simulated patterns from Zn-ferrite crystal structure data.
The elemental and compositional properties of the Co_2 and Co_4 samples have been investigated by energy-dispersive X-ray spectroscopy (STEM-EDS) and electron energy loss spectroscopy (EELS). A successful and uniform doping of CO2+ in the synthesized compounds is verified by the STEM-EDS qualitative analysis (Figure S5 and Figure 5). The EELS spectra (Figure 5) unfolds strong Fe-L2,3 (2p1/2,2p3/2) edges for the Co_0, Co_2 and Co_4 samples. The EELS spectra of Figure 5 emphasize the monotonic increase in the edge intensity as the Co content increases.
Quantitative analysis of the STEM-EDS and EELS (Table 2) summarizes the expected general formula for the Co_2 and Co_4 samples as Co0.2Zn0.8Fe2O4 and Co0.4Zn0.6Fe2O4, respectively.

3.3. Magnetic Properties

The magnetic behavior of the CoxZn1-xFe2O4 ferrite systems (x = 0, 0.1, 0.2, 0.3 and 0.4) were measured using a vibrating sample magnetometer (VSM) within the range of ± 50,000 Oe. Figure 6 illustrates the change in the hysteresis curve on the Co2+ doping ratio at 300 K. The increase in the maximum magnetization, that is, Mm, occurred from 14 emu/g to 55 emu/g with an increase of Co2+ content from 0% to 40%. For x = 0.4, the maximum magnetization, Mm, equals the saturation magnetization, Ms. The hysteresis behavior of ZnFe2O4, the parent compound of our investigated systems, are impacted by the addition of Co2+ dopant. For the Co_0 and Co_1 samples, the magnetization curves have a semi-linear representation which indicates a paramagnetic state. For Co_2 and Co_3, the samples have a sigmoidal response but show no hysteresis, which suggests the presence of a saturated superparamagnetic component [40,41,42,43]. Sample Co_4 displayed a weak ferromagnetic behavior, as shown in Figure 6b with a small remanence (1.46 emu/g) and coercive fields (27 Oe). Figure 6 also shows the response of the superparamagnetic compounds to the external field as a sigmoidal behavior as the ferromagnetic materials with minimal to no remanence and coercive components [44]. The preceding results indicate an important phase transition from paramagnetic to ferromagnetic state by increasing the cobalt content in the ZnFe2O4 host lattice.
The magnetic behavior of Co_(0, 1, 2, 3 and 4) samples at 300 K correlates with the crystallite size. The particle size of the CoxZn1-xFe2O4 ferrite systems increases from 8.3 nm to 11.4 nm with the increase of the Co2+ doping content as verified by structural analysis. When the particle size is small enough, the coercive field will become equal to zero and the remanent magnetization will disappear. Consequently, these materials respond as a paramagnetic compound [43,44]. The concept of super-paramagnetism is very close to that of ferromagnetism, the difference is the coherent strength of the magnetic domains. To have superparamagnetic materials, the crystal size must be sufficiently smaller than a Weiss domain of the corresponding bulk material. This ensures that the material form a single crystal domain in which they acquire uniform high magnetization with all the spins aligned in the same direction. In short, the bigger particles tend to show ferromagnetic state and smaller particles tend to show paramagnetic or superparamagnetic state.
Figure 7 illustrates the magnetization vs. applied magnetic field (M–H) in the range of ± 50,000 Oe at 5 K for Co_(0, 1, 2, 3 and 4) samples. The magnetization curves of all samples at 5K have a sigmoidal shape with a visible hysteresis loop (Figure 7b) which is characterized by ferromagnetic material [25].
The magnetic parameters, such as coercivity (HC), remanent magnetization (Mr), squareness (Mr/Ms), saturation magnetization (Ms) and anisotropy constant (k) were calculated from the hysteresis loops and listed in Table 3. The large values of coercive field and remanent magnetization are associated with the influence of the cationic stoichiometry and their positioning in specific lattice sites [22]. At 5 K, the remanent magnetization for the samples ranges from 7.3 emu/g to 69 emu/g. Moreover, the coercivities ranges from 0.3 KOe to 5.1 KOe, as shown in Table 3. The ranges of the remanent magnetization and the coercivities indicate that the CoxZn1-xFe2O4 ferrite systems are paramagnetic-superparamagnetic at room temperature but is magnetically ordered at very low temperatures, for example, a ferromagnetic-like moment.
The saturation magnetization, Ms, is found to increase with increasing Co2+ content from 40 emu/g for x = 0.0 to 98 emu/g for x = 0.4. In a cubic structure of spinel ferrites, the saturation magnetization originates from the differential magnetic moments of the metal ions at the octahedral (B) and tetrahedral (A) sites [24,25,26]. In ZnFe2O4, the nonmagnetic Zn2+ cations (0 μB) preferably occupy the (A) sites and the Fe3+ ions (5 μB) prefer the (B) sites. CoFe2O4 has an inverse spinel structure in which the highly magnetic Co2+ bivalent cation occupies B site and Fe3+ ions are distributed equally between A and B sites with their spins in the opposite direction. At the tetrahedral (A) and octahedral (B) sites, the magnetic moments of Fe3+ are mutually neutralized. Thus, the resultant moment of the ferrite compound is practically equivalent to the aggregate magnetic moments of Co2+ ions (3 μB) at the B sites. Neel’s model suggests that the saturation magnetization is determined by the super-exchange interactions of the two sublattices [45]. Substituting the nonmagnetic Zn2+ cations by magnetic Co2+ ions leads to the introduction of Co2+ ions into A sites; thus, increasing the super-exchange interactions of the A and B sites, which in turn leads to an increased magnetization. The anisotropy value (k) for all samples reads [46]
k = M S H C 0.96 .
The variation of anisotropy value with increasing Co2+ content is reported in Table 3. We observed that the increase of Co2+ content in the ZnFe2O4 host lattice has a significant impact on the magnetic anisotropy (k). The increase in the anisotropy constant with Co2+ content reveals that the magnetic dipoles have a stronger alignment in each direction [15,39].
The squareness ratio (Mr/Ms) could be used as a functional parameter for evaluating the homogeneity on dimension of the nanoparticles and the limit of single-domain-size of the magnetic nanomaterials [38]. The nature of magnetic domain in CoxZn1-xFe2O4 ferrite systems having a particular size can be calculated from the squareness (Mr/Ms) value. The single-domain nanosized ferromagnetic material could potentially be superparamagnetic at Mr/Ms = 0. When Mr/Ms does not equal zero, the prepared nanosized compound has both single-domain and multiple domain sizes. The larger particle size gives a higher Mr/Ms ratio and in this case the ferromagnetic behavior becomes predominant. The values of Mr/Ms for all CoxZn1-xFe2O4 ferrite samples were found to be in the range of 0.18 to 0.7, which suggests the formation of ferromagnetic states due to large particles in size distribution. Zero field-cooled (ZFC) and field-cooled (FC) magnetization curves for Co_(0, 1, 2, 3 and 4) samples were measured with an external field of 100 Oe over a wide temperature range (5K ≤ T ≤ 300 K), as illustrated in Figure 8.
The ZFC magnetization curves are typically obtained in two stages. First, in the absence of external magnetic field, we cool down the sample from 300 K (most particles show paramagnetic or superparamagnetic behavior) down to 5 K. In the second stage we apply a magnetic field of 100 Oe, while we increase the temperature from 5 K to 300 K in a stepwise manner. On the other hand, the FC magnetization curves are obtained by measuring the magnetization (M) while decreasing the temperature in the presence of a magnetic field [47]. The physical property we are interested in is the blocking temperature (TB), that is, the temperature at which maximum magnetization is achieved. The blocking temperature is sensitive to the grain-size distribution and indicates the transition between the superparamagnetic state (T > TB) and the blocked state (T < TB) [48]. Another feature of interest is the splitting or irreversibility temperature, Tirr, which is qualitatively defined as that temperature where the ZFC and FC curves visibly diverge.
For a perfect superparamagnetic system (SPM) with a monodisperse particle size distribution, the irreversibility temperature will occur near the blocking temperature, that is, Tirr ~TB. However, for a superparamagnetic system with a finite size distribution the irreversibility temperature occurs at temperature larger than the blocking temperatures, that is, T > TB. Testa et al. [49] attributed the presence of a maximal turning point on ZFC curve for magnetic spinal ferrites to the blocking of the magnetic moment of individual particles and the mutual magnetic interactions between particles. As shown in Figure 8, there is an increase in the blocking temperature with particle size. Notably, the ZFC peaks shift towards the higher temperatures with increasing of Co2+ dopant ratio, indicating a continuous increase in the average grain size, which agrees with the structural analysis by XRD and TEM [50]. In the same magnetic field, larger particles experience blocking at higher temperature, whereas smaller particles does not seem to behave likewise. The larger volume of particles causes an increase in the anisotropy energy, which reduces the tunneling through the anisotropy barrier and hence the blocking inclines to higher temperatures [51].
As seen in Figure 8a,b, the ZFC magnetization curve of Co_0 and Co_1 samples (x = 0.0 and 0.1) reach a maximum value at the blocking temperature TB equals to 25 K and 62 K, respectively. Beyond the blocking temperature, the magnetization decreases and shows a typical paramagnetic behavior. In addition, above the blocking temperature the FC magnetization curves follow the same path as ZFC curves. Furthermore, the rapid fall off of the ZFC curve peak for the Co_0 and Co_1 samples and the closeness of TB and Tirr values illustrates the narrow size distribution for corresponding samples [49,50,51,52].
For the Co_2, Co_3 and Co_4 samples (x = 0.2, 0.3 and 0.4), the divergence of ZFC and FC curves at a certain irreversibility temperature is one of the characteristic features of superparamagnetic state. In other words, above the Tirr point, the Co_(2, 3 and 4) ferromagnetic clusters are fully unblocked. It is worth noting that the large difference between the blocking and the irreversibility temperatures indicates a homogeneous distribution of magnetic anisotropy in the sample. The maximum value of the ZFC curve at TB, shifts towards higher temperatures as the Co2+content increases, that is, TB = 25 K, 62 K, 114 K, 170 K, and 240 K for Co_0, Co_1, Co_2, Co_3 and Co_4, respectively. Since the phenomenon of SPM blocking is related to magnetic anisotropy, the increasing of blocking temperature can be attributed to an increased particle anisotropy [53].
On comparing the FC–ZFC data and hysteresis curves data of our samples under study, we found that, below blocking temperature, the field-dependent magnetization of the Co_(0, 1, 2, 3 and 4) samples show the formation of pronounced hysteresis loops and hence behaves as ferromagnetic material. Above the blocking temperature, the hysteresis becomes infinitesimal, and the material behaves as paramagnetic or superparamagnetic material depending on the size of material particles.

4. Conclusions

CoxZn1-xFe2O4 spinal ferrite nanoparticles with different Co2+ ratios were successfully synthesized via the precipitation and hydrothermal method. This joint method of preparation has shown many advantages such as good physical homogeneity, a narrow distribution of particle size and high production rates. X-ray diffraction analysis validates that all the synthesized products were remarkably pure, and they exhibit single-phase cubic structures. The results show an increase in the crystallite size and decreases in both micro-strain and lattice parameter values, corresponds to an increased amount of Co2+ ions in the ZnFe2O4 host lattice. SEM and TEM microstructure analysis confirm the sphere-like morphology with particle sizes at 10 nm in diameters. HRTEM and SAED analysis validates the highly crystalline nature of all CoxZn1-xFe2O4 samples. Quantitative analysis of EDXS and EELS measurements, shows that the theoretical and measured elemental stoichiometry are in good agreement with each other. The magnetization measurements, at room temperature for the samples (x = 0 and 0.1), reveals the existence of unsaturated magnetization. The infinitesimal width of hysteresis loops for the samples with lower cobalt content (x = 0 and 0.1) implies a paramagnetic behavior. Increasing the cobalt doping (x = 0.2 and 0.3) transforms the magnetic phase from paramagnetic to superparamagnetic. The CoxZn1-xFe2O4 nanoparticles with x = 0.4 indicate saturated magnetization and finite hysteresis loop, which exhibits a weak ferromagnetic phase at room temperature. Ferromagnetic ordering with clear hysteresis behavior is experienced for all samples at low temperature (5K). The structural and magnetic properties of CoxZn1-xFe2O4 spinel ferrite nanoparticles are greatly influenced by the Co2+ doping ratio and temperature. The findings of current study help in optimizing the magneto-structural characteristics of ZnFe2O4 nanoparticles for many applications, such as spintronics and magnetic hyperthermia.

Supplementary Materials

The following are available online at, Figure S1: Diffraction peak profiles showing the experimental data (black solid line) and the fitting model (green lines for the individual peaks and red line for the cumulative model); a Lorentzian model was used to fit the individual diffraction peaks for all Co_(0–4) samples; Figure S2: SEM images and EDS spectra for Co_0 (a,b), Co_2 (c,d) samples and Co_4 (e,f); Figure S3: SEM images for the prepared doped ZnFe2O4, Figure S4: Histograms of particle-size distribution for Co_0 (a), Co_2 (b) and Co_4 (c); Figure S5: Bright-field STEM images for Co_2 (a) and Co_4 (b) samples; yellow lines in (a,b) show line-scan profiles for Co (red), Zn (green) and Fe (blue) elements measured along a set of nanoparticles; Table S1: The position of observed XRD angles (2θ), the calculated interplanar spacing (dhkl), the miller indices (hkl) according to JCPDS data and the calculated pure broadening (β Correct) according to Lorentzian distributions of CoxZn1-xFe2O4 ferrite systems.

Author Contributions

Conceptualization, W.S.M., A.M.A.-D., S.G.-G.; methodology, all authors; formal analysis, W.S.M., M.A., M.S.M.A., Z.A., A.M.A.-D.; investigation, W.S.M., M.A., A.M.A.-D.; resources, A.M.A.-D., M.S.M.A., Z.A., S.G.-G.; data curation, all authors; validation, all authors; writing—original draft preparation, W.S.M. and A.M; writing—review and editing, W.S.M., M.A., Z.A, A.M.A.-D.; supervision, S.G.-G. and A.M.A.-D.; project administration, W.S.M. and A.M.A.-D.; funding acquisition, S.G.-G. and Z.A.


This research was funded by Spanish “Ministerio de Economía y Competitividad” (MAT2016-78155-C2-1-R, MAT2013-40950-R, MAT2011-27573-C04-02 and FPI grant BES-2011-046948 to MSM.A.), “Gobierno del Principado de Asturias” (GRUPIN14-060) and FEDER.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Aziz, H.S.; Khan, R.A.; Shah, F.; Ismail, B.J.; Nisar, S.M.; Shah, A.; Khan, A.R. Improved electrical, dielectric and magnetic properties of Al-Sm co-doped NiFe2O4 spinel ferrites nanoparticles. Mater. Sci. Eng. B 2019, 243, 47–53. [Google Scholar] [CrossRef]
  2. Yadav, R.S.; Havlica, J.; Masilko, J.; Kalina, L.; Wasserbauer, J.; Hajdúchová, M.; Enev, V.; Kuritka, I.; Kozáková, Z. Impact of Nd3+ in CoFe2O4 spinel ferrite nanoparticles on cation distribution, structural and magnetic properties. J. Magn. Magn. Mater. 2016, 399, 109–117. [Google Scholar] [CrossRef]
  3. Kefeni, K.K.; Msagati, T.A.M.; Mamba, B.B. Ferrite nanoparticles: Synthesis, characterisation and applications in electronic device. Mater. Sci. Eng. B 2017, 215, 37–55. [Google Scholar] [CrossRef]
  4. Frajera, G.; Isnard, O.; Chazal, H.; Delette, G. Effect of cobalt addition on the magneto-crystalline anisotropy parameter of sintered NiZn ferrites evaluated from magnetization curves. J. Magn. Magn. Mater. 2019, 473, 92–98. [Google Scholar] [CrossRef]
  5. Tovstolytkin, A.I.; Kulyk, M.M.; Kalita, V.M.; Ryabchenko, S.M.; Zamorskyi, V.O.; Fedorchuk, O.P.; Solopan, S.O.; Belous, A.G. Nickel-zinc spinel nanoferrites: Magnetic characterization and prospects of the use in self-controlled magnetic hyperthermia. J. Magn. Magn. Mater. 2019, 473, 422–427. [Google Scholar] [CrossRef]
  6. Sutka, A.K.; Grossa, A. Spinel ferrite oxide semiconductor gas sensors. Sens. Actuators B 2016, 222, 95–105. [Google Scholar] [CrossRef]
  7. Han, J.K.; Choi, H.J. Non-stoichiometric zinc-doped spinel ferrite nanoparticles with enhanced magnetic property and their magnetorheology. Colloid Polym. Sci. 2018, 296, 405–409. [Google Scholar] [CrossRef]
  8. Samavati, A.; Ismail, A.F. Antibacterial properties of copper-substituted cobalt ferrite nanoparticles synthesized by co-precipitation method. Particuology 2017, 30, 158–163. [Google Scholar] [CrossRef]
  9. Wang, M.; Huang, Y.; Chen, X.; Wang, K.; Wu, H.; Zhang, N.; Fu, H. Synthesis of nitrogen and sulfur co-doped graphene supported hollow ZnFe2O4 nanosphere composites for application in lithium-ion batteries. J. Alloys Compd. 2017, 691, 407–415. [Google Scholar] [CrossRef]
  10. Yue, H.; Du, T.; Wang, Q.; Shi, Z.; Dong, H.; Cao, Z.; Qiao, Y.; Yin, Y.; Xing, R.; Yang, S. Biomimetic Synthesis of Polydopamine Coated ZnFe2O4 Composites as Anode Materials for Lithium-Ion Batteries. ACS Omega 2018, 3, 2699–2705. [Google Scholar] [CrossRef] [PubMed]
  11. Yan, J.; Gao, S.; Wang, C.; Chai, B.; Li, J.; Song, G.; Chen, S. A facile electrospinning and direct annealing method for the fabrication of multi-porous ZnFe2O4 nanotubes with enhanced photocatalytic activity. Mater. Lett. 2016, 184, 43–46. [Google Scholar] [CrossRef]
  12. Petrova, E.; Kotsikau, D.; Pankov, V.; Fahmi, A. Influence of synthesis methods on structural and magnetic characteristics of Mg–Zn-ferrite nanopowders. J. Magn. Magn. Mater. 2019, 473, 85–91. [Google Scholar] [CrossRef]
  13. Harrisa, V.G.; Šepelák, V. Mechanochemically processed zinc ferrite nanoparticles: Evolution of structure and impact of induced cation inversion. J. Magn. Magn. Mater. 2018, 465, 603–610. [Google Scholar] [CrossRef]
  14. Li, S.; John, V.T.; O’Connor, C.; Harris, V.; Carpenter, E. Cobalt-ferrite nanoparticles: Structure, cation distributions, and magnetic properties. J. Appl. Phys. 2000, 87, 6223. [Google Scholar] [CrossRef]
  15. Akhtar, M.N.; Khan, M.A. Effect of rare earth doping on the structural and magnetic features of nanocrystalline spinel ferrites prepared via sol gel route. J. Magn. Magn. Mater. 2018, 460, 268–277. [Google Scholar] [CrossRef]
  16. Tatarchuk, T.R.; Bououdina, M.; Paliychuk, N.D.; Yaremiy, I.P.; Moklyak, V.V. Structural characterization and antistructure modeling of cobalt-substituted zinc ferrites. J. Alloys Compd. 2017, 694, 777–791. [Google Scholar] [CrossRef]
  17. Mallick, A.; Mahapatra, A.S.; Mitra, A.; Greneche, J.M.; Ningthoujam, R.S.; Chakrabarti, P.K. Magnetic properties and bio-medical applications in hyperthermia of lithium zinc ferrite nanoparticles integrated with reduced graphene oxide. J. Appl. Phys. 2018, 123, 055103. [Google Scholar] [CrossRef]
  18. Kefeni, K.K.; Mamba, B.B.; Msagati, T.A.M. Application of spinel ferrite nanoparticles in water and wastewater treatment: A review. Sep. Purif. Technol. 2017, 188, 399–422. [Google Scholar] [CrossRef]
  19. Sagayaraj, R.; Aravazhi, S.; Praveen, P.; Chandrasekaran, G. Structural, morphological and magnetic characters of PVP coated ZnFe2O4 nanoparticles. J. Mater. Sci. Mater. Electron. 2018, 29, 2151–2158. [Google Scholar] [CrossRef]
  20. Xu, Y.; Wu, S.; Li, X.; Huang, Y.; Wang, Z.; Han, Y.; Wu, J.; Meng, H.; Zhang, X. Synthesis, characterization, and photocatalytic degradation properties of ZnO/ZnFe2O4 magnetic heterostructures. New J. Chem. 2017, 41, 15433–15438. [Google Scholar] [CrossRef]
  21. Abu-Dief, A.M.; Abdelbaky, M.S.M.; Martínez-Blanco, D.; Amghouz, Z.; García-Granda, S. Effect of chromium substitution on the structural and magnetic properties of nanocrystalline zinc ferrite. Mater. Chem. Phys. 2016, 174, 164–171. [Google Scholar]
  22. Feng, J.; Xiong, R.; Liu, Y.; Su, F.; Zhang, X. Preparation of cobalt substituted zinc ferrite nanopowders via auto-combustion route: An investigation to their structural and magnetic properties. J. Mater. Sci. Mater. Electron. 2018, 29, 18358–18371. [Google Scholar] [CrossRef]
  23. Phan, T.L.; Tran, N.; Kim, D.H.; Dang, N.T.; Manh, D.H.; Bach, T.N.; Liu, C.L.; Lee, B.W. Magnetic and Magnetocaloric Properties of Zn1−x Co xFe2O4 Nanoparticles. J. Electron. Mater. 2017, 46, 4214–4226. [Google Scholar] [CrossRef]
  24. Sharifi, I.; Shokrollahi, H. Nanostructural, magnetic and Mössbauer studies of nanosized Co1−xZnxFe2O4 synthesized by co-precipitation. J. Magn. Magn. Mater. 2012, 324, 2397–2403. [Google Scholar] [CrossRef]
  25. Köseoǧlu, Y.; Baykal, A.; Gözüak, F.; Kavas, H. Structural and magnetic properties of CoxZn1−xFe2O4 nanocrystals synthesized by microwave method. Polyhedron 2009, 28, 2887–2892. [Google Scholar] [CrossRef]
  26. Singh, C.; Jauhar, S.; Kumar, V.; Singh, J.; Singhal, S. Synthesis of zinc substituted cobalt ferrites via reverse micelle technique involving in situ template formation: A study on their structural, magnetic, optical and catalytic properties. Mater. Chem. Phys. 2015, 156, 188–197. [Google Scholar] [CrossRef]
  27. Shoba, M.; Kaleemulla, S. Structural, optical and dielectric studies of Er substituted zinc ferrite nanospheres. J. Phys. Chem. Solids 2017, 111, 447–457. [Google Scholar] [CrossRef]
  28. Malik, H.; Mahmood, A.; Mahmood, K.; Lodhi, M.Y.; Warsi, M.F.; Shakir, I.; Wahab, H.; Asghar, M.; Khan, M.A. Influence of cobalt substitution on the magnetic properties of zinc nanocrystals synthesized via micro-emulsion route. Ceram. Int. 2014, 40, 9439–9444. [Google Scholar] [CrossRef]
  29. Gómez-Polo, C.; Recarte, V.; Cervera, L.; Beato-López, J.J.; López-García, J.; Rodríguez-Velamazán, J.A.; Ugarte, M.D.; Mendonça, E.C.; Duque, J.G.S. Tailoring the structural and magnetic properties of Co-Zn nanosized ferrites for hyperthermia applications. J. Magn. Magn. Mater. 2018, 465, 211–219. [Google Scholar] [CrossRef]
  30. Gözüak, F.; Köseoğlu, Y.; Baykal, A.; Kavas, H. Synthesis and characterization of CoxZn1−xFe2O4 magnetic nanoparticles via a PEG-assisted route. J. Magn. Magn. Mater. 2009, 321, 2170–2177. [Google Scholar] [CrossRef]
  31. Atif, M.; Asghar, M.W.; Nadeem, M.; Khalid, W.; Ali, Z.; Badshah, S. Synthesis and investigation of structural, magnetic and dielectric properties of zinc substituted cobalt ferrites. J. Phys. Chem. Solids 2018, 123, 36–42. [Google Scholar] [CrossRef]
  32. Hassanien, A.S.; Ak, A.A.; Saaedi, A.H. Synthesis, crystallography, microstructure, crystal defects, and morphology of BixZn1−xO nanoparticles prepared by sol–gel technique. CrystEngComm 2018, 20, 1716–1730. [Google Scholar] [CrossRef]
  33. Akl, A.A.; Mahmoud, S.A.; AL-Shomar, S.M.; Hassanien, A.S. Improving microstructural properties and minimizing crystal imperfections of nanocrystalline Cu2O thin films of different solution molarities for solar cell applications. Mater. Sci. Semicond. Process. 2018, 74C, 183–192. [Google Scholar] [CrossRef]
  34. Yogamalar, R.; Srinivasan, R.; Vinu, A.; Ariga, K.; Bose, A.C. X-ray peak broadening analysis in ZnO nanoparticles. Solid State Commun. 2009, 149, 1919–1923. [Google Scholar] [CrossRef]
  35. Mohamed, W.S.; Abu-Dief, A.M. Synthesis, characterization and photocatalysis enhancement of Eu2O3-ZnO mixed oxide nanoparticles. J. Phys. Chem. Solids. 2018, 116, 375–385. [Google Scholar] [CrossRef]
  36. Abu-Dief, A.M.; Mohamed, W.S. α-Bi2O3 nanorods: Synthesis, characterization and UV-photocatalytic activity. Mater. Res. Express 2017, 4, 035039. [Google Scholar] [CrossRef]
  37. Yadav, R.S.; Havlica, J.; Hnatko, M.; Šajgalík, P.; Alexander, C.; Palou, M.; Bartoníčková, E.; Boháč, M.; Frajkorová, F.; Masilko, J.; et al. Magnetic properties of Co1−xZnxFe2O4 spinel ferrite nanoparticles synthesized by starch-assisted sol–gel autocombustion method and its ball milling. J. Magn. Magn. Mater. 2015, 378, 190–199. [Google Scholar] [CrossRef]
  38. Yadav, R.S.; Kuritka, I.; Havlica, J.; Hnatko, M.; Alexander, C.; Masilko, J.; Kalina, L.; Hajdúchová, M.; Rusnak, J.; Enev, V. Structural, magnetic, elastic, dielectric and electrical properties of hot-press sintered Co1−xZnxFe2O4 (x = 0.0, 0.5) spinel ferrite nanoparticles. J. Magn. Magn. Mater. 2018, 477, 48–57. [Google Scholar] [CrossRef]
  39. Tatarchuk, T.R.; Paliychuk, N.D.; Bououdina, M.; Al-Najar, B.; Pacia, M.; Macyk, W.; Shyichuk, A. Effect of cobalt substitution on structural, elastic, magnetic and optical properties of zinc ferrite nanoparticles. J. Alloys Compd. 2018, 731, 1256–1266. [Google Scholar] [CrossRef]
  40. Milanovic, M.; Moshopoulou, E.G.; Stamopoulos, D.; Devlin, E.; Giannakopoulos, K.P.; Kontos, A.G.; Eleftheriadis, K.; Gini, M.I.; Nikolic, L.M. Structure and magnetic properties of Zn1−xInxFe2O4 and ZnYxFe2−xO4 nanoparticles prepared by coprecipitation. Ceram. Int. 2013, 39, 3235–3242. [Google Scholar] [CrossRef]
  41. Houshiar, M.; Zebhi, F.; Razi, Z.J.; Alidoust, A.; Askari, Z. Synthesis of cobalt ferrite (CoFe2O4) nanoparticles using combustion, coprecipitation, and precipitation methods: A comparison study of size, structural, and magnetic properties. J. Magn. Magn. Mater. 2014, 371, 43–48. [Google Scholar] [CrossRef]
  42. Rao, K.S.; Choudary, G.; Rao, K.H.; Sujatha, C. Structural and Magnetic Properties of Ultrafine CoFe2O4 Nanoparticles. Procedia Mater. Sci. 2015, 10, 19–27. [Google Scholar] [CrossRef][Green Version]
  43. Sharma, R.; Thakur, P.; Kumar, M.; Thakur, N.; Negi, N.S.; Sharma, P.; Sharma, V. Improvement in magnetic behaviour of cobalt doped magnesium zinc nano-ferrites via co-precipitation route. J. Alloys Compd. 2016, 684, 569–581. [Google Scholar] [CrossRef]
  44. Petrova, E.; Kotsikau, D.; Pankov, V. Structural characterization and magnetic properties of sol–gel derived ZnxFe3–xO4 nanoparticles. J. Magn. Magn. Mater. 2015, 378, 429–435. [Google Scholar] [CrossRef]
  45. Chang, Y.; Shi, J.; Tang, Y.; Zhang, H.; Yue, Z.; Yao, W.; Bai, Y.; Cao, J. Investigation of significant magnetic transformation for hydrogenated ZnFe2O4 nanoparticles. J. Mater. Sci. 2019, 1–11. [Google Scholar] [CrossRef]
  46. Akhtar, M.N.; Khan, M.A.; Ahmad, M.; Nazir, M.S.; Imran, M.; Ali, A.; Sattar, A.; Murtaza, G. Evaluation of structural, morphological and magnetic properties of CuZnNi (CuxZn0.5−xNi0.5Fe2O4) nanocrystalline ferrites for core, switching and MLCI’s applications. J. Magn. Magn. Mater. 2017, 421, 260–268. [Google Scholar] [CrossRef]
  47. Jesus, J.R.; Lima, R.J.S.; Moura, K.O.; Duque, J.G.S.; Meneses, C.T. Anisotropic growth of α -Fe2O3 nanostructures. Ceram. Int. 2018, 44, 3585–3589. [Google Scholar] [CrossRef]
  48. Ebbing, A.; Hellwig, O.; Agudo, L.; Eggeler, G.; Petracic, O. Tuning the magnetic properties of Co nanoparticles by Pt capping. Phys. Rev. B 2011, 84, 012405. [Google Scholar] [CrossRef][Green Version]
  49. Zysler, R.D.; Fiorani, D.; Testa, A.M. Investigation of magnetic properties of interacting Fe2O3 nanoparticles. J. Magn. Magn. Mater. 2001, 224, 5–11. [Google Scholar] [CrossRef]
  50. Peixoto, E.B.; Carvalho, M.H.; Meneses, C.T.; Sarmento, V.H.V.; Coelho, A.A.; Zucolotto, B.; Duque, J.G.S. Analysis of zero field and field cooled magnetization curves of CoFe2O4 nanoparticles with a T-dependence on the saturation magnetization. J. Alloys Compd. 2017, 721, 525–530. [Google Scholar] [CrossRef]
  51. Luchini, A.; Heenan, R.K.; Paduano, L.; Vitiello, G. Functionalized SPIONs: The surfactant nature modulates the self-assembly and cluster formation. Phys. Chem. Chem. Phys. 2016, 18, 18441–18449. [Google Scholar] [CrossRef] [PubMed]
  52. Bini, M.; Tondo, C.; Capsoni, D.; Mozzati, M.C.; Albini, B.; Galinetto, P. Superparamagnetic ZnFe2O4 nanoparticles: The effect of Ca and Gd doping. Mater. Chem. Phys. 2018, 204, 72–82. [Google Scholar] [CrossRef]
  53. Demirci, Ç.E.; Manna, P.K.; Wroczynskyj, Y.; Aktürk, S.; van Lierop, J. A comparison of the magnetism of cobalt-, manganese-, and nickel-ferrite nanoparticles. J. Phys. Appl. Phys. 2017, 51, 025003. [Google Scholar] [CrossRef]

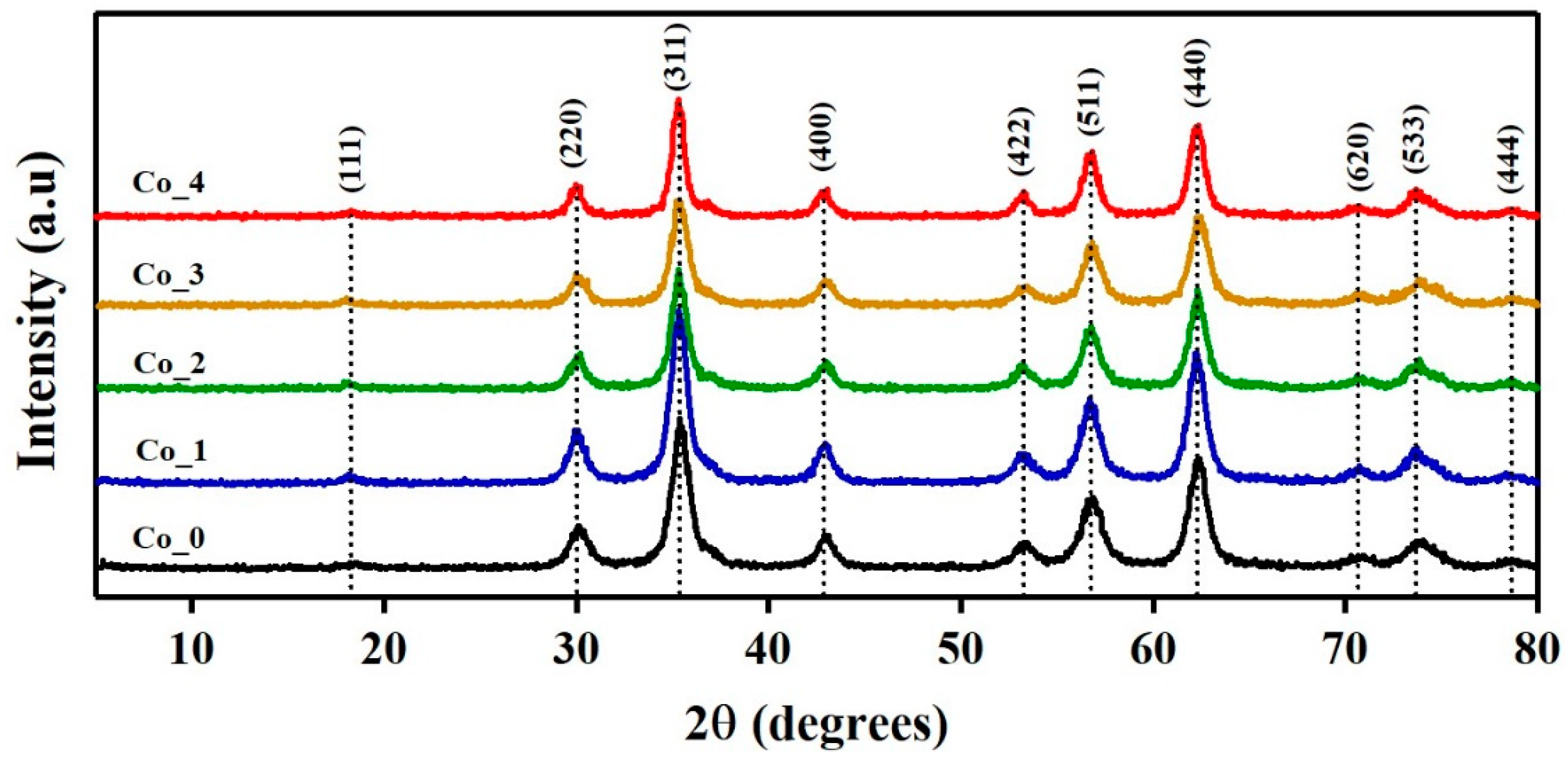

Figure 1. X-ray powder diffraction (XRPD) patterns of CoxZn1-xFe2O4 ferrite systems.
Figure 1. X-ray powder diffraction (XRPD) patterns of CoxZn1-xFe2O4 ferrite systems.
Nanomaterials 09 01602 g001

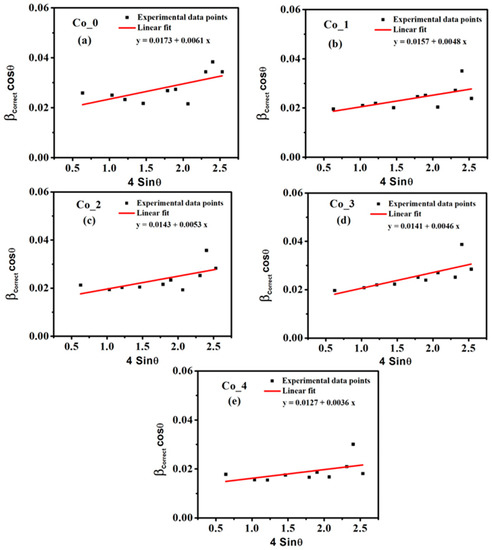

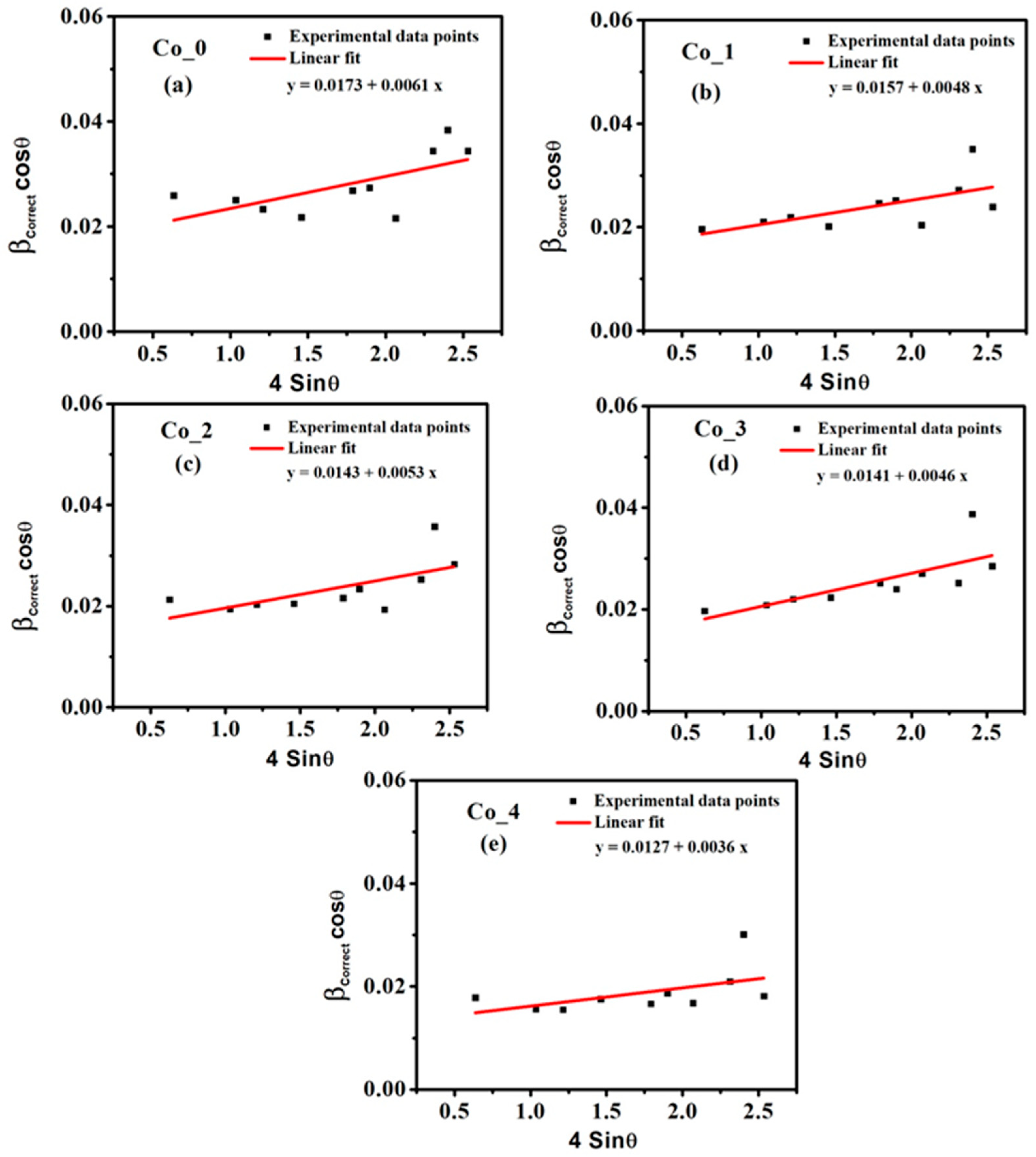

Figure 2. The Williamson–Hall (W–H) plots for the present CoxZn1-xFe2O4 ferrite systems (a) x = 0.00, (b) x = 0.10, (c) x = 0.20 and (d) x = 0.30, (e) x = 0.40.
Figure 2. The Williamson–Hall (W–H) plots for the present CoxZn1-xFe2O4 ferrite systems (a) x = 0.00, (b) x = 0.10, (c) x = 0.20 and (d) x = 0.30, (e) x = 0.40.
Nanomaterials 09 01602 g002
Figure 3. Elemental mapping for Co_2 (ad) and Co_4 (eh) samples: (a,b) BF-STEM images, (b,f) Co maps, (c,g) Zn maps and (d,h) Fe maps.
Figure 3. Elemental mapping for Co_2 (ad) and Co_4 (eh) samples: (a,b) BF-STEM images, (b,f) Co maps, (c,g) Zn maps and (d,h) Fe maps.
Nanomaterials 09 01602 g003
Figure 4. (a–c) TEM images; (d–f) HRTEM images; and (gi) selected area electron diffraction (SAED) patterns (right) with the simulated ones (left) for Co_0, Co_2 and Co_4 samples.
Figure 4. (a–c) TEM images; (d–f) HRTEM images; and (gi) selected area electron diffraction (SAED) patterns (right) with the simulated ones (left) for Co_0, Co_2 and Co_4 samples.
Nanomaterials 09 01602 g004

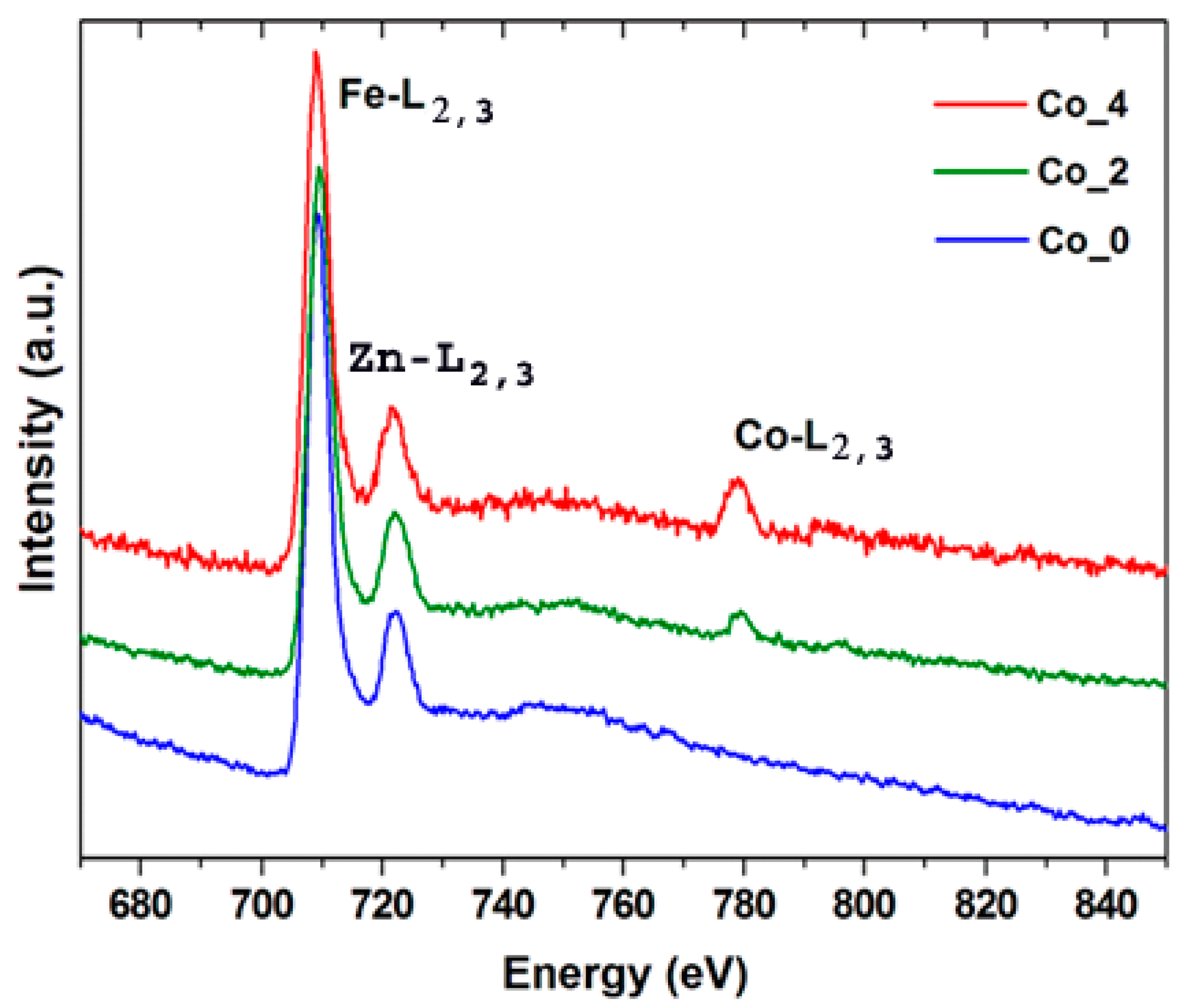

Figure 5. EELS spectra for Co_0, Co_2 and Co_4 samples.
Figure 5. EELS spectra for Co_0, Co_2 and Co_4 samples.
Nanomaterials 09 01602 g005

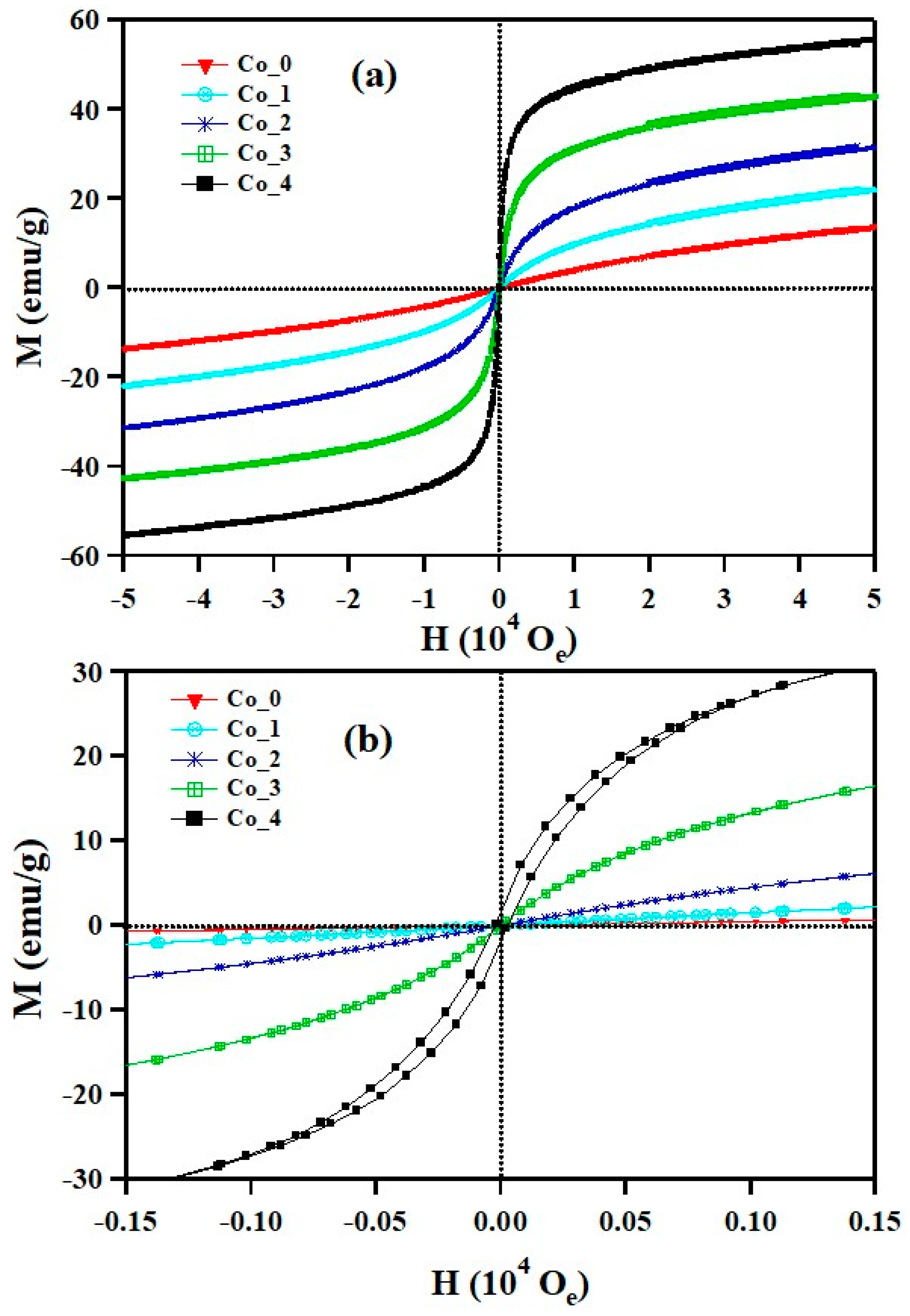

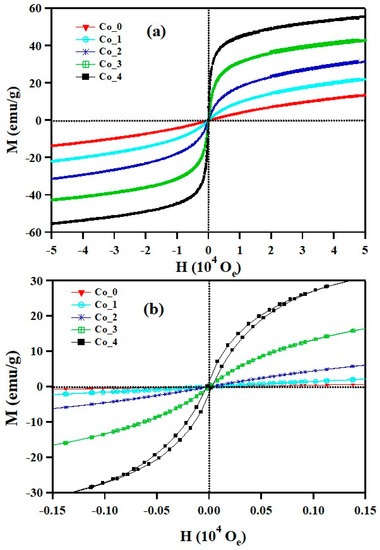

Figure 6. (a) Room temperature (300 K) magnetization-field (M-H) hysteresis loops of CoxZn1-xFe2O4 ferrite systems; (b) the magnification of the central area of the hysteresis loops.
Figure 6. (a) Room temperature (300 K) magnetization-field (M-H) hysteresis loops of CoxZn1-xFe2O4 ferrite systems; (b) the magnification of the central area of the hysteresis loops.
Nanomaterials 09 01602 g006

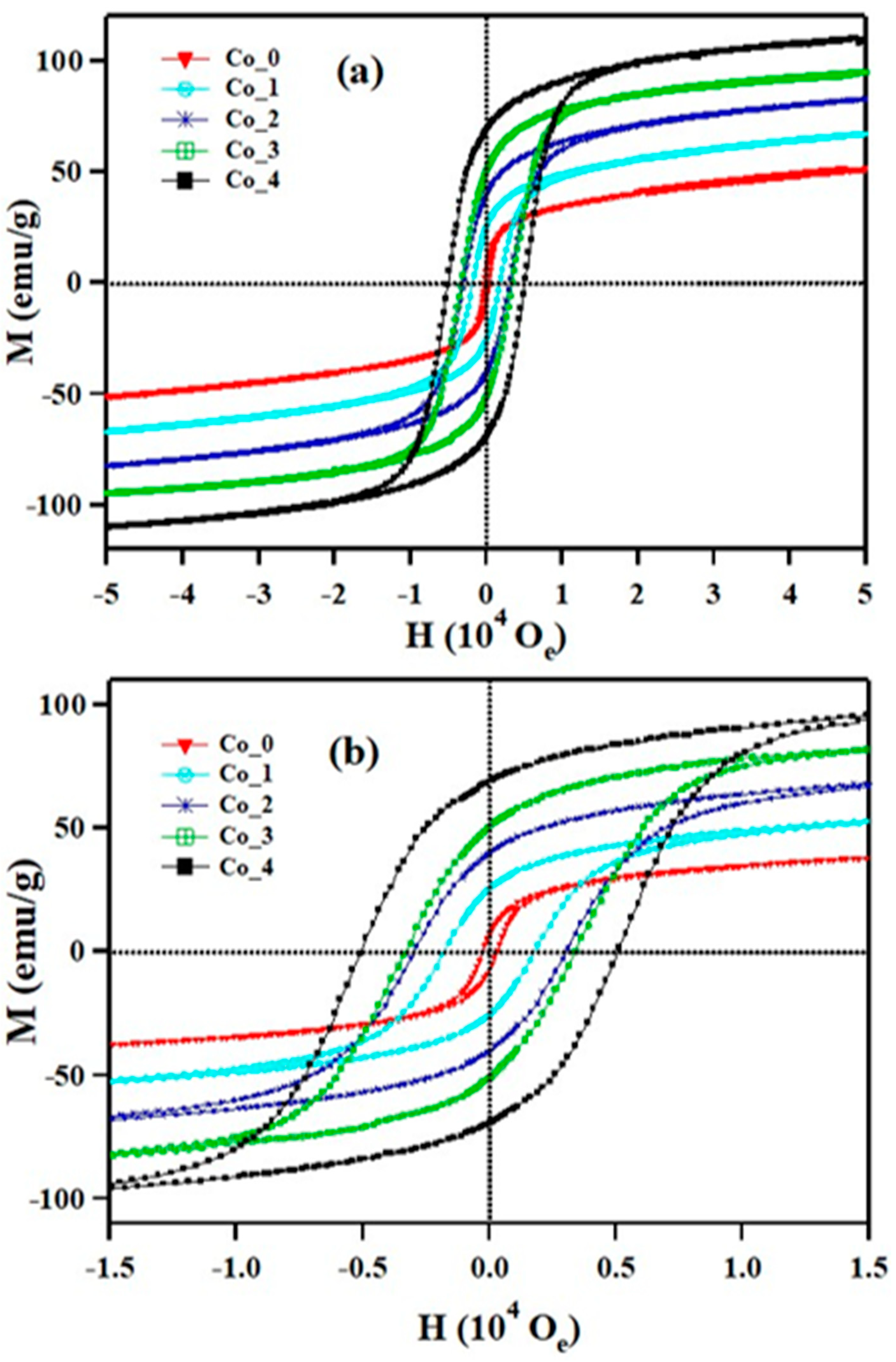

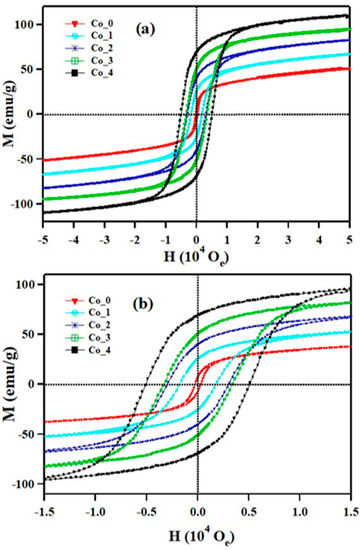

Figure 7. Magnetic field dependence of the magnetization measured at (a) 5K (M–H loops) of CoxZn1-xFe2O4 ferrite systems; (b) the magnification of the central area of the hysteresis loops.
Figure 7. Magnetic field dependence of the magnetization measured at (a) 5K (M–H loops) of CoxZn1-xFe2O4 ferrite systems; (b) the magnification of the central area of the hysteresis loops.
Nanomaterials 09 01602 g007

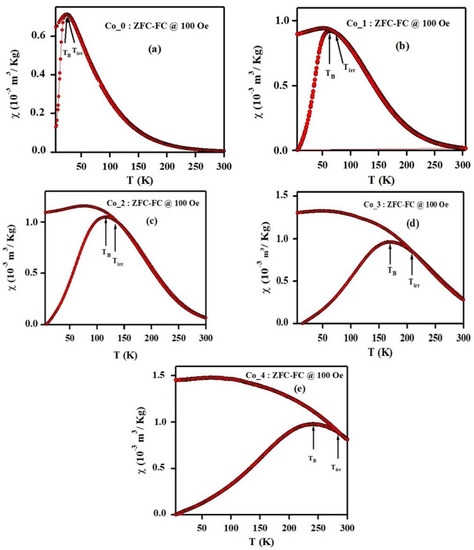

Figure 8. ZFC-FC magnetization curves measured with H = 100 Oe for CoxZn1-xFe2O4 ferrite systems (a) x = 0.00, (b) x = 0.10, (c) x = 0.20 and (d) x = 0.30, (e) x = 0.40.
Figure 8. ZFC-FC magnetization curves measured with H = 100 Oe for CoxZn1-xFe2O4 ferrite systems (a) x = 0.00, (b) x = 0.10, (c) x = 0.20 and (d) x = 0.30, (e) x = 0.40.
Nanomaterials 09 01602 g008
Table 1. The calculated values of the crystallite size (DL), the micro-strain (εL), the dislocation density (δL) and the lattice parameter (a) of Co_ (0–4) ferrite systems.
Table 1. The calculated values of the crystallite size (DL), the micro-strain (εL), the dislocation density (δL) and the lattice parameter (a) of Co_ (0–4) ferrite systems.
SampleDL (nm)εL × 10−3δL × 10−3 Line per cm−2a (Å)
Table 2. Quantitative analysis results in atomic % obtained from EDS and EELS measurements for Co_2 and Co_4 samples.
Table 2. Quantitative analysis results in atomic % obtained from EDS and EELS measurements for Co_2 and Co_4 samples.
Table 3. Coercivity (HC), remanent magnetization (Mr), saturation magnetization (MS), squareness ratio (Mr/MS), anisotropy constant (k), blocking temperature (TB) and irreversibility temperature (Tirr) of CoxZn1-xFe2O4 ferrite systems.
Table 3. Coercivity (HC), remanent magnetization (Mr), saturation magnetization (MS), squareness ratio (Mr/MS), anisotropy constant (k), blocking temperature (TB) and irreversibility temperature (Tirr) of CoxZn1-xFe2O4 ferrite systems.
SampleHC (Oe)Mr (emu/g)MS (emu/g)Mr/MSk (103 erg/g)TB (K)Tirr (K)
