Abstract

:
It is essential to develop a novel and versatile strategy for constructing electrically conductive adhesives (ECAs) that have superior conductivity and high mechanical properties. In this work, easily synthesized [email protected] ([email protected]) nanowhiskers with a high aspect ratio and excellent solubility in 1,4-dioxane were prepared and added to conventional Ag-containing adhesives. A small amount of [email protected] can dramatically tune the structure of the ECAs’ conductive network and significantly improve the conductivity of the ECAs. Good solubility of [email protected] in solvents brings excellent dispersion in the polymer matrix. Thus, a three-dimensional (3D) conducting network formed with dispersed [email protected] and Ag flakes can enhance the conductivity of ECAs. The conductivity of the ECAs (with 1.5 wt% [email protected] and 55 wt% Ag flakes) showed three orders of magnitude higher than that of the ECAs filled with 55 wt% Ag flakes and 65 wt% Ag flakes. Meanwhile, the integration of [email protected] with Ag flakes in polymer matrices also significantly enhanced the mechanical compliance of the resulted ECAs. The resistivity remained unchanged after rolling the [email protected] ECAs’ film into a 4 mm bending radius for over 1500 cycles. A bendable printed circuit was fabricated using the above [email protected] ECAs, which demonstrated their future potential in the field of flexible electronics.
Keywords:
electrically conductive adhesives; preparation; [email protected]; electrical properties; flexible electronics

1. Introduction

The increasing demand for consumer electronics where circuits are wrapped or rolled up conformably around complex shapes has prompted significant interests in next-generation interconnect materials [1]. Electrically conductive adhesives (ECA) has been considered the most promising interconnects to substitute lead/tin solder for flexible electronics [2,3]. In comparison with long-established Sn–Pb based eutectic solders, ECAs have numerous advantages, such as low processing temperature for interconnecting the fragile integrated circuits, toxic-free, and high safety for environment system [4,5,6]. Even though ECAs have many merits, they still have a long way to go to perfectly meet the needs of today’s flexible electronic products. The main obstacle is that current flexible ECAs usually have limited conductivity (resistivity is usually higher than 2.0 × 10−4 Ω·cm) or need significant amounts of metal fillers to achieve reasonable conductivity. These limit the widespread applications of ECAs in microelectronics [7,8]. Therefore, it is imperative to enhance the conductivity of ECAs with a minimized amount of metal fractions to reduce the cost and prevent brittle fracture of the ECA’s patterns upon mechanical deformation [4,9].
Generally, generating three-dimensional (3D) conducting networks with high quality among metals and other fillers in the matrix could be helpful for improving the electrical conductivity of ECAs while using minimal metal volumetric fractions. For conventional Ag-containing ECAs, the conductivity was significantly improved by adding high-aspect-ratio conductive materials such as carbon nanotubes (CNTs) [10], graphene [11], and silver nanowires (Ag NWs) [12]. These studies showed that the conductivity of ECAs is responsive to the high-aspect-ratio conductive materials in the composites containing hybrid fillers with different dimensions. The electrical conductivity of these composites with hybrid fillers is often substantially higher than the average value of those only contain silver flakes alone, indicating that a considerable amount of expensive metal fillers could be substituted with high-aspect-ratio cheap conductive fillers. These high-aspect-ratio fillers can act as bridges to connect neighboring silver flakes, which can accelerate electron-transporting. These results indicated that the total cost of the adhesives could be reduced by this method.
Some ECAs that contain different dimensions of conductive fillers have also been reported [13,14,15,16,17]. Many different conductive enhancers were used to construct hybrid ECAs to improve their electrical conductivity, such as metal nanoparticles, metal nanowires, or carbon nanomaterials. However, there are some drawbacks to these materials. For example, metal nanoparticles and nanowires were very expensive, and their surface was always covered by insulating organic molecules, which significantly weakened the electrical conductivity of ECAs [18,19]. Owing to their hydrophobic surfaces and large specific surface area, carbon-based nanofillers such as CNTs and graphene have poor dispersion in the solvents for composites, which generally require surface chemical modification or dispersing agent to reach a more stable suspension [20,21].
Along with the continuous advancement of conductivity enhancer, conducting polymers have attracted extensive interests due to their relatively low cost of monomers and excellent chemical stability, ease of synthesis, and high conductivity properties [22,23]. Tian et al. [24] reported a kind of modified polypyrrole where nanoparticles were added to epoxy-based ECAs with Ag fillers in order to enhance ECA conductivity. Zhao et al. [25] fabricated a hybrid ECAs that contained Ag flakes and PEDOT: PSS nano-gels. Their results showed that the combination of an optimum 1 wt% PEDOT: PSS in conventional Ag-containing ECAs (60% wt Ag contents) significantly improved the conductivities by 25 times with negligible impact on the adhesion of the ECAs.
Despite the success in the development of conducting polymers for conductivity enhancing materials, some problems still exist that hinder the broad commercial applications of these composite ECAs materials. The principal obstructions for advanced ECAs that use polymers are: (i) the conductive polymers currently used are typically in the format of spherical particles that limit the ability to form high-quality three-dimensional conductive network structures in these conductive pastes, thus impeding the improvement of conductivity; and (ii) most conductive polymers have relatively weak processing capabilities due to their insolubility in conventional solvents [26,27], which severely hampers their further application.
In order to alleviate the above two problems, we report a facile method to prepare polyaniline (PANI)/cellulose nanowhiskers ([email protected]) as novel nanocomposites that possess a high aspect ratio (defined as the ratio of length to diameter; the aspect ratios of [email protected] were about 10–15) and excellent solubility in 1,4-dioxane (nearly 5 mg/mL). Cellulose nanowhiskers (CNs) are of the most promising biomaterials derived from natural cellulose fibers [28]. They have received extensive interest due to their distinctive characteristics like high-aspect-ratio, regulatable morphologies, and excellent dispersity in conventional solvents [29,30]. CNs characteristics make cellulose nanowhiskers excellent templates to support the stabilization of PANI with a high aspect ratio and high conductive composites. A large number of researches have been devoted to the synthesis of a wide variety of cellulose-based conductive polymer materials, which are widely used in the fields of supercapacitors, electromagnetic shielding, and drug release [31,32,33,34]. However, to the best of our knowledge, the introduction of [email protected] as a way to reach superior electrical conductivity with the low fabricating cost of conductive adhesives has not been reported. In this study, a layer of conductive PANI was polymerized in situ on CNs templates to construct high-aspect-ratio conductive fillers. The formed [email protected] nanocomposite with Ag flakes was then dispersed into thermoplastic polyurethane (TPU) resin to fabricate hybrid ECAs by a simple solution mixing method. These [email protected] nanocomposites are expected to locate in the interfaces between adjacent Ag flakes and exhibit 3D hierarchical conductive networks for improving the conductivity of the ECAs. Therefore, new flexible conductive adhesives with ultrahigh conductivity and high mechanical compliance were achieved.

2. Experimental Section

2.1. Experimental Materials

Ammonium persulfate (APS), Aniline (ANI), and 1,4-Dioxane were offered using Adamas Reagent Co., Ltd. (Shanghai, China). Sulfuric acid (H2SO4) was obtained from Shenzhen Chemical Reagent Technology Co., Ltd. (Shenzhen, China). Thermoplastic polyurethane (TPU) was purchased from Dongguan Guangye Plastic Materials Co., Ltd. (Dongguan, China). Silver micron-flakes were provided from Shanghai Xinzhuan Alloy Materials (Shanghai, China). Medical purified cotton was obtained by Guangzhou Yulongge Biological Technology Co., Ltd. (Guangzhou, China). Light-emitting-diode (LED) chips and resistors were offered by Changzhou Keyun Electronics Co., Ltd. (Changzhou, China).

2.2. Synthesis of Cellulose Nanowhiskers (CNs)

Similar to Lu’s previous studies [35], CNs were obtained by acid treatment of medical purified cotton. The cotton was cut into small pieces; these small pieces were then mixed with sulfuric acid under strong agitating at 25 °C for 120 min. Later, this reaction was quenched by a large amount of deionized water. The suspension was centrifuged, and then the solid was dialyzed several times in water until the pH of the suspension was monitored to be neutral. The obtained acid-treated cellulose nanowhiskers were ultra-sonicated at 25 °C for 1 h. Finally, the suspension was concentrated to be 0.5 wt% by a rotary evaporator for later use.

2.3. Synthesis of [email protected] Nanowhiskers and PANI

The experimental strategy for the synthesis of [email protected] nanowhiskers was illustrated in Figure 1. Aniline (ANI) was physically adsorbed on the surface of CNs. The oxidant (APS) was then introduced into the mixture to polymerize aniline. A typical procedure described below: ANI solution (0.1 mol/L) was prepared by dissolving aniline in dilute H2SO4 (1 mol/L). The solution was then homogeneously mixed in a previously prepared CN suspension. The obtained mixture was stirred at 25 °C for 10 min. APS dissolved in dilute sulfuric acid (1 mol/L) solution was poured into the reaction mixture under vigorous agitation to trigger polymerization of ANI. After two hours, a deep green suspension appeared. The obtained product was filtered and rinsed three times. By adjusting the ratios of aniline to CNs, the [email protected] nanowhiskers with different CNs/aniline weight ratios were successfully synthesized. As a reference, conventional PANI was obtained by the identical method except that no CNs was added the reaction mixture.

2.4. Preparation of ECAs

The ECAs were fabricated based on our previously reported procedure with minor modifications [36]. A typical procedure was given below: 0.03 g [email protected] nanowhiskers were well dispersed in 1,4-dioxane. Subsequently, 0.5 g TPU particles were dissolved into the above suspension. Then, we added 0.63 g silver powder to the mixture under gently agitating for about 2 h. The resulted mixture was heated in air at 80 °C to remove 1,4-dioxane. The TUP/[email protected] ECAs’ films were prepared via the solvent-evaporation method.

2.5. Characterization and Measurements

The morphologies of the [email protected] nanowhiskers, silver flakes, and the ECAs were characterized by scanning electron microscope (SEM, MIRA3, TESCAN, Brno, Czech).
The conductivity of [email protected] and ECA samples was determined with a four-point probe system (RTS-9, 4 PROBES TECH, Guangzhou, China). The detailed measurement process is consistent with the literature we previously published [32].
The current-voltage characteristics of the pattern of different ECAs were determined with an electrochemical workstation (Ametek Parstat, 3000A-DX, Berwyn, IL, USA).
The chemical structure of [email protected] nanowhiskers, PANI were determined with an FT-IR ( Fourier Transform Infrared Spectroscopy) characterization by a Nicolet 6700 spectrophotometer (Waltham, MA, USA). The samples were blended with KBR powder to compress into tablets for FT-IR measurement (range of 4000 to 400 cm−1).
The thermodynamic stability of [email protected] nanowhiskers, PANI was measured with a METTLER TGA-1 (Mettler, Columbus, OH, USA) at a heating rate of 5 °C/min.
The bending and recording resistance changes of the ECAs were employed using a specialized stretching-system, which was given in the support information (Figure S1).

3. Results and Discussion

3.1. The Preparation of ECAs

Figure 1 shows a general strategy for preparing [email protected]/silver-PU-ECAs adhesives. The [email protected] composites were obtained using a polymerization process of aniline with APS as an initiator and CNs as a template. The obtained [email protected] were dispersed into the TPU matrix with silver micron-flakes (the detailed information in Figure S2) to construct the [email protected]/silver-PU-ECAs adhesives. Detailed compositions for the prepared ECAs with different compositions were given in Table 1.

3.2. Solution Property and Morphology of CNs

Figure 2a showed the photo of a bottle of pure cellulose solution (1 wt%). The solution looks almost transparent. Due to the surface charge, CNs are very stable in water. The solution has high suspension stability of more than three months. Atomic force microscopy (AFM) images in Figure 2b showed that the CNs exhibited rod-shaped morphologies with a relatively uniform diameter distribution. The diameters of rod-like celluloses range from 10 to 35 nm. Their lengths are about 100−300 nm. The results showed that cellulose nanowhiskers were successfully prepared.
The morphologies of [email protected] with different CNs/aniline weight ratios are given in Figure 3. It was found that when there is no cellulose in the reaction mixture, the obtained polyaniline is in the form of globular particles (Figure 3a). When cellulose was gradually added in the reaction mixture, [email protected] nanocomposites that possessed rod-like shapes were obtained. When the weight ratio of the CNs/aniline weight ratio is 1/6, the small number of cellulose nanocrystals is difficult to adequately react with the excess of the aniline monomer, resulting in the formation of irregular complexes and a large amount of PANI nanoparticles (Figure 3b). By increasing the CNs mass ratio to 1:4, more uniform [email protected] nanowhiskers with thicker shells formed. Moreover, the nanocomposites are well dispersed and exhibited a short rod-like shape (Figure 3c). Aggregations of PANIs on a large scale were not observed. When the ratio of CNs/aniline further increased to 1:2, [email protected] nanowhiskers did not change obviously (Figure 3d). However, it is worth noting here that the resistivity of [email protected] nanowhiskers increased because of the higher proportion of non-conductive CNs, which will be discussed in the later section.

3.3. Chemical Structure Characterization

The structure of the CNs, PANI, and [email protected] (with the weight ratio CNs/aniline of 1:4 and 1:2) was examined systematically by means of FT-IR analysis. For the FT-IR spectra of CNs, the characteristic peak of O-H stretching was observed in the vicinity of 3400 cm−1. The IR band near 2900 cm−1 was ascribed to the asymmetric vibration of C-H. The peak at 1659 cm−1 is due to the H-O-H bending produced by the water of CNs. The characteristic band at 1164 cm−1 corresponds to the C-O antisymmetric bridge stretching. The influential band at 1061 cm−1 is caused by the vibration of the C-O-C pyranose ring skeleton. These IR bands represent the usual cellulose IR band, as reported in previous literature [37,38].
The IR bands about 1500 and 1580 cm−1 were ascribed to the stretching vibrations of the N-benzopyrene-N and N = hydrazine moieties = N of PANI. The IR band around 1130 and 1290 cm−1 were noted due to the vibration of C-H (benzene ring) and the C-N bond. Other vibration of the C-H (para-disubstituted benzene) emerged around 800 cm−1. These IR bands are also similar to the conventional PANIs reported by Stejskal et al. before [39].
For the FT-IR spectra of [email protected], almost all of the IR-band of the spectra of PANI and CNs could be observed. These observations indicated that PANI formed successfully on the CNs surface during the in-situ polymerization. Moreover, the intensity of the IR-band of [email protected] near 3420 cm−1 increased significantly compared to that of PANI, indicating that there are more hydroxyl groups on [email protected] This property might be helpful for the hybrids to form homogeneous dispersion in aqueous solution.
TGA (Thermal gravimetric analysis) curves of CNs and [email protected] and PANI were displayed from 25 to 600 °C (Figure 4b). All TGA curves can be divided into three sections. (1): At the beginning section from 25 to 120 °C, the water evaporated in these samples to result in slight weight loss; (2): The primary weight loss of CNs occurred in the middle section from 120 to 350 °C. A considerable loss of PANI and [email protected] were observed around 120 to 400 °C. Compared with CNs (35.3% residual), PANI and [email protected] (with the weight ratio CNs/aniline of 1:4 and 1:2) showed higher residues: 58.2%, 50%, and 45%, respectively. The results showed the thermal stability of [email protected] exceeds that of CNs and is slightly lower than that of PANI. With the increase of CNs, the thermal stability of [email protected] decreased, making the processing at high temperature difficult. Thus, such new materials are suitable for low-temperature applications from room temperature to 200 °C, not suitable for high-temperature applications.

3.4. The Conductivity and Solution Dispersion of PANI and [email protected]

To highlight the vital role of CNs, we tested the conductivity and solution dispersion of PANI and [email protected]
Benefiting from the high-aspect-ratio morphologies that provided shorter contact distance, [email protected] nanowhiskers showed greatly enhanced conductivity compared to PANI with typical spherical morphologies. When the CNs/aniline weight ratio of 1:4, the [email protected] with one-dimensional extended morphologies (Figure 3c) had the conductivity of 1.64 S cm−1, which was almost three times that of its globular counterpart with 0.53 S cm−1. When more CNs were added, the conductivity of the composites came down due to the higher proportion of non-conductive CNs. For the CNs/aniline weight ratio increased to 1:2, the [email protected] nanowhisker had a conductivity of 0.41 S cm−1, which was slightly lower than that of its globular counterpart (Figure 5a).
After mixing with 1,4-dioxane (for dissolving TPU) and being ultrasonically treated, the obtained [email protected] suspension exhibited excellent dispersibility. After an ultrasonicated treatment, [email protected] nanocomposites (5 mg/mL) were formed as a stable colloid suspension in 1,4-dioxane. Any aggregates were not identified in the suspension, while tiny aggregates of PANI were noticeable in the PANI only suspension (5 mg/mL) (Figure 5b). In addition, we further tested the dispersion of [email protected] in water and ethanol. The results (Figure S3) show that the [email protected] show excellent dispersity in these two green solvents, which may provide a choice for fabricating environmentally friendly high-performance ECAs in the future.
From the above tests, it can be concluded that cellulose nanocrystals have at least two critical functions in the synthesis process. (i) CNs provided a one-dimensional template that promotes a favorable growth of PANI on CNs surface, which could connect neighboring nanotubes. These high- aspect-ratio nanotubes might be more likely to form conductive networks than spherical nanoparticles. Thus, a low percolation threshold could be achieved in polymer matrices with nanotubular fillers [40]. (ii) Secondly, CNs as macromolecules with productive hydroxyl groups can act as excellent dispersants to reduce the aggregations of [email protected] nanowhiskers to form a stable colloid suspension in aqueous solution.

3.5. Bulk Resistivity and the Conducting Mechanism of the ECAs

The bulk resistivity of sequences of hybrid adhesives with different silver flakes loading was given in Figure 6a. The resistivity of the ECAs reached 3.16 × 10−5 Ω·cm at 55 wt% Ag content and 1.5 wt% [email protected] after cured at 25 °C for 120 min and cooled to r.t. for measurement. The resistivity of PC-ECAs (1.5 wt% [email protected] and 55 wt% silver content, designated PC-1, Table 1) is 1/1000 of that of PU-ECAs filled 55 wt% Ag flakes exclusively, which is surprisingly 1/200 of PU-ECAs containing 65 wt% Ag flakes (PU-2). Additionally, the current-voltage characteristics of the pattern of different ECAs are shown in Figure S4. Compared with the conventional Ag-containing ECAs’ pattern (PU-1, PU-2), the hybrid ECAs (PC-1) could be found to exhibit ultra-low resistance. These data indicated that the addition of a small amount of [email protected] nanowhiskers to conventional silver adhesives could significantly reduce the adhesive’s electrical resistance.
For the PC-ECAs, an ultrahigh conductivity was acquired from the addition of [email protected] nanowhiskers instead of the use of many high-price silver flakes. The superior electrical performance of the ECAs could be attributed to two critical factors. The first factor is that various kinds of conductive enhancers have powerful synergistic effects on elevating the electrical performance of the hybrid ECAs. The utilization of the high-aspect-ratio [email protected] nanowhiskers changed the conductive network structure of the ECAs. [email protected] nanowhiskers with Ag flakes constructed 3D conductive networks to achieve efficient interconnection among Ag flakes in the polymer matrix. SEM images showed the conductive network consisting of silver flakes and [email protected] nanowhiskers in the PC-ECAs (Figure 6b). The graphics displayed that [email protected] nanowhiskers have no visible aggregations in the polymer matrix. [email protected] were well dispersed among the silver flakes and built a 3D conductive network. The data in Figure 6c also supported the above consideration by showing that the conductivity of PC-ECAs is much higher than those of binary ECAs filling conventional PANI particles. The enhanced properties were attributed to high-aspect-ratio [email protected] nanowhiskers (the aspect ratios were about 10–15, Figure S5) were more comfortable to act as bridges among the silver flakes to form 3D conducting networks than spherical PANI nanoparticles.
The second factor is the selection of a novel solution-mixing method for fabricating ECAs. Different from the insolubility of conventional PANI nanoparticles in common solvents, [email protected] nanowhiskers have very high solubility in 1,4-dioxane (that could effectively dissolve TPU resin), which makes the possibility of choosing the solution-mixing method for constructing ECAs. The solution-mixing method included three main sections for fabricating PC-ECAs: (1) dispersing [email protected] in 1,4-dioxane to form a stable suspension, (2) blended TPU pellets and Ag flakes in suspension, and (3) preparing PC-ECAs by the solvent evaporation method. Compared to the melt blending method (usually for constructing conductive adhesives), which can only achieve macroscopic dispersion [41], the solution-mixing method for preparing ECAs could bring better fillers’ dispersion due to hardly need of the consideration of the polymers’ viscosities.
It is important to note that PC-ECAs (PC-1) exhibit ultrahigh electrical conductivity even prepared by room temperature. In Figure 6c, the hybrid ECAs shows resistivity of 3.16 × 10−5 Ω·cm when cured at room temperature. For comparison, many conventional Ag-based adhesives still needed a much high processing temperature to obtain good electrical conductivity. Sometimes, for the purpose of triggering the sintering of silver in ECAs at low temperatures, very tiny and expensive metal nanocrystals were required to add into conventional Ag-based adhesives. Even so, in many cases, the sintering temperature of these conductive pastes is still above one hundred degrees [42,43]. In Figure 6c, at low processing temperatures (25 °C–150 °C), the resistivity of the hybrid conductive paste (PC-1) changed slightly with increasing temperature. This indicated that the hybrid ECAs maintained good electrical conductivity at low temperatures, which is imperative for developing suitable packaging and sealing materials for protecting flexible electronics circuits.

3.6. The Conductivity of PC-ECAs under Mechanical Deformation

Flexible electronics have attracted considerable attention from scientists over the past two decades. In order to match flexible devices, ECAs need to maintain electrical performance under mechanical deformation. Figure 7 shows the change in resistance of the PC-ECAs film (PC-1) on a PET substrate under high bending deformation. Figure 7a shows the relationship between the normalized resistance (R/R0) and the bend radius of the ECAs. Almost any resistance changes were observed after rolling the films into a bending radius of 4mm. This stability far exceeds epoxy-based silver adhesives, and even more than Ag-carbon nanotube/silver pastes [4]. Furthermore, the variations of R/R0 are less than 5% after 1500 cycles. Figure 7b,c shows detailed information on the variations in the resistance of the film on the PET substrate during the cycle from the 1114th to the 1120th. It is worth noting that the resistance changes of every cycle are less than 2%, which indicates that PC-ECA has excellent electrical stability under high mechanical deformation. Figure 7d,f showed the PC-ECAs before and after 1500 times bending. Any noticeable crack was not observed after the 1500 bending. Furthermore, PC-1 films still maintained their excellent electrical conductivity, as shown in Figure 7e.

3.7. Demonstration of the in Flexible Electronics Applications of the PC-ECAs

LED chips and resistors were connected to the PC-ECAs (PC-1) patterns on a flexible PET for demonstrating the use of the adhesives in printed electronics applications. Figure 8a,b showed printed patterns that bent easily made by PC-ECAs. A printed flashing circuit was displayed in Figure 8c. The lightness of these LED chips barely changed obviously when the device was under highly flexural states. (Figure 8d,e) It shows that the ECAs’ circuit has superb electrical stability under high distortion. This might offer a novel approach to connect flexible electronics.

3.8. Comparison of the Electrical Performances of the PC-ECAs and the Literature ECAs

As is listed in Table 2, the conductivities of PC-ECAs (PC-1) were compared with other literature ECAs. It was found that our PC-ECAs (PC-1) filled 55 wt% Ag contents has an extremely low resistivity of 3.16 × 10−5 Ω·cm. By comparing our data with recent work in Table 2, it clear that the electrical performances of PC-ECAs with little Ag content surpassed other literature ECAs. These properties of PC-ECAs could contribute to the goal of improving the conductivity of ECAs while reducing the proportion of high-priced metal fillers used.

4. Conclusions

In summary, we reported a simple method to prepare a kind of high-aspect-ratio [email protected] nanowhiskers with good solubility in 1,4-dioxane. These high-aspect-ratio [email protected] were added to conventional Ag-containing adhesives in order to fabricate flexible ECAs with high-performance. The ECAs offered extremely low electrical resistivity (3.16 × 10−5 Ω·cm) and contained only 55 wt% of silver contents at room temperature. Moreover, they were cured and kept reasonably stable in a highly mechanical deformation. Further, there was a 5% resistance change after rolling the ECAs’ film to a 4 mm bending radius after 1500 cycles. The combination of these properties will make the new PC-ECAs a very promising interconnect material for flexible and printed electronics.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/9/11/1542/s1, Figure S1: A specialized stretching-system for bending the ECAs sample; Figure S2: The structure of the silver flakes used in this study; Figure S3: Dispersion test of [email protected] (1:4) in water and ethanol; Figure S4: The current-voltage curves of the ECAs with different silver contents; Figure S5: The SEM of high-aspect-ratio [email protected] nanowhiskers.

Author Contributions

Y.T. (Yanhong Tian) and Y.T. (Yanqing Tian) designed and directed the project, initialized the main conceptual ideas. G.C. performed most of the experimental details. X.G. and L.W. synthesized some materials applied in the experiments with help from H.C., and J.L. Y.M. and W.X. verified the experimental results with an independent implementation. C.C. proposed the Applications of the PC-ECAs experiments. G.C. wrote the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (21574061), the Shenzhen fundamental research programs (JCYJ20170412152922553), and the the start-up fund of SUSTech (Y01256114).

Acknowledgments

Authors would like to thank the start-up fund of SUSTech (Y01256114) and the National Natural Science Foundation of China (21574061), the Shenzhen fundamental research programs (JCYJ20170412152922553).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yang, C.; Wong, C.P.; Yuen, M.M. Printed electrically conductive composites: Conductive filler designs and surface engineering. J. Mater. Chem. C 2013, 1, 4052–4069. [Google Scholar] [CrossRef]
  2. Chan, Y.; Luk, D. Effects of bonding parameters on the reliability performance of anisotropic conductive adhesive interconnects for flip-chip-on-flex packages assembly II. Different bonding pressure. Microelectron. Reliab. 2002, 42, 1195–1204. [Google Scholar] [CrossRef]
  3. Yim, M.J.; Li, Y.; Moon, K.-S.; Paik, K.W.; Wong, C. Review of recent advances in electrically conductive adhesive materials and technologies in electronic packaging. J. Adhes. Sci. Technol. 2008, 22, 1593–1630. [Google Scholar] [CrossRef]
  4. Li, Z.; Zhang, R.; Moon, K.S.; Liu, Y.; Hansen, K.; Le, T.; Wong, C. Highly Conductive, Flexible, Polyurethane-Based Adhesives for Flexible and Printed Electronics. Adv. Funct. Mater. 2013, 23, 1459–1465. [Google Scholar] [CrossRef]
  5. Li, Y.; Moon, K.-S.; Wong, C. Electronics without lead. Science 2005, 308, 1419–1420. [Google Scholar] [CrossRef] [PubMed]
  6. Li, Y.; Wong, C. Recent advances of conductive adhesives as a lead-free alternative in electronic packaging: Materials, processing, reliability and applications. Mater. Sci. Eng. R Rep. 2006, 51, 1–35. [Google Scholar] [CrossRef]
  7. Amoli, B.M.; Hu, A.; Zhou, N.Y.; Zhao, B. Recent progresses on hybrid micro–nano filler systems for electrically conductive adhesives (ECAs) applications. J. Mater. Sci. Mater. Electron. 2015, 26, 4730–4745. [Google Scholar] [CrossRef]
  8. Li, C.; Li, Q.; Long, X.; Li, T.; Zhao, J.; Zhang, K.; E, S.; Zhang, J.; Li, Z.; Yao, Y. In Situ Generation of Photosensitive Silver Halide for Improving the Conductivity of Electrically Conductive Adhesives. ACS Appl. Mater. Interfaces 2017, 9, 29047–29054. [Google Scholar] [CrossRef]
  9. Ma, R.; Kwon, S.; Zheng, Q.; Kwon, H.Y.; Kim, J.I.; Choi, H.R.; Baik, S. Carbon-Nanotube/Silver Networks in Nitrile Butadiene Rubber for Highly Conductive Flexible Adhesives. Adv. Mater. 2012, 24, 3344–3349. [Google Scholar] [CrossRef]
  10. Luo, J.; Cheng, Z.; Li, C.; Wang, L.; Yu, C.; Zhao, Y.; Chen, M.; Li, Q.; Yao, Y. Electrically conductive adhesives based on thermoplastic polyurethane filled with silver flakes and carbon nanotubes. Compos. Sci. Technol. 2016, 129, 191–197. [Google Scholar] [CrossRef]
  11. Pu, N.-W.; Peng, Y.-Y.; Wang, P.-C.; Chen, C.-Y.; Shi, J.-N.; Liu, Y.-M.; Ger, M.-D.; Chang, C.-L. Application of nitrogen-doped graphene nanosheets in electrically conductive adhesives. Carbon 2014, 67, 449–456. [Google Scholar] [CrossRef]
  12. Ma, H.; Zeng, J.; Harrington, S.; Ma, L.; Ma, M.; Guo, X.; Ma, Y. Hydrothermal fabrication of silver nanowires-silver nanoparticles-graphene nanosheets composites in enhancing electrical conductive performance of electrically conductive adhesives. Nanomaterials 2016, 6, 119. [Google Scholar] [CrossRef] [PubMed]
  13. Ji, Y.-H.; Liu, Y.; Huang, G.-W.; Shen, X.-J.; Xiao, H.-M.; Fu, S.-Y. Ternary Ag/epoxy adhesive with excellent overall performance. ACS Appl. Mater. Interfaces 2015, 7, 8041–8052. [Google Scholar] [CrossRef]
  14. Zhang, Z.; Chen, X.; Xiao, F. The sintering behavior of electrically conductive adhesives filled with surface modified silver nanowires. J. Adhes. Sci. Technol. 2011, 25, 1465–1480. [Google Scholar] [CrossRef]
  15. Yim, M.J.; Li, Y.; Moon, K.S.; Wong, C. Oxidation prevention and electrical property enhancement of copper-filled isotropically conductive adhesives. J. Electron. Mater. 2007, 36, 1341–1347. [Google Scholar] [CrossRef]
  16. Hermant, M.-C.; van der Schoot, P.; Klumperman, B.; Koning, C.E. Probing the cooperative nature of the conductive components in polystyrene/poly (3, 4-ethylenedioxythiophene): Poly (styrene sulfonate)-single-walled carbon nanotube composites. Acs Nano 2010, 4, 2242–2248. [Google Scholar] [CrossRef]
  17. Zhao, H.; Liang, T.; Liu, B. Synthesis and properties of copper conductive adhesives modified by SiO2 nanoparticles. Int. J. Adhes. Adhes. 2007, 27, 429–433. [Google Scholar] [CrossRef]
  18. Jiang, H.; Moon, K.-S.; Li, Y.; Wong, C. Surface functionalized silver nanoparticles for ultrahigh conductive polymer composites. Chem. Mater. 2006, 18, 2969–2973. [Google Scholar] [CrossRef]
  19. Koczkur, K.M.; Mourdikoudis, S.; Polavarapu, L.; Skrabalak, S.E. Polyvinylpyrrolidone (PVP) in nanoparticle synthesis. Dalton Trans. 2015, 44, 17883–17905. [Google Scholar] [CrossRef]
  20. Zou, J.; Khondaker, S.I.; Huo, Q.; Zhai, L. A general strategy to disperse and functionalize carbon nanotubes using conjugated block copolymers. Adv. Funct. Mater. 2009, 19, 479–483. [Google Scholar] [CrossRef]
  21. Yi, M.; Shen, Z.; Liang, S.; Liu, L.; Zhang, X.; Ma, S. Water can stably disperse liquid-exfoliated graphene. Chem. Commun. 2013, 49, 11059–11061. [Google Scholar] [CrossRef] [PubMed]
  22. Li, V.C.-F.; Dunn, C.K.; Zhang, Z.; Deng, Y.; Qi, H.J., Sr. Direct ink write (DIW) 3D printed cellulose nanocrystal aerogel structures. Sci. Rep. 2017, 7, 8018. [Google Scholar] [CrossRef] [PubMed]
  23. Stejskal, J. Strategies towards the control of one-dimensional polypyrrole nanomorphology and conductivity. Polym. Int. 2018, 67, 1461–1469. [Google Scholar] [CrossRef]
  24. Wen, J.; Tian, Y.; Mei, Z.; Wu, W.; Tian, Y. Synthesis of polypyrrole nanoparticles and their applications in electrically conductive adhesives for improving conductivity. RSC Adv. 2017, 7, 53219–53225. [Google Scholar] [CrossRef]
  25. Si, P.; Trinidad, J.; Chen, L.; Lee, B.; Chen, A.; Persic, J.; Lyn, R.; Leonenko, Z.; Zhao, B. PEDOT: PSS nano-gels for highly electrically conductive silver/epoxy composite adhesives. J. Mater. Sci. Mater. Electron. 2018, 29, 1837–1846. [Google Scholar] [CrossRef]
  26. Bhadra, S.; Singha, N.K.; Khastgir, D. Effect of aromatic substitution in aniline on the properties of polyaniline. Eur. Polym. J. 2008, 44, 1763–1770. [Google Scholar] [CrossRef]
  27. Sapurina, I.; Li, Y.; Alekseeva, E.; Bober, P.; Trchova, M.; Moravkova, Z.; Stejskal, J. Polypyrrole nanotubes: The tuning of morphology and conductivity. Polymer 2017, 113, 247–258. [Google Scholar] [CrossRef]
  28. Kloser, E.; Gray, D.G. Surface grafting of cellulose nanocrystals with poly (ethylene oxide) in aqueous media. Langmuir 2010, 26, 13450–13456. [Google Scholar] [CrossRef]
  29. Ansari, F.; Berglund, L.A. Toward Semistructural Cellulose Nanocomposites: The Need for Scalable Processing and Interface Tailoring. Biomacromolecules 2018, 19, 2341–2350. [Google Scholar] [CrossRef]
  30. Chen, W.; Yu, H.; Lee, S.-Y.; Wei, T.; Li, J.; Fan, Z. Nanocellulose: A promising nanomaterial for advanced electrochemical energy storage. Chem. Soc. Rev. 2018, 47, 2837–2872. [Google Scholar] [CrossRef]
  31. Shi, Z.; Zang, S.; Jiang, F.; Huang, L.; Lu, D.; Ma, Y.; Yang, G. In situ nano-assembly of bacterial cellulose–polyaniline composites. RSC Adv. 2012, 2, 1040–1046. [Google Scholar] [CrossRef]
  32. Long, C.; Qi, D.; Wei, T.; Yan, J.; Jiang, L.; Fan, Z. Nitrogen-doped carbon networks for high energy density supercapacitors derived from polyaniline coated bacterial cellulose. Adv. Funct. Mater. 2014, 24, 3953–3961. [Google Scholar] [CrossRef]
  33. Omura, T.; Chan, C.H.; Wakisaka, M.; Nishida, H. Organic Thin Paper of Cellulose Nanofiber/Polyaniline Doped with (±)-10-Camphorsulfonic Acid Nanohybrid and Its Application to Electromagnetic Shielding. ACS Omega 2019, 4, 9446–9452. [Google Scholar] [CrossRef] [PubMed]
  34. Děkanovský, L.; Elashnikov, R.; Kubiková, M.; Vokatá, B.; Švorčík, V.; Lyutakov, O. Dual-Action Flexible Antimicrobial Material: Switchable Self-Cleaning, Antifouling, and Smart Drug Release. Adv. Funct. Mater. 2019, 1901880. [Google Scholar] [CrossRef]
  35. Wang, S.; Zhang, X.; Wu, X.; Lu, C. Tailoring percolating conductive networks of natural rubber composites for flexible strain sensors via a cellulose nanocrystal templated assembly. Soft Matter 2016, 12, 845–852. [Google Scholar] [CrossRef] [PubMed]
  36. Cao, G.; Hao, C.; Gao, X.; Lu, J.; Xue, W.; Meng, Y.; Cheng, C.; Tian, Y. Carbon Nanotubes with Carbon Blacks as Cofillers to Improve Conductivity and Stability. ACS Omega 2019, 4, 4169–4175. [Google Scholar] [CrossRef]
  37. Li, R.; Fei, J.; Cai, Y.; Li, Y.; Feng, J.; Yao, J. Cellulose whiskers extracted from mulberry: A novel biomass production. Carbohydr. Polym. 2009, 76, 94–99. [Google Scholar] [CrossRef]
  38. Cao, Y.; Li, S.; Xue, Z.; Guo, D. Spectroscopic and electrical characterization of some aniline oligomers and polyaniline. Synth. Met. 1986, 16, 305–315. [Google Scholar] [CrossRef]
  39. Stejskal, J.; Sapurina, I.; Trchová, M. Polyaniline nanostructures and the role of aniline oligomers in their formation. Prog. Polym. Sci. 2010, 35, 1420–1481. [Google Scholar] [CrossRef]
  40. Wu, X.; Lu, C.; Xu, H.; Zhang, X.; Zhou, Z. Biotemplate synthesis of polyanilin[email protected] cellulose nanowhiskers/natural rubber nanocomposites with 3D hierarchical multiscale structure and improved electrical conductivity. ACS Appl. Mater. Interfaces 2014, 6, 21078–21085. [Google Scholar] [CrossRef]
  41. Moniruzzaman, M.; Winey, K.I. Polymer nanocomposites containing carbon nanotubes. Macromolecules 2006, 39, 5194–5205. [Google Scholar] [CrossRef]
  42. Zhang, R.; Moon, K.-S.; Lin, W.; Wong, C. Preparation of highly conductive polymer nanocomposites by low temperature sintering of silver nanoparticles. J. Mater. Chem. 2010, 20, 2018–2023. [Google Scholar] [CrossRef]
  43. Woo, K.; Kim, Y.; Lee, B.; Kim, J.; Moon, J. Effect of carboxylic acid on sintering of inkjet-printed copper nanoparticulate films. ACS Appl. Mater. Interfaces 2011, 3, 2377–2382. [Google Scholar] [CrossRef] [PubMed]
  44. Amoli, B.M.; Trinidad, J.; Rivers, G.; Sy, S.; Russo, P.; Yu, A.; Zhou, N.Y.; Zhao, B. SDS-stabilized graphene nanosheets for highly electrically conductive adhesives. Carbon 2015, 91, 188–199. [Google Scholar] [CrossRef]
  45. Zhang, R.; Lin, W.; Moon, K.-S.; Wong, C. Fast preparation of printable highly conductive polymer nanocomposites by thermal decomposition of silver carboxylate and sintering of silver nanoparticles. ACS Appl. Mater. Interfaces 2010, 2, 2637–2645. [Google Scholar] [CrossRef] [PubMed]
  46. Wen, J.; Tian, Y.; Hao, C.; Wang, S.; Mei, Z.; Wu, W.; Lu, J.; Zheng, Z.; Tian, Y. Fabrication of high performance printed flexible conductors by doping of polyaniline nanomaterials into silver paste. J. Mater. Chem. C 2019, 7, 1188–1197. [Google Scholar] [CrossRef]

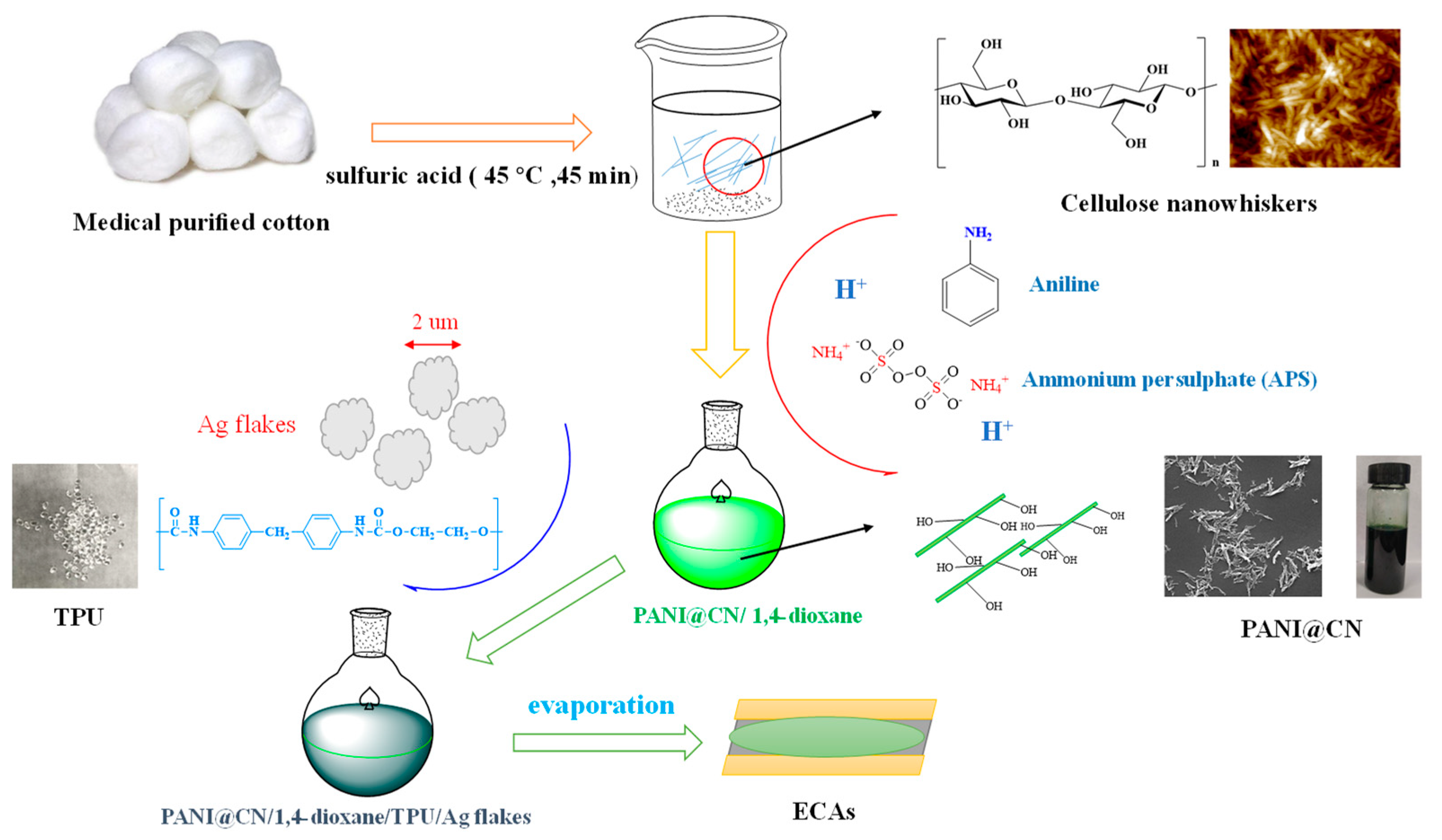

Figure 1. Schematic illustration of the preparation of [email protected] ([email protected])/silver-PU-electrically conducted adhesives (ECAs).
Figure 1. Schematic illustration of the preparation of [email protected] ([email protected])/silver-PU-electrically conducted adhesives (ECAs).
Nanomaterials 09 01542 g001
Figure 2. (a) The photo of a bottle of CNs aqueous dispersion, (b) a low magnification AFM image of CNs, and (c) a high magnification AFM image of CNs.
Figure 2. (a) The photo of a bottle of CNs aqueous dispersion, (b) a low magnification AFM image of CNs, and (c) a high magnification AFM image of CNs.
Nanomaterials 09 01542 g002
Figure 3. Scanning electron microscope (SEM) images of PANI (a), [email protected] nanowhiskers with the weight ratio CNs/aniline (1:6) (b), (1:4) (c), and (1:2) (d).
Figure 3. Scanning electron microscope (SEM) images of PANI (a), [email protected] nanowhiskers with the weight ratio CNs/aniline (1:6) (b), (1:4) (c), and (1:2) (d).
Nanomaterials 09 01542 g003
Figure 4. (a) FT-IR spectra of CNs, PANI, and [email protected] with the different weight ratios of CNs/aniline; (b) TGA curves of CNs, [email protected], and PANI.
Figure 4. (a) FT-IR spectra of CNs, PANI, and [email protected] with the different weight ratios of CNs/aniline; (b) TGA curves of CNs, [email protected], and PANI.
Nanomaterials 09 01542 g004

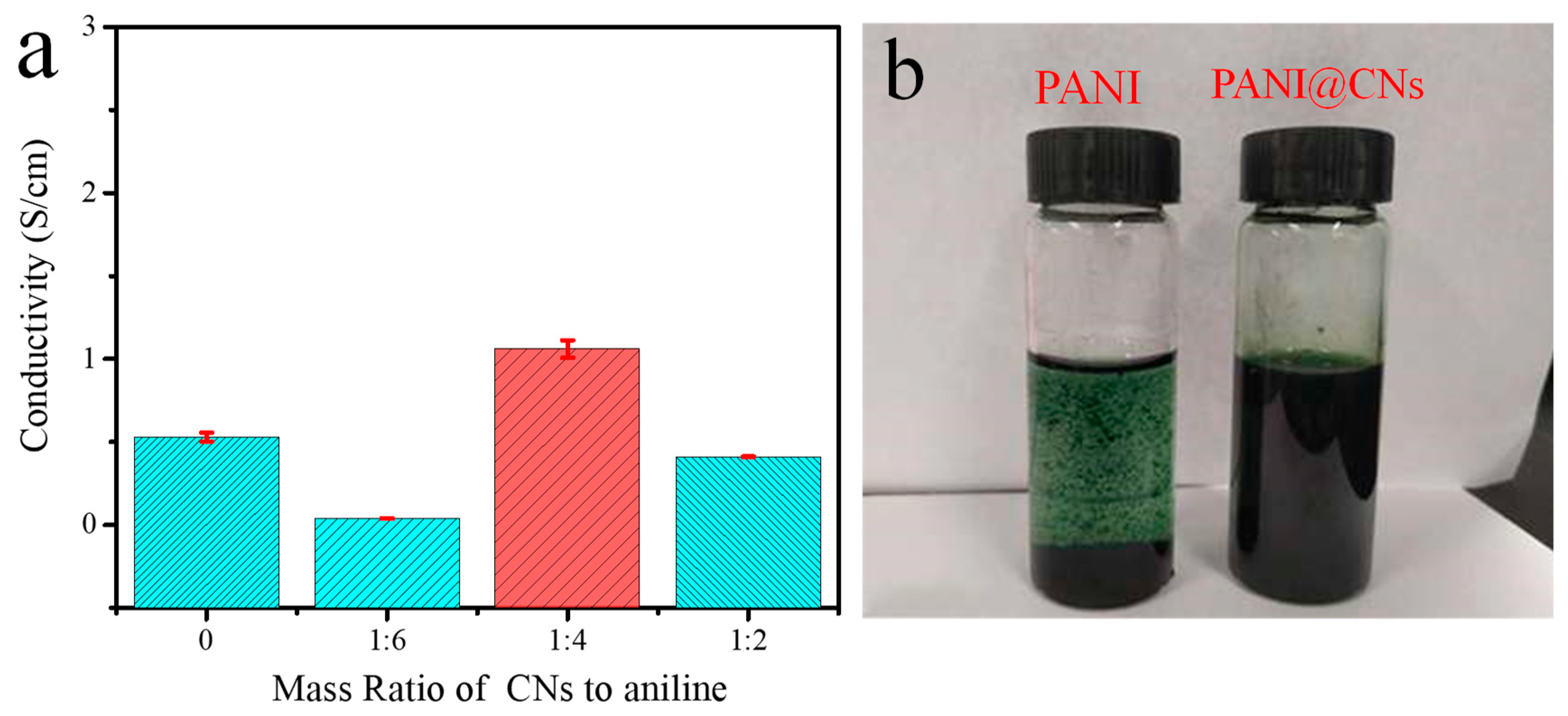

Figure 5. (a) Electrical conductivity of [email protected] with different feeding mass ratios of CNs/aniline, (b) dispersion test of PANI, and [email protected] (1:4) in 1,4-dioxane.
Figure 5. (a) Electrical conductivity of [email protected] with different feeding mass ratios of CNs/aniline, (b) dispersion test of PANI, and [email protected] (1:4) in 1,4-dioxane.
Nanomaterials 09 01542 g005

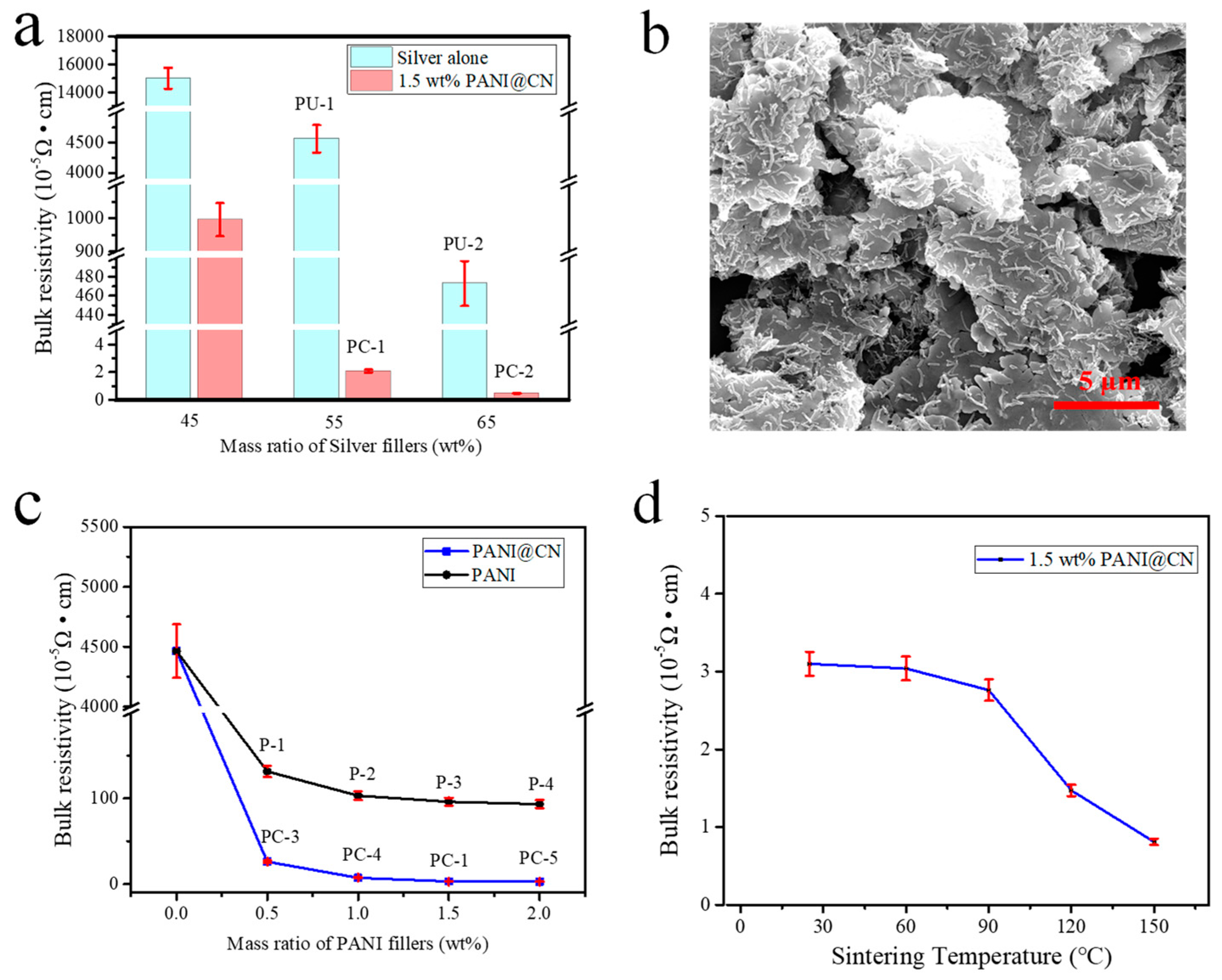

Figure 6. (a) Bulk resistivity of the ECAs with different silver content, (b) SEM images of PC- -1ECAs, (c) bulk resistivity of hybrid ECAs containing 55 wt% Ag fillers (PC-1, 3, 4, 5; P-1, 2, 3, 4) as a function of different PANI and [email protected], and (d) the hybrid ECAs (PC-1) curing at different temperatures.
Figure 6. (a) Bulk resistivity of the ECAs with different silver content, (b) SEM images of PC- -1ECAs, (c) bulk resistivity of hybrid ECAs containing 55 wt% Ag fillers (PC-1, 3, 4, 5; P-1, 2, 3, 4) as a function of different PANI and [email protected], and (d) the hybrid ECAs (PC-1) curing at different temperatures.
Nanomaterials 09 01542 g006

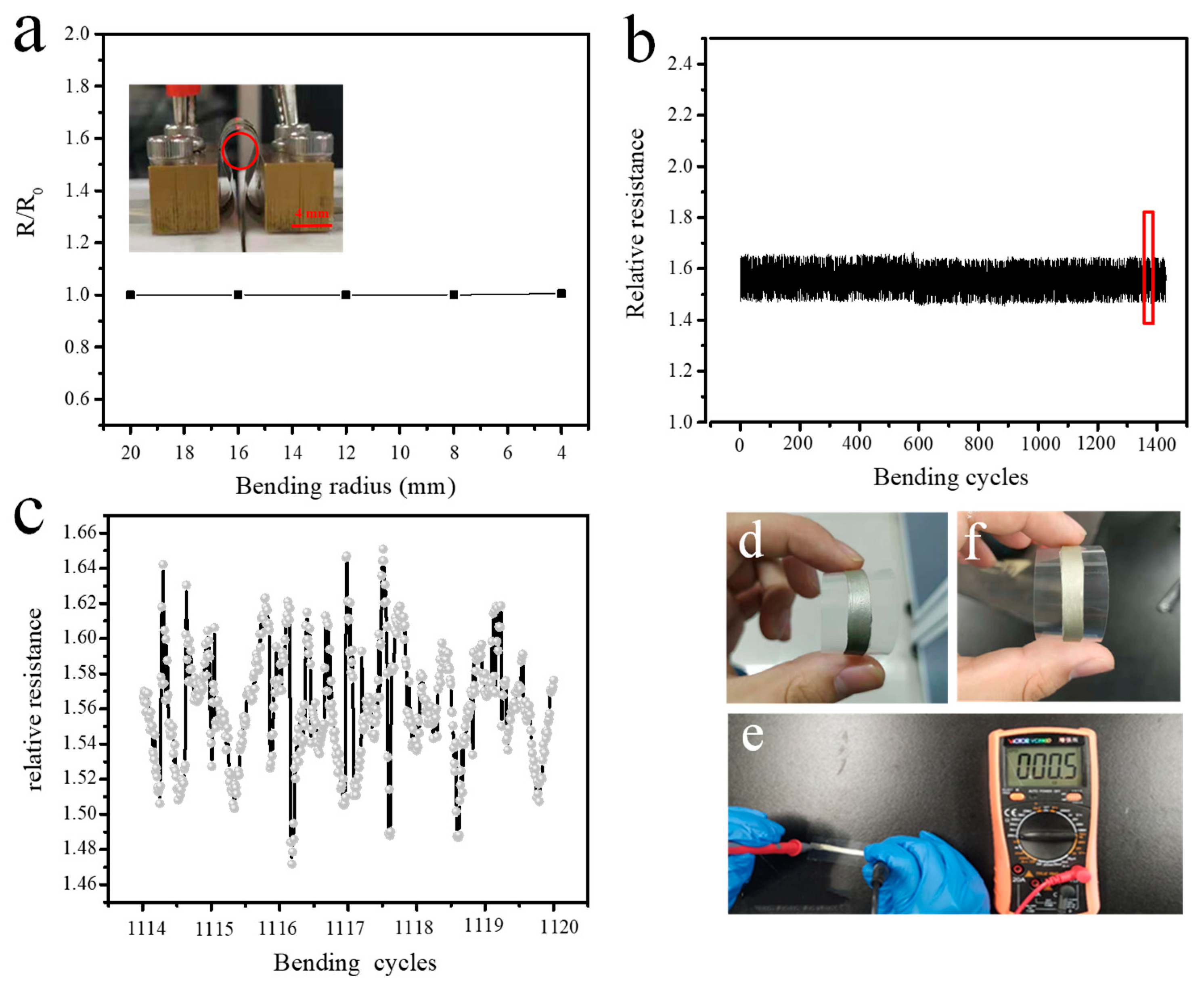

Figure 7. The electrical resistivity of PC-ECAs’s patterns (PC-1) as a functional of rolling radius (a), the cyclic performance of PC-ECAs s patterns (b), the resistance change of the patterns on the 114–1120 bend-release cycles (c), the patterns before 1500 bending cycles (d), the patterns after 1500 bending cycles (f), and the electrical resistance of the patterns after 1500 bending cycles (e).
Figure 7. The electrical resistivity of PC-ECAs’s patterns (PC-1) as a functional of rolling radius (a), the cyclic performance of PC-ECAs s patterns (b), the resistance change of the patterns on the 114–1120 bend-release cycles (c), the patterns before 1500 bending cycles (d), the patterns after 1500 bending cycles (f), and the electrical resistance of the patterns after 1500 bending cycles (e).
Nanomaterials 09 01542 g007

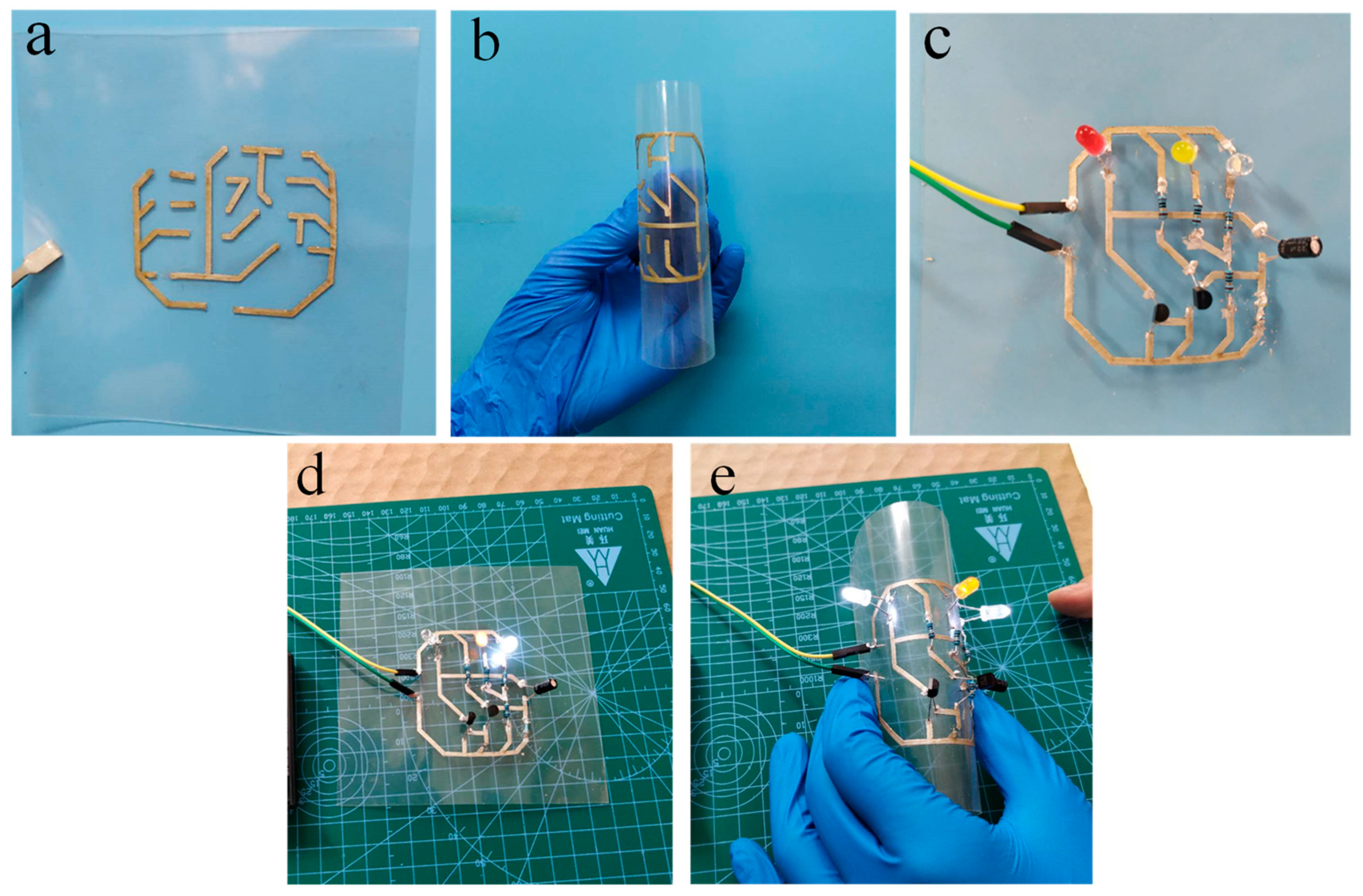

Figure 8. Application of PC-ECAs (PC-1) in printed circuits. (a) Printed circuits with line width of 1mm, (b) printed circuit at a flexural state, (c) a flashing LED device on the printed circuit, (d) a flashing LED device working under the flat state, and (e) the lightness does not change when the devices are close to ninety degrees bending.
