Next Article in Journal
Properties, Preparation and Applications of Low Dimensional Transition Metal Dichalcogenides
Previous Article in Journal
Preparation and In-Vitro Assessment of Hierarchal Organized Antibacterial Breath Mask Based on Polyacrylonitrile/Silver (PAN/AgNPs) Nanofiber
Previous Article in Special Issue
Synthesis of Alkanethiolate-Capped Metal Nanoparticles Using Alkyl Thiosulfate Ligand Precursors: A Method to Generate Promising Reagents for Selective Catalysis
Article Menu
Issue 7 (July) cover image

Export Article

Open AccessArticle
Nanomaterials 2018, 8(7), 462; https://doi.org/10.3390/nano8070462

Solution-Grown Dendritic Pt-Based Ternary Nanostructures for Enhanced Oxygen Reduction Reaction Functionality

1
Department of Chemical Engineering, Catalysis Institute, University of Cape Town, Cape Town 7700, South Africa
2
School of Engineering, Macquarie University, Sydney NSW 2109, Australia
3
Electron Microscopy Centre, University of Wollongong, Wollongong NSW 2522, Australia
*
Authors to whom correspondence should be addressed.
Received: 22 May 2018 / Revised: 16 June 2018 / Accepted: 22 June 2018 / Published: 26 June 2018
(This article belongs to the Special Issue Synthesis of Ligand-Capped Nanoparticles for Catalysis)
Full-Text   |   PDF [2545 KB, uploaded 26 June 2018]   |

Abstract

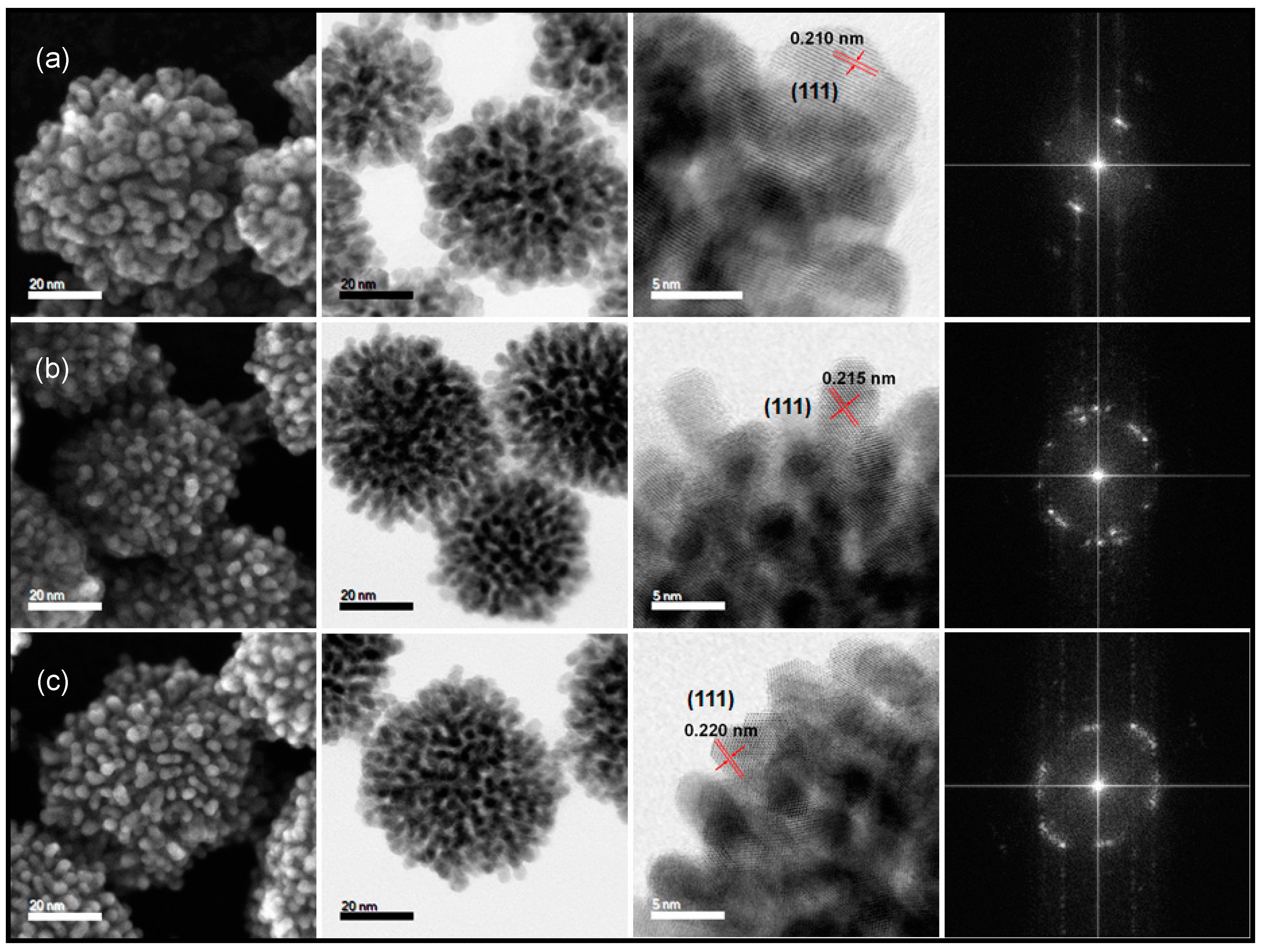

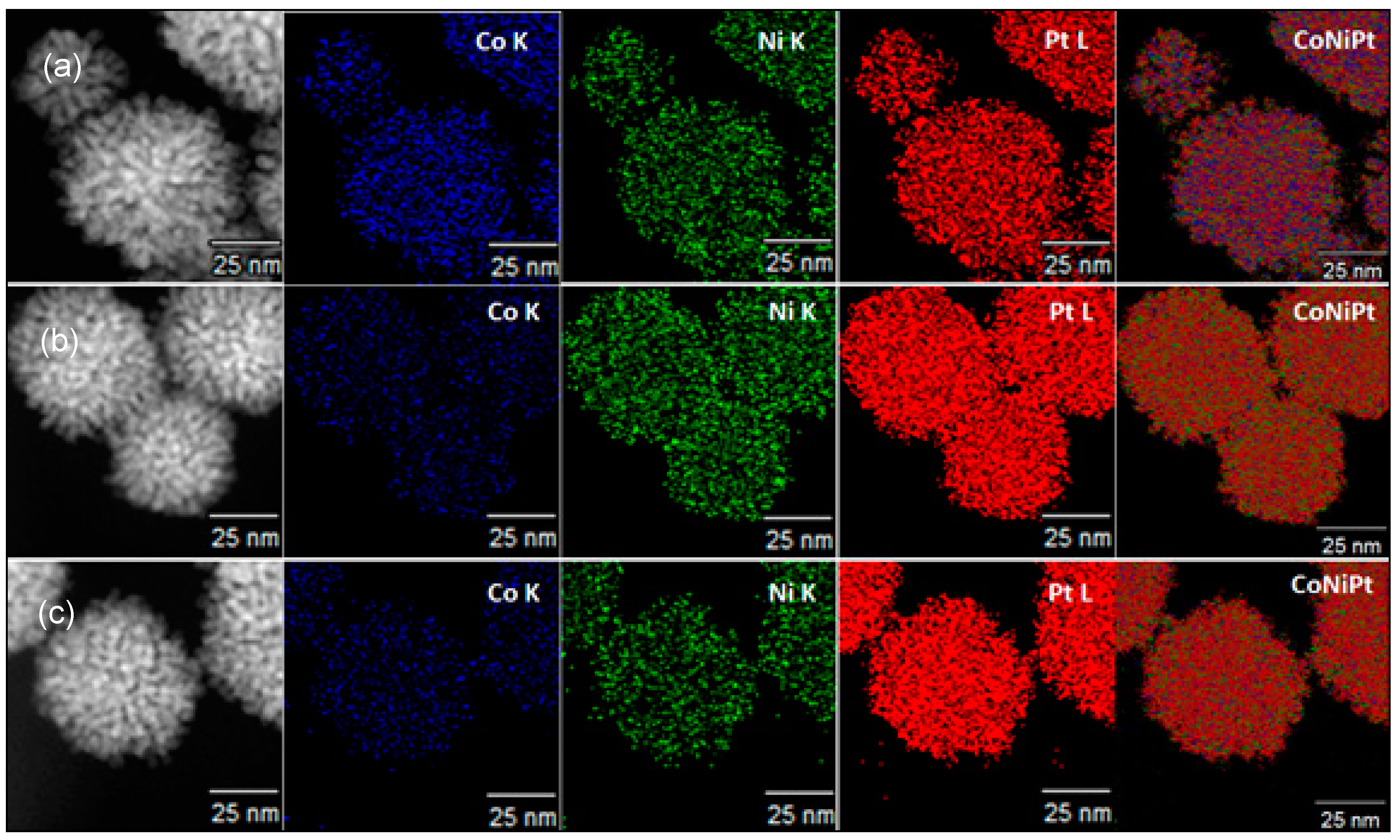

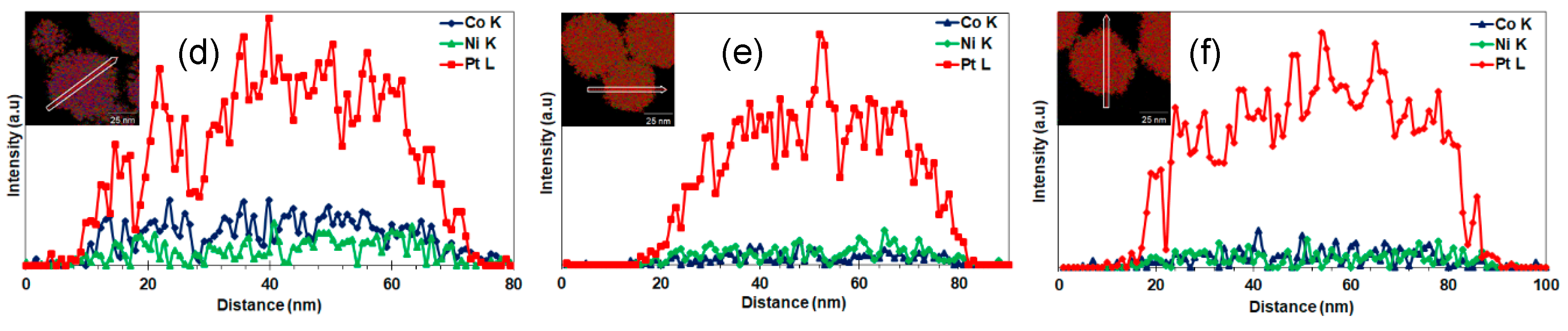

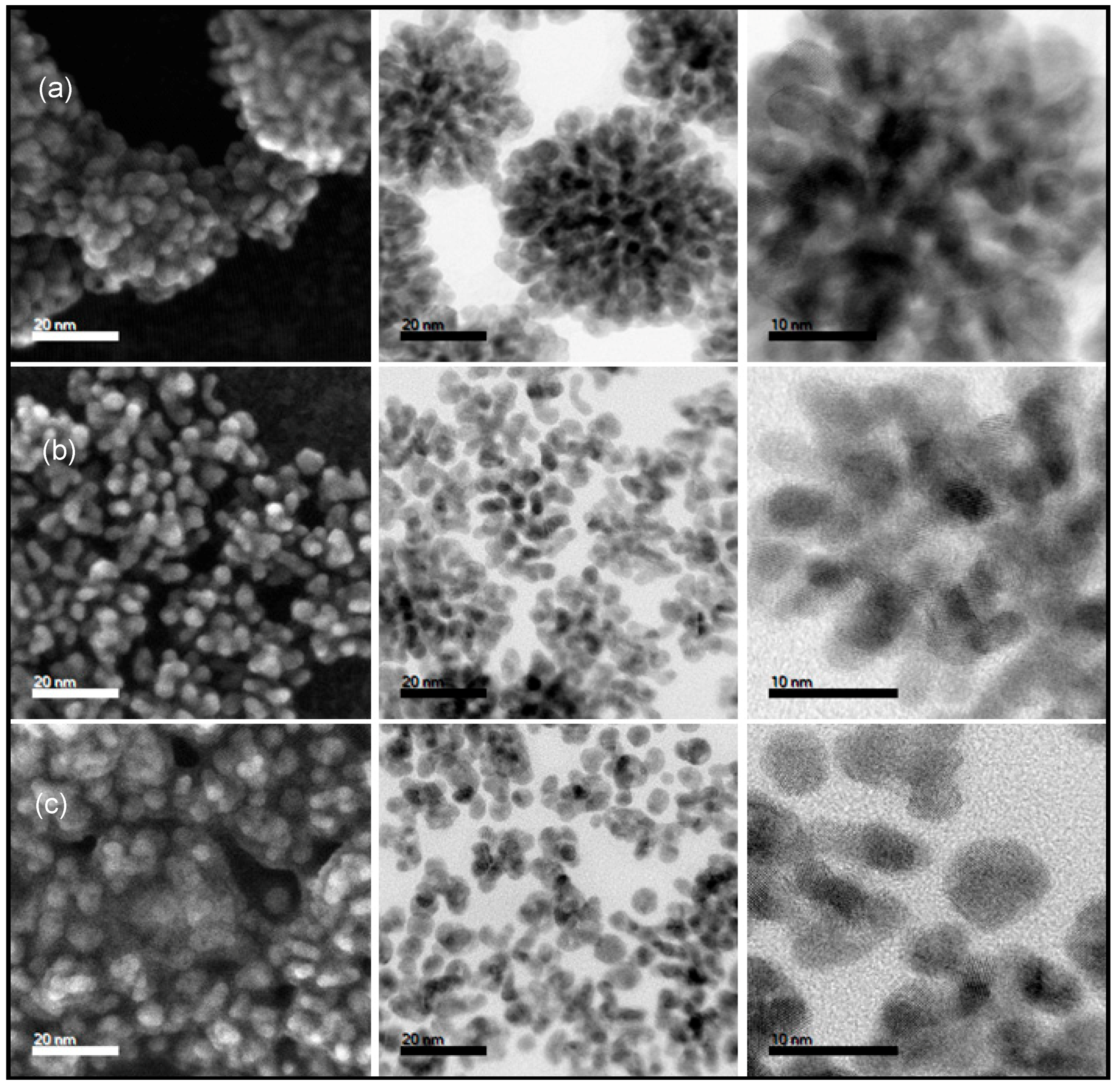

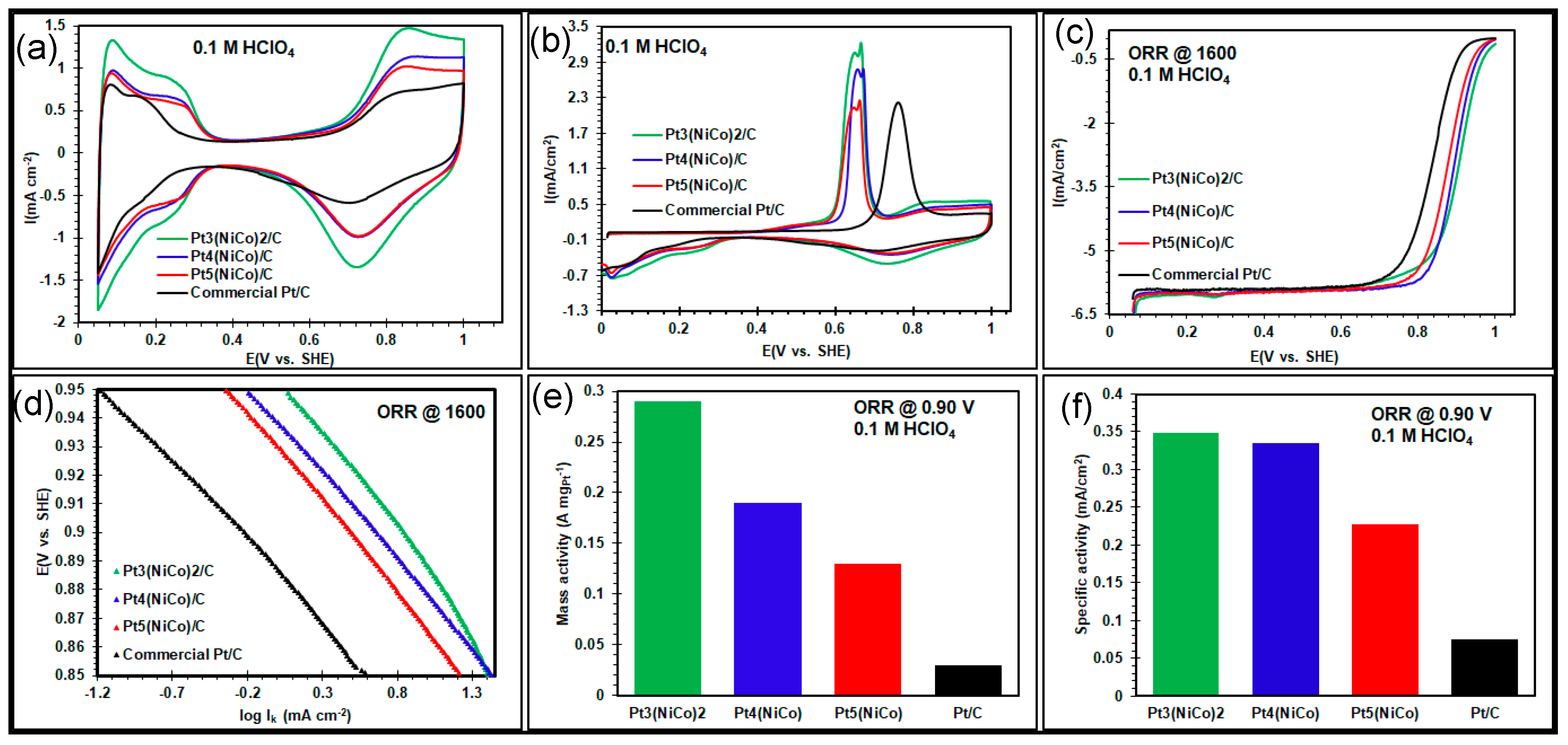

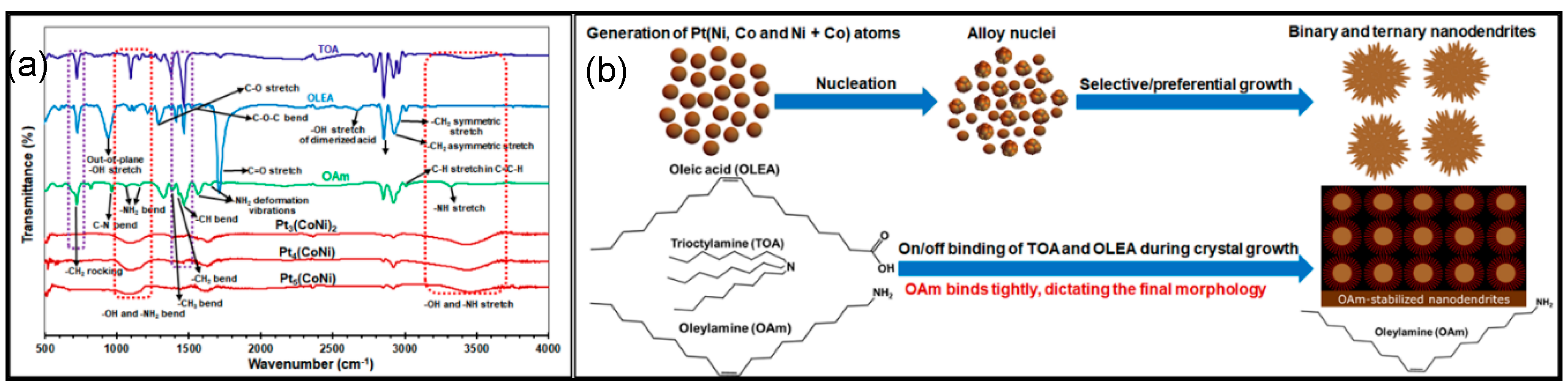

Nanoalloys with anisotropic morphologies of branched and porous internal structures show great promise in many applications as high performance materials. Reported synthetic approaches for branched alloy nanostructures are, however, limited by the synthesis using a seed-growth process. Here, we demonstrate a conveniently fast and one-pot solution-phase thermal reduction strategy yielding nanoalloys of Pt with various solute feed ratios, exhibiting hyperbranched morphologies and good dispersity. When Pt was alloyed with transition metals (Ni, Co, Fe), we observed well-defined dendritic nanostructures in PtNi, PtCo and Pt(NiCo), but not in PtFe, Pt(FeNi) or Pt(FeCo) due to the steric hindrance of the trivalent Fe(acac)3 precursor used during synthesis. In the case of Pt-based nanoalloys containing Ni and Co, the dendritic morphological evolution observed was insensitive to large variations in solute concentration. The functionality of these nanoalloys towards the oxygen reduction reaction (ORR); however, was observed to be dependent on the composition, increasing with increasing solute content. Pt3(NiCo)2 exhibited superior catalytic activity, affording about a five- and 10-fold enhancement in area-specific and mass-specific catalytic activities, respectively, compared to the standard Pt/C nanocatalyst. This solution-based synthetic route offers a new approach for constructing dendritic Pt-based nanostructures with excellent product yield, monodispersity and high crystallinity. View Full-Text
Keywords: thermal decomposition; ternary alloy; nanodendrites; surfactants; oxygen reduction reaction; electrocatalysts thermal decomposition; ternary alloy; nanodendrites; surfactants; oxygen reduction reaction; electrocatalysts
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Leteba, G.M.; Mitchell, D.R.G.; Levecque, P.B.J.; Lang, C.I. Solution-Grown Dendritic Pt-Based Ternary Nanostructures for Enhanced Oxygen Reduction Reaction Functionality. Nanomaterials 2018, 8, 462.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Nanomaterials EISSN 2079-4991 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
