Properties of Ferrite Garnet (Bi, Lu, Y)3(Fe, Ga)5O12 Thin Film Materials Prepared by RF Magnetron Sputtering

Electron Science Research Institute, Edith Cowan University, 270 Joondalup Dr, WA 6027, Australia
Faculty of Physics, Lomonosov Moscow State University, Leninskie Gory, Moscow 119991, Russia
Author to whom correspondence should be addressed.
Nanomaterials 2018, 8(5), 355;
Received: 2 May 2018 / Revised: 16 May 2018 / Accepted: 21 May 2018 / Published: 22 May 2018
PDF [6824 KB, uploaded 23 May 2018]

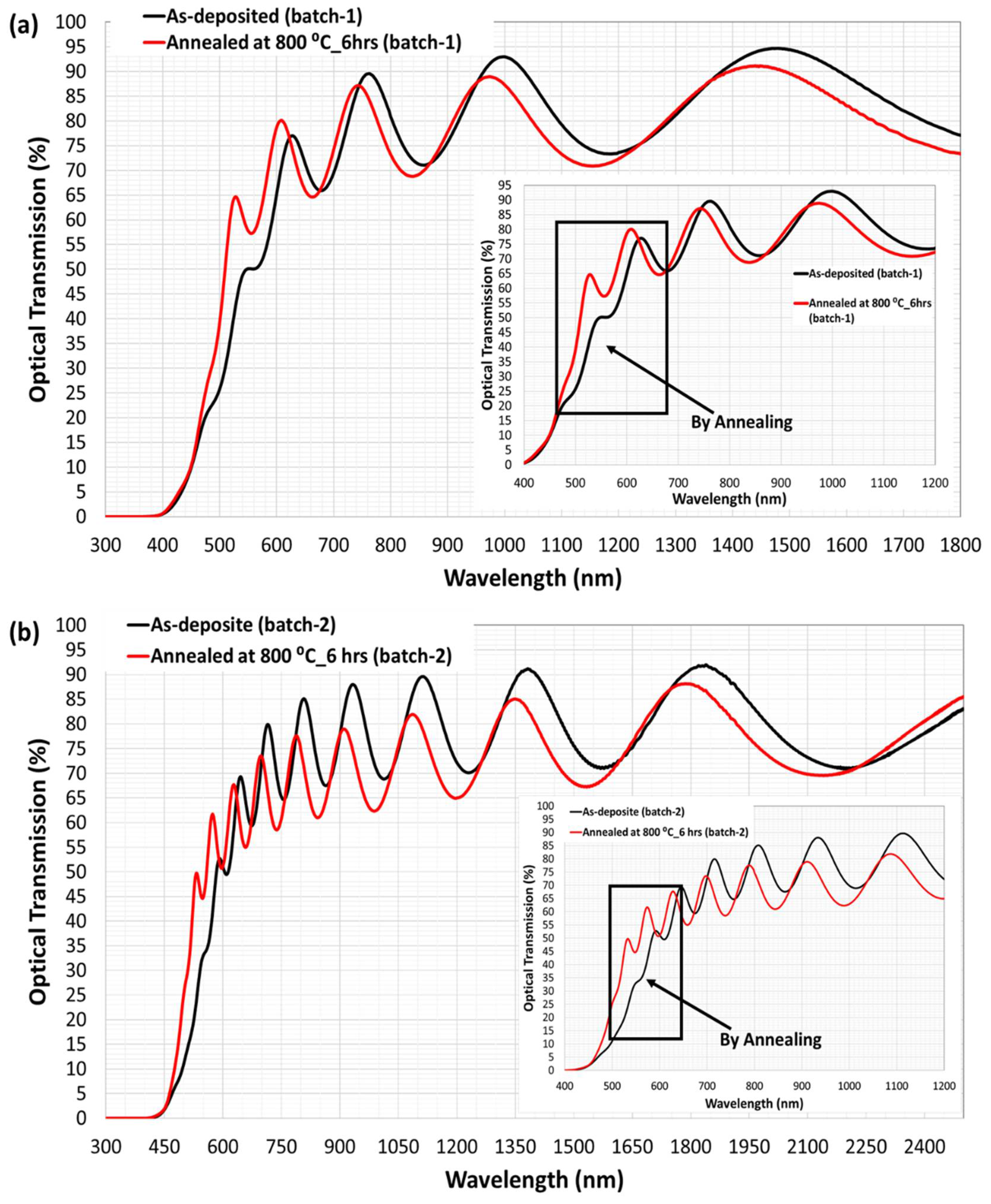

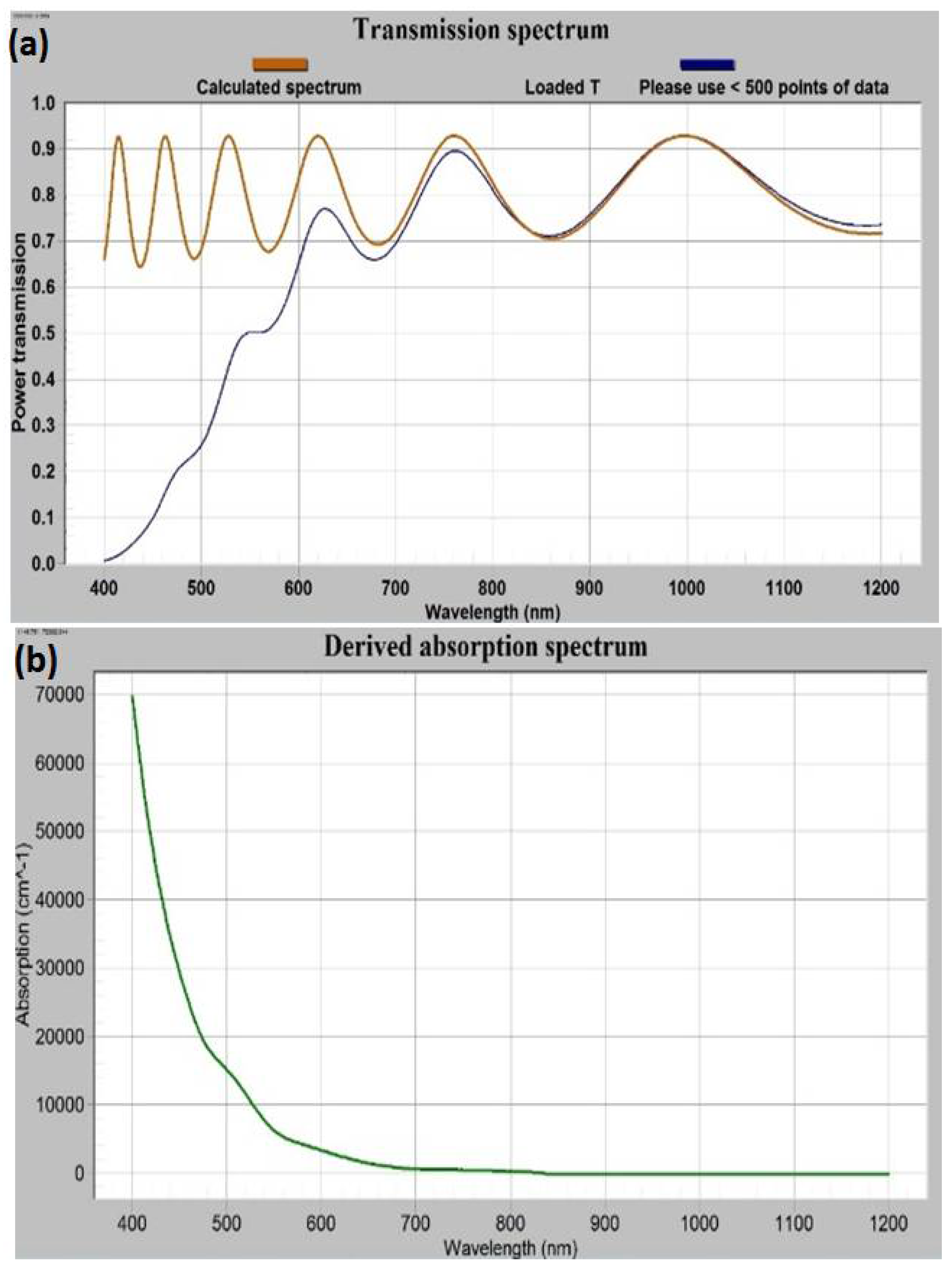

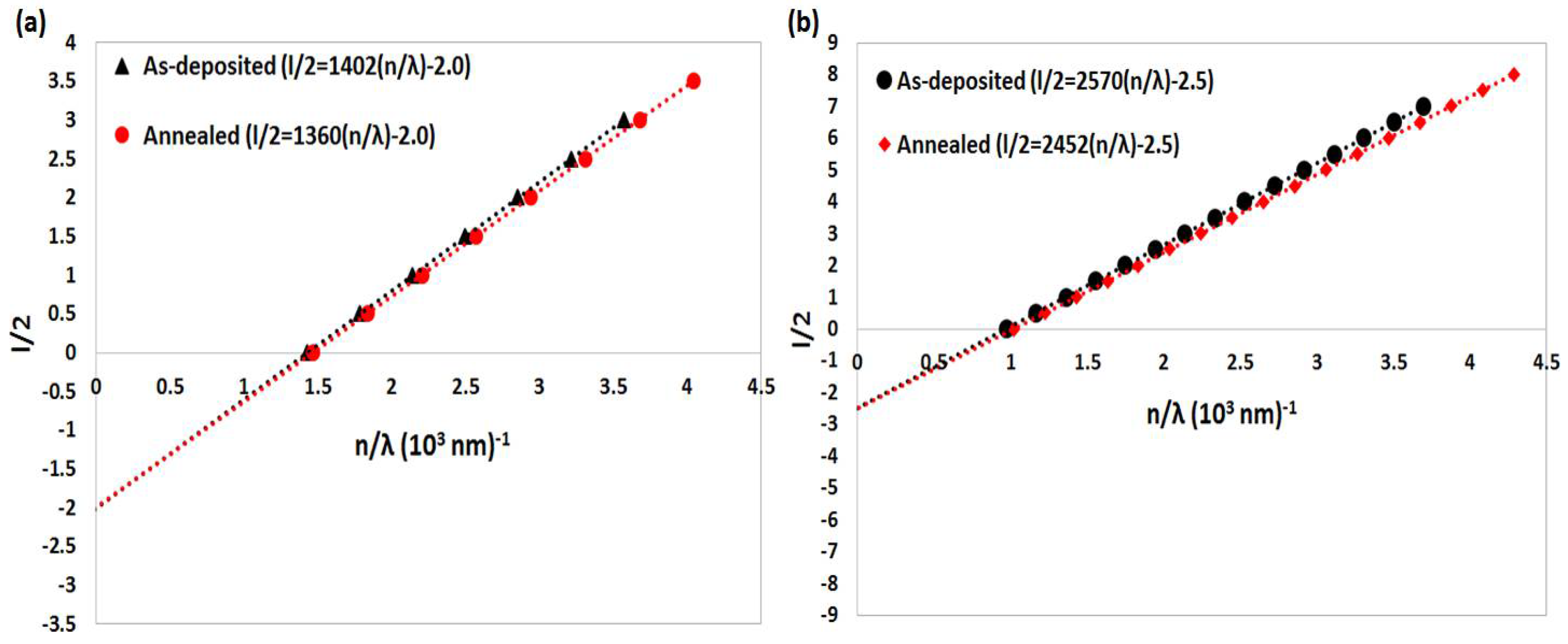

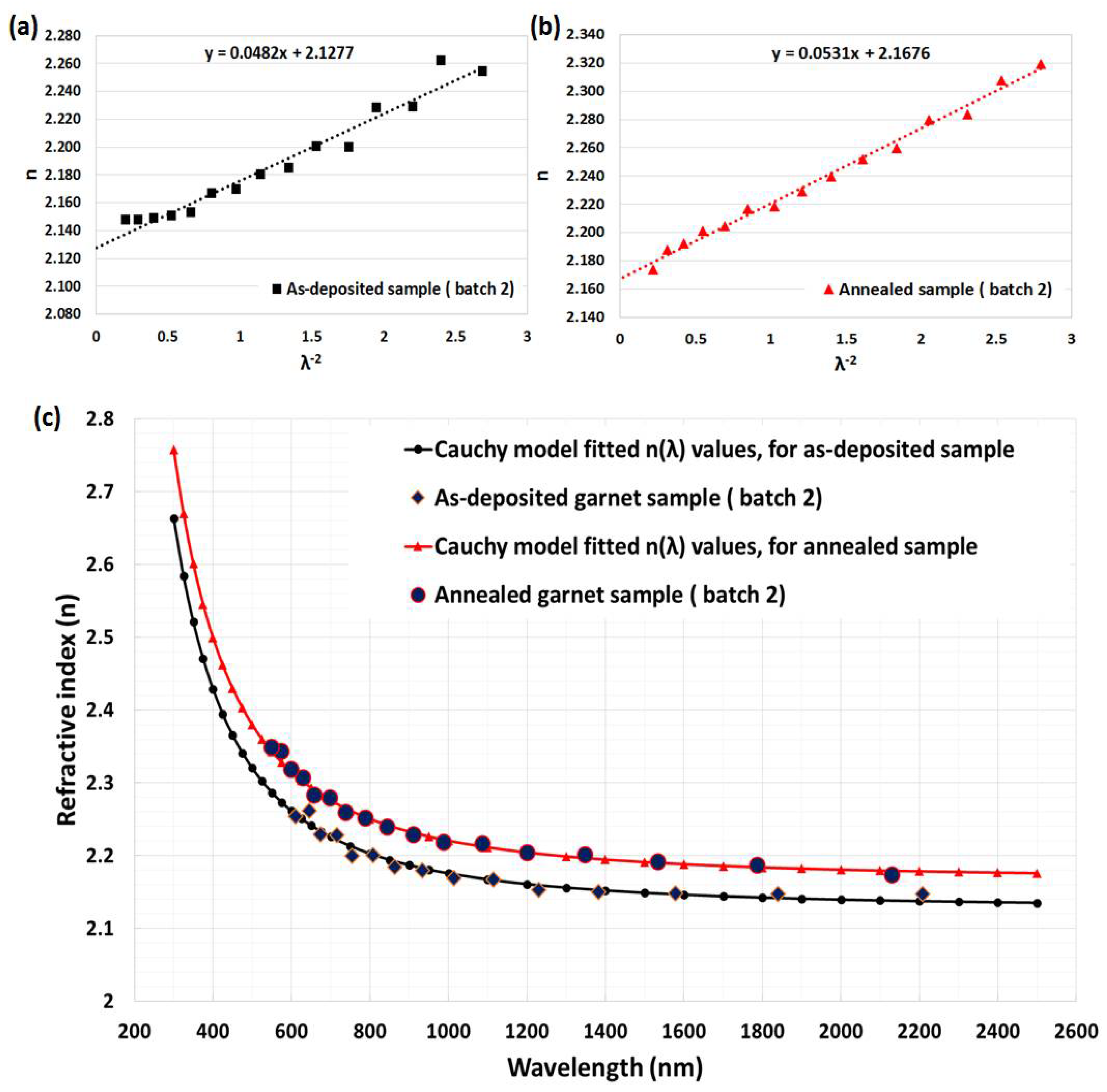

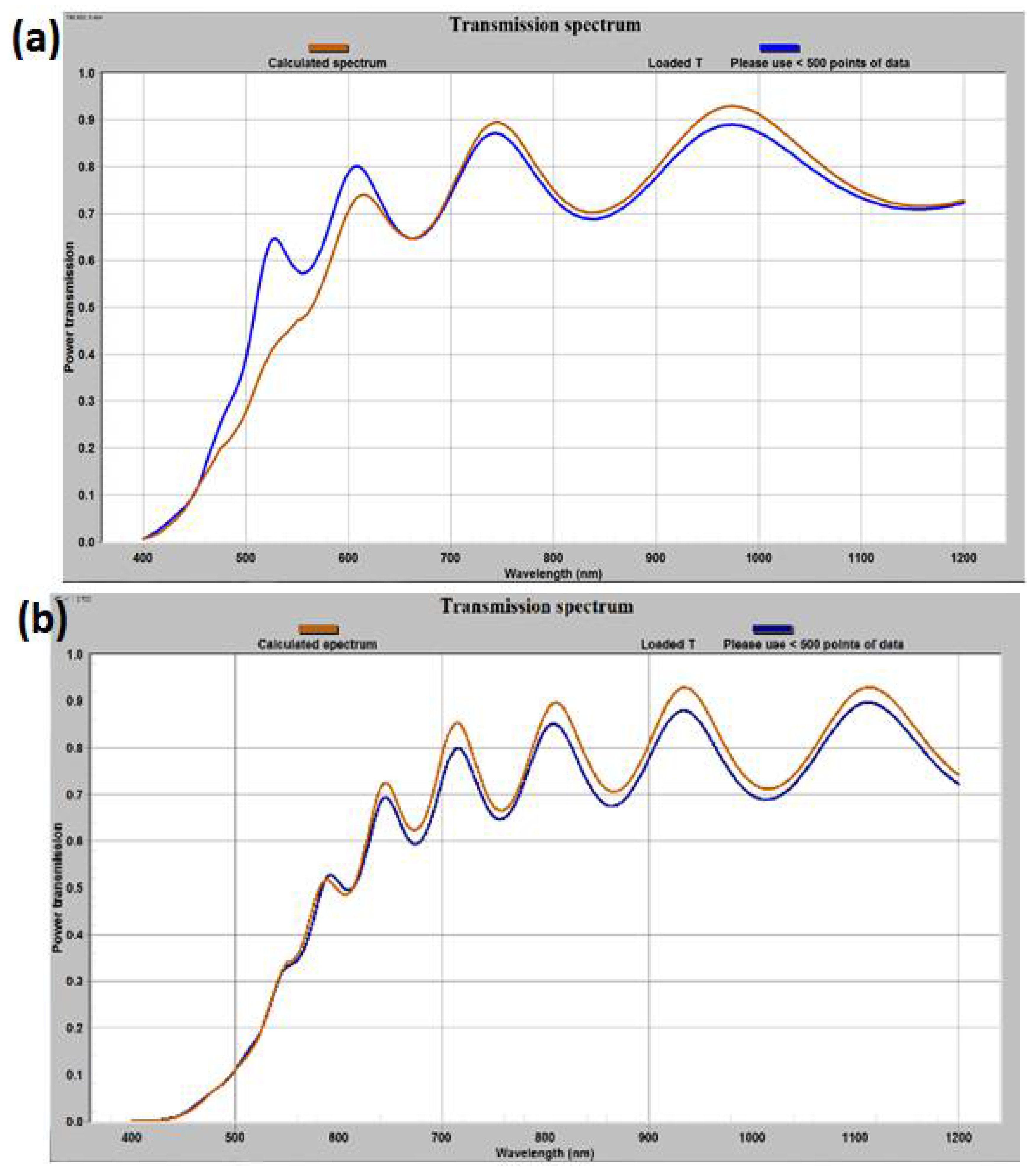

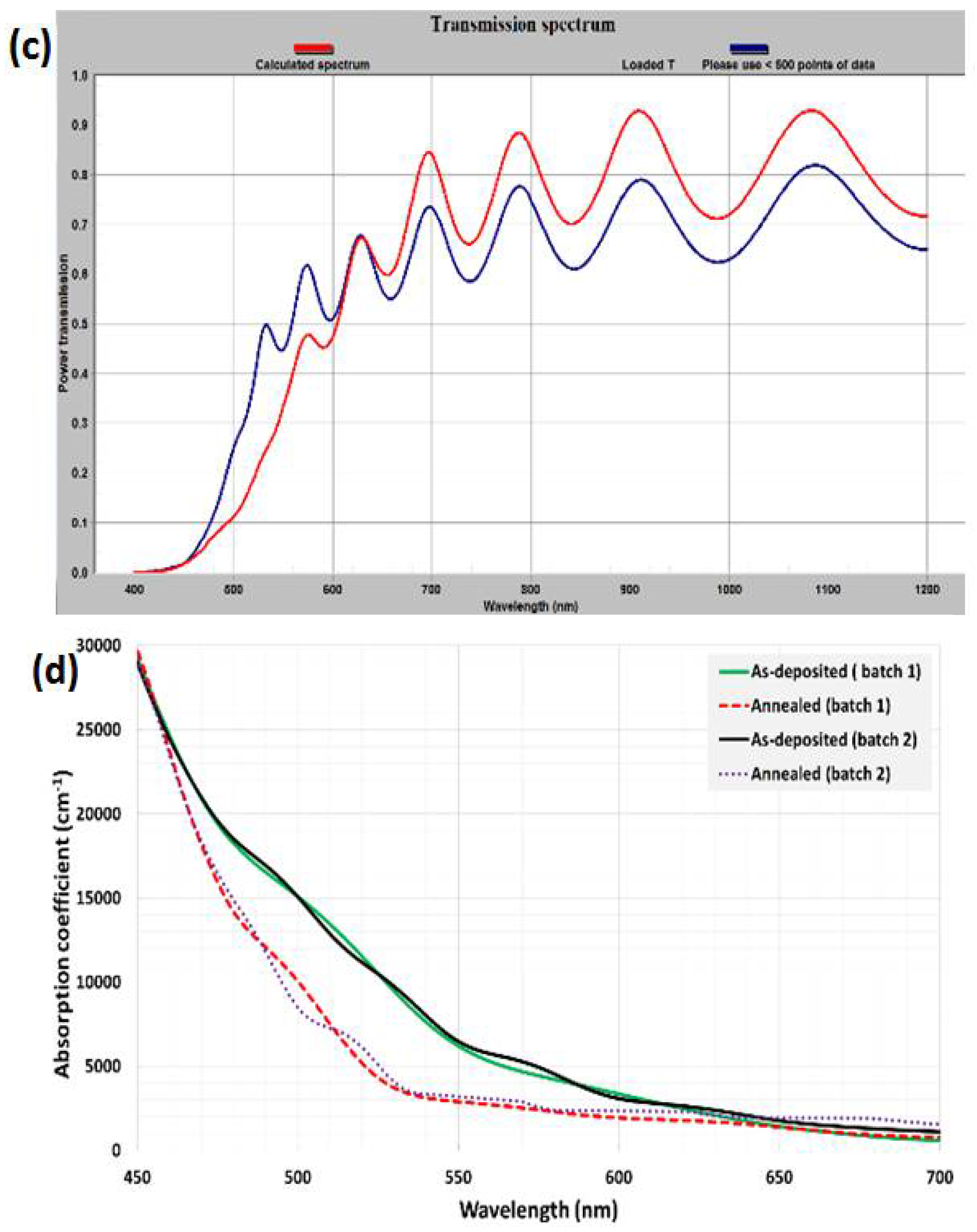

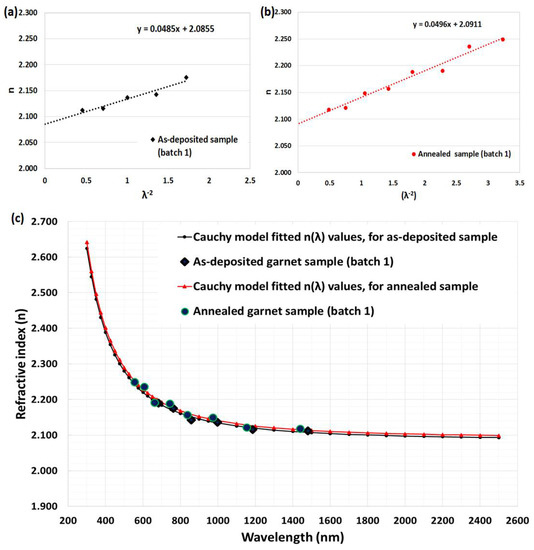

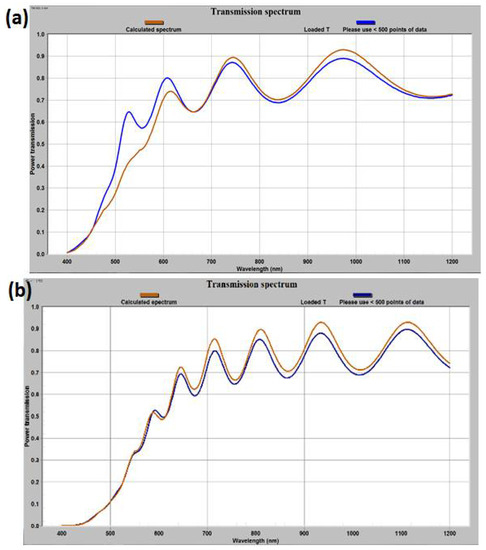

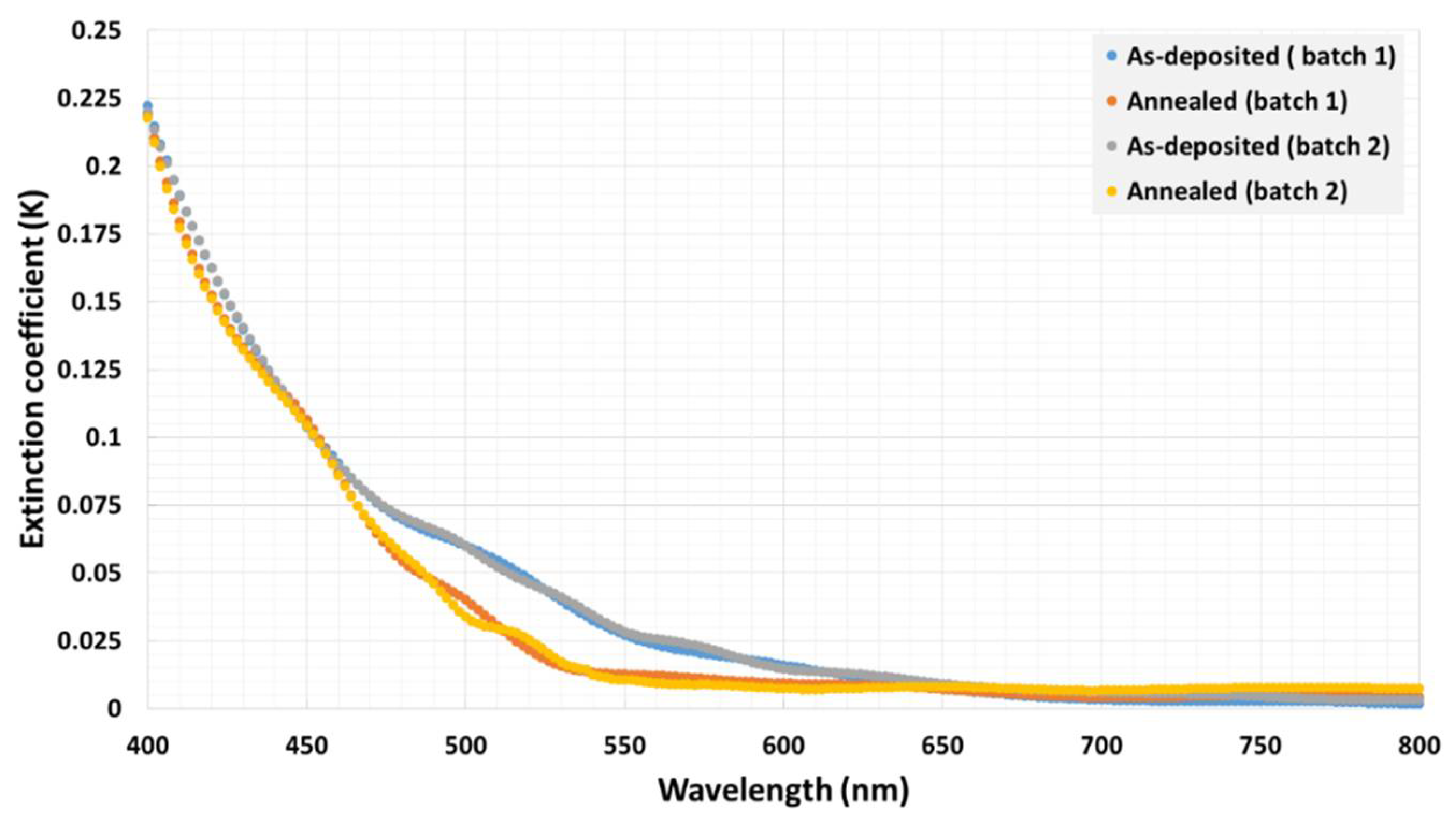

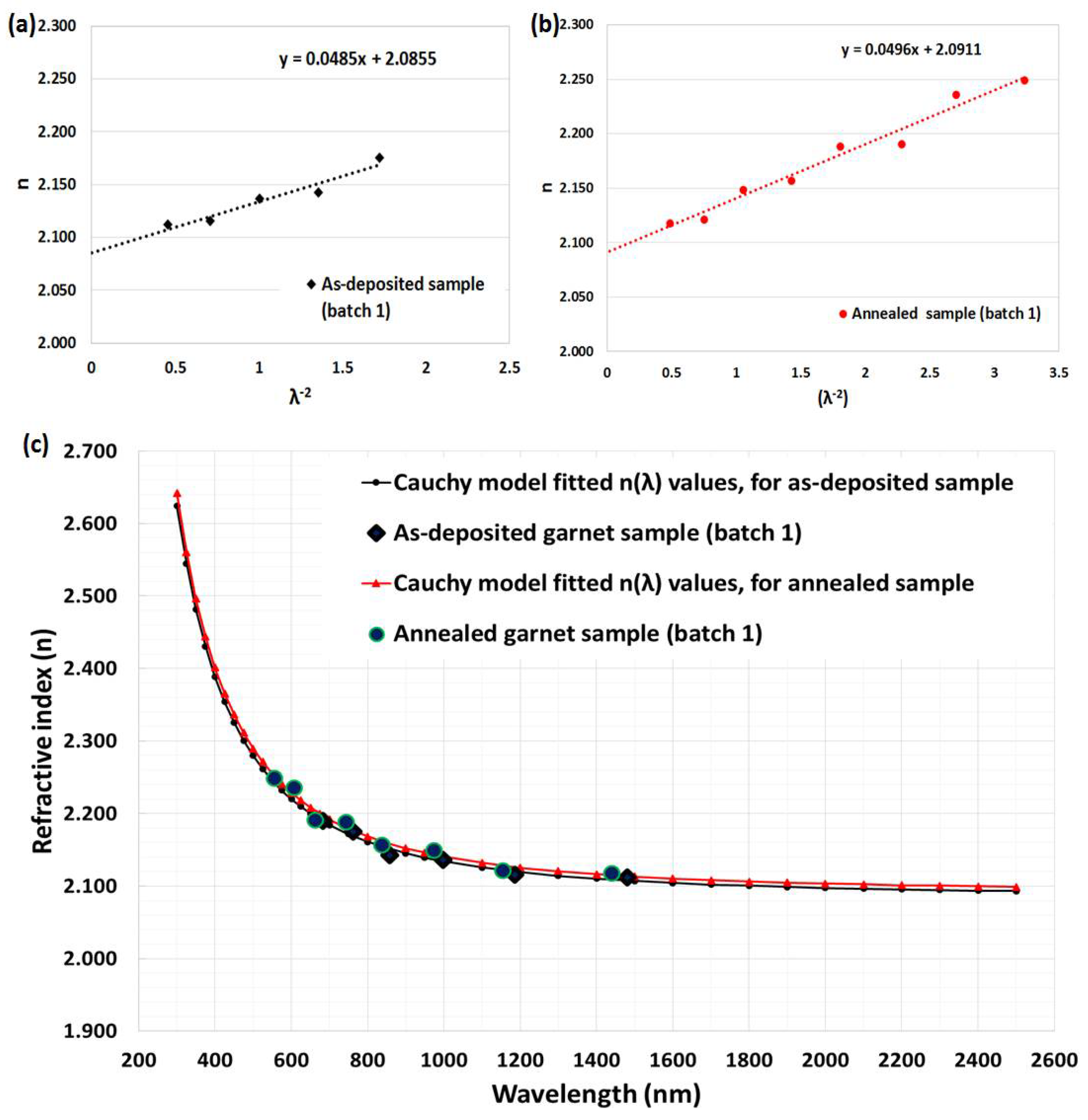

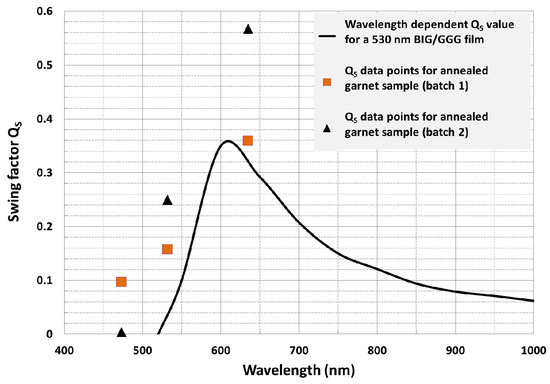

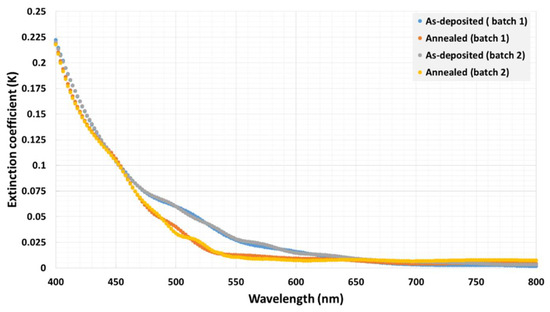

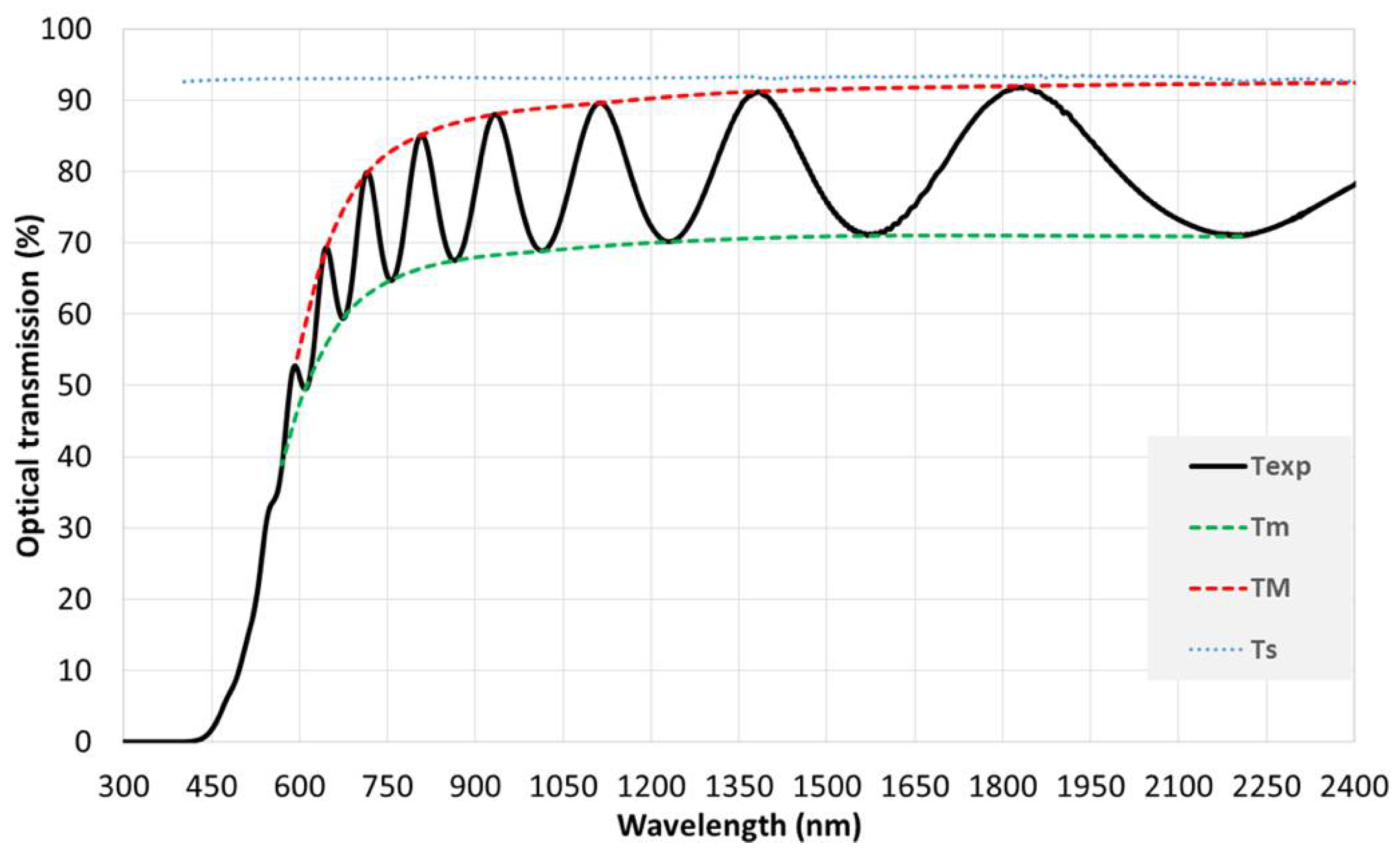

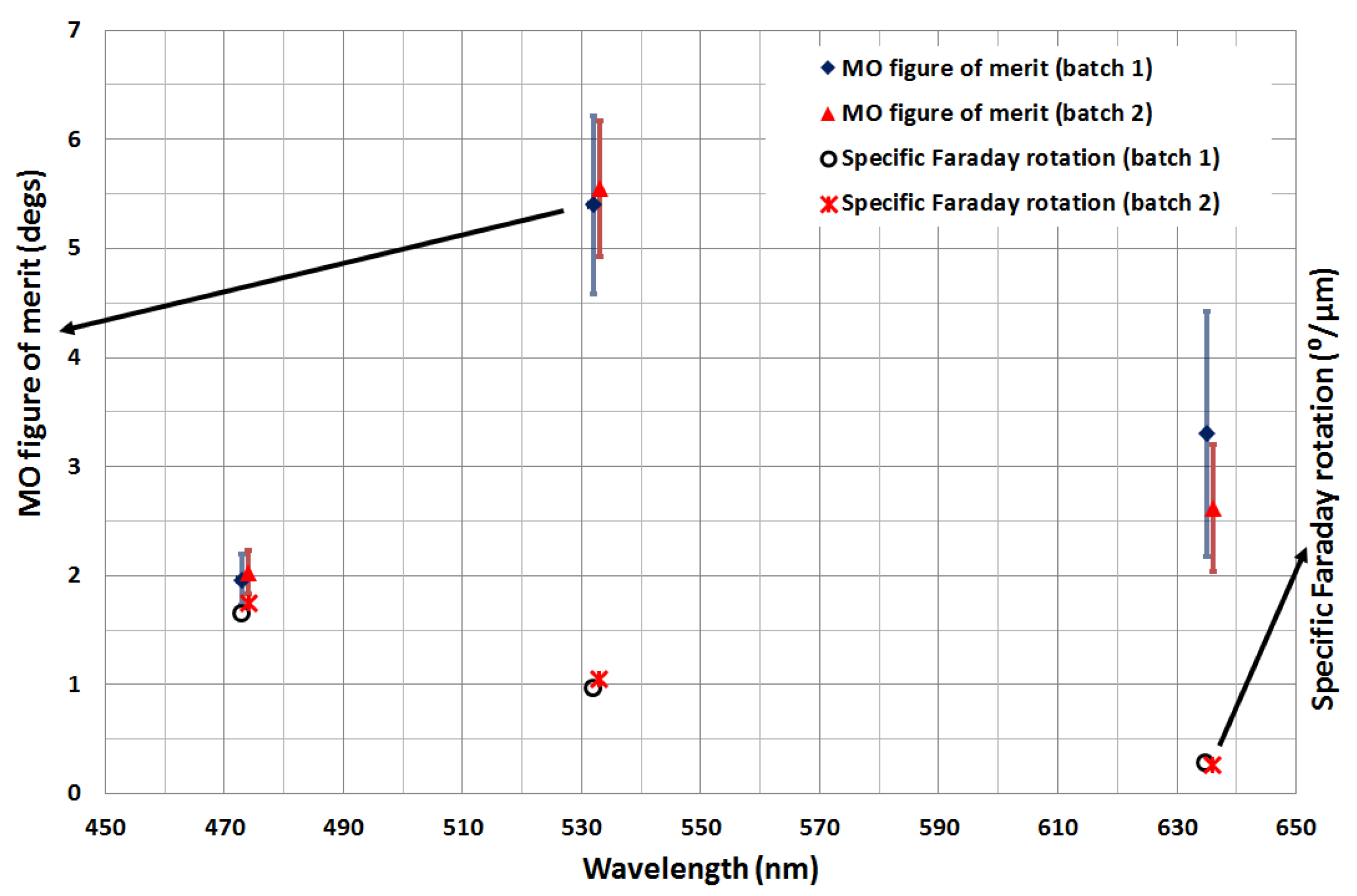

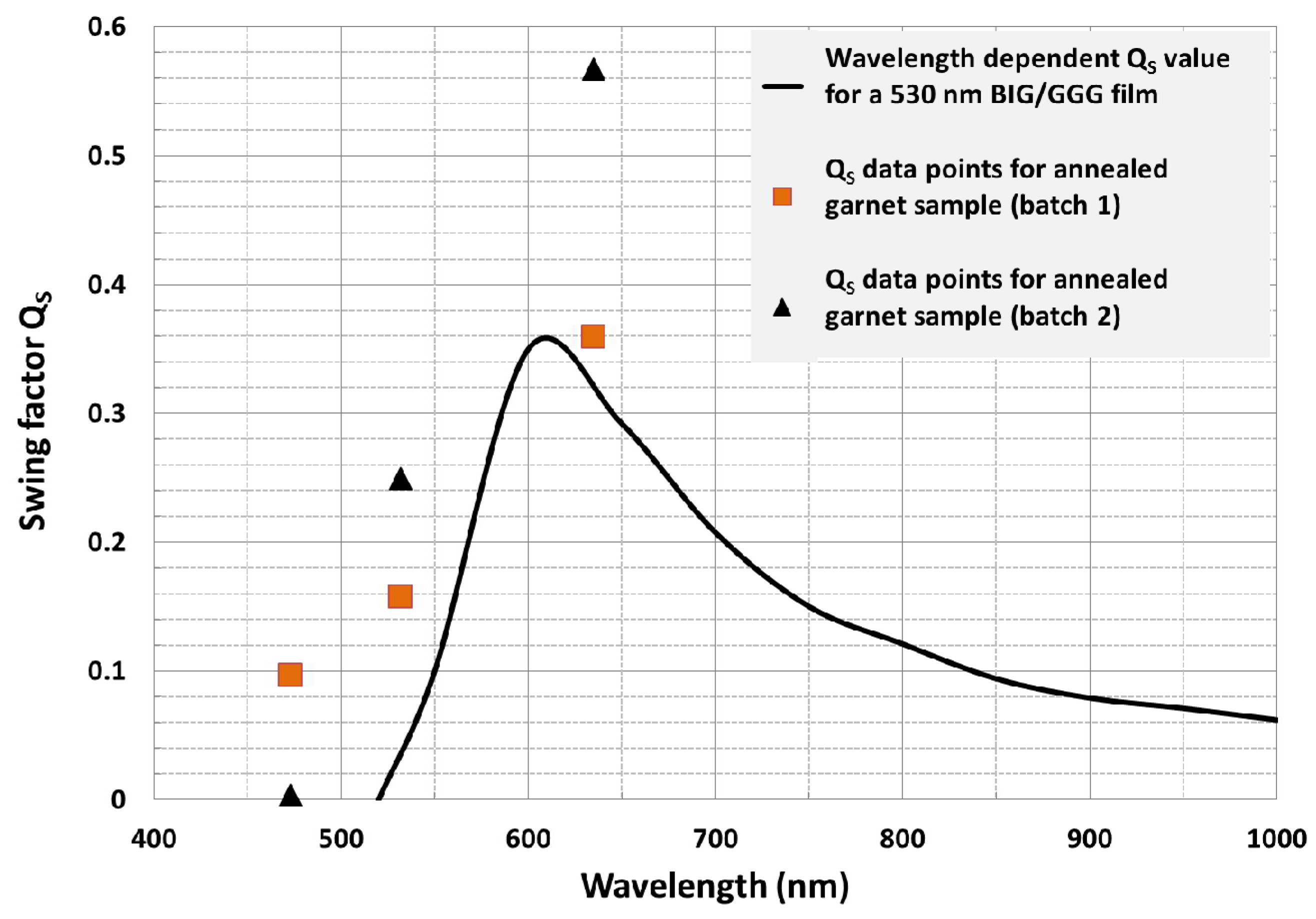

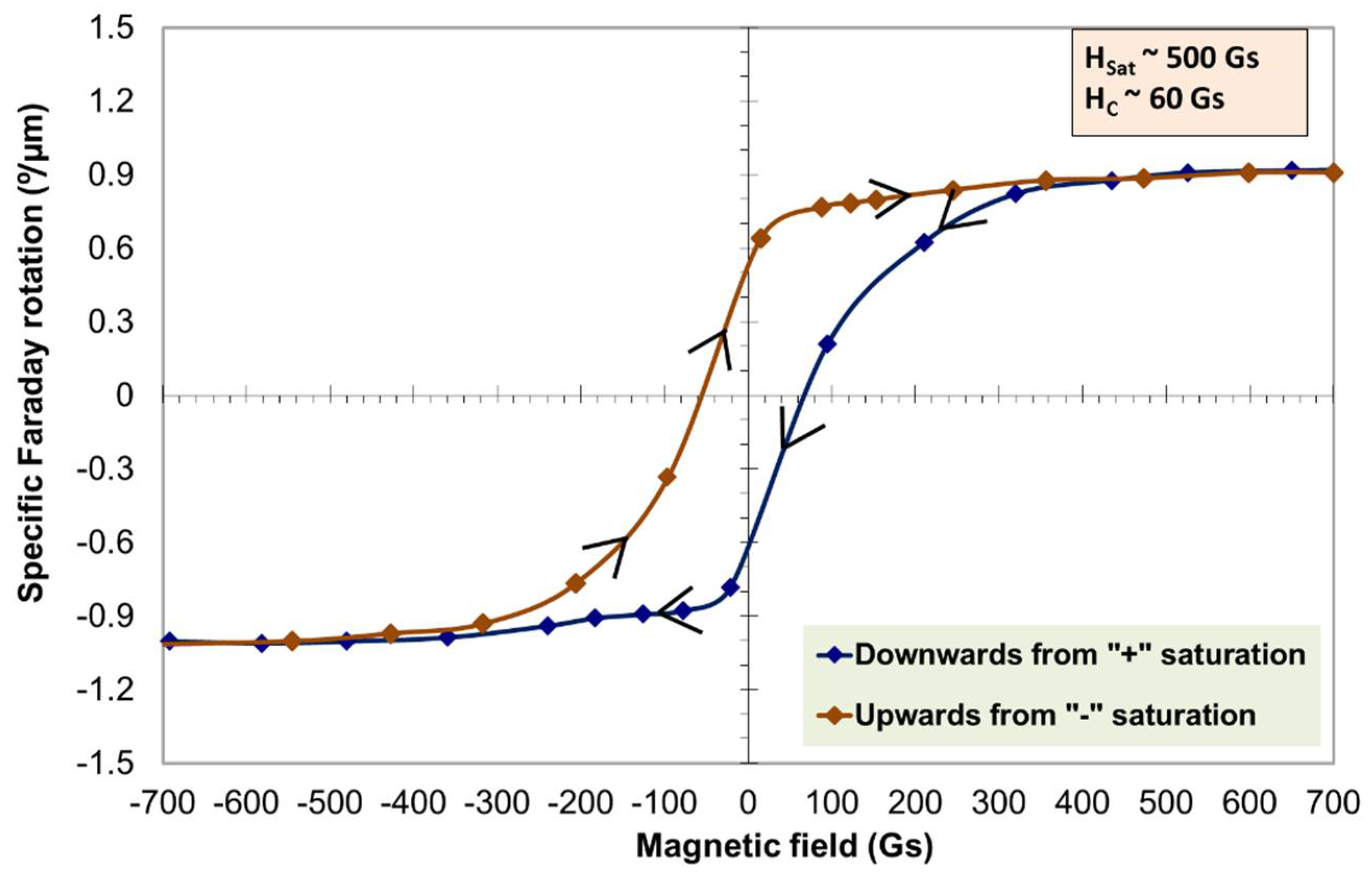

This work is devoted to physical vapor deposition synthesis, and characterisation of bismuth and lutetium-substituted ferrite-garnet thin-film materials for magneto-optic (MO) applications. The properties of garnet thin films sputtered using a target of nominal composition type Bi0.9Lu1.85Y0.25Fe4.0Ga1O12 are studied. By measuring the optical transmission spectra at room temperature, the optical constants and the accurate film thicknesses can be evaluated using Swanepoel’s envelope method. The refractive index data are found to be matching very closely to these derived from Cauchy’s dispersion formula for the entire spectral range between 300 and 2500 nm. The optical absorption coefficient and the extinction coefficient data are studied for both the as-deposited and annealed garnet thin-film samples. A new approach is applied to accurately derive the optical constants data simultaneously with the physical layer thickness, using a combination approach employing custom-built spectrum-fitting software in conjunction with Swanepoel’s envelope method. MO properties, such as specific Faraday rotation, MO figure of merit and MO swing factor are also investigated for several annealed garnet-phase films. View Full-Text
Keywords: magneto-optics; magnetic thin films; optical constants magneto-optics; magnetic thin films; optical constants
