Nanomaterials 2018, 8(5), 306; https://doi.org/10.3390/nano8050306

Review
Recommendations for In Vitro and In Vivo Testing of Magnetic Nanoparticle Hyperthermia Combined with Radiation Therapy
1
Department of Radiology, Sismanoglio General Hospital of Attica, Sismanogliou 1, 15126 Marousi, Athens, Greece
2
LAQV, REQUIMTE, Departamento de Ciências Químicas, Faculdade de Farmácia, Universidade do Porto, 4050-313 Porto, Portugal
3
Institute of Nuclear & Radiological Sciences & Technology, Energy & Safety, National Center for Scientific Research “Demokritos”, Aghia Paraskevi, 15310 Athens, Greece
4
“Vinča” Institute of Nuclear Sciences, University of Belgrade, 11351 Belgrade, Serbia
5
Inorganic Chemistry Laboratory, Chemistry Department, National and Kapodistrian University of Athens, Panepistimiopolis, 15784 Zografou, Greece
6
Institute of Nanoscience and Nanotechnology, NCSR Demokritos, Agia Paraskevi Attikis, 15310 Athens, Greece
7
Department of Biomedical and Clinical Science “Mario Serio”, University of Florence, 50134 Firenze, Italy
8
Department of Surgery, Radiology & Ph.M. University of the Basque Country, E48940 Bilbao, Spain
9
NanoTherics Ltd., Studio 3, Unit 3, Silverdale Enterprise Centre Kents Lane, Newcastle under Lyme ST5 6SR, UK
10
School of Pharmacy and Pharmaceutical Sciences, Panoz Institute, Trinity College Dublin, D02PN40 Dublin, Ireland
*
Correspondence: [email protected] (S.V.S.); [email protected] (O.L.G.); Tel.: +30-213-2058-502 (S.V.S.); +353-1896-3181 (O.L.G.)
The authors dedicate this review article to the memory of our dearest friend and colleague Maria De Deus Carvalho, from the University of Lisbon, Portugal.
Received: 19 March 2018 / Accepted: 29 April 2018 / Published: 6 May 2018

Abstract

:
Magnetic nanoparticle (MNP)-mediated hyperthermia (MH) coupled with radiation therapy (RT) is a novel approach that has the potential to overcome various practical difficulties encountered in cancer treatment. In this work, we present recommendations for the in vitro and in vivo testing and application of the two treatment techniques. These recommendations were developed by the members of Working Group 3 of COST Action TD 1402: Multifunctional Nanoparticles for Magnetic Hyperthermia and Indirect Radiation Therapy (“Radiomag”). The purpose of the recommendations is not to provide definitive answers and directions but, rather, to outline those tests and considerations that a researcher must address in order to perform in vitro and in vivo studies. The recommendations are divided into 5 parts: (a) in vitro evaluation of MNPs; (b) in vitro evaluation of MNP-cell interactions; (c) in vivo evaluation of the MNPs; (d) MH combined with RT; and (e) pharmacokinetic studies of MNPs. Synthesis and characterization of the MNPs, as well as RT protocols, are beyond the scope of this work.
Keywords:
animal models; biodistribution; in vitro assays; in vivo evaluation; magnetic nanoparticles; pharmacokinetics

1. Introduction

Radiation therapy (RT) is one of the main treatment approaches for cancer. It is estimated that 50–60% of all cancer patients will receive RT as part of their treatment, either alone as monotherapy or as part of a combination treatment [1,2]. Over the past 30 years, RT has undergone tremendous improvement with the introduction of imaging techniques, such as computed tomography (CT), magnetic resonance imaging (MRI), positron emission tomography (PET), the development of advanced treatment techniques, such as 3D Conformal RT, Intensity-Modulated RT [3,4,5], Image-Guided RT [6,7,8], Volumetric Modulated Arc Technique [9,10], Stereotactic Body RT [11,12,13], new modalities, such as proton therapy [14,15,16], as well as great strides in understanding tumor biology and its interaction with radiation [2,17].
Alongside these developments, the efficacy of RT can be increased by combining it with other forms of treatment, such as Hyperthermia (HT). Beginning in the 1960s, a series of in vitro experiments demonstrated that although HT by itself cannot provide curative treatment for cancer, it exhibits high synergy with RT and can significantly improve its potency [18,19,20,21]. Specifically, (a) hypoxic cells that are radio-resistant are heat-sensitive [22,23,24,25,26]; (b) cells in the S-phase that are radio-resistant are heat-sensitive [27,28,29]; (c) the low extracellular pH in tumor microenvironment reduces the efficacy of RT but increases that of HT [30,31,32,33,34]; (d) the abnormal vasculature of the tumor prevents heat from being carried away, in contrast to normal tissue, thus resulting in selective heating of the tumor [33,35,36,37,38]; and (e) within the tumor, the low blood flow in hypoxic regions results in heat being trapped [33,35,37,38].
Clinical trials, however, failed to deliver the expected results, primarily due to difficulties in adequately heating the tumor. This was especially true for deep-seated tumors. For example, a 1996 Phase III study comparing interstitial RT with and without HT for various tumor types, showed that the addition of HT did not improve treatment results. However, subsequent analysis showed that only one patient out of 86 in the combined treatment arm of the study had been adequately heated [39]. Nowadays, nanomedicine has been used to develop new ways to induce hyperthermia. For example gold nanospheres are used in photothermal therapy [40] while some iron oxide nanoparticles have been specifically designed for magnetic hyperthermia [41].
Magnetic Hyperthermia (MH) is a cutting edge technology, still in its infancy, that is based on the principle of embedding a heating source, namely magnetic nanoparticles (MNPs), into the targeted tissue/tumor and heating it by using an external alternating magnetic field [41]. Its attractiveness lies in the fact that: (a) the MNPs can, in principle, reach deep-seated tumors via the bloodstream [42,43]; (b) the location of the MNPs can be determined using various imaging techniques [44,45,46]; (c) the MNPs can also act as temperature probes, providing detailed 3D information about the temperature distribution in the tumor [47,48]; (d) the MNPs can be functionalized with specific ligands in order to improve targeting [45,49,50]; (e) the MNPs can be conjugated with chemotherapeutic drugs to increase the efficacy of magnetic hyperthermia [51]; (f) the technique is minimally invasive, requiring only a simple injection; and (g) the procedure is rather comfortable since the patient is not required to wear special suits or be immersed in a thermal bath [52].
To date, MNP-mediated MH combined with RT has only been used to treat recurrent glioblastoma multiforme, a very aggressive type of brain tumor [53]. With the proviso that this was a non-randomized, single-arm study, and therefore the results cannot be considered to be definitive, patient survival increased by several months compared with traditional patterns.
The purpose of this review is not to describe MNPs, their properties, characteristics and potential uses for MH but, rather, to outline the steps that one needs to take in order to apply the MNPs in a pre-clinical setting. These steps include in vitro evaluation of the MNPs themselves and of MNP-cell interactions, in vivo evaluation, considerations for the combination of MH and RT, and pharmacokinetic and biodistribution studies. For this reason, we have chosen to format the paper as a step-by-step, how-to guide.

2. Sample Preparation for In Vitro Evaluation

In vitro evaluation is of paramount importance for further in vivo investigation of MNPs. Samples revealing marginal or no toxicity via in vitro tests can then move on to in vivo studies. Nevertheless, it is not unlikely that in vitro and in vivo results are contradictory. This may be attributed to in vivo body functions and processes. The following recommendations are suggested to make a safe environment for people starting to work in this new field and to facilitate pre-clinical work using HT in combination with RT for the treatment of cancer.
Basic requirements for biological in vitro assessment include:

2.1. Colloidal Stability

One of the most used analytical techniques to evaluate the size of nanoparticles is Dynamic Light Scattering (DLS), and it has been extensively used since it is not time consuming, it is non-invasive and very sensitive to the presence of small aggregates. This feature can be very helpful when testing colloidal stability of MNPs [54]. In order to enhance colloidal stability, MNPs are usually functionalized with various biocompatible compounds (e.g., citrate, phosphate, chitosan, polyethylene glycol, albumin), since uncoated MNPs tend to flocculate after their introduction to physiologically relevant fluids. To achieve a better understanding of their behavior when in contact with biorelevant media, the determination of size and zeta potential as a function of time in different media (culture media, phosphate buffer, in the absence or presence of Fetal Bovine Serum (FBS)) should be assessed [55]. Indeed, studying interactions between MNPs and plasma and blood platelets for example, can be highly relevant when looking at their potential clinical application. It has previously been demonstrated that some types of NPs may lead to platelet aggregation and therefore to thrombus formation [56]. However, it is important to highlight that this detrimental effect can be also reverted, for example, by introducing PEGylation for improving their compatibility [57]. Another issue to take into account is the influence of MNP concentration on the size and zeta potential, which should have a negative value to avoid cytotoxicity. An approximate value of −30 mV should be taken as the reference to assure colloidal stability. Also, correct DLS measurement relies on the concentration of the sample which, in turn, is based on the type of the materials and their size. For a correct characterization, an optimal concentration should be correctly determined.

2.2. Sterilization of the Aqueous MNP Solution

There are several sterilization methods that can be applied to nanomaterials, such as filtration [58,59], autoclaving [60], irradiation [61], the gas plasma method [62], and others [62]. Endotoxin contamination is a general problem in clinical use, not specific to nanomaterials. The methods described in this paragraph are used in general for the removal or destruction of microbial contamination. In addition, in the case of nanomaterials, it is crucial to investigate how these techniques may affect the physico-chemical and biological properties of the nanomaterials, such as stability and toxicity [63] by re-characterization and evaluation.

Sterilization of the Aqueous MNP Solution Using Filtration

Once in aqueous solution, MNPs tend to be prone to contamination. The process of sterilization by filtration is a commonly used technique to exclude bacteria, mold and yeast. Filtration using a filter or membrane with a pore size of 0.22 μm or smaller is adequate to remove contaminants of biological origin. This process does not affect the characteristics of the MNPs, since their size is smaller than that of the pore used. Azide is a very toxic substance used to prevent contamination. It is added to the incubator water at a very low concentration, which does not affect the MNPs.

2.3. MNP Samples Should Be Tested for Endotoxin and Used When Endotoxin-Free

Endotoxins are membrane constituents in most Gram-negative bacteria that can be identified by immune cells as pathogen-associated molecules. If these compounds are found in nanoparticles suspension, in vitro results might represent the effect of the contamination and hamper the analysis of toxicological and inflammatory outcomes associated to MNPs. The FDA recommends validating the alternative methods for each product to detect endotoxin. This problem is very common in studies of nanomaterials and it is not easy to eradicate. A common method for endotoxin detection is the Limulus amoebocyte lysate (LAL) assay, but this type of bioassay is not adequate for all types of MNPs. Because of the difficulties associated with endotoxin removal, preventing contamination during MNP synthesis would be the best way for obtaining endotoxin-free particles. This can be achieved by using only endotoxin-free reagents including water and buffers, instruments and glassware during the synthesis process [64]. Of particular importance is the reaction solvent. In the case of water, the pH (extremely acidic or basic) and temperature (high or low) are crucial parameters that must be taken into consideration. Organic solvents reduce the probability of contamination due to their toxicity.
To store the MNPs for later use, it is better to keep them in the solid phase and apply one of the techniques suggested shortly before preparing the suspension. MNPs in the solid phase can be sterilized by exposing them to ultraviolet radiation (UV).

2.4. A High Working Concentration of MNPs Is Recommended

The importance of a high working concentration (>10 mg mL−1) is suggested to widen the tested conditions. Higher concentrations of MNPs broaden the application of different electric and magnetic fields according to the intended application. To determine the appropriate concentration of MNPs per cell for HT, the MNPs should be evaluated at different concentrations and under different frequencies and power of the magnetic field. All these parameters are related to the shape, size and charge of the MNPs.

2.5. The Formation of Protein Corona in the Presence of Fetal Bovine Serum

When MNPs are in the blood stream, they interact with albumin, creating a layer on their surface called the protein-corona layer. It is important to know how the MNP size affects colloidal stability and the internalization into the cells. The protein corona formed can reduce the toxicity of MNPs, however the mechanisms involved are still under investigation [65]. The behavior of MNPs in the presence of albumin can be investigated in vitro, using Fetal Bovine Serum.

2.6. Sonication and Vortexing to Assure Homogeneity of the MNPs

Since colloidal stability is a priority parameter in sample preparation, it is also necessary to avoid all signs of aggregation. A reproducible concentration-effect response can be obtained only with a homogeneous solution, which in turn is the result of adequate sonication and vortexing of the samples under investigation.

2.7. Cells Should Be Confluent but Not Overgrown

In order to proceed to quality cell culture assays, it is important to maintain the morphology of the chosen cell line. Careful observation of the cells under the microscope upon handling allows the detection of signs of contamination or detachment and differences in their shape and appearance. To confirm the handling of a healthy cell line, cells should reach confluence, but never exceed that state for more than 24 h, to avoid deterioration.

2.8. Properties of the MNPs

The properties of the MNPs should be determined alone, in vitro and in vivo, before and after application of Alternating Magnetic Field (AMF) as that may affect their structure and composition. An example of transmission electron microscopy (TEM), fourier transformed-infrared spectroscopy (FT-IR), X-ray powder diffraction (XRD) and vibrating sample magnetometer (VSM) characterization is presented in Figure 1. TEM imaging shows that the MNPs have spherical shapes and their size is about 10 ± 2 nm (Figure 1A). The FT-IR spectrum of the MNPs has a peak at 545 cm−1, which is characteristic of the Fe-O bond vibration (Figure 1B). X-ray diffraction (XRD) clearly shows the inverse cubic spinel structure of Fe3O4 (Figure 1C). Positions of the diffraction peaks (220), (311), (400), (422), (511), (440) and (533) match well enough with standard XRD patterns for bulk magnetite, indicating that the phase of the nanoparticles is pure magnetite (Fe3O4). The MNPs are well crystallized and their size can be estimated using Scherer’s equation [66]. This equation uses the reference peak width at angle 2h = 35.7, where k is the X-ray wavelength (1.5418 Å); b is the width of the XRD peak at half height, with a value of 0.446 and is calculated by Lorentzian fitting of the most intense peak (311). K is a shape factor, about 0.9 for magnetite. The estimated size of the MNPs is about 8 nm. The magnetization curve of the MNPs is presented in Figure 1D, where the saturation magnetization (Ms) is 37.05 emu/g. The high Ms, and the small size indicate that the MNPs may present super-paramagnetic properties. Even though the saturation magnetization value is lower than that of bulk magnetite (90 emu/g), it is sufficient for magnetic hyperthermia applications.

3. In Vitro Evaluation of MNP-Cell Interactions

The physico-chemical properties of MNPs facilitate cellular interactions that result in their biological accumulation. Diverse cellular effects have already been described involving decrease in cell viability, plasmatic membrane disruption, mitochondrial alterations and even cell cycle arrest upon exposure to MNPs. The nature of the nanoparticle (e.g., core type and coating material), applied dose, exposure time, and cell and culture conditions are some of the factors that influence the MNP-cell interaction [67]. Additionally, the choice of assay to evaluate this process may affect the outcome, resulting in the controversial studies found in the literature. The design and experimental setup of each assay should be carefully considered [68]. In this section, we discuss the relevant aspects of the most commonly used assays to evaluate MNP-cell interactions.

3.1. Toxicity

General toxicity tests, aimed mainly at determining the biological activity of NPs, can be carried out on many cell types (e.g., fibroblasts, HeLa and hepatoma cells), grown either in suspension (HL60, K562) or in monolayers (MCF-7, U87MG) and cultured in 75-cm2 flasks (see Table 1). A number of parameters, including vital staining, cytosolic enzyme release, cell growth and cloning efficiency, are used as end-points to measure toxicity. The most common and simplest methods to investigate cell viability are colorimetric assays like 3-(4,5-dimethylthiazolyl-2)-2,5-diphenyltetrazolium bromide (MTT), sodium 3′-[1-(phenylaminocarbonyl)-3,4-tetrazolium]-bis (4-methoxy-6-nitro) benzene sulfonic acid hydrate (XTT) and others [69,70].
In a typical setup for these assays, cells (100 μL, 1 × 105 cells/mL) are seeded in 96-well flat-bottomed plates, although their concentration may vary depending on the exposure time to toxicants. The cells are incubated at 37 °C with 5% CO2 for 24, 72, 120 and 168 h (for the 120- and 168-h incubations, the medium is replaced at 72 h with fresh medium containing the appropriate concentrations of MNPs). The cells are washed three times with PBS and replaced with fresh medium with the colorimetric substances (100 μL). The absorbance is measured, and the viability of the cells expressed as a function of concentration and exposure time.
A summary of cytotoxicity studies of MNPs is shown in Table 1 [71].

3.2. Cell Viability

In an effort to determine cell viability, a number of assays correlated with either membrane integrity, metabolic activity or functional capabilities have been developed. Exposure of cells to MNPs can lead to plasmatic membrane disruption, allowing the release of cellular molecules, such as lactate dehydrogenase (LDH), or the entry of molecules able to intercalate with nucleic acids(e.g., propidium iodide, PI) [72]. Tetrazolium salts (e.g., MTT and XTT) are commonly used to determine cell viability, as mitochondrial activity reduces these subtracts into formazan crystals [73,74,75,76]. The spectrophotometric detection of these crystals between 450 and 570 nm might be hampered by the interference of the MNP absorbance; thus, special care should be taken when selecting the assay conditions. Alternatively, cell viability can be determined through fluorescence or luminescence using an adenosine triphosphate (ATP)-based assay, that quantifies a product generated upon phosphorylation of glycerol; or a live/dead assay, based on the simultaneous determination of live and dead cells (measures the intracellular esterase activity and plasma membrane integrity). The Resazurin cell viability assay is also a reliable, sensitive and easy-to-use fluorescent assay that detects cellular metabolic activity as resazurin (7-Hydroxy3H-phenoxazin-3-one 10-oxide), a non-fluorescent dye, is irreversibly reduced to the highly red fluorescent resorufin by dehydrogenase enzymes in metabolically active cells. The Trypan Blue dye exclusion test is commonly used to determine the number of viable cells present in a cell suspension, as only live cells with intact membranes exclude the entry of the dye. Upon optical microscope examination, a viable cell will have a clear cytoplasm, whereas a nonviable cell will have a blue cytoplasm.

3.3. Cell Proliferation

Cell proliferation assays are mainly designed based on three concepts: analysis of metabolic activity (previously described), measurement of the rate of DNA replication and, less commonly, recognition of cell surface antigen [77]. The rate of DNA replication can be analyzed by using radioactive (e.g., 3H-thymidine) or labelled nucleotide analogues (e.g., 5-bromo-2′-deoxyuridine, BrdU). BrdU can be incorporated into DNA during proliferation and assessed by flow cytometry or immunohistochemistry after addition of fluorescently-labelled antibodies specific for BrdU. Alternatively, cells can be labelled with carboxyfluoresceinsuccinimidyl ester (CFSE), which is incorporated into DNA during proliferation and is measured using a flow cytometer. The signal is proportional to the quantity of CFSE incorporated into cells.

3.4. MNP Cellular Uptake Studies

Assessment of MNP-cell interactions should allow single cell analysis to discriminate surface bound and internalized nanoparticles. Usually, cellular uptake studies involve imaging techniques and flow cytometry methods [78]. Fluorescence microscopy-based techniques allow one to distinguish the nanoparticle signal inside the cells from the different cellular constituents, as different labeling methods can be applied. However, to reach a resolution in the nanometer range electron microscopy represents a more suitable technique, allowing the localization of nanoparticles at the ultrastructural cell level. Consequently, transmission electron and scanning electron microscopy techniques play an important role in the evaluation of the cellular framework, including organelles and membrane structures [79]. It is important to note that electron microscopy only gives a static image of the sample, requiring an immobilization step using a resin or cryogenic conditions. The flow cytometry-based approach allows higher sample throughput and provides only qualitative information on cell-associated nanoparticles. Analysis with flow cytometry usually requires fluorescent nanoparticles, but it is also possible to analyze cellular association of non-fluorescent nanoparticles, taking advantage of the side scatter function of flow cytometry [80] that identifies the cellular granularity. To distinguish both surface-bound and internalized nanoparticles, the previously described imaging techniques are recommended.

3.5. Other Complementary Assays

The Caspase-3/7 green assay enables the flow cytometric detection of activated caspase-3 and caspase-7 in apoptotic cells. Apoptosis can be evaluated by annexin V, an intracellular protein that binds to phosphatidylserine in a calcium-dependent manner. Fluorochrome-labeled annexin V can then be used to specifically target and identify apoptotic cells. To help distinguish between the necrotic and apoptotic cells it is recommended to use PI or 7-amino-actinomycin D (7-AAD). Early apoptotic cells will exclude PI or 7-AAD, while late-stage apoptotic cells will stain positively, due to the passage of these dyes into the nucleus, where they bind to DNA. DNA fragmentation can be detected via the TUNEL (Terminal deoxynucleotidyl transferase dUTP nick end labeling) assay, as the DNA strand breaks are detected by enzymatically labeling the free 3′-OH termini with modified nucleotides. These new DNA ends are typically localized in morphologically identifiable nuclei and apoptotic bodies. In contrast, normal or proliferative nuclei, which have relatively insignificant numbers of DNA 3′-OH ends, usually do not stain with the kit.

4. Sample Preparation for In Vivo Evaluation

With regard to MNP preparation, a pH solution range of 7.2 ± 0.6 should be considered mandatory. Indeed, this neutral pH should avoid damaging the veins or inducing pain to the animals. To prevent or reduce vascular complications, the osmolarity of the MNP solution also has to be considered [81]. A very small number of in vivo experiments have tested the direct cytotoxic effects on vascular endothelial cells due to pH and/or osmolarity changes, after intravenous administration of drugs [81]. The viscosity and the rate of infusion are also very important to consider when administering MNPs through vascular vessels [82].
MNPs should be tested alone in a magnetic field, and a frequency response profile should be determined to optimize the MNP heating rates and establish the appropriate field/frequency combination to set up the most favorable concentration for inducing HT in vitro and in vivo (dose response vs. time). Then, a dose-response curve should be constructed, if possible (Figure 2). It is possible that the MNPs themselves may be affected by the AMF and/or temperature changes [83]. Therefore, the properties of the MNPs [84] should be checked again after HT application (e.g., size by DLS, shape by TEM). Indeed, the temperature at the surface of the MNPs could be different from the surrounding environment due to heat transfer mechanisms in close proximity to the MNPs [85]. Yu and colleagues [86] have described a method based on the temperature-dependent thermodynamics of the hybridization and denaturation of double-stranded DNA to evaluate the local temperature of different MNPs during HT.
The delivery strategy has to be decided for the in vivo evaluation. Indeed, a systemic injection of MNPs into the tumor does not face the same problems that a direct injection does. Recently, direct injection of MNPs has been approved by the European Medicines Agency (EMA) for the treatment of primary or recurrent glioblastoma multiforme, a lethal brain tumor with limited treatment options [53]. Systemic injection has the advantage that MNPs reach the tumor in a more uniform way (uniform binding), which results in improved internalization [87]. However, in the blood stream, MNPs would be subject to opsonization (i.e., the process by which an exogenous molecule is tagged for destruction by phagocytosis) [45] and captured by the reticuloendothelial system (RES) [88]. To avoid these problems, MNPs are coated with surfactants and polymers [45,88].
In order to reach the targeted diseased area, MNPs have to be designed not only to avoid uptakes but also to effectively penetrate into the tumor interstitium and to be taken up by cancer cells. This introduces the concept of targeting strategies [89]. The two main strategies are passive targeting and active targeting [45]. Passive targeting takes advantage of the abnormal vessels created by cancer-induced angiogenesis, which have fissures through which MNPs may accumulate in the tumor [45]. The success of passive targeting also depends on different physicochemical properties of the MNPs such as particle size, surface charge and hydrophobicity [90]. Moreover, solid tumors show the enhanced permeability and retention (EPR) effect for MNPs of appropriate size. The EPR effect is due to defective vasculature [91] and deficient lymphatic drainage system in solid tumors, which increase the pore size in the endothelial wall [90].
Active targeting relies on magnetic guidance of the MNPs using an external magnet, or through interaction mediated by targeting ligands (i.e., antibodies, peptides) as presented with NPs [45,92]. An external magnetic field can attract and maintain MNPs into the area of interest. Pre-clinical and clinical trials have produced very consistent results in cancer treatments [93,94,95]. Another way to increase accumulation of MNPs in the tumor is to use biotargeting agents that specifically bind to tumor cells. Yet another interesting approach to increase the concentration of MNPs in the tumor tissue is to attach specific binding epitopes to the MNPs. For example, the RGD peptide (Arg-Gly-Asp) is recognized by integrins expressed on the membrane of both colorectal carcinoma cells and the endothelial cells of newly formed vessels in the tumor [96,97,98]. Thus, the identification of specific integrins in the tumor models is the key to developing more selective MNPs [99].

5. Magnetic Hyperthermia Combined with Radiation Therapy

Before beginning any pre-clinical experiments, one should have a clear understanding of the physics, biology, radiobiology and physiology of the animal, the tumor, HT and RT. Several references are provided in the Introduction. These can be used as a starting point for further research.
As with all experiments, a pre-clinical study should be carefully designed and all the relevant factors that may affect the results should be considered. Below some of the more important ones regarding MNP-mediated HT are discussed. We focus on HT because in contrast, RT technology, equipment, algorithms, treatment planning and analysis software, quality assurance and procedures are well-established and mature.

5.1. Animal Physiology

Understanding animal physiology is the key to a successful experiment. For example, one should not forget that core body temperatures will fall significantly under anesthesia, so it is mandatory to use a rectal probe to monitor this parameter and to artificially maintain the physiological temperature of the animal during treatment [100,101,102] by placing, for example, the animal on a heated pad during experimentation and postoperative period. Otherwise, the need of heating to achieve effective hyperthermia would be unnecessarily increased. The administration of “foreign materials” (such as MNPs), which will probably be affected by the immune system, also has to be taken under consideration. Therefore, the use of immunocompromised animals may modify the outcomes of these experiments.

5.2. Modelling and Simulations

Both MH and RT are physical processes with biological effects. As such, they naturally lead to modelling and simulations. For example, physics modelling software can be used to estimate the quantity and distribution of MNPs required to achieve the desired temperature in the tumor, under different technical parameters, e.g., AMF frequency and strength, and physiological conditions, e.g., blood flow. In silico, biology software can be used to assess the effects of the two treatments [103].

5.3. Tumor Models

The tumor animal model should be considered before designing the HT treatments. Its characteristics should mimic as closely as possible the vascularization pattern of the real human tumor. Vascularization is very relevant because of its influence on the delivery of MNPs into the tumor and dissipation of heat induced by MNPs. For example, in the Dunning model [104] of prostate cancer (an established rat model developed to study prostate cancer progression), orthotopically-implanted tumors display a more rapid growth and a higher resistance to HT than heterotopic tumors, an issue which is possibly related to higher perfusion [105]. Direct implants of colorectal cancer cells in the rat liver develop their vascularization from the arterial vessels and do not receive blood from the portal vein [106]. However, tumors induced by subcutaneous tumor cell inoculation develop less stroma than their correspondent orthotopic tumors [107]. The sites of tumor implantation are also important for the experiments when direct administration of MNPs into the tumor tissue is chosen. Though imaging techniques such as US and MRI can be used to track the needle inside the animals, there are fewer complications when the tumors are easily accessible.

5.4. MNP Administration

Ideally MNPs should be administered by systemic injection [108] (e.g., intravenous or intraperitoneal administrations), as this is a simple and safe procedure. However, at present, this approach seems to have a low success rate in the accumulation of MNPs in the tumor [51]. In animal models, orientation has been attempted by systemically-administered MNPs using external magnets [109] or biotargeting agents (see Section 4). Alternatively, MNP administration could be realized by direct injection into the tumor [53], intraarterially [110] or by MNP vehiculization near the tumor using a catheter, which is a routine procedure in cancer therapy [111]. Several consecutive injections can also be considered as a way to achieve a minimal concentration of MNPs in the tumor tissue. In fact, this approach has been tried in some clinical settings. Direct injection is also preferred in an attempt to avoid the accumulation of MNPs in the main organs of the reticuloendothelial system (i.e., liver and spleen), which could lead to side effects with HT (see Section 5.6 Treatment).

5.5. Thermal Dosimetry

A critical issue in HT is how to measure the temperature distribution in the tumor and surrounding tissue in real time. Temperature probes, such as optical fibers, are direct and accurate, but invasive. Therefore, they run the risk of spreading the disease and, practically, only a limited number of them can be used. Infrared imaging provides 2D measurements but is indirect since it measures the skin rather than the tumor temperature. MRI can provide 3D temperature distributions, along with other information that can be used to plan, improve and assess the heating process as well as the ability of the tumor to be heated [48,112]. However, the presence of MNPs interferes with MRI thermometry [113]. Moreover, the availability of MRI units may be a problem, especially for pre-clinical experiments. MRI units are generally found in hospitals, so using them for laboratory animals may run into legal or regulatory issues, scheduling and disinfecting problems etc. Diffuse Optical Spectroscopic Imaging, employing low power near-infrared light, has been used in clinical settings to assess deep tissue temperature in breast cancer [114].
From the temperature map, various quantities that describe the heating achieved can be calculated. An often-quoted one is CEM43T90, which is the cumulative equivalent minutes at 43 °C covering 90% of the tumor. Although CEM43T90 is a single number for describing a spatially and temporally varying temperature distribution [115,116], it has been shown to correlate well with clinical outcomes [117,118,119,120].

5.6. Treatment

The choice of treatment sequence should take into account the relevant radiobiological, physiological and technical considerations, and may have a significant effect on the results. The synergy between the two treatments appears to be maximal when they are administered simultaneously [36,121,122]. However, the duration of the synergy and the optimal sequence will probably depend on the cell type. For example, for Chinese hamster ovary cells (HA-1) radiosensitization was much higher when heating preceded irradiation, but for mouse mammary sarcoma cells (EMT-6) the opposite was true [123]. In HA-1 cells the synergistic effect lasted about 20 min [124], whereas in C3H mammary carcinoma and its surrounding skin, the effect lasted more than one hour [18]. Interestingly, in the C3H mammary carcinoma study, radiosensitization was high for both the tumor and normal skin when HT and RT were given simultaneously, but a differential radiosensitization of tumor vs. normal skin was observed when there was an interval between the two treatments, especially when HT was given 4–24 h after radiation.
In a typical HT session, the entire animal is placed inside the heating coil. Thus, all the MNPs are excited, regardless of whether they are in the tumor or not. In contrast to HT, sophisticated commercial and development small animal irradiation devices that can perform stereotactic irradiation, image guidance, Monte Carlo dose calculation and proton irradiation are available [125,126,127,128]. These specialized units can deliver highly conformal dose distributions, with sub-millimeter precision, limiting the high-dose region to the tumor and sparing surrounding normal tissue. However, they are not widely available. Yet, even in the case where irradiation is performed using fixed radioactive sources, it is possible to reduce the exposed area by collimating the field.

5.7. Blood Flow

Heating causes the blood vessels to dilate, increases blood flow and enhances permeability through the vessel walls. These, in turn, affect heat dissipation and tumor oxygenation and the microenvironment. The effect is non-uniform and depends on the temperature, heating pattern, treatment sequencing as well as the tumor characteristics, such as its size [33,121,129,130,131]. In the case of MNP-mediated HT, this may affect the MNP distribution and/or penetration in the tumor.

5.8. Thermotolerance

Heating represents a stress situation for cells and, at hyperthermic temperatures (max = 45 °C [132]), they respond by expressing Heat Shock Proteins (HSP) that protect the cell from further damage [133,134,135]. This mechanism is not present at the very high temperatures reached in thermal ablation. HSPs function as chaperones within the cell and protect cells from thermal damage by stabilizing unfolded proteins to prevent aggregation. Although a lot remains to be elucidated regarding HSPs, such as their role in cancer and the immune response [136,137,138], the practical result is that cells develop thermotolerance, which may persist for 72 to 120 h [139]. Thus, HT is typically applied once or twice a week in the clinic, whereas RT is applied daily.

5.9. Heating Profile

Radiosensitization depends on the heating rate and pattern, i.e., whether it is continuous at a given temperature, interrupted or complex, consisting of successive heating at different temperatures. For example, heating first at a lower temperature and then at a higher one (step-up heating) resulted in radiosensitization that was marginally better than heating at a single temperature. The converse pattern (step-down heating) was slightly better overall, with the added characteristic that the differential sensitization between tumor and skin was increased [121,140,141,142].

5.10. Study Endpoints

The endpoints of the preclinical experiments should be carefully defined before the study begins, as these may affect the design of the study. Complete Response (CR), which means that all detectable tumor has disappeared, is often used in clinical studies [143,144,145]. Another important and practical endpoint is cancer relapse. Therefore, one could plan the preclinical protocol to test the efficacy of HT + RT in the primary tumor and to investigate the absence or presence of relapse after treatment. It may also be considered, in those models in which metastases develop from the primary induced tumor, whether metastases are delayed or completely avoided by MNP treatment.
In addition, one should look at biochemical and/or histological markers to assess the effects of HT. For example, tumor histological analysis could be done before and after treatment to assess whether HT caused differentiation in the tumor profile. Or, since HSP90 [146] and the protein kinase B/AKT (PKB/AKT) pathway are both inhibited after treatment with RT + HT, their expression levels in tumor mass could be analyzed. Another interesting point is targeting cancer stem-like cells, which are thought to be responsible for clinical relapses and are known to be extremely radioresistant. HT is being studied as a means to induce radiosensitization of these cells [147].

5.11. Toxicity

Although the in vivo toxicity of the MNPs themselves must be determined and found acceptable before the pre-clinical study, it is not clear that the same level of toxicity will hold when HT and RT are applied. For example, in the presence of an alternating magnetic field, MNPs induce heat that can be dissipated by the blood flow (heat transfer phenomenon), reducing the efficacy of HT [148]. To compensate this heat loss, the power of the alternating magnetic field and exposition time can be increased to improve the efficacy of HT which can damage healthy cells. Therefore, in vivo toxicity under application of HT and RT should also be investigated, e.g., by determination of biochemical markers of liver function [e.g., gamma-glutamyl transferase (γ-GT), serum glutamic-oxaloacetic transaminase (SGOT), alkaline phosphatase (ALP)], histological examination of different organs, pharmacokinetic and biodistribution studies by liquid chromatography-tandem mass spectrometry (LCMS/MS), γ-imaging, MRI, CT, etc. In any case, iron oxide nanoparticles have been found to be safe, as iron is biocompatible and degradable by human metabolism [149].

5.12. Treatment Evaluation

Long-term survival should be monitored for at least 60 days, since the growth rate of recurrent tumors should not be different from that of the original tumor. In addition to determining whether the treated tumors retained their tumorigenic properties after RT + HT treatment, tumors could be digested 48 h after treatment and transplanted as single cells in limiting dilution into syngeneic recipients [150,151]. Histological analysis of the newly formed tumor mass could then be performed. The efficacy of RT + HT treatment could also be evaluated using the non-invasive MRI technique. Indeed, based on their MRI contrast agent properties, MNPs could help to image tumors when they are localized in the diseased site. MRI is, therefore, a perfect imaging technique to monitor changes of the tumor volume following anticancer treatments. Together, these data should suggest that RT + HT decreases the tumorigenicity of residual tumor cells and that the surviving cells form tumors that have pathologic signs of histological differentiation with a less aggressive phenotype than either the mock-treated tumors or the tumors treated with sub lethal doses of radiation.
Though limited success could be achieved in animal tumor models, any rate of success may be clinically relevant as this procedure could be applied after major surgical removal of the tumor in order to treat remnant tumor cells in the affected organ. Thus, it should be advised that when seeing some degree of tumor reduction, new experiments with micrometastasis models would be of great interest.
At this stage, some histological samples from control animals (without HT and RT) could be used to determine the internalization of MNPs into the cells. Whether the MNPs are inside or outside the cells is very important and may differ from in vitro experiments. For example, PEG-functionalized mesoporous silica-coated MNPs have a better heating performance when outside the cells [152]. TEM and Perl’s staining are the most suitable techniques for such investigations.

5.13. Analysis of Results

One should be careful when interpreting and analyzing the results from the combined treatment. The interaction between radiation alone, without HT, and the animal or human is complex and multifaceted. For example, radiation can simultaneously have an immunosuppressive as well as an immunostimulant effect [153,154,155,156]. Which of the two dominates depends on many factors, including dose, fractionation, and tumor type [157,158,159,160]. The addition of HT is an extra layer of complexity, which makes it more difficult to fully understand the mechanisms that lead to cancer cell death.

6. Recommended Method for Pharmacokinetic and Biodistribution Studies of MNPs

6.1. Pharmacokinetics

Pharmacokinetics (PK) can help to make decisions about further preclinical investigations on novel MNPs [161]. Since the chemical and physical properties of MNPs determine their in vivo fate, it is desirable to measure PK profiles early in the development process so as to use that information in MNP design and candidate prototype selection. Evaluation of absorption, distribution, metabolism and excretion (ADME) of MNPs is essential. Four factors essentially determine PK of MNPs: route of administration; particle size, shape and charge; nature of coating materials; and animal species [162,163].
The radiotracer method is particularly suited for the study of pharmacokinetic parameters of nanomaterials [164,165]. Measuring radiation from radioactive tracers attached to MNPs has been shown to be a highly sensitive and specific method that allows for accurate quantification, without limit to tissue penetration in any organ. The required radionuclide concentration is around 10−10 M at the site of interest. Other methods are also available to evaluate biodistribution and PK parameters of MNPs. From the innovative particle electron paramagnetic resonance (pEPR) method to the gold standard ICP-MS, various parameters, such as MNP concentration, can be evaluated in tissues and organs [166]. In the present manuscript, we will focus on the radiotracer method.

6.2. Biodistribution Studies

Tissue/organ/tumor accumulation is expected to be dependent on the dose and time post-injection, and hence time-course studies at different doses are important for full characterization. Tissue accumulation should be determined for more than two time-points, in order to acquire as much information on the PK of the injected MNPs as possible, which is crucial for developing design rules.
Important biodistribution information on the MNPs under evaluation can often be obtained by radiotracer-based imaging (Figure 3) using either single-photon emission computed tomography (SPECT) or PET, depending on the available radionuclides.
If PET or SPECT are not available, the information on in vivo biodistribution of the radiolabeled MNPs can be obtained by ex vivo biodistribution studies dissecting the animal, collecting blood, organs and tissues of interest and measuring the radioactivity arising from accumulated radiolabeled MNPs by gamma counter. The animals should be sacrificed via spinal cord dislocation at specific times after injection, depending on the physicochemical characteristics of the MNPs (size, surface charge etc.) and the half-life of the radionuclide used for radiolabeling. For nanometer-sized particles, recommended time-points for assessment are 30 min, 120 min, 24 h, 48 h, 72 h after i.v. administration, to monitor their retention and excretion pattern. The following organs should be removed, weighed and measured for radioactivity: heart, lungs, liver, kidneys, spleen, stomach (emptied), intestine (emptied), muscle (hind leg), the complete left femur, and a blood sample (0.5–1 mL). All studies should be performed on at least three animals per time-point.
If beta emitters are used, before measuring radioactivity the tissues should be homogenized and diluted with water to reach identical geometry and similar probe density for bremsstrahlung measurements.
The uptake into the organs should be expressed as a percentage of the injected total radioactivity (% injected dose per organ) and per mL of blood, except for the radioactivity in the muscle, which should be estimated by assuming a muscle weight of 40% of the total body weight. Tissue uptake of the MNPs could be also expressed as % injected dose (ID) per gram (percentage of ID per gram tissue) at post-injection time. The data should be presented as mean values ± standard deviation for each group. Data should be decay-corrected for the nuclide used in each experiment.
The precise injected activity is calculated by measuring the activity of the syringe, containing the radiolabeled MNPs, before and after injection, as a significant quantity of the labeled MNPs may be adsorbed onto the plastics of the syringe.

6.3. Radiolabeling of MNPs, Selection of Radionuclides and Optimization of the Radiolabeling Procedure

The selection criteria for radionuclides must be based on the physical data of the radionuclide and biological variables governing its use. The considerations for physical characteristics include the physical half-life, type of emissions, energy of the radiations, daughter products, method of production, and radionuclide purity. The biochemical aspects of the radiolabeled MNPs include tissue targeting, retention of radioactivity in the organ/tissue, in vivo stability, and toxicity. In contrast to MNP production, the radiolabeling process is time-limited and difficult because of the risk of contamination. The handling of radionuclides has to be carried out in specially designed radiochemical laboratories with controlled ventilation and air conditioning, shielded remote handling facilities, and special equipment for measuring the radioactivity of selected radionuclides. Particular attention must be paid to the potential impact of labeling on the properties of MNPs. An adapted labeling method will need to be used, to ensure that the labeling is not likely to modify the physicochemical properties of the MNPs and hence their biodistribution. It will also be necessary to ensure that this marker is not “prematurely” released from the MNPs, leading to potential confusion between monitoring of the released marker and that remaining bound to the MNPs, as in this case the radionuclide distribution will not reflect that of the MNPs. If the radiotracer method is used to follow the biodistribution (Figure 4), then the minimum activity-dose necessary to measure radioactivity in a gamma counter should also be taken into account for the radiolabeling.
As a matter of fact, Karageorgou et al. in a recent study [167] assessed the in vivo behavior of 68Ga-Fe3O4-DPD MNPs as potential PET/MRI imaging agents. They demonstrated that the ex vivo biodistribution of the radionuclide mirrored the specific organ accumulation based on size and surface charge of Fe3O4-DPD MNPs. 68Ga-Fe3O4-DPD MNPs were distributed throughout the organs, while in the liver and spleen the uptake was the highest and the retention the longest at all time points examined, due to the presence of Kupffer cells which are able to recognize and engulf 68Ga-Fe3O4-DPD MNPs through phagocytosis. Moreover, the negative surface charge provided strong electrostatic repulsion between MNPs, resulting in excellent solubility and stability in the bloodstream with satisfactory blood retention at 30, 60, and 120 min post injection. The low lung uptake was attributed to possible embolization caused by post-injection aggregation (Figure 4).
Technetium-99m (99mTc), indium-111 (111In), gallium-67 (67Ga), and iodine-125 (125I) are the most frequently used γ-emitting radionuclides for MNP radiolabeling. Of these, 99mTc is the most common due to its favorable physical properties, such as its half-life, that allow for prolonged in vivo imaging and γ-photon single energy emission at 140 keV, which is beneficial for effective imaging.
Radiometals, both diagnostic (64Cu, 68Ga, and 89Zr) and therapeutic (90Y and 177Lu), are best attached to MNPs via chelation.90Y is a high energy β-emitter with optimal nuclear-physical characteristics (decay half-life 64.1h, Emaxβ of 2.27 MeV) for radionuclide tumor therapy. Since labeling with different radionuclides most often requires new optimization of the procedure, 90Y is the radionuclide of choice for MNP-radiolabeling since it can be used for varied desirable purposes, from MNP tracking to the possible application in radionuclide therapy.
In recent years, the use of PET isotopes with a relatively long half-life, such as 64Cu (half-life 12.7h), and 89Zr (half-life 78.4 h), as well as the short-lived 68Ga (half-life 68 min), has increased. Especially the use of 68Ga (positron emission intensity 87%) is on the rise due to several identifiable properties of this radionuclide [168]. These include a superior image quality to that provided by SPECT radionuclides and the potential for on-demand production via a generator (68Ge/68Ga-generator).

6.4. Prediction of the Biodistribution Based on the Physicochemical Characteristics of MNPs

Systemically injected MNPs are rapidly cleared from the blood stream by the reticuloendothelial system mainly through the liver, spleen, and bone marrow, resulting in a low therapeutic index. Opsonization is the major factor that induces mononuclear phagocytic system (MPS) uptake of MNPs. Development of MNPs that avoid rapid clearance is a necessary requirement for sufficient delivery to the desired target. MNPs with an extremely high circulation half-life should also be avoided as this may contribute to off-target tissue toxicity and reduced signal-to-noise ratio due to non-specific binding.

6.5. Particle Size and Charge Influence Biodistribution

The hydrodynamic size of MNPs is one of the most important factors that determine their biodistribution kinetics. Particle size plays a key role in clearance of these materials from the body, with small particles (<10 nm) being cleared via the kidneys, and larger particles (>10 nm) being cleared through the liver and the MPS. MNPs that have a mean diameter of approximately 100 nm show prolonged blood circulation and a relatively low rate of MPS uptake. In the in vivo biodistribution study, the high tumor uptake exhibited by slightly negatively charged MNPs might be due to their prolonged blood circulation time. On the contrary, rapid clearance of highly charged MNPs by the RES resulted in relatively short half-life and low tumor uptake [169]. As MNPs are mainly eliminated by the phagocytic uptake in the RES and the liver is the main organ in the RES, the extent of sequestration of MNPs by the liver has been reported to correlate with the level of blood retention. The average particle size and polydispersity index of surface-modified MNPs can be determined by DLS.

6.6. The Nature of Coating Polymer Influences MNPs Pharmacokinetics

The surface characteristics of MNPs greatly influence their PK. Coating materials such as chitosan can sterically stabilize the corona and prevent aggregation of MNPs. Surface modification of MNPs with synthetic polymers like polyethylene glycol (PEG), polyvinyl alcohol (PVA), or polysaccharide can enhance solubility of hydrophobic materials, minimize non-specific binding, prolong circulation time, and enhance tumor-specific targeting. Generally, MNPs that have a mean diameter of approximately 100 nm with a neutral and hydrophilic polymer-extended surface exhibit prolonged blood circulation and an increased level of tumor delivery.

6.7. The Surface Charge of MNPs Modifies Their Biodistribution

The surface charge of MNPs depends directly on the molecular structure of the coating materials. The charge affects the degree of protein adsorption onto the MNPs surface. Due to charge-related adsorption by serum proteins, purely anionic or cationic charge increases the hydrodynamic diameter to >15 nm. According to literature data, liver uptake of charged particles is greater than that of neutral particles. Neutral MNPs exhibit a decreased rate of MPS uptake and prolonged blood circulation compared to charged ones. The zeta potential has been routinely used as a parameter for estimating the surface charge of MNPs.

6.8. Injected Quantity (Dose) of MNPs for Pharmacokinetic and Biodistribution Studies

The dose of MNPs is an important factor that can affect their PK and biological behavior. Therefore, the optimum doses of MNPs should be determined. Dose is expressed as weight of MNPs per unit weight of test animal (e.g., mg/Kg). Note, however, that in the case of radiolabeled MNPs the term “dose” may refer to the activity per unit weight (e.g., Bq/kg or Ci/kg), rather than their quantity.
Determination of the administered dose is necessary since the fate of certain MNPs in the body may differ according to the dose: urinary elimination is characteristic for low MNP concentration; transfer to the liver, biliary excretion and elimination in stools for moderate MNP concentration and finally liver storage in Kupffer cells (agglomerate and aggregate formation) is characteristic for high MNP concentration.
For i.v. administration, the maximum volume of liquid that can be administered as a single injection depends on the size of the animal used and route of administration. For mice and rats, a possible maximal i.v. administration volume that is considered good practice is 5 mL/Kg [170]. The essential requirement is to ensure that the volume given causes minimum discomfort and does not result in physiological or pathological changes that would compromise the experiment. Variability in test volumes should be minimized by adjusting the concentration to ensure a constant volume at all dose levels.
For intratumoral injection, up to 20% volume may be administered with limited leakage to the body, depending on tumor composition, density, vasculature and interstitial pressure. Immediately after injection, the application site should be covered and wiped twice with absorbing paper to retrieve any MNPs leaking out of the tumor.

6.9. Requirements for Animal Experimentation

Variation in animal models (e.g., mouse, rat, pig) and differences in MNP concentration compared to humans should be carried out. All experiments must be approved by the Institutional Animal Ethical Committee and performed in accordance to the guidelines of the local ethical committee. The request to the ethical committee should be sent as soon as possible since acquiring approval takes time, depending on the country, from one to several months. Animals should be maintained on standard pellet diet with free access to water in a 12-h light and dark cycle.
At least 3 animals should be used at each dose level and time point. However, power analysis should be carried out to statistically determine the optimum number of animals per group. Indeed, too small a sample size can miss the real effect in an experiment, whereas too large a sample size may lead to unnecessary wasting of resources and animals [171], and is not in accordance with the “3Rs” principle (Replacement/Reduction/Refinement) of animal experimentation. The animals should be of the same sex. If females are used, they should be non-pregnant. The weight variation in animals used in a test should not exceed ±20% of the mean weight, since this also affects biodistribution. Measurement of most biochemical parameters is traditionally performed under standardized conditions, which include overnight fasting, in order to achieve a more controllable metabolic environment and eliminate variations, thus achieving uniformity in the environment.

6.10. Route of Administration

Basic PK studies should be performed by i.v. administration of MNPs through the tail vein. It is important to know the plasma half-life of the injected MNPs (i.e., the time between injection and elimination from the blood) and utilize this data to tune the characteristics of the MNPs, based on the desired circulation time for each specific application.
Biodistribution of MNPs in the animals after intra-peritoneal route should be similar to that of i.v. administration; the highest concentrations of MNPs should be observed in the liver and the spleen. However, the blood flow also takes them to other organs, e.g., the lungs.
Intratumoral administration of MNPs is used to concentrate them in the tumor. However, a small quantity can also be found in other organs throughout the body, e.g., liver, lungs, lymph nodes, brain, spleen, which depends on leakage of the tumor vasculature.

6.11. Metabolism and Excretion

It is important to determine the nature of the degradation products of MNPs, along with their elimination mechanism and kinetics, especially as these metabolites may possess certain toxic effects. The desired clearance mechanism can be a factor in the design of MNPs. Radiotracer methods can be applied to follow excretion of MNPs measuring the radioactivity in the kidneys, bladder for hydrophilic based coated MNPs and in liver and intestines for hydrophobic MNPs.
Metabolite assessment in urine, blood and other organs can be performed at various time points after MNP administration, to determine whether the MNPs are metabolized after their administration to the animal [172].
  • In urine: Urine is collected at the time of sacrifice and is centrifuged before High-performance liquid chromatography (HPLC) analysis;
  • In serum: Blood is collected at the time of sacrifice and allowed to clot. After sample centrifugation (10 min, 2000× g), the supernatant is carefully removed, treated with twice the volume of cold ethanol and centrifuged once again. The supernatant is subjected to HPLC analysis;
  • In other organs (and tumor, if relevant): The organ sample is cut into small pieces and homogenized, after addition of ice-cold Phosphate-buffered saline (PBS) solution. The resulting homogenate is centrifuged (15 min, 2000× g), filtered through a 0.2 μm filter and analyzed by HPLC.

6.12. Elemental Analysis by Inductively Coupled Plasma Mass Spectroscopy

An alternative to using the radiotracer method to measure tissue accumulation of MNPs is to use inductively coupled plasma mass spectroscopy (ICP-MS) to determine the amount of one or more elemental components in the delivery system, for comparison to the initial components present [173].
Digestion of the samples for ICP measurements should be performed in an Advanced Microwave Digestion System as follows: whole organs for biodistribution studies should be precisely weighed and mixed in quartz inserts with 5 mL nitric acid (HNO3) and then heated in a microwave. Digestion should be conducted for 20 min at a constant temperature of 200 °C, with a prior warm-up linearly over 10 min to 200 °C. After total mineralization and cooling to room temperature, and without filtration, the solutions should be diluted to a fixed volume in 10 mL volumetric flasks with ultra-pure water with a conductivity of 0.055 μS/cm. The content of Fe in the digested sample solutions can then be determined by ICP-MS.

7. Conclusions

Hyperthermia in combination with Radiation Therapy is already used in a limited number of hospitals and will probably play an important role in future cancer therapies. Unlike Radiation Therapy, however, which is a well-established treatment in cancer management, Hyperthermia needs to overcome several practical difficulties that have, so far, prevented it from realizing its full potential. Magnetic Hyperthermia, mediated by MNPs, is a novel approach that may be the answer to those problems. In this work, we have outlined the tests and considerations, after synthesis and characterization of the MNPs, that a researcher must address in order to perform pre-clinical testing. We have discussed in vitro evaluation of MNPs, in vitro evaluation of MNP-cell interactions, in vivo evaluation of the MNPs, Magnetic Hyperthermia combined with Radiation Therapy, and PK and biodistribution studies of MNPs. As MNP-mediated Hyperthermia is a new field that has not matured yet, we hope that this review will help establish guidelines and protocols that will lead to clinical application.

Author Contributions

All authors have reviewed, commented and approved the manuscript. S.A.C.L., A.I.B., and E.Κ.E. wrote Section 2, Section 3 and Section 4. S.V.S., A.L., I.G.A., C.J., E.Κ.E. and O.L.G. wrote Section 5. P.B., S.V.D., D.J. and E.Κ.E. wrote Section 6. In addition, S.V.S. and O.L.G. wrote the Abstract, Introduction and Conclusion and had the overall management of the paper.

Acknowledgments

We would like to thank Christoph Alexiou of the Section of Experimental Oncology and Nanomedicine (SEON), ENT-Department, University Hospital Erlangen, Germany, for his comments and suggestions that allowed the authors to improve the quality of the manuscript. This article is based upon work from the COST Action RADIOMAG (TD1402). The authors acknowledge the support from COST (European Cooperation in Science and Technology) for covering the costs to publish this manuscript as an open access article.

Conflicts of Interest

Carlton Jones is the CEO of NanoTherics Ltd. The other authors declare no conflict of interest. The founding sponsor had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript.

Abbreviations

AMFAlternating Magnetic Field
ALPAlkaline phosphatase
BrdU5-bromo-2′-deoxyuridine
CFSECarboxyFluoresceinSuccinimidyl Ester
CT Computed Tomography
DLSDynamic Light Scattering
γ-GTGamma-glutamyl transferase
HPLCHigh-performance liquid chromatography
HSPHeat Shock Proteins
HTHyperthermia
ICP-MSInductively Coupled Plasma Mass Spectroscopy
IDInjected Dose
MNPMagnetic Nanoparticle
MHMagnetic Hyperthermia
MPSMononuclear Phagocytic System
MRIMagnetic Resonance Imaging
MTT3-(4,5-dimethylthiazolyl-2)-2,5-diphenyltetrazolium bromide
NPNanoparticle
PEGPolyethylene glycol
PETPositron Emission Tomography
PKPharmacokinetic
PIPropidium Iodide
RESReticuloendothelial System
RTRadiation Therapy
SGOTSerum Glutamic-Oxaloacetic Transaminase
SPECTSingle-Photon Emission Computed Tomography
TEMTransmission Electron Microscopy
X-rayX-radiation
XTTsodium 3′-[1-(phenylaminocarbonyl)-3,4-tetrazolium]-bis(4-methoxy-6-nitro) benzene sulfonic acid hydrate

References

  1. Delaney, G.; Jacob, S.; Featherstone, C.; Barton, M. The role of radiotherapy in cancer treatment. Cancer 2005, 104, 1129–1137. [Google Scholar] [CrossRef] [PubMed]
  2. Schaue, D.; McBride, W.H. Opportunities and challenges of radiotherapy for treating cancer. Nat. Rev. Clin. Oncol. 2015, 12, 527–540. [Google Scholar] [CrossRef] [PubMed]
  3. Bortfeld, T. IMRT: A review and preview. Phys. Med. Biol. 2006, 51, R363–R379. [Google Scholar] [CrossRef] [PubMed]
  4. Staffurth, J. A review of the clinical evidence for intensity-modulated radiotherapy. Clin. Oncol. 2010, 22, 643–657. [Google Scholar] [CrossRef] [PubMed]
  5. Veldeman, L.; Madani, I.; Hulstaert, F.; De Meerleer, G.; Mareel, M.; De Neve, W. Evidence behind use of intensity-modulated radiotherapy: A systematic review of comparative clinical studies. Lancet Oncol. 2008, 9, 367–375. [Google Scholar] [CrossRef]
  6. Dawson, L.A.; Jaffray, D.A. Advances in image-guided radiation therapy. J. Clin. Oncol. 2007, 25, 938–946. [Google Scholar] [CrossRef] [PubMed]
  7. Jaffray, D.A. Image-guided radiotherapy: From current concept to future perspectives. Nat. Rev. Clin. Oncol. 2012, 9, 688–699. [Google Scholar] [CrossRef] [PubMed]
  8. Meyer, J.L.; Kavanagh, B.D.; Purdy, J.A.; Timmerman, R. IMRT, IGRT, SBRT: Advances in Treatment Planning and Delivery of Radiotherapy; S. Karger AG: Basel, Switzerland, 2007. [Google Scholar]
  9. Otto, K. Volumetric modulated arc therapy: IMRT in a single gantry arc. Med. Phys. 2008, 35, 310–317. [Google Scholar] [CrossRef] [PubMed]
  10. Teoh, M.; Clark, C.H.; Wood, K.; Whitaker, S.; Nisbet, A. Volumetric modulated arc therapy: A review of current literature and clinical use in practice. Br. J. Radiol. 2011, 84, 967–996. [Google Scholar] [CrossRef] [PubMed]
  11. Lo, S.S.; Fakiris, A.J.; Chang, E.L.; Mayr, N.A.; Wang, J.Z.; Papiez, L.; Teh, B.S.; McGarry, R.C.; Cardenes, H.R.; Timmerman, R.D. Stereotactic body radiation therapy: A novel treatment modality. Nat. Rev. Clin. Oncol. 2010, 7, 44–54. [Google Scholar] [CrossRef] [PubMed]
  12. Martin, A.; Gaya, A. Stereotactic body radiotherapy: A review. Clin. Oncol. 2010, 22, 157–172. [Google Scholar] [CrossRef] [PubMed]
  13. Sapkaroski, D.; Osborne, C.; Knight, K.A. A review of stereotactic body radiotherapy—Is volumetric modulated arc therapy the answer? J. Med. Radiat. Sci. 2015, 62, 142–151. [Google Scholar] [CrossRef] [PubMed]
  14. Allen, A.M.; Pawlicki, T.; Dong, L.; Fourkal, E.; Buyyounouski, M.; Cengel, K.; Plastaras, J.; Bucci, M.K.; Yock, T.I.; Bonilla, L.; et al. An evidence based review of proton beam therapy: The report of ASTRO’s emerging technology committee. Radiother. Oncol. 2012, 103, 8–11. [Google Scholar] [CrossRef] [PubMed]
  15. Mohan, R.; Grosshans, D. Proton therapy—Present and future. Adv. Drug Deliv. Rev. 2017, 109, 26–44. [Google Scholar] [CrossRef] [PubMed]
  16. Newhauser, W.D.; Zhang, R. The physics of proton therapy. Phys. Med. Biol. 2015, 60, R155. [Google Scholar] [CrossRef] [PubMed]
  17. Weichselbaum, R.R.; Liang, H.; Deng, L.; Fu, Y.-X. Radiotherapy and immunotherapy: A beneficial liaison? Nat. Rev. Clin. Oncol. 2017, 14, 365. [Google Scholar] [CrossRef] [PubMed]
  18. Overgaard, J. The current and potential role of hyperthermia in radiotherapy. Int. J. Radiat. Oncol. Biol. Phys. 1989, 16, 535–549. [Google Scholar] [CrossRef]
  19. Overgaard, J. The heat is (still) on—The past and future of hyperthermic radiation oncology. Radiother. Oncol. 2013, 109, 185–187. [Google Scholar] [CrossRef] [PubMed]
  20. Van der Zee, J. Heating the patient: A promising approach? Ann. Oncol. 2002, 13, 1173–1184. [Google Scholar] [CrossRef] [PubMed]
  21. Wust, P.; Hildebrandt, B.; Sreenivasa, G.; Rau, B.; Gellermann, J.; Riess, H.; Felix, R.; Schlag, P.M. Hyperthermia in combined treatment of cancer. Lancet Oncol. 2002, 3, 487–497. [Google Scholar] [CrossRef]
  22. Gerweck, L.E.; Nygaard, T.G.; Burlett, M. Response of cells to hyperthermia under acute and chronic hypoxic conditions. Cancer Res. 1979, 39, 966–972. [Google Scholar] [PubMed]
  23. Nielsen, O.S. Effect of fractionated hyperthermia on hypoxic cells in vitro. Int. J. Radiat. Biol. Relat. Stud. Phys. Chem. Med. 1981, 39, 73–82. [Google Scholar] [CrossRef] [PubMed]
  24. Overgaard, J.; Bichel, P. The influence of hypoxia and acidity on the hyperthermic response of malignant cells in vitro. Radiology 1977, 123, 511–514. [Google Scholar] [CrossRef] [PubMed]
  25. Overgaard, J.; Nielsen, O.S. The role of tissue environmental factors on the kinetics and morphology of tumor cells exposed to hyperthermia. Ann. N. Y. Acad. Sci. 1980, 335, 254–280. [Google Scholar] [CrossRef] [PubMed]
  26. Suit, H.D.; Gerweck, L.E. Potential for hyperthermia and radiation therapy. Cancer Res. 1979, 39, 2290–2298. [Google Scholar] [PubMed]
  27. Coss, R.A.; Dewey, W.C.; Bamburg, J.R. Effects of hyperthermia on dividing chinese hamster ovary cells and on microtubules in vitro. Cancer Res. 1982, 42, 1059–1071. [Google Scholar] [PubMed]
  28. Kim, S.H.; Kim, J.H.; Hahn, E.W. The enhanced killing of irradiated HeLa cells in synchronous culture by hyperthermia. Radiat. Res. 1976, 66, 337–345. [Google Scholar] [CrossRef] [PubMed]
  29. Westra, A.; Dewey, W.C. Variation in sensitivity to heat shock during the cell-cycle of Chinese hamster cells in vitro. Int. J. Radiat. Biol. Relat. Stud. Phys. Chem. Med. 1971, 19, 467–477. [Google Scholar] [CrossRef] [PubMed]
  30. Engin, K.; Leeper, D.B.; Thistlethwaite, A.J.; Tupchong, L.; Phil, D.; McFarlane, J.D. Tumor extracellular pH as a prognostic factor in thermoradiotherapy. Int. J. Radiat. Oncol. Biol. Phys. 1994, 29, 125–132. [Google Scholar] [CrossRef]
  31. Gerweck, L.E.; Richards, B.; Michaels, H.B. Influence of low pH on the development and decay of 42 °C thermotolerance in CHO cells. Int. J. Radiat. Oncol. Biol. Phys. 1982, 8, 1935–1941. [Google Scholar] [CrossRef]
  32. Koutcher, J.A.; Barnett, D.; Kornblith, A.B.; Cowburn, D.; Brady, T.J.; Gerweck, L.E. Relationship of changes in pH and energy status to hypoxic cell fraction and hyperthermia sensitivity. Int. J. Radiat. Oncol. Biol. Phys. 1990, 18, 1429–1435. [Google Scholar] [CrossRef]
  33. Song, C.W. Effect of local hyperthermia on blood flow and microenvironment: A review. Cancer Res. 1984, 44, 4721s–4730s. [Google Scholar] [PubMed]
  34. Wahl, M.L.; Bobyock, S.B.; Leeper, D.B.; Owen, C.S. Effects of 42 °C hyperthermia on intracellular pH in ovarian carcinoma cells during acute or chronic exposure to low extracellular pH. Int. J. Radiat. Oncol. Biol. Phys. 1997, 39, 205–212. [Google Scholar] [CrossRef]
  35. Chicheł, A.; Skowronek, J.; Kubaszewska, M.; Kanikowski, M. Hyperthermia—Description of a method and a review of clinical applications. Rep. Pract. Oncol. Radiother. 2007, 12, 267–275. [Google Scholar] [CrossRef]
  36. Hildebrandt, B.; Wust, P.; Ahlers, O.; Dieing, A.; Sreenivasa, G.; Kerner, T.; Felix, R.; Riess, H. The cellular and molecular basis of hyperthermia. Crit. Rev. Oncol. Hematol. 2002, 43, 33–56. [Google Scholar] [CrossRef]
  37. Vaupel, P.; Horsman, M.R. Tumour perfusion and associated physiology: Characterization and significance for hyperthermia. Int. J. Hyperth. 2010, 26, 209–210. [Google Scholar] [CrossRef] [PubMed]
  38. Vaupel, P.W.; Kelleher, D.K. Pathophysiological and vascular characteristics of tumours and their importance for hyperthermia: Heterogeneity is the key issue. Int. J. Hyperth. 2010, 26, 211–223. [Google Scholar] [CrossRef] [PubMed]
  39. Emami, B.; Scott, C.; Perez, C.A.; Asbell, S.; Swift, P.; Grigsby, P.; Montesano, A.; Rubin, P.; Curran, W.; Delrowe, J.; et al. Phase III study of interstitial thermoradiotherapy compared with interstitial radiotherapy alone in the treatment of recurrent or persistent human tumors: A prospectively controlled randomized study by the Radiation Therapy Oncology Group. Int. J. Radiat. Oncol. Biol. Phys. 1996, 34, 1097–1104. [Google Scholar] [CrossRef]
  40. Panikkanvalappil, S.R.; Hooshmand, N.; El-Sayed, M.A. Intracellular assembly of nuclear-targeted gold nanosphere enables selective plasmonic photothermal therapy of cancer by shifting their absorption wavelength toward near-infrared region. Bioconjug. Chem. 2017, 28, 2452–2460. [Google Scholar] [CrossRef] [PubMed]
  41. Dutz, S.; Hergt, R. Magnetic particle hyperthermia—A promising tumour therapy? Nanotechnology 2014, 25, 452001. [Google Scholar] [CrossRef] [PubMed]
  42. Gao, N.; Bozeman, E.N.; Qian, W.; Wang, L.; Chen, H.; Lipowska, M.; Staley, C.A.; Wang, Y.A.; Mao, H.; Yang, L. Tumor penetrating theranostic nanoparticles for enhancement of targeted and image-guided drug delivery into peritoneal tumors following intraperitoneal delivery. Theranostics 2017, 7, 1689–1704. [Google Scholar] [CrossRef] [PubMed]
  43. Mil’to, I.V.; Sukhodolo, I.V.; Ivanova, V.V.; Yusubov, M.S. Ultrastructure of rat kidneys after intravenous administration of modified magnetite nanoparticles. Bull. Exp. Biol. Med. 2017, 164, 218–222. [Google Scholar] [CrossRef] [PubMed]
  44. Coene, A.; Crevecoeur, G.; Leliaert, J.; Dupré, L. Toward 2D and 3D imaging of magnetic nanoparticles using EPR measurements. Med. Phys. 2015, 42, 5007–5014. [Google Scholar] [CrossRef] [PubMed]
  45. Gobbo, O.L.; Sjaastad, K.; Radomski, M.W.; Volkov, Y.; Prina-Mello, A. Magnetic nanoparticles in cancer theranostics. Theranostics 2015, 5, 1249–1263. [Google Scholar] [CrossRef] [PubMed]
  46. Hilger, I.; Kaiser, W.A. Iron oxide-based nanostructures for MRI and magnetic hyperthermia. Nanomedicine 2012, 7, 1443–1459. [Google Scholar] [CrossRef] [PubMed]
  47. Du, Z.; Su, R.; Liu, W.; Huang, Z. Magnetic nanoparticle thermometer: An investigation of minimum error transmission path and AC bias error. Sensors 2015, 15, 8624–8641. [Google Scholar] [CrossRef] [PubMed]
  48. Weaver, J.B.; Rauwerdink, A.M.; Hansen, E.W. Magnetic nanoparticle temperature estimation. Med. Phys. 2009, 36, 1822–1829. [Google Scholar] [CrossRef] [PubMed]
  49. Kossatz, S.; Grandke, J.; Couleaud, P.; Latorre, A.; Aires, A.; Crosbie-Staunton, K.; Ludwig, R.; Dähring, H.; Ettelt, V.; Lazaro-Carrillo, A.; et al. Efficient treatment of breast cancer xenografts with multifunctionalized iron oxide nanoparticles combining magnetic hyperthermia and anti-cancer drug delivery. Breast Cancer Res. 2015, 17, 66. [Google Scholar] [CrossRef] [PubMed]
  50. Kumar, A.; Jena, P.K.; Behera, S.; Lockey, R.F.; Mohapatra, S.; Mohapatra, S. Multifunctional magnetic nanoparticles for targeted delivery. Nanomed. Nanotechnol. Biol. Med. 2010, 6, 64–69. [Google Scholar] [CrossRef] [PubMed]
  51. Wu, M.; Huang, S. Magnetic nanoparticles in cancer diagnosis, drug delivery and treatment (review). Mol. Clin. Oncol. 2017, 7, 738–746. [Google Scholar] [CrossRef] [PubMed]
  52. Hilger, I. In vivo applications of magnetic nanoparticle hyperthermia. Int. J. Hyperth. 2013, 29, 828–834. [Google Scholar] [CrossRef] [PubMed]
  53. Maier-Hauff, K.; Ulrich, F.; Nestler, D.; Niehoff, H.; Wust, P.; Thiesen, B.; Orawa, H.; Budach, V.; Jordan, A. Efficacy and safety of intratumoral thermotherapy using magnetic iron-oxide nanoparticles combined with external beam radiotherapy on patients with recurrent glioblastoma multiforme. J. Neurooncol. 2011, 103, 317–324. [Google Scholar] [CrossRef] [PubMed]
  54. Tombácz, E.; Farkas, K.; Földesi, I.; Szekeres, M.; Illés, E.; Tóth, I.Y.; Nesztor, D.; Szabó, T. Polyelectrolyte coating on superparamagnetic iron oxide nanoparticles as interface between magnetic core and biorelevant media. Interface Focus 2016, 6, 20160068. [Google Scholar] [CrossRef] [PubMed]
  55. Lim, J.; Yeap, S.P.; Che, H.X.; Low, S.C. Characterization of magnetic nanoparticle by dynamic light scattering. Nanoscale Res. Lett. 2013, 8, 381. [Google Scholar] [CrossRef] [PubMed]
  56. Santos-Martinez, M.J.; Inkielewicz-Stepniak, I.; Medina, C.; Rahme, K.; D’Arcy, D.M.; Fox, D.; Holmes, J.D.; Zhang, H.; Radomski, M.W. The use of quartz crystal microbalance with dissipation (QCM-D) for studying nanoparticle-induced platelet aggregation. Int. J. Nanomed. 2012, 7, 243–255. [Google Scholar] [CrossRef] [PubMed]
  57. Santos-Martinez, M.J.; Rahme, K.; Corbalan, J.J.; Faulkner, C.; Holmes, J.D.; Tajber, L.; Medina, C.; Radomski, M.W. Pegylation increases platelet biocompatibility of gold nanoparticles. J. Biomed. Nanotechnol. 2014, 10, 1004–1015. [Google Scholar] [CrossRef] [PubMed]
  58. Masson, V.; Maurin, F.; Fessi, H.; Devissaguet, J.P. Influence of sterilization processes on poly(ε-caprolactone) nanospheres. Biomaterials 1997, 18, 327–335. [Google Scholar] [CrossRef]
  59. Özcan, İ.; Bouchemal, K.; Segura-Sánchez, F.; Abaci, Ö.; Özer, Ö.; Güneri, T.; Ponchel, G. Effects of sterilization techniques on the PEGylated poly (γ-benzyl-l-glutamate) (PBLG) nanoparticles. ACTA Pharm. Sci. 2009, 51, 211–218. [Google Scholar]
  60. Godara, A.; Raabe, D.; Green, S. The influence of sterilization processes on the micromechanical properties of carbon fiber-reinforced peek composites for bone implant applications. Acta Biomater. 2007, 3, 209–220. [Google Scholar] [CrossRef] [PubMed]
  61. Zheng, J.; Clogston, J.D.; Patri, A.K.; Dobrovolskaia, M.A.; McNeil, S.E. Sterilization of silver nanoparticles using standard gamma irradiation procedure affects particle integrity and biocompatibility. J. Nanomed. Nanotechnol. 2011, S5. [Google Scholar] [CrossRef] [PubMed]
  62. Vetten, M.A.; Yah, C.S.; Singh, T.; Gulumian, M. Challenges facing sterilization and depyrogenation of nanoparticles: Effects on structural stability and biomedical applications. Nanomed. Nanotechnol. Biol. Med. 2014, 10, 1391–1399. [Google Scholar] [CrossRef] [PubMed]
  63. França, Á.; Pelaz, B.; Moros, M.; Sánchez-Espinel, C.; Hernández, A.; Fernández-López, C.; Grazú, V.; de la Fuente Jesús, M.; Pastoriza-Santos, I.; Liz-Marzán Luis, M.; et al. Sterilization matters: Consequences of different sterilization techniques on gold nanoparticles. Small 2009, 6, 89–95. [Google Scholar] [CrossRef] [PubMed]
  64. Wang, X.; Quinn, P.J. Endotoxins: Lipopolysaccharides of Gram-negative bacteria. In Endotoxins: Structure, Function and Recognition; Wang, X., Quinn, P.J., Eds.; Springer: Dordrecht, The Netherlands, 2010; Volume 53, pp. 3–25. [Google Scholar]
  65. Mbeh, D.A.; Mireles, L.K.; Stanicki, D.; Tabet, L.; Maghni, K.; Laurent, S.; Sacher, E.; Yahia, L.H. Human alveolar epithelial cell responses to core–shell superparamagnetic iron oxide nanoparticles (SPIONs). Langmuir 2015, 31, 3829–3839. [Google Scholar] [CrossRef] [PubMed]
  66. Azaroff, L.V. Elements of X-ray Crystallography; McGraw-Hill: New Yrok, NY, USA, 1968. [Google Scholar]
  67. Häfeli, U.O.; Riffle, J.S.; Harris-Shekhawat, L.; Carmichael-Baranauskas, A.; Mark, F.; Dailey, J.P.; Bardenstein, D. Cell uptake and in vitro toxicity of magnetic nanoparticles suitable for drug delivery. Mol. Pharm. 2009, 6, 1417–1428. [Google Scholar] [CrossRef] [PubMed]
  68. Hoskins, C.; Wang, L.; Cheng, W.P.; Cuschieri, A. Dilemmas in the reliable estimation of the in-vitro cell viability in magnetic nanoparticle engineering: Which tests and what protocols? Nanoscale Res. Lett. 2012, 7, 77. [Google Scholar] [CrossRef] [PubMed][Green Version]
  69. Walton, J.R. The systemic appraisal of cellular injury. Agents Actions 1975, 5, 394–400. [Google Scholar] [CrossRef] [PubMed]
  70. Walton, J.R.; Buckley, L.K. Cell models in the study of mechanisms of toxicity. Agents Actions 1975, 5, 69–88. [Google Scholar] [CrossRef] [PubMed]
  71. Patil, S.U.; Adireddy, S.; Jaiswal, A.; Mandava, S.; Lee, R.B.; Chrisey, B.D. In vitro/in vivo toxicity evaluation and quantification of iron oxide nanoparticles. Int. J. Mol. Sci. 2015, 16, 24417–24450. [Google Scholar] [CrossRef] [PubMed]
  72. Gaspar, A.S.; Wagner, F.E.; Amaral, V.S.; Costa Lima, S.A.; Khomchenko, V.A.; Santos, J.G.; Costa, B.F.O.; Durães, L. Development of a biocompatible magnetic nanofluid by incorporating SPIONs in Amazonian oils. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2017, 172, 135–146. [Google Scholar] [CrossRef] [PubMed]
  73. Matuszak, J.; Baumgartner, J.; Zaloga, J.; Juenet, M.; da Silva, A.E.; Franke, D.; Almer, G.; Texier, I.; Faivre, D.; Metselaar, J.M.; et al. Nanoparticles for intravascular applications: Physicochemical characterization and cytotoxicity testing. Nanomedicine 2016, 11, 597–616. [Google Scholar] [CrossRef] [PubMed]
  74. Poller, J.M.; Zaloga, J.; Schreiber, E.; Unterweger, H.; Janko, C.; Radon, P.; Eberbeck, D.; Trahms, L.; Alexiou, C.; Friedrich, R.P. Selection of potential iron oxide nanoparticles for breast cancer treatment based on in vitro cytotoxicity and cellular uptake. Int. J. Nanomed. 2017, 12, 3207–3220. [Google Scholar] [CrossRef] [PubMed]
  75. Roehm, N.W.; Rodgers, G.H.; Hatfield, S.M.; Glasebrook, A.L. An improved colorimetric assay for cell proliferation and viability utilizing the tetrazolium salt XTT. J. Immunol. Methods 1991, 142, 257–265. [Google Scholar] [CrossRef]
  76. Weislow, O.S.; Kiser, R.; Fine, D.L.; Bader, J.; Shoemaker, R.H.; Boyd, M.R. New soluble-formazan assay for HIV-1 cytopathic effects: Application to high-flux screening of synthetic and natural products for AIDS-antiviral activity. JNCI J. Natl. Cancer Inst. 1989, 81, 577–586. [Google Scholar] [CrossRef] [PubMed]
  77. Präbst, K.; Engelhardt, H.; Ringgeler, S.; Hübner, H. Basic colorimetric proliferation assays: MTT, WST, and Resazurin. In Cell Viability Assays. Methods in Molecular Biology; Gilbert, D., Friedrich, O., Eds.; Humana Press: New York, NY, USA, 2017; Volume 1601. [Google Scholar]
  78. Tantra, R.; Knight, A. Cellular uptake and intracellular fate of engineered nanoparticles: A review on the application of imaging techniques. Nanotoxicology 2011, 5, 381–392. [Google Scholar] [CrossRef] [PubMed]
  79. Ayache, J.; Beaunier, L.; Boumendil, J.; Ehret, G.; Laub, D. Sample Preparation Handbook for Transmission Electron Microscopy; Springer-Verlag: New York, NY, USA, 2010; Volume XXV, p. 338. [Google Scholar]
  80. Friedrich, R.P.; Janko, C.; Poettler, M.; Tripal, P.; Zaloga, J.; Cicha, I.; Dürr, S.; Nowak, J.; Odenbach, S.; Slabu, I.; et al. Flow cytometry for intracellular SPION quantification: Specificity and sensitivity in comparison with spectroscopic methods. Int. J. Nanomed. 2015, 10, 4185–4201. [Google Scholar] [CrossRef] [PubMed]
  81. Stranz, M.; Kastango, E.S. A review of ph and osmolarity. Int. J. Pharm. Compd. 2002, 6, 216–220. [Google Scholar] [PubMed]
  82. Lee, Y.-C.; Zocharski, P.D.; Samas, B. An intravenous formulation decision tree for discovery compound formulation development. Int. J. Pharm. 2003, 253, 111–119. [Google Scholar] [CrossRef]
  83. Kumar, C.S.S.R.; Mohammad, F. Magnetic nanomaterials for hyperthermia-based therapy and controlled drug delivery. Adv. Drug Deliv. Rev. 2011, 63, 789–808. [Google Scholar] [CrossRef] [PubMed]
  84. Kappiyoor, R.; Liangruksa, M.; Ganguly, R.; Puri, I.K. The effects of magnetic nanoparticle properties on magnetic fluid hyperthermia. J. Appl. Phys. 2010, 108, 094702. [Google Scholar] [CrossRef]
  85. Keblinski, P.; Cahill, D.G.; Bodapati, A.; Sullivan, C.R.; Taton, T.A. Limits of localized heating by electromagnetically excited nanoparticles. J. Appl. Phys. 2006, 100, 054305. [Google Scholar] [CrossRef]
  86. Yu, L.; Liu, J.; Wu, K.; Klein, T.; Jiang, Y.; Wang, J.-P. Evaluation of hyperthermia of magnetic nanoparticles by dehydrating DNA. Sci. Rep. 2014, 4, 7216. [Google Scholar] [CrossRef] [PubMed]
  87. Stylianopoulos, T.; Economides, E.-A.; Baish, J.W.; Fukumura, D.; Jain, R.K. Towards optimal design of cancer nanomedicines: Multi-stage nanoparticles for the treatment of solid tumors. Ann. Biomed. Eng. 2015, 43, 2291–2300. [Google Scholar] [CrossRef] [PubMed]
  88. Rao, L.; Xu, J.-H.; Cai, B.; Liu, H.; Li, M.; Jia, Y.; Xiao, L.; Guo, S.-S.; Liu, W.; Zhao, X.-Z. Synthetic nanoparticles camouflaged with biomimetic erythrocyte membranes for reduced reticuloendothelial system uptake. Nanotechnology 2016, 27, 085106. [Google Scholar] [CrossRef] [PubMed]
  89. Ozcelikkale, A.; Moon, H.-R.; Linnes, M.; Han, B. In vitro microfluidic models of tumor microenvironment to screen transport of drugs and nanoparticles. Wiley Interdiscip. Rev. Nanomed. Nanobiotechnol. 2017, 9, e1460. [Google Scholar] [CrossRef] [PubMed]
  90. Veiseh, O.; Gunn, J.W.; Zhang, M. Design and fabrication of magnetic nanoparticles for targeted drug delivery and imaging. Adv. Drug Deliv. Rev. 2010, 62, 284–304. [Google Scholar] [CrossRef] [PubMed]
  91. Jain, R.K. Normalizing tumor microenvironment to treat cancer: Bench to bedside to biomarkers. J. Clin. Oncol. 2013, 31, 2205–2218. [Google Scholar] [CrossRef] [PubMed]
  92. Huang, J.; Li, Y.; Orza, A.; Lu, Q.; Guo, P.; Wang, L.; Yang, L.; Mao, H. Magnetic nanoparticle facilitated drug delivery for cancer therapy with targeted and image-guided approaches. Adv. Funct. Mater. 2016, 26, 3818–3836. [Google Scholar] [CrossRef] [PubMed]
  93. Alexiou, C.; Jurgons, R.; Seliger, C.; Brunke, O.; Iro, H.; Odenbach, S. Delivery of superparamagnetic nanoparticles for local chemotherapy after intraarterial infusion and magnetic drug targeting. Anticancer Res. 2007, 27, 2019–2022. [Google Scholar] [PubMed]
  94. Kudr, J.; Haddad, Y.; Richtera, L.; Heger, Z.; Cernak, M.; Adam, V.; Zitka, O. Magnetic nanoparticles: From design and synthesis to real world applications. Nanomaterials 2017, 7, 243. [Google Scholar] [CrossRef] [PubMed]
  95. Tietze, R.; Lyer, S.; Dürr, S.; Alexiou, C. Nanoparticles for cancer therapy using magnetic forces. Nanomedicine 2012, 7, 447–457. [Google Scholar] [CrossRef] [PubMed]
  96. Byrne, J.D.; Betancourt, T.; Brannon-Peppas, L. Active targeting schemes for nanoparticle systems in cancer therapeutics. Adv. Drug Deliv. Rev. 2008, 60, 1615–1626. [Google Scholar] [CrossRef] [PubMed]
  97. Danhier, F.; Le Breton, A.; Préat, V. RGD-based strategies to target alpha(v) beta(3) integrin in cancer therapy and diagnosis. Mol. Pharm. 2012, 9, 2961–2973. [Google Scholar] [CrossRef] [PubMed]
  98. Reinmuth, N.; Liu, W.; Ahmad, S.A.; Fan, F.; Stoeltzing, O.; Parikh, A.A.; Bucana, C.D.; Gallick, G.E.; Nickols, M.A.; Westlin, W.F.; et al. Αvβ3 integrin antagonist s247 decreases colon cancer metastasis and angiogenesis and improves survival in mice. Cancer Res. 2003, 63, 2079–2087. [Google Scholar] [PubMed]
  99. Desgrosellier, J.S.; Cheresh, D.A. Integrins in cancer: Biological implications and therapeutic opportunities. Nat. Rev. Cancer 2010, 10, 9–22. [Google Scholar] [CrossRef] [PubMed]
  100. Marschner, J.A.; Schäfer, H.; Holderied, A.; Anders, H.-J. Optimizing mouse surgery with online rectal temperature monitoring and preoperative heat supply. Effects on post-ischemic acute kidney injury. PLoS ONE 2016, 11, e0149489. [Google Scholar] [CrossRef] [PubMed]
  101. Matsukawa, T.; Sessler, D.I.; Sessler, A.M.; Schroeder, M.; Ozaki, M.; Kurz, A.; Cheng, C. Heat flow and distribution during induction of general anesthesia. Anesthesiology 1995, 82, 662–673. [Google Scholar] [CrossRef] [PubMed]
  102. Sessler, M.D.; Daniel, I. Temperature monitoring and perioperative thermoregulation. Anesthesiology 2008, 109, 318–338. [Google Scholar] [CrossRef] [PubMed]
  103. Di Ventura, B.; Lemerle, C.; Michalodimitrakis, K.; Serrano, L. From in vivo to in silico biology and back. Nature 2006, 443, 527. [Google Scholar] [CrossRef] [PubMed]
  104. Dunning, W.F. Prostate cancer in the rat. Natl. Cancer Inst. Monogr. 1963, 12, 351–369. [Google Scholar] [PubMed]
  105. Lein, M.; Koenig, F.; Misdraji, J.; McDougal, W.S.; Jung, K.; Loening, S.A.; Hasan, T.; Ortel, B. Laser-induced hyperthermia in rat prostate cancer: Role of site of tumor implantation. Urology 2000, 56, 167–172. [Google Scholar] [CrossRef]
  106. Echevarria-Uraga, J.J.; García-Alonso, I.; Plazaola, F.; Insausti, M.; Etxebarria, N.; Saiz-López, A.; Fernández-Ruanova, B. Study of the intra-arterial distribution of Fe3O4 nanoparticles in a model of colorectal neoplasm induced in rat liver by MRI and spectrometry. Int. J. Nanomed. 2012, 7, 2399–2410. [Google Scholar] [CrossRef] [PubMed]
  107. Fung, A.S.; Lee, C.; Yu, M.; Tannock, I.F. The effect of chemotherapeutic agents on tumor vasculature in subcutaneous and orthotopic human tumor xenografts. BMC Cancer 2015, 15, 112. [Google Scholar] [CrossRef] [PubMed]
  108. Pham, T.B.; Colvin, K.E.; Pham, T.N.; Kim, J.B.; Fuller, S.E.; Moon, A.E.; Barbey, R.; Yuen, S.; Rickman, H.B.; Bryce, S.N.; et al. Biodistribution and clearance of stable superparamagnetic maghemite iron oxide nanoparticles in mice following intraperitoneal administration. Int. J. Mol. Sci. 2018, 19, 205. [Google Scholar] [CrossRef] [PubMed]
  109. Zulauf, G.D.; Trembly, B.S.; Giustini, A.J.; Flint, B.R.; Strawbridge, R.R.; Hoopes, P.J. Targeting of Systemically-Delivered Magnetic Nanoparticle Hyperthermia Using a Noninvasive, Static, External Magnetic Field. In Proceedings of the SPIE 8584, Energy-Based Treatment of Tissue and Assessment VII, San Francisco, CA, USA, 26 February 2013; p. 85840C. [Google Scholar]
  110. Merle, P.; Camus, P.; Abergel, A.; Pageaux, G.P.; Masliah, C.; Bronowicki, J.P.; Zarski, J.P.; Pelletier, G.; Bouattour, M.; Farloux, L.; et al. Safety and efficacy of intra-arterial hepatic chemotherapy with doxorubicin-loaded nanoparticles in hepatocellular carcinoma. ESMO Open 2017, 2. [Google Scholar] [CrossRef] [PubMed]
  111. Deipolyi, R.A.; Zhang, S.Y.; Khademhosseini, A.; Naidu, S.; Borad, M.; Sahin, B.; Mathur, K.A.; Oklu, R. Portal vein embolization: Impact of chemotherapy and genetic mutations. J. Clin. Med. 2017, 6, 26. [Google Scholar] [CrossRef] [PubMed]
  112. MacFall, J.R.; Soher, B.J. MR imaging in hyperthermia. Radiographics 2007, 27, 1809–1818. [Google Scholar] [CrossRef] [PubMed]
  113. Shuhendler, A.J.; Staruch, R.; Oakden, W.; Gordijo, C.R.; Rauth, A.M.; Stanisz, G.J.; Chopra, R.; Wu, X.Y. Thermally-triggered ‘off–on–off’ response of gadolinium-hydrogel–lipid hybrid nanoparticles defines a customizable temperature window for non-invasive magnetic resonance imaging thermometry. J. Control. Release 2012, 157, 478–484. [Google Scholar] [CrossRef] [PubMed]
  114. Chung, S.H.; Mehta, R.; Tromberg, B.J.; Yodh, A.G. Non-invasive measurement of deep tissue temperature changes caused by apoptosis during breast cancer neoadjuvant chemotherapy: A case study. J. Innov. Opt. Health Sci. 2011, 4, 361–372. [Google Scholar] [CrossRef] [PubMed]
  115. Pearce, J.A. Comparative analysis of mathematical models of cell death and thermal damage processes. Int. J. Hyperth. 2013, 29, 262–280. [Google Scholar] [CrossRef] [PubMed]
  116. Van Rhoon, G.C. Is CEM43 still a relevant thermal dose parameter for hyperthermia treatment monitoring? Int. J. Hyperth. 2016, 32, 50–62. [Google Scholar] [CrossRef] [PubMed]
  117. Dewhirst, M.W.; Sim, D.A. The utility of thermal dose as a predictor of tumor and normal tissue responses to combined radiation and hyperthermia. Cancer Res. 1984, 44, 4772s–4780s. [Google Scholar] [PubMed]
  118. Kapp, D.S.; Cox, R.S. Thermal treatment parameters are most predictive of outcome in patients with single tumor nodules per treatment field in recurrent adenocarcinoma of the breast. Int. J. Radiat. Oncol. Biol. Phys. 1995, 33, 887–899. [Google Scholar] [CrossRef]
  119. Seegenschmiedt, M.H.; Martus, P.; Fietkau, R.; Iro, H.; Brady, L.W.; Sauer, R. Multivariate analysis of prognostic parameters using interstitial thermoradiotherapy (IHT-IRT): Tumor and treatment variables predict outcome. Int. J. Radiat. Oncol. Biol. Phys. 1994, 29, 1049–1063. [Google Scholar] [CrossRef]
  120. Sherar, M.; Liu, F.-F.; Pintilie, M.; Levin, W.; Hunt, J.; Hill, R.; Hand, J.; Vernon, C.; van Rhoon, G.; van der Zee, J.; et al. Relationship between thermal dose and outcome in thermoradiotherapy treatments for superficial recurrences of breast cancer: Data from a phase III trial. Int. J. Radiat. Oncol. Biol. Phys. 1997, 39, 371–380. [Google Scholar] [CrossRef]
  121. Horsman, M.R.; Overgaard, J. Hyperthermia: A potent enhancer of radiotherapy. Clin. Oncol. 2007, 19, 418–426. [Google Scholar] [CrossRef] [PubMed]
  122. Sapareto, S.A.; Peter Raaphorst, G.; Dewey, W.C. Cell killing and the sequencing of hyperthermia and radiation. Int. J. Radiat. Oncol. Biol. Phys. 1979, 5, 343–347. [Google Scholar] [CrossRef]
  123. Li, G.C.; Kal, H.B. Effect of hyperthermia on the radiation response of two mammalian cell lines. Eur. J. Cancer 1977, 13, 65–69. [Google Scholar] [CrossRef]
  124. Sapareto, S.A.; Hopwood, L.E.; Dewey, W.C.; Raju, M.R.; Gray, J.W. Effects of hyperthermia on survival and progression of Chinese hamster ovary cells. Cancer Res. 1978, 38, 393–400. [Google Scholar] [PubMed]
  125. Falk, T.; Prasad, T.; Steffen, L.; Antje, D.; Andriy, F.; Robert, H.; Mathias, L.; Bernd, R.; Manfred, S.; Mechthild, K.; et al. Precise image-guided irradiation of small animals: A flexible non-profit platform. Phys. Med. Biol. 2016, 61, 3084–3108. [Google Scholar] [CrossRef]
  126. Ford, E.; Emery, R.; Huff, D.; Narayanan, M.; Schwartz, J.; Cao, N.; Meyer, J.; Rengan, R.; Zeng, J.; Sandison, G.; et al. An image-guided precision proton radiation platform for preclinical in vivo research. Phys. Med. Biol. 2017, 62, 43–58. [Google Scholar] [CrossRef] [PubMed]
  127. Vanstalle, M.; Constanzo, J.; Karakaya, Y.; Finck, C.; Rousseau, M.; Brasse, D. Analytical dose modeling for preclinical proton irradiation of millimetric targets. Med. Phys. 2018, 45, 470–478. [Google Scholar] [CrossRef] [PubMed]
  128. Verhaegen, F.; Dubois, L.; Gianolini, S.; Hill, M.A.; Karger, C.P.; Lauber, K.; Prise, K.M.; Sarrut, D.; Thorwarth, D.; Vanhove, C.; et al. ESTRO ACROP: Technology for precision small animal radiotherapy research: Optimal use and challenges. Radiother. Oncol. 2018, 126, 471–478. [Google Scholar] [CrossRef] [PubMed]
  129. Iwata, K.; Shakil, A.; Hur, W.J.; Makepeace, C.M.; Griffin, R.J.; Song, C.W. Tumour pO2 can be increased markedly by mild hyperthermia. Br. J. Cancer Suppl. 1996, 27, S217–S221. [Google Scholar] [PubMed]
  130. Song, C.W.; Shakil, A.; Osborn, J.L.; Iwata, K. Tumour oxygenation is increased by hyperthermia at mild temperatures. Int. J. Hyperth. 1996, 12, 367–373. [Google Scholar] [CrossRef]
  131. Vaupel, P.; Kallinowski, F.; Okunieff, P. Blood flow, oxygen and nutrient supply, and metabolic microenvironment of human tumors: A review. Cancer Res. 1989, 49, 6449–6465. [Google Scholar] [PubMed]
  132. Hurwitz, M.; Stauffer, P. Hyperthermia, radiation and chemotherapy: The role of heat in multidisciplinary cancer care. Semin. Oncol. 2014, 41, 714–729. [Google Scholar] [CrossRef] [PubMed]
  133. Corry, P.M.; Armour, E.P. The heat shock response: Role in radiation biology and cancer therapy. Int. J. Hyperth. 2005, 21, 769–778. [Google Scholar] [CrossRef] [PubMed]
  134. Repasky, E.; Issels, R. Physiological consequences of hyperthermia: Heat, heat shock proteins and the immune response. Int. J. Hyperth. 2002, 18, 486–489. [Google Scholar] [CrossRef] [PubMed]
  135. Roti Roti, J.L. Cellular responses to hyperthermia (40–46 °C): Cell killing and molecular events. Int. J. Hyperth. 2008, 24, 3–15. [Google Scholar] [CrossRef] [PubMed]
  136. Calderwood, S.K.; Theriault, J.R.; Gong, J. How is the immune response affected by hyperthermia and heat shock proteins? Int. J. Hyperth. 2005, 21, 713–716. [Google Scholar] [CrossRef] [PubMed]
  137. Coss, R.A. Inhibiting induction of heat shock proteins as a strategy to enhance cancer therapy. Int. J. Hyperth. 2005, 21, 695–701. [Google Scholar] [CrossRef] [PubMed]
  138. Lauber, K.; Brix, N.; Ernst, A.; Hennel, R.; Krombach, J.; Anders, H.; Belka, C. Targeting the heat shock response in combination with radiotherapy: Sensitizing cancer cells to irradiation-induced cell death and heating up their immunogenicity. Cancer Lett. 2015, 368, 209–229. [Google Scholar] [CrossRef] [PubMed]
  139. Welton, P.L.; Goffinet, D.R.; Kapp, D.S. Interstitial hyperthermia in head and neck oncology. In Carcinomas of the Head and Neck: Evaluation and Management; Jacobs, C., Ed.; Springer: Boston, MA, USA, 1990; Volume 52, pp. 83–93. [Google Scholar]
  140. Lindegaard, J.C.; Grau, C.; Overgaard, J. Effect of step-down heating on the interaction between heat and radiation in a C3H mammary carcinoma in vivo. Int. J. Radiat. Biol. 1991, 60, 707–721. [Google Scholar] [CrossRef] [PubMed]
  141. Lindegaard, J.C.; Overgaard, J. Effect of step-down heating on hyperthermic radiosensitization in an experimental tumor and a normal tissue in vivo. Radiother. Oncol. 1988, 11, 143–151. [Google Scholar] [CrossRef]
  142. Nielsen, O.S.; Overgaard, J.; Kamura, T. Influence of thermotolerance on the interaction between hyperthermia and radiation in a solid tumour in vivo. Br. J. Radiol. 1983, 56, 267–273. [Google Scholar] [CrossRef] [PubMed]
  143. Datta, N.R.; Puric, E.; Klingbiel, D.; Gomez, S.; Bodis, S. Hyperthermia and radiation therapy in locoregional recurrent breast cancers: A systematic review and meta-analysis. Int. J. Radiat. Oncol. Biol. Phys. 2016, 94, 1073–1087. [Google Scholar] [CrossRef] [PubMed]
  144. Datta, N.R.; Rogers, S.; Ordóñez, S.G.; Puric, E.; Bodis, S. Hyperthermia and radiotherapy in the management of head and neck cancers: A systematic review and meta-analysis. Int. J. Hyperth. 2016, 32, 31–40. [Google Scholar] [CrossRef] [PubMed]
  145. Franckena, M. Review of radiotherapy and hyperthermia in primary cervical cancer. Int. J. Hyperth. 2012, 28, 543–548. [Google Scholar] [CrossRef] [PubMed]
  146. Kaur, P.; Hurwitz, M.D.; Krishnan, S.; Asea, A. Combined hyperthermia and radiotherapy for the treatment of cancer. Cancers 2011, 3, 3799–3823. [Google Scholar] [CrossRef] [PubMed]
  147. Fu, Q.; Huang, T.; Wang, X.; Lu, C.; Liu, F.; Yang, G.; Wang, Y.; Wang, B. Association of elevated reactive oxygen species and hyperthermia induced radiosensitivity in cancer stem-like cells. Oncotarget 2017, 8, 101560–101571. [Google Scholar] [CrossRef] [PubMed]
  148. Suriyanto; Ng, E.Y.K.; Kumar, S.D. Physical mechanism and modeling of heat generation and transfer in magnetic fluid hyperthermia through Néelian and Brownian relaxation: A review. BioMed. Eng. OnLine 2017, 16, 36. [Google Scholar] [CrossRef] [PubMed]
  149. Saeed, M.; Ren, W.; Wu, A. Therapeutic applications of iron oxide based nanoparticles in cancer: Basic concepts and recent advances. Biomater. Sci. 2018. [Google Scholar] [CrossRef] [PubMed]
  150. Lagadec, C.; Vlashi, E.; Della Donna, L.; Meng, Y.; Dekmezian, C.; Kim, K.; Pajonk, F. Survival and self-renewing capacity of breast cancer initiating cells during fractionated radiation treatment. Breast Cancer Res. 2010, 12, R13. [Google Scholar] [CrossRef] [PubMed]
  151. Woodward, W.A.; Bristow, R.G. Radiosensitivity of cancer-initiating cells and normal stem cells (or what the Heisenberg uncertainly principle has to do with biology). Semin. Radiat. Oncol. 2009, 19, 87–95. [Google Scholar] [CrossRef] [PubMed]
  152. Hurley, K.R.; Ring, H.L.; Etheridge, M.; Zhang, J.; Gao, Z.; Shao, Q.; Klein, N.D.; Szlag, V.M.; Chung, C.; Reineke, T.M.; et al. Predictable heating and positive MRI contrast from a mesoporous silica-coated iron oxide nanoparticle. Mol. Pharm. 2016, 13, 2172–2183. [Google Scholar] [CrossRef] [PubMed]
  153. Ahmed, M.M.; Guha, C.; Hodge, J.W.; Jaffee, E. Immunobiology of radiotherapy: New paradigms. Radiat. Res. 2014, 182, 123–125. [Google Scholar] [CrossRef] [PubMed]
  154. Demaria, S.; Golden, E.B.; Formenti, S.C. Role of local radiation therapy in cancer immunotherapy. JAMA Oncol. 2015, 1, 1325–1332. [Google Scholar] [CrossRef] [PubMed]
  155. Formenti, S.C.; Demaria, S. Combining radiotherapy and cancer immunotherapy: A paradigm shift. JNCI J. Natl. Cancer Inst. 2013, 105, 256–265. [Google Scholar] [CrossRef] [PubMed]
  156. Salama, A.K.S.; Postow, M.A.; Salama, J.K. Irradiation and immunotherapy: From concept to the clinic. Cancer 2016, 122, 1659–1671. [Google Scholar] [CrossRef] [PubMed]
  157. Dewan, M.Z.; Galloway, A.E.; Kawashima, N.; Dewyngaert, J.K.; Babb, J.S.; Formenti, S.C.; Demaria, S. Fractionated but not single-dose radiotherapy induces an immune-mediated abscopal effect when combined with anti–CTLA-4 antibody. Clin. Cancer Res. 2009, 15, 5379–5388. [Google Scholar] [CrossRef] [PubMed]
  158. Lee, Y.; Auh, S.L.; Wang, Y.; Burnette, B.; Wang, Y.; Meng, Y.; Beckett, M.; Sharma, R.; Chin, R.; Tu, T.; et al. Therapeutic effects of ablative radiation on local tumor require CD8+ T cells: Changing strategies for cancer treatment. Blood 2009, 114, 589–595. [Google Scholar] [CrossRef] [PubMed]
  159. Lugade, A.A.; Moran, J.P.; Gerber, S.A.; Rose, R.C.; Frelinger, J.G.; Lord, E.M. Local radiation therapy of B16 melanoma tumors increases the generation of tumor antigen-specific effector cells that traffic to the tumor. J. Immunol. 2005, 174, 7516–7523. [Google Scholar] [CrossRef] [PubMed]
  160. Schaue, D.; Ratikan, J.A.; Iwamoto, K.S.; McBride, W.H. Maximizing tumor immunity with fractionated radiation. Int. J. Radiat. Oncol. Biol. Phys. 2012, 83, 1306–1310. [Google Scholar] [CrossRef] [PubMed]
  161. Vranješ-Đurić, S.; Ignjatović, N. Radiolabeled functional nanoparticles in preventive and regenerative medicine. In Nanotechnologies in Preventive and Regenerative Medicine, 1st ed.; Uskokovic, V., Ed.; Elsevier: Cambridge, MA, USA, 2017; pp. 65–92. [Google Scholar]
  162. Ernsting, M.J.; Murakami, M.; Roy, A.; Li, S.-D. Factors controlling the pharmacokinetics, biodistribution and intratumoral penetration of nanoparticles. J. Control. Release 2013, 172, 782–794. [Google Scholar] [CrossRef] [PubMed]
  163. Kang, H.; Mintri, S.; Menon, A.V.; Lee, H.Y.; Choi, H.S.; Kim, J. Pharmacokinetics, pharmacodynamics and toxicology of theranostic nanoparticles. Nanoscale 2015, 7, 18848–18862. [Google Scholar] [CrossRef] [PubMed]
  164. Jankovic, D.; Vranjes-Djuric, S.; Djokic, D.; Markovic, M.; Ajdinovic, B.; Jaukovic, L.; Nikolic, N. 90Y-labeled tin fluoride colloid as a promising therapeutic agent: Preparation, characterization, and biological study in rats. J. Pharm. Sci. 2012, 101, 2194–2203. [Google Scholar] [CrossRef] [PubMed]
  165. Radović, M.; Calatayud, M.P.; Goya, G.F.; Ibarra, M.R.; Antić, B.; Spasojević, V.; Nikolić, N.; Janković, D.; Mirković, M.; Vranješ-Đurić, S. Preparation and in vivo evaluation of multifunctional 90Y-labeled magnetic nanoparticles designed for cancer therapy. J. Biomed. Mater. Res. Part A 2015, 103, 126–134. [Google Scholar] [CrossRef] [PubMed]
  166. Gobbo, O.L.; Wetterling, F.; Vaes, P.; Teughels, S.; Markos, F.; Edge, D.; Shortt, C.M.; Crosbie-Staunton, K.; Radomski, M.W.; Volkov, Y.; et al. Biodistribution and pharmacokinetic studies of spion using particle electron paramagnetic resonance, MRI and ICP-MS. Nanomedicine 2015, 10, 1751–1760. [Google Scholar] [CrossRef] [PubMed]
  167. Karageorgou, M.-A.; Vranješ-Djurić, S.; Radović, M.; Lyberopoulou, A.; Antić, B.; Rouchota, M.; Gazouli, M.; Loudos, G.; Xanthopoulos, S.; Sideratou, Z.; et al. Gallium-68 labeled iron oxide nanoparticles coated with 2,3-dicarboxypropane-1,1-diphosphonic acid as a potential pet/mr imaging agent: A proof-of-concept study. Contrast Media Mol. Imaging 2017, 2017, 13. [Google Scholar] [CrossRef] [PubMed]
  168. Pellico, J.; Ruiz-Cabello, J.; Saiz-Alía, M.; del Rosario, G.; Caja, S.; Montoya, M.; Fernández de Manuel, L.; Morales, M.P.; Gutiérrez, L.; Galiana, B.; et al. Fast synthesis and bioconjugation of 68Ga core-doped extremely small iron oxide nanoparticles for PET/MR imaging. Contrast Media Mol. Imaging 2016, 11, 203–210. [Google Scholar] [CrossRef] [PubMed]
  169. Xiao, K.; Li, Y.; Luo, J.; Lee, J.S.; Xiao, W.; Gonik, A.M.; Agarwal, R.G.; Lam, K.S. The effect of surface charge on in vivo biodistribution of PEG-oligocholic acid based micellar nanoparticles. Biomaterials 2011, 32, 3435–3446. [Google Scholar] [CrossRef] [PubMed]
  170. Diehl, K.-H.; Hull, R.; Morton, D.; Pfister, R.; Rabemampianina, Y.; Smith, D.; Vidal, J.-M.; Vorstenbosch, C.V.D. A good practice guide to the administration of substances and removal of blood, including routes and volumes. J. Appl. Toxicol. 2001, 21, 15–23. [Google Scholar] [CrossRef] [PubMed]
  171. Charan, J.; Kantharia, N. How to calculate sample size in animal studies? J. Pharmacol. Pharmacother. 2013, 4, 303–306. [Google Scholar] [CrossRef] [PubMed]
  172. Bouziotis, P.; Stellas, D.; Thomas, E.; Truillet, C.; Tsoukalas, C.; Lux, F.; Tsotakos, T.; Xanthopoulos, S.; Paravatou-Petsotas, M.; Gaitanis, A.; et al. 68Ga-radiolabeled AGuIX nanoparticles as dual-modality imaging agents for PET/MRI-guided radiation therapy. Nanomedicine 2017, 12, 1561–1574. [Google Scholar] [CrossRef] [PubMed]
  173. Antic, B.; Boskovic, M.; Nikodinovic-Runic, J.; Ming, Y.; Zhang, H.; Bozin, E.S.; Janković, D.; Spasojevic, V.; Vranjes-Djuric, S. Complementary approaches for the evaluation of biocompatibility of 90Y-labeled superparamagnetic citric acid (Fe,Er)3O4 coated nanoparticles. Mater. Sci. Eng. C 2017, 75, 157–164. [Google Scholar] [CrossRef] [PubMed]

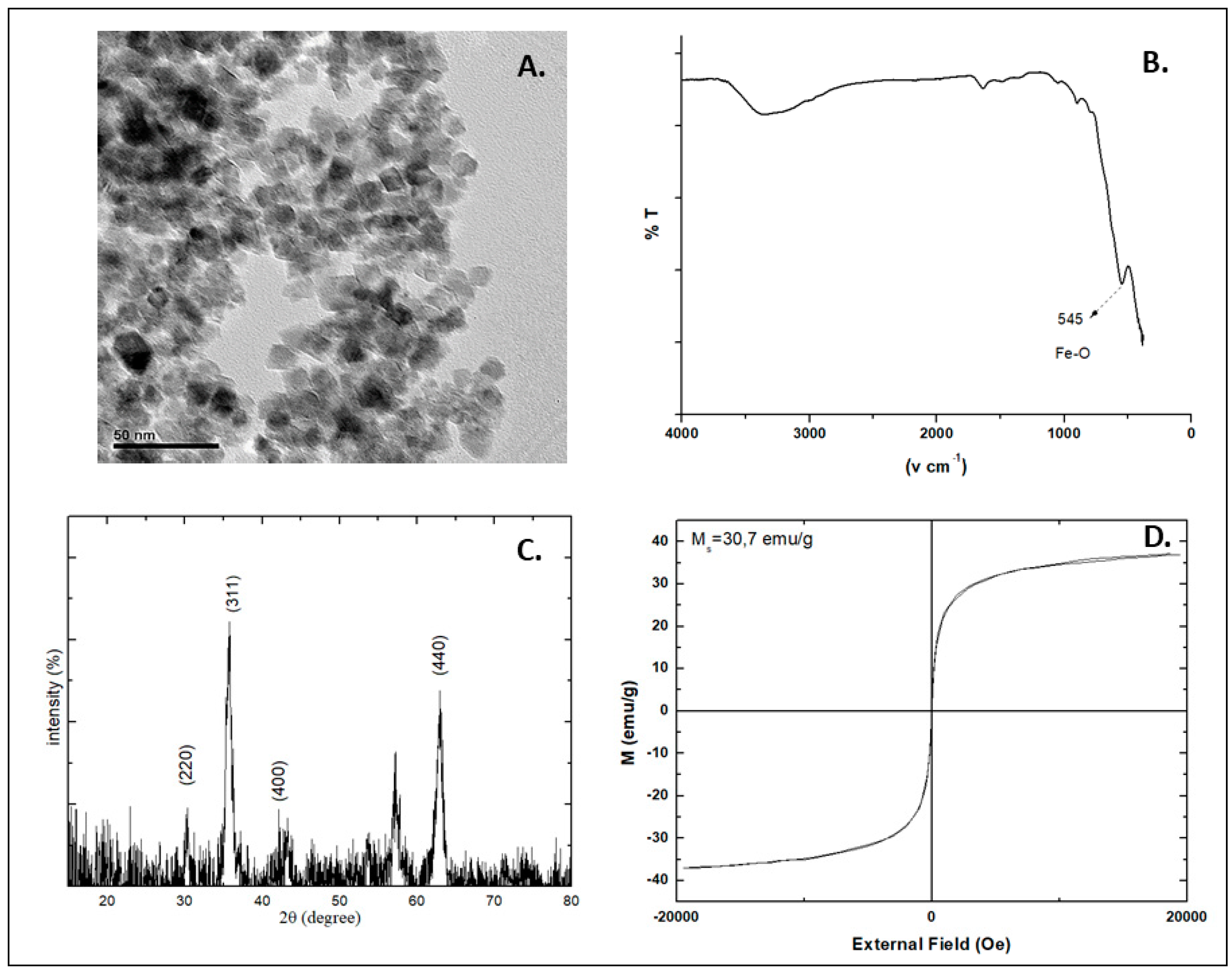

Figure 1. Typical transmission electron microscopy (TEM) (A), fourier transformed-infrared spectroscopy (FT-IR) (B), X-ray powder diffraction (XRD) (C) and vibrating sample magnetometer (VSM) (D) characterization of MNPs (maghemite-magnetite mixture). (Unpublished data).
Figure 1. Typical transmission electron microscopy (TEM) (A), fourier transformed-infrared spectroscopy (FT-IR) (B), X-ray powder diffraction (XRD) (C) and vibrating sample magnetometer (VSM) (D) characterization of MNPs (maghemite-magnetite mixture). (Unpublished data).
Nanomaterials 08 00306 g001

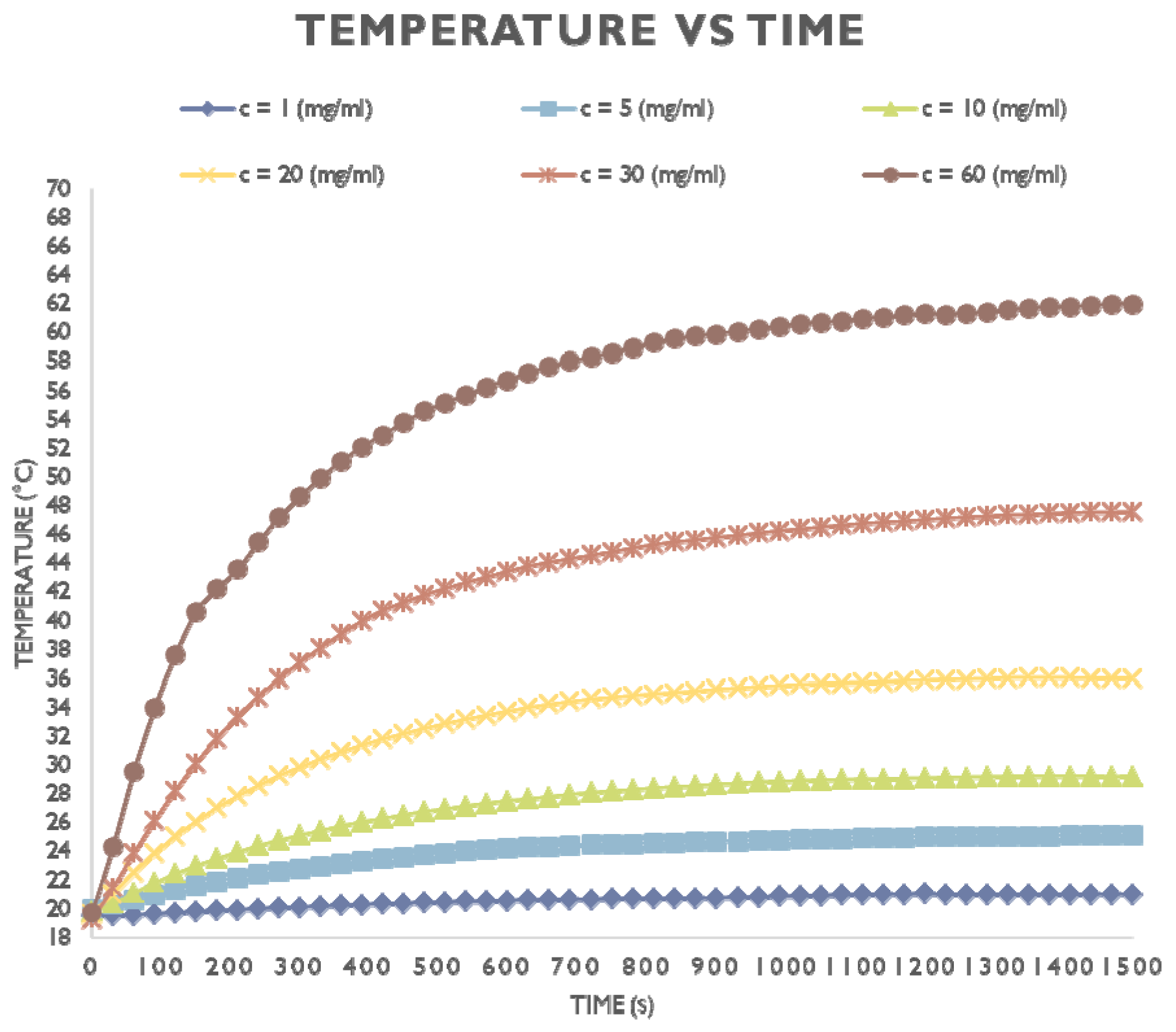

Figure 2. Example of temperature response as a function of time and concentration of the MNPs (maghemite-magnetite mixture) under AMF. The temperature was measured with the Ambrell EasyHeat system (Magnetic Field Amplitude H0 = 30.1 kA/m, Frequency f = 275.0 kHz) using a Yokogawa fiber-optic system with Tpmeter3 software. The optical fiber was immersed in the magnetic fluid, so that the tip of the fiber would coincide with the central point of the magnetic fluid volume. A time interval of ~5 min was allowed before switching on the magnetic field, so that the system would reach the thermal equilibrium state. The desirable magnetic field could be achieved by adjusting the coil current via the EasyHeat system. A time step of 30 s was selected between consecutive temperature recordings and the total heating process lasted 1500 s. Subsequently, the field was switched off, but the data acquisition process was continued, in order to obtain the cooling phase of the fluid. (Unpublished data).
Figure 2. Example of temperature response as a function of time and concentration of the MNPs (maghemite-magnetite mixture) under AMF. The temperature was measured with the Ambrell EasyHeat system (Magnetic Field Amplitude H0 = 30.1 kA/m, Frequency f = 275.0 kHz) using a Yokogawa fiber-optic system with Tpmeter3 software. The optical fiber was immersed in the magnetic fluid, so that the tip of the fiber would coincide with the central point of the magnetic fluid volume. A time interval of ~5 min was allowed before switching on the magnetic field, so that the system would reach the thermal equilibrium state. The desirable magnetic field could be achieved by adjusting the coil current via the EasyHeat system. A time step of 30 s was selected between consecutive temperature recordings and the total heating process lasted 1500 s. Subsequently, the field was switched off, but the data acquisition process was continued, in order to obtain the cooling phase of the fluid. (Unpublished data).
Nanomaterials 08 00306 g002
Figure 3. Cumulative positron emission tomography (PET) / X-radiation (X-ray) images of a normal Swiss mouse injected with 68Ga-Fe3O4-2,3-dicarboxypropane-1,1-diphosphonic acid (DPD) MNPs at 20, 30 and 60 min post-injection. The gradual alteration in color indicates a lower to higher number of recorded counts (Reproduced with permission from [167]).
Figure 3. Cumulative positron emission tomography (PET) / X-radiation (X-ray) images of a normal Swiss mouse injected with 68Ga-Fe3O4-2,3-dicarboxypropane-1,1-diphosphonic acid (DPD) MNPs at 20, 30 and 60 min post-injection. The gradual alteration in color indicates a lower to higher number of recorded counts (Reproduced with permission from [167]).
Nanomaterials 08 00306 g003
Figure 4. Ex vivo biodistribution study of 68Ga-Fe3O4-DPD MNPs in normal Swiss mice performed at 30, 60, and 120 min post injection (Reproduced with permission from [167]). Due to the relatively short half-life of 68Ga (t1/2 = 68 min), the study was performed at the designated time-points, after i.v. injection of the radiolabeled MNPs (11.11 μg MNPs/100 μL per mouse).
Figure 4. Ex vivo biodistribution study of 68Ga-Fe3O4-DPD MNPs in normal Swiss mice performed at 30, 60, and 120 min post injection (Reproduced with permission from [167]). Due to the relatively short half-life of 68Ga (t1/2 = 68 min), the study was performed at the designated time-points, after i.v. injection of the radiolabeled MNPs (11.11 μg MNPs/100 μL per mouse).
Nanomaterials 08 00306 g004
Table 1. Brief presentation of recent studies concerning cytotoxicity of MNPs, reproduced from Patil et al. [71]. The references in the table are the references in Patil’s paper, where more information can be found.
Table 1. Brief presentation of recent studies concerning cytotoxicity of MNPs, reproduced from Patil et al. [71]. The references in the table are the references in Patil’s paper, where more information can be found.
Coating AgentTypes of IONPsDiameter (nm)Type of CellsDoseIncubation TimeTypes of AssayBrief ResultsRef.
SilicaBare IONPs10 ± 3Human dermal fibroblasts (HDFs) and human fibrosarcoma (HT-1080) in DMEM media200–1000 μg/mL24 hCCK-8 and LDHAPTMS-TEOS-Fe3O4 showed more cytotoxicity in terms of metabolic activity compared to other MNPs in HDFs. All MNPs induced LDH leakage in HDFs and HT-1080 cells.[62]
TEOS-IONPs100–150
APTMS-TEOS-IONPs100–150
Bare IONPs10–50Peripheral blood lymphocytes in RPMI media1–100 μg/mL2 and 24 hAnnexin V-FIT Capoptosis detectionNo significant difference between treated and untreated lymphocytes for 2 and 24 h.[104]
VTES-TEOS-IONPs10–50
APTES/VTES-TEOS-IONPs10–50
Bare IONPs150–200 LL929 fibroblasts in DMEM media15–1000 mg/L24–72 h MMTTSilica coating reduced cell toxicity. Sulfhydryl modification improved cell-compatibility and haemocompatibility.[105]
TEOS-IONPs
DMSA-TEOS-IONPs
TEOS-IONPs15–20MCF-7 and HeLa cells in DMEM media0–200 μg/mL24 h MMTTMCF-7 and HeLa cells showed good biocompatibility at various concentrations.[106]
PEGPEG-IONPs~30Hela cells and C6 cells in DMEM media0.01–1 mg/mL12 hMTTCell viability was not affected at the concentration of 1 mg/mL.[107]
PEG-IONPs10–15NIH/3T3 in DMEM1.5 to 192 μM24 and 48 hMTTPEG-IONPs showed good compatibility, 86% (24 h) and 67% (48 h) at 192 μM.[108]
Bare IONPs10–13Macrophages (mice) in RPMI media100 μg/mL1 hMTTNo significant changes in viability after 1 h by all IONPs. Bare IONPs produced highest ROS compared to PEG and COOH-PEG-IONPs.[109]
PEG- IONPs100
COOH-PEG-IONPs100
PEG-550-IONPs8–11Bovine vascular smooth muscle cells (VSMCs) in DMEM media100–1000 ppm5–24 hLIVE/DEAD viability/Cytotoxicity KitDose dependent cytotoxic response was found.
PEG-2K showed higher cell viability compared to PEG-10K at 100 ppm.
[110]
PEG-2K-IONPs
PEG-5K-IONPs
PEG-10K-IONPs
PEPABC: IONPs36 ± 5Mouse brain endothelial cell line (bEnd.3) in DMEM media0–10 mg/mL30 hResazurin dye assayNo cell death reported after 30 h exposure at 10 mg/mL.[110]
DextranDextran-IONPs200–250Head and neck squamous cell carcinoma: tonsilla (UT-SCC-60A) and the metastasis (UT-SCC-60B) in DMEM media0.2–1.8 mM0–120 hMTT, Annexin-V apoptosis detection assayMTT: Decreased cell toxicity of dextran-IONPs compared to Resovist®
Annexin-V-apoptosis: no changes in cell viability when cells were treated at the concentration of 1.8 mM.
[112]
Dextran-IONPs100Mouse melanoma cells (B16) and Chinese hamster lung; fibroblast cells (V79) in DMEM media0–400 μg/mL24 hMTTSlight changes in the cell viability were noticed as compared to control.[113]
Dextran-IONPs 99.12 ± 1.46 LL929 fibroblast cells50–1000 μg/mL24 hMTTSignificant reduction in cell viability at 1 mg/mL. Cells were 90% viable at 0.75 mg/mL.[114]
DEAE-dextran-IONPs27–50Murine mesenchymal stem/stromal cell (MSC) in DMEM media50 μg/mL3 hCCK-8No significant changes I the cell viability were noticed.[115]
Bare Fe2O37Human bone marrow mesenchymal stromal cells (hBMSCs)
hBMSCs-1: age 12 years;
hBMSCs-2: age 54 years in α-modified eagle media (α MEM)
15.4 g of iron/mL72 hWST-1The study compared physicochemical properties of bare Fe2O3 and nanoparticles coated with different coating agents.
hBMSCs-1: significant reduction in cell viability by PLL-Fe2O3and mannose-Fe2O3 NPs;
hBMSCs-2: reduction in cell viability by all IONPs, mostly by uncoated-Fe2O3 and PLL-Fe O NPs.
[116]
Endorem® (Fe3O4 coated with dextran)5.5
PLLPLL-Fe2O35.5
PLL-dextranPLL-Endorem5.6
PDMAAmPDMAAm-Fe2O37.5
MannoseMannose-Fe2O37
Mono-mericIONPs-R16.5–7.5Murine primary brain cells (primary microglia, primary hippocampal neurons, and neuron–glia co-cultures) in DMEM media0.5, 1.5 or 3.0 mM6–24 hPI stainingExtended incubation and dose dependent cell death was observed by all IONPs except Ferumoxytol. Ferumoxytol surprisingly increased the number of viable cells. IONPs-R1, R2 and Ferucarbotran were quickly ingested by microglial cells compared to Ferumoxytol.[117]
citrate layerIONPs-R27.5–8.7
Carboxy-dextranFerucarbotran (Resovist®)60
Carboxymeth-dextranFerumoxytol (Feraheme®)30
ChitosanBare IONPs 550-100Human L-O2 hepatocytes in RPMI media1.25–20 μg/mL24 hMTTBare IONPs showed more cytotoxicity compared to FAPLCS-IONPs in L-O2 hepatocytes.[118]
FAPLCS-IONPs 1136.60 ± 3.90
Bare IONPs 118Primary human osteoblast cells (SV40) in DMEM media20–300 μg/mL48 hCCK-8Decreased viability found when cells were treated with bare IONPs at 100 and 300 μg/mL.[119]
CS-IONPs35
CS-IONPs2–8Cervical carcinoma cell lines (HeLa and SiHa)0–1000 μg/mL24 hXTTBare and CS-IONPs showed reduction in cell viability by 5% and 2% respectively.
SiHa cells showed 8% reduction in cell viability at 1000 μg/mL.
[120]
Carbon[email protected]/C5–140Human (HTB140), murine (B16-F10) melanoma cells and human dermal fibroblasts (HDF) in DMEM0.0001–100 μg/mL24 hMTTDecreased cell viability in melanoma cells.
Murine melanoma cells were more sensitive to bare IONPs than human cells. [email protected] and [email protected]2CH2-COOH showed weaker response to cells, and 80–100% cells remained viable.
[121]
Abbreviations: TEOS: tetraethyl ortho silicate, APTMS: (3-aminopropyl) trimethoxysilane, PEG: polyethylene glycol, VTES: triethoxyvinylsilane, FITC: fluorescein isothiocyanate, PLL: poly-L-lysine, DMSA: meso-2,3-dimeraptosuccinic acid, XTT: (2,3-bis-(2-methoxy-4-nitro-5-sulfophenyl)-2H-tetrazolium-5-carboxanilide), PEG-CS-PTH NPs: parathyroid hormone (PTH 1−34) loaded PEGylated chitosan nanoparticles, PEG-(550,2K,5K,10K)-IONPs: IONPs coated with PEGs of varying chain length, FAPLCS: folate-conjugated N-palmitoyl chitosan micelles, DEAE-dextran-IONPs: diethylamino ethyl (DEAE)-Dextran coated IONPs, PEPABC: (poly(ethylene glycol)-poly(aspartate) block copolymers), CS-IONPs: chitosan coated IONPs, [email protected]/C: bare carbon encapsulated IONPs, [email protected], [email protected]2CH2-COOH: carboxylic acid modified IONPs.

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Nanomaterials EISSN 2079-4991 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
