Open AccessArticle
Nanomaterials 2018, 8(5), 286;

Solution-Plasma-Mediated Synthesis of Si Nanoparticles for Anode Material of Lithium-Ion Batteries

Faculty of Engineering, Hokkaido University, Kita 13 Nishi 8, Kitaku, Sapporo 060-8628, Japan
Kankyou-Engineering Co., Ltd. Kita 19 Higashi 1, Higashiku, Sapporo 065-0019, Japan
Author to whom correspondence should be addressed.
Received: 8 April 2018 / Revised: 24 April 2018 / Accepted: 25 April 2018 / Published: 27 April 2018
(This article belongs to the Special Issue Plasma based Synthesis and Modification of Nanomaterials)
Full-Text   |   PDF [10743 KB, uploaded 3 May 2018]   |

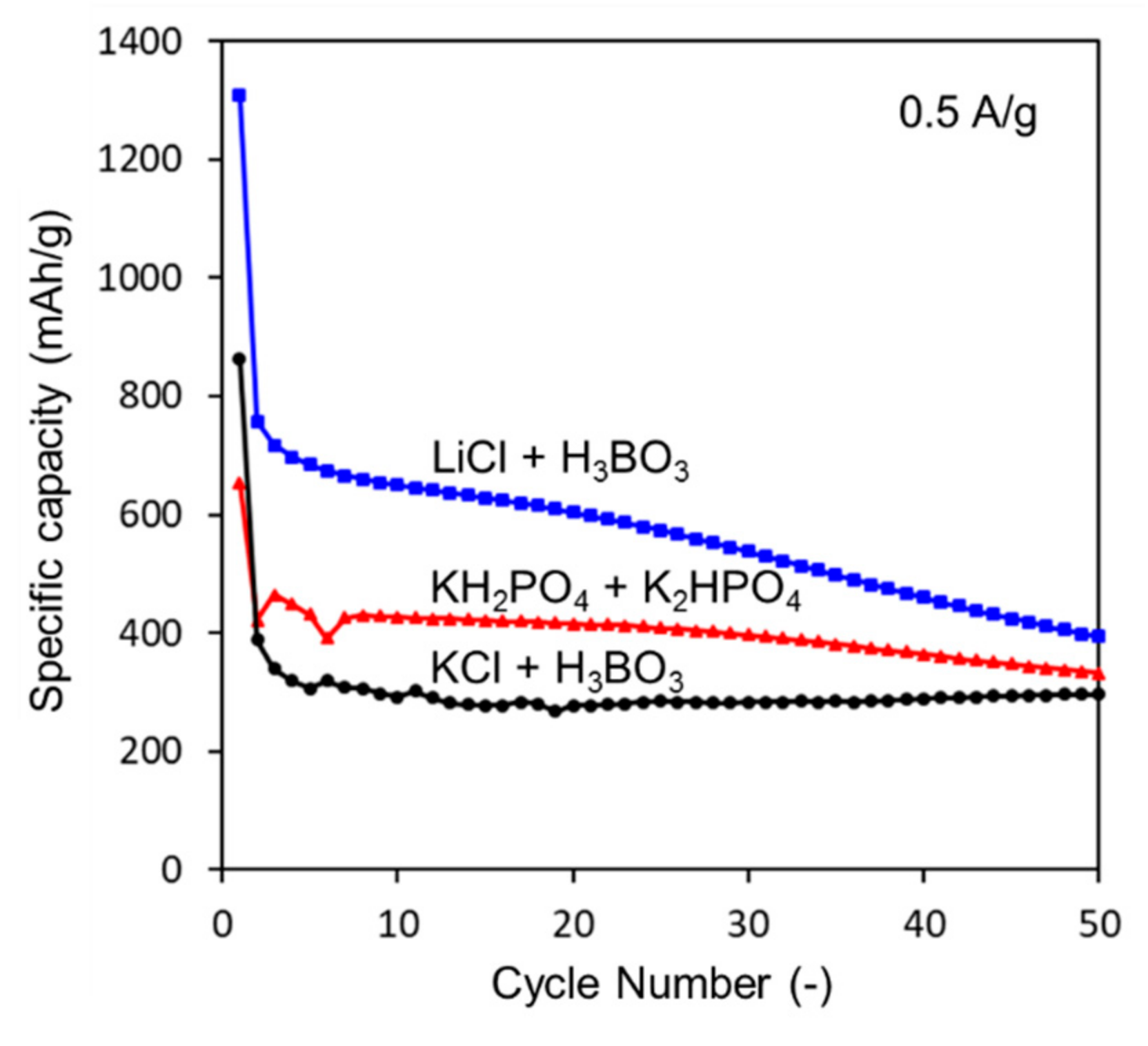

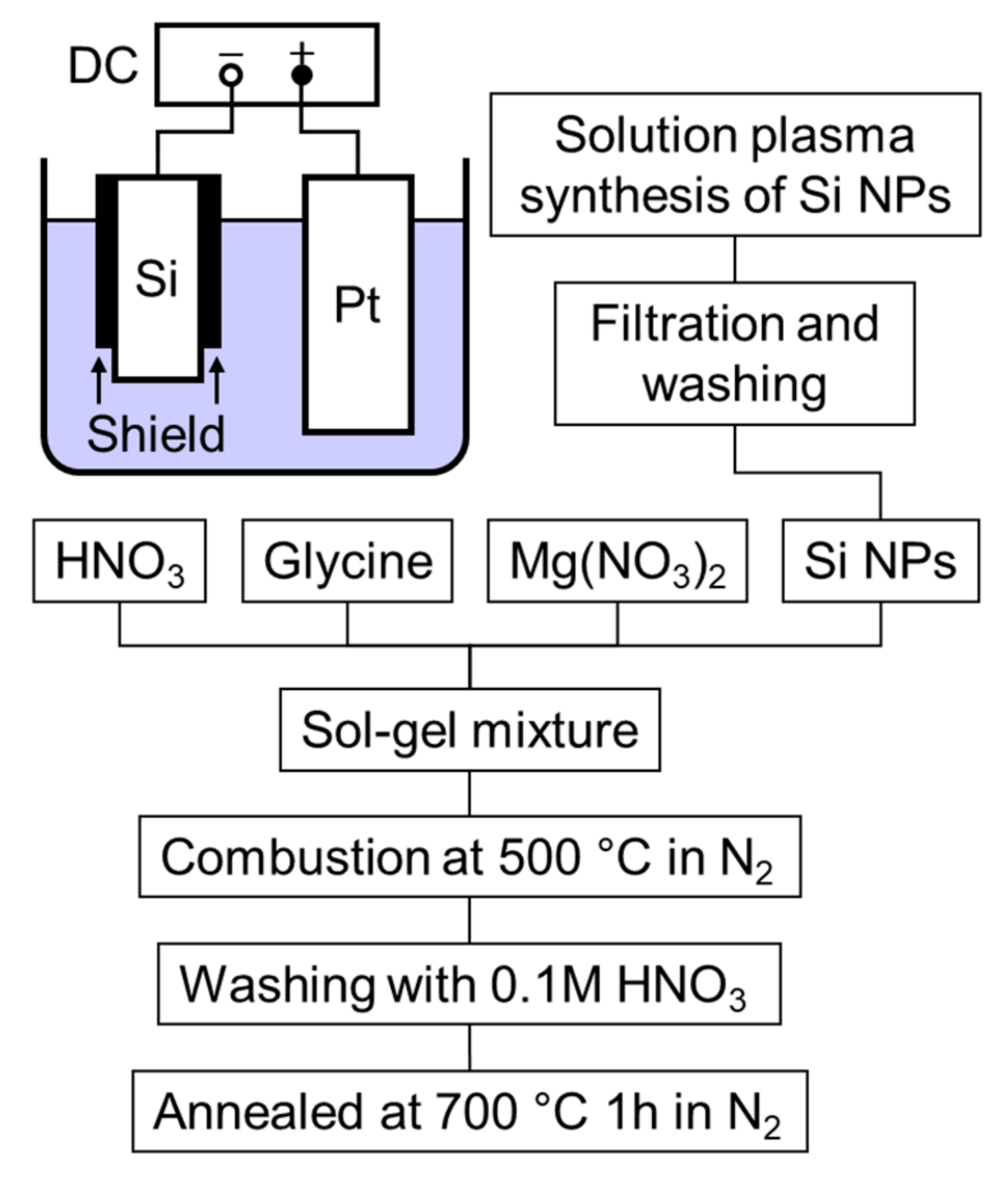

Silicon anodes have attracted considerable attention for their use in lithium-ion batteries because of their extremely high theoretical capacity; however, they are prone to extensive volume expansion during lithiation, which causes disintegration and poor cycling stability. In this article, we use two approaches to address this issue, by reducing the size of the Si particles to nanoscale and incorporating them into a carbon composite to help modulate the volume expansion problems. We improve our previous work on the solution-plasma-mediated synthesis of Si nanoparticles (NPs) by adjusting the electrolyte medium to mild buffer solutions rather than strong acids, successfully generating Si-NPs with <10 nm diameters. We then combined these Si-NPs with carbon using MgO-template-assisted sol-gel combustion synthesis, which afforded porous carbon composite materials. Among the preparations, the composite material obtained from the LiCl 0.2 M + H3BO3 0.15 M solution-based Si-NPs exhibited a high reversible capacity of 537 mAh/g after 30 discharge/charge cycles at a current rate of 0.5 A/g. We attribute this increased reversible capacity to the decreased particle size of the Si-NPs. These results clearly show the applicability of this facile and environmentally friendly solution-plasma technique for producing Si-NPs as an anode material for lithium-ion batteries. View Full-Text
Keywords: solution plasma; nanoparticles; batteries; silicon; anode materials solution plasma; nanoparticles; batteries; silicon; anode materials

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
