Next Article in Journal
Solution-Plasma-Mediated Synthesis of Si Nanoparticles for Anode Material of Lithium-Ion Batteries
Next Article in Special Issue
A Hollow-Structured Manganese Oxide Cathode for Stable Zn-MnO2 Batteries
Previous Article in Journal
A Perspective on the Application of Spatially Resolved ARPES for 2D Materials
Open AccessArticle

One-Dimensional Porous Silicon Nanowires with Large Surface Area for Fast Charge–Discharge Lithium-Ion Batteries

1
Department of Physics and Astronomy, Yunnan University, Kunming 650091, Yunnan, China
2
Materials Science and Engineering Program, University of Houston, Houston, TX 77204, USA
3
Micro and Nano-materials and Technology Key Laboratory of Yunnan Province, Kunming 650091, Yunnan, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2018, 8(5), 285; https://doi.org/10.3390/nano8050285
Received: 10 April 2018 / Revised: 24 April 2018 / Accepted: 25 April 2018 / Published: 27 April 2018
(This article belongs to the Special Issue Nanomaterials and Nanofabrication for Electrochemical Energy Storage)

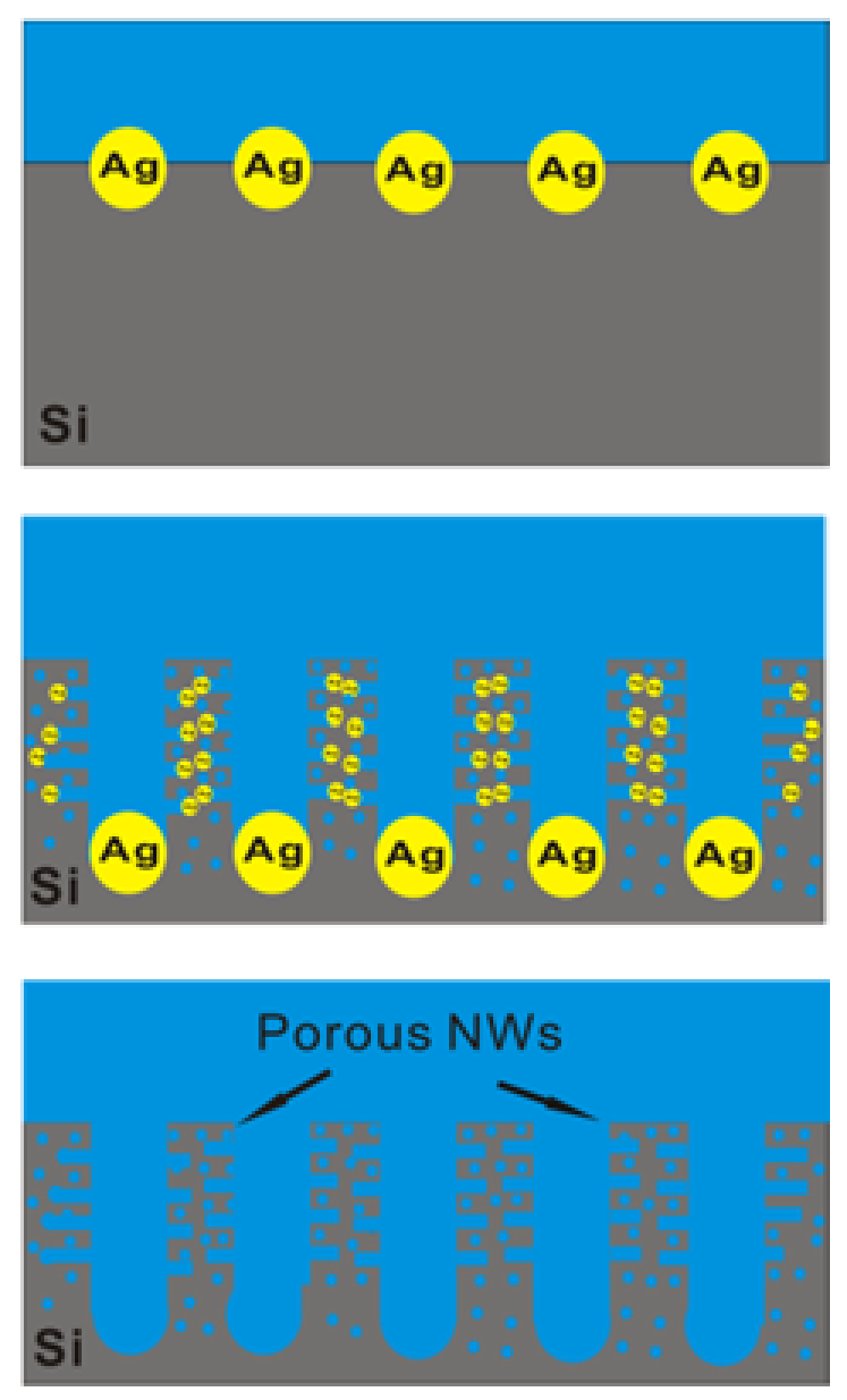

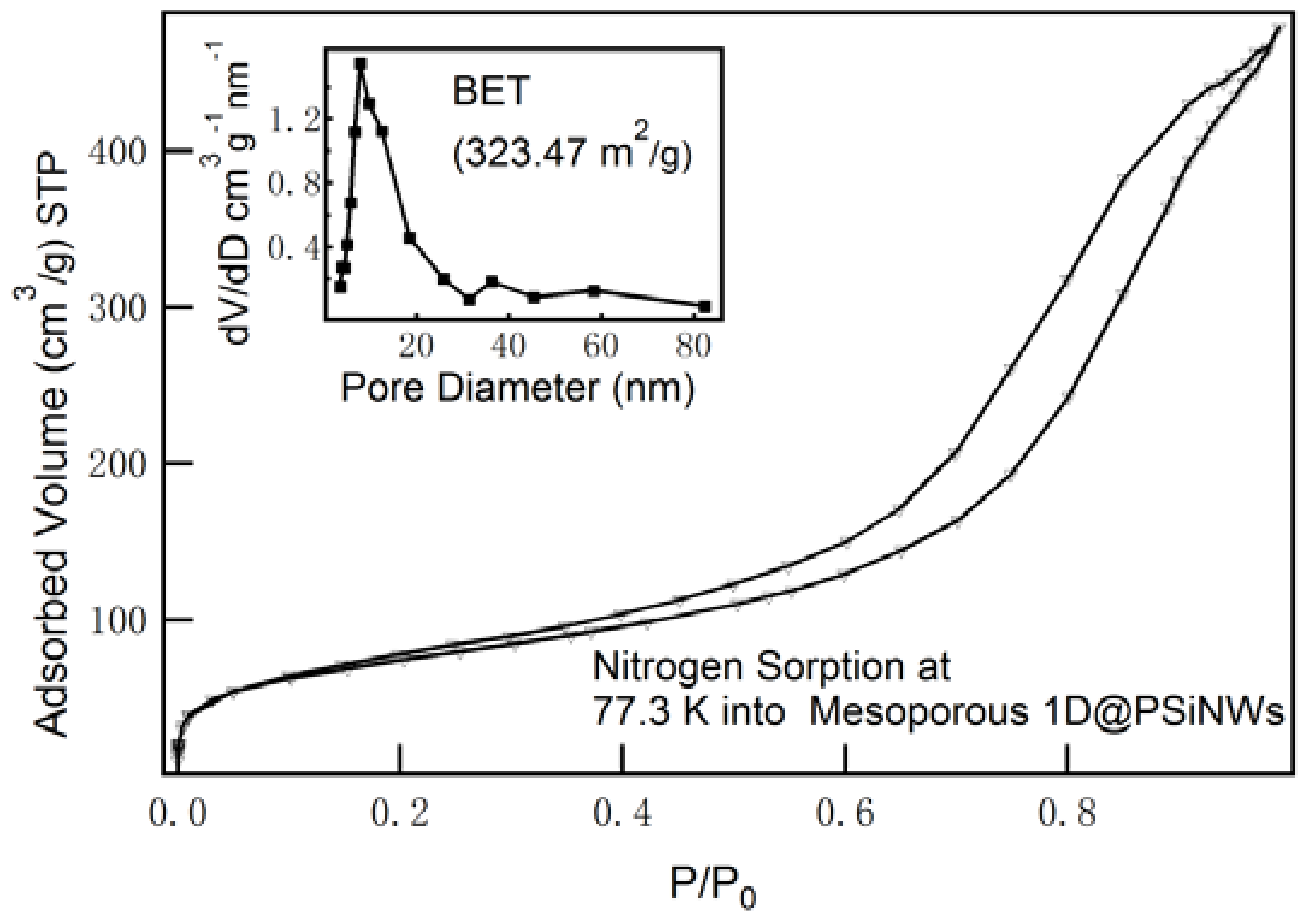

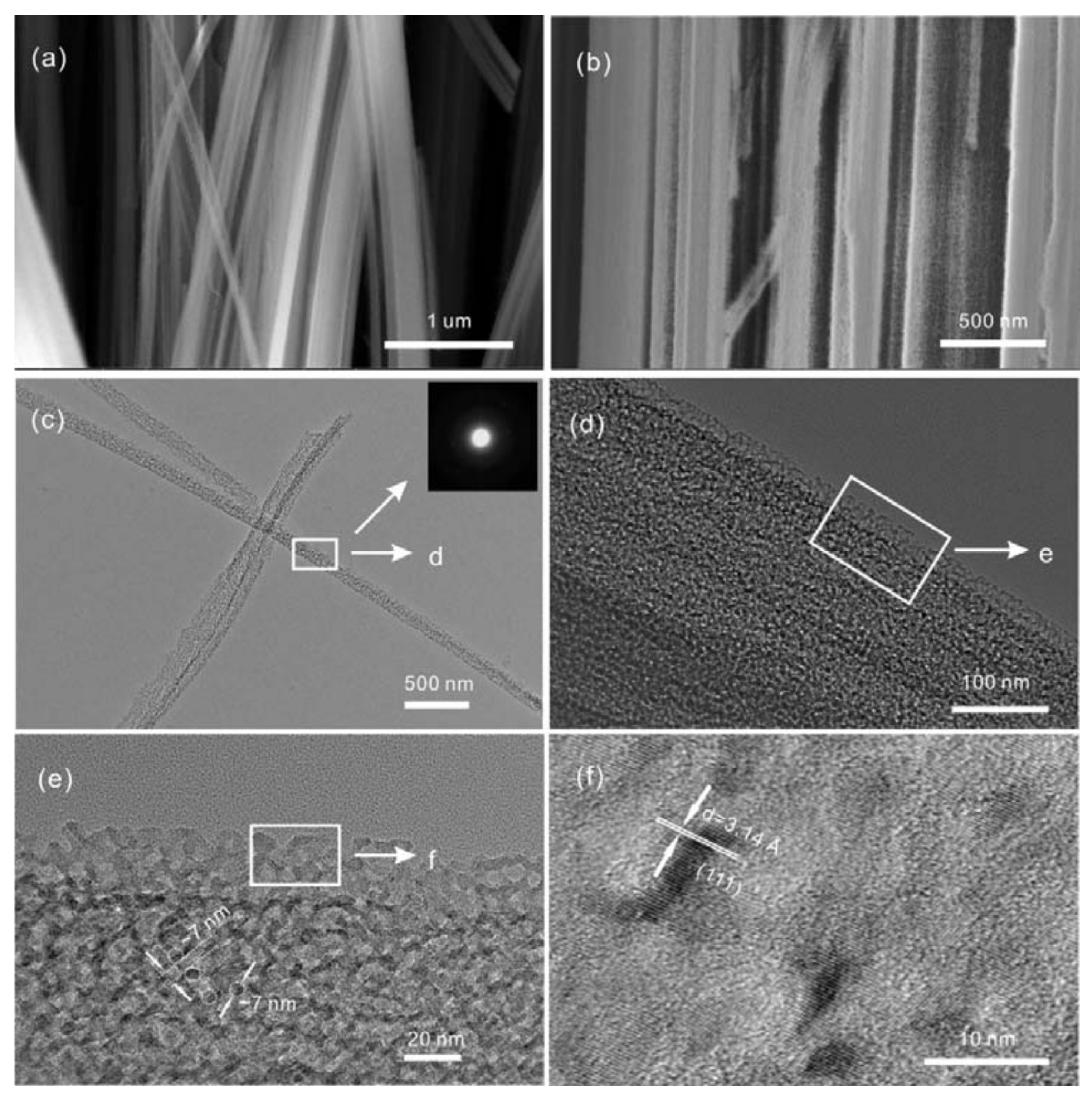

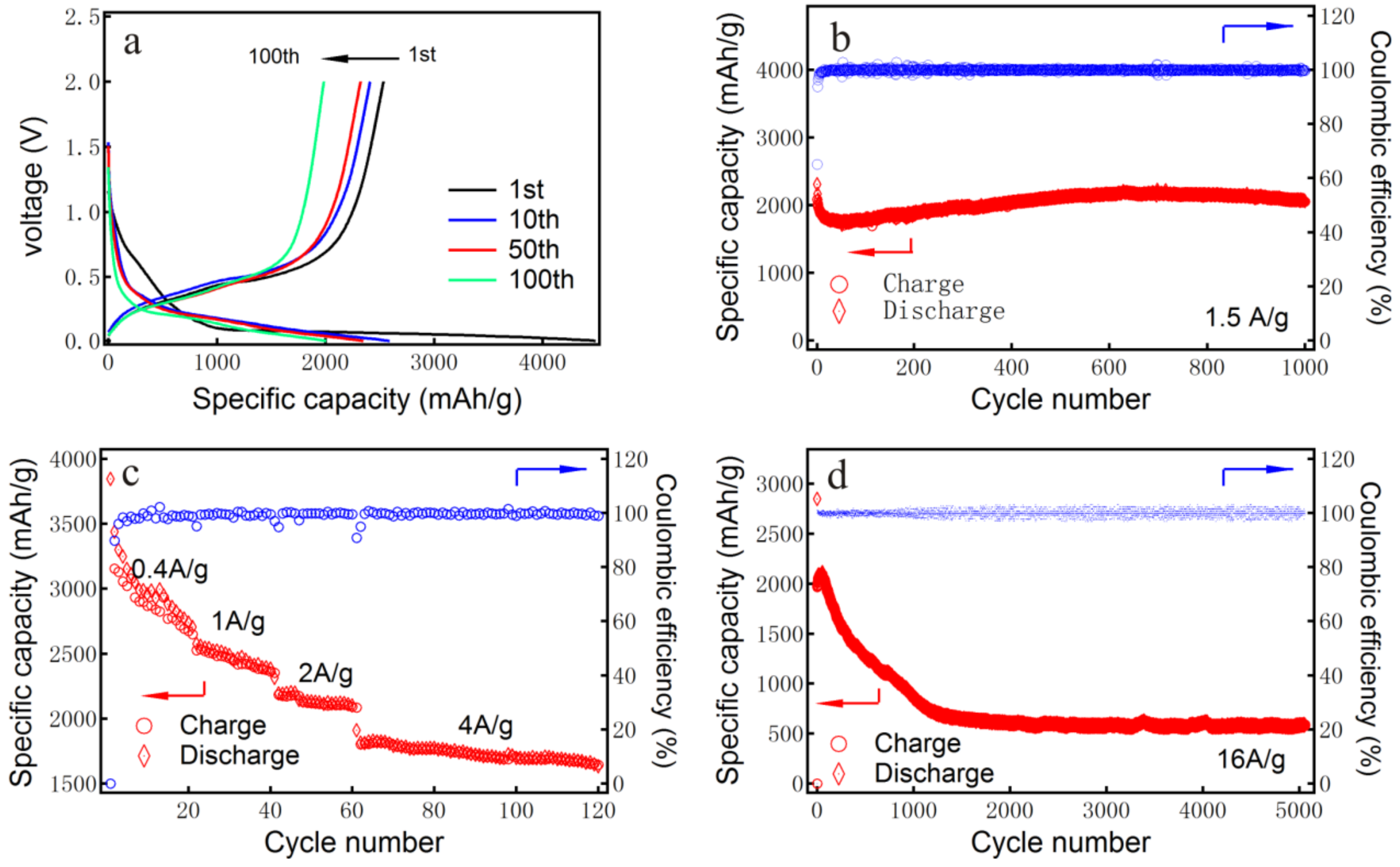

In this study, one-dimensional porous silicon nanowire (1D–PSiNW) arrays were fabricated by one-step metal-assisted chemical etching (MACE) to etch phosphorus-doped silicon wafers. The as-prepared mesoporous 1D–PSiNW arrays here had especially high specific surface areas of 323.47 m2·g−1 and were applied as anodes to achieve fast charge–discharge performance for lithium ion batteries (LIBs). The 1D–PSiNWs anodes with feature size of ~7 nm exhibited reversible specific capacity of 2061.1 mAh·g−1 after 1000 cycles at a high current density of 1.5 A·g−1. Moreover, under the ultrafast charge–discharge current rate of 16.0 A·g−1, the 1D–PSiNWs anodes still maintained 586.7 mAh·g−1 capacity even after 5000 cycles. This nanoporous 1D–PSiNW with high surface area is a potential anode candidate for the ultrafast charge–discharge in LIBs with high specific capacity and superior cycling performance. View Full-Text
Keywords: mesoporous structure; high surface areas; ultrafast; long-cycling life mesoporous structure; high surface areas; ultrafast; long-cycling life

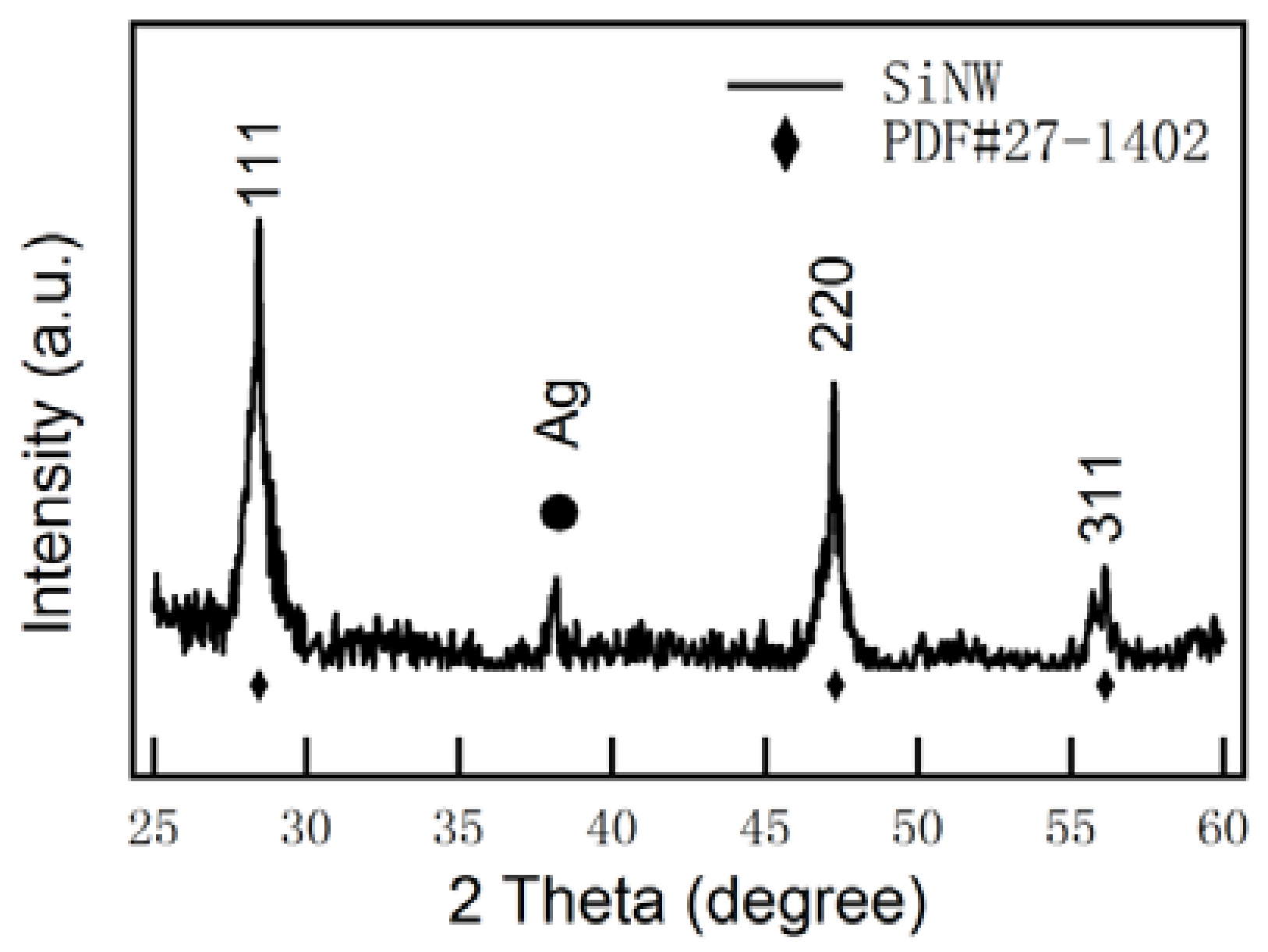

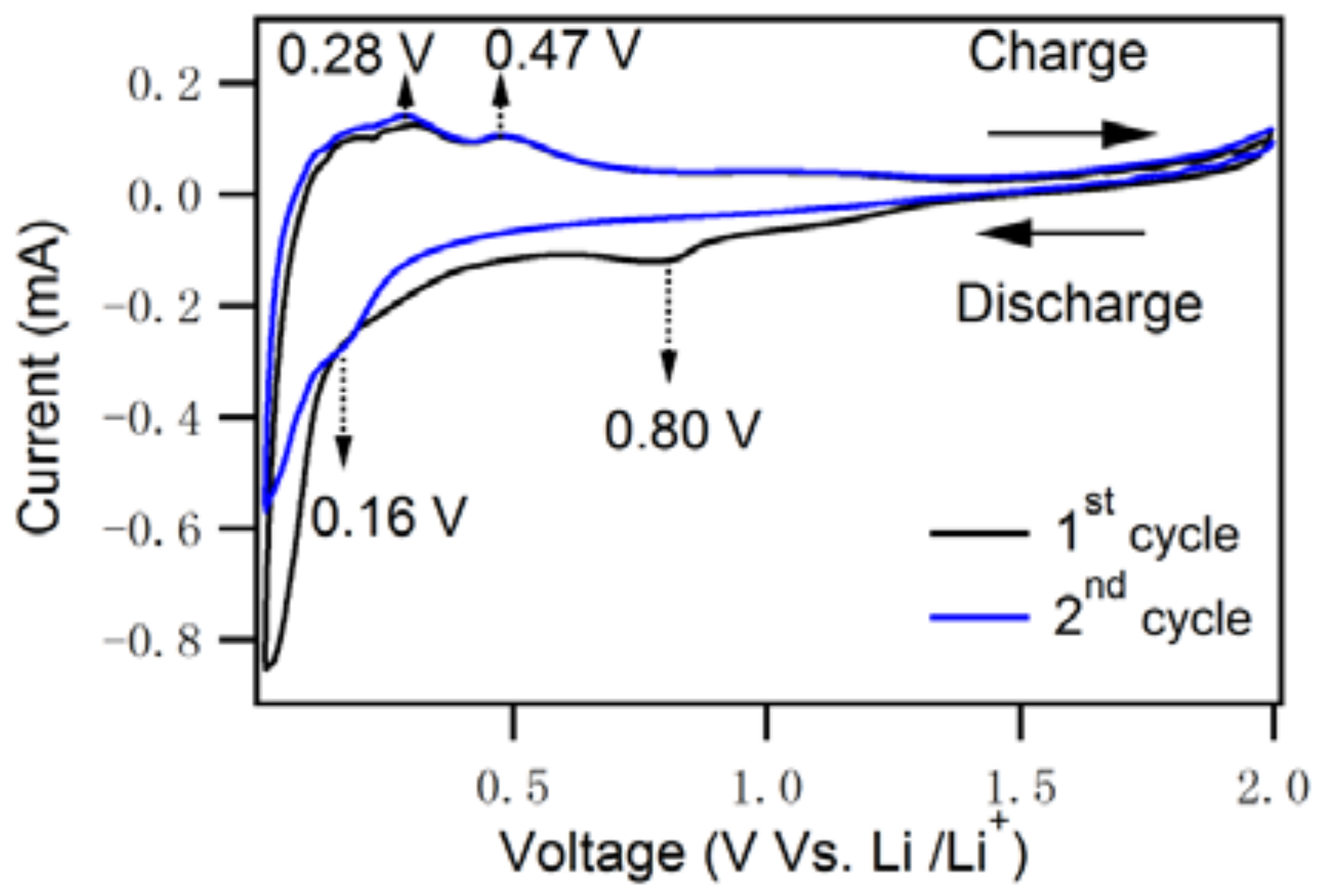

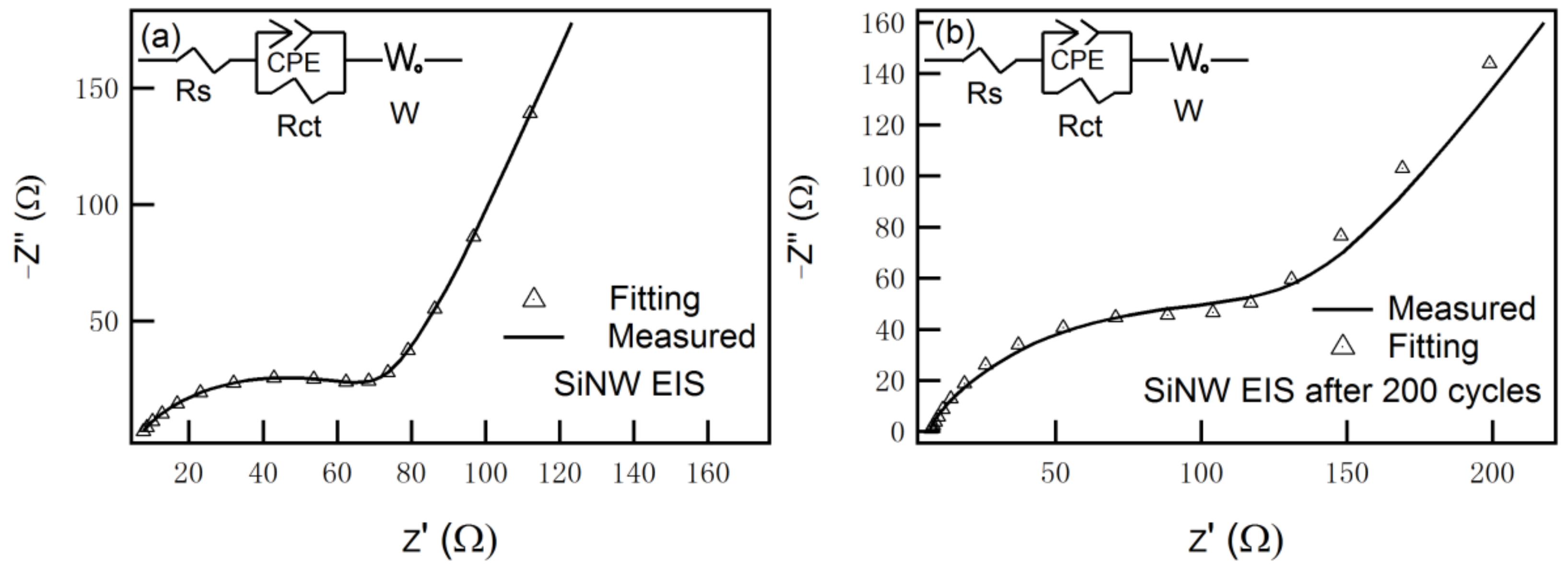

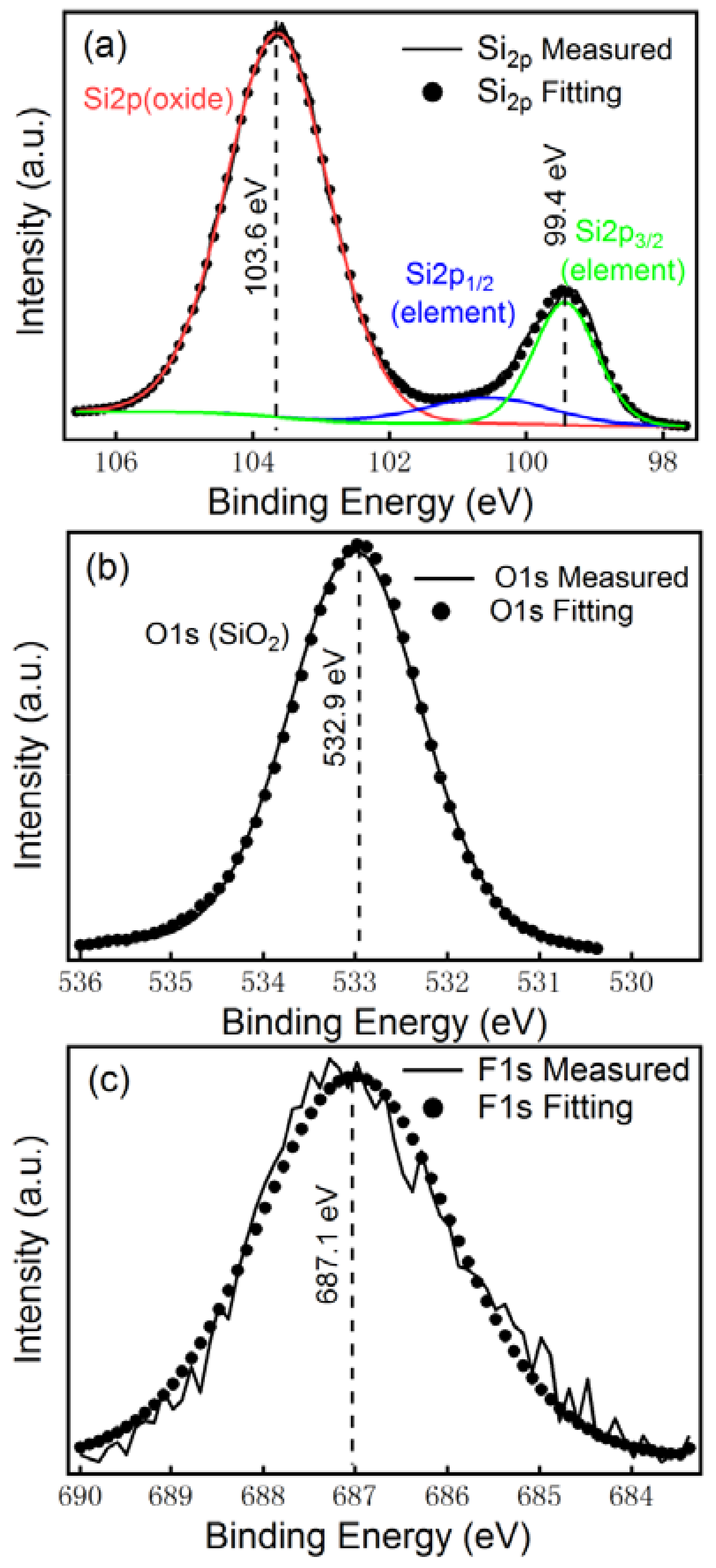

Show Figures

Graphical abstract

MDPI and ACS Style

Chen, X.; Bi, Q.; Sajjad, M.; Wang, X.; Ren, Y.; Zhou, X.; Xu, W.; Liu, Z. One-Dimensional Porous Silicon Nanowires with Large Surface Area for Fast Charge–Discharge Lithium-Ion Batteries. Nanomaterials 2018, 8, 285.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
