Open AccessArticle
Nanomaterials 2018, 8(4), 194; https://doi.org/10.3390/nano8040194

Fabrication of Amine-Modified Magnetite-Electrochemically Reduced Graphene Oxide Nanocomposite Modified Glassy Carbon Electrode for Sensitive Dopamine Determination

1,2,†, 1,2,†, 2, 1,2,*, 1,*, 3 and 2
1
School of Materials Science and Energy Engineering, Foshan University, Foshan 528000, China
2
College of Life Science and Chemistry, Hunan University of Technology, Zhuzhou 412007, China
3
Department of Chemistry and Material Science, Hengyang Normal University, Hengyang 421008, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Received: 2 February 2018 / Revised: 12 March 2018 / Accepted: 25 March 2018 / Published: 27 March 2018
(This article belongs to the Special Issue Oxide Nanomaterials for Chemical Sensors)
  |
PDF [15813 KB, uploaded 3 May 2018]
  |

Abstract

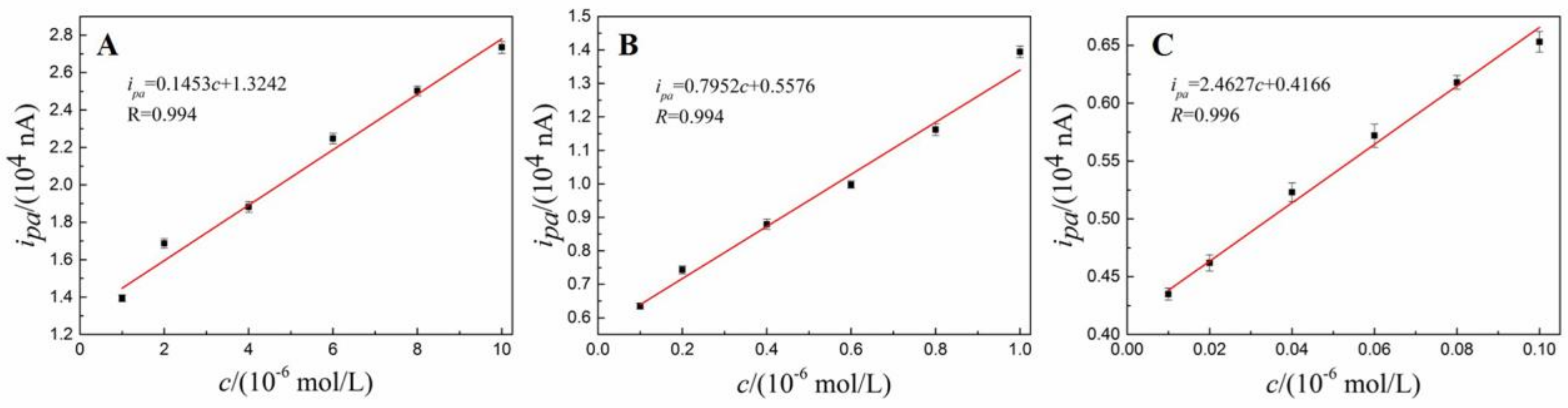

Amine-modified magnetite (NH2–Fe3O4)/reduced graphene oxide nanocomposite modified glassy carbon electrodes (NH2–Fe3O4/RGO/GCEs) were developed for the sensitive detection of dopamine (DA). The NH2-Fe3O4/RGO/GCEs were fabricated using a drop-casting method followed by an electrochemical reduction process. The surface morphologies, microstructure and chemical compositions of the NH2–Fe3O4 nanoparticles (NPs), reduced graphene oxide (RGO) sheets and NH2–Fe3O4/RGO nanocomposites were characterized by scanning electron microscopy (SEM), transmission electron microscopy (TEM), X-Ray diffraction (XRD) and Fourier-transform infrared (FTIR) spectroscopy. The electrochemical behaviors of DA on the bare and modified GCEs were investigated in phosphate buffer solution (PBS) by cyclic voltammetry (CV). Compared with bare electrode and RGO/GCE, the oxidation peak current (ipa) on the NH2–Fe3O4/RGO/GCE increase significantly, owing to the synergistic effect between NH2–Fe3O4 NPs and RGO sheets. The oxidation peak currents (ipa) increase linearly with the concentrations of DA in the range of 1 × 10−8 mol/L – 1 × 10−7 mol/L, 1 × 10−7 mol/L – 1 × 10−6 mol/L and 1 × 10−6 mol/L – 1 × 10−5 mol/L. The detection limit is (4.0 ± 0.36) ×10−9 mol/L (S/N = 3). Moreover, the response peak currents of DA were hardly interfered with the coexistence of ascorbic acid (AA) and uric acid (UA). The proposed NH2–Fe3O4/RGO/GCE is successfully applied to the detection of dopamine hydrochloride injections with satisfactory results. Together with low cost, facile operation, good selectivity and high sensitivity, the NH2–Fe3O4/RGO/GCEs have tremendous prospects for the detection of DA in various real samples. View Full-Text
Keywords: NH2–Fe3O4 nanoparticles; reduced graphene oxide; modified electrode; dopamine; electrochemical oxidation NH2–Fe3O4 nanoparticles; reduced graphene oxide; modified electrode; dopamine; electrochemical oxidation
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
