Article

Modifying Thermal Switchability of Liquid Crystalline Nanoparticles by Alkyl Ligands Variation

Faculty of Chemistry, University of Warsaw, 00-927 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Nanomaterials 2018, 8(3), 147; https://doi.org/10.3390/nano8030147
Received: 1 February 2018 / Revised: 27 February 2018 / Accepted: 1 March 2018 / Published: 7 March 2018
(This article belongs to the Special Issue Nanomaterials in Liquid Crystals)

Abstract

:
By coating plasmonic nanoparticles (NPs) with thermally responsive liquid crystals (LCs) it is possible to prepare reversibly reconfigurable plasmonic nanomaterials with prospective applications in optoelectronic devices. However, simple and versatile methods to precisely tailor properties of liquid-crystalline nanoparticles (LC NPs) are still required. Here, we report a new method for tuning structural properties of assemblies of nanoparticles grafted with a mixture of promesogenic and alkyl thiols, by varying design of the latter. As a model system, we used Ag and Au nanoparticles that were coated with three-ring promesogenic molecules and dodecanethiol ligand. These LC NPs self-assemble into switchable lamellar (Ag NPs) or tetragonal (Au NPs) aggregates, as determined with small angle X-ray diffraction and transmission electron microscopy. Reconfigurable assemblies of Au NPs with different unit cell symmetry (orthorombic) are formed if hexadecanethiol and 1H,1H,2H,2H-perfluorodecanethiol were used in the place of dodecanethiol; in the case of Ag NPs the use of 11-hydroxyundecanethiol promotes formation of a lamellar structure as in the reference system, although with substantially broader range of thermal stability (140 vs. 90 °C). Our results underline the importance of alkyl ligand functionalities in determining structural properties of liquid-crystalline nanoparticles, and, more generally, broaden the scope of synthetic tools available for tailoring properties of reversibly reconfigurable plasmonic nanomaterials.

1. Introduction

Nanoparticle (NP) assemblies are formidable materials that can solve a variety of technological problems, such as overcoming speed and bandwidth limitations of modern electronic devices [1,2], surpassing current limits of solar energy harvesting devices [3], retrieving waste heat energy from thermal engines [4], preparing cloaking materials [5], or flat lenses construction [6]. What makes NP assemblies attractive for such wide range of applications are collective phenomena observed when nanocrystals are brought close together. Significantly enhanced electromagnetic field intensities [7], nonlinear optical phenomena [8], plasmonic chirality [9], epsilon near zero properties [10] are just a few examples. Since collective interactions are distance- and direction-sensitive [11,12], a development of methods for the preparation of NP assemblies with tailorable position is highly desired for future optoelectronic technologies.
Self-assembly (SA) is a robust strategy to quickly prepare long-range ordered assemblies of nanocrystals (superlattices) at a low cost [13]. It is most commonly realized by preparing a solution of NPs, followed by the evaporation or destabilization of the solvent, or by the means of gravitational sedimentation. Highly organized structures of NPs can be achieved this way if e.g., template-assisted approach is applied using wrinkled polydimethylsiloxane (PDMS) [14,15,16,17], templated PDMS [18] or capillary assembly on a lithographically patterned substrate [19].
Major part of research in the field of nanocrystals self-assembly has been devoted to SA of spherical NPs tethered with hydrocarbon surface ligands (oleylamine, oleic acid, alkyl thiols etc.) which usually behave as quasi-hard spheres, thus assemble into contact area-minimizing configurations (body centered cubic, BCC, face centered cubic, FCC and hexagonal close-packed, HCP) [13]. However, the relatively low diversity of symmetries, static nature and low thermal durability of these assemblies limit their applicability. Thus, strategies for preparing and tuning the response of active [20], non-close packed [21] NP-based materials are required.
Tethering functional molecules to nanoparticle surface has been proposed to guide nanoparticle self-assembly in two-dimensional (2D) and three-dimensional (3D) [22]. A clever choice of surface ligands can soften the particles (e.g., with dendritic [23] or polymer [24] ligands), introduce specific interactions (e.g., with DNA [25], charged [26] and protein [27] ligands) or allow efficient mixing with matrix material [28]; these approaches broaden the scope of available NPs-based structures. Ligand choice is crucial also for preparing active (dynamic, reversibly reconfigurable) nanoparticle assemblies. Molecules, such as DNA [29], poly(N-isopropylacrylamide) [30,31], polystyrene [32], and azobenzene derivatives [33] are often used, endowing NPs with chemical, thermal, electric field and optical sensitivity, respectively. Unfortunately, these dynamic materials suffer from a few drawbacks—they are often limited to close-packed symmetry and usually they require a solvent which hampers observation of the collective phenomena.
There are only a few methods that allow for preparing reversibly reconfigurable NPs assemblies in which nanoparticles are packed densely enough to exhibit collective phenomena; covering nanoparticles with liquid-crystalline (LC) ligands [34,35,36,37,38,39,40,41] is one of those methods. This strategy usually relies on partial exchange of the native ligands that cover nanoparticle with LC compounds, resulting in a binary, LC/alkyl, protecting monolayer (such NPs will be referred to as LC NPs). At low temperatures, this organic coating layer can deform due to LC-ligand bundling, which allows for achieving anisotropic assemblies of nanoparticles with spherical core (Figure 1a). Upon heating, LC-ligands undergo melting transition that leads to isotropization of the coating layer. This deformation is reversible and leads to temperature-dependent reconfigurability of LC-coated NP assemblies. From the practical point of view, it is important to note that the LC-based SA strategy has already proven a feasible approach towards NP assemblies that have unique symmetries [42,43], exhibit structural and functional anisotropy [44,45], as well as exhibiting reconfigurability with short switching times [10]. Notably, several design parameters allowing tailoring properties of LC NPs have been identified. In majority, they relate to the (pro)mesogenic ligands: geometry of the LC-molecule [46,47,48,49], its volume [50], LC ligand alkyl spacer length [46,47], as well as density of LC-ligands grafting [51]. Much less effort was put to determining the role of alkyl ligands for which only the influence of length was examined and shown to determine the symmetry of the assemblies (by influencing overall shape of the organic coating layer) [47,52], as well as to influence the thermal response of the material (by influencing spatial rearrangement of LC ligands) [46]. However, to achieve full control over structure and function of the assemblies, it is important to further broaden the design toolbox, especially in the context of tuning symmetry and thermal stability of the assemblies. For practical reasons (time, cost), it would be beneficial if such tuning could be achieved without changing the LC-ligand architecture, e.g., by varying alkyl ligands. Motivated by numerous reports on the properties of monolayers of functionalized alkyl(thiol) compounds [53,54,55,56,57], we assumed that the use of such compounds as ligands could provide new means to control properties of LC NPs assemblies. It is worth to note, that functionalized alkyl ligands were used in LC NPs research, however, mainly with the aim of covalent binding with LC-molecules (direct reaction on nanoparticle surface) [42,58,59,60].
Here, we demonstrate a new, simple, and robust strategy for tuning the symmetry and thermal response of plasmonic, reversibly reconfigurable nanoparticle assemblies via modification of the alkyl co-ligand design. We systematically assess an impact of the co-ligand architecture on the final symmetry of the superlattices and their thermal response. Importantly, all of the reported samples were prepared using the same LC-ligand, thus the developed strategy is less tedious and time consuming than tailoring properties of LC NPs by synthetizing new LC molecules. Practical applicability of the strategy is highlighted by applying it to plasmonic NPs, in contrast to majority of the previous research done in this field. With the strategy reported here, an easy access to active superlattices with on-demand properties becomes more straightforward.

2. Results and Discussion

2.1. Designing LC Nanoparticles

The strategy of preparing reversibly reconfigurable superlattices that is reported here is based on covering inorganic nanoparticles’ surface with a binary organic shell that comprises liquid-crystalline compounds and alkyl co-ligands. Thus, to prepare the hybrid materials, three aspects of their design had to be considered—nanoparticle core, LC-ligand design, and alkyl co-ligand structure.
As the basis for building liquid crystalline nanomaterials (Figure 1a), we have decided to use small, plasmonic nanoparticles. On one hand, the small size of NPs is desirable, since, according to our previous efforts, only at size range below 6 nm we were able to obtain long-range ordered structures by covering NPs with relatively small (pro)mesogenic ligands [45,52,61]. It should be noted that achieving LC phases with larger nanoparticles is also possible [62], but usually it requires the use of branched (dendritic) ligands. On the other hand, we wanted nanocrystals to exhibit plasmonic properties. Both these conditions (structural and functional) are met by gold and silver nanoparticles (Au and Ag NPs) of few nanometer diameter (size range 3–6 nm). Such NPs do not exhibit as strong plasmonic properties as larger ones [27,63,64], however sub-10 nm Ag NPs are interesting in the context of their prospective applications in surface enhanced Raman spectroscopy [65,66,67] and for metamaterials preparation [68].
Our hybrid nanomaterials were designed to be covered with a mixture of thiol ligands—a promesogenic molecule (L1, Figure 1c) and one of the four alkyl thiols: dodecanethiol (Au and Ag NPs), hexadecanethiol (Au), 1H,1H,2H,2H-perfluorodecanethiol (Au) and 11-hydroxyundecanethiol (Ag); in general, they will be referred to as L2 ligands (Figure 1b). Nanoparticles bearing L1 and dodecanethiol ligands ([email protected]/C12, [email protected]/C12) were already described [69,70], and here they served as reference samples for comparison with hybrid nanoparticles equipped with longer ([email protected]/C16) or functionalized ([email protected]/CF, [email protected]/C11OH) alkyl co-ligands. The new co-ligands were chosen in order to investigate the effect of the length of the alkanethiols (previously measured only for very small, non-plasmonic nanoparticles [46,47,52]), tendency of the fluorinated compounds to segregate from organic phase [57], as well as assess the impact of polar head-group [71,72] for –OH functionalized ligand.
To introduce a mixed thiol monolayer to the surface of nanocrystals, we decided to use a ligand exchange reaction. Specifically, weakly bound amines were substituted with mixtures of alkyl and promesogenic thiols. This approach was chosen since it is more efficient than the direct synthesis of nanocrystals in the presence of the final ligands (large losses of organic compounds). Also, our approach is faster than the previously used protocol [69,70] that required two ligand-exchange steps (first amine to alkyl thiol and then partial exchange of the thiol to (pro)mesogenic molecule).
At this point, it is worth to shortly discuss stability of LC-coated NPs in the view of potential optoelectronic applications. Based on the available data, we can say that NPs coated with LC ligands are more stable than analogous NPs coated exclusively with alkyl ligands [10]. Also, the possibility of cycling LC NPs aggregates between different phases at least few times has been proven, even if it is performed in air [70] (which is known to cause oxidation of Ag NPs surface atoms). Moreover, in another research, it has been shown that it is possible to use UV light irradiation to reconfigure assemblies of NPs coated with photo-sensitive LC-compounds [61]. However, it should be stressed out that detailed research on this topic has not been performed yet.

2.2. Characterization of [email protected] and [email protected] Nanoparticles

Au and Ag NPs were prepared using a two phase method proposed by Wang and Chen [73], yielding nanocrystals that are covered with dodecylamine. The amine is weakly bound to the NP surface, enabling consequent exchange of the native ligands with chosen thiols. At first, we have obtained Ag and Au NPs covered exclusively with dodecanethiol ([email protected], [email protected]), they were characterized to determine NPs size and size distribution. It should be stressed out that we did not pursue the characterization of NPs covered with dodecylamine since ligand exchange reaction can have large impact on nanoparticle structure. Small angle X-ray scattering of [email protected] and [email protected] materials suspensions in hexane revealed a characteristic diffractogram (Figure S1a,c). By fitting modelled scattering profile to the experimental curve (Figure S1b,d), the diameter of [email protected] and [email protected] NPs was calculated to be 3.6 ± 0.4 and 5.1 ± 0.3 nm diameter, respectively. To confirm X-ray scattering results, we have used transmission electron microscopy, which revealed well-packed, hexagonal monolayers of NPs with a mean diameter of 3.6 ± 0.4 nm for [email protected] (Figure 2a) and 5.2 ± 0.4 nm for [email protected] (Figure 2c). Direct comparison between results of small angle X-ray scattering (SAXS) and transmission electron microscopy (TEM) investigations (Figure 2b,d) is shown by overlaying histograms of NPs sizes calculated from TEM images with probability density curve derived from SAXS data modelling (the modelled curve is shown in Figure S1b,d). Importantly, both of the techniques indicated low size polydispersity of NPs. We also measured absorption of solutions of [email protected], [email protected] nanoparticles (Figure S2) to confirm plasmonic properties of these NPs.

2.3. Preparing and Characterizing Assemblies of [email protected]/C12 and [email protected]/C12 Nanoparticles

In the next step, we have prepared Au and Ag NPs covered with a mixture of promesogenic (L1) and dodecane-thiols. These samples were designed in analogy to the previously described material and served us as a reference for assessing the role of different alkyl co-ligands. The hybrid NPs were obtained by mixing dodecylamine coated nanocrystals with a 1:1 molar mixture of C12H25SH and L1. The resulting hybrid material was washed several times to remove unbound ligands; the purity of the final product was confirmed using thin layer chromatography. Relative amounts of the ligands introduced to the surface of NPs were measured using 1H NMR technique, as described previously [70], confirming ligand stoichiometry that was close to the reaction mixture (1:1). It is worth to mention that also other techniques, such as X-ray photoelectron spectroscopy (XPS), thermogravimetric analysis (TGA), and elemental analysis (EA) have been shown to give consistent results for estimating composition of the organic coating layer [51]. In future research, it could be also valuable to use surface enhanced Raman spectroscopy (SERS) for this purpose.
Structural investigation of the [email protected]/C12 NP assemblies was done by small angle X-ray diffraction (SAXRD) measurements. A thick film of the material was prepared on a kapton foil by dropcasting few drops of a concentrated dichloromethane solution of NPs. Then, the film was annealed by keeping the material at 115 °C for 3 min and letting it cool down to 40 °C. Diffractogram obtained for this sample at a low temperature was characteristic for a lamellar structure, it comprised two commensurate signals evidencing layer periodicity, 9.1 nm, and a signal related to mean in-plane interparticle distance, 6.9 nm (Figure 3a). Further confirmation of the phase assignment was achieved by SAXRD measurements of a quasi-monodomain [email protected]/C12 sample prepared by shearing. The obtained diffractogram (Figure S3) revealed orthogonal azimuthal positions of signals related to layer periodicity and in-plane order, as consistent with the lamellar organization of NPs. Also, transmission electron microscopy investigation of thermally annealed [email protected]/C12 material (Figure 3d) evidenced lines of nanoparticles with spacing of ca. 8.5 nm that corresponds to inter-layer spacing determined from SAXRD measurements.
To test whether the material is thermally reconfigurable, we performed SAXRD experiment while heating the sample. In the range from 30 to 95 °C, a slow monotonic change of the positions of signals was observed, corresponding to the growing distance between NPs within layers (up to 7.4 nm at 90 °C) and a simultaneous decrease of inter-layer spacing (down to 8.2 nm at 90 °C). At ca. 95 °C, a distinct change of the diffractogram was evidenced—above this temperature a set of three narrow signals (Figure 3c) was observed, with temperature independent positions. The best fit to the XRD pattern collected at 130 °C was obtained assuming a FCC structure with unit cell dimension of 13.3 nm.
Structural investigation of the [email protected]/C12 NP assemblies was done in analogy to the above-described experiments. The diffractogram obtained at low temperature (Figure 4a) for heat-annealed sample was the best fit assuming body centered tetragonal symmetry of the aggregate. Unit cell dimensions of [email protected]/C12 NPs assemblies varied with temperature: from 5.1 and 15.8 nm at 30 °C to 5.6 and 14.6 nm at 95 °C. This change corresponds to 10% volume expansion which is reasonable given the difference in temperature and relatively large volume of the organic corona [74]. Also, transmission electron microscopy investigation of thermally annealed [email protected]/C12 material (Figure 4d) evidenced lines of nanoparticles with spacing of ca. 7–8 nm that corresponds well to half the height of the unit cell determined from SAXRD measurements. If heated above 100 °C, thin film of the [email protected]/C12 material undergoes phase transition; above this temperature, only one, relatively broad peak is observed (Figure 4c), evidencing short range ordered structure.
It is very interesting to compare the behavior of the [email protected]/C12 and [email protected]/C12 nanoparticles with an analogous sample reported previously. In the case of [email protected]/C12 nanoparticles in the current study, we observed that heating reorganizes them from long-range ordered lamellar structure to long-range ordered FCC structure, while in previous studies, the long- to short-range order transition was found. Most probably, the origin of the difference lies in a different size distribution of the nanoparticles (6% here vs. 11% in previous research). The lower the size distribution, the better the particles can pack together, promoting the formation of well-ordered structures. This especially applies to high temperature phase in which the organic coating layer is isotropic and preserves spherical shape of the metallic core. In the case of [email protected]/C12 nanoparticles the reverse is truth. Previously, for a similar sample (the difference in one CH2 moiety [69]), the long- to long-range order switchability was observed, while here, only short range order is observed at high temperatures, which, given the discussion above, might be due to the larger size distribution of NPs used in the current study. However, at low temperatures the same phase was identified evidencing similarity between the samples.

2.4. Preparing and Characterizing Assemblies of [email protected]/C16 Nanoparticles

One of the literature-based strategies to control the structural properties of small LC NPs is the variation of the alkyl co-ligand length. One can argue that the longer the alkyl ligands, the lower are van der Waals forces between nanoparticles, thus the lower is the phase transition temperature. To test this assumption for larger, plasmonic nanoparticles, [email protected]/C16 material has been prepared using the same procedure as for [email protected]/C12 sample. 1H NMR confirmed successful preparation of hybrid material with ca. 1:1 molar ratio of ligands, the same as for [email protected]/C12. Thus, the differences in behavior of [email protected]/C12 and [email protected]/C16 samples can be ascribed to the variation of the alkyl co-ligand length.
At 30 °C, SAXRD measurements of an annealed sample revealed three relatively narrow Bragg peaks that were centered at 8.1, 6.5, and 4.3 nm (Figure 5a). Two approaches have been undertaken to assign the phase—XRD and TEM measurements. First, a sheared sample was prepared that enabled collection of discrete XRD signals (Figure S4). The main signal was positioned along the shearing direction (Figure S5), while for the second, a weak azimuthal splitting was observed giving evidence for 3D long-range order within the sample (Figure S6). Since the signals are quite broad, it would be theoretically possible to fit few different structures of the unit cell, however, by analogy to the analysis of [email protected]/CF material discussed in the following paragraph, we have chosen base centered orthorhombic structure as the most probable; unit cell dimensions are 6.7, 14.5 and 4.6 nm at 90 °C. Additionally, electron microscopy of heat annealed thin layer of [email protected]/C16 NPs (Figure 5d) revealed well-ordered rows of NPs that were formed with inter-row distance of ca. 6.5–7.5 nm, corresponding to the half of the b-axis unit cell dimension.
Besides the difference in symmetry between [email protected]/C12 and [email protected]/C16 NP assemblies, also the stimuli-responsive behavior of the hybrid material has been modified. Namely, XRD experiment with a stepwise heating revealed phase transition at 85 °C, that is 10 °C lower than in the case of [email protected]/C12 NPs. Above this temperature, a pattern (Figure 5c) that could be fitted assuming 12.8 nm FCC unit cell was evidenced. With this experiment we have confirmed that length of alkyl co-ligands can impact symmetry and switchability of plasmonic LC NPs. However, this approach assured a limited success since relatively broad peaks suggest short-range ordered structures were formed.

2.5. Preparing and Characterizing Assemblies of [email protected]/CF Nanoparticles

In a further attempt to vary the self-assembly properties of LC NPs, we decided to use functionalized alkyl co-ligands. We focused on commercially available compounds with a chain length that was comparable to dodecanethiol. The thiol we tested was fluorinated decanethiol, namely 1H,1H,2H,2H-perfluorodecanethiol. We have chosen this compound hoping that the ligands would strongly affect self-assembly behavior of the LC NPs due to high tendency of fluorinated compounds to segregate from hydrocarbon matter [57,75].
In analogy to the previous materials, we started structural investigation of the materials from the SAXRD measurements. Diffractogram collected at 30 °C for a thermally annealed structure (Figure 6b) did not allow for us to unequivocally fit any specific symmetry of the unit cell. However, when the sample was heated to 80 °C a clear separation and growth of the intensity of XRD signals was observed (Figure 6a,b) revealing five Bragg signals centered at 6.9, 6.2, 4.8, 3.9, and 3.5 nm (Figure 6a). This pattern can be well-fitted using a base-centered orthorhombic unit cell with the unit cell dimensions of 6.9, 13.8, and 4.8 nm (Figure S7). Measurements performed on the sheared sample further confirmed the assumption (Figure S8), revealing a pattern that is similar to the one observed for [email protected]/C12 material).
Further confirmation of the ordered structure formation was achieved with TEM measurements of a heat treated sample (Figure 6d). Weakly developed rows of NPs were evidenced with ca. 7 nm spacing, corresponding to the half of the b-axis unit cell dimension. Above 110 °C, a clear change of the diffractogram was observed (Figure 6b,c), evidencing reconfigurability of nanoparticles positions. Phase assignment of this reconfigured structure was performed using a FCC unit cell with 11.9 nm lattice constant.
Results obtained for 1H,1H,2H,2H-perfluorodecanethiol co-ligand attest that it is possible to stabilize anisotropic phase made of LC-grafted NPs by introducing a functional ligand. In this case, also the symmetry of the superlattice was influenced.

2.6. Preparing and Characterizing Assemblies of [email protected]/C11OH Nanoparticles

Encouraged by results for Au NPs, we decided to test the versatility of our approach to tune properties of LC NPs. Thus, we turned to a different type of nanoparticles (Ag NP) and differently functionalized alkyl co-ligand (11-mercaptoundecanethiol). We assumed that the introduction of polar headgroup could be useful for stabilizing nanoparticle assemblies by dipole-dipole interactions and hydrogen bonding. As for the above discussed samples during the preparation step, we used a 1:1 molar mixture of L1 and C11OH to prepare hybrid NPs via ligand exchange reaction. However, 1H NMR studies of a purified sample revealed that ligand stoichiometry at nanoparticle surface are different from that of parent reaction mixture. Namely, C11OH to L1 thiols molar ratio was estimated as 2:1. This difference can be explained by cooperative ligand exchange process in which attachment of one 11-hydroxyundecanethiol molecule to the surface of a nanoparticle promotes grafting of the same type of ligand. We have performed XRD investigation of as obtained material at low temperatures, which revealed one broad signal, suggesting only short range order of the nanoparticle aggregate. The probable explanation is that there is not enough promesogenic molecules present at the nanoparticle surface to assure efficient deformation of the organic stabilizing layer. Thus, we decided to change stoichiometry of the (ligand exchange) reaction mixture in the search of a sample exhibiting long range order. We succeeded for a mixture comprising 2 molar equivalents of L1 and 1 molar equivalent of C11OH for which 1H NMR studies evidenced 1:1 ligand ratio at NPs surface. In future research it would be also of value to determine the phase separation behavior of functionalized alkyl and LC ligands at the surface of NPs [76]. On one hand, for the functionalized alkyl co-ligands, it seems plausible that enthalpic contribution of phase separation of ligands is larger than for the non-functionalized alkyl co-ligands [77]. On the other hand, an opposing interfacial entropic effect (extra freedom for the longer ligands at the interface with alkyl co-ligands) should also play a role. Thus, for different compositions of the LC/alkyl coating layer various types of ligands distribution at the NPs surface could be obtained (e.g., Janus or patchy); these effects could thus influence the thermal stability and symmetry of the assemblies.
For the latter sample, called [email protected]/C11OH, SAXRD measurements of thermally annealed material evidenced two relatively narrow signals that were centered at 10.4 and 6.2 nm (Figure 7a,b), which, in analogy to [email protected]/C12 sample, could be interpreted as inter- and in-plane distances, respectively, for nanoparticles arranged in lamellar structure. An unequivocal proof for the assignment was provided by preparing a quasi-monodomain structure to collect diffractogram with discrete XRD reflections. A pattern comprising signals positioned in directions along and orthogonal to the shearing direction was obtained, characteristic of layered material (Figure S9). Further confirmation of the sample tendency to adopt layered structure was achieved with TEM, which (for heat annealed sample) revealed rows of nanoparticles (Figure 7d) with inter-row distance of ca. 9–10 nm corresponding to XRD derived data and confirming the tendency of the sample to adopt lamellar organization.
Then, we focused on determining structural reconfigurability of the material by temperature-dependent SAXRD measurements (Figure 6b). The observed XRD signals did not change their positions until temperature 140 °C was reached. This is in clear contrast to the previously described materials for which unit cell dimensions were temperature-dependent, suggesting high structural stability of the [email protected]/C11OH material. At 140 °C, a clear change in the diffractogram is observed, evidencing phase transition. Notably, the rearrangement takes place at temperature ca. 50 °C higher than for analogous material with non-functionalized alkyl co-ligand ([email protected]/C12), attesting to a higher stability of the lamellar phase. Above 140 °C, two XRD signals are evidenced. In analogy to the above described samples, we can fit the data with short-range FCC structure that has the unit cell size of 13.5 nm.
Using the SAXRD measured periodicities, we can say that the volume of single [email protected]/C11OH and [email protected]/C12 nanoparticles (including the organic coating layer) is very similar, which confirms that similar amounts of LC and alkyl ligands were attached to NPs surface in the ligand exchange reaction. However, larger inter-layer distance (10.4 vs. 9.1 nm, [email protected]/C11OH vs. [email protected]/C12 materials, respectively) and shorter in-plane interparticle distance (6.2 vs. 6.9 nm), suggest that these two materials differ in the distribution of the ligands around the nanocrystal core. Namely, the use of functionalized co-ligands assures more efficient separation of ligands in the binary coating layer, thus bundles of the LC ligands are longer, but narrower.

3. Materials and Methods

3.1. Materials

Solvents and substrates were obtained from Sigma-Aldrich (St. Louis, MO 63178, USA). Before use, the solvents were dried over activated molecular sieves for 24 h. Substrates were used without further purification. All of the reactions were carried out in dried glassware with efficient magnetic stirring.

3.2. Preparing LC-NPs Assemblies

To synthetize Ag and Au nanoparticles the modified literature method [67,69] has been used. Shortly, dodecylamine (1.5 g) solution in cyclohexane (50 mL) was stirred for 10 min with 12 mL of aqueous formaldehyde (37%). The organic phase was separated out and washed twice with water (2 × 50 mL). Then, aqueous solution of AgNO3 or HAuCl4 (0.4 g AgNO3 in 20 mL H2O or 0.08 g HAuCl4 in 20 mL H2O) was added and left stirring for 40 min. After that, the organic phase was separated and the NPs were precipitated by addition of 100 mL of ethanol. The precipitate was centrifuged, collected, dissolved in a small amount of cyclohexane (10 mL), and the precipitation procedure was repeated again with small amounts of ethanol to enable size fractionation. Usually, 4–5 differently sized fractions of nanoparticles were obtained with narrow size distributions (below 15%).
Then, in the ligand exchange process, LC molecules and corresponding co-ligands were introduced. Shortly, to 15 mg of NPs dissolved in a 6 mL hexane/DCM mixture (1/1, v/v), 7 mg of the promesogenic ligand and a stoichiometric amount of the given co-ligand (1.68 mg, 2.15 mg, 3.99 mg, or 1.70 mg of dodecanethiol, hexadecanethiol, 1H,1H,2H,2H-perfluorodecanethiol and 11-hydroxyundecanethiol, respectively) were added. The reaction proceeded at room temperature for 18 h. Then, the solvent was evaporated. The precipitate was dissolved in warm (40 °C) cyclohexane and centrifuged. The supernatant was discarded. Then, the process was repeated until no traces of free ligand molecules remained, as determined by thin-layer chromatography. Nanoparticles were then dissolved in dichloromethane.
The promesogenic ligand has been obtained, according to the previously reported procedure.

3.3. Structural Investigation of LC-NPs Assemblies

1H NMR studies were recorded by using either 200 MHz or 500 MHz NMR Varian Unity Plus. Proton chemical shifts are reported in ppm (δ) relative to the internal standard—tetramethylsilane (TMS δ = 0.00 ppm). For assessing ligand stoichiometry, the nanoparticles were oxidized with I2 and the reaction mixture after the oxidation process was analyzed.
Transmission electron microscopy (TEM) was performed using Zeiss Libra 120 microscope, with LaB6 cathode, fitted up with OMEGA internal columnar filters and CCD camera. For TEM studies, the solutions of functionalized particles were deposited onto carbon-coated copper grids and then thermally annealed at 120 °C for 3 min and slowly cooled down to 30 °C
The small angle X-ray diffraction (SAXRD) and scattering (SAXS) experiments were realized with the Bruker Nanostar system (CuKα radiation, working in parallel beam geometry formed by cross-coupled Goebel mirrors and 3-pinhole collimation system, area detector VANTEC 2000). The temperature of the sample position was maintained with accuracy of 0.1 °C. Specimens were prepared in thin-walled glass capillaries or as thin films on Kapton tape. For all of the samples, temperature dependent measurements were performed in the same manner—the XRD diffractograms were collected every 5 °C for 300 s with 40 °C/min heating rate between consecutive data collection points.

4. Conclusions

In summary, we introduce a simple and robust approach to tailoring the structural properties of reversibly reconfigurable assemblies of plasmonic nanoparticles. The described nanoparticles were prepared by grafting Ag/Au plasmonic cores with a mixture of promesogenic and straight-chain alkyl thiols. The former were chosen to support nanoparticles self-assembly into long-range ordered structures at low temperatures and to assure temperature-dependent reconfigurability of NP assemblies. The alkyl thiols were however varied—non-functionalized thiols (12- and 16-carbon long) as well as alkyl thiols bearing different functionalities (fluorinated organic chain, hydroxyl moiety) were used. Although relative amounts of ligands at NP surface were kept constant for all of the samples, clear structural differences between the materials were evidenced with SAXRD and TEM measurements. On one hand, with this simple strategy we were able to influence symmetry of the assemblies (lamellar vs. orthorhombic). On the other hand, we were also able to selectively influence thermal stability of assemblies, without changing their symmetry (90 vs. 140 °C melting point for two lamellar systems). It is worth noting that the proposed approach is suitable for plasmonic nanoparticles and allowed for achieving dynamic behavior for all of the tested designs, although further tests are needed to fully assess potential of this approach e.g., in the case of larger nanoparticles or other designs of liquid crystalline ligands. Still, with our proof-of-principle studies, we show that it is worth considering the use of functionalized alkyl ligands to access nanoparticle assemblies with precisely tuned properties. Moreover, since the temperature-driven rearrangement takes place in the neat state (without solvent), we expect that the methodologies that are introduced in this work will promote the design and fabrication of switchable, plasmonic nanomaterials with symmetry and structural stability that is tailored for specific applications in optoelectronics. Future work may also include combining the LC-based approach with template-assisted strategies in order to prepare hierarchically structured, switchable nanomaterials, as well as should focus on testing stability of the LC-based nanomaterials for specific optoelectronic applications.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/8/3/147/s1, Figure S1: Structural investigation of [email protected] and [email protected] nanoparticles. (a) SAXS diffractogram of [email protected] suspension in hexane. (b) Comparison of modelled (red line) and experimental (circles) 1D SAXS profiles for [email protected] material; for modelling the spherical nanoobjects were assumed with diameter 5.1 ± 0.3 nm. (c) SAXS diffractogram of [email protected] suspension in hexane. (d) Comparison of modelled (red line) and experimental (circles) 1D SAXS profiles for [email protected] material; for modelling the spherical nanoobjects were assumed with diameter 3.6 ± 0.4 nm, Figure S2: Optical investigation of [email protected] and [email protected] nanoparticles. (a) Absorption spectra of [email protected] suspension in hexane. (b) Absorption spectra of [email protected] suspension in hexane, Figure S3: SAXRD diffractogram of a quasi-monodomain [email protected]/C12 sample prepared by shearing, Figure S4: SAXRD diffractogram of a quasi-monodomain [email protected]/C16 sample prepared by shearing; measurements at 70 °C. Figure S5: Signal intensity changes along a circle of radius corresponding to (020) signal position in [email protected]/C16 diffractogram shown in Figure S3, Figure S6: Signal intensity changes along a circle of radius corresponding to (110) signal position in [email protected]/C16 diffractogram shown in Figure S3, Figure S7: Signal intensity changes along a circle of radius corresponding to (110) signal position in [email protected]/CF diffractogram shown in Figure 6a in the main text, Figure S8: SAXRD diffractogram of a quasi-monodomain [email protected]/CF sample prepared by shearing; measurements at 80 °C, Figure S9: SAXRD pattern taken for aligned [email protected]/C11OH sample. Shearing was performed along (10) direction of the structure.

Acknowledgments

This work was supported by the REINFORCE project (agreement No. First TEAM2016-2/15) carried out within the First Team programme of the Foundation for Polish Science co-financed by the European Union under the European Regional Development Fund.

Author Contributions

W.L. conceived and designed the experiments; M.Z., J.G., M.T. and W.L. performed the experiments; W.L. analyzed the data; W.L. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Silva, A.; Monticone, F.; Castaldi, G.; Galdi, V.; Alù, A.; Engheta, N. Performing mathematical operations with metamaterials. Science 2014, 343, 160–163. [Google Scholar] [CrossRef] [PubMed]
  2. Schmidt, D.; Raab, N.; Noyong, M.; Santhanam, V.; Dittmann, R.; Simon, U. Resistive Switching of Sub-10 nm TiO2 Nanoparticle Self-Assembled Monolayers. Nanomaterials 2017, 7, 370. [Google Scholar] [CrossRef] [PubMed]
  3. Kagan, C.R.; Lifshitz, E.; Sargent, E.H.; Talapin, D.V. Building devices from colloidal quantum dots. Science 2016, 353, aac5523. [Google Scholar] [CrossRef] [PubMed]
  4. Urban, J.J. Prospects for thermoelectricity in quantum dot hybrid arrays. Nat. Nanotechnol. 2015, 10, 997–1001. [Google Scholar] [CrossRef] [PubMed]
  5. Ni, X.; Wong, Z.J.; Mrejen, M.; Wang, Y.; Zhang, X. An ultrathin invisibility skin cloak for visible light. Science 2015, 349, 1310–1314. [Google Scholar] [CrossRef] [PubMed]
  6. Baron, A.; Aradian, A.; Ponsinet, V.; Barois, P. Self-assembled optical metamaterials. Opt. Laser Technol. 2016, 82, 94–100. [Google Scholar] [CrossRef]
  7. Hamon, C.; Novikov, S.M.; Scarabelli, L.; Solís, D.M.; Altantzis, T.; Bals, S.; Taboada, J.M.; Obelleiro, F.; Liz-Marzán, L.M. Collective Plasmonic Properties in Few-Layer Gold Nanorod Supercrystals. ACS Photonics 2015, 2, 1482–1488. [Google Scholar] [CrossRef] [PubMed]
  8. Gwo, S.; Wang, C.-Y.; Chen, H.-Y.; Lin, M.-H.; Sun, L.; Li, X.; Chen, W.-L.; Chang, Y.-M.; Ahn, H. Plasmonic Metasurfaces for Nonlinear Optics and Quantitative SERS. ACS Photonics 2016, 3, 1371–1384. [Google Scholar] [CrossRef]
  9. Wang, Y.; Xu, J.; Wang, Y.; Chen, H. Emerging chirality in nanoscience. Chem. Soc. Rev. 2013, 42, 2930–2962. [Google Scholar] [CrossRef] [PubMed]
  10. Bagiński, M.; Szmurło, A.; Andruszkiewicz, A.; Wójcik, M.; Lewandowski, W. Dynamic self-assembly of nanoparticles using thermotropic liquid crystals. Liq. Cryst. 2016, 43, 2391–2409. [Google Scholar] [CrossRef]
  11. Ghosh, S.K.; Pal, T. Interparticle coupling effect on the surface plasmon resonance of gold nanoparticles: From theory to applications. Chem. Rev. 2007, 107, 4797–4862. [Google Scholar] [CrossRef] [PubMed]
  12. Rožič, B.; Fresnais, J.; Molinaro, C.; Calixte, J.; Umadevi, S.; Lau-Truong, S.; Felidj, N.; Kraus, T.; Charra, F.; Dupuis, V.; et al. Oriented Gold Nanorods and Gold Nanorod Chains within Smectic Liquid Crystal Topological Defects. ACS Nano 2017, 11, 6728–6738. [Google Scholar] [CrossRef] [PubMed]
  13. Boles, M.A.; Engel, M.; Talapin, D.V. Self-Assembly of Colloidal Nanocrystals: From Intricate Structures to Functional Materials. Chem. Rev. 2016, 116, 11220–11289. [Google Scholar] [CrossRef] [PubMed]
  14. Steiner, A.M.; Mayer, M.; Seuss, M.; Nikolov, S.; Harris, K.D.; Alexeev, A.; Kuttner, C.; König, T.A.F.; Fery, A. Macroscopic Strain-Induced Transition from Quasi-infinite Gold Nanoparticle Chains to Defined Plasmonic Oligomers. ACS Nano 2017, 11, 8871–8880. [Google Scholar] [CrossRef] [PubMed]
  15. Mayer, M.; Tebbe, M.; Kuttner, C.; Schnepf, M.J.; König, T.A.F.; Fery, A. Template-assisted colloidal self-assembly of macroscopic magnetic metasurfaces. Faraday Discuss. 2016, 191, 159–176. [Google Scholar] [CrossRef] [PubMed]
  16. Tebbe, M.; Mayer, M.; Glatz, B.A.; Hanske, C.; Probst, P.T.; Müller, M.B.; Karg, M.; Chanana, M.; König, T.A.F.; Kuttner, C.; et al. Optically anisotropic substrates via wrinkle-assisted convective assembly of gold nanorods on macroscopic areas. Faraday Discuss. 2015, 181, 243–260. [Google Scholar] [CrossRef] [PubMed]
  17. Hanske, C.; Tebbe, M.; Kuttner, C.; Bieber, V.; Tsukruk, V.V.; Chanana, M.; König, T.A.F.; Fery, A. Strongly coupled plasmonic modes on macroscopic areas via template-assisted colloidal self-assembly. Nano Lett. 2014, 14, 6863–6871. [Google Scholar] [CrossRef] [PubMed]
  18. Hanske, C.; González-Rubio, G.; Hamon, C.; Formentín, P.; Modin, E.; Chuvilin, A.; Guerrero-Martínez, A.; Marsal, L.F.; Liz-Marzán, L.M. Large-Scale Plasmonic Pyramidal Supercrystals via Templated Self-Assembly of Monodisperse Gold Nanospheres. J. Phys. Chem. C 2017, 121, 10899–10906. [Google Scholar] [CrossRef]
  19. Flauraud, V.; Mastrangeli, M.; Bernasconi, G.D.; Butet, J.; Alexander, D.T.L.; Shahrabi, E.; Martin, O.J.F.; Brugger, J. Nanoscale topographical control of capillary assembly of nanoparticles. Nat. Nanotechnol. 2017, 12, 73–80. [Google Scholar] [CrossRef] [PubMed]
  20. Wang, L.; Xu, L.; Kuang, H.; Xu, C.; Kotov, N.A. Dynamic nanoparticle assemblies. Acc. Chem. Res. 2012, 45, 1916–1926. [Google Scholar] [CrossRef] [PubMed]
  21. Udayabhaskararao, T.; Altantzis, T.; Houben, L.; Coronado-Puchau, M.; Langer, J.; Popovitz-Biro, R.; Liz-Marzán, L.M.; Vuković, L.; Král, P.; Bals, S.; et al. Tunable porous nanoallotropes prepared by post-assembly etching of binary nanoparticle superlattices. Science 2017, 358, 514–518. [Google Scholar] [CrossRef] [PubMed]
  22. Kuttner, C.; Chanana, M.; Karg, M.; Fery, A. Macromolecular Decoration of Nanoparticles for Guiding Self-Assembly in 2D and 3D. In Macromolecular Self-Assembly; Billon, L., Borisov, O., Eds.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2016; pp. 159–192. ISBN 9781118887813. [Google Scholar]
  23. Diroll, B.T.; Jishkariani, D.; Cargnello, M.; Murray, C.B.; Donnio, B. Polycatenar Ligand Control of the Synthesis and Self-Assembly of Colloidal Nanocrystals. J. Am. Chem. Soc. 2016, 138, 10508–10515. [Google Scholar] [CrossRef] [PubMed]
  24. Li, W.; Zhang, P.; Dai, M.; He, J.; Babu, T.; Xu, Y.L.; Deng, R.; Liang, R.; Lu, M.H.; Nie, Z.; et al. Ordering of gold nanorods in confined spaces by directed assembly. Macromolecules 2013, 46, 2241–2248. [Google Scholar] [CrossRef]
  25. Lin, H.; Lee, S.; Sun, L.; Spellings, M.; Engel, M.; Glotzer, S.C.; Mirkin, C.A. Clathrate colloidal crystals. Science 2017, 355, 931–935. [Google Scholar] [CrossRef] [PubMed]
  26. Kalsin, A.M.; Fialkowski, M.; Paszewski, M.; Smoukov, S.K.; Bishop, K.J.M.; Grzybowski, B.A. Electrostatic self-assembly of binary nanoparticle crystals with a diamond-like lattice. Science 2006, 312, 420–424. [Google Scholar] [CrossRef] [PubMed]
  27. Höller, R.P.M.; Dulle, M.; Thomä, S.; Mayer, M.; Steiner, A.M.; Förster, S.; Fery, A.; Kuttner, C.; Chanana, M. Protein-Assisted Assembly of Modular 3D Plasmonic Raspberry-like Core/Satellite Nanoclusters: Correlation of Structure and Optical Properties. ACS Nano 2016, 10, 5740–5750. [Google Scholar] [CrossRef] [PubMed]
  28. Garbovskiy, Y.; Glushchenko, A. Ferroelectric Nanoparticles in Liquid Crystals: Recent Progress and Current Challenges. Nanomaterials 2017, 7, 361. [Google Scholar] [CrossRef] [PubMed]
  29. Kim, Y.; Macfarlane, R.J.; Jones, M.R.; Mirkin, C.A. Transmutable nanoparticles with reconfigurable surface ligands. Science 2016, 351, 579–582. [Google Scholar] [CrossRef] [PubMed]
  30. Li, B.; Smilgies, D.M.; Price, A.D.; Huber, D.L.; Clem, P.G.; Fan, H. Poly(N-isopropylacrylamide) surfactant-functionalized responsive silver nanoparticles and superlattices. ACS Nano 2014, 8, 4799–4804. [Google Scholar] [CrossRef] [PubMed]
  31. Contreras-Cáceres, R.; Pacifico, J.; Pastoriza-Santos, I.; Pérez-Juste, J.; Fernández-Barbero, A.; Liz-Marzán, L.M. [email protected] thermosensitive nanostructures: Control over shell cross-linking, overall dimensions, and core growth. Adv. Funct. Mater. 2009, 19, 3070–3076. [Google Scholar] [CrossRef]
  32. Wang, K.; Jin, S.M.; Xu, J.; Liang, R.; Shezad, K.; Xue, Z.; Xie, X.; Lee, E.; Zhu, J. Electric-Field-Assisted Assembly of Polymer-Tethered Gold Nanorods in Cylindrical Nanopores. ACS Nano 2016, 10, 4954–4960. [Google Scholar] [CrossRef] [PubMed]
  33. Zep, A.; Wojcik, M.M.; Lewandowski, W.; Sitkowska, K.; Prominski, A.; Mieczkowski, J.; Pociecha, D.; Gorecka, E. Phototunable liquid-crystalline phases made of nanoparticles. Angew. Chem. Int. Ed. Engl. 2014, 53, 13725–13728. [Google Scholar] [CrossRef] [PubMed]
  34. Lewandowski, W.; Wójcik, M.; Górecka, E. Metal nanoparticles with liquid-crystalline ligands: Controlling nanoparticle superlattice structure and properties. Chemphyschem 2014, 15, 1283–1295. [Google Scholar] [CrossRef] [PubMed]
  35. Bisoyi, H.K.; Kumar, S. Liquid-crystal nanoscience: An emerging avenue of soft self-assembly. Chem. Soc. Rev. 2011, 40, 306–319. [Google Scholar] [CrossRef] [PubMed]
  36. Stamatoiu, O.; Mirzaei, J.; Feng, X.; Hegmann, T. Nanoparticles in Liquid Crystals and Liquid Crystalline Nanoparticles. In Topics in Current Chemistry; Springer: Berlin/Heidelberg, Germany, 2011; Volume 318, pp. 331–393. [Google Scholar]
  37. Qi, H.; Hegmann, T. Liquid crystal–gold nanoparticle composites. Liq. Cryst. Today 2011, 20, 102–114. [Google Scholar] [CrossRef]
  38. Blanc, C.; Coursault, D.; Lacaze, E. Ordering nano- and microparticles assemblies with liquid crystals. Liq. Cryst. Rev. 2013, 1, 83–109. [Google Scholar] [CrossRef]
  39. Saliba, S.; Mingotaud, C.; Kahn, M.L.; Marty, J.-D. Liquid crystalline thermotropic and lyotropic nanohybrids. Nanoscale 2013, 5, 6641–6661. [Google Scholar] [CrossRef] [PubMed]
  40. Nealon, G.L.; Greget, R.; Dominguez, C.; Nagy, Z.T.; Guillon, D.; Gallani, J.-L.; Donnio, B. Liquid-crystalline nanoparticles: Hybrid design and mesophase structures. Beilstein J. Org. Chem. 2012, 8, 349–370. [Google Scholar] [CrossRef] [PubMed]
  41. Hegmann, T.; Qi, H.; Marx, V.M. Nanoparticles in Liquid Crystals: Synthesis, Self-Assembly, Defect Formation and Potential Applications. J. Inorg. Organomet. Polym. Mater. 2007, 17, 483–508. [Google Scholar] [CrossRef]
  42. Matsubara, M.; Stevenson, W.; Yabuki, J.; Zeng, X.; Dong, H.; Kojima, K.; Chichibu, S.F.; Tamada, K.; Muramatsu, A.; Ungar, G.; et al. A Low-Symmetry Cubic Mesophase of Dendronized CdS Nanoparticles and Their Structure-Dependent Photoluminescence. Chem 2017, 2, 860–876. [Google Scholar] [CrossRef]
  43. Cseh, L.; Mang, X.; Zeng, X.; Liu, F.; Mehl, G.H.; Ungar, G.; Siligardi, G. Helically Twisted Chiral Arrays of Gold Nanoparticles Coated with a Cholesterol Mesogen. J. Am. Chem. Soc. 2015, 137, 12736–12739. [Google Scholar] [CrossRef] [PubMed]
  44. Wolska, J.M.; Pociecha, D.; Mieczkowski, J.; Górecka, E. Control of sample alignment mode for hybrid lamellar systems based on gold nanoparticles. Chem. Commun. 2014, 50, 7975. [Google Scholar] [CrossRef] [PubMed]
  45. Lewandowski, W.; Constantin, D.; Walicka, K.; Pociecha, D.; Mieczkowski, J.; Górecka, E. Smectic mesophases of functionalized silver and gold nanoparticles with anisotropic plasmonic properties. Chem. Commun. 2013, 49, 7845–7847. [Google Scholar] [CrossRef] [PubMed]
  46. Lewandowski, W.; Jatczak, K.; Pociecha, D.; Mieczkowski, J. Control of gold nanoparticle superlattice properties via mesogenic ligand architecture. Langmuir 2013, 29, 3404–3410. [Google Scholar] [CrossRef] [PubMed]
  47. Mang, X.; Zeng, X.; Tang, B.; Liu, F.; Ungar, G.; Zhang, R.; Cseh, L.; Mehl, G.H. Control of anisotropic self-assembly of gold nanoparticles coated with mesogens. J. Mater. Chem. 2012, 22, 11101–11106. [Google Scholar] [CrossRef]
  48. Kumar, S.; Pal, S.K.; Kumar, P.S.; Lakshminarayanan, V. Novel conducting nanocomposites: Synthesis of triphenylene-covered gold nanoparticles and their insertion into a columnar matrix. Soft Matter 2007, 3, 896–900. [Google Scholar] [CrossRef]
  49. Demortière, A.; Buathong, S.; Pichon, B.P.; Panissod, P.; Guillon, D.; Bégin-Colin, S.; Donnio, B. Nematic-like organization of magnetic mesogen-hybridized nanoparticles. Small 2010, 6, 1341–1346. [Google Scholar] [CrossRef] [PubMed]
  50. Kanie, K.; Matsubara, M.; Zeng, X.; Liu, F.; Ungar, G.; Nakamura, H.; Muramatsu, A. Simple cubic packing of gold nanoparticles through rational design of their dendrimeric corona. J. Am. Chem. Soc. 2012, 134, 808–811. [Google Scholar] [CrossRef] [PubMed]
  51. Wójcik, M.M.; Olesińska, M.; Sawczyk, M.; Mieczkowski, J.; Górecka, E. Controlling the Spatial Organization of Liquid Crystalline Nanoparticles by Composition of the Organic Grafting Layer. Chemistry 2015, 21, 10082–10088. [Google Scholar] [CrossRef] [PubMed]
  52. Wojcik, M.; Lewandowski, W.; Matraszek, J.; Mieczkowski, J.; Borysiuk, J.; Pociecha, D.; Gorecka, E. Liquid-crystalline phases made of gold nanoparticles. Angew. Chem. Int. Ed. Engl. 2009, 48, 5167–5169. [Google Scholar] [CrossRef] [PubMed]
  53. Houston, J.E.; Kim, H.I. Adhesion, friction, and mechanical properties of functionalized alkanethiol self-assembled monolayers. Acc. Chem. Res. 2002, 35, 547–553. [Google Scholar] [CrossRef] [PubMed]
  54. Esplandiú, M.J.; Hagenström, H.; Kolb, D.M. Functionalized self-assembled alkanethiol monolayers on Au(111) electrodes: 1. Surface structure and electrochemistry. Langmuir 2001, 17, 828–838. [Google Scholar] [CrossRef]
  55. Vericat, C.; Vela, M.E.; Benitez, G.; Carro, P.; Salvarezza, R.C. Self-assembled monolayers of thiols and dithiols on gold: New challenges for a well-known system. Chem. Soc. Rev. 2010, 39, 1805–1834. [Google Scholar] [CrossRef] [PubMed]
  56. Techane, S.D.; Gamble, L.J.; Castner, D.G. Multi-technique Characterization of Self-assembled Carboxylic Acid Terminated Alkanethiol Monolayers on Nanoparticle and Flat Gold Surfaces. J. Phys. Chem. C Nanomater. Interfaces 2011, 115, 9432–9441. [Google Scholar] [CrossRef] [PubMed]
  57. Yong, J.; Chen, F.; Yang, Q.; Huo, J.; Hou, X. Superoleophobic surfaces. Chem. Soc. Rev. 2017, 46, 4168–4217. [Google Scholar] [CrossRef] [PubMed]
  58. Nguyen, T.T.; Nguyen, T.L.A.; Deschenaux, R. Designing liquid-crystalline gold nanoparticles via the olefin cross-metathesis reaction. J. Porphyr. Phthalocyanines 2016, 20, 1060–1064. [Google Scholar] [CrossRef]
  59. Nguyen, T.T.; Albert, S.; Nguyen, T.L.A.; Deschenaux, R. Liquid-crystalline fullerene-gold nanoparticles. RSC Adv. 2015, 5, 27224–27228. [Google Scholar] [CrossRef]
  60. Mischler, S.; Guerra, S.; Deschenaux, R. Design of liquid-crystalline gold nanoparticles by click chemistry. Chem. Commun. 2012, 48, 2183–2185. [Google Scholar] [CrossRef] [PubMed]
  61. Wojcik, M.M.; Gora, M.; Mieczkowski, J.; Romiszewski, J.; Gorecka, E.; Pociecha, D. Temperature-controlled liquid crystalline polymorphism of gold nanoparticles. Soft Matter 2011, 7, 10561. [Google Scholar] [CrossRef]
  62. Yu, C.H.; Schubert, C.P.J.; Welch, C.; Tang, B.J.; Tamba, M.-G.; Mehl, G.H. Design, synthesis, and characterization of mesogenic amine-capped nematic gold nanoparticles with surface-enhanced plasmonic resonances. J. Am. Chem. Soc. 2012, 134, 5076–5079. [Google Scholar] [CrossRef] [PubMed]
  63. Henry, A.-I.; Courty, A.; Pileni, M.-P.; Albouy, P.; Israelachvili, J. Tuning of solid phase in supracrystals made of silver nanocrystals. Nano Lett. 2008, 8, 2000–2005. [Google Scholar] [CrossRef] [PubMed]
  64. Wei, J.; Schaeffer, N.; Pileni, M.-P. Ag Nanocrystals: 1. Effect of Ligands on Plasmonic Properties. J. Phys. Chem. B 2014, 118, 14070–14075. [Google Scholar] [CrossRef] [PubMed]
  65. Wei, J.; Schaeffer, N.; Albouy, P.-A.; Pileni, M.-P. Surface Plasmon Resonance Properties of Silver Nanocrystals Differing in Size and Coating Agent Ordered in 3D Supracrystals. Chem. Mater. 2015, 27, 5614–5621. [Google Scholar] [CrossRef]
  66. Chapus, L.; Aubertin, P.; Joiret, S.; Lucas, I.T.; Maisonhaute, E.; Courty, A. Tunable SERS Platforms from Small Nanoparticle 3D Superlattices: A Comparison between Gold, Silver, and Copper. ChemPhysChem 2017, 18, 3066–3075. [Google Scholar] [CrossRef] [PubMed]
  67. Chen, H.Y.; Lin, M.H.; Wang, C.Y.; Chang, Y.M.; Gwo, S. Large-Scale Hot Spot Engineering for Quantitative SERS at the Single-Molecule Scale. J. Am. Chem. Soc. 2015, 137, 13698–13705. [Google Scholar] [CrossRef] [PubMed]
  68. Young, K.L.; Ross, M.B.; Blaber, M.G.; Rycenga, M.; Jones, M.R.; Zhang, C.; Senesi, A.J.; Lee, B.; Schatz, G.C.; Mirkin, C.A. Using DNA to Design Plasmonic Metamaterials with Tunable Optical Properties. Adv. Mater. 2014, 26, 653–659. [Google Scholar] [CrossRef] [PubMed]
  69. Lewandowski, W.; Łojewska, T.; Szustakiewicz, P.; Mieczkowski, J.; Pociecha, D. Reversible switching of structural and plasmonic properties of liquid-crystalline gold nanoparticle assemblies. Nanoscale 2016, 8, 2656–2663. [Google Scholar] [CrossRef] [PubMed]
  70. Lewandowski, W.; Fruhnert, M.; Mieczkowski, J.; Rockstuhl, C.; Górecka, E. Dynamically self-assembled silver nanoparticles as a thermally tunable metamaterial. Nat. Commun. 2015, 6, 6590. [Google Scholar] [CrossRef] [PubMed]
  71. Gupta, P.; Ulman, A.; Fanfan, S.; Korniakov, A.; Loos, K. Mixed self-assembled monolayers of alkanethiolates on ultrasmooth gold do not exhibit contact-angle hysteresis. J. Am. Chem. Soc. 2005, 127, 4–5. [Google Scholar] [CrossRef] [PubMed]
  72. Bain, C.D.; Evall, J.; Whitesides, G.M. Formation of Monolayers by the Coadsorption of Thiols on Gold: Valiation in the Head Group, Tail Group, and Solvent. J. Am. Chem. Soc. 1989, 111, 7155–7164. [Google Scholar] [CrossRef]
  73. Chen, Y.; Wang, X. Novel phase-transfer preparation of monodisperse silver and gold nanoparticles at room temperature. Mater. Lett. 2008, 62, 2215–2218. [Google Scholar] [CrossRef]
  74. Yu, Y.; Guillaussier, A.; Voggu, V.R.; Houck, D.W.; Smilgies, D.-M.; Korgel, B.A. Bubble Assemblies of Nanocrystals: Superlattices without a Substrate. J. Phys. Chem. Lett. 2017, 4865–4871. [Google Scholar] [CrossRef] [PubMed]
  75. Elbert, K.C.; Jishkariani, D.; Wu, Y.; Lee, J.D.; Donnio, B.; Murray, C.B. Design, Self-Assembly, and Switchable Wettability in Hydrophobic, Hydrophilic, and Janus Dendritic Ligand–Gold Nanoparticle Hybrid Materials. Chem. Mater. 2017, 29, 8737–8746. [Google Scholar] [CrossRef]
  76. Ong, Q.; Luo, Z.; Stellacci, F. Characterization of Ligand Shell for Mixed-Ligand Coated Gold Nanoparticles. Acc. Chem. Res. 2017, 50, 1911–1919. [Google Scholar] [CrossRef] [PubMed]
  77. Liu, X.; Yu, M.; Kim, H.; Mameli, M.; Stellacci, F. Determination of monolayer-protected gold nanoparticle ligand–shell morphology using NMR. Nat. Commun. 2012, 3, 1182. [Google Scholar] [CrossRef] [PubMed][Green Version]

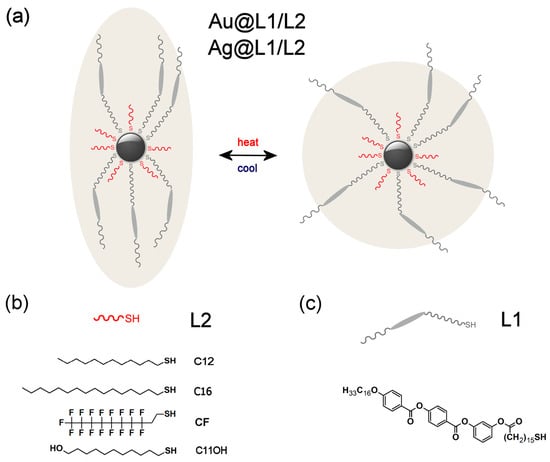

Figure 1. Structure of hybrid silver nanoparticles. (a) Schematic model of [email protected]/L2 and [email protected]/L2 nanoparticles showing thermally driven nanoparticle reshaping resulting from ligand spatial arrangement around nanocrystal core. Limited number of ligands is shown for clarity. Sizes of ligands and nanocrystal core are not to scale. (b) Structure of alkyl co-ligands used in the study. (c) Structure of the L1 ligand.
Figure 1. Structure of hybrid silver nanoparticles. (a) Schematic model of [email protected]/L2 and [email protected]/L2 nanoparticles showing thermally driven nanoparticle reshaping resulting from ligand spatial arrangement around nanocrystal core. Limited number of ligands is shown for clarity. Sizes of ligands and nanocrystal core are not to scale. (b) Structure of alkyl co-ligands used in the study. (c) Structure of the L1 ligand.
Nanomaterials 08 00147 g001

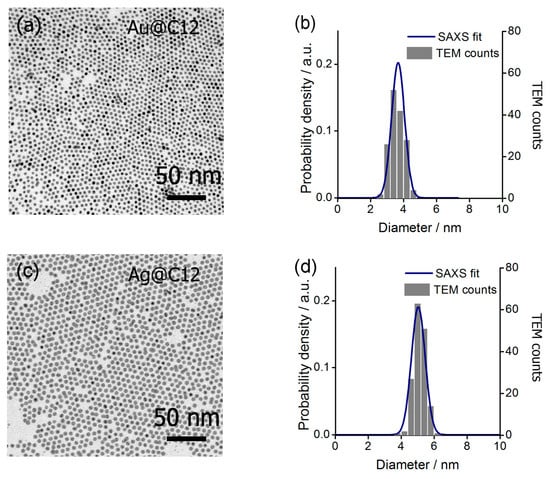

Figure 2. Structural investigation of [email protected] and [email protected] nanoparticles. (a) TEM micrograph of [email protected] monolayer (b) Distribution of [email protected] nanocrystal diameter based on SAXS experiment and TEM analysis. (c) TEM micrograph of [email protected] monolayer. (d) Distribution of [email protected] nanocrystal diameter based on SAXS experiment and TEM analysis.
Figure 2. Structural investigation of [email protected] and [email protected] nanoparticles. (a) TEM micrograph of [email protected] monolayer (b) Distribution of [email protected] nanocrystal diameter based on SAXS experiment and TEM analysis. (c) TEM micrograph of [email protected] monolayer. (d) Distribution of [email protected] nanocrystal diameter based on SAXS experiment and TEM analysis.
Nanomaterials 08 00147 g002

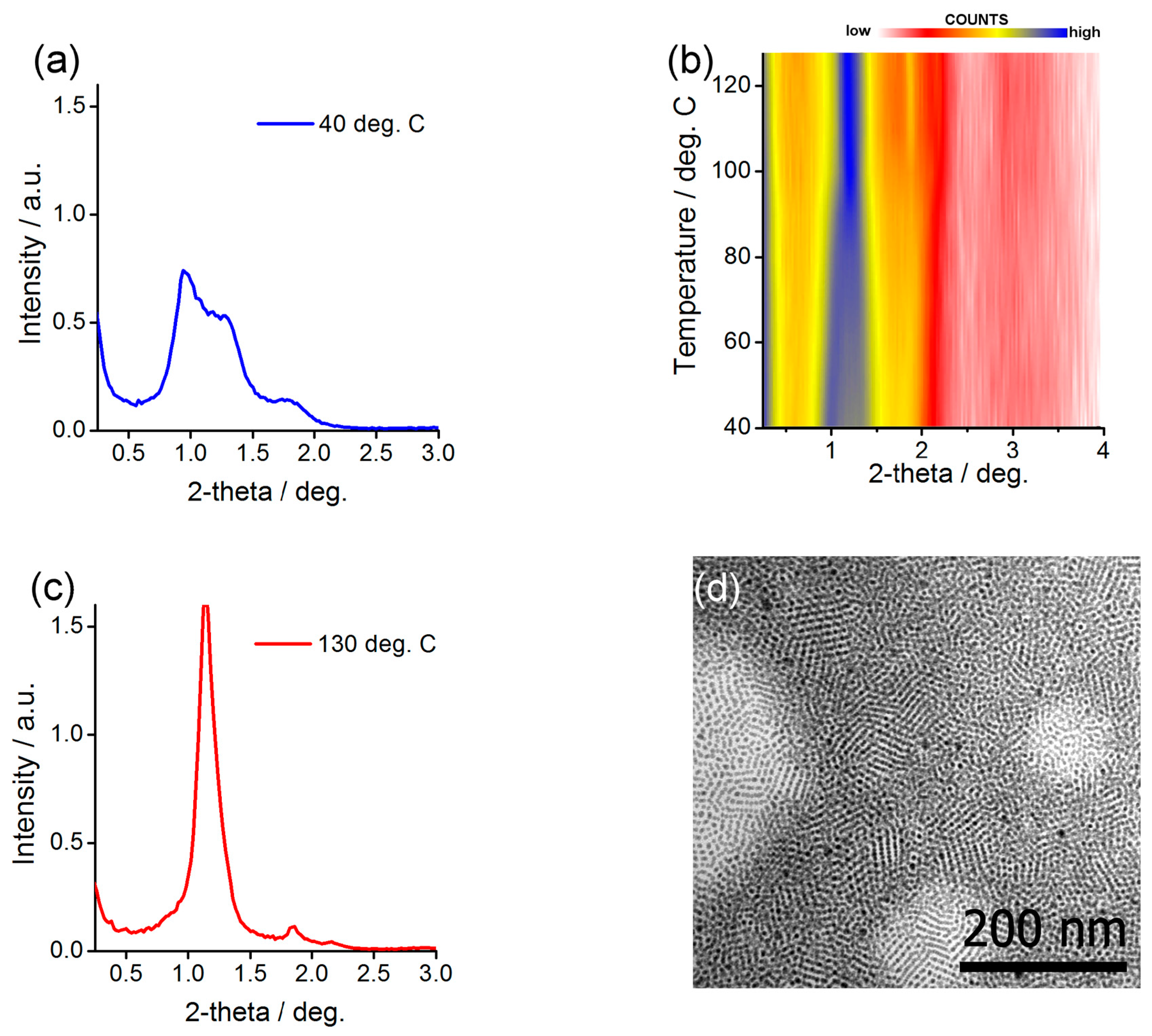

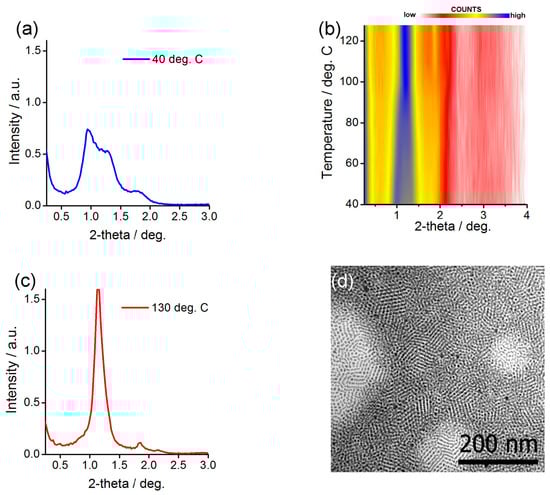

Figure 3. Structural investigation of [email protected]/C12 nanoparticles. (a,c) Small angle X-ray diffraction (SAXRD) profiles for low and high temperature structures (panels a, c, respectively) (b) Temperature evolution of SAXRD patterns taken for annealed sample and (d) corresponding TEM image.
Figure 3. Structural investigation of [email protected]/C12 nanoparticles. (a,c) Small angle X-ray diffraction (SAXRD) profiles for low and high temperature structures (panels a, c, respectively) (b) Temperature evolution of SAXRD patterns taken for annealed sample and (d) corresponding TEM image.
Nanomaterials 08 00147 g003

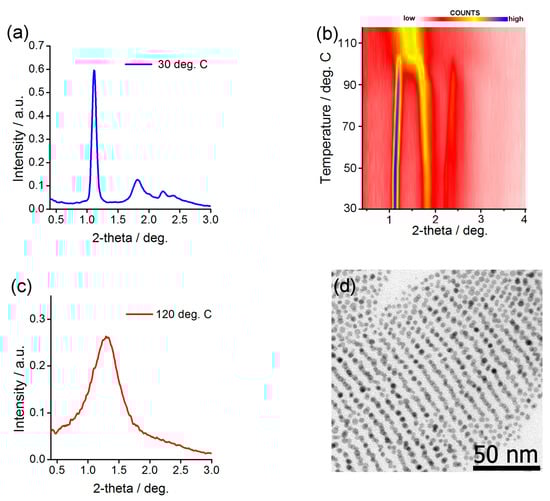

Figure 4. Structural investigation of [email protected]/C12 nanoparticles. (a,c) SAXRD profiles for low and high temperature structures (panels a, c, respectively) (b) Temperature evolution of SAXRD patterns taken for annealed sample and (d) corresponding TEM image.
Figure 4. Structural investigation of [email protected]/C12 nanoparticles. (a,c) SAXRD profiles for low and high temperature structures (panels a, c, respectively) (b) Temperature evolution of SAXRD patterns taken for annealed sample and (d) corresponding TEM image.
Nanomaterials 08 00147 g004

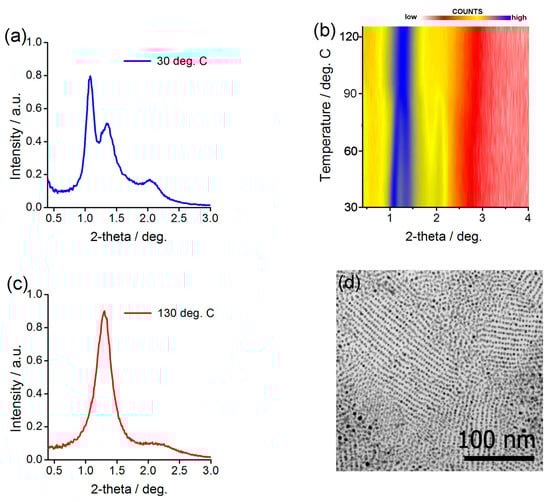

Figure 5. Structural investigation of [email protected]/C16 nanoparticles. (a,c) SAXRD profiles for low and high temperature structures (panels a, c, respectively) (b) Temperature evolution of SAXRD patterns taken for annealed sample and (d) corresponding TEM image.
Figure 5. Structural investigation of [email protected]/C16 nanoparticles. (a,c) SAXRD profiles for low and high temperature structures (panels a, c, respectively) (b) Temperature evolution of SAXRD patterns taken for annealed sample and (d) corresponding TEM image.
Nanomaterials 08 00147 g005

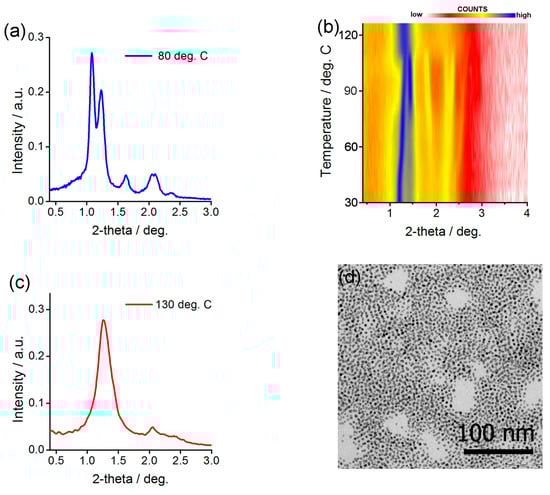

Figure 6. Structural investigation of [email protected]/CF nanoparticles. (a,c) SAXRD profiles for low and high temperature structures (panels a, c, respectively) (b) Temperature evolution of SAXRD patterns taken for annealed sample and (d) corresponding TEM image.
Figure 6. Structural investigation of [email protected]/CF nanoparticles. (a,c) SAXRD profiles for low and high temperature structures (panels a, c, respectively) (b) Temperature evolution of SAXRD patterns taken for annealed sample and (d) corresponding TEM image.
Nanomaterials 08 00147 g006

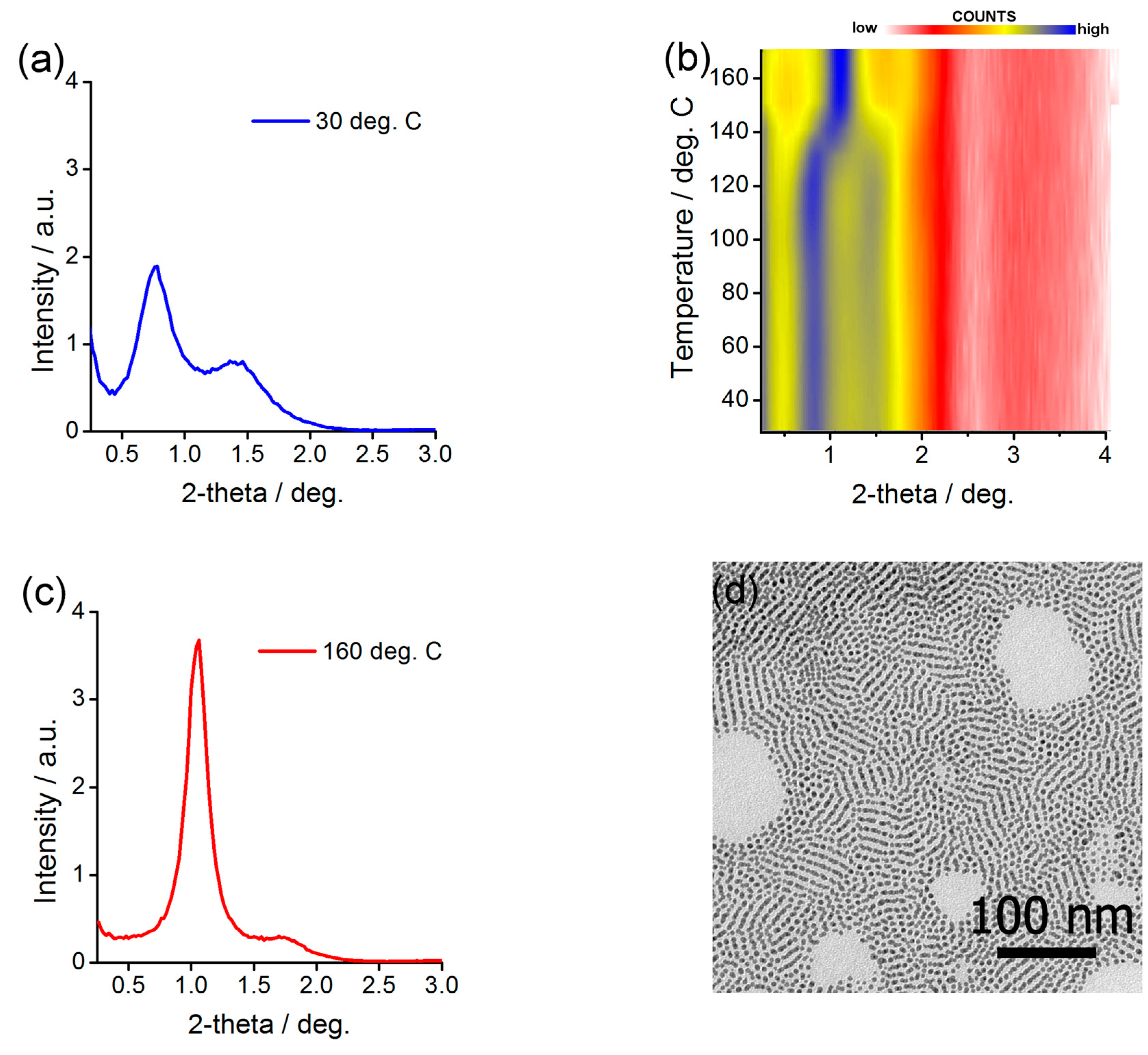

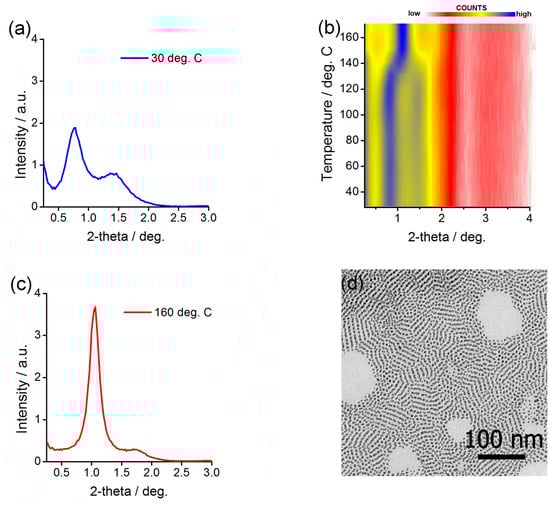

Figure 7. Structural investigation of [email protected]/C11OH nanoparticles. (a,c) SAXRD profiles for low and high temperature structures (panels a, c, respectively) (b) Temperature evolution of SAXRD patterns taken for annealed sample and (d) corresponding TEM image.
Figure 7. Structural investigation of [email protected]/C11OH nanoparticles. (a,c) SAXRD profiles for low and high temperature structures (panels a, c, respectively) (b) Temperature evolution of SAXRD patterns taken for annealed sample and (d) corresponding TEM image.
Nanomaterials 08 00147 g007

Share and Cite

MDPI and ACS Style

Grzelak, J.; Żuk, M.; Tupikowska, M.; Lewandowski, W. Modifying Thermal Switchability of Liquid Crystalline Nanoparticles by Alkyl Ligands Variation. Nanomaterials 2018, 8, 147. https://doi.org/10.3390/nano8030147

AMA Style

Grzelak J, Żuk M, Tupikowska M, Lewandowski W. Modifying Thermal Switchability of Liquid Crystalline Nanoparticles by Alkyl Ligands Variation. Nanomaterials. 2018; 8(3):147. https://doi.org/10.3390/nano8030147

Chicago/Turabian Style

Grzelak, Jan, Maciej Żuk, Martyna Tupikowska, and Wiktor Lewandowski. 2018. "Modifying Thermal Switchability of Liquid Crystalline Nanoparticles by Alkyl Ligands Variation" Nanomaterials 8, no. 3: 147. https://doi.org/10.3390/nano8030147

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
