Recent Advances in Nanoporous Membranes for Water Purification

AnHui Province Key Laboratory of Optoelectronic and Magnetism Functional Materials, Anqing Normal University, Anqing 246011, China
Hybrid Materials Interfaces Group, Faculty of Production Engineering and Center for Environmental Research and Sustainable technology (UFT), University of Bremen, D-28359 Bremen, Germany
CAS Key Laboratory of Magnetic Materials and Devices, Key Laboratory of Additive Manufacturing Materials of Zhejiang Province, Division of Functional Materials and Nanodevices, Ningbo Institute of Materials Technology and Engineering, Chinese Academy of Sciences, Ningbo 315201, China
MAPEX Center for Materials and Processes, University of Bremen, Am Fallturm 1, D-28359 Bremen, Germany
Author to whom correspondence should be addressed.
Nanomaterials 2018, 8(2), 65;
Submission received: 22 December 2017 / Revised: 18 January 2018 / Accepted: 23 January 2018 / Published: 25 January 2018
(This article belongs to the Special Issue Synthesis, Structure and Applications of 2D Nanomaterials)


Nanoporous materials exhibit wide applications in the fields of electrocatalysis, nanodevice fabrication, energy, and environmental science, as well as analytical science. In this review, we present a summary of recent studies on nanoporous membranes for water purification application. The types and fabrication strategies of various nanoporous membranes are first introduced, and then the fabricated nanoporous membranes for removing various water pollutants, such as salt, metallic ions, anions, nanoparticles, organic chemicals, and biological substrates, are demonstrated and discussed. This work will be valuable for readers to understand the design and fabrication of various nanoporous membranes, and their potential purification mechanisms towards different water pollutants. In addition, it will be helpful for developing new nanoporous materials for quick, economic, and high-performance water purification.

Graphical Abstract

1. Introduction

Water is the source of life, and one of the most important material resources for human survival and development. Although 71% of the earth’s surface is covered with water, freshwater resources that can be directly used by humans, such as river water, freshwater lakes and shallow groundwater, account for only 0.03% of the total water amount. Moreover, with the rapid development of industries and increasing human activities, such as metal plating, fertilizers, tanneries, mining, paper, batteries, pesticides, and etc., many harmful inorganic and organic pollutants are released into water, which seriously endangers the freshwater resource and ecological environment [1,2].
Heavy metallic ions in water are difficult to biodegrade, and they can enter the human body through the food chain, causing a series of irreversible physiological diseases. For example, mercury ions can damage the central nervous system, leading to headaches, stomatitis, and gastroenteritis [3]. Lead ions can cause an inadequate supply of nutrients and oxygen, resulting in brain tissue damage [4]. Especially for children in their growth and development stages, excessive lead ions in their bodies would lead to developmental delay, loss of appetite, and hearing impairment. Cadmium ions can replace calcium ions in the bones, hinder the normal deposition of calcium in the bone, and result in cartilage disease [5]. Excess arsenic in the human body can interfere with the normal metabolism of cells, causing cell lesions and leading to organ damage. Organic pollutants in water such as pesticides, fertilizes, hydrocarbons, phenols, plasticizers, biphenyls, detergents, oils, greases, and pharmaceuticals are mainly derived from domestic sewage, agriculture, food, and paper industry. These organic pollutants need to consume a lot of oxygen in the process of oxidative decomposition, which will reduce the amount of dissolved oxygen in water, thereby endangering aquatic organisms and ecosystems [6]. In addition, some harmful microbes in water such as algae, fungi, planktons, virus, bacteria, and amoebas are responsible for causing illnesses called waterborne diseases [7]. Therefore, developing efficient water purification materials and green wastewater treatment methods are urgent issues that need to be solved by governments and scientists.
Currently, many technologies such as chemical precipitation [8], adsorption [9], ion exchange [10], membrane filtration [11], electrochemistry [12], phytoremediation [13], and others [14] have been widely employed to purify wastewater. Due to its advantages for operation at room temperature, simple operation processes, low energy consumption, high efficiency, and small investment, the membrane filtration technique has drawn more attention than other treatment technologies for water purification. Microporous membranes with a pore size about 0.1–5 µm can only be used for filtering particles with 1–10 µm, which limits their applications in water purification. Meanwhile, nanoporous membranes exhibited high performance for water purification. They can filter most of the pollutants (1–10 nm) such as metallic ions, organic molecules, salts, and microbes from wastewater [15,16]. To design high performance nanoporous membranes for water purification, many kind of inorganic, organic, and inorganic-organic hybrid materials have been utilized [17,18,19]. For instance, Surwade et al. demonstrated the water desalination by using nanoporous single-layer graphene [20]; Zhang et al. reported an ultrathin nanoporous membrane formed with sub-10 nm diameter cellulose nanofibers, which exhibited fast permeation of water and organics [21]; Bolisetty and Mezzenga designed the amyloid-carbon hybrid membranes for wastewater purification [22].
Previously, several important reviews on the fabrication of membranes with various techniques and materials have been reported [17,18,23,24,25,26,27]. For example, Lee et al. summarized recent studies on the design, development, and applications of membrane materials for water purification [18]. Lalia and co-workers elucidated the relationship between the structure, properties and performance of membranes by comparing various membrane fabrication techniques [24]. Recently, a few reviews on the fabrication of membranes by using graphene and other two-dimensional (2D) nanomaterials for water treatment have been released [25,26]. Due to the growing importance of nanoporous structures of membranes for water treatments, recent advances in their design, fabrication, and water purification application need to be summarized.
Therefore, in this review we focus on nano-filtration (NF), ultra-filtration (UF), and reverse osmosis (RO) of wastewater by nanoporous membranes. We first introduce the synthesis strategies of nanoporous membranes, and then demonstrate the applications of different types of nanoporous membranes in wastewater purification. The fabricated nanoporous membranes for removing various water pollutants such as salt, metallic ions, anions, nanoparticles, organic chemicals, and biological contaminants are presented and discussed. Finally, we analyze and discuss the advantages and disadvantages of porous membranes in the water filtering process, and look ahead to the prospects and development of nanoporous membranes in the field of water treatment.

2. Types and Fabrication Methods of Nanoporous Membranes

2.1. Types of Nanoporous Membranes

Nanoporous membrane for water purification can generally be divided into three types based on their material composition: inorganic, organic, and inorganic-organic hybrid membranes. Inorganic membranes are mainly made of ceramics (Al2O3, TiO2, ZrO2, SiO2, TiO2-SiO2, TiO2-ZrO2, Al2O3-SiC) [28,29,30,31,32,33], graphene [34,35,36], and carbon nanotubes (CNTs) [37,38]. Organic membranes are mainly made of polymeric materials such as polyvinyl alcohol (PVA), polyimide (PI), polypropylene (PP), polyethersulfone (PES), cellulose acetate (CA), cellulose nitrates, polysulfone (PSU), polyvinylidene fluoride (PVDF), polyacrylonitrile (PAN), polytetrafluoroethylene (PTFE), and biomacromolecules [39,40,41,42,43,44,45]. Inorganic-organic hybrid membranes are usually made by introducing inorganic materials (metals, metal oxide, or carbon-based materials) into a polymeric matrix system [46,47,48,49,50,51,52].

2.2. Fabrication Methods of Nanoporous Membranes

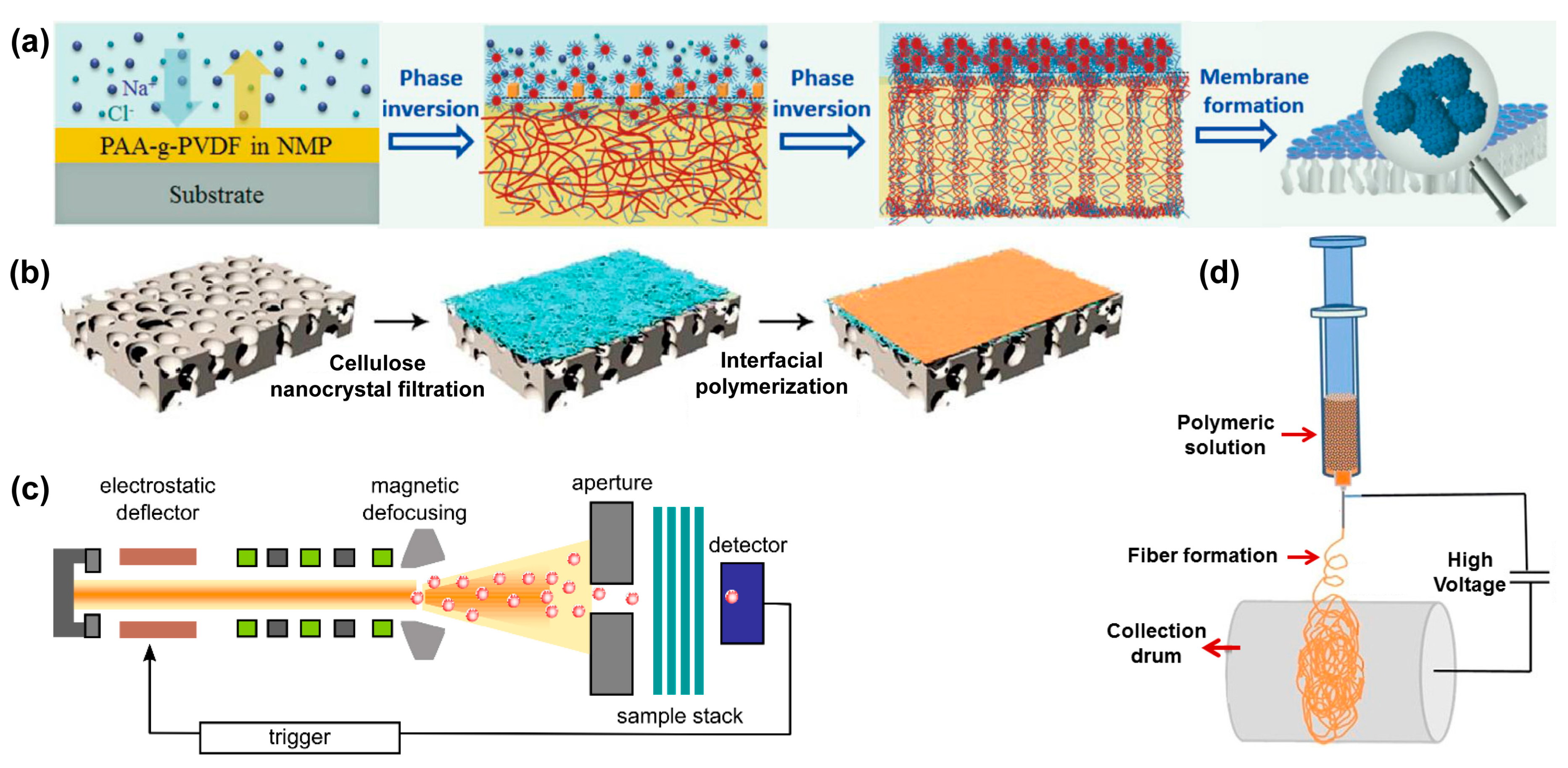

Currently, the most common techniques for fabricating the above three types of nanoporous membranes include phase inversion, interfacial polymerization, track-etching, and electrospinning [24,53,54,55,56], as shown in Figure 1. In this section, the basic mechanisms for the fabrication of nanoporous membranes and corresponding typical cases are discussed briefly.

2.2.1. Phase Inversion

Phase inversion is a stratification process that converts a homogeneous solution into a solid state in a controlled manner [44,57,60]. The transformation can be accomplished by immersion precipitation, thermo-induced phase separation, vapor-induced phase separation, and evaporation-induced phase separation. Among these techniques, immersion precipitation and thermo-induced phase separation are the most common method for the fabrication of NF, UF, and RO membranes [61,62,63]. The morphology of membrane can be controlled by using solvents with different boiling points and porous shape of the substrate. For example, Zhang and co-workers fabricated a superoleophobic poly(acrylic acid)-grafted PVDF (PAA-g-PDVF) filtration membrane by salt-induced phase-inversion approach for treating emulsified oil/water mixtures (Figure 1a) [57].

2.2.2. Interfacial Polymerization

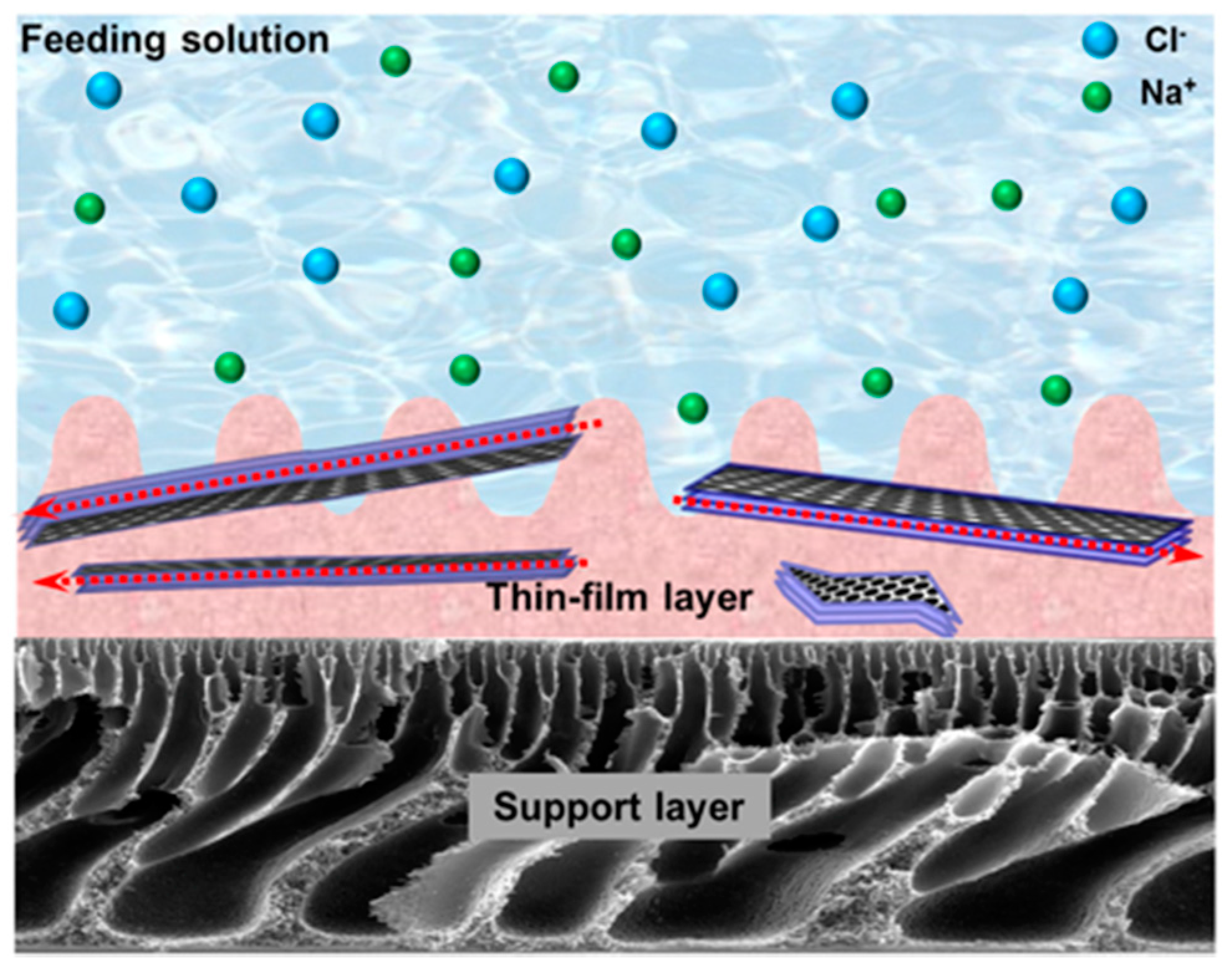

The interfacial polymerization method has been previously used to fabricate RO and NF membranes [58]. This technique is based on a polycondensation reaction between two monomers (such as polyamines and polyacyl chlorides) dissolved in immiscible solvents, one of which, the aqueous polyamine solution, initially impregnates the substrate [64,65]. An ultra-thin film (from 10 nm to several μm thick) could be quickly formed at the polymer-substrate interface and attached to the substrate. The structural morphology of the membranes created with this method can be controlled by concentration of monomers, reaction time, solvent type, and post-treatment conditions [66,67]. For instance, Wang et al. prepared a triple-layered composite NF membrane by the interfacial polymerization of diamine and acyl chloride on a cellulose nanocrystal interlayer for water desalination (Figure 1b) [58]. Yin and co-workers prepared nanocomposite membranes by using MCM-41 silica nanoparticles and graphene oxide (GO)-enhanced PA thin films via the interfacial polymerization method [68,69], and both nanoporous membranes exhibited high performances for water purification.

2.2.3. Track-Etching

In the track-etching process, non-porous polymer membranes are irradiated with high energy heavy ions, resulting in a linearly damaged track across the irradiated polymer membrane to form nanopores [59], as indicated in Figure 1c. The track-etching technique can precisely control the pore size distribution of the membrane, and the pore size and pore density can be adjusted in the range of a few nm to tens of μm and 1 to 1010 cm−2, respectively [70]. Previously, DesOrmeaux et al. fabricated a nanoporous silicon nitride membrane from porous nanocrystalline silicon template through the track-etching process [71].

2.2.4. Electrospinning

Electrospinning is a simple and effective technique developed 20 years ago to fabricate nanofibrous membrane materials [72,73,74,75,76,77]. As shown in Figure 1d, a high voltage is applied between the polymer solution droplet and the collector. When the applied voltage is large enough to overcome the surface tension of the droplets, a charged liquid jet is formed [54]. The porosity, pore size distribution, aspect ratios, and morphology of the nanofibrous membranes prepared by electrospinning can be controlled by adjusting the solution viscosity, applied electric potential, environmental conditions, and the flow of the solution [78]. For instance, by using electrospinning, Feng et al. prepared a PVDF nanofibrous membrane for removing NaCl [79], and in another study Ren et al. prepared Ti3C2Tx mxene membranes for sieving cations and dyes from wastewater [80].

3. Applications for Water Purification

According to the properties of the target water pollutes, we classify them into three categories, namely inorganic pollutants, organic pollutants, and biological pollutants. In this section we introduce and discuss the applications of corresponding nanoporous membranes for purifying these three types of pollutants.

3.1. Removal of Inorganic Contaminants

3.1.1. Removing Cations

Due to their excellent permeability, and mechanical and chemical stabilities, polymer materials have been widely used for producing water purification membranes or as supporting substrates for fabricating hybrid membranes. For example, Feng and co-workers designed and prepared a PVDF nanofibrous membrane via electrospinning for water desalination [79]. The prepared membrane produced potable water successfully (with a concentration of NaCl lower than 280 ppm) starting from saline water with 6 wt % NaCl, which is comparable to the performance of commercial membranes. The membrane flux reached 5–28 kg m−2 h−1 at the temperature ranging from 15 °C to 83 °C. Moreover, the water purification performance of this membrane remained stable after several days of using. Sun et al. developed a NF membrane by immobilizing AquaporinZ-reconstitued liposomes onto a PDA-coated microporous membrane [81]. The obtained membrane retained 66.2% of NaCl and 88.1% of MgCl2, respectively. Because AquaporinZ is a water-channel protein and have extraordinary water permeability and selectivity, the membranes functionalized with an AquaporinZ-to-lipid weight ratio of 1:100 increased the water flux by 65% when compared with the membranes without AquaporinZ incorporation. In another study, Tijing and co-workers fabricated a superhydrophobic PVDF-co-hexafluoropropylene nanofiber membrane containing CNTs by one-step electrospinning method [82]. The mechanical and hydrophobic properties of this membrane could be controlled by adjusting the concentration of the incorporation CNTs. Incorporation of 5 wt % CNTs to the membrane led to highest water flux (24–29.5 L m−2) and more than 99.99% salt retention under an external pressure (≥liquid entry pressure) of 99 kPa.
Inorganic nanoporous membranes can also be used for removing cations from wastewater. For example, Liu et al. prepared a continuous zirconium(IV)-based metal-organic framework (Zr-MOF) membranes on porous, hollow ceramic fibers by using an in situ solvothermal synthesis method for water desalination. The obtained Zr-MOF membrane (i.e., UiO-66) exhibited high multivalent ion retention (99.3% for Al3+, 98.0% for Mg2+, and 86.3% for Ca2+) on the basis of size-exclusion mechanism. It showed good permeability (0.28 L m−2 h−1 bar−1) and good chemical stability in various saline tests [83]. In another study, Yin and co-workers fabricated a thin-film nanocomposite (TFN) membrane containing porous MCM-41 silica nanoparticles via the in-situ interfacial polymerization for water purification [68]. The prepared membrane showed high retentions of NaCl and Na2SO4 (97.9% ± 0.3% for NaCl, and 98.5% ± 0.2% for Na2SO4). The incorporated MCM-41 nanoparticles not only increased the hydrophilicity, roughness, and zeta potential of the TFN membrane, but also increased the permeate water flux from 28.5 ± 1.0 to 46.6 ± 1.1 L m−2 h−1. To improve the water flux, the authors further replaced the MCM-41 silica nanoparticles with GO to fabricate a membrane [69]. As shown in Figure 2, the interlayer spacing of GO nanosheets could serve as water channel and promote water permeability. The water flux of GO-enhanced polyamide TFN membrane reached up to 59.4 ± 0.4 L m−2 h−1, and the rejection coefficients of NaCl and Na2SO4 were 93.8% ± 0.6% and 97.3% ± 0.3%, respectively.

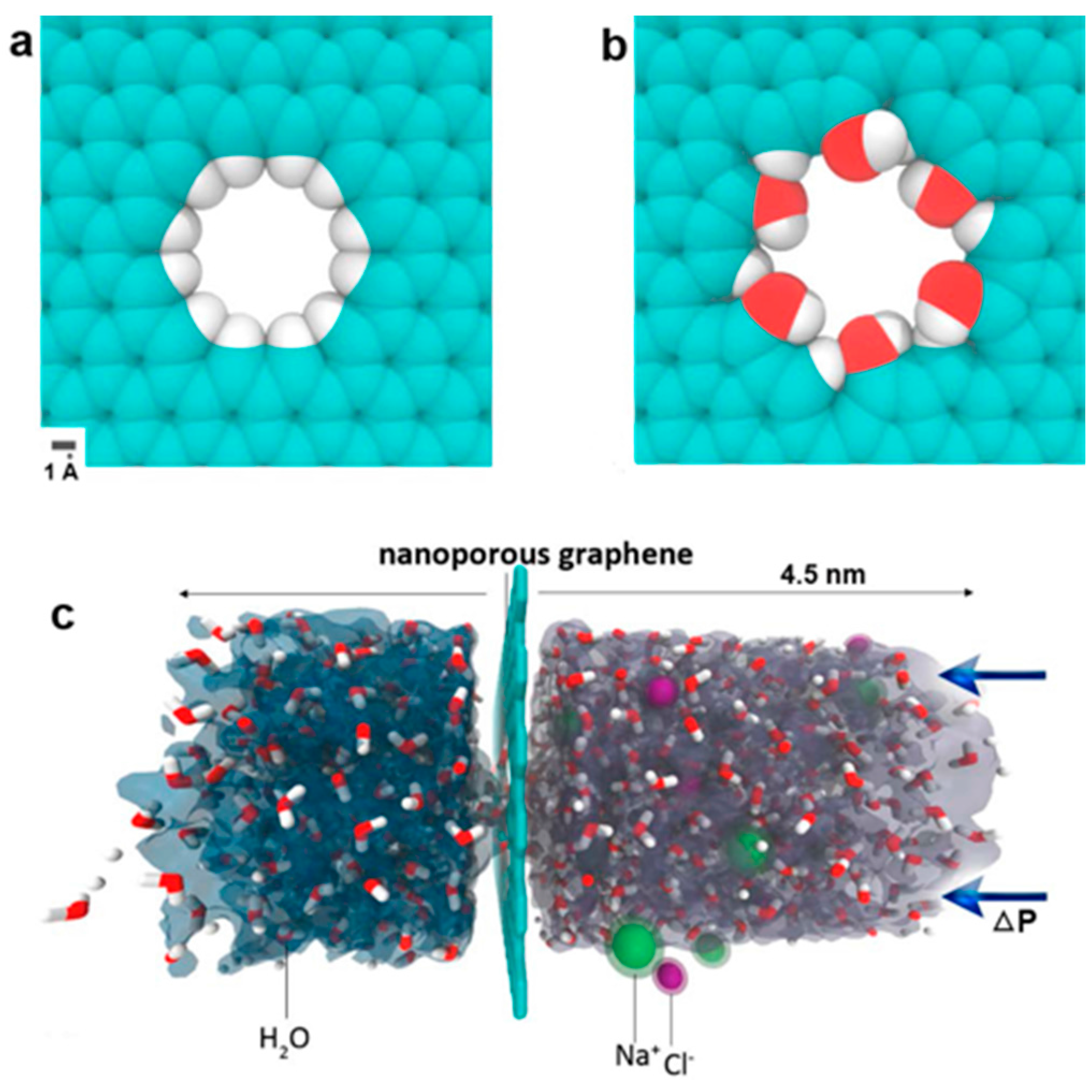

Two-dimensional graphene materials are excellent building blocks for fabricating nanoporous membranes for water purification. For instance, Chen and co-workers discovered that the spacing of GO membranes (GOMs) can be precisely controlled by added cations due to the strong cation-π interactions between hydrated cations and aromatic rings of graphene. The membrane spacing controlled by one type of cation can efficiently and selectively exclude other cations that have larger hydrated volumes. For instance, K+-controlled GOMs could efficiently reject Mg2+, Ca2+, Na+ and Li+, and showed stable performance for over 24 h with a water flux of 0.36 L m−2 h−1 [84]. By using classical molecular dynamics simulations, David et al. reported that nanoscale pores in single-layer freestanding graphene can efficiently filter NaCl salt from water [35]. The simulation results indicated that the desalination performance is very sensitive to the pore size and pore chemistry of a graphene membrane (Figure 3). Later, Sumedh et al. created tunable nanoscale pores on a monolayer graphene membrane by using an oxygen plasma etching method. The obtained membrane showed a rejection rate of nearly 100% for salt ions (K+, Na+, Li+, Cl), and up to 106 g m−2 s−1 of water fluxes at 40 °C by using pressure difference as a driving force [20]. Although scaling up of these monolayer membranes remains a significant challenge, the effectiveness and potential of nanoporous graphene for desalination applications are very fascinating.
Hu et al. assembled GO nanosheets into a GO membrane layer-by-layer method on a polydopamine-coated polysulfone support by using 1,3,5-benzenetricarbonyl trichloride as cross-linker [85]. The obtained GO membrane showed relatively low rejection (6–46%) of salt cations, but the water flux could reach 27.6 L m−2 h−1 bar−1, which is much higher than that of most commercial NF membranes. Later, Wang and co-workers fabricated a GO NF membrane on a highly porous polyacrylonitrile nanofibrous mat (GO@PAN) by a simple vacuum suction method [86]. The thickness of GO layer can be controlled by manipulating the concentration of GO solution. The obtained GO@PAN membrane exhibited high water flux (8.2 L m−2 h−1 bar−1) and nearly 100% rejection of Congo red and 56.7% rejection of Na2SO4. Liu et al. fabricated freestanding ultrathin reduced graphene oxide (rGO) membranes by hydriodic acid vapor and water-assisted delamination [87]. Thanks to the smaller nanochannels between rGO nanosheets, the achieved rGO membrane showed nearly 100% rejection of Cu2+, Na+, and orange 7. Moreover, the water flux of the fabricated rGO membrane reached 12.0 L m−2 h−1 bar−1. In another study, Akbari and co-workers developed large-area GO-based NF membranes by shear alignment of discotic nematic liquid crystals of GO [88]. The highly ordered graphene sheets in the GO-based membrane not only enhanced the water permeability (71 ± 5 L m−2 h−1 bar−1), but also could sieve ˃90% of organic probe molecules (hydrated radius above 5 Å) and 30–40% of salt cations.
2D graphene-like materials show similar separation ability as graphene-based membranes. Previously, Ren et al. assembled 2D Ti3C2Tx (MXene) into nm-thin membrane for charge- and size- selective rejection of ions and molecules [80]. The prepared MXene membrane showed ultrafast water flux of 37.4 L m−2 h−1 bar−1, and high selectivity toward single-, double- and triple-charged metal cations and dye cations with different sizes. As shown in Figure 4, cations (such as MB+, Ca2+) with a larger hydration radius and charge smaller than the interlayer spacing of MXene (6 Å) showed an order of magnitude slower permeation compared to single-charged cations (such as Na+).

3.1.2. Removing Anions

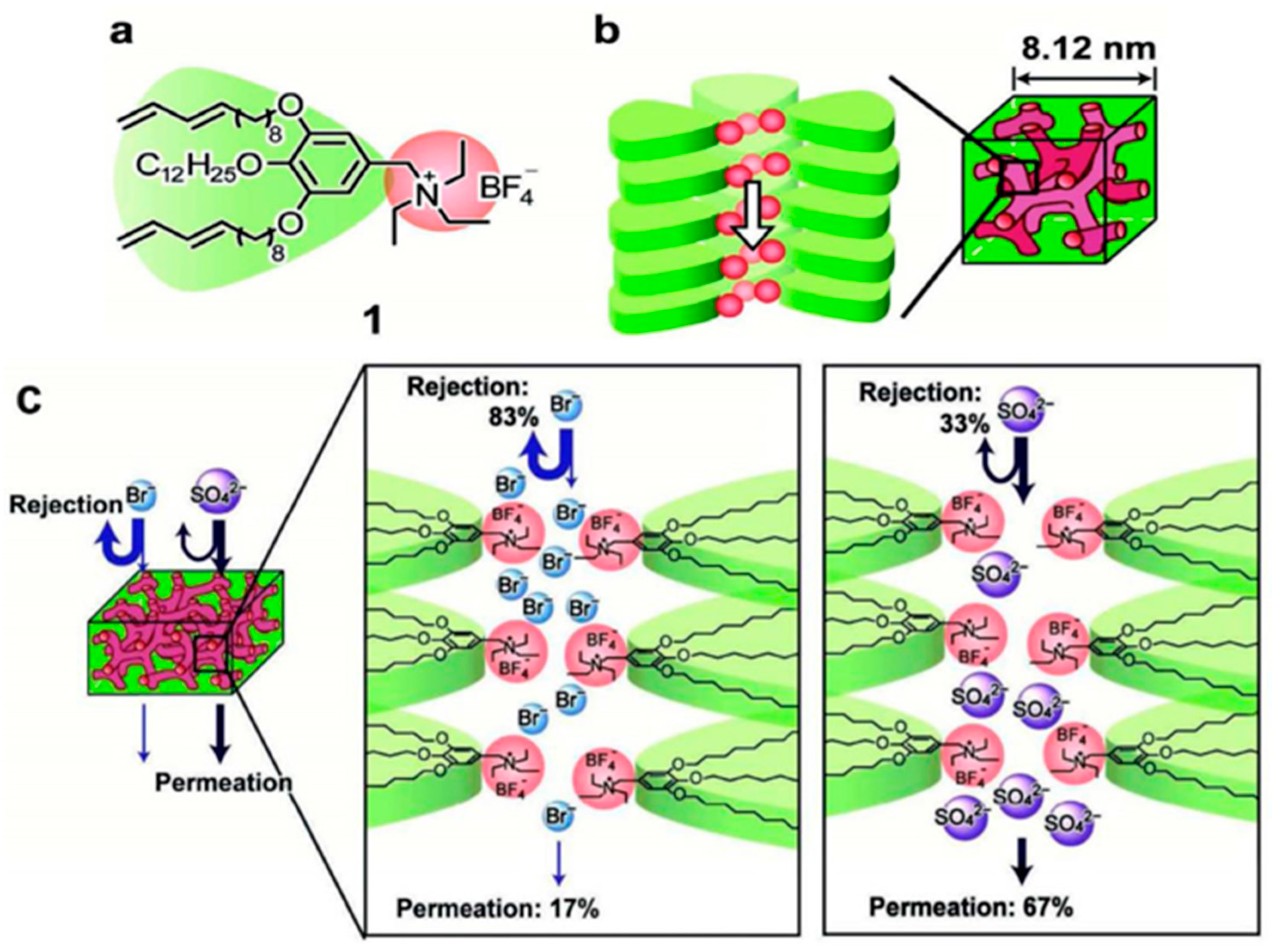

Henmi et al. synthesized a bicontinous cubic (Cubbi) membrane through the self-assembly of thermotropic liquid-crystal (LC) molecules [89], as shown in Figure 5. The obtained Cubbi membrane has self-organized pores with average size of 0.6 nm, and exhibits anions rejection properties and unique ion selectivity. The experimental results indicated that the Cubbi membrane can reject 83% of Br, 59% of Cl, 33% of SO42−, and 81% of NO3, respectively. This self-organized nanostructured RO membranes have great potential for removing a lot of solutes and afford high-quality potable water, agriculture and industrial water. Mezzenga and co-workers prepared a hybrid composite membrane by incorporating β-lactoglobulin, amyloid fibrils and activated carbon via vacuum filtration. The obtained membrane could remove more than 99% of AsO 4 3 and AsO 3 3 from arsenic-contaminated water via strong supramolecular metal-ligand interactions. Moreover, this membrane could be reused for several cycles without any efficiency drop [90].
When compared with the cation-rejection membrane, it can be concluded that the anion-rejection membrane repel anions mainly by electrostatic interaction or channel surface coordination groups (such as sulfhydryl group). However, the cation-rejection membrane repel cations mainly by the pore size of the membrane.

3.1.3. Removing Nanoparticles

Nanoparticles can easily enter human body through the food chain (such as drinking water) due to their small size, and this can result in cellular oxidative stress and inflammation. Therefore, the removal of nanoparticles from water is of great significance. Previously, DesOrmeaux and co-workers fabricated a nanoporous silicon nitride (NPN) membrane by using porous nanocrystalline silicon as a reactive ion etching layer for removing gold (Au) nanoparticles from water [71]. The pore size of the NPN membrane could be adjusted from 40 to 80 nm by modifying the mask layer and controlling the reactive ion etching conditions. The obtained membrane could remove more than 80% of Au nanoparticles (diameter ≥ 60 nm) from water. Zhang et al. reported a versatile approach to fabricate ultrathin nanoporous membranes with 7.5 nm diameter cellulose nanofibers by using a freeze-extraction technique [21]. The thickness of obtained membrane could be controlled to as thin as to 23 nm, with pore sizes ranging from 2.3 nm to 12 nm. The experimental results indicated that the 30 nm thickness membrane had 1.14 × 104 of water flux and 3.96 × 104 L m−2 h−1 bar−1 of acetone flux, respectively. The as-prepared cellulose membranes with sub-10 nm pores exhibited wide application in the fast removal of nanoparticles and substrates with diameters larger than 10 nm from water. In another case, Li et al. pressed a three-dimensional interconnected CNT sponge into a thin membrane for sieving nanoparticles and dye molecules from water. The prepared CNT membrane could remove 80% of CdS nanoparticles (2–4 nm), 100% of Au nanoparticles (8 nm), 100% of TiO2 nanoparticles (12 nm), and nearly 100% of methyl orange and rhodamine B (RhB) molecules from water, respectively [91]. The CNT membrane is not only stable at high temperature and in an acid environment, but also has filter capacities up to 45 L g−1.

3.2. Removal of Organic Contaminants

Organic pollutants such as pesticides, hydrocarbons, phenols, oils, and pharmaceuticals can reduce the amount of dissolved oxygen in water in their oxidative decomposition process, thus endangering the aquatic organisms and damaging whole ecosystems. Karim and co-workers prepared a nanoporous membrane with cellulose nanocrystals as functional entity in chitosan via a freeze-drying process followed by compacting [16]. Although the as-prepared membrane had a low water flux (6.4 L m−2 h−1 bar−1), it could remove 98% of Victoria Blue 2B, 84% of Methyl Violet 2B, and 70% of Rhodamine 6G from water, respectively. The mechanism analysis indicated that this membrane adsorbed dyes mainly through electrostatic attraction and hydrogen bonds. Lee et al. developed a superhydrophobicity/superoleophilicity membrane by synthesizing vertically-aligned multi-walled carbon nanotubes (VAMWNTs) on a stainless steel mesh [92]. The contact angles of the obtained membrane for water and diesel were 163° and 0° respectively. It could efficiently separate diesel and high-viscosity lubricating oil from water. These properties make the VAMWNTs membrane very promising for the oil/water separation and oil spill cleanup. Liang and co-workers fabricated free-standing carbonaceous nanofiber (CNF) membranes by a simple casting process for water purification [93]. The obtained CNF membrane could efficiently remove methylene blue at a high flux of 1580 L m−2 h−1, and the adsorption performance cloud be easily regenerated after a simple HCl wash.
Xi and co-workers fabricated a superhydrophobic/superoleophilic NF membrane by immobilizing silver (Ag) nanoclusters on polyacrylonitrile (APAN) nanofibers [94]. The resultant APAN-Ag membrane showed a high water contact angle of 162.4° ± 1.9°, a low oil contact angle of 0°, a self-cleaning surface with water contact-angle hysteresis of 3.4° ± 0.9°, and low water-adhesion propensity. In addition, this APAN-Ag membrane could efficiently separate oil/water mixtures in both hyper-saline and various pH environments. In another study, Cao et al. prepared a highly water-selective hybrid membrane for the water/ethanol separation by incorporating g-C3N4 nanosheets into a matrix made of sodium alginate [95]. The as-prepared hybrid membrane exhibited an optimal pervaporation performance with a permeation flux of 2469 g m−2 h−1 and a separation factor of 1653 for the dehydration of 10 wt % water/ethanol mixture at 76 °C.

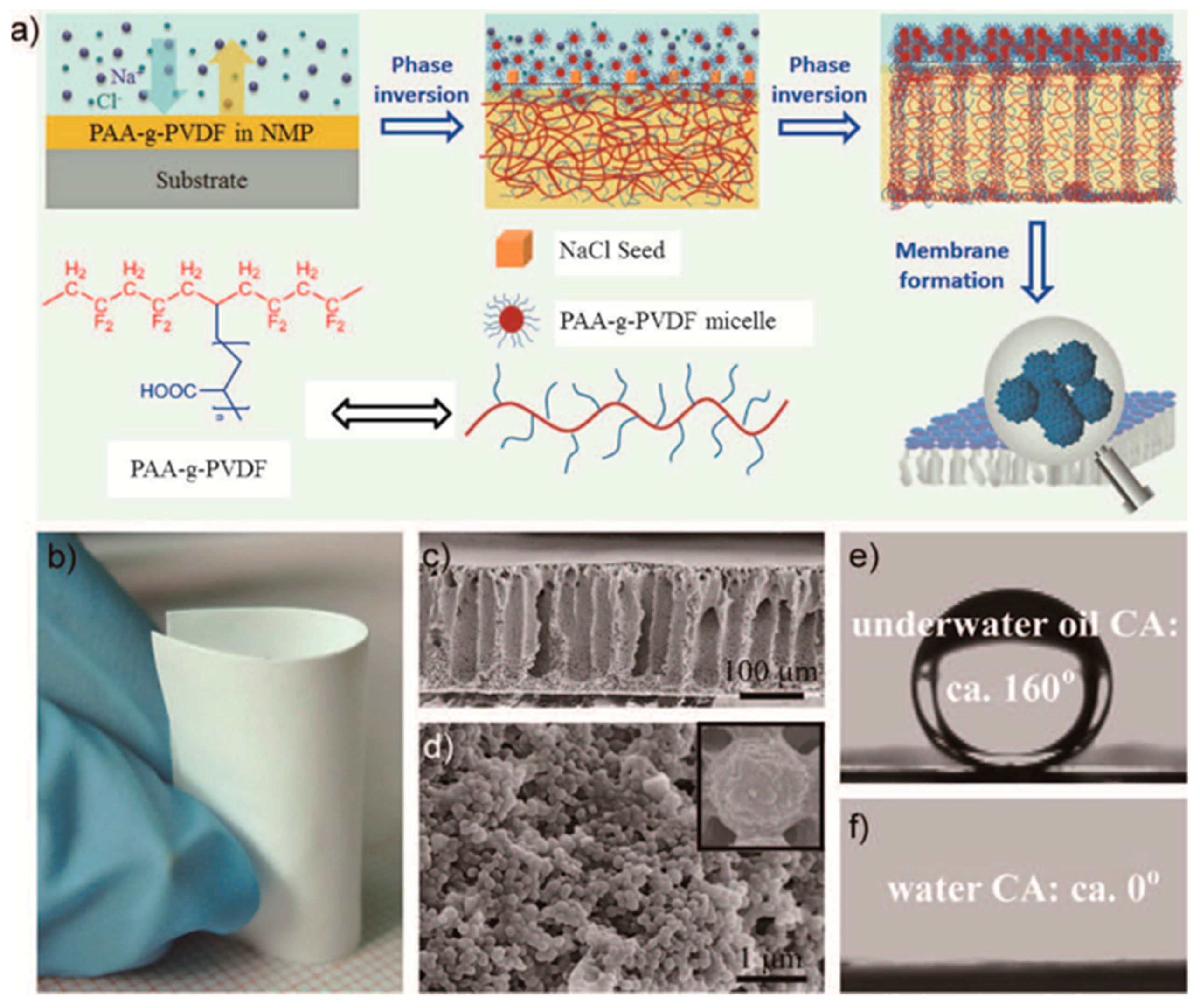

Zhang et al. fabricated a superoleophobic poly(acrylic acid)-grafted PVDF (PAA-g-PVDF) membrane through a slat-induced phase inversion [57], as shown in Figure 6. The as-prepared PAA-g-PVDF could separate both surfactant-free and surfactant-stabilized oil-in-water emulsions, either under the pressure of 0.1 bar or under gravity, with high separation efficiency (˃99.99 wt % pure water) and high flux (23,200, 16,800, 15,500 L m−2 h−1 bar−1 of flux for hexadecane/H2O, toluene/H2O, diesel/H2O, respectively). Moreover, the PAA-g-PVDF membrane could be used repeatedly after a simple treatment of water washing. Obaid and co-workers developed an oil/water separation membrane by incorporation of NaOH nanoparticles inside the polysulfone (PSF) nanofibers [96]. The NaOH-modified PSF nanofiber membrane could remove almost 100% oil from water with a 5.5 m3 m−2 day water flux. In general, superhydrophobic/superoleophilic or superhydrophilic/superoleophobic nanoporous membranes can effectively separate oil/water mixtures. But for oil-water-emulsions, its separation efficiency is relatively low, and therefore surfactants are often needed to overcome this disadvantage. Moreover, a rough material surface is also beneficial for improving the separation efficiency of the nanoporous membrane.

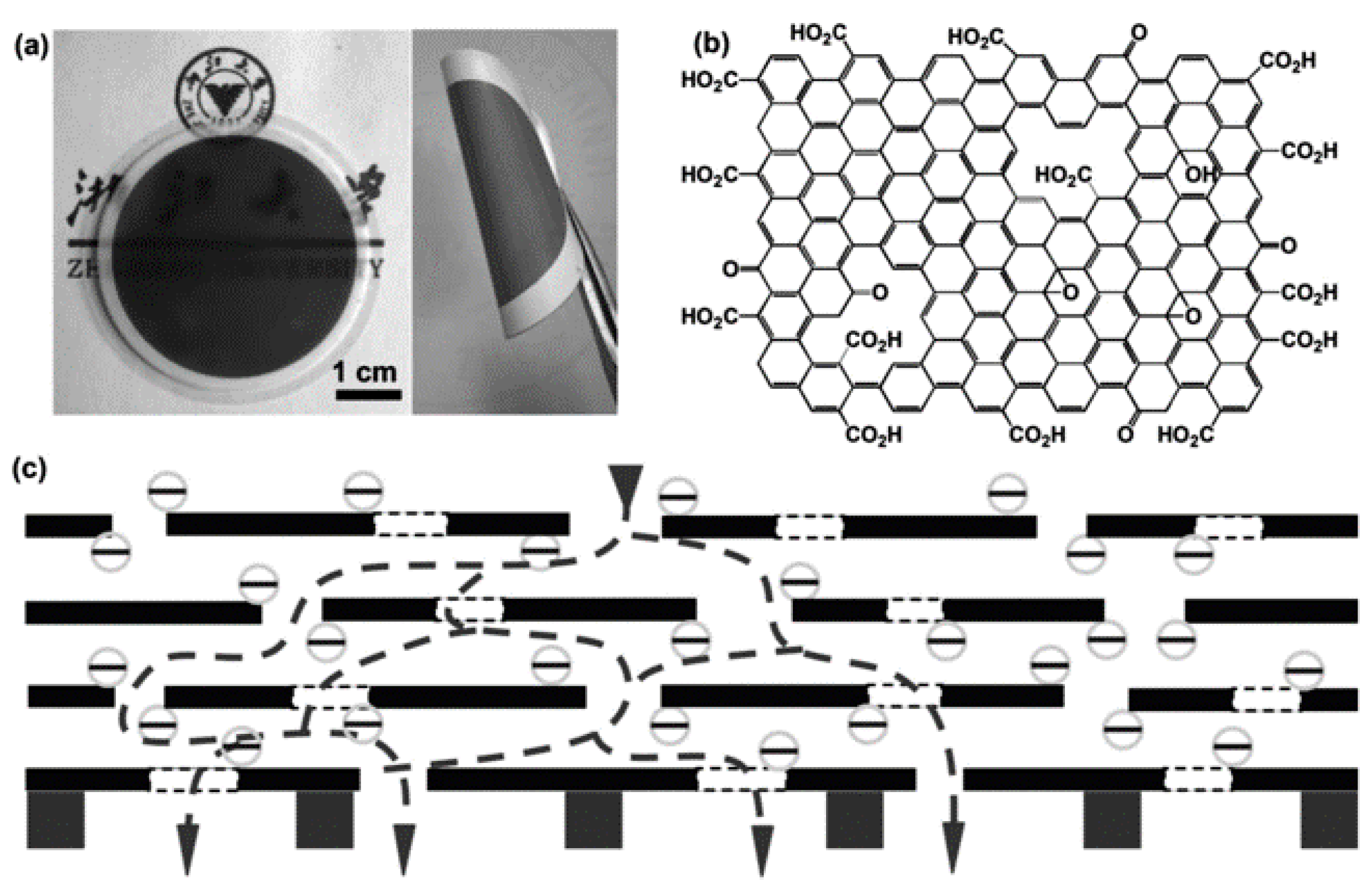

Han et al. fabricated ultrathin (22–53 nm thick) graphene nanofiltration membranes (uGNM) with 2D nanochannels by a simple filtration-assisted assembly method (Figure 7) [34]. The as-prepared uGNM could sieve 99.8% of methyl blue and 99.9% of direct red 81. In addition, the water flux of uGNM reached 21.8 L m−2 h−1 bar−1. The water purification mechanism analysis revealed that the uGNM rejected dyes, mainly through both physical sieving and electrostatic interaction.
GO-based nanoporous membranes have been applied widely for removing organic contaminants. For instance, Huang and co-workers prepared an integrated and continuous GO membrane on ceramic hollow fiber substrates via a vacuum suction method [97]. The obtained GO membrane could successfully separate dimethyl carbonate from water due to its preferential water sorption ability and fast water diffusivity through the GO layers. At 25 °C and 2.6 wt % feed water content, the permeate water content reached 95.3 wt % with a permeation flux of 1702 g m−2 h−1. Tang et al. fabricated free-standing GO thin membranes by using a pressurized ultrafiltration method for separation of ethanol/water mixtures [98]. The prepared GO films exhibited a layered microstructure with high structural stability and hydrophilicity. Attributed to the effect of intermolecular hydrogen bonding between water molecules and the functional groups on GO nanosheets, the fabricated GO film showed high retention for water (water/ethanol selectivity is 227) and could dehydrate 85 wt % ethanol aqueous solution at 24 °C.

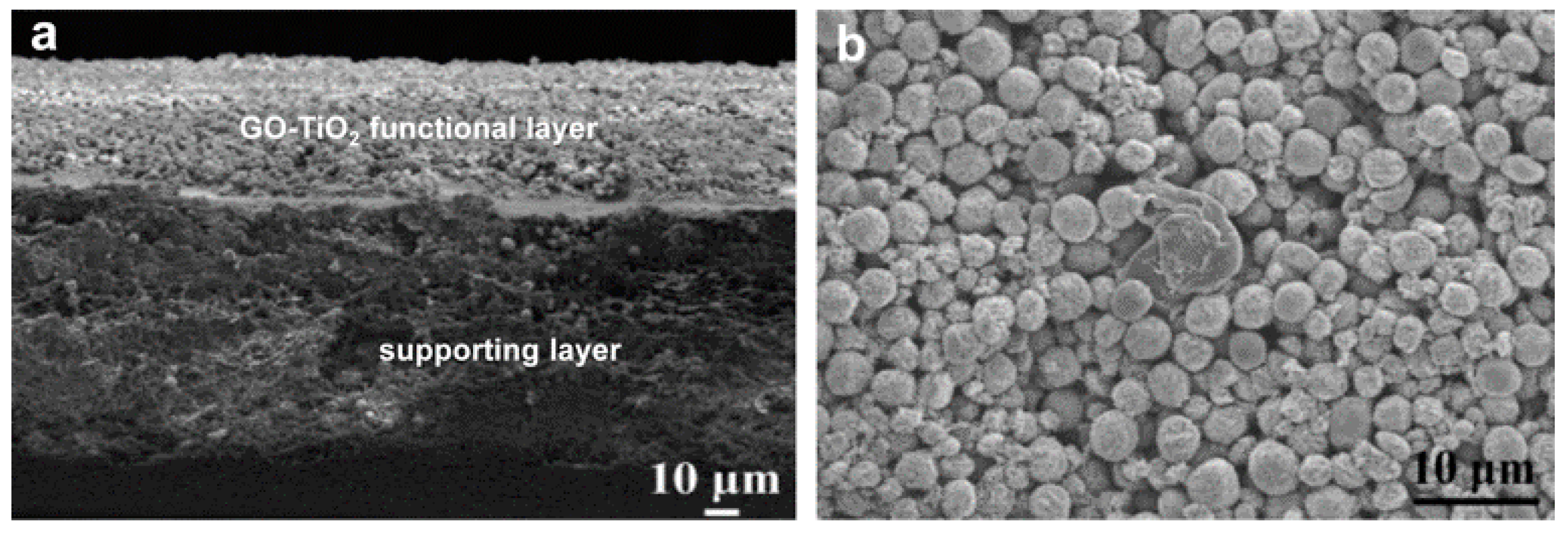

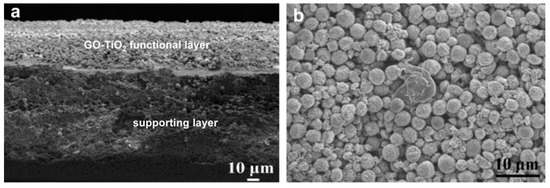

Due to its excellent photocatalytic oxidation and antifouling properties, TiO2 nanoparticles have also been employed for organic wastewater purification. For instance, Gao and co-workers prepared a GO-TiO2 microsphere hierarchical membrane by assembling the GO-TiO2 microsphere composites on the surface of a polymer filtration membrane for concurrent water filtration and photo-degradation (Figure 8) [99]. The permeate flux of the obtained GO-TiO2 membrane reached 60 L m−2 h−1, which is around nine times the performance of typical commercial membranes. Moreover, under ultra-violet (UV) irradiation, TiO2 can be excited to generate highly oxidative species, electron holes, and hydroxyl radicals (OH·), and these species can degrade organic matter. The GO-TiO2 membrane could remove more than 90% of dyes (rhodamine B, acid orange 7) and humic acid (HA) from water under UV irradiation. This type of membrane has a bright future in the field of clean water production.

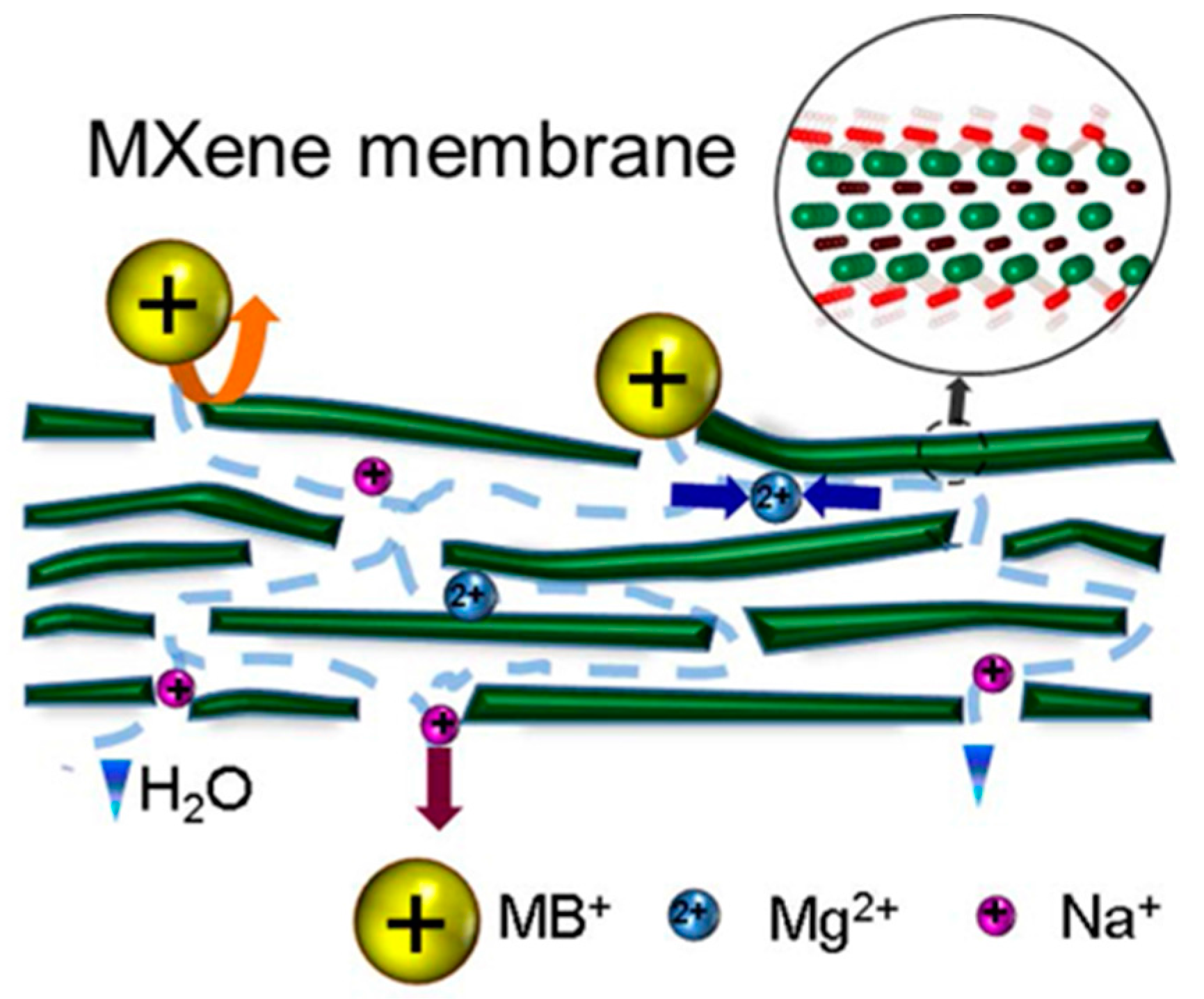

Besides GO, other kinds of 2D nanosheet materials can be used to fabricate nanoporous membranes for water purification. In order to reach high water flux values, Sun and co-workers prepared laminar MoS2 and WS2 membranes for the separation of Evans blue molecules in succession [100,101]. The as-prepared laminar MoS2 membrane exhibited 89% of rejection for Evans blue molecules and 245 L m−2 h−1 bar−1 of water flux. It was found that the layered WS2 nanosheet membrane could block over 90% of Evans blue molecules with a water flux of 730 L m−2 h−1 bar−1.

3.3. Removal of Biological Contaminants

Biological contaminants such as algae, planktons, bacteria, and virus are responsible for causing several illnesses that called generically waterborne diseases. Zhang and co-workers developed a TiO2 nanowire UF membrane with a layered hierarchical structure via an alkaline hydrothermal synthesis and hot-press process [102]. As shown in Figure 9, the TiO2 nanowires with diameter of 10 nm (TNW10) could serve as the functional layer, while TiO2 nanowires with a diameter of 20 nm (TNW20) were laid as the supporting layer. The as-prepared TiO2 UF membrane could successfully separate polyethylene glycol (PEG), polyethylene oxide (PEO), HA, and E. coli from water. It could also destroy organic pollutants (such as PEG, PEO) and inactivate biological pollutants (such as E. coli) under UV irradiation. Chen et al. fabricated rGO NF membrane intercalated with CNTs on porous ceramic microfiltration membranes by a facile vacuum-assisted filtration method [103]. The obtained rGO-CNT hybrid NF membrane exhibited 20–30 L m−2 h−1 bar−1 permeability and ˃99% retention of nanoparticles, dyes, bovine serum albumin, sugars, and HA.

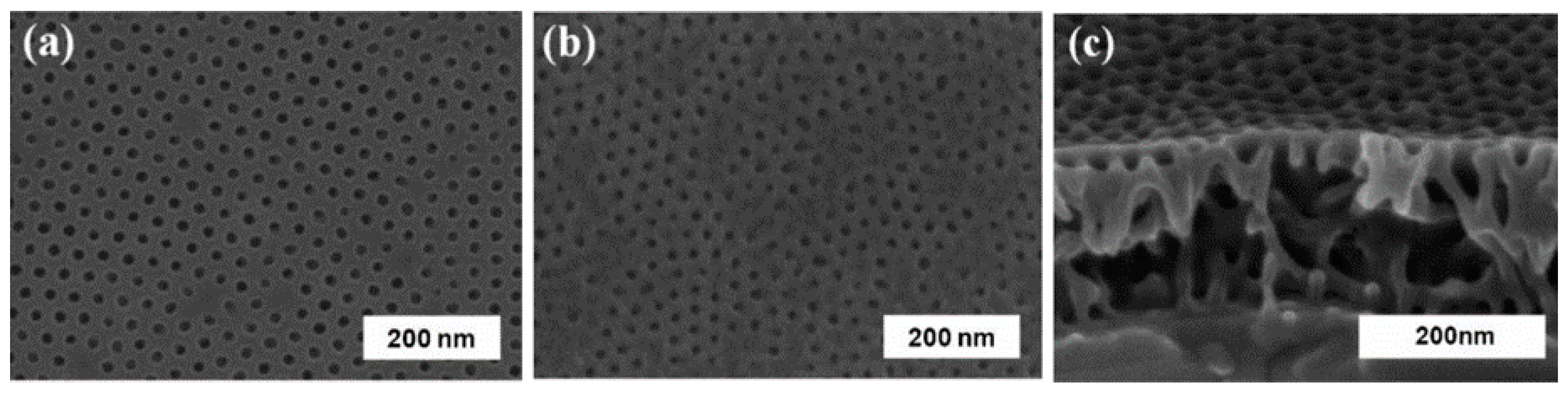

Yang et al. developed a bilayered nanoporous membrane for virus filtration [104]. The upper layer is a nanoporous film with a pore size of ~17 nm and a thickness of ~160 nm (Figure 10), which was prepared as a polystyrene-block-poly(methyl methacrylate) copolymer. The lower layer is a conventional micro-filtration membrane, which serves to enhance mechanical strength. The as-prepared membrane exhibited high selectivity towards human rhinovirus type 14, and could sieve nearly 100% of human rhinovirus type 14 from phosphate buffer solution. In addition, this membrane showed good stability even at a pressure of 2 bar. Sato et al. fabricated a nanofibrous composite membrane via infusing surface-modified ultra-fine cellulose nanofibers (diameter: 5–10 nm) into an electrospun nanofibrous scaffold [105]. The water flux of the created membrane could reach 85 L m−2 h−1 bar−1, and this membrane could simultaneously remove 99.99% of MS2 bacteriophage virus and 99.9999% of E. coli. The mechanism analysis indicated that the nanofibrous composite membrane mainly sieved bacteria because of its pore size, and it adsorbed viruses (negatively charged) through electrostatic attraction.

3.4. Summary of the Fabrication and Water Purification Performances of Membranes

In summary, the above-mentioned examples of nanoporous membrane for three types of water pollutants are listed in Table 1. As can be seen this Table, phase inversion is the most commonly used method to prepare various inorganic membranes, and both phase inversion and electrospinning strategies have been usually employed for fabricating organic- and inorganic-organic hybrid membranes. In addition, organic membranes showed commonly a higher water flux, but a lower removal rate compared to inorganic membranes. In contrast, inorganic membranes have a higher removal rate and selectivity towards target pollutes, but a lower water flux when compared with organic membranes. However, inorganic-organic hybrid membranes combine the advantages of both types of membranes, and not only maintained high water flux but also showed high selectivity and removal rate for target pollutants. Therefore, nanoporous inorganic-organic hybrid membranes have attracted wide attention regarding their applications in water purification. Moreover, regarding the filtration mechanisms, it can be found that all three types of membranes (organic, inorganic, and inorganic-organic hybrid) are able to separate the target water pollutants via pore-size selection and electrostatic forces.

4. Conclusions and Perspectives

In this review, we have summarized and discussed various fabrication strategies of nanoporous membranes and their applications in the field of water purification. We have found that the solute and water permeability play important roles in the membrane performance. The membranes separate pollutants (such as inorganic ions, organic molecules, nanoparticles, viruses, etc.) from water mainly through size exclusion and solution diffusion. Although these reported membranes are demonstrated successfully at the laboratory scale, upscaling them to low-cost, industrial-scale modules is still a big challenge. To overcome the barrier toward successful upscaling and commercialization will need a combined, collaborative effort by research institutions and industrial companies.
In our opinion, the development direction of the next-generation of thin membranes for water purification may include the following aspects. First, it is important to improve the selectivity of desalination membranes. Enhanced membrane selectivity not only can improve the quality of water but can also eliminate the need for additional purification stages. For example, the selective separation of boric acid from seawater can reduce both energy usage and the cost of desalination [17]. The use of molecular-level design approaches to prepare thin, defect-free, and selective layer on microporous supports may be a good way to achieve this aim. Second, it is necessary to improve the fouling resistance of nanoporous membrane. Surface grafting of fouling-resistant polymer such as zwitterionic polymers and PEO may be the potential strategies for the next-generation membranes [106,107]. Surface grafting, however, will not impart fouling resistance to the interior of the pore walls. Thence, the choice of other suitable anti-fouling modifiers embedded in the membrane matrix will be crucial. Third, it is very important to overcome the high sensitivity of the current polyamide membranes to oxidants such as chlorine and ozone. Fourth, the fabrication of multi-functional membranes is a research field with high innovation and potential, which will lead to the production of membranes with separation, catalytic, degradation, anti-fouling, antibacterial, and other functions [25,108,109]. Although there are still many challenges to be overcome for the industrial production of low-cost and efficient nanoporous membranes for water purification, we believe that it will be realized in the near future under the joint efforts of scientists, industrial engineers, governments, and investors.


Zhuqing Wang thanks the financial supports from the National Natural Science Foundation of China (No. 21407004) and the Natural Science Foundation of Anhui Province (No. 1508085QB48, KJ2017A345). Aiguo Wu thanks the financial support from the Natural Science Foundation of China (U1607111 and U1501501), and the Zhejiang Provincial Natural Science Foundation of China (Grant R5110230). Gang Wei and Lucio Colombi Ciacchi acknowledge the support from the Deutsche Forschungsgemeinschaft (DFG) under grants WE 5837/1-1 (GW) and CI 144/2 (LCC).

Author Contributions

Gang Wei, Aiguo Wu, and Lucio Colombi Ciacchi proposed and organized the contents of this review. Zhuqing Wang and Gang Wei wrote the paper. Gang Wei, Aiguo Wu, and Lucio Colombi Ciacchi made revisions of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.


  1. Camargo, J.A.; Alonso, A. Ecological and toxicological effects of inorganic nitrogen pollution in aquatic ecosystems: A global assessment. Environ. Int. 2006, 32, 831–849. [Google Scholar] [CrossRef] [PubMed]
  2. Schaider, L.A.; Rudel, R.A.; Ackerman, J.M.; Dunagan, S.C.; Brody, J.G. Pharmaceuticals, perfluorosurfactants, and other organic wastewater compounds in public drinking water wells in a shallow sand and gravel aquifer. Sci. Total Environ. 2014, 468, 384–393. [Google Scholar] [CrossRef] [PubMed]
  3. Tchounwou, P.B.; Ayensu, W.K.; Ninashvili, N.; Sutton, D. Environmental exposure to mercury and its toxicopathologic implications for public health. Environ. Toxicol. 2003, 18, 149–175. [Google Scholar] [CrossRef] [PubMed]
  4. Daniel, S.; Limson, J.L.; Dairam, A.; Watkins, G.M.; Daya, S. Through metal binding, curcumin protects against lead- and cadmium-induced lipid peroxidation in rat brain homogenates and against lead-induced tissue damage in rat brain. J. Inorg. Biochem. 2004, 98, 266–275. [Google Scholar] [CrossRef] [PubMed]
  5. Miyahara, T.; Tsukada, M.; Mori, M.A.; Kozuka, H. The effect of cadmium on the collagen solubility of embryonic chick bone in tissue-culture. Toxicol. Lett. 1984, 22, 89–92. [Google Scholar] [CrossRef]
  6. Goktas, R.K.; MacLeod, M. Remoteness from sources of persistent organic pollutants in the multi-media global environment. Environ. Pollut. 2016, 217, 33–41. [Google Scholar] [CrossRef] [PubMed]
  7. Lonnen, J.; Kilvington, S.; Kehoe, S.C.; Al-Touati, F.; McGuigan, K.G. Solar and photocatalytic disinfection of protozoan, fungal and bacterial microbes in drinking water. Water Res. 2005, 39, 877–883. [Google Scholar] [CrossRef] [PubMed]
  8. Matlock, M.M.; Howerton, B.S.; Atwood, D.A. Chemical precipitation of heavy metals from acid mine drainage. Water Res. 2002, 36, 4757–4764. [Google Scholar] [CrossRef]
  9. Ali, I.; Gupta, V.K. Advances in water treatment by adsorption technology. Nat. Protoc. 2006, 1, 2661–2667. [Google Scholar] [CrossRef] [PubMed]
  10. Rengaraj, S.; Yeon, K.H.; Moon, S.H. Removal of chromium from water and wastewater by ion exchange resins. J. Hazard. Mater. 2001, 87, 273–287. [Google Scholar] [CrossRef]
  11. Zularisam, A.W.; Ismail, A.F.; Salim, R. Behaviours of natural organic matter in membrane filtration for surface water treatment—A review. Desalination 2006, 194, 211–231. [Google Scholar] [CrossRef] [Green Version]
  12. Vasudevan, S.; Oturan, M.A. Electrochemistry: As cause and cure in water pollution—An overview. Environ. Chem. Lett. 2014, 12, 97–108. [Google Scholar] [CrossRef]
  13. Rezania, S.; Ponraj, M.; Talaiekhozani, A.; Mohamad, S.E.; Din, M.F.M.; Taib, S.M.; Sabbagh, F.; Sairan, F.M. Perspectives of phytoremediation using water hyacinth for removal of heavy metals, organic and inorganic pollutants in wastewater. J. Environ. Manag. 2015, 163, 125–133. [Google Scholar] [CrossRef] [PubMed]
  14. Upadhyay, R.K.; Soin, N.; Roy, S.S. Role of graphene/metal oxide composites as photocatalysts, adsorbents and disinfectants in water treatment: A review. RSC Adv. 2014, 4, 3823–3851. [Google Scholar] [CrossRef]
  15. Gao, X.F.; Xu, L.P.; Xue, Z.X.; Feng, L.; Peng, J.T.; Wen, Y.Q.; Wang, S.T.; Zhang, X.J. Dual-scaled porous nitrocellulose membranes with underwater superoleophobicity for highly efficient oil/water separation. Adv. Mater. 2014, 26, 1771–1775. [Google Scholar] [CrossRef] [PubMed]
  16. Karim, Z.; Mathew, A.P.; Grahn, M.; Mouzon, J.; Oksman, K. Nanoporous membranes with cellulose nanocrystals as functional entity in chitosan: Removal of dyes from water. Carbohydr. Polym. 2014, 112, 668–676. [Google Scholar] [CrossRef] [PubMed]
  17. Werber, J.R.; Osuji, C.O.; Elimelech, M. Materials for next-generation desalination and water purification membranes. Nat. Rev. Mater. 2016, 1, 16018. [Google Scholar] [CrossRef]
  18. Lee, A.; Elam, J.W.; Darling, S.B. Membrane materials for water purification: Design, development, and application. Environ. Sci. Water Res. Technol. 2016, 2, 17–42. [Google Scholar] [CrossRef]
  19. Qu, X.L.; Alvarez, P.J.J.; Li, Q.L. Applications of nanotechnology in water and wastewater treatment. Water Res. 2013, 47, 3931–3946. [Google Scholar] [CrossRef] [PubMed]
  20. Surwade, S.P.; Smirnov, S.N.; Vlassiouk, I.V.; Unocic, R.R.; Veith, G.M.; Dai, S.; Mahurin, S.M. Water desalination using nanoporous single-layer graphene. Nat. Nanotechnol. 2015, 10, 459–464. [Google Scholar] [CrossRef] [PubMed]
  21. Zhang, Q.G.; Deng, C.; Soyekwo, F.; Liu, Q.L.; Zhu, A.M. Sub-10 nm wide cellulose nanofibers for ultrathin nanoporous membranes with high organic permeation. Adv. Funct. Mater. 2016, 26, 792–800. [Google Scholar] [CrossRef]
  22. Bolisetty, S.; Mezzenga, R. Amyloid-carbon hybrid membranes for universal water purification. Nat. Nanotechnol. 2016, 11, 365–371. [Google Scholar] [CrossRef] [PubMed]
  23. Padaki, M.; Murali, R.S.; Abdullah, M.S.; Misdan, N.; Moslehyani, A.; Kassim, M.A.; Hilal, N.; Ismail, A.F. Membrane technology enhancement in oil-water separation. A review. Desalination 2015, 357, 197–207. [Google Scholar] [CrossRef]
  24. Lalia, B.S.; Kochkodan, V.; Hashaikeh, R.; Hilal, N. A review on membrane fabrication: Structure, properties and performance relationship. Desalination 2013, 326, 77–95. [Google Scholar] [CrossRef]
  25. Dervin, S.; Dionysiou, D.D.; Pillai, S.C. 2D nanostructures for water purification: Graphene and beyond. Nanoscale 2016, 8, 15115–15131. [Google Scholar] [CrossRef] [PubMed]
  26. Jiang, Y.; Biswas, P.; Fortner, J.D. A review of recent developments in graphene-enabled membranes for water treatment. Environ. Sci. Water Res. Technol. 2016, 2, 915–922. [Google Scholar] [CrossRef]
  27. Liu, T.J.; Ding, J.W.; Su, Z.Q.; Wei, G. Porous two-dimensional materials for energy applications: Innovations and challenges. Mater. Today Energy 2017, 6, 79–95. [Google Scholar] [CrossRef]
  28. DeFriend, K.A.; Wiesner, M.R.; Barron, A.R. Alumina and aluminate ultrafiltration membranes derived from alumina nanoparticles. J. Membr. Sci. 2003, 224, 11–28. [Google Scholar] [CrossRef]
  29. Mohmood, I.; Lopes, C.B.; Lopes, I.; Ahmad, I.; Duarte, A.C.; Pereira, E. Nanoscale materials and their use in water contaminants removal—A review. Environ. Sci. Pollut. Res. 2013, 20, 1239–1260. [Google Scholar] [CrossRef] [PubMed]
  30. Kumar, S.; Ahlawat, W.; Bhanjana, G.; Heydarifard, S.; Nazhad, M.M.; Dilbaghi, N. Nanotechnology-based water treatment strategies. J. Nanosci. Nanotechnol. 2014, 14, 1838–1858. [Google Scholar] [CrossRef] [PubMed]
  31. Cao, X.P.; Li, D.; Jing, W.H.; Xing, W.H.; Fan, Y.Q. Synthesis of visible-light responsive C, N and Ce co-doped TiO2 mesoporous membranes via weak alkaline sol-gel process. J. Mater. Chem. 2012, 22, 15309–15315. [Google Scholar] [CrossRef]
  32. Facciotti, M.; Boffa, V.; Magnacca, G.; Jorgensen, L.B.; Kristensen, P.K.; Farsi, A.; Konig, K.; Christensen, M.L.; Yue, Y.Z. Deposition of thin ultrafiltration membranes on commercial sic microfiltration tubes. Ceram. Int. 2014, 40, 3277–3285. [Google Scholar] [CrossRef]
  33. Kanakaraju, D.; Glass, B.D.; Oelgemoller, M. Titanium dioxide photocatalysis for pharmaceutical wastewater treatment. Environ. Chem. Lett. 2014, 12, 27–47. [Google Scholar] [CrossRef]
  34. Han, Y.; Xu, Z.; Gao, C. Ultrathin graphene nanofiltration membrane for water purification. Adv. Funct. Mater. 2013, 23, 3693–3700. [Google Scholar] [CrossRef]
  35. Cohen-Tanugi, D.; Grossman, J.C. Water desalination across nanoporous graphene. Nano Lett. 2012, 12, 3602–3608. [Google Scholar] [CrossRef] [PubMed]
  36. Zhang, P.P.; Wang, H.X.; Zhang, X.Y.; Xu, W.; Li, Y.; Li, Q.; Wei, G.; Su, Z.Q. Graphene film doped with silver nanoparticles: Self-assembly formation, structural characterizations, antibacterial ability, and biocompatibility. Biomater. Sci. 2015, 3, 852–860. [Google Scholar] [CrossRef] [PubMed]
  37. Rahaman, M.S.; Vecitis, C.D.; Elimelech, M. Electrochemical carbon-nanotube filter performance toward virus removal and inactivation in the presence of natural organic matter. Environ. Sci. Technol. 2012, 46, 1556–1564. [Google Scholar] [CrossRef] [PubMed]
  38. Brady-Estevez, A.S.; Schnoor, M.H.; Kang, S.; Elimelech, M. Swnt-mwnt hybrid filter attains high viral removal and bacterial inactivation. Langmuir 2010, 26, 19153–19158. [Google Scholar] [CrossRef] [PubMed]
  39. Shibutani, T.; Kitaura, T.; Ohmukai, Y.; Maruyama, T.; Nakatsuka, S.; Watabe, T.; Matsuyama, H. Membrane fouling properties of hollow fiber membranes prepared from cellulose acetate derivatives. J. Membr. Sci. 2011, 376, 102–109. [Google Scholar] [CrossRef]
  40. Soyekwo, F.; Zhang, Q.G.; Deng, C.; Gong, Y.; Zhu, A.M.; Liu, Q.L. Highly permeable cellulose acetate nanofibrous composite membranes by freeze-extraction. J. Membr. Sci. 2014, 454, 339–345. [Google Scholar] [CrossRef]
  41. Saljoughi, E.; Mousavi, S.M. Preparation and characterization of novel polysulfone nanofiltration membranes for removal of cadmium from contaminated water. Sep. Purif. Technol. 2012, 90, 22–30. [Google Scholar] [CrossRef]
  42. Ahmad, A.L.; Abdulkarim, A.A.; Ooi, B.S.; Ismail, S. Recent development in additives modifications of polyethersulfone membrane for flux enhancement. Chem. Eng. J. 2013, 223, 246–267. [Google Scholar] [CrossRef]
  43. Yuliwati, E.; Ismail, A.F.; Matsuura, T.; Kassim, M.A.; Abdullah, M.S. Effect of modified PVDF hollow fiber submerged ultrafiltration membrane for refinery wastewater treatment. Desalination 2011, 283, 214–220. [Google Scholar] [CrossRef]
  44. Liu, F.; Hashim, N.A.; Liu, Y.T.; Abed, M.R.M.; Li, K. Progress in the production and modification of PVDF membranes. J. Membr. Sci. 2011, 375, 1–27. [Google Scholar] [CrossRef]
  45. Wei, G.; Su, Z.Q.; Reynolds, N.P.; Arosio, P.; Hamley, I.W.; Gazit, E.; Mezzenga, R. Self-assembling peptide and protein amyloids: From structure to tailored function in nanotechnology. Chem. Soc. Rev. 2017, 46, 4661–4708. [Google Scholar] [CrossRef] [PubMed]
  46. Yin, J.; Deng, B.L. Polymer-matrix nanocomposite membranes for water treatment. J. Membr. Sci. 2015, 479, 256–275. [Google Scholar] [CrossRef]
  47. Wang, P.P.; Ma, J.; Shi, F.M.; Ma, Y.X.; Wang, Z.H.; Zhao, X.Y. Behaviors and effects of differing dimensional nanomaterials in water filtration membranes through the classical phase inversion process: A review. Ind. Eng. Chem. Res. 2013, 52, 10355–10363. [Google Scholar] [CrossRef]
  48. Goh, P.S.; Ng, B.C.; Lau, W.J.; Ismail, A.F. Inorganic nanomaterials in polymeric ultrafiltration membranes for water treatment. Sep. Purif. Rev. 2015, 44, 216–249. [Google Scholar] [CrossRef]
  49. Lau, W.J.; Ismail, A.F.; Misdan, N.; Kassim, M.A. A recent progress in thin film composite membrane: A review. Desalination 2012, 287, 190–199. [Google Scholar] [CrossRef]
  50. Ismail, A.F.; Padaki, M.; Hilal, N.; Matsuura, T.; Lau, W.J. Thin film composite membrane—recent development and future potential. Desalination 2015, 356, 140–148. [Google Scholar] [CrossRef]
  51. Luo, M.L.; Zhao, J.Q.; Tang, W.; Pu, C.S. Hydrophilic modification of poly(ether sulfone) ultrafiltration membrane surface by self-assembly of TiO2 nanoparticles. Appl. Surf. Sci. 2005, 249, 76–84. [Google Scholar] [CrossRef]
  52. Zhao, X.N.; Zhang, P.P.; Chen, Y.T.; Su, Z.Q.; Wei, G. Recent advances in the fabrication and structure-specific applications of graphene-based inorganic hybrid membranes. Nanoscale 2015, 7, 5080–5093. [Google Scholar] [CrossRef] [PubMed]
  53. Jackson, E.A.; Hillmyer, M.A. Nanoporous membranes derived from block copolymers: From drug delivery to water filtration. ACS Nano 2010, 4, 3548–3553. [Google Scholar] [CrossRef] [PubMed]
  54. Ahmed, F.E.; Lalia, B.S.; Hashaikeh, R. A review on electrospinning for membrane fabrication: Challenges and applications. Desalination 2015, 356, 15–30. [Google Scholar] [CrossRef]
  55. Li, Y.F.; He, G.W.; Wang, S.F.; Yu, S.N.; Pan, F.S.; Wu, H.; Jiang, Z.Y. Recent advances in the fabrication of advanced composite membranes. J. Mater. Chem. A 2013, 1, 10058–10077. [Google Scholar] [CrossRef]
  56. Bolisetty, S.; Arcari, M.; Adamcik, J.; Mezzenga, R. Hybrid amyloid membranes for continuous flow catalysis. Langmuir 2015, 31, 13867–13873. [Google Scholar] [CrossRef] [PubMed]
  57. Zhang, W.B.; Zhu, Y.Z.; Liu, X.; Wang, D.; Li, J.Y.; Jiang, L.; Jin, J. Salt-induced fabrication of superhydrophilic and underwater superoleophobic PAA-g-PVDF membranes for effective separation of oil-in-water emulsions. Angew. Chem. Int. Ed. 2014, 53, 856–860. [Google Scholar] [CrossRef] [PubMed]
  58. Wang, J.J.; Yang, H.C.; Wu, M.B.; Zhang, X.; Xu, Z.K. Nanofiltration membranes with cellulose nanocrystals as an interlayer for unprecedented performance. J. Mater. Chem. A 2017, 5, 16289–16295. [Google Scholar] [CrossRef]
  59. Toimil-Molares, M.E. Characterization and properties of micro- and nanowires of controlled size, composition, and geometry fabricated by electrodeposition and ion-track technology. Beilstein J. Nanotechnol. 2012, 3, 860–883. [Google Scholar] [CrossRef] [PubMed]
  60. Wang, Y.M.; Zhu, J.Y.; Dong, G.Y.; Zhang, Y.T.; Guo, N.N.; Liu, J.D. Sulfonated halloysite nanotubes/polyethersulfone nanocomposite membrane for efficient dye purification. Sep. Purif. Technol. 2015, 150, 243–251. [Google Scholar] [CrossRef]
  61. Sadrzadeh, M.; Bhattacharjee, S. Rational design of phase inversion membranes by tailoring thermodynamics and kinetics of casting solution using polymer additives. J. Membr. Sci. 2013, 441, 31–44. [Google Scholar] [CrossRef]
  62. Lee, H.S.; Im, S.J.; Kim, J.H.; Kim, H.J.; Kim, J.P.; Min, B.R. Polyamide thin-film nanofiltration membranes containing TiO2 nanoparticles. Desalination 2008, 219, 48–56. [Google Scholar] [CrossRef]
  63. Safarpour, M.; Khataee, A.; Vatanpour, V. Thin film nanocomposite reverse osmosis membrane modified by reduced graphene oxide/TiO2 with improved desalination performance. J. Membr. Sci. 2015, 489, 43–54. [Google Scholar] [CrossRef]
  64. Khorshidi, B.; Thundat, T.; Fleck, B.A.; Sadrzadeh, M. A novel approach toward fabrication of high performance thin film composite polyamide membranes. Sci. Rep. 2016, 6, 22069. [Google Scholar] [CrossRef] [PubMed]
  65. Khorshidi, B.; Thundat, T.; Fleck, B.A.; Sadrzadeh, M. Thin film composite polyamide membranes: Parametric study on the influence of synthesis conditions. RSC Adv. 2015, 5, 54985–54997. [Google Scholar] [CrossRef]
  66. Khorshidi, B.; Thundat, T.; Pernitsky, D.; Sadrzadeh, M. A parametric study on the synergistic impacts of chemical additives on permeation properties of thin film composite polyamide membrane. J. Membr. Sci. 2017, 535, 248–257. [Google Scholar] [CrossRef]
  67. Khorshidi, B.; Soltannia, B.; Thundat, T.; Sadrzadeh, M. Synthesis of thin film composite polyamide membranes: Effect of monohydric and polyhydric alcohol additives in aqueous solution. J. Membr. Sci. 2017, 523, 336–345. [Google Scholar] [CrossRef]
  68. Yin, J.; Kim, E.S.; Yang, J.; Deng, B.L. Fabrication of a novel thin-film nanocomposite (TFN) membrane containing MCM-41 silica nanoparticles (NPs) for water purification. J. Membr. Sci. 2012, 423, 238–246. [Google Scholar] [CrossRef]
  69. Yin, J.; Zhu, G.C.; Deng, B.L. Graphene oxide (GO) enhanced polyamide (PA) thin-film nanocomposite (TFN) membrane for water purification. Desalination 2016, 379, 93–101. [Google Scholar] [CrossRef]
  70. Kidambi, P.R.; Jang, D.; Idrobo, J.C.; Boutilier, M.S.H.; Wang, L.D.; Kong, J.; Karnik, R. Nanoporous atomically thin graphene membranes for desalting and dialysis applications. Adv. Mater. 2017, 29, 1700277. [Google Scholar] [CrossRef] [PubMed]
  71. DesOrmeaux, J.P.S.; Winans, J.D.; Wayson, S.E.; Gaborski, T.R.; Khire, T.S.; Striemer, C.C.; McGrath, J.L. Nanoporous silicon nitride membranes fabricated from porous nanocrystalline silicon templates. Nanoscale 2014, 6, 10798–10805. [Google Scholar] [CrossRef] [PubMed]
  72. Su, Z.Q.; Ding, J.W.; Wei, G. Electrospinning: A facile technique for fabricating polymeric nanofibers doped with carbon nanotubes and metallic nanoparticles for sensor applications. RSC Adv. 2014, 4, 52598–52610. [Google Scholar] [CrossRef]
  73. Zhang, M.F.; Zhao, X.N.; Zhang, G.H.; Wei, G.; Su, Z.Q. Electrospinning design of functional nanostructures for biosensor applications. J. Mater. Chem. B 2017, 5, 1699–1711. [Google Scholar] [CrossRef]
  74. Su, Z.Q.; Li, J.F.; Ouyang, Z.F.; Arras, M.M.L.; Wei, G.; Jandt, K.D. Biomimetic 3D hydroxyapatite architectures with interconnected pores based on electrospun biaxially orientated pcl nanofibers. RSC Adv. 2014, 4, 14833–14839. [Google Scholar] [CrossRef]
  75. Pant, H.R.; Kim, H.J.; Joshi, M.K.; Pant, B.; Park, C.H.; Kim, J.I.; Hui, K.S.; Kim, C.S. One-step fabrication of multifunctional composite polyurethane spider-web-like nanofibrous membrane for water purification. J. Hazard. Mater. 2014, 264, 25–33. [Google Scholar] [CrossRef] [PubMed]
  76. Li, Z.B.; He, J.H. When nanotechnology meets filteration: From nanofiber fabrication to biomimetic design. Materia-Rio De Janeiro 2014, 19, 1–3. [Google Scholar]
  77. Su, Z.Q.; Li, J.F.; Li, Q.; Ni, T.Y.; Wei, G. Chain conformation, crystallization behavior, electrical and mechanical properties of electrospun polymer-carbon nanotube hybrid nanofibers with different orientations. Carbon 2012, 50, 5605–5617. [Google Scholar] [CrossRef]
  78. Mokhena, T.C.; Luyt, A.S. Development of multifunctional nano/ultrafiltration membrane based on a chitosan thin film on alginate electrospun nanofibres. J. Clean. Prod. 2017, 156, 470–479. [Google Scholar] [CrossRef]
  79. Feng, C.; Khulbe, K.C.; Matsuura, I.; Gopal, R.; Kaur, S.; Rarnakrishna, S.; Khayet, M. Production of drinking water from saline water by air-gap membrane distillation using polyvinylidene fluoride nanofiber membrane. J. Membr. Sci. 2008, 311, 1–6. [Google Scholar] [CrossRef]
  80. Ren, C.E.; Hatzell, K.B.; Alhabeb, M.; Ling, Z.; Mahmoud, K.A.; Gogotsi, Y. Charge- and size-selective ion sieving through Ti3C2TX mxene membranes. J. Phys. Chem. Lett. 2015, 6, 4026–4031. [Google Scholar] [CrossRef] [PubMed]
  81. Sun, G.F.; Chung, T.S.; Jeyaseelan, K.; Armugam, A. Stabilization and immobilization of aquaporin reconstituted lipid vesicles for water purification. Colloids Surf. B 2013, 102, 466–471. [Google Scholar] [CrossRef] [PubMed]
  82. Tijing, L.D.; Woo, Y.C.; Shim, W.G.; He, T.; Choi, J.S.; Kim, S.H.; Shon, H.K. Superhydrophobic nanofiber membrane containing carbon nanotubes for high-performance direct contact membrane distillation. J. Membr. Sci. 2016, 502, 158–170. [Google Scholar] [CrossRef]
  83. Liu, X.L.; Demir, N.K.; Wu, Z.T.; Li, K. Highly water-stable zirconium metal organic framework UiO-66 membranes supported on alumina hollow fibers for desalination. J. Am. Chem. Soc. 2015, 137, 6999–7002. [Google Scholar] [CrossRef] [PubMed]
  84. Chen, L.; Shi, G.S.; Shen, J.; Peng, B.Q.; Zhang, B.W.; Wang, Y.Z.; Bian, F.G.; Wang, J.J.; Li, D.Y.; Qian, Z.; et al. Ion sieving in graphene oxide membranes via cationic control of interlayer spacing. Nature 2017, 550, 380–383. [Google Scholar] [CrossRef] [PubMed]
  85. Hu, M.; Mi, B.X. Enabling graphene oxide nanosheets as water separation membranes. Environ. Sci. Technol. 2013, 47, 3715–3723. [Google Scholar] [CrossRef] [PubMed]
  86. Wang, J.Q.; Zhang, P.; Liang, B.; Liu, Y.X.; Xu, T.; Wang, L.F.; Cao, B.; Pan, K. Graphene oxide as an effective barrier on a porous nanofibrous membrane for water treatment. ACS Appl. Mater. Interfaces 2016, 8, 6211–6218. [Google Scholar] [CrossRef] [PubMed]
  87. Liu, H.Y.; Wang, H.T.; Zhang, X.W. Facile fabrication of freestanding ultrathin reduced graphene oxide membranes for water purification. Adv. Mater. 2015, 27, 249–254. [Google Scholar] [CrossRef] [PubMed]
  88. Akbari, A.; Sheath, P.; Martin, S.T.; Shinde, D.B.; Shaibani, M.; Banerjee, P.C.; Tkacz, R.; Bhattacharyya, D.; Majumder, M. Large-area graphene-based nanofiltration membranes by shear alignment of discotic nematic liquid crystals of graphene oxide. Nat. Commun. 2016, 7, 10891. [Google Scholar] [CrossRef] [PubMed]
  89. Henmi, M.; Nakatsuji, K.; Ichikawa, T.; Tomioka, H.; Sakamoto, T.; Yoshio, M.; Kato, T. Self-organized liquid-crystalline nanostructured membranes for water treatment: Selective permeation of ions. Adv. Mater. 2012, 24, 2238–2241. [Google Scholar] [CrossRef] [PubMed]
  90. Bolisetty, S.; Reinhold, N.; Zeder, C.; Orozco, M.N.; Mezzenga, R. Efficient purification of arsenic-contaminated water using amyloid-carbon hybrid membranes. Chem. Commun. 2017, 53, 5714–5717. [Google Scholar] [CrossRef] [PubMed]
  91. Li, H.B.; Gui, X.C.; Zhang, L.H.; Wang, S.S.; Ji, C.Y.; Wei, J.Q.; Wang, K.L.; Zhu, H.W.; Wu, D.H.; Cao, A.Y. Carbon nanotube sponge filters for trapping nanoparticles and dye molecules from water. Chem. Commun. 2010, 46, 7966–7968. [Google Scholar] [CrossRef] [PubMed]
  92. Lee, C.; Baik, S. Vertically-aligned carbon nano-tube membrane filters with superhydrophobicity and superoleophilicity. Carbon 2010, 48, 2192–2197. [Google Scholar] [CrossRef]
  93. Liang, H.W.; Cao, X.; Zhang, W.J.; Lin, H.T.; Zhou, F.; Chen, L.F.; Yu, S.H. Robust and highly efficient free-standing carbonaceous nanofiber membranes for water purification. Adv. Funct. Mater. 2011, 21, 3851–3858. [Google Scholar] [CrossRef]
  94. Li, X.; Wang, M.; Wang, C.; Cheng, C.; Wang, X.F. Facile immobilization of Ag nanocluster on nanofibrous membrane for oil/water separation. ACS Appl. Mater. Interfaces 2014, 6, 15272–15282. [Google Scholar] [CrossRef] [PubMed]
  95. Cao, K.T.; Jiang, Z.Y.; Zhang, X.S.; Zhang, Y.M.; Zhao, J.; Xing, R.S.; Yang, S.; Gao, C.Y.; Pan, F.S. Highly water-selective hybrid membrane by incorporating g-C3N4 nanosheets into polymer matrix. J. Membr. Sci. 2015, 490, 72–83. [Google Scholar] [CrossRef]
  96. Obaid, M.; Barakat, N.A.M.; Fadali, O.A.; Motlak, M.; Almajid, A.A.; Khalil, K.A. Effective and reusable oil/water separation membranes based on modified polysulfone electrospun nanofiber mats. Chem. Eng. J. 2015, 259, 449–456. [Google Scholar] [CrossRef]
  97. Huang, K.; Liu, G.P.; Lou, Y.Y.; Dong, Z.Y.; Shen, J.; Jin, W.Q. A graphene oxide membrane with highly selective molecular separation of aqueous organic solution. Angew. Chem. Int. Ed. 2014, 53, 6929–6932. [Google Scholar] [CrossRef] [PubMed]
  98. Tang, Y.P.; Paul, D.R.; Chung, T.S. Free-standing graphene oxide thin films assembled by a pressurized ultrafiltration method for dehydration of ethanol. J. Membr. Sci. 2014, 458, 199–208. [Google Scholar] [CrossRef]
  99. Gao, P.; Liu, Z.Y.; Tai, M.H.; Sun, D.D.; Ng, W. Multifunctional graphene oxide-TiO2 microsphere hierarchical membrane for clean water production. Appl. Catal. B-Environ. 2013, 138, 17–25. [Google Scholar] [CrossRef]
  100. Sun, L.W.; Huang, H.B.; Peng, X.S. Laminar MoS2 membranes for molecule separation. Chem. Commun. 2013, 49, 10718–10720. [Google Scholar] [CrossRef] [PubMed]
  101. Sun, L.W.; Ying, Y.L.; Huang, H.B.; Song, Z.G.; Mao, Y.Y.; Xu, Z.P.; Peng, X.S. Ultrafast molecule separation through layered WS2 nanosheet membranes. ACS Nano 2014, 8, 6304–6311. [Google Scholar] [CrossRef] [PubMed]
  102. Zhang, X.W.; Zhang, T.; Ng, J.; Sun, D.D. High-performance multifunctional TiO2 nanowire ultrafiltration membrane with a hierarchical layer structure for water treatment. Adv. Funct. Mater. 2009, 19, 3731–3736. [Google Scholar] [CrossRef]
  103. Chen, X.F.; Qiu, M.H.; Ding, H.; Fu, K.Y.; Fan, Y.Q. A reduced graphene oxide nanofiltration membrane intercalated by well-dispersed carbon nanotubes for drinking water purification. Nanoscale 2016, 8, 5696–5705. [Google Scholar] [CrossRef] [PubMed]
  104. Yang, S.Y.; Park, J.; Yoon, J.; Ree, M.; Jang, S.K.; Kim, J.K. Virus filtration membranes prepared from nanoporous block copolymers with good dimensional stability under high pressures and excellent solvent resistance. Adv. Funct. Mater. 2008, 18, 1371–1377. [Google Scholar] [CrossRef]
  105. Sato, A.; Wang, R.; Ma, H.Y.; Hsiao, B.S.; Chu, B. Novel nanofibrous scaffolds for water filtration with bacteria and virus removal capability. J. Electron Microsc. 2011, 60, 201–209. [Google Scholar] [CrossRef] [PubMed]
  106. Asatekin, A.; Kang, S.; Elimelech, M.; Mayes, A.M. Anti-fouling ultrafiltration membranes containing polyacrylonitrile-graft-poly(ethylene oxide) comb copolymer additives. J. Membr. Sci. 2007, 298, 136–146. [Google Scholar] [CrossRef]
  107. Kang, S.; Asatekin, A.; Mayes, A.M.; Elimelech, M. Protein antifouling mechanisms of PAN UF membranes incorporating PAN-g-PEO additive. J. Membr. Sci. 2007, 296, 42–50. [Google Scholar] [CrossRef]
  108. Mahmoud, K.A.; Mansoor, B.; Mansour, A.; Khraisheh, M. Functional graphene nanosheets: The next generation membranes for water desalination. Desalination 2015, 356, 208–225. [Google Scholar] [CrossRef]
  109. Srivastava, A.; Srivastava, O.N.; Talapatra, S.; Vajtai, R.; Ajayan, P.M. Carbon nanotube filters. Nat. Mater. 2004, 3, 610–614. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Fabrication strategies of various nanoporous membranes: (a) Formation of a superoleophobic PAA-g-PDVF membrane by a salt-induced phase-inversion process; (b) Preparation of triple-layered thin film composite (TFC) nano-filtration membrane by interfacial polymerization; (c) Schematic of single-ion irradiation setup; and (d) Schematic of electrospinning. Picture (a) is reprinted with permission from Ref. [57]. Copyright Wiley-VCH (Weinheim, Germany), 2016. Picture (b) is reprinted with permission from Ref. [58]. Copyright Royal Society of Chemistry, 2017. Picture (c) is reprinted with permission from Ref. [59]. Copyright Beilstein-Institut, 2012. Picture (d) is reprinted with permission from Ref. [54]. Copyright Elsevier, 2015.
Figure 1. Fabrication strategies of various nanoporous membranes: (a) Formation of a superoleophobic PAA-g-PDVF membrane by a salt-induced phase-inversion process; (b) Preparation of triple-layered thin film composite (TFC) nano-filtration membrane by interfacial polymerization; (c) Schematic of single-ion irradiation setup; and (d) Schematic of electrospinning. Picture (a) is reprinted with permission from Ref. [57]. Copyright Wiley-VCH (Weinheim, Germany), 2016. Picture (b) is reprinted with permission from Ref. [58]. Copyright Royal Society of Chemistry, 2017. Picture (c) is reprinted with permission from Ref. [59]. Copyright Beilstein-Institut, 2012. Picture (d) is reprinted with permission from Ref. [54]. Copyright Elsevier, 2015.
Nanomaterials 08 00065 g001
Figure 2. Schematic illustration of the hypothesized mechanism of graphene oxide (GO) thin-film nanocomposite membrane. Reprinted with permission from Ref. [69]. Copyright Elsevier, 2016.
Figure 2. Schematic illustration of the hypothesized mechanism of graphene oxide (GO) thin-film nanocomposite membrane. Reprinted with permission from Ref. [69]. Copyright Elsevier, 2016.
Nanomaterials 08 00065 g002
Figure 3. (a) Hydrogenated and (b) hydroxylated graphene pores; and (c) side view of computational system investigated. Figure reprinted with permission from Ref. [35]. Copyright American Chemical Society, 2012.
Figure 3. (a) Hydrogenated and (b) hydroxylated graphene pores; and (c) side view of computational system investigated. Figure reprinted with permission from Ref. [35]. Copyright American Chemical Society, 2012.
Nanomaterials 08 00065 g003
Figure 4. Mechanism of charge- and size-selective ion sieving through MXene membrane. Figure reprinted with permission from Ref. [80]. Copyright American Chemical Society, 2015.
Figure 4. Mechanism of charge- and size-selective ion sieving through MXene membrane. Figure reprinted with permission from Ref. [80]. Copyright American Chemical Society, 2015.
Nanomaterials 08 00065 g004
Figure 5. (a) Chemical structure of the liquid-crystal molecule 1; (b) Self-assembled bicontinous cubic (Cubbi) structure forming ionic nanochannels of 1; (c) Schematic representation of selective rejection of anions through the Cubbi membranes. Figures reprinted with permission from Ref. [89]. Copyright Wiley-VCH, 2012.
Figure 5. (a) Chemical structure of the liquid-crystal molecule 1; (b) Self-assembled bicontinous cubic (Cubbi) structure forming ionic nanochannels of 1; (c) Schematic representation of selective rejection of anions through the Cubbi membranes. Figures reprinted with permission from Ref. [89]. Copyright Wiley-VCH, 2012.
Nanomaterials 08 00065 g005
Figure 6. (a) Schematic of the preparation of PAA-g-PDVF membrane; (b) photograph of the as-prepared PAA-g-PDVF membrane; (c) cross-section and (d) top-view of the membrane; (e) image of an underwater oil droplet; (f) image of a water droplet on the membrane. Figures are reprinted with permission from Ref. [57]. Copyright Wiley-VCH, 2016.
Figure 6. (a) Schematic of the preparation of PAA-g-PDVF membrane; (b) photograph of the as-prepared PAA-g-PDVF membrane; (c) cross-section and (d) top-view of the membrane; (e) image of an underwater oil droplet; (f) image of a water droplet on the membrane. Figures are reprinted with permission from Ref. [57]. Copyright Wiley-VCH, 2016.
Nanomaterials 08 00065 g006
Figure 7. (a) Photographs of ultrathin graphene nanofiltration membranes (uGNM) coated on an anodic aluminum oxide (AAO) disk and a twisted uGNM coated on a PVDF membrane; (b) the structure of the base-washed GO; (c) schematic view for possible permeation route. Figures are reprinted with permission from Ref. [34]. Copyright Wiley-VCH, 2013.
Figure 7. (a) Photographs of ultrathin graphene nanofiltration membranes (uGNM) coated on an anodic aluminum oxide (AAO) disk and a twisted uGNM coated on a PVDF membrane; (b) the structure of the base-washed GO; (c) schematic view for possible permeation route. Figures are reprinted with permission from Ref. [34]. Copyright Wiley-VCH, 2013.
Nanomaterials 08 00065 g007
Figure 8. Scanning electron microscopy (SEM) images of GO-TiO2 membrane ((a) cross view; (b) top view). Figures are reprinted with permission from Ref. [99]. Elsevier, 2013.
Figure 8. Scanning electron microscopy (SEM) images of GO-TiO2 membrane ((a) cross view; (b) top view). Figures are reprinted with permission from Ref. [99]. Elsevier, 2013.
Nanomaterials 08 00065 g008

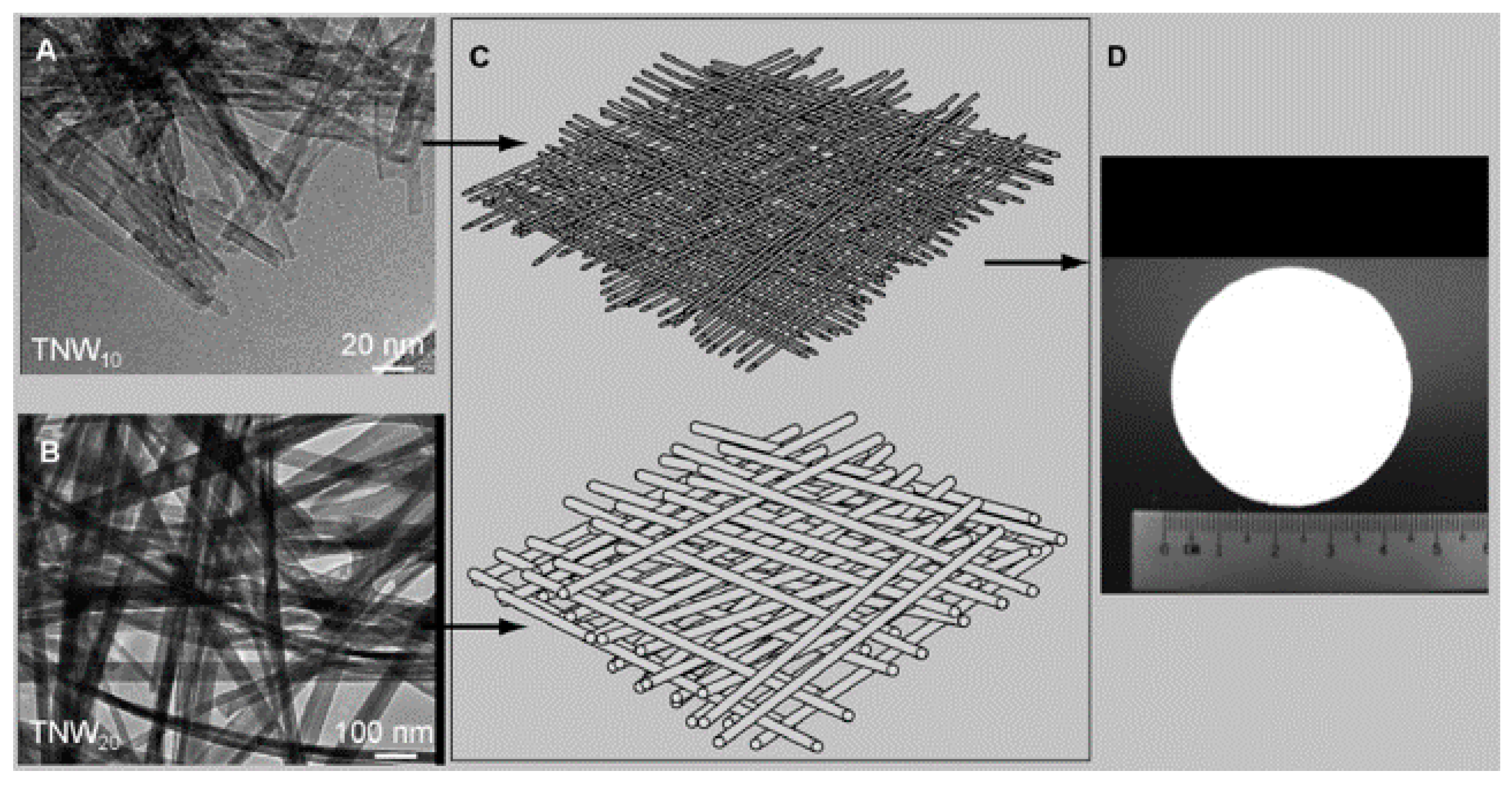

Figure 9. Components of the hierarchical layer of the TiO2 nanowire ultra-filtration (UF) membrane. (A) Transmission electron microscopy (TEM) image of TiO2 nanowires with diameter of 10 nm (TNW10); (B) TEM image of TNW10; (C) schematic profiles of the TiO2 nanowire UF membrane; (D) digital photo of the TiO2 nanowire UF membrane. Figures are reprinted with permission from Ref. [102]. Copyright Wiley-VCH, 2009.
Figure 9. Components of the hierarchical layer of the TiO2 nanowire ultra-filtration (UF) membrane. (A) Transmission electron microscopy (TEM) image of TiO2 nanowires with diameter of 10 nm (TNW10); (B) TEM image of TNW10; (C) schematic profiles of the TiO2 nanowire UF membrane; (D) digital photo of the TiO2 nanowire UF membrane. Figures are reprinted with permission from Ref. [102]. Copyright Wiley-VCH, 2009.
Nanomaterials 08 00065 g009
Figure 10. SEM images of nanoporous membrane. (a) top surface; (b) bottom surface; (c) cross-sectional view. Figures are reprinted with permission from Ref. [104]. Copyright Wiley-VCH, 2008.
Figure 10. SEM images of nanoporous membrane. (a) top surface; (b) bottom surface; (c) cross-sectional view. Figures are reprinted with permission from Ref. [104]. Copyright Wiley-VCH, 2008.
Nanomaterials 08 00065 g010
Table 1. Application examples of nanoporous membranes for water purification a.
Table 1. Application examples of nanoporous membranes for water purification a.
MembraneSynthesis MethodTarget and EfficiencyWater FluxRef.
PVDF ElectrospinningNaCl (<280 ppm)5–28 Kg m−2 h−1[79]
Aquaporin reconstituted Vacuum suction and amine-catrchol adduct formationNaCl (66.2%), MgCl2 (88.1%) [81]
Zr-MOF Solvothermal synthesisAl3+ (99.3%), Mg2+ (98.0%), Ca2+ (86.3%)0.28 L m−2 h−1 bar−1[83]
CNT-PcH ElectrospinningNaCl (˃99.99%)24–29 L m−2 h−1[82]
MCM41-PA-TFNInterfacial polymerizationNaCl (97.9% ± 0.3%), Na2SO4 (98.5% ± 0.2%)46.6 ± 1.1 L m−2 h−1[68]
GO-PA-TFNInterfacial polymerizationNaCl (93.8% ± 0.6%), Na2SO4 (97.3% ± 0.3%)59.4 ± 0.4 L m−2 h−1[69]
K+-controlled GO Drop-castingMg2+, Ca2+, Na+ (~100%)0.36 L m−2 h−1[84]
Sigle-layer grapheneoxygen plasma etchingK+, Na+, Li+, Cl (~100%)106 g m−2 s−1[20]
Ti3C2Tx Mxene Electrospinningmetal cations and dye cations (diameter ≥ 6 Å)37.4 L m−2 h−1 bar−1[80]
GO ImpregnationSalt cations (6–46%), Methylene blue (46–66%), Raodamine-WT (93–95%)27.6 L m−2 h−1 bar−1[85]
GO@PAN Vacuum suctionNa2SO4 (56.7%), Congo red8.2 L m−2 h−1 bar−1[86]
rGO hydriodic acid vapor, water-assisted delaminationCu2+, Na+, orange 7 (~100%)12.0 L m−2 h−1 bar−1[87]
GO-based Shear-induced alignmentorganic probe molecules (˃90%), salt cations (30–40%)71 ± 5 L m−2 h−1 bar−1[88]
bicontinous cubic Self-assembly Br (83%), Cl (59%), SO 4 2 (33%), NO 3 (81%)2.8–5.7 L m−2 h−1 bar−1[89]
NPN Track-etchingAu nanoparticles (˃80%) [71]
Cellulose Freeze-extraction techniqueNanoparticles with diameter ˃10 nm1.14 × 104 L m−2 h−1 bar−1[21]
CNT Chemical vapor depositionCdS (80%), Au (100%), TiO2 (100%) nanoparticles [91]
CNCsFreeze-drying processVictoria Blue 2B (98%), Methyl Violet 2B (84%), Rhodamine 6G (70%)6.4 L m−2 h−1 bar−1[16]
VAMWNTsChemical vapor depositionLubricating oil1580 L m−2 h−1[92]
Ag-APANElectroless plating, surface modification1,2-dibromoethane [94]
CNs-SAThermal oxidation etchingEthanol2469 g m−2 h−1[95]
PAA-g-PVDFPhase inversionhexadecane, toluene, diesel (˃99.99%)15,500–23,200 L m−2 h−1 bar−1[57]
PSF nanofibersElectrospinning, interfacial polymerizationSoybean oil (~100%)5.5 m3 m−2 day[96]
uGNMfiltration-assisted assembly99.8% of methyl blue and 99.9% of direct red 8121.8 L m−2 h−1 bar−1[34]
GO Vacuum suctiondimethyl carbonate (95.2%)1702 g m−2 h−1[97]
GO Pressurized ultrafiltrationEthanol (~100%) [98]
GO-TiO2 Self-assemblyrhodamine B, acid orange 7, humic acid (˃90%)60 L m−2 h−1[99]
MoS2 Vacuum filtrationEvans blue (89%)245 L m−2 h−1 bar−1[100]
WS2 Vacuum filtrationEvans blue (˃90%)730 L m−2 h−1 bar−1[101]
TiO2 nanowire Hydrothermal synthesis, hot-press processpolyethylene glycol, polyethylene oxide, HA, E. coli [21]
rGO-CNT Vacuum-assisted filtrationnanoparticles, dyes, BSA, sugars, and humic acid (˃99%)20–30 L m−2 h−1 bar−1[103]
PMMA Ultraviolet irradiation, acid rinsinghuman rhinovirus type 14 (~100%) [104]
MCCNs-PEI ElectrospinningMS2 bacteriophage virus (99.99%), E. coli (99.9999%)85 L m−2 h−1 bar−1[105]
a PVDF: polyvinylidene fluoride; Zr-MOF: zirconium(IV)-based metal-organic framework membrane; CNT-PcH: carbon nanotube incorporated polyvinylidene fluoride-co-hexafluoropropylene nanofiber membrane; MCM41-PA-TFN: MCM-41 silica nanoparticles enhanced polyamide thin-film nanocomposite membrane; GO: graphene oxide; GO-PA-TFN: graphene oxide enhanced polyamide thin-film nanocomposite membrane; PAN: polyacrylonitrile; rGO: reduced graphene oxide; NPN: nanoporous silicon nitride; CNT: carbon nanotube; CNCs: cellulose nanocrystals; VAMWNTs: vertically-aligned multi-walled carbon nanotubes; APAN: polyacrylonitrile; CNs-SA: g-C3N4 nanosheets incorporated into sodium alginate matrix; PAA-g-PVDF: poly(acrylic acid)-grafted PVDF; PSF: polysulfone; uGNM: ultrathin graphene nanofiltration membrane; PMMA: polystyrene-block-poly(methyl methacrylate); MCCNs: microcrystalline cellulose nanofibers; PEI: polyethylenimine.

Share and Cite

MDPI and ACS Style

Wang, Z.; Wu, A.; Colombi Ciacchi, L.; Wei, G. Recent Advances in Nanoporous Membranes for Water Purification. Nanomaterials 2018, 8, 65.

AMA Style

Wang Z, Wu A, Colombi Ciacchi L, Wei G. Recent Advances in Nanoporous Membranes for Water Purification. Nanomaterials. 2018; 8(2):65.

Chicago/Turabian Style

Wang, Zhuqing, Aiguo Wu, Lucio Colombi Ciacchi, and Gang Wei. 2018. "Recent Advances in Nanoporous Membranes for Water Purification" Nanomaterials 8, no. 2: 65.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
