Open AccessArticle

Simultaneous Dual-mode Emission and Tunable Multicolor in the Time Domain from Lanthanide-doped Core-shell Microcrystals

1
School of Physics & The Key Laboratory of Weak Light Nonlinear Photonics, Ministry of Education, Nankai University, Tianjin 300071, China
2
Collaborative Innovation Center of Extreme Optics, Shanxi University, Taiyuan, Shanxi 030006, China
3
The Institute of Spectroscopy of the Russian Academy of Sciences, 142190 Moscow, Russia
*
Author to whom correspondence should be addressed.
Nanomaterials 2018, 8(12), 1023; https://doi.org/10.3390/nano8121023
Received: 21 November 2018 / Revised: 3 December 2018 / Accepted: 6 December 2018 / Published: 7 December 2018

Abstract

The dual-mode emission and multicolor outputs in the time domain from core-shell microcrystals are presented. The core-shell microcrystals, with NaYF4:Yb/Er as the core and NaYF4:Ce/Tb/Eu as the shell, were successfully fabricated by employing the hydrothermal method, which confines the activator ions into a separate region and minimizes the effect of surface quenching. The material is capable of both upconversion and downshifting emission, and their multicolor outputs in response to 980 nm near-infrared (NIR) excitation laser and 252 nm, and 395 nm ultraviolet (UV) excitation light have been investigated. Furthermore, the tunable color emissions by controlling the Tb3+- Eu3+ ratio in shells and the energy transfer of Ce3+→Tb3+→ Eu3+ were discussed in details. In addition, color tuning of core-shell-structured microrods from green to red region in the time domain could be obtained by setting suitable delay time. Due to downshifting multicolor outputs (time-resolved and pump-wavelength-induced downshifting) coupled with the upconversion mode, the core-shell microrods can be potentially applied to displays and high-level security.
Keywords: NaYF4:Yb/[email protected]:Ce/Tb/Eu microrods; dual-mode emission; time-resolved emission spectra; multicolor emission NaYF4:Yb/[email protected]:Ce/Tb/Eu microrods; dual-mode emission; time-resolved emission spectra; multicolor emission

1. Introduction

Lanthanide (Ln3+)-doped luminescent materials with various compositions and properties have been well studied for the last few decades. Compared with traditional luminescent materials, such as quantum dots (QDs) and organic dyes, the lanthanide-doped nano- and micro-crystals show more superior optical features including narrow bands widths, stable energy levels, low toxicity and long lifetime [1,2]. In addition, these materials have attracted a great deal of attention owing to their magnetic and thermal properties. These properties lead to widespread applications in various areas, such as volumetric display [3,4], solar cell [5], optical data storage [3,6,7], photothermal therapy [8,9], temperature sensing [10], laser [11,12], bioimaging [13,14] and anti-counterfeiting [2,15,16]. Ln3+-doped materials with tunable emission colors as security inks have been one of most commonly utilized methods for high-level anti-fake due to its difficult duplication and tunable luminescence properties [15,17,18]. The emission colors from near-ultraviolet (UV) to NIR region have been realized in Ln3+-doped particles by adjusting the types and concentrations of emitters and sensitizers [19,20,21]. For example, the Eu3+ ions could emit visible color under UV illumination, which is applied to the anti-counterfeiting purpose in banks [22]. This approach of photoluminescence process is downshifting (DS). The well-known upconversion (UC) rare earth pairs, which can produce intense green, red, violet emissions using 980 nm excitation, are Yb3+/Tm3+ (Er3+, Ho3+) systems [5,13,15,22,23]. The dual-mode emission with different emission colors in a single microcrystal could provide an opportunity for higher-level anti-counterfeiting. Moreover, in order to decrease the affection of unnecessary luminescence quenching, these UC and DS Ln3+ ions dopants are usually doped into the core and shell layer, respectively. This design disturbs the interaction between these lanthanide ions, and is beneficial to overcome the luminescence quenching [1,13,22].
Among the different inorganic host matrices like oxides, fluorides, and chlorides, the inorganic fluorides are chosen as efficient host materials for both UC and DS luminescence to achieve multicolor tuning. The selection is attributed to their low phonon energy and high stability [3,22,23,24]. Hexagonal-phase NaYF4 is not only considered as excellent UC host materials, but also offers efficient DS emission of Ln3+ ions such as Tb3+ and Eu3+, hence generating bright green and red DS emission in the visible region [25,26]. Thus, recently, the Tb3+ and Eu3+ co-doping in host has aroused many researchers’ interest due to tunable DS emission colors [19,27,28,29]. However, in these literatures, quite little attention has been paid to Tb-Eu co-doped core-shell-structured nanoparticles for dual-mode emission. Furthermore, only core-shell nanoparticles have been investigated to realize tunable emission colors, while studies on hetro- and homogenous microrods structures are still indispensable [3,30,31].
Herein, we propose a strategy to synthesize uniform β-NaYF4 microrods that are composed of NaYF4:Yb/Er(Tm) core and NaYF4:Ce/Tb/Eu shell for achieving dual-mode anti-counterfeiting. These dual-mode core-shell microrods can generate intense multicolor (green, yellow, orange and red) depending on the pump wavelengths (NIR or UV light), the concentration of dopants in shells and detection delay time. Furthermore, due to their microscale dimensions, the materials not only retain higher luminescence efficiency but also have a less complicated process, and lower costs due to lack of filter and outmost layers. Therefore, these materials present adjustable color that could be used as multicolor labels to improve the multimode anti-fake level.

2. Materials and Methods

2.1. Materials

Y(NO3)3·6H2O (99.99%), Yb(NO3)3·5H2O (99.99%), Er(NO3)3·6H2O (99.99%), Tb(NO3)3·6H2O (99.99%), Eu(NO3)3·6H2O (99.99%), Ce(NO3)3·6H2O (99.99%), NaOH (>98%) were supplied by the HWRK Chemical Co. Ltd., Beijing, China. NH4F was supplied by Damao Chemical Reagent Factory, Tianjin, China. NaF was supplied by Jiangtian Chemical Technology Co. Ltd., Tianjin, China. Ethylenediaminetetraacetic acid disodium salt (EDTA-2Na) were supplied by Aladdin Chemical Reagent Co. Ltd., Shanghai, China. Oleic acid (OA), and ethanol were supplied by SanJiang Chemical Technology Co. Ltd., Tianjin, China. All of the chemicals used in this study were of analytical grade and used in the original condition without any further purification.

2.2. Preparation of β-NaYF4:Yb/Er Microrods

The β-NaYF4:Yb/Er microrods were synthesized following a previous approach in the literature [17].

2.3. Preparation of Seeding Microrods

All the as-prepared β-NaYF4:Yb/Er microrods could be used as seeds after surface treatment. The seeds were prepared following a previous approach in the literature [18,32].

2.4. Sequential of Core-Shell-Structured Microrods

The core-shell-structured microrods were synthesized with EDTA-2Na as a chelating agent. The EDTA-2Na (4.70 mL) solution was mixed with the rare earth aqueous solution Ln(NO3)3 (1.875 mL, 0.2 M; Ln = Ce3+, Tb3+, and Eu3+). After vigorously stirring, the NH4F (5 mL, 2 M), and NaF (10 mL, 0.5 M) were added. Then, the HCl (1.875 mL, 2 M), HNO3 (1.875 mL, 15 wt%) and the seed crystals (0.094g) were mixed. The resulting mixture was stirred for 40 min and then transferred into a 50 mL Teflon-lined autoclave for heating at 220 °C for 700 min. The samples were spectively centrifuged and washed with deionized (DI) water and ethanol 3 times.

2.5. Characterization

X-ray diffraction (XRD) patterns in the 2θ ranging from 10 to 80 were measured by the D/max-2500 X-ray diffractometer equipped with graphite-monochromatized Cu Kα radiation (λ = 1.54056 Å) (Riagaku Co. Ltd., Tokyo, Japan). The morphologies of the products were recorded by an scanning electron microscopy (SEM) on ZEISS MERLIN Compact (Carl Zeiss, Oberkochen, Germany) operating at 3 kV. Energy dispersive X-ray spectrometer (EDS) and scanning transmission electron microscopy (STEM) images were performed on the Tecnai G2 F30 transmission electron microscope (FEI, Hillsborough, OR, USA). The UC and DS emission spectra of samples were recorded on a Horiba Fluorolog-3 luminescence spectrometer (Horiba, Edison, NJ, USA) using a 980 nm continuous wave laser. The DS luminescence delay time and time-resolved emission spectra (TRES) were recorded on an Edinburgh FSP-920 fluorescence spectrometer (Edinburgh Instruments, Livingston, Scotland, UK) with the excitation of pulsed Xeon lamp at 252 nm and 395 nm. All the measurements were performed at room temperature.

3. Results and Discussion

The lanthanide-doped β-NaYF4 core-shell microcrystals that are composed of NaYF4:Yb/Er as the core and NaYF4:Ce/Tb/Eu as the shell for dual-mode emission (UC and DS) were fabricated by hydrothermal reaction. The NaYF4:Yb/Er core microrods served as seed microrods after acid cleaning for the shell growth, resulting in the formation of core-shell NaYF4:Yb/[email protected]4:Ce/Tb/Eu microcrystals. The morphologies of materials are displayed by SEM images (Figure 1a–d). Figure 1a shows that the image of seed crystals, with a length and a diameter of about 1.20 and 0.21 μm, respectively. Figure 1b–d indicate the SEM images of NaYF4:Yb/[email protected]4:Ce/Tb0.1, NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.05, and NaYF4:Yb/[email protected]4:Ce /Eu0.1 microrods, respectively. The size distribution analysis of all samples are displayed in Figure S1 (Supplementary Materials), indicating the NaYF4:Ce/Tb/Eu active shells are grown onto the surface of NaYF4:Yb/Er core microrods. Furthermore, the mappings and line scans of elemental distribution are shown in Figure 1e2–e6. Obviously, the element signal intensity varies with the position of the core-shell microrods. Figure 1e2,e5,e6 reveal Yb is uniformly distributed in the core, and Figure 1e3–e6 describe Tb and Eu are uniformly distributed in the shell. This is consistent with the designed element distribution, and further validates the synthesis of core-shell structure. The crystalline seed rods and core-shell microrods can be confirmed by the XRD patterns. As shown in Figure 1f, all the peaks of samples can be indexed to the standard pattern of hexagonal-phase NaYF4 microrods (JSPDS No. 16-0334), indicating the formation of pure hexagonal-phase NaYF4 microrods for the core and core-shell-structured samples.
The UC luminescence spectra of samples (NaYF4:Yb/Er and NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.01) are illustrated in Figure 2. Under excitation at 980 nm, the core and core-shell microrods all exhibit three emission bands, which stem from the 2H11/24I15/2 (523 nm), 4S3/24I15/2 (541 nm) and 4F9/24I15/2 (656 nm) transitions from Er3+. This result indicates coating the shell hardly hinder the UC process of the seed crystals. However, it is easily noticed that the green-to-red intensity ratio of core-shell microrods is higher than that of core microrods. The Commission Internationale de l’Eclairage (CIE) coordinates of core and core-shell microrods are (0.422, 0.563) and (0.367, 0.611), respectively (Figure S2). Our group has reported that the UC luminescence intensity of the core-shell microrods decreases after shell coating modification [15,32].
The DS luminescence spectra of the core-shell microrods under UV light are shown in Figure 3, Figure 4 and Figure 5. Figure 3a shows the photoluminescence excitation spectra of core-shell microrods monitored at 544 nm from Tb3+. The shell doped with Ce3+ and Tb3+ ions shows one main absorption band peak at 252 nm, which results from 4f→5d transition from Ce3+ ions [21,22,26]. The corresponding emission spectra of NaYF4:Yb/[email protected]4:Ce/Tb/Eu microrods are displayed in Figure 3b when excited at 252 nm directly. The emission spectra are recorded by characteristic transition for both Tb3+ and Eu3+ in the visible region [25,26,27,28]. The emission peaks at 489, 544, 584 and 620 nm due to electronic transition from Tb3+ ions (5D47FJ (J = 6, 5, 4, and 3)) are observed. This indicates that the Ce3+ ions absorb UV light and transfer energy to neighboring Tb3+ ions, resulting in the luminescence emission from Tb3+ ions. As discussed by previous reports [19,27,28,29], the Tb3+ and Eu3+ ions are utilized together to achieve the tunable color and obtain bright multicolor emission. Therefore, we reported the NaYF4:Ce/Tb/Eu shells are grown on the UC microrods. With the increasing concentration of Eu3+ ions in shells, the intensity of emission bands from Tb3+ ions suffer from quenching, whereas the intensity of the Eu3+ is enhanced (Figure 3b). Figure 3b shows that the emission spectra exhibit the strong emission bands of Eu3+ ions at 590, 615 and 695 nm when the concentration of Eu3+ is above 2 mol%. The strongest emission peak is 615 nm. The three emission bands of Eu3+ are attributed to 5D07FJ (J = 1, 2, and 4) transition, respectively. This result indicates that the Tb3+ ions act as intermediate ions to achieve Ce3+→Tb3+→Eu3+ energy transfer.
To comprehend the energy transfer, the decay curves of Tb3+ emission at 544 nm and energy transfer efficiency (ɳTb-Eu) from Tb3+ to Eu3+ of core-shell microrods are presented in Figure 4. Figure 4a demonstrates the lifetime curve of the NaYF4:Yb/[email protected] NaYF4:Ce/Tb0.1/Eux (x = 0, 0.02, and 0.07) under a pulsed excitation wavelength of 252 nm. The effective lifetime of the excited state was calculated according to the equation: τeff = ʃI(t)dt/I0, where I(t) is the luminescence intensity at time t and I0 represents the maximum intensity [33]. It is worthy to notice here that by increasing the Eu3+ concentration from 0 to 7 mol% in the shell, the lifetime of Tb3+ emission at 544 nm decreases from 5.99 ms to 1.46 ms. For more thoroughly investigating the energy transfer of Tb3+ and Eu3+ ions, the ɳTb-Eu was also calculated by the following equation [21,29]:
η T b E u = 1 I I 0
where I and I0 are the emission intensities of the Tb3+ ions at 544 nm with and without Eu3+ ions, respectively. The ɳTb-Eu was calculated as a function of doping concentration of Eu3+, as shown in Figure 4b. It is found that the ɳTb-Eu increases rapidly with the increasing Eu3+ concentration. The ɳTb-Eu increases to 97.9% at NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.7 microrods. The phenomenon indicates efficient Tb3+→Eu3+ energy transition and achievement of the tunable color emission. The CIE coordinates of NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu microrods shift from (0.414, 0.517) to (0.488, 0.383) by tuning the concentration of Eu3+ from 0 to 0.07 mol% (Figure S3). This means the emission color of samples shifts from yellow-green to orange under UV lamp (λ = 252 nm) excitation.
Besides, DS emission from Eu3+ ions in core-shell microrods is also obtained under 395 nm excitation directly. The excitation spectra and emission spectra of core-shell microrods by doping Eu3+ in the shells are shown in Figure 5. The PLE spectra of samples, monitoring emission at 615 nm (Figure 5a), contain two main peaks at 252 nm and 395 nm. It is noticed that the PLE spectra of samples by co-doping Tb3+ and Eu3+ ions include all spectral features for co-doped Ce/Tb and Ce/Eu ions (Figure 3a and Figure 5a). The excitation band centered at 252 nm suggests the energy transition process from Ce3+ to Eu3+ via Tb3+, as discussed above. As the doping concentration of Eu3+ increases in the shells, the emission band peak at 395 nm is dominant, which is attributed to 7F05L6 transition of Eu3+ ions (Figure 5a). According to Figure 5a, NaYF4:Yb/[email protected]4:Ce/Tb/Eu microrods can be excited directly by 395 nm light, which is the characteristic excitation band of Eu3+, as previously reported [16,34]. The corresponding emission spectra of the samples at 395 nm excitation are shown in Figure 5b. Independent of the doping of Ce3+ and Tb3+ ions, the emission spectra profiles are the same (Figure 5b, and Figure S4), consisting of characteristic peaks of Eu3+ due to 5D07FJ (J = 1, 2, and 4) transition. The luminescence intensity increases with the Eu content (Figure S4). However, the intensity ratios of the emission bands change as a function of Eu3+ concentration in samples under the same excitation condition (Figure S5). This is ascribed to the influence of symmetry of host lattice on 5D07F2 transition [19]. Hence, the emission color of core-shell microrods gradually changes from orange to red, and the corresponding CIE color coordinates of these samples are shown in Figure S3b. The coordinates shift from (0.525, 0.457) to (0.459, 0.437). As a result, the NaYF4:Yb/[email protected]4:Ce/Tb/Eu microrods can emit visible light from yellow-green to red color by adjusting the concentrations of Tb3+ and Eu3+ in shells and UV excitation wavelengths.
Owing to the coexistent DS emission from Tb3+ and Eu3+ under 252 nm excitation, the separation of DS emission between Tb3+ and Eu3+ could be achieved by time-resolved luminescence detection technique, which is ascribed to their different decay lifetimes (Figure S6). In Figure S6a, it is noticed that the decay time of Eu3+ emission is longer than that of Eu3+ emission in previous reported. This is because the lifetime of the excited state is affected by the host and the synthesis procedure. The longer lifetime of Eu3+ ions is obtained when the Eu3+ ions are in a more symmetric environment [19]. On the other hand, the transient curve of Eu3+ emission exhibits rise and decay components, which indicates the energy transfer process [35]. The curve can be well fitted with the following equation [36]:
I ( t ) = A e t / τ r + B 1 e t / τ 1 + B 2 e t / τ 2
where A, B1 and B2 are emission intensity constants, and τr and τ1,2 represent the rise and delay time, respectively. The calculated rise time of the NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.05 microrods is 1.97 ms. Furthermore, we calculated rise time of other samples with various concentrations of Eu3+ ions. The rise time of the emission at 615 nm decreases with the increasing concentration, as shown in Figure S6b, which is attributed to the distance of energy transition becoming shorter with increasing concentration of Eu3+ ions [34,37,38].
Figure 6a shows the time-resolved emission spectra (TRES) for NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.05 microrods by setting various delay times at 252 nm excitation. The long delay time emission of Eu3+ could be distinguished from that of Tb3+, which means in the long delay time (>8 ms), the whole DS emission is dominated by the red emission from Eu3+ using UV lamp (252 nm) excitation. At the same time, the emission from Tb3+ is prominent by setting the short delay time (0.8–8 ms). This indicates that the emission multicolor outputs, changing from green to red region, in the time domain from NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.05 microrods could be achieved by setting suitable delay time. The corresponding CIE coordinates are shown in Figure 6b. The DS multicolor outputs (time-resolved and pump-wavelength-induced DS) coupled with the UC mode could pave the way for the anti-counterfeiting fields.
We successfully fabricated the core-shell microrods that can realize dual-mode (UC and DS) luminescence from Er3+, Tb3+ and Eu3+ ions. The schematic of the prepared core-shell microrods is shown in Figure 7a. Efficient UC luminescence can be obtained with 980 nm laser irradiation, giving rise to the emission of green, red or yellow colors. As the shell is doped with Ce3+/Tb3+/Eu3+ ions, Ce3+ ion will act as a sensitizer and promote the energy transition to activators (Tb3+ ions). Podhorodecki [25] and Jang [26] have confirmed the excitation of Eu ions through Tb ions due to the similar excitation spectra recorded for emission of Eu3+ ions between NaYF4:Tb,Eu and NaYF4:Eu samples. It indicates that the excitation energy can be transferred from Ce3+ to Eu3+ ions. Meanwhile, red DS emission from Eu3+ ions is also obtained under 395 nm excitation.
The luminescence mechanism for NaYF4:Yb/[email protected]4:Ce/Tb/Eu core-shell microcrystals system is displayed in Figure 7b. The UC luminescence can be obtained from core microrods at 980 nm excitation, which stems from the 4f electronic transition of Er3+ [22,32]. Under 980 nm excitation, Yb3+ ions transfer energy to Er3+ after absorbing excitation energy. The excitation levels (2H11/2/4S3/2, 4F9/2 states) of Er3+ are populated via two successive energy transition processes (Figure S7), and green (~540 nm) and red (~654 nm) emissions are generated. For the Ce3+-Tb3+-Eu3+ system in shells, the DS emission can be achieved. The Ce3+ ions absorb the external UV light (~252 nm) due to 4f→5d transition and then transfer to 5D4 state of Tb3+ ions efficiently (Figure 4). Afterwards, the green emission is obtained through the radiative transition from 5D4 state to 7FJ (J = 3, 4, 5, and 6) states. With Eu3+ ions doping, Tb3+→Eu3+ energy transfer occurs, and a part of excited energy from 5D4 state of Tb3+ ions shifts to 5D0 state. Finally, the red emission is generated ascribed to 5D07FJ (J = 1, 2, 4) transition. In addition, the red emission from Eu3+ can also be obtained using 395 nm excitation straightforwardly.

4. Conclusions

We have successfully designed an approach to achieve UC and DS luminescence simultaneously in core-shell microrods (NaYF4:Yb/[email protected]4:Ce/Tb/Eu). This approach helps confine the activators to different regions, hence overcoming the effect of the cross-relaxations between activators, and meanwhile minimizing the effect of surface quenching without an outmost layer. The NaYF4:Yb/[email protected]4:Ce/Tb/Eu microrods could achieve multicolor emission depending on excitation wavelengths (980 nm, 252 nm, and 395 nm), the concentration of Eu3+ in shells and detection delay time. Under the 980 nm excitation, the core of Yb/Er system for the UC process emits yellow color. While, the shell of Ce/Tb/Eu systems for the DS process emits visible light from yellow-green to red color by adjusting the concentrations of Eu3+ and UV excitation wavelengths (252 nm, and 395 nm). Moreover, because of the different decay lifetime of Tb3+ and Eu3+ ions at their characteristic emission wavelengths, the emission multicolor outputs, changing from green to red region, in the time domain from NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.05 microrods could be realized by optimizing delay time. Due to high UC/DS efficiency and dual-mode luminescence with multicolor emission, the NaYF4:Yb/[email protected]4:Ce/Tb/Eu microrods have promising applications in displays and anti-counterfeiting fields.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/8/12/1023/s1, Figure S1: Size distribution analysis of the NaYF4: Yb/Er @NaYF4:Ce/Tb/Eu microcrystals along the axial direction (a) and radial direction (b) collected at various doping concentration ratios of Tb/Eu, Figure S2: The CIE chromaticity coordinates of the emission of the seed microcrystals (NaYF4:Yb/Er) and core-shell microrods (NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.1) under 980 nm excitation, Figure S3: CIE chromaticity coordinates of the emission of samples with various doping concentrations of Tb3+ and Eu3+. The direction of the arrow denotes the changing of emission colors, Figure S4: Pump-power-dependent downshifting luminescence spectra of the core-shell-structured microrods with various doping concentration ratios of Tb/Eu under 395 nm excitation, Figure S5: Relative intensity of different emission bands in core-shell microrods under 395 nm irradiation, Figure S6: (a) Delay curves of NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.05 microrods at 544 nm and 615 nm under 252 nm excitation, (b) rise time of emission at 615 nm for NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu microrods doped with different Eu concentrations, Figure S7: (a) Pump-power-dependent upconversion luminescence spectra of the core-shell-structured microrods (NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.01) using 980 nm excitation and (b) corresponding log-log plots of upconversion emission intensity versus excitation power.

Author Contributions

D.J. and F.S. (Feng Song) conceived and designed the experiments; D.J. performed the experiments; D.J. analyzed the data; F.S. (Feifei Song), A.Z. and X.G. contributed analysis tools; D.J. wrote the paper; H.H. and X.S. gave advices; A.K., V. Z. and F.S. (Feng Song) reviewed and edited the manuscript. All of the authors read and approved the manuscript.

Acknowledgments

This work is financially supported by the Nature Science Foundation of China (No. 11674183, 11811530075), the Natural Science Foundation of Tianjin, key project (No. 17JCZDJC37800), and 111 Project (No. B07013).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Liu, Y.; Tu, D.; Zhu, H.; Li, R.; Luo, W.; Chen, X. A strategy to achieve efficient dual-mode luminescence of Eu3+ in lanthanides doped multifunctional NaGdF4 nanocrystals. Adv. Mater. 2010, 22, 3266–3271. [Google Scholar] [CrossRef] [PubMed]
  2. Han, Y.; Gao, C.; Wang, Y.; Ju, D.; Zhou, A.; Song, F.; Huang, L.; Huang, W. Spatially confined luminescence process in tip-modified heterogeneous-structured microrods for high-level anti-counterfeiting. Phys. Chem. Chem. Phys. 2018, 20, 9516–9522. [Google Scholar] [CrossRef] [PubMed]
  3. Wen, S.; Zhou, J.; Zheng, K.; Bednarkiewicz, A.; Liu, X.; Jin, D. Advances in highly doped upconversion nanoparticles. Nat. Commun. 2018, 9, 2415. [Google Scholar] [CrossRef] [PubMed]
  4. Wang, F.; Han, Y.; Lim, S.C.; Lu, Y.H.; Wang, J.; Xu, J.; Chen, H.Y.; Zhang, C.; Hong, M.H.; Liu, X.G. Simultaneous phase and size control of upconversion nanocrystals through lanthanide doping. Nature 2010, 463, 1060–1065. [Google Scholar] [CrossRef] [PubMed]
  5. Richards, B.S. Luminescent layers for enhanced silicon solar cell performance: Down-conversion. Solar Energy Mater. Solar Cells 2006, 90, 1189–1207. [Google Scholar] [CrossRef]
  6. Zheng, K.; Han, S.; Zeng, X.; Wu, Y.; Song, S.; Zhang, H.; Liu, X. Rewritable optical memory through high-registry orthogonal upconversion. Adv. Mater. 2018, 30, 1801726. [Google Scholar] [CrossRef] [PubMed]
  7. Gu, M.; Zhang, Q.; Lamon, S. Nanomaterials for optical data storage. Nat. Rev. Mater. 2016, 1, 16070. [Google Scholar] [CrossRef]
  8. Lei, L.; Chen, D.; Li, C.; Huang, F.; Zhang, J.; Xu, S. Inverse thermal quenching effect in lanthanide-doped upconversion nanocrystals for anti-counterfeiting. J. Mater. Chem. C 2018, 6, 5427–5433. [Google Scholar] [CrossRef]
  9. Wang, H.; Yin, X.; Xing, M.; Fu, Y.; Tian, Y.; Feng, X.; Jiang, T.; Luo, X. Thermal effects of Er3+/Yb3+-doped NaYF4 phosphor induced by 980/1510 nm laser diode irradiation. J. Am. Ceram. Soc. 2018, 101, 865–873. [Google Scholar] [CrossRef]
  10. Zhou, A.; Song, F.; Han, Y.; Song, F.F.; Ju, D.; Wang, X. Simultaneous size adjustment and upconversion luminescence enhancement of β-NaLuF4:Yb3+/Er3+,Er3+/Tm3+ microcrystals by introducing Ca2+ for temperature sensing. CrystEngComm 2018, 20, 2029–2035. [Google Scholar] [CrossRef]
  11. Sakr, H.; Tang, Z.; Furniss, D.; Sojka, L.; Sujecki, S.; Benson, T.M.; Seddon, A.B. Promising emission behavior in Pr3+/In selenide-chalcogenide-glass small-core step index fiber (SIF). Opt. Mater. 2017, 67, 98–107. [Google Scholar] [CrossRef]
  12. Wang, T.; Yu, H.; Siu, C.K.; Qiu, J.; Xu, X.; Yu, S.F. White-light whispering-gallery-mode lasing from lanthanide-doped upconversion NaYF4 hexagonal microrods. ACS Photon. 2017, 4, 1539–1543. [Google Scholar] [CrossRef]
  13. Chen, Q.; Xie, X.; Huang, B.; Liang, L.; Han, S.; Yi, Z.; Wang, Y.; Li, Y.; Fan, D.; Huang, L.; et al. Confining excitation energy in Er3+-sensitized upconversion nanocrystals through Tm3+-mediated transient energy trapping. Angew. Chem. Int. Ed. Engl. 2017, 56, 7605–7609. [Google Scholar] [CrossRef] [PubMed]
  14. Wu, X.; Zhang, Y.; Takle, K.; Bilsel, O.; Li, Z.; Lee, H.; Zhang, Z.; Li, D.; Fan, W.; Duan, C.; et al. Dye-sensitized core/active shell upconversion nanoparticles for optogenetics and bioimaging applications. ACS Nano 2016, 10, 1060–1066. [Google Scholar] [CrossRef] [PubMed]
  15. Dong, H.; Sun, L.D.; Feng, W.; Gu, Y.; Li, F.; Yan, C.H. Versatile spectral and lifetime multiplexing nanoplatform with excitation orthogonalized upconversion luminescence. ACS Nano 2017, 11, 3289–3297. [Google Scholar] [CrossRef] [PubMed]
  16. Zhuo, Z.; Liu, Y.; Liu, D.; Huang, P.; Jiang, F.; Chen, X.; Hong, M. Manipulating energy transfer in lanthanide-doped single nanoparticles for highly enhanced upconverting luminescence. Chem. Sci. 2017, 8, 5050–5056. [Google Scholar] [CrossRef][Green Version]
  17. Zhang, Y.; Zhang, L.; Deng, R.; Tian, J.; Zong, Y.; Jin, D.; Liu, X. Multicolor barcoding in a single upconversion crystal. J. Am. Chem. Soc. 2014, 136, 4893–4896. [Google Scholar] [CrossRef]
  18. Zhang, Y.; Huang, L.; Liu, X. Unraveling epitaxial habits in the NaLnF4 system for color multiplexing at the single-particle level. Angew. Chem. Int. Ed. 2016, 55, 1–6. [Google Scholar] [CrossRef]
  19. Back, M.; Marin, R.; Franceschin, M.; Sfar Hancha, N.; Enrichi, F.; Trave, E.; Polizzi, S. Energy transfer in color-tunable water-dispersible Tb–Eu codoped CaF2 nanocrystals. J. Mater. Chem. C 2016, 4, 1906–1913. [Google Scholar] [CrossRef]
  20. Lai, J.; Zhang, N.; Pasquale, N.; Lee, K. An upconversion nanoparticle with orthogonal emissions using dual NIR excitations for controlled two-way photoswitching. Angew. Chem. Int. Ed. Engl. 2014, 53, 14419–14423. [Google Scholar] [CrossRef]
  21. Zhang, X.; Zhou, L.; Pang, Q.; Shi, J.; Gong, M. Tunable Luminescence and Ce3+→ Tb3+→ Eu3+ energy transfer of broadband-excited and narrow line red emitting Y2SiO5:Ce3+, Tb3+, Eu3+ phosphor. J. Phys. Chem. C 2014, 118, 7591–7598. [Google Scholar] [CrossRef]
  22. Liu, J.; Rijckaert, H.; Zeng, M.; Haustraete, K.; Laforce, B.; Vincze, L.; Driessche, I.V.; Kaczmarek, A.M.; Deun, R.V. Simultaneously excited downshifting/upconversion luminescence from lanthanide-doped core/shell fluoride nanoparticles for multimode anticounterfeiting. Adv. Funct. Mater. 2018, 1707365. [Google Scholar] [CrossRef]
  23. Chen, B.; Kong, W.; Liu, Y.; Lu, Y.; Li, M.; Qiao, X.; Fan, X.; Wang, F. Crystalline hollow microrods for site-selective enhancement of nonlinear photoluminescence. Angew. Chem. Int. Ed. Engl. 2017, 56, 10383–10387. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, F.; Liu, X. Recent advances in the chemistry of lanthanide-doped upconversion nanocrystals. Chem. Soc. Rev. 2009, 38, 976–989. [Google Scholar] [CrossRef] [PubMed]
  25. Podhorodecki, A.; Banski, M.; Misiewicz, J.; Afzaal, M.; O’Brien, P.; Chad, D.; Wang, X. Multicolor light emitters based on energy exchange between Tb and Eu ions co-doped into ultrasmall β-NaYF4 nanocrystals. J. Mater. Chem. 2012, 22, 5356. [Google Scholar] [CrossRef]
  26. Kim, S.Y.; Woo, K.; Lim, K.; Lee, K.; Jang, H.S. Highly bright multicolor tunable ultrasmall β-Na(Y,Gd)F4:Ce,Tb,Eu/β-NaYF4 core/shell nanocrystals. Nanoscale 2013, 5, 9255–9263. [Google Scholar] [CrossRef] [PubMed]
  27. Li, R.; Xiong, H.; Liang, Y.; Liu, Y.; Zhang, N.; Gan, S. Rapid, morphology-controllable synthesis of GdOF:Ln3+ (Ln = Eu, Tb) crystals with multicolor-tunable luminescence properties. New J. Chem. 2016, 40, 1792–1798. [Google Scholar] [CrossRef]
  28. Li, R.; Li, L.; Liang, Y.; Zhang, N.; Liu, Y.; Gan, S. A novel synthetic route towards monodisperse LaOF:Ln3+ (Ln = Eu, Tb) hollow spheres with multicolor luminescence properties. Phys. Chem. Chem. Phys. 2015, 17, 21485–21491. [Google Scholar] [CrossRef] [PubMed]
  29. Luo, Y.; Yang, R.; Zhang, X.; Hu, B.; Hu, S.; Zhou, L.; Yang, J. Shape-controllable hydrothermal synthesis of NaTbF4:Eu3+ microcrystals with energy transfer from Tb to Eu and multicolor luminescence properties. CrystEngComm 2015, 17, 7762–7771. [Google Scholar] [CrossRef]
  30. Wang, F.; Liu, X. Multicolor tuning of lanthanide-doped nanoparticles by single wavelength excitation. Acc. Chem. Res. 2014, 47, 1378–1385. [Google Scholar] [CrossRef] [PubMed]
  31. Chen, G.; Ågren, H.; Ohulchanskyy, T.Y.; Prasad, P.N. Light upconverting core-shell nanostructures: nanophotonic control for emerging applications. Chem. Soc. Rev. 2015, 44, 1680–1713. [Google Scholar] [CrossRef] [PubMed]
  32. Ju, D.; Song, F.; Han, Y.; Cui, W.; Zhou, A.; Liu, S.; Wang, X.; Feng, M.; Ming, C. Sequential growth of uniform β-NaYF4@β-NaLnF4 (Ln = Y, Lu, Yb) microcrystals with luminescent properties of multicolor tuning and dual-mode emission. Nanomaterials 2017, 7, 448. [Google Scholar] [CrossRef] [PubMed]
  33. Liu, X.; Deng, R.; Zhang, Y.; Wang, Y.; Chang, H.; Huang, L.; Liu, X. Probing the nature of upconversion nanocrystals: instrumentation matters. Chem. Soc. Rev. 2015, 44, 1479. [Google Scholar] [CrossRef] [PubMed]
  34. Podhorodecki, A.; Banski, M.; Noculak, A.; Sojka, B.; Pawlik, G.; Misiewicz, J. On the nature of carrier relaxation and ion-ion interactions in ultrasmall β-NaYF4:Eu3+ nanocrystals effect of the surface. Nanoscale 2013, 5, 429–436. [Google Scholar] [CrossRef] [PubMed]
  35. Tang, J.; Chen, L.; Li, J.; Wang, Z.; Zhang, J.; Zhang, L.; Luo, Y.; Wang, X. Selectively enhanced red upconversion luminescence and phase/size manipulation via Fe3+ doping in NaYF4:Yb,Er nanocrystals. Nanoscale 2015, 7, 14752–14759. [Google Scholar] [CrossRef] [PubMed]
  36. Wang, Y.; Tu, L.; Zhao, J.; Sun, Y.; Kong, X.; Zhang, H. Upconversion luminescence of β-NaYF4:Yb3+,Er3+@β-NaYF4 core/shell nanoparticles: excitation power density and surface dependence. J. Phys. Chem. C 2009, 113, 7164–7169. [Google Scholar] [CrossRef]
  37. Zuo, J.; Sun, D.; Tu, L.; Wu, Y.; Cao, Y.; Xue, B.; Zhang, Y.; Chang, Y.; Liu, X.; Kong, X.; et al. Precisely tailoring upconversion dynamicsvia energy migration in core–shell nanostructures. Angew. Chem. 2018, 130, 3108–3112. [Google Scholar] [CrossRef]
  38. Du, S.; Wang, D.; Qiang, Q.; Ma, X.; Tang, Z.; Wang, Y. The dual-model up/down-conversion green luminescence of Gd6O5F8:Yb3+,Ho3+,Li+ and its application for temperature sensing. J. Mater. Chem. C 2016, 4, 7148–7155. [Google Scholar] [CrossRef]
Figure 1. (ad) SEM imaging of the samples, NaYF4:Yb/Er, NaYF4:Yb/[email protected]4:Ce/Tb0.1, NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.05, NaYF4:Yb/[email protected]4:Ce /Eu0.1 microrods. (e1) The STEM image of the NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.05 microrods. (e2e4) are the element mappings of Yb, Tb and Eu in a single NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.05 microrod, respectively. The insets in Figure (e3,e4) are the element composition images of Yb-Tb and Yb-Eu, respectively. (e5,e6) are line scans of the element distributions of Yb, Tb and Eu in the single microrod along the axial direction and radial direction, respectively. The red, yellow, and purple lines represent the Yb, Tb and Eu elements, respectively. (f) XRD patterns of the samples.
Figure 1. (ad) SEM imaging of the samples, NaYF4:Yb/Er, NaYF4:Yb/[email protected]4:Ce/Tb0.1, NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.05, NaYF4:Yb/[email protected]4:Ce /Eu0.1 microrods. (e1) The STEM image of the NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.05 microrods. (e2e4) are the element mappings of Yb, Tb and Eu in a single NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.05 microrod, respectively. The insets in Figure (e3,e4) are the element composition images of Yb-Tb and Yb-Eu, respectively. (e5,e6) are line scans of the element distributions of Yb, Tb and Eu in the single microrod along the axial direction and radial direction, respectively. The red, yellow, and purple lines represent the Yb, Tb and Eu elements, respectively. (f) XRD patterns of the samples.
Nanomaterials 08 01023 g001
Figure 2. Emission spectra of the seed microcrystals (NaYF4:Yb/Er, upper) and core-shell microrods (NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.1, lower) under 980 nm excitation.
Figure 2. Emission spectra of the seed microcrystals (NaYF4:Yb/Er, upper) and core-shell microrods (NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.1, lower) under 980 nm excitation.
Nanomaterials 08 01023 g002
Figure 3. (a) Photoluminescence excitation (PLE) spectra of core-shell-structured microrods monitored at 544 nm from Tb3+. The inset is the enlarged excitation spectrum of the sample from 300 nm to 400 nm. (b) Emission spectra of corresponding samples at 252 nm excitation under the same condition.
Figure 3. (a) Photoluminescence excitation (PLE) spectra of core-shell-structured microrods monitored at 544 nm from Tb3+. The inset is the enlarged excitation spectrum of the sample from 300 nm to 400 nm. (b) Emission spectra of corresponding samples at 252 nm excitation under the same condition.
Nanomaterials 08 01023 g003
Figure 4. (a) Downshifting luminescence delay curve of core-shell-structured microrods at 544 nm with various doping concentrations of Tb3+ and Eu3+. (b) Energy transfer efficiency from Tb3+ to Eu3+ in NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu microrods doped with various Eu concentrations.
Figure 4. (a) Downshifting luminescence delay curve of core-shell-structured microrods at 544 nm with various doping concentrations of Tb3+ and Eu3+. (b) Energy transfer efficiency from Tb3+ to Eu3+ in NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu microrods doped with various Eu concentrations.
Nanomaterials 08 01023 g004

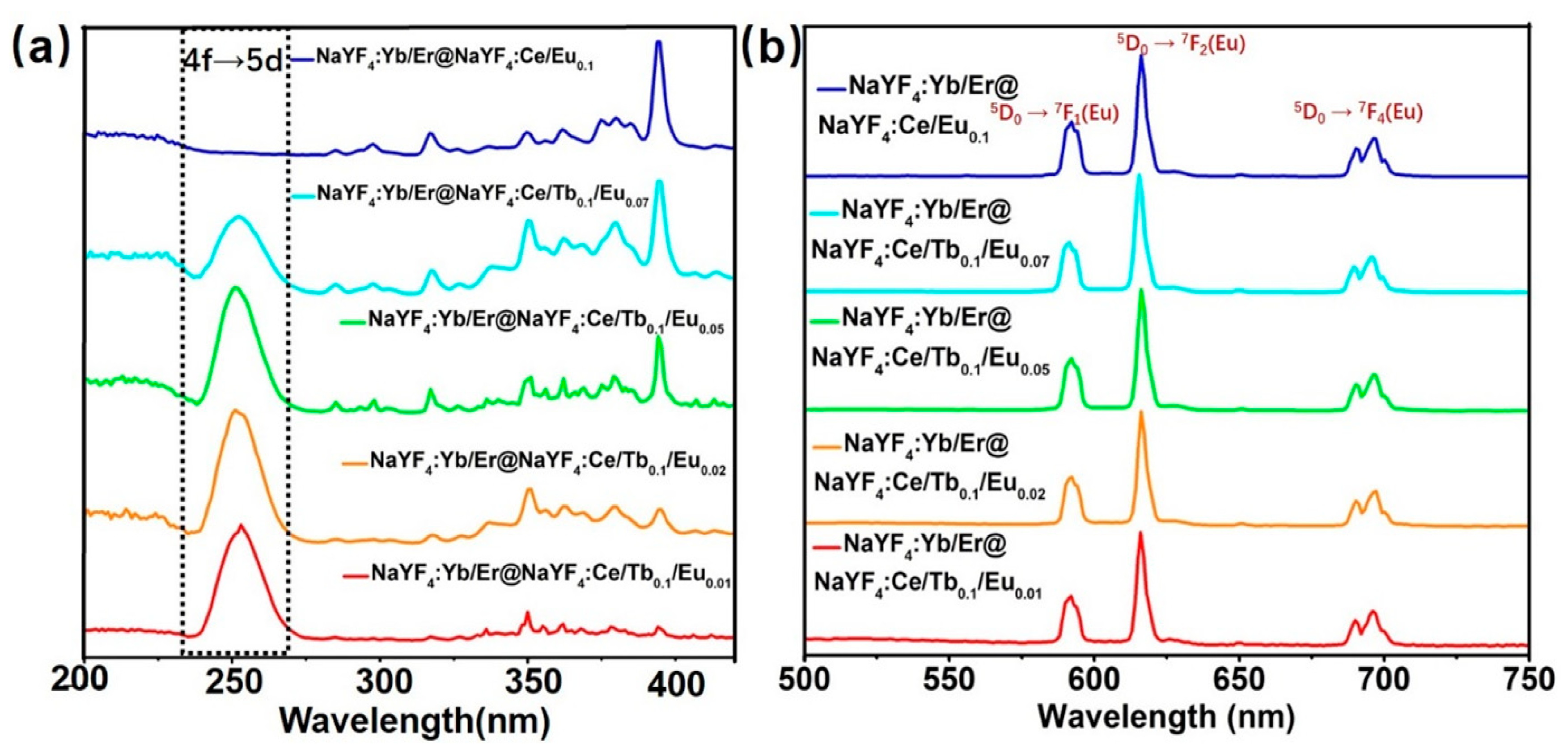

Figure 5. (a) Photoluminescence excitation spectra of core-shell-structured microrods monitored at 615 nm from Eu3+. (b) Emission spectra of corresponding samples at 395 nm excitation under the same condition.
Figure 5. (a) Photoluminescence excitation spectra of core-shell-structured microrods monitored at 615 nm from Eu3+. (b) Emission spectra of corresponding samples at 395 nm excitation under the same condition.
Nanomaterials 08 01023 g005

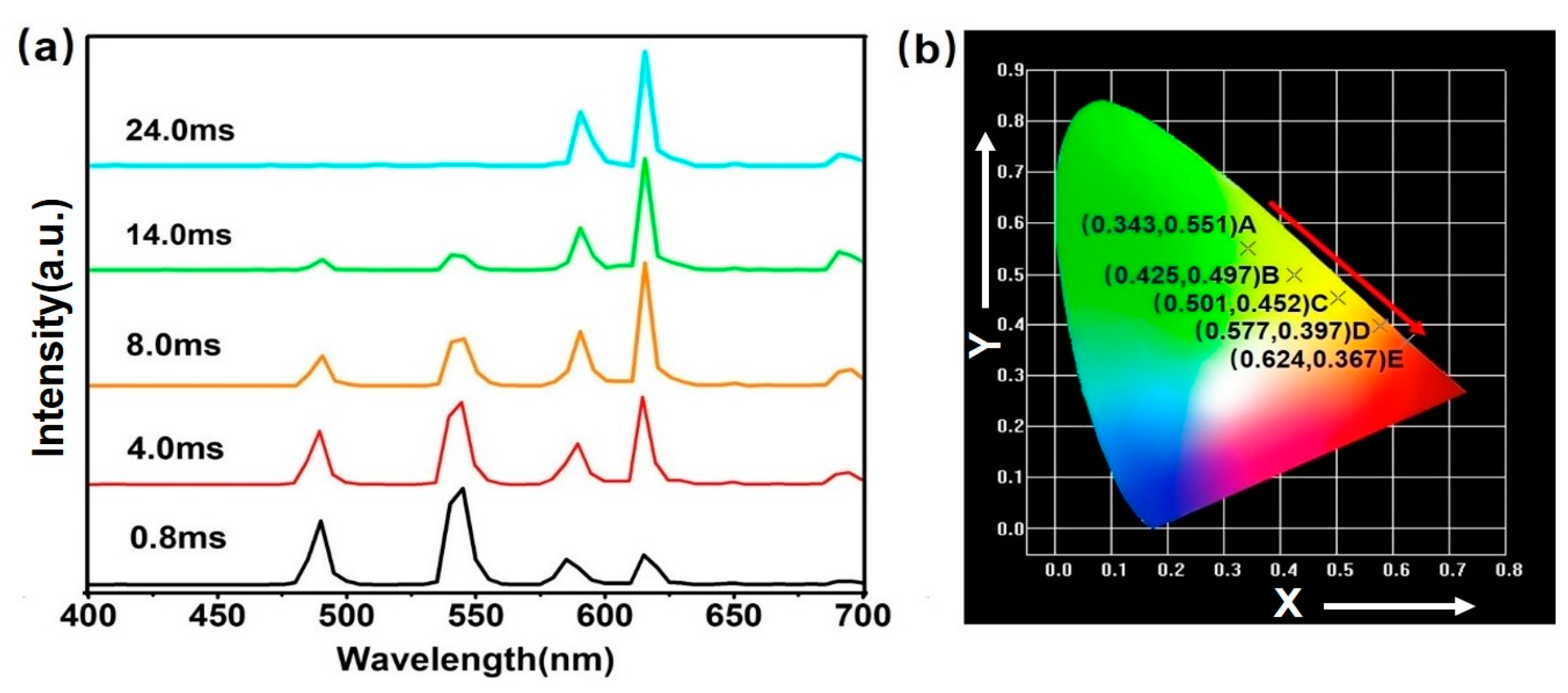

Figure 6. (a) Time-resolved emission spectra for NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.05 microrods at 252 nm excitation. (b) The CIE coordinates of the sample at various delay times.
Figure 6. (a) Time-resolved emission spectra for NaYF4:Yb/[email protected]4:Ce/Tb0.1/Eu0.05 microrods at 252 nm excitation. (b) The CIE coordinates of the sample at various delay times.
Nanomaterials 08 01023 g006
Figure 7. (a) Schematic illustration of NaYF4:Yb/[email protected]4:Ce/Tb/Eu core-shell microcrystals to achieve the dual-mode emission. (b) Proposed schematic diagram of the energy transfer processes for dual-mode emission in the core-shell microrods.
Figure 7. (a) Schematic illustration of NaYF4:Yb/[email protected]4:Ce/Tb/Eu core-shell microcrystals to achieve the dual-mode emission. (b) Proposed schematic diagram of the energy transfer processes for dual-mode emission in the core-shell microrods.
Nanomaterials 08 01023 g007
