Article

Peculiarities of Synthesis and Properties of Lignin–Silica Nanocomposites Prepared by Sol-Gel Method

by
Tetyana M. Budnyak
1,2,*,
Selda Aminzadeh
3,
Ievgen V. Pylypchuk
4,
Anastasia V. Riazanova
3,
Valentin A. Tertykh
2,
Mikael E. Lindström
1 and
Olena Sevastyanova
1,3,*
1
Division of Wood Chemistry and Pulp Technology, Department of Fiber and Polymer Technology, KTH Royal Institute of Technology, Teknikringen 56-58, SE-100 44 Stockholm, Sweden
2
Chuiko Institute of Surface Chemistry, National Academy of Sciences of Ukraine, 17 General Naumov Str., 03164 Kyiv, Ukraine
3
Wallenberg Wood Science Center (WWSC), Department of Fiber and Polymer Technology, KTH Royal Institute of Technology, Teknikringen 56-58, SE-100 44 Stockholm, Sweden
4
Department of Molecular Sciences, Swedish University of Agricultural Sciences (SLU), Allmas alle 5, SE-750 07 Uppsala, Sweden
*
Authors to whom correspondence should be addressed.
Nanomaterials 2018, 8(11), 950; https://doi.org/10.3390/nano8110950
Submission received: 6 November 2018 / Revised: 13 November 2018 / Accepted: 15 November 2018 / Published: 18 November 2018
(This article belongs to the Special Issue Synthesis, Characterization, and Applications of Polymer Nanocomposites)
Browse Figures
Versions Notes

Abstract

:
The development of advanced hybrid materials based on polymers from biorenewable sources and mineral nanoparticles is currently of high importance. In this paper, we applied softwood kraft lignins for the synthesis of lignin/SiO2 nanostructured composites. We described the peculiarities of composites formation in the sol-gel process through the incorporation of the lignin into a silica network during the hydrolysis of tetraethoxysilane (TEOS). The initial activation of lignins was achieved by means of a Mannich reaction with 3-aminopropyltriethoxysilane (APTES). In the study, we present a detailed investigation of the physicochemical characteristics of initial kraft lignins and modified lignins on each step of the synthesis. Thus, 2D-NMR, 31P-NMR, size-exclusion chromatography (SEC) and dynamic light scattering (DLS) were applied to analyze the characteristics of pristine lignins and lignins in dioxan:water solutions. X-Ray photoelectron spectroscopy (XPS) and Fourier transform infrared (FTIR) were used to confirm the formation of the lignin–silica network and characterize the surface and bulk structures of the obtained hybrids. Termogravimetric analysis (TGA) in nitrogen and air atmosphere were applied to a detailed investigation of the thermal properties of pristine lignins and lignins on each step of modification. SEM confirmed the nanostructure of the obtained composites. As was demonstrated, the activation of lignin is crucial for the sol-gel formation of a silica network in order to create novel hybrid materials from lignins and alkoxysilanes (e.g., TEOS). It was concluded that the structure of the lignin had an impact on its reactivity during the activation reaction, and consequently affected the properties of the final hybrid materials.

Graphical Abstract

1. Introduction

The development of advanced materials from biorenewable sources is currently of high importance. Lignin, an aromatic biological macromolecule, has great potential for replacing oil-based polymers. As a cross-linked natural phenolic polymer, lignin is of great interest because of its valuable properties and abundance as a by-product in the pulp and paper industries [1]. The chemical structure of kraft lignin, a by-product of sulfate pulping, in terms of the molecular weight (Mw), content of functional hydroxyl and carboxyl groups, and cross-linking density, differs significantly from that of lignin in the original plants as a result of the alkaline treatment [2,3,4]. Kraft lignin is used today almost exclusively for energy production; however, there has been growing interest in the extraction of a portion of kraft lignin from black liquor for use in high-value applications in parallel to pulp production [5,6,7]. Often, additional purification and fractionation treatments of kraft lignin are needed prior to its use in polymeric applications. One such method is the LignoBoost process, where kraft lignin is purified in sequential precipitation and filtration steps [8]. Other alternatives to obtaining lignin materials of high purity with a suitable molecular weight and polydispersity are the ultrafiltration of black liquor with a ceramic membranes or solvent fractionation of lignin [9,10,11,12,13,14,15,16,17,18]. There have been several reports in the literature on methods of lignin modification or graft polymerization to obtain lignin-based composites, epoxy resins, biomedical materials, carbon fibers, etc. [19,20,21,22,23,24,25,26,27,28].
There is growing interest in the development of advanced materials based on a combination of biomacromolecules and inorganic carriers to form organic–inorganic hybrid materials [29]. In the case of technical lignins, the preliminary activation of the biopolymer is often required to improve the reactivity [19]. A silica/lignin composite was obtained in the process of silica surface modification with oxidized lignin solution [30,31,32,33,34], by grafting additional functional groups or polymerizable moieties to lignin [35], by the simultaneous mechanical mixing of the initial silica and kraft lignin powders [36,37], or by direct precipitation in aqueous solution [38]. The obtained composites were found to be efficient as polymer fillers [37], electrochemical sensors [33], and biosorbents for the removal of toxicants from aqueous solutions [35,39,40,41].
Among the different techniques for obtaining hybrid materials, sol-gel technology offers a simple and convenient method for preparing organic–inorganic composite materials on a molecular level [42]. In the literature, there is a limited number of reports on obtaining lignin–silica nanomaterials by the sol-gel method. A paper by Qu et al. [43] reported the preparation of lignin–silica hybrid in situ using the sol-gel process. The authors investigated the optimum conditions for the hybrid formation and its pore structure. It was suggested that such material could be used for the decontamination of environmental objects. In other works [44,45], authors applied a modification of hydrolyzed lignin with silica oligomers to prepare hybrids via the sol-gel process. However, neither of these works presented a controlled synthesis of homogeneous lignin–silica composites, but rather used a mixture of organic and inorganic components.
The main problem in the application of kraft lignin as a component of hybrid composites is the complexity of its chemical modification. On the one hand, kraft lignin is a highly hydrophobic material that is difficult to involve in reactions that require aqueous media, such as the sol-gel reaction. On the other hand, the chemical modification of lignins by reactive groups, which are capable of cohydrolyzing with common sol-gel reagents (e.g., tetraethoxysilane (TEOS)), is not an easy task. Therefore, our goal was to chemically modify lignin in order to graft functional groups into lignin macromolecules that are capable of cohydrolyzing with TEOS (sol-gel reaction) in water-miscible solvent. The physicochemical properties of initial, activated, and immobilized lignins into final hybrid materials were investigated and compared by means of size-exclusion chromatography (SEC), nuclear magnetic resonance (NMR), dynamic light scattering (DLS), X-Ray photoelectron spectroscopy (XPS), Fourier transform infrared (FTIR), thermogravimetric analysis (TGA), scanning electron microscopy (SEM), and the adsorption method.

2. Materials and Methods

2.1. Materials

The LignoBoost Kraft lignin (LBL) samples that were used in this study were produced from Nordic softwood and kindly supplied by a plant in Northern Europe. The low-Mw lignin (CFBL) that was used in this study was produced with an ultrafiltration unit equipped with a ceramic membrane with a molecular weight cut-off of 5 kDa that was kindly provided by the Clean Flow Black company (Forshaga, Sweden). Tetraethoxysilane (TEOS), 3-aminopropyltriethoxysilane (APTES), 1,4-dioxane, and formaldehyde were purchased from Sigma-Aldrich (St. Louis, MO, USA). Ethanol was obtained from VWR. All the chemicals were of reagent grade.

2.2. Methods

Synthesis of the silica. TEOS hydrolysis was carried out in a mixture of dioxane/water (mass ratio 4:1) or distilled water. The reaction mixture was stirred for 3 h in the acidic medium to form the sol. After 24 h, the obtained silica was vacuum-dried at 25 °C overnight and washed twice by ethanol and water.
Chemical activation of lignin. The lignin–Mannich compounds were synthesized as a pre-modification step of LBL or CFBL by with APTES in the presence of formaldehyde.
Synthesis of lignin–silica hybrid composites and lignin–Mannich compounds. Lignin–silica composites were obtained by the sol-gel method. For that, TEOS was hydrolyzed in a pre-modified by Mannich reaction lignin. The detailed procedure was presented in Budnyak et al. [46].

2.3. Analysis

2.3.1. Size-Exclusion Chromatography (SEC)

The molecular weight of the lignin samples was characterized by size-exclusion chromatography using an SEC 1260 Infinity instrument (Polymer Standard Services, Mainz, Germany) coupled to a dual system detector (UV, RI). DMSO + 0.5% LiBr (w/w) was used as the mobile phase. The separation system consisted of a PSS GRAM Precolumn, PSS GRAM 100 Å, and PSS GRAM 10,000 Å analytical columns thermostated at 60 °C and connected in series. Pullulan standards with Mw within the range 708 kDa, 337 kDa, 194 kDa, 47.1 kDa, 21.1 kDa, 9.6 kDa, 6.1 kDa, 1.081 kDa, and 342 Da were used for the standard calibration.

2.3.2. Nuclear Magnetic Resonance Spectroscopy (NMR)

31P-NMR

The content of functional groups in lignin samples was measured by 31P NMR [47]. Approximately 20–30 mg of lignin samples was weighed and phosphitylated using 2-chloro-4,4,5,5-tetramethyl-1,3,2-dioxaphospholane. Endo-N-hydroxy-5-norbornene-2,3-dicarboximide (e-HNDI) (Sigma Aldrich, 40 mg/mL) and chromium (Ш) acetylacetonate (Aldrich, 5 mg/mL) were used as an internal standard and a relaxation reagent, respectively. The derivatized sample was dissolved in CDCl3 prior to analysis. The 31P NMR experiment was performed with a 90° pulse angle, inverse gated proton decoupling, and a delay time of 10 s. For analysis, 256 scans with a time delay of 6 s and a total runtime of 34 minutes were collected. Measurements were performed in duplicate.

2D-Heteronuclear Single Quantum Coherence (2D-HSQC) NMR

Approximately 100 mg of sample was acetylated for better solubility [48]. The residue was dissolved in 700 µL of DMSO-d6. The two-dimensional (2D) HSQC NMR spectrum was acquired using the Bruker, Billerica, MA, USA pulse program ‘hsqcetgpsi’ a relaxation delay of 1.7 s, a coupling constant of 145 Hz, an INEPT transfer delay time of 1.72 ms (d4 = 1/4 J), a spectral window of 10.5 ppm in F2, and 166 ppm in F1 with 1024 × 512 increments, 240 scans per increment, and a spectral center set at 90.0 ppm in F1 and 5.3 ppm in F2. The two-dimensional (2D) NMR dataset was processed with 2 K × 1 K data points using a π/2-shifted sine-bell window function in both dimensions. Central DMSO (δC/δH = 39.5/2.5 ppm) was used as an internal reference according to the adopted solvent.

Dynamic Light Scattering (DLS)

The particle size of the LignoBoost lignin and CleanFlowBlack lignin was measured using a dynamic light scattering meter (Zetasizer, Nano ZS, Malvern Instruments, Malvern, England). For the measurements, solutions of lignin with a concentration of 1 g·L−1 were used. A dioxane/water mixture with a volume ratio of 4:1 was used as the solvent.

FTIR Spectroscopy

IR spectra were collected using a Perkin-Elmer spectrophotometer (Spotlight 400 FTIR imaging system, Waltham, MA, USA) equipped with a Spectac MKII Golden Gate system (Creekstone Ridge, GA, USA). The samples were analyzed in the range of 600–4000 cm−1 with 16 scans at a four cm−1 resolution and a one cm−1 interval at room temperature.

X-Ray Photoelectron Spectroscopy (XPS)

XPS spectra were recorded on an ESCA apparatus with a multidetection electron analyzer (Scienta R4000, produced by VG Scienta, East Sussex, UK) in fixed analyzer transmission mode.

Thermal Analysis

Thermal analysis was carried out on a TGA/DSC 1 (Mettler Toledo, Columbus, OH, USA) instrument under the following operational conditions: a heating rate of 10 °C min−1, a dynamic atmosphere of synthetic air or nitrogen (50 mL·min−1), a temperature range of 30–900 °C, and a sample mass of ~2.5 mg.

Scanning Electron Microscopy (SEM)

The structural characteristics of the fabricated samples were studied with a field-emission scanning electron microscope (FE-SEM, S-4800, Hitachi, Japan). The SEM images were obtained using a secondary electron detector. The samples were coated with a 1-nm thick Pt–Pd layer sputtered with a Cressington (Watford, UK), 208HR high-resolution coater.

3. Results and Discussion

3.1. Characterization of the Technical Lignins

The molecular weights of LBL and CFBL, measured by the SEC method, were approximately 5600 and 3000 Da, respectively (Table 1). The polydispersity index (PDI) was higher for the LBL lignin sample than for the CFB (see Table 1). The molecular weight distribution curves are shown in Figure 1. For both lignin samples, one major peak can be observed in chromatogram; however, a shift toward a higher molecular weight can be clearly seen for the LBL lignin.
The various types of interunit linkages for lignin samples were investigated and semiquantified by the 2D-HSQC NMR method (Figure 2). The peak assignment was performed based on the works by Capanema et al. Del Río et al. Kim and Ralph, Zhang and Gellerstedt [49,50,51,52]. The signal from the phenolic carbon-2 was used as an internal standard to quantify different linkages. As illustrated in the 2D NMR spectra of LBL and CFBL (Figure 2a,b), both lignins contain the typical for lignin signals from the β-aryl ether (β-O-4), pinoresinol (β-β), phenylcoumarin (β-5), with the coniferyl alcohol structures and the methoxy groups in similar proportions (Figure 2c).
The 31P NMR method was used to quantify the amount of various functional groups in both lignin samples (Table 1, Figure S1). Table 1 shows the total content of functional phenolic and hydroxyl groups in both lignin samples. CFBL had a higher content of phenolic and aliphatic hydroxyl groups than LBL. As reported in our previous work, low Mw fractions of lignin are usually enriched in phenolic compounds [10], indicating the possibility of higher reactivity for such lignin samples. Based on the quantification, the amount of total non-condensed structures for CFBL lignin with a lower molecular weight, which was obtained by the ultrafiltration of black liquor, was 21%, and that for LBL, which was obtained by the sequential precipitation of black liquor and had a higher molecular weight, was 16%. CFBL had also a higher ratio of non-condensed to condensed aromatic units than LBL (1.59 versus 1.12), which indicates the presence of a less condensed structure and possibly the higher reactivity of the CFBL lignin.

3.2. Dynamic Light Scattering

Dynamic light scattering was applied to investigate the size distribution of lignin macromolecules in a dioxane/water mixture with a ratio of 4:1, as this solvent was used for the synthesis. The plots of the Z-average size distributions by number of the LBL and CFBL macromolecules are presented in Figure 3. According to the Z-average data, the hydrodynamic diameter of the lignin’s particles (or micelles) range in the chosen solvent mixture was 1.3–12 nm for LBL and 0.7–2.4 nm for CFBL, which is in good agreement with the existing literature data [53,54].
In organic solvents, lignin has a swollen, extended structure. Due to their hydrophobic nature, lignin molecules fold when in contact with water. In our opinion, the immobilization (distribution) of lignin molecules in a silica network would prevent the folding of the molecules upon contact with water; thus, better accessibility of the functional groups can be achieved.

3.3. Design and Synthesis of Sorbent

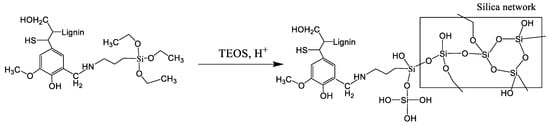

The sol-gel method has proven to be useful for generating polymer–silica hybrid materials. The methods of modification of a silica surface with phenol-containing compounds by the Mannich reaction was developed earlier in the works of Tertykh et al. and Yanovska et al. [55,56]. Conducting the in situ formation of silica in the presence of a solution containing macromolecules facilitates the formation of hybrid materials with covalent bonds between the organic and inorganic phases [42,57,58]. However, the sol-gel reaction requires the addition of water (Scheme 1).
Incorporating pristine (nonactivated) lignin into the sol-gel process resulted in a heterogeneous mixture of silica and lignin, where lignin was easily removed by washing with dioxane. To improve the reactivity of the lignin samples, which are not capable of undergoing a polycondensation reaction with TEOS, the lignin was activated by an aminomethylation (Mannich) reaction with APTES. Due to the presence of active protons in the lignin structure, formaldehyde forms a methylene bridge between APTES and lignin (Scheme 2).
The modification of lignin by the Mannich reaction is a particular type of amination process where typically one dialkylaminomethyl group is introduced at the ortho position of a free phenolic hydroxyl group through a reaction with formaldehyde and amine [59]. According to the study of Du et al. [60], there is the primary product, the so-called Mannich condensation product, where the nitrogen-containing group is introduced at the C5 position of the benzene ring; however, some amount of side reactions could take place [61]. To eliminate the risk of involving side products in the second stage of the synthesis of hybrid material, the product of the Mannich reaction was precipitated and washed by diethyl ether. In the Supplementary Materials (Figure S2), the FTIR spectra of lignin before and after washing by diethyl ether are presented. It can be seen that a characteristic band at 1738 cm−1, which corresponds to the presence of side products (preferably imines), completely disappeared after washing with ether. Thus, activated lignin washed with diethyl ether was cohydrolyzed with TEOS in an acidic medium (Scheme 3). According to the well-established sol-gel reaction, a silica network was formed.

3.4. FTIR Analysis

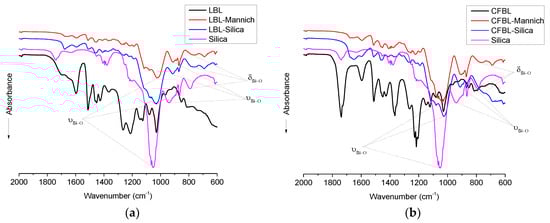

To confirm the formation of silica as part of the hybrid lignin–silica composites, the FTIR spectra of the initial and modified lignins and synthesized composites were compared (Figure 4a,b). In the FTIR spectra of LBL and CFBL, the band at 3412 cm−1 corresponds to the O–H stretching vibrations O–H in the hydroxyl groups bound to carbon atoms. The intense absorption bands at 2800–3000 cm−1 were assigned to the C–H stretching vibrations of the methyl and methylene groups of lignin. Bands at 1600 cm−1, 1230 cm−1, and 1500 cm−1 corresponding to aromatic skeletal vibrations plus C=O stretching, C–C, C–O, and C=O stretching, and the aromatic skeleton, were observed in all of the lignin-containing samples. In lignin samples, the band at 1030 cm−1 was assigned to aromatic C–H in-plane deformation and the deformation vibrations of the –C–O bonds in the primary alcohols. In lignin–Mannich and lignin–silica synthesized silica samples, an intense absorbance at 1068 cm−1 and 950 cm−1 represent Si–O stretching vibrations in Si–O–Si; and at 795 cm−1, –Si–O deformational vibrations, confirming the formation of a silica network.

3.5. XPS Analysis

XPS was used to study the hybrid lignin–silica composite surface structure. This method is based on changes in the electronic states of the elements. Moreover, XPS analysis could be used to confirm the successful aminomethylation of lignin and the formation of a silica network during the sol-gel reaction.
The original and deconvoluted XPS spectra of CFBL modified by the Mannich reaction (CFBL–Mannich), and the corresponding lignin–silica (CFBL-Silica) hybrid are presented in Figure 5a,b, respectively. The N1s spectra of the CFBL–Mannich and CFBL–silica samples are represented by three nonequivalent nitrogen atoms. N1s with binding energy Ebind = 399.5 eV can be assigned to the secondary amino groups of APTES radical (−CH2NHCH2) as well as to the −C−N− bond between APTES and lignin residues after the Mannich reaction. Nitrogen with a binding energy Ebind = 400.7 eV could be related to the nitrogen in the −C=N bond after an APTES amino group reaction with formaldehyde (possible azomethine bond formation). The N with Ebind = 402.1 eV corresponds to the quaternary N, which was possibly obtained after amino group protonation (R2NH+). Compared with a CFBL–Mannich composite, the ratio between the −C−N− and −C=N bonds in CFBL-silica changes in favor of the −C−N− of the CFBL–silica composite. The N/Si ratio for the CFBL–Mannich composite is 0.614 and decreased up to 0.307 for the CFBL–silica composite.

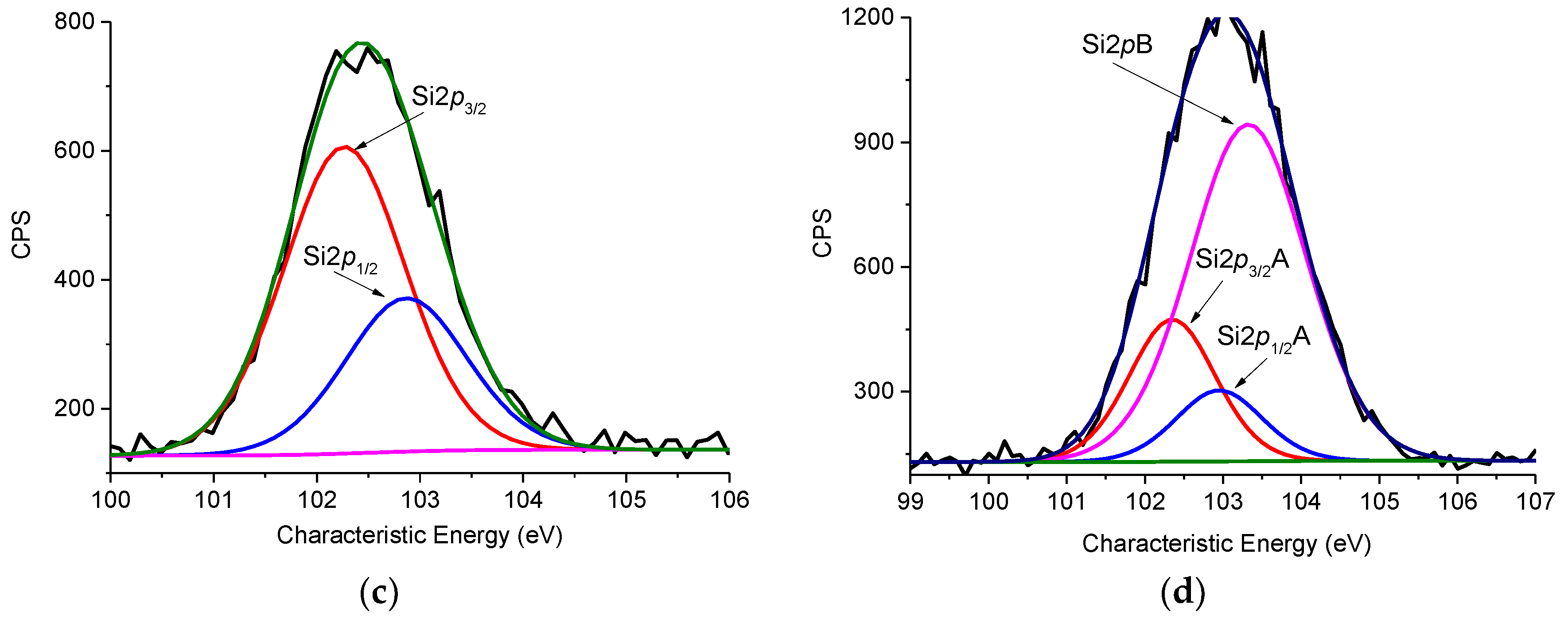

As can be observed from the Si2p XPS spectra presented in Figure 5c, there are two types of silicon atoms in the CFBL–Mannich composite. The Si2p3/2 band with a binding energy of 102.3 eV can be assigned to the silicon in siloxane bonds as well as the unreacted Si(OEt)3 residue of APTES or TEOS. After the addition of TEOS to the CFBL–Mannich composite (Figure 5d), a third, nonequivalent Si electronic state at Ebind = 103.3 eV can be observed. This state can be related to the SiO2 being formed after the introduction of TEOS and polycondensation (Table 2).
According to the atomic concentrations (%) of Si and C atoms in the activated lignin (CFBL–Mannich sample), one atom of Si is incorporated per 12 atoms of C (C:Si = 9:0.75). This result led us to conclude that almost every C9 phenolic unit of lignin reacted with an aminosilane (APTES) molecule. In the case of the CFBL–silica hybrid, the ratio of carbon to silicon changes to 6:1.

3.6. Morphology and Textural Characteristics

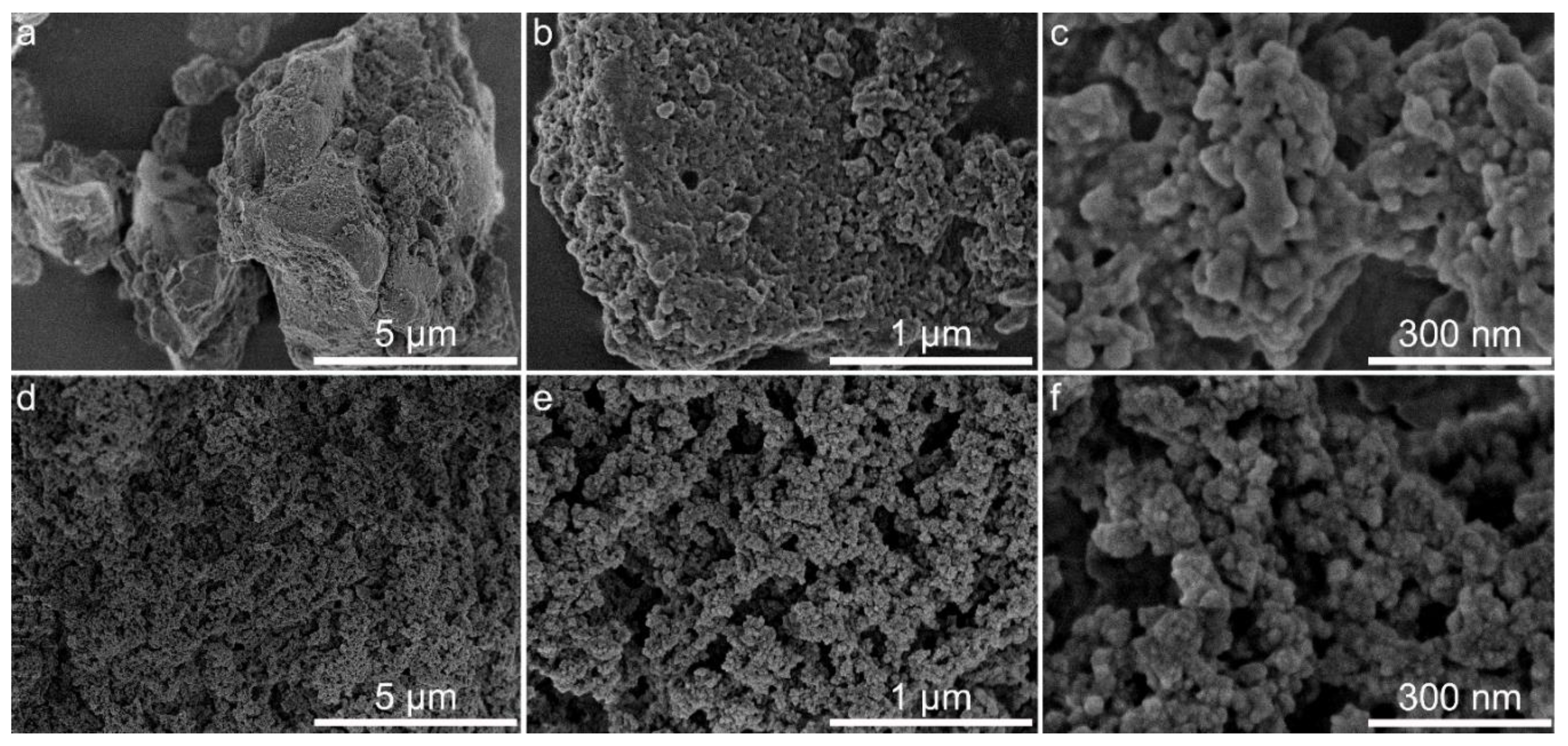

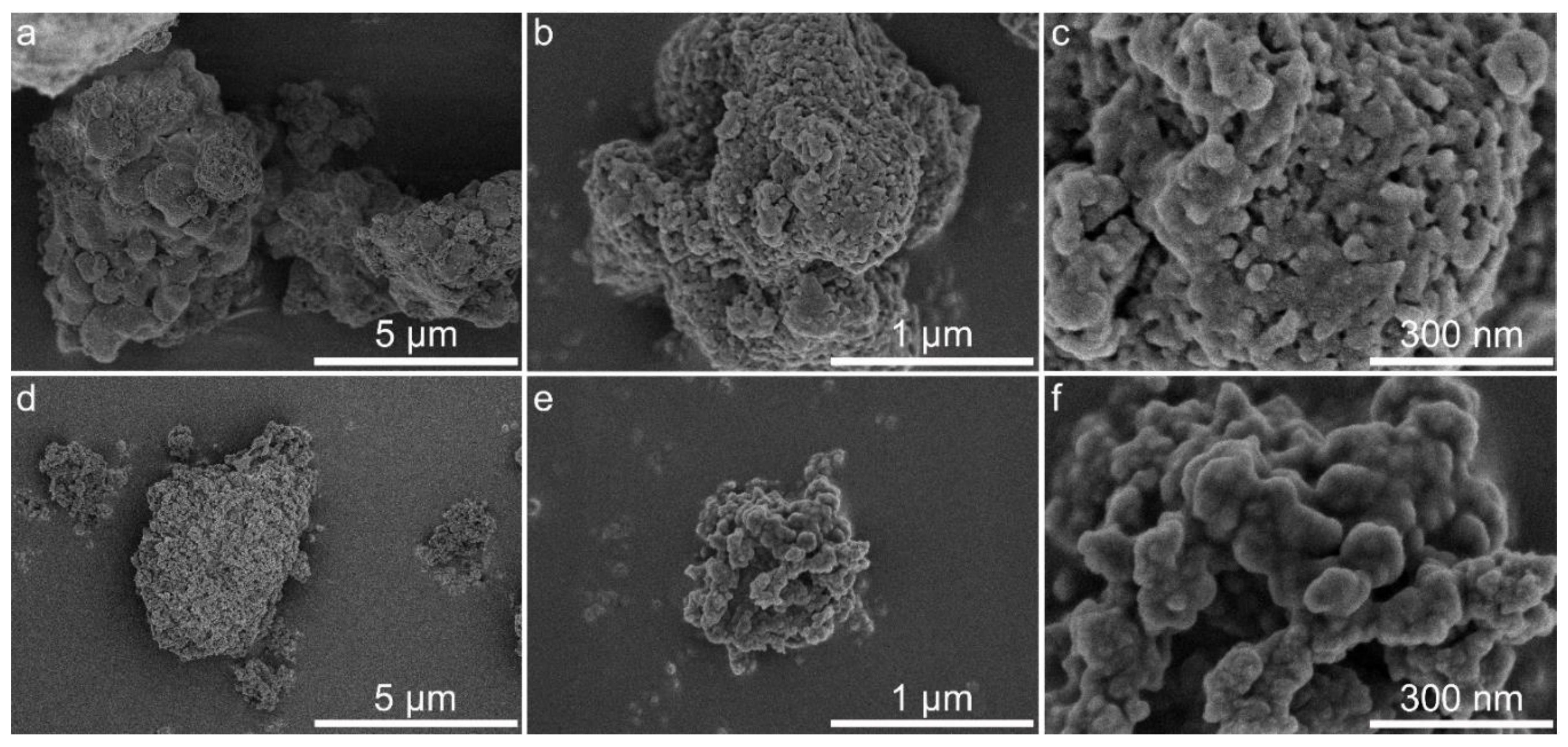

The morphologies of the initial lignins and obtained hybrid materials were characterized via SEM analysis. Figure 6, Figure 7 and Figure 8 present the structures of the original and silica-containing lignin (Figure 6a–f, respectively), CFBL lignin (Figure 7a–f, respectively), and reference silica particles (Figure 8).
As seen from Figure 6a–c and Figure 7a–c, the structures of the original lignins are rather dense, and most of the nanoparticles are in close contact with each other. After modification (Figure 6d–f and Figure 7d–f), the morphologies of the lignin–silica hybrid composites become rougher and more friable, which is somewhat typical for hybrid materials obtained by the sol-gel method. This observation presumably confirms the creation of a silica network between the particles of lignin. Additionally, the formation of a rough and irregular surface with plenty of holes, canals, and cavities most likely causes a desirable increase in the specific surface area of the fabricated hybrid materials. The nanosized structure of the hybrids’ surface could be observed in Figure 6f and Figure 7f.
According to the data from the nitrogen adsorption/desorption isotherms presented in Budnyak et al. [46], the LBL–silica and CFBL–silica composites have a Brunauer–Emmett–Teller (BET) specific surface areas of 74 m2·g−1 and 92 m2·g−1, respectively, and belong to mesoporous materials with some amount of micropores. A detailed investigation of the textural characteristics of lignin–silica hybrids and initial polymers is presented in Budnyak et al. [46]. By comparing the data for the original lignins with those of the hybrid composites, it is evident that the creation of a silica network in the presence of lignin results in an increase in porosity, which causes an increment of the specific surface area of the obtained materials. However, the specific surface area and porosity of the obtained hybrids are relatively low in comparison with those of the inorganic materials or hybrids with a high content of the inorganic component, [42,58,62] which is in agreement with the data obtained by other research groups [20,63,64].

3.7. Thermal Analysis

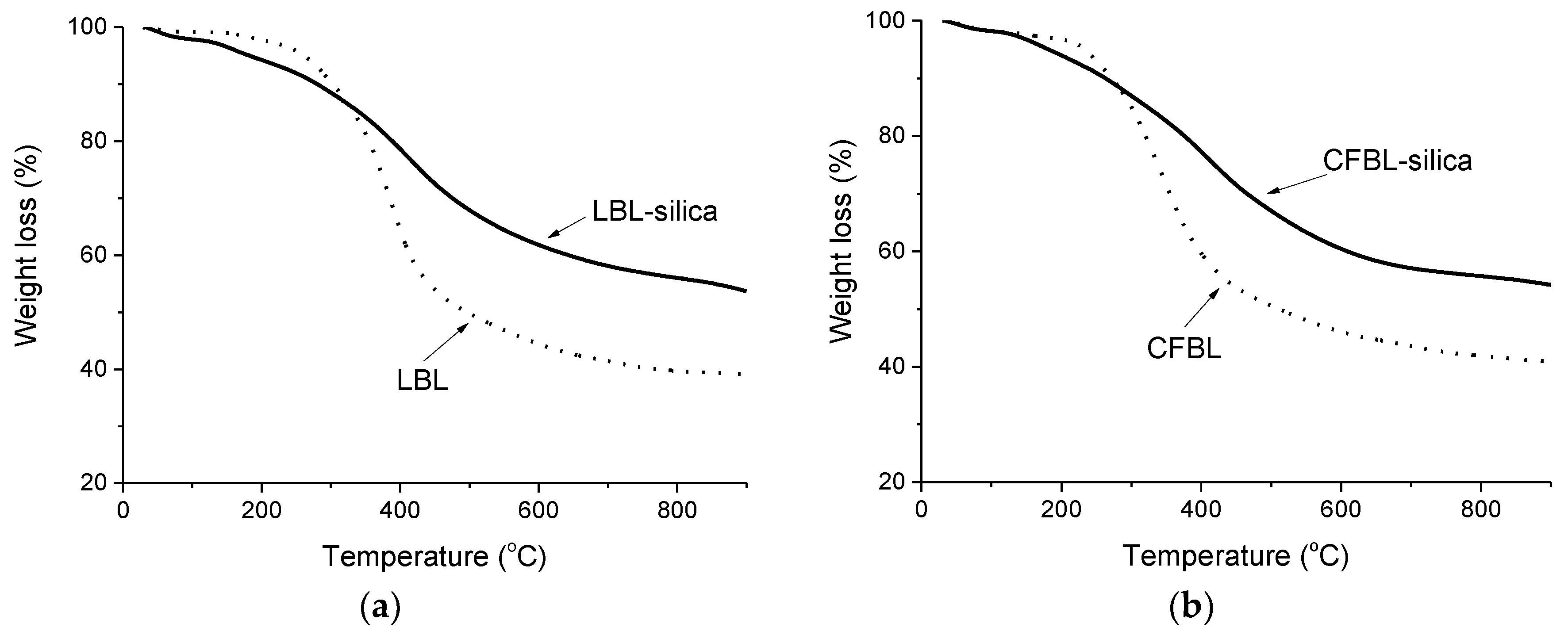

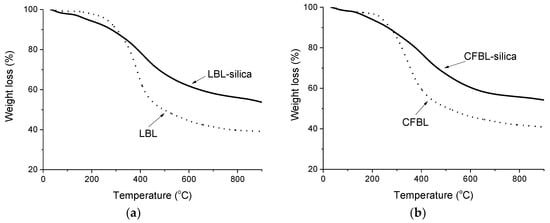

TGA was performed to characterize the thermal properties of the original lignins and synthesized hybrids. The destruction processes of the initial LBL and CFBL lignins and the hybrid composites under a N2 atmosphere are presented in Figure 9. The obtained TG and DTG curves have similar thermal behaviors; however, there are some significant differences in the thermal characteristics of the two types of original technical lignins compared to the immobilized ones. At the first stage of thermal decomposition of the initial LBL and CFBL, gradual moisture evaporation and water evaporation due to self-condensation reactions (peaks at 51 °C and 184 °C, 62 °C and 150 °C, respectively) occur. The maximum temperatures for the conversion of phenols into pyrocatechols [65] and the conversion of short substituents of the benzene rings [66] were found at 390 °C and 345 °C for the original LBL and CFBL, respectively. The rearrangement of the backbone and carbonization of the studied lignins takes place at temperatures above 400 °C.
It was found that the maximum temperature of the polymer destruction decreased after each stage of lignin modification. Thus, for activated lignins by Mannich reaction (samples LBL–Mannich and CFBL–Mannich), the maximum for condensation and elimination of the –OH groups and conversion of phenols into pyrocatechols occurs at 338 °C and 333 °C, respectively. In the case of lignin–silica composites, the maximum for this processes was found at 290 °C for both samples. The maximum temperature of the conversion of short substituents of the benzene rings, the rearrangement of the backbone, and carbonization of LBL–Mannich and CFBL–Mannich was detected at 464 °C and 422 °C, respectively, and for LBL-based and CFBL-based composites, the maximum shifted to 416 °C and 414 °C. The concentrations of moisture in both lignin–silica composites are below 1% (Figure 9b). The total weight loss for the LBL–silica and CFBL–silica composites was 45% and 46%, respectively, and for the original LBL and CFBL samples, it was 61% and 59%, respectively. The main destruction regions are presented in Table 3.
The characteristics of the thermal decomposition of studied materials in O2 atmosphere are presented in Table S1 (Supporting Information). TG and DTG curves of thermal decomposition in N2 and O2 atmosphere for initial and modified lignins, hybrids, and silica presented in Figures S4 and S5 of the Supporting Information, respectively.

3.8. Application as Sorbzents in Water Treatment

Synthesized hybrid materials were found to be effective as adsorbents for organic pollutants from aqueous solutions. Figure S6 presents a comparison of the adsorption capacity of the hybrids, initial lignins, and silica toward methylene blue dye. The interesting observations are that the adsorption activity of the lignins is improved, and that the difference in the lignin structure affects the performance of the lignin to a more substantial degree as a result of immobilization on a silica surface. Our detailed study of the adsorption activity of synthesized materials for the removal of methylene blue dye from aqueous solutions was presented in previous work [46]. In the study, the effects of parameters such as the contact time, initial concentration of dye, and initial pH on the adsorption capacity was evaluated. Thus, the lignin–silica composites were proved to be potential materials for application in wastewater treatment.

4. Conclusions

The proposed method for lignin modification using APTES according to the Mannich reaction was found to be an effective way to activate kraft lignin. As demonstrated in the current study, the activation of lignin is necessary for the sol-gel formation of a silica network to create novel hybrid materials from lignins and alkoxysilanes (e.g., TEOS). According to the XPS data, the carbon:silicon ratio in the activated lignin was found to be 12:1 (9:0.75), which led us to conclude that almost every C9 phenolic unit of lignin reacted with APTES. In the case of the CFBL–silica hybrid, the ratio of carbon to silicon changed to 6:1. A comparison of the FTIR spectra of the initial and modified lignins and the synthesized composites confirmed the creation of a silica network as a part of the hybrid lignin–silica composites.
The proposed method allowed us to obtain porous hybrid materials with an increased surface area and a somewhat rough and friable structure with plenty of holes, canals, and cavities. It was found that a silica network was created between the lignin particles. This structure was confirmed by SEM analysis, where it was observed that in the case of the hybrid materials, the nanoparticles of lignin were better separated from each other. The fact that the modification of lignin with alkoxysilanes (APTES and TEOS) promotes the formation of cross-linked lignin particles interconnected by an inorganic matrix was also confirmed by the textural characteristics.
It was concluded that the structure of the lignin had an impact on its reactivity during the activation reaction, and consequently affected the properties of the final hybrid materials. Thus, the thermal stability of the immobilized lignin increased in comparison to the original lignins: the maximum destruction temperature of the original CFBL and LBL samples shifted from 345 °C to 414 °C and from 390 °C to 416 °C, respectively, after their immobilization in the hybrid composites. It was demonstrated that the synthesized hybrid materials could be used as effective sorbents for organic molecules from aqueous solutions.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/8/11/950/s1, Figure S1: 31P-NMR spectra of the CFBL and LBL; Figure S2: FTIR spectra of the LBL-Mannich and CFBL-Mannich samples before and after precipitation and washing by diethyl ether; Figure S3: FTIR spectra (in range 4000–600 cm−1) of the materials based on (a) LBL and (b) CFBL: initial lignin; lignin modified by the Mannich reaction; lignin-silica hybrids and synthesized pure silica; Figure S4: TG- and DTG-curves of thermal decomposition in N2 atmosphere for initial and modified lignins, hybrid composites and silica; Figure S5: TG- and DTG-curves of thermal decomposition in O2 atmosphere for initial and modified lignins, hybrids and silica; Figure S6: Adsorption of methylene blue dye; Table S1: Characteristics of thermal decomposition in O2 atmosphere of studied materials.

Author Contributions

T.M.B. planned the study, contributed to the experimental part, interpretation and discussions, and drafted the manuscript; S.A. participated in experimental work and discussions, drafted some parts of the manuscript; I.V.P. involved in synthesis performing and its planning; A.V.R. performed SEM analysis and their interpretations; V.A.T. and M.E.L. were involved in discussion and interpretation of the results; O.S. initiated the study, participated in the interpretation of results, contributed to the discussions and drafting of the manuscript.

Funding

The research leading to these results was financed by the Knut and Alice Wallenberg Foundation in connection with the Wallenberg Wood Science Center (WWSC) Program, the Wood and Pulping Chemistry Research Network (WPCRN) at KTH, the Lars-Erik Thunholms Foundation, and EU 7th FP7/2007-2013/REA No. PIRSES-GA-2013-612484.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hu, T.Q. Chemical Modification, Properties, and Usage of Lignin; Springer: New York, NY, USA, 2002. [Google Scholar]
  2. Gellerstedt, G.; Lindfors, E.-L. Structural changes in lignin during kraft pulping. Holzforschung 1984, 38, 151–158. [Google Scholar] [CrossRef]
  3. Robert, D.R.; Bardet, M.; Gellerstedt, G.; Lindfors, E.L. Structural changes in lignin during kraft cooking part 3. On the structure of dissolved lignins. J. Wood Chem. Technol. 1984, 4, 239–263. [Google Scholar] [CrossRef]
  4. Gordobil, O.; Moriana, R.; Zhang, L.; Labidi, J.; Sevastyanova, O. Assesment of technical lignins for uses in biofuels and biomaterials: Structure-related properties, proximate analysis and chemical modification. Ind. Crop. Prod. 2016, 83, 155–165. [Google Scholar] [CrossRef]
  5. Ragauskas, A.J.; Beckham, G.T.; Biddy, M.J.; Chandra, R.; Chen, F.; Davis, M.F.; Davison, B.H.; Dixon, R.A.; Gilna, P.; Keller, M. Lignin valorization: Improving lignin processing in the biorefinery. Science 2014, 344, 1246843. [Google Scholar] [CrossRef] [PubMed]
  6. Kai, D.; Tan, M.J.; Chee, P.L.; Chua, Y.K.; Yap, Y.L.; Loh, X.J. Towards lignin-based functional materials in a sustainable world. Green Chem. 2016, 18, 1175–1200. [Google Scholar] [CrossRef]
  7. Naseem, A.; Tabasum, S.; Zia, K.M.; Zuber, M.; Ali, M.; Noreen, A. Lignin-derivatives based polymers, blends and composites: A review. Int. J. Biol. Macromol. 2016, 93, 296–313. [Google Scholar] [CrossRef] [PubMed]
  8. Tomani, P. The lignoboost process. Cell. Chem. Technol. 2010, 44, 53. [Google Scholar]
  9. Aminzadeh, S.; Lauberts, M.; Dobele, G.; Ponomarenko, J.; Mattsson, T.; Lindström, M.E.; Sevastyanova, O. Membrane filtration of kraft lignin: Structural charactristics and antioxidant activity of the low-molecular-weight fraction. Ind. Crop. Prod. 2018, 112, 200–209. [Google Scholar] [CrossRef]
  10. Sevastyanova, O.; Helander, M.; Chowdhury, S.; Lange, H.; Wedin, H.; Zhang, L.; Ek, M.; Kadla, J.F.; Crestini, C.; Lindström, M.E. Tailoring the molecular and thermo–mechanical properties of kraft lignin by ultrafiltration. J. Appl. Polym. Sci. 2014, 131, 40799. [Google Scholar] [CrossRef]
  11. Jablonskis, A.; Arshanitsa, A.; Arnautov, A.; Telysheva, G.; Evtuguin, D. Evaluation of Ligno Boost™ softwood kraft lignin epoxidation as an approach for its application in cured epoxy resins. Ind. Crop. Prod. 2018, 112, 225–235. [Google Scholar] [CrossRef]
  12. Lagerquist, L.; Pranovich, A.; Smeds, A.; von Schoultz, S.; Vähäsalo, L.; Rahkila, J.; Kilpeläinen, I.; Tamminen, T.; Willför, S.; Eklund, P. Structural characterization of birch lignin isolated from a pressurized hot water extraction and mild alkali pulped biorefinery process. Ind. Crop. Prod. 2018, 111, 306–316. [Google Scholar] [CrossRef]
  13. Liu, C.; Si, C.; Wang, G.; Jia, H.; Ma, L. A novel and efficient process for lignin fractionation in biomass-derived glycerol-ethanol solvent system. Ind. Crop. Prod. 2018, 111, 201–211. [Google Scholar] [CrossRef]
  14. Delgado-Aguilar, M.; González, I.; Tarrés, Q.; Pèlach, M.À.; Alcalà, M.; Mutjé, P. The key role of lignin in the production of low-cost lignocellulosic nanofibres for papermaking applications. Ind. Crop. Prod. 2016, 86, 295–300. [Google Scholar] [CrossRef]
  15. Jääskeläinen, A.S.; Liitiä, T.; Mikkelson, A.; Tamminen, T. Aqueous organic solvent fractionation as means to improve lignin homogeneity and purity. Ind. Crop. Prod. 2017, 103, 51–58. [Google Scholar] [CrossRef]
  16. García, A.; Spigno, G.; Labidi, J. Antioxidant and biocide behaviour of lignin fractions from apple tree pruning residues. Ind. Crop. Prod. 2017, 104, 242–252. [Google Scholar] [CrossRef]
  17. Alekhina, M.; Ershova, O.; Ebert, A.; Heikkinen, S.; Sixta, H. Softwood kraft lignin for value-added applications: Fractionation and structural characterization. Ind. Crop. Prod. 2015, 66, 220–228. [Google Scholar] [CrossRef]
  18. Lauberts, M.; Sevastyanova, O.; Ponomarenko, J.; Dizhbite, T.; Dobele, G.; Volperts, A.; Lauberte, L.; Telysheva, G. Fractionation of technical lignin with ionic liquids as a method for improving purity and antioxidant activity. Ind. Crop. Prod. 2017, 95, 512–520. [Google Scholar] [CrossRef]
  19. Podkościelna, B.; Goliszek, M.; Sevastyanova, O. New approach in the application of lignin for the synthesis of hybrid materials. Pure Appl. Chem. 2017, 89, 161–171. [Google Scholar] [CrossRef]
  20. Podkościelna, B.; Sobiesiak, M.; Zhao, Y.; Gawdzik, B.; Sevastyanova, O. Preparation of lignin-containing porous microspheres through the copolymerization of lignin acrylate derivatives with styrene and divinylbenzene. Holzforschung 2015, 69, 769–776. [Google Scholar] [CrossRef]
  21. Ye, W.; Li, X.; Luo, J.; Wang, X.; Sun, R. Lignin as a green reductant and morphology directing agent in the fabrication of 3D graphene-based composites for high-performance supercapacitors. Ind. Crop. Prod. 2017, 109, 410–419. [Google Scholar] [CrossRef]
  22. Gómez-Fernández, S.; Ugarte, L.; Calvo-Correas, T.; Peña-Rodríguez, C.; Corcuera, M.A.; Eceiza, A. Properties of flexible polyurethane foams containing isocyanate functionalized kraft lignin. Ind. Crop. Prod. 2017, 100, 51–64. [Google Scholar] [CrossRef]
  23. Wahlström, R.; Kalliola, A.; Heikkinen, J.; Kyllönen, H.; Tamminen, T. Lignin cationization with glycidyltrimethylammonium chloride aiming at water purification applications. Ind. Crop. Prod. 2017, 104, 188–194. [Google Scholar] [CrossRef]
  24. Zhao, X.; Zhang, Y.; Hu, H.; Huang, Z.; Yang, M.; Chen, D.; Huang, K.; Huang, A.; Qin, X.; Feng, Z. Effect of mechanical activation on structure changes and reactivity in further chemical modification of lignin. Int. J. Biol. Macromol. 2016, 91, 1081–1089. [Google Scholar] [CrossRef] [PubMed]
  25. Pang, B.; Yang, S.; Fang, W.; Yuan, T.-Q.; Argyropoulos, D.S.; Sun, R.-C. Structure-property relationships for technical lignins for the production of lignin-phenol-formaldehyde resins. Ind. Crop. Prod. 2017, 108, 316–326. [Google Scholar] [CrossRef]
  26. Myglovets, M.; Poddubnaya, O.; Sevastyanova, O.; Lindström, M.E.; Gawdzik, B.; Sobiesiak, M.; Tsyba, M.; Sapsay, V.; Klymchuk, D.; Puziy, A. Preparation of carbon adsorbents from lignosulfonate by phosphoric acid activation for the adsorption of metal ions. Carbon 2014, 80, 771–783. [Google Scholar] [CrossRef]
  27. Kadla, J.; Kubo, S.; Venditti, R.; Gilbert, R.; Compere, A.; Griffith, W. Lignin-based carbon fibers for composite fiber applications. Carbon 2002, 40, 2913–2920. [Google Scholar] [CrossRef]
  28. Kubo, S.; Kadla, J.F. The formation of strong intermolecular interactions in immiscible blends of poly (vinyl alcohol)(PVA) and lignin. Biomacromolecules 2003, 4, 561–567. [Google Scholar] [CrossRef] [PubMed]
  29. Zou, H.; Wu, S.; Shen, J. Polymer/silica nanocomposites: Preparation, characterization, properties, and applications. Chem. Rev. 2008, 108, 3893–3957. [Google Scholar] [CrossRef] [PubMed]
  30. Klapiszewski, Ł.; Nowacka, M.; Milczarek, G.; Jesionowski, T. Physicochemical and electrokinetic properties of silica/lignin biocomposites. Carbohydr. Polym. 2013, 94, 345–355. [Google Scholar] [CrossRef] [PubMed]
  31. Klapiszewski, L.; Madrawska, M.; Jesionowski, T. Preparation and characterisation of hydrated silica/lignin biocomposites. Physicochem. Probl. Miner. Process. 2012, 48, 463–473. [Google Scholar]
  32. Klapiszewski, Ł.; Nowacka, M.; Szwarc-Rzepka, K.; Jesionowski, T. Advanced biocomposites based on silica and lignin precursors. Physicochem. Probl. Miner. Process. 2013. [Google Scholar] [CrossRef]
  33. Nowacka, M.; Klapiszewski, Ł.; Norman, M.; Jesionowski, T. Dispersive evaluation and surface chemistry of advanced, multifunctional silica/lignin hybrid biomaterials. Open Chem. 2013, 11, 1860–1873. [Google Scholar] [CrossRef] [Green Version]
  34. Klapiszewski, Ł.; Bartczak, P.; Wysokowski, M.; Jankowska, M.; Kabat, K.; Jesionowski, T. Silica conjugated with kraft lignin and its use as a novel ‘green’ sorbent for hazardous metal ions removal. Chem. Eng. J. 2015, 260, 684–693. [Google Scholar] [CrossRef]
  35. Qin, L.; Ge, Y.; Deng, B.; Li, Z. Poly (ethylene imine) anchored lignin composite for heavy metals capturing in water. J. Taiwan Inst. Chem. E 2017, 71, 84–90. [Google Scholar] [CrossRef]
  36. Klapiszewski, Ł.; Bula, K.; Sobczak, M.; Jesionowski, T. Influence of processing conditions on the thermal stability and mechanical properties of PP/silica-lignin composites. Int. J. Polym. Sci. 2016. [Google Scholar] [CrossRef]
  37. Strzemiecka, B.; Klapiszewski, Ł.; Jamrozik, A.; Szalaty, T.J.; Matykiewicz, D.; Sterzyński, T.; Voelkel, A.; Jesionowski, T. Physicochemical Characterization of Functional Lignin-Silica Hybrid Fillers for Potential Application in Abrasive Tools. Materials 2016, 9, 517. [Google Scholar] [CrossRef] [PubMed]
  38. Xiong, W.; Yang, D.; Zhong, R.; Li, Y.; Zhou, H.; Qiu, X. Preparation of lignin-based silica composite submicron particles from alkali lignin and sodium silicate in aqueous solution using a direct precipitation method. Ind. Crop. Prod. 2015, 74, 285–292. [Google Scholar] [CrossRef]
  39. Ma, Y.; Lv, L.; Guo, Y.; Fu, Y.; Shao, Q.; Wu, T.; Guo, S.; Sun, K.; Guo, X.; Wujcik, E.K. Porous lignin based poly (acrylic acid)/organo-montmorillonite nanocomposites: Swelling behaviors and rapid removal of Pb (II) ions. Polymer 2017, 128, 12–23. [Google Scholar] [CrossRef]
  40. Thakur, S.; Govender, P.P.; Mamo, M.A.; Tamulevicius, S.; Mishra, Y.K.; Thakur, V.K. Progress in lignin hydrogels and nanocomposites for water purification: Future perspectives. Vacuum 2017, 146, 342–355. [Google Scholar] [CrossRef]
  41. Li, F.; Wang, X.; Yuan, T.; Sun, R. A lignosulfonate-modified graphene hydrogel with ultrahigh adsorption capacity for Pb (ii) removal. J. Mater. Chem. A 2016, 4, 11888–11896. [Google Scholar] [CrossRef]
  42. Kołodyńska, D.; Budnyak, T.; Hubicki, Z.; Tertykh, V. Sol-Gel Derived Organic–Inorganic Hybrid Ceramic Materials for Heavy Metal Removal. In Sol-Gel Based Nanoceramic Materials: Preparation, Properties and Applications; Springer: New York, NY, USA, 2017; pp. 253–274. [Google Scholar]
  43. Qu, Y.; Tian, Y.; Zou, B.; Zhang, J.; Zheng, Y.; Wang, L.; Li, Y.; Rong, C.; Wang, Z. A novel mesoporous lignin/silica hybrid from rice husk produced by a sol-gel method. Bioresour. Technol. 2010, 101, 8402–8405. [Google Scholar] [CrossRef] [PubMed]
  44. Telysheva, G.; Dizhbite, T.; Jashina, L.; Andersone, A.; Volperts, A.; Ponomarenko, J.; Mironova-Ulmane, N. Synthesis of lignin-based inorganic/organic hybrid materials favorable for detoxification of ecosystem components. BioResources 2009, 4, 1276–1284. [Google Scholar]
  45. Telysheva, G.; Dizhbite, T.; Evtuguin, D.; Mironova-Ulmane, N.; Lebedeva, G.; Andersone, A.; Bikovens, O.; Chirkova, J.; Belkova, L. Design of siliceous lignins-novel organic/inorganic hybrid sorbent materials. Scr. Mater. 2009, 60, 687–690. [Google Scholar] [CrossRef]
  46. Budnyak, T.M.; Aminzadeh, S.; Pylypchuk, I.V.; Sternik, D.; Tertykh, V.A.; Lindström, M.E.; Sevastyanova, O. Methylene Blue dye sorption by hybrid materials from technical lignins. J. Environ. Chem. Eng. 2018, 6, 4997–5007. [Google Scholar] [CrossRef]
  47. Argyropoulos, D.S. Quantitative Phosphorus-31 NMR Analysis of Lignins, a New Tool for the Lignin Chemist. J. Wood Chem. Technol. 1994, 14, 45–63. [Google Scholar] [CrossRef]
  48. Lin, S.Y.; Dence, C.W. Methods in Lignin Chemistry; Springer: Berlin, Germany, 1992. [Google Scholar]
  49. Capanema, E.A.; Balakshin, M.Y.; Kadla, J.F. A comprehensive approach for quantitative lignin characterization by NMR spectroscopy. J. Agric. Food Chem. 2004, 52, 1850–1860. [Google Scholar] [CrossRef] [PubMed]
  50. Del Río, J.C.; Rencoret, J.; Prinsen, P.; Martínez, A.N.T.; Ralph, J.; Gutiérrez, A. Structural characterization of wheat straw lignin as revealed by analytical pyrolysis, 2D-NMR, and reductive cleavage methods. J. Agric. Food Chem. 2012, 60, 5922–5935. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Kim, H.; Ralph, J. Solution-state 2D NMR of ball-milled plant cell wall gels in DMSO-d6/pyridine-d5. Org. Biomol. Chem. 2010, 8, 576–591. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Zhang, L.; Gellerstedt, G. Quantitative 2D HSQC NMR determination of polymer structures by selecting suitable internal standard references. Magn. Reson. Chem. 2007, 45, 37–45. [Google Scholar] [CrossRef] [PubMed]
  53. Tolbert, A.; Akinosho, H.; Khunsupat, R.; Naskar, A.K.; Ragauskas, A.J. Characterization and analysis of the molecular weight of lignin for biorefining studies. Biofuels Bioprod. Biorefin. 2014, 8, 836–856. [Google Scholar] [CrossRef]
  54. Vainio, U.; Maximova, N.; Hortling, B.; Laine, J.; Stenius, P.; Simola, L.K.; Gravitis, J.; Serimaa, R. Morphology of dry lignins and size and shape of dissolved kraft lignin particles by X-ray scattering. Langmuir 2004, 20, 9736–9744. [Google Scholar] [CrossRef] [PubMed]
  55. Tertykh, V.; Yanishpolskii, V.; Panova, O.Y. Covalent attachment of some phenol derivatives to the silica surface by use of single-stage aminomethylation. J. Therm. Anal. Calorim. 2000, 62, 545–549. [Google Scholar] [CrossRef]
  56. Yanovska, E.; Ryabchenko, K.; Tertykh, V.; Kichkiruk, O.Y. Complexing properties of silica gel-polyaniline composites with grefted heterocyclic azo reagents. Chem. Phys. Technol. Surf. 2012, 3, 439–447. [Google Scholar]
  57. Budnyak, T.M.; Pylypchuk, I.V.; Tertykh, V.A.; Yanovska, E.S.; Kolodynska, D. Synthesis and adsorption properties of chitosan-silica nanocomposite prepared by sol-gel method. Nanoscale Res. Lett. 2015, 10, 87. [Google Scholar] [CrossRef] [PubMed]
  58. Budnyak, T.; Yanovska, E.; Kołodyńska, D.; Sternik, D.; Pylypchuk, I.V.; Ischenko, M.; Tertykh, V. Preparation and properties of organomineral adsorbent obtained by sol-gel technology. J. Therm. Anal. Calorim. 2016, 125, 1335–1351. [Google Scholar] [CrossRef]
  59. Wang, M.; Sjöholm, E.; Li, J. Fast and reliable quantification of lignin reactivity via reaction with dimethylamine and formaldehyde (Mannich reaction). Holzforschung 2017, 71, 27–34. [Google Scholar] [CrossRef]
  60. Du, X.; Li, J.; Lindström, M.E. Modification of industrial softwood kraft lignin using Mannich reaction with and without phenolation pretreatment. Ind. Crop. Prod. 2014, 52, 729–735. [Google Scholar] [CrossRef]
  61. Jamois, D.; Tessier, M.; Maréchal, E. Preparation of amphiphilic polyisobutylenes-b-polyethylenamines by mannich reaction. II. Study of mannich reaction on model systems. J. Polym. Sci. Part A Polym. Chem. 1993, 31, 1941–1958. [Google Scholar] [CrossRef]
  62. Budnyak, T.; Yanovska, E.; Kichkiruk, O.Y.; Sternik, D.; Tertykh, V. Natural Minerals Coated by Biopolymer Chitosan: Synthesis, Physicochemical, and Adsorption Properties. Nanoscale Res. Lett. 2016, 11, 492. [Google Scholar] [CrossRef] [PubMed]
  63. Podkościelna, B.; Gordobil, O.; Riazanova, A.V.; Dobele, G.; Labidi, J.; Lindström, M.E.; Gun’ko, V.M.; Sevastyanova, O. Novel Porous Materials Obtained from Technical Lignins and Their Methacrylate Derivatives Copolymerized with Styrene and Divinylbenzene. Chem. Sel. 2017, 2, 2257–2264. [Google Scholar] [CrossRef]
  64. Wawrzkiewicz, M.; Bartczak, P.; Jesionowski, T. Enhanced removal of hazardous dye form aqueous solutions and real textile wastewater using bifunctional chitin/lignin biosorbent. Int. J. Boil. Macromol. 2017, 99, 754–764. [Google Scholar] [CrossRef] [PubMed]
  65. Kawamoto, H.; Ryoritani, M.; Saka, S. Different pyrolytic cleavage mechanisms of β-ether bond depending on the side-chain structure of lignin dimers. J. Anal. Appl. Pyrolysis 2008, 81, 88–94. [Google Scholar] [CrossRef]
  66. Xu, C.; Ferdosian, F. Degradation of Lignin by Pyrolysis. In Conversion of Lignin into Bio-Based Chemicals and Materials; Springer: New York, NY, USA, 2017; pp. 13–33. [Google Scholar]
  67. Sarkanen, K.V.; Ludwig, C.H. Lignins: Occurrence, Formation, Structure and Reactions; Wiley-Interscience: Hoboken, NJ, USA, 1971. [Google Scholar]
  68. Brebu, M.; Vasile, C. Thermal degradation of lignin—A review. Cellul. Chem. Technol. 2010, 44, 353. [Google Scholar]
Nanomaterials 08 00950 g001 550

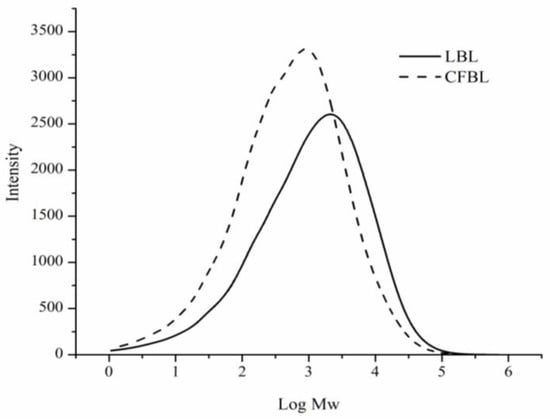

Figure 1. Molecular weight for LBL and CFBL based on the results obtained from SEC.
Figure 1. Molecular weight for LBL and CFBL based on the results obtained from SEC.
Nanomaterials 08 00950 g001
Nanomaterials 08 00950 g002 550

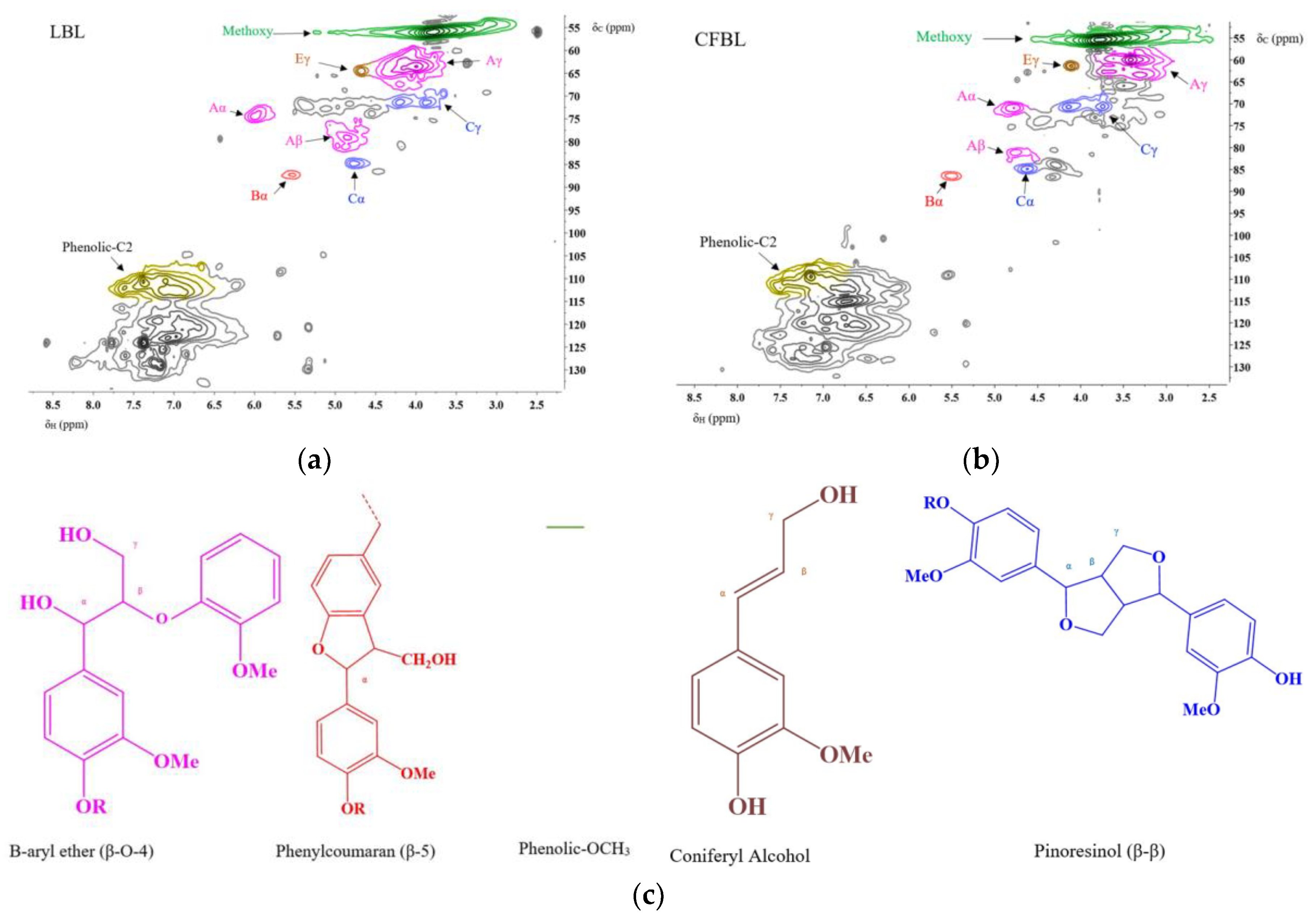

Figure 2. Interunit analysis by 2D-NMR for the: (a) LBL and (b) CFBL lignin samples; (c) assignments.
Figure 2. Interunit analysis by 2D-NMR for the: (a) LBL and (b) CFBL lignin samples; (c) assignments.
Nanomaterials 08 00950 g002
Nanomaterials 08 00950 g003 550

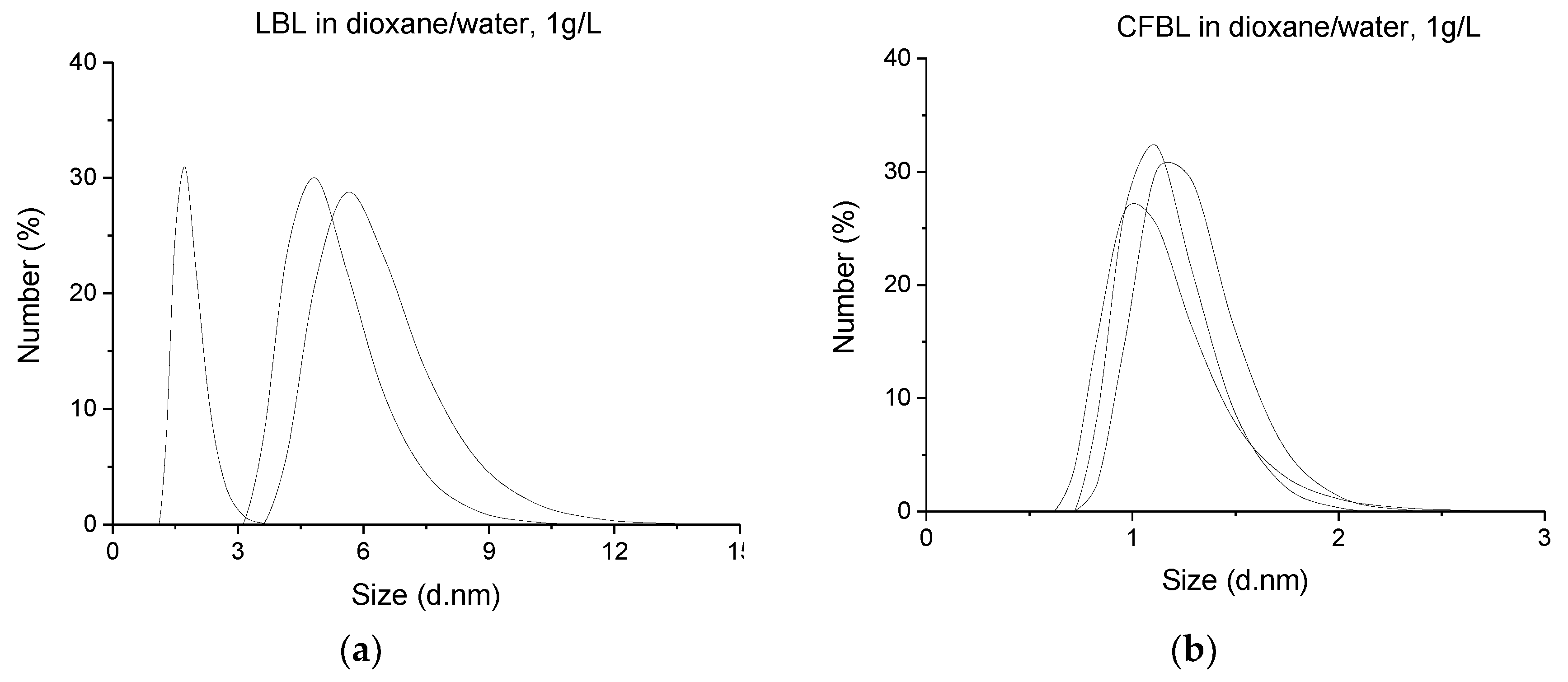

Figure 3. Dynamic light scattering (DLS) diagrams of the particle size distributions of: (a) LBL and (b) CFBL in a mixture of dioxane/water (4:1).
Figure 3. Dynamic light scattering (DLS) diagrams of the particle size distributions of: (a) LBL and (b) CFBL in a mixture of dioxane/water (4:1).
Nanomaterials 08 00950 g003
Nanomaterials 08 00950 sch001 550

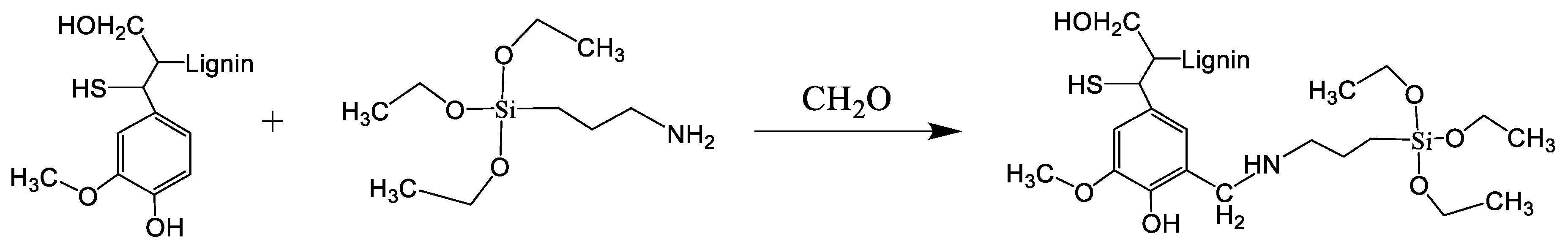

Scheme 1. General scheme for the synthesis of silica by the sol-gel reaction.
Scheme 1. General scheme for the synthesis of silica by the sol-gel reaction.
Nanomaterials 08 00950 sch001
Nanomaterials 08 00950 sch002 550
Scheme 2. Activation of lignin with 3-aminopropyltriethoxysilane (Mannich reaction).
Scheme 2. Activation of lignin with 3-aminopropyltriethoxysilane (Mannich reaction).
Nanomaterials 08 00950 sch002
Nanomaterials 08 00950 sch003 550
Scheme 3. Hydrolysis of tetraethoxysilane (TEOS) in the presence of modified lignin (sol-gel reaction).
Scheme 3. Hydrolysis of tetraethoxysilane (TEOS) in the presence of modified lignin (sol-gel reaction).
Nanomaterials 08 00950 sch003
Nanomaterials 08 00950 g004 550

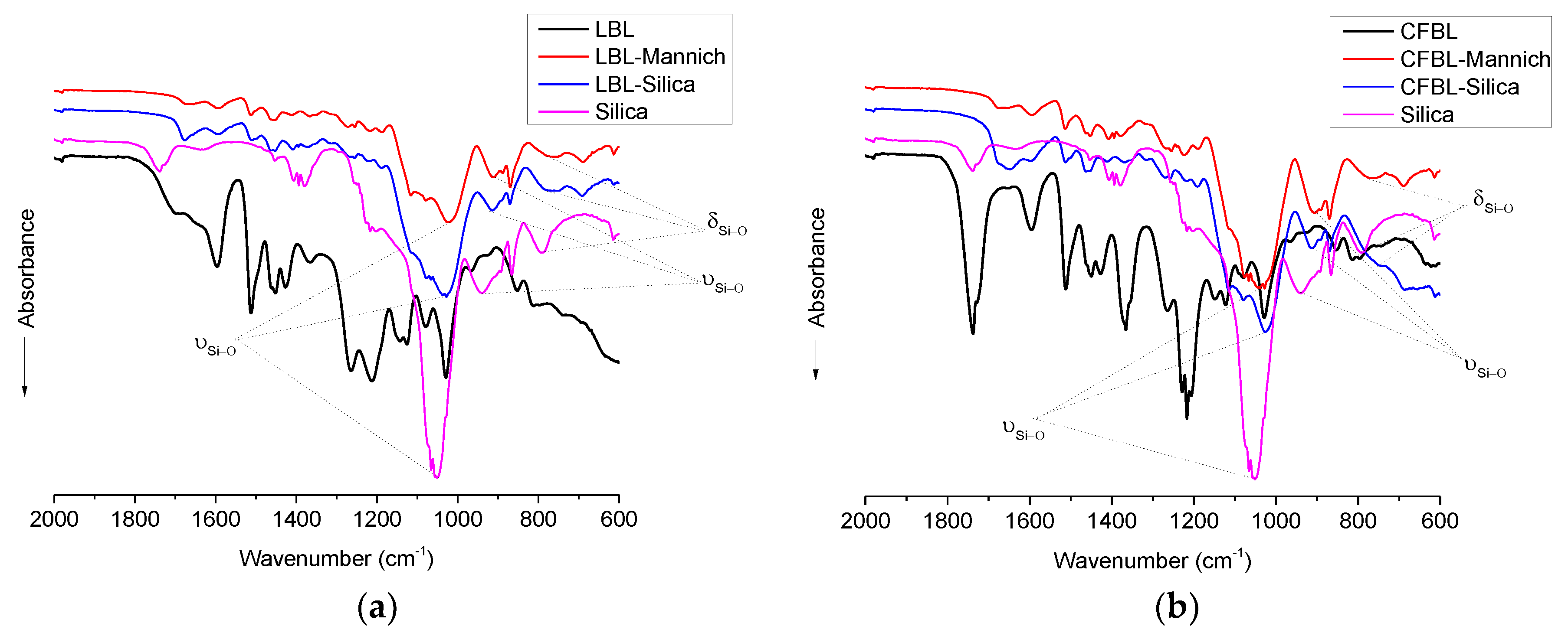

Figure 4. Fourier transform infrared (FTIR) spectra of the materials based on (a) LBL and (b) CFBL: initial lignin; lignin modified by the Mannich reaction; lignin-silica hybrids and synthesized pure silica.
Figure 4. Fourier transform infrared (FTIR) spectra of the materials based on (a) LBL and (b) CFBL: initial lignin; lignin modified by the Mannich reaction; lignin-silica hybrids and synthesized pure silica.
Nanomaterials 08 00950 g004
Nanomaterials 08 00950 g005a 550Nanomaterials 08 00950 g005b 550

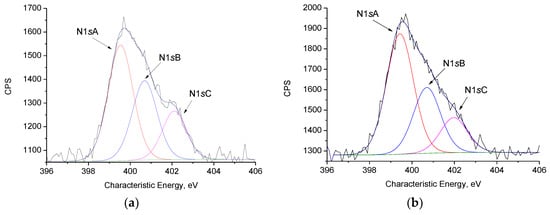

Figure 5. X-Ray Photoelectron Spectroscopy (XPS) spectra of the N1s (a,b) and Si2p (c,d) levels for the CFBL–Mannich (a,c) and CFBL–silica (b,d) samples.
Figure 5. X-Ray Photoelectron Spectroscopy (XPS) spectra of the N1s (a,b) and Si2p (c,d) levels for the CFBL–Mannich (a,c) and CFBL–silica (b,d) samples.
Nanomaterials 08 00950 g005aNanomaterials 08 00950 g005b
Nanomaterials 08 00950 g006 550
Figure 6. SEM images of the original LignoBoost lignin (a–c) and the LignoBoost lignin–silica hybrid (d–f) (high-resolution topographic contrast secondary electron imaging, parameters: accelerating voltage = 1 kV; working distance: (a–c) 1.4 mm, (d–f) 1.8 mm; magnification: (a,d) ×10,000, (b,e) ×50,000, (c,f) ×150,000).
Figure 6. SEM images of the original LignoBoost lignin (a–c) and the LignoBoost lignin–silica hybrid (d–f) (high-resolution topographic contrast secondary electron imaging, parameters: accelerating voltage = 1 kV; working distance: (a–c) 1.4 mm, (d–f) 1.8 mm; magnification: (a,d) ×10,000, (b,e) ×50,000, (c,f) ×150,000).
Nanomaterials 08 00950 g006
Nanomaterials 08 00950 g007 550
Figure 7. SEM images of the original CleanFlowBlack lignin (a–c) and the CleanFlowBlack lignin–silica hybrid (d–f) (high-resolution topographic contrast secondary electron imaging, parameters: accelerating voltage = 1 kV; working distance: (a–c) 1.4 mm, (d–f) 1.7 mm; magnification: (a,d) ×10,000, (b,e) ×50,000, (c,f) ×150,000).
Figure 7. SEM images of the original CleanFlowBlack lignin (a–c) and the CleanFlowBlack lignin–silica hybrid (d–f) (high-resolution topographic contrast secondary electron imaging, parameters: accelerating voltage = 1 kV; working distance: (a–c) 1.4 mm, (d–f) 1.7 mm; magnification: (a,d) ×10,000, (b,e) ×50,000, (c,f) ×150,000).
Nanomaterials 08 00950 g007
Nanomaterials 08 00950 g008 550

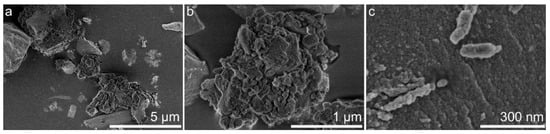

Figure 8. SEM images of synthesized silica (high-resolution topographic contrast secondary electron imaging, parameters: accelerating voltage = 1 kV; working distance = 1.4 mm; magnification: (a) ×10,000, (b) ×50,000, (c) ×150,000).
Figure 8. SEM images of synthesized silica (high-resolution topographic contrast secondary electron imaging, parameters: accelerating voltage = 1 kV; working distance = 1.4 mm; magnification: (a) ×10,000, (b) ×50,000, (c) ×150,000).
Nanomaterials 08 00950 g008
Nanomaterials 08 00950 g009a 550Nanomaterials 08 00950 g009b 550

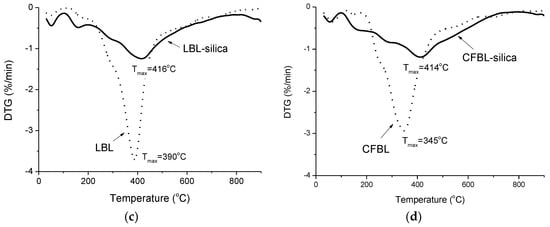

Figure 9. TG (a,b) and DTG (c,d) curves of thermal decomposition in a N2 atmosphere for the original LBL and CFBL lignins.
Figure 9. TG (a,b) and DTG (c,d) curves of thermal decomposition in a N2 atmosphere for the original LBL and CFBL lignins.
Nanomaterials 08 00950 g009aNanomaterials 08 00950 g009b
Table
Table 1. Contents of functional groups in LBL and CFBL lignins measured by 31P-NMR. MW: molecular weight.
Table 1. Contents of functional groups in LBL and CFBL lignins measured by 31P-NMR. MW: molecular weight.
SampleMolecular WeightContent of Functional Groups, mmol·g−1
Mw, DaMn, DaPDIPhenolic OHAliphatic OHTotal OHCOOH
CondensedNon-CondensedTotal
LBL130056004.21.882.113.991.735.720.41
CFBL88030003.52.113.365.471.817.280.28
Table
Table 2. XPS data of the Si2p levels for the CFBL–silica and CFBL–Mannich samples.
Table 2. XPS data of the Si2p levels for the CFBL–silica and CFBL–Mannich samples.
SampleAtomPositionConcentration, at.%Assignment
CFBL–silicaN1sA399.454.4amine, amide, cyanides
N1sB400.729.7imide
N1sC402.015.8quaternary nitrogen
Si2p3/2A102.332.1silicon/siloxane (SiOEt)3 from TEOS and 3 aminopropyltriethoxysilane (APTES) (unhydrolyzed ethoxy groups)
Si2pB103.367.9SiO2
CFBL–MannichN1sA399.547.8amine, amide, cyanides
N1sB400.732.8imide
N1sC402.119.4quaternary nitrogen
Si2p3/2102.3100silicon/siloxane, (SiOEt)3
Table
Table 3. Characteristics of thermal decomposition in the N2 atmosphere of studied materials.
Table 3. Characteristics of thermal decomposition in the N2 atmosphere of studied materials.
M.Tmax, °C (DTG)∆m, % (TG)∆mtotal, % (TG)Process
LBL51<0.461Moisture evaporation
184 Water evaporation due to self-condensation reactions (up to 400 °C) [66]
293 The β–β and C–C linkages between the lignin monomeric units cleave at 275–350 °C, while the recombination of the formed radicals leads to guaiacyl and syringyl compounds [67]; aryl-ether bonds cleavage [68]
390 Conversion of phenols into pyrocatechols [65], the conversion of short substituents of the benzene rings [66]
≥400 Rearrangement of backbone, carbonization
CFBL62<0.459Moisture evaporation
150 Water evaporation due to self-condensation reactions (up to 400 °C) [66]
256 The β–β and C–C linkages between the lignin monomeric units cleave at 275–350 °C, while the recombination of the formed radicals leads to guaiacyl and syringyl compounds [67]; aryl-ether bonds cleavage [68]
345 Conversion of phenols into pyrocatechols [65]; conversion of short substituents of the benzene rings [66]
≥400 Rearrangement of backbone, carbonization
LBL–M14913.452.4Water evaporation, EtO elimination
33818.6 Condensation and elimination of the hydroxyl groups; decomposition of the aminopropyl radical; conversion of phenols into pyrocatechols (demethylation of the dimethothoxy groups) [65]
46416.0 Conversion of short substituents of the benzene rings [66], rearrangement of backbone, carbonization
CFBL–M13912.548.7Water evaporation, EtO elimination
33315.7 Condensation and elimination of the hydroxyl groups; decomposition of the aminopropyl radical; conversion of phenols into pyrocatechols (demethylation of the dimethothoxy-groups) [65]
42218.9 Conversion of short substituents of the benzene rings [66], rearrangement of backbone, carbonization
LBL–Silica550.745Moisture evaporation
1724.2 Water evaporation, EtO elimination
29012.0 Onset of lignin decomposition
41625 Conversion of short substituents of the benzene rings [66], rearrangement of backbone, carbonization, hydroxyl radical elimination from silica
CFBL–Silica500.546Moisture evaporation
15912 Water evaporation, EtO elimination
290 Onset of lignin decomposition
414 Conversion of short substituents of the benzene rings [66], rearrangement of backbone, carbonization, hydroxyl radical elimination from silica
Silica/W789.315.6Physically adsorbed water evaporation
26015.4 Condensation of the silica hydroxyl groups
Silica/D:W735.817.1Dioxan evaporation
21313.1 Condensation of the silica hydroxyl groups
Note: M.—Material; LBL–M—LBL-Mannich; CFBL–M—CFBL-Mannich; Silica/W—Silica synthesized in aqueous media; Silica/D:W—Silica synthesized in dioxane/water media.

Share and Cite

MDPI and ACS Style

Budnyak, T.M.; Aminzadeh, S.; Pylypchuk, I.V.; Riazanova, A.V.; Tertykh, V.A.; Lindström, M.E.; Sevastyanova, O. Peculiarities of Synthesis and Properties of Lignin–Silica Nanocomposites Prepared by Sol-Gel Method. Nanomaterials 2018, 8, 950. https://doi.org/10.3390/nano8110950

AMA Style

Budnyak TM, Aminzadeh S, Pylypchuk IV, Riazanova AV, Tertykh VA, Lindström ME, Sevastyanova O. Peculiarities of Synthesis and Properties of Lignin–Silica Nanocomposites Prepared by Sol-Gel Method. Nanomaterials. 2018; 8(11):950. https://doi.org/10.3390/nano8110950

Chicago/Turabian Style

Budnyak, Tetyana M., Selda Aminzadeh, Ievgen V. Pylypchuk, Anastasia V. Riazanova, Valentin A. Tertykh, Mikael E. Lindström, and Olena Sevastyanova. 2018. "Peculiarities of Synthesis and Properties of Lignin–Silica Nanocomposites Prepared by Sol-Gel Method" Nanomaterials 8, no. 11: 950. https://doi.org/10.3390/nano8110950

APA Style

Budnyak, T. M., Aminzadeh, S., Pylypchuk, I. V., Riazanova, A. V., Tertykh, V. A., Lindström, M. E., & Sevastyanova, O. (2018). Peculiarities of Synthesis and Properties of Lignin–Silica Nanocomposites Prepared by Sol-Gel Method. Nanomaterials, 8(11), 950. https://doi.org/10.3390/nano8110950

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
