Nanomaterials 2018, 8(11), 895;

Heteroepitaxial Growth of T-Nb2O5 on SrTiO3

Leibniz-Institut für Kristallzüchtung, Max-Born-Straße 2, D-12489 Berlin, Germany
Author to whom correspondence should be addressed.
Received: 15 October 2018 / Revised: 29 October 2018 / Accepted: 30 October 2018 / Published: 1 November 2018
Full-Text   |   PDF [2938 KB, uploaded 1 November 2018]   |


There is a growing interest in exploiting the functional properties of niobium oxides in general and of the T-Nb2O5 polymorph in particular. Fundamental investigations of the properties of niobium oxides are, however, hindered by the availability of materials with sufficient structural perfection. It is expected that high-quality T-Nb2O5 can be made using heteroepitaxial growth. Here, we investigated the epitaxial growth of T-Nb2O5 on a prototype perovskite oxide, SrTiO3. Even though there exists a reasonable lattice mismatch in one crystallographic direction, these materials have a significant difference in crystal structure: SrTiO3 is cubic, whereas T-Nb2O5 is orthorhombic. It is found that this difference in symmetry results in the formation of domains that have the T-Nb2O5 c-axis aligned with the SrTiO3 <001>s in-plane directions. Hence, the number of domain orientations is four and two for the growth on (100)s- and (110)s-oriented substrates, respectively. Interestingly, the out-of-plane growth direction remains the same for both substrate orientations, suggesting a weak interfacial coupling between the two materials. Despite challenges associated with the heteroepitaxial growth of T-Nb2O5, the T-Nb2O5 films presented in this paper are a significant improvement in terms of structural quality compared to their polycrystalline counterparts. View Full-Text
Keywords: niobium oxide; epitaxy; metal-organic chemical vapor deposition niobium oxide; epitaxy; metal-organic chemical vapor deposition

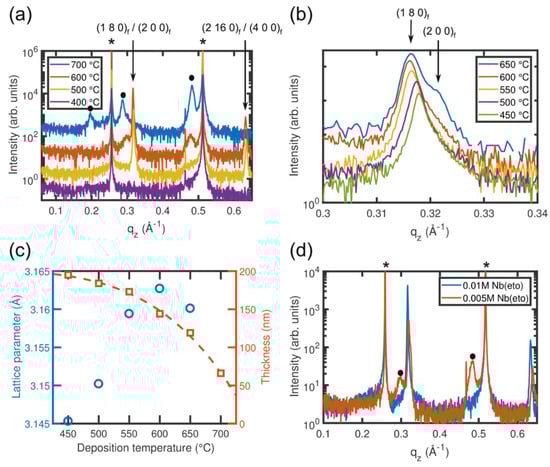

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Boschker, J.E.; Markurt, T.; Albrecht, M.; Schwarzkopf, J. Heteroepitaxial Growth of T-Nb2O5 on SrTiO3. Nanomaterials 2018, 8, 895.
