Nanomaterials 2018, 8(10), 801; https://doi.org/10.3390/nano8100801
Effects of Ag Additive in Low Temperature CO Detection with In2O3 Based Gas Sensors
Faculty of Materials Science, Moscow State University, Moscow 119991, Russia
Chemistry Department, Moscow State University, Moscow 119991, Russia
EMAT, University of Antwerp, B-2020 Antwerp, Belgium
Kurnakov Institute of General and Inorganic Chemistry of Russian Academy of Sciences, Moscow 119991, Russia
LISM, Moscow State Technological University Stankin, Moscow 127055, Russia
Faculty of Physics, Moscow State University, Moscow 119991, Russia
National Research Center Kurchatov Institute, Moscow 123182, Russia
Department of Nano-, Bio-, Information Technology and Cognitive Science, Moscow Institute of Physics and Technology, Dolgoprudny, Moscow 141701, Russia
Author to whom correspondence should be addressed.
Received: 11 September 2018 / Accepted: 5 October 2018 / Published: 8 October 2018
Nanocomposites In2O3/Ag obtained by ultraviolet (UV) photoreduction and impregnation methods were studied as materials for CO sensors operating in the temperature range 25–250 °C. Nanocrystalline In2O3 and In2O3/Ag nanocomposites were characterized by X-ray diffraction (XRD), single-point Brunauer-Emmet-Teller (BET) method, scanning electron microscopy (SEM), transmission electron microscopy (TEM), and high angle annular dark field scanning transmission electron microscopy (HAADF-STEM) with energy dispersive X-ray (EDX) mapping. The active surface sites were investigated using Fourier-transform infrared spectroscopy (FTIR), X-ray photoelectron spectroscopy (XPS), electron paramagnetic resonance (EPR) spectroscopy and thermo-programmed reduction with hydrogen (TPR-H2) method. Sensor measurements in the presence of 15 ppm CO demonstrated that UV treatment leads to a complete loss of In2O3 sensor sensitivity, while In2O3/Ag-UV nanocomposite synthesized by UV photoreduction demonstrates an increased sensor signal to CO at T < 200 °C. The observed high sensor response of the In2O3/Ag-UV nanocomposite at room temperature may be due to the realization of an additional mechanism of CO oxidation with participation of surface hydroxyl groups associated via hydrogen bonds.
Keywords:nanocrystalline semiconductor oxides; nanocomposites; indium oxide; silver additive; carbon monoxide; gas sensor; surface hydroxyl groups; room temperature response
Most of the materials for semiconductor gas sensors are nanocomposites in which noble metal nanoparticles are distributed in a semiconductor oxide matrix [1,2,3,4,5,6]. Nanoparticles of platinum group metals (Pd, Pt, Ru) as well as Au and Ag exhibit catalytic properties that influence the chemical interaction between the semiconductor oxide and the detected gas, resulting in the improvement of sensor characteristics. It was found that the introduction of nanoparticles of catalytically active metals can decrease the operating temperature of the sensor, increase sensitivity, improve selectivity and reduce response and recovery times. In addition, the presence of Au and Ag nanoparticles can reduce the electrical resistance and shift the optical absorption of the semiconductor oxide matrix into the visible region due to the effect of surface plasmon resonance [7,8].
As the least expensive noble metal, silver is intensively studied as a catalytically active modifier for sensor materials based on binary semiconductor oxides [9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28], nanocomposites [29,30], as well as semiconductor materials with a perovskite structure [31,32,33]. It was shown that introducing silver makes semiconductor oxides more sensitive to hydrogen H2 [9,11], carbon monoxide CO [17,28,32], hydrogen sulphide H2S [10,14,18], sulphur dioxide SO2 , ozone O3  and nitrogen oxides NOx [19,24]. Recently, silver has been actively explored as a modifier for gas sensors with a high sensitivity to volatile organic compounds (VOCs) [13,15,16,20,21,22,25,26,27,29,30,31,33].
Below, we summarize the different mechanisms that are considered in literature to explain the effect of silver on the sensor properties of semiconductor oxides.
(i) The mechanism of electronic sensitization was first proposed by N. Yamazoe and co-workers . In air, Ag nanoparticles contain silver in two oxidation states Ag0 and Ag+. The Ag+/Ag0 electrode potential is −5.3 eV relative to the vacuum level. When a contact is formed between silver nanoparticles and semiconductor oxide whose work function is less than 5.3 eV, the Fermi level of the semiconductor is pinned to the Ag+/Ag0 potential. This leads to the formation of an electron depleted space charge region and to a decrease of the semiconductor oxide conductivity. In the presence of reducing gas able to reduce Ag+ to Ag0, the Fermi level of the semiconductor becomes aligned with the work function of metallic silver (4.5 eV), which leads to an increase in the surface conductivity. This mechanism is mainly attributed to the interaction with H2 and CO.
(ii) The mechanism based on the change in the composition of the phase formed by the modifier which is realized for CuO, Ag2O or CoOx containing nanocomposites during H2S detection [1,2,10,34]. During this interaction, the modifier—p-type oxide, is converted to the corresponding sulphide with metallic conductivity. As a result, the energy barriers between the modifier and the n-type semiconductor oxide are removed, which leads to a significant increase in electrical conductivity of nanocomposites in the presence of H2S.
(iii) The mechanism based on chemical sensitization, which supposes that the metallic Ag acts as a catalyst by forming activated species of the chemisorbed target gas. It is assumed that this mechanism is realized when detecting formaldehyde [22,29,30,33,35,36].
However, none of these cases consider the effect of the introduced modifier on the type and concentration of the intrinsic active sites (chemisorbed oxygen, surface hydroxyl groups) of the semiconductor oxide. At the same time, in our previous works [1,3,6,37] it was shown that the introduction of such modifiers as palladium and ruthenium into nanocrystalline tin dioxide does not only lead to the formation of catalytically active centers associated with modifiers, but also to a change in the concentration of chemisorbed oxygen, a change in the predominant form of chemisorbed oxygen, as well as in a change in the concentration of surface hydroxyl groups. In this paper, the influence of Ag modification on the active surface sites and sensor properties of nanocrystalline In2O3 toward CO were investigated. Four samples based on nanocrystalline indium oxide are considered (Figure 1): (i) blank In2O3, obtained by chemical precipitation from aqueous solution with subsequent thermal annealing at 300 °C; (ii) In2O3, subjected to UV treatment in an aqueous suspension; (iii) In2O3/Ag-imp nanocomposite obtained by impregnation of In2O3 with AgNO3 solution with subsequent thermal decomposition; (iv) In2O3/Ag-UV nanocomposite obtained by photoreduction of AgNO3 under UV illumination in the presence of In2O3 aqueous suspension. The designations and characteristics of the samples are given in Table 1.
2. Results and Discussion
Figure 2a shows the change in the resistance of the samples in the temperature range 250–100 °C and at 25 °C under conditions of periodic change of the gas phase composition: dry air → 15 ppm CO in dry air. The decrease in the electrical resistance in the presence of CO corresponds to the oxidation of carbon monoxide by chemisorbed oxygen:where represents the carbon monoxide molecule in the gas phase, is chemisorbed oxygen, is the reaction product desorbed to the gas phase, e is an electron injected into the conduction band of the n-type semiconductor. For In2O3-UV, there is no change in resistance when changing the gas phase composition from pure air to CO containing gas mixture. For unmodified In2O3 and nanocomposites In2O3/Ag-imp and In2O3/Ag-UV the value of the sensor signal S = Rair/Rgas was determined from the ratio of the resistance in pure air Rair to the resistance in the presence of 15 ppm CO in air Rgas at each temperature.
The temperature dependencies of the sensor signal for the above mentioned samples are shown in Figure 2b. For blank In2O3, the sensor signal increases with temperature and reaches a maximum value at 250 °C. The sensor signal of In2O3/Ag-UV and In2O3/Ag-imp composites exceeds the signal value for pure In2O3 at temperatures below 200 °C. The most interesting fact is the high sensor signal of In2O3/Ag-UV nanocomposite at room temperature. The measurements repeated with a break of several weeks demonstrated that the sensor properties of obtained materials are stable and well reproducible. After prolonged storage at room temperature in the laboratory air, short-term annealing at 300 °C allows a complete regeneration of the sensor properties.
To determine the factors responsible for the formation of the sensor response of nanocomposites obtained by various methods, the phase composition, the electronic state of silver and its distribution in the In2O3 matrix were investigated, and a detailed study of the surface composition In2O3 and In2O3/Ag nanocomposites was effectuated.
According to X-ray diffraction data (Figure 3), the obtained indium oxide crystallizes in a bixbyite structure with crystallite size dXRD of 10 ± 1 nm. The specific surface Ssurf area was 88 ± 5 m2/g. The treatment of indium oxide with UV radiation (sample In2O3-UV) does not lead to a change in the phase composition and the crystallite size. The X-ray diffraction pattern of In2O3/Ag-imp nanocomposite contains only In2O3 reflections, no Ag containing phases are observed (Figure 3). On the contrary, on the diffractogram of the nanocomposite In2O3/Ag-UV obtained by the photoreduction method, the (111) reflection of metallic silver phase is detected, but its intensity is too small to determine the size of the coherent scattering region with the necessary accuracy.
According to high angle annular dark field scanning transmission electron microscopy (HAADF-STEM) and high resolution transmission electron microscopy (HRTEM) (Figure 4a,b), the In2O3 matrix in In2O3/Ag-imp is composed of crystalline In2O3 nanoparticles of a size 5–15 nm. There are individual and agglomerated In2O3 particles. In this nanocomposite Ag is present in the form of spherical polycrystalline nanoparticles (Figure 4c,d) of a size from 5 nm to 34 nm with not uniform distribution on the surface of In2O3 agglomerates (Figure 5). Ag nanoparticles cannot be distinguished on the HAADF-STEM images (ZIn = 49, ZAg = 47) but can be found by the scanning transmission electron microscopy images and energy dispersive X-ray (STEM-EDX) mapping (Figure 5).
For the In2O3/Ag-UV nanocomposite, scanning electron microscopy (SEM) combined with energy dispersive X-ray (EDX) mapping shows that the silver particles form agglomerates of 1–3 µm on the In2O3 surface (Figure 6). In this sample, individual Ag nanoparticles were not detected.
The XPS study showed that the silver signal Ag3d of the In2O3/Ag-UV sample includes two components that correspond to oxidized silver Ag+ (367.9 eV) and metallic silver Ag0 (368.4 eV) (Figure 7a). On the contrary, in the Ag 3d signal of the In2O3/Ag-imp nanocomposite, the component corresponding to metallic silver is not observed. This may be due to the formation of an oxide film on the surface of particles of nanometer size.
The composition of the surface of the nanocomposites, as well as of nanocrystalline indium oxide, was studied by X-ray photoelectron spectroscopy (XPS), Fourier-transform infrared (FTIR) spectroscopy, electron paramagnetic resonance (EPR) spectroscopy, and thermo-programmed reduction with hydrogen (TPR-H2).
The X-ray photoelectron (XP) In3d spectra of the In2O3 sample and In2O3/Ag nanocomposites correspond to indium in the +3 oxidation state in indium oxide (E(In3d5/2) = 444.3 eV, Figure 7b). The UV treatment of In2O3 leads to a small shift of the spectrum toward higher binding energies (E(In3d5/2) = 444.7 eV). This may indicate an increase in the fraction of indium atoms bound to surface hydroxyl groups (for In(OH)3 E(In3d5/2) = 445.0 eV ). The O1s XP spectra consist of two components (Figure 7c). The component with a lower binding energy (~530.0 eV) corresponds to the oxygen anions in the In2O3 lattice. The higher energy component (~531.6 eV) corresponds to hydroxyl groups and different forms of chemisorbed oxygen on the surface. From these spectra, one can conclude that when In2O3 is treated with UV radiation, the contribution of the higher energy component decreases from 41% to 31%. The modification of In2O3 with silver by impregnation or UV photoreduction also reduces the contribution of this component in the O1s spectra.
IR spectroscopy was used to study the functional groups on the surface. The IR spectra of In2O3 samples and In2O3/Ag nanocomposites are compared in Figure 8a. The absorption bands at 400–650 cm−1 correspond to In–O oscillations in the In2O3 crystal lattice. The spectra indicate that nitrate groups (1385 cm−1), adsorbed water (1625 cm−1), and hydroxyl groups (3000–3650 cm−1) are present on the surface. Samples In2O3-UV and In2O3/Ag-UV contain a smaller amount of nitrate groups due to their photoreduction under UV radiation. Modification with silver leads to an increase in the concentration of surface hydroxyl groups compared with unmodified In2O3, both using the impregnation method and the UV treatment in an aqueous medium. The largest effect occurs when silver is introduced under the UV treatment. This can be due to photodesorption of oxygen and subsequent dissociative adsorption of water molecules at the corresponding adsorption sites. A similar effect of surface hydroxylation under UV radiation is described in the literature for In2O3 nanowires and other semiconductor oxides ZnO, TiO2, V2O5, WO3 [39,40,41,42,43,44].
Comparison of IR spectra (Figure 8b) after prolonged exposure (72 h) in dry (relative humidity RH = 5%, T = 22 °C) and moist (RH = 65%, T = 22 °C) air shows that silver particles are responsible are for the change in the concentration of hydroxyl groups on the In2O3 surface due to the adsorption of water vapor. The lowest influence of air humidity on the concentration of surface OH groups is observed in the case of In2O3-UV. This is an additional argument indicating the formation of hydroxyl groups associated with the crystalline structure of In2O3 under UV treatment in an aqueous medium.
The results of the TPR-H2 experiments are shown in Figure 9a and in Table 2. During the measurements, the signal from thermal conductivity detector (TCD, arb. units), proportional to the rate of hydrogen consumption, was registered depending on the temperature inside the reactor. The quantity of hydrogen consumed in a given temperature range was calculated using calibration measurements for a standard Ag2O sample. The total quantity of hydrogen consumed during the experiment (Table 2) for all the samples varies from 3.5 to 4.0 mol H2 per mol In2O3, that exceed the theoretical value n = 3.0 mol H2 per mol In2O3 (reaction (2)):
The high-temperature (370–850 °C) peak corresponds to the hydrogen consumption upon In2O3 reduction to metallic indium. The hydrogen consumption in the low-temperature region (T < 370 °C) is due to the reduction of various forms of chemisorbed oxygen and hydroxyl groups on the In2O3 surface. The intense, sharp peaks in the TPR-H2 profile of In2O3 (215 °C and 226 °C) and In2O3/Ag-imp nanocomposite (160 °C) may be caused by the reduction of surface nitrate groups. The amount of consumed hydrogen during reduction of the In2O3 sample is n = 3.5 mol H2 per 1 mol In2O3 (Table 2), which is close to the theoretical value n = 3 corresponding to the reduction of indium oxide to the metal (reaction (2)). UV treatment of indium oxide leads to a decrease in the amount of hydrogen consumed in the high-temperature region and a decrease in the temperature Tmax corresponding to the maximum hydrogen consumption peak during the reduction of In2O3. Similar trends are observed when comparing the TPR-H2 profiles of In2O3/Ag-imp and In2O3/Ag-UV nanocomposites.
Figure 9b shows the EPR spectra of In2O3-UV sample measured in dark conditions, under UV illumination (20 min in air), and after switching off the illumination. The EPR spectrum is a wide line (ΔH ≈ 280 Gs) with the Lande factor g = 2.03. According to the literature  and references therein, this EPR signal can be attributed to the oxygen radical anion The EPR signal from oxygen vacancies with a characteristic g factor value of 2.006 is not detected (the position of the EPR line from oxygen vacancies is shown in Figure 9b with an asterisk). The EPR signal from OH· radicals (which make up only a small part of the OH groups) is not possible to register due to its suppression by a strong EPR signal from centers. The calculated concentrations of oxygen radicals were 7.6 × 1015 spin/m2 in the dark conditions and 3.2 × 1013 spin/m2 under UV illumination. This agrees with our previous investigation , where it was demonstrated that UV treatment in air leads to a decrease in the concentration of chemisorbed oxygen (in form of paramagnetic molecular ion ) on the In2O3 surface from 8 × 1016 spin/m2 to 3 × 1014 spin/m2 due to the photodesorption process. As the obtained concentrations of paramagnetic oxygen species on the In2O3-UV surface are an order of magnitude smaller than on the blank In2O3 surface, one can conclude that UV treatment in an aqueous medium leads to a partial replacement of the oxygen anions of the crystal lattice on the surface of indium oxide by hydroxyl groups. Since the synthesized nanocrystalline In2O3 has a large specific surface area, the contribution of surface atoms to its properties is significant. Thus, a change in the composition of the In2O3 surface (the replacement of oxygen anions by hydroxyl groups) may be responsible for a decrease in the reduction temperature and diminishing the amount of hydrogen needed for complete reduction.
On the other hand, in the case of In2O3-UV, the partial replacement of chemisorbed oxygen with surface hydroxyl groups leads to a slight decrease in hydrogen consumption in the low-temperature region in accordance with reactions (3) and (4), respectively:
The set of obtained results allows explaining the observed differences in the sensor properties of In2O3 and In2O3/Ag nanocomposites toward CO (Figure 10). Obviously, the UV treatment of In2O3 causes a partial replacement of both the lattice oxygen (in the near-surface layer) and chemisorbed oxygen by hydroxyl groups, which causes a loss in sensor sensitivity to the reducing gas CO in the entire temperature range 25–250 °C. The increase in the In2O3 sensor response observed in the temperature range T < 200 °C with the modification with silver apparently can be explained by the mechanism of electronic sensitization  briefly described in the Introduction. As mentioned in , bulk silver forms a protective oxide in air (confirmed by our XPS data in Figure 7a), which decomposes between 160 °C and 250 °C. So, the decrease in the sensor response of nanocomposites at temperatures above 150 °C may be due to the thermal decomposition of the silver oxide film with the formation of metallic silver that leads to the removal of the effect of electronic sensitization.
The enhanced sensor response of In2O3/Ag nanocomposites at low temperature can also be caused by catalytic activity of Ag particles. In a detailed review  it was mentioned that Ag particles on the oxide supports are able to dissociate oxygen molecules, and the heat of dissociative chemisorption of O2 increases with the degree of hydroxylation of the oxide support surface. Formation of more active atomic form of chemisorbed oxygen should facilitate the oxidation of carbon monoxide leading to the increase in sensor response. In addition, it was shown in  that supported catalysts containing partially oxidized silver particles possess high catalytic activity in low-temperature oxidation of CO due to the presence of active centers Ag+ and Agδ+, which ensure the adsorption of CO with the formation of carbonyls Ag+-CO or Agδ+-CO that weaken the C–O bond.
The high sensor response at room temperature of In2O3/Ag-UV nanocomposite may be due to the contribution of an additional mechanism of CO oxidation, in which surface hydroxyl groups of semiconductor oxides participate (Figure 10). As can be seen from Figure 8a, UV treatment and the addition of silver lead to a nonadditive increase in the amount of surface hydroxyl groups in the In2O3/Ag-UV nanocomposite compared to the initial In2O3. The maximum at about 3400 cm−1 of the absorption band ascribed to hydroxyl groups is evidence for a predominance of rooted hydroxyls associated via hydrogen bonds (OH…..OH) . FTIR investigations and impedance measurements [50,51] showed that the room temperature CO sensitivity of SnO2/PdOx nanocomposites is precisely due to the participation of such surface OH-groups in the oxidation of chemisorbed carbon monoxide molecules via reaction (5):
The IR data presented in Figure 8b unequivocally indicate that Ag particles deposited on In2O3 surface under UV treatment increase the concentration of just such hydroxyl groups that can participate in the reaction (5). The enhanced reactivity of hydroxyl groups at room temperature compared with the chemisorbed oxygen can be explained by a chain character of the reaction (5) . The formed proton species may regenerate the rooted surface hydroxyls via reaction with oxygen anions from the oxide lattice:
In addition to the renewal of surface hydroxyl groups capable of oxidizing carbon monoxide again, process (6) will lead to an increase in conductivity, which adds to the increase in the sensor signal.
3. Materials and Methods
Synthesis of nanocrystalline In2O3 was carried out by chemical precipitation using In(NO3)3 as a precursor. To the aqueous solution of In(NO3)3, a 10% solution of NH3·H2O was added with stirring at room temperature until pH = 8. The obtained gel was stirred for 30 min, then washed with deionized water and centrifuged. The cycle of washing and centrifugation was repeated several times till the beginning of the peptization. The precipitate was dried at 100 °C for 24 h, crushed in an agate mortar and annealed in air at 300 °C for 24 h.
Modification of the surface of nanocrystalline In2O3 by silver was carried out by photoreduction and impregnation methods. AgNO3 was used as a precursor in both cases.
For the method of modification by photoreduction [16,52] 0.1 g of In2O3 was introduced into an aqueous solution containing 0.5 M glycerol and 250 μM AgNO3. The ratio of the metal elements in the reaction mixture was [Ag]/([Ag] + [In]) = 5 at. %. The suspension was irradiated with UV light for 10 min under vigorous stirring. The solid product was separated by decanting, dried and annealed at 300 °C for 24 h. For comparison, a sample of In2O3 was exposed to UV in an aqueous solution of 0.5 M glycerol, but not containing AgNO3.
When the impregnation method was used, the calculated volume of AgNO3 solution was added to the weighed In2O3 powder ([Ag]/([Ag] + [In]) = 5 at. %). Then, the powder was dried to evaporate the solvent and annealed at 300 °C for 12 h for decomposition of AgNO3.
The elemental composition of In2O3/Ag-UV nanocomposite was determined by X-ray fluorescence (XRF) analysis using a M1 Mistral micro-X-ray spectrometer (Bruker, Billerica, MA, USA). Quantitative analysis of In2O3/Ag-imp nanocomposite was carried out by Inductive Coupled Plasma Mass Spectrometry (ICP-MS) on Agilent 7500C quadrupole mass spectrometer (Agilent Technologies, Santa Clara, CA, USA). The analysis was carried out for the isotopes 107Ag, 109Ag, 115In.
The phase composition of the samples was determined by X-ray diffraction using a DRON-4-07 diffractometer (Burevestnik, Moscow, Russia, CuKα, λ = 1.5406 Å). The crystallite size (dimension of the coherent scattering regions, dXRD) was calculated by the Scherrer formula for spherical particles.
The specific surface area was measured by the method of low-temperature nitrogen adsorption (single point BET) on Chemisorb 2750 instrument (Micromeritics, Norcross, GA, USA).
The microstructure of the samples was investigated by scanning electron microscopy (SEM) combined with energy dispersive X-ray spectroscopy (EDX) at Zeiss NVision 40 (Carl Zeiss, Oberkochen, Germany) microscope equipped with a X-Max detector (Oxford Instruments, Carl Zeiss, Oberkochen, Germany) operated at 20 kV. (High resolution) transmission electron microscopy ((HR)TEM) images, high angle annular dark field scanning transmission electron microscopy (HAADF-STEM) images and energy dispersive X-ray (EDX) maps were acquired using a FEI Osiris microscope equipped with a Super-X detector and operated at 200 kV (FEI, Hillsboro, OR, USA).
The study by the method of thermo-programmed reduction with hydrogen (TPR-H2) was carried out on Chemisorb 2750 (Micromeritics, Norcross, GA, USA) in a quartz reactor at a gas mixture flow of 10% H2 in argon at 50 mL/min at a heating rate of 10 °C/min to 900 °C.
The IR spectra of the samples were taken on Spectrum One (Perkin Elmer Inc., Waltham, MA, USA) spectrometer in transmission mode in the wavenumber range 400–4000 cm−1 with 1 cm−1 steps. The powders (5 mg) were grinded with 100 mg of dried KBr (Sigma-Aldrich, St. Louis, MO, USA, “for FTIR analysis”) and pressed into tablets.
The composition and chemical state of the elements were studied by X-ray photoelectron spectroscopy (XPS). The measurements were effectuated on a K-Alpha (Thermo Fisher Scientific, Waltham, MA, USA) spectrometer equipped with a monochromatic AlKα X-ray source (E = 1486.7 eV). The positions of the peaks in the binding energy scale were determined with respect to the C1s peak corresponding to the carbon contamination of the surface (285.0 eV) with an accuracy of 0.1 eV. XP-spectra were fitted by Gaussian-Lorentzian convolution functions with simultaneous optimization of the background parameters.
Bruker ELEXSYS-500 spectrometer (X-band, sensitivity is 1010 spin/G, Bruker, Billerica, MA, USA) was used for electron paramagnetic resonance (EPR) measurements. EPR spectra were recorded at 110 K because of short spin-lattice relaxation time of spin centers. Bruker ER 4112HV variable-temperature accessory (Bruker, Billerica, MA, USA) was used for low-temperature measurements. The g-values were determined based on Mn++ standard. UV diode (a maximum intensity at 380 nm, LED Lighting SA, Cape Town, South Africa) was used for illumination of the samples.
The sensor properties toward CO were studied by in situ conductivity measurements in a flow cell under conditions of a controlled gas flow of 100 ± 0.1 mL/min. The gas mixture containing 15 ppm CO in dry air was prepared by dilution of attested gas mixture (5050 ppm CO in N2) with dry synthetic air using electronic mass flow controllers Bronkhorst (Bronkhorst, Ruurlo, The Netherlands). The synthesized powders were mixed with a binder (α-terpeniol in ethanol) and applied as a paste onto a microelectronic chip with a platinum heater and contacts. The films were annealed at 250 °C for 24 h to remove the binder and sinter the particles. The measurements were carried out in dry synthetic air (RH < 1%) at temperatures of 250–100°C in steps of 50 °C and at room temperature (25 °C).
In2O3/Ag nanocomposites were synthesized by UV photoreduction and impregnation methods. In the process of photoreduction, 1–3 μm agglomerates of surface oxidized silver particles are formed. The nanoparticles of AgOx deposited by the impregnation method are non-homogeneously distributed on the In2O3 surface in the form of polycrystalline nanoparticles of 5–35 nm. Both modification with silver and UV treatment lead to an increase in the concentration of surface hydroxyl groups compared with unmodified In2O3. In the case of the In2O3/Ag-UV nanocomposite (which combines Ag modification and UV treatment), a non-additive increase in the hydroxyl concentration is observed. The study of sensor properties toward CO showed that UV treatment of indium oxide leads to a complete loss of sensor sensitivity. In contrast to this, In2O3/Ag-UV nanocomposite synthesized by UV photoreduction demonstrates an increased sensor signal to CO at temperatures below 200 °C due to electronic sensitization. The most important result is the high sensor sensitivity of the In2O3/Ag-UV nanocomposite at room temperature. It is assumed that this effect is due to the realization of an additional mechanism of CO oxidation with participation of surface hydroxyl groups associated via hydrogen bonds.
Conceptualization, M.R. and A.G.; Data curation, D.N. and M.R.; Formal analysis, D.N. and M.R.; Investigation, D.N., D.F., M.B., A.B., N.K., A.A. and E.K.; Methodology, M.R., D.F., J.H., N.K., A.B. and E.K.; Supervision, M.R.; Writing-original draft, M.R. and D.N.; Writing-review & editing, M.R., J.H., E.K. and A.G.
This research was funded by the Russian Ministry of Education and Sciences (Agreement No. 14.613.21.0075, RFMEFI61317X0075).
The spectral research was carried out using the equipment purchased by funds of Lomonosov Moscow State University Program of the Development. The EPR measurements were done using the equipment of the User Facility Center of Lomonosov Moscow State University. The research by SEM and EDX was performed using the equipment of the Joint Research Center for Physical Methods of Research of Kurnakov Institute of General and Inorganic Chemistry of the Russian Academy of Sciences.
Conflicts of Interest
The authors declare no conflict of interest.
- Krivetskiy, V.V.; Rumyantseva, M.N.; Gaskov, A.M. Chemical modification of nanocrystalline tin dioxide for selective gas sensors. Russ. Chem. Rev. 2013, 82, 917–941. [Google Scholar] [CrossRef]
- Korotcenkov, G.; Cho, B.K. Metal oxide composites in conductometric gas sensors: Achievements and challenges. Sens. Actuators B 2017, 244, 182–210. [Google Scholar] [CrossRef]
- Marikutsa, A.V.; Vorobyeva, N.A.; Rumyantseva, M.N.; Gaskov, A.M. Active sites on the surface of nanocrystalline semiconductor oxides ZnO and SnO2 and gas sensitivity. Russ. Chem. Bull. 2017, 66, 1728–1764. [Google Scholar] [CrossRef]
- Miller, D.R.; Akbar, S.A.; Morris, P.A. Nanoscale metal oxide-based heterojunctions for gas sensing: A review. Sens. Actuators B 2014, 204, 250–272. [Google Scholar] [CrossRef]
- Li, T.; Zeng, W.; Wang, Z. Quasi-one-dimensional metal-oxide-based heterostructural gas-sensing materials: A review. Sens. Actuators B 2015, 221, 1570–1585. [Google Scholar] [CrossRef]
- Marikutsa, A.V.; Rumyantseva, M.N.; Gaskov, A.M.; Samoylov, A.M. Nanocrystalline tin dioxide: Basics in relation with gas sensing phenomena. Part II. Active centers and sensor behavior. Inorg. Mater. 2016, 52, 1311–1338. [Google Scholar] [CrossRef]
- Zhang, Q.; Xie, G.; Xu, M.; Su, Y.; Tai, H.; Du, H.; Jiang, Y. Visible light-assisted room temperature gas sensing with ZnO-Ag heterostructure nanoparticles. Sens. Actuators B 2018, 259, 269–281. [Google Scholar] [CrossRef]
- Xu, F.; Lv, H.-F.; Wu, S.-Y.; Ho, H.-P. Light-activated gas sensing activity of ZnO nanotetrapods enhanced by plasmonic resonant energy from Au nanoparticles. Sens. Actuators B 2018, 259, 709–716. [Google Scholar] [CrossRef]
- Yamazoe, N.; Kurokawa, Y.; Seiyama, T. Effects of additives on semiconductor gas sensors. Sens. Actuators B 1983, 4, 283–289. [Google Scholar] [CrossRef]
- Mizsei, J.; Lantto, V. Air pollution monitoring with a semiconductor gas sensor array system. Sens. Actuators B 1992, 6, 223–227. [Google Scholar] [CrossRef]
- Zhang, J.; Colbow, K. Surface silver clusters as oxidation catalysts on semiconductor gas sensors. Sens. Actuators B 1997, 40, 47–52. [Google Scholar] [CrossRef]
- Shimizu, Y.; Matsunaga, N.; Hyodo, T.; Egashira, M. Improvement of SO2 sensing properties of WO3 by noble metal loading. Sens. Actuators B 2001, 77, 35–40. [Google Scholar] [CrossRef]
- Mehta, A.; Singh, V. Structural, electrical and gas–sensing properties of In2O3:Ag composite nanoparticle layers. PRAMANA J. Phys. 2005, 65, 949–958. [Google Scholar] [CrossRef]
- Gong, J.; Chen, Q.; Lian, M.; Liu, N.; Stevenson, R.G.; Adami, F. Micromachined nanocrystalline silver doped SnO2 H2S sensor. Sens. Actuators B 2006, 114, 32–39. [Google Scholar] [CrossRef]
- Singh, V.N.; Mehta, B.R.; Joshi, R.K.; Kruis, F.E.; Shivaprasad, S.M. Enhanced gas sensing properties of In2O3:Ag composite nanoparticle layers; electronic interaction, size and surface induced effects. Sens. Actuators B 2007, 125, 482–488. [Google Scholar] [CrossRef]
- Xiang, Q.; Meng, G.; Zhang, Y.; Xu, J.; Xu, P.; Pan, Q.; Yu, W. Ag nanoparticle embedded-ZnO nanorods synthesized via a photochemical method and its gas-sensing properties. Sens. Actuators B 2010, 143, 635–640. [Google Scholar] [CrossRef]
- Korotcenkov, G.; Cho, B.K.; Gulina, L.B.; Tolstoy, V.P. Gas sensing properties of SnO2 thin films modified by Ag nanoclusters synthesized by SILD method. World Acad. Sci. Eng. Technol. 2011, 5, 183–186. [Google Scholar]
- Chavan, D.N.; Patil, G.E.; Kajale, D.D.; Gaikwad, V.B.; Khanna, P.K.; Jain, G.H. Nano Ag-Doped In2O3 Thick Film: A Low-Temperature H2S Gas Sensor. J. Sensors 2011, 2011, 824215. [Google Scholar] [CrossRef]
- Chen, D.; Yin, L.; Ge, L.; Fan, B.; Zhang, R.; Sun, J.; Shaom, G. Low-temperature and highly selective NO-sensing performance of WO3 nanoplates decorated with silver nanoparticles. Sens. Actuators B 2013, 185, 445–455. [Google Scholar] [CrossRef]
- Satheeshkumar, E.; Yang, J. Preparation and characterization of silver film coated ZnO nanowires gas sensors based on infrared surface enhancement effect in detection of VOCs. RSC Adv. 2014, 4, 19331–19337. [Google Scholar] [CrossRef]
- Mizraei, A.; Janghorban, K.; Hashemi, B.; Bonavita, A.; Bonyani, M.; Leonardi, S.G.; Neri, G. Synthesis, characterization and gas sensing properties of [email protected]α-Fe2O3 core–shell nanocomposites. Nanomaterials 2015, 5, 737–749. [Google Scholar] [CrossRef]
- Bai, S.; Liu, H.; Sun, J.; Tian, Y.; Luo, R.; Li, D.; Chen, A. Mechanism of enhancing the formaldehyde sensing properties of Co3O4 via Ag modification. RSC Adv. 2015, 5, 48619–48625. [Google Scholar] [CrossRef]
- Zhu, Z.; Chang, J.L.; Wu, C.H.; Chou, T.L.; Wu, R.J. Promotion effect of silver on indium(III) oxide for detecting trace amounts of ozone. Sens. Actuators B 2016, 232, 442–447. [Google Scholar] [CrossRef]
- Xiao, B.; Song, S.; Wang, P.; Zhao, Q.; Chuai, M.; Zhang, M. Promoting effects of Ag on In2O3 nanospheres of sub-ppb NO2 detection. Sens. Actuators B 2017, 241, 489–497. [Google Scholar] [CrossRef]
- Anand, K.; Kaur, J.; Singh, R.C.; Thangaraj, R. Preparation and characterization of Ag-doped In2O3 nanoparticles gas sensor. Chem. Phys. Lett. 2017, 682, 140–146. [Google Scholar] [CrossRef]
- Wang, J.; Xie, Z.; Si, Y.; Liu, X.; Zhou, X.; Yang, J.; Hu, P.; Han, N.; Yang, J.; Chen, Y. Ag-modified In2O3 manoparticles for highly sensitive and selective ethanol alarming sensors. Sensors 2017, 17, 2220. [Google Scholar] [CrossRef] [PubMed]
- Subha, P.P.; Hasna, K.; Jayaraj, M.K. Surface modification of TiO2 nanorod arrays by Ag nanoparticles and its enhanced room temperature ethanol sensing properties. Mater. Res. Express 2017, 4, 105037. [Google Scholar] [CrossRef]
- Molavi, R.; Sheikhi, M.H. Low temperature carbon monoxide gas sensor based on Ag-Co3O4 thick film nanocomposite. Mater. Lett. 2018, 23, 74–77. [Google Scholar] [CrossRef]
- Fang, F.; Bai, L.; Song, D.; Yang, H.; Sun, X.; Sun, H.; Zhu, J. Ag-modified In2O3/ZnO nanobundles with high formaldehyde gas-sensing performance. Sensors 2015, 15, 20086–20096. [Google Scholar] [CrossRef] [PubMed]
- Dong, C.; Liu, X.; Han, B.; Deng, S.; Xiao, X.; Wang, Y. Nonaqueous synthesis of Ag-functionalized In2O3/ZnO nanocomposites for highly sensitive formaldehyde sensor. Sens. Actuators B 2016, 224, 193–200. [Google Scholar] [CrossRef]
- Rong, Q.; Zhang, Y.; Wang, C.; Zhu, Z.; Zhang, J.; Liu, Q. A high selective methanol gas sensor based on molecular imprinted Ag-LaFeO3 fibers. Sci. Rep. 2017, 7, 12110. [Google Scholar] [CrossRef] [PubMed]
- Michel, C.R.; Martínez-Preciado, A.H.; López-Mena, E.R.; Zuñiga, A.E.; Cayetano-Castro, N.; Ceballos-Sanchez, O. Improvement of the gas sensing response of nanostructured LaCoO3 by the addition of Ag nanoparticles. Sens. Actuators B 2017, 246, 181–189. [Google Scholar] [CrossRef]
- Wei, W.; Guo, S.; Chen, C.; Sun, L.; Chen, Y.; Guo, W.; Ruan, S. High sensitive and fast formaldehyde gas sensor based on Ag-doped LaFeO3 nanofibers. J. Alloys Compd. 2017, 695, 1122–1127. [Google Scholar] [CrossRef]
- Vladimirova, S.A.; Rumyantseva, M.N.; Filatova, D.G.; Chizhov, A.S.; Khmelevsky, N.O.; Konstantinova, E.A.; Kozlovsky, V.F.; Marchevsky, A.V.; Karakulina, O.M.; Hadermann, J.; et al. Cobalt location in p-CoOx/n-SnO2 nanocomposites: Correlation with gas sensor performances. J. Alloys Compd. 2017, 721, 249–260. [Google Scholar] [CrossRef]
- Mao, C.F.; Vannice, M.A. Formaldehyde oxidation over Ag catalysts. J. Catal. 1995, 154, 230–244. [Google Scholar] [CrossRef]
- Shen, B.; Fan, K.; Wang, W.; Deng, J. Ab initio study of the adsorption and oxidation of HCHO with Ag cluster. J. Mol. Struct. (Theochem.) 1999, 469, 157–161. [Google Scholar] [CrossRef]
- Marikutsa, A.V.; Rumyantseva, M.N.; Konstantinova, E.A.; Shatalova, T.B.; Gaskov, A.M. Active sites on nanocrystalline tin dioxide surface: Effect of palladium and ruthenium oxides clusters. J. Phys. Chem. C 2014, 118, 21541–21549. [Google Scholar] [CrossRef]
- Available online: https://srdata.nist.gov/xps/XPSDetailPage.aspx?AllDataNo=28608 (accessed on 7 October 2018).
- Yadav, K.; Mehta, B.R.; Lakshmi, K.V.; Bhattacharya, S.; Singh, J.P. Tuning the Wettability of Indium Oxide Nanowires from Superhydrophobic to Nearly Superhydrophilic: Effect of Oxygen-Related Defects. J. Phys. Chem. C 2015, 119, 16026–16032. [Google Scholar] [CrossRef]
- Feng, X.; Feng, L.; Jin, M.; Zhai, J.; Jiang, L.; Zhu, D. Reversible super-hydrophobicity to super-hydrophilicity transition of aligned ZnO nanorod films. J. Am. Chem. Soc. 2004, 126, 62–63. [Google Scholar] [CrossRef] [PubMed]
- Miyauchi, M.; Nakajima, A.; Fujishima, A.; Hashimoto, K.; Watanabe, T. Photoinduced surface reactions on TiO2 and SrTiO3 films: Photocatalytic oxidation and photoinduced hydrophilicity. Chem. Mater. 2000, 12, 3–5. [Google Scholar] [CrossRef]
- Stevens, N.; Priest, C.I.; Sedev, R.; Ralston, J. Wettability of photoresponsive titanium dioxide surfaces. Langmuir 2003, 19, 3272–3275. [Google Scholar] [CrossRef]
- Lim, H.S.; Kwak, D.; Lee, D.Y.; Lee, S.G.; Cho, K. UV-driven reversible switching of a rose like vanadium oxide film between superhydrophobicity and superhydrophilicity. J. Am. Chem. Soc. 2007, 129, 4128–4129. [Google Scholar] [CrossRef] [PubMed]
- Wang, Sh.; Feng, X.; Yao, J.; Jiang, L. Controlling wettability and photochromism in a dual-responsive tungsten oxide film. Angew. Chem. Int. Ed. 2006, 45, 1264–1267. [Google Scholar] [CrossRef] [PubMed]
- Siedl, N.; Guegel, P.; Diwald, O. First Combined Electron Paramagnetic Resonance and FT-IR Spectroscopic Evidence for Reversible O2 Adsorption on In2O3−x Nanoparticles. J. Phys. Chem. C 2013, 117, 20722–20729. [Google Scholar] [CrossRef]
- Forsh, E.A.; Abakumov, A.M.; Zaytsev, V.B.; Konstantinova, E.A.; Forsh, P.A.; Rumyantseva, M.N.; Gaskov, A.M.; Kashkarov, P.K. Optical and photoelectrical properties of nanocrystalline indium oxide with small grains. Thin Solid Films 2015, 595, 25–31. [Google Scholar] [CrossRef]
- Royer, S.; Duprez, D. Catalytic oxidation of carbon monoxide over transition metal oxides. ChemCatChem 2011, 3, 24–65. [Google Scholar] [CrossRef]
- Kolobova, E.; Pestryakov, A.; Shemeryankina, A.; Kotolevich, Y.; Martynyuk, O.; Tiznado Vazquez, H.J.; Bogdanchikova, N. Formation of silver active states in Ag/ZSM-5 catalysts for CO oxidation. Fuel 2014, 138, 65–71. [Google Scholar] [CrossRef]
- Koziej, D.; Barsan, N.; Shimanoe, K.; Yamazoe, N.; Szuber, J.; Weimar, U. Spectroscopic insights into CO sensing of undoped and palladium doped tin dioxide sensors derived from hydrothermally treated tin oxide sol. Sens. Actuators B 2006, 118, 98–104. [Google Scholar] [CrossRef]
- Marikutsa, A.V.; Rumyantseva, M.N.; Yashina, L.V.; Gaskov, A.M. Role of surface hydroxyl groups in promoting room temperature CO sensing by Pd-modified nanocrystalline SnO2. J. Solid State Chem. 2010, 183, 2389–2399. [Google Scholar] [CrossRef]
- Marikutsa, A.V.; Rumyantseva, M.N.; Gaskov, A.M. Specific interaction of PdOx- and RuOy-modified tin dioxide with CO and NH3 gases: Kelvin probe and DRIFT studies. J. Phys. Chem. C 2015, 119, 24342–24350. [Google Scholar] [CrossRef]
- Alammar, T.; Mudring, A.V. Facile preparation of Ag/ZnO nanoparticles via photoreduction. J. Mater. Sci. 2009, 44, 3218–3222. [Google Scholar] [CrossRef]
Figure 1. (a) Scheme of synthesis of the In2O3 samples and In2O3/Ag nanocomposites. SEM (b) and TEM (c) images of In2O3 matrix.
Figure 2. (a) Resistance of the In2O3 samples and In2O3/Ag nanocomposites in the temperature range 250–100 °C and at 25 °C under the periodic change of the gas phase composition. (b) Temperature dependencies of sensor signal of blank In2O3 and In2O3/Ag nanocomposites.

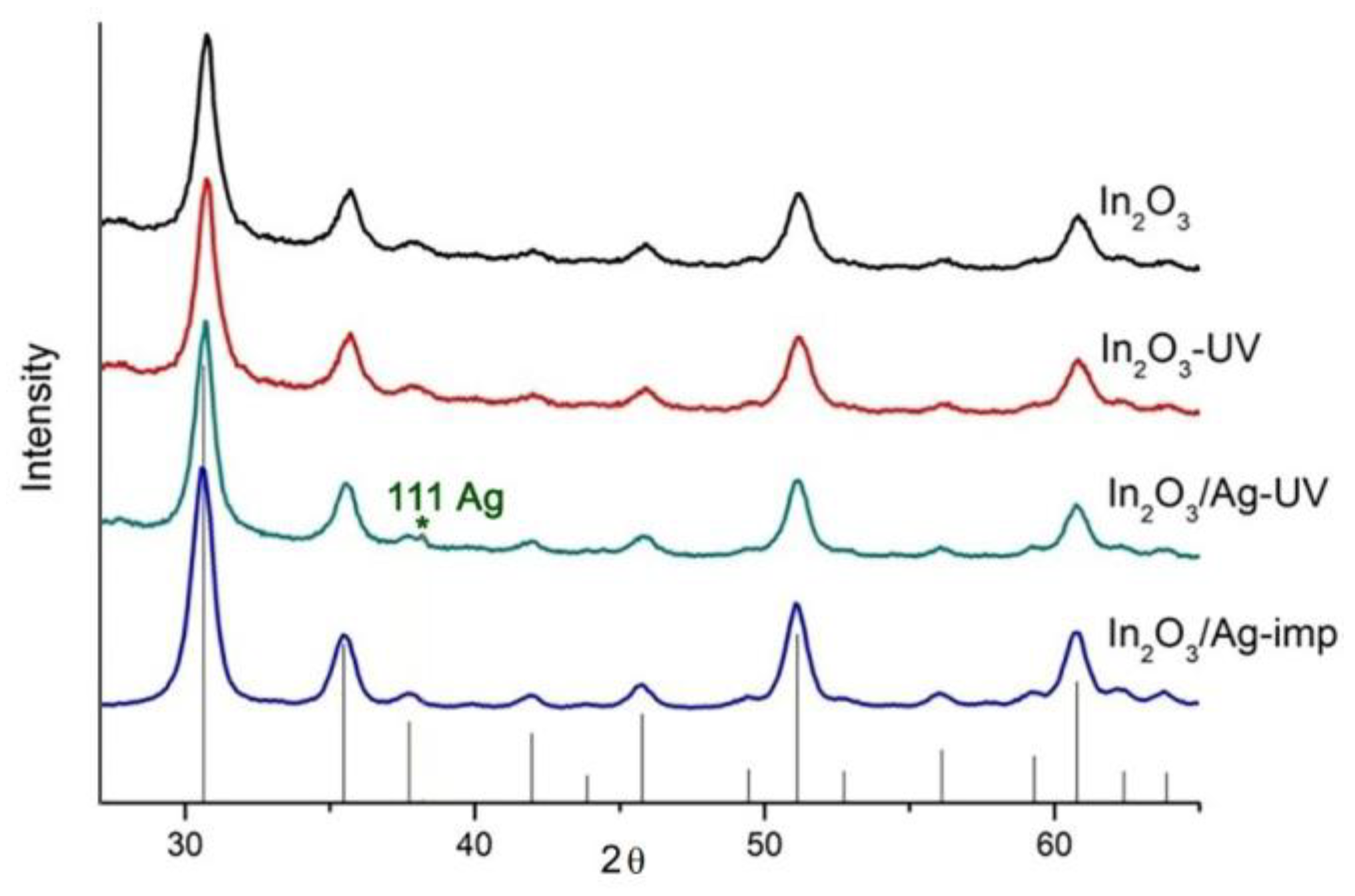

Figure 3. XRD patterns of synthesized powders. Vertical lines correspond to the ICDD 6-416 reference (In2O3 bixbyite).
Figure 4. (a) High angle annular dark field scanning transmission electron microscopy (HAADF-STEM) and (b) high resolution transmission electron microscopy (HRTEM) images of In2O3/Ag-imp nanocomposite; (c) TEM image of a Ag nanoparticle in In2O3/Ag-imp nanocomposite and (d) Fourier transform proving its polycrystallinity.
Figure 5. (a) HAADF-STEM image and (b) energy dispersive X-ray (EDX)maps of In2O3/Ag-imp nanocomposite.
Figure 6. (a) EDX map of element distribution in In2O3/Ag-UV nanocomposite. (b) EDX map of corresponding Ag Lα1 signal.

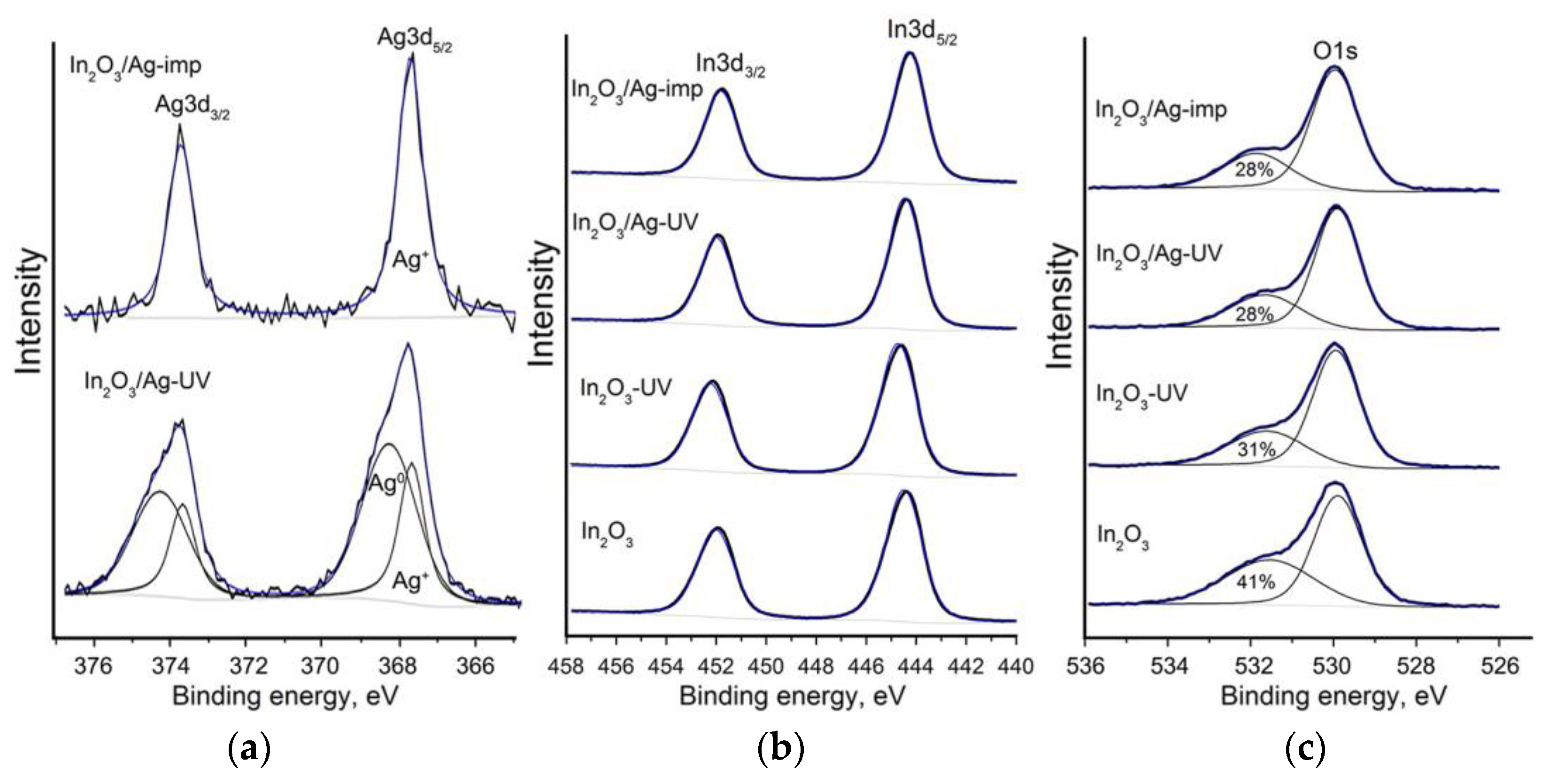

Figure 7. X-ray photoelectron spectra Ag 3d (a); In 3d (b); O1s (c) of the samples.

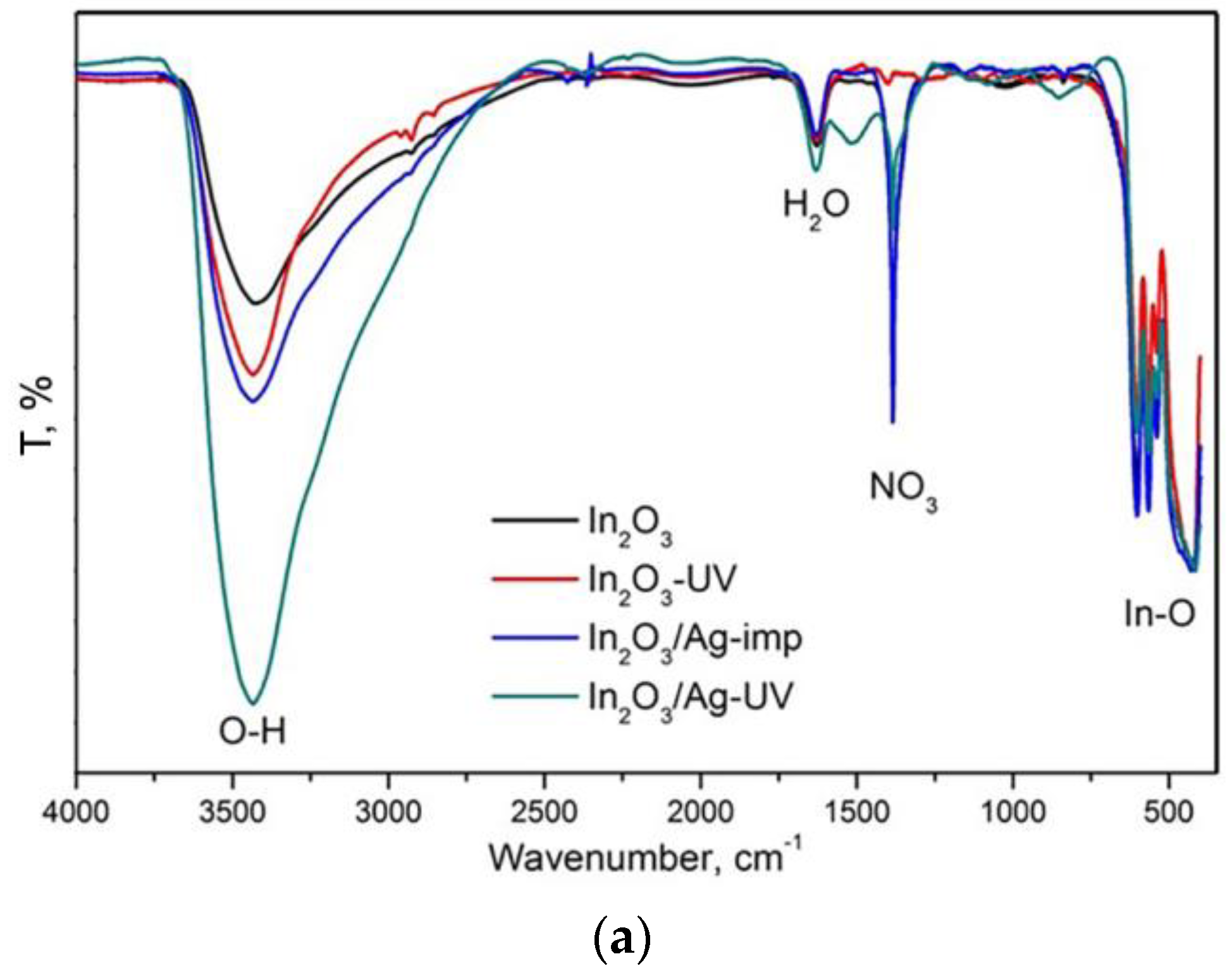

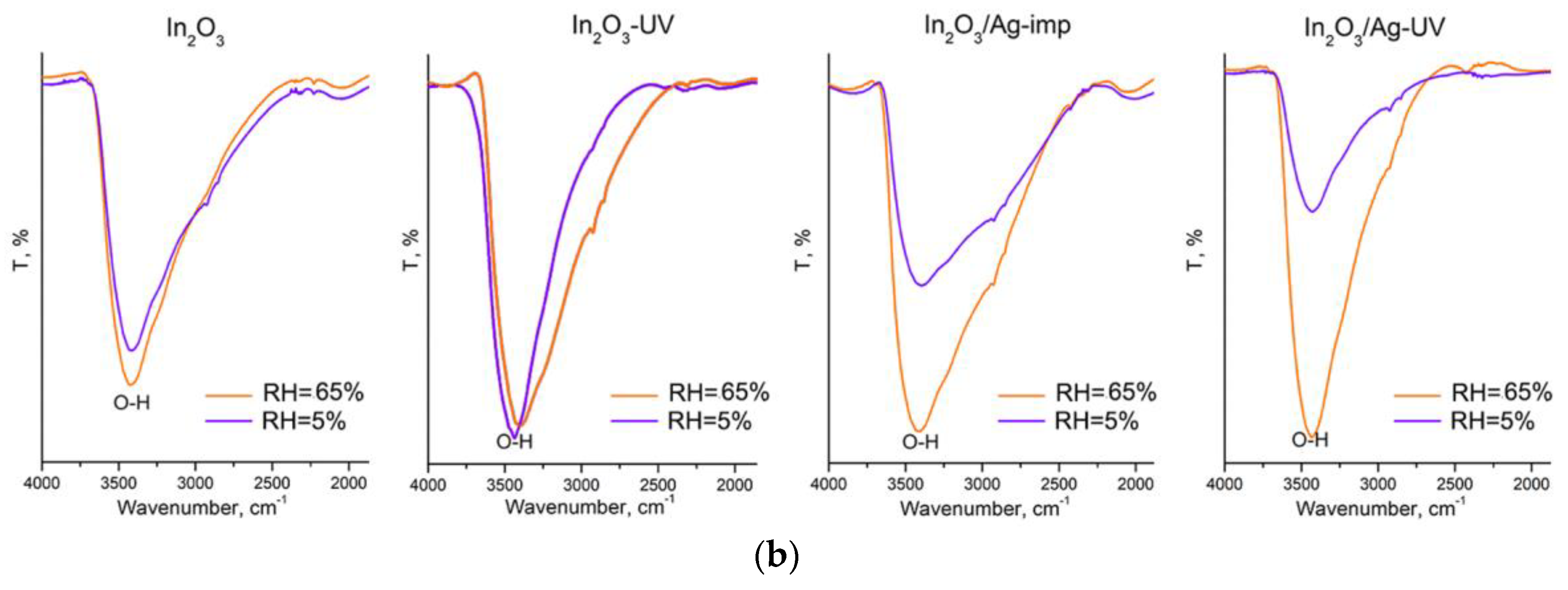

Figure 8. (a) FTIR spectra of In2O3 and In2O3/Ag nanocomposites normalized to the intensity In–O oscillations. (b) FTIR spectra of In2O3 and In2O3/Ag nanocomposites pretreated under different relative humidity RH = 65% and RH = 5%.

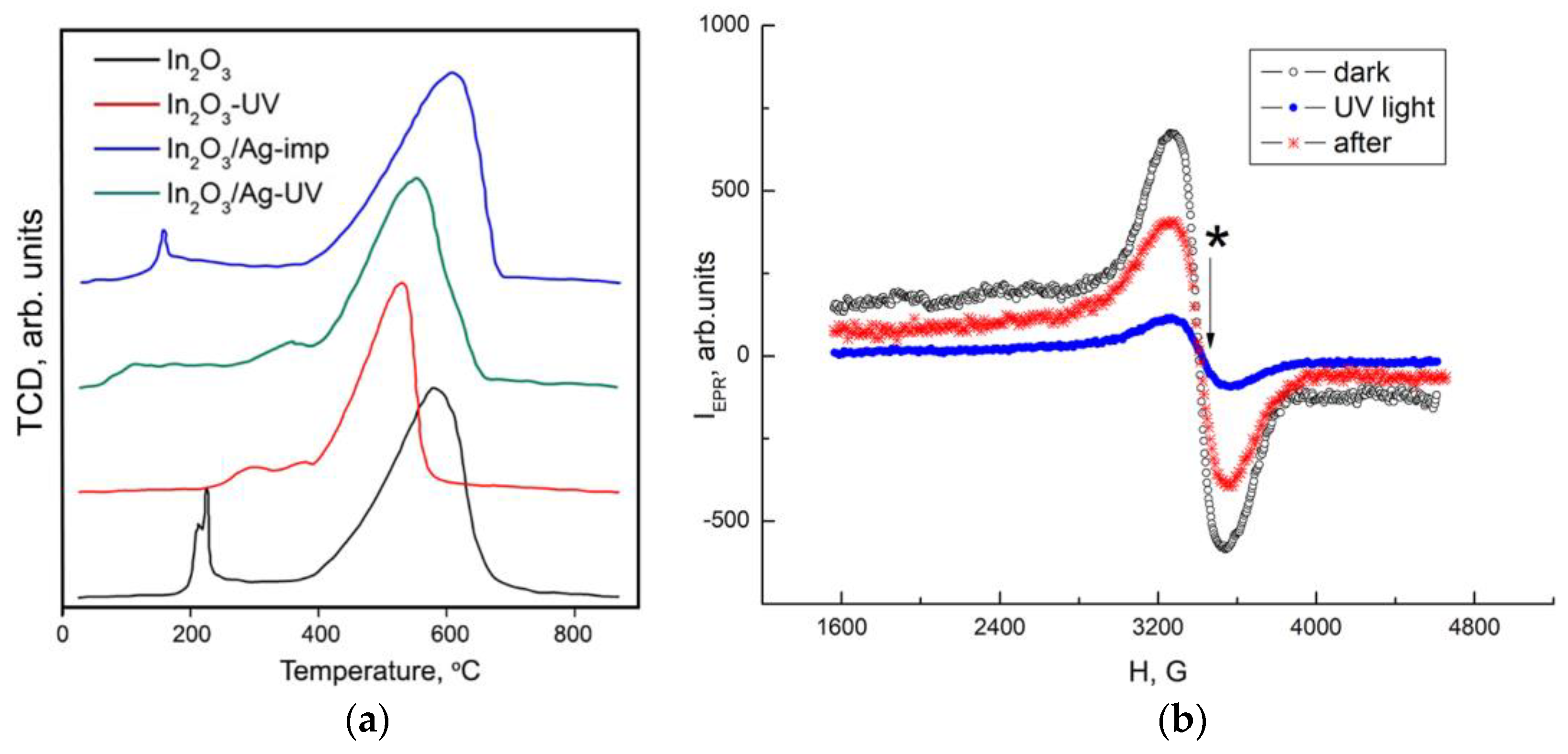

Figure 9. (a) TPR-H2 profiles of In2O3 and In2O3/Ag nanocomposites; (b) EPR spectra of In2O3-UV sample in dark conditions, under UV illumination and in 20 min after that.
Figure 10. Schematic representation of the modifier effect on In2O3/Ag nanocomposites interaction with CO in air at room temperature.
Table 1. Microstructure characteristics and composition of investigated samples.
|Sample||dXRD (In2O3), nm||dEM, nm||Ssurf, m2/g|
|In2O3||10 ± 1||5–15 (a)||-||88 ± 5||-|
|In2O3/Ag-imp||5–34 (a)||4.5 ± 0.4 (c)|
|In2O3/Ag-UV||1000–3000 (b)||1.5 ± 0.3 (d)|
(a) particle size (from transmission electron microscopy, TEM); (b) particle size (from scanning electron microscopy, SEM); (c) obtained by ICP-MS analysis; (d) obtained by X-ray fluorescence analysis.
Table 2. The results of the TPR-H2 experiments.
|Sample||Hydrogen Cnsumption, mol H2 per 1 mol In2O3||Tmax, °C|
|Total||at 25–370 °C||at 370–850 °C|
|In2O3||4.0 ± 0.5||0.5 ± 0.1||3.5 ± 0.5||590|
|In2O3-UV||3.6 ± 0.5||0.4 ± 0.1||3.2 ± 0.5||530|
|In2O3/Ag-imp||3.9 ± 0.5||0.5 ± 0.1||3.4 ± 0.5||600|
|In2O3/Ag-UV||3.5 ± 0.5||0.6 ± 0.1||2.9 ± 0.5||550|
