Microwave-Hydrothermal Synthesis of SnO2-CNTs Hybrid Nanocomposites with Visible Light Photocatalytic Activity

College of Chemistry and Chemical Engineering, Hunan Institute of Engineering, Xiangtan 411104, China
Key Laboratory of Jiangxi Province for Persistent Pollutants Control and Resource Recycle, Nanchang Hangkong University, Nanchang 330063, China
Author to whom correspondence should be addressed.
Nanomaterials 2017, 7(3), 54;
Submission received: 11 October 2016 / Accepted: 29 November 2016 / Published: 3 March 2017
(This article belongs to the Special Issue Nanomaterials for Water Treatment)


SnO2 nanoparticles coated on carbon nanotubes (CNTs) were prepared via a simple microwave-hydrothermal route. The as-obtained SnO2-CNTs composites were characterized using X-ray powder diffraction, Raman spectroscopy, and transmission electron microscopy. The photocatalytic activity of as-prepared SnO2-CNTs for degradation of Rhodamine B under visible light irradiation was investigated. The results show that SnO2-CNTs nanocomposites have a higher photocatalytic activity than pure SnO2 due to the rapid transferring of electrons and the effective separation of holes and electrons on SnO2-CNTs.

1. Introduction

In recent years, a great deal of effort has been devoted to decomposing harmful organic pollution [1,2]. Compared with the conventional oxidation processes, semiconductor photocatalysis is an attractive candidate because of its many advantages, such as complete mineralization of the pollutants, application of the ultraviolet (UV) or solar light, and low cost [3,4,5,6]. Considering that sunlight contains only 5% ultraviolet light (λ < 380 nm), there is a need for the development of visible light-responsive photocatalysts with high activity.
SnO2—a stable and large n-type bandgap (Eg = 3.6 eV) semiconductor [7,8]—has excellent photoelectronic properties, gas sensitivity, and superior chemical stability, which has already been used in sensors [9], solar cells [10], lithium-ion batteries [11], and photocatalysts [12]. Recently, a nanocomposite of SnO2-CNTs (carbon nanotubes) and SnO2 coated on nitrogen-doped carbon nanotubes was synthesized, and exhibited excellent photocatalytic activity due to the electron transfer between SnO2 and CNTs [13,14]. However, the photocatalytic properties of SnO2-CNTs prepared by microwave-hydrothermal method have been scarcely investigated.
CNTs-metal oxide hybrid materials have been suggested as a new material for heterogeneous photocatalysis due to the large surface area and unique electrical properties of CNTs. Some studies on TiO2-CNTs composites have proved that the conductive structure of the CNTs facilitates accepting and transferring the light-excited electrons from the conduction band (CB) of the semiconductor to the CNTs surface, which hampered the recombination of the electron-hole pairs [15,16,17,18]. In addition, CNTs as supports would probably promote the catalysts separation during the recycling use compared with solo semiconductor nanoparticles [19].
Microwave-hydrothermal reaction has been used as an effective method for the synthesis of semiconductor nanoparticles. The microwave hydrothermal process used only 0.5–2 h for synthesis of rutile titania, while conventional hydrothermal process needed more than 72 h for rutile phase using the same chemicals. They controlled particle size, morphology, and polymorph of titania under microwave-hydrothermal conditions by adjusting the various reaction parameters, such as pH, heating time, and pressure [20]. Very recently, Ponzoni et al. successfully synthesized lanthanum-doped bismuth ferrites using a microwave-assisted hydrothermal method, which strongly confirms the effectiveness of microwave hydrothermal reaction as a fast method for the synthesis of nanoparticles having specific properties [21]. Yin et al. synthesized nitrogen-doped titania nanoparticles by the microwave hydrothermal method in 5–60 min, and they showed excellent photocatalytic ability for the oxidative destruction of nitrogen monoxide under irradiation by both visible light and UV light [22,23]. In this work, SnO2-CNTs hybrid nanostructures were prepared via simple microwave-hydrothermal method and the photodegradation of Rhodamine B (RhB) was investigated for the first time. In addition, the photocatalytic mechanism of SnO2-CNTs is also discussed in detail.

2. Materials and Methods

Synthesis of SnO2-CNTs: The synthesis of SnO2-CNTs was carried out via microwave- hydrothermal method optimized by Cao research group for pure SnO2 [12]. In a typical procedure, 2 mmol of SnCl4·5H2O and 30 mg CNTs were added to a stirred deionized water (20 mL) while stirring for 10 min at room temperature. Then, 20 mL Lysin solution (10 mmol) was added dropwise to above solution. After being vigorously stirred for 30 min at room temperature, the final clear solution was transferred to a Teflon vessel of the MDS-6 (Microwave Digestion/Extraction System, Shanghai Sineo Microwave Chemical Technology Co. Ltd., Shanghai, China). The reaction mixture was heated up to 180 °C in 3 min, then this temperature was maintained for 10 min. After the Teflon vessel was cooled down, the as-prepared powders were repeatedly washed with the distilled water and ethanol several times, filtered, and dried in an oven at 60 °C.
Characterization of SnO2-CNTs: Samples were characterized by using X-ray diffraction (XRD) with a Bruker D8 Advance diffractometer (Karlsruhe, Germany) using Cu Kα (λ = 1.5418 Å) and operating at 40 kV and 40 mA. Transmission electron microscopy (TEM) images were obtained by using a JEM-2100 transmission electron microscope (Japan Electron Optics Laboratory Co. Ltd., Tokyo, Japan) operating with an accelerating voltage of 100 kV. Raman spectrum was recorded on a RM-1000 (Renishaw plc, New Mills, UK) with excitation from the 514 nm line of an Ar-ion laser with a power of about 5 mW. Infrared spectra (IR) measurements were carried out on a NICOLET 560 (Thermo Nicolet Corporation, Madison, WI, USA) Fourier transform infrared spectrophotometer.
Photocatalytic activity test of SnO2-CNTs: The photocatalytic activities of the as-synthesized SnO2-CNTs were evaluated in terms of the degradation of RhB in an aqueous solution. A 500-W Xenon lamp (Institute of Electric Light Source, Beijing, China) with a maximum emission of about 470 nm was the visible light source. A cutoff filter (λ > 420 nm) controlled the light’s wavelength. Sample (50 mg) was suspended in 50 mL of an aqueous solution of 10−5 mol/L RhB. The solution was continuously stirred for about 30 min at room temperature to ensure the establishment of an adsorption–desorption equilibrium among the photocatalyst, RhB, and water before irradiation with visible light. The concentration of RhB was monitored by using a UV-1600 UV-Vis spectrometer (Shanghai Meipuda Instrument Co. Ltd., Shanghai, China).

3. Results and Discussion

To characterize the crystalline structure of the samples, the XRD patterns of SnO2 and SnO2-CNTs nanocomposites are displayed in Figure 1. For SnO2 and SnO2-CNTs nanocomposite catalysts, all of the diffraction peaks observed in the XRD patterns belong to the tetragonal rutile structure of SnO2 (JCPDS card No. 41-1445). The diffraction angle for SnO2-CNTs composites at 2θ = 26.3°, 33.6°, and 51.8° can be assigned to the 110, 101, and 211 planes of the cassiterite SnO2, respectively. It is noteworthy that the characteristic peaks of the CNTs can hardly be identified from SnO2-CNTs nanocomposite. The reason may be that the main peak of CNTs at 25.9° is overlapped with the main peak of anatase SnO2 at 26.6°. The SnO2 average crystalline size can be estimated by Scherrer’s formula:
D = Kλ/Bcosθ
where D is the grain diameter, K (0.89) is the shape factor, λ is the X-ray wavelength of Cu Kα radiation (0.154 nm), θ is the Bragg angle, and β is the experimental full-width half-maximum (FWHM) of the respective diffraction peak. The crystallite grain size of SnO2 were calculated to be about 4.5 nm for pure SnO2 and 5.0 nm for SnO2-CNTs nanocomposite.
Figure 2 shows the Raman spectrum SnO2-CNTs nanocomposites. Typically, the Raman spectrum exhibits bands at 473, 632, 775, 1354, and 1596 cm−1 in the range of 200–2000 cm−1 The Raman peaks appearing at 473 cm−1 can be attributed to the Eg mode, 632 cm−1 to the A1g mode, and 775 cm−1 to the B2g mode of SnO2, respectively [24]. The Raman peaks appearing at 1576 cm−1 and 1352 cm−1 can be attributed to the G band corresponding to the sp2 hybridized carbon and the D band originating from the disordered carbon of CNTs. The Raman analysis demonstrates that the as-synthesized samples comprised rutile-type SnO2 and CNTs.
Figure 3 shows the TEM images of SnO2-CNTs nanocomposites. It can be found that the carbon nanotubes with an external diameter of 20–30 nm are uniformly distributed. After coating with SnO2, all CNTs are uniformly coated with a layer of SnO2 nanoparticles, and very few free nanoparticles were found. The SnO2 nanoparticles deposited on the surface of CNTs are separated, and the particle size is about 5–8 nm (in agreement with the XRD data), estimated using the Scherrer equation.
The ultraviolet-visible diffuse reflection (UV-Vis DRS) spectrum of SnO2 and SnO2-CNTs were measured using a UV-Vis spectrophotometer with an integrating sphere (Hitachi U-3900), as shown in Figure 4. The absorption threshold of pure SnO2 is 372 nm. It presents a strong absorption band only in the UV region. However, SnO2-CNTs sample extended the absorption range to the visible region, and the absorption edge red-shifted from 372 nm to 425 nm compared to pure SnO2, suggesting that SnO2-CNTs has the potential to be an efficient visible-light-activated photocatalyst.
The photocatalytic activities of the as-synthesized nanocomposites were investigated by the photocatalytic oxidation of RhB dye. Figure 5a shows that the spectrum changes during RhB (10−5 mol/L) photodegradation by SnO2-CNTs with different reaction time. The normalized temporal concentration changes (C/C0) of RhB during the photocatalytic process are proportional to the normalized maximum absorbance (A/A0), as can be derived from the change in the RhB absorption profile at a given time interval. The blank experiments show that the degradation of RhB is less than 5% only under visible light irradiation at 150 min (Figure 5b). With the increase of irradiation time, the intensity of the maximum adsorption peak located near 553 nm gradually decreased, indicating the degradation of the RhB dye solutions. When SnO2-CNTs nanocomposites were used as photocatalysts, the degradation of RhB reached 95.60% after 150 min, which is much higher than pure SnO2, with 64.4% degradation of RhB.
To further understand the reaction kinetics of RhB degradation, the apparent pseudo-first-order model expressed by Equation (2) was applied in our experiments [25]:
−ln(C/C0) = kt
where k is the apparent pseudo-first-order rate constant (min−1), C is the RhB concentration in aqueous solution at time t (mol/L), t is irradiation time and C0 is initial RhB concentration (mol/L). Figure 5c shows the first-order linear fit from the experimental data; the k value of SnO2-CNTs and SnO2 were 0.07434 (R2 = 0.99) and 0.01197 (R2 = 0.99) min−1. The result shows that the SnO2-CNTs nanocomposite is a much more effective photocatalyst than pure SnO2.
The photocatalytic performance of SnO2-CNTs is superior to that of SnO2 due to the synergy effect of CNTs as a photosensitizer. The most probable mechanism for the photocatalytic degradation of RhB dye by SnO2-CNTs is proposed (Figure 6). Under visible irradiation, considering the semiconducting property of carbon nanotubes, CNTs may absorb visible light and inject the photo-induced electron into the SnO2 conduction band, which can trigger the formation of very reactive radicals, superoxide radical ion O2·, and hydroxyl radical OH·—both responsible for the degradation of the organic compound. The probable electron transfer mechanism between carbon and semiconductor was experimentally supported by the observed enhanced photocurrent of the composite materials in other investigations [26,27,28,29]. The rapid transferring of electrons on SnO2-CNTs and the larger production of reactive radical species coming from oxygen reduction probably result in the enhanced photocatalytic activity of SnO2-CNTs hybrid nanostructures for the degradation of RhB.

4. Conclusions

SnO2 nanoparticles were successfully coated on CNTs via a simple microwave-hydrothermal method. The composites showed excellent photocatalytic activity compared to pure SnO2. The rapid transferring of electrons on SnO2-CNTs led to the dramatically enhanced photoactivity. The SnO2-CNTs composites would be an excellent photocatalyst for application in environmental protection.


This work was supported by the National Natural Science Foundation of China (21401088) and Open Fund of Key Laboratory of Jiangxi Province for Persistent Pollutants Control and Resource Recycle (No. ST201522010).

Author Contributions

Shuisheng Wu conceived and designed the experiments and wrote the paper; Weili Dai analyzed the data and contributed partial reagents and materials.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Lefebvre, O.; Moletta, R. Treatment of organic pollution in industrial saline wastewater: A literature review. Water Res. 2006, 40, 3671–3682. [Google Scholar] [CrossRef] [PubMed]
  2. Zhang, W.; Wang, C.; Lien, H. Treatment of chlorinated organic contaminants with nanoscale bimetallic particles. Catal. Today 1998, 40, 387–395. [Google Scholar] [CrossRef]
  3. Fujishima, A.; Honda, K. Electrochemical photolysis of water at a semiconductor electrode. Nature 1972, 238, 37–39. [Google Scholar] [CrossRef] [PubMed]
  4. Hoffmann, M.R.; Marin, S.T.; Choi, W.; Bahnemannt, D.W. Applications of Semiconductor Photocatalysis. Chem. Rev. 1995, 95, 69–96. [Google Scholar] [CrossRef]
  5. Ng, Y.H.; Iwase, A.; Bell, N.J.; Kudo, A.; Amal, R. Semiconductor/reduced graphene oxide nanocomposites derived from photocatalytic reactions. Catal. Today 2011, 164, 353–357. [Google Scholar] [CrossRef]
  6. Wu, H.; Wang, Q.; Yao, Y.; Qian, C.; Zhang, X.; Wei, X. Microwave-assisted synthesis and photocatalytic properties of carbon nanotube/zinc sulfide heterostructures. J. Phys. Chem. C 2008, 112, 16779–16783. [Google Scholar] [CrossRef]
  7. Cao, H.; Qiu, X.; Liang, Y.; Zhang, L.; Zhao, M.; Zhu, Q. Sol-gel template synthesis and photoluminescence of n- and p-type semiconductor oxide nanowires. ChemPhysChem 2006, 7, 497–501. [Google Scholar] [CrossRef] [PubMed]
  8. Kuang, Q.; Lao, C.; Wang, Z.L.; Xie, Z.; Zheng, L. High-sensitivity humidity sensor based on single SnO2 nanowire. J. Am. Chem. Soc. 2007, 129, 6070–6071. [Google Scholar] [CrossRef] [PubMed]
  9. Leite, E.R.; Weber, I.T.; Longo, E.; Varela, J. A New Method to Control Particle Size and Particle Size Distribution of SnO2 Nanoparticles for Gas Sensor Applications. Adv. Mater. 2000, 12, 965–968. [Google Scholar] [CrossRef]
  10. Moreno, M.S.; Varela, A.; Otero-Diaz, L.C. Cation nonstoichiometry in tin-monoxide-phase with tweed microstructure. Phys. Rev. B 1997, 56, 5186. [Google Scholar] [CrossRef]
  11. Park, M.-S.; Wang, G.-X.; Kang, Y.-M.; Wexler, D.; Dou, S.-X.; Liu, H.-K. Preparation and electrochemical properties of SnO2 nanowires for application in Lithium-Ion batteries. Angew. Chem. Int. Ed. 2007, 46, 750–753. [Google Scholar] [CrossRef] [PubMed]
  12. Wu, S.S.; Cao, H.Q.; Yin, S.F.; Liu, X.W.; Zhang, X.R. Amino acid-assisted hydrothermal synthesis and photocatalysis of SnO2 nanocrystals. J. Phys. Chem. C 2009, 113, 17893–17898. [Google Scholar] [CrossRef]
  13. Wang, N.; Xu, J.; Guan, L. Synthesis and enhanced photocatalytic activity of tin oxide nanoparticles coated on multiwalled carbon nanotube. Mater. Res. Bull. 2011, 46, 1372–1376. [Google Scholar] [CrossRef]
  14. Wang, L.; Shen, L.; Zhu, L.; Jin, H.; Bing, N.; Wang, L. Preparation and photocatalytic properties of SnO2 coated on nitrogen-doped carbon nanotubes. J. Nanomater. 2012, 2012. [Google Scholar] [CrossRef]
  15. Tian, L.; Ye, L.; Deng, K.; Zan, L. TiO2/carbon nanotube hybrid nanostructures: Solvothermal synthesis and their visible light photocatalytic activity. J. Solid State Chem. 2011, 184, 1465–1471. [Google Scholar] [CrossRef]
  16. Woan, K.; Pyrgiotakis, G.; Sigmund, W. Photocatalytic Carbon-Nanotube-TiO2 Composites. Adv. Mater. 2009, 21, 1–7. [Google Scholar] [CrossRef]
  17. Xu, Y.; Zhuang, Y.; Fu, X. New Insight for Enhanced Photocatalytic Activity of TiO2 by Doping Carbon Nanotubes: A Case Study on Degradation of Benzene and Methyl Orange. J. Phys. Chem. C 2010, 114, 2669–2676. [Google Scholar] [CrossRef]
  18. Bouazza, N.; Ouzzine, M.; Ródenas, M.A.L.; Eder, D.; Linares-Solano, A. TiO2 nanotubes and CNT-TiO2 hybrid materials for the photocatalytic oxidation of propene at low concentration. Appl. Catal. B 2009, 92, 377–383. [Google Scholar] [CrossRef]
  19. Zhang, Y.; Wei, S.; Zhang, H.; Liu, S.; Nawaz, F.; Xiao, F. Nanoporous polymer monoliths as adsorptive supports for robust photocatalyst of Degussa P25. J. Colloid Interface Sci. 2009, 339, 434–438. [Google Scholar] [CrossRef] [PubMed]
  20. Komarneni, S.; Rajhaa, R.K.; Katsuki, H. Microwave-hydrothermal processing of titanium dioxide. Mater. Chem. Phys. 1999, 61, 50–54. [Google Scholar] [CrossRef]
  21. Ponzoni, C.; Cannio, M.; Boccaccini, D.N.; Bahl, C.R.H.; Agersted, K.; Leonelli, C. Ultrafast microwave hydrothermal synthesis and characterization of Bi1−xLaxFeO3 micronized particles. Mater. Chem. Phys. 2015, 162, 69–75. [Google Scholar] [CrossRef]
  22. Yin, S.; Liu, B.; Sato, T. Microwave-assisted hydrothermal synthesis of nitrogen-doped titania nanoparticles. Funct. Mater. Lett. 2008, 1, 173–176. [Google Scholar] [CrossRef]
  23. Yin, S.; Zhang, P.; Liu, B.; Liu, X.; Sato, T.; Xue, D.; Lee, S.W. Microwave-assisted hydrothermal synthesis of nitrogen-doped titania photocatalyst and its DeNOx ability under visible LED light irradiation. Res. Chem. Intermed. 2010, 36, 69–75. [Google Scholar] [CrossRef]
  24. Zhou, J.X.; Zhang, M.S.; Hong, J.M.; Yin, Z. Raman spectroscopic and photoluminescence study of single-crystalline SnO2 nanowire. Solid State Commun. 2006, 138, 242–246. [Google Scholar] [CrossRef]
  25. Yang, L.; Dong, S.; Sun, J.; Feng, J.; Wu, Q.; Sun, S. Microwave-assisted preparation, characterization and photocatalytic properties of a dumbbell-shaped ZnO photocatalyst. J. Hazard. Mater. 2010, 179, 438–443. [Google Scholar] [CrossRef] [PubMed]
  26. Lettmann, C.; Hildenbrand, K.; Kisch, H.; Macyk, W.; Maier, W.F. Visible light photodegradation of 4-chlorophenol with a coke-containing titanium dioxide photocatalyst. Appl. Catal. B 2001, 32, 215–227. [Google Scholar] [CrossRef]
  27. Jung, K.H.; Hong, J.S.; Vittal, R.; Kim, K.J. Enhanced photocurrent of dye-sensitized solar cells by modification of TiO2 with carbon nanotubes. Chem. Lett. 2002, 8, 864–865. [Google Scholar] [CrossRef]
  28. Banerjee, S.; Wong, S.S. Synthesis and characterization of carbon nanotube-nanocrystal heterostructures. Nano Lett. 2002, 2, 195–200. [Google Scholar] [CrossRef]
  29. Li, B.J.; Cao, H.Q. ZnO@graphene composite with enhanced performance for the removal of dye from water. J. Mater. Chem. 2011, 21, 3346–3349. [Google Scholar] [CrossRef]

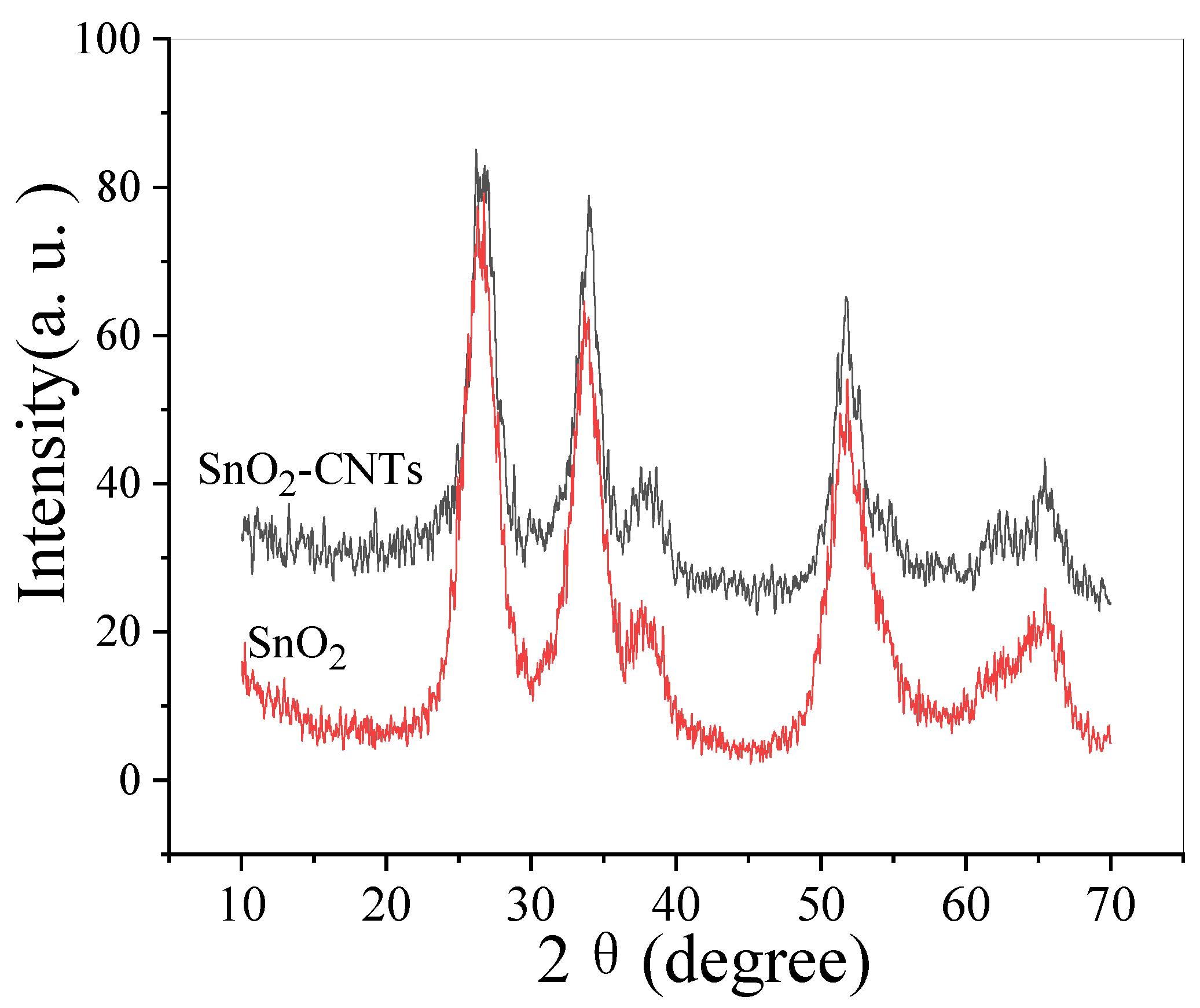

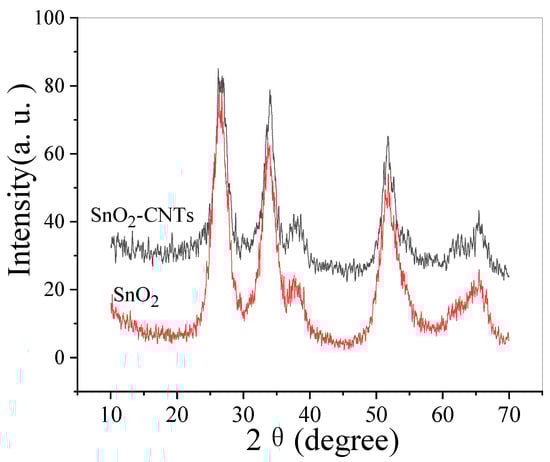

Figure 1. X-ray diffraction (XRD) patterns of SnO2-CNTs (carbon nanotubes) nanocomposite and SnO2.
Figure 1. X-ray diffraction (XRD) patterns of SnO2-CNTs (carbon nanotubes) nanocomposite and SnO2.
Nanomaterials 07 00054 g001

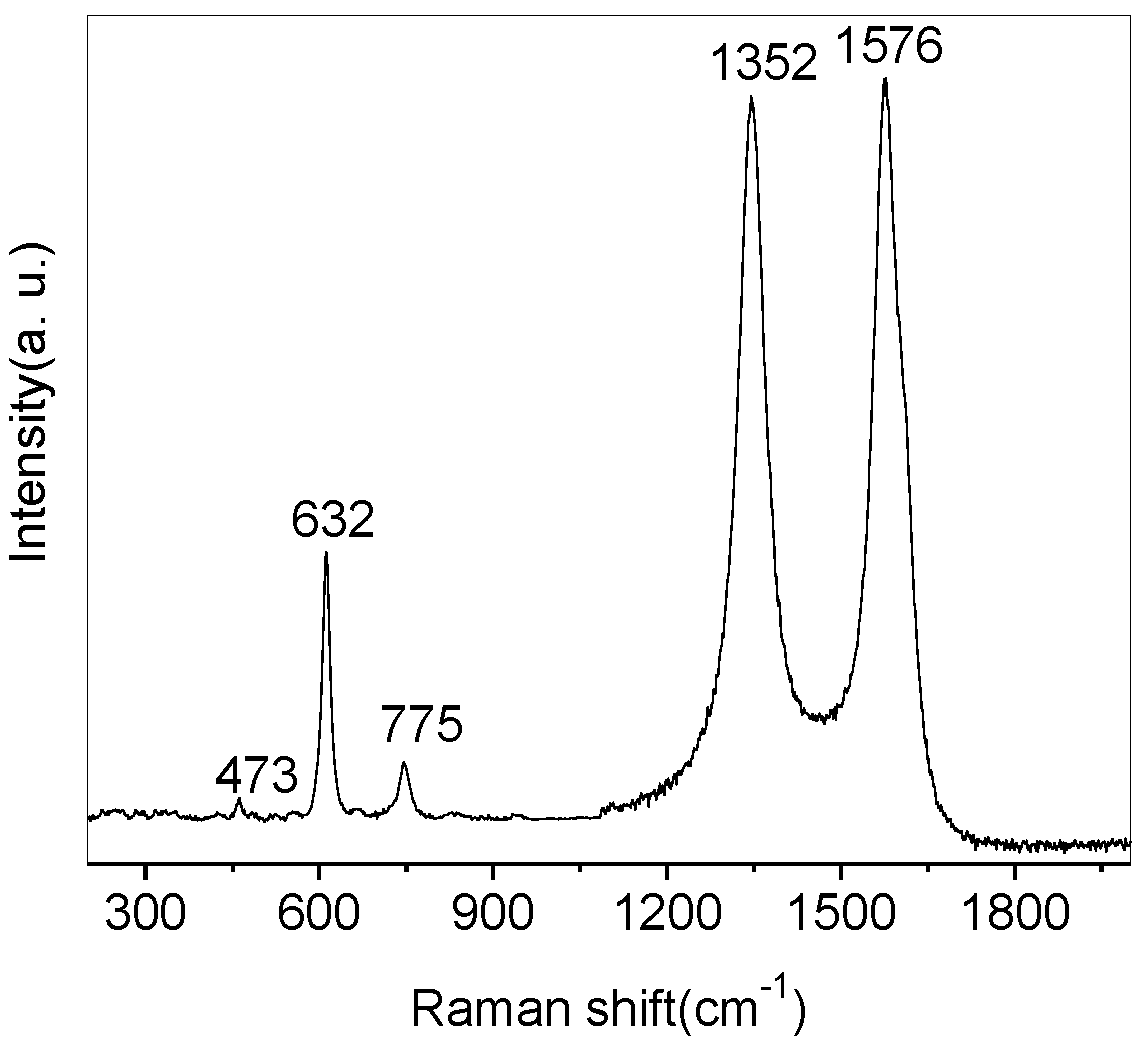

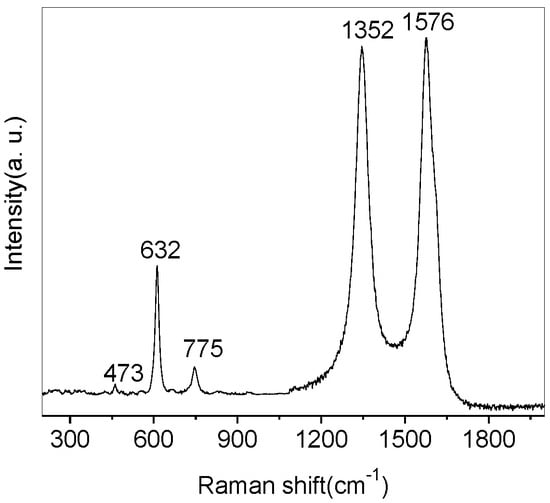

Figure 2. Raman spectrum of SnO2–CNTs nanocomposites.
Figure 2. Raman spectrum of SnO2–CNTs nanocomposites.
Nanomaterials 07 00054 g002

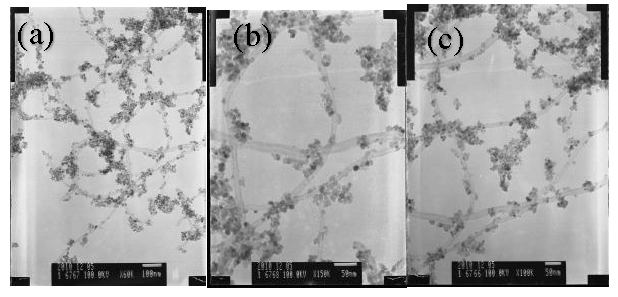

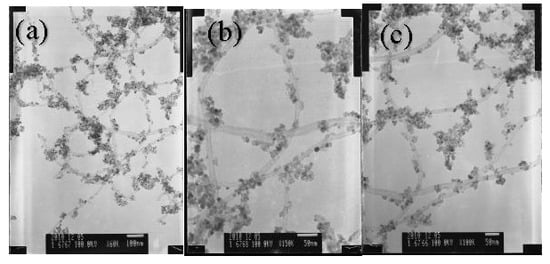

Figure 3. Transmission electron micrographs (TEM) of SnO2-CNTs nanocomposites. (a) low magnification; (b,c) high magnification
Figure 3. Transmission electron micrographs (TEM) of SnO2-CNTs nanocomposites. (a) low magnification; (b,c) high magnification
Nanomaterials 07 00054 g003

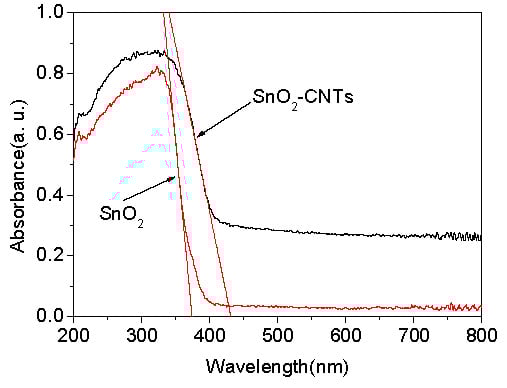

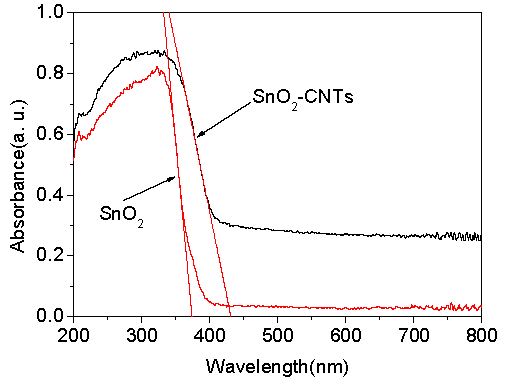

Figure 4. Ultraviolet-visible diffuse reflection (UV-Vis DRS) spectra of SnO2-CNTs and SnO2.
Figure 4. Ultraviolet-visible diffuse reflection (UV-Vis DRS) spectra of SnO2-CNTs and SnO2.
Nanomaterials 07 00054 g004

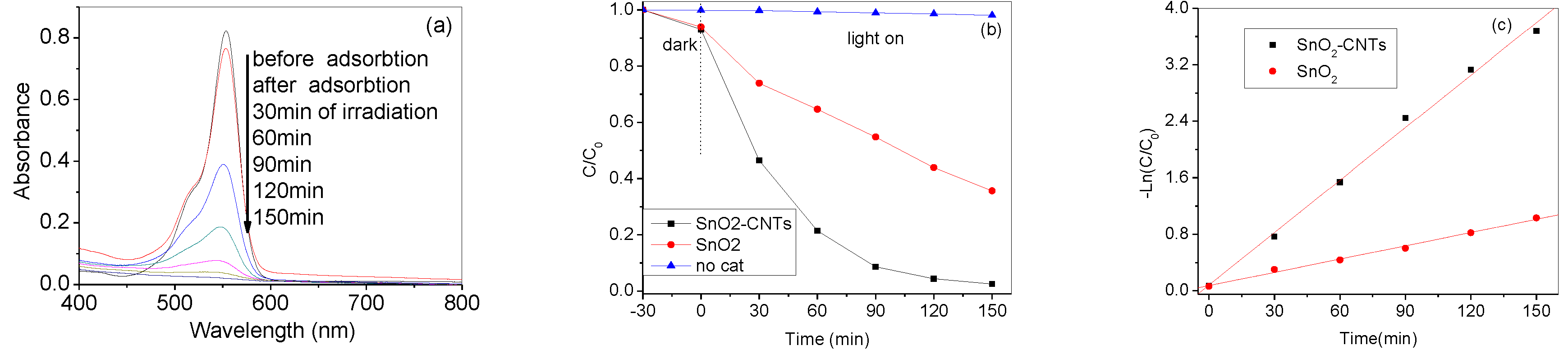

Figure 5. (a) The UV-Vis spectrum changes during Rhodamine B (RhB) (10−5 M) photodegradation by SnO2-CNTs photocatalysts; (b) Plots of photocatalytic degradation of RhB concentration vs. irradiation time in the presence of SnO2-CNTs samples; (c) dependence of −ln(C/C0) on irradiation time.
Figure 5. (a) The UV-Vis spectrum changes during Rhodamine B (RhB) (10−5 M) photodegradation by SnO2-CNTs photocatalysts; (b) Plots of photocatalytic degradation of RhB concentration vs. irradiation time in the presence of SnO2-CNTs samples; (c) dependence of −ln(C/C0) on irradiation time.
Nanomaterials 07 00054 g005

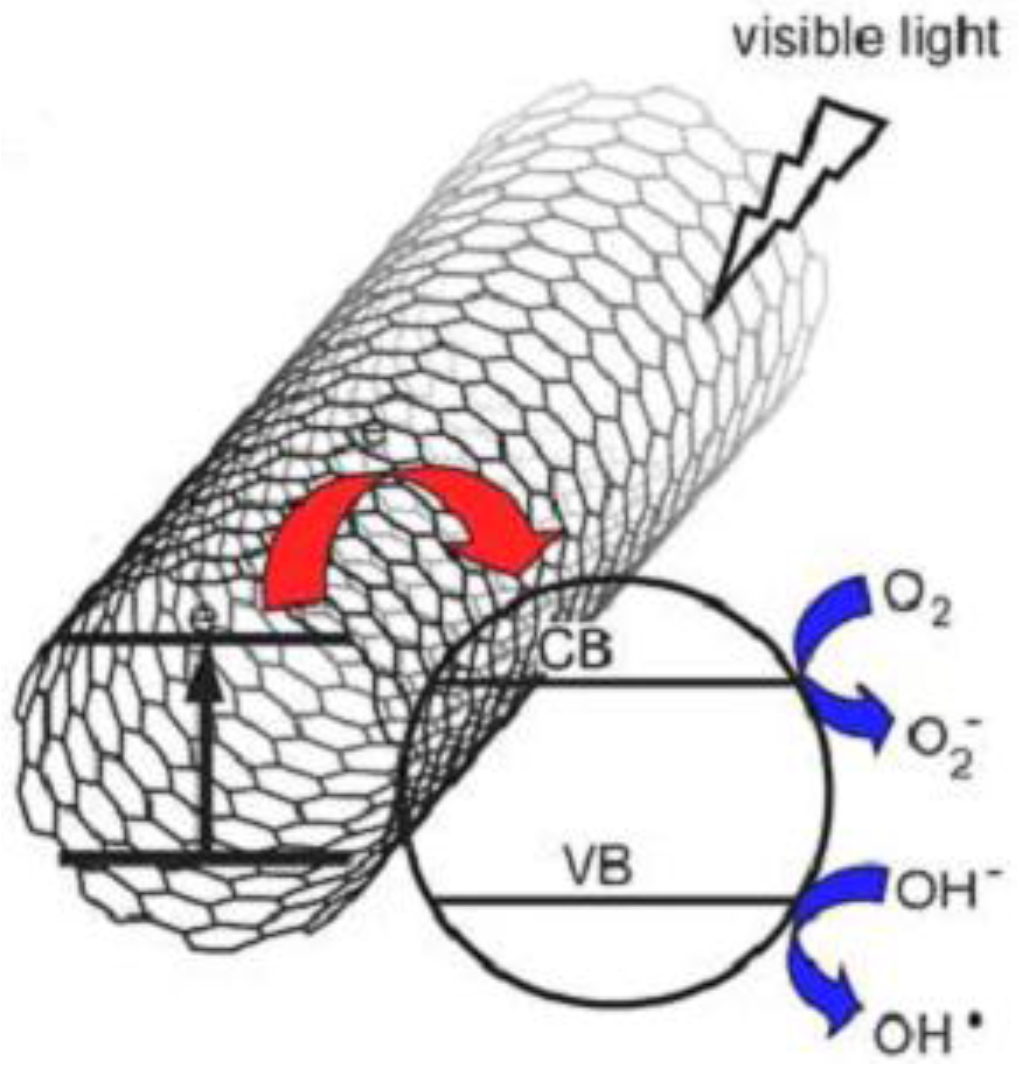

Figure 6. Proposed photocatalytic mechanism of SnO2-CNTs nanostructures. VB: Valence band; CB: conduction band.
