Influence of Solution Properties and Process Parameters on the Formation and Morphology of YSZ and NiO Ceramic Nanofibers by Electrospinning

1
MESA+ Institute for Nanotechnology, University of Twente, P.O. Box 217, 7500 AE Enschede, The Netherlands
2
Department of Complex Tissue Regeneration, MERLN Institute for Technology Inspired Regenerative Medicine, University of Maastricht, 6200 MD, Maastricht, The Netherlands
*
Author to whom correspondence should be addressed.
Academic Editor: Thomas Nann
Nanomaterials 2017, 7(1), 16; https://doi.org/10.3390/nano7010016
Received: 30 November 2016 / Revised: 18 December 2016 / Accepted: 4 January 2017 / Published: 13 January 2017

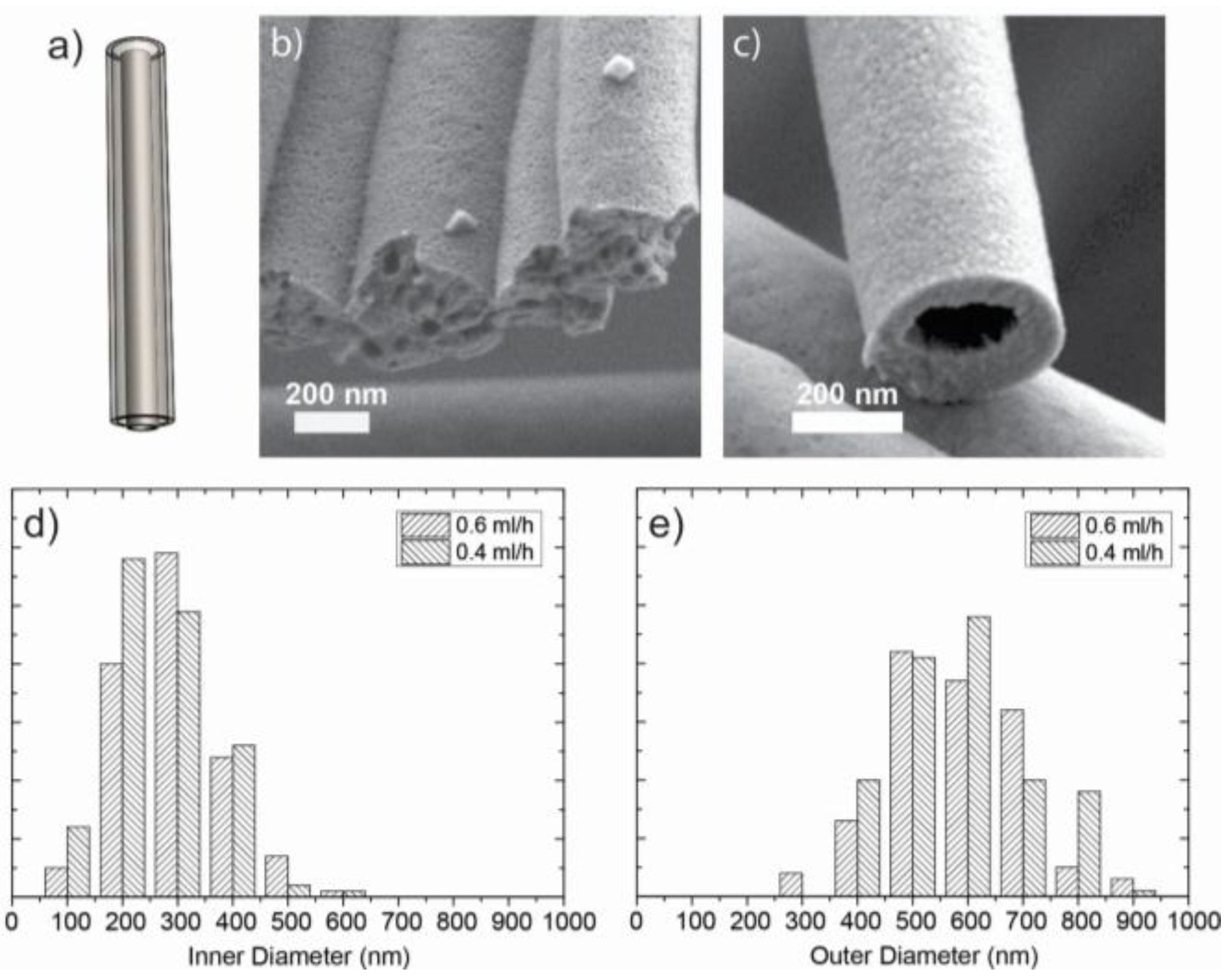

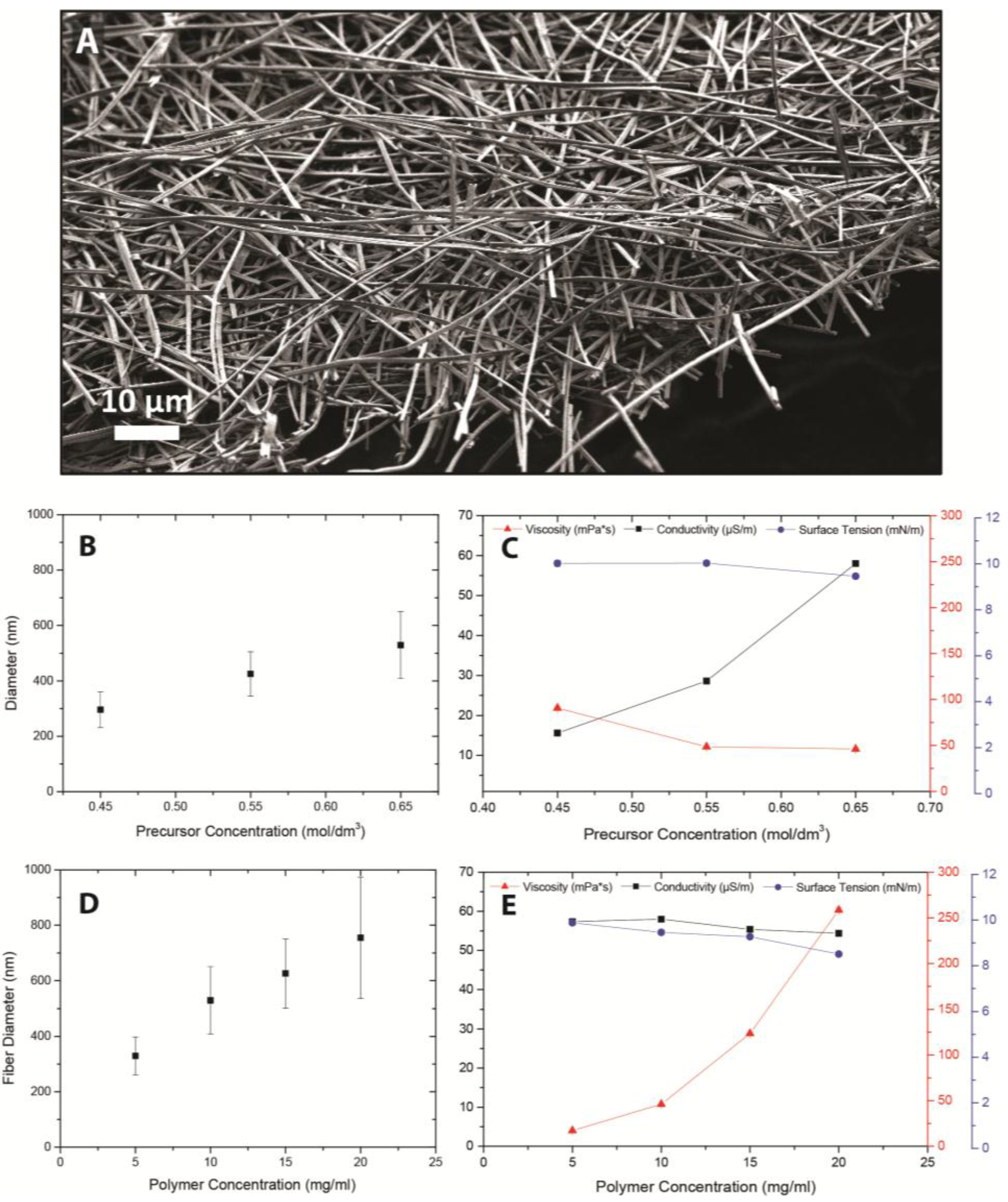

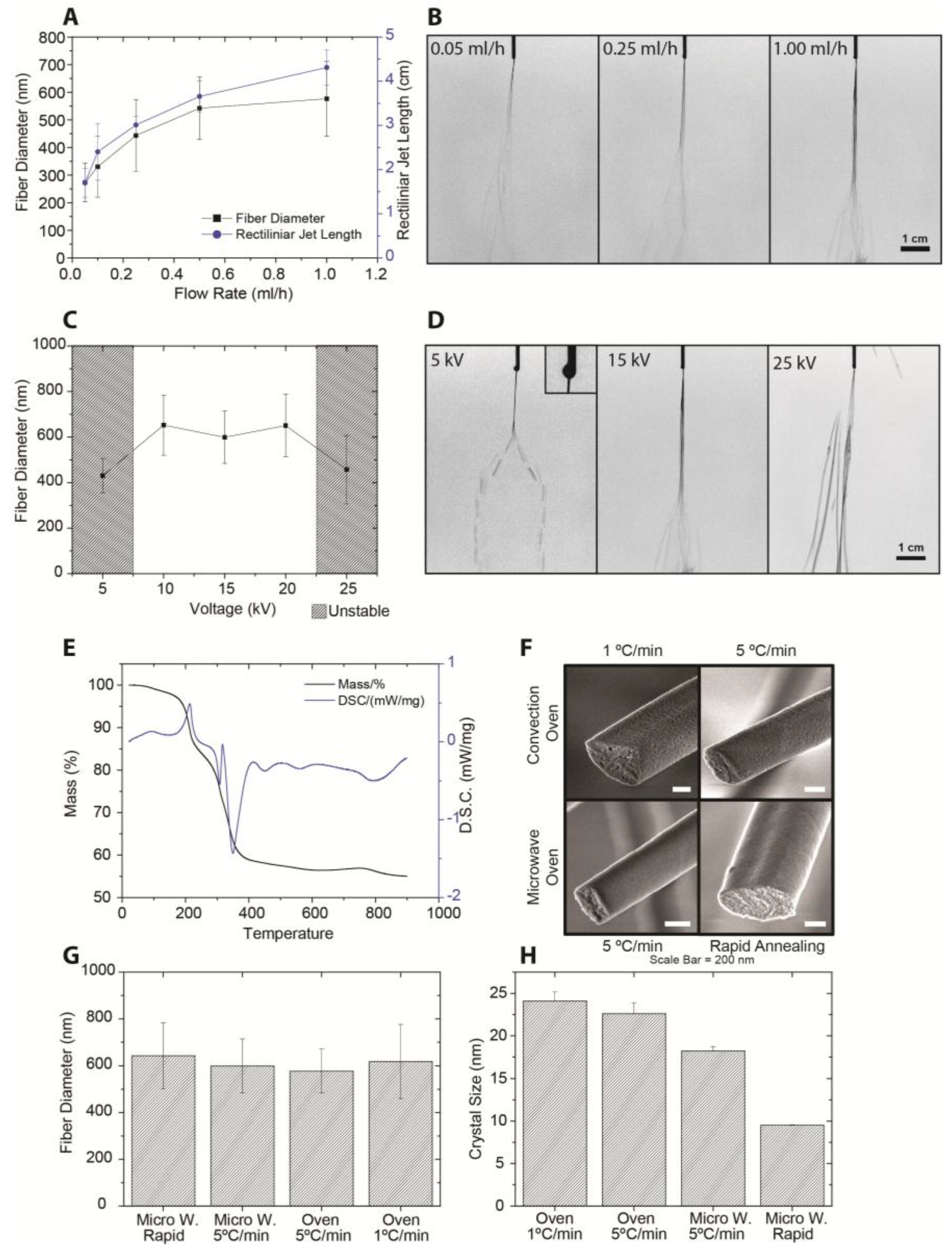

The fabrication process of ceramic yttria-stabilized zirconia (YSZ) and nickel oxide nanofibers by electrospinning is reported. The preparation of hollow YSZ nanofibers and aligned nanofiber arrays is also demonstrated. The influence of the process parameters of the electrospinning process, the physicochemical properties of the spinning solutions, and the thermal treatment procedure on spinnability and final microstructure of the ceramic fibers was determined. The fiber diameter can be varied from hundreds of nanometers to more than a micrometer by controlling the solution properties of the electrospinning process, while the grain size and surface roughness of the resulting fibers are mainly controlled via the final thermal annealing process. Although most observed phenomena are in qualitative agreement with previous studies on the electrospinning of polymeric nanofibers, one of the main differences is the high ionic strength of ceramic precursor solutions, which may hamper the spinnability. A strategy to control the effective ionic strength of precursor solutions is also presented. View Full-Text
Keywords: yttria-stabilized zirconia; YSZ; nickel oxide; NiO; nanofiber; electrospinning; microstructure; spinning process; alignment yttria-stabilized zirconia; YSZ; nickel oxide; NiO; nanofiber; electrospinning; microstructure; spinning process; alignment
Show Figures

Graphical abstract

MDPI and ACS Style

Cadafalch Gazquez, G.; Smulders, V.; Veldhuis, S.A.; Wieringa, P.; Moroni, L.; Boukamp, B.A.; Ten Elshof, J.E. Influence of Solution Properties and Process Parameters on the Formation and Morphology of YSZ and NiO Ceramic Nanofibers by Electrospinning. Nanomaterials 2017, 7, 16.
