Shear-Induced Graphitization in Tongyuanpu Shear Zone, Liaodong Peninsula of Eastern China: Insights from Graphite Occurrences, Nanostructures and Carbon Sources

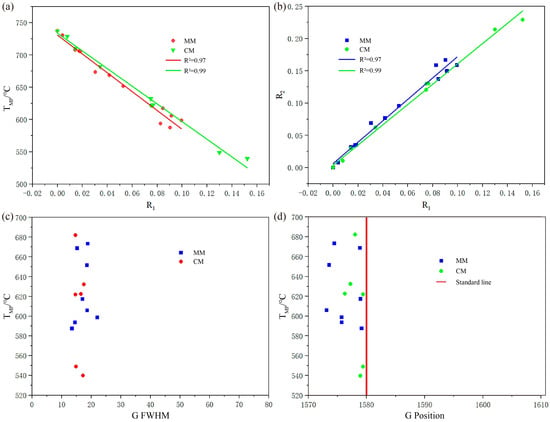

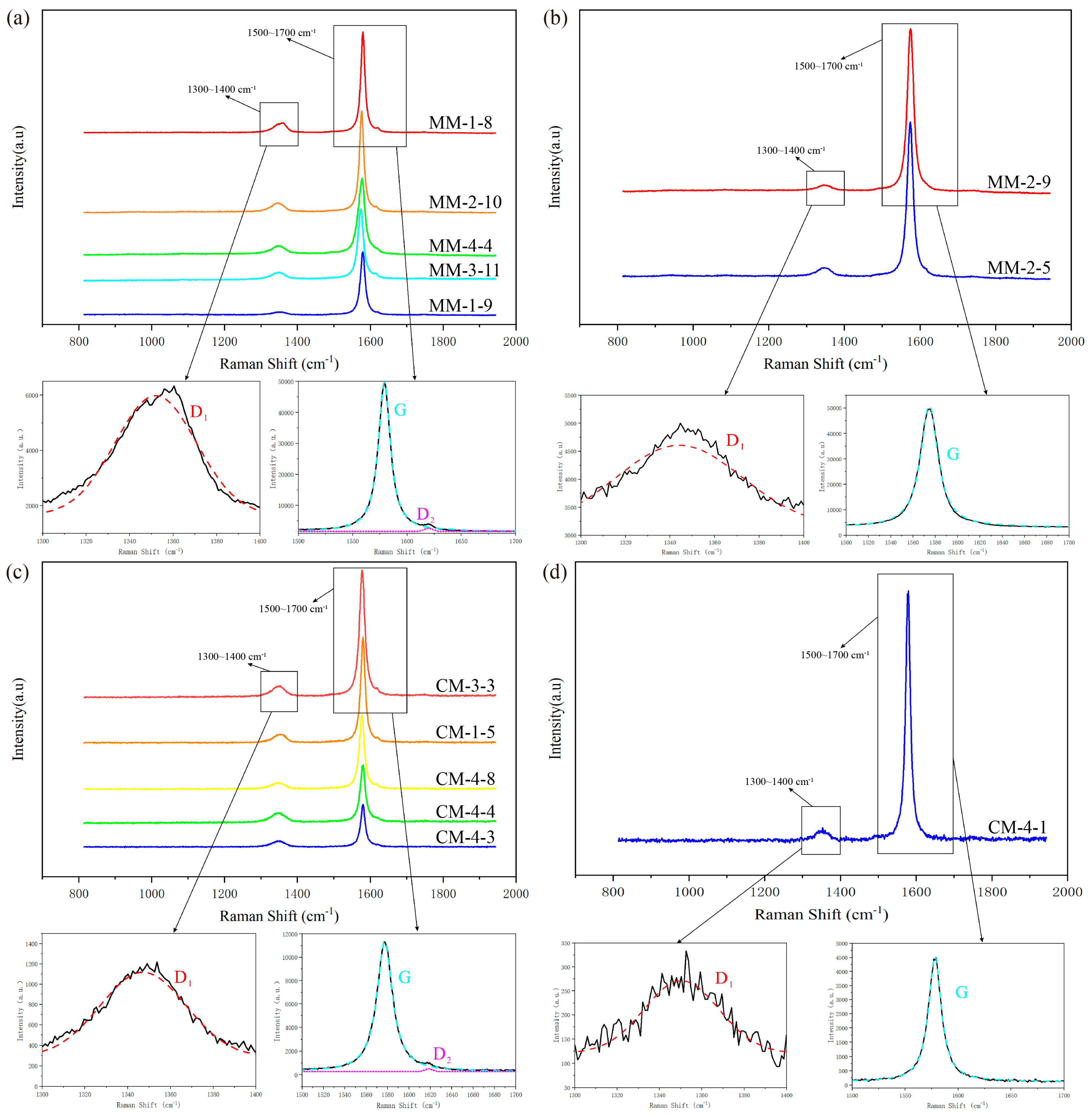

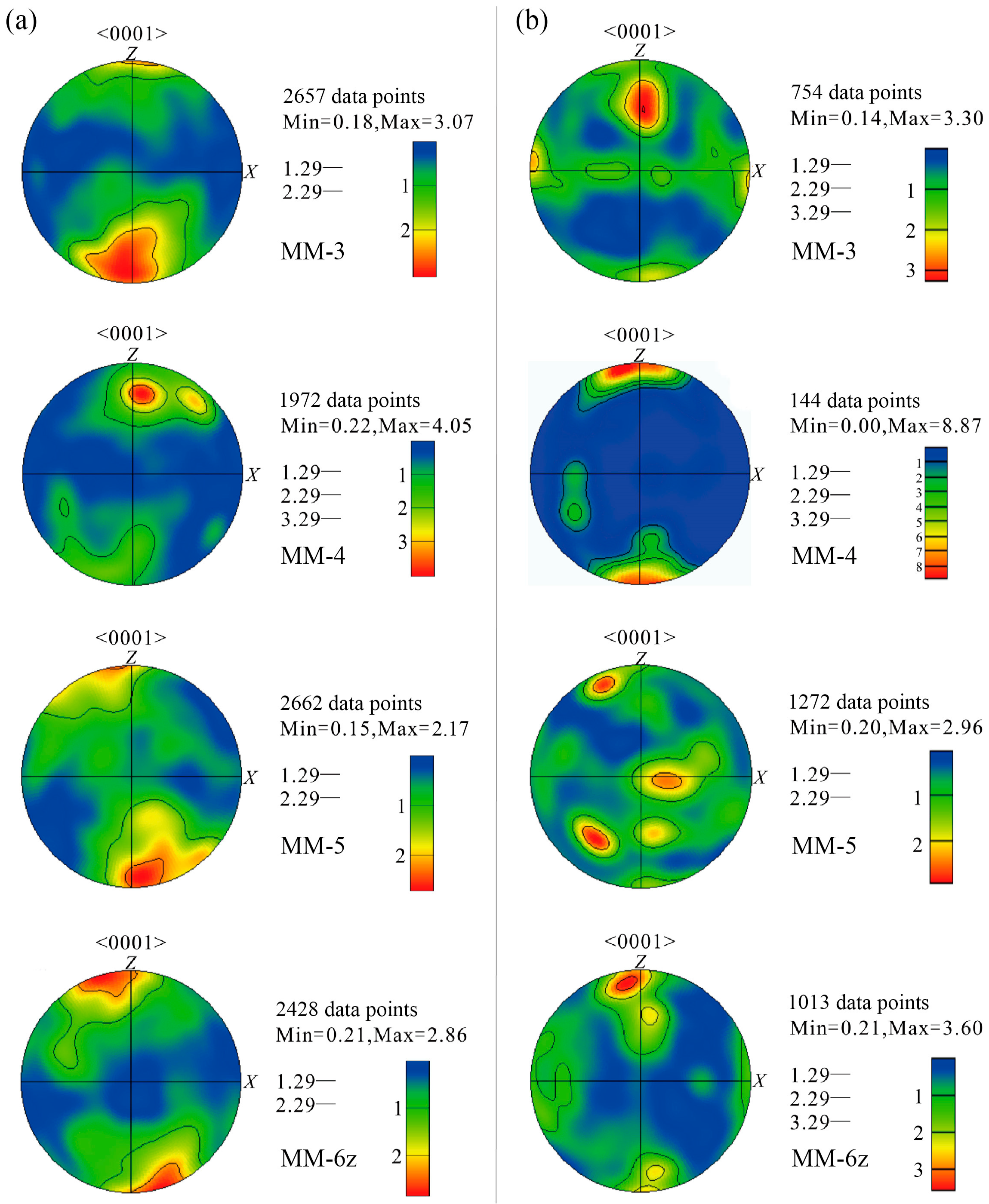

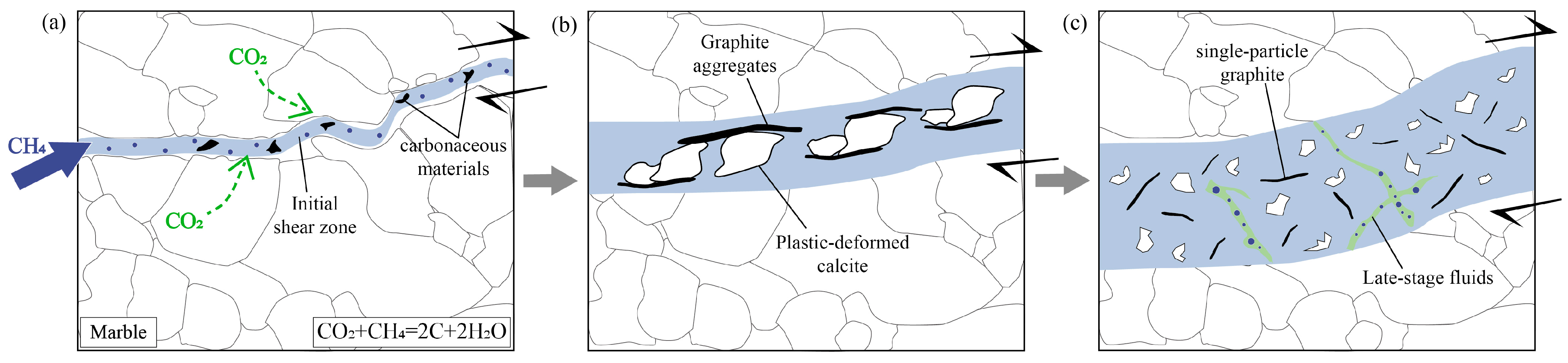

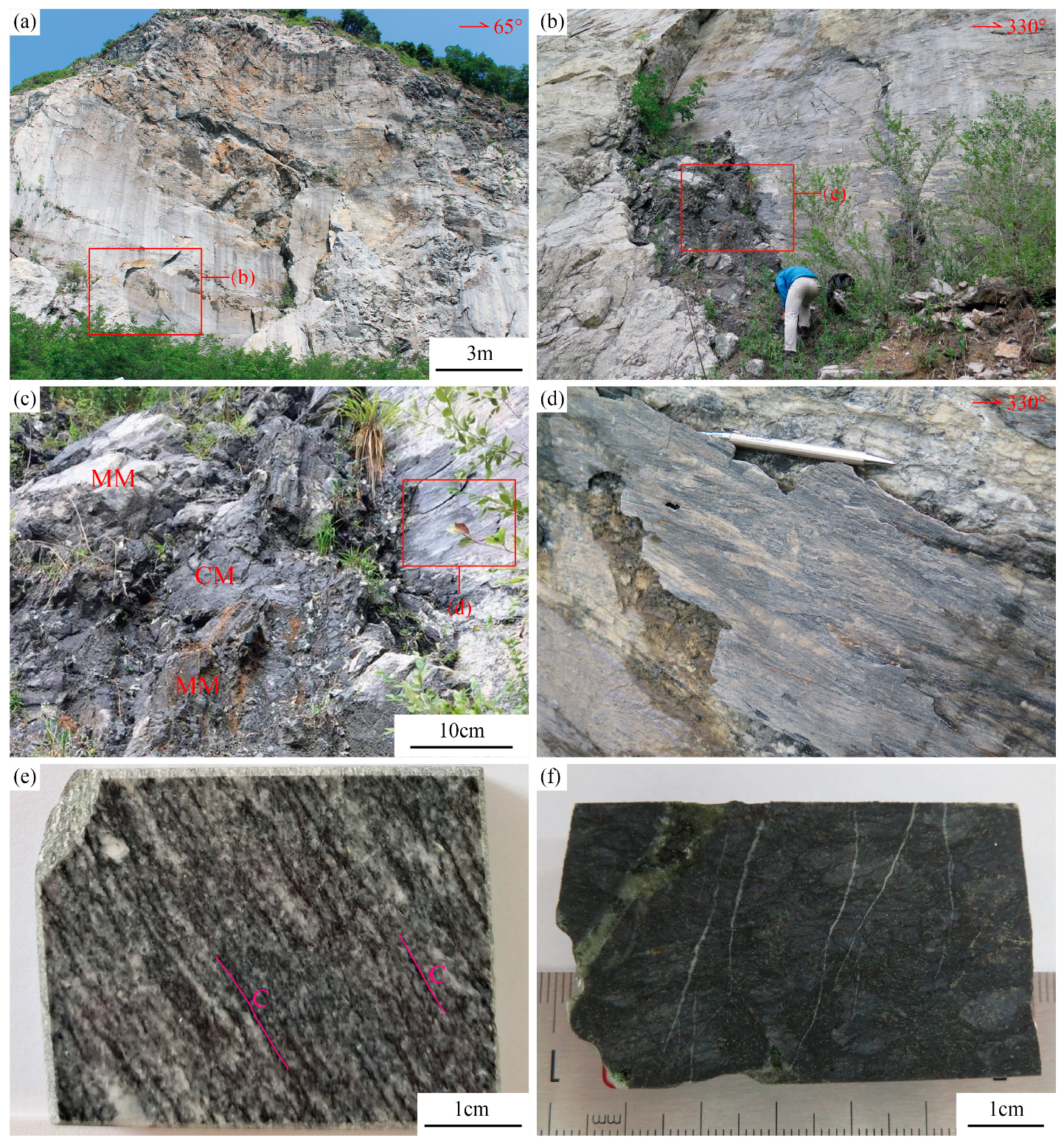

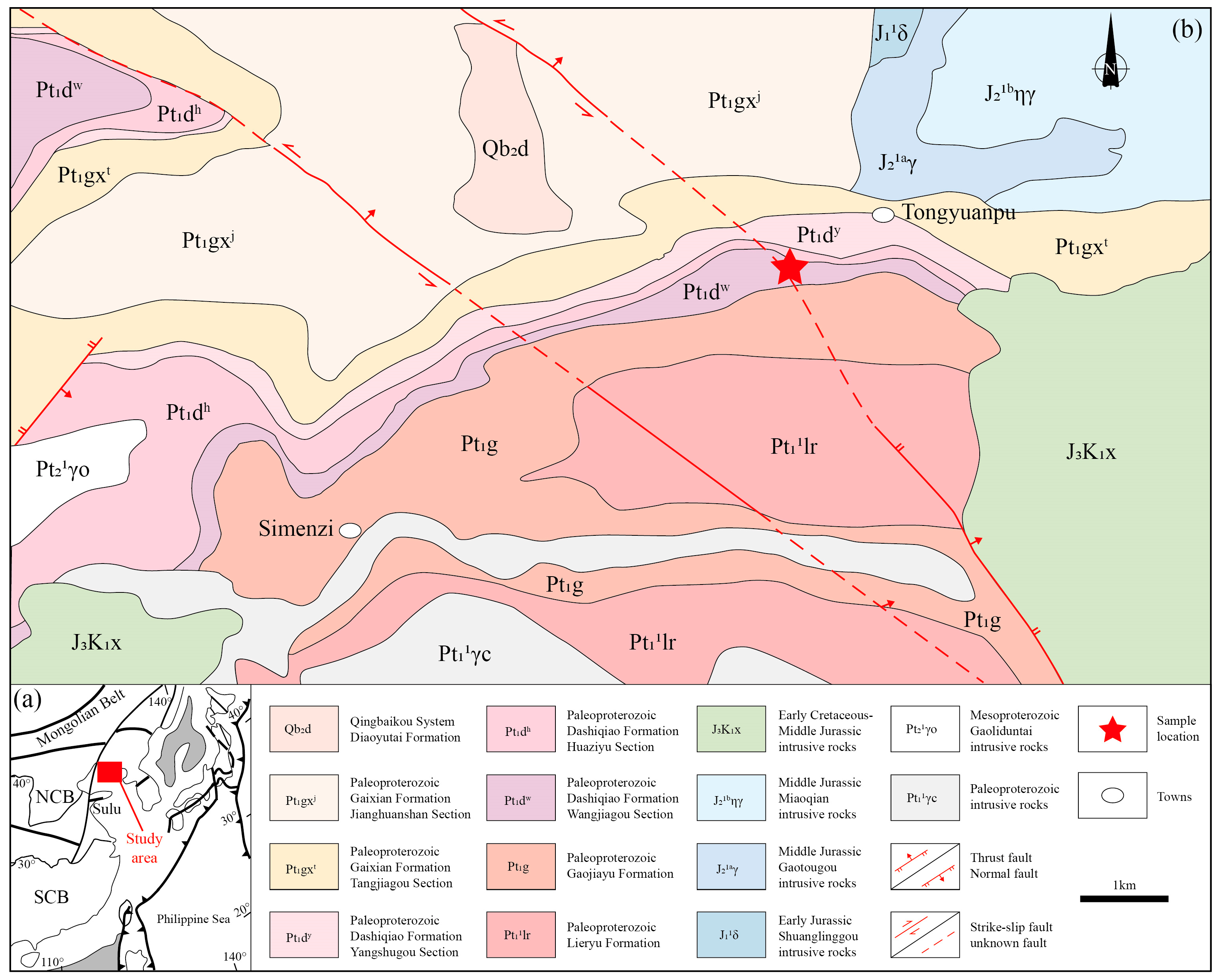

An in-depth study of the genetic mechanisms of graphite in shear zones is crucial for understanding crustal weakening and the origins of inorganic carbon. This research focuses on mylonitic marble (MM) and cataclastic marble (CM) from the Tongyuanpu shear zone of Eastern China. The occurrences, nanostructures, carbon sources, and genesis of graphite were systematically investigated through micro- to ultra-microscale analysis. The results reveal that the MM contains two graphite varieties: C-foliation-aligned bands and stylolite-derived serrated aggregates. Both exhibit strong Z-axis LPO, indicating a deformation temperature below 200 °C. In contrast, the CM features individual graphite particles within fragmented grains. Near-ideal graphite structures are characterized in both types; however, a higher TOC content and a greater graphitization degree are observed in the CM. Raman thermometry indicates metamorphic peak temperatures of 588–673 °C (MM) and 540–682 °C (CM), with the former showing a significant discrepancy from the EBSD results. The δ¹³C_ORG values (−12.21‰ to −8.06‰) suggest fluid-derived carbon sources. We propose that reduction reactions involving high-temperature metamorphic fluids supplied the essential carbon source. Ductile shearing accelerated the graphitization of these carbonaceous materials through the accumulation of local strain energy, while subsequent brittle deformation with frictional sliding further facilitated structural transformation.
