A Strain-Compensated InGaAs/InGaSb Type-II Superlattice Grown on InAs Substrates for Long-Wavelength Infrared Photodetectors

1
Key Laboratory of Artificial Micro- and Nano-Structures of Ministry of Education, School of Physics and Technology, Wuhan University, Wuhan 430072, China
2
National Key Laboratory of Materials for Integrated Circuits, Shanghai Institute of Microsystem and Information Technology, Chinese Academy of Sciences, Shanghai 200050, China
3
Acken Optoelectronics Ltd., Suzhou 215211, China
4
Center of Materials Science and Optoelectronics Engineering, University of Chinese Academy of Sciences, Beijing 100049, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2025, 15(15), 1143; https://doi.org/10.3390/nano15151143
Submission received: 17 June 2025 / Revised: 17 July 2025 / Accepted: 21 July 2025 / Published: 23 July 2025
(This article belongs to the Section Nanoelectronics, Nanosensors and Devices)

Abstract

In this paper, the first demonstration of a highly strained In0.8Ga0.2As/In0.2Ga0.8Sb type-II superlattice structure grown on InAs substrates by molecular beam epitaxy (MBE) for long-wavelength infrared detection was reported. Novel methodologies were developed to optimize the As and Sb flux growth conditions. The quality of the epitaxial layer was characterized using multiple analytical techniques, including differential interference contrast microscopy, atomic force microscopy, high-resolution X-ray diffraction, and high-resolution transmission electron microscopy. The high-quality superlattice structure, with a total thickness of 1.5 μm, exhibited exceptional surface morphology with a root-mean-square roughness of 0.141 nm over a 5 × 5 μm2 area. Single-element devices with PIN architecture were fabricated and characterized. At 77 K, these devices demonstrated a 50% cutoff wavelength of approximately 12.1 μm. The long-wavelength infrared PIN devices exhibited promising performance metrics, including a dark current density of 7.96 × 10−2 A/cm2 at −50 mV bias and a high peak responsivity of 4.90 A/W under zero bias conditions, both measured at 77 K. Furthermore, the devices achieved a high peak quantum efficiency of 65% and a specific detectivity (D*) of 2.74 × 1010 cm·Hz1/2/W at the peak responsivity wavelength of 10.7 µm. These results demonstrate the viability of this material system for long-wavelength infrared detection applications.

1. Introduction

Long-wavelength infrared (LWIR) detectors have critical applications across industrial, military, and cosmological domains. Current photodetection technologies include mercury cadmium telluride (MCT) detectors, quantum well infrared photodetectors (QWIPs), and antimonide-based InAs/GaSb superlattice (T2SL) infrared detectors. The past two decades have witnessed remarkable advancements in T2SL infrared detector technology, establishing it as a compelling alternative to traditional MCT detectors [1,2,3,4], with demonstrations of mega-pixel focal plane arrays (FPAs) reaching dimensions of 1K × 1K [5,6,7]. T2SL detectors theoretically offer performances comparable to state-of-the-art MCT detectors due to their larger electron and hole effective masses (resulting in reduced tunneling current) [8] and lower Auger recombination rates [9,10], culminating in superior dark current characteristics. The development of mature GaSb substrates and MBE processes has enabled the realization of high-quality T2SL materials [11,12]. Additionally, the implementation of sophisticated band engineering techniques, leveraging the unique band alignments of InAs, GaSb, and AlSb binary materials, has significantly enhanced T2SL infrared detector performance [4,13,14]. The inherent flexibility of the 6.1 Å family has facilitated the design and growth of innovative barrier structures capable of mitigating generation–recombination (G-R) current in the depletion region, thereby reducing dark currents. Notable advances include M-structure [4], comprising an AlSb/GaSb/InAs/GaSb/AlSb superlattice as an alternative hole-blocking layer design for LWIR detectors. Despite these significant developments, T2SL infrared detectors have yet to achieve their theoretical prediction of a lower dark current compared to HgCdTe [15]. While most research has focused on GaSb-based materials and devices, InAs-based alternatives, especially higher strained structures, remain relatively unexplored. The growth of LWIR InAs/GaSb SL on GaSb substrates requires thick InSb interface layers for strain balancing, presenting significant technical challenges. To address these limitations, we introduce a novel approach utilizing In0.8Ga0.2As/In0.2Ga0.8Sb alloys, which exhibit tensile strain (1.34% lattice mismatch) and compressive strain (1.87% lattice mismatch), respectively, relative to InAs substrates. This innovative composition not only resolves interface growth challenges but also exploits strain effects advantageously. The incorporation of Ga provides enhanced flexibility in strain compensation and energy band engineering of strain-compensated In1-xGaxAs/InGa1-ySby SLs, where the interplay of tensile and compressive strains potentially increases valence miniband separation, suppressing Auger recombination. Furthermore, InAs substrates offer superior LWIR transmittance compared to GaSb substrates, particularly beneficial for back-illuminated FPA configurations. In this work, we present the first demonstration of highly strained type-II In0.8Ga0.2As/In0.2Ga0.8Sb SL (HS-T2SL) material and photodetector structures grown on InAs substrates by MBE. Following the optimization of InAs buffer and SL growth conditions, PIN structures were fabricated into mesa devices. The comprehensive characterization of surface morphology and structural properties was conducted using differential interference contrast microscopy (DIC), atomic force microscopy (AFM), high-resolution X-ray diffraction (HRXRD), and high-resolution transmission electron microscopy (HRTEM).

2. Materials and Methods

The band structure of In0.8Ga0.2As (4.45 nm)/In0.2Ga0.8Sb (3.55 nm) strain-compensated SL was calculated by using the 8-band k.p method in the nextnano software (version 3.1.0.0). Band structure simulations at 77 K revealed a bandgap (Ec1-EHH1) of 0.0961 eV, corresponding to a theoretical cutoff wavelength of approximately 12.9 μm. Based on the band structure calculations in Figure 1, the SL samples were engineered to achieve a 100% cutoff wavelength of 13.0 μm, with each period comprising an 8.0 nm total thickness (4.45 nm In0.8Ga0.2As and 3.55 nm In0.2Ga0.8Sb sub-layers). The incorporation of 20% Ga into InAs layers and 20% In into GaSb layers generated a tensile strain (−1.34% lattice mismatch) in the In0.8Ga0.2As sub-layer and a compressive strain (+1.87% lattice mismatch) in the In0.2Ga0.8Sb sub-layer relative to InAs substrates, resulting in near-zero net strain. The sub-layer thicknesses were maintained below the critical thickness predicted by the Matthews and Blakeslee model [16].
The growth of In0.8Ga0.2As/In0.2Ga0.8Sb strain-compensated superlattice (SL) structures was performed using a custom-designed solid-source molecular beam epitaxy system equipped with valved cracker cells for both arsenic and antimony sources. The epitaxial growth was conducted on 2-inch undoped InAs (100) substrates. To achieve the precise control of group III elemental compositions within individual SL layers, the system utilized dual indium and gallium effusion cells. The substrate preparation process followed a rigorous protocol: initial outgassing at 150 °C for 30 min in the loading chamber, followed by secondary outgassing at 300 °C for 30 min in the preparation chamber. Subsequently, the substrates underwent a carefully controlled heating sequence in the growth chamber, initially ramping at 15 °C/min to 500 °C, followed by a more gradual increase at 5 °C/min under As2 overpressure until the appearance of a (2 × 4) RHEED reconstruction pattern, marking the deoxidation temperature (Td). The As2 overpressure was systematically increased with substrate temperature until reaching 520 °C, corresponding to the maximum pressure required for GaAs growth at approximately 1 μm/h. Thermal oxide desorption was completed at Td + 10 °C for 5 min, culminating in a well-defined (2 × 4) reconstruction RHEED pattern. A critical 100 nm thick InAs buffer layer was deposited at Td −50 °C, maintaining minimal As2 flux necessary for stable (2 × 4) surface reconstruction, establishing optimal conditions for subsequent SL growth.
Two PIN devices (samples A and B) were grown at temperatures of 400 °C and 385 °C, respectively, for the quality characterization and comparison of materials. The PIN architecture consisted of a 200 nm thick Si-doped N+ contact layer (n = 5 × 1017 cm−3), followed by a non-intentionally doped 1.0 μm absorber region, and a 300 nm thick Be-doped P+ contact layer (p = 1 × 1018 cm−3) with a 3 nm InAs cap layer. The growth rates were precisely controlled at 1 Å/s for sample A and 0.5 Å/s for sample B to maintain optimal material quality at different growth temperatures. Unlike conventional InAs/GaSb T2SL structures, our design eliminated the need for additional strain-balancing interfaces, simplifying the growth process. The growth sequence (Figure 2) incorporated As and Sb soak periods for layer transitions, with initial optimization performed using a 160 nm thick SL under excess As2 and Sb2 flux conditions to establish correct periodicity and average strain. As2 flux calibration was achieved through surface reconstruction transitions between (2 × 4) and (4 × 2) of the InGaAs layer, utilizing a novel superlattice-based calibration method involving the successive reduction in As2 flux during InGaAs/InGaSb SL growth until observing the transition from As-rich 2× to In-rich 4× reconstruction. Sb2 flux was calibrated using GaSb homoepitaxy at 1 Å/s. The RHEED analysis shown in Figure 3 revealed clear (2 × 4) patterns for InGaAs sub-layers and (1 × 3) patterns for InGaSb sub-layers, confirming stable growth conditions throughout the epitaxial process.

3. Results and Discussion

3.1. Materials’ Characterization

The surface morphology and crystalline quality of the SL epitaxial layers were comprehensively characterized using DIC microscopy, atomic force microscopy, and high-resolution X-ray diffraction. As shown in Figure 4, DIC analysis of both PIN structures (samples A and B) revealed smooth surfaces with minimal defect density. AFM measurements demonstrated exceptional surface quality, exhibiting well-defined atomic steps with root-mean-square (RMS) roughness values of 0.153 nm and 0.141 nm over 5 × 5 μm2 areas for samples A and B, respectively, as depicted in Figure 5, confirming the achievement of step-flow growth mode at both growth temperatures. The variation in atomic step density between samples was attributed to subtle differences in the substrate miscut angles. Crystalline quality assessment via HRXRD was performed using a Philips X’pert diffractometer with ω-2θ scan mode for 188-period samples (approximately 1.5 μm thickness). As shown in Figure 6, sample A exhibited up to 10th order satellite peaks with a full width at half maximum (FWHM) value of 15.2 arcsec for the SL +1 satellite peak, while sample B showed 9th order satellite peaks with an FWHM of 18.7 arcsec, both indicating high crystalline quality. The absence of peak splitting in higher-intensity, lower-order peaks further confirmed the stability and precision of the growth conditions.
High-resolution transmission electron microscopy (HRTEM) analysis was conducted on [110] oriented cross-sectional specimens prepared from samples A and B using conventional mechanical polishing techniques. High-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) micrographs revealed well-defined periodic sub-layer structures along the growth direction in both samples, as shown in Figure 7. The HAADF intensity contrast, which scales with the square of atomic number (Z), enabled clear differentiation between constituent elements (Sb: Z = 51, Ga: Z = 31, As: Z = 33, In: Z = 49), with InGaSb sub-layers appearing brighter due to the higher Z-value of Sb atoms. Sample A, grown at a higher temperature, exhibited superior interfacial flatness compared to sample B, which showed notable fluctuations at the InGaAs/InGaSb interfaces. This enhanced interface quality was attributed to improved atomic migration kinetics at elevated growth temperatures.
Strain distribution analysis was performed using geometric phase analysis (GPA) [17] of 2048 × 2048-pixel HAADF-STEM micrographs, with the InAs homogeneous buffer layer serving as an internal reference. Figure 8c shows the mapping of the out-plane strain tensor εzz, which revealed a systematic strain distribution pattern: InGaAs sub-layers exhibited negative strain due to their smaller lattice constant relative to the InAs substrate, while InGaSb sub-layers showed positive strain owing to their larger lattice constant. The averaged strain profile along the growth direction extracted from Figure 8c is drawn in Figure 8a. The periodic alternation between tensile and compressive strain regions corresponded precisely to the InGaAs and InGaSb sub-layers, respectively. The strain mapping confirmed the presence of sharp, well-defined interfaces between tensile and compressive sub-layers, corroborating the HAADF-STEM observations and validating the optimization of growth conditions.

3.2. Device Characterization of LWIR PIN Photodetectors

In order to preliminarily test the performance of PIN devices, single-element PIN devices were fabricated from sample A using wet etching and standard photolithography, producing rectangular mesas ranging from 100 × 100 μm2 to 1000 × 1000 μm2 without antireflection coating or passivation treatment. Optical and electrical characterization of these long-wavelength infrared highly strained type-II superlattice (LWIR HS-T2SL) devices was performed using Fourier transform infrared (FTIR) spectroscopy. At 77 K under zero bias, the top-illuminated devices demonstrated exceptional performance metrics: a peak responsivity of 4.90 A/W, a 50% cutoff wavelength at approximately 12.1 μm (Figure 9a), and a peak quantum efficiency of 65% (Figure 9b). The specific detectivity (D*) reached 2.74 × 1010 cm·Hz1/2/W at the peak responsivity wavelength of 10.7 µm under zero bias conditions (Figure 9c). Dark current density measurements at 77 K, as shown in Figure 10, revealed consistent behavior across different mesa areas, indicating minimal surface leakage current contribution. The devices exhibited dark current densities below 5 × 10−1 A/cm2 at reverse biases less than −0.2 V, decreasing to approximately 7.96 × 10−2 A/cm2 at −50 mV.

4. Conclusions

This work demonstrates the successful development of highly strained InGaAs/InGaSb type-II superlattice (T2SL) structures grown on InAs substrates by molecular beam epitaxy for long-wavelength infrared detection. Through precise control of the growth parameters and comprehensive materials’ characterization, we have established the viability of this novel detector architecture. Surface morphology analysis revealed exceptional smoothness, while high-resolution X-ray diffraction and cross-sectional high-resolution transmission electron microscopy confirmed superior structural and crystalline quality, validating our growth optimization strategy. The fabricated PIN photodetector achieved a 50% cutoff wavelength of 12.1 μm and a peak responsivity of 4.90 A/W and demonstrated a dark current density of 7.96 × 10−2 A/cm2 at −50 mV when operated at 80 K. These results establish both the feasibility and reproducibility of highly strained InGaAs/InGaSb superlattice growth, providing a robust foundation for the future development of InAs-based long-wavelength infrared detection systems.

Author Contributions

Conceptualization, methodology, data curation, writing—original draft. preparation: H.Z.; writing—review and editing, funding acquisition, Y.C.; supervision, project administration C.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (NNSFC) (No. U2241227).

Data Availability Statement

Data underlying the results presented in this paper are not publicly available at this time but may be obtained from the authors upon reasonable request.

Acknowledgments

We are deeply appreciative of Acken Optoelectronics Ltd. for its support with the material characterizations. Additionally, we extend our thanks for the support provided by SKY Technology Development Co., LTD., Chinese Academy of Sciences.

Conflicts of Interest

Author Yiqiao Chen was employed by the Acken Optoelectronics Ltd. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Delaunay, P.-Y.; Nguyen, B.M.; Hoffman, D.; Huang, E.K.-W.; Razeghi, M. Background Limited Performance of Long Wavelength Infrared Focal Plane Arrays Fabricated from M-Structure InAs–GaSb Superlattices. IEEE J. Quantum Electron. 2009, 45, 157–162. [Google Scholar] [CrossRef]
  2. Gautam, N.; Kim, H.S.; Kutty, M.N.; Plis, E.; Dawson, L.R.; Krishna, S. Performance improvement of longwave infrared photodetector based on type-II InAs/GaSb superlattices using unipolar current blocking layers. Appl. Phys. Lett. 2010, 96, 231107. [Google Scholar] [CrossRef]
  3. Haugan, H.J.; Mahalingam, K.; Brown, G.J.; Mitchel, W.C.; Ullrich, B.; Grazulis, L.; Elhamri, S.; Wickett, J.C.; Stokes, D.W. Growth of short-period InAs∕GaSb superlattices. J. Appl. Phys. 2006, 100, 123110. [Google Scholar] [CrossRef]
  4. Nguyen, B.-M.; Hoffman, D.; Delaunay, P.-Y.; Razeghi, M. Dark current suppression in type II InAs∕GaSb superlattice long wavelength infrared photodiodes with M-structure barrier. Appl. Phys. Lett. 2007, 91, 163511. [Google Scholar] [CrossRef]
  5. Haddadi, A.; Ramezani-Darvish, S.; Chen, G.; Hoang, A.M.; Nguyen, B.-M.; Razeghi, M. High Operability 1024$\, \times\, $1024 Long Wavelength Type-II Superlattice Focal Plane Array. IEEE J. Quantum Electron. 2012, 48, 221–228. [Google Scholar] [CrossRef]
  6. Manurkar, P.; Ramezani-Darvish, S.; Nguyen, B.-M.; Razeghi, M.; Hubbs, J. High performance long wavelength infrared mega-pixel focal plane array based on type-II superlattices. Appl. Phys. Lett. 2010, 97, 193505. [Google Scholar] [CrossRef]
  7. Wu, J.; Liu, Y.; Zhou, W.; Wang, X.; Wei, Q.; Wang, J.; Cao, S.; Liu, B.; Huang, L. Demonstration of 1280 × 1024 long-wavelength infrared FPA with 10 μm pixel pitch based on InAs/GaSb type-II superlattice. Infrared Phys. Technol. 2022, 123, 104199. [Google Scholar] [CrossRef]
  8. Razeghi, M.; Haddadi, A.; Hoang, A.M.; Huang, E.K.; Chen, G.; Bogdanov, S.; Darvish, S.R.; Callewaert, F.; McClintock, R. Advances in antimonide-based Type-II superlattices for infrared detection and imaging at center for quantum devices. Infrared Phys. Technol. 2013, 59, 41–52. [Google Scholar] [CrossRef]
  9. Mohseni, H.; Litvinov, V.I.; Razeghi, M. Interface-induced suppression of the Auger recombination in type-II InAs/GaSb superlattices. Phys. Rev. B 1998, 58, 15378–15380. [Google Scholar] [CrossRef]
  10. Youngdale, E.R.; Meyer, J.R.; Hoffman, C.A.; Bartoli, F.J.; Grein, C.H.; Young, P.M.; Ehrenreich, H.; Miles, R.H.; Chow, D.H. Auger lifetime enhancement in InAs–Ga1−xInxSb superlattices. Appl. Phys. Lett. 1994, 64, 3160–3162. [Google Scholar] [CrossRef]
  11. Allen, L.P.; Flint, J.P.; Meshew, G.; Dallas, G.; Trevethan, J.; Lubyshev, D.; Qiu, Y.M.; Fastenau, J.M.; Liu, A.W.K. 100mm GaSb Substrate Manufacturing for IRFPA Epi Growth. In Proceedings of the Conference on Infrared Technology and Applications XXXVIII, Baltimore, MD, USA, 23–27 April 2012; SPIE-The International Society for Optical Engineering: Bellingham, WA, USA, 2012; Volume 8353. [Google Scholar] [CrossRef]
  12. Martinez, R.; Tybjerg, M.; Flint, P.; Fastenau, J.; Lubyshev, D.; Liu, A.W.K.; Furlong, M.J. A Study of the Preparation of Epitaxy-ready Polished Surfaces of (100) Gallium Antimonide Substrates Demonstrating Ultra-Low Surface Defects for MBE Growth. In Proceedings of the 42 Conference on Infrared Technology and Applications XLII, Baltimore, MA, USA, 18–21 April 2016; SPIE-The International Society for Optical Engineering: Bellingham, WA, USA, 2016; Volume 9819. [Google Scholar] [CrossRef]
  13. Razeghi, M.; Nguyen, B.-M. Band gap tunability of Type II Antimonide-based superlattices. Phys. Procedia 2010, 3, 1207–1212. [Google Scholar] [CrossRef]
  14. Ting, D.Z.Y.; Hill, C.J.; Soibel, A.; Keo, S.A.; Mumolo, J.M.; Nguyen, J.; Gunapala, S.D. A high-performance long wavelength superlattice complementary barrier infrared detector. Appl. Phys. Lett. 2009, 95, 023508. [Google Scholar] [CrossRef]
  15. Kwan, D.; Kesaria, M.; Anyebe, E.A.; Huffaker, D. Recent trends in 8–14 μm type-II superlattice infrared detectors. Infrared Phys. Technol. 2021, 116, 103756. [Google Scholar] [CrossRef]
  16. Matthews, J.W.; Blakeslee, A.E. Defects in epitaxial multilayers. J. Cryst. Growth 1974, 27, 118–125. [Google Scholar] [CrossRef]
  17. Cherkashin, N.; Reboh, S.; Hÿtch, M.J.; Claverie, A.; Preobrazhenskii, V.V.; Putyato, M.A.; Semyagin, B.R.; Chaldyshev, V.V. Determination of stress, strain, and elemental distribution within In(Ga)As quantum dots embedded in GaAs using advanced transmission electron microscopy. Appl. Phys. Lett. 2013, 102, 173115. [Google Scholar] [CrossRef]

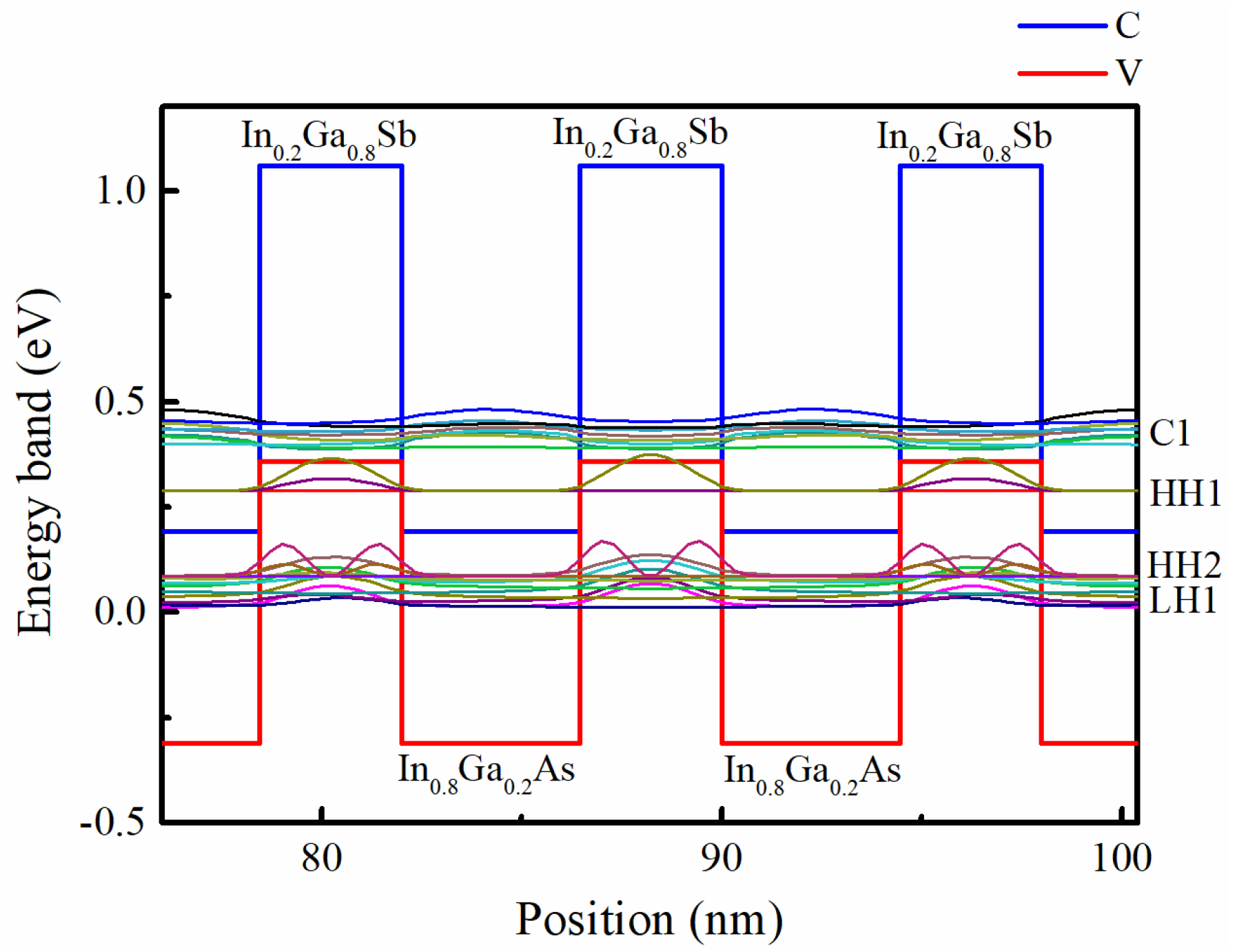

Figure 1. Calculated band structure of In0.8Ga0.2As (4.45 nm)/In0.2Ga0.8Sb (3.55 nm) strain-compensated SL along the growth direction with 8 nm period. Conduction miniband (C1), first heavy hole miniband (HH1), second heavy hole miniband (HH2), and first light hole miniband (LH1) are marked in the figure.
Figure 1. Calculated band structure of In0.8Ga0.2As (4.45 nm)/In0.2Ga0.8Sb (3.55 nm) strain-compensated SL along the growth direction with 8 nm period. Conduction miniband (C1), first heavy hole miniband (HH1), second heavy hole miniband (HH2), and first light hole miniband (LH1) are marked in the figure.
Nanomaterials 15 01143 g001

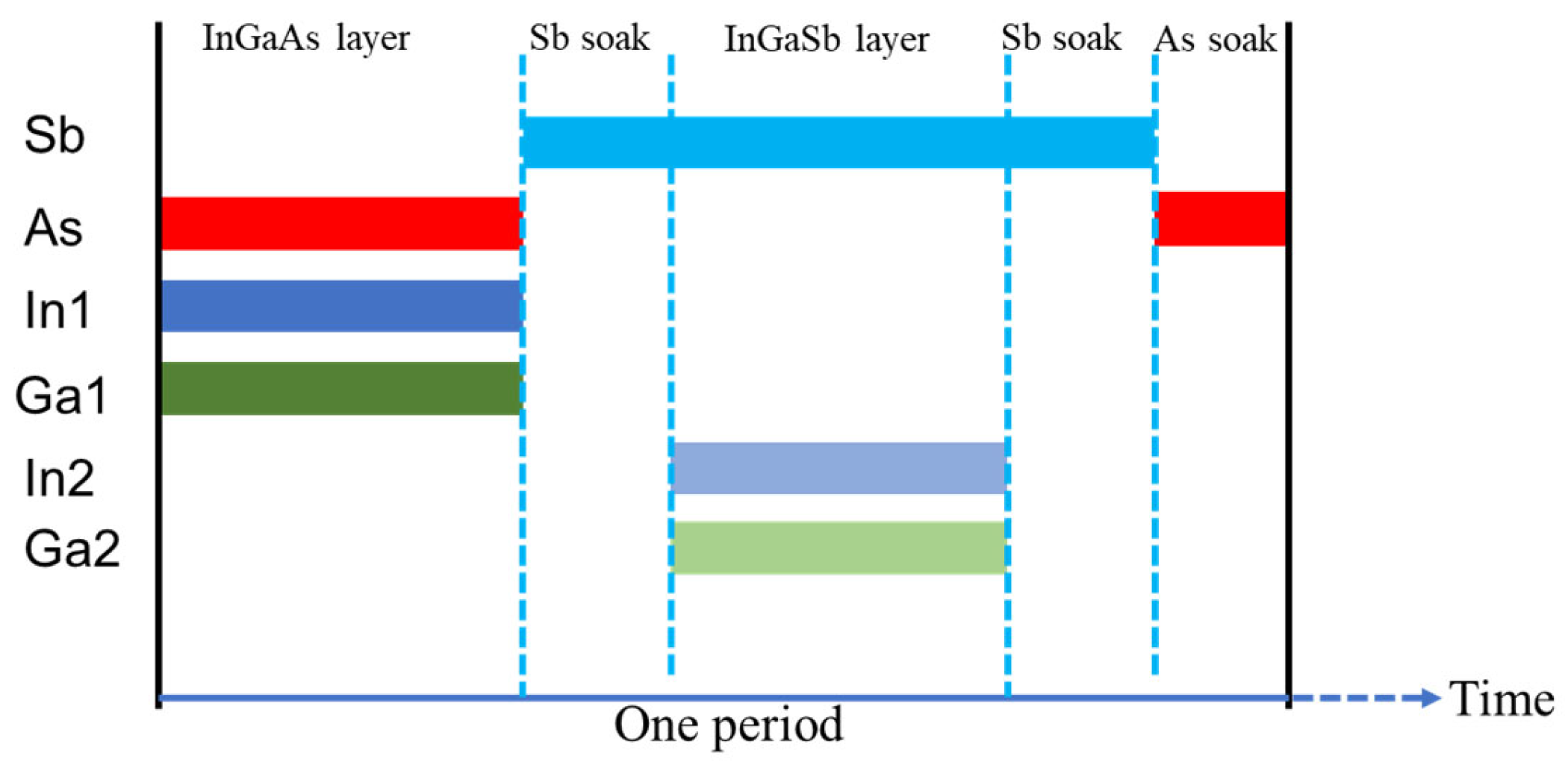

Figure 2. Schematic diagram of shutter sequences for one period of SL.
Figure 2. Schematic diagram of shutter sequences for one period of SL.
Nanomaterials 15 01143 g002

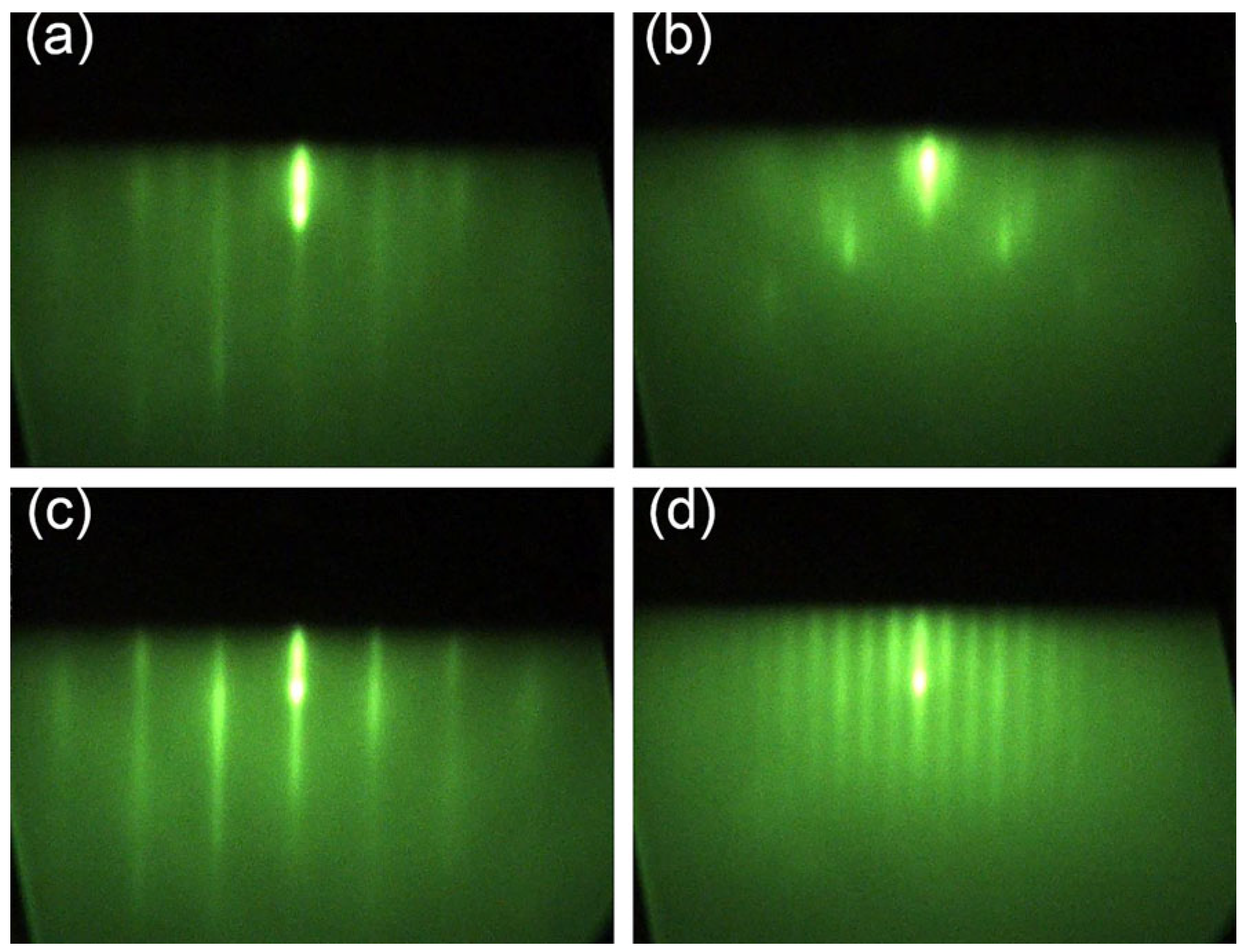

Figure 3. RHEED patterns of (2 × 4) reconstruction for InGaAs constituent layer (a,b) and (1 × 3) reconstruction for InGaSb constituent layer (c,d) along [110] azimuth and [1,2,3,4,5,6,7,8,9,10] azimuth, respectively.
Figure 3. RHEED patterns of (2 × 4) reconstruction for InGaAs constituent layer (a,b) and (1 × 3) reconstruction for InGaSb constituent layer (c,d) along [110] azimuth and [1,2,3,4,5,6,7,8,9,10] azimuth, respectively.
Nanomaterials 15 01143 g003

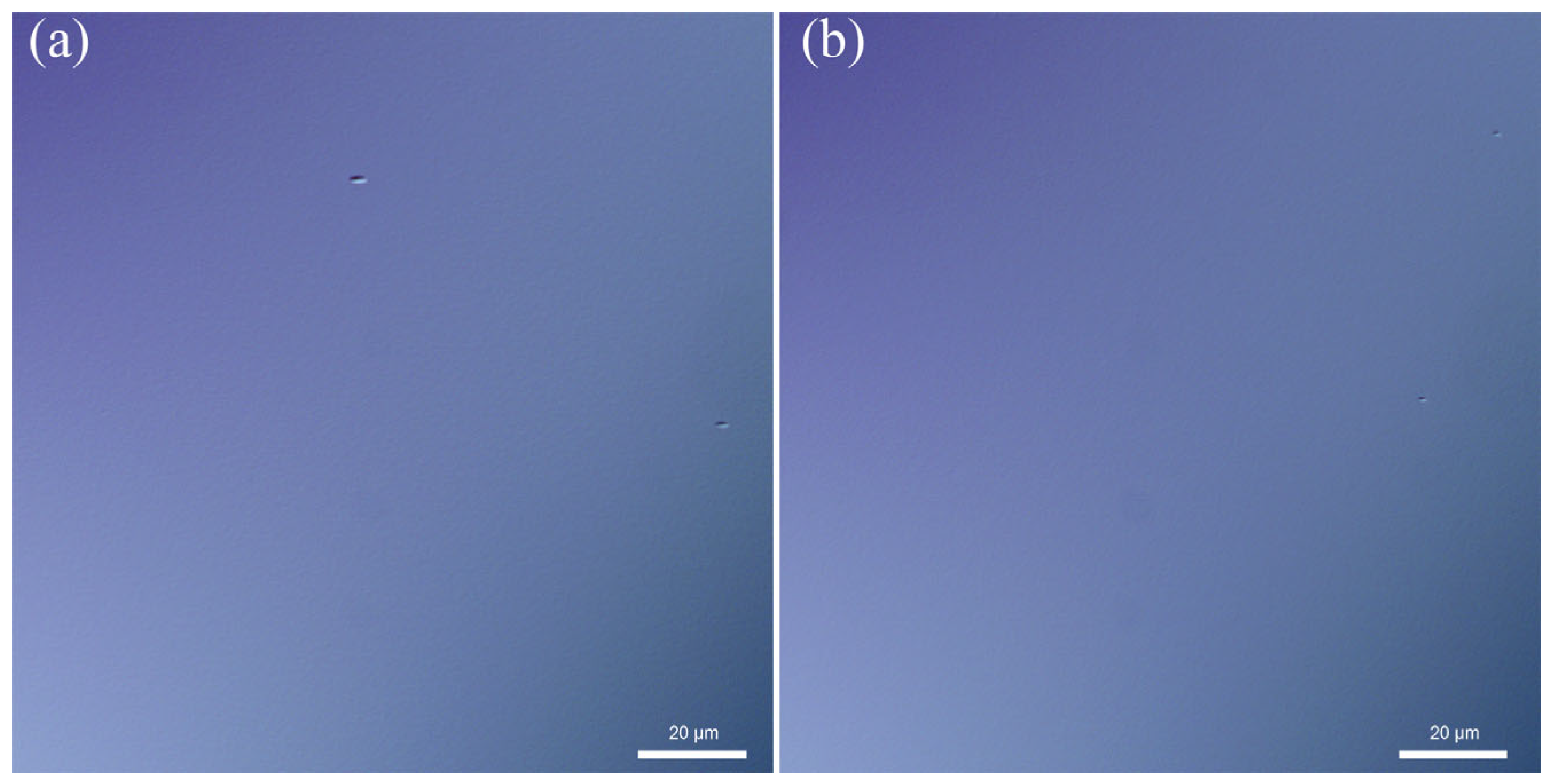

Figure 4. DIC images of (a) sample A grown at 400 °C and (b) sample B grown at 385 °C. Smooth surfaces with a few defects are observed.
Figure 4. DIC images of (a) sample A grown at 400 °C and (b) sample B grown at 385 °C. Smooth surfaces with a few defects are observed.
Nanomaterials 15 01143 g004

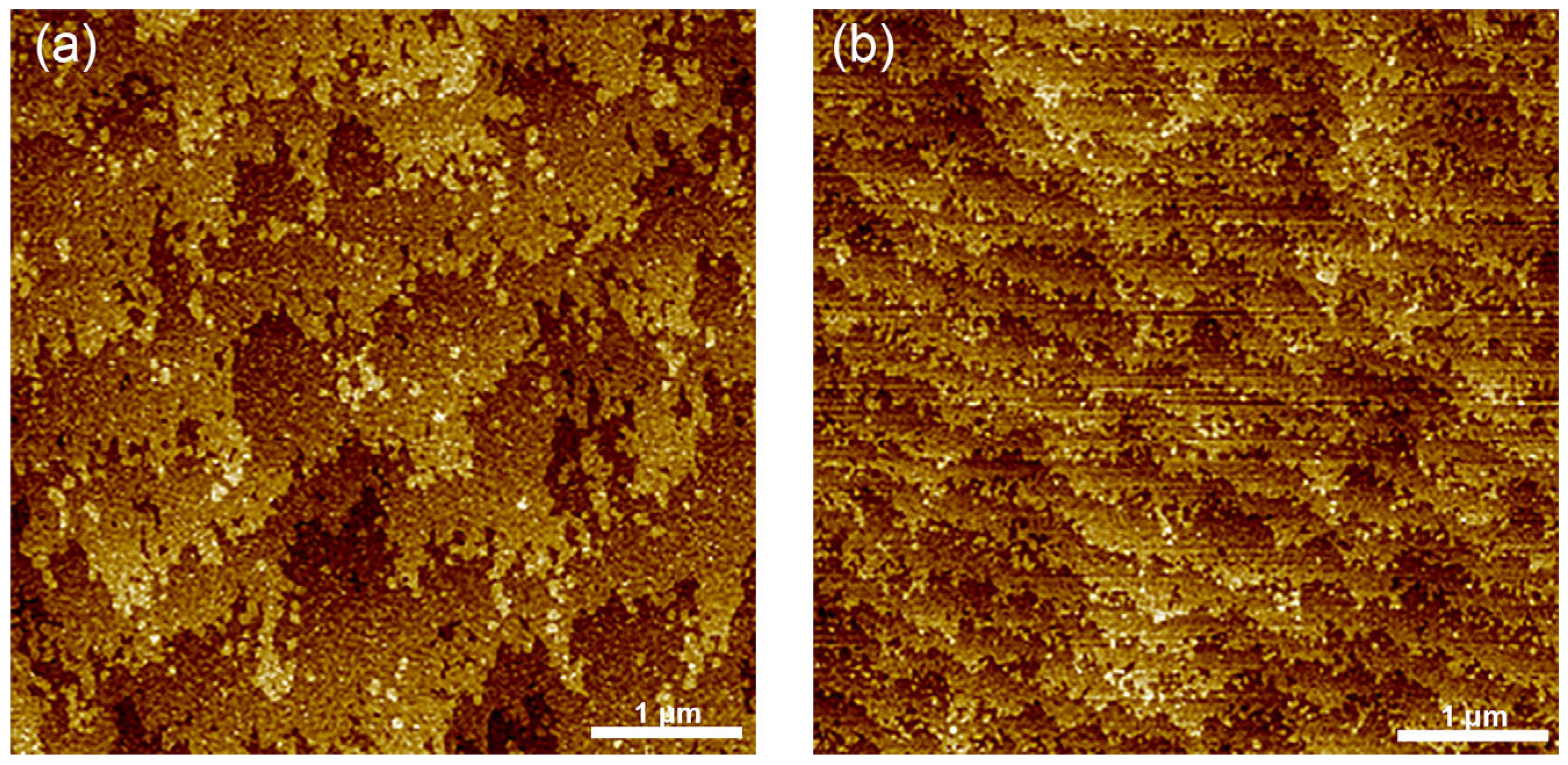

Figure 5. The 5 μm × 5 μm AFM images of (a) sample A grown at 400 °C and (b) sample B grown at 385 °C. Clear atomic steps can be observed in the graphs. The RMS roughness is (a) 0.153 nm and (b) 0.141 nm, respectively.
Figure 5. The 5 μm × 5 μm AFM images of (a) sample A grown at 400 °C and (b) sample B grown at 385 °C. Clear atomic steps can be observed in the graphs. The RMS roughness is (a) 0.153 nm and (b) 0.141 nm, respectively.
Nanomaterials 15 01143 g005

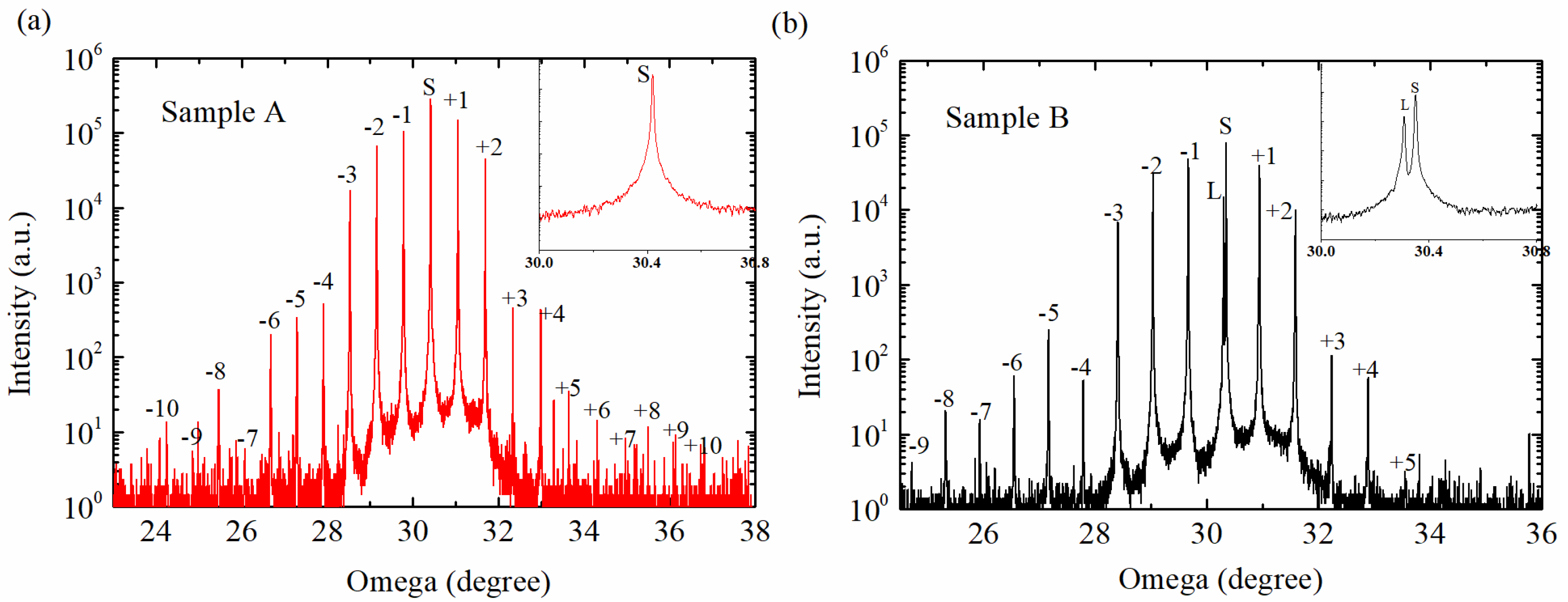

Figure 6. Measured high-resolution X-ray diffraction profiles of the PIN structures. (a) Sample A grown at 400 °C; (b) sample B grown at 385 °C. The inset shows the zoom-in around the peak of the InAs substrates.
Figure 6. Measured high-resolution X-ray diffraction profiles of the PIN structures. (a) Sample A grown at 400 °C; (b) sample B grown at 385 °C. The inset shows the zoom-in around the peak of the InAs substrates.
Nanomaterials 15 01143 g006

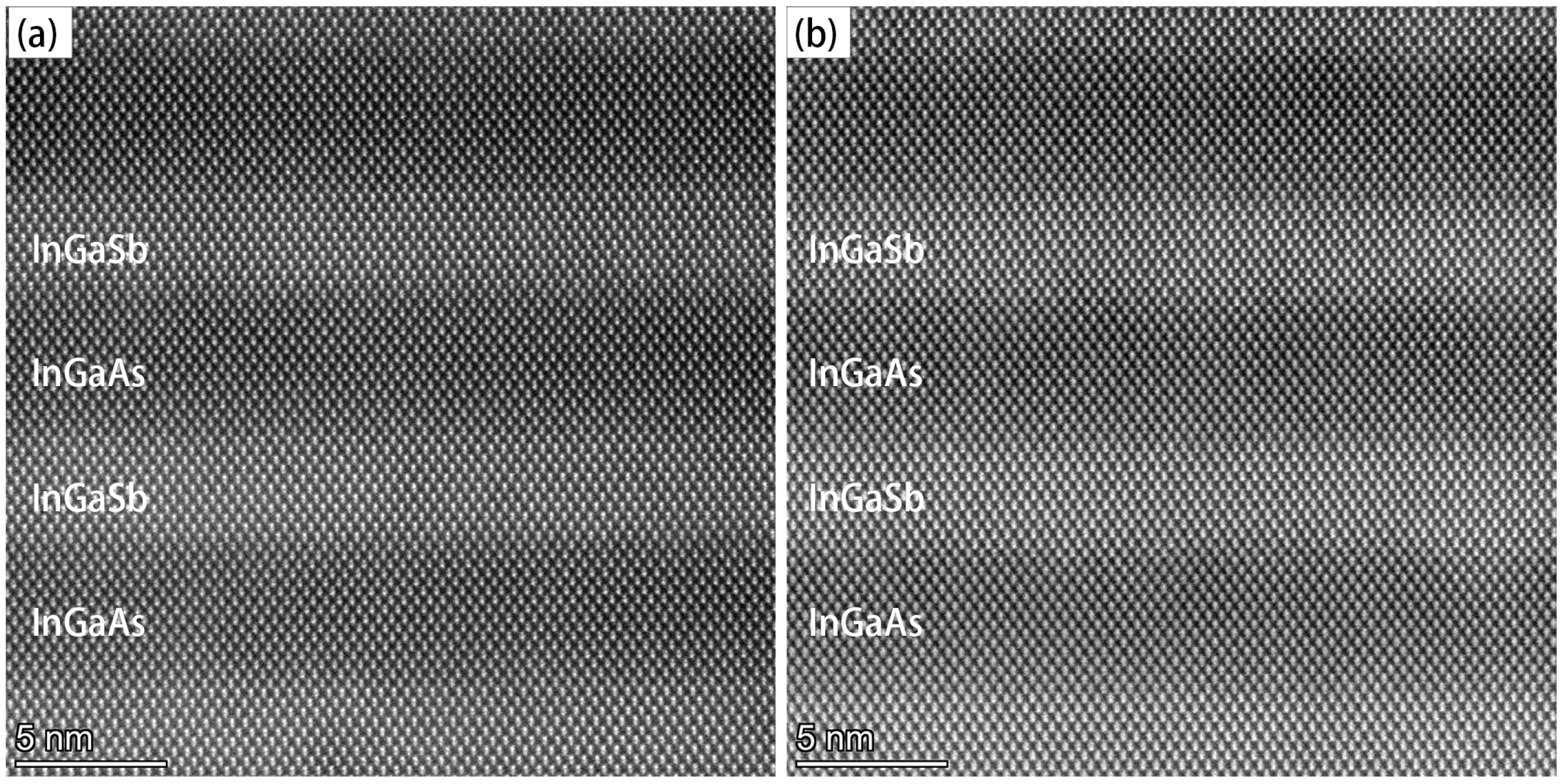

Figure 7. Cross-sectional HAADF-STEM images of PIN structure, taken from absorbing layer of (a) sample A grown at 400 °C and (b) sample B grown at 385 °C.
Figure 7. Cross-sectional HAADF-STEM images of PIN structure, taken from absorbing layer of (a) sample A grown at 400 °C and (b) sample B grown at 385 °C.
Nanomaterials 15 01143 g007

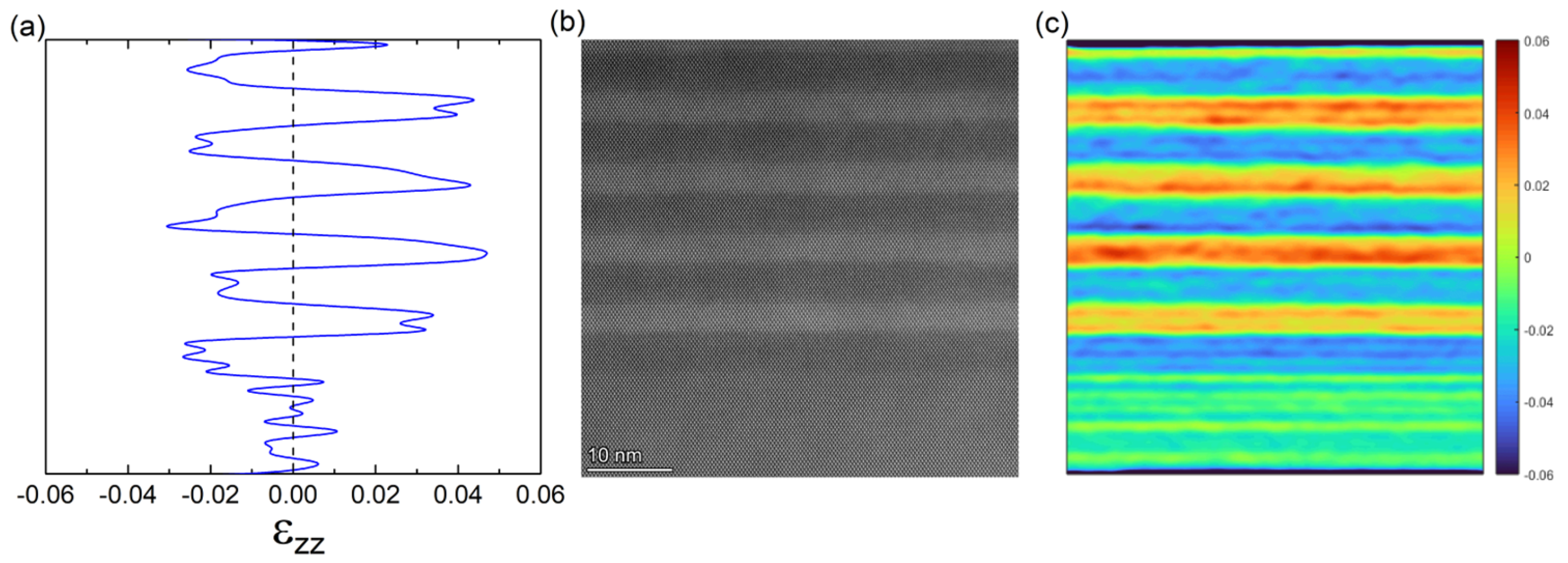

Figure 8. (a) An averaged εzz strain profile. (b) A HHADF-STEM image of InGaAs/InGaSb superlattice taken along [110] zone axis. (c) Mapping of the out-plane strain tensor εzz.
Figure 8. (a) An averaged εzz strain profile. (b) A HHADF-STEM image of InGaAs/InGaSb superlattice taken along [110] zone axis. (c) Mapping of the out-plane strain tensor εzz.
Nanomaterials 15 01143 g008

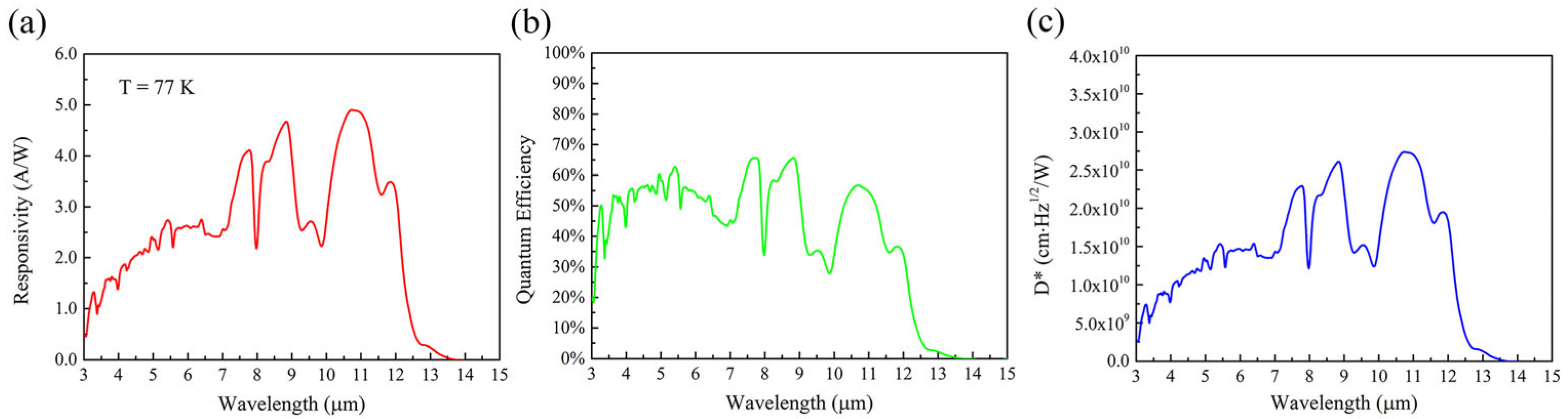

Figure 9. (a) Top illuminated responsivity of an LWIR single-element device at 77 K under 0 V applied bias. (b) The quantum efficiency of the single-element device. (c) The specific detectivity (D*) of the single-element device.
Figure 9. (a) Top illuminated responsivity of an LWIR single-element device at 77 K under 0 V applied bias. (b) The quantum efficiency of the single-element device. (c) The specific detectivity (D*) of the single-element device.
Nanomaterials 15 01143 g009

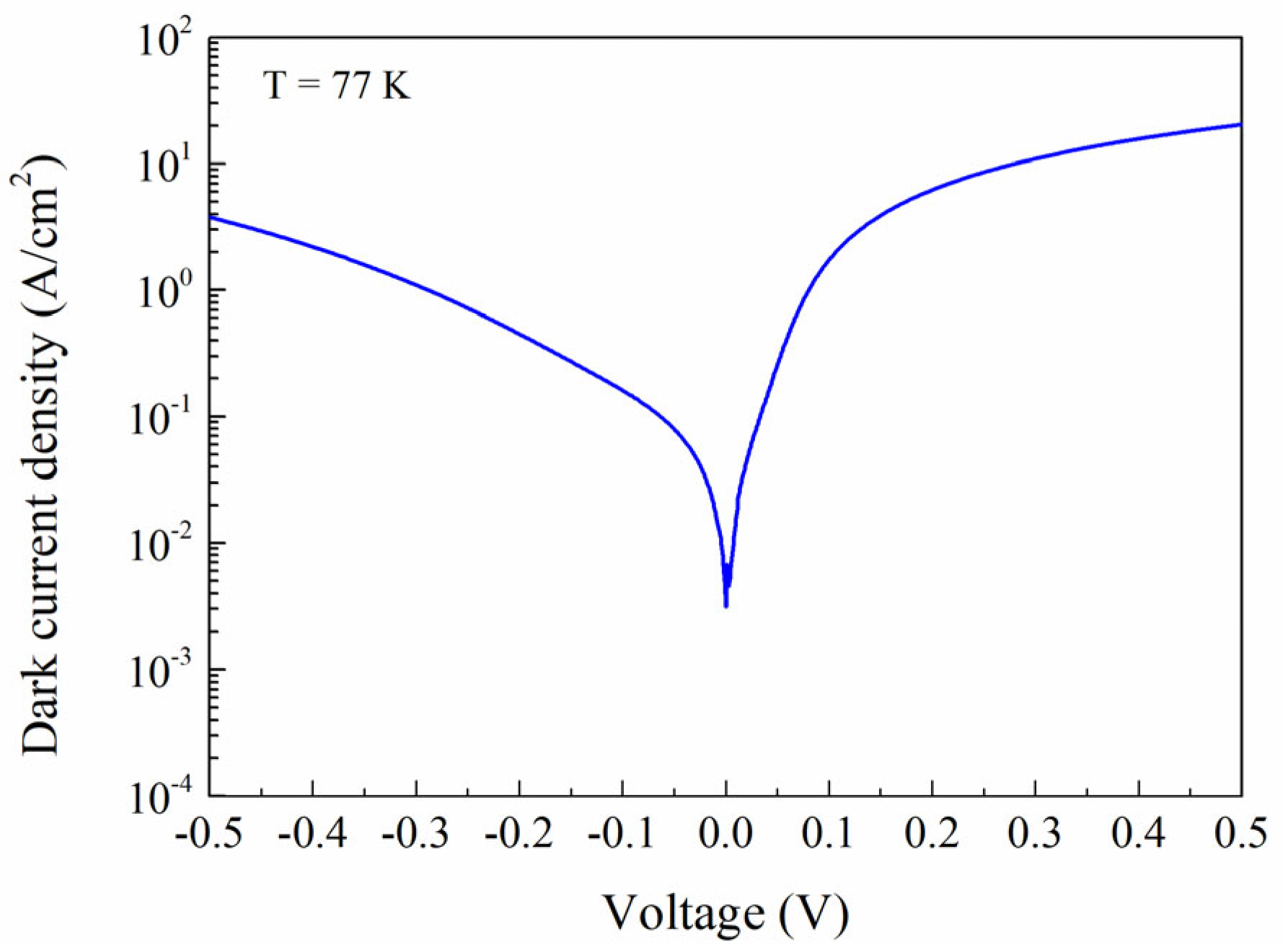

Figure 10. Dark current density vs. applied bias voltage characteristic of the photodetectors at 77 K.
