An Ab Initio Metadynamics Study Reveals Multiple Mechanisms of Reactivity by a Primal Carbon Cluster Toward Hydrogen and Ammonia in Space

by
Dobromir A. Kalchevski
1,
Stefan K. Kolev
1,
Dimitar V. Trifonov
1,
Ivan G. Grozev
1,
Hristiyan A. Aleksandrov
2,
Valentin N. Popov
3 and
Teodor I. Milenov
1,*
1
“Acad. E. Djakov” Institute of Electronics, Bulgarian Academy of Sciences, 72 Tsarigradsko Chaussee Blvd., 1784 Sofia, Bulgaria
2
Faculty of Chemistry and Pharmacy, Sofia University “St. Kliment Ohridski”, 1 J. Bourchier Blvd., 1164 Sofia, Bulgaria
3
Faculty of Physics, Sofia University “St. Kliment Ohridski”, 5 J. Bourchier Blvd., 1164 Sofia, Bulgaria
*
Author to whom correspondence should be addressed.
Nanomaterials 2025, 15(14), 1110; https://doi.org/10.3390/nano15141110
Submission received: 6 June 2025 / Revised: 8 July 2025 / Accepted: 15 July 2025 / Published: 17 July 2025
(This article belongs to the Section Synthesis, Interfaces and Nanostructures)
Browse Figures
Versions Notes

Abstract

We present a theoretical model of the hydrogenation and amination of a primal carbon cluster of the tangled polycyclic type. Hydrogen atoms were introduced via H2, while the nitrogen source was NH3. The initial chemical processes were modeled using Born–Oppenheimer Molecular Dynamics. Metadynamics was employed to accelerate the saturation. The reactions were characterized in terms of barriers, topology, and intricate changes in the electronic structure. All transition states were identified. Multiple mechanisms for each type of reaction were discovered. Occasional unbiased changes in the carbon skeleton, induced by the guided processes, were observed. The initial addition reactions had no barriers due to the instability and high reactivity of the carbon structure. The final product of barrierless hydrogen saturation was C25H26. This molecule included multiple isolated double bonds, a medium-sized conjugated π system, and no triple bonds. Ammonia additions resulted in quaternary ammonium groups and primary amino groups. In the subsequent amination, a barrier appeared in fewer steps than in repetitive hydrogenation. The final product of barrierless saturation with NH3 was C25H2(NH3)2NH2. Further amination was characterized by a forward free-energy barrier of an order of magnitude larger than the reverse reaction, and the product was found to be unstable.

Graphical Abstract

1. Introduction

The chemical processes between primal carbon clusters and small inorganic molecules in space contribute to the overall molecular presence in interstellar space. Reactions with hydrogen- and nitrogen-containing species are of special interest because they may provide a promising route to pre-biological products. Moreover, nitrogen-doped carbon structures have attracted the attention of both theoretical and applied science [1,2,3,4].
Of the 256 molecules identified in space, 204 have been observed in the interstellar or circumstellar medium [5,6]. Almost all of them contain hydrogen, while most contain carbon, and over a third contain at least one nitrogen atom. The first and simplest organic molecules to be discovered in space are CH (methylidyne) and CH+ (methylidyne cation) [7,8]. Unlike mono-atomic gas, single-nucleus ions, and simple allotropic forms, they were the first chemical species to be detected in the interstellar medium. CN (cyano radical) was independently reported in 1940 [9] and 1941 [10], while CN− (cyanide anion) was only recently discovered [11]. Detections of additional small molecules of the considered elements include HCN (hydrogen cyanide) [12], HNC (hydrogen isocyanide) [13,14], CCN (cyanomethylidyne) [15], C3N (cyanoethynyl radical) [16,17], HCNH+ (protonated hydrogen cyanide) [18], CNCN (isocyanogen) [19], HC3N (cyanoacetylene) [20], HCCNC (isocyanoacetylene) [21], HNCNH (carbodiimide) [22], CH3CN (methyl cyanide) [23], HC3NH+ (protonated cyanoacetylene) [24], C5N (cyanobutadiynyl radical) [25], NH2CH2CN (aminoacetonitrile) [26], HC7N (cyanotriacetylene) [27,28,29], and HC9N (cyanotetraacetylene) [30]. Ring systems offer the potential for greater complexity and closer alignment with biological functions. The family of compounds found in space includes C6H6 (benzene) [31] and C6H5CN (benzonitrile) [32]. Intriguing small to medium-sized cyclic molecules have recently been detected in TMC-1: C3H2 (cyclopropenylidene) [33], C5H6 (cyclopentadiene) [29], C5H5CN (cyanocyclopentadiene) [34], C5H5CCH (ethynyl cyclopentadiene) [35], and o-C6H4 (ortho-benzyne) [36]. Even more intriguing are the polycyclic species detected in TMC-1: C9H8 (indene) [29] and two isomers of C11H7N (1- and 2-cyanonaphthalene) [37].
The partial radical character in interstellar molecules can contribute to a reduction in activation energy in various reactions. Two recent articles revealed the initial steps in graphene nucleation during adsorption. Both demonstrate the possibility of mechanisms involving conjugated, radical, carbon-rich species [38,39].
We delved into the chemical possibilities arising from a primal cluster originating in a pure carbon environment reaching a hydrogen- or ammonia-rich area. Our focus was on side-chain functionalization. We employed Born–Oppenheimer Molecular Dynamics (BOMD) and Metadynamics to enable alternative mechanisms and parallel and conjunctive processes in the simulation of reagents, possible intermediates, and conditions. The reactions were characterized in terms of barriers and topology. Intricate changes in the electronic structure were analyzed. All transition states (TSs) were found. Multiple mechanisms for each type of reaction were discovered. Occasional spontaneous changes in the carbon skeleton, induced by the biased processes, were accounted for. The degree of saturation due to consecutive additions up to the appearance of a forward free energy (FE) barrier was observed for hydrogenation and amination.
In this study, we report on the reactivity of a primal carbon cluster toward H2 and NH3 in space. The cluster results from the spontaneous relaxation of an aggregate of 25 randomly positioned C atoms. It is of a tangled polycyclic type. We generated it in a previous study [40] and successfully used it as a building block in the formation of closed-cage nanoparticles in the interstellar medium. The atomic numbering of C25 is given in Figure 1.
Amorphous carbon and hydrocarbon molecules have already been detected in space [41,42]. Although possessing a non-standard geometry, primal carbon clusters can still be easily classified as species of the tangled polycyclic type. To our knowledge, the reactivity of such molecules has never been experimentally or theoretically studied.
Our goal is to elucidate the properties and reactivity of carbon allotropes. Through theoretical chemistry, we aim to provide a thorough atomistic understanding of their chemical mechanisms at a level beyond that of current experimental possibilities. The instability of such carbon clusters is too high to allow for the isolation of products or intermediates. The conditions of the reactions prohibit an experimental examination of transition states. Some results are to clarify the general reactivity of carbon clusters, not only the reactivity toward H2 and NH3. We seek to contribute to the field of high-vacuum carbon chemistry by reaching conclusions that are sufficient to predict the most important aspects of behavior of primal carbon clusters. Our conclusions can be applied directly in laboratory setups or used indirectly as a stepping stone toward a better understanding of the chemistry of such systems.

2. Materials and Methods

In theoretical chemistry, atomic systems are viewed as structures composed of nuclei and electrons. Both components are considered to be particle waves, although quantum mechanics deals only with their wave properties. The only force taken into account is electromagnetic. Since a single electron occupies hundreds of thousands of times the volume of a nucleus, and the intensity of the electron wave is not evenly distributed in space, often the term used to describe this “cloud” of electrons is “electronic density”. For any given set of positions of the nuclei, there is an optimal distribution, energy-wise, of the electronic density. To discover it is the equivalent of finding the wavefunction of the molecule. The wavefunction can be used to calculate the value of every physical property of the system and, consequently, build the chemistry on top of the physics.
The wavefunction is computed in steps. One of the steps is to represent molecular orbitals (MOs) as a Linear Combination of Atomic Orbitals (LCAO). Another step is the Self-Consistent Field (SCF) method. The SCF method is an iterative procedure for orbital optimization. During this procedure, the coefficients of the atomic orbitals (represented as an LCAO) are systematically altered in order to minimize the energy of each MO. Once certain accuracy criteria (such as the energy change between two steps and a reduction in the energy in the last step) are met, the orbitals are considered optimized. In other words, an approximate solution to the wavefunction has been found for the given coordinates of the nuclei.
All calculations are performed with the CP2K/Quickstep 2023.1 software [43,44]. CP2K is a quantum chemistry program package, designed for atomistic simulations of gas-phase, liquid, and solid-state systems. It is capable of a wide palette of computations. These can range from predicting the physical properties of crystal materials and modeling organic reactions in explicit solvent models to enzymatic processes. Quickstep is a component of CP2K, designed for accurate and efficient DFT modeling of large, complex systems. It is employed in both static calculations and in ab initio molecular dynamics simulations.
The SCF optimizations are completed in the Self-Consistent Charge Density Functional-Based Tight Binding (SCC-DFTB/DFTB2) method [45]. An efficient a posteriori treatment for dispersion interactions is employed [46].
The DFTB method is an approximation of the Density Functional Theory (DFT), in which Kohn–Sham (KS) equations are transformed into tight-binding ones [47] related to the Harris functional [48]. The second-order expansion of the KS equations enables a transparent, parameter-free generalized Hamiltonian matrix. Its elements are modified by a self-consistent redistribution of Mulliken charges [45]. The KS energy additionally includes the Coulomb interaction between charge fluctuations. The accuracy of the DFTB method with self-consistent charge expansion is comparable to that of DFT methods and higher levels of the ab initio theory for various properties of single molecules, solutions, and solid-state materials, yielding satisfactory geometries and total energies [49,50,51]. DFTB produces realistic charge distributions, binding energies, and vibrational frequencies of charged solvated species [52]. The derived activation energies in organic chemistry also conform to higher levels of theory [52], enabling the study of reaction mechanisms. This method is found to yield excellent geometries and energetics for pure carbon species, such as fullerenes ranging from C20 to C86 [53], and, at the same time, is orders of magnitude less computationally intensive than DFT.
The simulations of the reactions are performed using BOMD [54] and Metadynamics (MTD) [55,56]. Metadynamics is a state-of-the-art simulation method in which the processes are guided to model a chosen chemical reaction. Collective variables (colvars; CVs) are defined over molecular degrees of freedom to bias the system toward selected changes. Penalty potentials (hills) are periodically generated for current values in the CV space to raise the free energy and to reach unexamined geometries. When a TS is crossed over, the study of the new minimum begins, starting again at the bottom of the energy pit. Reversing the bias potential peaks yields the relative stability of each geometry—the free-energy surface of the reaction. With the rise in energy, unguided changes can occur, providing realistic insights into the studied processes.
All the dynamics and metadynamics simulations are carried out in a canonical ensemble (NVT ensemble) with Periodic Boundary Conditions (PBCs). The thermostat uses canonical sampling through velocity rescaling (CSVR) [57,58], set for a temperature of 400 K. The timestep is 1 fs. The shortest intermolecular distances are above 3.4 Å in all the initial (zeroth) steps. Each simple dynamics run is preceded by cell and geometry optimization of the system. In MTD, the height of the Gaussian penalty potential is 1.255 kcal/mol. The scale factor (Gaussian width) for each collective variable is 0.2. Hills are generated every 50 fs. All walls are of the quadratic type with a potential constant of 20 kcal/mol. The temperature tolerance is always set to 50 K.
The TSs are located using dynamics methods, such as saddle points connecting the energy pits of reagents and products. In other words, the reaction coordinate corresponds to the energy maxima in every TS geometry. Their geometries correspond to the points in time, usually below 10 femtoseconds, when new bonds are formed and/or the old ones are dissociated, as presented in the figures below.
The initial dimensions of the explicit periodic cell are chosen on the basis of the size and shape of the studied primal carbon cluster, regardless of the type of reaction. The remaining vacant space of the PBC box are filled with either H2 or NH3 molecules. The final number of attacking molecules does not influence the mechanisms of the modeled reactions.

3. Results and Discussion

3.1. Hydrogenation of C25

3.1.1. Dynamics

The first reactive simulation of C25 involves 58 H2 molecules in an orthorhombic PBC cell with dimensions 11 Å × 12 Å × 17 Å. We considered simulations within a timeframe of 50 ps, which is sufficient for the chemical process to occur. Figure 2a illustrates the system in the initial frame of the dynamics. The final product has the net formula C25H8. All critical geometries in the simulation processes are shown in Figure 2. The TS of the first H addition occurs at 105 fs (Figure 2b). The remaining H atom binds to the same C atom, with a TS at 152 fs (Figure 2c). The remaining H–H bond dissolves simultaneously with the formation of the second C–H bond. The product is C25H2 (Figure 2d). This mechanism, like most of those in this study, involves a long-range covalent interplay between the atoms. As long as the remaining atom from the H2 molecule does not translate freely through the supercell, the non-diminishing forces of C–H attraction remain. Situations involving the gas-phase vacation of a free H• radical are explicitly mentioned in the text. The involved carbon atom adopts sp3 hybridization. The TS structure of the third H-atom addition is at 3708 fs (Figure 2e). The product is shown in Figure 2f. Again, there is a long-range covalent interplay with both atoms of the gas molecule and the same carbon, but at larger distances (Figure 2f vs. Figure 2c). The TS of the addition of the remaining H atom occurs at 3775 fs (Figure 2g). The product is C25H4 (Figure 2h). The reactive C atom assumes sp3 hybridization. The fifth addition occurs at 5539 fs (TS in Figure 2i). This time, the remaining H atom does not completely detach until it engages in an addition TS to another C atom at 5578 fs (Figure 2j). The product is C25H6 (Figure 2k). The two engaged C atoms transition to sp2 hybridization. The final product of the dynamics has the net formula C25H8. Two H atoms are now bonded to C atoms 4, 15, and 19.
A single H atom is bonded to C atoms 6 and 18. It is not possible to visualize any TSs because the participating H2 molecule originates from a distant equivalent PBC box in the infinite supercell. However, an atom wrap procedure yields the product geometry (Figure 2l). The participating C atom assumes sp3 hybridization. According to the six traceable reactions out of the eight reactions, H2 always undergoes addition with both atoms and never leaves an unstable H• radical in the system.
The potential energy change during the addition of the first atom of a H2 molecule always occurs within fluctuations in the energy profile, while the addition of the second atom is always associated with a sharp plummet (Figure 3). The energy stabilization for the first, second, and third additions of the remaining H atom of each H2 molecule (Figure 3a–c) are 49, 61, and 116 kcal/mol, respectively, if we do not account for the large fluctuations after the reaction. When accounting for fluctuations, the energy stabilizations yield 49, 38, and 90 kcal/mol, respectively. C25 is expected to be a highly reactive cluster since consecutive hydrogenations appear barrierless and result in significant stabilization.

3.1.2. Metadynamics

The final product of the BOMD hydrogenation of C25 is C25H8. Its structure has an overall low degree of saturation. Metadynamics is used for further reactions of hydrogen addition. In all simulations, the cell dimensions are 13 Å × 13 Å × 13 Å, and only one CV is used, namely the distance between the target C atom and an H atom of the attacking H2 molecule. The TS in the first simulation is reached barrierlessly after 217 fs (Figure 4a). At this saddle point, the C–H distance of 1.51 Å corresponds to a partial bond. Interestingly, however, the H–H distance retains a value corresponding to a product type of bond. A product type C–H bond length of 1.07 Å is achieved at 234 fs (Figure 4b). Upon reaching the product geometry, the distance between the reactive C(5) atom and the remaining H atom (3.29 Å) appears too large for even weak covalent interactions. However, the calculation shows that this hydrogen does not leave the vicinity to travel freely through the supercell. Instead, the particle returns to attack the same carbon, and the two atoms participate in an addition TS at 257 fs (Figure 4c). This reaction step is also barrierless. At the saddle-point geometry, the C–H distance is 1.46 Å. The resulting product (C25H10) is shown in Figure 4d. The reactive C(5) atom adopts sp3 hybridization.
The simulation setup for the hydrogenation of C25H8 is repeated for C25H10. The product C25H12 (Figure 4d) forms similarly to its predecessor. During the process, the engaged C(25) atom adopts sp3 hybridization. The reactions are barrierless.
The simulation setup is repeated for the hydrogenation of C25H12. The TS of the first H-atom addition is reached barrierlessly at 215 fs (Figure 5a). In the completely unsaturated cluster, the reactive C(12) atom has a similar topological position as the previously participating C(25) and C(5) atoms. The geometry of the product C25H13 is shown in Figure 5b. After the reaction, the C(12) atom assumes sp2 hybridization. Immediately after the reaction, the remaining atom of the attacking H2 appears to be at a distance beyond the vanishing covalent interactions, quickly traveling through several PBC boxes of the supercell and finally binding to C(15). This now tetravalent carbon atom adopts sp3 hybridization. The TS is reached barrierlessly at 289 fs (Figure 5c). The geometry of the resulting product, C25H14, is shown in Figure 5d.
The hydrogenation of C25H14 to C25H16 (Figure 5e) is similar to that for C25H8 to C25H10. Both H atoms of the attacking H2 molecule are attached to C(17). In the product geometry, this C atom assumes sp3 hybridization. C25H18 is obtained in a similar way (Figure 5f), and the reactive C(21) atom also adopts sp3 hybridization.
An unbiased intramolecular cyclization through a bond formation between the spatially adjacent C(1) and C(9) atoms occurs during the hydrogenation of C25H18 to C25H20. The process begins with a familiar type of TS for the first hydrogen addition, which occurs at 284 fs (Figure 6a).
Essentially, the mechanism of C25H8 saturation repeats. The second H addition occurs simultaneously with the cyclization. The TS structure is located at 308 fs (Figure 6c). The geometry of the final product, C25H20, is shown in Figure 6d. During the reaction, C(1) adopts sp2 hybridization, while C(9) assumes sp3 hybridization. The C atom participating in hydrogenation, namely, C(10), also assumes an sp3 state. The process takes place without barriers.
The hydrogenation of C25H20 to C25H22 (Figure 6e) is similar to that of C25H12 to C25H14. The first H atom of the attacking H2 molecules binds to C(11). After traveling through the supercell, the remaining H atom binds to C(16). In C25H22, carbon atoms C(11) and C(16) are in the sp2 hybridization state. The processes occur without barriers.
C25H24 forms similarly to C25H10. Both H atoms bind to C(23), which changes its hybridization to sp3. From topological considerations, the product is a radical, as the reaction leaves the neighboring C(16) atom with a single electron in a lonely p-orbital. The original structure, with net formula C25H24 (Figure 7c), is an intermediate, and after 230 fs, a new TS is reached without applied bias, in which one of the H atoms participating in the hydrogenation simultaneously leaves the target C(23) atom and reattaches to C(18) (Figure 7b). The migration process stabilizes the cluster, as C(23) changes its hybridization to sp2 and forms a π bond with the unpaired electron at C(16). The geometry of the final C25H24 isomer is shown in Figure 7c. The product is no longer a radical. The reaction steps are barrierless.
The hydrogenation of C25H24 to C25H26 is akin to that of C25H12 to C25H14. The first atom of the attacking H2 binds to the CV-targeted C(24), which adopts sp2 hybridization and forms a π bond with C(3). After traveling through the supercell, the remaining H atom binds to C(11), which enters an sp3 hybridization state. The optimized geometry of C25H26 is shown in Figure 7d.
Further attempts to saturate the cluster with hydrogens are not barrierless, as C25H26 is a stable molecule. Three isolated double bonds exist between the following C-atom pairs: 1 and 2; 3 and 24; and 16 and 23. An 8-electron conjugated π system is formed by atoms 6, 7, 8, 12, 13, 14, 20, and 22.

3.2. Amination of C25

3.2.1. Dynamics

The second reactive simulation of C25 is performed with 41 NH3 molecules in an orthorhombic PBC cell with dimensions 11 Å × 12 Å × 17 Å. We considered the simulations within the timeframe of 50 ps, which is sufficient for the chemical process to occur. The initial frame of the dynamics is shown in Figure 8a. After four reactions, the final product has the net formula C25H9N3. All critical geometries in the simulation processes are shown in Figure 8. The first reaction involves NH3 addition to the most unsaturated and reactive C(15) atom. The TS occurs at 106 fs (Figure 8b). The product molecule contains a quaternary ammonium group that is attached to C(15). There is a positive charge, centered at the N atom, and a negative charge, delocalized in the σ skeleton of the conjugated π system (πI) to which C(15) belongs. This process takes place without a barrier and reduces the potential energy of the system by 23 kcal/mol (Figure 9a). The second reaction is also an NH3 addition, leading to a new quaternary ammonium group. The TS occurs at 1860 fs (Figure 8d). The N atom is bound to C(18). The negative charge is delocalized in a larger conjugated π system (πII) than the previous one. No barrier or drop in potential energy is observed for this process (Figure 9b). The product of this elementary step is only an intermediate. The following reaction is unbiased: the H atom from the positively charged -N(+)H3 fragment is abstracted by C(6). The TS occurs at 3116 fs (Figure 8f). This reaction is barrierless and exothermic by 41 kcal/mol (Figure 9c). It is expected that the mobile H species is a cation, which relocates the positive charge of the ammonium group to πII. This spontaneous reaction leads to system stabilization for four reasons: (i) the absence of a positive charge on the preferably electronegative N atom, (ii) the cancellation of two opposite charges, (iii) the reduction in the absolute value of the total charge of two substituents, and (iv) the conjugation between the newly formed amino group and the carbon skeleton. Both the primary and the quaternary amino groups are bound to the rest of the carbon moiety by σ bonds, yet the oscillations of the bond length of the former have lower values, indicating higher stability (Figure 9g). The fourth and final reaction is an NH3 addition to C(19). The process is similar to the first ammonia addition. The TS occurs at 5828 fs (Figure 8h). The product has the net formula C25H9N3 (Figure 8i). The negative charge is distributed in the πII system. The chemical changes decrease the system’s potential energy by 27 kcal/mol (Figure 9d).
The lack of noticeable stabilization associated with the addition of the second ammonia is attributed to thermal fluctuations, considering the apparent stabilization effects of the first and third additions. A similarity between the second and the third addition increases the probability for this explanation: the reactions attach equivalent substituents to the πII system.
The increasingly negative charge induced in the carbon skeleton of the cluster, due to reactions resulting in quaternary ammonium groups, has an inhibiting effect on further nucleophilic additions. Thus, the cluster’s affinity for successive ammonia additions will gradually decrease. Hence, it is expected that future reactions will no longer be barrierless.
Due to their high activation energy, ammonia additions to an alkene/alkyne fragment are rather challenging and, if attempted, they usually require special conditions and/or the use of a metal catalyst [59]. Therefore, the occurrence of three consecutive barrierless ammonia additions to C25 demonstrates a rather extreme reactivity of the cluster. Such a high degree of instability is expected to manifest throughout the chemistry of similar structures. Exposure to air under standard conditions would probably result in self-combustion. It is not surprising that such molecules readily assemble into higher-order structures [40]. The typical mechanisms of amination involve metal–amido or metal–imido species, but—to no surprise—the mechanisms demonstrated in this study are direct. The instability of the primal carbon cluster is a reference to its overall exotic geometry. A reasonable explanation for the high activity of C25 is the partial radical character of the edge atoms. The combination of bonding angles and topology results in an improper orbital overlap. The distance between the outer lobes of the p-orbitals participating in π bonds is too big, while the inner lobes are too close. Such geometry causes an increase in the weight of the diradical configuration in alkene and alkyne fragments. The stabilization due to π bonding remains suboptimal.

3.2.2. Metadynamics

Metadynamics is employed for the additional amination of the final product of regular, unbiased dynamics. The dimensions of the orthorhombic PBC cell are 13 Å × 13 Å × 13 Å. Only one CV is used, namely the C–N distance. The first reaction to occur is an unbiased, intramolecular cyclization with a bond between C(1) and C(9). The TS is at 836 fs (Figure 8j). The product geometry is shown in Figure 8j. Once formed, the bond remains throughout the rest of the simulation. The covalent C–N distance of a product type appears in the amination at C(4) via the TS structure found at 5287 fs (Figure 8l). The formula of the product is C25H2(NH3)3NH2 (Figure 8m). The forward and reverse free-energy barriers are 20 kcal/mol and 1.5 kcal/mol, respectively (Figure 9e). For reasons mentioned earlier, the cluster has exceeded its capacity for barrierless amination. The radial distribution function (RDF) of the C–N distance is shown in Figure 9f. The endothermicity of the forward reaction causes the reagents to be much more dominant along the trajectory. The cluster with a peak at 1.73 Å signifies an intermolecular attraction. The inflection point at 1.49 Å separates the left-most cluster, representing C–N bond length values of the product type.
The rise in energy leads to an additional and unbiased reaction. A H atom from the quaternary ammonium group at C(19) is abstracted by the neighboring C(5) atom. The TS structure is at 9651 fs (Figure 8n). The product is labeled as C25H2(NH3)2(NH2)2 (Figure 8o). This quadruply aminated final product includes two systems of conjugated π-electronic density. One of them is almost planar and consists of eight electrons. The other system spans most of the molecule, includes 20 electrons, and involves cyclic out-of-plane density over condensed rings.

4. Conclusions

We modeled the processes of hydrogenation and amination of a primal carbon cluster of the tangled polycyclic type in space. The reagents for the addition reactions were H2 and NH3, respectively. The cluster is the product of the spontaneous stabilization of a non-covalent aggregate of 25 carbon atoms with randomized positions. DFTB2 Born–Oppenheimer Molecular Dynamics was employed to model the initial chemical processes, and DFTB2 Metadynamics was utilized to accelerate the saturation. All transition states were identified, revealing multiple mechanisms for each type of reaction. The reasons behind all the chemical events and characteristics of the critical systems are given in terms of electronic effects. An unbiased reaction of intramolecular cyclization occurs during both hydrogenation and amination. The final product of barrierless hydrogen saturation is C25H26. In this molecule, there are three isolated double bonds and an 8-electron π-delocalized system, with no triple bonds present in the final structure. The addition of ammonia always begins with the formation of a quaternary ammonium group. Although such reactions are auto-inhibitory, the process occurs three times before the emergence of an energy barrier. In comparison with typical alkenes, alkynes, and annulenes, primal carbon clusters appear to be highly activated. The mechanism of the amination of C25 is unlike those in organic chemistry. The process does not require catalysis and does not involve intermediates. In recurring amination, a barrier arises more quickly than in repetitive hydrogenation. A proton abstraction from a –N(+)H3 group by a neighboring carbon atom occurs twice as a form of unbiased stabilization. The product of the final guided and highly exothermic NH3 addition is the unstable C25H2(NH3)2(NH2)2. This final product includes two conjugated π systems. One of them is almost planar and involves eight electrons. The other system consists of 20 electrons delocalized over multiple condensed rings. It is characterized by cyclic out-of-plane density.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano15141110/s1, Table S1. Parameters of the production simulations: reaction (simulation), type of calculation, SCF method, ensemble, temperature [K] and pressure.

Author Contributions

Conceptualization, D.A.K. and S.K.K.; methodology, D.A.K., I.G.G., S.K.K., H.A.A., V.N.P. and T.I.M.; investigation, D.A.K., S.K.K., D.V.T. and I.G.G.; data curation, D.A.K., writing—original draft preparation, D.A.K.; writing—review and editing, D.A.K., S.K.K., D.V.T., I.G.G., H.A.A., V.N.P. and T.I.M.; visualization, D.A.K.; supervision, S.K.K., H.A.A., V.N.P. and T.I.M.; project administration, T.I.M.; funding acquisition, T.I.M. All authors have read and agreed to the published version of the manuscript.

Funding

his research was funded by Bulgarian Science Fund (grant number KP-06-COST/10 (2023)), European Union (grant number BG-RRP-2.004-0008) and Bulgarian National Roadmap on Ris (grant number D01-168/28.07.2022).

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Acknowledgments

The authors gratefully acknowledge financial support from the National Science Fund of Bulgaria under grant KP-06-COST/10 (2023) within the framework of the COST Action CA21126 NanoSpace. This article is based upon work from COST Action CA21126—Carbon molecular nanostructures in space (NanoSpace), which is supported by COST (European Cooperation in Science and Technology). The authors also acknowledge the access provided to the e-infrastructure of the NCHDC—part of the Bulgarian National Roadmap on RIs—with financial support by grant No. D01-168/28.07.2022. Hristiyan A. Aleksandrov is grateful to the European Union-NextGenerationEU for financial support provided through project No. BG-RRP-2.004-0008 under the National Recovery and Resilience Plan of the Republic of Bulgaria.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
BOMDBorn–Oppenheimer Molecular Dynamics
CSVRCanonical Sampling through Velocity Rescaling
CVCollective Variable, Colvar
DFTDensity Functional Theory
DFTBDensity Functional Theory Tight Binding
FEFree Energy
KSKohn–Sham
MTDMetadynamics
PBCPeriodic Boundary Conditions
RDFRadial Distribution Function
SCCSelf-Consistent Charges
SCFSelf-Consistent Field
TSTransition State

References

  1. Sun, S.; Cao, Y.; Sun, Z.; Tang, Z.; Zheng, L. Experimental Theoretical Studies on Carbon–Nitrogen Clusters C2nN7−. J. Phys. Chem. A 2006, 110, 8064–8072. [Google Scholar] [CrossRef]
  2. Belbruno, J.J.; Tang, Z.-C.; Smith, R.; Hobday, S. The structure and energetics of carbon-nitrogen clusters. Mol. Phys. 2001, 99, 957–967. [Google Scholar] [CrossRef]
  3. Zhang, H.; Ling, Y.; Peng, Y.; Zhang, J.; Guan, S. Nitrogen-doped porous carbon materials derived from ionic liquids as electrode for supercapacitor. Inorg. Chem. Commun. 2020, 115, 107856. [Google Scholar] [CrossRef]
  4. Lin, L.; Li, J.; Yuan, Q.; Li, Q.; Zhang, J.; Sun, L.; Rui, D.; Chen, Z.; Jia, K.; Wang, Y.; et al. Nitrogen cluster doping for high-mobility/conductivity graphene films with millimeter-sized domains. Sci. Adv. 2019, 5, eaaw8337. [Google Scholar] [CrossRef] [PubMed]
  5. Guélin, M.; Cernicharo, J. Organic Molecules in Interstellar Space: Latest Advances. Front. Astron. Space Sci. 2022, 9, 787567. [Google Scholar] [CrossRef]
  6. McGuire, B.A. 2018 Census of Interstellar, Circumstellar, Extragalactic, Protoplanetary Disk, and Exoplanetary Molecules. Astrophys. J. Suppl. Ser. 2018, 239, 17. [Google Scholar] [CrossRef]
  7. Swings, P.; Rosenfeld, L. Considerations Regarding Interstellar Molecules. Astrophys. J. 1937, 86, 483–486. [Google Scholar] [CrossRef]
  8. Dunham, T. Interstellar neutral potassium and neutral calcium. Publ. Astron. Soc. Pac. 1937, 49, 26. [Google Scholar] [CrossRef]
  9. McKellar, A. Evidence for the Molecular Origin of Some Hitherto Unidentified Interstellar Lines. Publ. Astron. Soc. Pac. 1940, 52, 187. [Google Scholar] [CrossRef]
  10. Adams, W. Some Results with the Coudé Spectrograph of the Mount Wilson Observatory. Astrophys. J. 1941, 93, 11. [Google Scholar] [CrossRef]
  11. Agúndez, M.; Cernicharo, J.; Guélin, M.; Kahane, C.; Roueff, E.; Kłos, J.; Aoiz, F.J.; Lique, F.; Marcelino, N.; Goicoechea, J.R.; et al. Astronomical identification of CN−, the smallest observed molecular anion. Astron. Astrophys. 2010, 517, 2. [Google Scholar] [CrossRef]
  12. Snyder, L.E.; Buhl, D. Observations of Radio Emission from Interstellar Hydrogen Cyanide. Astrophys. J. 1971, 163, 47. [Google Scholar] [CrossRef]
  13. Zuckerman, B.; Morris, M.; Palmer, P.; Turner, B.E. Observations of cs, HCN, U89.2, and U90.7 in NGC 2264. Astrophys. J. 1972, 173, 125. [Google Scholar] [CrossRef]
  14. Snyder, L.E.; Buhl, D. Detection of several new interstellar molecules. Ann. N. Y. Acad. Sci. 1972, 194, 17–24. [Google Scholar] [CrossRef] [PubMed]
  15. Anderson, J.K.; Ziurys, L.M. Detection of CCN (X2Πr) in IRC+10216: Constrainind Carbon-Chain Chemistry. Astrophys. J. Lett. 2014, 795, 1. [Google Scholar] [CrossRef]
  16. Guelin, M.; Thaddeus, P. Tentative Detection of the C3NRadical Astrophys. J. Lett. 1977, 212, 81. [Google Scholar] [CrossRef]
  17. Friberg, P.; Hjalmarson, A.; Guelin, M.; Irvine, W.M. Interstellar C3N—Detection in Taurus dark clouds. Astrophys. J. 1980, 241, 99–103. [Google Scholar] [CrossRef]
  18. Ziurys, L.M.; Turner, B.E. HCNH(+)—A new interstellar molecular ion. Astrophys. J. 1986, 302, 31–36. [Google Scholar] [CrossRef]
  19. Agúndez, M.; Marcelino, N.; Cernicharo, J. Discovery of Interstellar Isocyanogen (CNCN): Further Evidence that Dicyanopolyynes Are Abundant in Space Astrophys. J. Lett. 2018, 861, 22. [Google Scholar] [CrossRef]
  20. Turner, B.E. Detection of Interstellar Cyanoacetylene. Astrophys. J. 1971, 163, 35. [Google Scholar] [CrossRef]
  21. Kawaguchi, K.; Ohishi, M.; Ishikawa, S.-I.; Kaifu, N. Detection of isocyanoacetylene HCCNCin TMC-1 Astrophys. J. Lett. 1992, 386, 51–53. [Google Scholar] [CrossRef]
  22. McGuire, B.A.; Loomis, R.A.; Charness, C.M.; Corby, J.F.; Blake, G.A.; Hollis, J.M.; Lovas, F.J.; Jewell, P.R.; Remijan, A.J. Interstellar Carbodiimide (HNCNH): A New Astronomical Detection From The GBT PRIMOS Survey Via Maser Emission Features. Astrophys. J. Lett. 2012, 758, 33. [Google Scholar] [CrossRef]
  23. Solomon, P.M.; Jefferts, K.B.; Penzias, A.A.; Wilson, R.W. Detection of Millimeter Emission Lines from Interstellar Methyl Cyanide. Astrophys. J. 1971, 168, 107. [Google Scholar] [CrossRef]
  24. Kawaguchi, K.; Kasai, Y.; Ishikawa, S.-I.; Ohishi, M.; Kaifu, N.; Amano, T. Detection of a new molecular ion HC3NH(+) in TMC-1. Astrophys. J. 1994, 420, 95–97. [Google Scholar] [CrossRef]
  25. Guelin, M.; Neininger, N.; Cernicharo, J. Astronomical detection of the cyanobutadiynyl radical, C.5.N. Astron. Astrophys. 1998, 335, 1–4. [Google Scholar] [CrossRef]
  26. Belloche, A.; Menten, K.M.; Comito, C.; Müller, H.S.P.; Schilke, P.; Ott, J.; Thorwirth, S.; Hieret, C. Detection of amino acetonitrile in Sgr B2(N). Astron. Astrophys. 2008, 492, 769–773. [Google Scholar] [CrossRef]
  27. Little, L.T.; Macdonald, G.H.; Riley, P.W.; Matheson, D.N. Observations of interstellar HC5N and HC7N in dark dust clouds. Mon. Not. R. Astron. Soc. 1978, 183, 45–50. [Google Scholar] [CrossRef]
  28. Kroto, H.W.; Kirby, C.; Walton, D.R.M.; Avery, L.W.; Broten, N.W.; MacLeod, J.M. The detection of cyanohexatriyne, H(C≡C)3CN, in Heile’s Cloud 2. Astrophys. J. Lett. 1978, 219, 133–137. [Google Scholar] [CrossRef]
  29. Kroto, H.W.; Kirby, C.; Walton, D.R.M.; Avery, L.W.; Broten, N.W.; MacLeod, J.M. Detection of a Complex New Interstellar Molecule with a Molecular Weight of 99. Bull. Am. Astron. Soc. 1977, 9, 303. [Google Scholar]
  30. Broten, N.W.; Oka, T.; Avery, L.W.; MacLeod, J.M.; Kroto, H.W. The detection of HC9N in interstellar space. Astrophys. J. 1978, 223, 105–107. [Google Scholar] [CrossRef]
  31. Cernicharo, J.; Heras, A.M.; Tielens, A.G.G.M.; Pardo, J.R.; Herpin, F.; Guélin, M.; Waters, L.B.F.M. Infrared Space Observatory’s Discovery of C4H2, C6H2, and Benzene in CRL 618. Astrophys. J. 2001, 546, 123–126. [Google Scholar] [CrossRef]
  32. McGuire, B.A.; Burkhardt, A.M.; Kalenskii, S.; Shingledecker, C.N.; Remijan, A.J.; Herbst, E.; McCarthy, M.C. Detection of the aromatic molecule benzonitrile (c-C6H5CN) in the interstellar medium. Science 2018, 359, 202–205. [Google Scholar] [CrossRef]
  33. Cernicharo, J.; Agúndez, M.; Cabezas, C.; Tercero, B.; Marcelino, N.; Pardo, J.R.; De Vicente, P. Pure hydrocarbon cycles in TMC-1: Discovery of ethynyl cyclopropenylidene, cyclopentadiene and indene. Astron. Astrophys. 2021, 649, 15. [Google Scholar] [CrossRef] [PubMed]
  34. McCarthy, M.C.; Lee, K.L.K.; Loomis, R.A.; Burkhardt, A.M.; Shingledecker, C.N.; Charnley, S.B.; Cordiner, M.A.; Herbst, E.; Kalenskii, S.; Willis, E.R.; et al. Interstellar Detection of the Highly Polar Five-Membered Ring Cyanocyclopentadiene. Nat. Astron. 2012, 5, 176–180. [Google Scholar] [CrossRef]
  35. Cernicharo, J.; Agundez, M.; Kaiser, R.I.; Cabezas, C.; Tercero, B.; Marcelino, N.; Pardo, J.R.; De Vicente, P. Discovery of two isomers of ethynyl cyclopentadiene in TMC-1: Abundances of CCH and CN derivatives of hydrocarbon cycles. Astron. Astrophys. 2021, 655, 1. [Google Scholar] [CrossRef]
  36. Cernicharo, J.; Agundez, M.; Kaiser, R.I.; Cabezas, C.; Tercero, B.; Marcelino, N.; Pardo, J.R.; De Vicente, P. Discovery of benzyne, o-C6H4, in TMC-1 with the QUIJOTE line survey. Astron. Astrophys. 2021, 652, 9. [Google Scholar] [CrossRef]
  37. McGuire, B.A.; Loomis, R.A.; Burkhardt, A.M.; Lee, K.; Shingledecker, C.N.; Charnley, S.B.; Cooke, I.R.; Cordiner, M.; Herbst, E.; Kalenskii, S.V.; et al. Detection of two interstellar polycyclic aromatic hydrocarbons via spectral matched filtering. Science 2021, 371, 1265–1269. [Google Scholar] [CrossRef]
  38. Tau, O.; Lovergine, N.; Prete, P. Adsorption and decomposition steps on Cu(111) of liquid aromatic hydrocarbon precursors for low-temperature CVD of graphene: A DFT study. Carbon 2023, 206, 142–149. [Google Scholar] [CrossRef]
  39. Tau, O.; Lovergine, N.; Prete, P. Molecular decomposition reactions and early nucleation in CVD growth of graphene on Cu and Si substrates from toluene. In Proceedings of the Low-Dimensional Materials and Devices 2024, San Diego, CA, USA, 2 October 2024. [Google Scholar] [CrossRef]
  40. Kalchevski, D.A.; Trifonov, D.V.; Kolev, S.K.; Popov, V.N.; Aleksandrov, H.A.; Milenov, T.I. Theoretical study on the mechanisms of formation of primal carbon clusters and nanoparticles in space. Phys. Chem. Chem. Phys. 2025, 27, 1819–1833. [Google Scholar] [CrossRef]
  41. Blanco, A.; Borghesi, A.; Fonti, S.; Orofino, V.; Bussoletti, E.; Colangeli, L. Amorphous carbon grains and PAH molecules in space. MemSAlt 1987, 58, 315–319. [Google Scholar]
  42. Jones, A.P.; Fanciullo, L.; Köhler, M.; Verstraete, L.; Guillet, V.; Bocchio, M.; Ysard, N. The evolution of amorphous hydrocarbons in the ISM: Dust modelling from a new vantage point. Astron. Astrophys. 2013, 558, 62. [Google Scholar] [CrossRef]
  43. VandeVondele, J.; Krack, M.; Mohamed, F.; Parrinello, M.; Chassaing, T.; Hutter, J. Quickstep: Fast and accurate density functional calculations using a mixed Gaussian and plane waves approach. Comput. Phys. Commun. 2005, 167, 103–128. [Google Scholar] [CrossRef]
  44. Kuehne, T.D.; Iannuzzi, M.; Del Ben, M.; Rybkin, V.V.; Seewald, P.; Stein, F.; Laino, T.; Khaliullin, R.Z.; Schuett, O.; Schiffmann, F.; et al. CP2K: An electronic structure and molecular dynamics software package—Quickstep: Efficient and accurate electronic structure calculations. J. Chem. Phys. 2020, 152, 194103. [Google Scholar] [CrossRef] [PubMed]
  45. Elstner, M.; Porezag, D.; Jungnickel, G.; Elsner, J.; Haugk, M.; Frauenheim, T.; Suhai, S.; Seifert, G. Self-consistent-charge density-functional tight-binding method for simulations of complex materials properties. Phys. Rev. B 1998, 58, 7260–7268. [Google Scholar] [CrossRef]
  46. Zhechkov, L.; Heine, T.; Patchkovskii, S.; Seifert, G.; Duarte, H.A. An efficient a Posteriori treatment for dispersion interaction in density-functional-based tight binding. J. Chem. Theory Comput. 2005, 1, 841–847. [Google Scholar] [CrossRef]
  47. Slater, J.C.; Koster, G.F. Simplified LCAO method for the Periodic Potential Problem. Phys. Rev. 1954, 94, 1498–1524. [Google Scholar] [CrossRef]
  48. Harris, J. Simplified method for calculating the energy of weakly interacting fragments. Phys. Rev. B 1985, 31, 1770–1779. [Google Scholar] [CrossRef]
  49. Lee, K.H.; Schnupf, U.; Sumpter, B.G.; Irle, S. Performance of Density-Functional Tight-Binding in Comparison to Ab Initio and First-Principles Methods for Isomer Geometries and Energies of Glucose Epimers in Vacuo and Solution. ACS Omega 2018, 3, 16899–16915. [Google Scholar] [CrossRef]
  50. Fihey, A.; Jacquemin, D. Performances of Density Functional Tight-Binding Methods for Describing Ground Excited State Geometries of Organic Molecules. J. Chem. Theory Comput. 2019, 15, 6267–6276. [Google Scholar] [CrossRef]
  51. Gruden, M.; Andjeklović, L.; Jissy, A.K.; Stepanović, S.; Zlatar, M.; Cui, Q.; Elstner, M. Benchmarking density functional tight binding models for barrier heights and reaction energetics of organic molecules. J. Comput. Chem. 2017, 38, 2171–2185. [Google Scholar] [CrossRef]
  52. Jahangiri, S.; Cai, L.; Peslherbe, G.H. Performance of density-functional tight-binding models in describing hydrogen-bonded anionic-water clusters. J. Comput. Chem. 2014, 35, 1707–1715. [Google Scholar] [CrossRef]
  53. Zheng, G.; Irle, S.; Morokuma, K. Performance of the DFTB method in comparison to DFT and semiempirical methods for geometries and energies of C20–C86 fullerene isomers. Chem. Phys. Lett. 2005, 412, 210–216. [Google Scholar] [CrossRef]
  54. Kuhne, T.D.; Krack, M.; Mohamed, F.R.; Parrinello, M. Efficient and Accurate Car-Parrinello-like Approach to Born-Oppenheimer Molecular Dynamics. Phys. Rev. Lett. 2007, 98, 066401. [Google Scholar] [CrossRef]
  55. Laio, A.; Parrinello, M. Escaping free-energy minima. Proc. Natl. Acad. Sci. USA 2002, 99, 12562–12566. [Google Scholar] [CrossRef]
  56. Laio, A.; Gervasio, F.L. Metadynamics: A method to simulate rare events and reconstruct the free energy in biophysics, chemistry and material science. Rep. Prog. Phys. 2008, 71, 126601. [Google Scholar] [CrossRef]
  57. Braun, E.; Moosavi, S.M.; Smit, B. Anomalous effects of velocity rescaling algorithms: The flying ice cube effect revisited. J. Chem. Theory Comput. 2018, 14, 5262–5272. [Google Scholar] [CrossRef]
  58. Bussi, G.; Donadio, D.; Parrinello, M. Canonical sampling through velocity rescaling. J. Chem. Phys. 2007, 126, 014101. [Google Scholar] [CrossRef]
  59. Grutzmacher, H. Catalytic Heterofunctionalization. In Catalytic Hydroamination of Unsaturated Carbon-Carbon Bonds; Togni, A., Grutzmacher, H., Eds.; Wiley: Hoboken, NJ, USA, 2001; pp. 91–133. [Google Scholar]
Nanomaterials 15 01110 g001
Figure 1. Atomic numbering of a C25 carbon molecule.
Figure 1. Atomic numbering of a C25 carbon molecule.
Nanomaterials 15 01110 g001
Nanomaterials 15 01110 g002

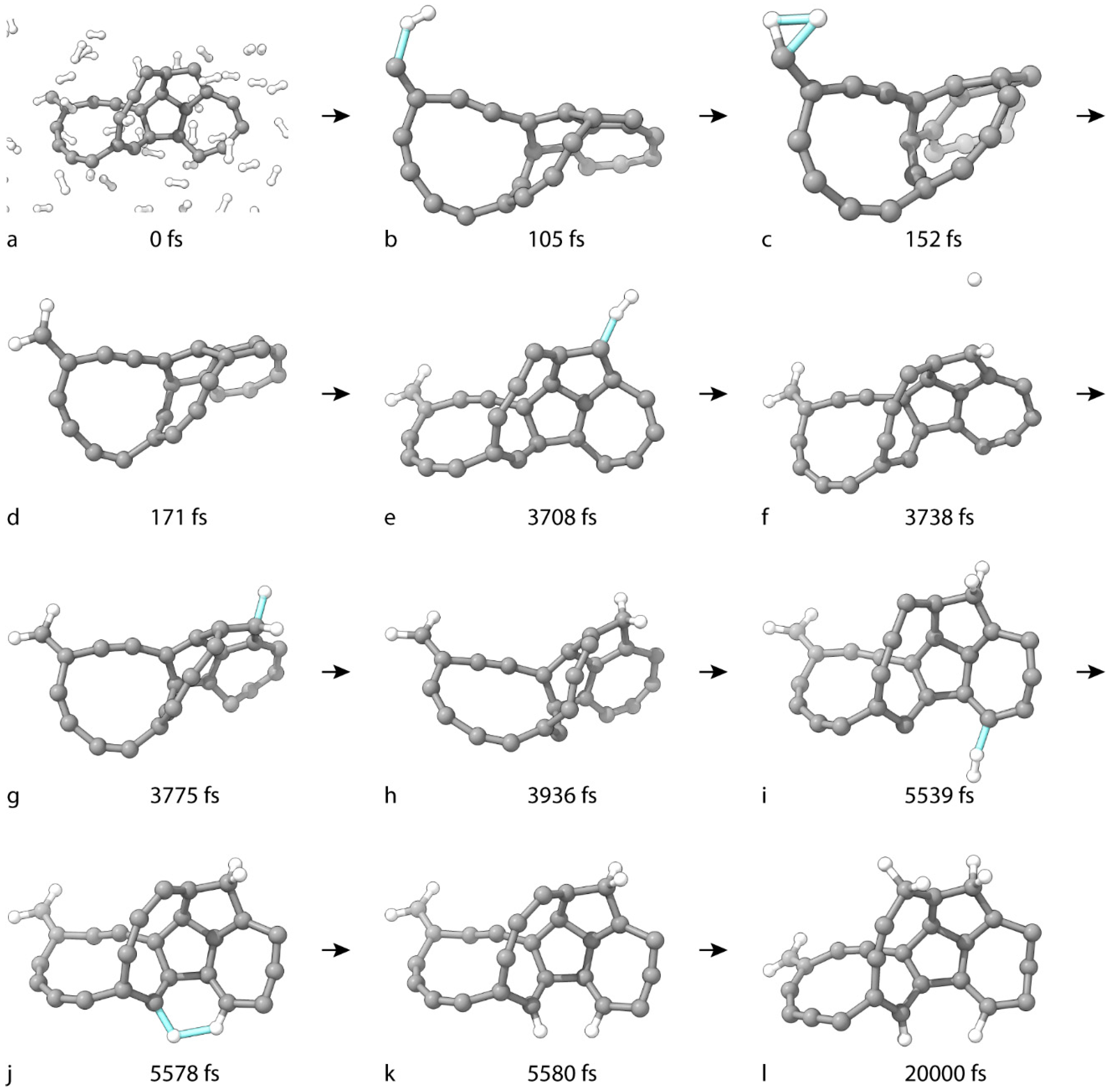

Figure 2. Geometries of critical structures in the formation of C25H8 from C25. (a) is the zeroth frame of the simulation. (b,c,e,g,i,j) are TS structures. (d,f,h,k) are intermediate molecules (l) is the final geometry of C25H8. For clarity, H2 molecules with no covalent interactions toward the C25 moiety throughout the simulation are not displayed.
Figure 2. Geometries of critical structures in the formation of C25H8 from C25. (a) is the zeroth frame of the simulation. (b,c,e,g,i,j) are TS structures. (d,f,h,k) are intermediate molecules (l) is the final geometry of C25H8. For clarity, H2 molecules with no covalent interactions toward the C25 moiety throughout the simulation are not displayed.
Nanomaterials 15 01110 g002
Nanomaterials 15 01110 g003

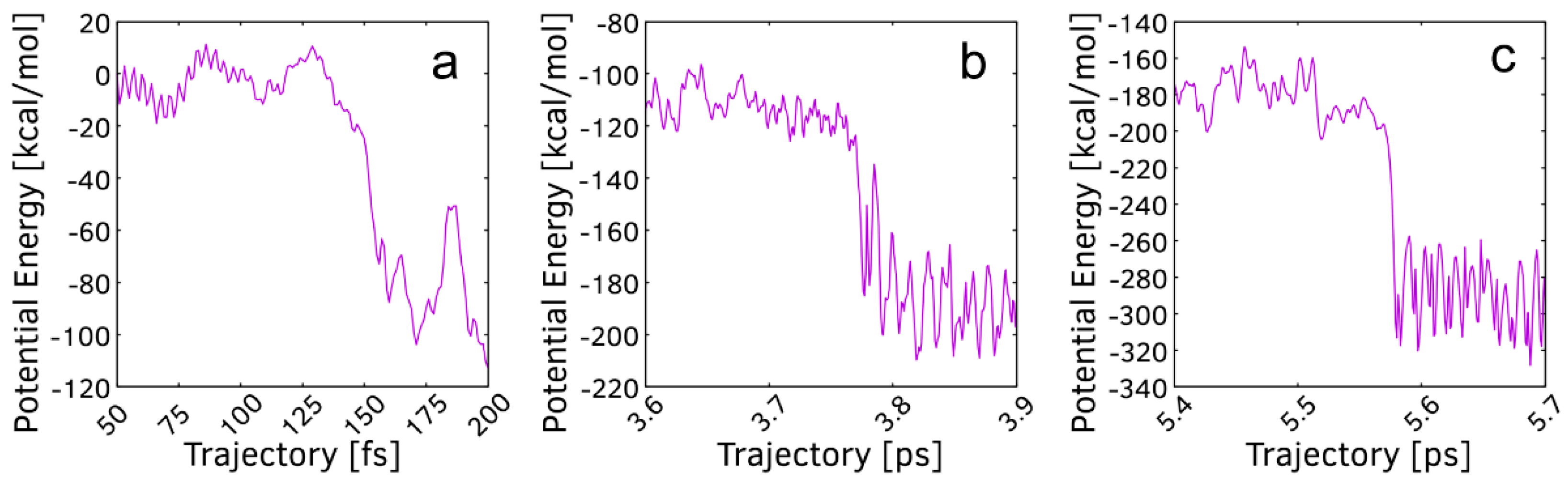

Figure 3. Potential energy profiles for the formation of C25H8 from C25. Continuous abscissa and ordinate of one simulation are split between the three diagrams. The abscissa represents continuous moments of time during the simulation. The ordinate (potential energy) is zeroed at 50 fs of the simulation. (a) potential energy profile of the first H2 addition; (b) potential energy profile of the second H2 addition; (c) potential energy profile of the third H2 addition.
Figure 3. Potential energy profiles for the formation of C25H8 from C25. Continuous abscissa and ordinate of one simulation are split between the three diagrams. The abscissa represents continuous moments of time during the simulation. The ordinate (potential energy) is zeroed at 50 fs of the simulation. (a) potential energy profile of the first H2 addition; (b) potential energy profile of the second H2 addition; (c) potential energy profile of the third H2 addition.
Nanomaterials 15 01110 g003
Nanomaterials 15 01110 g004

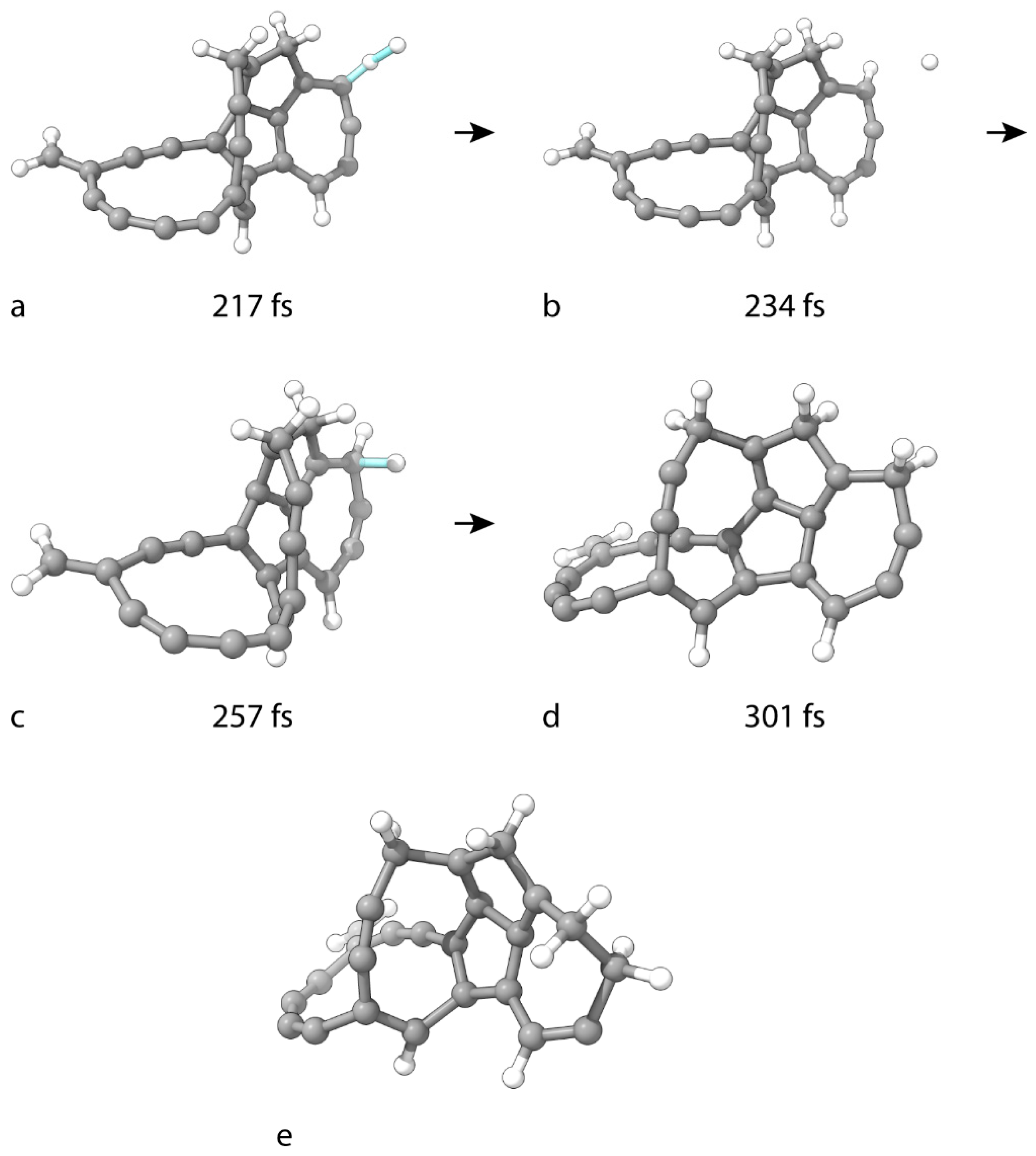

Figure 4. Geometries of critical structures in the subsequent hydrogenation of C25H8 to (d) C25H10 and (e) C25H12. (a,c) are TS structures. (b) is an intermediate molecule. The cluster geometry in the first frame in the formation of (d) is shown in Figure 2l.
Figure 4. Geometries of critical structures in the subsequent hydrogenation of C25H8 to (d) C25H10 and (e) C25H12. (a,c) are TS structures. (b) is an intermediate molecule. The cluster geometry in the first frame in the formation of (d) is shown in Figure 2l.
Nanomaterials 15 01110 g004
Nanomaterials 15 01110 g005
Figure 5. Geometries of critical structures in the consecutive hydrogenation of C25H12 to (d) C25H14, (e) C25H16, and (f) C25H18. (a,c) are the TS structures for both steps of the hydrogenation of C25H12 to C25H14. (b) is the geometry of the C25H13 intermediate. The cluster geometry in the first frame in the formation of (d) is shown in Figure 4e.
Figure 5. Geometries of critical structures in the consecutive hydrogenation of C25H12 to (d) C25H14, (e) C25H16, and (f) C25H18. (a,c) are the TS structures for both steps of the hydrogenation of C25H12 to C25H14. (b) is the geometry of the C25H13 intermediate. The cluster geometry in the first frame in the formation of (d) is shown in Figure 4e.
Nanomaterials 15 01110 g005
Nanomaterials 15 01110 g006

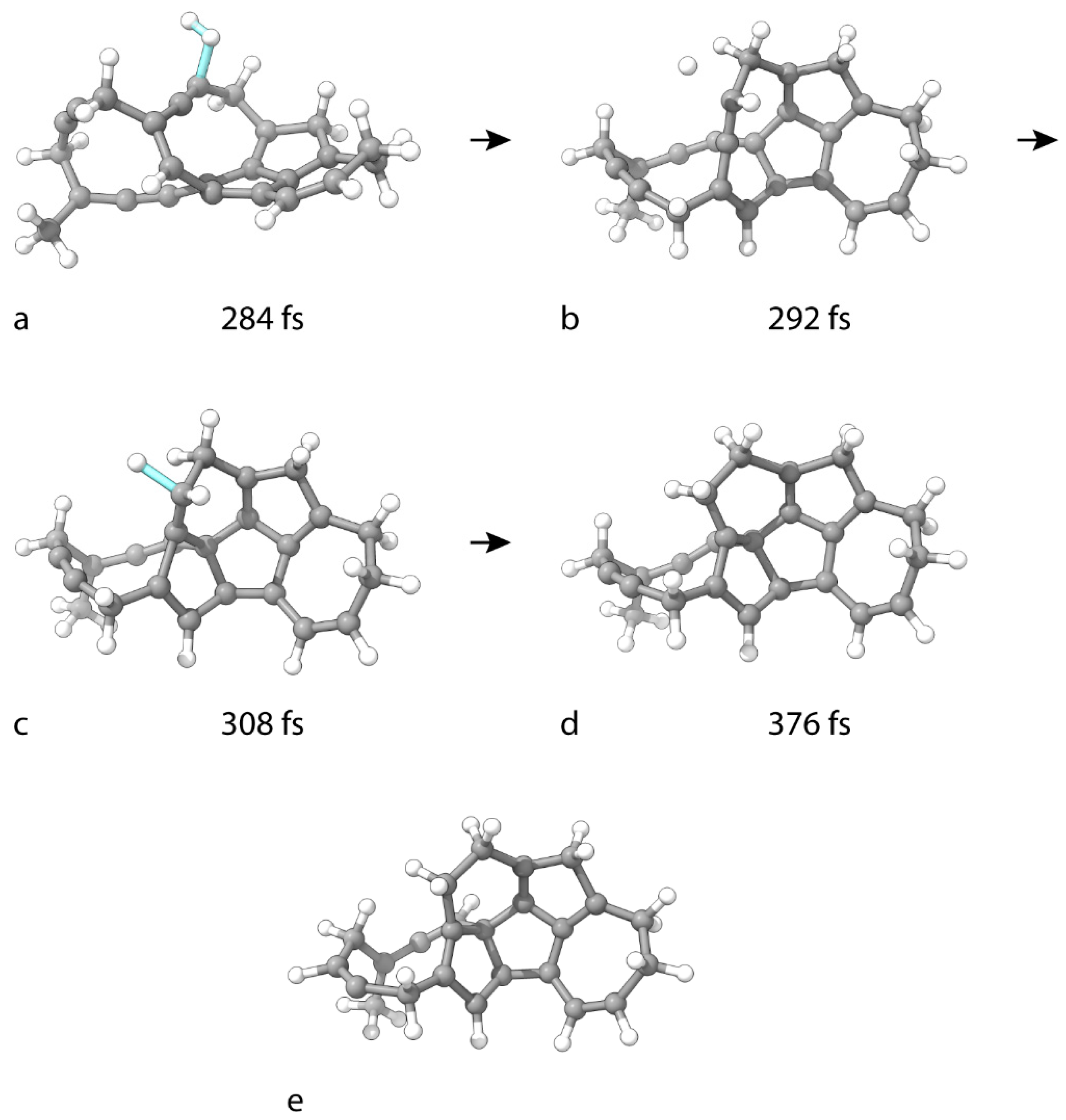

Figure 6. Geometries of critical structures in the consecutive hydrogenation of C25H18 to (d) C25H20 and (e) C25H22. (a,c) are TS structures for both hydrogenation steps of C25H18 to C25H20. (b) is the geometry of the C25H19 intermediate. The cluster geometry in the first frame in the formation of (d) is given in Figure 5f.
Figure 6. Geometries of critical structures in the consecutive hydrogenation of C25H18 to (d) C25H20 and (e) C25H22. (a,c) are TS structures for both hydrogenation steps of C25H18 to C25H20. (b) is the geometry of the C25H19 intermediate. The cluster geometry in the first frame in the formation of (d) is given in Figure 5f.
Nanomaterials 15 01110 g006
Nanomaterials 15 01110 g007

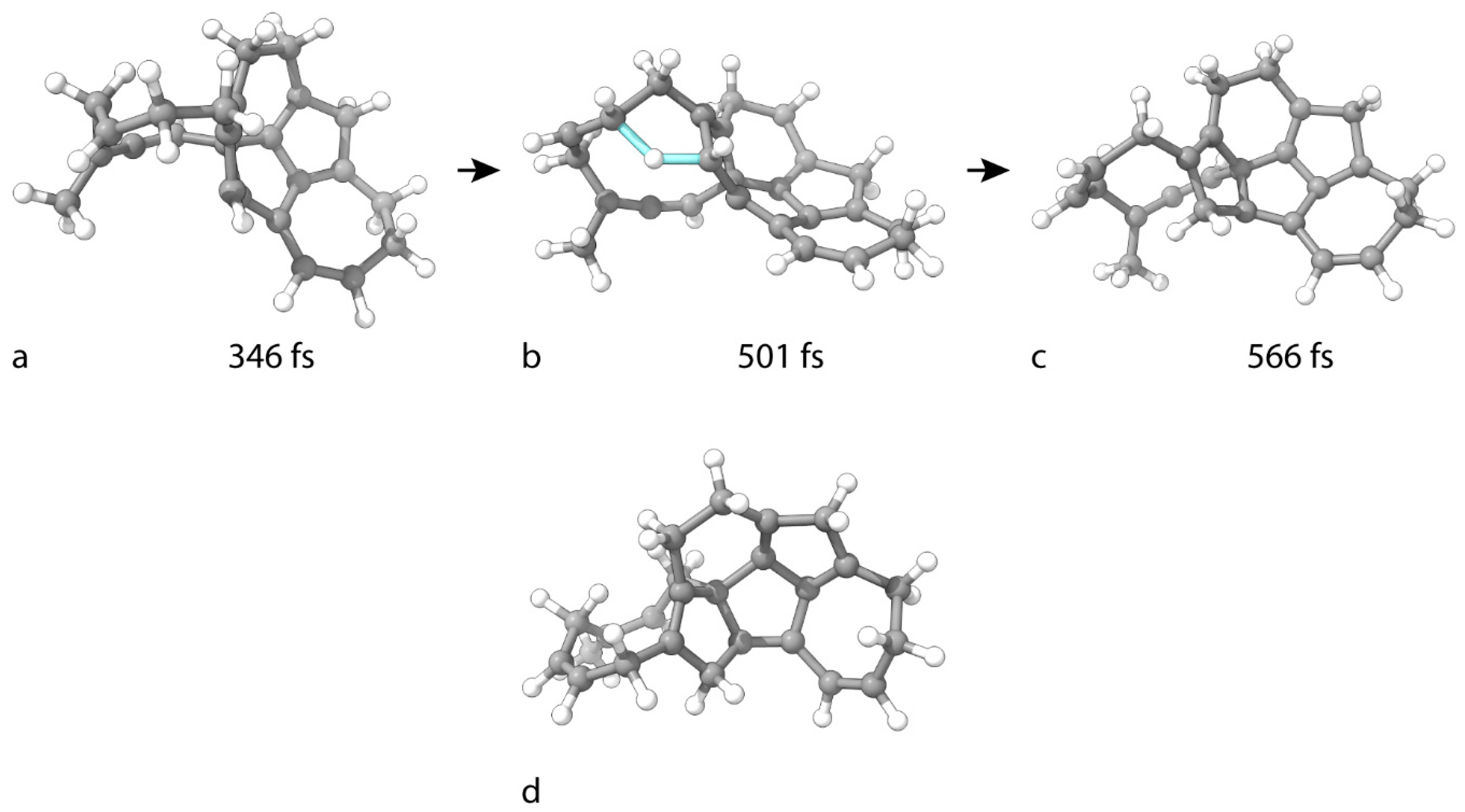

Figure 7. Geometries of critical structures in the consecutive hydrogenation of C25H22 to (c) C25H24 and (d) C25H26. (a) is an intermediate before an intramolecular H transfer. (b) is the TS of the H transfer. The cluster geometry in the first frame in the formation of (c) is given in Figure 6e.
Figure 7. Geometries of critical structures in the consecutive hydrogenation of C25H22 to (c) C25H24 and (d) C25H26. (a) is an intermediate before an intramolecular H transfer. (b) is the TS of the H transfer. The cluster geometry in the first frame in the formation of (c) is given in Figure 6e.
Nanomaterials 15 01110 g007
Nanomaterials 15 01110 g008
Figure 8. Geometries of critical structures in the formation of (i) C25H(NH3)2NH2 and (o) C25H2(NH3)2(NH2)2. (a) is the zeroth frame of the simulation for the initial amination of C25 to C25H(NH3)2NH2. (b,d,f,h) are TS structures. (c,e,g) are intermediate molecules. (j,l,n) are the TSs in the formation of (o). (k,m) are the intermediates in the formation of (o). (i) is the cluster geometry in the zeroth frame of the Metadynamics-modeled amination of (i–o). For clarity, NH3 molecules with no covalent interactions with the carbon cluster throughout the simulation are not displayed.
Figure 8. Geometries of critical structures in the formation of (i) C25H(NH3)2NH2 and (o) C25H2(NH3)2(NH2)2. (a) is the zeroth frame of the simulation for the initial amination of C25 to C25H(NH3)2NH2. (b,d,f,h) are TS structures. (c,e,g) are intermediate molecules. (j,l,n) are the TSs in the formation of (o). (k,m) are the intermediates in the formation of (o). (i) is the cluster geometry in the zeroth frame of the Metadynamics-modeled amination of (i–o). For clarity, NH3 molecules with no covalent interactions with the carbon cluster throughout the simulation are not displayed.
Nanomaterials 15 01110 g008
Nanomaterials 15 01110 g009
Figure 9. Potential energy profiles in the formation of C25H(NH3)2NH2. RDF of the C–N distance in the case of the primary amino group, bound to C(18) (yellow), and the quaternary amino group, bound to C(15) (violet). Potential energy profile of: (a) the ammonia addition to C(15), (b) the ammonia addition to C(18), (c) the H-shift from the second quaternary ammonium group to C(6), and (d) the ammonia addition to C(19). (e) is the FE profile of the fourth (and final) ammonia addition, resulting in C25H2(NH3)2(NH2)2. (f) is the RDF of the C(4)–N distance for the final addition of the amino group. (g) is the comparison between the RDFs of the C(18)–N and the C(15)–N distances.
Figure 9. Potential energy profiles in the formation of C25H(NH3)2NH2. RDF of the C–N distance in the case of the primary amino group, bound to C(18) (yellow), and the quaternary amino group, bound to C(15) (violet). Potential energy profile of: (a) the ammonia addition to C(15), (b) the ammonia addition to C(18), (c) the H-shift from the second quaternary ammonium group to C(6), and (d) the ammonia addition to C(19). (e) is the FE profile of the fourth (and final) ammonia addition, resulting in C25H2(NH3)2(NH2)2. (f) is the RDF of the C(4)–N distance for the final addition of the amino group. (g) is the comparison between the RDFs of the C(18)–N and the C(15)–N distances.
Nanomaterials 15 01110 g009
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kalchevski, D.A.; Kolev, S.K.; Trifonov, D.V.; Grozev, I.G.; Aleksandrov, H.A.; Popov, V.N.; Milenov, T.I. An Ab Initio Metadynamics Study Reveals Multiple Mechanisms of Reactivity by a Primal Carbon Cluster Toward Hydrogen and Ammonia in Space. Nanomaterials 2025, 15, 1110. https://doi.org/10.3390/nano15141110

AMA Style

Kalchevski DA, Kolev SK, Trifonov DV, Grozev IG, Aleksandrov HA, Popov VN, Milenov TI. An Ab Initio Metadynamics Study Reveals Multiple Mechanisms of Reactivity by a Primal Carbon Cluster Toward Hydrogen and Ammonia in Space. Nanomaterials. 2025; 15(14):1110. https://doi.org/10.3390/nano15141110

Chicago/Turabian Style

Kalchevski, Dobromir A., Stefan K. Kolev, Dimitar V. Trifonov, Ivan G. Grozev, Hristiyan A. Aleksandrov, Valentin N. Popov, and Teodor I. Milenov. 2025. "An Ab Initio Metadynamics Study Reveals Multiple Mechanisms of Reactivity by a Primal Carbon Cluster Toward Hydrogen and Ammonia in Space" Nanomaterials 15, no. 14: 1110. https://doi.org/10.3390/nano15141110

APA Style

Kalchevski, D. A., Kolev, S. K., Trifonov, D. V., Grozev, I. G., Aleksandrov, H. A., Popov, V. N., & Milenov, T. I. (2025). An Ab Initio Metadynamics Study Reveals Multiple Mechanisms of Reactivity by a Primal Carbon Cluster Toward Hydrogen and Ammonia in Space. Nanomaterials, 15(14), 1110. https://doi.org/10.3390/nano15141110

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
