Next Article in Journal
High-Speed and Hysteresis-Free Near-Infrared Optical Hydrogen Sensor Based on Ti/Pd Bilayer Thin Films
Previous Article in Journal
Self-Calibrating TSEP for Junction Temperature and RUL Prediction in GaN HEMTs
Previous Article in Special Issue
High-Power-Density Miniaturized VLF Antenna with Nanocrystalline Core for Enhanced Field Strength


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Nanomaterials
Volume 15
Issue 14
10.3390/nano15141103
nanomaterials-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Assessing Antibacterial Properties of Copper Oxide Nanomaterials on Gut-Relevant Bacteria In Vitro: A Multifaceted Approach

by
Tia A. Wardlaw
,
Abdulkader Masri
,
David M. Brown
and
Helinor J. Johnston
*
NanoSafety Research Group, School of Engineering and Physical Sciences, Heriot-Watt University, Edinburgh EH14 4AS, UK
*
Author to whom correspondence should be addressed.
Nanomaterials 2025, 15(14), 1103; https://doi.org/10.3390/nano15141103
Submission received: 17 June 2025 / Revised: 8 July 2025 / Accepted: 12 July 2025 / Published: 16 July 2025
(This article belongs to the Special Issue Advanced Nanomaterials and Energetic Application: Experiment and Simulation)
Browse Figures
Versions Notes

Abstract

Due to the growth in the application of antibacterial nanomaterials (NMs), there is an increased potential for ingestion by humans. Evidence shows that NMs can induce dysbiosis in the gut microbiota in vivo. However, in vitro investigation of the antibacterial activity of NMs on gut-relevant, commensal bacteria has been neglected, with studies predominantly assessing NM toxicity against pathogenic bacteria. The current study investigates the antibacterial activity of copper oxide (CuO) NMs to Escherichia coli K12, Enterococcus faecalis, and Lactobacillus casei using a combination of approaches and evaluates the importance of reactive oxygen species (ROS) production as a mechanism of toxicity. The impact of CuO NMs (100, 200, and 300 μg/mL) on the growth and viability of bacterial strains was assessed via plate counts, optical density (OD) measurements, well and disc diffusion assays, and live/dead fluorescent imaging. CuO NMs reduced the viability of all bacteria in a concentration-dependent manner in all assays except the diffusion assays. The most sensitive methods were OD measurements and plate counts. The sensitivity of bacterial strains varied depending on the method, but overall, the results suggest that E. coli K12 is the most sensitive to CuO NM toxicity. The production of ROS by all bacterial strains was observed via DCFH-DA fluorescent imaging following exposure to CuO NMs (300 μg/mL). Overall, the data suggests that CuO NMs have antibacterial activity against gut-relevant bacteria, with evidence that NM-mediated ROS production may contribute to reductions in bacterial viability. Our findings suggest that the use of a combination of assays provides a robust assessment of the antibacterial properties of ingested NMs, and in particular, it is recommended that plate counts and OD measurements be prioritised in the future when screening the antibacterial properties of NMs.

1. Introduction

Nanomaterials (NMs) are defined as having at least one dimension < 100 nm [1]. The physicochemical (PC) properties of NMs (e.g., composition, size, and shape) determine their diverse functions (such as antibacterial activity) and have led to their utilisation in various applications such as pharmaceuticals, electronics, diagnostics, cosmetics, and textiles [2,3,4,5,6,7,8]. The food industry is a leading exploiter of nanotechnology as NMs can be utilised in agriculture, food processing, nutritional supplements, and packaging [9,10]. For example, titanium dioxide (TiO2) particles (which have a nano component) can be used as a pigment in foods [10]. Copper (Cu) NMs are used as pesticides, as they exhibit antifungal and antibacterial properties against many crop plant pests [11]. The antibacterial properties of NMs are also exploited in food contact materials. For example, silver (Ag), zinc oxide (ZnO), Cu, and TiO2 NMs also function as antimicrobial agents in food packaging [10,12]. In addition, antibacterial NMs can be used in a clinical setting to treat bacterial infections and have been used in wound dressings, implant devices, as antibiotic delivery systems, and in antibacterial vaccines [13,14].
As industries continue to exploit NMs, increased human exposure via ingestion will inevitably occur [15]. For example, NMs can leach from food contact materials (e.g., food packaging) into food, and NMs may contaminate crops when used as pesticides, leading to their accidental ingestion. In addition, inhaled NMs may interact with the gastrointestinal tract (GIT) following mucociliary clearance from the lungs [16,17,18]. NMs may also be unintentionally ingested due to hand-to-mouth contact (e.g., in an occupational setting or due to their use in consumer products (e.g., wood preservatives) [19]. Furthermore, the increased use of NMs in several consumer products can lead to their release into the environment and contamination of drinking water [20,21]. While most existing studies focus on the antibacterial properties and toxicity of Ag NMs, there is comparatively limited research on other antibacterial nanomaterials such as copper oxide (CuO) [22,23,24,25,26]. This study, therefore, focuses on CuO NMs to address this knowledge gap.
Additionally, toxicology research has also primarily examined the effects of NMs following inhalation; however, as antibacterial NMs are likely to be ingested, they may have a detrimental impact on the gut microbiota to cause adverse health outcomes. Of concern is that ingestion of Cu by humans can disrupt the GIT, inducing abdominal pains, vomiting, and diarrhoea [27]. The gut microbiota is a diverse microbial community within the GIT and plays an essential role in maintaining human health [28,29]. Firmicutes and Bacteroidetes account for 90% of the gut microbiota, with Firmicutes encompassing ~200 different genera, namely, Clostridium, Lactobacillus, Bacillus, Enterococcus, and Ruminococcus [30]. The commensal bacteria within the gut microbiota are critical to specific host functions [30]. Commensals such as Enterococcus spp. and Escherichia coli (E. coli) colonise and regulate the digestive system and modulate immune responses; Lactobacillus spp. also enhance gut barrier integrity [30]. There is an indisputable link between dysbiosis of the gut microbiota and disease pathogenesis, namely, diabetes, liver disease, and obesity, among others [28,29].
Research has shown numerous NMs to have broad-spectrum antibacterial activity against both Gram-negative and Gram-positive bacteria. Ag and ZnO NMs are commonly assessed and have been observed to have antibacterial activity against many bacterial strains, such as E. coli, Bacillus subtilis (B. subtilis), Pseudomonas aeruginosa (P. aeruginosa), Staphylococcus aureus (S. aureus), Salmonella enterica, Listeria monocytogenes, and Vibrio cholera [31,32,33,34,35,36,37,38,39,40]. Studies have also reported Ag and ZnO NMs to have antibacterial behaviour against antimicrobial-resistant bacterial strains, including methicillin-resistant S. aureus (MRSA) and E. coli [41,42,43].
The assessment of antibacterial NMs on the gut microbiota in vivo has increased over recent years; for instance, Zhou et al. (2021) [44] used an in vitro approach to assess the effect of ZnO NMs on the microbial composition of human faecal samples. Following NM treatment, the relative abundance of the genera Firmicutes decreased and Actinobacteria increased with a reduction in bacterial viability overall. An in vivo study orally administered Ag NMs to mice, and 16s rRNA sequencing identified an alteration in the Bacteroidetes/Firmicutes ratio in the gut of NM-treated mice. Bacteroidetes increased from 73% to 85%, and Firmicutes decreased from 26% to 15%, both compared to the control. Notably, Lactobacillus in the gut also decreased following NM treatment [45]. Van den Brule et al. (2016) [46] found mice that were orally exposed to food supplemented with Ag NMs over 28 days displayed an increased ratio of Bacteroidetes to Firmicutes in the gut bacterial community. Other NMs have also received attention for their antibacterial properties, including CuO and TiO2, albeit to a lesser extent [11,13,22,23,47,48,49]. One in vivo study found the composition of the gut microbiota of zebrafish was altered following dietary intake of Ag and CuO NMs [24]. Similarly, Swart et al. (2020) [25] showed via DNA isolation, PCR, and 16s rRNA sequencing that earthworms treated with CuO NMs for 28 days presented a shift in the bacterial community of the gut. However, not all studies have found antibacterial NM to induce dysbiosis of commensal gut bacteria. For example, Sizentsov et al. (2018) [26] assessed the effects of Cu and CuO NMs on the probiotic strains Enterobacterium, Lactobacillus, and Enterococcus isolated from the pure intestinal cultures from broiler chickens. No significant alteration in the probiotic bacterial strains at low concentrations of NM exposure was observed, which is postulated to be due to the slow release of Cu ions [26]. Additionally, Pietroiusti et al. (2016) [50] found Cu complexed to chitosan NMs to have antibacterial activity against pathogenic Salmonella while not affecting commensal Lactobacillus. Wilding et al. (2016) [51] assessed microbial communities in mice via 16s rRNA sequencing 28 days post oral exposure to Ag NMs (20 and 110 nm in size and coated with PVP and citrate). The Ag NMs induced no changes in the structure, diversity, or composition of the gut microbiota. Due to conflicting findings across studies and a lack of assessments on commensal bacterial strains, it is necessary to further evaluate the potential impact of NMs on the gut microbiota.
There are many benefits to using in vitro studies to assess the antibacterial activity of NMs. They allow for the direct evaluation of the potential bactericidal or bacteriostatic effects of NMs, offer enhanced control over experimental conditions, and reduce ethical concerns. There are numerous methods for the assessment of the antibacterial properties of NMs, and some of the most common include disc and well diffusion, microtiter plate assays (e.g., qPCR, live/dead assay, and Alamar Blue assay), optical density (OD) measurements, fluorescent microscopy, and colony plate counts [38,52]. Using a battery of approaches provides a more robust toxicity assessment and allows for a comparison of the sensitivity of different methods as they assess the bacterial response via different mechanisms. In a recent in vitro study, CuO NMs were found to act as an antibacterial agent to a varying degree against pathogenic bacteria (B. subtilis > E. coli > S. aureus > P. aeruginosa) [22]. Masri et al. (2022) [22] observed that the methods employed to assess the antibacterial activity of CuO NMs varied in their sensitivity, finding plate counts (time kill assay) and OD measurements to be the most effective. Additionally, Masri et al. (2022) [22] used live/dead fluorescent imaging to assess the antibacterial activity of CuO NM, as it is sensitive and allows for a visual indication of bacterial viability. Similarly, Hossain et al. (2019) [53] utilised a multifaceted approach to assess the antibacterial activity of Ag NMs against both pathogenic and non-pathogenic bacteria in vitro. Plate counts, disc diffusion assays, and OD readings demonstrated Ag NMs to have antibacterial activity against all bacterial strains, with the highest activity against pathogenic S. aureus. Sirelkhatim et al. (2015) [52] investigated the antibacterial effect of ZnO NMs on E. coli via 24-h OD measurements, finding bacteriostatic inhibition to increase in a concentration-dependent manner. The lack of standard protocols available to assess antibacterial NMs has led to studies varying drastically in their experimental design; for example, NM concentrations, exposure duration, and experimental procedure (e.g., protocol, growth media, and bacterial strain) can influence antibacterial potency [22,26,54]. This makes it challenging to compare results between studies and may explain why there are such conflicting findings across studies.
In vitro techniques also allow for the assessment of the potential toxic mechanisms that underpin the antibacterial activity of NMs. The currently hypothesised molecular mechanism by which NMs elicit their antibacterial properties includes oxidative stress, the release of toxic ions, and the direct interaction between NMs and the bacterial cell surface [23,34,36,53,55,56]. Numerous studies have highlighted the importance of oxidative stress as a main antibacterial mechanism of action (MOA) of NMs [23,32]. It is hypothesised that ROS and free radicals reduce bacterial cell viability by stimulating a loss of membrane integrity and by promoting pore formation of the bacterial membrane, causing cell lysis [57,58,59]. Studies suggest ROS generation is directly promoted by NM interactions with bacteria [23,60,61]. For example, Li et al. (2012) [23] observed that E. coli K12 viability (using plate counts) reduced to varying degrees depending on NM treatment (CuO > TiO2 > ZnO > Al2O3 > SiO2 > Fe2O3 > CeO2) and demonstrated a correlation between antibacterial activity and increased ROS generation [23]. Kim et al. (2007) [32] reported that Ag NMs generated free radicals, which inhibited the growth of E. coli and moderately reduced the growth of S. aureus. Zheng et al. (2017) [55] also assessed intracellular ROS production within Staphylococcus epidermidis (S. epidermidis), S. aureus, B. subtilis, and P. aeruginosa following gold (Au) NM treatment via the DCFH-DA assay, observing a correlation between the antimicrobial effect and ROS production. Overall, while many approaches are available to assess antibacterial NMs in vitro, there are limitations to their use. In vitro methods are still to be standardised, and their suitability and sensitivity for testing NMs still require evaluation [22].
The primary aim of the current study was to evaluate the antibacterial activity of CuO NMs to gut-relevant bacterial strains using a multifaceted approach. More specifically, the antibacterial activity of CuO NMs was investigated via application of a battery of tests, including viability (plate count) assays, optical density (OD) measurements, well and disc diffusion assays, and live/dead fluorescent imaging. By comparing the sensitivity of different assays, we aim to identify which approaches should be prioritised in the future when investigating the antibacterial activity of NMs in vitro. In addition, we aim to evaluate the contribution of ROS generation to the antibacterial properties of CuO NMs to improve the understanding of the mechanisms that drive antibacterial activity. The antibacterial activity of CuO NMs against key gut bacterial (commensal) strains was assessed, namely Escherichia coli K12 (E. coli K12), Enterococcus faecalis (E. faecalis), and Lactobacillus casei (L. casei) (Figure 1). E. coli was selected as a representative Gram-negative human gut commensal bacterium that constitutes 0.1–5% of the bacterial community [28]. E. faecalis is Gram-positive and was selected as another commensal bacterium of the human gut, which is known to be an opportunistic pathogen [62]. L. casei was selected as it is a probiotic commensal bacterium that is integral to host health [26]. By examining both Gram-positive and negative strains, we aim to identify whether Gram-positive or negative bacteria vary in their sensitivity to NM toxicity, as previous studies have found the antibacterial effect of NMs on different bacterial strains varies, with previous studies generally observing Gram-negative bacteria being more susceptible to antibacterial NMs than Gram-positive strains [56,63].We hypothesise that CuO NMs will induce an antibacterial response and will reduce bacterial cell viability within all bacteria tested, with Gram-negative E. coli exhibiting greater sensitivity to NM toxicity. Furthermore, we anticipate that CuO NMs will elevate ROS levels in bacteria to reduce bacterial cell viability.

2. Materials and Methods

2.1. CuO Nanomaterial Characterisation

CuO NMs were obtained from PlasmaChem, Gmbh (Berlin, Germany). The manufacturer information data sheet reported the NMs to range in size from 15 to 20 nm, have a specific surface area of 47 m2/g, and have a density of 6.3 g/cm3 employing the Brunauer–Emmett–Teller (BET) method [19]. Comprehensive characterisation of the CuO NMs used in this study has already been reported in previous research [64]. More specifically, the size and morphology of the CuO NMs were characterised by Gosens et al. (2016) [64,65]. Briefly, CuO NMs were analysed via transmission electron microscopy (TEM) (Hillsboro, Oregon, USA) and X-ray diffraction (XRD) (Philips, Eindhoven, Netherlands), with a primary particle size measured of 10 nm and 9.3 nm, respectively. Gosens et al. (2016) [64] and Pantano et al., 2018 [65] present the TEM images of the pristine CuO NMs in their study and demonstrate that the CuO particles agglomerate. Cu dissolution has been assessed previously via inductively coupled plasma optical emission spectrometry (ICP-OES) Faenza, Italy) and was measured at <1.5% at pH 7.4 and ~62% at pH 4.5 in Gamble’s solution at 1 and 24 h [64,66]. In the present study, independent characterisation of NM PC properties was performed in sterile distilled water (50 μg/mL) via Dynamic Light Scattering (DLS, Malvern Zeta sizer Nano series) to assess the hydrodynamic diameter, zeta (ζ) potential, and polydispersity index (PDI) of a CuO NM suspension. Measurement of the hydrodynamic diameter reflects the size of nanomaterials in suspension. The PDI is a dimensionless measure of the particle size distribution, and the zeta (ζ) potential reflects the electrostatic surface charge of particles in suspension and is a key indicator of colloidal stability.

2.2. CuO Nanomaterial Preparation

CuO NM stock suspensions were prepared at a concentration of 1 mg/mL using sterile distilled water and bath sonicated (max capacity 1.5 L, ultrasonic power 36 W) for 15 min [22]. Stock suspensions were then diluted in distilled water, Mueller-Hinton broth (MHB), or Tryptone soya broth (TSB) to a concentration range of 100, 200, and 300 μg/mL. NM concentration selection was informed by existing studies [22,67].

2.3. Bacterial Models and Culture Conditions

Escherichia coli (E. coli) K12, Enterococcus faecalis (E. faecalis), and Lactobacillus casei (L. casei) were utilised as model organisms in this study. Stock cultures of E. coli K12 (NCTC 14582), E. faecalis (NCTC 775), and L. casei (NCTC 13764) were obtained from the National Collection of Type Cultures (NCTC). E. coli K12 and E. faecalis were cultured and grown in MHB and Mueller–Hinton agar (MHA). L. casei was cultured and grown in TSB and Mann, Rogosa, and Sharp agar (MRSA). The bacteria were cultured on a shaking incubator (250 rpm) at 37 °C overnight in aerobic conditions. MHA and MRSA (<20 mL) were poured into Petri dishes (100 mm D × 15 mm H) under sterile conditions (airflow hood) and left to dry. To ensure uniformity of bacteria within all experiments, standardisation of bacteria was performed. Evaluation of the number of CFU for each strain was completed by measuring turbidity at 600 nm using a UV/visible spectrophotometer (Edinburgh, UK). The bacterial suspensions were diluted to a final concentration of ~5.0 × 105 CFU/10 μL in specific culture media (MHB or TSB) for all assays [22]. Culture media was utilised as a negative control and 10 μg/mL gentamicin as a positive control for all experiments.

2.4. Time Kill Assay (Plate Count)

Each bacterial inoculum (10 μL) was added to 190 μL of CuO NM suspensions (100–300 μg/mL) or the positive or negative controls in 1.5 mL Eppendorf tubes. The bacterial samples were vortexed and then incubated at 37 °C in a shaking incubator (250 rpm) for 2 h. For each bacterial strain, 10 μL of the samples was then diluted via 10-fold serial dilution using sterile distilled water. Following this, 10 μL of each dilution for E. coli K12 and E. faecalis were plated onto the surface of MHA plates, and 10 μL of each dilution for L. casei were plated onto MRSA plates and incubated overnight at 37 °C. The viable bacteria colonies were then counted by CFUs [22].

2.5. Optical Density Measurement

Ten microlitres (10 μL) of each bacterial inoculum was exposed to 190 μL of CuO NM suspensions (100–300 μg/mL) or the positive or negative control in each well of a 96-well plate. To compensate for potential NM interference, NMs in specific culture media (100–300 μg/mL) in the absence of bacteria were also included as a control. The plate was then incubated at 37 °C for 24 h. To quantify the OD, absorption was measured at 600 nm at 2 h intervals for 24 h via UV–Vis spectroscopy (microplate reader) (FLUOstar Omega (version 5.10), BMG LABTECH, Aylesbury, UK). To account for the potential NM interference, OD values of NM interference control were subtracted from OD values in the presence of bacteria. This is essential for appropriate data interpretation, as the optical properties of NMs are known to interfere with results [68].The data generated a bacterial growth curve for all bacteria strains [67,69].

2.6. Diffusion Assay (Well and Disc)

Diffusion assays were employed to assess the inhibition of bacterial growth via measurement of the zone of inhibition (ZOI) 24 h post-exposure. For both assays, MHA or MRSA Petri dishes were seeded with 100 μL of each bacterial suspension using a sterile cotton spreader. The plates were then dried at room temperature (RT) for 10–20 min. For the well diffusion assay, five wells (6 mm in diameter) were made in the agar plates via a sterile steel-core borer, and the well bases were sealed with 5 μL of molten agar. The wells were then loaded with 50 μL of CuO NMs (100–300 μg/mL) or the positive or negative control. The plates were then dried at RT for 30 min, followed by a 24 h incubation at 37 °C. The ZOI around each well was measured in mm to calculate the actual ZOI. Six mm was subtracted from the ZOI measurement to account for the diameter of the well [70]. For the disc diffusion (Kirby–Bauer) assay, Whatman filter paper antibiotic discs (6 mm) were gently placed on the agar plate. Following this, 10 μL of CuO NMs (100–300 μg/mL) or the negative or positive control were loaded onto paper discs. The plates were incubated for 24 h at 37 °C. The ZOI around each paper disc was measured in mm, and disc diameters (6 mm) were subtracted to calculate the actual ZOI [71].

2.7. Live/Dead Fluorescent Images

A commercially available kit (ThermoFisher (Waltham, MA, USA), LIVE/DEADTMBacLightTM Bacterial Viability Kit, L7012) was employed as per the manufacturer’s instructions to perform the live/dead imaging. In a 15 mL Falcon tube, 1 mL of bacterial cells were exposed to 300 μg/mL CuO NMs, positive or negative controls. Cells were then incubated for 2 h, followed by microscopy staining. Fluorescent microscopy was used to image the cells following staining with the live/dead stain using a Leica DM IRBE CLSM (Edinburgh, UK) (100× magnification).

2.8. DCFH-DA Fluorescent Images

The generation of intracellular ROS was qualitatively assessed via fluorescent microscopy. The bacterial strains (1 mL) were incubated in a 15 mL Falcon tube with 300 μg/mL CuO NMs, positive control (10 μM (~3.4 × 10−5% w/w) hydrogen peroxide (H2O2)), or negative control (untreated cells) in specific culture media for 2 h. Then, the bacterial suspensions were incubated with the 10 mM 2,7-dichlorodihydrofluorescein diacetate (DCFH2-DA) probe diluted with methanol for 30 min in the dark. Following this, samples were mounted onto slides, and images were taken at 40× magnification using a Leica DM IRBE CLSM.

2.9. Statistical Analysis

Each experiment was performed as three independent replicates, and data are expressed as average ± standard error of the mean (SE). All statistical analyses were conducted with Minitab software [version 18]. Data for all assays were screened for normality using the Anderson–Darling test. Parametric data were analysed using an ANOVA, with a Tukey post hoc test identifying differences between the treatment groups. Non-parametric data were subjected to the Kruskal–Wallis test with a Kruskal–Wallis post hoc test. The results were considered statistically significant with a p value of ≤0.05. Details of the statistical analysis performed for each assay are provided in the figure legends for all experiments.

3. Results

3.1. CuO NM Characterisation

The average hydrodynamic diameter of CuO NMs in sterile distilled water was 201.68 nm ± 4.3. The polydispersity index (PDI) was 0.31 ± 0.08, and the charge of the CuO particles was neutral with a ζ-potential of 0.005 mV ± 0.04. Our CuO NMs exhibited a PDI which indicates moderate polydispersity, which is not uncommon in metal oxide nanomaterial suspensions. These specific CuO NMs were selected to reflect a realistic and representative formulation of commercially available CuO NMs, rather than an idealised or artificially stabilised system. Their moderate PDI and neutral surface charge offer a relevant model for how such particles would potentially behave under practical exposure conditions.

3.2. Time Kill (Plate Count) Assay

The viability (plate count) assay found the bacteria to vary in their sensitivity to CuO NMs following a 2 h incubation. CuO NMs induced an antibacterial response in E. coli K12 in a concentration-dependent manner (Figure 2). The number of viable E. coli K12 was significantly reduced at all tested concentrations compared to the negative control (MHB for E. coli K12) (p < 0.01) (Figure 2). There was no significant decrease in the viability of E. faecalis or L. casei, compared to the control (Figure 2). Based on the results of this assay, the toxicity of CuO NMs to the bacteria can be ranked as follows (from most to least sensitive): E. coli K12 > E. faecalis = L. casei. All bacteria exposed to 10 μg/mL of gentamicin exhibited 100% killing.

3.3. OD Measurements

All bacteria exposed to the negative control were observed to have increased OD over time, which is indicative of bacterial growth (Figure 3). CuO NMs exhibited concentration- and time-dependent antibacterial activity against all bacteria, with the strongest growth inhibition observed at 24 h post-exposure (Table 1). Following 24 h of exposure to 300 μg/mL of CuO NMs, L. casei displayed the highest sensitivity, while E. faecalis showed greater resistance, presenting a 100% reduction and 50% reduction in cell viability, respectively (Figure 3B,C). The inhibition of E. coli K12 growth following exposure to 300 μg/mL CuO NM was reduced by 66% when compared to the control (Table 1). Treatment with gentamicin (10 µg/mL) effectively inhibited bacterial growth at all time points (Figure 3).

3.4. Diffusion Assays

Interestingly, both the well and disc diffusion assays found CuO NMs to have no impact on bacterial growth, regardless of concentration or bacterial strain. Only gentamicin (10 µg/mL) exhibited inhibition of bacterial growth in both the well and disc diffusion assays (Figure 4). Disc diffusion inhibition zones measured were E. coli k12 = 4 ± 1.8 mm, E. faecalis = 7.5 ± 2 mm, and L. casei = 0.3 ± 1.6 mm. Well diffusion inhibition zones were E. coli K12 = 14 ± 1.4 mm, E. faecalis = 17 ± 2 mm, and L. casei = 4.6 ± 2 mm.

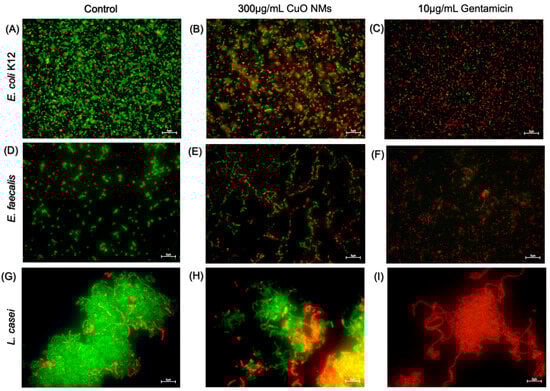

3.5. Live/Dead Fluorescent Microscopy

Fluorescent microscopy was performed to visualise the impact of CuO NMs on bacterial viability using the live/dead assay. The majority of control cells for all bacteria strains were viable (green), with very few or no dead (red) cells (Figure 5A,D,G). The bacterial cells exposed to gentamicin (10 μg/mL) in all bacterial models were almost all dead (Figure 5C,F,I). Following exposure to CuO NMs at a concentration of 300 μg/mL, a decrease in cell viability was observed for all bacteria, with an increased proportion of dead cells observed in all bacterial strains when compared to the control (Figure 5B,E,H). The images suggest E. coli K12 appears to be the most sensitive to the toxicity of the CuO NMs, as the highest proportion of dead cells is observed (Figure 5B).

3.6. DCFH-DA Fluorescent Microscopy

The DCFH-DA fluorescent probe was used to visualise the impact of CuO NMs on intracellular ROS production. DCFH-DA is taken up by the cell via the cellular membrane. Following this, hydrolysis via cellular esterase converts the probe to DCFH. Intracellular ROS then oxidise DCFH, producing the highly fluorescent DCF molecule [63]. Therefore, the intensity of the DCF (green) fluorescence provides a visual indication of ROS within the bacterial cells. The majority of control cells for all bacteria models displayed weak to no fluorescence (Figure 6A,D,G). The bacterial cells exposed to the positive control (10 μM H2O2) in all bacterial models demonstrated the highest fluorescent intensity, thus inducing the greatest production of ROS (Figure 6C,F,I). The fluorescence of bacterial cells following exposure to 300 μg/mL CuO NMs appeared to increase compared to the control; however, not to the same extent as H2O2-treated cells (Figure 6B,E,H).

4. Discussion

4.1. Impact of CuO NMs on Commensal Gut Bacteria

It is well established that CuO NMs have antibacterial activity and are commonly exploited for this attribute [9,11]. Although increased accidental and intentional ingestion of antibacterial NMs is on the rise within the human population, assessment of their impact on gut resident bacteria using in vitro methods has been overlooked. The present study has found CuO NMs to induce an antibacterial response in both a concentration- and time-dependent manner against three gut-relevant bacteria: E. coli K12, E. faecalis, and L. casei. These findings align with previous in vitro studies; for example, Chatterjee et al. (2012) [72] observed Cu NMs have a bactericidal effect on E. coli K12 at a concentration of 7.5 µg/mL, with cell viability decreasing as NM concentration increased. Sizentsov et al. (2018) [26] also found Cu NMs to inhibit the growth of Lactobacillus, with increased toxicity at higher concentrations (30 µg/mL). In vivo studies have also found Cu NMs to induce dysbiosis of the gut microbiota. For example, Merrifield et al. (2013) [24] found alterations in bacterial community structure with disruption to commensal bacteria such as Cetobacterium somerae in zebrafish following 14 days of dietary intake of Cu NMs (500 mg/kg). Similarly, Cu NMs have been found to induce changes to the microbiome of broiler chickens following oral exposure for 28 days at a dosage of 1.7 mg/kg. Notably decreasing the presence of Lactobacillus by 9% when compared with the control [73]. In contrast to the current data, some in vitro studies have observed CuO NMs to have no antibacterial activity against lactobacillus even after prolonged exposure to a concentration of 30 µg/mL [26]. Discrepancies between studies are likely to emerge due to differences in the PC properties of the NMs being tested and their experimental design (e.g., NM concentration, media type, time point, and assay employed to assess toxicity).
The bacterial strains used in the current study varied in their sensitivity to CuO NM toxicity. This bacterial-dependent effect is likely due to the varying biochemical features and mechanisms of defence these microorganisms possess, namely surface charge, membrane permeability, and cell wall composition [74]. The current data presents Gram-negative E. coli K12 to be more sensitive to CuO NM toxicity when compared with the Gram-positive strains (E. faecalis and L. casei). This result is in concordance with the literature, with Ayaz Ahmed and Anbazhagan (2017) [63] finding CuO NMs to significantly inhibit the growth of Gram-negative P. aeruginosa and E. coli, whilst having a limited antibacterial action against Gram-positive S. aureus. The thick peptidoglycan layer of Gram-positive bacteria could limit the uptake of NMs and their toxic ions and thus may protect against NM toxicity [75]. Conversely, the anionic surface domains of Gram-negative bacteria may allow for the binding of NMs [76]. Other studies have found the sensitivity of the bacteria against CuO NMs to be strain-specific and not solely dependent on the Gram type of the bacteria [22,72,74].
Overall, due to the conflicting nature of research assessing antibacterial NMs against gut bacteria, further studies are essential. To further determine if CuO NMs affect gut bacteria, studies should employ an array of (commensal) bacterial strains, e.g., Lactobacillus spp., Bifidobacterium spp., Porphyromonas spp., and Clostridium spp., which are resident in the gut. Additionally, future research should consider characterising the surface change of the bacteria by quantifying the ζ-potential via DLS as previously conducted by Halder et al. (2015) [77] or by fusing charged ligands to the bacteria to give them an artificial charge as previously conducted by Feng et al. (2015) [56]. Visualising and quantifying NM interactions with bacterial cells should also be prioritised in the future, as existing studies demonstrate that NMs will interact with the cell surface; for example, Sirelkhatim et al. (2015) [52] employed scanning electron microscopy (SEM) to visualise the interactions between ZnO NMs and E. coli, observing morphological changes in the bacteria. This will aid in determining if the biochemical features of the bacteria can influence their susceptibility to antibacterial NM.

4.2. Sensitivity of In Vitro Approaches

In vitro approaches are commonly used to assess the antibacterial effects of NMs, although most studies focus on pathogenic bacteria. Plate counts and diffusion assays are regularly employed to assess antibacterial properties [22]. The present study used a battery of assays that were identified to vary concerning their sensitivity. The plate counts conducted in the current study only found CuO NMs to have a significant antibacterial impact on E. coli K12 at all concentrations assessed. Surprisingly, the diffusion assays within the current study lacked sensitivity. Disc and well diffusion assays are commonly used assays and have previously been successfully used to assess the antibacterial activity of NMs [22,78]. The ineffectual response observed in this study may be due to the limited mobility of CuO NMs in agar and their inability to diffuse, which impedes their interaction with the bacterial cells [79]. Previous work assessing the antibacterial properties of CuO NMs has also shown limited results using this approach. For example, Masri et al. (2022) [22] found diffusion assays to detect CuO NM toxicity only at the highest concentrations tested (200 µg/mL), with small zones of inhibition (ZOI) measured. Similarly, in another study, Lactobacillus and Enterococcus strains exposed to CuO NM did not induce any inhibition of growth via the well diffusion assay [26].
OD measurements were successfully used in the present study to investigate the impact of CuO NMs on bacterial cell viability. A recent study also found the cell viability of E. coli and B. subtilis to be significantly reduced by CuO NMs (200 μg/mL) at 4, 8, and 24 h via OD readings [22]. A particular advantage of OD measurements is that they allow for the high throughput, continual assessment of bacterial growth inhibition over time. This is emphasised by the work of Dadi et al. (2019) [67], in which OD measurements were used to determine that E. coli, S. aureus, and P. aeruginosa are most sensitive to CuO NMs during the exponential growth phase. It is worth noting when using OD measurements, appropriate controls are essential, as the optical properties of NM are known to interfere with results [68]. Lastly, the live/dead fluorescent imaging approach found the viability of all bacterial models was reduced by CuO NM exposure, suggesting E. coli K12 was the most sensitive strain, which is in agreement with the other assays used. Similar results have also been observed by Masri et al. (2022) [22] using the same live/dead staining method. In the future, it is therefore recommended that plate counts and OD readings be prioritised when assessing the antibacterial activity of NMs to streamline investigations, as they allow a rapid, efficient, and cheap assessment of toxicity.

4.3. Physiochemical Properties of CuO NMs

The PC properties of NMs (e.g., size, shape, charge, solubility, surface area) influence their interactions with cells and therefore their antibacterial activity [15,80]. As a consequence, the PC properties of NMs are characterised in parallel to assessing their toxicity to identify what PC properties confer toxicity. Furthermore, there is evidence that information provided by suppliers on NM PC properties is not always accurate [81,82,83] and thus it is prudent to perform an independent characterisation of the PC properties of NMs. The PC properties of the CuO NMs being investigated in our study have been extensively characterised previously [64,65,66], and so only limited characterisation of the PC properties of the NMs was performed in this study to avoid the duplication of existing research.
The size of NMs directly correlates to their reactivity, with toxicity typically increasing with decreasing particle size [15]. Azam et al. (2012) [84] found the antibacterial activity of CuO NMs to be dependent on particle size, with smaller particles (20 nm) inducing the greatest toxicity against both Gram-positive and Gram-negative bacterial strains. The primary particle size of the CuO NMs investigated in this study is ~10–20 nm [64,65]. However, the hydrodynamic diameter of the CuO NMs was found to be ~200 nm when suspended in water, which suggests that the CuO NMs were agglomerated. This finding is in agreement with other studies in the published literature that have used the same CuO NMs [22,85]. The agglomeration of NMs can influence their interaction with bacterial cells and therefore their toxic potency, and so future studies should conduct studies to visualise the interaction of CuO NMs with bacterial cells, and if deemed necessary, the dispersion protocol used could be modified to reduce the likelihood of NM agglomeration.
CuO NM dissolution is also known to influence their toxicity [86,87,88]. The solubility of the exact CuO NMs tested in our study has been investigated previously, with evidence that these NMs are highly soluble [64,66] This suggests that ions rather than particle effects may drive the toxicity of the CuO NMs to bacteria. Indeed, there is evidence that Cu ions can be absorbed by bacterial cells and disrupt many biochemical functions [89,90] and promote intracellular ROS production, which supports our hypothesis [86]. Thus, future studies should therefore evaluate ion release from CuO NMs as it is essential to their antibacterial function using inductively coupled plasma-mass spectrometry (ICP-MS) or ICP-OES to monitor dissolution over time, as this will help distinguish between particle or ion effects [64,91]. In addition, an ionic control, such as copper sulphate, could be included in future experiments to help distinguish between particle- and ion-mediated antibacterial effects.

4.4. CuO NM-Mediated Intracellular ROS Production

It is well established in the literature that NMs mediate ROS production and stimulate oxidative stress [63,86]. The formation of ROS is widely hypothesised to be a key antibacterial mechanism of CuO NMs [13]. Within the present study, there is evidence that CuO NMs generate ROS in all bacterial strains, supporting this proposed MOA. Previous studies employing fluorescent imaging with DCFH-DA probes have found similar results, observing increased ROS production in S. aureus, E. coli, and B. subtilis following CuO NM exposure [63,92]. Given the growing evidence implicating ROS in NM-mediated antibacterial activity, future studies should consider incorporating the DCFH-DA assay to visualise and quantify ROS generation following NM exposure as a critical endpoint in NM toxicity evaluations.

4.5. Conclusions and Future Prospects

In conclusion, the obtained results suggest that CuO NMs induce a time- and concentration-dependent antibacterial response against gut-relevant bacteria. Among the assessed strains, Gram-negative E. coli K12 exhibited the greatest sensitivity to CuO NM toxicity. Following a mechanistic assessment of intracellular ROS production via fluorescent imaging using the DCFH-DA probe, all bacterial strains treated with CuO NM demonstrated an increase in ROS production.
Gaining a better understanding of the impact that ingested NMs have on the gut microbiota will help inform potential adverse health outcomes. Indeed, it has been proposed that the assessment of microbiota dysbiosis is a key component of the hazard assessment of ingested NMs [93]. Whilst a reliance has been placed on using in vivo models to assess this hazard outcome, to date, it is advised that in the future in vitro models be used to a greater extent. The use of a combination of assays provides a robust approach to assess the antibacterial properties of NMs in vitro, and it is therefore recommended that OD measurements and plate counts be prioritised in the future when assessing the antibacterial activity of NMs in vitro, as they are consistently identified as being the most sensitive assays. Our study, and those in the published literature, have considered the detrimental impact of CuO NMs on individual strains of bacteria in vitro [22,26]. Future studies should also consider assessing the antibacterial impact of NMs on communities of relevant gut bacteria in vitro to improve the physiological relevance of the test model. For example, a recent study employed an in vitro human gut simulator containing gut microbiota samples from healthy male volunteers to assess the impact of TiO2 and Ag NMs on bacterial communities. TiO2 NMs exhibited limited reductions in bacteria density, whereas antibacterial Ag NMs reduced community density by 62% [94]. Agans et al. (2019) [94] also observed no alteration in the community diversity after NM exposure, which may be an indication that although bacterial viability is reduced, gut dysbiosis does not occur. This approach would be beneficial to future assessment, as it allows the interplay between the bacterial strains to be evaluated and tracks the potential recovery of the community following NM exposure. Furthermore, it is prudent for future work to evaluate the antibacterial properties of NM under anaerobic conditions when assessing their impact on the gut microbiota to allow for a more physiologically relevant assessment of toxicity. Indeed, Xiu et al. (2012) [34] observed Ag NMs to be significantly more toxic when studies were conducted in the presence of oxygen.

Author Contributions

Conceptualisation, T.A.W., A.M. and H.J.J.; formal analysis, T.A.W. and D.M.B.; methodology, T.A.W. and A.M.; data analysis, D.M.B.; supervision, H.J.J.; writing—original draft, T.A.W.; writing—review and editing, D.M.B. and H.J.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The author would like to thank the nano-safety research team for kindly allowing the use of the laboratory and equipment located at Heriot-Watt University.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. European Commission. Commission Recommendation of 10 June 2022 on the Definition of Nanomaterial. 2022. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/PDF/?uri=CELEX:32022H0614(01) (accessed on 11 July 2025).
  2. Hsiao, I.L.; Huang, Y.-J. Effects of various physicochemical characteristics on the toxicities of ZnO and TiO2 nanoparticles toward human lung epithelial cells. Sci. Total Environ. 2011, 409, 1219–1228. [Google Scholar] [CrossRef] [PubMed]
  3. Johnston, H.; Brown, D.M.; Kanase, N.; Euston, M.; Gaiser, B.K.; Robb, C.T.; Dyrynda, E.; Rossi, A.G.; Brown, E.R.; Stone, V. Mechanism of neutrophil activation and toxicity elicited by engineered nanomaterials. Toxicol. Vitr. 2015, 29, 1172–1184. [Google Scholar] [CrossRef] [PubMed]
  4. Shang, L.; Nienhaus, K.; Nienhaus, G.U. Engineered nanoparticles interacting with cells: Size matters. J. Nanobiotechnol. 2014, 12, 5. [Google Scholar] [CrossRef] [PubMed]
  5. Ferdous, Z.; Nemmar, A. Health Impact of Silver Nanoparticles: A Review of the Biodistribution and Toxicity Following Various Routes of Exposure. Int. J. Mol. Sci. 2020, 21, 2375. [Google Scholar] [CrossRef] [PubMed]
  6. Jiang, J.; Pi, J.; Cai, J. The Advancing of Zinc Oxide Nanoparticles for Biomedical Applications. Bioinorg. Chem. Appl. 2018, 2018, 1062562. [Google Scholar] [CrossRef] [PubMed]
  7. Monsé, C.; Raulf, M.; Hagemeyer, O.; van Kampen, V.; Kendzia, B.; Gering, V.; Marek, E.-M.; Jettkant, B.; Bünger, J.; Merget, R.; et al. Airway inflammation after inhalation of nano-sized zinc oxide particles in human volunteers. BMC Pulm. Med. 2019, 19, 266. [Google Scholar] [CrossRef] [PubMed]
  8. Weir, A.; Westerhoff, P.; Fabricius, L.; Hristovski, K.; von Goetz, N. Titanium Dioxide Nanoparticles in Food and Personal Care Products. Environ. Sci. Technol. 2012, 46, 2242–2250. [Google Scholar] [CrossRef] [PubMed]
  9. Duncan, T.V. Applications of nanotechnology in food packaging and food safety: Barrier materials, antimicrobials and sensors. J. Colloid. Interface Sci. 2011, 363, 1–24. [Google Scholar] [CrossRef] [PubMed]
  10. Nile, S.H.; Baskar, V.; Selvaraj, D.; Nile, A.; Xiao, J.; Kai, G. Nanotechnologies in Food Science: Applications, Recent Trends, and Future Perspectives. Nano-Micro Lett. 2020, 12, 45. [Google Scholar] [CrossRef] [PubMed]
  11. Rai, M.; Ingle, A.P.; Pandit, R.; Paralikar, P.; Shende, S.; Gupta, I.; Biswas, J.K.; da Silva, S.S. Copper and copper nanoparticles: Role in management of insect-pests and pathogenic microbes. Nanotechnol. Rev. 2018, 7, 303–315. [Google Scholar] [CrossRef]
  12. Gopinath, K.; Sathishkumar, G.; Xu, L. An Overview of the Copper Oxide Nanofillers Integrated in Food Packaging Systems. Coatings 2024, 14, 81. [Google Scholar] [CrossRef]
  13. Wang, L.; Hu, C.; Shao, L. The antimicrobial activity of nanoparticles: Present situation and prospects for the future. Int. J. Nanomed. 2017, 12, 1227–1249. [Google Scholar] [CrossRef] [PubMed]
  14. Das, P.; McDonald, J.A.; Petrof, E.O.; Allen-Vercoe, E.; Walker, V.K. Nanosilver-mediated change in human intestinal microbiota. J. Nanomed. Nanotechnol. 2014, 5, 1. [Google Scholar]
  15. Naz, S.; Gul, A.; Zia, M. Toxicity of copper oxide nanoparticles: A review study. IET Nanobiotechnol. 2020, 14, 1–13. [Google Scholar] [CrossRef] [PubMed]
  16. Nel, A.; Xia, T.; MaädLer, L.; Li, N. Toxic potential of materials at the nanolevel. Science 2006, 311, 622–627. [Google Scholar] [CrossRef] [PubMed]
  17. Hoet, P.H.M.; Brüske-Hohlfeld, I.; Salata, O.V. Nanoparticles—Known and unknown health risks. J. Nanobiotechnol. 2004, 2, 12. [Google Scholar] [CrossRef] [PubMed]
  18. Takenaka, S.; Karg, E.; Roth, C.; Schulz, H.; Ziesenis, A.; Heinzmann, U.; Schramel, P.; Heyder, J. Pulmonary and systemic distribution of inhaled ultrafine silver particles in rats. Environ. Health Perspect. 2001, 109 (Suppl. 4), 547–551. [Google Scholar] [PubMed]
  19. De Jong, W.H.; De Rijk, E.; Bonetto, A.; Wohlleben, W.; Stone, V.; Brunelli, A.; Badetti, E.; Marcomini, A.; Gosens, I.; Cassee, F.R. Toxicity of copper oxide and basic copper carbonate nanoparticles after short-term oral exposure in rats. Nanotoxicology 2019, 13, 50–72. [Google Scholar] [CrossRef] [PubMed]
  20. Büttner, J.; Schneider, T.; Westermann, M.; Glei, M. Artificial Digestion of Polydisperse Copper Oxide Nanoparticles: Investigation of Effects on the Human In Vitro Intestinal Co-Culture Model Caco-2/HT29-MTX. Toxics 2022, 10, 130. [Google Scholar] [CrossRef] [PubMed]
  21. Pu, Y.; Tang, F.; Adam, P.-M.; Laratte, B.; Ionescu, R.E. Fate and Characterization Factors of Nanoparticles in Seventeen Subcontinental Freshwaters: A Case Study on Copper Nanoparticles. Environ. Sci. Technol. 2016, 50, 9370–9379. [Google Scholar] [CrossRef] [PubMed]
  22. Masri, A.; Brown, D.M.; Smith, D.G.E.; Stone, V.; Johnston, H.J. Comparison of In Vitro Approaches to Assess the Antibacterial Effects of Nanomaterials. J. Funct. Biomater. 2022, 13, 255. [Google Scholar] [CrossRef] [PubMed]
  23. Li, Y.; Zhang, W.; Niu, J.; Chen, Y. Mechanism of photogenerated reactive oxygen species and correlation with the antibacterial properties of engineered metal-oxide nanoparticles. ACS Nano 2012, 6, 5164–5173. [Google Scholar] [CrossRef] [PubMed]
  24. Merrifield, D.L.; Shaw, B.J.; Harper, G.M.; Saoud, I.P.; Davies, S.J.; Handy, R.D.; Henry, T.B. Ingestion of metal-nanoparticle contaminated food disrupts endogenous microbiota in zebrafish (Danio rerio). Environ. Pollut. 2013, 174, 157–163. [Google Scholar] [CrossRef] [PubMed]
  25. Swart, E.; Dvorak, J.; Hernádi, S.; Goodall, T.; Kille, P.; Spurgeon, D.; Svendsen, C.; Prochazkova, P. The Effects of In Vivo Exposure to Copper Oxide Nanoparticles on the Gut Microbiome, Host Immunity, and Susceptibility to a Bacterial Infection in Earthworms. Nanomaterials 2020, 10, 1337. [Google Scholar] [CrossRef] [PubMed]
  26. Sizentsov, A.N.; Kvan, O.V.; Miroshnikova, E.P.; Gavrish, I.A.; Serdaeva, V.A.; Bykov, A.V. Assessment of biotoxicity of Cu nanoparticles with respect to probiotic strains of microorganisms and representatives of the normal flora of the intestine of broiler chickens. Environ. Sci. Pollut. Res. 2018, 25, 15765–15773. [Google Scholar] [CrossRef] [PubMed]
  27. Gotteland, M.; Araya, M.; Pizarro, F.; Olivares, M. Effect of acute copper exposure on gastrointestinal permeability in healthy volunteers. Dig. Dis. Sci. 2001, 46, 1909–1914. [Google Scholar] [CrossRef] [PubMed]
  28. Fröhlich, E.E.; Fröhlich, E. Cytotoxicity of Nanoparticles Contained in Food on Intestinal Cells and the Gut Microbiota. Int. J. Mol. Sci. 2016, 17, 509. [Google Scholar] [CrossRef] [PubMed]
  29. Xie, J.; Zhao, M.; Wang, C.; Yong, Y.; Gu, Z. Recent advances in understanding the effects of nanomaterials on gut microbiota. Chem. Eng. J. 2022, 435, 134976. [Google Scholar] [CrossRef]
  30. Rinninella, E.; Raoul, P.; Cintoni, M.; Franceschi, F.; Miggiano, G.A.D.; Gasbarrini, A.; Mele, M.C. What is the Healthy Gut Microbiota Composition? A Changing Ecosystem across Age, Environment, Diet, and Diseases. Microorganisms 2019, 7, 14. [Google Scholar] [CrossRef] [PubMed]
  31. Ramalingam, B.; Parandhaman, T.; Das, S.K. Antibacterial Effects of Biosynthesized Silver Nanoparticles on Surface Ultrastructure and Nanomechanical Properties of Gram-Negative Bacteria viz. Escherichia coli and Pseudomonas aeruginosa. ACS Appl. Mater. Interfaces 2016, 8, 4963–4976. [Google Scholar] [CrossRef] [PubMed]
  32. Kim, J.S.; Kuk, E.; Yu, K.N.; Kim, J.H.; Park, S.J.; Lee, H.J.; Kim, S.H.; Park, Y.K.; Park, Y.H.; Hwang, C.Y.; et al. Antimicrobial Effects of Silver Nanoparticles. Nanomedicine 2007, 3, 95. [Google Scholar] [CrossRef] [PubMed]
  33. Hsueh, Y.-H.; Lin, K.-S.; Ke, W.-J.; Hsieh, C.-T.; Chiang, C.-L.; Tzou, D.-Y.; Liu, S.-T.; Mishra, Y.K. The Antimicrobial Properties of Silver Nanoparticles in Bacillus subtilis Are Mediated by Released Ag+ Ions. PLoS ONE 2015, 10, e0144306. [Google Scholar] [CrossRef] [PubMed]
  34. Xiu, Z.-M.; Zhang, Q.-B.; Puppala, H.L.; Colvin, V.L.; Alvarez, P.J.J. Negligible Particle-Specific Antibacterial Activity of Silver Nanoparticles. Nano Lett. 2012, 12, 4271–4275. [Google Scholar] [CrossRef] [PubMed]
  35. Attallah, N.G.M.; Elekhnawy, E.; Negm, W.A.; Hussein, I.A.; Mokhtar, F.A.; Al-Fakhrany, O.M. In Vivo and In Vitro Antimicrobial Activity of Biogenic Silver Nanoparticles against Staphylococcus aureus Clinical Isolates. Pharmaceuticals 2022, 15, 194. [Google Scholar] [CrossRef] [PubMed]
  36. Brayner, R.; Ferrari-Iliou, R.; Brivois, N.; Djediat, S.; Benedetti, M.F.; Fiévet, F. Toxicological Impact Studies Based on Escherichia coli Bacteria in Ultrafine ZnO Nanoparticles Colloidal Medium. Nano Lett. 2006, 6, 866–870. [Google Scholar] [CrossRef] [PubMed]
  37. Li, M.; Zhu, L.; Lin, D. Toxicity of ZnO Nanoparticles to Escherichia coli: Mechanism and the Influence of Medium Components. Environ. Sci. Technol. 2011, 45, 1977–1983. [Google Scholar] [CrossRef] [PubMed]
  38. Premanathan, M.; Karthikeyan, K.; Jeyasubramanian, K.; Manivannan, G. Selective toxicity of ZnO nanoparticles toward Gram-positive bacteria and cancer cells by apoptosis through lipid peroxidation. Nanomed. Nanotechnol. Biol. Med. 2011, 7, 184–192. [Google Scholar] [CrossRef] [PubMed]
  39. Siddiqi, K.S.; Rahman, A.U.; Tajuddin; Husen, A. Properties of Zinc Oxide Nanoparticles and Their Activity Against Microbes. Nanoscale Res. Lett. 2018, 13, 141. [Google Scholar] [CrossRef] [PubMed]
  40. Talebian, N.; Amininezhad, S.M.; Doudi, M. Controllable synthesis of ZnO nanoparticles and their morphology-dependent antibacterial and optical properties. J. Photochem. Photobiol. B Biol. 2013, 120, 66–73. [Google Scholar] [CrossRef] [PubMed]
  41. Huq, M.A. Green Synthesis of Silver Nanoparticles Using Pseudoduganella eburnea MAHUQ-39 and Their Antimicrobial Mechanisms Investigation against Drug Resistant Human Pathogens. Int. J. Mol. Sci. 2020, 21, 1510. [Google Scholar] [CrossRef] [PubMed]
  42. Kvítek, L.; Panáček, A.; Soukupova, J.; Kolář, M.; Večeřová, R.; Prucek, R.; Holecová, M.; Zbořil, R. Effect of Surfactants and Polymers on Stability and Antibacterial Activity of Silver Nanoparticles (NPs). J. Phys. Chem. C 2008, 112, 5825–5834. [Google Scholar] [CrossRef]
  43. Nahvi, I.; Nahvi, I.; Rehman, S. Nanotechnology and Multidrug Resistance. In Nanotechnology for Infectious Diseases; Hameed, S., Rehman, S., Eds.; Springer: Singapore, 2022; pp. 305–320. [Google Scholar]
  44. Zhou, G.; Yu, R.; Ahmed, T.; Jiang, H.; Zhang, M.; Lv, L.; Alhumaydhi, F.A.; Allemailem, K.S.; Li, B. Biosynthesis and Characterization of Zinc Oxide Nanoparticles and Their Impact on the Composition of Gut Microbiota in Healthy and Attention-Deficit Hyperactivity Disorder Children. Front. Microbiol. 2021, 12, 700707. [Google Scholar] [CrossRef] [PubMed]
  45. Chen, H.; Zhao, R.; Wang, B.; Cai, C.; Zheng, L.; Wang, H.; Wang, M.; Ouyang, H.; Zhou, X.; Chai, Z.; et al. The effects of orally administered Ag, TiO2 and SiO2 nanoparticles on gut microbiota composition and colitis induction in mice. NanoImpact 2017, 8, 80–88. [Google Scholar] [CrossRef]
  46. van den Brule, S.; Ambroise, J.; Lecloux, H.; Levard, C.; Soulas, R.; De Temmerman, P.-J.; Palmai-Pallag, M.; Marbaix, E.; Lison, D. Dietary silver nanoparticles can disturb the gut microbiota in mice. Part. Fibre Toxicol. 2016, 13, 38. [Google Scholar] [CrossRef] [PubMed]
  47. Hemeg, H.A. Nanomaterials for alternative antibacterial therapy. Int. J. Nanomed. 2017, 12, 8211–8225. [Google Scholar] [CrossRef] [PubMed]
  48. Kong, H.; Song, J.; Jang, J. Photocatalytic Antibacterial Capabilities of TiO2−Biocidal Polymer Nanocomposites Synthesized by a Surface-Initiated Photopolymerization. Environ. Sci. Technol. 2010, 44, 5672–5676. [Google Scholar] [CrossRef] [PubMed]
  49. Chatterjee, A.K.; Chakraborty, R.; Basu, T. Mechanism of antibacterial activity of copper nanoparticles. Nanotechnology 2014, 25, 135101. [Google Scholar] [CrossRef] [PubMed]
  50. Pietroiusti, A.; Magrini, A.; Campagnolo, L. New frontiers in nanotoxicology: Gut microbiota/microbiome-mediated effects of engineered nanomaterials. Toxicol. Appl. Pharmacol. 2016, 299, 90–95. [Google Scholar] [CrossRef] [PubMed]
  51. Wilding, L.A.; Bassis, C.M.; Walacavage, K.; Hashway, S.; Leroueil, P.R.; Morishita, M.; Maynard, A.D.; Philbert, M.A.; Bergin, I.L. Repeated dose (28-day) administration of silver nanoparticles of varied size and coating does not significantly alter the indigenous murine gut microbiome. Nanotoxicology 2016, 10, 513–520. [Google Scholar] [CrossRef] [PubMed]
  52. Sirelkhatim, A.; Mahmud, S.; Seeni, A.; Kaus, N.H.M.; Ann, L.C.; Bakhori, S.K.M.; Hasan, H.; Mohamad, D. Review on Zinc Oxide Nanoparticles: Antibacterial Activity and Toxicity Mechanism. Nanomicro Lett. 2015, 7, 219–242. [Google Scholar] [CrossRef] [PubMed]
  53. Hossain, M.M.; Polash, S.A.; Takikawa, M.; Shubhra, R.D.; Saha, T.; Islam, Z.; Hossain, S.; Hasan, M.A.; Takeoka, S.; Sarker, S.R. Investigation of the Antibacterial Activity and in vivo Cytotoxicity of Biogenic Silver Nanoparticles as Potent Therapeutics. Front. Bioeng. Biotechnol. 2019, 7, 239. [Google Scholar] [CrossRef] [PubMed]
  54. Yang, H.; Liu, C.; Yang, D.; Zhang, H.; Xi, Z. Comparative study of cytotoxicity, oxidative stress and genotoxicity induced by four typical nanomaterials: The role of particle size, shape and composition. J. Appl. Toxicol. 2009, 29, 69–78. [Google Scholar] [CrossRef] [PubMed]
  55. Zheng, K.; Setyawati, M.I.; Leong, D.T.; Xie, J. Antimicrobial Gold Nanoclusters. ACS Nano 2017, 11, 6904–6910. [Google Scholar] [CrossRef] [PubMed]
  56. Feng, Z.V.; Gunsolus, I.L.; Qiu, T.A.; Hurley, K.R.; Nyberg, L.H.; Frew, H.; Johnson, K.P.; Vartanian, A.M.; Jacob, L.M.; Lohse, S.E.; et al. Impacts of gold nanoparticle charge and ligand type on surface binding and toxicity to Gram-negative and Gram-positive bacteria. Chem. Sci. 2015, 6, 5186–5196. [Google Scholar] [CrossRef] [PubMed]
  57. Nathan, C.; Cunningham-Bussel, A. Beyond oxidative stress: An immunologist’s guide to reactive oxygen species. Nat. Rev. Immunol. 2013, 13, 349–361. [Google Scholar] [CrossRef] [PubMed]
  58. Singh, R.; Cheng, S.; Singh, S. Oxidative stress-mediated genotoxic effect of zinc oxide nanoparticles on Deinococcus radiodurans. 3 Biotech 2020, 10, 66. [Google Scholar] [CrossRef] [PubMed]
  59. Cheloni, G.; Marti, E.; Slaveykova, V.I. Interactive effects of copper oxide nanoparticles and light to green alga Chlamydomonas reinhardtii. Aquat. Toxicol. 2016, 170, 120–128. [Google Scholar] [CrossRef] [PubMed]
  60. Johnston, H.J.; Verdon, R.; Gillies, S.; Brown, D.M.; Fernandes, T.F.; Henry, T.B.; Rossi, A.G.; Tran, L.; Tucker, C.; Tyler, C.R.; et al. Adoption of in vitro systems and zebrafish embryos as alternative models for reducing rodent use in assessments of immunological and oxidative stress responses to nanomaterials. Crit. Rev. Toxicol. 2018, 48, 252–271. [Google Scholar] [CrossRef] [PubMed]
  61. Nogueira, D.R.; Mitjans, M.; Rolim, C.M.; Vinardell, M.P. Mechanisms Underlying Cytotoxicity Induced by Engineered Nanomaterials: A Review of In Vitro Studies. Nanomaterials 2014, 4, 454–484. [Google Scholar] [CrossRef] [PubMed]
  62. Dubin, K.; Pamer, E.G. Enterococci and Their Interactions with the Intestinal Microbiome. Microbiol. Spectr. 2014, 5, 10–1128. [Google Scholar]
  63. Ayaz Ahmed, K.B.; Anbazhagan, V. Synthesis of copper sulfide nanoparticles and evaluation of in vitro antibacterial activity and in vivo therapeutic effect in bacteria-infected zebrafish. RSC Adv. 2017, 7, 36644–36652. [Google Scholar] [CrossRef]
  64. Gosens, I.; Cassee, F.R.; Zanella, M.; Manodori, L.; Brunelli, A.; Costa, A.L.; Bokkers, B.G.H.; de Jong, W.H.; Brown, D.; Hristozov, D.; et al. Organ burden and pulmonary toxicity of nano-sized copper (II) oxide particles after short-term inhalation exposure. Nanotoxicology 2016, 10, 1084–1095. [Google Scholar] [CrossRef] [PubMed]
  65. Pantano, D.; Neubauer, N.; Navratilova, J.; Scifo, L.; Civardi, C.; Stone, V.; von der Kammer, F.; Müller, P.; Sobrido, M.S.; Angeletti, B.; et al. Transformations of Nanoenabled Copper Formulations Govern Release, Antifungal Effectiveness, and Sustainability throughout the Wood Protection Lifecycle. Environ. Sci. Technol. 2018, 52, 1128–1138. [Google Scholar] [CrossRef] [PubMed]
  66. Ude, V.C.; Brown, D.M.; Viale, L.; Kanase, N.; Stone, V.; Johnston, H.J. Impact of copper oxide nanomaterials on differentiated and undifferentiated Caco-2 intestinal epithelial cells; assessment of cytotoxicity, barrier integrity, cytokine production and nanomaterial penetration. Part. Fibre Toxicol. 2017, 14, 31. [Google Scholar] [CrossRef] [PubMed]
  67. Dadi, R.; Azouani, R.; Traore, M.; Mielcarek, C.; Kanaev, A. Antibacterial activity of ZnO and CuO nanoparticles against gram positive and gram negative strains. Mater. Sci. Eng. C Mater. Biol. Appl. 2019, 104, 109968. [Google Scholar] [CrossRef] [PubMed]
  68. Ong, K.J.; MacCormack, T.J.; Clark, R.J.; Ede, J.D.; Ortega, V.A.; Felix, L.C.; Dang, M.K.M.; Ma, G.; Fenniri, H.; Veinot, J.G.C.; et al. Widespread Nanoparticle-Assay Interference: Implications for Nanotoxicity Testing. PLoS ONE 2014, 9, e90650. [Google Scholar] [CrossRef] [PubMed]
  69. Balouiri, M.; Sadiki, M.; Ibnsouda, S.K. Methods for in vitro evaluating antimicrobial activity: A review. J. Pharm. Anal. 2016, 6, 71–79. [Google Scholar] [CrossRef] [PubMed]
  70. Azam, A.; Ahmed, A.S.; Oves, M.; Khan, M.S.; Habib, S.S.; Memic, A. Antimicrobial activity of metal oxide nanoparticles against Gram-positive and Gram-negative bacteria: A comparative study. Int. J. Nanomed. 2012, 7, 6003–6009. [Google Scholar] [CrossRef] [PubMed]
  71. Pop, O.L.; Mesaros, A.; Vodnar, D.C.; Suharoschi, R.; Tăbăran, F.; Magerușan, L.; Tódor, I.S.; Diaconeasa, Z.; Balint, A.; Ciontea, L.; et al. Cerium Oxide Nanoparticles and Their Efficient Antibacterial Application In Vitro against Gram-Positive and Gram-Negative Pathogens. Nanomaterials 2020, 10, 1614. [Google Scholar] [CrossRef] [PubMed]
  72. Chatterjee, A.K.; Sarkar, R.K.; Chattopadhyay, A.P.; Aich, P.; Chakraborty, R.; Basu, T. A simple robust method for synthesis of metallic copper nanoparticles of high antibacterial potency against E. coli. Nanotechnology 2012, 23, 085103. [Google Scholar] [CrossRef] [PubMed]
  73. Yausheva, E.; Miroshnikov, S.; Sizova, E. Intestinal microbiome of broiler chickens after use of nanoparticles and metal salts. Environ. Sci. Pollut. Res. 2018, 25, 18109–18120. [Google Scholar] [CrossRef] [PubMed]
  74. Buchman, J.T.; Hudson-Smith, N.V.; Landy, K.M.; Haynes, C.L. Understanding Nanoparticle Toxicity Mechanisms to Inform Redesign Strategies to Reduce Environmental Impact. Acc. Chem. Res. 2019, 52, 1632–1642. [Google Scholar] [CrossRef] [PubMed]
  75. Slavin, Y.N.; Asnis, J.; Häfeli, U.O.; Bach, H. Metal nanoparticles: Understanding the mechanisms behind antibacterial activity. J. Nanobiotechnol. 2017, 15, 65. [Google Scholar] [CrossRef] [PubMed]
  76. Sonohara, R.; Muramatsu, N.; Ohshima, H.; Kondo, T. Difference in surface properties between Escherichia coli and Staphylococcus aureus as revealed by electrophoretic mobility measurements. Biophys. Chem. 1995, 55, 273–277. [Google Scholar] [CrossRef] [PubMed]
  77. Halder, S.; Yadav, K.K.; Sarkar, R.; Mukherjee, S.; Saha, P.; Haldar, S.; Karmakar, S.; Sen, T. Alteration of Zeta potential and membrane permeability in bacteria: A study with cationic agents. Springerplus 2015, 4, 672. [Google Scholar] [CrossRef] [PubMed]
  78. Jena, P.; Mohanty, S.; Mallick, R.; Jacob, B.; Sonawane, A. Toxicity and antibacterial assessment of chitosan-coated silver nanoparticles on human pathogens and macrophage cells. Int. J. Nanomed. 2012, 7, 1805–1818. [Google Scholar] [CrossRef] [PubMed]
  79. Kourmouli, A.; Valenti, M.; van Rijn, E.; Beaumont, H.J.; Kalantzi, O.I.; Schmidt-Ott, A.; Biskos, G. Can disc diffusion susceptibility tests assess the antimicrobial activity of engineered nanoparticles? J. Nanopart Res. 2018, 20, 62. [Google Scholar] [CrossRef] [PubMed]
  80. Sahoo, R.; Sanket, A.S.; Pati, S.; Kant, R.; Dwivedi, G.R. Nanoparticles: Warheads to Overcome the Resistance Mechanism of Bacterial Superbugs. In Nanotechnology for Infectious Diseases; Hameed, S., Rehman, S., Eds.; Springer: Singapore, 2022; pp. 321–344. [Google Scholar]
  81. Zheng, J.; Clogston, J.D.; Patri, A.K.; Dobrovolskaia, M.A.; McNeil, S.E. Sterilization of Silver Nanoparticles Using Standard Gamma Irradiation Procedure Affects Particle Integrity and Biocompatibility. J. Nanomed. Nanotechnol. 2011, 2011 (Suppl. 5), 001. [Google Scholar] [CrossRef] [PubMed]
  82. Murdock, R.C.; Braydich-Stolle, L.; Schrand, A.M.; Schlager, J.J.; Hussain, S.M. Characterization of nanomaterial dispersion in solution prior to in vitro exposure using dynamic light scattering technique. Toxicol. Sci. 2008, 101, 239–253. [Google Scholar] [CrossRef] [PubMed]
  83. Warheit, D.B.; Sayes, C.M.; Reed, K.L. Nanoscale and fine zinc oxide particles: Can in vitro assays accurately forecast lung hazards following inhalation exposures? Environ. Sci. Technol. 2009, 43, 7939–7945. [Google Scholar] [CrossRef] [PubMed]
  84. Azam, A.; Ahmed, A.S.; Oves, M.; Khan, M.S.; Memic, A. Size-dependent antimicrobial properties of CuO nanoparticles against Gram-positive and -negative bacterial strains. Int. J. Nanomed. 2012, 7, 3527–3535. [Google Scholar] [CrossRef] [PubMed]
  85. Ude, V.C. An In Vitro Investigation of Biochemical and Molecular Markers of Nanomaterial Toxicity to the Intestine; ProQuest Dissertations Publishing: Ann Arbor, MI, USA, 2018; Available online: https://www.ros.hw.ac.uk/handle/10399/3967 (accessed on 11 July 2025).
  86. Ma, X.; Zhou, S.; Xu, X.; Du, Q. Copper-containing nanoparticles: Mechanism of antimicrobial effect and application in dentistry-a narrative review. Front. Surg. 2022, 9, 905892. [Google Scholar] [CrossRef] [PubMed]
  87. Mortimer, M.; Kasemets, K.; Vodovnik, M.; Marinšek-Logar, R.; Kahru, A. Exposure to CuO nanoparticles changes the fatty acid composition of protozoa Tetrahymena thermophila. Environ. Sci. Technol. 2011, 45, 6617–6624. [Google Scholar] [CrossRef] [PubMed]
  88. Wang, Z.; Li, N.; Zhao, J.; White, J.C.; Qu, P.; Xing, B. CuO nanoparticle interaction with human epithelial cells: Cellular uptake, location, export, and genotoxicity. Chem. Res. Toxicol. 2012, 25, 1512–1521. [Google Scholar] [CrossRef] [PubMed]
  89. Stohs, S.J.; Bagchi, D. Oxidative mechanisms in the toxicity of metal ions. Free Radic. Biol. Med. 1995, 18, 321–336. [Google Scholar] [CrossRef] [PubMed]
  90. Kim, J.-H.; Cho, H.; Ryu, S.-E.; Choi, M.-U. Effects of metal ions on the activity of protein tyrosine phosphatase VHR: Highly potent and reversible oxidative inactivation by Cu2+ ion. Arch. Biochem. Biophys. 2000, 382, 72–80. [Google Scholar] [CrossRef] [PubMed]
  91. Braakhuis, H.M.; Murphy, F.; Ma-Hock, L.; Dekkers, S.; Keller, J.; Oomen, A.G.; Stone, V. An Integrated Approach to Testing and Assessment to Support Grouping and Read-Across of Nanomaterials After Inhalation Exposure. Appl. Vitr. Toxicol. 2021, 7, 112–128. [Google Scholar] [CrossRef] [PubMed]
  92. Liu, Y.; Nie, N.; Tang, H.; Zhang, C.; Chen, K.; Wang, W.; Liu, J. Effective Antibacterial Activity of Degradable Copper-Doped Phosphate-Based Glass Nanozymes. ACS Appl. Mater. Interfaces 2021, 13, 11631–11645. [Google Scholar] [CrossRef] [PubMed]
  93. Di Cristo, L.; Oomen, A.G.; Dekkers, S.; Moore, C.; Rocchia, W.; Murphy, F.; Johnston, H.J.; Janer, G.; Haase, A.; Stone, V.; et al. Grouping Hypotheses and an Integrated Approach to Testing and Assessment of Nanomaterials Following Oral Ingestion. Nanomaterials 2021, 11, 2623. [Google Scholar] [CrossRef] [PubMed]
  94. Agans, R.T.; Gordon, A.; Hussain, S.; Paliy, O. Titanium Dioxide Nanoparticles Elicit Lower Direct Inhibitory Effect on Human Gut Microbiota Than Silver Nanoparticles. Toxicol. Sci. 2019, 172, 411–416. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 15 01103 g001

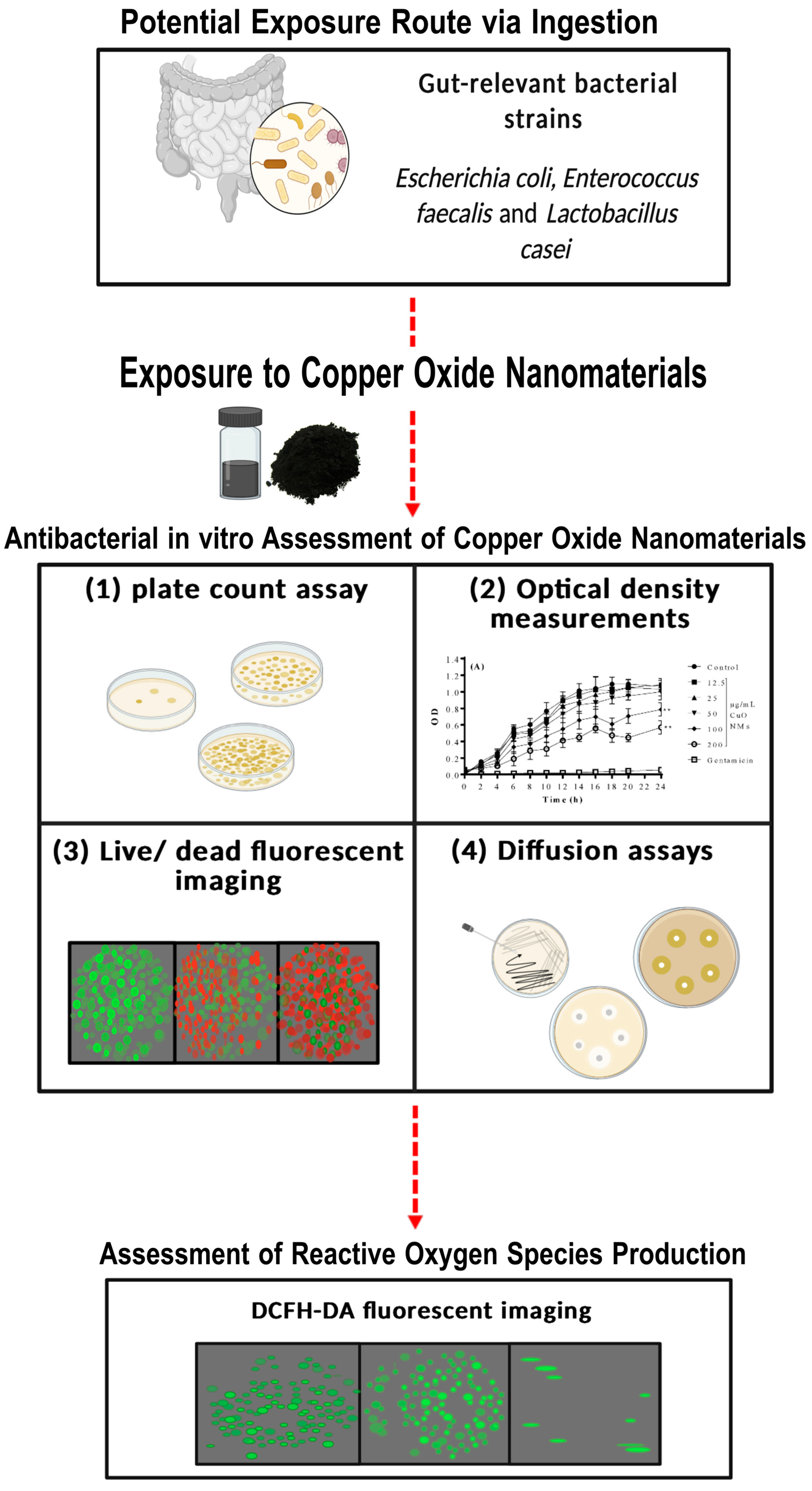

Figure 1. Schematic illustration of the experimental approach used within this study. Gut-relevant bacterial strains were exposed to CuO NMs, and bacterial viability was assessed using a combination of approaches. (1) Plate count assay, (2) optical density measurements, (3) live/dead fluorescent imaging, and (4) diffusion assays. Following this, fluorescent imaging employing a DCFH-DA probe was used to visualise the change in ROS levels in the bacterial cells after CuO NM treatment. Created in BioRender (2025, Edinburgh, UK).
Figure 1. Schematic illustration of the experimental approach used within this study. Gut-relevant bacterial strains were exposed to CuO NMs, and bacterial viability was assessed using a combination of approaches. (1) Plate count assay, (2) optical density measurements, (3) live/dead fluorescent imaging, and (4) diffusion assays. Following this, fluorescent imaging employing a DCFH-DA probe was used to visualise the change in ROS levels in the bacterial cells after CuO NM treatment. Created in BioRender (2025, Edinburgh, UK).
Nanomaterials 15 01103 g001
Nanomaterials 15 01103 g002

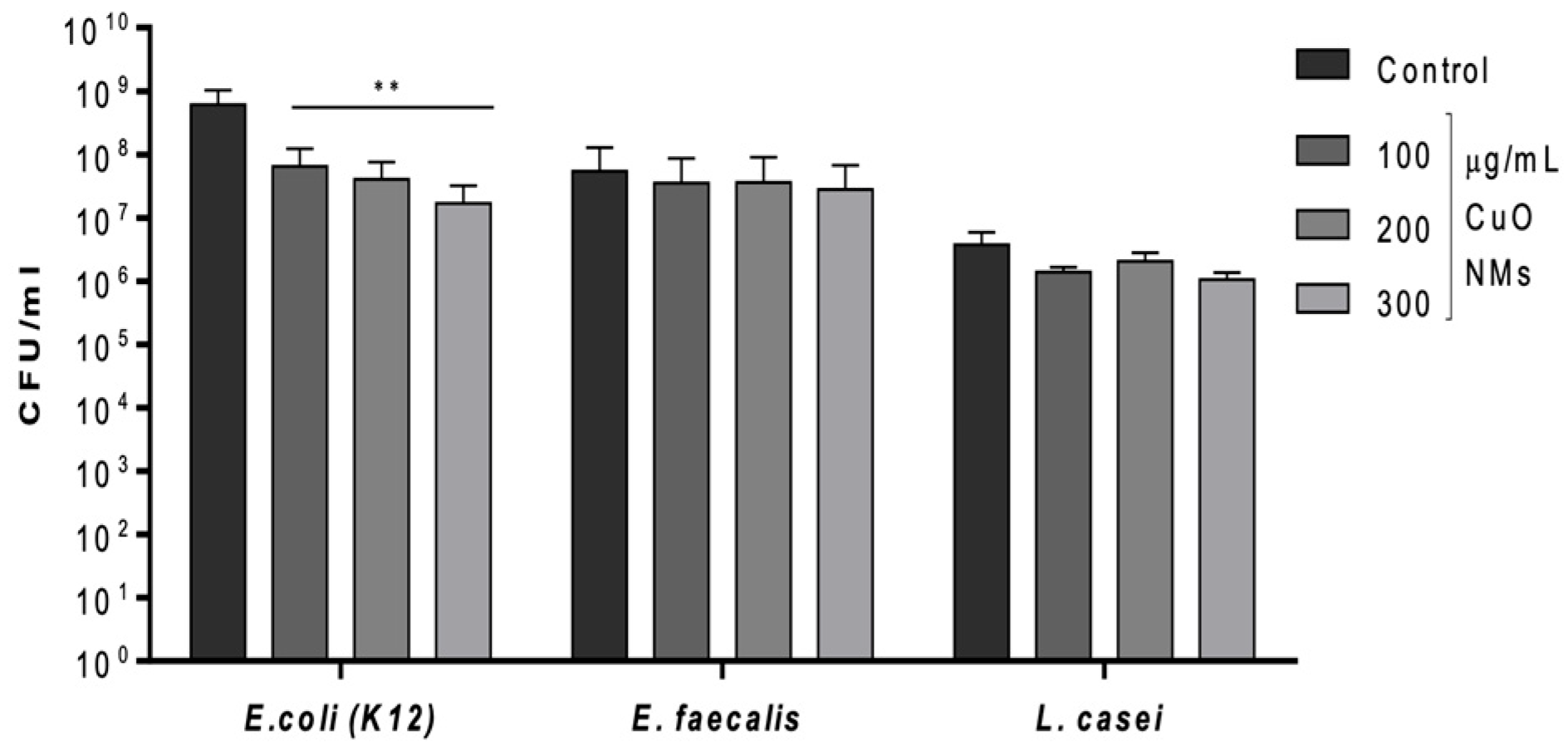

Figure 2. Bacterial growth following 2 h exposure to CuO NMs. E. coli, E. faecalis, and L. casei were treated with CuO NMs at concentrations of 100, 200, and 300 µg/mL (in MHB or TSB). Viable cell counts were measured by culturing bacterial colonies on MHA (E. coli and E. faecalis) or MRSA (L. casei) plates. A negative control (MHB or TSB) and positive control (10 µg/mL gentamicin) were also included. Data are expressed as the mean CFU/mL ± SE (n = 3). ANOVA with a post hoc Tukey test was performed with significance indicated by ** = p < 0.01 compared to the control.
Figure 2. Bacterial growth following 2 h exposure to CuO NMs. E. coli, E. faecalis, and L. casei were treated with CuO NMs at concentrations of 100, 200, and 300 µg/mL (in MHB or TSB). Viable cell counts were measured by culturing bacterial colonies on MHA (E. coli and E. faecalis) or MRSA (L. casei) plates. A negative control (MHB or TSB) and positive control (10 µg/mL gentamicin) were also included. Data are expressed as the mean CFU/mL ± SE (n = 3). ANOVA with a post hoc Tukey test was performed with significance indicated by ** = p < 0.01 compared to the control.
Nanomaterials 15 01103 g002
Nanomaterials 15 01103 g003

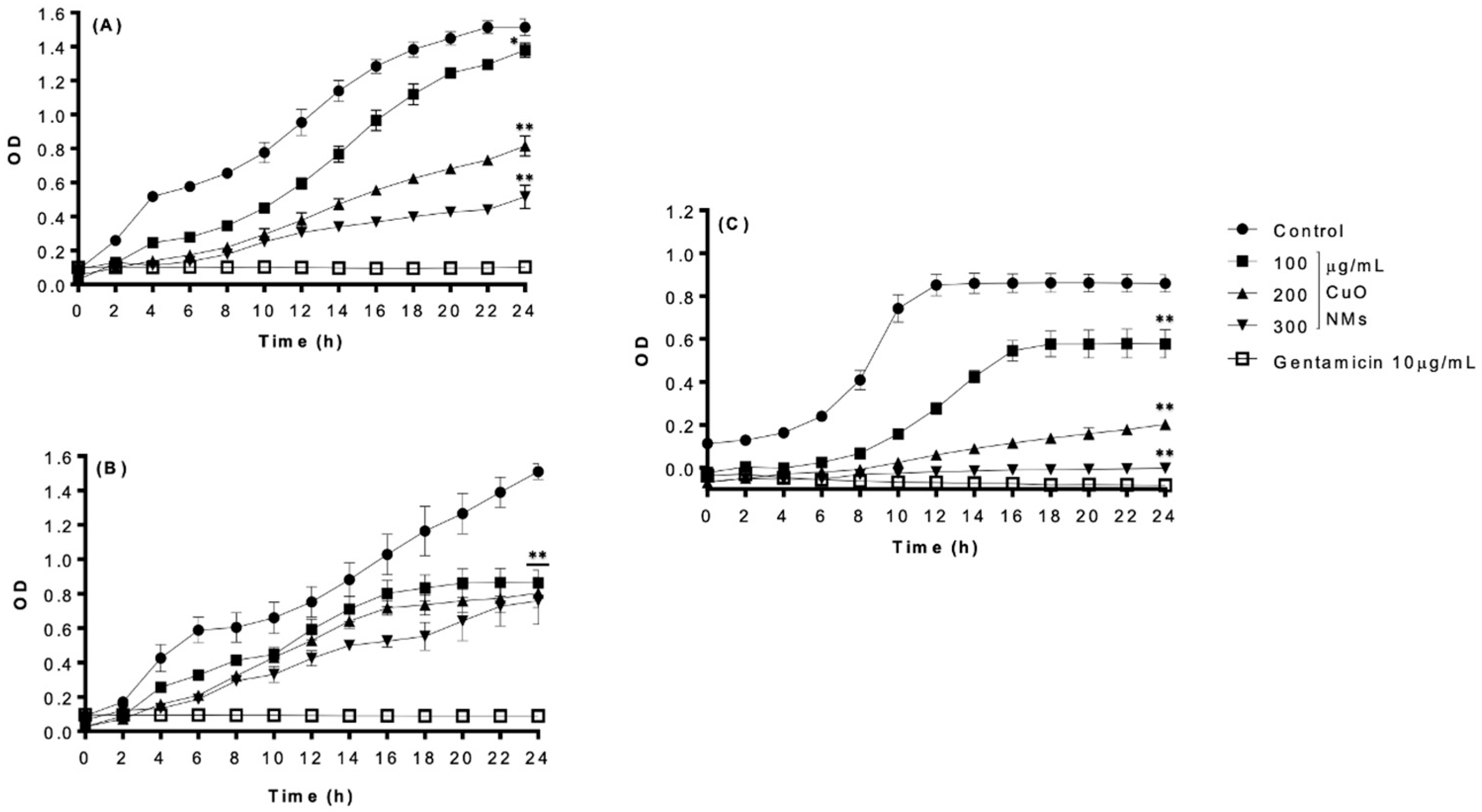

Figure 3. Bacterial growth following exposure to CuO NMs (OD Measurement). Bacterial growth curves of (A) E. coli, (B) E. faecalis, and (C) L. casei following exposure to CuO NMs at concentrations of 100, 200, and 300 µg/mL (in distilled water) for 24 h. Bacteria were also exposed to either 10 µg/mL gentamicin (positive control) or MHB (E. coli and E. faecalis) or TSB (L. casei) (negative control). OD measurements were made at 600 nm. Data are expressed as the mean OD ± SE (n = 3). Kruskal–Wallis or ANOVA with a post hoc Tukey test was performed with significance indicated by ** = p < 0.01 compared to the control, with significance indicated by * = p < 0.05 and ** = p < 0.01 compared to the control at 24 h.
Figure 3. Bacterial growth following exposure to CuO NMs (OD Measurement). Bacterial growth curves of (A) E. coli, (B) E. faecalis, and (C) L. casei following exposure to CuO NMs at concentrations of 100, 200, and 300 µg/mL (in distilled water) for 24 h. Bacteria were also exposed to either 10 µg/mL gentamicin (positive control) or MHB (E. coli and E. faecalis) or TSB (L. casei) (negative control). OD measurements were made at 600 nm. Data are expressed as the mean OD ± SE (n = 3). Kruskal–Wallis or ANOVA with a post hoc Tukey test was performed with significance indicated by ** = p < 0.01 compared to the control, with significance indicated by * = p < 0.05 and ** = p < 0.01 compared to the control at 24 h.
Nanomaterials 15 01103 g003
Nanomaterials 15 01103 g004

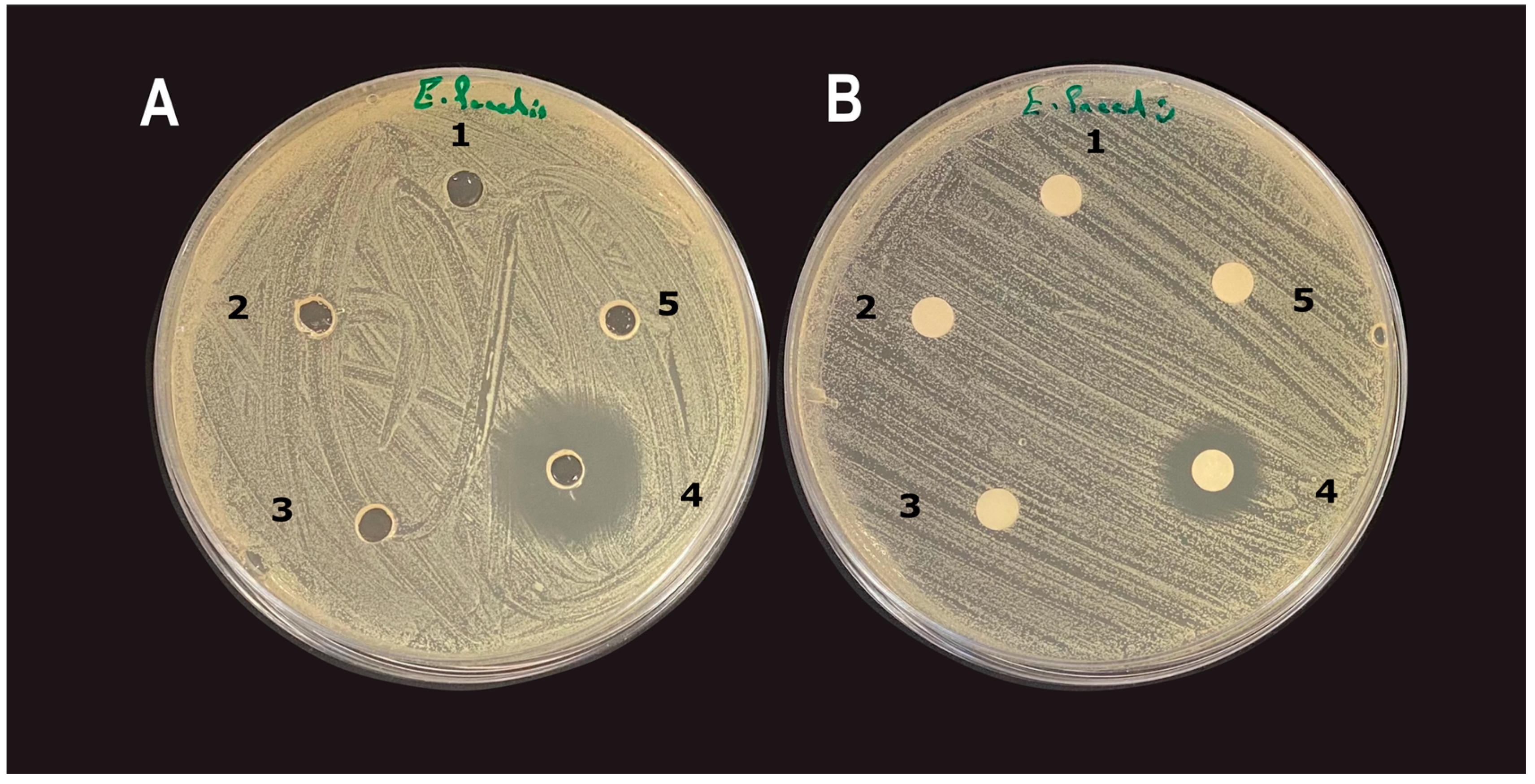

Figure 4. (A) Well diffusion assay and (B) disc diffusion assay inhibition zones of CuO NMs and gentamicin (10 µg/mL) on the growth of E. faecalis. (1) CuO NM 100 µg/mL; (2) CuO NM 200 µg/mL; (3) CuO NM 300 µg/mL; (4) gentamicin 10 µg/mL; (5) control (distilled water).
Figure 4. (A) Well diffusion assay and (B) disc diffusion assay inhibition zones of CuO NMs and gentamicin (10 µg/mL) on the growth of E. faecalis. (1) CuO NM 100 µg/mL; (2) CuO NM 200 µg/mL; (3) CuO NM 300 µg/mL; (4) gentamicin 10 µg/mL; (5) control (distilled water).
Nanomaterials 15 01103 g004
Nanomaterials 15 01103 g005

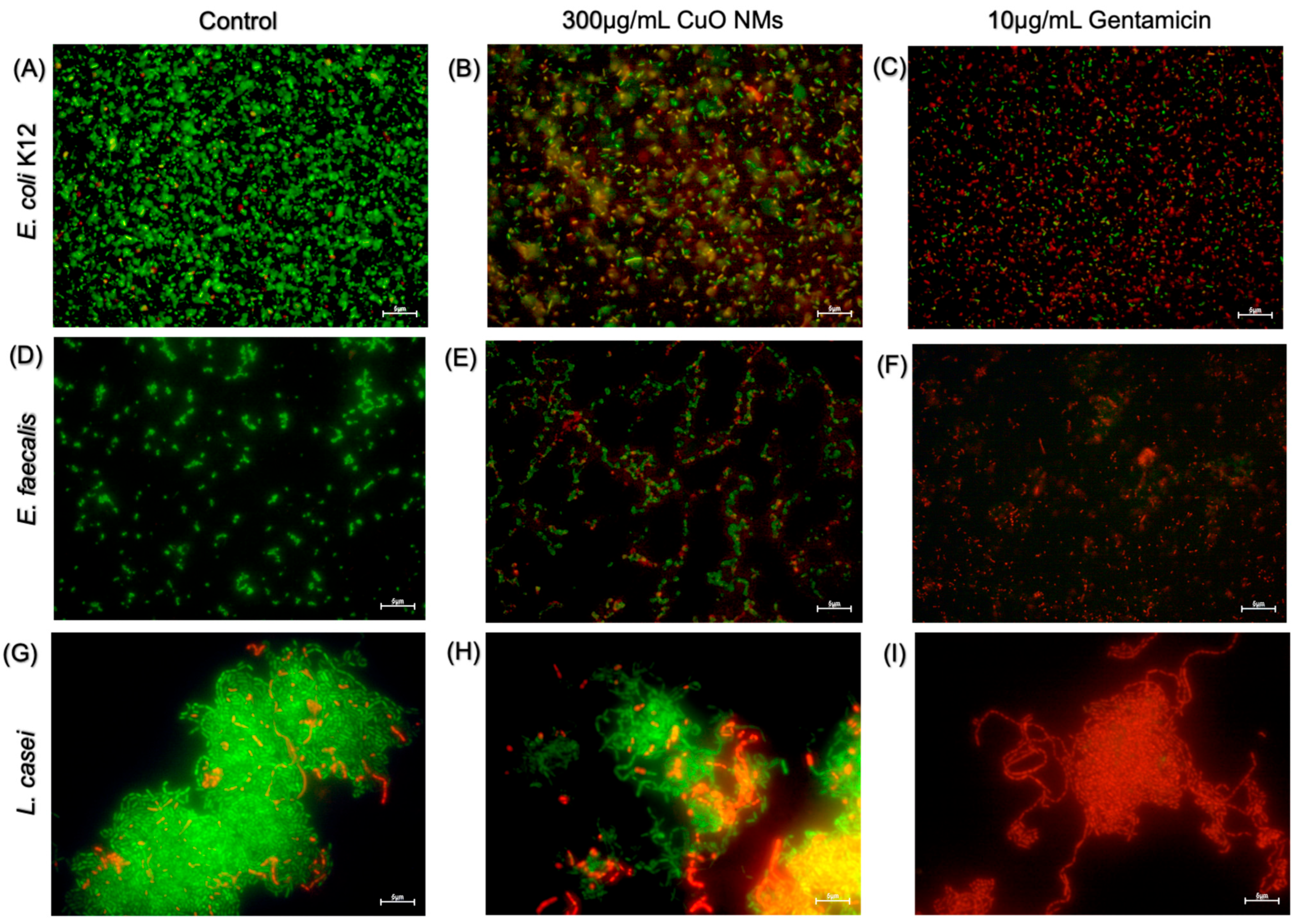

Figure 5. Imaging of live and dead cells following CuO NM exposure. Representative microscopic images of bacteria exposed to MHB or TSB (negative control), gentamicin 10 μg/mL (positive control), or CuO NMs for 2 h. E. coli K12; (A) Untreated control (MHB), (B) CuO NM 300 µg/mL, (C) gentamicin 10 μg/mL. E. faecalis; (D) untreated control (MHB), (E) CuO NM 300 µg/mL, (F) gentamicin 10 μg/mL. L. casei; (G) untreated control (TSB), (H) CuO NM 300 µg/mL, (I) gentamicin 10 μg/mL. Bacteria were stained using the live/dead stain to visualise dead (red) and viable (green) cells. Bacterial cells were imaged at 100× magnification using a Leica DM IRBE CLSM. The scale bar is 5 μm.
Figure 5. Imaging of live and dead cells following CuO NM exposure. Representative microscopic images of bacteria exposed to MHB or TSB (negative control), gentamicin 10 μg/mL (positive control), or CuO NMs for 2 h. E. coli K12; (A) Untreated control (MHB), (B) CuO NM 300 µg/mL, (C) gentamicin 10 μg/mL. E. faecalis; (D) untreated control (MHB), (E) CuO NM 300 µg/mL, (F) gentamicin 10 μg/mL. L. casei; (G) untreated control (TSB), (H) CuO NM 300 µg/mL, (I) gentamicin 10 μg/mL. Bacteria were stained using the live/dead stain to visualise dead (red) and viable (green) cells. Bacterial cells were imaged at 100× magnification using a Leica DM IRBE CLSM. The scale bar is 5 μm.
Nanomaterials 15 01103 g005
Nanomaterials 15 01103 g006

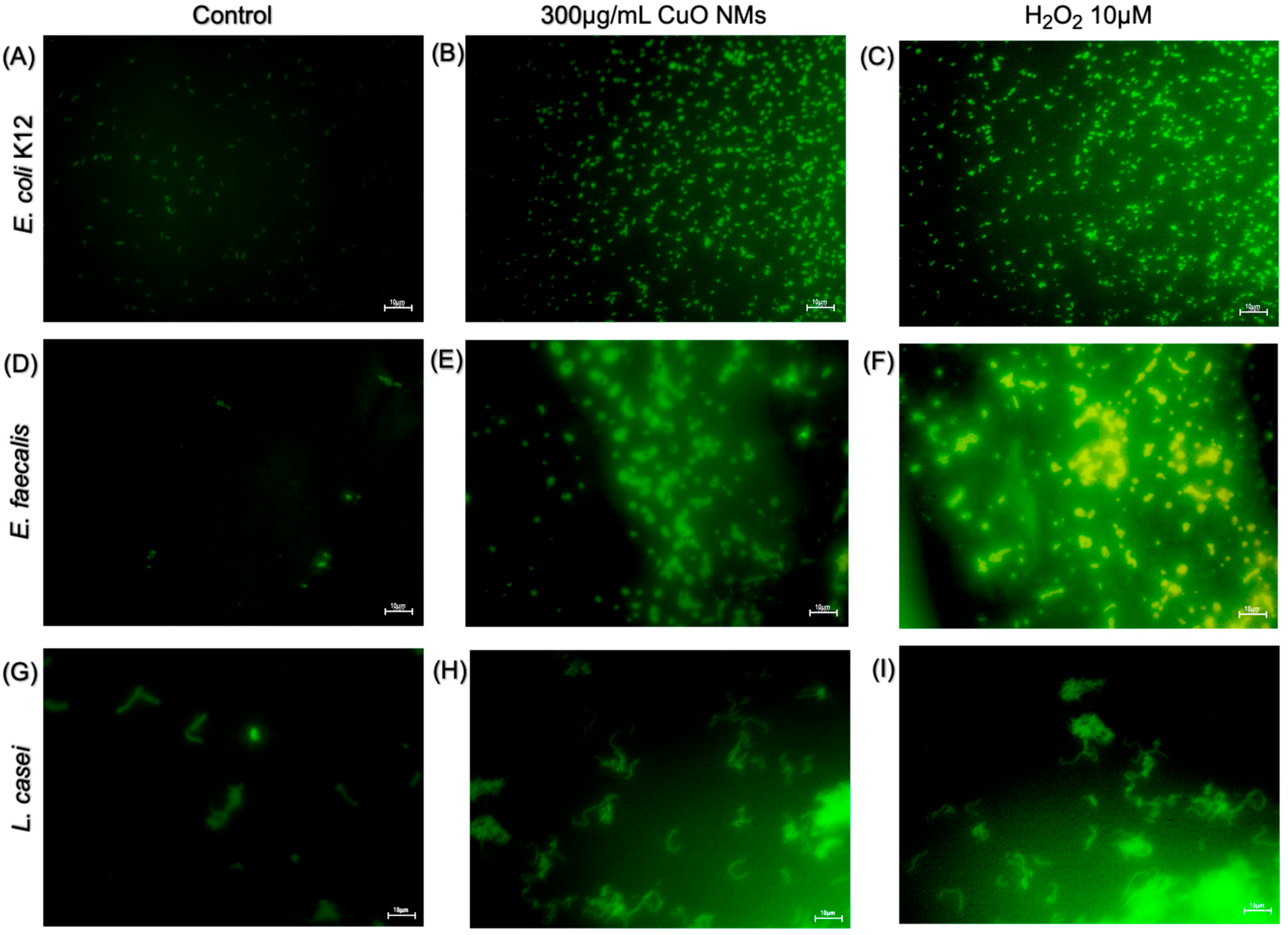

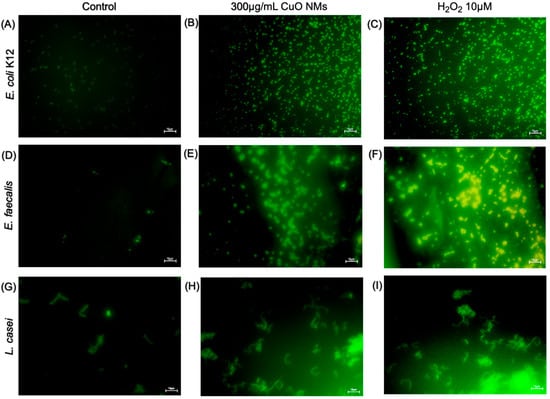

Figure 6. Imaging of intracellular ROS generation by bacterial cells following CuO NM exposure. Representative microscopic images of bacteria exposed to MHB or TSB (negative control), H2O2 (10 μM) (positive control), or CuO NMs (300 µg/mL) for 2 h. E. coli K12; (A) untreated control (MHB), (B) CuO NM, (C) H2O2 E. faecalis; (D) untreated control (MHB), (E) CuO NM 300 µg/mL, (F) H2O2 10 μM. L. casei; (G) untreated control (TSB), (H) CuO NM 300 µg/mL, (I) H2O2 10 μM. Bacteria were stained using the DCFH-DA probe to visualise ROS generation (green) in bacterial cells. Bacterial cells were imaged at 40× magnification using a Leica DM IRBE CLSM. The scale bar is 10 μm.
Figure 6. Imaging of intracellular ROS generation by bacterial cells following CuO NM exposure. Representative microscopic images of bacteria exposed to MHB or TSB (negative control), H2O2 (10 μM) (positive control), or CuO NMs (300 µg/mL) for 2 h. E. coli K12; (A) untreated control (MHB), (B) CuO NM, (C) H2O2 E. faecalis; (D) untreated control (MHB), (E) CuO NM 300 µg/mL, (F) H2O2 10 μM. L. casei; (G) untreated control (TSB), (H) CuO NM 300 µg/mL, (I) H2O2 10 μM. Bacteria were stained using the DCFH-DA probe to visualise ROS generation (green) in bacterial cells. Bacterial cells were imaged at 40× magnification using a Leica DM IRBE CLSM. The scale bar is 10 μm.
Nanomaterials 15 01103 g006
Table 1. Percentage reduction in OD following CuO NM treatment compared to the control at 24 h post-exposure.
Table 1. Percentage reduction in OD following CuO NM treatment compared to the control at 24 h post-exposure.
BacteriaCuO NM (100 µg/mL)CuO NM (200 µg/mL)CuO NM (300 µg/mL)
E. coli K129%46%66%
E. faecalis43%47%50%
L. casei33%76%100%
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wardlaw, T.A.; Masri, A.; Brown, D.M.; Johnston, H.J. Assessing Antibacterial Properties of Copper Oxide Nanomaterials on Gut-Relevant Bacteria In Vitro: A Multifaceted Approach. Nanomaterials 2025, 15, 1103. https://doi.org/10.3390/nano15141103

AMA Style

Wardlaw TA, Masri A, Brown DM, Johnston HJ. Assessing Antibacterial Properties of Copper Oxide Nanomaterials on Gut-Relevant Bacteria In Vitro: A Multifaceted Approach. Nanomaterials. 2025; 15(14):1103. https://doi.org/10.3390/nano15141103

Chicago/Turabian Style

Wardlaw, Tia A., Abdulkader Masri, David M. Brown, and Helinor J. Johnston. 2025. "Assessing Antibacterial Properties of Copper Oxide Nanomaterials on Gut-Relevant Bacteria In Vitro: A Multifaceted Approach" Nanomaterials 15, no. 14: 1103. https://doi.org/10.3390/nano15141103

APA Style

Wardlaw, T. A., Masri, A., Brown, D. M., & Johnston, H. J. (2025). Assessing Antibacterial Properties of Copper Oxide Nanomaterials on Gut-Relevant Bacteria In Vitro: A Multifaceted Approach. Nanomaterials, 15(14), 1103. https://doi.org/10.3390/nano15141103

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
