Prussian Blue Analogue-Derived p-n Junction Heterostructure for Photothermal Reverse Water–Gas Shift: Enhanced Activity and Selectivity via Synergistic Effects

Abstract

Photothermal catalytic CO₂ conversion into chemicals that provide added value represents a promising strategy for sustainable energy utilization, yet the development of highly efficient, stable, and selective catalysts remains a significant challenge. Herein, we report a rationally designed p-n junction heterostructure, T-CZ-PBA (SC), synthesized via controlled pyrolysis of high crystalline Prussian blue analogues (PBA) precursor, which integrates CuCo alloy, ZnO, N-doped carbon (NC), and Zn^II-Co^IIIPBA into a synergistic architecture. This unique configuration offers dual functional advantages: (1) the abundant heterointerfaces provide highly active sites for enhanced CO₂ and H₂ adsorption/activation, and (2) the engineered energy band structure optimizes charge separation and transport efficiency. The optimized T-C₃Z₁-PBA (SC) achieves exceptional photothermal catalytic performance, demonstrating a CO₂ conversion rate of 126.0 mmol gcat⁻¹ h⁻¹ with 98.8% CO selectivity under 350 °C light irradiation, while maintaining robust stability over 50 h of continuous operation. In situ diffuse reflectance infrared Fourier transform spectroscopy (in situ DRIFTS) investigations have identified COOH* as a critical reaction intermediate and elucidated that photoexcitation accelerates charge carrier dynamics, thereby substantially promoting the conversion of key intermediates (CO₂* and CO*) and overall reaction kinetics. This research provides insights for engineering high-performance heterostructured catalysts by controlling interfacial and electronic structures.

1. Introduction

Transforming carbon dioxide into valuable chemicals through catalytic hydrogenation is a pivotal strategy for mitigating greenhouse gas emissions and repurposing CO₂ [1,2,3,4]. The reverse water–gas shift (RWGS) reaction, which converts CO₂ and H₂ into CO and H₂O, stands out as a particularly promising pathway for this transformation [5]. However, CO₂’s inherent thermodynamic stability hinders its activation and conversion, necessitating high energy input, especially in the endothermic RWGS reaction [6,7]. Recently, photothermal catalytic technology has developed as an innovative approach for CO₂ transformation [8,9,10]. It can simultaneously utilize solar energy and thermal energy, featuring high energy utilization efficiency and effectively enhancing the rate of catalytic reactions, which provides the possibility of achieving RWGS reaction under mild conditions.

From a materials design perspective, an ideal photothermal catalyst should satisfy multiple essential criteria: (1) broad-spectrum light absorption covering ultraviolet–visible–near-infrared regions to maximize solar energy utilization; (2) efficient photogenerated charge separation and transport enabled by optimized band structure and carrier regulation; and (3) prominent thermal effects (e.g., localized surface plasmon resonance or hot electron injection) to lower reaction activation energy. Furthermore, such catalysts must incorporate both thermal catalytic and photocatalytic active sites while maintaining robust thermal stability. Given that different material classes exhibit distinct advantages in fulfilling these requirements, the implementation of multi-component synergistic systems emerges as a particularly effective strategy for achieving superior photothermal catalytic performance [11,12,13].

In recent years, Prussian blue analogues (PBAs) and their derivatives have emerged as highly promising candidates for light-driven and photothermal catalytic CO₂ conversion [14,15]. This growing interest stems from their unique combination of advantageous properties, including structurally tunable frameworks, broad spectral absorption capabilities, cost-effectiveness, environmental compatibility, and the presence of multiple functional active sites [16,17,18,19]. These distinctive characteristics position PBAs as versatile and efficient catalytic materials for sustainable energy conversion applications. For instance, Ding et al. [19] systematically evaluated ten PBA-based catalysts and found that they exhibit excellent photocatalytic CO₂-to-CO conversion, with cobalt-based PBAs showing particularly superior performance. Fang et al. [20] synthesized open-framework composite metal oxides (Ni-Co-Fe-TMO) using PBA precursors for photothermal catalytic RWGS. The resulting heterojunctions, formed by intimate contact between metal oxides, feature fully exposed active sites, enabling stable catalytic performance at 200 °C with CO and CH₄ production rates of 2.98 and 1.48 mmol g⁻¹ h⁻¹, respectively, even after 12.5 h. Additionally, Co₂C nanoparticles derived from Co-based PBAs has also been proven to exhibit decent performance in the thermal catalytic RWGS, which exhibits a CO₂ conversion rate of 65.3 mmol gcat⁻¹ h⁻¹ with CO selectivity of 85% at 300 °C [21]. These findings indicate that cobalt-based PBA and its derivatives demonstrate promising potential in photo and/or thermal RWGS applications, but their CO selectivity, especially under photothermal catalytic conditions, still needs to be further improved.

In this work, we present a rationally designed PBA-derived heterostructured material, T-CZ-PBA (SC), synthesized through controlled pyrolysis of highly crystalline Cu^IIZn^II-Co^IIIPBA. The unique architecture, integrating CuCo alloy, ZnO, NC, and Zn^II-Co^IIIPBA, delivers exceptional photothermal catalytic performance in the RWGS reaction. The optimized T-C₃Z₁-PBA (SC) catalyst achieves an outstanding CO₂ conversion rate of 126.04 mmol gcat⁻¹ h⁻¹ with near-complete CO selectivity (98.8%) at 350 °C. The hybrid interface enhances charge separation/transfer and promotes efficient CO₂ and H₂ activation, contributing to its superior activity and stability. Even after 50 h of continuous operation, the catalyst retains robust performance, sustaining CO selectivity > 98% and CO₂ conversion exceeding 100 mmol g⁻¹ h⁻¹. Furthermore, in situ diffuse reflectance infrared Fourier transform spectroscopy (in situ DRIFTS) analysis unveils critical reaction intermediates, offering mechanistic insights into the high-performance photothermal RWGS process.

2. Materials and Methods

2.1. Materials

All chemical reagents utilized in this study were sourced from Aladdin Chemical Reagents Co., Ltd., Shanghai, China.

2.2. Preparation of Catalysts

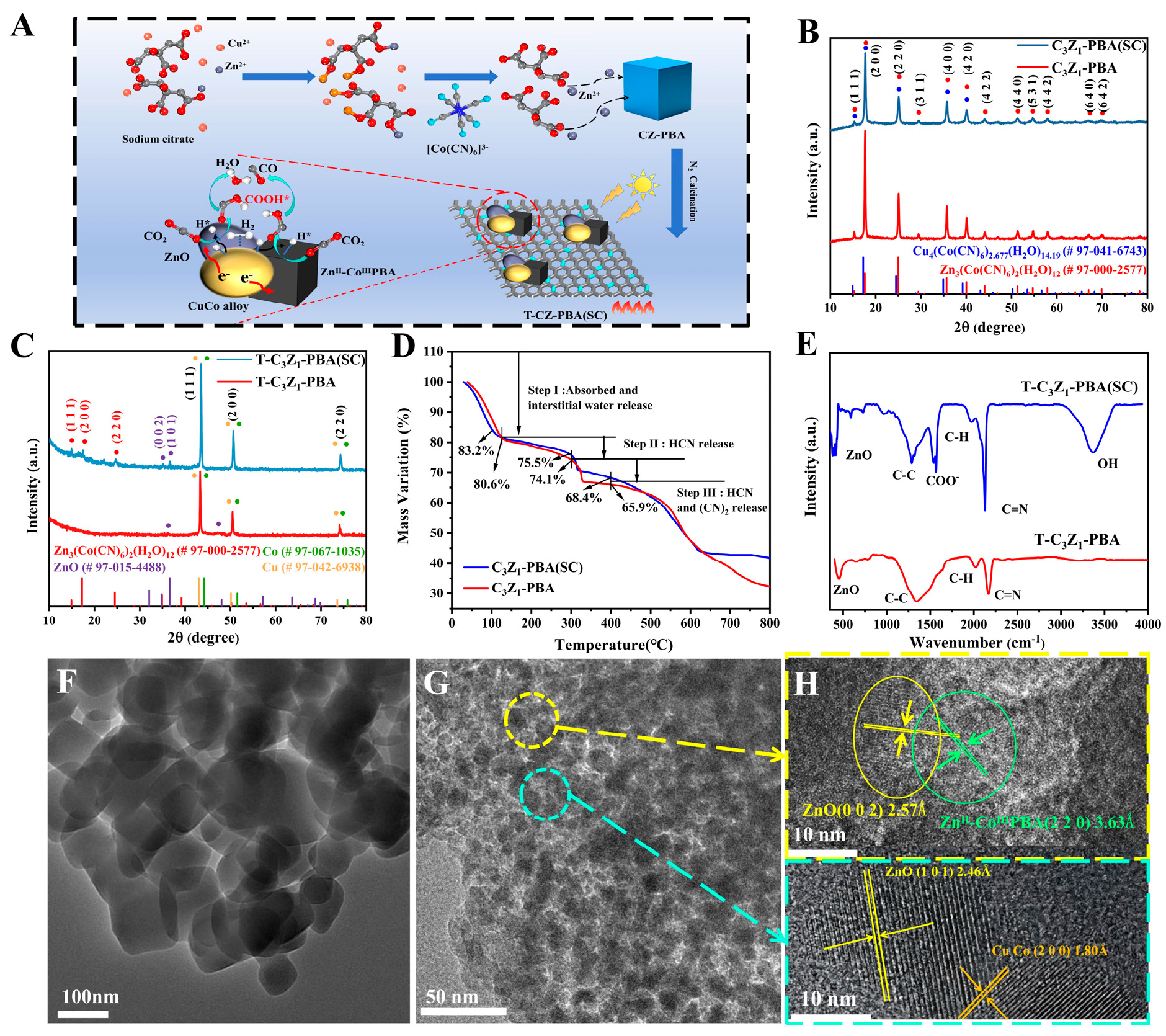

As illustrated in Figure 1A, the catalysts were synthesized utilizing a two-step approach. Using T-C₃Z₁-PBA (SC) as a representative example, the detailed synthesis procedure can be outlined as follows.

(1) A solution designated as solution A was prepared by sequentially adding sodium citrate (C₆H₅Na₃O₇, 4.5 mmol), copper(II) nitrate trihydrate (Cu(NO₃)₂·3H₂O, 4.5 mmol), and zinc(II) nitrate hexahydrate (Zn(NO₃)₂·6H₂O, 1.5 mmol) to 100 mL of deionized water, ensuring complete dissolution. Concurrently, another solution, referred to as solution B, was created by dissolving tripotassium hexacyanocobaltate (K₃[Co(CN)₆], 2 mmol) in an additional 100 mL of deionized water. The two solutions were subsequently mixed thoroughly using magnetic agitation. Following a 20 h standing period, the resultant mixture was filtered and washed to yield the Cu^II-Zn^II-Co^IIIPBA precursor, designated as C₃Z₁-PBA (SC), based on the molar ratio of copper to zinc.

(2) The C₃Z₁-PBA (SC) precursor was subjected to heating in a nitrogen atmosphere, reaching a temperature of 400 °C at a rate of 5 °C per minute over a duration of 4 h, resulting in the formation of T-C₃Z₁-PBA (SC). Utilizing a similar methodology, a series of T-C_xZ_y-PBA (SC) samples with varying copper and zinc proportions were synthesized. Additionally, corresponding C_xZ_y-PBA and T-C_xZ_y-PBA samples were produced without the inclusion of sodium citrate for comparative analysis. Furthermore, T-C-PBA (SC) and T-Z-PBA (SC) were prepared by exclusively introducing 6 mmol of either Cu(NO₃)₂·3H₂O or Zn(NO₃)₂·6H₂O, respectively, employing the aforementioned method.

2.3. Physical and Chemical Characterizations

The crystallographic characteristics of the samples were analyzed using X-ray diffraction (XRD) with Cu Kα radiation, employing a Rigaku instrument from Tokyo, Japan. Microscopic morphological data were acquired through transmission electron microscopy (TEM, S2403-F200, 200 k eV, JEOL, Beijing, China) and high-resolution transmission electron microscopy (HRTEM, S2403-F200, 200 k eV, JEOL, China), complemented by energy-dispersive X-ray spectroscopy (EDS, SUPER X, Beijing, China). The optical absorption properties were assessed using ultraviolet–visible diffuse reflectance spectroscopy (UV-vis DRS, Hitachi U-3010, Tokyo, Japan). Photoluminescence (PL) spectra were recorded with a Hitachi fluorescence spectrophotometer (F-4500, Tokyo, Japan). The surface chemical states of the catalysts were examined via X-ray photoelectron spectroscopy (XPS, Thermo ESCALAB 250Xi, Waltham, MA, USA). Additionally, Fourier transform infrared spectroscopy (FT-IR) analysis was conducted using a VERTEX 70 RAMI infrared spectrometer from the German company BRUKER (Ettlingen, Germany) to investigate the composition and structure of the catalyst. Thermogravimetric analysis (TGA) was performed using a HITACHI STA7300 instrument under a nitrogen atmosphere.

In situ diffuse reflectance infrared Fourier transform spectroscopy (in situ DRIFTS) measurements were carried out on a BRUKER FTIR spectrometer (INVENIO) equipped with a liquid nitrogen-cooled MCT detector. Prior to the measurements, the catalyst underwent a pretreatment under nitrogen at 150 °C for 10 min to eliminate moisture and adsorbed gases. A background spectrum was subsequently collected. Following this, in situ reaction tests were conducted by switching the gas flow to a mixture of H₂, CO₂, and N₂ in a molar ratio of 48:12:40, with a total flow rate of 25 mL min⁻¹.

2.4. Catalytic Tests

Initially, 0.06 g of catalyst is thoroughly combined with 0.4 g of quartz sand (40–60 mesh) and subsequently placed within the isothermal zone at the center of the reactor. A K-type thermocouple is employed to monitor the temperature of the catalyst bed throughout the process. During the photothermal catalytic reaction, a 300 W xenon light source is introduced laterally into the quartz pool; however, this light source is deactivated during the thermal reaction phase. The proportions of the reactant gases are regulated using a mass flow meter. Upon reaching the designated reaction temperature (250–350 °C) within a nitrogen atmosphere, the mixed feed gas, comprising H₂/CO₂/N₂ in a ratio of 48/12/40 (with 40% nitrogen utilized as an internal standard), is introduced into the reactor at a gas hourly space velocity (GHSV) of 50,000 mL g⁻¹ h⁻¹. Analytical assessments are performed utilizing a gas chromatograph (GC9790plus, FULI, Wenling, Zhejiang, China) that is equipped with both a thermal conductivity detector (TCD) and a flame ionization detector (FID).

The photoelectric properties of the samples were evaluated using a CHI660 electrochemical workstation (Shanghai Chenhua Instruments Co., Ltd., Shanghai, China) configured with a three-electrode system. In this setup, a platinum wire served as the counter electrode, while an Ag/AgCl electrode (saturated with KCl) functioned as the reference electrode. The working electrode was prepared by first dispersing 10 mg of the catalyst sample ultrasonically in 1 mL of ethanol, supplemented with 50 μL of a 5% Nafion ethanol solution, to create a homogeneous suspension. Following this, 100 μL of the resulting suspension was applied to indium tin oxide (ITO) glass and allowed to dry at ambient temperature. The photocurrent was subsequently measured under visible light irradiation provided by a 300 W xenon lamp. Additionally, electrochemical impedance spectroscopy (EIS) measurements were conducted in a 0.1 M Na₂SO₄ aqueous solution, covering a frequency range from 10,000 Hz to 0.1 Hz.

3. Results and Discussion

The preparation process of the T-C_xZ_y-PBA (SC) series of samples is illustrated in Figure 1A. Benefiting from the strong chelation of sodium citrate and zinc ions [22,23], some highly crystalline Zn^II-Co^IIIPBA was formed in the pre-synthesized CZ-PBA (SC), which was retained and combined with the pyrolysis product CuCo-ZnO@NC during the subsequent calcination process to achieve heterojunction structure materials T-C_xZ_y-PBA (SC), where x:y represents the molar ratio of Cu to Zn.

XRD patterns of the typical samples are shown in Figure 1B,C. The C₃Z₁-PBA (SC) sample synthesized in the presence of sodium citrate exhibits characteristic diffraction peaks corresponding to both Cu^II-Co^IIIPBA and Zn^II-Co^IIIPBA phases. Notably, these diffraction patterns are structurally similar to those of the control C₃Z₁-PBA sample prepared without sodium citrate addition (Figure 1B). But after the following heat treatment, they transformed into T-C₃Z₁-PBA (SC) and T-C₃Z₁-PBA with distinctly different structures (Figure 1C). The XRD pattern of T-C₃Z₁-PBA (SC) exhibits distinct diffraction peaks associated with metallic CuCo alloy and ZnO, along with the peaks at 15°, 17°, and 24° corresponding to the Zn^II-Co^IIIPBA structure, while the T-C₃Z₁-PBA only displays peaks related to CuCo alloy and ZnO. This result indicates that the Zn^II-Co^IIIPBA structural unit in C₃Z₁-PBA (SC) sample exhibits high thermal stability, which does not decompose during the pyrolysis process. TGA was further used to verify the crystallinity and thermal stability of the C₃Z₁-PBA (SC) and C₃Z₁-PBA. As shown in Figure 1D, the C₃Z₁-PBA (SC) contains only 16.8% crystalline water, lower than 19.4% of C₃Z₁-PBA, and the thermal weight loss rate of the former before 400 °C is also significantly lower than that of the latter. The results demonstrate that sodium citrate effectively stabilizes the PBA structure, allowing C₃Z₁-PBA (SC) to maintain some Zn^II-Co^IIIPBA structural characteristics post-calcination.

To further investigate the molecular structure and chemical composition of T-C₃Z₁-PBA (SC) and T-C₃Z₁-PBA, FT-IR was employed as depicted in Figure 1E. The characteristic peaks at 1283, 1970, and 2160 cm⁻¹ in T-C₃Z₁-PBA correspond to the C-C, C-H, and C=N from NC material produced by decomposition of C₃Z₁-PBA [24]; meanwhile, the stretching vibration absorption peak of ZnO could be observed at 440 cm⁻¹. It is noteworthy that two obvious absorption peaks at 2100 and 3360 cm⁻¹, which could be assigned to -C≡N and crystalline water in PBA structure [19], appear in T-C₃Z₁-PBA (SC); this result is consistent with the XRD analysis. Concurrently, the signal of COO^- from pyrolysis of sodium citrate can be found at 1560 cm⁻¹.

TEM was further used to investigate the morphology of the as-prepared samples. As illustrated in Figure 1F, the C₃Z₁-PBA (SC) precursor exhibits a predominantly cubic morphology, characteristic of the typical PBA structure. Following calcination, the resulting T-C₃Z₁-PBA (SC) material transforms into carbon-coated nanoparticles, as clearly demonstrated in Figure 1E. The HRTEM analyses of T-C₃Z₁-PBA (SC) are shown in Figure 1G, based on the HRTEM images obtained from different particle regions, well-defined lattice fringes can be clearly observed, demonstrating an intergrowth relationship between ZnO (002) and Zn^II-Co^IIIPBA (220) planes, as well as between ZnO (101) and CuCo alloy (200) planes, respectively. This will be conducive to providing more interfacial active sites and promoting catalytic reactions. Additionally, EDS analysis (Figure S1) confirms that the atomic percentages (at%) of Cu and Zn in T-C₃Z₁-PBA (SC) are 7.34% and 2.17%, respectively, consistent with the expected stoichiometric ratio of these elements in the sample.

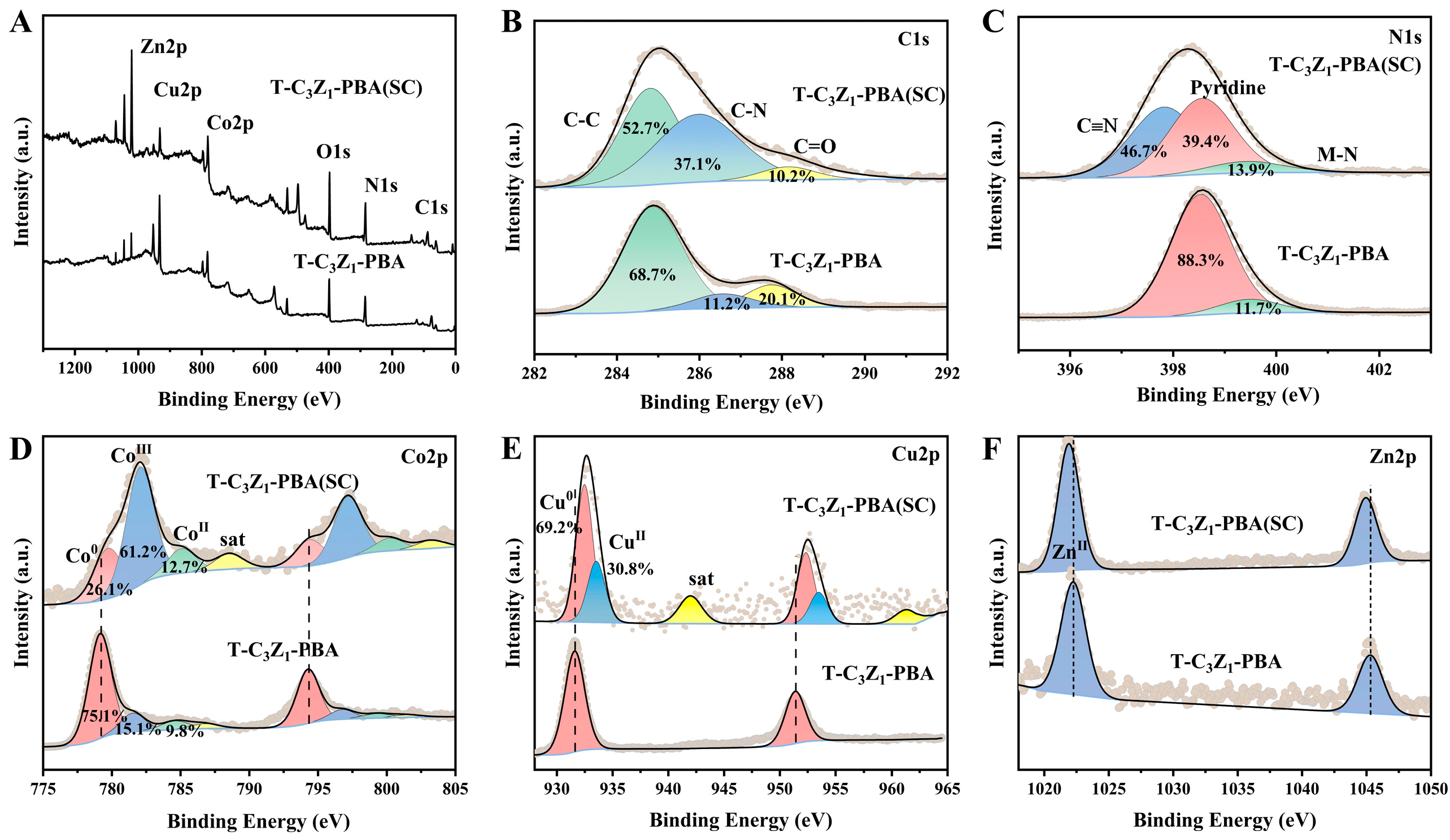

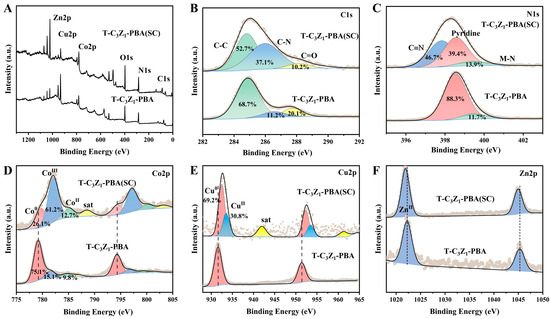

XPS was further employed to investigate the surface composition of T-C₃Z₁-PBA (SC) and T-C₃Z₁-PBA, as illustrated in Figure 2. Comparative analysis of the deconvoluted C1s and N1s spectra reveals a significant increase in the relative content of C-N (ca. 286.1 eV) in T-C₃Z₁-PBA (SC) (Figure 2B). Additionally, a distinct C≡N characteristic peak emerges at 397.9 eV (Figure 2C), confirming the presence of the PBA structure in this sample [25]. The high-resolution Co 2p spectrum (Figure 2D) exhibits peaks at 779.2, 781.7, and 784.9 eV, corresponding to Co⁰, Co³⁺, and Co²⁺ species, respectively. Owing to the Zn^II-Co^IIIPBA structure in T-C₃Z₁-PBA (SC), the proportion of Co³⁺ in this sample is markedly higher than in T-C₃Z₁-PBA (61.2% vs. 15.1%). Furthermore, compared with T-C₃Z₁-PBA, the XPS peaks of Cu⁰ and Co⁰ in T-C₃Z₁-PBA (SC) exhibit negative shifts, while Zn²⁺ shows a positive shift (Figure 2D–F). This observation suggests enhanced electron transfer from the CuCo alloy to Zn²⁺ in the latter. Such electron redistribution likely creates an electron-rich state on Zn^II-Co^IIIPBA (or ZnO) in T-C₃Z₁-PBA (SC), thereby promoting CO₂ adsorption and activation [26].

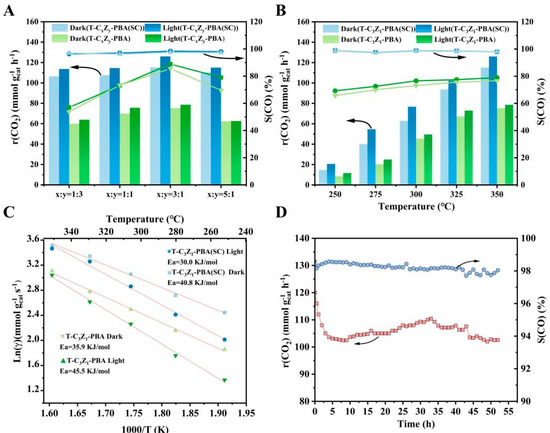

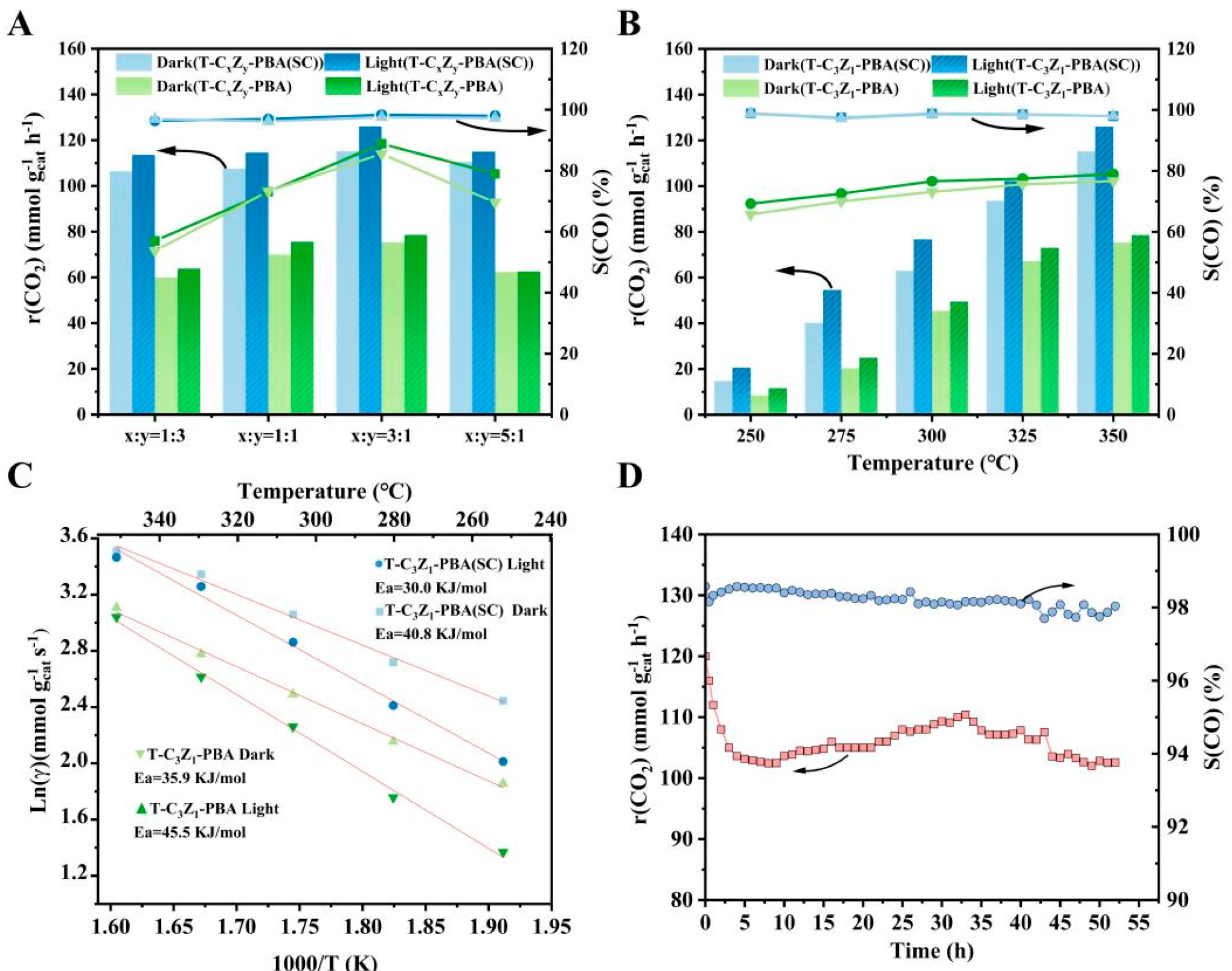

The results of the photothermal catalysis CO₂RR test of the catalyst are shown in Figure 3A. At 350 °C, the T-C_xZ_y-PBA (SC) series of samples exhibit significant enhanced catalytic activity and selectivity for the RWGS reaction compared to the corresponding T-C_xZ_y-PBA in both thermal and photothermal conditions. Particularly, the T-C₃Z₁-PBA (SC) exhibits optimal catalytic behavior, achieving a CO₂ conversion rate of 126.04 mmol g_cat⁻¹ h⁻¹ with light irradiation, 12 mmol g_cat⁻¹ h⁻¹ higher than that of the corresponding thermal catalysis, and its CO selectivity is up to 98.8%. Figure 3B shows the catalytic CO₂ hydrogenation performances over T-C₃Z₁-PBA (SC) and T-C₃Z₁-PBA as functions of reaction temperature. The corresponding apparent activation energy (Ea) values calculated based on the Arrhenius equation are displayed in Figure 3C. It is evident that the Ea value for T-C₃Z₁-PBA (SC) is considerably lower than that for T-C₃Z₁-PBA, regardless of whether light is applied. The addition of light led to a certain degree of decrease in the Ea for both samples, with a more pronounced reduction for T-C₃Z₁-PBA (SC). From these results, it can be inferred that the additional interface sites generated from coexistence of Zn^II-Co^IIIPBA and CuCo-ZnO@NC in T-C₃Z₁-PBA (SC) play a crucial role in enhancing both the catalytic activity and selectivity for RWGS reaction.

To verify the potential synergism between the Cu and Zn species, we also evaluated the catalytic performance of the as-prepared T-C-PBA (SC) and T-Z-PBA (SC) samples (Figure S2). Within the investigated temperature range, the CO₂ conversion rates of both samples are lower than those of the corresponding sample T-C₃Z₁-PBA (SC), indicating the important role of the synergy between the Cu- and Zn-based components in improving the catalytic performance. The stability test result for the optimized T-C₃Z₁-PBA (SC) catalyst at 350 °C with illumination is presented in Figure 3D. After 52 h of continuous operation, the CO₂ conversion rate can still sustain above 100 mmol g_cat⁻¹ h⁻¹, and the selectivity of the CO product remains at ~98%, indicating the commendable catalytic performance over extended periods of use. The superiority of T-C₃Z₁-PBA (SC) can be clearly seen by comparing the CO₂ conversion rate and CO selectivity of transition metal-based catalysts in recent reports for photothermal catalytic CO₂ hydrogenation (Table S1).

The surface properties of the prepared samples were studied using Mott Schottky impedance testing, as depicted in Figure S3. The impedance curve of T-C₃Z₁-PBA exhibits a positive slope, indicative of an n-type semiconductor behavior [27]. In contrast, T-C₃Z₁-PBA (SC) displays both positive and negative slope curves, suggesting the presence of p-n heterojunctions within the sample, where the p-type structure should be related to the PBA structure retained in this sample. This p-n junction structure would augment the material’s charge transfer capability, thus enhancing both the photocatalytic and thermocatalytic behaviors simultaneously.

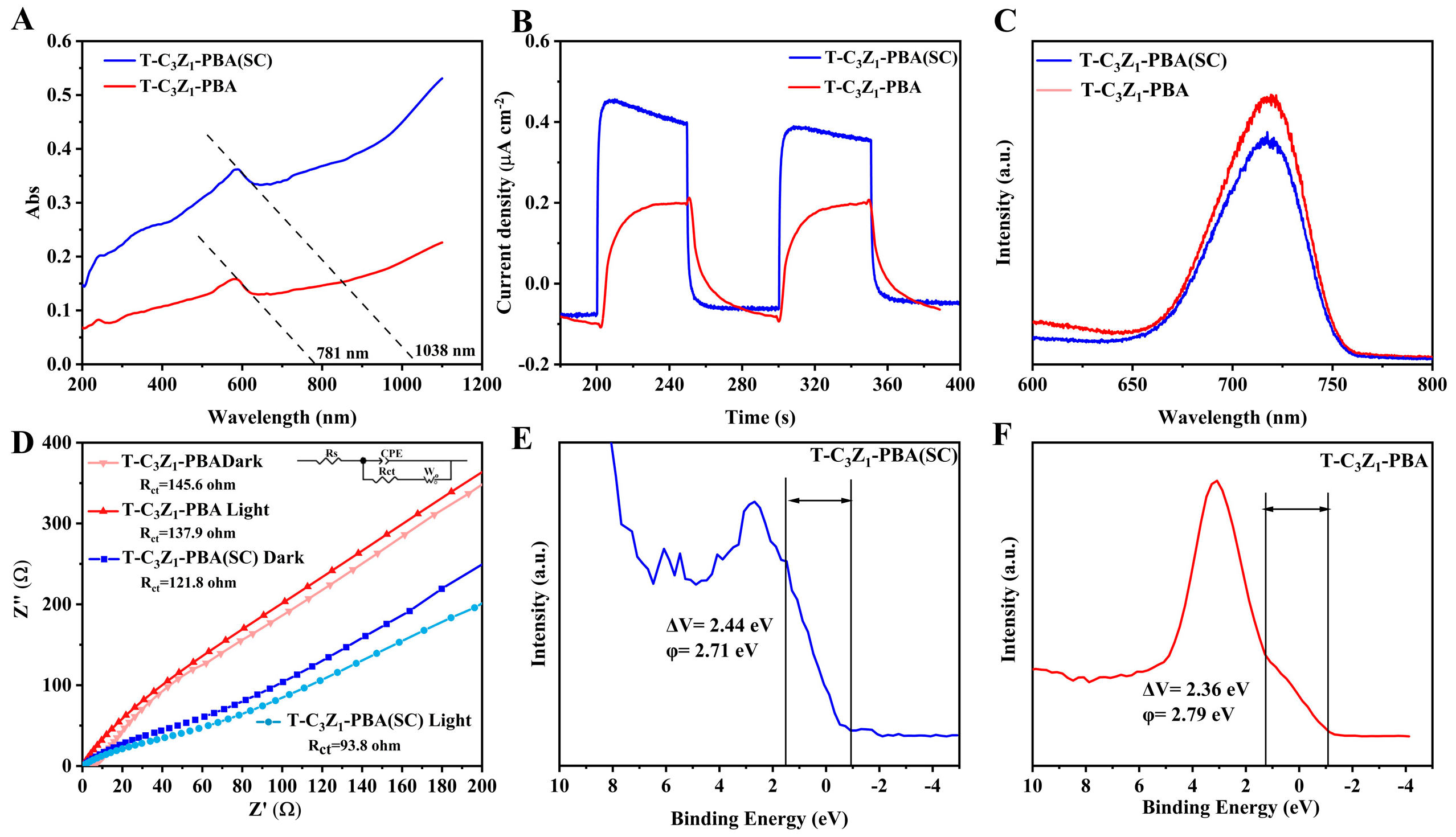

The optical properties of semiconductors are closely related to their energy band structure [28]. The test result of UV-vis DRS is shown in Figure 4A. The absorption edges of T-C₃Z₁-PBA (SC) and T-C₃Z₁-PBA are located at 1038 nm and 781 nm respectively, implying their good visible light responsiveness. The absorption edge of T-C₃Z₁-PBA (SC) shifts toward longer wavelength regions, illustrating the boosted sunlight utilization efficiency [29]. The bandgap energy (Eg) of T-C₃Z₁-PBA (SC) and T-C₃Z₁-PBA determined from semiconductor formula (αhν)ⁿ = k(hν − E_g) are 1.64 and 1.88 eV, respectively (Figure 4B and Figure S4A). The narrower band gap of T-C₃Z₁-PBA (SC) is attributable to the presence of the p-n junction in it, which is believed to contribute to the ease of electron–hole pair formation and broaden the spectrum of absorbed light [28]. By employing the Mott–Schottky equation [30,31], the conduction band potential (E_CB) values of T-C₃Z₁-PBA (SC) and T-C₃Z₁-PBA were calculated to be −0.559 and −0.542 eV, respectively (Figure S5), both of which are negative than −0.53 eV, facilitating the reduction of CO₂ to CO [32]. Additionally, comparative analysis reveals that T-C₃Z₁-PBA (SC) exhibits enhanced photocurrent response under visible light illumination (Figure 4B) and substantially reduced PL intensity (Figure 4C) relative to its T-C₃Z₁-PBA counterpart. These observations collectively demonstrate the effective suppression of charge recombination in T-C₃Z₁-PBA (SC), consequently resulting in superior charge separation efficiency. The EIS Nyquist plots under dark and light conditions are shown in Figure 4D; the smaller impedance arc of T-C₃Z₁-PBA (SC) indicates that it facilitates faster charge transfer. When exposed to light, both samples showed improved electron transfer, as evidenced by their lower charge transfer resistance (Rct). Remarkably, T-C₃Z₁-PBA (SC) exhibited the most dramatic Rct reduction, indicating its exceptional charge-transfer efficiency in delivering photogenerated carriers to active sites, thus optimizing their utilization in catalytic processes [33]. It should be noted that while the localized surface plasmon resonance (LSPR) effect of the CuCo alloy in both samples can elevate the local surface temperature of the catalyst under illumination, thereby accelerating reaction kinetics, the significantly enhanced catalytic activity of T-C₃Z₁-PBA (SC) under light irradiation cannot be explained solely by this thermal effect [34]. Instead, we attribute the exceptional performance primarily to the unique p-n junction structure in T-C₃Z₁-PBA (SC). This structure substantially improves the separation, migration, and surface reaction efficiency of photogenerated carriers through energy band structure modulation as discussed above. Consequently, the superior catalytic activity under light conditions of T-C₃Z₁-PBA (SC) arises from the synergistic interplay between plasmonic heating and the engineered p-n junction. Furthermore, the work function (Δϕ) of T-C₃Z₁-PBA (SC) and T-C₃Z₁-PBA were calculated from the formula ΔV = Δϕ − φ using VB-XPS data (Figure 4E,F). Where ΔV is the contact potential difference, represented by the distance between the two inflection points of the curve, and φ is the instrument work function (5.15 eV). The Δϕ of T-C₃Z₁-PBA (SC) and T-C₃Z₁-PBA were determined to be 2.98 and 3.48 eV, respectively. The reduced work function of T-C₃Z₁-PBA (SC) enhances its electron donation to adsorbed CO₂, leading to a more efficient CO₂ reduction process [35,36].

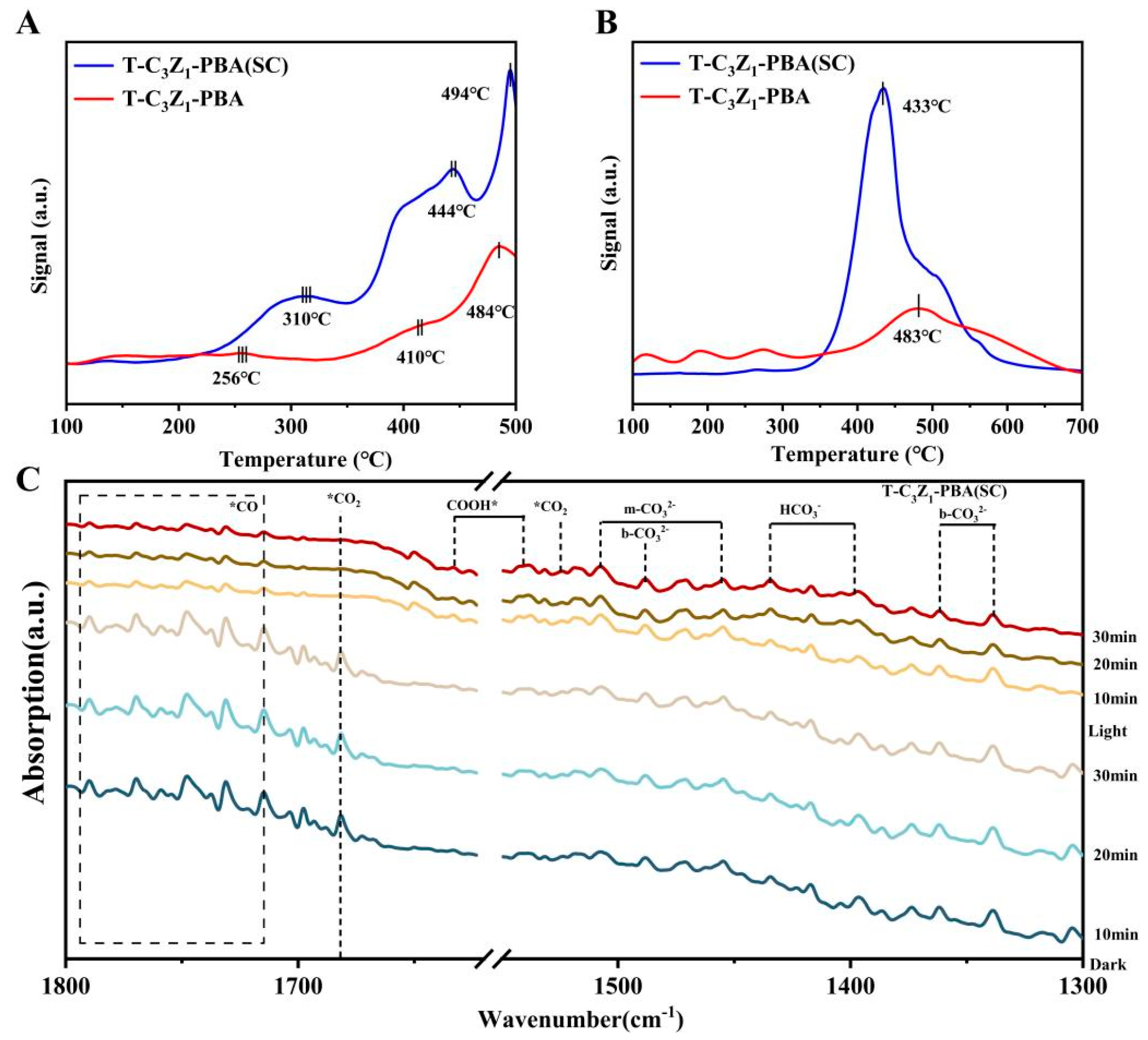

CO₂ temperature-programmed desorption (CO₂-TPD) technology was used to explore the interaction between CO₂ molecules and the prepared catalysts, as shown in Figure 5A. For both the T-C₃Z₁-PBA (SC) and T-C₃Z₁-PBA samples, there are multiple desorption peaks appearing in the temperature range of 250–500 °C, representing the chemisorption between catalysts and CO₂ [37]. For T-C₃Z₁-PBA, the peaks at approximately 256 and 410 °C could be associated with moderately chemisorbed CO₂, whereas the peak centered at 484 °C is related to the desorption of strongly chemically bonded CO₂ molecules. Notably, T-C₃Z₁-PBA (SC) exhibits a higher and intensified CO₂ desorption temperature at 310, 444, and 494 °C, illustrating that the special hybrid-structure interface in T-C₃Z₁-PBA (SC) could provide abundant strong adsorption sites for activating CO₂ molecules [38].

Hydrogen activation is pivotal in the hydrogenation reactions of carbon-containing substances, influencing CO₂ conversion rates and product selectivity. The hydrogen temperature-programmed reduction (H₂-TPR) was used to evaluate the hydrogen activation ability of catalytic samples. As displayed in Figure 5B, a main broader and unsymmetrical peak centered at ~483 °C can be found in the T-C₃Z₁-PBA sample, which could be attributed to the reduction of Zn²⁺. Compared to T-C₃Z₁-PBA, a more pronounced peak centered at 433 °C appears in the curve of T-C₃Z₁-PBA (SC), indicating the enhanced dissociation and spillover of H₂ [38,39].

In situ DRIFTS was performed to delve deeper into the possible reaction mechanisms of CO₂RR on T-C₃Z₁-PBA (SC). As demonstrated in Figure 5C, under both thermal and photothermal conditions, the similar absorption peaks of *CO₂ at 1522 and 1685 cm⁻¹, monodentate carbonate groups (m-CO₃²⁻) at 1459 and 1509 cm⁻¹, bidentate carbonates (b-CO₃²⁻) at 1336, 1359, and 1490 cm⁻¹, and bicarbonate groups (HCO₃⁻) at 1401 and 1469 cm⁻¹ can be observed 10 min after the introduction of CO₂ and H₂, and as time continues to extend, the intensities of these peaks remain unchanged, indicating that the reaction has reached a stable state [39,40,41]. It is noteworthy that the coordination activation of CO₂ on the surface of T-C₃Z₁-PBA (SC) is indicated by the presence of COOH* at 1637 cm⁻¹, which is a key intermediate for the selective catalytic reduction of CO₂ to CO [42]; meanwhile, the CO* could also be observed at 1700–1800 cm⁻¹. These findings suggest that the plausible CO₂RR pathway on the T-C₃Z₁-PBA (SC) is as follows:

CO₂ (g) + * → CO₂*

CO₂* + H⁺ + e⁻ → COOH*

COOH* + H⁺ + e⁻ → CO* + H₂O

CO* → CO (g) + *

Notably, the addition of light results in the attenuation of intensity for reaction intermediates, especially CO₂* and CO*, indicating that photogenerated electrons effectively promote the conversion of these intermediates, thus accelerating the reaction process.

4. Conclusions

In summary, a novel PBA-derived hybrid-structure catalyst, T-CZ-PBA (SC), consisting of Zn^II-Co^IIIPBA, CuCo alloy, ZnO, and NC, was successfully constructed for an RWGS reaction. Based on the effective charge separation and transfer originating from this special heterostructure, as well as the strong adsorption/activation of CO₂ and H₂, the optimized T-C₃Z₁-PBA (SC) exhibits 126.0 mmol g_cat⁻¹ h⁻¹ of CO₂ conversion capability and 98.8% selectivity of the CO product at 350 °C with irradiation. In situ DRIFTS indicated that the light accelerates the conversion of intermediates like CO₂* and CO*, thus boosting the catalytic activity. This work will effectively progress the research in the controllable preparation of highly efficient hybrid-structure photothermal catalysts.
