Pr³⁺-Activated Sr₂LaF₇ Nanoparticles as a Single-Phase White-Light-Emitting Nanophosphor

Abstract

Sr₂LaF₇:xPr³⁺ (x = 0.2, 1, 2, 3, 5, 10, and 25 mol%) nanophosphors with a cubic Fm3m structure were hydrothermally synthesized, forming nearly spherical nanoparticles with an average diameter of approximately 32 nm. Diffuse reflectance measurement and excitation spectra showed a primary excitation peak of Pr³⁺ at 443 nm, corresponding to the ground state to the ³P₂ level transition. Upon blue light excitation, Pr³⁺-activated Sr₂LaF₇ nanophosphors showed rich emission structure across the visible region of the spectrum, with blue (~483 nm), green (~525 nm), orange (~600 nm), and red (~640 nm) emissions, blue and orange being the most prominent ones. The relative intensities of these emissions varied with Pr³⁺ concentration, leading to tunable emission colors. The chromaticity showed slight variation with the Pr³⁺ content (0.350 < x < 0.417, 0.374 < y < 0.380), while the CCT value increased from 3118 K to 4901 K as the doping concentration increased. The optimized Sr₂LaF₇ with 2 mol% Pr³⁺ had the most intense emission with correlated color temperature (CCT) of 3628 K, corresponding to the warm white color. The proposed Pr³⁺-doping strategy offers valuable insights into discovering or optimizing single-phase phosphors for white-light-emitting applications.

1. Introduction

In recent decades, researchers have been striving to solve the challenge of achieving stable, high-quality white light in LED devices. Two primary approaches have dominated so far. The first approach combines InGaN blue LED chips with YAG:Ce phosphors; however, insufficient red emission results in a low color rendering index (CRI) and unstable light color owing to sensitivity to processing conditions. The second method utilizes UV or near-UV chips to excite distinct red, green, and blue phosphors, enabling wider spectral output, adjustable CRI, and desirable CCT values. However, this method poses challenges, particularly in the controlled synthesis of these phosphors with uniform particle sizes to prevent agglomeration, which is a complex and time-consuming process. To address these limitations, there has been growing interest in single-phase white-light phosphors, which emit white light from a single host material and offer benefits such as simplified fabrication, reduced production costs, and improved reproducibility. These phosphors encompass a broad spectrum of material hosts, such as fluorides, aluminates, silicates, phosphates, molybdates, and tungstates [1,2,3,4,5,6].

Preferably, host matrices should (i) exhibit non-hygroscopic behavior to maintain stability in air and aqueous environments, (ii) possess a low phonon frequency to minimize non-radiative relaxation losses and enhance emission efficiency, and (iii) feature a wide band gap to facilitate allowed electronic transitions of the dopant ions while preventing self-absorption [7]. The oxides’ hosts exhibit high phonon frequencies (>500 cm⁻¹) and good chemical stability. Halide materials possess low phonon frequencies (≤300 cm⁻¹); however, their hygroscopic nature restricts their practical applications. Fluorides stand apart from other hosts by having a phonon frequency in the intermediate range (300–500 cm⁻¹), good chemical stability, wide optical transmission range, and anionic conductivity [8].

Notably, luminescence-based materials activated by Pr³⁺ ions have a broad range of emissions across the ultraviolet, visible, and infrared spectral regions, arising from interconfigurational $\left[Xe\right]{4f}^1{5d}^1\to \left[Xe\right]{4f}^2$and intraconfigurational $\left[Xe\right]{4f}^2\to \left[Xe\right]{4f}^2$ electronic transitions [9,10]. These may occur in any form, such as downconversion, downshifting, scintillation, or upconversion. The energy difference between the $\left[Xe\right]{4f}^1{5d}^1$ and $\left[Xe\right]{4f}^2$configurations in free Pr³⁺ ions is approximately 62,000 cm⁻¹ [9,11]. However, upon doping into crystals, this energy difference considerably reduces because of the crystal field splitting of the $\left[Xe\right]{4f}^1{5d}^1$ configuration. The degree of energy difference reduction varies significantly across host matrices, influenced by factors such as spectroscopic ion charge density, polarizability, metal–ligand distances, and site symmetry around Pr³⁺ [11,12].

So far, various Pr³⁺-activated fluoride materials have been investigated, providing valuable insights into their potential applications in lighting, displays, sensing, healthcare, and security. Several studies have shown that Pr³⁺-doped fluorides such as LiYF₄ [13,14,15,16], LiGdF₄ [17,18], LiLuF₄ [19], BaY₂F₈ [20], and KY₃F₁₀ [21] are promising candidates for solid-state lasers due to the effective emissions from ³P₀ across the visible and near-infrared spectral ranges. Mono-dispersed Pr³⁺-doped β-NaYF₄, with an absolute sensitivity of 0.01352 K⁻¹ at 300 K, and Pr³⁺-doped YF₃ exhibiting an absolute sensitivity of 0.012 K⁻¹, with a temperature resolution reaching 0.5 K, are promising candidates for temperature sensing [22,23]. Recently, Pr³⁺-doped fluoride materials have gained significant attention for antimicrobial applications [24]. In this context, Yang et al. observed X-ray-activated strong UVC persistent luminescence, linked to the $\left[Xe\right]{4f}^1{5d}^1\to \left[Xe\right]{4f}^2$ transition of Pr³⁺, upon releasing trapped electrons in the fluoride elpasolite Cs₂NaYF₆ as a host, providing new insights into their potential applications for sterilization, disinfection, and more [25]. Furthermore, materials that can convert visible light into UVC, such as KCaF₃:Pr³⁺, CsCaF₃:Pr³⁺, RbCaF₃:Pr³⁺, and BaYF₅:Pr³⁺, show strong potential for use in phototherapy, antimicrobial treatments, and photocatalytic processes [26,27]. In addition, β-NaYF₄:Pr³⁺, a single-phase phosphor, is an excellent candidate for white-light-emitting diodes, demonstrating excellent color stability across temperature variations and a CCT value of 5951 K [28].

The growing interest in nanomaterials has increased the demand for novel compounds with intense emissions and efficient synthesis techniques. Nano-sized, lanthanide-doped mixed metal fluorides, M₂LnF₇ (where M = Ca, Sr, Ba and Ln³⁺ = Y, La, Gd, Lu), remain relatively unexplored as phosphors, with only a few studies focusing on M₂LaF₇ upconversion nanoparticles [29,30,31]. In this study, cubic Pr³⁺-activated Sr₂LaF₇ (Pr³⁺ content: 0.2, 1, 2, 3, 5, 10, and 25 mol%) was synthesized hydrothermally at 180 °C for 20 h. The main excitation peak of Pr³⁺ occurs at 443 nm, and the strongest emission is achieved with an optimal doping concentration of 2 mol%. In addition, the lifetime–concentration relationships show that increasing Pr³⁺ concentration shortens lifetime through enhanced non-radiative pathways. Chromaticity (x, y) varies slightly, while CCT increases with Pr³⁺-doping. The luminescent properties of Pr³⁺-activated Sr₂LaF₇ nanophosphors have not yet been reported in the literature.

2. Materials and Methods

2.1. Chemicals

Strontium nitrate (Sr(NO₃)₂, Haverhill, MA, USA, 99%), lanthanum (III) nitrate hexahydrate (La(NO₃)₃ꞏ6H₂O, Alfa Aesar, Haverhill, MA, USA, 99.99%), praseodymium oxide (Pr₆O₁₁, Haverhill, MA, USA, 99.9%), disodium ethylenediaminetetraacetate dihydrate (EDTA-2Na, C₁₀H₁₄N₂O₈Na₂ꞏ2H₂O, Kemika, Zagreb, Croatia, 99%), ammonium fluoride (NH₄F, Alfa Aesar, Haverhill, MA, USA, 98%), 25% ammonium solution (NH₄OH, Fisher, Loughborough, Leicestershire, UK), nitric acid (65% HNO₃, Macron fine chemicals, Center Valley, PA, USA), and deionized water were used as starting materials without additional purification.

2.2. Synthesis of SLF:Pr

The total of seven samples of Pr-doped Sr₂LaF₇—SLF (Sr₂La_1−xPr_xF₇, x = 0.002, 0.01, 0.02, 0.03, 0.05, 0.10, and 0.25) were synthesized hydrothermally using Sr²⁺ and La³⁺-nitrates, Pr^3+/4+-oxide, and NH₄F as precursors and EDTA-2Na as a stabilizer (Figure 1). Typically, to produce 0.89 g of the representative sample—Sr₂LaF₇ doped with 2 mol% Pr³⁺—firstly, a stoichiometric quantity of Pr³⁺/⁴⁺-oxide was dissolved in 3 mL of concentrated nitric acid and evaporated until oxide transformed into nitrate at 120 °C. After that, the nitrates were weighed corresponding to the stoichiometric ratio (specifically, 0.8465 g Sr²⁺-nitrate, 0.8487 g La³⁺-nitrate) and dissolved in deionized water (12.5 mL) containing Pr-nitrates under continuous stirring at room temperature for 30 min. The resulting solution was then combined with a transparent solution containing 0.7445 g EDTA-2Na in 12.5 mL in water (molar ratio EDTA-2Na:La = 1:1). Subsequently, a 10 mL aqueous solution containing 0.8889 g of NH₄F (molar ratio NH₄F:La = 12:1) was introduced and stirred vigorously for 1 h, resulting in the formation of a white complex. The mixture’s pH was modified to about 6 by adding 800 μL of NH₄OH. After being sealed in a 100 mL Teflon-lined autoclave, the solution was heated at 180 °C for 20 h. Upon natural cooling, the products were centrifuged, washed twice with water and once with a 1:1 ethanol/water mixture to remove any remaining residues, and then dried in an air atmosphere at 80 °C for 4 h. SLF phosphors with different Pr³⁺ concentrations (x = 0.2, 1, 2, 3, 5, 10, and 25 mol%) relative to La³⁺ ions were synthesized following the procedure outlined above.

Table 1. The specific precursor quantities needed for preparing 0.002 mol of Sr₂La_1−xPr_xF₇ (x = 0.002, 0.01, 0.02, 0.03, 0.05, 0.10, and 0.25).

Molecular Formula	Pr3+ (mol%)	Abbreviated Name	Precursors (g)
			Sr(NO3)2	La(NO3)3ꞏ6H2O	Pr6O11	NH4F	EDTA-2Na
Sr2La0.998Pr0.002F7	0.2	SLF:0.2Pr	0.8465	0.8643	0.0007	0.8889	0.7445
Sr2La0.99Pr0.01F7	1	SLF:1Pr	0.8465	0.8574	0.0034	0.8889	0.7445
Sr2La0.98Pr0.02F7	2	SLF:2Pr	0.8465	0.8487	0.0068	0.8889	0.7445
Sr2La0.97Pr0.03F7	3	SLF:3Pr	0.8465	0.8401	0.0102	0.8889	0.7445
Sr2La0.95Pr0.05F7	5	SLF:5Pr	0.8465	0.82274	0.0170	0.8889	0.7445
Sr2La0.90Pr0.10F7	10	SLF:10Pr	0.8465	0.7794	0.0340	0.8889	0.7445
Sr2La0.75Pr0.25F7	25	SLF:25Pr	0.8465	0.6495	0.0851	0.8889	0.7445

shows the specific precursor quantities used to prepare 0.002 mol of Sr₂La_1−xPr_xF₇ (x = 0.002, 0.01, 0.02, 0.03, 0.05, 0.10, and 0.25) samples.

2.3. Characterization

X-ray diffraction (XRD) analysis was conducted using a Rigaku SmartLab system (Tokyo, Japan), employing Cu Kα radiation (30 mA, 40 kV) over a 2θ range of 10° to 90°. The diffraction data were collected with a step size of 0.02° and a scanning rate of 1°/min across the analyzed 2θ range. The microstructure of the samples was examined using a Tecnai GF20 transmission electron microscope (TEM) operating at 200 kV (Hillsboro, OR, USA). ImageJ software (Open-source software, https://imagej.net/, accessed on 6 May 2025) was used to determine the average particle size. Diffuse reflectance spectra were obtained using a Shimadzu UV-2600 (Shimadzu Corporation, Tokyo, Japan) spectrophotometer equipped with an ISR-2600 integrated sphere, with BaSO₄ serving as the reference standard. Luminescence measurements were carried out using a 450 nm laser as the excitation source. Emission and excitation spectra were recorded with a Fluorolog-3 Model FL3-221 spectrofluorometer system (Horiba-Jobin-Yvon, Longjumeau, France), utilizing a 450 nm laser for excitation. Excited-state lifetime evaluations were performed using an FHR1000 high-resolution monochromator (Horiba Jobin Yvon), an ICCD camera (Horiba Jobin Yvon 3771, Longjumeau, France), and a 450 nm laser source. Quantum efficiency measurements were performed using a home-built system, consisting of Ocean Insight IDP-REF 38.1 mm integrating sphere fiber coupled to the 450 nm laser light source on the reference port and the OCEAN-FX-XR1-ES extended range spectrometer (Winter Park, FL, USA) on the sample port of the sphere, using BaSO₄ as the standard reference. All data were collected at room temperature.

3. Results and Discussion

3.1. Structure and Morphology

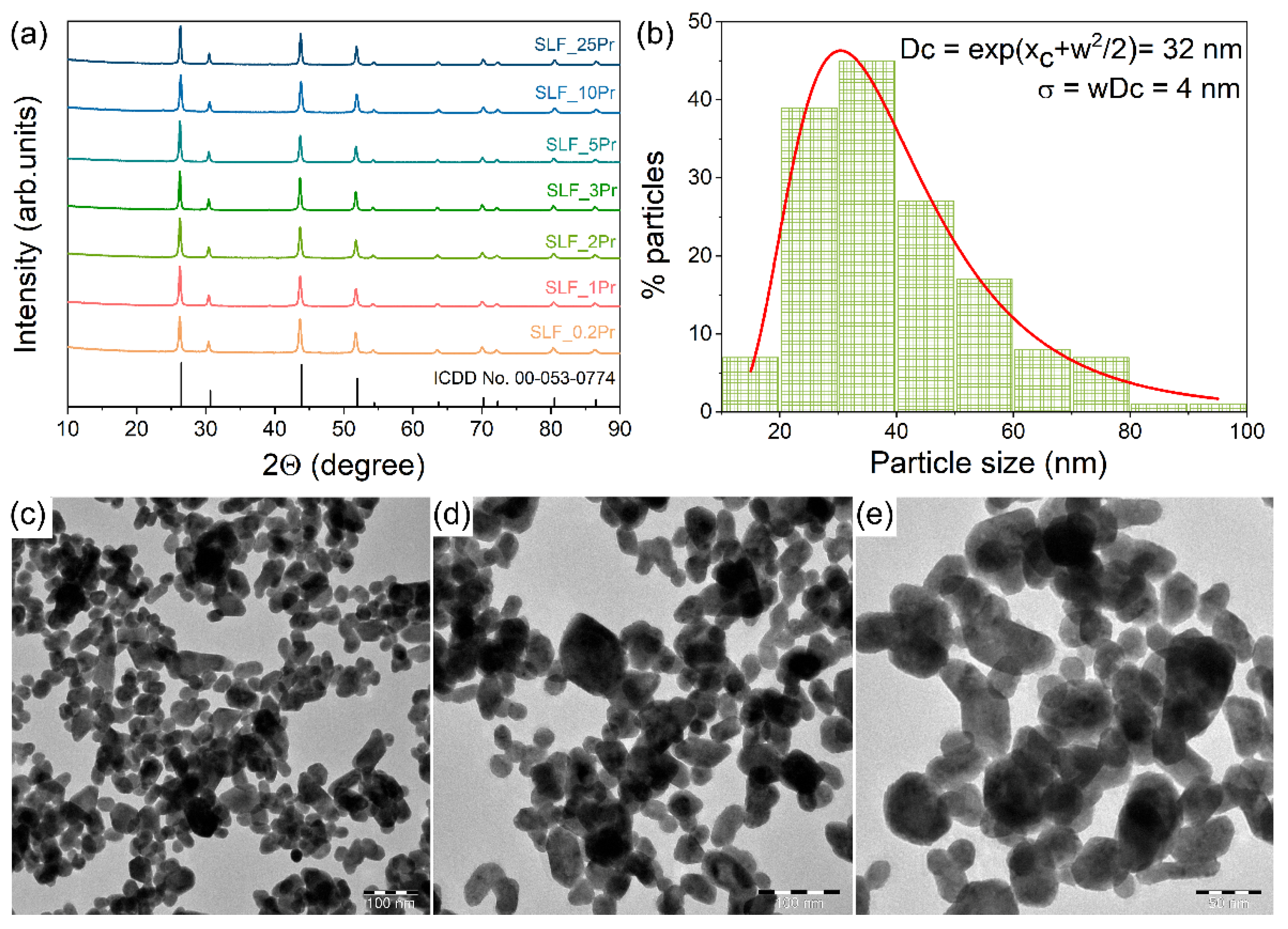

The M_xLnF_2x+3 fluorides crystallize in a cubic structure with the Fm3m space group [30]. XRD patterns of Sr₂La_1−xPr_xF₇ (x = 0.002, 0.010, 0.020, 0.030, 0.050, 0.100, and 0.250) nanophosphors with varying Pr³⁺ concentrations are shown in Figure 2a. Although Pr³⁺ ions were introduced, the main diffraction peaks appearing at approximately 2θ = 26.3, 30.4, 43.7, 51.7, 54.2, 63.5, 70.0, 72.1, and 80.3° remained unchanged. These peaks correspond to the 111, 200, 220, 311, 222, 400, 331, 420, and 422 crystal planes, respectively, and show excellent agreement with the standard diffraction data for pure Sr₂LaF₇, as documented in ICDD card No. 00–053–0774. The patterns revealed no evidence of additional phases or impurity-related diffraction peaks. The sharp diffraction peaks indicate a good crystallinity of SLF nanophosphors.

Table 2. Results of the structural analysis of SLF:xPr (x = 0.2, 1, 2, 3, 5, 10, and 25 mol%) nanophosphors.

Pr3+ Content (mol%)	0.2	1	2	3	5	10	25
Abbreviated Name	SLF:0.2Pr	SLF:1Pr	SLF:2Pr	SLF:3Pr	SLF:5Pr	SLF:10Pr	SLF:25Pr
a = b = c (Å)	5.8465 (2)	5.8541 (3)	5.8492 (3)	5.84912 (15)	5.8528 (3)	5.83895 (16)	5.85336 (17)
CV (Å3)	199.84 (3)	200.62 (4)	200.12 (4)	200.11 (2)	200.49 (4)	199.07 (2)	200.55 (2)
CS (Å)	185.0 (15)	230.4 (10)	229.9 (2)	268.6 (10)	266.4 (9)	236.80 (8)	293.0 (6)
Strain	0.120 (10)	0.141 (19)	0.146 (4)	0.036 (12)	0.145 (11)	0.1704 (13)	0.124 (6)
GOF	1.4617	1.7782	1.7023	1.6925	2.2436	1.3764	1.3033
* Rwp	5.37	6.42	6.08	6.26	8.31	5.05	4.90
** Rp	4.04	4.65	4.42	4.69	5.89	3.71	3.66
*** Re	3.67	3.61	3.57	3.70	3.70	3.67	3.76

* R_wp—the weighted profile factor; ** R_p—the profile factor; *** R_e—the expected weighted profile factor; GOF—the goodness of fit.

shows the results of the structural analysis: crystallite size (CS), microstrain values, unit cell parameters (a), unit cell volume (CV), and the parameters of the data fitting (R_wp, R_p, R_e, GOF) of SLF:xPr (x = 0.2, 1, 2, 3, 5, 10, and 25 mol%) nanophosphors.

The SLF:Pr nanophosphors were synthesized using an EDTA-assisted hydrothermal method, where EDTA, an effective complexing agent, enhances the dispersibility of crystalline seeds by producing [Sr-EDTA]²⁺ and [La-EDTA]⁺ complexes, thus inhibiting the aggregation of SLF particles during the hydrothermal treatment. The resulting morphology and particle size distribution of the representative SLF:2Pr sample, observed at different magnifications, are presented in the TEM images and histogram shown in Figure 2b–e. The nanoparticles exhibit an almost spherical morphology, with an average particle size of approximately 32 ± 4 nm, as estimated from a histogram based on roughly 200 particles and fitted with a log-normal distribution (Figure 2b). High-particle-density zones, which form aggregates and areas with lower dispersed particles, are noticed at lower magnification (Figure 2c), whereas the variation in particle size and shape can be visualized at higher magnification in Figure 2e.

3.2. Photoluminescence Properties of SLF:Pr

Pr³⁺ ions provide emissions originating from 4f5d→4f² and 4f²→4f² electronic transitions that cover the UVC to NIR spectral range. If the lowest-energy 4f5d level has lower energy than the 4f^{2 1}S₀ state, the parity-allowed transitions from 4f5d exhibit UV emission as a dominant one. In the case of fluorides, 4f5d levels usually have higher energy than the ¹S₀ state, which facilitates VIS-NIR emissions from a cascade 4f² → 4f² transitions. If 4f5d and ¹S₀ are close in energy, both types of transitions occur.

Figure 3a displays the diffuse reflection spectra of Sr₂LaF₇:xPr (x = 0.2, 1, 2, 3, 5, 10, and 25 mol%) nanophosphors recorded at room temperature across the visible wavelength range. Pr³⁺ absorptions from ³H₄ → ³P_0,1,2+¹I₆ and ³H₄ → ¹D₂ transitions are evident in the blue and orange-red spectral areas, with the most intense absorption peak at 443 nm attributed to the ³H₄ → ³P₂ electronic transition, which is known for its relatively high absorption cross-section [32].

Figure 3b shows the excitation spectrum recorded with a 600 nm emission wavelength, exhibiting a spectral profile similar to Figure 3a. The primary excitation peak originates from the ground state to the ³P₂ level of Pr³⁺ at 443 nm. The ³P₁ and ¹I₆ levels overlap at 467 nm, while the ³P₀ level appears as the sharpest peak at 481 nm due to its J = 0 total angular momentum, which prevents Stark splitting. The excitation into the ¹D₂ level is observed at 590 nm. These observations indicate that the ³P₂, ³P₁+¹I₆, ³P₀, and ¹D₂ levels are positioned at energies of 22,573 cm⁻¹, 21,413 cm⁻¹, 20,790 cm⁻¹, and 16,949 cm⁻¹, respectively (see Figure 3c). The excitation spectrum aligns well with the 450 nm laser light used to generate the emissions recorded in Figure 4a. From the ³P₂ level, the electrons non-radiatively de-excite to the lowest level of the ³P_J multiplet by the multiphonon mechanism [33].

The emission spectra feature transitions including ³P₁ → ³H₄ at 468 nm, ³P₁ → ³H₄ at 483 nm, ³P₁ → ³H₅ at 525 nm, ³P₀ → ³H₅ at 539 nm, ¹D₂ → ³H₄ at 597 nm, ³P₀ → ³H₆ at 602 nm, ³P₁ → ³F₂ at 640 nm, ³P₁ → ³F₃ at 675 nm, ³P₁ → ³F₄ at 697 nm, and ³P₀ → ³F₄ at 722 nm, similar to what was reported for other Pr³⁺-doped materials [28,34,35,36,37,38]. Here, the observed emission peaks are broader, which can be attributed to the nanoscale dimensions of the analyzed SLF:xPr (x = 0.2, 1, 2, 3, 5, 10, and 25 mol%) particles. The emissions from the ³P₁ level occur because this level is readily populated at room temperature, owing to its small energy separation from the ³P₀ level [22]. According to the relation for the fractional thermal population [39], the percentage of optical centers in ³P₁+¹I₆ levels is about 30% at 300 K. The ³P₂ level lying at about 1750 cm⁻¹ from the ³P₀ level is energetically too far to be significantly populated at room temperature.

The integrated emission intensity (Figure 4b) reveals that 2 mol% Pr³⁺-doping yields the strongest emission, representing the optimal concentration after which concentration quenching begins. Thus, 2 mol% is the optimal doping concentration for the Sr₂LaF₇ host by Pr³⁺ ions.

The normalized spectra presented in Figure 4c show that as concentration increases, the peak at ~600 nm diminishes relative to the blue emission. This peak comprises overlapping ¹D₂ and ³P₀ emissions, and since the spectra are already normalized to the ³P₀ emissions, this means that there is a decrease in ¹D₂ emissions with increasing concentration. This changing emission ratio between ¹D₂ and ³P₀ levels stems from non-radiative processes. Higher Pr³⁺ concentrations reduce inter-ionic distances, enhancing cross-relaxation mechanisms that preferentially quench the ¹D₂ level while affecting ³P₀ emission less [40]. This selective quenching explains the increasing I(³P₀)/I(¹D₂) ratio at higher concentrations. This reduction in the red component by suppressing the ¹D₂ emission is a pathway for color tunability of this phosphor. For the SLF:Pr³⁺ samples, quantum efficiencies were determined to be 16%, 25%, 55%, 51%, 31%, 20%, and 7% for Pr³⁺-dopant concentrations of 0.2%, 1%, 2%, 3%, 5%, 10%, and 25%, respectively.

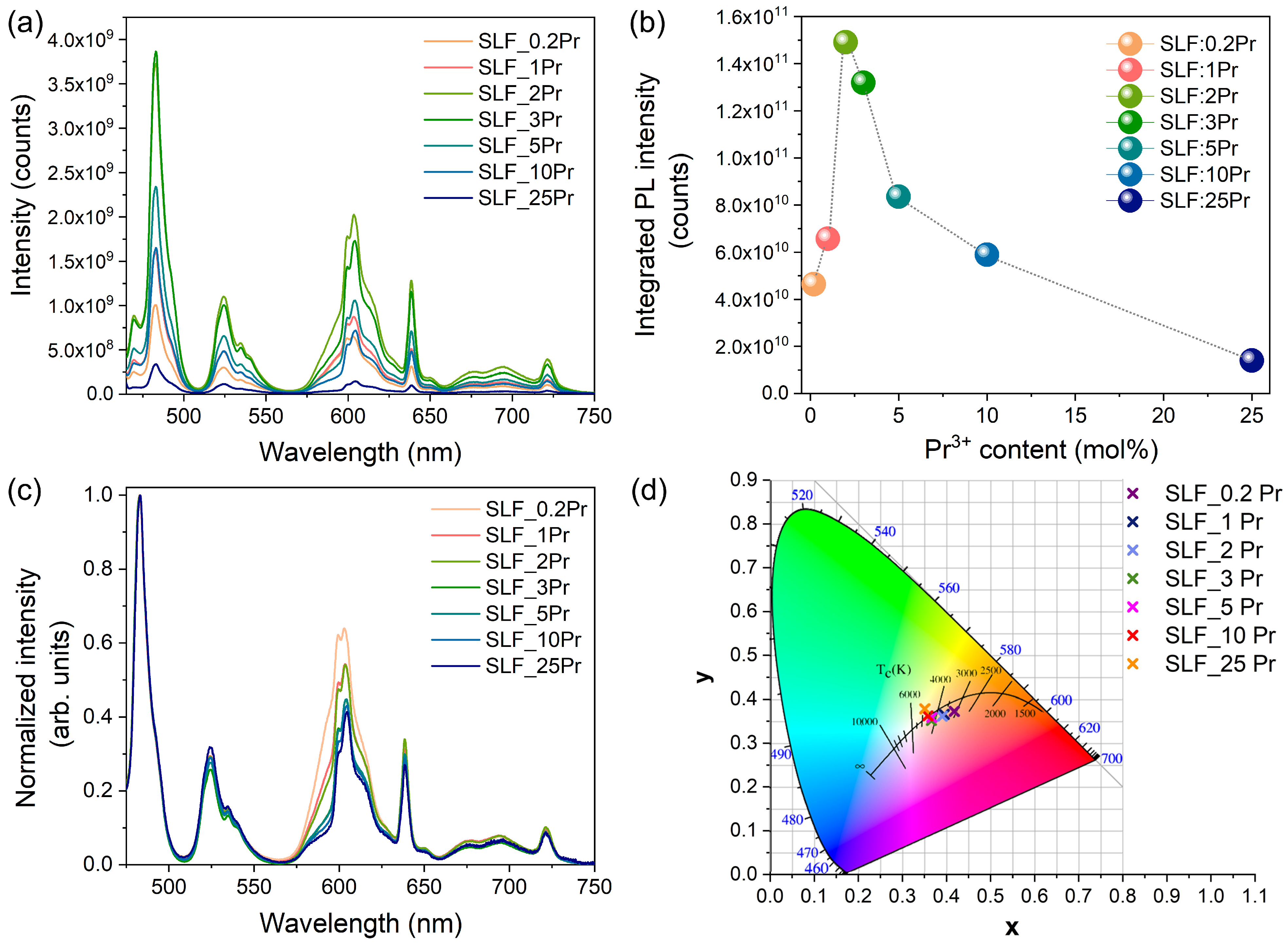

Figure 4. (a) Emission spectra after 450 nm laser irradiation and (b) integrated emission intensity as a function of Pr³⁺ concentration. (c) Normalized emission spectra. (d) CIE chromaticity diagram of SLF:xPr (x = 0.2, 1, 2, 3, 5, 10, and 25 mol%) samples obtained from emission spectra in (a). The solid black line represents the Planckian locus, with several color temperatures indicated along it [41].

Figure 4. (a) Emission spectra after 450 nm laser irradiation and (b) integrated emission intensity as a function of Pr³⁺ concentration. (c) Normalized emission spectra. (d) CIE chromaticity diagram of SLF:xPr (x = 0.2, 1, 2, 3, 5, 10, and 25 mol%) samples obtained from emission spectra in (a). The solid black line represents the Planckian locus, with several color temperatures indicated along it [41].

So far, researchers have typically aimed to design phosphors whose chromaticity values align with the blackbody radiator curve, also known as the Planckian locus. When this is achieved, the light source should match the color temperature of a blackbody at the same physical temperature. However, the concept can still be applied even when a phosphor’s chromaticity deviates slightly from the blackbody curve. In such cases, the correlated color temperature (CCT) is used, which represents the temperature of the blackbody radiation that has chromaticity nearly matching that of the source. CCT is a key metric influencing how warm or cool the phosphors’ emission appears to human perception. For example, incandescent bulbs, common in homes, emit warm light and typically have CCT values between 2700 and 3000 K [42]. On the other hand, fluorescent lights, which appear cool/daylight white, usually fall within the 4000 to 6000 K range due to the lack of red emission [42]. Figure 4d shows that the chromaticity coordinates of the SLF:xPr (x = 0.2, 1, 2, 3, 5, 10, and 25 mol%) phosphors are located near the Planckian locus and exhibit minor changes with increasing Pr³⁺-doping concentration. Also, the CCT values given in

Table 3. Colorimetric parameters of Sr₂LaF₇:xPr (x = 0.2, 1, 2, 3, 5, 10, and 25 mol%) and previously reported Pr³⁺-activated single-phase white-light-emitting phosphors.

Sample	Pr3+ Content (%)	λexc (nm)	(x, y)	CCT (K)	Reference
β-NaYF4:Pr3+	0.1	443	(0.354, 0.339)	4563	[28]
	0.5		(0.323, 0.338)	5951
	1.0		(0.307, 0.335)	6767
BaY2F8:Pr3+	0.3	457.9	(0.35, 0.32)	4667	[36]
	1.25		(0.38, 0.34)	3724
	3.0		(0.40, 0.34)	3158
KYF4:Pr3+	1.25	457.9	(0.35, 0.31)	4604	[36]
KY3F10:Pr3+	0.3	457.9	(0.37, 0.32)	3861	[36]
Sr2LaF7:Pr3+	0.2	468	(0.417, 0.374)	3105	This work
	1		(0.394, 0.367)	3561
	2		(0.390, 0.363)	3628
	3		(0.365, 0.353)	4292
	5		(0.366, 0.360)	4308
	10		(0.357, 0.364)	4628
	25		(0.350, 0.380)	4924

are higher with an increase in Pr³⁺-doping concentration. This is consistent with the increase in the I(³P₀)/I(¹D₂) emission intensity ratio. Previous studies on single-phase β-NaYF₄:Pr³⁺ and KYF₄:Pr³⁺ reported the chromaticity coordinates of cool white light with CCT values between 4500 and 6800 K due to the lack of red emission [28,39]. Here, CCT values change with Pr³⁺-doping concentration and range from 3100 to 4900 K. Due to strong red emission, the optimized SLF:2Pr sample emits warm white light at (0.390, 0.363) and a CCT of 3628 K. Our findings are similar to BaY₂F₈:Pr³⁺ and KY₃F₁₀:Pr³⁺ phosphors, as given in Table 3 showing previously reported chromaticity coordinates of white light with CCT values for single-phase white-light-emitting fluoride and results obtained in this work. However, chromaticity values (x, y) of optimized SLF:2Pr are much closer to the Planckian locus when compared with BaY₂F₈:Pr³⁺ and KY₃F₁₀:Pr³⁺ phosphors, indicating that its emitted light exhibits a color most similar to natural warm white light.

According to its excitation spectrum, SLF:xPr (x = 0.2, 1, 2, 3, 5, 10, and 25 mol%) phosphor is an excellent candidate for light-based applications using commercially available, cost-effective, and powerful blue chips, particularly those operating at 470 nm. Knowing that the LED output light consists of a tunable ratio of LED chip light and phosphor emission [43], it is possible to tune LED emission from cool/daylight white (4000–6000 K) to warm white (2700–3000 K) by choosing the Pr³⁺ content in the SLF phosphor.

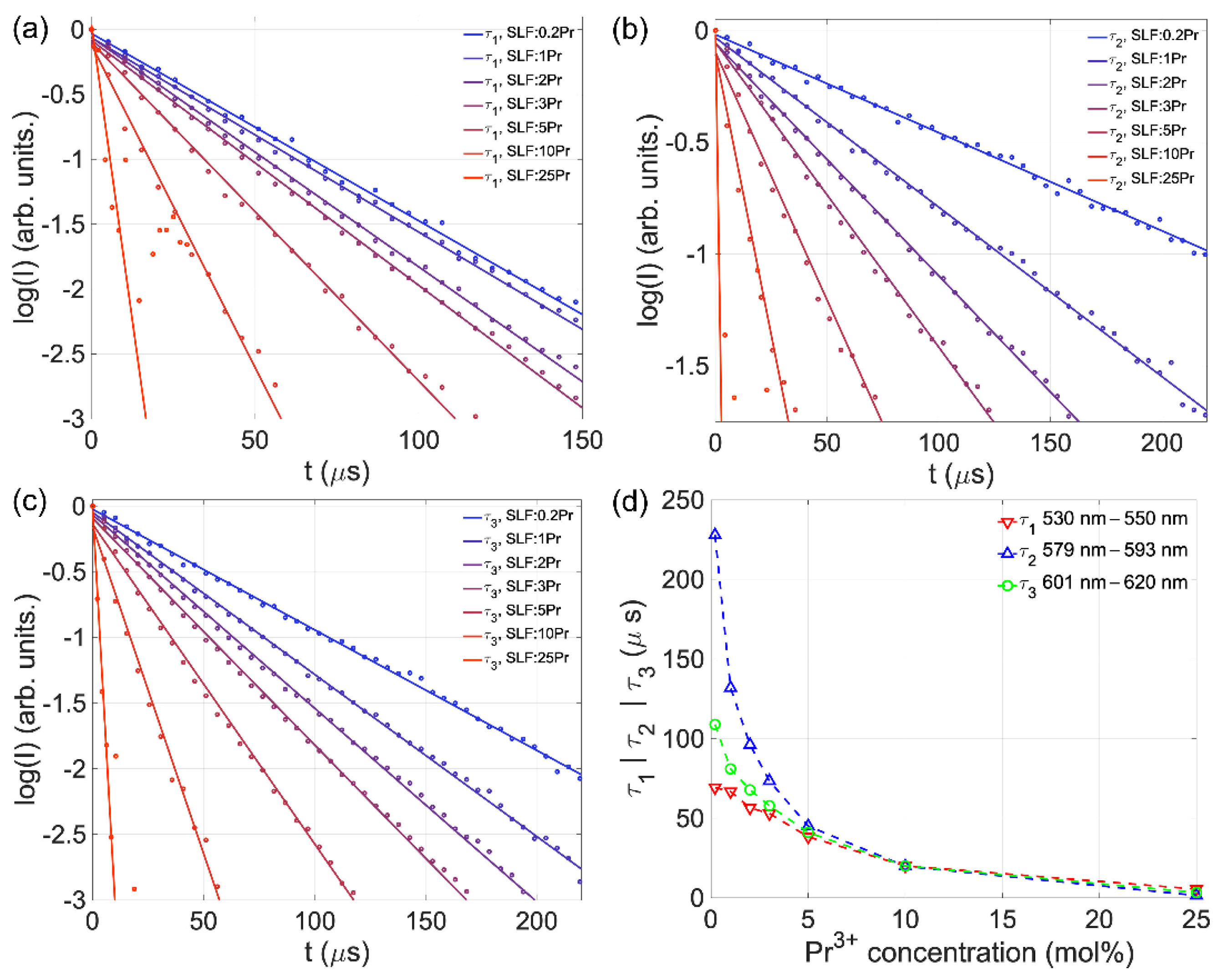

Figure 5a–c displays the temporal dependence of Pr³⁺ luminescence for ³P₀,₁ levels (τ₁, 530–550 nm), the ¹D₂ level (τ₂, 579–593 nm), and overlapping ¹D₂ and ³P₀ levels (τ₃, 601–620 nm), with corresponding lifetime–concentration relationships shown in Figure 5d. The thermalized ³P₀,₁ levels share identical lifetimes. The lifetime values (τ) were calculated by fitting the data to normalized intensity decay curves with a single exponential model (Equation (1)):

$$I\left(t\right)=I_0{e}^{-{\displaystyle \frac{t}{\tau }}}$$

(1)

where I(t) represents the corresponding emission intensity at time t, I₀ represents the corresponding emission intensity at time t = 0 (ideally I₀ = 1 for normalized I(t)), and τ represents the emission decay constant (excited-state lifetime). Fitting parameters are shown in

Table 4. Fitting parameters from Equation (1) for 530–550 nm (τ₁, ³P₀,₁ levels), 579–593 nm (τ₂, ¹D₂ level), and 601–620 nm (τ₃, overlapping ¹D₂ and ³P₀ levels) ranges.

Sample	Fitting Parameters
	${\mathit{I}}_{\mathrm{0,1}}$	${\mathit{\tau }}_1$ [µs]	${\mathit{I}}_{\mathrm{0,2}}$	${\mathit{\tau }}_2$ [µs]	${\mathit{I}}_{\mathrm{0,3}}$	${\mathit{\tau }}_3$ [µs]
SLF:0.2Pr	0.969	69.3	0.981	227.9	0.976	108.9
SLF:1Pr	0.938	66.8	0.968	131.9	0.953	81.0
SLF:2Pr	0.940	56.6	0.943	96.2	0.936	67.8
SLF:3Pr	0.919	53.0	0.945	73.4	0.911	57.9
SLF:5Pr	0.904	38.3	0.905	45.1	0.871	41.0
SLF:10Pr	0.887	20.1	0.898	19.9	0.853	20.1
SLF:25Pr	1.035	5.5	0.984	1.5	0.974	3.4

for all the samples in all three wavelength ranges, resulting in goodness-of-fit parameters (R²) being above 0.99 for all except for SLF:25Pr, where the lifetime values are approximate and serve a phenomenological role to illustrate the impact of concentration quenching.

The lifetimes of both ³P₀ and ¹D₂ levels uniformly decrease with higher Pr³⁺ concentrations, as a result of cross-relaxation effects. At lower Pr³⁺ concentrations, the ¹D₂ emission decays more slowly than ³P₀ due to its greater isolation from the next lower level, resulting in less probable multiphonon relaxation. Increasing concentration then shortens all lifetimes through enhanced cross-relaxation non-radiative pathways. The lifetime changes align with the spectral shape variations observed in Figure 5d: ¹D₂ lifetime decreases more rapidly with concentration than ³P₀, with both reaching equivalence at 10 mol%. Thus, the lifetime analysis confirms that the cross-relaxation pathways affect the ¹D₂ population more than that of the ³P₀ level.

4. Conclusions

We have successfully fabricated Pr³⁺-doped Sr₂LaF₇ nanophosphors using a hydrothermal approach, achieving a cubic crystal structure and quasi-spherical particle shape of around 32 nm. We have analyzed photoluminescent properties in detail and demonstrated the following:

(i) Sr₂LaF₇:Pr nanophosphors exhibit a prominent blue emission at 483 nm, along with additional green, orange, and red emissions.

(ii) The optimal concentration was observed in Sr₂La_0.08Pr_0.02F₇, which exhibited the strongest emission and a CCT value of 3628 K.

(iii) The analysis of emission lifetimes showed that increasing the Pr³⁺ concentration shortened the lifetimes at all emission wavelengths, particularly for the ¹D₂ state, which was more susceptible to concentration-induced quenching than the ³P₀ state.

These findings underscore the potential of SLF:Pr nanophosphors as a single-phase phosphor and their possible use in white LEDs when paired with commercially available, cost-effective blue chips operating at 470 nm. Our future research efforts will be directed toward fabrication and thorough examination of Pr³⁺-activated single-phase microcrystals, with a primary focus on determining their efficiency, temperature stability, and LED fabrication.
