Reorientation Transition Between Square and Hexagonal Skyrmion Lattices near the Saturation into the Homogeneous State in Quasi-Two-Dimensional Chiral Magnets

Abstract

I revisit the well-known phase transition between the hexagonal skyrmion lattice and the homogeneous state within the phenomenological Dzyaloshinskii theory for chiral magnets, which includes only the exchange, Dzyaloshinskii–Moriya, and Zeeman energy contributions. I show that, in a narrow field range near the saturation field, the hexagonal skyrmion order gradually transforms into a square arrangement of skyrmions. Then, by the second-order phase transition during which the lattice period diverges, the square skyrmion lattice releases a set of repulsive isolated skyrmions. On decreasing the magnetic field, isolated skyrmions re-condense into the square lattice at the same critical field as soon as their eigen-energy becomes negative with respect to the field-aligned state. The underlying reason for the reorientation transition between two skyrmion orders can be deduced from the energy density distribution within isolated skyrmions surrounded by the homogeneous state. When the negative energy within the ring-shaped area at the skyrmion outskirt outweighs the positive energy amount around the skyrmion axis, skyrmions tend to form the square lattice, in which the overlap of skyrmion profiles results in smaller energy losses as compared with the hexagonal crystal. With the further decreasing field, the hexagonal lattice achieves smaller energy density in comparison with the square one due to the denser packing of individual skyrmions.

1. Introduction

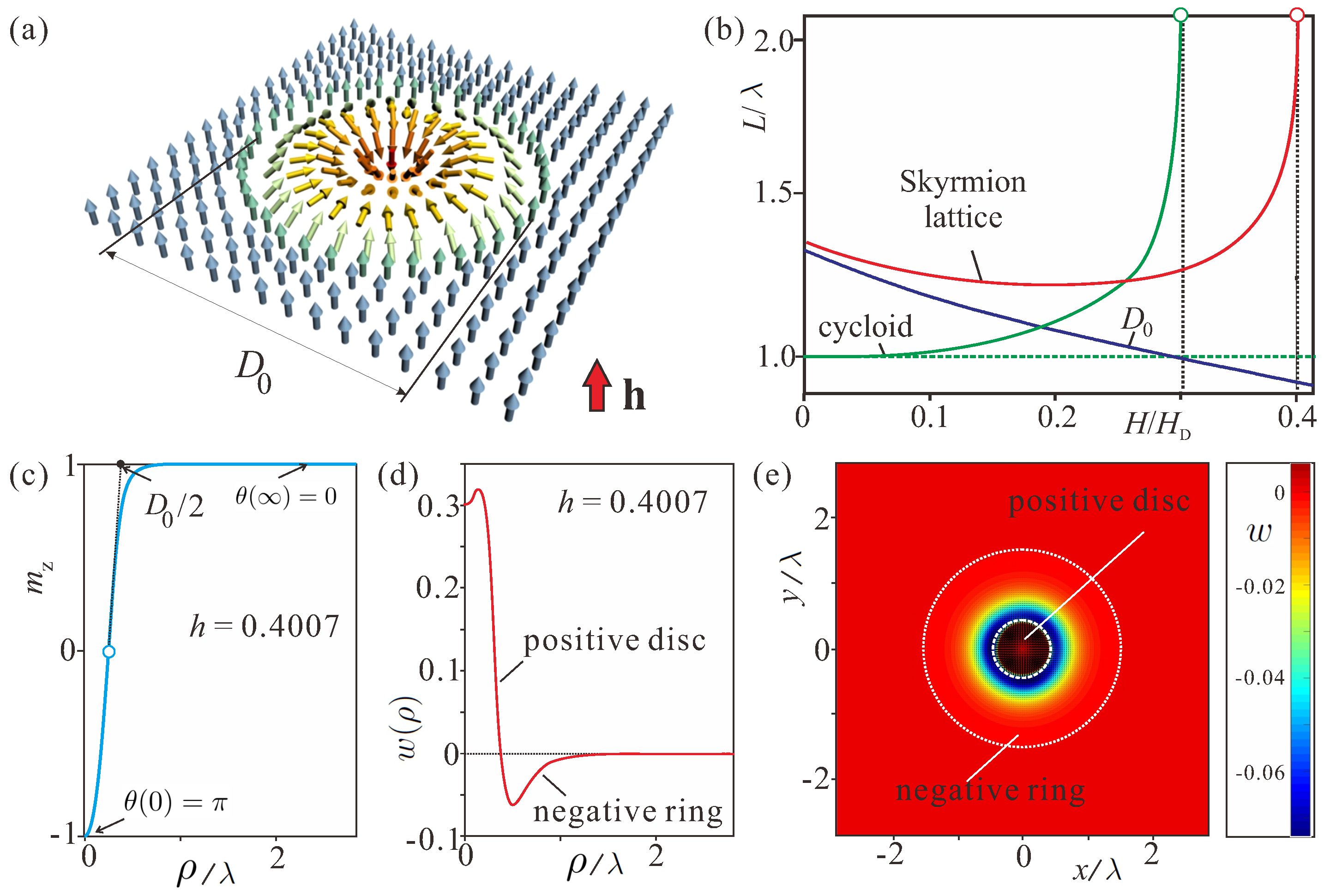

Chiral magnetic skyrmions [1,2] are prominent solutions within the phenomenological theory (1) introduced by Dzyaloshinskii [3], which are (i) localized, (ii) axisymmetric, and have (iii) fixed rotation sense of the magnetization (Figure 1a). Surrounded by the homogeneously magnetized state, the relevant length scale of this magnetic inhomogeneity [2,4] is tuned by the competition between direct and chiral exchange (Dzyaloshinskii–Moriya interaction, DMI, [3,4,5,6]). In addition, DMI is an essential “ingredient” to overcome the constraints of the Hobart-Derrick theorem [7,8] and to protect skyrmions from radial instability.

Historically, skyrmions were first experimentally identified to form A-phases near the ordering temperatures of bulk cubic helimagnets such as the itinerant magnets, MnSi [9,10] and FeGe [11], and the Mott insulator, Cu₂OSeO₃ [12]. Soon after, chiral skyrmions have been microscopically observed in thin layers of cubic helimagnets (Fe,Co)Si [13] and FeGe [14] in a broad range of temperatures and magnetic fields far below the precursor regions. Presently, versatile multilayer structures are considered as perfect systems to host skyrmions: the breaking of the inversion symmetry and the induced DMI originate from the interfaces between a heavy metal and the skyrmion-hosting magnetic layers as occurs, e.g., in PdFe/Ir (111) [15]. These artificial material systems represent a 2D arena for the Néel skyrmions (Figure 1a), in which the magnetization rotates along the radial direction with zero helicity.

In modern spintronics, nanometer-size skyrmions are considered as promising objects for the next generation of memory and logic devices, which may be controlled and manipulated as information bits [16,17]. Indeed, skyrmions are topologically protected [18], have nanometer size [19], and can be manipulated by electric currents [20,21]. Skyrmions are also interesting objects for magnonics, e.g., collective spin dynamics within SkLs exhibit two spin–wave modes with the clockwise (CW) and counterclockwise (CCW) rotation of skyrmions for the in-plane AC magnetic field as well as one breathing mode for the out-of-plane AC magnetic field [22].

According to the commonly accepted paradigm [2,23], the mechanism of lattice formation through nucleation and condensation of isolated skyrmions follows a classification introduced by DeGennes for (continuous) transitions into incommensurate modulated phases and is dubbed nucleation-type phase transition [24]. At some critical field, the eigen-energy of an isolated skyrmion becomes negative with respect to the surrounding homogeneous state. As a result, skyrmions tend to tile the whole plane with some equilibrium inter-skyrmion spacing. Obviously, the phase transition relies on the discontinuous creation of skyrmions (read for details Ref. [2] as well as the classification by de Gennes [24]). The formation of an SkL is determined by the stability of the localized solitonic cores and their geometrical incompatibility that frustrates homogeneous space-filling. In the previous works [2,4,23], it was found that a hexagonal skyrmion ordering has the lowest energy due to the densest packing of individual skyrmions in the whole field range within the basic Dzyaloshinskii model (1).

On the other hand, with the increasing magnetic field, the hexagonal skyrmion lattice transforms into the homogeneous state by infinite expansion of the period at the same critical field (red line in Figure 1b). By this process, the lattice releases a set of repulsive isolated skyrmions [2,4]. This transition excludes the formation of coexisting states—SkL and the homogeneous state. The skyrmion–skyrmion interaction bears a repulsive character because of a fixed sense of the magnetization rotation [25]. The distorted one-dimensional cycloids also infinitely expand their period [26] and transform into a system of isolated $2\pi$ domain walls separating domains with the magnetization along the applied field (green line in Figure 1b).

In the present manuscript, I re-examine the described phase transition between an equilibrium hexagonal SkL and the field-polarized homogeneous state. I show that, although the above-mentioned arguments on the nucleation-type phase transition are well-founded, it is, however, the square skyrmion lattice in which isolated skyrmions condense first. The square skyrmion arrangement represents the global energy minimum of the system. It allows achieving the space tiling by skyrmions and at the same time minimizing the energy losses within the overlapped skyrmion profiles. With the decreasing magnetic field, prompted to reach the densest space filling, the square SkL deforms and gives rise to two types of distorted SkLs. In a narrow field range, the distorted SkLs represent the global minima of the system, which eventually turn into two hexagonal SkLs. This reorientation transition was overlooked in previous studies, presumably due to a very small field interval. Moreover, if the simulations are performed for a skyrmion unit cell preserving its hexagonal symmetry, one would see an energy minimum for the hexagonal skyrmion order up to its saturation into the homogeneous state. The present numerical results reveal that the hexagonal SkL is not an energy minimum (not even a local one) for these field values. Hence, the findings of the present manuscript strongly change the picture of the formation and evolution of skyrmion orderings on the verge with the homogeneous state.

2. Phenomenological Theory

The magnetic energy density of a quasi-two-dimensional chiral ferromagnet in the simplest isotropic form can be written as the sum of the exchange, the DMI, and the Zeeman energy density contributions, correspondingly [3]:

$$w\left(\mathbf{m}\right)=\sum _{i,j}{\left({\partial }_i{m}_j\right)}^2+w_{DMI}-\mathbf{m}·\mathbf{h}.$$

(1)

The functional (1) includes only basic interactions essential to stabilize versatile, isolated, and modulated inhomogeneous states, such as spirals and SkLs, as well as isolated skyrmions and kinks.

The non-dimensional units have been introduced to make the results general and encompassing as well as to be directly mapped to any material system. Spatial coordinates $\mathbf{x}$ are measured in units of the characteristic length of modulated states $L_D$. $A>0$ is the exchange stiffness, and D is the Dzyaloshinskii constant.

$$L_D=A/D,\mathbf{h}=\mathbf{H}/H_0,H_0=D^2/A\left|\mathbf{M}\right|.$$

(2)

$\mathbf{h}$ is the magnetic field applied along z axis. The magnetization vector $\mathbf{m}(x,y)$ is normalized to unity.

The DMI energy density has the following form specific for chiral magnets with the ${\mathrm{C}}_{nv}$ symmetry (or with induced DMI, which has the same functional form):

$$w_{DMI}=m_x{\partial }_x{m}_z-m_z{\partial }_x{m}_x+m_y{\partial }_y{m}_z-m_z{\partial }_y{m}_y,$$

(3)

where ${\partial }_x=\partial /\partial x,{\partial }_y=\partial /\partial y$.

Alternatively, the length scale can be measured in units of $\lambda$:

$$\lambda =4\pi L_D,$$

(4)

which is the period of the spiral state for zero magnetic field (e.g., 18 nm for the bulk MnSi or 60 nm for Cu₂OSeO₃ [12,27]).

In actual simulations, we measure the length in units of $L_D$ (2). Dividing by $4\pi$, we get the length scale in units of $\lambda$, which provides a direct comparison with a specific material system. If one needs to use the results of the forthcoming numerical simulations for a specific material system, one can easily calculate the non-dimensional units and find a corresponding SkL solution. As an instructive example, we use the material parameters corresponding to Co/Pt films: DMI, $D=3$ mJ/m², the saturation magnetization, $M_s=580$ kA/m, the exchange stiffness, $A=15\times {10}^{-12}$ J/m [28]. These give $L_D=5$ nm. Thus, the unit length, e.g., in Figure 2a, corresponds to 5 nm. In some other graphs, the unit length corresponds to $\lambda \approx 60$ nm.

We consider a 2D film of a ferromagnetic material on the $xy$-plane using periodic boundary conditions (pbc). As a primary numerical tool to minimize the functional (1), we use the MuMax3 software package (version 3.10), which calculates magnetization dynamics by solving the Landau–Lifshitz equation with the finite difference discretization technique [29]. To double-check the validity of obtained solutions, we also use our own numerical routines, which are explicitly described in, e.g., Ref. [30] and hence will be omitted here. All structures are minimized on the grid $256\times 256$, but other grid sizes would also be effective. In Ref. [23], the grid sizes $300\times 300$ were used and gave consistent results. To check the stability of different skyrmion orderings, we compute the energy density (1) for different ratios of the grid spacings ${\Delta }_y$ and ${\Delta }_x$ (cell sizes in mumax3, Figure 2a). Such an approach is well justified, since the inter-skyrmion distances near the saturation field are relatively large, and the axisymmetric distribution of the magnetization within skyrmion cores is preserved. Thus, varying lattice spacings lead to the rearrangement of the constituent isolated skyrmions spanning all possible lattice orders. I remark that the temperature-annealing method used in Ref. [30] also adjusts the lattice spacings ${\Delta }_x$ and ${\Delta }_y$ and thus arrives at the same energy minima as mumax3.

We also neglect the influence of dipole–dipole interactions due to the magnetic charges formed within different states with the Néel-like type of the magnetization rotation. We assume that the DM interactions suppress demagnetization effects and are the main driving force leading to the magnetization rotation and to the equilibrium periodicity. Moreover, the shape anisotropy in this case represents an additional correction of the easy-plane anisotropy. The influence of dipole-dipole interactions on the effects found in the present manuscript will be considered elsewhere.

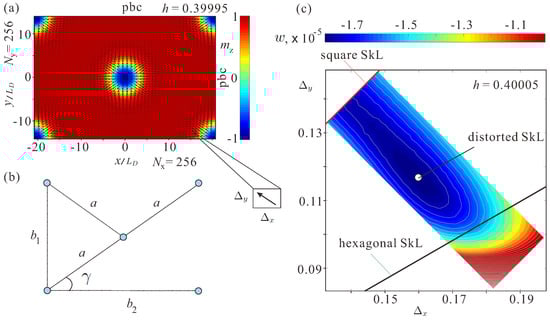

Figure 2a shows the centered rectangular unit cell used for computations of skyrmion orderings. To characterize the degree of SkL deformations, we introduce the following lengths and angles consistent with the square and the hexagonal SkLs (blue circles correspond to skyrmion centers, Figure 2b): (i) within the square SkL, $b_1=b_2=a$, $\gamma ={45}^{\circ }$; (ii) within the hexagonal SkL, $b_1=a=b_2/\sqrt{3}$, $\gamma ={30}^{\circ }$.

As an example, Figure 1c shows the energy color plot depending on the cell sizes for $h=0.40005$. The red and black lines highlight the grid spacings for the square (${\Delta }_x={\Delta }_y$) and the hexagonal (${\Delta }_x={\Delta }_y\sqrt{3}$) skyrmion lattices. The energy minimum corresponds to a distorted SkL with the lattice parameters on their way from the square skyrmion alignment to the hexagonal one. ${\Delta }_x^{min}=0.158,{\Delta }_y^{min}=0.118$, which corresponds to $b_1=256{\Delta }_x^{min}/4\pi =3.22,b_2=2.4$ and $\gamma =36.{75}^{\circ }$.

The energy density is computed with respect to the homogeneous state and acquires small values near the field of the phase transition (see the legend in Figure 2c).

3. Isolated Skyrmions

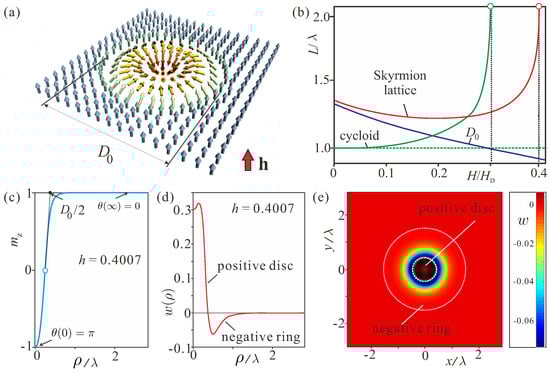

Isolated skyrmions (Figure 1a) can be thought of as static solitonic textures localized in two spatial directions. The magnetization in the center of the skyrmion, pointing opposite to an applied magnetic field, rotates smoothly and reaches the state along the field at the outskirt of the skyrmion. Usually, one uses spherical coordinates for the magnetization in isolated skyrmions,

$$\mathbf{m}=(sin\theta (\rho )cos\psi (\phi ),sin\theta (\rho )sin\psi (\phi ),cos\theta (\rho \left)\right)$$

(5)

and cylindrical coordinates for the spatial variables [2], $\mathbf{r}=(\rho cos\phi ,\rho sin\phi )$. Therefore, the rotation of the magnetization in the isolated skyrmion is characterized by the dependence of the polar angle $\theta$ on the radial coordinate $\rho$ with the boundary conditions: $\theta \left(0\right)=\pi ,\theta (\infty )=0$ (Figure 1c). For the chosen ${\mathrm{C}}_{nv}$ symmetry, $\psi \left(\phi \right)=\phi$.

The total energy of an isolated skyrmion with respect to the homogeneous state can be written as

$$\begin{array}{cc}\hfill & W=\underset{0}{\overset{\infty }{\int }}w\left(\rho \right)2\pi \rho d\rho ,\hfill \\ \hfill & w\left(\rho \right)={\left({\displaystyle \frac{d\theta }{d\rho }}\right)}^2+{\displaystyle \frac{{sin}^2\theta }{{\rho }^2}}+h(1-cos\theta )+{\displaystyle \frac{d\theta }{d\rho }}+{\displaystyle \frac{sin2\theta }{2\rho }}.\hfill \end{array}$$

(6)

First, we examine the internal structure of such particle-like states when they possess the positive energy W over the host saturated state as realized for relatively strong magnetic fields. Skyrmion profiles $m_z\left(\rho \right)$ under these circumstances bear strongly localized character (Figure 1c). Then, a skyrmion core diameter $D_0$ can be defined in analogy to definitions for domain wall width (the Lilley rule). According to conventions in skyrmionics [2], such arrow-like solutions can be decomposed into skyrmionic cores (“nuclei”) and exponential “tails”, which can be viewed as the “field” generated by the nucleus.

The energy density distribution $w\left(\rho \right)$ reveals two distinct regions: the positive energy disc is concentrated around the skyrmion center and is surrounded by the extended area with the negative energy density where the DMI dominates (Figure 1d). The energy density is computed with respect to the homogeneous state and therefore reaches a zero value at $\rho \to \infty$. Two regions are highlighted by white dotted circles on a two-dimensional distribution of the energy density $w(x,y)$ (Figure 1e). The color plot in Figure 1e discerns the energy range from the minimal energy value to $w_{min}+0.08$, whereas in Figure 1d the whole energy diapason is shown. This allows us to focus on the subtleties of the energy distribution at the skyrmion periphery.

The characteristic energy motif (Figure 1d,e) is known to cause the repulsive character of the inter-skyrmion potential [2,25], since the approaching skyrmions would inevitably lose some amount of the negative energy density within the overlapping regions.

At the critical field [2],

$$h_{\mathrm{IS}}=0.400659,$$

(7)

the negative energy density “accumulated” within the rings outweighs the positive contribution of the disc, i.e., the energy of an isolated skyrmion becomes negative with respect to the surrounding homogeneous state below this field value and thus may initiate condensation into a skyrmion lattice.

4. Skyrmion Orders

4.1. Square SkLs

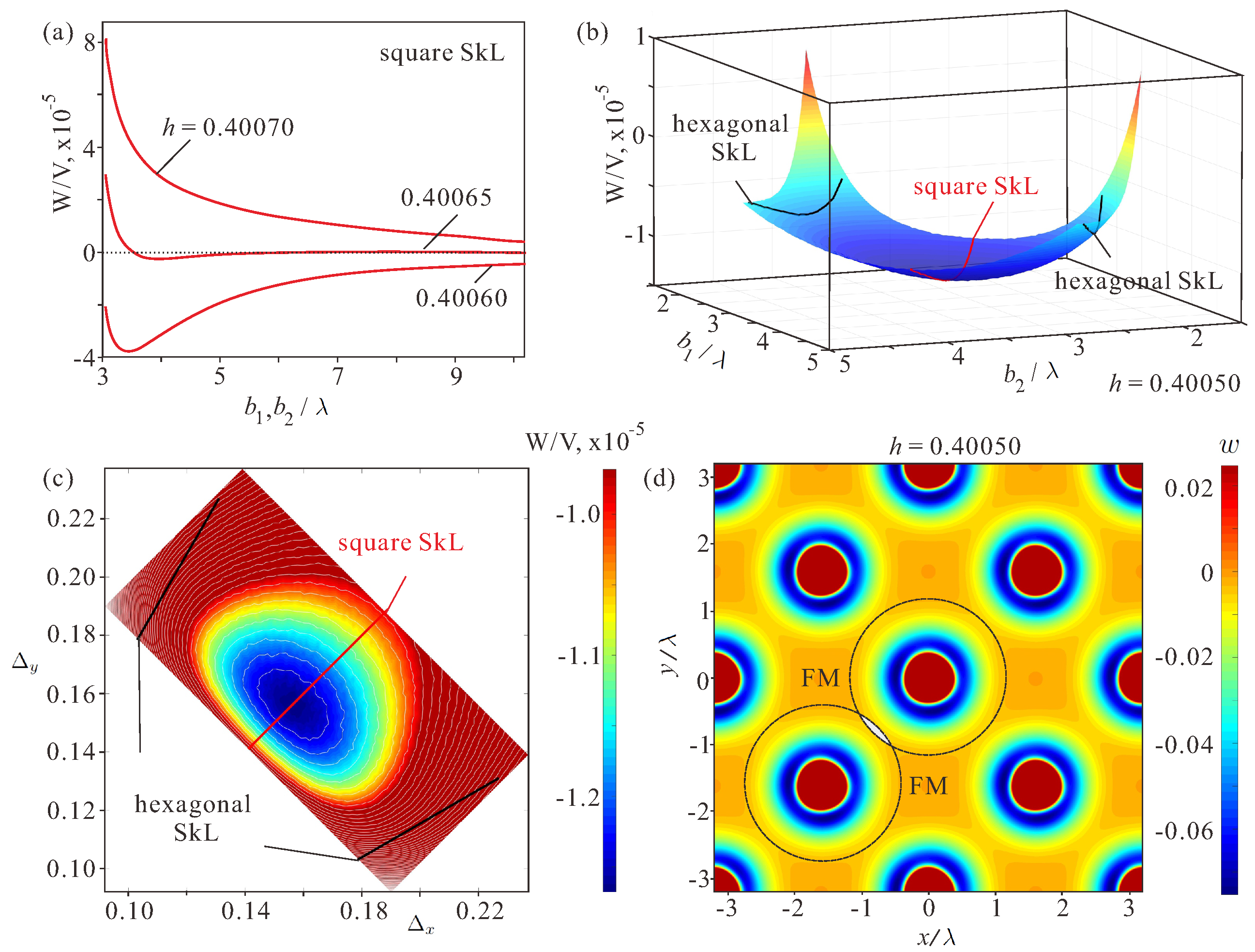

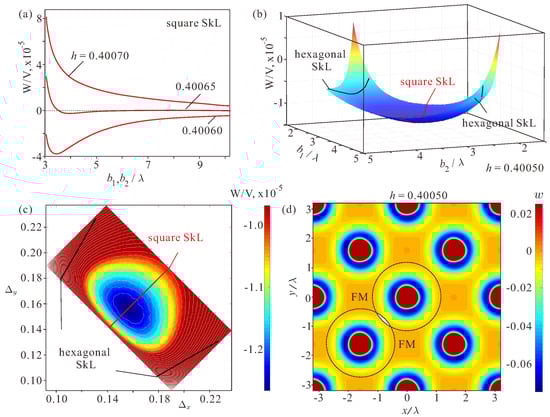

Below the critical field, $h_{\mathrm{IS}}$ (7), the energy of a square skyrmion lattice has a minimum for some equilibrium inter-skyrmion distance. Figure 3a exhibits the energy densities of the square SkLs, $W/V=(1/V)\int w(x,y)dV$, measured with respect to the homogeneous state for different values of the field. The integration is performed over the unit cell (Figure 2a) with $V=N_x{N}_y{N}_z{\Delta }_x{\Delta }_y{\Delta }_z$ being its volume.

These energy curves represent 2D cross-cuts of the 3D energy surfaces plotted for variable lattice spacings ${\Delta }_x$ and ${\Delta }_y$ (Figure 3b). The red and black curves indicate the energies of the square and the hexagonal skyrmion orders. As clearly seen, only the square SkL acquires the global energy minimum, whereas the hexagonal SkLs are not minima at all. Figure 3c shows the same energy plot as a top view with white contour lines indicating the energy levels. The color plot discerns the energy range from the minimal energy value to $w_{min}+3·{10}^{-6}$ to make visible the topology of the energy surface in the direct vicinity of the energy minimum.

These findings can be readily explained by the aforementioned energy density distribution in Figure 1e. The square skyrmion ordering achieves smaller energy loss in the overlapping regions (highlighted by the dashed black lines and the gray-shaded regions) as compared with the hexagonal lattice (Figure 3d). Obviously, this advantage is stipulated by four neighbors in the square ordering versus six neighbors in the hexagonal one. The square-shaped regions (orange-shaded) with the field-polarized state occupy the inter-skyrmion space.

4.2. Distorted Skyrmion Lattices

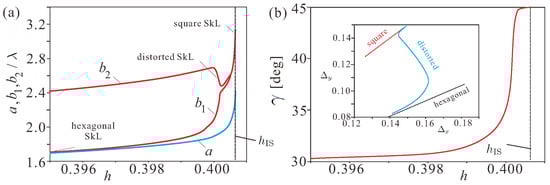

Figure 4a shows the lattice parameters near the saturation field.

Below the critical field, the square SkL undergoes a reorientation transition into the hexagonal skyrmion order via intermediate distorted SkLs. An example of the oblique SkL for $h=0.39995$ is shown in Figure 2a. The square lattice corresponds to a saddle point between two oblique SkLs with slightly higher energy density as shown by the color plot in Figure 2c for $h=0.40005$.

With the decreasing magnetic field, the unit cell size $b_2$ passes through the maximal value at $h\approx 0.3999$ and then gradually decreases. The parameter $b_1$ diminishes directly from its infinite value at $h_{\mathrm{IS}}$. The angle $\gamma$ (Figure 4b) exhibits the expected evolution from ${45}^{\circ }$ at $h_{\mathrm{IS}}$ to ${30}^{\circ }$ (the precise value of the field is defined by the accuracy of the simulations and is slightly less than 0.395). We notice that the angle retains its maximal value in a small field range near $h_{\mathrm{IS}}$ and then drastically decreases. Inset in Figure 4b shows the cell sizes ${\Delta }_x$ and ${\Delta }_y$ during the reorientation process. The far right point of the blue curve corresponds to $h=0.40065$, and the far left to $h=0.395$. These values are explicitly expressed for the reproducibility of the obtained results. Multiplied by $N_x/4\pi$ and $N_y/4\pi$, these values turn into $b_1$ and $b_2$, respectively. Square and hexagonal SkLs are shown as dotted lines since they do not exist in the chosen field range and are reached as the limiting cases of the distorted SkLs.

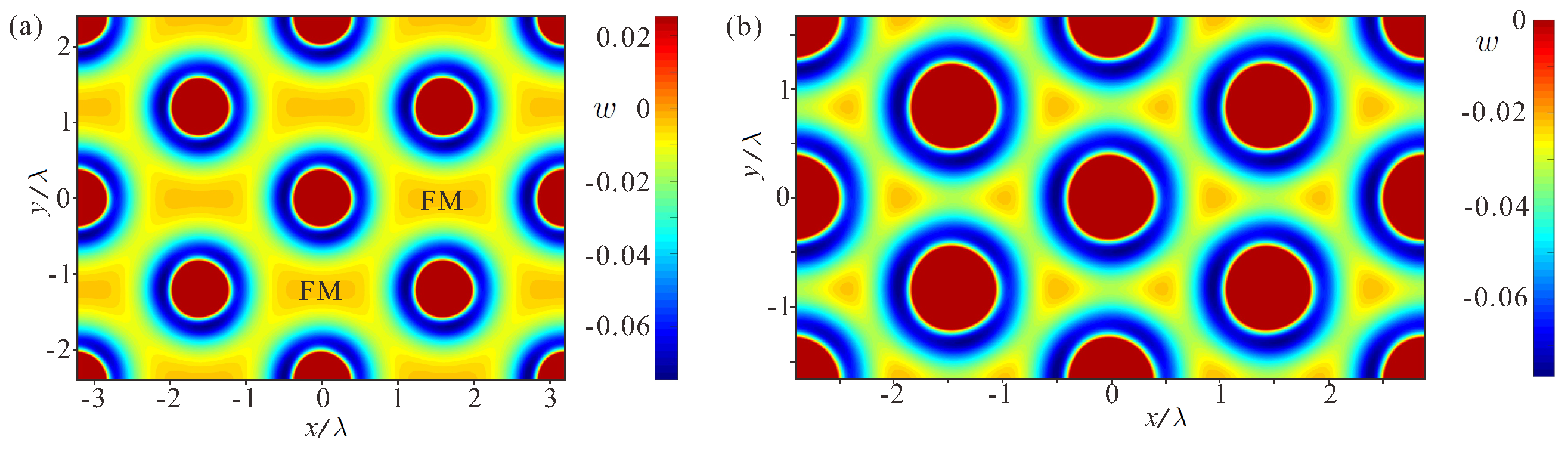

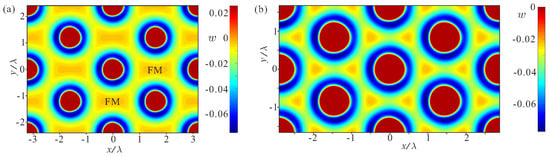

During the reorientation transition, the vast square-shaped regions with the field-polarized state, which occupy the inter-skyrmion space within the square SkL (Figure 3d), elongate within distorted SkLs (Figure 5a) and eventually squeeze into triangular regions surrounding skyrmion cells in hexagonal SkLs (Figure 5b). The corresponding legends indicate that the energy density is zero in these regions within the distorted SkL, whereas it is negative in the hexagonal one. This is related to the additional rotation of the magnetization, which develops around these characteristic points with the upward magnetization. Accordingly, the maximal value of the DMI energy density gradually decreases from zero to finite negative values: $w_{DMI}^{max}\approx -6.6\times {10}^{-4}$ ($h=0.40050$); $-3.8\times {10}^{-3}$ ($h=0.40005$); $-2.2\times {10}^{-2}$ ($h=0.39500$). Thus, one can speculate that the stability of the square SkL near the saturation field can be addressed using the particle picture of isolated skyrmions, which slightly overlap their magnetization profiles. The density of the skyrmions within the hexagonal SkL, however, could be better understood from the point of view of waves [31]: separate skyrmions preserve the axisymmetric distribution of the magnetization near the cell center while the overlap of solutions in the inter-skyrmion regions becomes pronounced even in the direct vicinity of $h_{\mathrm{IS}}$. In Ref. [10], a triple spin-spiral crystal was used as a skeleton for such a skyrmion lattice in cubic chiral magnets. However, the transformation process of a square SkL into an assembly of isolated skyrmions cannot be described by the picture of a triple spin-spiral crystal.

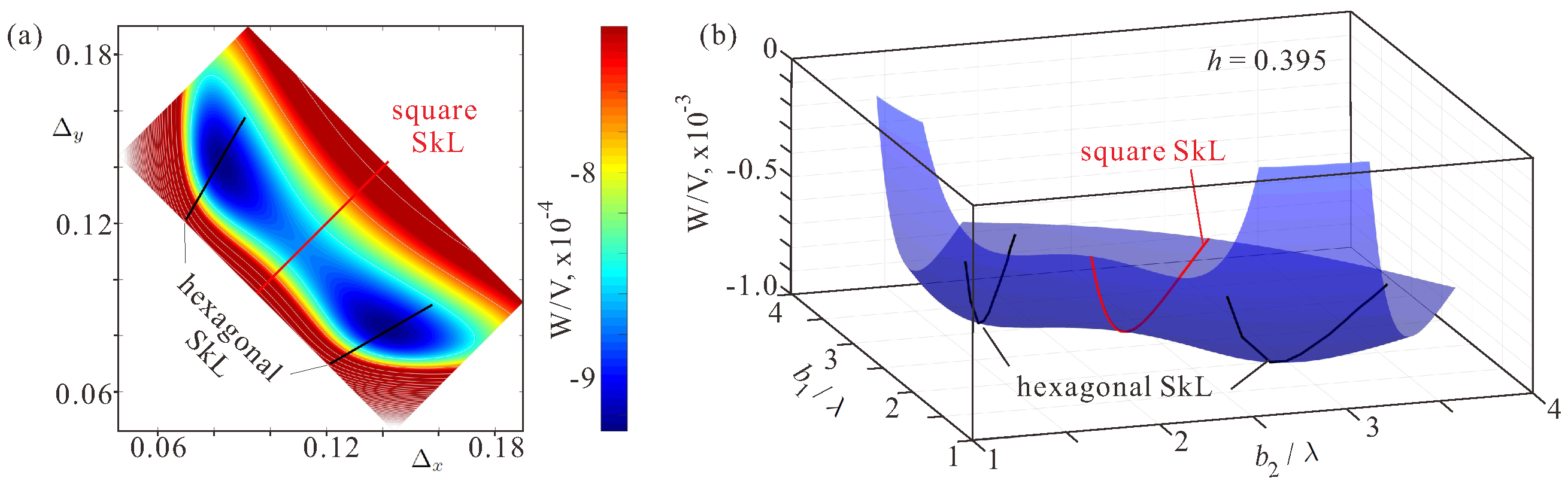

Figure 6a shows the energy color plot depending on the cell sizes for $h=0.395$. The more general energy surface is shown in Figure 6b. The red and black lines, as before, highlight the lattice parameters for the square and the hexagonal skyrmion lattices. It is seen that the reorientation process has almost finished with two hexagonal SkLs being the global minima of the functional (1). The square SkL constitutes a saddle point between two hexagonal SkLs, although within two-dimensional simulations preserving the same length of ${\Delta }_{x,y}$ it would be mistakenly treated as a local minimum. ${\Delta }_x^{min}=0.141,{\Delta }_y^{min}=0.083$ corresponds to $b_1=2.8724,b_2=1.69$ and $\gamma =30.{48}^{\circ }$ and thus demonstrates slight lattice distortion. Two hexagonal lattices are rotated by the angle $\pi /6$ with respect to each other.

5. Conclusions

In the present paper, I addressed the process of skyrmion ordering into an extended skyrmion lattice as occurs at the critical field of saturation into the homogeneous state. I used the basic Dzyaloshinskii model, which includes only exchange, Dzyaloshinskii–Moriya, and Zeeman energy terms. The model is isotropic and does not feature any anisotropy with its easy (or hard) axes in the $xy$ plane, which would define skyrmion arrangement.

Obviously, a well-defined skyrmion order could be favored by additional anisotropic contributions, e.g., by the exchange or cubic anisotropies. In particular, a high sensitivity of skyrmion order to the local magnetic anisotropy was reported in Ref. [32] for metastable skyrmions obtained at lower temperatures by thermal quenching in MnSi. The quenched skyrmions were shown to undergo a triangular-to-square lattice transition with decreasing magnetic field. Moreover, square and rhombic lattices of magnetic skyrmions were recently identified in centrosymmetric rare-earth compounds, such as Gd₂PdSi₃ and GdRu₂Si₂ [33]. Recently, formation of the triangular skyrmion lattice was found in a tetragonal polar magnet, VOSe₂O₅ [34]. Adjacent to this phase, another magnetic phase of an incommensurate spin texture is identified at lower temperatures, tentatively assigned to a square skyrmion-lattice phase.

The results of the present paper on the skyrmion ordering, however, are based on entirely different principles and reveal distorted skyrmion lattices with the limiting cases of the hexagonal and square orders as global energy minima of the phenomenological functional (1).

At first, it is not obvious which skyrmion order prevails. On the one hand, the highest spatial density of skyrmions is achieved in the hexagonal SkL. On the other hand, the loss of the negative energy density in the overlapping regions is reduced in the square SkL. By sorting out all possible skyrmion orders (which in general represent oblique Bravais lattices) near the transition into the homogeneous state, I found that isolated skyrmions first condense into the square SkL, which ensures the second objective to preserve the negative eigen-energy of isolated skyrmions as much as possible. With the decreasing magnetic field, the square SkL starts to deform and reaches the hexagonal skyrmion arrangement within a narrow field interval. This reorientation is driven by the tendency to satisfy the first condition of the closest skyrmion packing. I remark that at each field value, only one skyrmion lattice corresponds to the energy minimum, i.e., the co-existence of the hexagonal and the square SkLs, which would represent local and global minima, is excluded. When the square SkL is realized, the hexagonal one is not even a local minimum. When the hexagonal order is finally reached, the square SkL is a saddle point.

The present findings should also have some impact on the phase diagrams of states, in particular in chiral magnets with the easy-axis anisotropy. The tricritical point featured at the phase diagram in Ref. [23] for large values of the uniaxial anisotropy will presumably be eliminated, since the square SkL has larger saturation fields in the whole range of the anisotropy values.
