Article

Graphene and Vanadium Dioxide-Based Terahertz Absorber with Switchable Multifunctionality for Band Selection Applications

1
School of Microelectronics, Shenzhen Institute of Information Technology, Shenzhen 518172, China
2
Digital and Intelligent Agriculture Research Institute, School of Information Engineering, Huzhou University, Huzhou 313000, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2024, 14(14), 1200; https://doi.org/10.3390/nano14141200
Submission received: 16 June 2024 / Revised: 10 July 2024 / Accepted: 12 July 2024 / Published: 15 July 2024

Abstract

:
This study proposes a multifunctional absorber in the terahertz (THz) regime based on vanadium dioxide (VO2) and graphene with either–or band selector applications, which can be realized by electrically and thermally controlling the Fermi energy level of graphene and vanadium dioxide, respectively. The broadband absorption can be achieved with absorptance exceeding 90%, when the VO2 film is in the metallic phase and the Fermi energy levels of the upper and lower graphene layers are simultaneously set to 0.6 and 0 eV, respectively. The double narrowband can be realized when the VO2 film is in the insulating phase and the Fermi energy levels in upper and lower graphene layers are set as 0 and 0.8 eV, respectively. By flexibly shifting between the broadband and the double narrowband, the proposed absorber can be used as an either–or band selector, corresponding optional bandwidth from 2.05 to 2.35 THz, and 3.25 to 3.6 THz. Furthermore, single narrowband absorption can be achieved by setting the conductivity of the VO2 film to appropriate values. The proposed absorber can be used in the THz regime in applications such as multifunctional devices, switches, cloaking objects, and band selectors.

1. Introduction

Metamaterial, a kind of artificial material with unusual electromagnetic properties [1,2], has acquired much attention for its widely applications in perfect lens [3], thermal radiation [4], photodetectors [5], optical polarizers [6], and perfect absorbers [7]. Terahertz (THz) radiation ranging from 0.1 to 10 THz has considerable potential in future applications such as wireless communication [8,9], medical imaging [10], and nondestructive testing [11]. In recent years, metamaterial-based THz absorbers [12,13] have been extensively studied, focusing on four aspects: structural optimization, performance improvement, frequency response, and functional expansion. To meet the need of miniaturization and integration, the thickness of the absorber has been reduced [14] for optimizing its structure, which is also a significant research direction. The investigations of performance improvement mainly focus on expanding the bandwidth of the broadband absorption [15], and reducing the polarization insensitivity [16]. The frequency response of narrowband [17], broadband [18,19], single-band, and multiband [20,21] absorbers has been widely investigated. Furthermore, the functionalities of absorbers have been expanded to various applications, such as resonators [22], reflectors [23], and modulators [24].
The metamaterial-based multifunctional THz devices have recently garnered considerable interest in recent years. Multifunctional THz devices with reconfigurable characteristics are usually integrated with functional materials such as graphene [25,26,27], phase-change materials [28,29], doped semiconductors [30,31], and ferroelectrics [32,33]. Graphene is widely used among these materials owing to its excellent mechanical, electrical, magnetic, and thermal properties [34]. The conductivity of graphene can be dynamically adjusted by external voltages [35] attributed to its excellent electrical properties. Moreover, the phase transition of vanadium dioxide (VO2) can be triggered by electrical [36], thermal [37], and optical excitation [38]. For thermal control, the VO2 film shows a reversible transition from a metallic state to an insulating state at ~341 K.
Herein, an absorber composed of squared graphene metamaterials and a VO2 film is developed, which could achieve switchable multifunctionality with either–or band selector applications in the THz regime. The proposed absorber could flexibly switch its broadband absorption to dual narrowband absorption based on the insulator-to-metal phase transition of VO2 and electrically tunable property of graphene. When the VO2 film was in the metallic phase, the Fermi energy levels of the upper and lower graphene layers were simultaneously set to 0.6 and 0 eV to achieve broadband absorption. When the VO2 film was in the insulating phase, the Fermi energy levels in the upper and lower layers were set to 0 and 0.8 eV, respectively, for the absorber to achieve dual narrowband absorption. Owing to this flexible shift in the absorption band, the absorber can be used as an either–or band selector with optional bandwidth from 2.05 to 2.35 THz, and 3.25 to 3.6 THz. Furthermore, the absorber achieved single narrowband absorption when the VO2 conductivity was set to an appropriate value. Additionally, the influence of various geometrical parameters on the absorption spectra was investigated, and field analyses were performed to reveal the absorption mechanism. Generally, the proposed absorber promises multifunctionality in the THz regime, including broadband absorption, dual narrowband absorption, band selection, and single narrowband absorption.

2. Materials and Methods

Figure 1a schematizes the multifunctional absorber for wide-band absorption, narrowband absorption, and either–or band selection. The proposed structure is composed of double squared graphene layers with different dimensions, a 2 μm thick VO2 layer, and a gold (Au) plate as the bottom reflector. The layers are separated by an insulating material, Topas (polyethylene cyclic olefin copolymer) [39]. The Fermi energy of the squared graphene layers was controlled using gold ring films as the upper electrode and an extremely thin polysilicon layer as the lower electrode; the ultra-thin lower electrode slightly affects the absorption [40]. A THz wave with x polarization was emitted along the z-axis. Figure 1b shows the side view of the multifunctional absorber. Figure 1c,d show the unit cells of the upper and lower graphene layers, respectively. Table 1 lists the detailed dimensions of the proposed absorber.
The relative permittivity of Topas is 2.35. The conductivity of gold can be described by the Drude model with a plasma frequency ωp of 1.36 × 1016 rad/s and scattering rate Γ of 3.33 × 1013 rad/s. The proposed absorber is numerically simulated using the finite-element solver COMSOL Multiphysics. The unit cell in x and y directions is treated with the periodic boundary condition, and the graphene layer is modeled as a surface current [41].
The CVD-grown graphene layer is transferred onto the multilayer substrate by a transfer technique using polymethylmethacrylate (PMMA) supporting layers, and is subsequently patterned by photolithography and oxygen plasma etching. The source-drain contacts are deposited on top of lower-layer graphene using an electron-beam lithography step. The upper-layer graphene with source-drain contacts is prepared on the upper Topas layer in the same way. Based on the Kubo formula, the complex surface conductivity of graphene was determined as follows [42]:
σ g w , τ , μ c = σ int r a w , τ , μ c + σ int t e r w , τ , μ c ,
σ inter w , τ , μ c j e 2 4 π ln 2 μ c ω + j / π 2 μ c + ω + j / π ,
σ intra w , τ , μ c j e 2 k B T π 2 ω 2 + j τ 1 μ c k B T + 2 ln exp μ c k B T + 1 ,
where T, ω, τ, kB, μc, and ħ ≈ 1.055 × 10−34 J·s denote the temperature in Kelvin, incident angular frequency, relaxation time, Boltzmann constant, chemical potential, and reduced Planck constant, respectively. When kB < μc, μc is equal to the Fermi energy level Ef. The relaxation time τ can be described as τ = μEfe−1υF−2 [43], and the carrier mobility μ is 1500 cm2V−1s−1.
The complex relative dielectric permittivity of VO2 can be expressed as follows [44]:
ε ω = ε ω p 2 σ ω 2 + i γ ω ,
where ε = 12 is the dielectric permittivity at the infinite frequency, γ = 5.75 × 1013 rad/s is the collision frequency. ωp(σ) is the plasma frequency depending on conductivity, which can be approximately expressed as ω p 2 σ = σ 2 ω p σ 0 / σ 0 2 with σ0 = 3 × 105 S/m and ωp(σ0) = 1.4 × 1015 rad/s. During numerical simulation, the conductivities of VO2 film are set as 0 and 2 × 105 S/m for the insulating and metallic phases, respectively. Figure 2 shows the real and imaginary parts of the permittivity of VO2 as a function of frequency with varying conductivity. As the conductivity increased, the real part of permittivity changes from more than zero to less than zero, and the imaginary part increases.

3. Results and Discussion

The absorption spectra of the proposed absorber can be well explained by the multiple interference theory (MIT), which well validated the results of the simulations. When Ef1 = 0.6 eV, Ef2 = 0 eV, and VO2 in a metallic state (Condition 1), the upper graphene layer and the VO2 film can be used as a partial reflector and a total reflector, respectively. As shown in Figure 3a, the incident waves are reflected and refracted several times. Since the reflection coefficient of the VO2 film (in a metallic state) is −1, the reflection coefficient of the proposed absorber can be calculated as follows [45,46]:
r ~ = r ~ 12 t ~ 12 t ~ 21 e i 2 β ~ 1 + r ~ 21 e i 2 β ~ ,
where β ~ = ε ~ spacer k 0 d denotes the phase constant, k0 is the free space wavenumber, and d is the propagation length of the incident wave inside the proposed absorber. r ~ 12 and r ~ 21 are the reflection coefficients, t ~ 12 and t ~ 21 are the transmission coefficients. Both the reflection and transmission coefficients at the interface with graphene metamaterials can be obtained from simulations using the unit cell without the reflection structure. Since the transmission of the proposed absorber is zero, the absorptance can be then obtained by: A = 1 r ~ 2 . Similar to Condition 1, the absorptance for the dual-narrowband can be obtained with Ef1 = 0 eV, Ef2 = 0.8 eV, and VO2 in the insulating state (Condition 2). It is clear that the simulated results (solid and dashed curves) are well consistent with the theoretical results calculated by MIT (spherical scatters), as shown in Figure 3b.
The proposed absorber achieves broadband absorption from 1.1 to 2.45 THz with absorptance exceeding 90% with Condition 1, and the dual-narrowband absorption can be obtained with Condition 2. Herein, the states “on” and “off” are assumed to be observed when the absorptances > 90% and <10%, respectively. Owing to the variations in the two absorption states, the absorber can be used as an either–or band selector (indicated by the green shadow areas), corresponding optional bandwidth from 2.05 to 2.35 THz, and 3.25 to 3.6 THz.

3.1. Broadband Absorption

The distributions of electric field amplitude |E| at different resonant frequencies are analyzed to reveal the broadband absorption mechanism. The parameters of the structure are retained as Table 1, Ef1 = 0.6 eV, Ef2 = 0 eV, and VO2 in the metallic state, except for special notes. The induced currents are marked with white arrows in Figure 4. At the first resonant frequency of 1.45 THz, the electric field concentrates around the edges and in the gap between adjacent unit cells of the upper graphene layer (Figure 4a). This finding can be further confirmed by the power flow distribution shown in Figure 4e. Figure 4b shows weak surface currents on the VO2 film in the metallic phase, which are antiparallel to that of the upper graphene layer, and indicates weak magnetic resonance. Thus, the first resonance is caused by the coupling interaction between the neighboring unit cells, electric dipole resonance, and weak magnetic resonance.
At the second resonant frequency of 2.05 THz, the electric field is mainly localized around the edges of the individual graphene unit cells, as shown in Figure 4c. Moreover, power flow streams are observed across the center of the upper graphene unit cell (Figure 4f), indicating the excitation of the electric dipole resonance. Figure 4d shows that the surface currents on the VO2 film in the metallic phase are antiparallel to that of the upper graphene layer, forming a strong magnetic resonance. Electric dipole and magnetic resonances generally store electromagnetic energy and energy is dissipated due to the ohmic loss in graphene layer, thereby causing broadband absorption.
In order to further investigate the absorption characteristics of the proposed absorber, absorption spectra are simulated with various geometrical parameters. Figure 5a shows that the absorption spectra vary with the thickness of the Topas layer (hd1) between the lower graphene layer and VO2 film. The first, and particularly second, resonances redshift due to the influence of the magnetic resonance between the upper graphene layer and VO2 film. Thus, the bandwidth of the broadband absorber increases as hd1 decreases. The amplitude attenuates slightly with increasing hd1, which can be explained well by the impedance matching with the free space. When w1 varied from 2.5 to 6.5 μm, the bandwidth decreased (Figure 5b). The first absorption resonance blue-shifts, which can be explained by the decreasing effective length of the LC circuit model, whereas the second resonant frequency shows a red-shift, which mainly resulted from the magnetic resonance. Figure 5c shows that the first resonance attenuated with decreasing w2, which can be explained by the impedance-matching theory.
Moreover, the bandwidth broadened with increasing Fermi energy level (Figure 6a). The bandwidth was ~1.35 THz at Ef = 0.7 eV, whereas the broadband almost disappeared when Ef = 0.3 eV. This indicates that the absorber can be used as an optical switch. Figure 6b shows the absorption spectra with varying relaxation times of graphene. It is clear that the relaxation time mainly influences the amplitude of the resonances, while showing a slight effect on the width of the absorption band.

3.2. Double Narrowband Absorption

The dual narrowband absorption mechanism is elucidated by investigating the electric field, surface current, and power flow distributions at different resonant frequencies, as shown in Figure 7. Figure 7a shows the distributions of electric field and surface currents in the lower graphene layer at the first resonant frequency of 0.95 THz with Ef2 = 0.8 eV. The electric field was concentrated mainly around the ends and the gap of the square graphene unit cells, which originated from the electric dipole resonance and coupling between the adjacent unit cells. The distribution of surface currents in the upper graphene layer (Figure 7a) followed an opposite direction to that of the bottom gold layer (Figure 7b). Thus, weak magnetic resonance results in the first resonance.
Figure 7d shows the electric field and surface current distributions at the second resonant frequency of 1.65 THz. The electric field was concentrated mainly around the ends and edges of the square graphene unit cells, maintaining the electric dipole resonance. Figure 7e shows antiparallel surface currents in the bottom gold layer contrary to that in the lower graphene layer, which causes magnetic resonance. Thus, both the electric dipole resonance and magnetic resonance caused the second resonance. At the third resonant frequency of 3.45 THz, the electric field is mainly distributed in the ends of the graphene squares and two adjacent unit cells, as shown in Figure 7g. The presence of a strong magnetic resonance is indicated by the current distribution in Figure 7h. Thus, strong magnetic resonance and electric dipole resonance influenced the third resonance frequency. This finding is further confirmed by the power flow distributions at different resonant frequencies shown in Figure 7c,f,i.
Figure 8 shows the dual narrowband absorption spectra with various parameters. As hd2 increases, the three resonant frequencies red-shift (Figure 8a) because the coupling strength of the magnetic resonance response is mainly determined by the thickness of the dielectric layer. As the magnetic resonance mainly affects the third resonant frequency, the resonance shifts at 3.45 THz are particularly evident. When w3 increases, the first resonance blue-shifts slightly due to the decreasing effective length of the LC circuit model, whereas the second and third resonances red-shifted due to magnetic resonance response (Figure 8b). As w2 increases, the absorption intensity of the first resonance increases slightly, whereas that of second and third resonances decrease, as shown in Figure 8c.
As shown in Figure 9a, a double narrowband with absorption exceeding 90% can be achieved at an optimal Ef2 value of 0.8 eV. The decreases of the Fermi energy affect the metallic performance of graphene; thus, the two absorption bands gradually disappeared. Figure 9b shows that the absorption intensity decreases with the increasing of relaxation times.

3.3. Influence of the Conductivity of VO2 Film

Figure 10 shows the influence of the conductivity of VO2 film on the absorption spectra. Broadband absorption is observed when the conductivity of the VO2 film is >5 × 103 S/m, Ef1 = 0.8 eV, and Ef2 = 0 eV (Figure 10a). While the conductivity approaches zero, the VO2 film changes its state from metallic to insulating phase, corresponding to the variation from broadband absorption to dual narrowband absorption. This phenomenon can also be confirmed by the absorption spectrum shown in Figure 10b at Ef1 = 0 eV and Ef2 = 0.8 eV. Compared to Figure 10a, the Figure 10b shows a wider absorption bandwidth for the influence of the lower graphene layer, which contains larger unit cells and a shorter distance to the VO2 film. This phenomenon can be attributed to the increment of effective length and the decrement of the space of equivalent capacitance according to the LC circuit model.
In addition, the multifunctional absorber can be further transformed into a single narrowband absorber by setting the conductivity of the VO2 film to appropriate values, as shown in Figure 11. Both the Fermi energy levels of the upper and lower graphene layers are set to 0.8 eV. A narrowband absorber can be realized at σVO2 of >1000 S/m, particularly from 1000 to 10,000 S/m. This phenomenon can also be elucidated by the impedance-matching theory shown in Figure 12a,b.
The bottom gold layer prevents downward wave propagation as σVO2 varies; thus, the transmittance calculated by |S21|2 is nearly zero. The absorptance and the relative impedance with normal incidence can be expressed as follows:
A ω = 1 R ω = 1 Z r 1 Z r + 1 ,
Z r = 1 + S 11 ω 2 S 21 ω 2 1 S 11 ω 2 S 21 ω 2 ,
where Zr is the relative impedance between the proposed absorber and free space. Equation (5) shows that a perfect absorption can be achieved when the real and imaginary parts of Zr approach 1 and 0, respectively. Figure 12a,b show that the impedances of the proposed absorber and free space are nearly matched in the frequency around 1 THz; these findings are consistent with the absorption spectra shown in Figure 11. Table 2 is the comparison of other multifunctional devices with the proposed absorber.

4. Conclusions

Herein, a dynamically switchable multifunctional absorber based on graphene metamaterials and VO2 film is numerically investigated in the THz regime. The absorber can serve as an either–or band selector due to the phase transition of VO2 film and the electrical controlled property of graphene. When the VO2 film is in the metallic phase and the Fermi energy levels of the upper and lower graphene layers are simultaneously set to 0 and 0.6 eV, respectively, broadband absorption with the absorptance of ~100% can be achieved. When the Fermi energy levels of the upper and lower graphene layers are set to 0.8 and 0 eV, and the VO2 film is in the insulating phase, a double narrowband can be realized with an excellent absorptance of >90%. Due to this flexible shift in above two functions, the proposed absorber realizes the optional bandwidth from 2.05 to 2.35 THz, and 3.25 to 3.6 THz, which denotes an either–or band selector application. Furthermore, a narrowband absorption can be obtained when the conductivity of VO2 is set as an appropriate value. The influence of varying geometrical parameters on the absorption spectra is also investigated, and field analyses are performed to understand the broadband absorption mechanism. Owing to these attractive properties, the proposed absorber can have promising applications such as multifunctional devices, switches, and band selectors.

Author Contributions

Conceptualization, Y.L. and L.H.; simulation, Y.L.; formal analysis, Y.L., M.L. and L.H.; writing—original draft preparation, Y.L.; writing—review and editing, L.H. and M.L.; funding acquisition, Y.L., L.H. and M.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Doctoral and Master’s Research Initiation Project of SZIIT, grant number SZIIT2022KJ069; Postdoctoral Research Funding of ShenZhen, grant number 11400-2022-020202-28; Project of ShenZhen science and technology innovation committee, grant number JCYJ20180307123857045; and in part by the National Natural Science Foundation of China, grant number 62175037.

Data Availability Statement

Data are available in the main text.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yen, T.J.; Padilla, W.J.; Fang, N.; Vier, D.C.; Smith, D.R.; Pendry, J.B.; Basov, D.N.; Zhang, X. Terahertz magnetic response from artificial materials. Science 2004, 303, 1494–1496. [Google Scholar] [CrossRef] [PubMed]
  2. Smith, D.R.; Padilla, W.J.; Vier, D.C.; Nemat-Nasser, S.C.; Schultz, S. Composite medium with simultaneously negative permeability and permittivity. Phys. Rev. Lett. 2000, 84, 4184–4187. [Google Scholar] [CrossRef] [PubMed]
  3. Pendry, J.B. Negative refraction makes a perfect lens. Phys. Rev. Lett. 2000, 85, 3966–3969. [Google Scholar] [CrossRef] [PubMed]
  4. Argyropoulos, C.; Le, K.Q.; Mattiucci, N.; D’Aguanno, G.; Alù, A. Broadband absorbers and selective emitters based on plasmonic brewster metasurfaces. Phys. Rev. B Condens. Matter 2012, 87, 2329–2337. [Google Scholar] [CrossRef]
  5. Zheng, Y.L.; Chen, P.P.; Yang, H.M.; Ding, J.Y.; Zhou, Y.W.; Tang, Z.; Zhou, X.H.; Li, Z.F.; Li, N.; Chen, X.S.; et al. High-responsivity and polarization-discriminating terahertz photodetector based on plasmonic resonance. Appl. Phys. Lett. 2019, 114, 091105. [Google Scholar] [CrossRef]
  6. Yang, H.; Li, G.H.; Cao, G.T.; Zhao, Z.Y.; Chen, J.; Ou, K.; Chen, X.S.; Lu, W. Broadband polarization resolving based on dielectric metalenses in the near-infrared. Opt. Express 2018, 26, 5632–5643. [Google Scholar] [CrossRef] [PubMed]
  7. Landy, N.I.; Sajuyigbe, S.; Mock, J.J.; Smith, D.R.; Padilla, W.J. Perfect metamaterial absorber. Phys. Rev. Lett. 2008, 100, 207402. [Google Scholar] [CrossRef] [PubMed]
  8. Akyildiz, I.F.; Jornet, J.M.; Han, C. Terahertz band: Next frontier for wireless communications. Phys. Commun. 2014, 12, 16–32. [Google Scholar] [CrossRef]
  9. Federici, J.; Moeller, L. Review of terahertz and subterahertz wireless communications. J. Appl. Phys. 2010, 107, 111101. [Google Scholar] [CrossRef]
  10. Fitzgerald, A.J.; Berry, E.; Zinovev, N.N.; Walker, G.C.; Smith, M.A.; Chamberlain, J.M. An introduction to medical imaging with coherent terahertz frequency radiation. Phys. Med. Biol. 2002, 47, R67–R84. [Google Scholar] [CrossRef]
  11. Amenabar, I.; Lopez, F.; Mendikute, A. In introductory review to THz non-destructive testing of composite mater. J. Infrared Milli Terahz Waves. 2013, 34, 152–169. [Google Scholar] [CrossRef]
  12. Cheng, R.; Zhou, Y.X.; Liang, B.; Pan, J.S.; Luo, Q.; Liu, J.Q. Thermal and electrical switchable wide-angle multi-band terahertz absorber. Opt. Express 2024, 32, 12476–12495. [Google Scholar] [CrossRef] [PubMed]
  13. Zhu, J.; Wu, C.; Ren, Y. Broadband terahertz metamaterial absorber based on graphene resonators with perfect absorption. Results Phys. 2021, 26, 104466. [Google Scholar] [CrossRef]
  14. Mishra, N.; Choudhary, D.K.; Chowdhury, R.; Kumari, K.; Chaudhary, R.K. An Investigation on Compact Ultra-Thin Triple Band Polarization Independent Metamaterial Absorber for Microwave Frequency Applications. IEEE Access 2017, 5, 4370–4376. [Google Scholar] [CrossRef]
  15. Costa, F.; Monorchio, A. Electromagnetic Absorbers based on High-Impedance Surfaces: From ultra-narrowband to ultra-wideband absorption. Adv. Electromagn. 2012, 1, 7–12. [Google Scholar] [CrossRef]
  16. Zhao, B.; Huang, C.; Yang, J.; Song, J.; Guan, C.; Luo, X. Broadband Polarization-Insensitive Tunable Absorber Using Active Frequency Selective Surface. IEEE Antennas Wirel. Propag. Lett. 2020, 19, 982–986. [Google Scholar] [CrossRef]
  17. Korani, N.; Danaie, M. A plasmonic terahertz perfect absorber based on L-shaped graphene patches and gold rods. Appl. Phys. A 2023, 129, 806. [Google Scholar] [CrossRef]
  18. Du, X.M.; Yan, F.P.; Wang, W.; Tan, S.Y.; Zhang, L.N.; Bai, Z.Y.; Zhou, H.; Hou, Y.F. A polarization- and angle-insensitive broadband tunable metamaterial absorber using patterned graphene resonators in the terahertz band. Opt. Laser Technol. 2020, 132, 106513. [Google Scholar] [CrossRef]
  19. Liu, Y.; Huang, R.; Ouyang, Z.B. Terahertz absorber with dynamically switchable dual-broadband based on a hybrid metamaterial with vanadium dioxide and graphene. Opt. Express 2021, 29, 20839–20850. [Google Scholar] [CrossRef]
  20. Wang, Q.; Liu, Y.K.; Wang, G.C.; Jiang, W.X.; Cui, T.J. Tunable triple-band millimeter-wave absorbing metasurface based on nematic liquid crystal. AIP Adv. 2022, 12, 015127. [Google Scholar] [CrossRef]
  21. Liu, K.; Tu, Z.; Tang, X.; Li, Z.; Chen, F.; Yang, W.; Wang, B. High-sensitivity triple-band absorber based on graphene rectangular split ring resonator and cross-structure. Plasmonics 2024, 19, 1291–1302. [Google Scholar] [CrossRef]
  22. Lin, Z.; Xu, Z.; Liu, P.; Liang, Z.; Lin, Y.-S. Polarization-sensitive terahertz resonator using asymmetrical F-shaped metamaterial. Opt. Laser Technol. 2020, 121, 105826. [Google Scholar] [CrossRef]
  23. Ning, R.; Xiao, Z.; Chen, Z.; Huang, W. Tri-control large angle electromagnetically induced reflection in metamaterials with graphene and vanadium dioxide. AIP Adv. 2020, 10, 085323. [Google Scholar] [CrossRef]
  24. Wang, B.X.; Wang, G.Z.; Sang, T. Simple design of novel triple-band terahertz metamaterial absorber for sensing application. J. Phys. D Appl. Phys. 2016, 49, 165307. [Google Scholar] [CrossRef]
  25. Zhang, C.; Yin, S.; Long, C.; Dong, B.W.; He, D.; Cheng, Q.; Cheng, Q. Hybrid Metamaterial Absorber for Ultra-Low and Dual-Broadband Absorption. Opt. Express 2021, 29, 14078–14086. [Google Scholar] [CrossRef] [PubMed]
  26. Liu, Y.; Zhong, R.B.; Lian, Z.; Bu, C.; Liu, S.G. Dynamically tunable band stop filter enabled by the metal-graphene metamaterials. Sci. Rep. 2018, 8, 2828. [Google Scholar] [CrossRef] [PubMed]
  27. Samy, O.; Belmoubarik, M.; Otsuji, T.; El Moutaouakil, A. A Voltage-Tuned Terahertz Absorber Based on MoS2/Graphene Nanoribbon Structure. Nanomaterials 2023, 13, 1716. [Google Scholar] [CrossRef] [PubMed]
  28. Chen, A.; Song, Z. Tunable isotropic absorber with phase change material VO2. IEEE T. Nanotechnol. 2020, 19, 197–200. [Google Scholar] [CrossRef]
  29. Pitchappa, P.; Kumar, A.; Prakash, S.; Jani, H.; Venkatesan, T.; Singh, R. Chalcogenide phase change material for active terahertz photonics. Adv. Mater. 2019, 31, 1808157. [Google Scholar] [CrossRef]
  30. Zheng, C.; Li, J.; Wang, G.; Wang, S.; Li, J.; Zhao, H.; Zang, H.; Zhang, Y.; Zhang, Y.; Yao, J. Fine manipulation of terahertz waves via all-silicon metasurfaces with an independent amplitude and phase. Nanoscale 2021, 13, 5809–5816. [Google Scholar] [CrossRef]
  31. Jiang, M.; Song, Z.; Liu, Q.H. Ultra-broadband wide-angle terahertz absorber realized by a doped silicon metamaterial. Opt. Commu. 2020, 471, 125835. [Google Scholar] [CrossRef]
  32. He, X.; Lin, F.; Liu, F.; Shi, W. Tunable strontium titanate terahertz all-dielectric metamaterials. J. Phys. D Appl. Phys. 2020, 53, 155105. [Google Scholar] [CrossRef]
  33. Dong, B.; Ma, H.; Wang, J.; Shi, P.; Li, J.; Zhu, L.; Lou, J.; Feng, M.; Qu, S. A thermally tunable THz metamaterial frequency-selective surface based on barium strontium titanate thin film. J. Phys. D Appl. Phys. 2018, 52, 045301. [Google Scholar] [CrossRef]
  34. Abajo, F.J.G.D. Graphene Plasmonics: Challenges and Opportunities. ACS Photonics 2014, 1, 135–152. [Google Scholar] [CrossRef]
  35. Fang, Z.Y.; Thongrattanasiri, S.; Schlather, A.; Liu, Z.; Ma, L.L.; Wang, Y.M.; Ajayan, P.M.; Nordlander, P.; Halas, N.J.; Abajo, F.J.G. Gated tunability and hybridization of localized plasmons in nanostructured graphene. ACS Nano 2013, 7, 2388–2395. [Google Scholar] [CrossRef] [PubMed]
  36. Park, D.J.; Shin, J.H.; Park, K.H.; Ryu, H.C. Electrically controllable THz asymmetric split loop resonator with an outer square loop based on VO2. Opt. Express 2018, 26, 17397–17406. [Google Scholar] [CrossRef] [PubMed]
  37. Liu, J.; Fan, L. Development of a tunable terahertz absorber based on temperature control. Microw. Opt. Technol. Lett. 2020, 62, 1681–1685. [Google Scholar]
  38. Tian, X.; Li, Z.Y. An optically-triggered switchable mid-infrared perfect absorber based on phase-change material of vanadium dioxide. Plasmonics 2018, 13, 1393–1402. [Google Scholar] [CrossRef]
  39. Xu, K.; Li, J.X.; Zhang, A.X.; Chen, Q. Tunable multi-band terahertz absorber using a single-layer square graphene ring structure with T-shaped graphene strips. Opt. Express 2020, 28, 11482–11492. [Google Scholar] [CrossRef]
  40. Zhu, H.; Zhang, Y.; Ye, L.; Li, Y.; Xu, R. Switchable and tunable terahertz metamaterial absorber with broadband and multi-band absorption. Opt. Express 2020, 28, 38626–38637. [Google Scholar] [CrossRef]
  41. Galiffi, E.; Pendry, J.B.; Huidobro, P.A. Broadband tunable THz absorption with singular graphene metasurfaces. ACS Nano 2018, 12, 1006–1013. [Google Scholar] [CrossRef] [PubMed]
  42. Rodriguez, B.S.; Yan, R.; Kelly, M.M.; Fang, T.; Tahy, K.; Hwang, W.S.; Jena, D.; Liu, L.; Xing, H.G. Broadband graphene terahertz modulators enabled by intraband transitions. Nat. Commun. 2012, 3, 780. [Google Scholar] [CrossRef] [PubMed]
  43. Asgari, S.; Fabritius, T. Multi-band terahertz metamaterial absorber composed of concentric square patch and ring resonator array. Opt. Contin. 2024, 3, 148–163. [Google Scholar] [CrossRef]
  44. Li, J.; Chen, X.; Yi, Z.; Yang, H.; Tang, Y.; Yi, Y.; Yao, W.; Wang, J.; Yi, Y. Broadband solar energy absorber based on monolayer molybdenum disulfide using tungsten elliptical arrays. Mater. Today Energy 2020, 16, 100390. [Google Scholar] [CrossRef]
  45. Chen, H.T. Interference theory of metamaterial perfect absorbers. Opt. Express 2012, 20, 7165–7172. [Google Scholar] [CrossRef] [PubMed]
  46. Tian, X.; Qiu, X.; Citrin, D.S.; Hou, J.; Yang, C.Y.; Cao, Z.Z. Dynamically switchable tri-functional THz-integrated metamaterial absorber based on VO2-graphene. Opt. Laser Technol. 2023, 165, 109609. [Google Scholar] [CrossRef]
  47. Zhang, B.; Xu, K.D. Switchable and tunable bifunctional THz metamaterial absorber. J. Opt. Soc. Am. B 2022, 39, A52–A60. [Google Scholar] [CrossRef]
  48. Wang, L.S.; Xia, D.Y.; Fu, Q.H.; Wang, Y.; Ding, X.Y. A Photoexcited Switchable Dual-Function Metamaterial Absorber for Sensing and Wideband Absorption at THz Band. Nanomaterials 2022, 12, 2375. [Google Scholar] [CrossRef]
  49. Feng, J.L.; Wu, L.S.; Mao, J.F. Switchable broadband/narrowband absorber based on a hybrid metasurface of graphene and metal structures. Opt. Express 2023, 31, 12220–12231. [Google Scholar] [CrossRef]
  50. Chen, Y.; Sun, G.; Wei, J.; Miao, Y.; Zhang, W.; Wu, K.; Wang, Q. Ultrahigh-Q Polarization-Independent Terahertz Metamaterial Absorber Using Pattern-Free Graphene for Sensing Applications. Nanomaterials 2024, 14, 605. [Google Scholar] [CrossRef]
  51. Gao, P.P.; Sun, J.F.; Li, W.X.; Su, C.X.; Sun, Z.Y.; Xia, F.; Zhang, K.; Dong, L.F.; Yun, M.J. Multifunctional and dynamically tunable coherent perfect absorber based on InSb and graphene metasurface. Results Phys. 2023, 52, 106797. [Google Scholar] [CrossRef]
  52. Hasankhani, M.; Vahed, H.; Bemani, M. Switchable and tunable terahertz metamaterial absorber based on graphene and VO2 resonator with ultra-broadband and multi-band absorption. Opt. Commun. 2024, 562, 130567. [Google Scholar] [CrossRef]

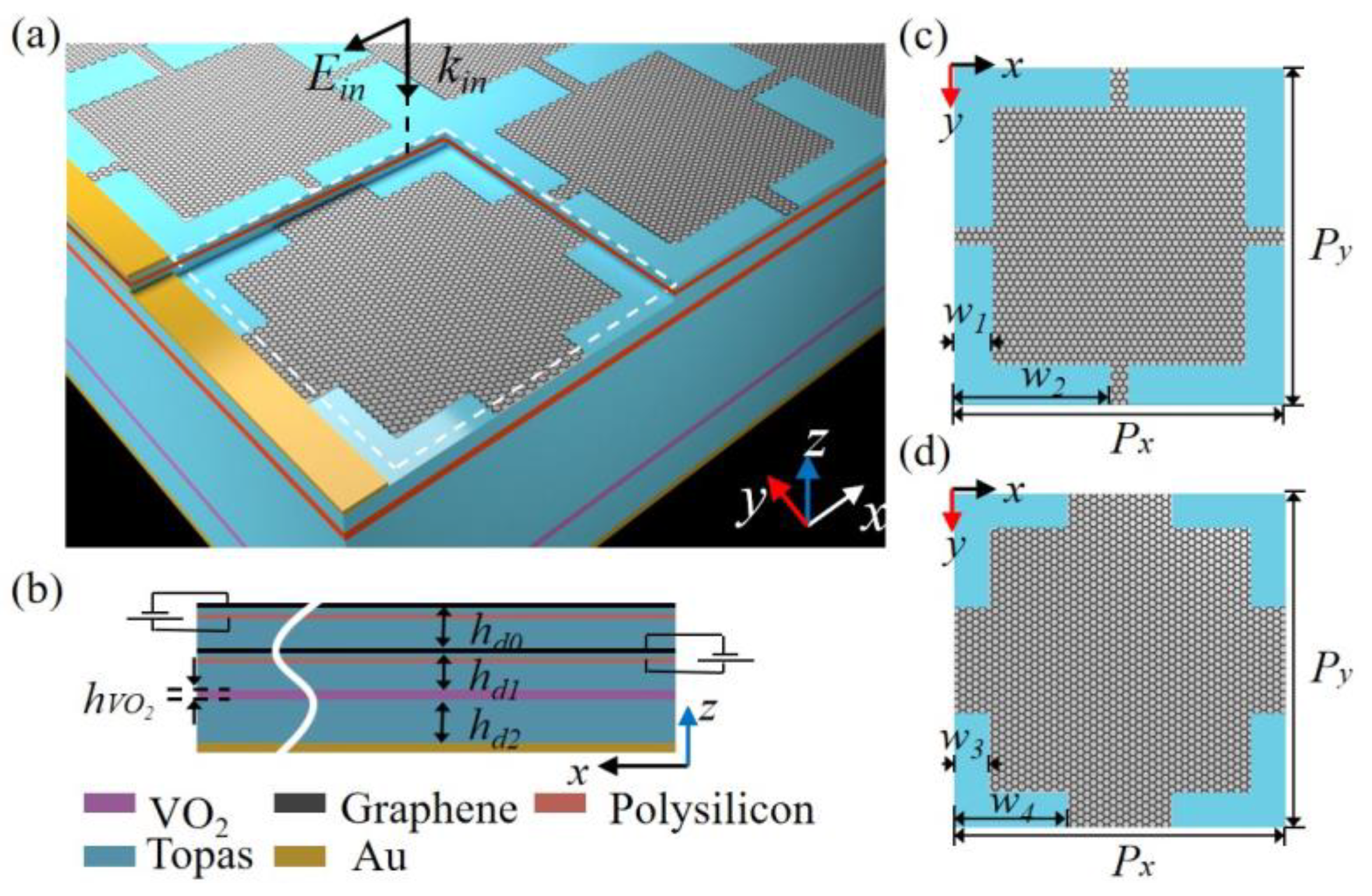

Figure 1. (a) Schematic of the multifunctional absorber with the polarization configuration of incident light. (b) Side view of the multifunctional absorber. (c) Top view of the unit cell for the upper square graphene layer and (d) lower square graphene layer.
Figure 1. (a) Schematic of the multifunctional absorber with the polarization configuration of incident light. (b) Side view of the multifunctional absorber. (c) Top view of the unit cell for the upper square graphene layer and (d) lower square graphene layer.
Nanomaterials 14 01200 g001

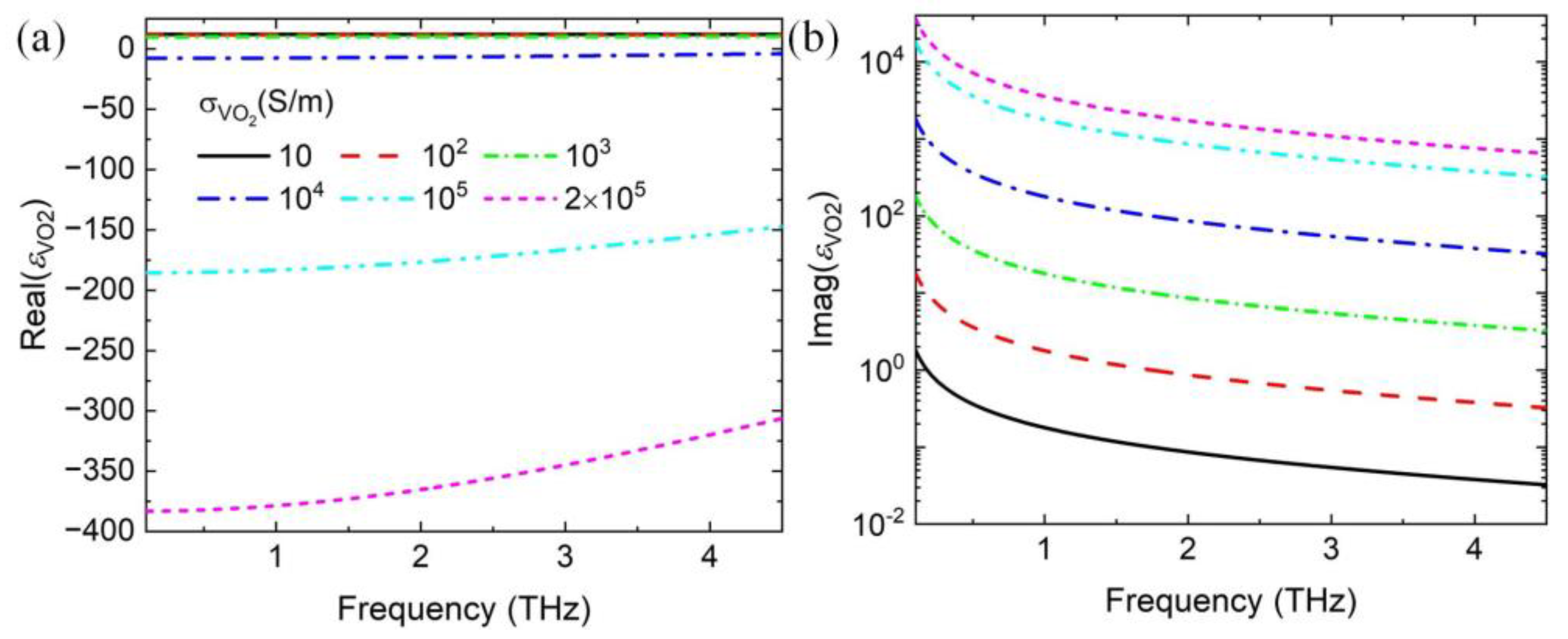

Figure 2. Real part (a) and imaginary part (b) of the complex relative dielectric permittivity of VO2 with varying conductivity.
Figure 2. Real part (a) and imaginary part (b) of the complex relative dielectric permittivity of VO2 with varying conductivity.
Nanomaterials 14 01200 g002

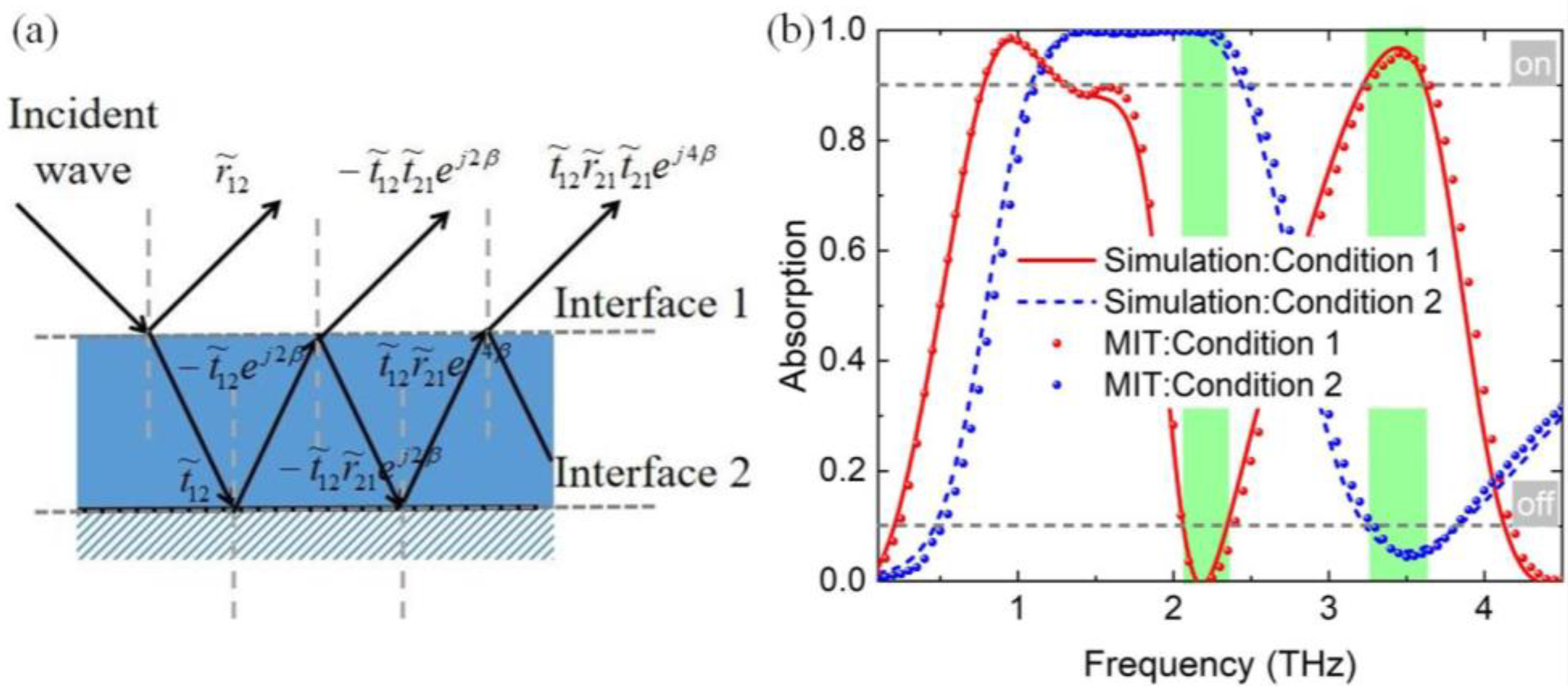

Figure 3. (a) Schematic of incident wave interferences between interfaces. (b) Absorption spectra of the multifunctional absorber in different states. The green shadow areas indicate the optional bandwidths.
Figure 3. (a) Schematic of incident wave interferences between interfaces. (b) Absorption spectra of the multifunctional absorber in different states. The green shadow areas indicate the optional bandwidths.
Nanomaterials 14 01200 g003

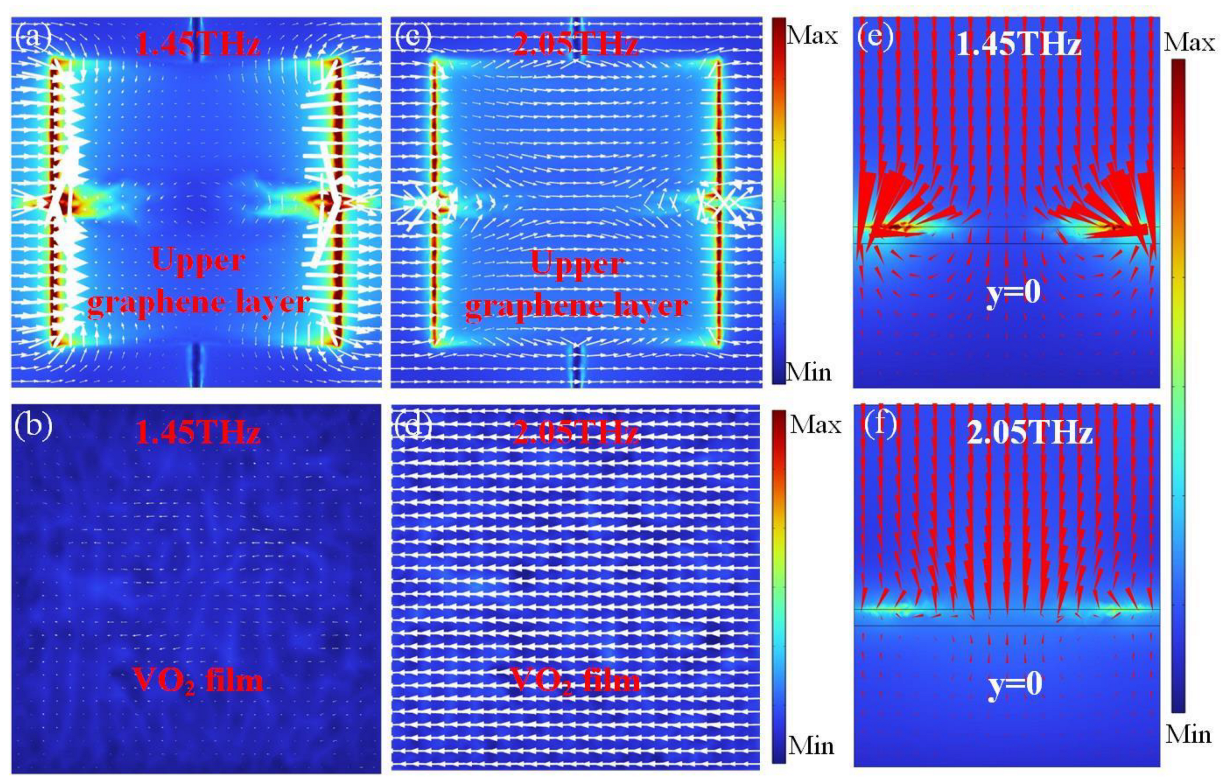

Figure 4. Distributions of the electric field amplitude |E| for (a,c) the upper graphene layer and (b,d) the VO2 film at the first and second resonant frequencies of 1.45 and 2.05 THz, respectively. Surface currents are marked with white arrows. Distributions of the power flow (red arrows) at the central cross-section of unit cell at (e) 1.45 THz and (f) 2.05 THz, respectively.
Figure 4. Distributions of the electric field amplitude |E| for (a,c) the upper graphene layer and (b,d) the VO2 film at the first and second resonant frequencies of 1.45 and 2.05 THz, respectively. Surface currents are marked with white arrows. Distributions of the power flow (red arrows) at the central cross-section of unit cell at (e) 1.45 THz and (f) 2.05 THz, respectively.
Nanomaterials 14 01200 g004

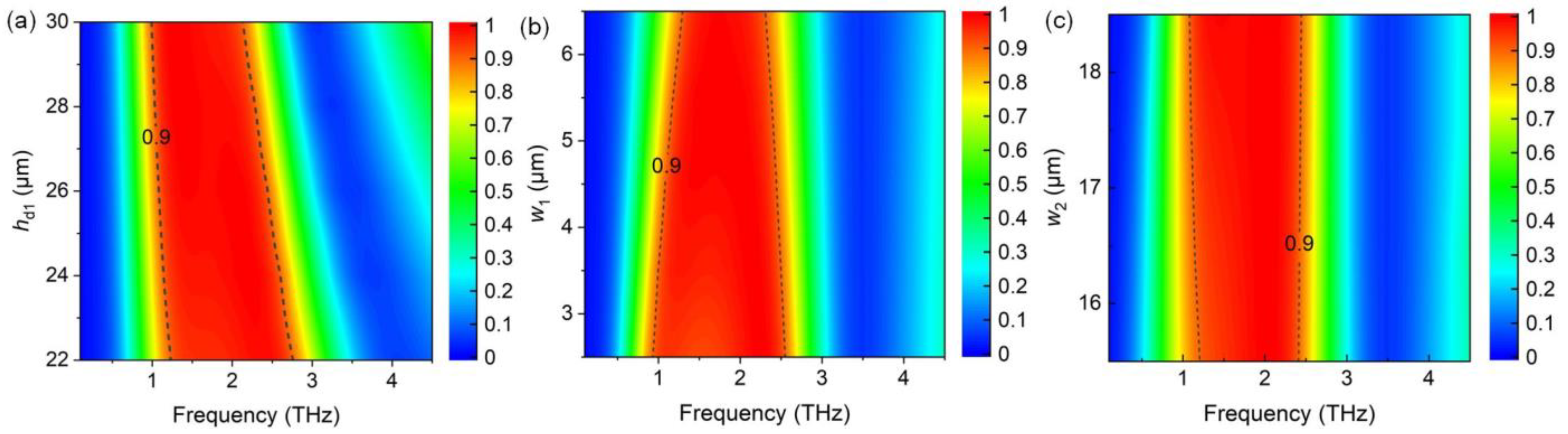

Figure 5. Varying absorption spectra with (a) the thickness of the Topas layer (hd1) between the lower graphene layer and VO2 film, and the distances from the unit boundary of the connected graphene squares (b) w1 and (c) w2, respectively.
Figure 5. Varying absorption spectra with (a) the thickness of the Topas layer (hd1) between the lower graphene layer and VO2 film, and the distances from the unit boundary of the connected graphene squares (b) w1 and (c) w2, respectively.
Nanomaterials 14 01200 g005

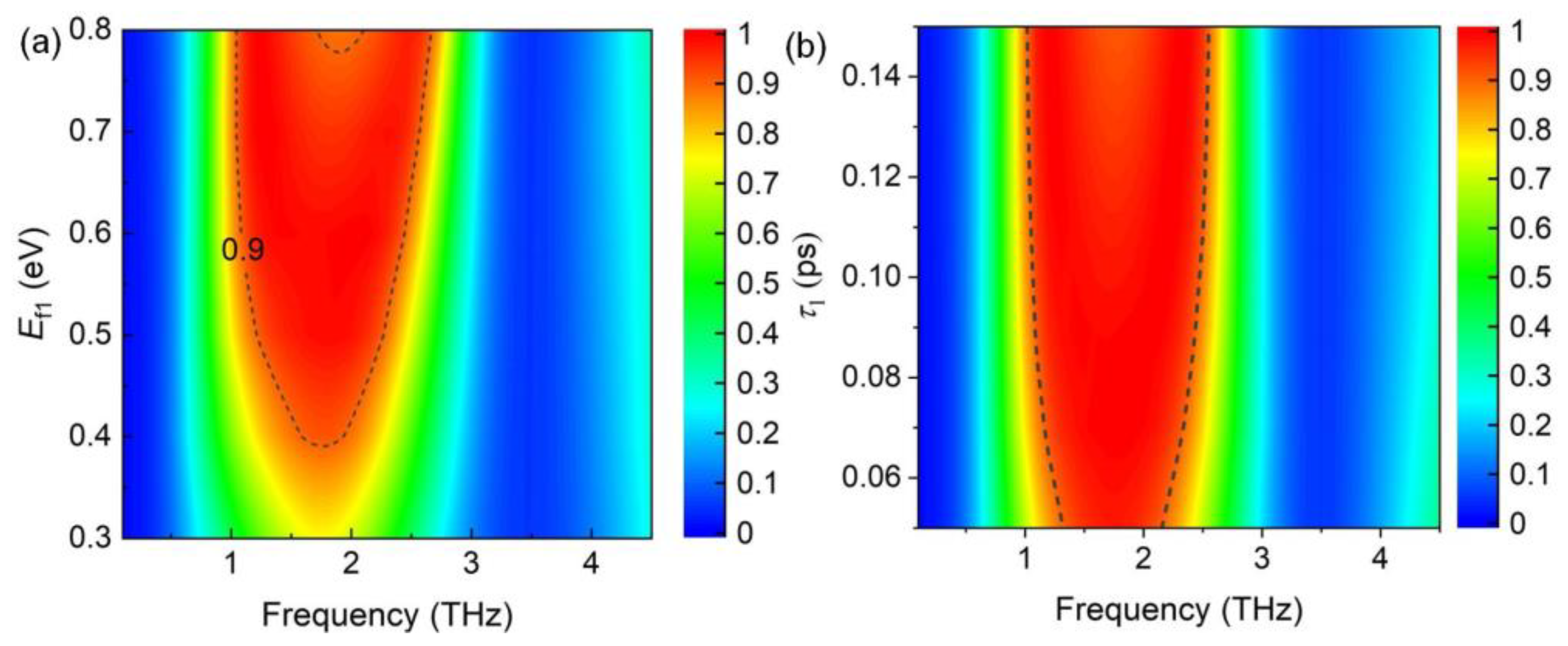

Figure 6. (a) Absorption spectra with increasing Fermi energy level Ef1, and the carrier mobility μ is fixed as 1500 cm2V−1s−1. (b) Absorption spectra with varying relaxation time τ1, and the Fermi energy level is fixed as 0.6 eV.
Figure 6. (a) Absorption spectra with increasing Fermi energy level Ef1, and the carrier mobility μ is fixed as 1500 cm2V−1s−1. (b) Absorption spectra with varying relaxation time τ1, and the Fermi energy level is fixed as 0.6 eV.
Nanomaterials 14 01200 g006

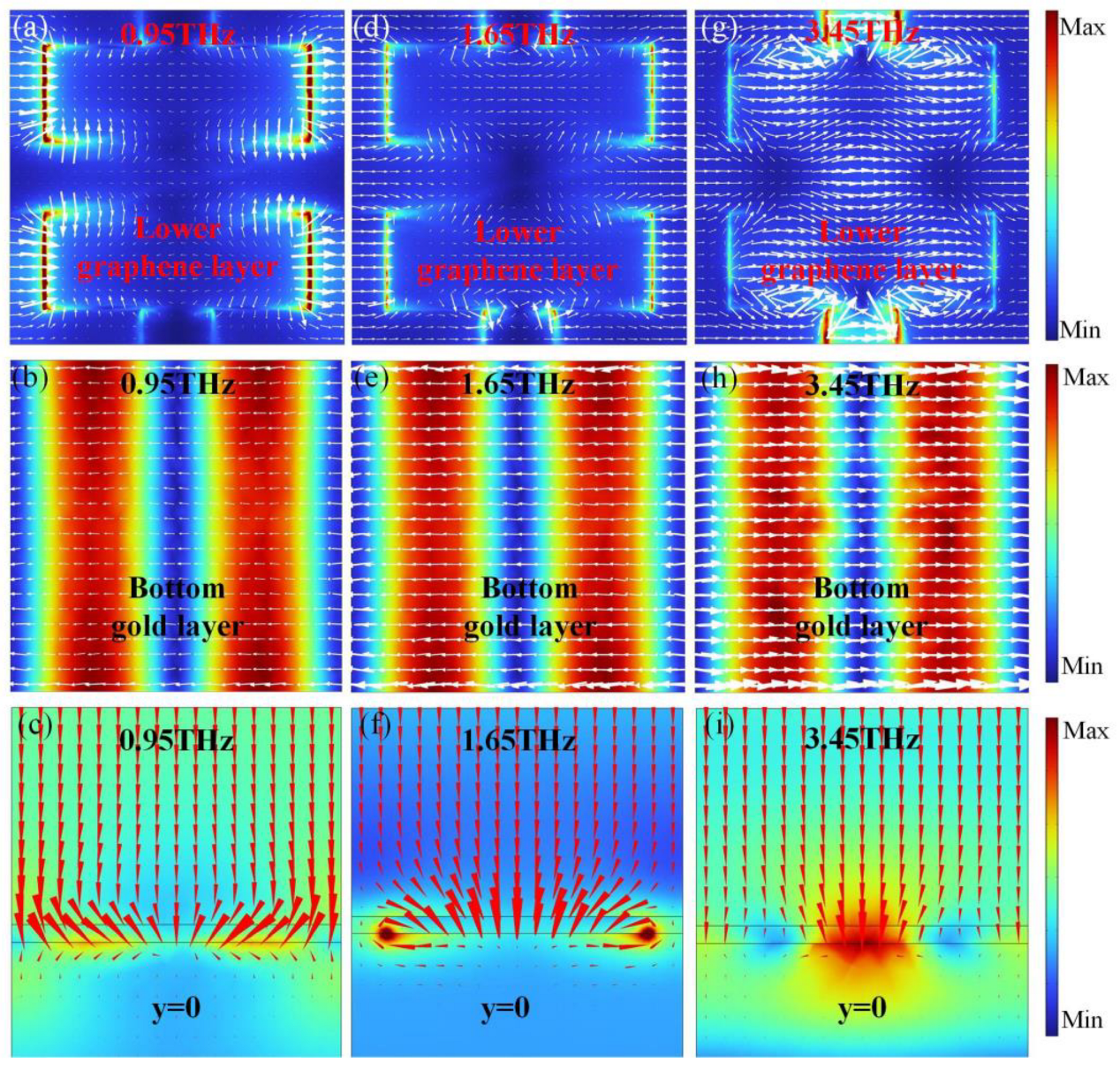

Figure 7. Distributions of the electric field amplitude |E| for (a,d,g) the upper graphene layer and (b,e,h) the bottom gold layer at the first, second, and third resonant frequencies of 0.95, 1.65, and 3.45 THz, respectively. Surface currents are marked with white arrows. Distributions of the power flow (red arrows) at the central cross-section of unit cell at (c) 1.45, (f) 1.65, and (i) 3.45THz, respectively.
Figure 7. Distributions of the electric field amplitude |E| for (a,d,g) the upper graphene layer and (b,e,h) the bottom gold layer at the first, second, and third resonant frequencies of 0.95, 1.65, and 3.45 THz, respectively. Surface currents are marked with white arrows. Distributions of the power flow (red arrows) at the central cross-section of unit cell at (c) 1.45, (f) 1.65, and (i) 3.45THz, respectively.
Nanomaterials 14 01200 g007

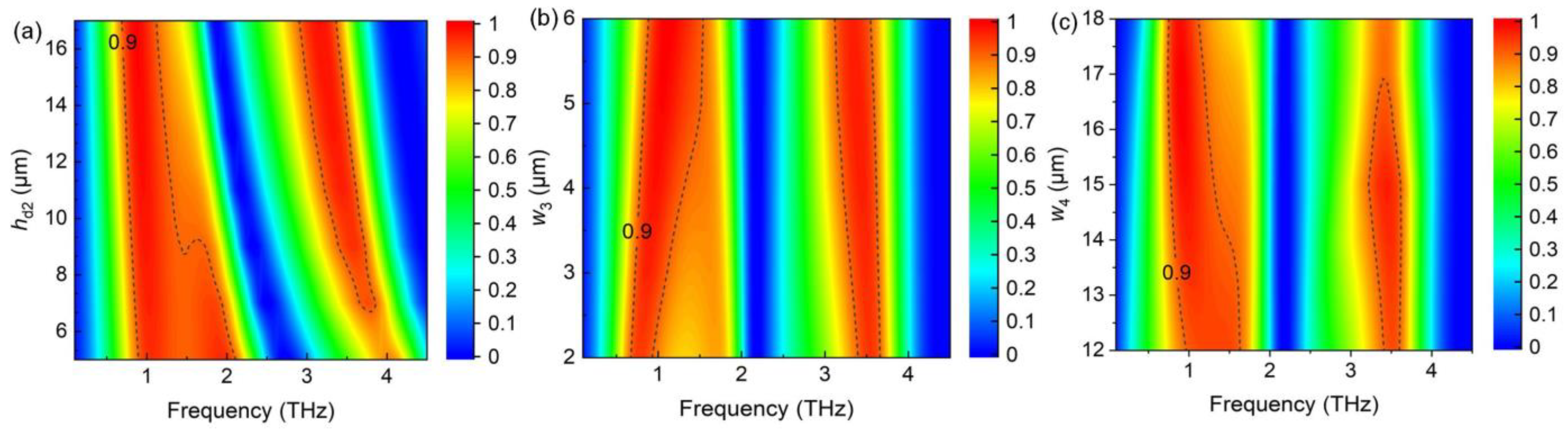

Figure 8. Absorption spectra varying with increasing (a) thickness of the Topas layer (hd2) between the VO2 film and bottom gold layer, and distances from the unit boundary of the connected graphene squares (b) w3 and (c) w4, respectively.
Figure 8. Absorption spectra varying with increasing (a) thickness of the Topas layer (hd2) between the VO2 film and bottom gold layer, and distances from the unit boundary of the connected graphene squares (b) w3 and (c) w4, respectively.
Nanomaterials 14 01200 g008

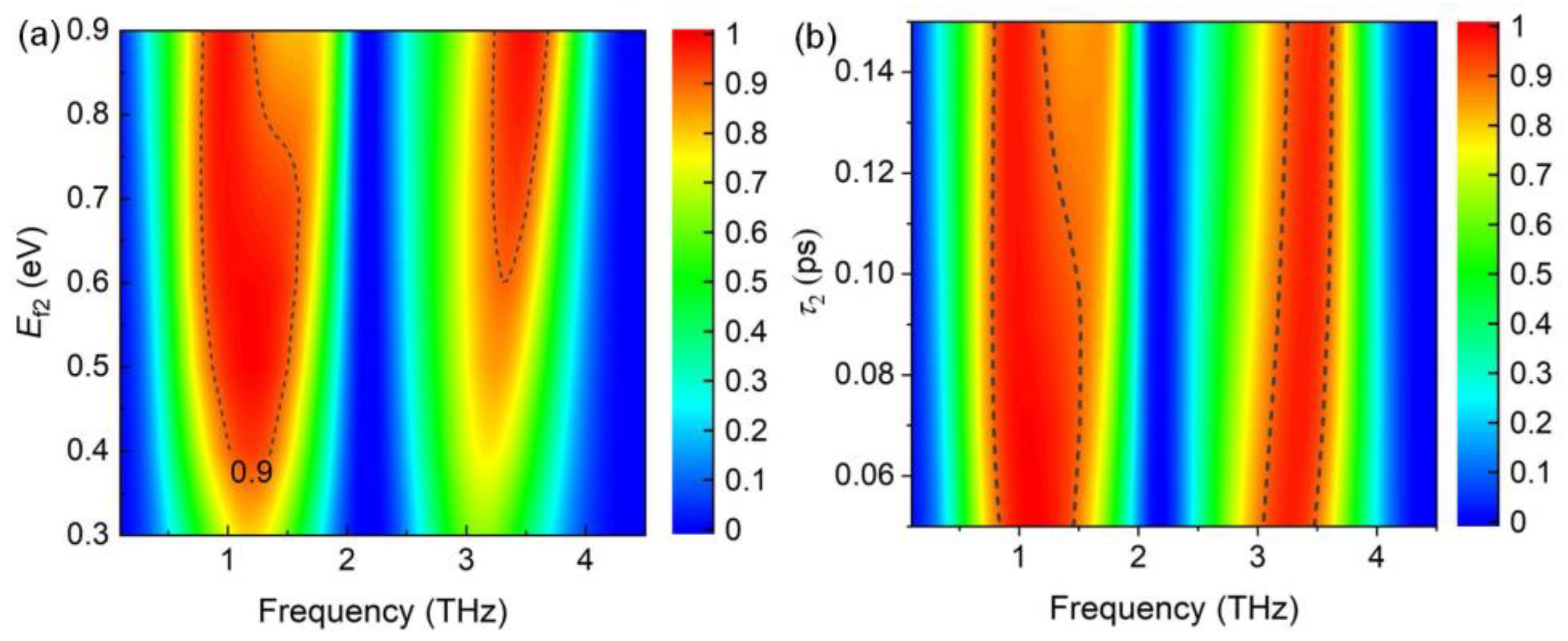

Figure 9. (a) Absorption spectra with increasing Fermi energy level Ef2, and the carrier mobility μ is fixed as 1500 cm2V−1s−1. (b) Absorption spectra with varying relaxation time τ2, and the Fermi energy level is fixed as 0.8 eV.
Figure 9. (a) Absorption spectra with increasing Fermi energy level Ef2, and the carrier mobility μ is fixed as 1500 cm2V−1s−1. (b) Absorption spectra with varying relaxation time τ2, and the Fermi energy level is fixed as 0.8 eV.
Nanomaterials 14 01200 g009

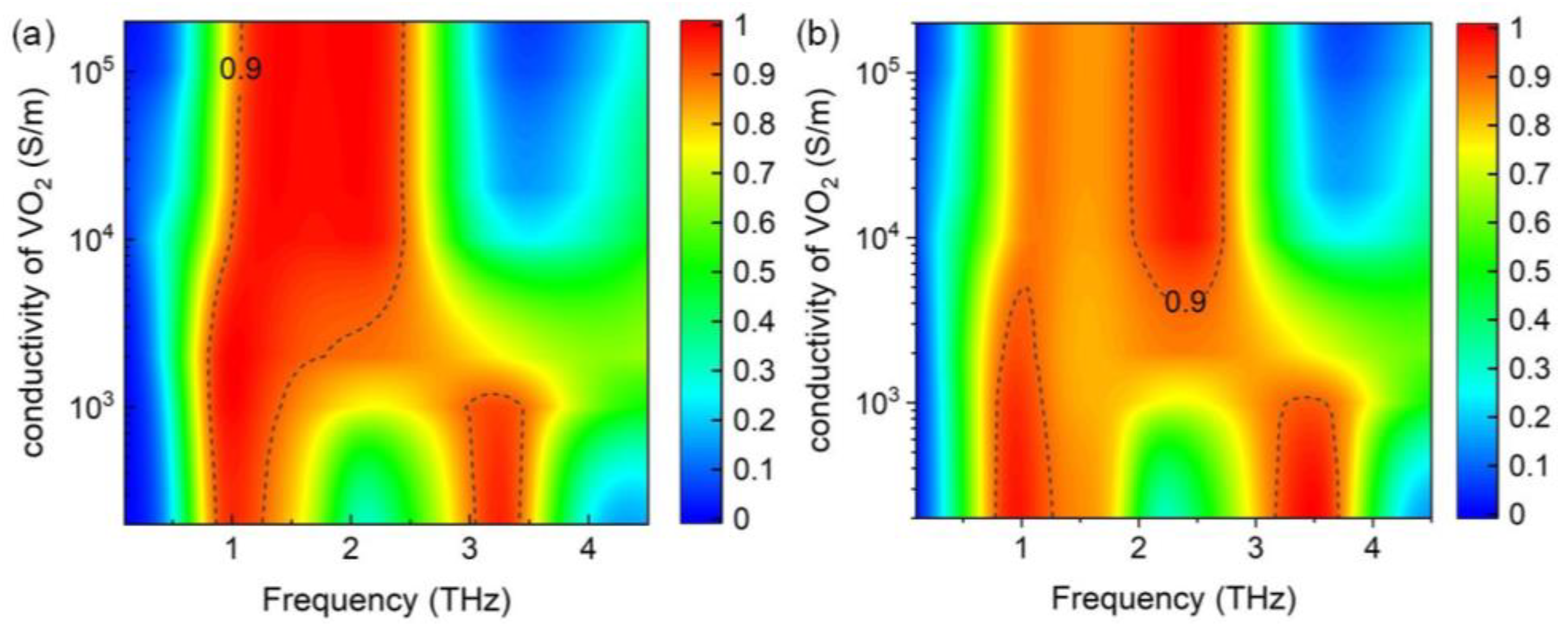

Figure 10. Absorption spectra of the proposed absorber with varying conductivity of the VO2 film, when (a) Ef1 = 0.6 eV and Ef2 = 0 eV; (b) Ef1 = 0 eV and Ef2 = 0.8 eV.
Figure 10. Absorption spectra of the proposed absorber with varying conductivity of the VO2 film, when (a) Ef1 = 0.6 eV and Ef2 = 0 eV; (b) Ef1 = 0 eV and Ef2 = 0.8 eV.
Nanomaterials 14 01200 g010
Figure 11. Absorption spectrum of the absorber with varying conductivity of the VO2 film at Ef1 = Ef2 = 0.8 eV.
Figure 11. Absorption spectrum of the absorber with varying conductivity of the VO2 film at Ef1 = Ef2 = 0.8 eV.
Nanomaterials 14 01200 g011

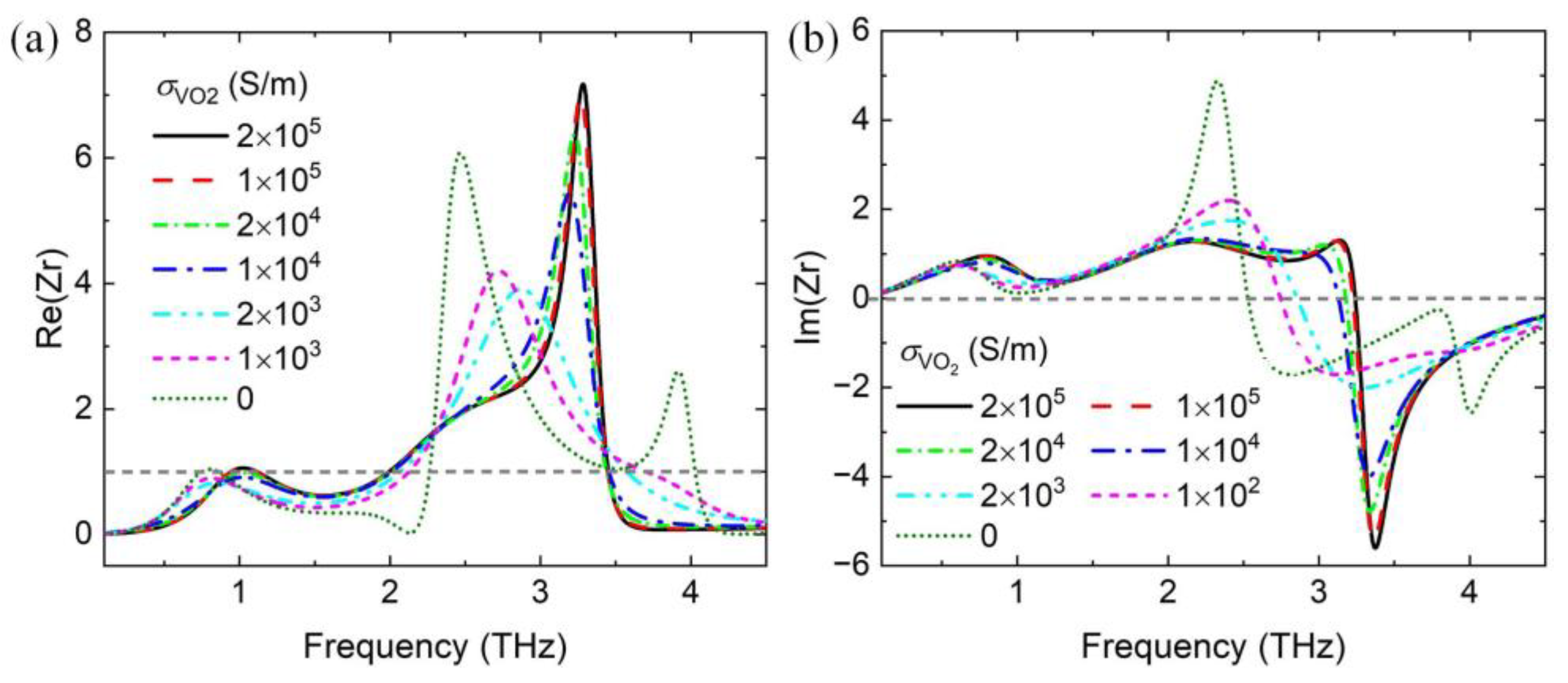

Figure 12. (a) Real parts and (b) imaginary parts of the relative impedance Zr with different conductivities of VO2.
Figure 12. (a) Real parts and (b) imaginary parts of the relative impedance Zr with different conductivities of VO2.
Nanomaterials 14 01200 g012
Table 1. Detailed dimensions of the proposed absorber.
Table 1. Detailed dimensions of the proposed absorber.
ParameterDescriptionNumerical Value
PxPeriod of unit cell in the x-direction38 μm
PyPeriod of unit cell in the y-direction38 μm
hd0Spacer of the two graphene layers2 μm
hd1Thickness of the first Topas layer26 μm
hd2Thickness of the second Topas layer11 μm
hVO2Thickness of the VO2 layer2 μm
w1Distances from the unit boundary of the connected square graphene layers4.5 μm
w218.5 μm
w34 μm
w415 μm
Table 2. Tunable multifunctional devices operating in the THz regime.
Table 2. Tunable multifunctional devices operating in the THz regime.
ReferenceFunctionalityActive MaterialTunning Method
[46]Low-, high-, and multiband broadbandGraphene and VO2Temperature and voltage
[47]Multiband (six peaks) and broadbandGraphene and VO2Temperature and voltage
[48]Sensing and broadbandSiPump power
[49]Broadband and narrowbandGraphenevoltage
[50]Single narrowband and sensingGrapheneVoltage
[51]Dual-band and broadbandInSb and grapheneTemperature and voltage
[52]Multiband (three peaks) and broadbandGraphene and VO2Temperature and voltage
This studyBroadband and dual narrowband; single narrowband and either–or band selectorGraphene and VO2Temperature and voltage
