Article

Escalating Catalytic Activity for Hydrogen Evolution Reaction on MoSe2@Graphene Functionalization

by
Hoa Thi Bui
1,*,
Nguyen Duc Lam
1,
Do Chi Linh
1,
Nguyen Thi Mai
1,
HyungIl Chang
2,
Sung-Hwan Han
2,
Vu Thi Kim Oanh
3,
Anh Tuan Pham
4,
Supriya A. Patil
5,
Nguyen Thanh Tung
1,* and
Nabeen K. Shrestha
6,*
1
Institute of Materials Science, Vietnam Academy of Science and Technology, Hanoi 100000, Vietnam
2
Department of Chemistry, Hanyang University, 222, Wangsimni-ro, Seongdong-gu, Seoul 04763, Republic of Korea
3
Institute of Physic and Graduate University of Science and Technology, Vietnam Academy of Science and Technology, Hanoi 100000, Vietnam
4
Institute of Engineering and Technology, Thu Dau Mot University, Binh Duong 75000, Vietnam
5
Department of Nanotechnology and Advanced Materials Engineering, Sejong University, Seoul 05006, Republic of Korea
6
Division of Physics and Semiconductor Science, Dongguk University, Seoul 04620, Republic of Korea
*
Authors to whom correspondence should be addressed.
Nanomaterials 2023, 13(14), 2139; https://doi.org/10.3390/nano13142139
Submission received: 6 July 2023 / Revised: 20 July 2023 / Accepted: 22 July 2023 / Published: 23 July 2023
(This article belongs to the Special Issue Synthesis of Nanocomposites and Catalysis Applications II)
Browse Figures
Versions Notes

Abstract

:
Developing highly efficient and durable hydrogen evolution reaction (HER) electrocatalysts is crucial for addressing the energy and environmental challenges. Among the 2D-layered chalcogenides, MoSe2 possesses superior features for HER catalysis. The van der Waals attractions and high surface energy, however, stack the MoSe2 layers, resulting in a loss of edge active catalytic sites. In addition, MoSe2 suffers from low intrinsic conductivity and weak electrical contact with active sites. To overcome the issues, this work presents a novel approach, wherein the in situ incorporated diethylene glycol solvent into the interlayers of MoSe2 during synthesis when treated thermally in an inert atmosphere at 600 °C transformed into graphene (Gr). This widened the interlayer spacing of MoSe2, thereby exposing more HER active edge sites with high conductivity offered by the incorporated Gr. The resulting MoSe2-Gr composite exhibited a significantly enhanced HER catalytic activity compared to the pristine MoSe2 in an acidic medium and demonstrated a superior HER catalytic activity compared to the state-of-the-art Pt/C catalyst, particularly at a high current density beyond ca. 55 mA cm−2. Additionally, the MoSe2-Gr catalyst demonstrated long-term electrochemical stability during HER. This work, thus, presents a facile and novel approach for obtaining an efficient MoSe2 electrocatalyst applicable in green hydrogen production.

1. Introduction

Fossil fuels are the major contributor to the energy landscape, but their depletion and negative environmental impacts have prompted a search for alternative energy solutions [1,2,3,4]. Toward this perspective, various renewable energies have been studied and developed. Among them, hydrogen has been studied extensively and is considered a promising energy carrier due to its clean combustion and high energy density [5,6,7,8,9,10,11]. To date, steam methane reforming is a widely employed route for the industrial-scale production of hydrogen. In addition to the high energy supply requirement for maintaining high temperature and pressure in the reforming process, this route also produces carbon mono- and di-oxides as byproducts. Therefore, this conventional method of hydrogen production needs to substitute urgently with a green technique that runs with zero carbon emission and does not require a high energy supply. Electrochemical water slitting is a green route to obtain molecular oxygen and hydrogen. Hence, to meet global energy demands and address environmental concerns, producing hydrogen through water splitting has recently gained increasing interest [12,13]. Platinum-based catalysts are currently the most effective for the hydrogen evolution reaction (HER), exhibiting nearly zero onset overpotential and a low Tafel slope [14,15]. However, their limited availability and high cost hindered widespread applicability. Consequently, considerable work has been carried out to develop HER electrocatalysts that are equally efficient and durable but more affordable [16,17,18,19,20,21,22].
Transition metal dichalcogenides (TMDs) such as sulfide, selenide, and telluride of molybdenum and tungsten with layered structures have been paid considerable attention in various fields, including catalysts, energy storage, transistors, and photoelectrochemical devices [23,24,25,26,27,28,29]. The unique two-dimensional (2D) architecture with excellent electrical properties and good catalytic activity offers TMDs as promising candidates for HER electrocatalysts [30,31,32]. Among them, MoS2 has been studied extensively and employed as an HER catalyst [33,34]. In the same group of TMDs, MoSe2 bears similar layer-to-layer structures and exhibits versatile electrochemical properties with good stability. MoSe2 possessed a metallic nature, offering superior electrical conductivity compared to MoS2, which is beneficial for HER catalysts [35,36]. However, the high surface energy and van der Waals attractions of MoSe2 interlayers lead to the stacking of the layers, resulting in a loss of active catalytic sites [37,38]. Additionally, MoSe2 suffered from low intrinsic conductivity and weak electrical contact with active sites, which negatively impacts its catalytic activity. To overcome these challenges, researchers are actively exploring various approaches to improve the catalytic performance of MoSe2. These approaches include the manipulation of nanostructures to improve conductivity and electron transfer, optimizing the composition and surface modification, and exploring hybrid structures with conductive carbon materials [39,40,41,42,43].
Herein, this work demonstrates the successful synthesis of the MoSe2-Gr composite via a two-step process involving solvothermal synthesis of MoSe2 using diethylene glycol solvent followed by thermal treatment to create MoSe2-Gr. The resulting MoSe2-Gr catalyst exhibited highly competitive electrocatalytic performance in acidic media for the HER. Specifically, this catalyst exhibited lower overpotentials of 161 and 250 mV at a current density of 10 and 50 mA.cm−2, respectively, and a small Tafel slope of 67 mV dec−1. It is worth noting that this performance lies on the top tire of MoSe2 and their carbonous composites based HER electrocatalysts synthesized by various approaches (see, Table S1 in the Supporting Information Section). Most importantly, it should be further noted that the MoSe2-Gr catalyst designed in this work demonstrated a superior HER catalytic activity than that of the state-of-the-art Pt/C catalyst, especially when the electrolysis was performed at a high cathodic current density beyond ca. −55 mA cm−2. Such catalysts exhibiting superior HER catalytic activity at high current density are particularly applicable for the industrial scale of hydrogen production. The observed superior HER performance of the MoSe2-Gr catalyst can be owing to the amplified surface area and concentration of active edge sites present within the wider interlayer width of MoSe2. Moreover, the resulting architecture of the composite facilitated the efficient movement of charges and ions between the MoSe2 interlayers and electrolytes, thereby enhancing the charge and mass transfer capability. Additionally, the MoSe2-Gr catalyst exhibited prolonged electrochemical stability in acidic electrolytes during the HER.

2. Materials and Methods

2.1. Regents and Materials

Red phosphorus (Sigma-Aldrich), selenium powder (Sigma-Aldrich), sodium molybdenum oxide dihydrate (Na2MoO4·2H2O, Sigma-Aldrich), Sodium sulfate (Na2SO4); Nafion (TM perfluorinated resin solution, Sigma-Aldrich), sulfuric acid (H2SO4), diethylene glycol (HOCH2CH2)2O: DEG, Sigma-Aldrich) and benzene (C6H6, Scharlau) were used in their as-received state without undergoing additional purification. For preparing the reagent solutions, deionized water (DI: H2O) was used throughout the experiments.

2.2. Preparation of MoSe2 and MoSe2-Graphene (MoSe2-Gr)

2.2.1. Preparation of Selenoacetamide

A 2:5 mole ratio of red phosphorus and selenium powder mixture in a test tube was flushed with argon gas for 15 min before being heated by a burner flame until completed to form P2Se5. Then, a suspension of synthesized powder P2Se5 in acetonitrile was prepared in a round bottom flask and refluxed at 80 °C for 6 h., DI H2O was added dropwise during refluxing to neutralize the suspension. After cooling down, it was filtered and extracted by benzene. After being dried by Na2SO4, filtered, and condensed, the selenoacetamide powder was obtained.

2.2.2. Synthesis of MoSe2 and MoSe2-Graphene (MoSe2-Gr)

For the synthesis of selenides, a mixture of 5 mmol Na2MoO4·2H2O and 20 mmol selenoacetamide was first dissolved in 40 mL of diethylene glycol (DEG) by stirring for 30 min. The mixture solution was transferred into a 50 mL capacity Teflon-lined autoclave. After sealing the autoclave carefully, it was heated at 200 °C for 15 h. After the completion of the reaction, the reflux system was cooled down to room temperature, and the products were centrifuged thrice for 30 min each with DI H2O and ethanol. The collected MoSe2 powder was dried for at least 24 h in a vacuum oven at 80 °C.
Transformation of MoSe2 into MoSe2-Graphene (MoSe2-Gr) composite was conducted by calcinating the synthesized MoSe2 powder with a constant supply of N2 (99.9999%). For this, the MoSe2 powder was placed in a tube furnace, and the temperature was ramped at a rate of 5 °C min−1 until the final temperature reached 600 °C. The annealing continued for 5 h and the system was cooled down naturally to room temperature.

2.3. Characterizations

Surface topography of the materials was obtained by field emission scanning electron spectroscopy (FE-SEM, HITACHI S-4800) operated at an accelerating voltage of 15 kV. The crystal structure of the synthesized materials was investigated via X-ray diffraction analysis (XRD; Rigaku D/MAX 2600 V, Cu Kα (α = 0.15418 nm)). High-resolution transmission electron microscopy (HR-TEM) and selected area electron diffraction (SAED) analysis techniques were employed to study the crystal properties of the materials. The HR-TEM analysis was conducted using a Jeol JEM2100 instrument at an acceleration voltage of 200 kV. The carbon-supported grids were used for the sample preparation of TEM. The chemical composition was examined via an energy-dispersive X-ray analyzer (EDX), which was integrated into the TEM. Scanning transmission electron microscopy (STEM) was employed to perform elemental mapping of the materials. Raman shifts of materials were recorded via a Renishaw in via Raman system operating at an exciting wavelength of 532 nm. Additionally, the elements (C, H, and N) analysis was performed via an elemental analyzer (FLASH EA1112). The surface area and pore volume of the material were determined using the Brunauer–Emmett–Teller (BET) method, with nitrogen adsorption/desorption measurements (Micromeritics ASAP 2060).

Electrochemical Characterization and HER Activity Measurement

A glassy carbon electrode (GCE, diameter = 3 mm) was used as the support for depositing the catalyst films. For the film formation, catalyst ink was prepared by dispersing finely grounded 5 mg of catalysts in 1 mL of DI H2O: IPA: Nafion mixture with a volume ratio of 4.5:5:0.5, respectively. The mixture was sonicated and stirred continuously until it became homogenous ink. The ink was drop-casted carefully onto the GCE surface and dried for at least 24 h at room temperature prior to use. The catalyst loading on the GCE was 0.25 mg.cm−2.
The electrochemical measurements were carried out using the COMPACTSTAT Electrochemical Interface and Impedance Analyzer (IVIUM Technologies) in a standard three-electrode system. The counter electrode consisted of a graphite rod, the reference electrode was Ag/AgCl (3 M NaCl), and the working electrode was the GCE with the catalyst drop-casted onto it. For the electrolysis, an aqueous solution of 0.5 M H2SO4 was used as electrolyte, which was de-aerated for 30 min by bubbling with Argon gas prior to the measurements.
The electrocatalytic performance of the catalyst on HER was accessed by using linear sweep voltammetry in an acidic electrolyte (0.5 M H2SO4) at a scan rate of 5 mV s−1 in the potential range from +0.1 to −0.80 V vs. RHE (reversible hydrogen electrode) without an iR compensation. The bias potential (EAg/AgCl) applied against the Ag/AgCl reference electrode was converted into the potential on the RHE scale using the equation E (RHE) = EAg/AgCl + 0.059pH + E0Ag/AgCl, where E0Ag/AgCl = 0.21 V at 25 °C [44,45]. To evaluate the durability of the catalyst for HER, a chronopotentiometry measurement was performed in 0.5 M H2SO4 aqueous electrolytes at a cathodic bias of −10 mA.cm−2. Moreover, for more understanding of the electrochemical kinetics in HER, the electrochemical impedance spectroscopy (EIS) was measured at an external bias of −0.175 V vs. RHE in a frequency range of 100,000 Hz to 0.01 Hz.
Additionally, the mass activity = j/m relationship was used to calculate the mass activity of an electrocatalyst [46], in which j is the measured geometrical area-based current density (mA cm−2) and m is the mass loading of the catalyst (mg cm−2).

3. Results and Discussions

Figure 1a depicts the schematic diagram for the synthesis of pristine MoSe2 and MoSe2-Gr samples, which involved the solvothermal reaction of Mo and Se precursor in DEG solvent at 200 °C for 15 h to produce MoSe2, followed by thermal treatment in an inert atmosphere at 600 °C for 5 h to form MoSe2-Gr.
The SEM surface topography of the obtained MoSe2 and MoSe2-Gr samples is shown in Figure 1b,c, respectively. Compared to the as-synthesized MoSe2, the surface morphology of the MoSe2-Gr after the calcination looks significantly different. The resulting MoSe2-Gr nanosheets assembled to a porous architecture are clearly observable, indicating an enhanced surface area. This feature contributes to higher catalytic active sites with facile movements of ions and charges between the MoSe2-Gr catalyst and electrolyte, thereby significantly improving the electrocatalyst performance. To gain further insight into the surface area and pore size distribution of MoSe2 and MoSe2-Gr, BET nitrogen adsorption/desorption isotherm measurements were conducted and are presented in Figure S1. Figure S1a,b show the nitrogen sorption isotherms of the pristine MoSe2 and MoSe2-Gr, respectively, both exhibiting type IV isotherms. The specific surface areas of MoSe2 and MoSe2-Gr were determined to be 13.15 m2 g−1 and 38.33 m2 g−1, respectively. The significantly higher specific surface area of MoSe2-Gr compared to pristine MoSe2 is attributed to the in-situ incorporation of graphene into the MoSe2 interlayers. The pore size distribution of MoSe2 and MoSe2-Gr are displayed in Figure S1c,d, respectively. The pore size distribution curves indicate the presence of mesoporous structures. These observations are in agreement with the SEM analysis.
Figure 1d illustrates the XRD patterns of MoSe2 and MoSe2-Gr, and the reference 2H-MoSe2 (JCPDS #29-0914) has also been shown for comparison. The XRD patterns of the as-prepared MoSe2 sample indicate that the sample was primarily composed of MoSe2 with a small amount of MoO3 present. Specifically, the diffraction peaks at 2θ angles of 27.61°, 31.42°, 47.50°, and 56.00° can be observed, which correspond to the lattice planes of (004), (100), (105), and (110) of the crystalline 2H-MoSe2, respectively. However, the main (002) peak of the as-prepared MoSe2 sample, which is typically observed at 13.70° in 2H-MoSe2 is observed to be shifted significantly to a lower 2θ position of 8.00°. The observed shift indicates that the interlayer spacing of the MoSe2 sample has been expanded, which may have been caused by the incorporation of DEG solvent molecules into the MoSe2 layers. [28,47]. In addition, the XRD pattern of the MoSe2 sample presents the presence of two peaks at 23.42° and 28.70°, which correspond to the diffraction from (110) and (130) planes of MoO3 (JCPDS #05-0508). The presence of oxides can be due to various factors such as impurities present in the precursors, residual solvents, and moisture contamination from the surrounding during the synthesis process [28,29,48]. After the thermal treatment, the diffraction of the MoSe2-Gr sample exhibited intense peaks, indicating an improved crystallinity of the MoSe2-Gr sample. The diffraction peaks observed at 12.60°, 26.95°, 31.68°, 37.76°, 47.88°, 55.99°, 65.82°, and 70.55° can be precisely assigned to the (002), (004), (100), (103), (105), (110), (200) and (203) crystal planes of 2H-MoSe2 (JCPDS 29-0914). This finding confirms the presence of MoSe2 in the MoSe2-Gr sample. However, in this case, the (002) peak of the MoSe2-Gr sample showed a slight shift compared to 2H-MoSe2. This shift is attributed to the evaporation of trapped DEG and the carbonization of a small amount of DEG, leading to the formation of graphene within the MoSe2 layers during the calcination process. Interestingly, after the thermal treatment, the peaks corresponding to the oxides (110) and (130) disappeared, indicating a reduction of the oxides present initially in the MoSe2 sample. The Raman spectra of both MoSe2 and MoSe2-Gr samples were displayed in Figure 1e. The vibration modes including E1g at 188.82 cm−1, out-of-plane A1g at 237.25 cm−1, and in-plane modes E12g and B12g at 280.35 cm−1 and 337.40 cm−1, respectively, can be observed. These modes correspond to the 2H phase of MoSe2, confirming the presence of MoSe2 in both samples [49,50,51,52]. The Raman shift results agree well with the XRD patterns, confirming the successful formation of 2H-MoSe2. Additionally, in the Raman spectrum of the MoSe2-Gr sample, two broad bands were observed. The band at approximately 1352.40 cm−1 corresponds to the D-band, while the band at around 1599.29 cm−1 represents the G-band, both characteristic of graphene. The G-band rose from the bond stretching between all pairs of sp2 atoms in both rings and chains of graphene, indicating the presence of a well-ordered carbon lattice. On the other hand, the D-band was associated with disordered carbon defects or disorder-induced phonon scattering in graphene sheets. These defects can arise from the carbonization of trapped DEG during thermal treatment, resulting in the formation of graphene within the MoSe2 layers. The observation of these bands further supported the presence of graphene in the MoSe2-Gr sample.
The crystal lattices of the MoSe2-Gr sample were further investigated using HR-TEM. Figure 2a displays the HR-TEM image, which reveals that the interplanar spacing of the MoSe2-Gr sample measures 0.73 nm, which can be attributed to the expanded interlayer distance of MoSe2, specifically of the (002) facet. It is important to note that the standard interplanar distance of the MoSe2 (002) plane is typically 0.65 nm. This implies the widening of the interlayer spacing of MoSe2 in the MoSe2-Gr sample. This broadened interplanar spacing observed in the MoSe2-Gr sample suggests that the in situ formed graphene during the calcination was incorporated within the interlayer of MoSe2. Furthermore, the HR-TEM image (Figure 2a) shows an additional d-spacing of 0.33 nm corresponding to the characteristic d-spacing of graphene. This observation further supports the presence of graphene within the MoSe2-Gr sample. Moreover, the selected area electron diffraction (SAED) patterns in Figure 2b reveal that the MoSe2-Gr sample has a polycrystalline structure. The diffraction rings observed in the SAED patterns correspond well with the (100), (103), and (110) planes of the hexagonal 2H-MoSe2 phase, which is consistent with the results obtained from the XRD analysis. Taken together, the XRD, Raman, and HR-TEM data provide conclusive evidence for the in-situ formation and incorporation of graphene within the interlayers of MoSe2 in the MoSe2-Gr sample.
Figure 3a–e displayed the TEM image, STEM-based high-angle annular dark-field (HAADF-STEM) image, and the corresponding TEM-based EDX elemental mapping images of Mo, Se, and C in the MoSe2-Gr sample. These images demonstrate a homogeneous distribution of each constituent in the MoSe2-Gr sample. Additionally, Figure 3f displays the EDX spectrum of the MoSe2-Gr sample along with the atomic percentages of each element obtained from TEM-EDX-based analysis. The atomic percentages of Mo and Se were measured to be 11.15 and 23.50%, respectively, which closely align with the expected 1:2 ratio of MoSe2. Since carbon-supported grids were employed for TEM characterization, the carbon content in the sample could not be measured precisely via TEM-based EDX analysis. As a result, for the analysis of carbon content, elemental analysis (N, C, and H) in the MoSe2 and MoSe2-Gr samples was conducted using an elemental analyzer (FLASH EA1112). The results are listed in Table 1. The MoSe2 sample exhibited a C content of 11.632 wt%. while the MoSe2-Gr sample showed a decrease in C content to 7.210 wt%. This can be due to the evaporation of DEG and the formation of graphene by thermal treatment, leading to a decrease in the C content, while the N content, which could be detected from contamination from the background surrounding remained relatively unchanged. Overall, the TEM-EDX analysis, along with the elemental analysis provided information on the elemental composition and distribution in the MoSe2-Gr sample, confirming the successful integration of graphene into the MoSe2 structure.
The HER performance of the MoSe2, MoSe2-Gr, and the benchmark Pt/C electrocatalysts was evaluated in a typical three-electrode electrochemical cell. The working electrode was a drop-casted catalyst film on a GEC electrode. Prior to the measurements, the working electrodes were activated and stabilized via cycling at a scanning rate of 50 mVs−1 in a potential window of +0.1 to −0.4 V vs. RHE until constant voltammograms were obtained. The electrocatalytic activity for the HER was accessed via linear sweep voltammograms (LSV) recorded without an iR correction. Figure 4a displays the cathodic LSV curves of MoSe2 and MoSe2-Gr in 0.5 M H2SO4 solution. In addition, a commercial 20 wt.% Pt/C, which is often employed as the state-of-the-art HER electrocatalyst was also measured as the benchmark HER catalyst. The benchmark Pt/C electrocatalyst exhibited a nearly zero onset potential, reflecting superior catalytic activity toward HER. The LSV curve of the as-synthesized MoSe2 sample demonstrated poorer catalytic performance, which is indicated by a high overpotential of 512 mV required to achieve an HER current density of −10 mA·cm−2. However, after the thermal treatment, the obtained MoSe2-Gr catalyst showed significantly improved HER activity compared to that of the MoSe2 catalyst. This improvement is evident by the considerably reduced overpotential of MoSe2-Gr, measuring 161 mV vs. RHE to drive an HER current density of −10 mA·cm−2. Interestingly, the MoSe2-Gr catalyst achieved an HER current density of −50 mA·cm−2 at an overpotential of 250 mV vs. RHE, which is closer to that of the benchmark Pt/C (230 mV) shown in Figure 4a. Figure 4b provided a detailed comparison of the HER overpotentials of MoSe2, MoSe2-Gr, and the benchmark Pt/C. This comparison highlights the superior electrocatalytic performance of MoSe2-Gr, exhibiting lower overpotentials compared to MoSe2. Most importantly, the HER catalytic activity of the MoSe2-Gr approached the performance of the benchmark Pt/C catalyst when the HER was performed at ca. −50 mA·cm−2. Furthermore, the MoSe2-Gr even exhibited a superior HER catalytic performance, particularly when the HER was performed at a current density higher than ca. −55 mA·cm−2. Specifically, the MoSe2-Gr achieved −150 mA·cm−2 HER current density at an overpotential of 350 mV, while the benchmark Pt/C catalyst could achieve this current density only at a significantly higher HER overpotential of 591 mV (Figure 4a,b).
The geometrical area-based current density discussed above in fact depends on the morphology of the deposited film in the given mass loading of the catalyst. Therefore, to examine the intrinsic catalytic activity of the catalysts toward HER, the mass activity-based LSV polarization curves of the MoSe2, MoSe2-Gr, and the benchmark Pt/C were measured and presented in Figure S2a. In addition, the corresponding mass activity profile at a given HER overpotential was also displayed in Figure S2b. In line with the geometrical area-based HER activity, the MoSe2-Gr catalyst exhibited significantly higher mass activity toward HER compared to that of the as-prepared pristine MoSe2 catalyst. Furthermore, the MoSe2-Gr catalyst demonstrated a comparable mass activity to that of the Pt/C at an overpotential of 250 mV. Beyond this, the MoSe2-Gr catalyst even exhibited superior mass activity toward the HER, indicating its excellent electrocatalytic performance. The Tafel slope, which is a fundamental parameter in evaluating the HER kinetics of electrocatalysts, was shown in Figure 4c. The corresponding Tafel slopes of MoSe2, MoSe2-Gr, and Pt/C in a 0.5 M H2SO4 electrolyte were determined to be 95, 67, and 51 mV.dec−1, respectively. A lower Tafel slope indicates that the HER took place at a faster rate on the surface of the MoSe2-Gr catalyst-based cathode compared to that of the MoSe2 catalyst. This finding suggests that the MoSe2-Gr catalyst had an enhanced HER kinetic, further supporting its superior electrocatalytic performance. The electrochemical impedance spectroscopy (EIS) of MoSe2 and MoSe2-Gr was applied to gain insights into their electrochemical kinetics. Figure 4d shows the Nyquist plots obtained from the EIS, which reveal that the charge transfer resistance for the HER process at the MoSe2-Gr/electrolyte interface is significantly lower compared to that at the MoSe2/electrolyte interface. This can be attributed to the expanded interlayer spacing of MoSe2 and the presence of graphene in the MoSe2-Gr catalyst. The hybrid structure of the MoSe2-Gr catalyst has, thus, provided a higher surface area and more active sites, facilitating the movement of electrons and ions between the catalyst and electrolyte. This may be the key reason for an improved HER performance of the MoSe2-Gr catalyst. Furthermore, the electrocatalytic HER performance of the MoSe2-Gr catalyst in 0.5 M H2SO4 is highly competitive with other MoSe2-based composites, as indicated in Table S1. This demonstrates the favorable performance and potential applicability of the MoSe2-Gr catalyst designed in this work for green hydron production via HER.
The MoSe2-Gr electrode was subjected to a chronopotentiometry test at a cathodic bias of −10 mA.cm−2 to evaluate its electrochemical stability. The resulting chronopotentiometry trace, as shown in Figure 5a, indicates that the MoSe2-Gr electrode exhibited excellent endurance over a period of 24 h. Furthermore, after the stability test for 24 h, a similar linear sweep voltammogram curve of the MoSe2-Gr catalyst to that of the one before the stability test was recorded, as displayed in Figure 5b. This finding confirms the long-term electrochemical stability of the MoSe2-Gr catalyst during HER in acidic electrolytes. The electrode maintained its catalytic activity and performance even after the extended operation, highlighting its potential for practical applications requiring sustained electrochemical performance.

4. Conclusions

In summary, a facile but novel two-step synthesis strategy involving the combination of solvothermal reaction and calcination of the product was successfully employed to fabricate the MoSe2-Gr composite. The resulting MoSe2-Gr composite exhibited highly competitive electrochemical catalytic performance for the hydrogen evolution reaction (HER) in an acidic medium. The designed MoSe2-Gr catalyst demonstrated a significantly improved catalytic activity compared to the as-prepared pristine MoSe2 with a lower Tafel slope of 67 mV dec−1 and a lower benchmark HER overpotential of 161 mV to drive the electrolysis at −10 mAcm−2. Remarkably, the MoSe2-Gr catalyst exhibited a closer HER catalytic activity to that of the state-of-the-art Pt/C catalyst at a catalytic current density of ca. −50 mA cm−2. Furthermore, extending the electrolysis for HER beyond ca. −55 mA cm−2, a superior HER catalytic activity than that of the benchmark Pt/C catalyst was achieved. The enhanced and superior HER performance of the MoSe2-Gr catalyst can be attributed to the in situ integrated graphene into the MoSe2 layers resulting in an interlayer expansion. This enhanced the surface area and concentration of HER active edge sites. Additionally, the larger interlayer spacing of the MoSe2-Gr composite might have facilitated the free movement of charges and ions between the MoSe2 interlayers and electrolytes, further enhancing the catalytic activity. Moreover, the MoSe2-Gr catalyst exhibited long-term electrochemical stability against HER in acidic electrolytes. These findings may open an avenue to the development of efficient and sustainable electrocatalysts for green energy conversion and storage.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano13142139/s1, Figure S1: BET surface area analysis results; Figure S2: Mass activity-based cathodic polarization curves and HER activity at difference overpotentials; Table S1: HER performance comparison of MoSe2 and their carbonous composites.

Author Contributions

The authors of the manuscript made the following contributions: H.T.B., N.K.S., and N.T.T.: conceptualization, investigation, writing—original draft preparation; N.D.L., D.C.L., and N.T.M.: sample preparation, investigation, characterization; V.T.K.O., A.T.P. and H.C.: samples characterizations; S.A.P. and S.-H.H.: writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This work is funded by the Vietnam Academy of Science and Technology under grant number TĐHYD0.04/22-24.

Data Availability Statement

The data presented in this study are available in this article and Supplementary Materials.

Acknowledgments

N.T.T and H.T.B acknowledge support from the Vietnam Academy of Science and Technology (under grant number TĐHYD0.04/22-24). H.T.B. would like to thank Nguyen Hong Nam (University of Science and Technology of Ha Noi, VAST) for his BET measurement support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Looney, B. Statistical Review of World Energy Globally Consistent Data on World Energy Markets and Authoritative Publications in the Field of Energy. BP Energy Outlook 2021, 70, 8–20. [Google Scholar]
  2. Brockway, P.E.; Owen, A.; Brand-Correa, L.I.; Hardt, L. Estimation of Global Final-Stage Energy-Return-on-Investment for Fossil Fuels with Comparison to Renewable Energy Sources. Nat. Energy 2019, 4, 612–621. [Google Scholar] [CrossRef] [Green Version]
  3. Shindell, D.; Smith, C.J. Climate and Air-Quality Benefits of a Realistic Phase-out of Fossil Fuels. Nature 2019, 573, 408–411. [Google Scholar] [CrossRef] [Green Version]
  4. Zaman, S.; Chen, S. A Perspective on Inaccurate Measurements in Oxygen Reduction and Carbon Di-oxide Reduction Reactions. J. Catal. 2023, 421, 221–227. [Google Scholar] [CrossRef]
  5. Körner, A.; Tam, C.; Bennett, S.; Gagné, J. Technology Roadmap-Hydrogen and Fuel Cells; International Energy Agency (IEA): Paris, France, 2015. [Google Scholar]
  6. Hosseini, S.E.; Wahid, M.A. Hydrogen Production from Renewable and Sustainable Energy Resources: Promising Green Energy Carrier for Clean Development. Renew. Sustain. Energy Rev. 2016, 57, 850–866. [Google Scholar] [CrossRef]
  7. Mazloomi, K.; Gomes, C. Hydrogen as an Energy Carrier: Prospects and Challenges. Renew. Sustain. Energy Rev. 2012, 16, 3024–3033. [Google Scholar] [CrossRef]
  8. Møller, K.T.; Jensen, T.R.; Akiba, E.; Li, H. wen Hydrogen—A Sustainable Energy Carrier. Prog. Nat. Sci. Mater. Int. 2017, 27, 34–40. [Google Scholar] [CrossRef]
  9. Sharma, S.; Agarwal, S.; Jain, A. Significance of Hydrogen as Economic and Environmentally Friendly Fuel. Energies 2021, 14, 7389. [Google Scholar] [CrossRef]
  10. Zaman, S.; Wang, M.; Liu, H.; Sun, F.; Yu, Y.; Shui, J.; Chen, M.; Wang, H. Carbon-Based Catalyst Supports for Oxygen Reduction in Proton-Exchange Membrane Fuel Cells. Trends Chem. 2022, 4, 886–906. [Google Scholar] [CrossRef]
  11. Zaman, S.; Su, Y.-Q.; Dong, C.-L.; Qi, R.; Huang, L.; Qin, Y.; Huang, Y.-C.; Li, F.-M.; You, B.; Guo, W.; et al. Scalable Molten Salt Synthesis of Platinum Alloys Planted in Metal–Nitrogen–Graphene for Efficient Oxygen Reduction. Angew. Chem. Int. Ed. 2022, 61, e202115835. [Google Scholar] [CrossRef]
  12. Holladay, J.D.; Hu, J.; King, D.L.; Wang, Y. An Overview of Hydrogen Production Technologies. Catal. Today 2009, 139, 244–260. [Google Scholar] [CrossRef]
  13. Hota, P.; Das, A.; Maiti, D.K. A Short Review on Generation of Green Fuel Hydrogen through Water Splitting. Int. J. Hydrog. Energy 2023, 48, 523–541. [Google Scholar] [CrossRef]
  14. Cheng, N.; Stambula, S.; Wang, D.; Banis, M.N.; Liu, J.; Riese, A.; Xiao, B.; Li, R.; Sham, T.-K.; Liu, L.-M.; et al. Platinum Single-Atom and Cluster Catalysis of the Hydrogen Evolution Reaction. Nat. Commun. 2016, 7, 13638. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Gasteiger, H.A.; Kocha, S.S.; Sompalli, B.; Wagner, F.T. Activity Benchmarks and Requirements for Pt, Pt-Alloy, and Non-Pt Oxygen Reduction Catalysts for PEMFCs. Appl. Catal. B Environ. 2005, 56, 9–35. [Google Scholar] [CrossRef]
  16. Roger, I.; Shipman, M.A.; Symes, M.D. Earth-Abundant Catalysts for Electrochemical and Photoelectrochemical Water Splitting. Nat. Rev. Chem. 2017, 1, 3. [Google Scholar] [CrossRef]
  17. Eftekhari, A. Electrocatalysts for Hydrogen Evolution Reaction. Int. J. Hydrog. Energy 2017, 42, 11053–11077. [Google Scholar] [CrossRef]
  18. Wei, J.; Zhou, M.; Long, A.; Xue, Y.; Liao, H.; Wei, C.; Xu, Z.J. Heterostructured Electrocatalysts for Hydrogen Evolution Reaction Under Alkaline Conditions. Nano-Micro Lett. 2018, 10, 75. [Google Scholar] [CrossRef] [Green Version]
  19. Mohammed-Ibrahim, J.; Xiaoming, S.; Sun, X. Recent Progress on Earth Abundant Electrocatalysts for Hydrogen Evolution Reaction (HER) in Alkaline Medium to Achieve Efficient Water Splitting—A Review. J. Energy Chem. 2019, 34, 111–160. [Google Scholar] [CrossRef]
  20. Abdelghafar, F.; Xu, X.; Jiang, S.P.; Shao, Z. Designing Single-Atom Catalysts toward Improved Alkaline Hydrogen Evolution Reaction. Mater. Rep. Energy 2022, 2, 100144. [Google Scholar] [CrossRef]
  21. Xu, X.; Shao, Z.; Jiang, S.P. High-Entropy Materials for Water Electrolysis. Energy Technol. 2022, 10, 2200573. [Google Scholar] [CrossRef]
  22. Huang, L.; Wei, M.; Zaman, S.; Ali, A.; Xia, B.Y. Well-Connection of Micro-Platinum and Cobalt Oxide Flower Array with Optimized Water Dissociation and Hydrogen Recombination for Efficient Overall Water Splitting. Chem. Eng. J. 2020, 398, 125669. [Google Scholar] [CrossRef]
  23. Choi, W.; Choudhary, N.; Han, G.H.; Park, J.; Akinwande, D.; Lee, Y.H. Recent Development of Two-Dimensional Transition Metal Dichalcogenides and Their Applications. Mater. Today 2017, 20, 116–130. [Google Scholar] [CrossRef]
  24. Shi, Y.; Li, H.; Li, L.-J. Recent Advances in Controlled Synthesis of Two-Dimensional Transition Metal Dichalcogenides via Vapour Deposition Techniques. Chem. Soc. Rev. 2015, 44, 2744–2756. [Google Scholar] [CrossRef]
  25. Ahmed, S.; Yi, J. Two-Dimensional Transition Metal Dichalcogenides and Their Charge Carrier Mobilities in Field-Effect Transistors. Nano-Micro Lett. 2017, 9, 50. [Google Scholar] [CrossRef] [PubMed]
  26. Eftekhari, A. Molybdenum Diselenide (MoSe2) for Energy Storage, Catalysis, and Optoelectronics. Appl. Mater. Today 2017, 8, 1–17. [Google Scholar] [CrossRef]
  27. Duan, X.; Wang, C.; Pan, A.; Yu, R.; Duan, X. Two-Dimensional Transition Metal Dichalcogenides as Atomically Thin Semiconductors: Opportunities and Challenges. Chem. Soc. Rev. 2015, 44, 8859–8876. [Google Scholar] [CrossRef]
  28. Han, J.; Jang, H.; Thi Bui, H.; Jahn, M.; Ahn, D.; Cho, K.; Jun, B.; Lee, S.U.; Sabine, S.; Stöger-Pollach, M.; et al. Stable Performance of Li-S Battery: Engineering of Li2S Smart Cathode by Reduction of Multilayer Graphene-Embedded 2D-MoS2. J. Alloys Compd. 2020, 862, 158031. [Google Scholar] [CrossRef]
  29. Bui, H.T.; Jang, H.; Ahn, D.; Han, J.; Sung, M.; Kutwade, V.; Patil, M.; Sharma, R.; Han, S.-H. High-Performance Li-Se Battery: Li2Se Cathode as Intercalation Product of Electrochemical in Situ Reduction of Multilayer Graphene-Embedded 2D-MoSe2. Electrochim. Acta 2021, 368, 137556. [Google Scholar] [CrossRef]
  30. Pak, S.; Lim, J.; Hong, J.; Cha, S. Enhanced Hydrogen Evolution Reaction in Surface Functionalized Mos2 Monolayers. Catalysts 2021, 11, 70. [Google Scholar] [CrossRef]
  31. Zhu, K.; Li, C.; Jing, Z.; Liu, X.; He, Y.; Lv, X.; Wang, Y.; Liu, K. Two-Dimensional Transition-Metal Dichalcogenides for Electrochemical Hydrogen Evolution Reaction. FlatChem 2019, 18, 100140. [Google Scholar] [CrossRef]
  32. Voiry, D.; Yang, J.; Chhowalla, M. Recent Strategies for Improving the Catalytic Activity of 2D TMD Nanosheets Toward the Hydrogen Evolution Reaction. Adv. Mater. 2016, 28, 6197–6206. [Google Scholar] [CrossRef]
  33. Xu, Y.; Ge, R.; Yang, J.; Li, J.; Li, S.; Li, Y.; Zhang, J.; Feng, J.; Liu, B.; Li, W. Molybdenum Disulfide (MoS2)-Based Electrocatalysts for Hydrogen Evolution Reaction: From Mechanism to Manipulation. J. Energy Chem. 2022, 74, 45–71. [Google Scholar] [CrossRef]
  34. Van Nguyen, T.; Tekalgne, M.; Nguyen, T.P.; Van Le, Q.; Ahn, S.H.; Kim, S.Y. Electrocatalysts Based on MoS2 and WS2 for Hydrogen Evolution Reaction: An Overview. Battery Energy 2023, 2, 20220057. [Google Scholar] [CrossRef]
  35. Liu, Z.; Li, N.; Zhao, H.; Du, Y. Colloidally Synthesized MoSe2/Graphene Hybrid Nanostructures as Efficient Electrocatalysts for Hydrogen Evolution. J. Mater. Chem. A 2015, 3, 19706–19710. [Google Scholar] [CrossRef]
  36. Mao, S.; Wen, Z.; Ci, S.; Guo, X.; Ostrikov, K.; Chen, J. Perpendicularly Oriented MoSe2/Graphene Nanosheets as Advanced Electrocatalysts for Hydrogen Evolution. Small 2015, 11, 414–419. [Google Scholar] [CrossRef]
  37. Zhang, L.; Lei, Y.; Zhou, D.; Xiong, C.; Jiang, Z.; Li, X.; Shang, H.; Zhao, Y.; Chen, W.; Zhang, B. Interfacial Engineering of 3D Hollow CoSe2@ultrathin MoSe2 Core@shell Heterostructure for Efficient PH-Universal Hydrogen Evolution Reaction. Nano Res. 2022, 15, 2895–2904. [Google Scholar] [CrossRef]
  38. Tang, H.; Dou, K.; Kaun, C.-C.; Kuang, Q.; Yang, S. MoSe2 Nanosheets and Their Graphene Hybrids: Synthesis, Characterization and Hydrogen Evolution Reaction Studies. J. Mater. Chem. A 2014, 2, 360–364. [Google Scholar] [CrossRef]
  39. Bui, H.T.; Linh, D.C.; Nguyen, L.D.; Chang, H.; Patil, S.A.; Shrestha, N.K.; Bui, K.X.; Bui, T.S.; Nguyen, T.N.A.; Tung, N.T.; et al. In-Situ Formation and Integration of Graphene into MoS2 Interlayer Spacing: Expansion of Interlayer Spacing for Superior Hydrogen Evolution Reaction in Acidic and Alkaline Electrolyte. J. Mater. Sci. 2022, 57, 18993–19005. [Google Scholar] [CrossRef]
  40. Huang, S.-Y.; Le, P.-A.; Nguyen, V.-T.; Lu, Y.-C.; Sung, C.-W.; Cheng, H.-W.; Hsiao, C.-Y.; Dang, V.D.; Chiu, P.-W.; Wei, K.-H. Surface Plasma–Induced Tunable Nitrogen Doping through Precursors Provides 1T-2H MoSe2/Graphene Sheet Composites as Electrocatalysts for the Hydrogen Evolution Reaction. Electrochim. Acta 2022, 426, 140767. [Google Scholar] [CrossRef]
  41. Ren, X.; Yao, Y.; Ren, P.; Wang, Y.; Peng, Y. Facile Sol-Gel Synthesis of C@MoSe2 Core-Shell Composites as Advanced Hydrogen Evolution Reaction Catalyst. Mater. Lett. 2019, 238, 286–289. [Google Scholar] [CrossRef]
  42. Chen, W.; Qiao, R.; Song, C.; Zhao, L.; Jiang, Z.-J.; Maiyalagan, T.; Jiang, Z. Tailoring the Thickness of MoSe2 Layer of the Hierarchical Double-Shelled N-Doped Carbon@MoSe2 Hollow Nanoboxes for Efficient and Stable Hydrogen Evolution Reaction. J. Catal. 2020, 381, 363–373. [Google Scholar] [CrossRef]
  43. Zheng, D.; Cheng, P.; Yao, Q.; Fang, Y.; Yang, M.; Zhu, L.; Zhang, L. Excess Se-Doped MoSe2 and Nitrogen-Doped Reduced Graphene Oxide Composite as Electrocatalyst for Hydrogen Evolution and Oxygen Reduction Reaction. J. Alloys Compd. 2020, 848, 156588. [Google Scholar] [CrossRef]
  44. Bui, H.T.; Shrestha, N.K.; Khadtare, S.; Bathula, C.D.; Giebeler, L.; Noh, Y.-Y.Y.; Han, S.H. Anodically Grown Binder-Free Nickel Hexacyanoferrate Film: Toward Efficient Water Reduction and Hexacyanoferrate Film Based Full Device for Overall Water Splitting. ACS Appl. Mater. Interfaces 2017, 9, 18015–18021. [Google Scholar] [CrossRef] [PubMed]
  45. Bui, H.T.; Ahn, D.Y.; Shrestha, N.K.; Sung, M.M.; Lee, J.K.; Han, S.H. Self-Assembly of Cobalt Hexacyanoferrate Crystals in 1-D Array Using Ion Exchange Transformation Route for Enhanced Electrocatalytic Oxidation of Alkaline and Neutral Water. J. Mater. Chem. A 2016, 4, 9781–9788. [Google Scholar] [CrossRef]
  46. Silva, M.M.S.; Raimundo, R.A.; Silva, T.R.; Araújo, A.J.M.; Macedo, D.A.; Morales, M.A.; Souza, C.P.; Santos, A.G.; Lopes-Moriyama, A.L. Morphology-Controlled NiFe2O4 Nanostructures: Influence of Calcination Temperature on Structural, Magnetic and Catalytic Properties towards OER. J. Electroanal. Chem. 2023, 933, 117277. [Google Scholar] [CrossRef]
  47. Feng, J.; Sun, X.; Wu, C.; Peng, L.; Lin, C.; Hu, S.; Yang, J.; Xie, Y. Metallic Few-Layered VS2 Ultrathin Nanosheets: High Two-Dimensional Conductivity for In-Plane Supercapacitors. J. Am. Chem. Soc. 2011, 133, 17832–17838. [Google Scholar] [CrossRef] [PubMed]
  48. Lin, Q.; Dong, X.; Wang, Y.; Zheng, N.; Zhao, Y.; Xu, W.; Ding, T. Molybdenum Disulfide with Enlarged Interlayer Spacing Decorated on Reduced Graphene Oxide for Efficient Electrocatalytic Hydrogen Evolution. J. Mater. Sci. 2020, 55, 6637–6647. [Google Scholar] [CrossRef]
  49. Wu, J.; Liu, Y.; Yao, Y.; Shao, Y.; Wu, X. Graphene-like 2H/1T-MoSe2 with Superior Full Spectrum Absorption: Morphology and Phase Engineering. J. Alloys Compd. 2021, 877, 160317. [Google Scholar] [CrossRef]
  50. Zhou, L.; Wu, R.; Jiang, Y.; Li, Z.; Wei, S. Construction of Heterogeneous 1T/2H MoSe2 Homojunction Nanosheets with Excellent Broad-Spectrum Photocatalytic Activity. J. Mater. Sci. 2022, 57, 14386–14397. [Google Scholar] [CrossRef]
  51. Jiang, Z.; Wang, Y.; Yuan, S.; Shi, L.; Wang, N.; Xiong, J.; Lai, W.; Wang, X.; Kang, F.; Lin, W.; et al. Ultrahigh-Working-Frequency Embedded Supercapacitors with 1T Phase MoSe2 Nanosheets for System-in-Package Application. Adv. Funct. Mater. 2019, 29, 1807116. [Google Scholar] [CrossRef]
  52. Sekine, T.; Izumi, M.; Nakashizu, T.; Uchinokura, K.; Matsuura, E. Raman Scattering and Infrared Reflectance in 2H-MoSe2. J. Phys. Soc. Jpn. 1980, 49, 1069–1077. [Google Scholar] [CrossRef]
Nanomaterials 13 02139 g001 550

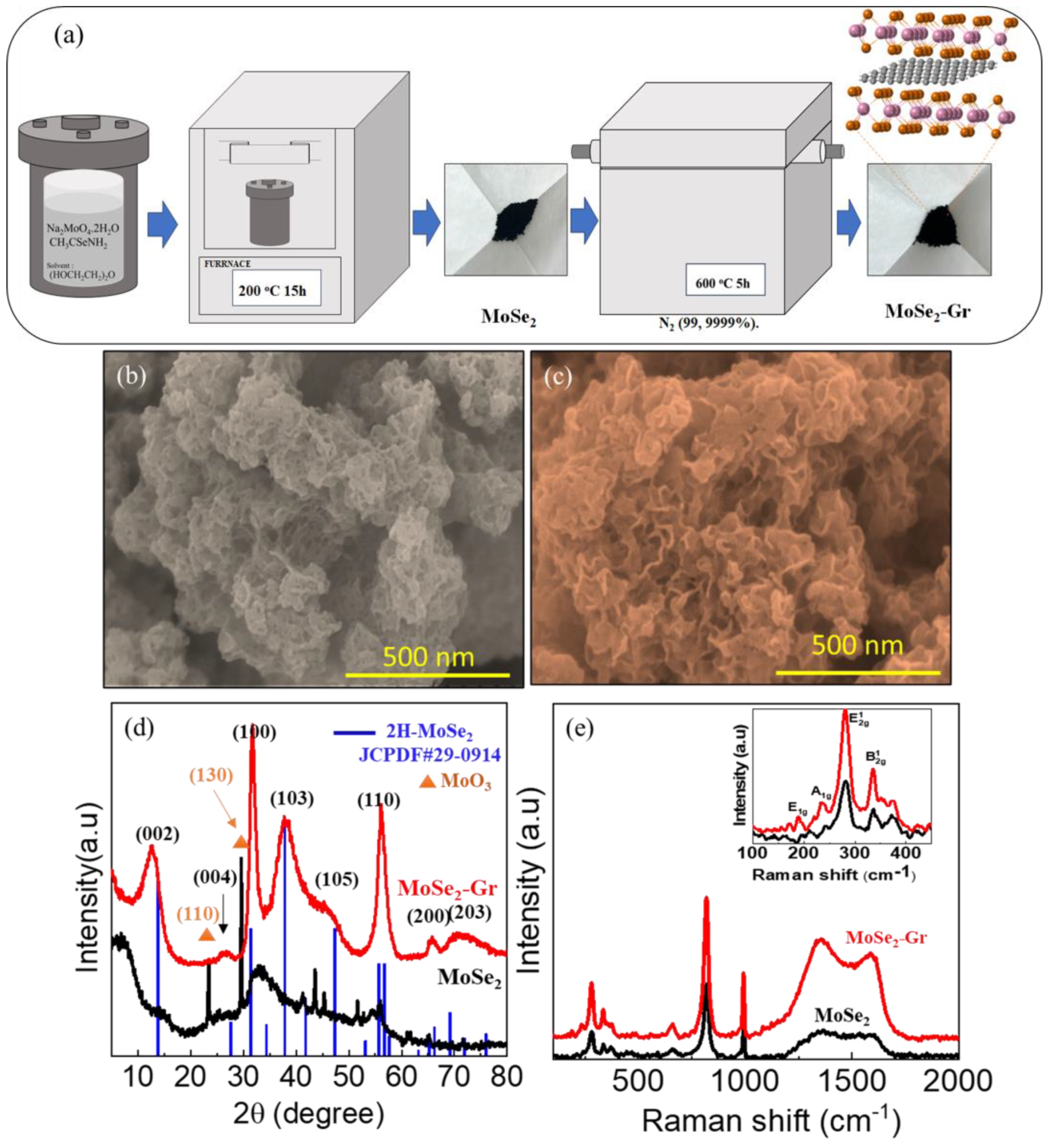

Figure 1. (a) Schematic diagram displaying the synthesis process of MoSe2 and MoSe2-Gr. SEM images of (b) MoSe2 and (c) MoSe2-Gr; (d) XRD patterns, and (e) Raman spectra of MoSe2 and MoSe2-Gr (inset image shows Raman spectra of MoSe2 (black color) and MoSe2-Gr (red color) in the Raman shift of 100~450 cm−1).
Figure 1. (a) Schematic diagram displaying the synthesis process of MoSe2 and MoSe2-Gr. SEM images of (b) MoSe2 and (c) MoSe2-Gr; (d) XRD patterns, and (e) Raman spectra of MoSe2 and MoSe2-Gr (inset image shows Raman spectra of MoSe2 (black color) and MoSe2-Gr (red color) in the Raman shift of 100~450 cm−1).
Nanomaterials 13 02139 g001
Nanomaterials 13 02139 g002 550

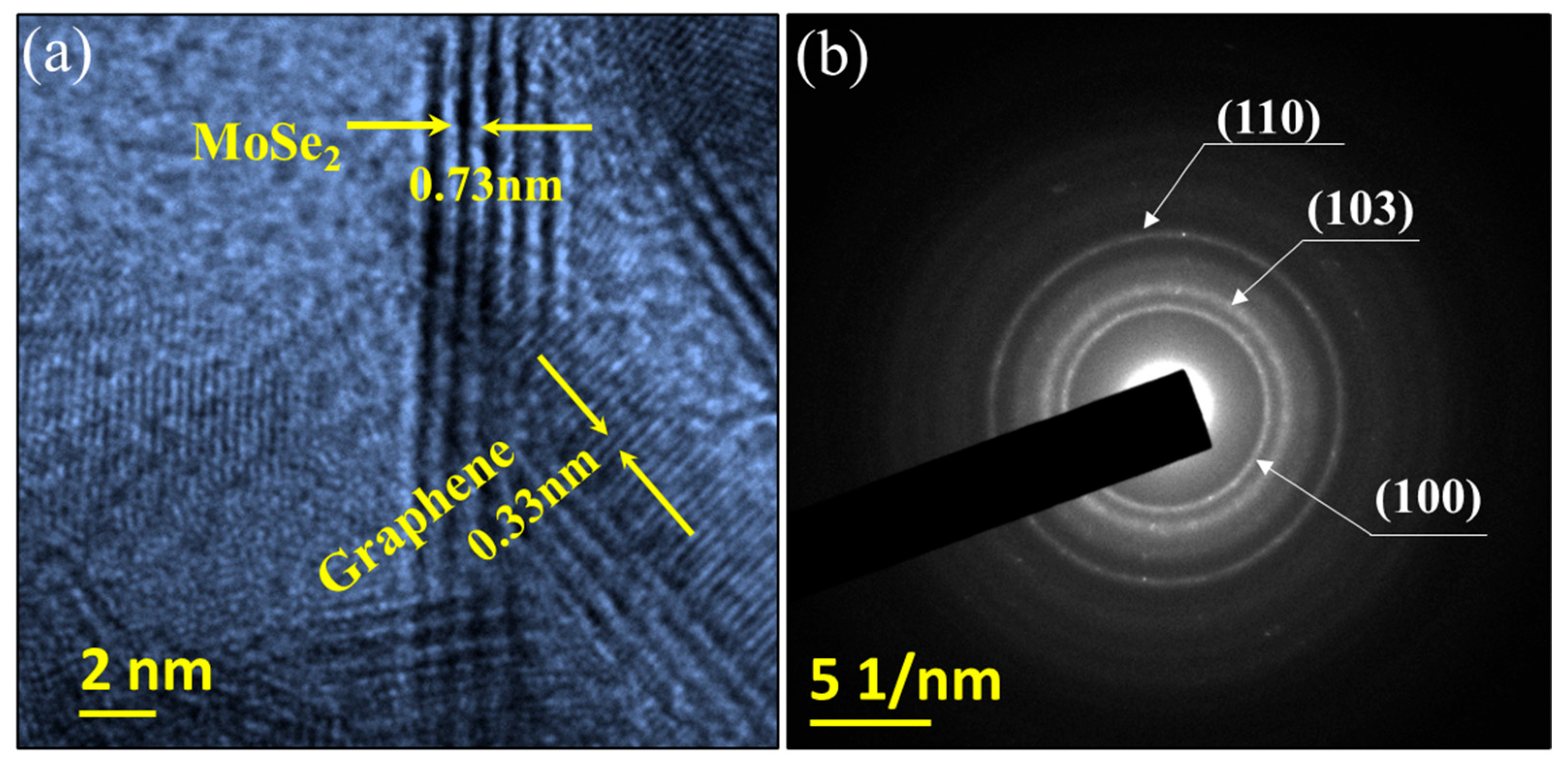

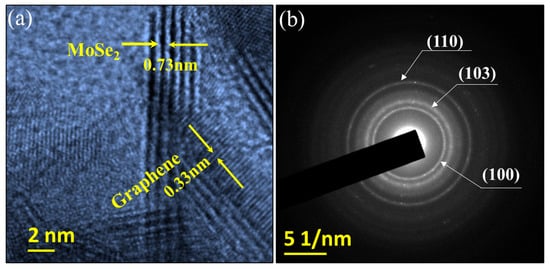

Figure 2. (a) HRTEM images and (b) selective area electron diffraction (SAED) patterns of MoSe2-Gr sample.
Figure 2. (a) HRTEM images and (b) selective area electron diffraction (SAED) patterns of MoSe2-Gr sample.
Nanomaterials 13 02139 g002
Nanomaterials 13 02139 g003 550

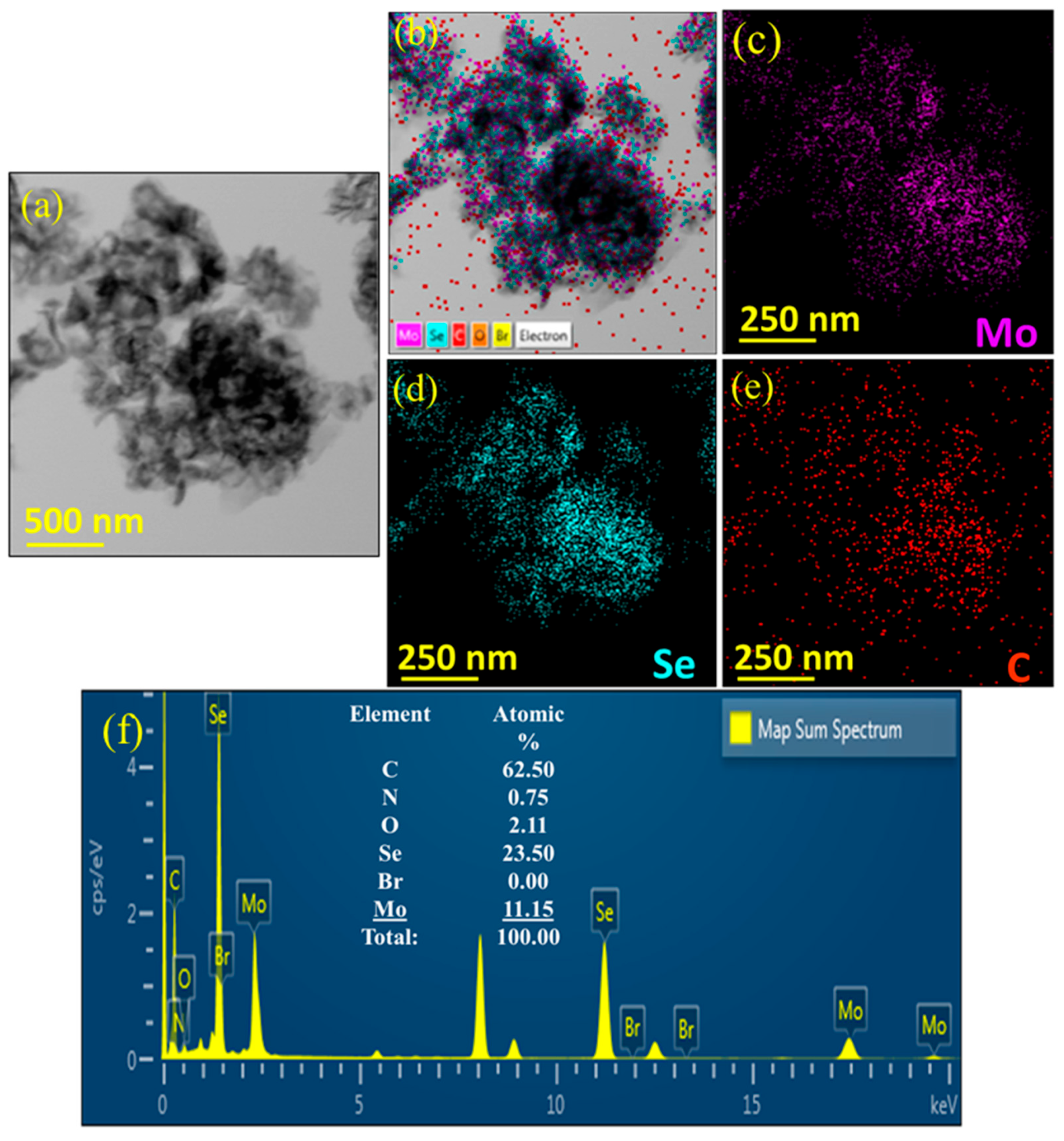

Figure 3. (a) TEM image, (b) HAADF-STEM image, and the corresponding TEM-EDX elemental mapping images of (c) Mo, (d) Se, and (e) C of the MoSe2-Gr sample. (f) EDX spectrum and the corresponding elemental atomic percentage of MoSe2-Gr sample.
Figure 3. (a) TEM image, (b) HAADF-STEM image, and the corresponding TEM-EDX elemental mapping images of (c) Mo, (d) Se, and (e) C of the MoSe2-Gr sample. (f) EDX spectrum and the corresponding elemental atomic percentage of MoSe2-Gr sample.
Nanomaterials 13 02139 g003
Nanomaterials 13 02139 g004 550

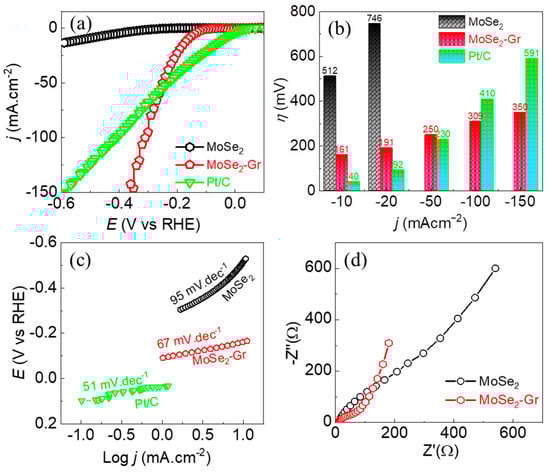

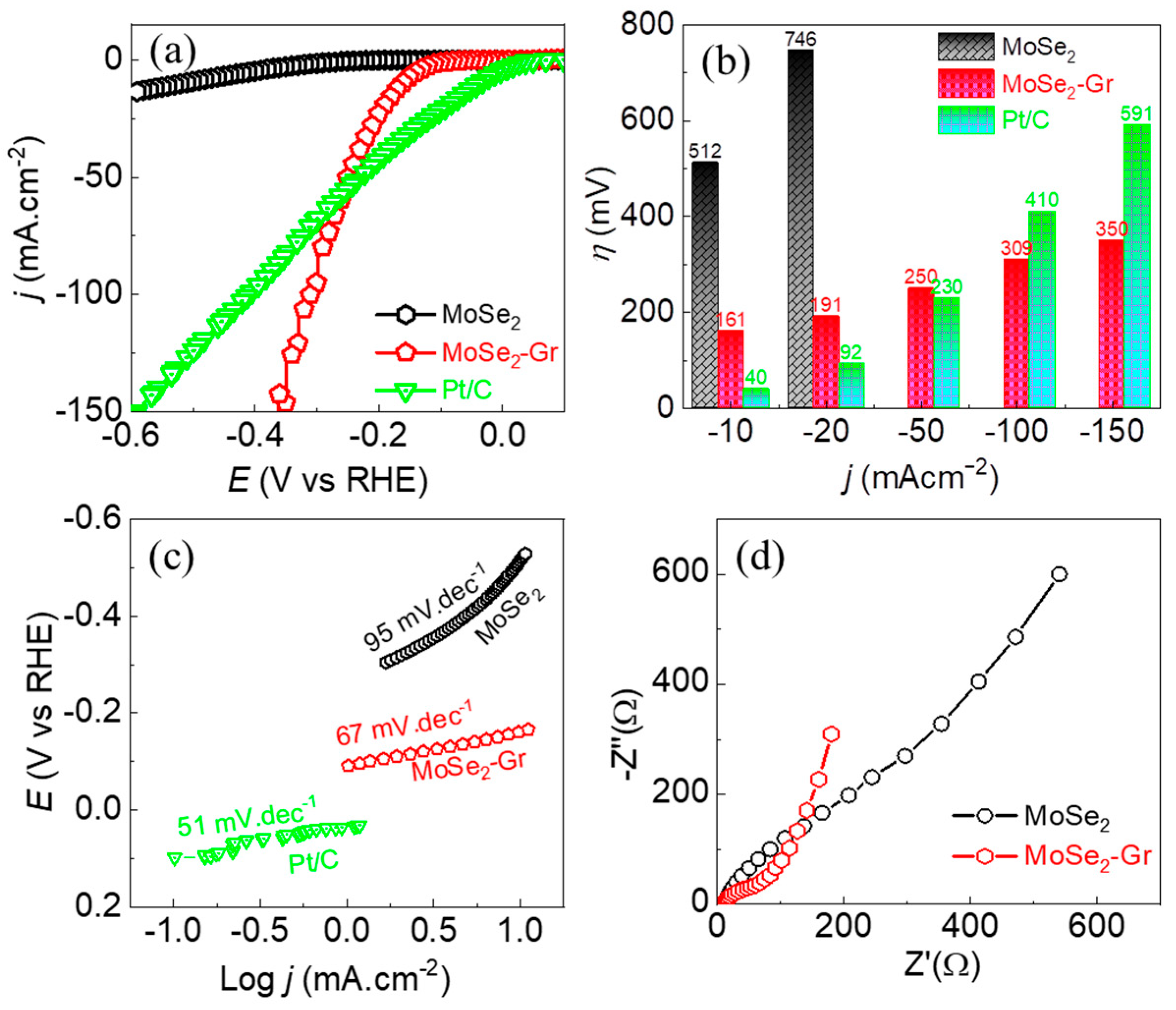

Figure 4. Electrochemical measurement for HER performance in 0.5 M H2SO4. (a) cathodic LSV curves, (b) corresponding HER overpotential vs. current density profile, (c) Tafel plots, and (d) electrochemical impedance spectra.
Figure 4. Electrochemical measurement for HER performance in 0.5 M H2SO4. (a) cathodic LSV curves, (b) corresponding HER overpotential vs. current density profile, (c) Tafel plots, and (d) electrochemical impedance spectra.
Nanomaterials 13 02139 g004
Nanomaterials 13 02139 g005 550

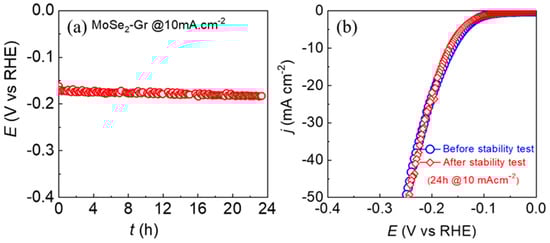

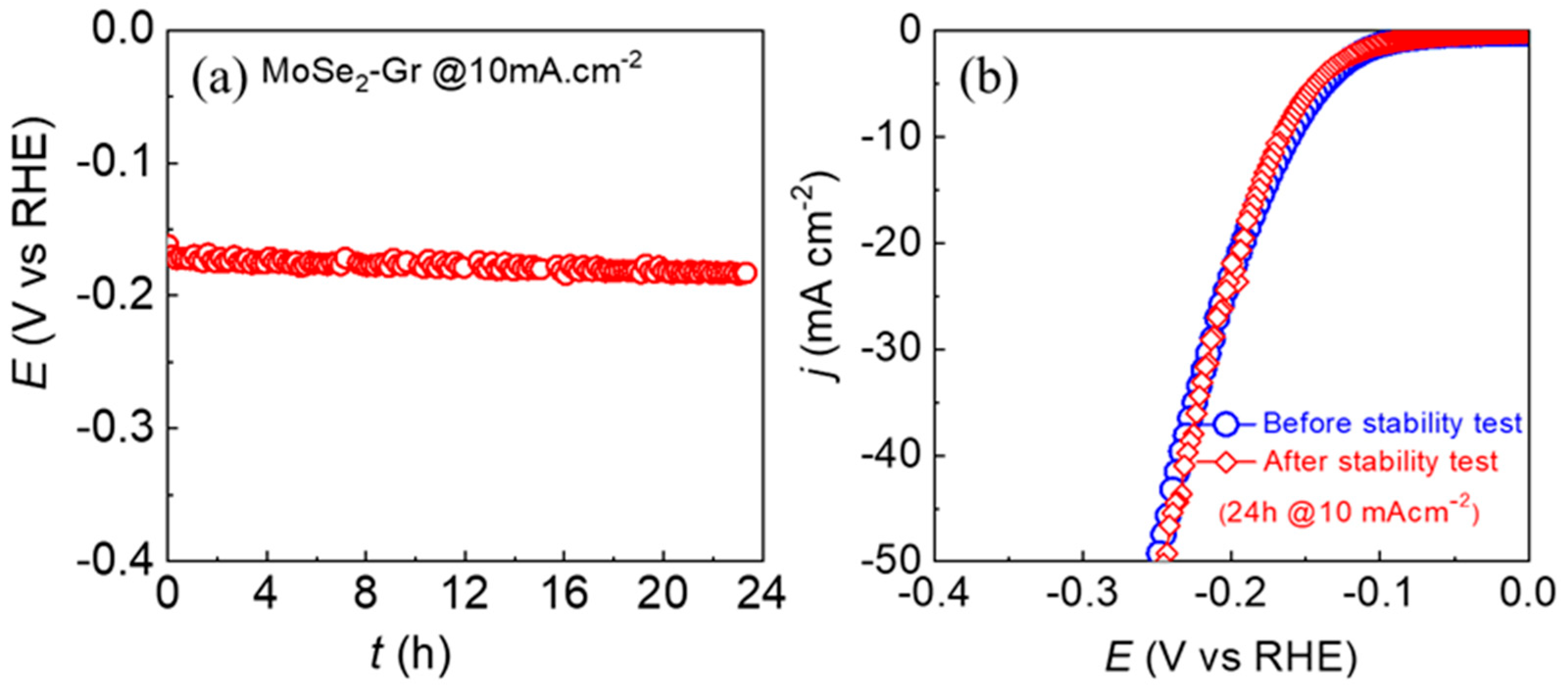

Figure 5. (a) Electrochemical stability test chronopotentiometric curve of MoSe2- Gr catalyst at an applied bias of −10 mAcm−2 in 0.5 M H2SO4, (b) the LSV curves of MoSe2- Gr against HER before and after 24 h durability test (a).
