Article

Zinc (Zn) Doping by Hydrothermal and Alkaline Heat-Treatment Methods on Titania Nanotube Arrays for Enhanced Antibacterial Activity

by
Abhishek Bhattacharjee
1,
Emma Goodall
2,
Bruno Leandro Pereira
3,
Paulo Soares
3 and
Ketul C. Popat
1,2,4,*
1
School of Advanced Materials Discovery, Colorado State University, Fort Collins, CO 80523, USA
2
School of Biomedical Engineering, Colorado State University, Fort Collins, CO 80523, USA
3
Department of Mechanical Engineering, Pontifícia Universidade Católica do Paraná, Curitiba 80215-901, PR, Brazil
4
Department of Mechanical Engineering, Colorado State University, Fort Collins, CO 80523, USA
*
Author to whom correspondence should be addressed.
Nanomaterials 2023, 13(10), 1606; https://doi.org/10.3390/nano13101606
Submission received: 11 April 2023 / Revised: 5 May 2023 / Accepted: 8 May 2023 / Published: 10 May 2023
(This article belongs to the Special Issue Green/Sustainable Synthesis of Nanomaterials: Theranostics, Immunomodulation and Environmental Applications)
Browse Figures
Versions Notes

Abstract

:
Titanium (Ti) is a popular biomaterial for orthopedic implant applications due to its superior mechanical properties such as corrosion resistance and low modulus of elasticity. However, around 10% of these implants fail annually due to bacterial infection and poor osseointegration, resulting in severe pain and suffering for the patients. To improve their performance, nanoscale surface modification approaches and doping of trace elements on the surfaces can be utilized which may help in improving cell adhesion for better osseointegration while reducing bacterial infection. In this work, at first, titania (TiO2) nanotube arrays (NT) were fabricated on commercially available pure Ti surfaces via anodization. Then zinc (Zn) doping was conducted following two distinct methods: hydrothermal and alkaline heat treatment. Scanning electron microscopic (SEM) images of the prepared surfaces revealed unique surface morphologies, while energy dispersive X-ray spectroscopy (EDS) revealed Zn distribution on the surfaces. Contact angle measurements indicated that NT surfaces were superhydrophilic. X-ray photoelectron spectroscopy (XPS) provided the relative amount of Zn on the surfaces and indicated that hydrothermally treated surfaces had more Zn compared to the alkaline heat-treated surfaces. X-ray crystallography (XRD) and nanoindentation techniques provided the crystal structure and mechanical properties of the surfaces. While testing with adipose-derived stem cells (ADSC), the surfaces showed no apparent cytotoxicity to the cells. Finally, bacteria adhesion and morphology were evaluated on the surfaces after 6 h and 24 h of incubation. From the results, it was confirmed that NT surfaces doped with Zn drastically reduced bacteria adhesion compared to the Ti control. Zn-doped NT surfaces thus offer a potential platform for orthopedic implant application.

1. Introduction

Every year, millions of people undergo surgeries that incorporate different orthopedic implants due to bone-related injuries or diseases such as rheumatoid arthritis and osteosarcoma. For these patients, undergoing implant surgery is one of the crucial treatment choices to maintain their quality of life [1]. Although implants can be made of metal, ceramic, polymer, or composite, around 70–80% of all implant materials are made from cobalt-chromium (CoCr) alloys, stainless steel (SS), and titanium (Ti) alloys [2]. Compared to the CoCr alloys and SS, Ti alloys are reported to be advantageous due to improved corrosion resistance, low modulus of elasticity, and biocompatibility [3]. Therefore, a huge amount of (around 1000 tons) Ti alloy implants are inserted in patients annually around the world [2]. However, around 10% of these implants fail each year resulting in revision surgeries and expensive medications throughout the rest of the patient’s lifetime [4]. One of the major reasons for orthopedic implant failures is a pathogenic infection caused by bacteria resulting in osteomyelitis. Bacteria can get attached to the implant surfaces and once in the body can proliferate, leading to biofilm formation and the subsequent failure of the implant [5]. Osteomyelitis can lead to devastating consequences for the patients, such as sepsis and prolonged hospitalization [6]. Along with osteomyelitis, another major complication of orthopedic implants is poor osseointegration [4,7,8]. Osseointegration deals with the anchorage of the implant by forming bone tissue around it without growing any fibrous tissue [9]. Successful osseointegration deals with many facts, including the biocompatibility, macroscopic, and microscopic surface properties of the implant along with the undisturbed healing process of the bone [10]. In the USA, around 1.2 million orthopedic implants are inserted in patients annually, of which 112,000 are projected to fail [11]. Complications and failures related to the implants also create a huge economic toll on society. It was estimated that implant-related medical costs climb up to $3 billion annually in the USA [7]. With an increasingly mobile human population, the number of bone-related injuries will increase along with the number of patients having orthopedic implants. This can result in a higher amount of implant failures. The economic burden and human suffering from pain related to complicated treatment procedures and repeated surgeries will also be the result of such a high number of implant failures.
There has been a lot of research into improving osseointegration and reducing bacteria adhesion on implant surfaces. The two major approaches for reducing bacterial adhesion while improving cell adhesion comprise surface coatings and surface modifications [12]. Modifications of implant surfaces such as the introduction of nanoscale surface characteristics have been reported to be effective in osteogenic cellular interaction and reducing bacterial adhesion on the surfaces. One popular approach to surface modification is a combination of grid-blasting and acid-etching. Pits and spike-like nanostructures are created on the surface by this modification technique that showed improved osseointegration [13,14,15,16,17]. Other methods of surface modification include chemical vapor deposition, sol-gel coatings, hydrothermal treatment, glow discharge plasma treatment, and ion implantation [18,19]. The major focus of these Ti surface modifications is to improve osseointegration to help in orthopedic disease treatment by Ti-based implants. It has been reported that increased hydrophilicity of the surfaces also helps in early osseointegration [20]. One of the quick, convenient, inexpensive, and highly tunable methods of preparing a super-hydrophilic Ti surface is by producing TiO2 nanotube arrays (NT) through anodization [19]. NT surfaces have shown cell adhesion to the implant surfaces that results in improved osseointegration [13,21,22,23]. Interestingly, NT surfaces also exhibit improved antibacterial activity [12,24]. This is a useful characteristic of the NT surfaces because they can promote osseointegration while reducing bacterial adhesion. This can provide the necessary biocompatibility to the orthopedic implant. Another interesting fact about NT surfaces is that their tubular structures can be used as a delivery mechanism for antibiotics [25], antibacterial substances [26], and trace elements that are useful for cell growth and proliferation [7].
Trace elements such as silver (Ag) nanoparticles, copper (Cu), strontium (Sr), and zinc (Zn) are critical for cell growth and proliferation around an implant surface that can improve osseointegration. Furthermore, they can also hinder bacterial infection on the implant surfaces. For that reason, the incorporation of trace elements on implant surfaces is gaining popularity. Additionally, metal ion release can be a viable technique to improve the antibacterial property of biomaterials [27]. Among the trace elements, Zn is interesting because it can provide the required cell signaling for improved osseointegration while hindering bacterial adhesion on the implant surface [7]. Zn helps in bone regeneration through osteoblast activity such as osteoblast proliferation, mineralization, and osteoblast marker gene expression [7]. Zn also inhibits bone resorption by reducing osteoclast formation as well as helps in anti-inflammation [7]. Of these interesting characteristics, Zn has gained popularity in preparing biomaterials. Recent work utilized several techniques to dope Zn on Ti surfaces. These techniques involved hydrothermal treatment [7,8,28,29], alkaline heat treatment [30,31], and plasma electrolytic oxidation (PEO) [32,33]. Even though Zn incorporation on implant surfaces can potentially improve the biocompatibility of orthopedic implants, only a few investigations have been reported in the literature. Therefore, examining the trace element incorporation on orthopedic implant surfaces along with their antibacterial and toxicological behavior analysis is imperative.
In this work, Zn doping was conducted on Ti and NT surfaces using two different methods: hydrothermal and alkaline heat treatment. These two processes were selected because they are relatively simple and highly tunable. For the hydrothermal method, the surfaces were incubated with zinc acetate. For the alkaline heat treatment, the surfaces were incubated with a solution containing zinc nitrate hexahydrate and sodium hydroxide. The difference between these two methods was mainly in treatment temperature and time. The hydrothermal method used 200 °C and a 1 h treatment time, whereas the alkaline heat treatment was conducted for 24 h at 60 °C. All the treated surfaces were annealed at 530 °C to crystallize the Zn and NTs. Scanning electron microscopy (SEM) and energy-dispersive X-ray spectroscopy (EDS) were used to understand the morphology, topography, and Zn distribution on the surfaces. X-ray photoelectron spectroscopy (XPS) and X-ray diffraction (XRD) crystallography were used to evaluate surface chemistry and crystalline structure. XPS was also used to quantify Zn on the surfaces. Cytotoxic behavior was analyzed by incubating the surfaces with adipose-derived human stem cells (ADSCs) and examining the amount of lactate dehydrogenase (LDH) released from the cells when in contact with the surfaces. Finally, the antibacterial properties of the surfaces were evaluated by incubating the surfaces with Gram-positive Staphylococcus aureus and Gram-negative Pseudomonas aeruginosa. SEM and live/dead bacteria staining were used to examine bacteria adhesion and morphology on the surfaces. Experimental results indicated that the Zn-doped surfaces exhibited improved biocompatibility by reducing the bacteria adhesion significantly while not being cytotoxic to the ADSCs.

2. Materials and Methods

2.1. Titania Nanotube (NT) Fabrication

Titania nanotube (NT) surfaces were fabricated from commercially available 0.5 mm thick pure titanium. First, 2 cm × 2 cm Ti samples were cut and polished using silicon carbide sheets. Then, the samples were soaked in acetone for 3 min and sonicated for 10 min to clean any debris from the surface. The samples were further cleaned using soap and isopropanol followed by 10 min sonication each in isopropanol and deionized water (DI). Finally, the cleaned Ti samples were dried inside a hood before subsequent processing. NT were grown on the surfaces by anodization and annealing. An electrolyte cell was used for the anodization process where a cleaned titanium surface was used as the anode and platinum was used as the cathode. Prior to the anodization process, the platinum surfaces were cleaned thoroughly using nitric acid, isopropanol, and DI water. A solution containing 95% diethylene glycol (DEG, Thermo Fisher Scientific Chemicals Inc., Ward Hill, MA, USA), 2% hydrofluoric acid (HF, 48%, KMG Electronic Chemicals, Inc., Houston, TX, USA), and 3% DI water was used as an electrolyte. A titanium anode and a platinum cathode were hooked to the electrolyte cell using alligator tips. Care was taken when hooking the samples so that the alligator tips did not touch the electrolyte solution. Then, 55 V of electricity was supplied for 22 h at room temperature for the anodization process. After the anodization process, the NT surfaces were removed and washed using DI water and isopropanol before drying inside a hood. Finally, the NT surfaces were annealed at 530 °C for 3 h with 15 °C/min temperature increments and stored before being used for subsequent experiments. Cleaned and polished titanium (Ti) was also prepared to be used as a control.

2.2. Zinc Doping on Ti and NT Surfaces

Zinc (Zn) doping on Ti and NT surfaces was conducted by two different methods: hydrothermal and alkaline heat treatment. To prepare hydrothermally Zn-doped NT surfaces (NThyt), un-annealed NT surfaces were used. These surfaces were incubated in 0.1 M zinc acetate (ThermoFisher Scientific, Waltham, MA, USA) solution at 200 °C for 1 h inside a polytetrafluoroethylene (PTFE) lined hydrothermal autoclave reactor. The surfaces were taken out from the reactor and thoroughly washed in DI water for 5 min. Finally, the surfaces were annealed similarly as described in Section 2.1 prior to storing for subsequent experiments.
To prepare alkaline heat-treated NT surfaces (NTalk), un-annealed NT surfaces were used. These surfaces were incubated in 10.71% zinc nitrate hexahydrate (Oakwood Chemical, Estill, SC, USA), 17.31% sodium hydroxide (Fisher Chemical, Fair Lawn, NJ, USA), and 71.98% DI water solution at 60 °C for 24 h inside a PTFE container. The surfaces were taken out of the reactor and thoroughly washed in DI water for 5 min. Finally, the surfaces were annealed similarly as described in Section 2.1 prior to storing for subsequent experiments.
Ti surfaces were also treated in a similar way to prepare hydrothermally treated Tihyt and alkaline heat-treated Tialk surfaces.

2.3. Material Characterization

To understand the morphological and topographical characteristics of different surfaces (Ti, Tihyt, Tialk, NT, NThyt, and NTalk), a JEOL JSM-6500F field emission scanning electron microscope (FESEM) was used at 15 kV. Scanning electron microscopic (SEM) images were taken from each surface at varying magnifications ranging from 500× to 30,000×. Working distance, brightness, and contrast were optimized for each image to ensure high-quality SEM images of the surfaces were produced. Furthermore, energy-dispersive X-ray spectroscopy (EDS) spectra were collected with an Oxford SDD EDS detector connected to the FESEM. For each surface, element mapping was conducted to understand the elemental distribution on the surfaces. For NThyt, NTalk, Tihyt, and Tialk surfaces, elemental mapping was also conducted in specific zones to understand special features on the surfaces. All EDS data were analyzed using Oxford Aztec software.
To understand the surface wettability, the static contact angle was measured for all the surfaces by using a Ramé-Hart goniometer (Ramé-Hart Instrument Co., Succasunna, NJ, USA). A 10 µL drop of water was placed on each surface using a micrometer syringe. Then static contact angle and image of the droplet on the surfaces were collected using DROPimage software.
To understand the surface chemistry, X-ray photoelectron spectroscopy (XPS) was utilized. An XPS survey was taken with a PHI Physical Electronics PE-5800 X-ray Photoelectron Spectrometer with an Al Kα X-ray source. Survey spectra for all the surfaces were collected from 0 eV to 1100 eV. Peak-fit analysis was conducted using MultiPak (version 9.6.1.7). From the survey spectra, elemental analysis was also conducted for each surface using the MultiPak (version 9.6.1.7) and the composition (atomic weight percentage, %at) of each element was recorded.
The crystalline structure of the surfaces was analyzed by utilizing X-ray diffraction (XRD, XRD-7000 Shimadzu) while using CuKα radiation at 40 kV and 30 mA. When performing XRD, a thin film (TF-XRD) geometry was utilized for the surfaces with a fixed incidence angle of 5°. Diffractograms were acquired with continuous scans from 20° to 80° at a scanning speed of 1°/min. Peaks were indexed using Match! software with the PDF2 database.

2.4. Stability of Zn-Doped Surfaces

To understand the stability of the Zn-doped surfaces, elemental analysis from the XPS survey scan was used. First, 2 cm × 2 cm surfaces were collected and incubated in DI water for 4 weeks (28 days) at room temperature. Then the surfaces were dried inside a hood and XPS surveys were taken following the method described in Section 2.3. From these survey scans, %at was calculated for each of the surfaces. Finally, the %at of the elements after 4 weeks was compared with data gathered in Section 2.3 to evaluate the changes in Zn composition after 28 days in DI water.

2.5. Mechanical Properties of the Surfaces

To understand the mechanical properties, such as surface hardness and elastic modulus, a nanoindentation technique was utilized. A Nanoindenter (ZwicK-Roell/Asmec) was used to measure the surface hardness (H) and elastic modulus (E). It was programmed by an array (5 × 5), with a distance of 50 µm between each indentation and 0.1 N of maximum applied force on the surface by a calibrated Berkovich tip. The indentation method used was the quasi continuous stiffness measurement (QCSM) method. This method allows for high accuracy measurements due to a progressively increasing force (from 0–100 mN for this study) combined with a dwell time at each force point.

2.6. Cytotoxicity Behavior of the Surfaces

To evaluate the cytotoxicity induced by the surfaces, a lactate dehydrogenase (LDH) based indicator assay was utilized (CyQUANT™ LDH Cytotoxicity Assay Kit, ThermoFisher Scientific, Waltham, MA, USA). The cytotoxicity of the surfaces was evaluated with adipose-derived adult stem cells (ADSCs). The ADSCs were cultured in a growth medium containing 90% MEM Alpha Modification (1×, cytiva, Marlborough, MA, USA), 9% fetal bovine serum (FBS), and 1% penicillin-streptomycin. The surfaces were taken into a 48-well plate and sterilized by UV light for 1 h followed by washing with PBS two times. After that, the surfaces were incubated for 24 h at 5% CO2 with 20,000 ADSC cells/mL. After the incubation, 50 µL supernatants of the cell media were taken from each surface in a sterile 96-well plate. Then the manufacturer’s protocol was followed to determine the cytotoxicity induced by the surfaces against the ADSCs.

2.7. Bacteria Culture

To evaluate the antibacterial properties of different surfaces, Gram-positive Staphylococcus aureus (S. aureus, ATCC6538) and Gram-negative Pseudomonas aeruginosa (P. aeruginosa, ATCC10145) bacterial strains were used. Both bacteria were grown in tryptic soy broth (TSB, Sigma-Aldrich, St. Louis, MO, USA) at 37 °C for 24 h until a bacterial concentration of 109 Colony Forming Units (CFU)/mL was achieved. The CFU/mL was measured by determining the absorbance values of bacterial solution using a plate reader at 562 nm wavelength. To understand the bacteria adhesion and morphology on the surfaces, a diluted bacteria culture of 106 CFU/mL was used. The surfaces were taken into a 48-well plate and sterilized by UV light for 30 min and subsequently washed twice with PBS for 5 min. Then the surfaces were incubated with the 106 CFU/mL bacteria solution for 6 h and 24 h at 37 °C inside an incubator. After the incubation, the surfaces were washed twice with PBS for 5 min to remove any non-adhered bacteria from the surfaces before subsequent characterization.

2.7.1. Bacteria Adhesion on Different Surfaces

For evaluating the number of live or dead bacteria adhering on different surfaces, a fluorescence microscope was used. For this, the surfaces were incubated at room temperature for 15 min in a stain solution containing a 1:1 ratio of propidium iodide (dead bacteria stain) and Syto 9 (live bacterial stain) (3 µL/mL in PBS, ThermoFisher Scientific, Waltham, MA, USA). Then, the stain solution was removed, and the surfaces were incubated with 3.7% formaldehyde (Fisher Chemical, Fair Lawn, NJ, USA) for 15 min at room temperature. After that, the formaldehyde was removed, and the surfaces were rinsed with PBS twice for 5 min. Immediately after that, the surfaces were imaged using a fluorescence microscope. ImageJ was used to evaluate the percentage of area fraction covered by the live or dead bacteria on the surfaces. From staining to imaging, all the procedures were conducted in the dark.

2.7.2. Bacteria Morphology on Different Surfaces

To characterize adhered bacteria morphology on different surfaces, SEM images were collected for each surface after incubating with bacteria. After bacteria incubation, the surfaces were incubated with a primary fixative solution containing 3% glutaraldehyde (Sigma-Aldrich, St. Louis, MO, USA), 0.1 M sucrose (Sigma-Aldrich, St. Louis, MO, USA), and 0.1 M sodium cacodylate (Electron Microscopy Sciences, Hatfield, PA, USA) in DI water for 45 min at room temperature. Then the fixative solution was removed, and the surfaces were incubated with a buffer solution containing the fixative solution without the glutaraldehyde for 10 min. Finally, the surfaces were dehydrated using 35%, 50%, 70%, and 100% ethanol solution (10 min incubation in each solution). Before imaging with SEM, the surfaces were kept dry inside a desiccator. Right before loading the surfaces in the SEM instrument, a 10 nm gold coating was added utilizing a Denton Vacuum Desk II Gold Sputter Coater to improve surface conductivity for imaging.

2.8. Statistical Analysis

For surface characterization, at least 3 samples (nmin = 3) of each surface were used. To evaluate the cytotoxicity, at least 4 samples (nmin = 4) of each surface were incubated with ADSCs. For antibacterial activity studies, 3 samples from each surface were used and all the experiments were repeated at least twice (nmin = 6). For statistical analysis, a two-way analysis of variance test (ANOVA) was conducted followed by a post-hoc analysis (t-test). The results were considered statistically significant when the p value was less than 0.05.

3. Results and Discussion

3.1. Morphology and Zn Distribution on the Surfaces

Morphological and topographical features of the Ti and NT surfaces were characterized by SEM images. The morphological features on the surfaces are important for biomaterials since they can affect cell and bacteria adhesion on surfaces. Surface properties, such as roughness, have been reported to improve cell adhesion and osseointegration [34,35]. Titania nanotube array (NT) and Zn incorporation can effectively change the morphological properties of the surfaces due to treatments utilizing different chemicals and temperature ranges. Figure 1 shows the representative SEM images of different surfaces. The Zn-doped Tihyt and Tialk surfaces exhibited significant differences in the surface morphology. On the Tihyt surface, crystal-like structures were found relatively evenly distributed throughout the surface. This is significantly different from the Ti control surface where such crystal-like structures were absent. Thus, it was hypothesized that these crystals were Zn crystals formed due to the hydrothermal process, and this was further confirmed by EDS (discussed later). The Tialk surface exhibited a web-like structure. This is also significantly different compared to the Ti and Tihyt surfaces. Alvarez et al. (2009) performed an alkali heat treatment on Ti implants containing [Zn(OH)4]2− complex and found a similar web-like structure, which they named a reticulated microporous structure [30]. Manivasagam and Popat (2020) also treated Ti implants with an alkali solution at 60 °C for 24 h and found a similar web-like structure [36]. So, the alkaline heat treatment in this study conformed to the reported literature. From the SEM images collected on NT surfaces, it was evident that the anodization and annealing processes were successful in producing an evenly distributed NT array. The tubular geometrical shapes were distinctly visible on NT surfaces, which resemble the NT shapes described in the previously reported literature [4,37,38]. The roughness of the implant surface is necessary to biomimic the bone microenvironment inside a human body. NT arrays can provide that required roughness, which can help in cell proliferation and viability. Moreover, the tubular-shaped geometry can hinder the growth of bacterial adhesion due to charge repulsion, bacteria membrane stretching by the NTs, and variations in surface roughness [12]. When these NT surfaces were doped with Zn, a similar trend to that of Tihyt and Tialk was observed. The NThyt surfaces were prepared by hydrothermal treatment and had a crystal-like structure on top of the NTs. The Zn crystals were also evenly distributed here but not as visible as the Tihyt because of the nanostructured surface architecture. Some of the Zn crystals were smaller than the diameter of the NTs and the space between the surrounding NTs. So, it is possible that some crystals filled up the space in these empty channels. For the alkaline heat-treated NTalk surface, a familiar web-like structure was visible. The web was formed on top of the NTs and was evenly distributed throughout the surface. However, a new rod-shaped feature was found on the NTalk surfaces which was absent on the Tialk surfaces. These features were probably arising from the sodium (Na) content in the alkaline (NaOH) solution used for Zn doping, which was later examined utilizing EDS. From the morphological analysis of the surfaces, it was evident that two Zn doping techniques initiated distinct morphological features on the surfaces compared to the pure Ti and NT controls.
To understand the distribution of different elements on the surfaces, EDS mapping was conducted. The EDS mapping was especially helpful for understanding Zn-doping efficiency and the distribution of Zn throughout the surfaces. Figure 2 shows representative EDS maps of NThyt and NTalk surfaces. For the hydrothermally treated Tihyt and NThyt surfaces, although the Zn was evenly distributed, its concentration was much higher where the crystal-like structures were present. Hence, a higher magnification image was taken to understand the elemental composition of these crystal-like structures (Figure 2). The magnified EDS mapping indicated a higher concentration of Zn on these crystal-like structures, thus proving the crystals were indeed Zn crystals. For alkaline heat-treated surfaces (Tialk and NTalk), Zn was found to be evenly distributed. Na distribution was also found for the alkaline heat-treated surfaces that might result from the residual NaOH used in the Zn-doping treatment. However, the distribution of Na from EDS mapping can be misleading since the characteristics X-ray released by these two elements are very similar in energy level (Na, Kα = 1.04 eV and Zn, Lα = 1.012). Yet, the EDS spectra signaled the presence of Na on these surfaces, which was later confirmed utilizing XPS. A rod-shaped feature was found to be present on the NTalk surface. High-magnification mapping was performed for these interesting features, which is shown in Figure 2. From the EDS mapping, it was found that these features mainly consisted of Zn, Na, and O. So, from the EDS mapping, it was understood that the web-like structure was mainly formed by the alkaline heat treatment of Zn and the rod-like features were formed by the Zn and excess Na on the surfaces. Na was also found to be present in Tialk surfaces; although, they did not create a rod-like feature on the surface. This interesting difference can result from the presence of NT arrays and their interaction with an alkaline solution during the alkaline heat treatment process.

3.2. Surface Chemistry

The pure Ti surface underwent multiple surface modifications in this work to improve its biocompatibility. Hence, it is important to understand the chemical properties of the surfaces before and after these modifications. Additionally, evaluating the surface chemistry is required to understand if the Zn doping was successful or not. As a first step, XPS survey scans were collected for all the surfaces. XPS survey scans can identify the elements present on the surfaces along with their relative concentration. From the survey scan of the Ti control, the presence of Ti2p3, C1s, and O1s was detected, which is typical of the Ti XPS spectrum reported in the previous literature [38]. However, after the Zn doping, both the Tihyt and Tialk exhibited a new peak at binding energy 1022 eV that corresponds to the presence of Zn2p3 on the surfaces (Figure 3). The prominence of this Zn2p3 peak was less in Tialk compared to the Tihyt, which indicated a lower amount of Zn presence on the alkaline-treated surfaces. However, Tialk exhibited another peak at binding energy 1071.4 eV corresponding to Na1s, which came from the NaOH used in the solution for alkaline heat treatment. The NT surface spectrum was similar to the Ti control, except for the high prominence of the O1s peak (530 eV) due to the presence of titania (TiO2) on the surface. Like the Tihyt and Tialk, the Zn-doped NThyt and NTalk surfaces also showed a new Zn2p3 peak (1022 eV), which was absent both in the Ti and NT surfaces, thus confirming the successful doping of Zn on the surfaces. Similar to the Tialk, the NTalk also exhibited an Na peak (1071.4 eV) due to the presence of NaOH in an alkaline solution.
From the XPS survey scans, the elemental composition (atomic weight percentage, %at) of the surfaces was calculated (Table 1). Both Ti and NT showed no Zn or Na as expected. The %at of O increased from 34.7% to 57.3% between Ti and NT, indicating the presence of TiO2 on the surface. Both the hydrothermally treated surfaces (Tihyt and NThyt) showed a higher amount of Zn compared to the alkaline heat-treated surfaces. The amount of Zn on Tihyt was higher (21.6%) compared to NThyt (16.9%), possibly due to the presence of a higher amount of O on NThyt. On the other hand, both alkaline heat-treated surfaces showed Na along with Zn. The amount of Na was higher in NTalk (18.1%) compared to Tialk (9.8%), which probably affected the relative percentage of Zn (NTalk 1.3% and Tialk 4.1%) on these surfaces.

3.3. Surface Crystallinity

Both the NT array preparation and Zn-doping techniques used higher temperatures, which can alter the crystalline phases of the surfaces. So, identifying these phases is important for this study. After anodization, NT arrays were amorphous, but after the annealing treatment at 530 °C, stable rutile and anatase crystalline structures were formed on the NT surfaces [35]. It is reported that the presence of rutile and anatase phases on the implant surface can help in osteogenic activity and osseointegration [39,40,41]. NT surfaces containing anatase and rutile phases also have been reported to possess antibacterial properties by reducing antibacterial adhesion on the surfaces [42,43,44]. In this work, all the NT surfaces showed a mixture of rutile and anatase phases (Figure 4). NT and NThyt surfaces had prominent anatase (25.27°, 48.01°, 53.91°) and rutile peaks (27.43°); however, these peaks were not as prominent in NTalk, possibly due to the presence of web-like structure on top of the TiO2 nanotubes. On the other hand, Ti control did not have any of these anatase or rutile phases. Tihyt and Tialk showed the stable rutile phase (27.43°) coming from the high-temperature treatment for Zn doping. All the Zn-doped surfaces also showed a ZnO peak (31.73°), which confirmed the presence of Zn on the surfaces once again. Similar to the other peaks, the alkaline heat-treated surfaces showed less prominence of ZnO peak possibly due to the lower amount of Zn on the surfaces. Unmarked peaks in Figure 4 correspond to Ti.

3.4. Surface Stability

Surface stability is a key factor for biomaterials. Since implants are intended to stay inside the human body for a long period of time, it is important to understand the stability of the Zn-doped surfaces. The stability of the Zn-doped surfaces was evaluated up to 4 weeks (28 days) of incubation in DI water by taking an XPS survey scan and calculating surface elemental compositions (%at). Table 2 shows the %at of Zn and Na before and after 28 days of incubation in DI water. After 4 weeks, there was a significant decrease in Zn for the hydrothermally treated surfaces Tihyt and NThyt. Zn content in the Tihyt and NThyt reduced by almost 59% and 45%, respectively. Whereas the alkaline heat-treated samples Tialk and NTalk showed a significant increase in Zn. However, this is not due to an increase in the Zn content on the surfaces, but rather a decrease in the Na content, which resulted in an increase in the relative %at of Zn after 28 days. Since the surfaces were incubated in DI water, the Na might have been dissolved in water resulting in a significant decrease of Na on the surfaces after 28 days. The Ti control and NT surfaces did not show any change during this experiment.

3.5. Surface Wettability

Surface wettability is another important surface characteristic of an implant’s biocompatibility. Hydrophilic surfaces have been reported to promote cell adhesion and proliferation [45]. Hydrophilic surfaces can also reduce bacterial adhesion [43]. Surface wettability can be calculated by measuring the apparent static contact angle using a droplet of water on the surface. When the contact angle ( θ ) is lower than 90°, the surfaces are defined as hydrophilic, and when θ < 10 ∘ , then the surfaces are defined as superhydrophilic. All the treated surfaces in this work exhibited a significantly reduced contact angle compared to the Ti control. Ti, Tihyt, and NThyt were hydrophilic surfaces, whereas Tialk, NT, and NTalk surfaces were superhydrophilic (Figure 5). All the surfaces except the Ti control were heat treated during annealing at 530 °C. During this heat treatment, the hydrophilic property of the surfaces increased, which matched the reported literature [43]. Thus, all the Zn-doped surfaces should potentially reduce bacterial adhesion and improve cell proliferation on the implant surfaces due to their superhydrophilic nature.

3.6. Mechanical Properties

Mechanical properties such as material hardness, stiffness, and flexibility are important factors that determine cell-material interactions and ultimately cell fate on implant surfaces [46]. Several studies have reported that cells receive mechanical signaling from the surrounding microenvironment and prefer softer surfaces that promote cell adhesion on the material [46,47,48,49]. NT surfaces have nanoscale topographical features that can provide less restriction to deformation, resulting in a softer surface compared to an unmodified Ti surface [48]. To understand these mechanical properties, indentation hardness and elastic modulus of all the surfaces were evaluated using the nanoindentation technique. Table 3 shows the hardness and elastic modulus values of different surfaces. NT and NThyt showed the minimum hardness values of 0.32 ± 0.02 GPa and 0.26 ± 0.02 Gpa, respectively, whereas Ti control had a hardness value of 2.3 ± 0.4 GPa. The NTalk exhibited a higher hardness value of 1.00 ± 0.2 GPa, which was higher than other NT surfaces, probably due to the presence of a web-like structure on top of the nanotubes as discussed in the morphological analysis. This web-like structure created a separate layer on the nanotubes and resulted in a higher restriction to deformation, which ultimately increased the hardness value. A similar result was observed for the Tialk, which exhibited a similar hardness value of 2.4 ± 0.2 GPa. Elastic modulus values also showed a similar trend to the hardness values (Table 3). All the NT surfaces exhibited lower elastic modulus compared to the Ti surfaces. This is an expected result due to the topographical differences of the Ti and NT surfaces that changed the restriction towards nanoindenter force.

3.7. Cytotoxicity of the Surfaces

Cytotoxicity of different surfaces was determined using adipose-derived stem cells (ADSCs). The surfaces were incubated with ADSCs for 24 h before the lactate dehydrogenase (LDH) released by the damaged cells was calculated. A higher amount of LDH indicates a highly cytotoxic surface. The maximum release of LDH was calculated where all the cells were intentionally damaged to get the highest amount of LDH. A spontaneous release value was also calculated where no cells were damaged. When compared to these controls, all the surfaces showed no apparent cytotoxicity (Figure 6).

3.8. Bacteria Adhesion

Bacterial infection is one of the major causes of orthopedic implant failure. Bacteria can attach to the implant surface and start to proliferate, forming biofilms that protect the bacteria colony from the surrounding immune response [12]. Most of the implant-related infections is caused mainly by the Gram-positive bacteria genus of Staphylococcus with Staphylococcus aureus (S. aureus) being a prominent infection-creating pathogen in this bacteria family [50,51,52]. Arciola et al. (2005) surveyed 1027 isolates from 699 patients undergoing revision orthopedic surgeries and found the majority of the infection was caused by S. aureus (35.5%) [50]. The second most prominent genus was Gram-negative Pseudomonas, with Pseudomonas aeruginosa (P. aeruginosa) being the most prominent infection-creating pathogen in this genus (6.7%) [50]. Even after maintaining a highly sterile environment during orthopedic implant surgeries, bacteria can still proliferate inside the host body [53]. Therefore, implants having antibacterial characteristics are a crucial step to reduce implant-related bacterial infection. To assess the antibacterial activity of the Zn-doped surfaces, all the surfaces were incubated for 6 h and 24 h with P. aeruginosa and S. aureus. Then live/dead bacteria staining was performed to evaluate the number of bacteria attached to each surface. Figure 7 shows the fluorescence microscopic images of the surfaces after the incubation periods with P. aeruginosa. Figure 7 also shows the two plots that quantified live and dead P. aeruginosa attached to different surfaces. Ti had the most bacteria attached to the surface for both 6 h and 24 h incubation periods. The Zn-doped Tihyt and Tialk had significantly lower P. aeruginosa attached to their surfaces. NT had lower P. aeruginosa attached to its surface when compared to the control Ti. All the Zn-doped surfaces reduced the P. aeruginosa attachment; however, the least reduction of bacteria attachment came from the NThyt surface. For instance, the area fraction % of Ti control by live P. aeruginosa after 6 h of incubation was 21.94%, whereas NThyt was 6.1% (Figure 7). The hydrothermally treated NThyt surface had more Zn compared to the NTalk. So, the number of bacteria attached to the NThyt was less than NTalk.
Similar to P. aeruginosa, S. aureus attachment was also found to be low in Zn-doped surfaces compared to the control Ti. Figure 8 shows the fluorescence microscopic images and quantified plots for S. aureus adhesion on the surfaces. After 6 h of incubation, both dead and live S. aureus adhesion were significantly reduced for Zn-doped Ti and NT surfaces compared to the Ti control. For instance, the area fraction % of Ti control by live S. aureus after 6 h of incubation was 41.95%, whereas NThyt and NTalk were 23.73% and 11.58%, respectively (Figure 8). After 24 h of incubation, dead S. aureus reduction was also significantly reduced in the Zn-doped surfaces. Only in one case did the Ti control have better performance for live S. aureus reduction, which was after 24 h of incubation. All the Zn-doped surfaces also reduced S. aureus adhesion during this time; however, they were not significantly different from the Ti control.

3.9. Bacteria Morphology

Morphological analysis of viable bacteria on the implant surfaces is important to understand how bacteria is attaching, proliferating, and forming biofilms. If bacteria can form a biofilm on the surface, it can protect the bacteria from antibacterial agents and can proliferate until the implant fails. So, to understand bacteria morphology on the surfaces, SEM images were taken after the bacteria were fixed by using relevant adhesives. Figure 9 shows the SEM images of the surfaces after 6 h and 24 h of P. aeruginosa incubation. Similar to the results described earlier, the Zn-doped surfaces reduced the P. aeruginosa attachment drastically. NT also reduced the P. aeruginosa on its surface; however, most reduction came from the NThyt and Tihyt. Both surfaces contained a higher amount of Zn compared to the NTalk and Tialk, and hence, their antibacterial activity was improved. After 24 h of incubation, a biofilm formation could be seen on the Ti surface, which was absent on all the other surfaces. This finding confirmed the improved antibacterial activity of the Zn-doped surfaces.
A similar result was observed when the surfaces were incubated with Gram-positive S. aureus (Figure 10). Biofilm formation was also observed on the Ti surface after 24 h of incubation with S. aureus, which was absent in all other surfaces. All the Zn-doped surfaces reduced the amount of S. aureus adhesion; however, the Tihyt and NThyt performed well in this case due to the higher amount of Zn presence on the surfaces. When compared to P. aeruginosa, the S. aureus adhesion was higher for all the surfaces. This is probably due to the surface charge difference and size of the two bacteria tested. Although bacteria have an electronegatively charged outer layer, they can differ from Gram-positive to Gram-negative because of the difference in cell-wall composition [54]. Since the TiO2 nanotube arrays have terminal hydroxyl groups which are negatively charged too, they repulse the bacteria and thus reduce bacteria adhesion on the NT surfaces [12]. For the differences in the electronegative charge between P. aeruginosa and S. aureus, the relative amount of antibacterial activity can differ, which was indicated in this case. Another important factor is the relative size of the two bacteria. P. aeruginosa is a rod-shaped bacterium having 1–5 µm of length and a 1 µm width [55]. On the other hand, S. aureus is a circular-shaped bacteria with a 1 µm diameter [56]. Due to this size difference, it is possible that the smaller S. aureus could evade the stretching force [12] induced by the NT arrays and resulted in more S. aureus attachment compared to P. aeruginosa.

4. Conclusions

Nanoscale features on Ti surfaces can improve complications such as bacterial infection and poor osseointegration. In this work, titania (TiO2) nanotube arrays (NT) were grown on pure Ti surfaces followed by zinc (Zn) doping. SEM images revealed noticeable morphological characteristics of the surfaces fabricated in this work. Hydrothermally treated Tihyt and NThyt surfaces had Zn crystals while the alkaline heat treatment created a web-like structure on the Tialk and NTalk surfaces. EDS analysis indicated an even distribution of Zn on different surfaces. XPS confirmed the successful Zn doping on the surfaces while quantifying the amount of Zn. From the XPS, it was evident that hydrothermal treatment induced a higher amount of Zn on the surfaces. From the mechanical property analysis, it was found that the indentation hardness and elastic modulus of the nanotube surfaces (NThyt and NTalk) were significantly lower than the Ti surfaces. This indicates a suitable platform for cell attachment, growth, and proliferation. While testing with bacteria, all the Zn-doped surfaces exhibited significantly improved antibacterial characteristics compared to the pure Ti. These results signified the greater potential of nanoscale surface modification approaches to improve the biocompatibility of Ti-based orthopedic implants.

Author Contributions

Conceptualization, A.B. and K.C.P.; methodology, A.B. and K.C.P.; validation, A.B. and K.C.P.; formal analysis, A.B. and K.C.P.; investigation, A.B., E.G., B.L.P. and P.S.; resources, K.C.P. and P.S.; data curation, A.B. and K.C.P.; writing—original draft preparation, A.B.; writing—review and editing, A.B. and K.C.P.; visualization, A.B.; supervision, K.C.P.; project administration, A.B. and K.C.P.; funding acquisition, K.C.P. All authors have read and agreed to the published version of the manuscript.

Funding

The research was funded by the National Heart, Lung and Blood Institute of the National Institutes of Health under award number R01HL135505.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors acknowledge Analytical Resources Core (ARC, RRID: SCR_021758) at the Colorado State University, Fort Collins to help in SEM, EDS, and XPS data acquisition and analysis.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Effenberger, H.; Ramsauer, T.; Böhm, G.; Hilzensauer, G.; Dorn, U.; Lintner, F. Successful hip arthroplasty using cementless titanium implants in rheumatoid arthritis. Arch. Orthop. Trauma Surg. 2002, 122, 80–87. [Google Scholar] [CrossRef] [PubMed]
  2. John, A.A.; Jaganathan, S.K.; Supriyanto, E.; Manikandan, A. Surface modification of titanium and its alloys for the enhancement of osseointegration in orthopaedics. Curr. Sci. 2016, 111, 1003–1015. Available online: https://www.jstor.org/stable/24908502 (accessed on 22 February 2023). [CrossRef]
  3. Taddei, E.; Henriques, V.; Silva, C.; Cairo, C. Production of new titanium alloy for orthopedic implants. Mater. Sci. Eng. C 2004, 24, 683–687. [Google Scholar] [CrossRef]
  4. Sabino, R.M.; Mondini, G.; Kipper, M.J.; Martins, A.F.; Popat, K.C. Tanfloc/heparin polyelectrolyte multilayers improve osteogenic differentiation of adipose-derived stem cells on titania nanotube surfaces. Carbohydr. Polym. 2021, 251, 117079. [Google Scholar] [CrossRef]
  5. Wang, M.; Tang, T. Surface treatment strategies to combat implant-related infection from the beginning. J. Orthop. Translat. 2019, 17, 42–54. [Google Scholar] [CrossRef]
  6. Lucke, M.; Schmidmaier, G.; Sadoni, S.; Wildemann, B.; Schiller, R.; Haas, N.; Raschke, M. Gentamicin coating of metallic implants reduces implant-related osteomyelitis in rats. Bone 2003, 32, 521–531. [Google Scholar] [CrossRef]
  7. Huo, K.; Zhang, X.; Wang, H.; Zhao, L.; Liu, X.; Chu, P.K. Osteogenic activity and antibacterial effects on titanium surfaces modified with Zn-incorporated nanotube arrays. Biomaterials 2013, 34, 3467–3478. [Google Scholar] [CrossRef]
  8. Li, Y.; Xiong, W.; Zhang, C.; Gao, B.; Guan, H.; Cheng, H.; Fu, J.; Li, F. Enhanced osseointegration and antibacterial action of zinc-loaded titania-nanotube-coated titanium substrates: In vitro and in vivo studies. J. Biomed. Mater. Res. Part A 2014, 102, 3939–3950. [Google Scholar] [CrossRef]
  9. Albrektsson, T.; Johansson, C. Osteoinduction, osteoconduction and osseointegration. Eur. Spine J. 2001, 10, S96–S101. [Google Scholar] [CrossRef]
  10. Parithimarkalaignan, S.; Padmanabhan, T.V. Osseointegration: An update. J. Indian Prosthodont. Soc. 2013, 13, 2–6. [Google Scholar] [CrossRef]
  11. Darouiche, R.O. Treatment of infections associated with surgical implants. N. Engl. J. Med. 2004, 350, 1422–1429. [Google Scholar] [CrossRef]
  12. Li, Y.; Yang, Y.; Li, R.; Tang, X.; Guo, D.; Qing, Y.; Qin, Y. Enhanced antibacterial properties of orthopedic implants by titanium nanotube surface modification: A review of current techniques. Int. J. Nanomed. 2019, 14, 7217–7236. [Google Scholar] [CrossRef]
  13. Souza, J.C.M.; Sordi, M.B.; Kanazawa, M.; Ravindran, S.; Henriques, B.; Silva, F.S.; Aparicio, C.; Cooper, L.F. Nano-scale modification of titanium implant surfaces to enhance osseointegration. Acta Biomater. 2019, 94, 112–131. [Google Scholar] [CrossRef]
  14. Uggeri, J.; Guizzardi, S.; Scandroglio, R.; Gatti, R. Adhesion of human osteoblasts to titanium: A morpho-functional analysis with confocal microscopy. Micron 2010, 41, 210–219. [Google Scholar] [CrossRef]
  15. Ziebart, T.; Schnell, A.; Walter, C.; Kämmerer, P.W.; Pabst, A.; Lehmann, K.M.; Ziebart, J.; Klein, M.O.; Al-Nawas, B. Interactions between endothelial progenitor cells (EPC) and titanium implant surfaces. Clin. Oral Investig. 2013, 17, 301–309. [Google Scholar] [CrossRef]
  16. Stich, T.; Alagboso, F.; Křenek, T.; Kovářík, T.; Alt, V.; Docheva, D. Implant-bone-interface: Reviewing the impact of titanium surface modifications on osteogenic processes in vitro and in vivo. Bioeng. Transl. Med. 2021, 7, e10239. [Google Scholar] [CrossRef]
  17. Jiang, P.; Zhang, Y.; Hu, R.; Shi, B.; Zhang, L.; Huang, Q.; Yang, Y.; Tang, P.; Lin, C. Advanced surface engineering of titanium materials for biomedical applications: From static modification to dynamic responsive regulation. Bioact. Mater. 2023, 27, 15–57. [Google Scholar] [CrossRef]
  18. Liu, X.; Chu, P.K.; Ding, C. Surface modification of titanium, titanium alloys, and related materials for biomedical applications. Mater. Sci. Eng. R Rep. 2004, 47, 49–121. [Google Scholar] [CrossRef]
  19. Manivasagam, V.K.; Sabino, R.M.; Kantam, P.; Popat, K.C. Surface modification strategies to improve titanium hemocompatibility: A comprehensive review. Mater. Adv. 2021, 2, 5824–5842. [Google Scholar] [CrossRef]
  20. Lang, N.P.; Salvi, G.E.; Huynh-Ba, G.; Ivanovski, S.; Donos, N.; Bosshardt, D.D. Early osseointegration to hydrophilic and hydrophobic implant surfaces in humans. Clin. Oral Implant. Res. 2011, 22, 349–356. [Google Scholar] [CrossRef]
  21. Park, J.; Bauer, S.; von der Mark, K.; Schmuki, P. Nanosize and vitality: TiO2 nanotube diameter directs cell fate. Nano Lett. 2007, 7, 1686–1691. [Google Scholar] [CrossRef] [PubMed]
  22. Park, J.; Bauer, S.; Schlegel, K.A.; Neukam, F.W.; von der Mark, K.; Schmuki, P. TiO2 nanotube surfaces: 15 nm—An optimal length scale of surface topography for cell adhesion and differentiation. Small 2009, 5, 666–671. [Google Scholar] [CrossRef] [PubMed]
  23. Von Wilmowsky, C.; Bauer, S.; Roedl, S.; Neukam, F.W.; Schmuki, P.; Schlegel, K.A. The diameter of anodic TiO2 nanotubes affects bone formation and correlates with the bone morphogenetic protein-2 expression in vivo. Clin. Oral Implants Res. 2012, 23, 359–366. [Google Scholar] [CrossRef] [PubMed]
  24. Simi, V.; Rajendran, N. Influence of tunable diameter on the electrochemical behavior and antibacterial activity of titania nanotube arrays for biomedical applications. Mater. Charact. 2017, 129, 67–79. [Google Scholar] [CrossRef]
  25. Feng, W.; Geng, Z.; Li, Z.; Cui, Z.; Zhu, S.; Liang, Y.; Liu, Y.; Wang, R.; Yang, X. Controlled release behaviour and antibacterial effects of antibiotic-loaded titania nanotubes. Mater. Sci. Eng. C 2016, 62, 105–112. [Google Scholar] [CrossRef]
  26. Mei, S.; Wang, H.; Wang, W.; Tong, L.; Pan, H.; Ruan, C.; Ma, Q.; Liu, M.; Yang, H.; Zhang, L.; et al. Antibacterial effects and biocompatibility of titanium surfaces with graded silver incorporation in titania nanotubes. Biomaterials 2014, 35, 4255–4265. [Google Scholar] [CrossRef]
  27. Yougbaré, S.; Mutalik, C.; Okoro, G.; Lin, I.-H.; Krisnawati, D.I.; Jazidie, A.; Nuh, M.; Chang, C.-C.; Kuo, T.-R. Emerging trends in nanomaterials for antibacterial applications. Int. J. Nanomed. 2021, 16, 5831–5867. [Google Scholar] [CrossRef]
  28. Cheng, H.; Mao, L.; Wang, L.; Hu, H.; Chen, Y.; Gong, Z.; Wang, C.; Chen, J.; Li, R.; Zhu, Z. Bidirectional regulation of zinc embedded titania nanorods: Antibiosis and osteoblastic cell growth. RSC Adv. 2015, 5, 14470–14481. [Google Scholar] [CrossRef]
  29. Nageri, M.; Kalarivalappil, V.; Vijayan, B.K.; Kumar, V. Titania nanotube arrays surface-modified with ZnO for enhanced photocatalytic applications. Mater. Res. Bull. 2016, 77, 35–40. [Google Scholar] [CrossRef]
  30. Alvarez, K.; Fukuda, M.; Yamamoto, O. Titanium Implants after Alkali Heating Treatment with a [Zn(OH)4]2− Complex: Analysis of Interfacial Bond Strength Using Push-Out Tests. Clin. Implant Dent. Relat. Res. 2009, 12, e114–e125. [Google Scholar] [CrossRef]
  31. Yusa, K.; Yamamoto, O.; Takano, H.; Fukuda, M.; Iino, M. Zinc-modified titanium surface enhances osteoblast differentiation of dental pulp stem cells in vitro. Sci. Rep. 2016, 6, 29462. [Google Scholar] [CrossRef]
  32. Hu, H.; Zhang, W.; Qiao, Y.; Jiang, X.; Liu, X.; Ding, C. Antibacterial activity and increased bone marrow stem cell functions of Zn-incorporated TiO2 coatings on titanium. Acta Biomater. 2012, 8, 904–915. [Google Scholar] [CrossRef]
  33. Zhang, Z.; Gu, B.; Zhang, W.; Kan, G.; Sun, J. The enhanced characteristics of osteoblast adhesion to porous Zinc–TiO2 coating prepared by plasma electrolytic oxidation. Appl. Surf. Sci. 2012, 258, 6504–6511. [Google Scholar] [CrossRef]
  34. Le Guehennec, L.; Lopez-Heredia, M.-A.; Enkel, B.; Weiss, P.; Amouriq, Y.; Layrolle, P. Osteoblastic cell behaviour on different titanium implant surfaces. Acta Biomater. 2008, 4, 535–543. [Google Scholar] [CrossRef]
  35. Zareidoost, A.; Yousefpour, M.; Ghaseme, B.; Amanzadeh, A. The relationship of surface roughness and cell response of chemical surface modification of titanium. J. Mater. Sci. Mater. Med. 2012, 23, 1479–1488. [Google Scholar] [CrossRef]
  36. Manivasagam, V.K.; Popat, K.C. In vitro investigation of hemocompatibility of hydrothermally treated titanium and titanium alloy surfaces. ACS Omega 2020, 5, 8108–8120. [Google Scholar] [CrossRef]
  37. Popat, K.C.; Leoni, L.; Grimes, C.A.; Desai, T.A. Influence of engineered titania nanotubular surfaces on bone cells. Biomaterials 2007, 28, 3188–3197. [Google Scholar] [CrossRef]
  38. Sabino, R.M.; Kauk, K.; Movafaghi, S.; Kota, A.; Popat, K.C. Interaction of blood plasma proteins with superhemophobic titania nanotube surfaces. Nanomed. Nanotechnol. Biol. Med. 2019, 21, 102046. [Google Scholar] [CrossRef]
  39. Barthes, J.; Ciftci, S.; Ponzio, F.; Knopf-Marques, H.; Pelyhe, L.; Gudima, A.; Kientzl, I.; Bognár, E.; Weszl, M.; Kzhyshkowska, J.; et al. Review: The potential impact of surface crystalline states of titanium for biomedical applications. Crit. Rev. Biotechnol. 2018, 38, 423–437. [Google Scholar] [CrossRef]
  40. Wang, G.; Li, J.; Lv, K.; Zhang, W.; Ding, X.; Yang, G.; Liu, X.; Jiang, X. Surface thermal oxidation on titanium implants to enhance osteogenic activity and in vivo osseointegration. Sci. Rep. 2016, 6, 31769. [Google Scholar] [CrossRef]
  41. Dias-Netipanyj, M.F.; Sopchenski, L.; Gradowski, T.; Elifio-Esposito, S.; Popat, K.C.; Soares, P. Crystallinity of TiO2 nanotubes and its effects on fibroblast viability, adhesion, and proliferation. J. Mater. Sci. Mater. Med. 2020, 31, 94. [Google Scholar] [CrossRef] [PubMed]
  42. Del Curto, B.; Brunella, M.; Giordano, C.; Pedeferri, M.; Valtulina, V.; Visai, L.; Cigada, A. Decreased bacterial adhesion to surface-treated titanium. Int. J. Artif. Organs 2005, 28, 718–730. [Google Scholar] [CrossRef] [PubMed]
  43. Ercan, B.; Taylor, E.; Alpaslan, E.; Webster, T.J. Diameter of titanium nanotubes influences anti-bacterial efficacy. Nanotechnology 2011, 22, 295102. [Google Scholar] [CrossRef] [PubMed]
  44. Puckett, S.D.; Taylor, E.; Raimondo, T.; Webster, T.J. The relationship between the nanostructure of titanium surfaces and bacterial attachment. Biomaterials 2010, 31, 706–713. [Google Scholar] [CrossRef] [PubMed]
  45. Eriksson, C.; Nygren, H.; Ohlson, K. Implantation of hydrophilic and hydrophobic titanium discs in rat tibia: Cellular reactions on the surfaces during the first 3 weeks in bone. Biomaterials 2004, 25, 4759–4766. [Google Scholar] [CrossRef]
  46. Yao, X.; Peng, R.; Ding, J. Cell-material interactions revealed via material techniques of surface patterning. Adv. Mater. 2013, 25, 5257–5286. [Google Scholar] [CrossRef]
  47. Discher, D.E.; Janmey, P.; Wang, Y.-L. Tissue cells feel and respond to the stiffness of their substrate. Science 2005, 310, 1139–1143. [Google Scholar] [CrossRef]
  48. Sorkin, J.A.; Hughes, S.; Soares, P.; Popat, K.C. Titania nanotube arrays as interfaces for neural prostheses. Mater. Sci. Eng. C 2015, 49, 735–745. [Google Scholar] [CrossRef]
  49. Sun, Q.; Hou, Y.; Chu, Z.; Wei, Q. Soft overcomes the hard: Flexible materials adapt to cell adhesion to promote cell mechanotransduction. Bioact. Mater. 2022, 10, 397–404. [Google Scholar] [CrossRef]
  50. Arciola, C.; An, Y.; Campoccia, D.; Donati, M.; Montanaro, L. Etiology of Implant Orthopedic Infections: A Survey on 1027 Clinical Isolates. Int. J. Artif. Organs 2005, 28, 1091–1100. [Google Scholar] [CrossRef]
  51. Campoccia, D.; Montanaro, L.; Arciola, C.R. The significance of infection related to orthopedic devices and issues of antibiotic resistance. Biomaterials 2006, 27, 2331–2339. [Google Scholar] [CrossRef]
  52. Ribeiro, M.; Monteiro, F.J.; Ferraz, M.P. Infection of orthopedic implants with emphasis on bacterial adhesion process and techniques used in studying bacterial-material interactions. Biomatter 2012, 2, 176–194. [Google Scholar] [CrossRef]
  53. Schierholz, J.; Beuth, J. Implant infections: A haven for opportunistic bacteria. J. Hosp. Infect. 2001, 49, 87–93. [Google Scholar] [CrossRef]
  54. Wilson, W.; Wade, M.M.; Holman, S.C.; Champlin, F.R. Status of methods for assessing bacterial cell surface charge properties based on zeta potential measurements. J. Microbiol. Methods 2001, 43, 153–164. [Google Scholar] [CrossRef]
  55. Diggle, S.P.; Whiteley, M. Microbe Profile: Pseudomonas aeruginosa: Opportunistic pathogen and lab rat. Microbiology 2020, 166, 30–33. [Google Scholar] [CrossRef]
  56. Harris, L.; Foster, S.; Richards, R. An introduction to Staphylococcus aureus, and techniques for identifying and quantifying S. aureus adhesins in relation to adhesion to biomaterials: Review. Eur. Cells Mater. 2002, 4, 39–60. [Google Scholar] [CrossRef]
Nanomaterials 13 01606 g001 550

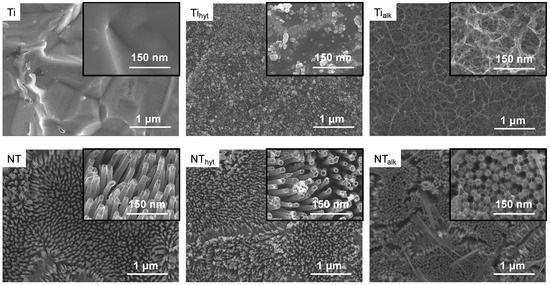

Figure 1. Representative SEM images of different surfaces at low (5000×) and high magnification (insert, 30,000×).
Figure 1. Representative SEM images of different surfaces at low (5000×) and high magnification (insert, 30,000×).
Nanomaterials 13 01606 g001
Nanomaterials 13 01606 g002 550

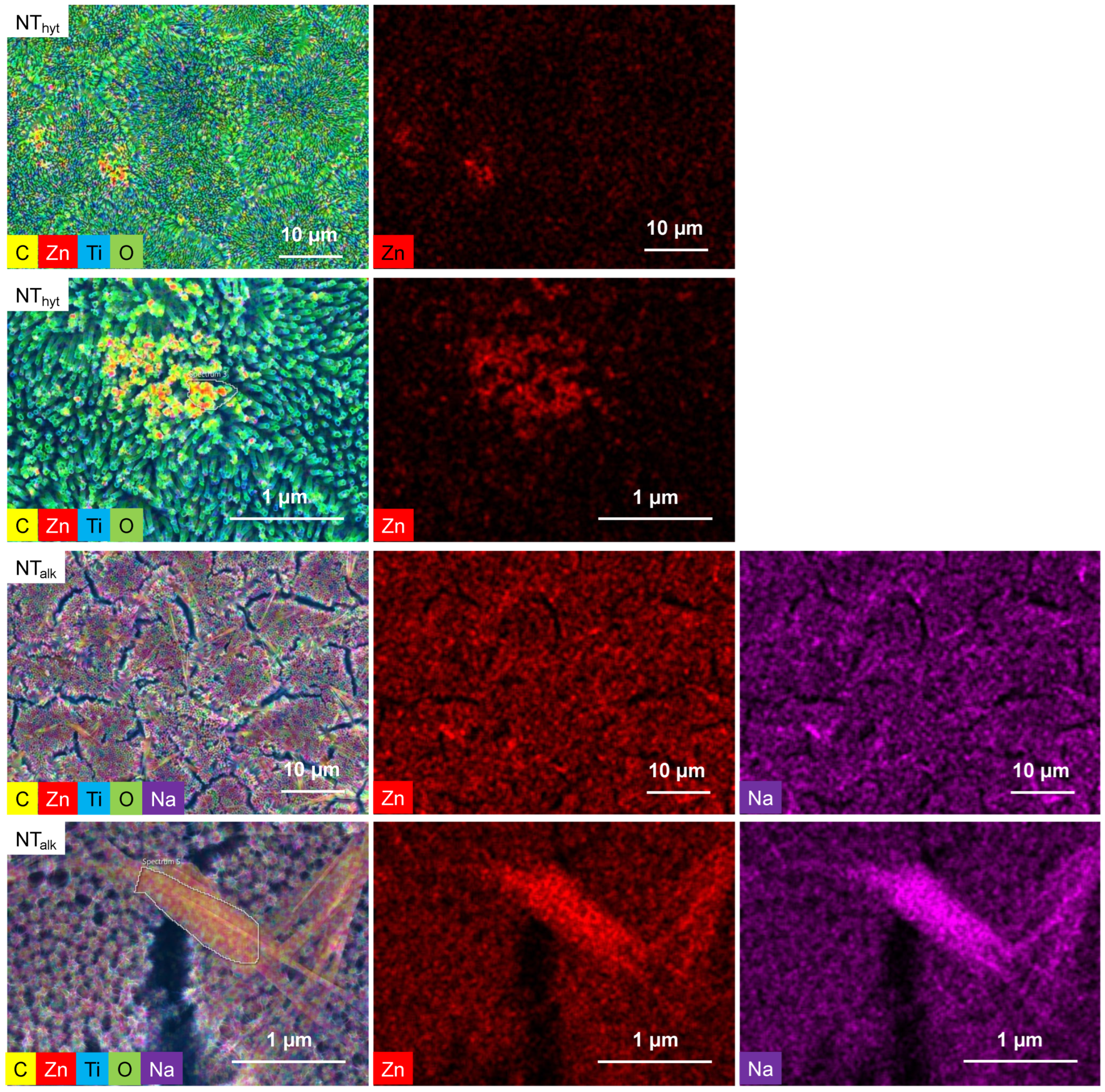

Figure 2. EDS analysis of representative surfaces NThyt and NTalk. The top two rows show the EDS layered images of NThyt at different magnifications along with the Zn distribution. The bottom two rows show the EDS layered images of NTalk at different magnifications along with Zn and Na distribution. White outlines in NThyt (2nd row) and NTalk (4th row) is showing the crystal and rod-shaped features on the NThyt and NTalk surfaces respectively.
Figure 2. EDS analysis of representative surfaces NThyt and NTalk. The top two rows show the EDS layered images of NThyt at different magnifications along with the Zn distribution. The bottom two rows show the EDS layered images of NTalk at different magnifications along with Zn and Na distribution. White outlines in NThyt (2nd row) and NTalk (4th row) is showing the crystal and rod-shaped features on the NThyt and NTalk surfaces respectively.
Nanomaterials 13 01606 g002
Nanomaterials 13 01606 g003 550

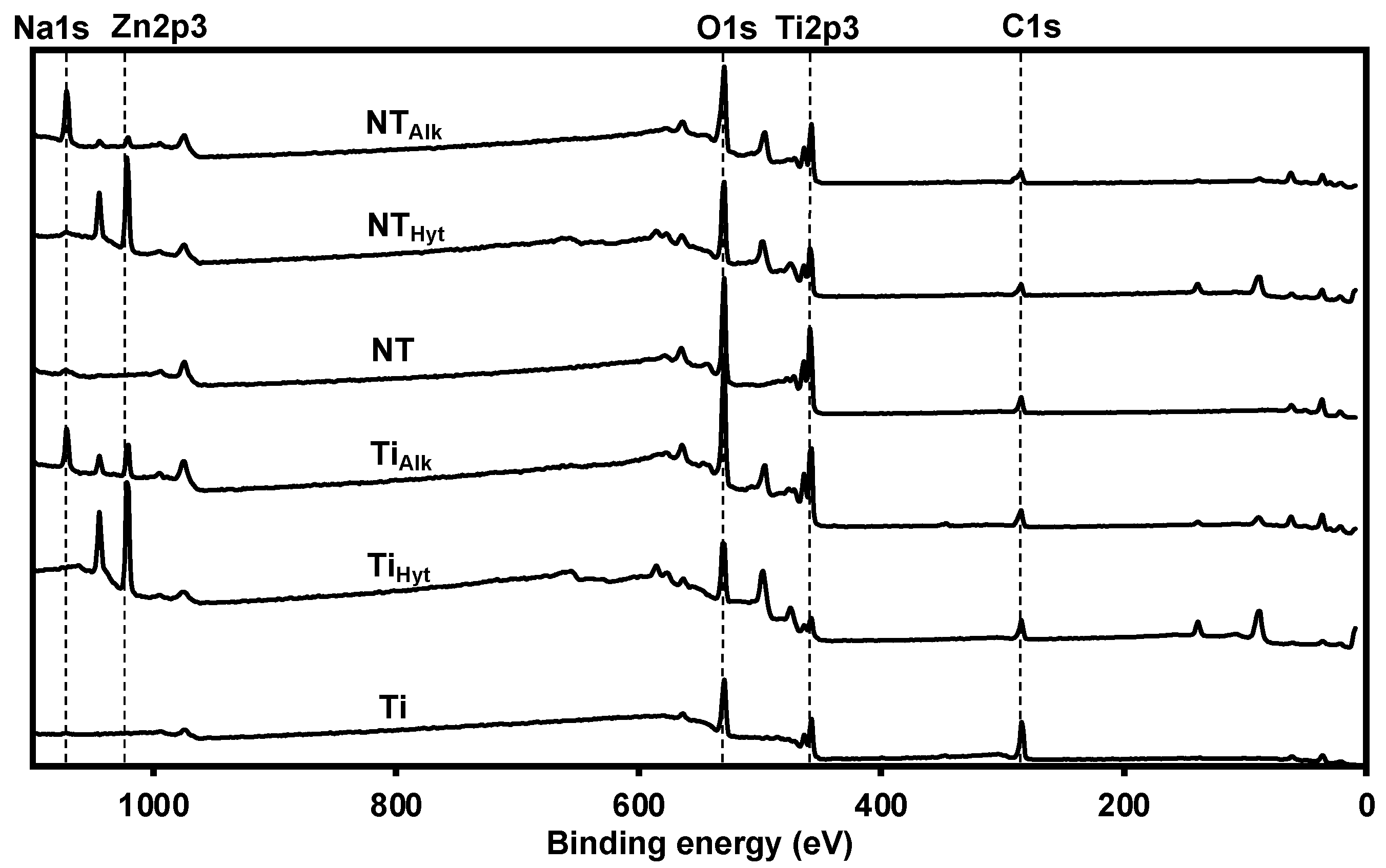

Figure 3. XPS survey spectra of different surfaces.
Figure 3. XPS survey spectra of different surfaces.
Nanomaterials 13 01606 g003
Nanomaterials 13 01606 g004 550

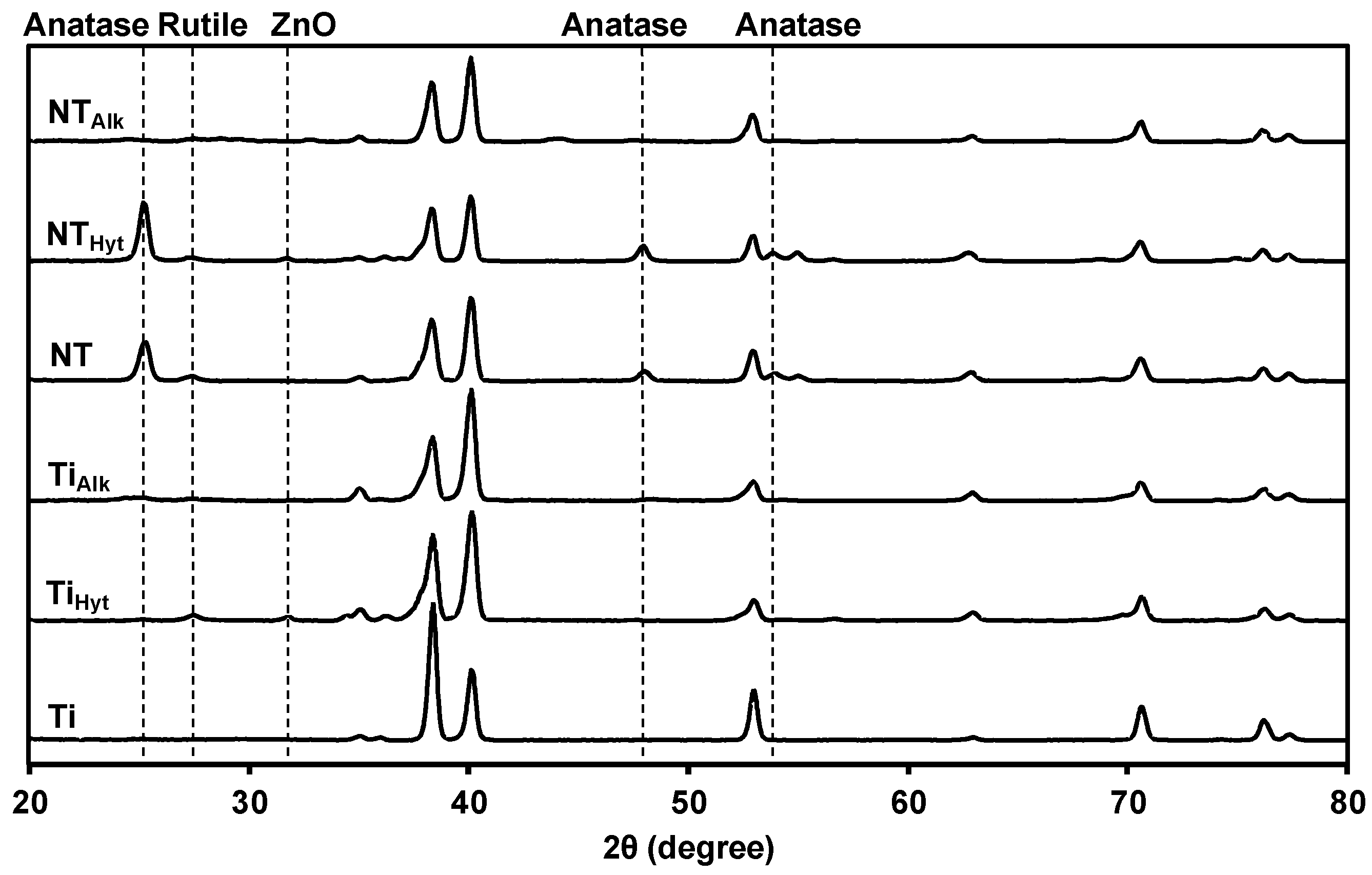

Figure 4. XRD spectra of different surfaces.
Figure 4. XRD spectra of different surfaces.
Nanomaterials 13 01606 g004
Nanomaterials 13 01606 g005 550

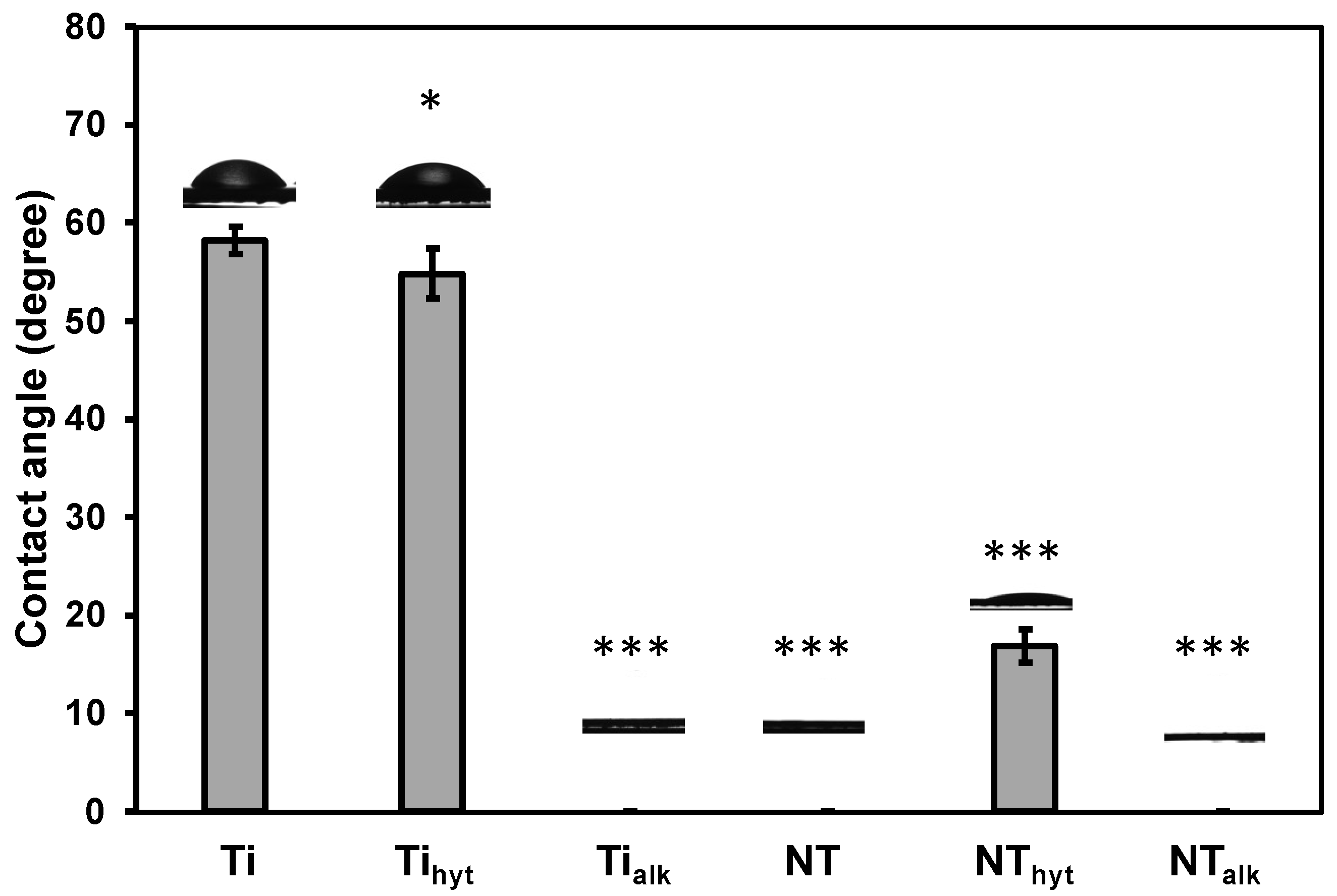

Figure 5. Static water contact angle of different surfaces. Images of water droplet on the surfaces are also shown in the plot. Statistical significances (p-value) were represented as * p < 0.05 and *** p < 0.001.
Figure 5. Static water contact angle of different surfaces. Images of water droplet on the surfaces are also shown in the plot. Statistical significances (p-value) were represented as * p < 0.05 and *** p < 0.001.
Nanomaterials 13 01606 g005
Nanomaterials 13 01606 g006 550

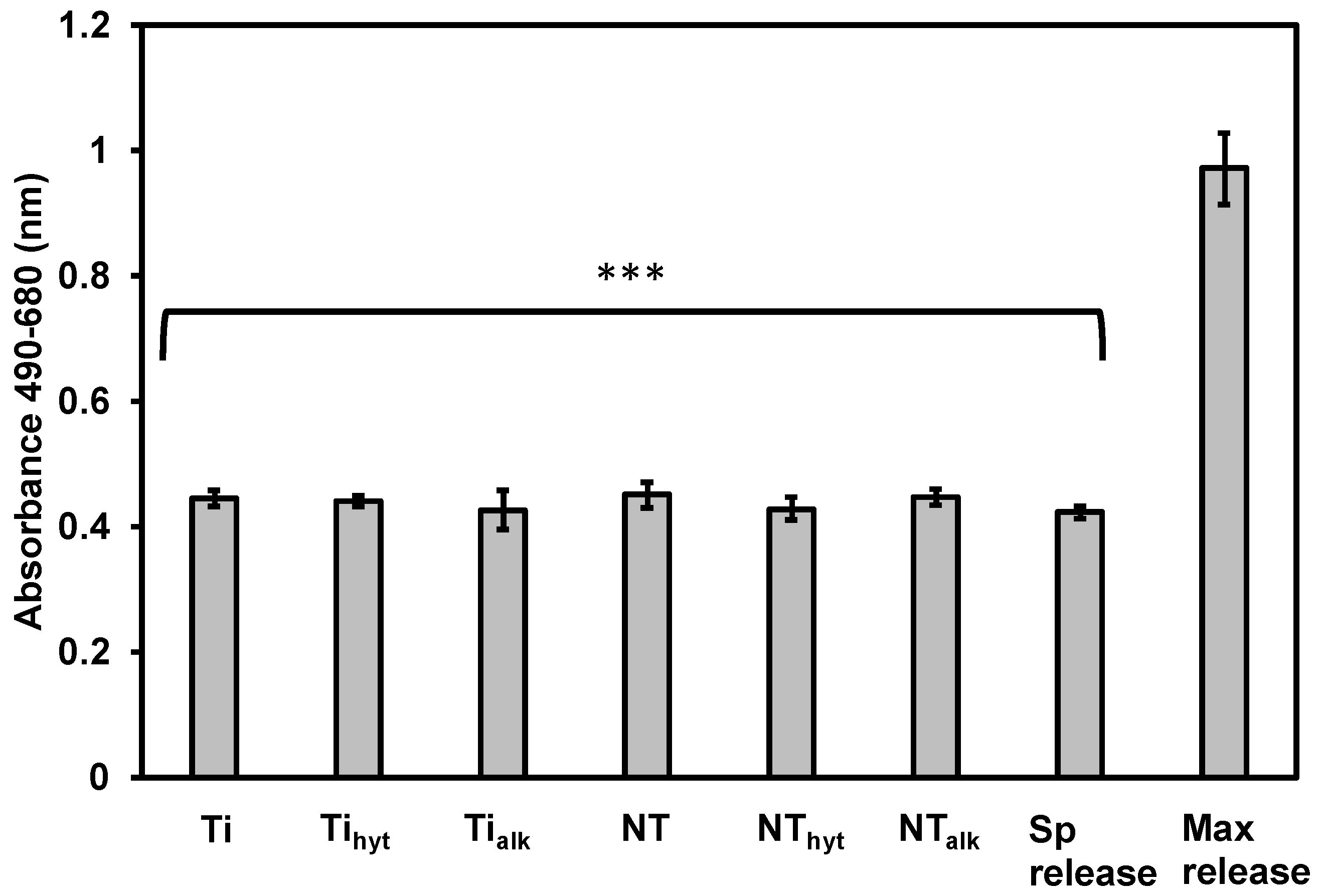

Figure 6. Cytotoxicity study of the surfaces against ADSCs. The values are represented as absorbance values at 490 and 680 nm. Sp release and Max release represent spontaneous and maximum LDH release values. *** represents p value < 0.001 when compared to the max release.
Figure 6. Cytotoxicity study of the surfaces against ADSCs. The values are represented as absorbance values at 490 and 680 nm. Sp release and Max release represent spontaneous and maximum LDH release values. *** represents p value < 0.001 when compared to the max release.
Nanomaterials 13 01606 g006
Nanomaterials 13 01606 g007 550
Figure 7. Representative fluorescence microscopic images of surfaces after incubation with P. aeruginosa. The graphs represent the number of live and dead P. aeruginosa attached to the surfaces. *, **, *** represent p-value < 0.05, <0.01, and <0.001 when compared with control Ti. ^^ represents p value < 0.01 when compared with NT.
Figure 7. Representative fluorescence microscopic images of surfaces after incubation with P. aeruginosa. The graphs represent the number of live and dead P. aeruginosa attached to the surfaces. *, **, *** represent p-value < 0.05, <0.01, and <0.001 when compared with control Ti. ^^ represents p value < 0.01 when compared with NT.
Nanomaterials 13 01606 g007
Nanomaterials 13 01606 g008 550

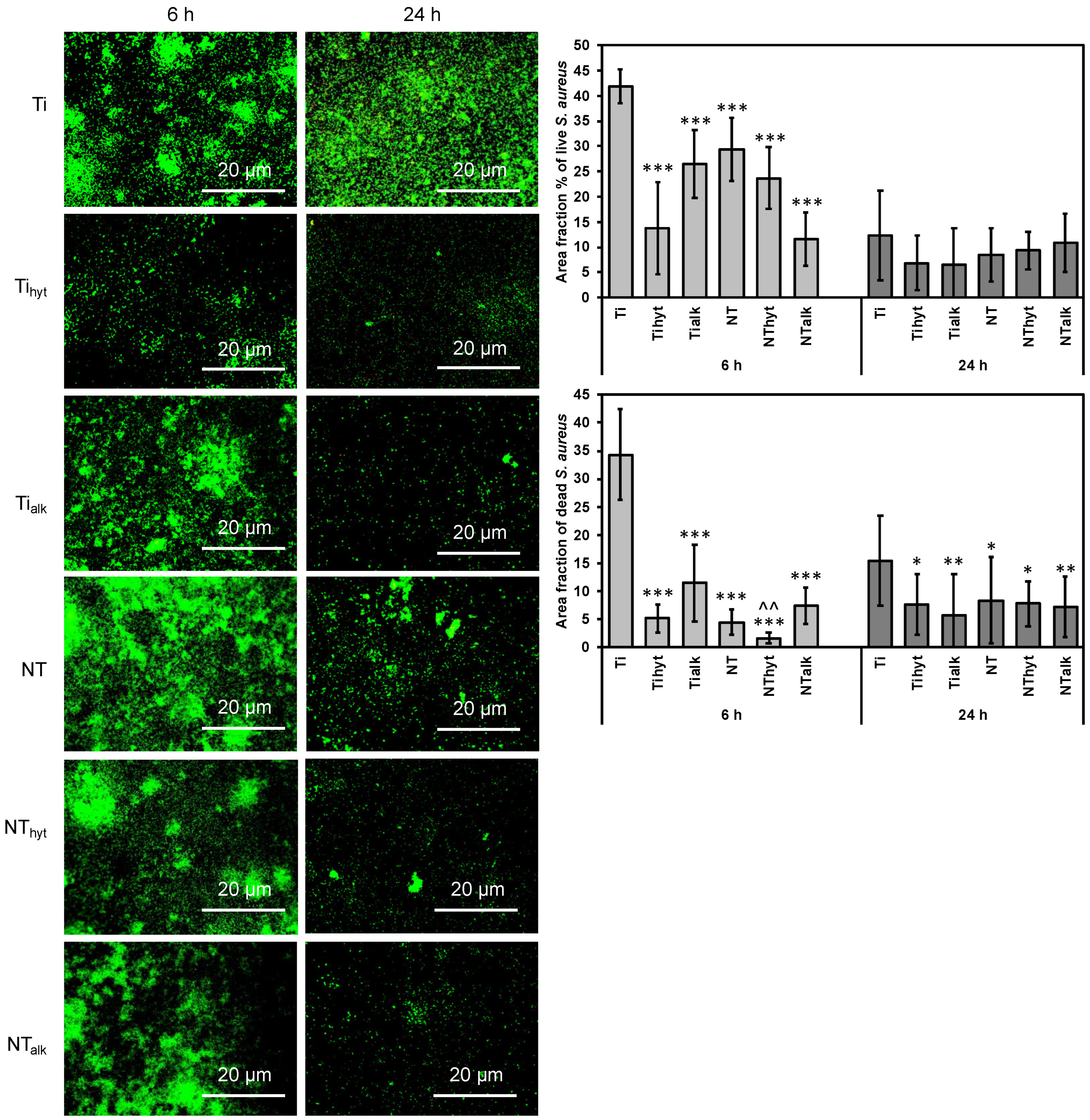

Figure 8. Representative fluorescence microscopic images of surfaces after incubation with S. aureus. The graphs represent the number of live and dead S. aureus attached to the surfaces. *, **, *** represent p-value < 0.05, <0.01, and <0.001 when compared with control Ti. ^^ represents p value < 0.01 when compared with NT.
Figure 8. Representative fluorescence microscopic images of surfaces after incubation with S. aureus. The graphs represent the number of live and dead S. aureus attached to the surfaces. *, **, *** represent p-value < 0.05, <0.01, and <0.001 when compared with control Ti. ^^ represents p value < 0.01 when compared with NT.
Nanomaterials 13 01606 g008
Nanomaterials 13 01606 g009 550

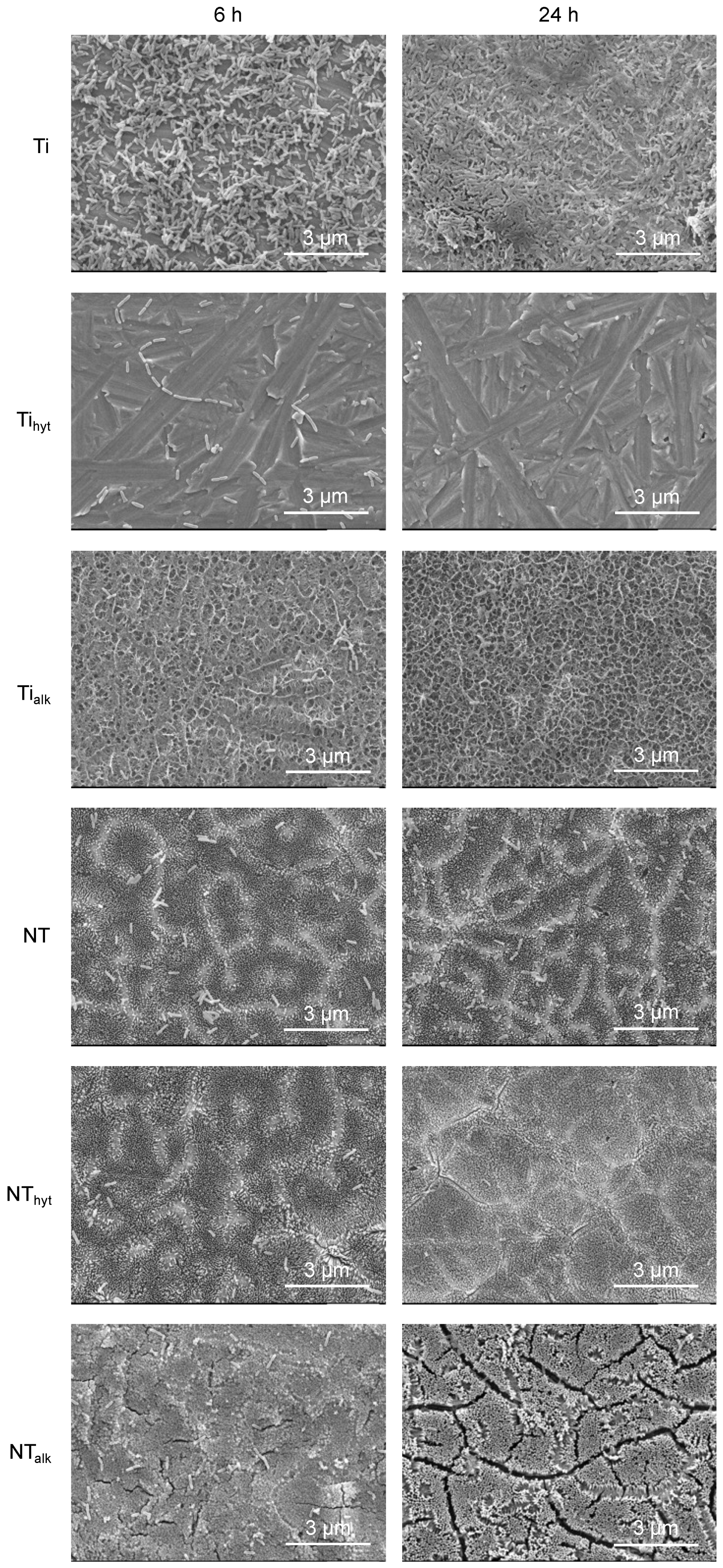

Figure 9. Representative SEM images of bacteria morphology after 6 h and 24 h of P. aeruginosa incubation.
Figure 9. Representative SEM images of bacteria morphology after 6 h and 24 h of P. aeruginosa incubation.
Nanomaterials 13 01606 g009
Nanomaterials 13 01606 g010 550

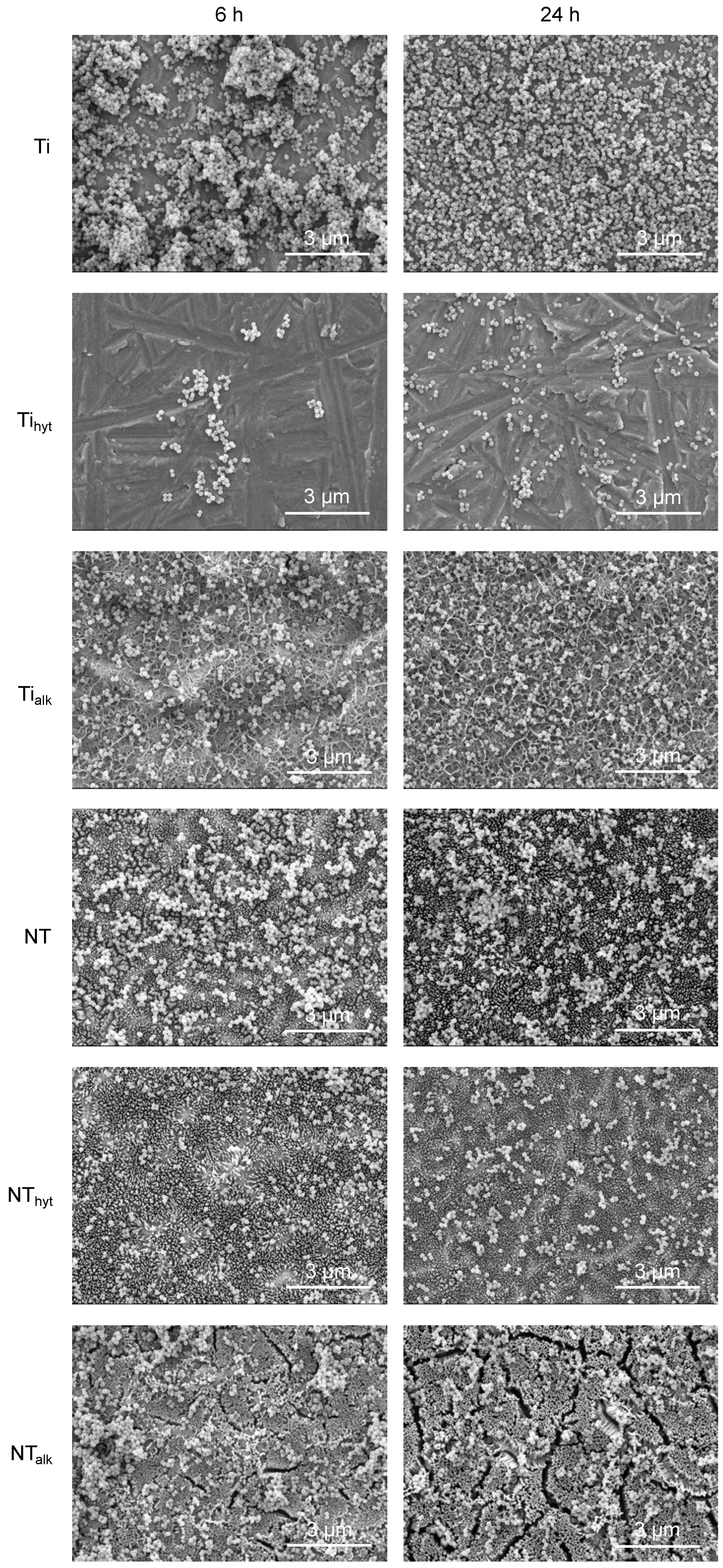

Figure 10. Representative SEM images of bacteria morphology after 6 h and 24 h of S. aureus incubation.
Figure 10. Representative SEM images of bacteria morphology after 6 h and 24 h of S. aureus incubation.
Nanomaterials 13 01606 g010
Table
Table 1. Elemental analysis (%at) of the surfaces from XPS survey spectra.
Table 1. Elemental analysis (%at) of the surfaces from XPS survey spectra.
% C% O% Ti% Zn% Na
Ti55.634.79.70.00.0
Tihyt29.742.85.921.60.0
Tialk19.251.715.24.19.8
NT21.357.321.40.00.0
NThyt17.753.611.716.90.0
NTalk19.549.012.01.318.1
Table
Table 2. %at of Zn and Na on the surfaces measured from XPS elemental analysis on Day 0 and Day 28. The negative values in the %at change column indicate increased concentration after 28 days.
Table 2. %at of Zn and Na on the surfaces measured from XPS elemental analysis on Day 0 and Day 28. The negative values in the %at change column indicate increased concentration after 28 days.
% Zn% Na
Day 0Day 28% ChangeDay 0Day 28% Change
Ti0.00.00.00.00.00.0
Tihyt21.68.958.80.00.00.0
Tialk4.15.2−26.89.84.455.1
NT0.00.00.00.00.00.0
NThyt16.99.245.60.00.00.0
NTalk1.32.6−100.018.10.0100.0
Table
Table 3. Indentation hardness and elastic modulus values for different surfaces.
Table 3. Indentation hardness and elastic modulus values for different surfaces.
Indentation Hardness (GPa)Elastic Modulus (GPa)
Ti2.30 ± 0.4138 ± 20
Tihyt1.55 ± 0.0894 ± 5
Tialk2.40 ± 0.291 ± 20
NT0.32 ± 0.0223 ± 1
NThyt0.26 ± 0.0245 ± 4
NTalk1.00 ± 0.476 ± 20
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bhattacharjee, A.; Goodall, E.; Pereira, B.L.; Soares, P.; Popat, K.C. Zinc (Zn) Doping by Hydrothermal and Alkaline Heat-Treatment Methods on Titania Nanotube Arrays for Enhanced Antibacterial Activity. Nanomaterials 2023, 13, 1606. https://doi.org/10.3390/nano13101606

AMA Style

Bhattacharjee A, Goodall E, Pereira BL, Soares P, Popat KC. Zinc (Zn) Doping by Hydrothermal and Alkaline Heat-Treatment Methods on Titania Nanotube Arrays for Enhanced Antibacterial Activity. Nanomaterials. 2023; 13(10):1606. https://doi.org/10.3390/nano13101606

Chicago/Turabian Style

Bhattacharjee, Abhishek, Emma Goodall, Bruno Leandro Pereira, Paulo Soares, and Ketul C. Popat. 2023. "Zinc (Zn) Doping by Hydrothermal and Alkaline Heat-Treatment Methods on Titania Nanotube Arrays for Enhanced Antibacterial Activity" Nanomaterials 13, no. 10: 1606. https://doi.org/10.3390/nano13101606

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
