Effect of Ambient Plasma Treatments on Thermal Conductivity and Fracture Toughness of Boron Nitride Nanosheets/Epoxy Nanocomposites

by
Won-Jong Choi
,
Seul-Yi Lee
* and
Soo-Jin Park
*
Department of Chemistry, Inha University, 100 Inharo, Incheon 22212, Republic of Korea
*
Authors to whom correspondence should be addressed.
Nanomaterials 2023, 13(1), 138; https://doi.org/10.3390/nano13010138
Submission received: 30 November 2022 / Revised: 20 December 2022 / Accepted: 22 December 2022 / Published: 27 December 2022
(This article belongs to the Special Issue Polymer-Reinforced Multifunctional Nanocomposites and Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
With the rapid growth in the miniaturization and integration of modern electronics, the dissipation of heat that would otherwise degrade the device efficiency and lifetime is a continuing challenge. In this respect, boron nitride nanosheets (BNNS) are of significant attraction as fillers for high thermal conductivity nanocomposites due to their high thermal stability, electrical insulation, and relatively high coefficient of thermal conductivity. Herein, the ambient plasma treatment of BNNS (PBNNS) for various treatment times is described for use as a reinforcement in epoxy nanocomposites. The PBNNS-loaded epoxy nanocomposites are successfully manufactured in order to investigate the thermal conductivity and fracture toughness. The results indicate that the PBNNS/epoxy nanocomposites subjected to 7 min plasma treatment exhibit the highest thermal conductivity and fracture toughness, with enhancements of 44 and 110%, respectively, compared to the neat nanocomposites. With these enhancements, the increases in surface free energy and wettability of the PBNNS/epoxy nanocomposites are shown to be attributable to the enhanced interfacial adhesion between the filler and matrix. It is demonstrated that the ambient plasma treatments enable the development of highly dispersed conductive networks in the PBNNS epoxy system.

1. Introduction

Boron nitrides (BNs) are identified as an intriguing candidate for fillers in electrically insulating polymer-based nanocomposites due to their relatively high thermal conductivity and good mechanical properties. However, the practical applications of BNs as a reinforcement in epoxy nanocomposites are severely restricted due to the difficulties related to the formation of highly aggregated BN particles during manufacturing and poor interfacial adhesion between the BNs and the epoxy matrix [1,2,3]. In particular, boron nitride nanosheets (BNNS), with a two-dimensional (2D) structure analogous to that of graphene, have been widely utilized as thermal reinforcements due to their high thermal conductivities (400–1000 W∙m−1∙K−1), outstanding mechanical properties, and chemical stability [4,5,6,7,8,9,10]. Due to their high aspect ratios, the BNNS have advantages for constructing thermal pathways in epoxy nanocomposites, thus enabling improved dispersion and/or reduced mean interparticle distance. However, the ultimate thermal conductivities of the BNNS-loaded epoxy nanocomposites remain far lower than expected due to the strong anisotropy of the BNNS, which leads to a high level of phonon scattering, thus decreasing the interfacial adhesion with the matrix and thereby reducing the thermal conductivity and mechanical properties. Moreover, owing to their high aspect ratios, the BNNS may increase the viscosity of the epoxy nanocomposites at high loading amounts, thus degrading their processability. Moving ahead, the surface functionalization of BNNS may be the most efficient way to overcome these limitations and alleviate the disadvantages of BNNS, thereby leading to an enhancement in the interfacial interactions between the filler and matrix in order to obtain desirable adhesion [11,12,13,14,15,16,17,18,19].
Ambient plasma treatment is a simple, fast, and environmentally benign process because no hazardous chemicals are used. During the treatment process, the physicochemical characteristics of the materials are modified by oxidation, degradation, and cross-linking. In addition, the treatments may cause structural changes within a depth of a few molecular layers while maintaining the inherent properties of the bulk materials. Moreover, plasma treatments have the pragmatic advantage of being performable under an atmosphere, thus ensuring process safety and enabling the fast and effective introduction of oxygen moieties onto the material surface without the formation of unwanted by-products [20,21]. In particular, several studies have reported that plasma treatments can effectively introduce new functionalities onto zirconia (ZrO2) surfaces. The surface properties of zirconia modified by these treatments have played an important role in improving the dispersion and enhancing the interfacial adhesion between ZrO2 and the epoxy matrix [22,23]. This, in turn, suggests that the plasma treatment of BNNS (PBNNS) would be a promising approach for enhancing the interfacial adhesion in the epoxy nanocomposite system.
Studies have also suggested that such surface enhancements on various fillers may accelerate the conversion of polymer-based nanocomposites into high performance materials. Hence, further research in this direction is expected to provide more rational guidance and fundamental understanding towards the realization of the theoretical limits of interfacial properties [24,25,26,27,28]. This, in turn, could be beneficial in a variety of applications such as medical equipment, heat-releasing materials, and electronic packaging materials. However, to the best of the present authors’ knowledge, there have been no previous studies on the interfacial adhesion between PBNNS and the epoxy matrix, and the related mechanisms have remained unclear.
The present study is therefore aimed at investigating the effect of PBNNS incorporation upon the interfacial adhesion of conventional epoxy nanocomposites. The chemical properties of PBNNS are investigated using Fourier transform infrared (FT-IR) and X-ray photoelectron spectroscopy (XPS). The structural changes and morphological properties of the PBNNS are observed by X-ray diffraction (XRD) and high-resolution transmission electron microscopy (HR-TEM). Finally, the surface free energy, thermal conductivity and fracture toughness of the PBNNS-loaded epoxy nanocomposites are evaluated.

2. Materials and Methods

2.1. Materials

The diglycidyl ether of bisphenol-A (DGEBA; YD-128; Kukdo Chemical Co., Seoul, Republic of Korea) was used as the epoxy resin. The epoxide equivalent weight of DGEBA was 185–190 g/equiv., and its density was 1.2 g∙cm−3 at 25 °C. Furthermore, 4,4′-diaminodiphenylmethane (DDM, 45–49 g/equiv.; Sigma-Aldrich Co., St. Louis, MO, USA) was used as the curing agent [29]. The chemical structures of DGEBA and DDM is shown in Figure 1. The BNNS (98% purity; Sigma-Aldrich Co., St. Louis, MO, USA) had a lateral size of 150 nm and thickness of 4 nm.

2.2. Ambient Plasma Treatment of BNNS

The plasma-treatment system was manufactured by ATMOS-Multi (PLASMART Co., Daejeon, Republic of Korea). Following previous studies, the gases used for the plasma treatments were Ar (99%) and O2 (1%). Operating frequency was fixed at 13.56 MHz, the treatment power was 200 W and treatment temperature was 25 °C. The flow rate of Ar/O2 mixed gas was 5 L/min, and the plasma treatment speed and the distance between electrodes were 5 mm/s and 7 mm, respectively [30,31,32,33,34]. The plasma-treatment times were varied as 0, 1, 3, 5, 7 and 10 min to generate samples designated hereafter as the pristine BNNS, PBNNS-1, PBNNS-3, PBNNS-5, PBNNS-7, and PBNNS-10.

2.3. Fabrication of the PBNNS/Epoxy Nanocomposites

The fabrication process for the PBNNS/epoxy nanocomposites is shown schematically in Figure 2. The PBNNS (30 wt.%) were dispersed in acetone, sonicated for 30 min, then mixed with epoxy resins as in previous studies [35,36,37,38]. The PBNNS/epoxy resin and DDM were then mixed in a planetary mixer for 5 min at room temperature, followed by heating in a vacuum oven at 100 °C for 4 h to evaporate the acetone and remove any bubbles. The mixtures were then cured at 80 °C for 1 h, followed by post-curing at 180 °C for 4 h [39,40]. The specimens of as-received BNNS, the plasma-treated PBNNS, and the PBNNS nanocomposites are designated hereafter as the neat BNNS, the PBNNS, and the PBE nanocomposites, respectively.

2.4. Characterization

The structural changes between the neat BNNS and the PBNNS were investigated via X-ray diffraction (XRD; Bruker Co., PHASER, Ettlingen, Germany) under Cu Kα radiation (λ = 0.154 nm). The surface properties of the PBNNS were investigated using Fourier transform-infrared spectroscopy (FT-IR; Bruker Co., Vertex 80V, Billerica, MA, USA) and X-ray photoelectron spectrometry (XPS; Thermo Fisher Scientific Co., K-Alpha, Waltham, MA, USA). The PBNNS particle size distribution was investigated using dynamic light scattering (DLS) with a zeta-potential analyzer (Microtrac Co., Nanotrac wave ZETA, Montgomeryville, PA, USA). For this measurement, all PBNNS samples were prepared using ethanol under identical colloidal conditions and were ultrasonicated for 1 h. The surface morphologies of the fabricated PBE nanocomposites were investigated using ultra-high resolution scanning electron microscopy (HR-SEM; Hitachi High-Technologies Co., SU8010, Tokyo, Japan) and field emission transmission electron microscopy (FE-TEM; JEOL Co., JEM-2100F, Peabody, MA, USA).
The thermal conductivity of the nanocomposites was determined using a Laser flash analyzer (Netzsch Co, LFA-447, Selb, Germany). Prior to the measurements, both sides of the nanocomposites were coated with graphite spray. The thermal conductivity (κ) was then calculated using Equation (1):
κ = α   ρ   C p
where α, ρ, and Cp are, respectively, the thermal diffusivity, density, and specific heat of the specimen. The specific heat was determined via differential scanning calorimetry (DSC), the density was measured using a density gauge, and the thermal diffusivity was obtained from Equation (2):
α = 1.38 Y 2 π 2 t 1 / 2   C p
where Y is the thickness of the specimen. The thermal absorption and dissipation capability of the tested nanocomposites were examined using an infrared thermal camera [41,42,43]. For this analysis, the thickness of each sample was controlled at around 2 mm to ensure the same thermal diffusion distance.
The fracture toughness of the nanocomposites was evaluated using a universal testing machine (UTM; Lloyd Instruments Co., LR-5 K plus, Bognor Regis, UK) in accordance with the ASTM D882 standard, and the critical stress intensity factor was determined via a three-point bend test [44]. Here, the notch depth was half the thickness, the crosshead speed was 1 mm∙min–1, the specimen size was 0.5 mm × 1 mm × 5 mm, and the span length ratio was 4:1. Under these conditions, the fracture toughness (KIC) is given by Equation (3):
K I C = F L b d 3 2 ⋅ Y
where F is the rupture force (N), L the span between the supports (mm), a the pre-crack length (mm), b the specimen width (mm), d the specimen thickness (mm), and Y a geometrical factor given by Equation (4):
Y = 3 a / d 1 / 2 [ 1.99 − a / d 1 − a / d 2.15 − 3.93 a / d + 2.7 a 2 / d 2 2 1 + 2 a / d ( 1 − a / d ) 3 / 2

3. Results and Discussion

3.1. Characterization of the PBNNS

The XRD patterns of the pristine BNNS and the various PBNNS samples are presented in Figure 3a. Here, both spectra exhibit a peak at 2θ = 24° due to the (002) reflection plane of the 2-D structure arising from the oxidative degradation of BNNS and PBNNS. Moreover, the diffraction patterns of the PBNNS-1 and PBNNS-7 are similar to that of the pristine BNNS, each exhibiting a diffraction peak at 2θ = 45° due to the (100) crystal plane, thereby indicating that these three samples have the same characteristic crystalline structures. However, the XRD pattern of the PBNNS-10 is different from that of the pristine PBNNS, PBNNS-1, and PBNNS-7 samples, thus confirming that the crystalline structure of BNNS is destroyed by excessive plasma-treatment (i.e., more than 10 min), as has been observed previously [45,46,47].
In addition, the FT-IR spectra of the pristine BNNS and the PBNNS are presented in Figure 3b. Here, the pure BNNS exhibits two dominant peaks at 1380 and 800 cm−1 due to the B–N stretching vibrations. In addition, the PBNNS samples each exhibit an absorption band at 3360 cm−1 due to the stretching vibrations of the hydroxyl (–OH) functional groups introduced by the ambient plasma treatment.

3.2. The Surface Morphology of the PBNN

The nanostructures of the pristine BNNS, the PBNNS-7 and the PBNNS-10 are revealed by the TEM images in Figure 4a–c. Here, a comparison of Figure 3a,b clearly confirms the surface modification in the PBNNS-7 due to the etching and cleaning action of the ambient plasma treatment on the BNNS surface. During the ambient plasma treatment, successive oxidation along the sidewalls of the contaminated 2D-layers of the BNNS results in progressive removal of the surface layers. By contrast, Figure 4c reveals the presence of defects and damage to the BNNS structure due to the excessive ambient plasma treatment of the PBNNS-10 sample, thus resulting in the destruction of the 2D-structure [48].
The colloidal stabilities and statistical particle size distributions of the bare Pristine BNNS, PBNNS-7, and PBNNS-10 in distilled water were examined via sedimentation tests and DLS measurements performed 24 h after ultra-sonication for 30 min. In this technique, the random changes of 2D structure materials in the liquid medium are analyzed according to the intensity of scattered light and compared with that of an equivalent hard sphere of ceramic materials. This can provide an estimate of the apparent size of the nanosheet agglomerates in the suspension. A stable colloid will have a constant mean particle size over a period of time, whereas an unstable colloid will exhibit an increase in particle size over time.
The DLS result is shown in Figure 4d indicates that the pristine BNNSs have an average particle diameter of 7–10 μm, which is around 1000 times larger than that of primary particles (5–10 nm). Meanwhile, Figure 4e indicates that PBNNS-1 has an average particle size range of 783–1879 nm with an average of 1331 nm, Figure 4f shows average 12 nm size for PBNNS-7. This could be attributed to the low degree of aggregation in polar solvents due to the presence of hydroxyl functional groups on the surface of BNNS [49,50].

3.3. The Interfacial Properties of the PBE Nanocomposites

The surface free energy is an important factor affecting the interfacial adhesion between the PBNNS and the epoxy matrix and, as such, influences the mechanical properties. In the present work, the surface free energy of the nanocomposites was calculated for the liquid and solid forms based on the model of Fowkes [51], Owens [52], and Kaelble [53]. Thus, the total surface free energy (γ) is defined as the sum of two components according to Equation (5):
γ = γ L + γ S P
where γL is the London dispersion component, and γSP is the specific polar component. In addition, the relationship between these two components and the contact angle (CA, or θ) is given by Equation (6):
γ L   1 + cos θ = 2 γ S L · γ L L + γ S S P · γ L S P
where γ L L and γ L S P are the respective components in the liquid phase, γ S L and γ S S P are the respective components in the solid phase.
The calculated total surface free energies of the neat BNNS and the various nanocomposites are presented in Table S3 and Figure 5a. Here, the neat BNNS exhibits a low surface free energy of 30.9 mJ·m−2, which is as expected due to the inert, non-polar surface. By contrast, the PBE nanocomposites exhibit an increase in surface free energy with increasing plasma treatment times. In detail, the surface free energy of the PBE-5 nanocomposite is 41.3 mJ·m−2, which represents a significant increase of 34% compared to that of the neat BNNS. Moreover, the highest measured total surface free energy value is 45.1 mJ·m−2 for the PBE-7 nanocomposite, with a 46% enhancement relative to the neat BNNS. In particular, the specific polar components of the PBE nanocomposites are found to exert a greater influence on the surface free energy than the London dispersion components. In view of the above-mentioned FT-IR and XPS results, this could be attributed to an increase in the number of hydroxyl functional groups on the PBNNS surfaces provided by the ambient plasma treatment. Consistently, the results indicate a decrease in the contact angle with increased plasma-treatment time, which can also be attributed to the increased number of hydroxyl groups from which distilled water droplets can rapidly diffuse, thus providing an improved wettability for the nanocomposites.

3.4. The Thermal Conductivity of the PBE Nanocomposites

The effects of plasma-treatment time upon the thermal conductivity of the PBE nanocomposites are indicated in Figure 6a and Table S4. Here, the thermal conductivity is seen to increase with increasing treatment time up to 7 min (PBE-7) and to decrease thereafter, as expected. In detail, the thermal conductivity of the PBE-5 nanocomposite is 0.446 W∙m∙K−1, which represents a significant increase of 20% compared to that of the neat BNNS (0.372 W∙m−1∙K−1). Moreover, the highest measured thermal conductivity is 0.535 W∙m∙K−1 for the PBE-7 nanocomposite, with a 44% enhancement compared to the neat BNNS. Furthermore, the plot in Figure 6b evidently shows a linear relationship between specific polar components and thermal conductivity, thus demonstrating the potential of PBNNS as a thermal interface material that can effectively promote thermal conductivity in nanocomposites [7,54,55]. Thus, the thermal conductivity of the nanocomposites is influenced not only by the type of filler but also by the interfacial interaction between the filler and the matrix. In detail, the PBE nanocomposites exhibit behavior in which increasing specific polar components of the surface free energy promote the formation of thermal conductivity pathways. These results are consistent with previous studies indicating that enhanced interfacial interaction and adhesion are important for increasing thermal conductivity, in agreement with previous studies [56,57,58]. The proposed thermal network mechanism of thermal conductivity is shown schematically in Figure 6c. For the neat BNNS, there is the possibility for aggregate formation, as demonstrated by the above-mentioned DLS and surface free energy analyses. Therefore, it is difficult to have a thermal conductivity mechanism within the epoxy matrix due to the poor dispersion and interfacial adhesion. By contrast, in the case of the PBE nanocomposites, the enhanced dispersion and interfacial adhesion in the absence of aggregation leads to the formation of thermally conductive networks and, hence enhanced thermal conductivity [59,60].
To evaluate the effect of PBNNS composites for thermal conductivity performances, a comparison between the PBE and other BN composites. As shown in Figure 6b and Table 1, PBE achieve far superior thermal conductivity performance (0.535 W∙m−1∙K−1) compared to all other BN composites [61,62,63,64,65].
The change in heat absorption of the neat BNNS and the various PBE nanocomposites according to plasma-treatment time is indicated by the plots of temperature against heating time in Figure 7a and the corresponding infrared thermal camera images in Figure 7c–d. Here, the surface temperature of each sample is seen to increase with heating time, but the PBE-7 nanocomposite (Figure 7b) exhibits the highest temperature compared with the other samples over the same time period. Similarly, during the cooling process, the surface temperature of the PBE-7 nanocomposite decreases more rapidly than that of the other samples, reaching a minimum value and remaining stable thereafter. The faster heating and cooling rates of this sample indicate its higher thermal conductivity and rate of thermal diffusion [66].

3.5. Fracture Toughness of PBE Nanocomposites

The relationship between the specific polar components of surface free energy and the fracture toughness (KIC) of the samples is indicated in Figure 8a, with the PBE nanocomposites exhibiting good linearity. These results indicate that the increase in interfacial adhesion is important for enhancing the fracture toughness of the PBE nanocomposites. The highest measured thermal conductivity value is 21.4 MPa.m1/2 for the PBE-7 nanocomposite, indicating a 110% enhancement compared to the neat BNNS (10.7 MPa.m1/2). As noted above, previous studies have demonstrated that the nanocomposites fabricated with PBNNS generally yield higher KIC values than other types of nanocomposites [67,68]. This increase in the KIC is believed to be related to the non-aggregated, well-distributed, and tightly embedded PBNNS within the epoxy matrix, as revealed by the fractured surfaces of the various nanocomposites in Figure 8c–e. This means that any cracks formed will propagate through the epoxy matrix and around the PBNNS due to the outstanding dispersion and interfacial adhesion between the PBNNS and the epoxy matrix, thus leading to good fracture and pull-out resistance [69,70]. Thus, the SEM image of the neat BNNS in Figure 8c shows typically catastrophic fractures due to aggregated BNNS and poor interfacial adhesion within the epoxy matrix. By contrast, the PBE-7 nanocomposite (Figure 8d) exhibits a rough fracture surface due to the lack of aggregation and the resulting enhancement in the dispersion and interfacial adhesion with the epoxy matrix. However, the PBNNS-10 (Figure 8e) exhibits similar levels of aggregation to that of the neat nanocomposite, thus indicating decreased dispersion and interfacial adhesion due to the excessive plasma-treatment time. These observations confirm the above-mentioned conclusion that the optimum plasma-treatment time is 7 min (PBNNS-7). It is important to note that the selected plasma-treatment times were within a reasonable range, that the optimal specific polar component was derived therefrom, and that the SEM images of the fracture surface confirmed that improved fracture toughness could be obtained [71].

4. Conclusions

The effects of the plasma-functionalization of BNNS upon the thermal conductivity and fracture toughness of epoxy nanocomposites were investigated herein. In particular, the effects of varying the treatment time (1, 3, 5, 7, and 10 min) were examined. In addition, dynamic light scattering (DLS) and high-resolution scanning electron microscopy (HR-SEM) analyses were used to further examine the effects of plasma-functionalization upon the dispersion state and interfacial adhesion of the BNNS by observing the fracture surfaces. In summary, substantial enhancements in the thermal conductivity and fracture toughness of the BNNS/epoxy (PBE) nanocomposites were achieved by using the optimal plasma-treatment time of 7 min. The resulting PBE-7 nanocomposite exhibited a higher specific polar component of the surface free energy than the neat BNSS, and the attached hydroxyl functional group effectively inhibited the BNNS aggregation within the epoxy matrix. In addition, the PBE-7 nanocomposite exhibited a 44% higher thermal conductivity and a 110% higher fracture toughness than the neat BNNS due to its high dispersion and strong interfacial adhesion. The results of this study explicated that a strong correlation exists between the surface free energy and the thermal conductivity and fracture toughness of nanocomposites.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/nano13010138/s1, Figure S1. XPS spectra of pristine BNNS and PBNNS. Table S1. XPS results of pristine BNNS and PBNNS. Table S2. Surface free energy, specific of the test wetting liquids used. Table S3. The contact angles of PBE nanocomposites. Table S4. Thermal conductivity parameter of PBE composites.

Author Contributions

Conceptualization, W.-J.C. and S.-Y.L.; methodology, W.-J.C.; investigation, W.-J.C.; data curation, W.-J.C.; writing—original draft preparation, W.-J.C.; writing—review and editing, S.-Y.L. and S.-J.P.; supervision, S.-Y.L. and S.-J.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (MSIT) (No. 2022M3J7A1062940) and supported by the Technology Innovation Program (or Industrial Strategic Technology Development Program- Development of technology on materials and components) (20010106, Adhesives with low water permeability and low outgassing) funded by the Ministry of Trade, Industry & Energy (MOTIE, Korea). This work was also supported by the Korea Initiative for Fostering University of Research and Innovation (KIURI) Program of the National Research Foundation (NRF) funded by the Korean government (MSIT) (No. NRF-2021M3H1A106413511). This work was also supported by the Technological Innovation R&D Program (S3277666) funded by the Ministry of SMEs and Startups (MSS, Korea).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chopra, N.G.; Luyken, R.; Cherrey, K.; Crespi, V.H.; Cohen, M.L.; Louie, S.G.; Zettl, A. Boron nitride nanotubes. Science 1995, 269, 966–967. [Google Scholar] [CrossRef] [PubMed]
  2. Corso, M.; Auwarter, W.; Muntwiler, M.; Tamai, A.; Greber, T.; Osterwalder, J. Boron nitride nanomesh. Science 2004, 303, 217–220. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Tian, Y.; Xu, B.; Yu, D.; Ma, Y.; Wang, Y.; Jiang, Y.; Hu, W.; Tang, C.; Gao, Y.; Luo, K. Ultrahard nanotwinned cubic boron nitride. Nature 2013, 493, 385–388. [Google Scholar] [CrossRef]
  4. Pakdel, A.; Bando, Y.; Golberg, D. Nano boron nitride flatland. Chem. Soc. Rev. 2014, 43, 934–959. [Google Scholar] [CrossRef] [PubMed]
  5. Luo, W.; Wang, Y.; Hitz, E.; Lin, Y.; Yang, B.; Hu, L. Solution processed boron nitride nanosheets: Synthesis, assemblies and emerging applications. Adv. Funct. Mater. 2017, 27, 1701450. [Google Scholar] [CrossRef]
  6. Han, Y.; Shi, X.; Wang, S.; Ruan, K.; Lu, C.; Guo, Y.; Gu, J. Nest-like hetero-structured BNNS@ SiCnws fillers and significant improvement on thermal conductivities of epoxy composites. Compos. Part B Eng. 2021, 210, 108666. [Google Scholar] [CrossRef]
  7. Guerra, V.; Wan, C.; McNally, T. Thermal conductivity of 2D nano-structured boron nitride (BN) and its composites with polymers. Prog. Mater. Sci. 2019, 100, 170–186. [Google Scholar] [CrossRef]
  8. Song, H.; Liu, J.; Liu, B.; Wu, J.; Cheng, H.-M.; Kang, F. Two-dimensional materials for thermal management applications. Joule 2018, 2, 442–463. [Google Scholar] [CrossRef] [Green Version]
  9. Chen, J.; Huang, X.; Sun, B.; Jiang, P. Highly thermally conductive yet electrically insulating polymer/boron nitride nanosheets nanocomposite films for improved thermal management capability. ACS Nano 2018, 13, 337–345. [Google Scholar] [CrossRef]
  10. Zheng, Z.; Cox, M.; Li, B. Surface modification of hexagonal boron nitride nanomaterials: A review. J. Mater. Sci. 2018, 53, 66–99. [Google Scholar] [CrossRef]
  11. Tanimoto, M.; Yamagata, T.; Miyata, K.; Ando, S. Anisotropic thermal diffusivity of hexagonal boron nitride-filled polyimide films: Effects of filler particle size, aggregation, orientation, and polymer chain rigidity. ACS Appl. Mater. Interfaces 2013, 5, 4374–4382. [Google Scholar] [CrossRef] [PubMed]
  12. Jan, R.; May, P.; Bell, A.P.; Habib, A.; Khan, U.; Coleman, J.N. Enhancing the mechanical properties of BN nanosheet–polymer composites by uniaxial drawing. Nanoscale 2014, 6, 4889–4895. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Li, X.; Feng, Y.; Chen, C.; Ye, Y.; Zeng, H.; Qu, H.; Liu, J.; Zhou, X.; Long, S.; Xie, X. Highly thermally conductive flame retardant epoxy nanocomposites with multifunctional ionic liquid flame retardant-functionalized boron nitride nanosheets. J. Mater. Chem. A 2018, 6, 20500–20512. [Google Scholar] [CrossRef]
  14. Zare, Y.; Rhee, K.Y.; Park, S.-J. A modeling methodology to investigate the effect of interfacial adhesion on the yield strength of MMT reinforced nanocomposites. J. Ind. Eng. Chem. 2019, 69, 331–337. [Google Scholar] [CrossRef]
  15. Bashir, A.; Maqbool, M.; Lv, R.; Usman, A.; Guo, H.; Aftab, W.; Niu, H.; Liu, M.; Bai, S.-L. Surface modified boron nitride towards enhanced thermal and mechanical performance of thermoplastic polyurethane composite. Compos. Part B Eng. 2021, 218, 108871. [Google Scholar] [CrossRef]
  16. Xie, S.; Istrate, O.M.; May, P.; Barwich, S.; Bell, A.P.; Khan, U.; Coleman, J.N. Boron nitride nanosheets as barrier enhancing fillers in melt processed composites. Nanoscale 2015, 7, 4443–4450. [Google Scholar] [CrossRef] [Green Version]
  17. Riaz, S.; Park, S.-J. Effective reinforcement of melamine-functionalized WS2 nanosheets in epoxy nanocomposites at low loading via enhanced interfacial interaction. Macromol. Res. 2020, 28, 1116–1126. [Google Scholar] [CrossRef]
  18. Xiao, Q.; Han, W.; Yang, R.; You, Y.; Wei, R.; Liu, X. Mechanical, dielectric, and thermal properties of polyarylene ether nitrile and boron nitride nanosheets composites. Polym. Compos. 2018, 39, E1598–E1605. [Google Scholar] [CrossRef]
  19. Yang, N.; Zeng, X.; Lu, J.; Sun, R.; Wong, C.-P. Effect of chemical functionalization on the thermal conductivity of 2D hexagonal boron nitride. Appl. Phys. Lett. 2018, 113, 171904. [Google Scholar] [CrossRef]
  20. Zou, B.; Chang, X.; Yang, J.; Wang, S.; Xu, J.; Wang, S.; Samukawa, S.; Wang, L. Plasma treated h-BN nanoflakes as barriers to enhance anticorrosion of acrylic coating on steel. Prog. Org. Coat. 2019, 133, 139–144. [Google Scholar] [CrossRef]
  21. Shon, W.J.; Chung, S.H.; Kim, H.K.; Han, G.J.; Cho, B.H.; Park, Y.S. Peri-implant bone formation of non-thermal atmospheric pressure plasma–treated zirconia implants with different surface roughness in rabbit tibiae. Clin. Oral Implant. Res. 2014, 25, 573–579. [Google Scholar] [CrossRef] [PubMed]
  22. Tabari, K.; Hosseinpour, S.; Mohammad-Rahimi, H. The impact of plasma treatment of Cercon® zirconia ceramics on adhesion to resin composite cements and surface properties. J. Lasers Med. Sci. 2017, 8, S56. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Li, S.; Wang, F.; Wang, Y.; Wang, J.; Ma, J.; Xiao, J. Effect of acid and TETA modification on mechanical properties of MWCNTs/epoxy composites. J. Mater. Sci. 2008, 43, 2653–2658. [Google Scholar] [CrossRef]
  24. Burmistrov, I.; Mostovoi, A.; Shatrova, N.; Panova, L.; Kuznetsov, D.; Gorokhovskii, A.; Il’inykh, I. Influence of surface modification of potassium polytitanates on the mechanical properties of polymer composites thereof. Russ. J. Appl. Chem. 2013, 86, 765–771. [Google Scholar] [CrossRef]
  25. Hameed, A.; Islam, M.; Ahmad, I.; Mahmood, N.; Saeed, S.; Javed, H. Thermal and mechanical properties of carbon nanotube/epoxy nanocomposites reinforced with pristine and functionalized multiwalled carbon nanotubes. Polym. Compos. 2015, 36, 1891–1898. [Google Scholar] [CrossRef]
  26. Shcherbakov, A.; Mostovoy, A.; Bekeshev, A.; Burmistrov, I.; Arzamastsev, S.; Lopukhova, M. Effect of Microwave Irradiation at Different Stages of Manufacturing Unsaturated Polyester Nanocomposite. Polymers 2022, 14, 4594. [Google Scholar] [CrossRef]
  27. Amirbeygi, H.; Khosravi, H.; Tohidlou, E. Reinforcing effects of aminosilane-functionalized graphene on the tribological and mechanical behaviors of epoxy nanocomposites. J. Appl. Polym. Sci. 2019, 136, 47410. [Google Scholar] [CrossRef]
  28. Zhang, Q.; Bai, G.; Xiao, W.; Sui, G.; Yang, X. Effect of amine functionalized MWCNT-epoxy interfacial interaction on MWCNT dispersion and mechanical properties of epoxy-amine composites. Polym. Compos. 2018, 39, E2552–E2561. [Google Scholar] [CrossRef]
  29. Jin, F.-L.; Li, X.; Park, S.-J. Synthesis and application of epoxy resins: A review. J. Ind. Eng. Chem. 2015, 29, 1–11. [Google Scholar] [CrossRef]
  30. Khvostov, V.; Konyashin, I.Y.; Shouleshov, E.; Babaev, V.; Guseva, M. Surface modification of boron nitride in hydrogen plasma. Appl. Surf. Sci. 2000, 157, 178–184. [Google Scholar] [CrossRef]
  31. Pakdel, A.; Bando, Y.; Golberg, D. Plasma-assisted interface engineering of boron nitride nanostructure films. ACS Nano 2014, 8, 10631–10639. [Google Scholar] [CrossRef] [PubMed]
  32. Xu, Z.-Q.; Elbadawi, C.; Tran, T.T.; Kianinia, M.; Li, X.; Liu, D.; Hoffman, T.B.; Nguyen, M.; Kim, S.; Edgar, J.H. Single photon emission from plasma treated 2D hexagonal boron nitride. Nanoscale 2018, 10, 7957–7965. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Lin, Z.; Mcnamara, A.; Liu, Y.; Moon, K.-s.; Wong, C.-P. Exfoliated hexagonal boron nitride-based polymer nanocomposite with enhanced thermal conductivity for electronic encapsulation. Compos. Sci. Technol. 2014, 90, 123–128. [Google Scholar] [CrossRef]
  34. Park, S.-J.; Lee, E.-J.; Kwon, S.-H. Influence of surface treatment of polyimide film on adhesion enhancement between polyimide and metal films. Bull. Korean Chem. Soc. 2007, 28, 188–192. [Google Scholar]
  35. Li, T.L.; Hsu, S.L.C. Preparation and properties of thermally conductive photosensitive polyimide/boron nitride nanocomposites. J. Appl. Polym. Sci. 2011, 121, 916–922. [Google Scholar] [CrossRef]
  36. Kim, S.-H.; Rhee, K.Y.; Park, S.-J. Amine-terminated chain-grafted nanodiamond/epoxy nanocomposites as interfacial materials: Thermal conductivity and fracture resistance. Compos. Part B Eng. 2020, 192, 107983. [Google Scholar] [CrossRef]
  37. Pant, B.; Saud, P.S.; Park, M.; Park, S.-J.; Kim, H.-Y. General one-pot strategy to prepare Ag–TiO2 decorated reduced graphene oxide nanocomposites for chemical and biological disinfectant. J. Alloys Compd. 2016, 671, 51–59. [Google Scholar] [CrossRef]
  38. Kim, M.T.; Kim, M.H.; Rhee, K.; Park, S. Study on an oxygen plasma treatment of a basalt fiber and its effect on the interlaminar fracture property of basalt/epoxy woven composites. Compos. Part B Eng. 2011, 42, 499–504. [Google Scholar] [CrossRef]
  39. Park, S.-J.; Jin, J.-S. Effect of corona discharge treatment on the dyeability of low-density polyethylene film. J. Colloid Interface Sci. 2001, 236, 155–160. [Google Scholar] [CrossRef]
  40. Yang, J.; Chen, Z.; Liang, L.; Guan, Z.; Ren, J. Synergistic Enhanced Thermal Conductivity and Crack Resistance of Reactor Epoxy Insulation with Boron Nitride Nanosheets and Multiwalled Carbon Nanotubes. Nanomaterials 2022, 12, 3235. [Google Scholar] [CrossRef]
  41. Xu, X.; Chen, J.; Zhou, J.; Li, B. Thermal conductivity of polymers and their nanocomposites. Adv. Mater. 2018, 30, 1705544. [Google Scholar] [CrossRef] [PubMed]
  42. Huang, C.; Qian, X.; Yang, R. Thermal conductivity of polymers and polymer nanocomposites. Mater. Sci. Eng. R Rep. 2018, 132, 1–22. [Google Scholar] [CrossRef] [Green Version]
  43. Tominaga, M.; Iwaoka, A.; Kawai, D.; Sakamoto, S. Correlation between carbon oxygenated species of SWCNTs and the electrochemical oxidation reaction of NADH. Electrochem. Commun. 2013, 31, 76–79. [Google Scholar] [CrossRef]
  44. Salakhov, I.I.; Shaidullin, N.M.; Chalykh, A.E.; Matsko, M.A.; Shapagin, A.V.; Batyrshin, A.Z.; Shandryuk, G.A.; Nifant’ev, I.E. Low-temperature mechanical properties of high-density and low-density polyethylene and their blends. Polymers 2021, 13, 1821. [Google Scholar] [CrossRef] [PubMed]
  45. Guerra, V.; Wan, C.; Degirmenci, V.; Sloan, J.; Presvytis, D.; McNally, T. 2D boron nitride nanosheets (BNNS) prepared by high-pressure homogenisation: Structure and morphology. Nanoscale 2018, 10, 19469–19477. [Google Scholar] [CrossRef] [Green Version]
  46. Kim, W.-J.; Heo, Y.-J.; Lee, J.-H.; Rhee, K.Y.; Park, S.-J. Effect of Atmospheric-Pressure Plasma Treatments on Fracture Toughness of Carbon Fibers-Reinforced Composites. Molecules 2021, 26, 3698. [Google Scholar] [CrossRef] [PubMed]
  47. Yang, G.; Park, M.; Park, S.-J. Recent progresses of fabrication and characterization of fibers-reinforced composites: A review. Compos. Commun. 2019, 14, 34–42. [Google Scholar] [CrossRef]
  48. Sainsbury, T.; O’Neill, A.; Passarelli, M.K.; Seraffon, M.; Gohil, D.; Gnaniah, S.; Spencer, S.J.; Rae, A.; Coleman, J.N. Dibromocarbene functionalization of boron nitride nanosheets: Toward band gap manipulation and nanocomposite applications. Chem. Mater. 2014, 26, 7039–7050. [Google Scholar] [CrossRef]
  49. Wang, N.; Wang, H.; Tang, C.; Lei, S.; Shen, W.; Wang, C.; Wang, G.; Wang, Z.; Wang, L. Toxicity evaluation of boron nitride nanospheres and water-soluble boron nitride in Caenorhabditis elegans. Int. J. Nanomed. 2017, 12, 5941. [Google Scholar] [CrossRef] [Green Version]
  50. Roy, A.K.; Park, S.Y.; In, I. Mussel-inspired synthesis of boron nitride nanosheet-supported gold nanoparticles and their application for catalytic reduction of 4-nitrophenol. Nanotechnology 2015, 26, 105601. [Google Scholar] [CrossRef]
  51. Fowkes, F.M. Determination of interfacial tensions, contact angles, and dispersion forces in surfaces by assuming additivity of intermolecular interactions in surfaces. J. Phys. Chem. 1962, 66, 382. [Google Scholar] [CrossRef]
  52. Owens, D.K.; Wendt, R. Estimation of the surface free energy of polymers. J. Appl. Polym. Sci. 1969, 13, 1741–1747. [Google Scholar] [CrossRef]
  53. Kaelble, D. Dispersion-polar surface tension properties of organic solids. J. Adhes. 1970, 2, 66–81. [Google Scholar] [CrossRef]
  54. Liu, Z.; Li, J.; Liu, X. Novel functionalized BN nanosheets/epoxy composites with advanced thermal conductivity and mechanical properties. ACS Appl. Mater. Interfaces 2020, 12, 6503–6515. [Google Scholar] [CrossRef] [PubMed]
  55. Li, J.; Chen, J.; Zhu, M.; Song, H.; Zhang, H. Interfacial characteristics of boron nitride nanosheet/epoxy resin nanocomposites: A molecular dynamics simulation. Appl. Sci. 2019, 9, 2832. [Google Scholar] [CrossRef] [Green Version]
  56. Tian, X.; Wu, N.; Zhang, B.; Wang, Y.; Geng, Z.; Li, Y. Glycine functionalized boron nitride nanosheets with improved dispersibility and enhanced interaction with matrix for thermal composites. Chem. Eng. J. 2021, 408, 127360. [Google Scholar] [CrossRef]
  57. Wu, K.; Wang, J.; Liu, D.; Lei, C.; Liu, D.; Lei, W.; Fu, Q. Highly thermoconductive, thermostable, and super-flexible film by engineering 1D rigid rod-like aramid nanofiber/2D boron nitride nanosheets. Adv. Mater. 2020, 32, 1906939. [Google Scholar] [CrossRef]
  58. Isarn, I.; Ramis, X.; Ferrando, F.; Serra, A. Thermoconductive thermosetting composites based on boron nitride fillers and thiol-epoxy matrices. Polymers 2018, 10, 277. [Google Scholar] [CrossRef] [Green Version]
  59. Gu, J.; Ruan, K. Breaking through bottlenecks for thermally conductive polymer composites: A perspective for intrinsic thermal conductivity, interfacial thermal resistance and theoretics. Nano-Micro Lett. 2021, 13, 110. [Google Scholar] [CrossRef]
  60. Dong, J.; Cao, L.; Li, Y.; Wu, Z.; Teng, C. Largely improved thermal conductivity of PI/BNNS nanocomposites obtained by constructing a 3D BNNS network and filling it with AgNW as the thermally conductive bridges. Compos. Sci. Technol. 2020, 196, 108242. [Google Scholar] [CrossRef]
  61. Gu, J.; Zhang, Q.; Dang, J.; Xie, C. Thermal conductivity epoxy resin composites filled with boron nitride. Polym. Adv. Technol. 2012, 23, 1025–1028. [Google Scholar] [CrossRef]
  62. Yang, H.; Chen, Q.; Wang, X.; Chi, M.; Liu, H.; Ning, X. Dielectric and thermal conductivity of epoxy resin impregnated nano-h-BN modified insulating paper. Polymers 2019, 11, 1359. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Teng, C.-C.; Ma, C.-C.M.; Chiou, K.-C.; Lee, T.-M.; Shih, Y.-F. Synergetic effect of hybrid boron nitride and multi-walled carbon nanotubes on the thermal conductivity of epoxy composites. Mater. Chem. Phys. 2011, 126, 722–728. [Google Scholar] [CrossRef]
  64. Wang, Z.; Iizuka, T.; Kozako, M.; Ohki, Y.; Tanaka, T. Development of epoxy/BN composites with high thermal conductivity and sufficient dielectric breakdown strength partI-sample preparations and thermal conductivity. IEEE Trans. Dielectr. Electr. Insul. 2011, 18, 1963–1972. [Google Scholar] [CrossRef]
  65. Garrett, K.; Rosenberg, H. The thermal conductivity of epoxy-resin/powder composite materials. J. Phys. D Appl. Phys. 1974, 7, 1247. [Google Scholar] [CrossRef]
  66. Park, S.-J.; Cho, M.-S. Thermal stability of carbon-MoSi2-carbon composites by thermogravimetric analysis. J. Mater. Sci. 2000, 35, 3525–3527. [Google Scholar] [CrossRef]
  67. Han, Y.; Shi, X.; Yang, X.; Guo, Y.; Zhang, J.; Kong, J.; Gu, J. Enhanced thermal conductivities of epoxy nanocomposites via incorporating in-situ fabricated hetero-structured SiC-BNNS fillers. Compos. Sci. Technol. 2020, 187, 107944. [Google Scholar] [CrossRef]
  68. Domun, N.; Paton, K.R.; Hadavinia, H.; Sainsbury, T.; Zhang, T.; Mohamud, H. Enhancement of fracture toughness of epoxy nanocomposites by combining nanotubes and nanosheets as fillers. Materials 2017, 10, 1179. [Google Scholar] [CrossRef] [Green Version]
  69. Kang, W.-S.; Rhee, K.Y.; Park, S.-J. Influence of surface energetics of graphene oxide on fracture toughness of epoxy nanocomposites. Compos. Part B Eng. 2017, 114, 175–183. [Google Scholar] [CrossRef]
  70. Bekeshev, A.; Mostovoy, A.; Tastanova, L.; Kadykova, Y.; Kalganova, S.; Lopukhova, M. Reinforcement of epoxy composites with application of finely-ground ochre and electrophysical method of the composition modification. Polymers 2020, 12, 1437. [Google Scholar] [CrossRef]
  71. Kavimani, V.; Prakash, K.S.; Thankachan, T.; Udayakumar, R. Synergistic improvement of epoxy derived polymer composites reinforced with Graphene Oxide (GO) plus Titanium di oxide (TiO2). Compos. Part B Eng. 2020, 191, 107911. [Google Scholar] [CrossRef]
Nanomaterials 13 00138 g001 550

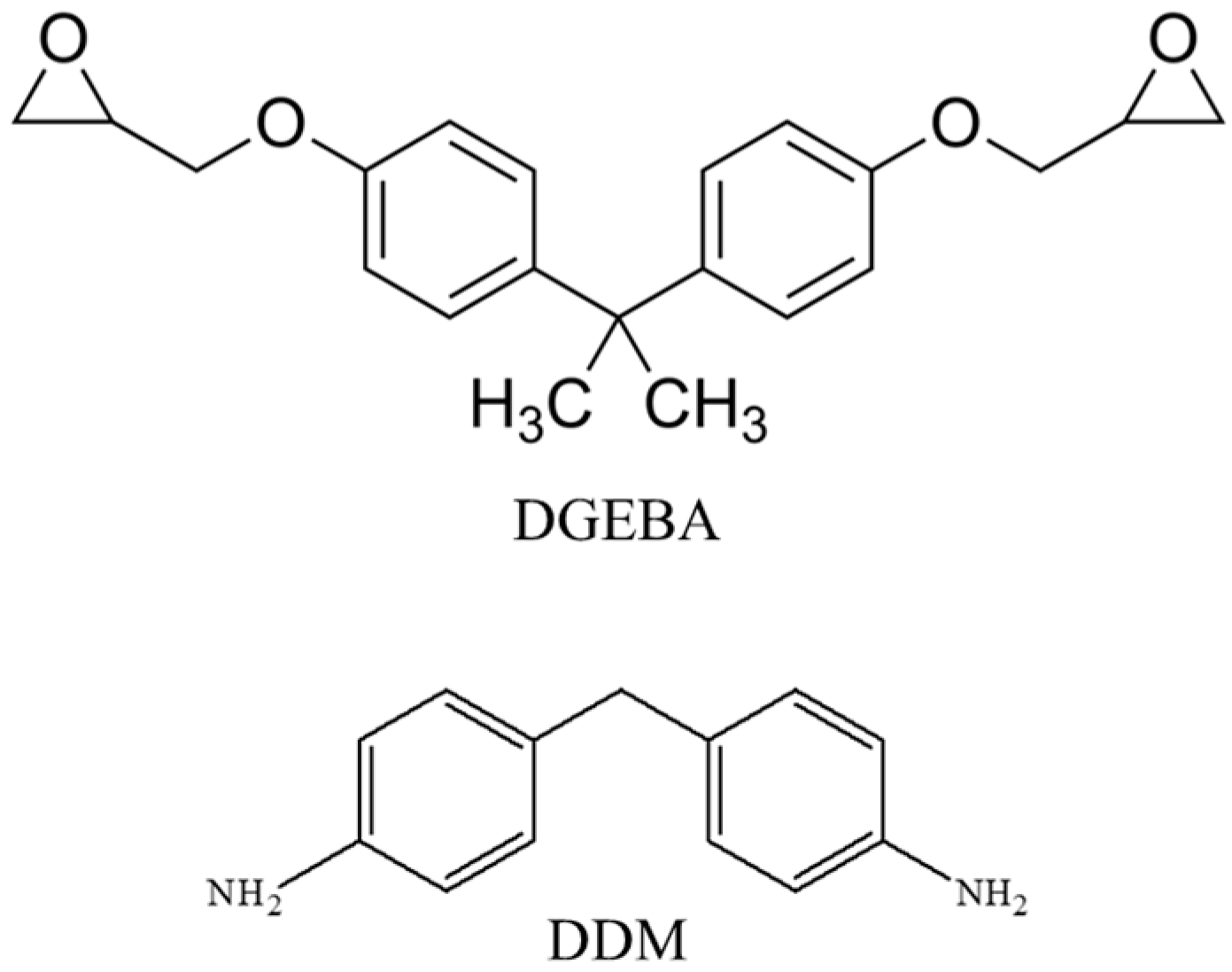

Figure 1. Chemical structures of DGEBA and DDM.
Figure 1. Chemical structures of DGEBA and DDM.
Nanomaterials 13 00138 g001
Nanomaterials 13 00138 g002 550

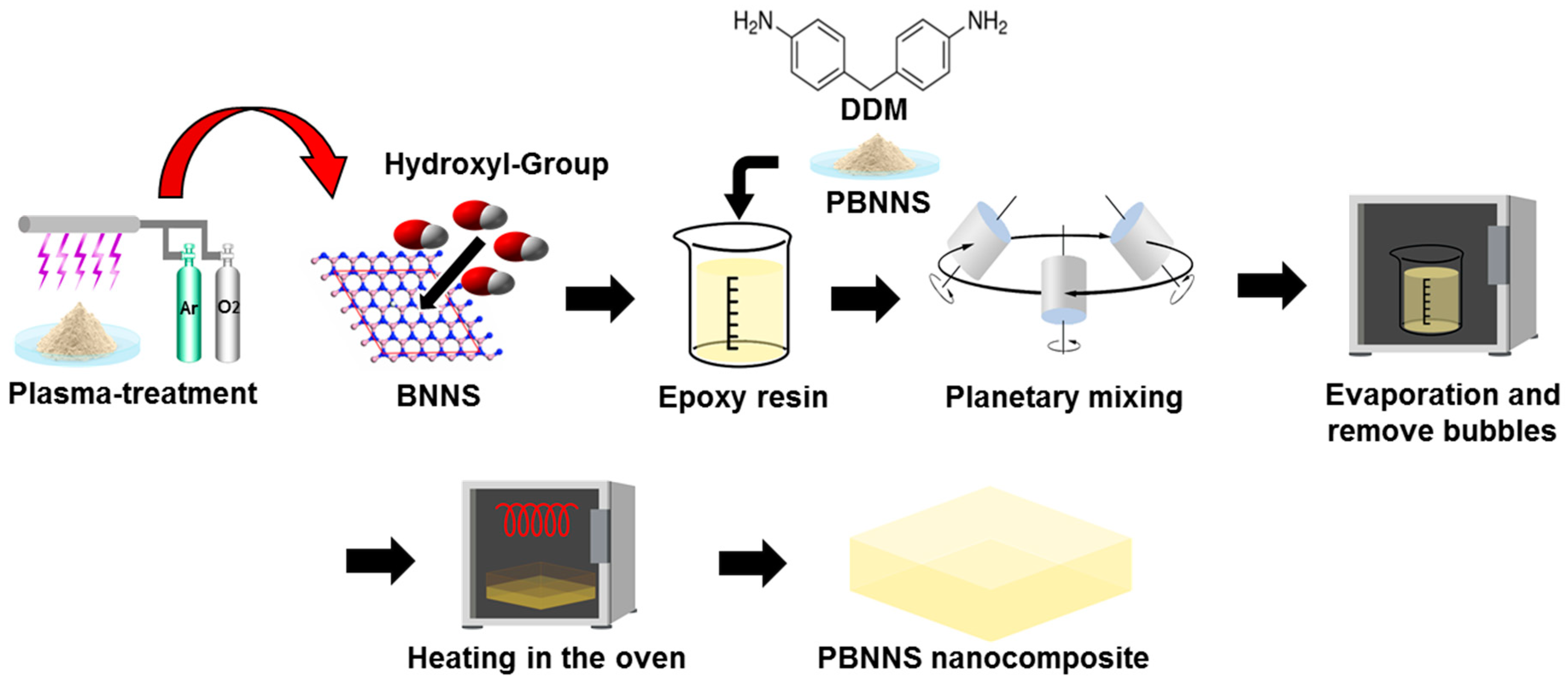

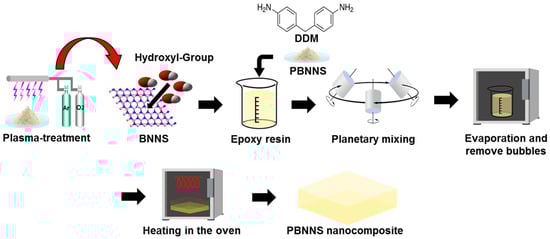

Figure 2. Schematic representation of preparation process on PBNNS nanocomposites.
Figure 2. Schematic representation of preparation process on PBNNS nanocomposites.
Nanomaterials 13 00138 g002
Nanomaterials 13 00138 g003 550

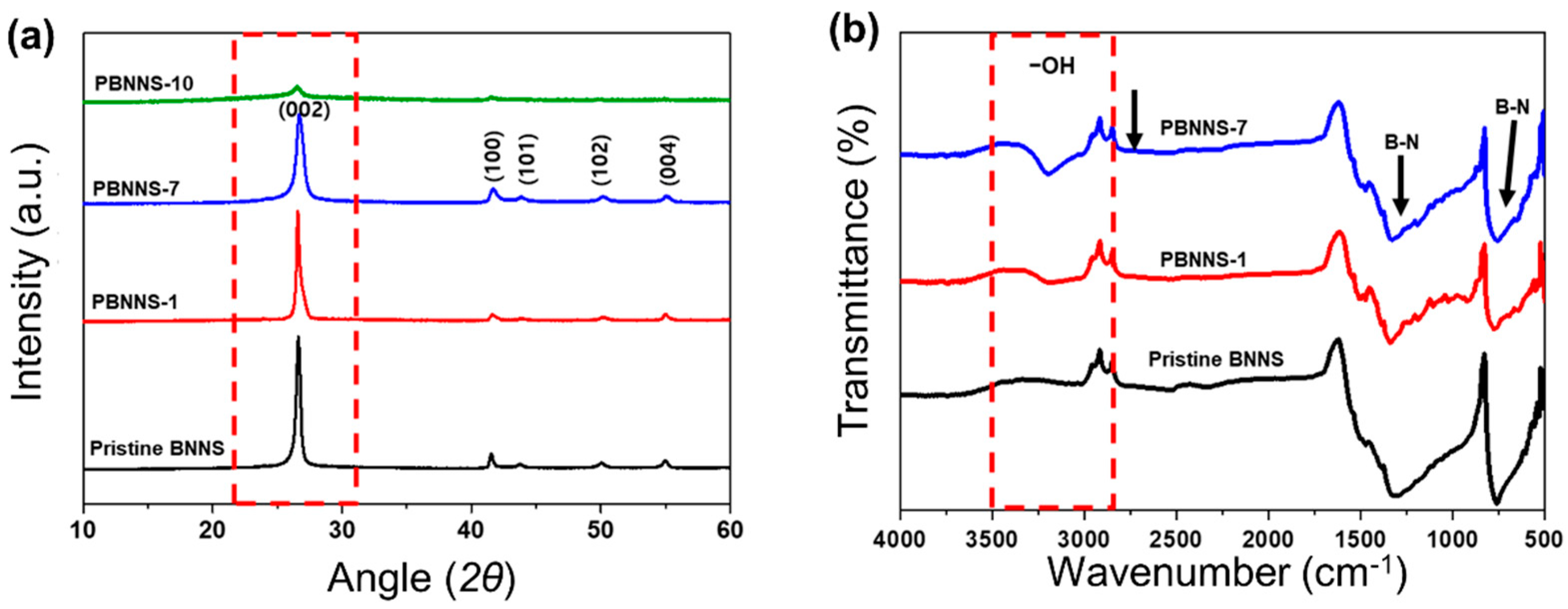

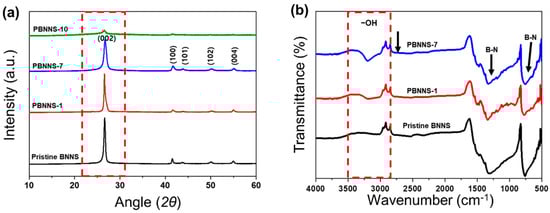

Figure 3. Characterization of PBNNS: (a) XRD spectra and (b) FT-IR spectra.
Figure 3. Characterization of PBNNS: (a) XRD spectra and (b) FT-IR spectra.
Nanomaterials 13 00138 g003
Nanomaterials 13 00138 g004 550

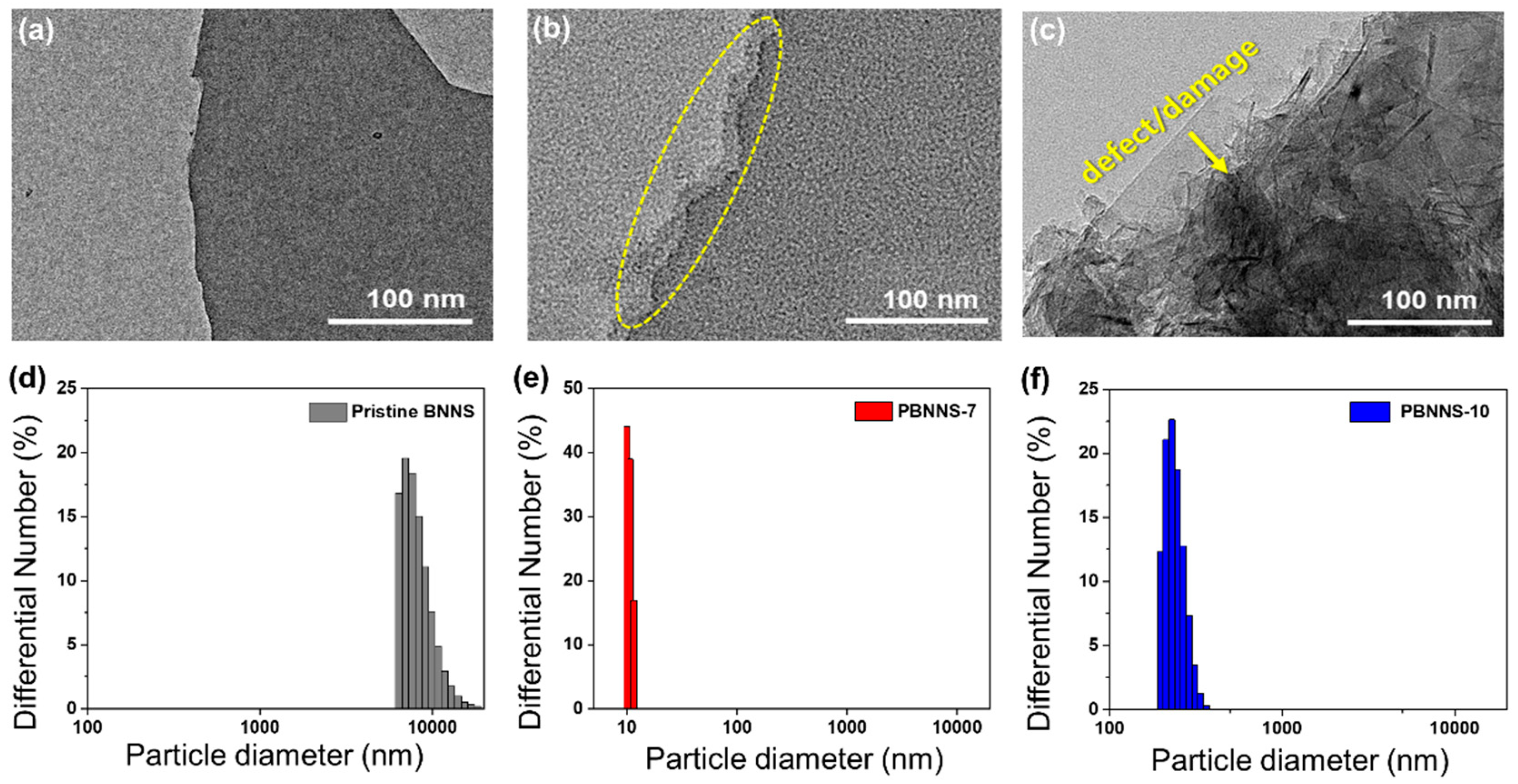

Figure 4. Surface morphology and particle distribution of PBNNS (a) TEM images of pristine BNNS, (b) PBNNS-7, (c) PBNNS-10, particle-size distributions of (d) pristine BNNS, (e) PBNNS-7, and (f) PBNNS-10.
Figure 4. Surface morphology and particle distribution of PBNNS (a) TEM images of pristine BNNS, (b) PBNNS-7, (c) PBNNS-10, particle-size distributions of (d) pristine BNNS, (e) PBNNS-7, and (f) PBNNS-10.
Nanomaterials 13 00138 g004
Nanomaterials 13 00138 g005 550

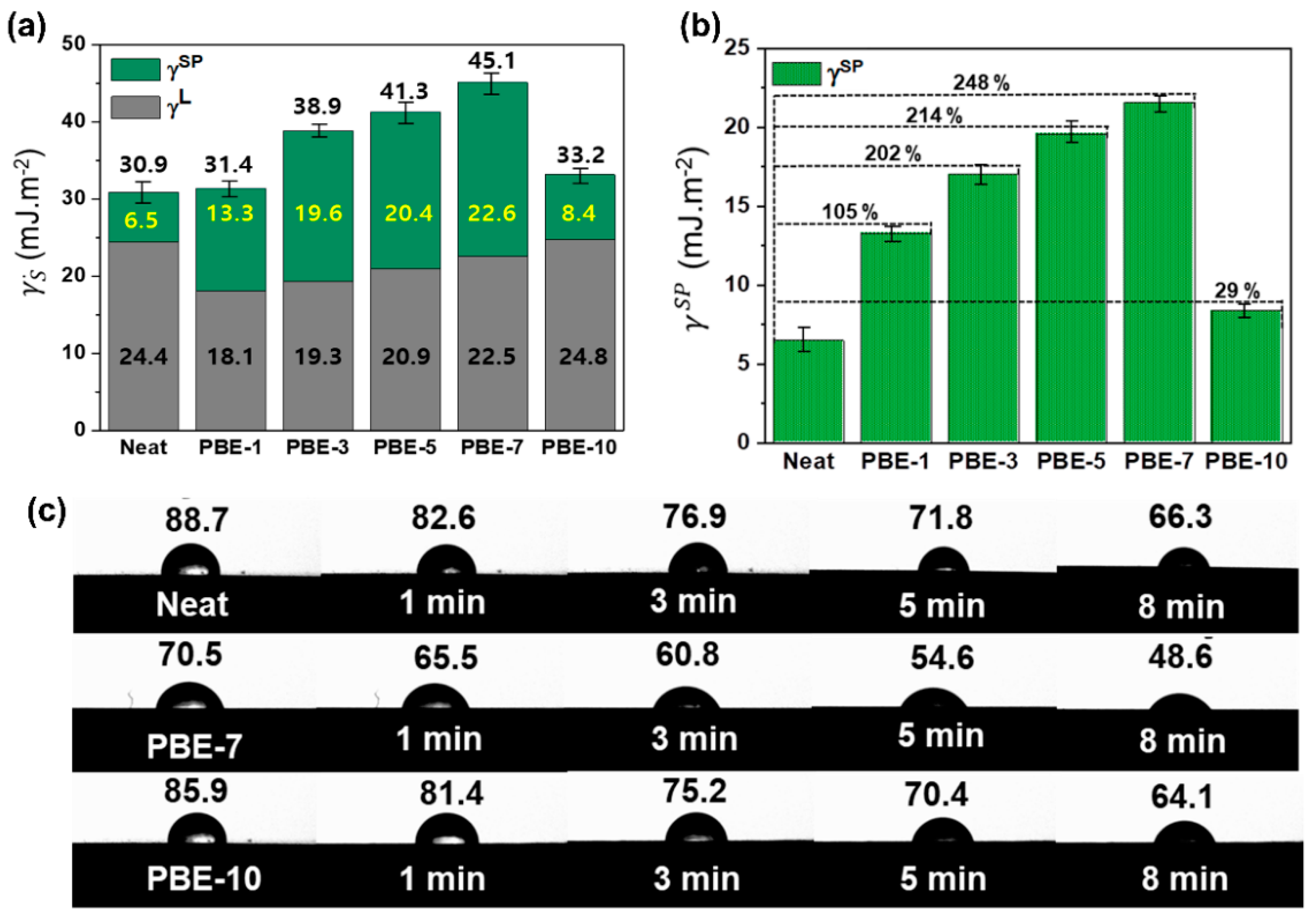

Figure 5. Interfacial properties of the BNNS/epoxy nanocomposites: (a) surface free energy, (b) specific polar component, and (c) optical images of the contact angles of distilled water over time.
Figure 5. Interfacial properties of the BNNS/epoxy nanocomposites: (a) surface free energy, (b) specific polar component, and (c) optical images of the contact angles of distilled water over time.
Nanomaterials 13 00138 g005
Nanomaterials 13 00138 g006 550

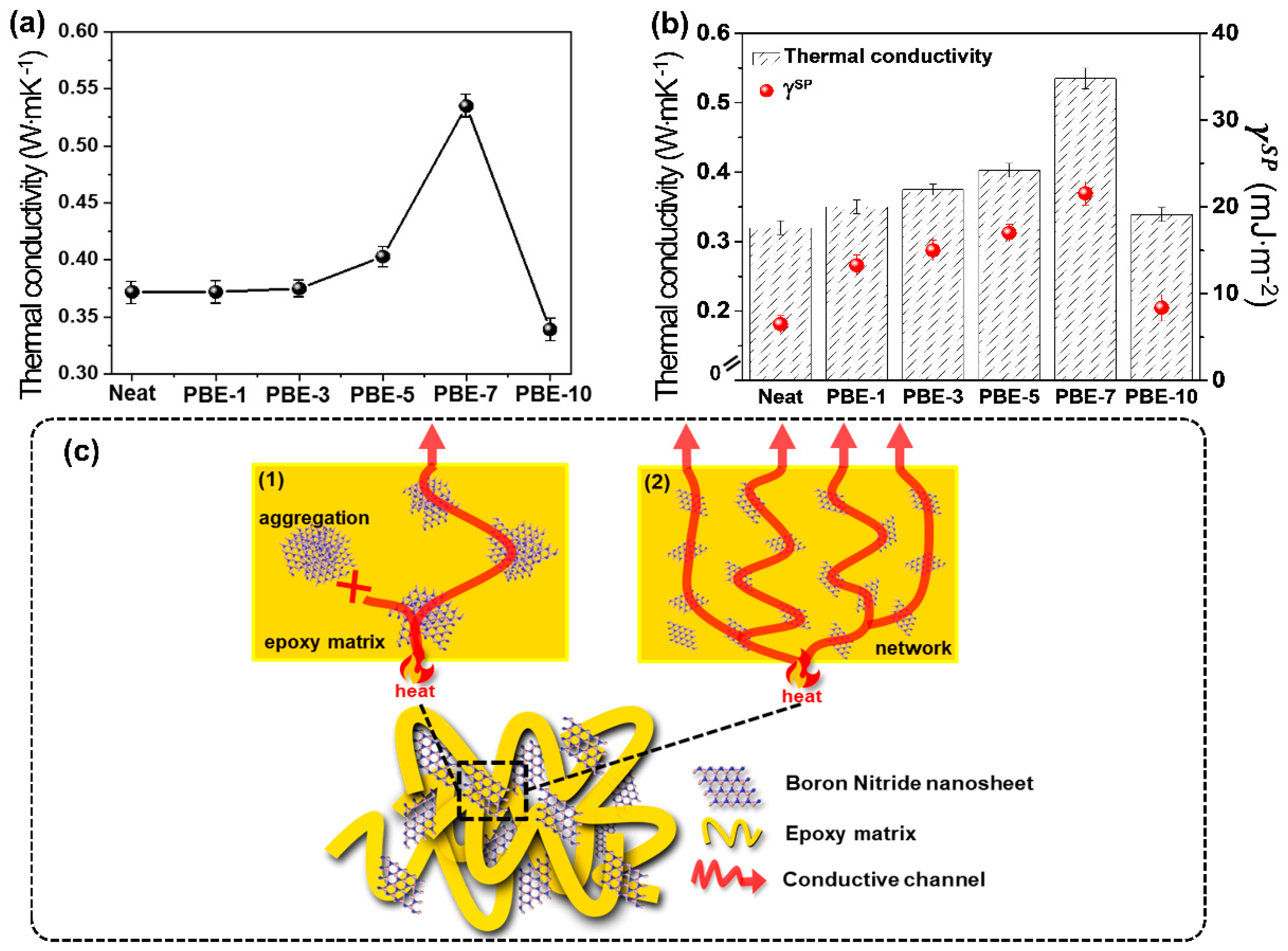

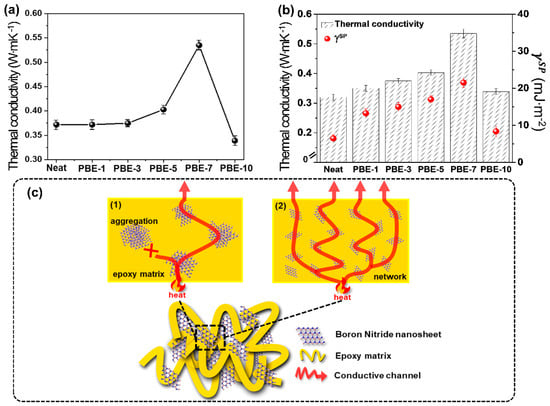

Figure 6. Thermal conductivity of the BNNS/epoxy nanocomposites: (a) thermal conductivity, (b) correlation between specific polar component of surface free energy and thermal conductivity, (c) a schematic representation of thermal conductivity mechanisms of Neat and PBE-7.
Figure 6. Thermal conductivity of the BNNS/epoxy nanocomposites: (a) thermal conductivity, (b) correlation between specific polar component of surface free energy and thermal conductivity, (c) a schematic representation of thermal conductivity mechanisms of Neat and PBE-7.
Nanomaterials 13 00138 g006
Nanomaterials 13 00138 g007 550

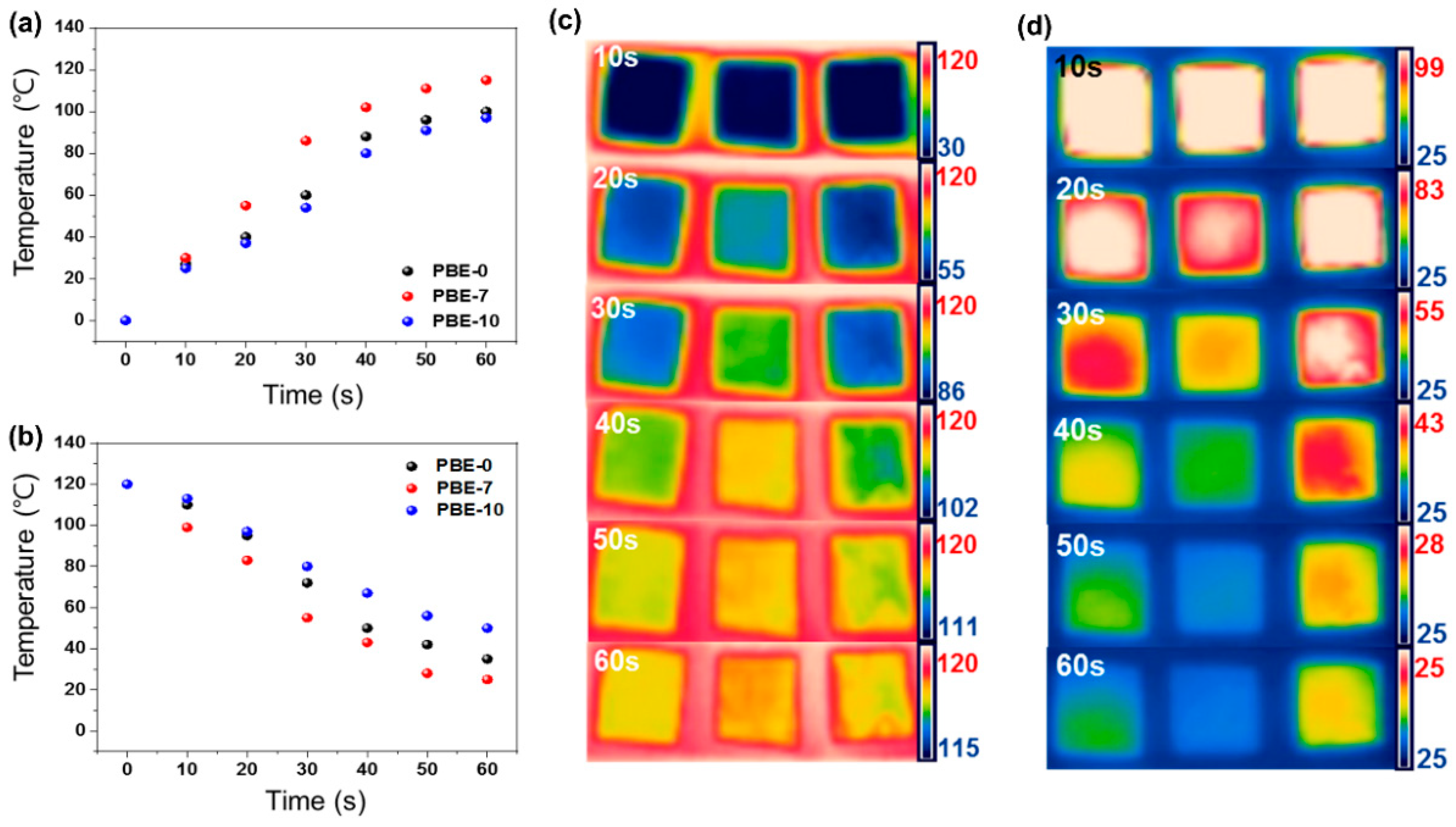

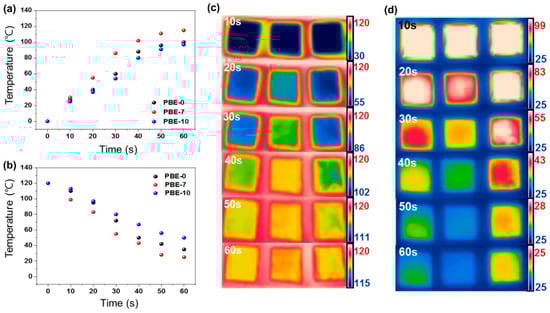

Figure 7. Infrared thermal camera of the BNNS/epoxy nanocomposites: (a) temperature change curve of heat absorption over time, (b) temperature change curve of heat dissipation over time, (c) optical images of the heat absorption over time, and (d) optical images of the heat dissipation time.
Figure 7. Infrared thermal camera of the BNNS/epoxy nanocomposites: (a) temperature change curve of heat absorption over time, (b) temperature change curve of heat dissipation over time, (c) optical images of the heat absorption over time, and (d) optical images of the heat dissipation time.
Nanomaterials 13 00138 g007
Nanomaterials 13 00138 g008 550

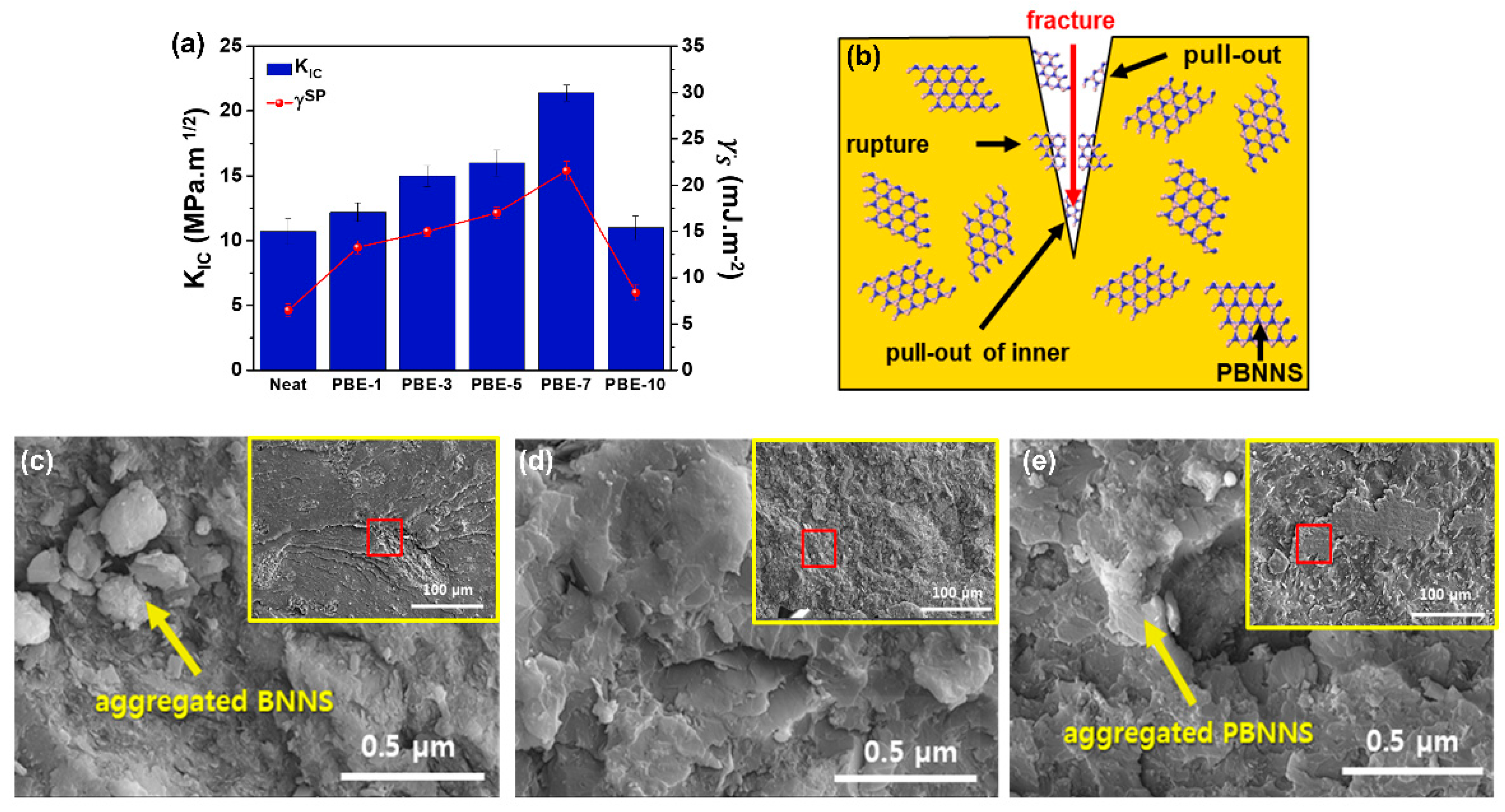

Figure 8. Fracture toughness of the BNNS/epoxy nanocomposites: (a) Correlation between specific polar component of surface free energy and KIC, (b) fracture mechanism, (c) fracture surfaces of the Neat, (d) PBE-7, and (e) PBE-10.
Figure 8. Fracture toughness of the BNNS/epoxy nanocomposites: (a) Correlation between specific polar component of surface free energy and KIC, (b) fracture mechanism, (c) fracture surfaces of the Neat, (d) PBE-7, and (e) PBE-10.
Nanomaterials 13 00138 g008
Table
Table 1. Comparison of various BN/epoxy composites.
Table 1. Comparison of various BN/epoxy composites.
CompositeFiller Contents
(wt.%)		Thermal Conductivity
(W∙m−1∙K−1)		Ref.
PBE-730.00.535This work
BN/EP30.00.382[61]
KH550 modified BN30.00.390[61]
nano-h-BN40.00.478[62]
Functionalized BN38.00.450[63]
Epoxy/h-BN
composite		34.40.321[64]
Epoxy–0.054[65]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Choi, W.-J.; Lee, S.-Y.; Park, S.-J. Effect of Ambient Plasma Treatments on Thermal Conductivity and Fracture Toughness of Boron Nitride Nanosheets/Epoxy Nanocomposites. Nanomaterials 2023, 13, 138. https://doi.org/10.3390/nano13010138

AMA Style

Choi W-J, Lee S-Y, Park S-J. Effect of Ambient Plasma Treatments on Thermal Conductivity and Fracture Toughness of Boron Nitride Nanosheets/Epoxy Nanocomposites. Nanomaterials. 2023; 13(1):138. https://doi.org/10.3390/nano13010138

Chicago/Turabian Style

Choi, Won-Jong, Seul-Yi Lee, and Soo-Jin Park. 2023. "Effect of Ambient Plasma Treatments on Thermal Conductivity and Fracture Toughness of Boron Nitride Nanosheets/Epoxy Nanocomposites" Nanomaterials 13, no. 1: 138. https://doi.org/10.3390/nano13010138

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
