Hybrid G/BN@2H-MoS2 Nanomaterial Composites: Structural, Electronic and Molecular Adsorption Properties

Amal Al-Khaldi
Mohamed M. Fadlallah
Fawziah Alhajri
1 and
Ahmed A. Maarouf
Department of Physics, Institute for Research and Medical Consultations, Imam Abdulrahman Bin Faisal University, Dammam 31441, Saudi Arabia
Department of Physics, Faculty of Science, Benha University, Benha 13518, Egypt
Department of Physics, Faculty of Basic Sciences, The German University in Cairo, New Cairo 13411, Egypt
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(24), 4351;
Submission received: 9 November 2022 / Revised: 1 December 2022 / Accepted: 1 December 2022 / Published: 7 December 2022
(This article belongs to the Section 2D and Carbon Nanomaterials)


Hybrid structures often possess superior properties to those of their component materials. This arises from changes in the structural or physical properties of the new materials. Here, we investigate the structural, electronic, and gas-adsorption properties of hybrid structures made from graphene/hexagonal boron nitride and 2H-molybdenum disulfide (G/BN@MoS2) monolayers. We consider hybrid systems in which the G/BN patch is at the Mo plane (model I) and the S plane (model II). We find that the implanted hexagon of G or BN in MoS2 alters its electronic properties: G@MoS2 (I,II) are metallic, while BN@MoS2 (I) is an n-type conducting and BN@MoS2 (II) is semiconducting. We study the molecular adsorption of some diatomic gases (H2, OH, N2, NO, CO), triatomic gases (CO2, NO2, H2S, SO2), and polyatomic gases (COOH, CH4, and NH3) on our hybrid structures while considering multiple initial adsorption sites. Our results suggest that the hybrid systems may be suitable materials for some applications: G@MOS2 (I) for oxygen reduction reactions, BN@MoS2 (I,II) for NH3-based hydrogen production, and G@MoS2 (I) and BN@MoS2 (I,II) for filtration of No, Co, SO2, H2S, and NO2.

1. Introduction

The dimensionality of material structures plays an important role in determining their physical and chemical properties [1]. Two-dimensional (2D) materials have attracted considerable attention in improving the performance of electronic and optoelectronic devices [2,3]. In recent years, many studies focused on 2D materials such as graphene (G) [4], hexagonal boron nitride (h-BN (BN)) [5], graphitic carbon nitride [6,7], phosphorene [8], MoSi2N4 [9,10], PdPSe [11], and other materials.
Transition metal dichalcogenides (TMDs, e.g., MoS2) are 2D layered structures with many applications in electronics [1]. Due to an intrinsic band gap ranging from 0.4–3.1 eV [12,13], they have recently received much attention. Furthermore, TMDs monolayers can possess high mobility for charge carriers at room temperature, which makes them attractive materials for optoelectronics and energy-harvesting applications [14].
Molybdenum disulfide monolayers, TMD-(MoS2), have two phases 2H-MoS2 (two layers per hexagonal unit cell) or 1T-MoS2 (one layer per trigonal unit cell). Several experimental techniques can change the physical and chemical properties of the MoS2 structure: doping [15], surface functionalization by metal atoms [16], ion bombardment [17], and defect formation [18]. Density functional theory (DFT) is widely used to investigate the effect of substitutional doping with nonmetal, halogen, and transition atoms [19,20] on the electronic and magnetic properties of 2H-MoS2. The ferromagnetic behavior of Co- [21] and Fe- [22] doped MoS2 monolayer were demonstrated. Furthermore, it is found that the substitutional doping of MoS2 can enhance its electrochemical catalytic response [23].
Heterostructures have also been studied experimentally and theoretically, as they may help tailor material properties to specific applications. A hybrid made from G patched by BN has been successfully fabricated and was found to possess an electronic gap [24,25,26]. Such periodic structural defects may lead to two enhancements in a material’s electronic properties: (1) they may cause a change in the conducting state of the structure (e.g., semiconductor to metal), because of the redistribution of some of the electronic states resulting from interaction between the constituents of the hybrid, and (2) the interface between the constituents may form electrostatic traps which can be utilized for molecular adsorption properties of the material.
By using a hydrothermal method, heterostructures of MoS2/G [27], MoS2/WS2 [28], MoSSe/MoS2 [29], MoS2/WSe2 [30], NiTe2/MoS2 [31], and TiO2/MoS2 [32] were successfully synthesized. In-plane 1T-/2H-MoS2 heterostructures were experimentally and theoretically studied, and were found to be effective for ion storage, photodegradation, and hydrogen evolution reaction [33,34,35]. Furthermore, the electronic properties of MoS2/BN and MoS2/G, MoS2/MoSi2N4 layered heterostructures were investigated under an external electric field and a strain potential [36].
Hybrid structures can be built between 1D and 2D material platforms (no constraint of lattice matching) such as carbon nanotubes with MoS2 monolayer [37]. A hybrid of Au nanoflakes mixed with MoS2 monolayer was prepared [38]. Additionally, the ZnO nano particles on the MoS2 monolayer were synthesized and the enhanced Raman and photoluminescence emissions were observed [39]. Additionally, the composite of MXene-Graphene/Hexagonal-Boron Nitride Structures was recently studied [40].
In this work, we investigate the structure and electronic properties of hybrid G/BN@2H-MoS2 monolayers using first principles calculations. The hybrid structures are constructed from a monolayer of 2H-MoS2 with an embedded patch of G or BN in the Mo or S layers. We also investigate the adsorption of H2, OH, N2, NO, CO, CO2, NO2, H2S, SO2, COOH, CH4, and NH3 on the considered hybrid structures.

2. Computational Methods

All calculations are performed using density functional theory (DFT) on the basis of the projector augmented wave method (quantum espresso package) [41]. First, the energies and wave functions are calculated within the generalized gradient approximation (the Perdew–Burke–Ernzerhof exchange–correlation functional) [42]. The cell-volume and ionic position relaxations of all structures are carried out until all the atomic forces on each ion are less than 10−4 eV/Å. A vacuum region of ~ 16 Å is used to avoid the interaction between the layers in the z-direction. We use norm-conserving pseudopotentials with a 50 Ry energy cutoff and a 9 × 9 × 1 k-point grid. The valence electron configurations 4s2 4p6 4d5 5s1 for Mo and 3s2 3p4 for S atoms are used to calculate their potentials. The Van der Waals correction is considered [43]. A 6 × 6 × 1 G/BN@MoS2 supercell is created by embedding a patch of graphene/BN into MoS2 monolayer. Löwdin charges are used to calculate the charge transfer between the monolayers and molecules. Spin-polarized calculations show that all the considered heterostructures in this study are nonmagnetic. The stability of the considered hybrid structures is estimated by calculating their formation energies (Eform) using the following equation:
E f o r m = E h y b E M o S E p a t n h y b
where Ehyb and EMoS (nMoEMo + nSES) are the total energy of the hybrid sheet and the total energy of the constituent atoms of the sheet, respectively, with a total number of the atoms in the hybrid structure (nhyb). The energy of the patch is Epat = nC EC for the G-patch and Epat = nB EB + nNEN for the h-BN-patch, where nx is the total number of the x atom (x = Mo, S, C, B, N). The adsorption energy (Eads) of a molecule on a sheet is calculated by:
E a d s = E s h e e t + m o l e c u l e E s h e e t E m o l e c u l e   ,
where Esheet+molecule, Esheeat and Emolecule are the total energies of the sheet with the adsorbed molecule, the sheet, and the isolated molecule, respectively.

3. Structural and Electronic Properties of Hybrid Monolayers

To investigate the effect of G and BN patches on the electronic properties of the MoS2 sheet, we first calculate the structural parameters and electronic properties of the pristine MoS2 sheet to establish a reference. The lattice constant of the optimized structure is 3.22 Å with an S-Mo bond length of 2.42 Å, which agrees well with the corresponding experimental values of 3.18 Å and 2.41 Å (2.41 Å) [44].
Now, we investigate the effect of G-patch on the structural properties of the MoS2 sheet. Interface models with different edge terminations (Mo or S) have been considered [45]. The electronic properties are found to be strongly dependent on the termination, which can be correlated with the existence of polar C-Mo bonds or defects caused by the C-S bonds at the interface. The two relaxed G@2H-MoS2 structures are shown in (Figure 1b,c). The first hybrid structure (Figure 1b), built by removing one Mo atom and six S atoms has the G-patch connected to Mo atoms. The other hybrid structure is created when the G-patch is formed in the S layer, after the removal of 3 S atoms, giving a total number of 111 atoms in the supercell (Figure 1c). The patch’s boundary constitutes the main defect in the MoS2 monolayer, which may change the physical and/or chemical properties of MoS2. Structural relaxation yields a local symmetric distortion in the Mo sites surrounding the carbon atoms.
The Mo–Mo distance decreases from 3.22 Å to 3.02 Å with no significant change in the Mo-S bonds (~2.41 Å) for hybrid and pristine cases. The C-C bond length in the hybrid structures is 1.42 Å (1.47 Å) for the first (second) model, which is close to the corresponding value in pristine graphene (1.42 Å). The average C-Mo and C-S lengths are 2.13 Å and 1.79 Å, respectively, which are smaller than the S-Mo of 2.41 Å due to the small size of the C atom compared to the S atom.
Turning to the first h-BN@MoS2 hybrid structure (Figure 1d), we see that it is also slightly buckled with ~0.35 Å, especially inside the BN patch. The average bond length for Mo–Mo decreases from 3.21 Å to 3.05 Å. The bond length of B-N in the structure is 1.45 Å, which is the pristine h-BN value [5]. We find the optimized bond lengths for N-Mo and B-Mo bonds are 2.14 Å and 2.09 Å, respectively. These are smaller than S-Mo (2.41 Å) due to the small size of the B and N atoms compared to the S atom. The second hybrid structure (Figure 1e) has an optimized B-N bond length of 1.47 Å, while the N-Mo and B-Mo bond lengths are 2.21 Å and 2.27 Å, respectively—larger than N-Mo and B-Mo bonds of the first configuration. We notice that no buckling occurs, which causes the Mo–Mo bond length to be 3.21 Å. We calculate the formation energy Eform of the hybrid structures using Equation (1) and find the pristine energy to be −7.09 eV, while the energies of the hybrid structures range between −7.14 and −7.17 eV, reflecting the stability of the studied hybrid structures.
Now, we discuss the electronic properties of the hybrid structures. To establish a reference, we first discuss the properties of the pristine MoS2. The DOS of pristine MoS2 is shown in (Figure 2a). The band gap is 1.73 eV, which is in good agreement with the reported experimental (theoretical) value of 1.80 eV (1.74 eV) [44,46,47]. The electronic states near the top of the valence band and the bottom of the conduction band are mainly composed of Mo states which agree with the previous literature [48]. Figure 2b,c show the DOS/PDOS of hybrid structures (models I and II) of G@2H-MoS2. The G-patch makes the semiconducting MoS2 metallic sheet. The hexagonal carbon patch disturbs the DOS of the MoS2 for both hybrid structures, giving rise to midgap states that cover most of the bandgap region of MoS2. The DOS is also shifted towards lower energy compared to the pristine structure. The Mo states are dominant among the midgap states (Figure 2b). The effect of the G-patch in the second configuration, (Figure 2c), is very similar to the first configuration. At the Fermi energy, the density of states of the second model is larger than the corresponding states of the first model, which can be attributed to the number of Mo and S atoms in the second model being larger than in the first model. The DOS of the first hybrid structure of h-BN@MoS2 is shown in Figure 2d. The Fermi energy is shifted towards the bottom of the conduction band, which means the hybrid structure is n-type conducting. The created state narrows the band gap to 0.72 eV compared to the bandgap of the pristine structure. The Mo states are dominant in the energy range from −1.8 to 2.4 eV. The top of the valence band and bottom of the conduction band are disturbed compared to the pristine structure due to the h-BN-patch. For the second configuration (Figure 2e), the effect of the BN-patch is very similar to the pristine (Figure 2a), which means the hybrid structure is semiconducting, similar to the pristine. The disturbance appears only at the edge of the conduction band due to the created states. The Mo states prevail in the energy range of −1.8 to 3.3 eV. The bandgap becomes 1.2 eV, which is smaller than that of the pristine and larger than that the corresponding value for the first hybrid configuration.

4. Molecular Adsorptions

Now, we discuss the adsorption properties of the hybrid sheets compared to the pristine MoS2. We consider the following gases: diatomic (OH, NO, CO, N2, H2), triatomic (NO2, H2S, SO2, CO2), tetratomic (COOH, NH3), and polyatomic (CH4). The relaxed structures are used with distinct starting sites for the adsorption. For the pristine MoS2, we place the gas on the top of the hollow site (HP), (Figure 3a), which has been shown to be the most favorable site [49]. For the hybrid structures, we used two starting positions: the first position on top of the hexagon center of the G/h-BN-patch (HG/HBN) for the first configuration (Figure 3b,d) and (HGMo/HBMo) for the second configuration (Figure 3c,e). The starting and ending locations for all adsorbed molecules are shown in Figure 3a–e.
We started the relaxation from multiple initial positions close to the hexagon center of the G/BN patch, as well as on the pore edge (including the Mo and S atoms at the edge, Figure 3). We find that for some molecules, there are multiple final positions. The adsorption energies of various final locations are discussed below. The adsorption energy Eads is calculated using Equation (2).
In Figure 4, we show the adsorption results of four molecules. From left to right, the subfigures show the adsorption energy (first column), the charge transfer between the sheet and the adsorbent (second column), and the shortest distance between the adsorbent atom and the sheet atom (third column). Each subfigure considers nine cases: the pristine, and four hybrid systems, each with two starting locations for the adsorbent. The starting and ending locations are shown on the adsorption energy subfigures above the bar representing the adsorbent, while the shortest distance between the adsorbent atom and the sheet atom is shown in the corresponding bar in the distance subfigure.
We first report the bond lengths of the isolated adsorbents. These are 0.75 Å and 0.98 Å for H2 and OH, respectively, which are similar to experimental values of 0.74 Å [50] and 0.97 Å [51], respectively. After structural optimization, the bond lengths of both molecules do not change for the pristine and the hybrid structures. The bond lengths of the isolated N2, NO, and CO are 1.09 Å, 1.16 Å, and 1.14 Å, respectively, similar to experimental bond lengths (1.10 Å, 1.15 Å, and 1.13 Å [51,52], respectively). The bond lengths of these molecules do not change on the hybrid structures except for the NO molecule on G@MoS2 (II), where the N-O length increases to 1.27 Å.
For H2, we find the largest adsorption energy, 0.24 eV at C1, is on the G@MoS2 (II) sheet. All other hybrid sheets adsorb the H2 molecule by approximately 0.08 eV. Our results are very close to the previous published results for pristine MoS2 (0.06 eV) [53] and pristine G (0.08 eV) [54].
For the OH molecule, it is physisorbed on the pristine MoS2 sheet with 1.71 eV, in agreement with published results [55]. On the other hand, it is chemisorbed on G@MoS2 (II) at (HGMo, C1), B@MoS2 (I) at (HBMo, B2), B@MoS2 (II) at (HBMo, B1), and G@MoS2 (I) at (S, S) (Figure 4d), with energies of 8.26 eV, 6.16 eV, 5.17 eV and 2.06 eV, respectively. The closest distances from the sheets are 1.35 Å between Cs and Om, 2.85 Å (Mos-Om), 1.36 Å between Bs and Om, and 1.79 Å (Ss-Om), respectively (Figure 4f), where the subscripts “s” and “m” refer to the sheet and molecule, respectively.
The charge transfer from the sheet to the OH is largest (~−0.29e) for G@MoS2 (I)/(II) and BN@MoS2 (I), which adsorb OH at S atom as the initial and final position with the closest distance of 1.35 Å (Figure 4e), while it is −0.19e for BN@MoS2(II). Note that the length of O-H bond remains unchanged for all considered systems. The charge transfer from the sheets to the OH matches the nature of OH as an acceptor group. The hybrid G@MoS2 (I) can thus be used for oxygen reduction reaction under certain conditions [56].
Our calculated N-N bond length (1.10 Å) is close to the previous reports (1.09 Å) [57], and it does not change significantly when we add it to our considered sheets. The G@MoS2 (I) structure chemisorbs N2 at (HG, C2) (Figure 4g) with 2.24 eV and a distance of 4.02 Å (Cs-Nm) (Figure 4i). All other hybrid structures physisorb N2 weakly with an average adsorption energy of ~0.13 eV, which is slightly larger than the adsorption energy on the pristine system (0.07 eV) (Figure 4g). The charge transfer from the molecule to most hybrid structures is ~0.03e (Figure 4h).
The last two diatomic gases are NO and CO. The bond lengths of the isolated NO, CO are 1.16 Å, and 1.14 Å, respectively, which match published values (1.15 Å and 1.13 Å [58,59]). The N-O bond slightly increases to 1.20 Å for most of the considered structures while the C-O bond shows no significant change. The largest adsorption energy is 3.24/4.24 eV for NO/CO on the G@MoS2 (II) at (HG, HMoS2)/(HG, HG), (Figure 4j,m), with charge transfer of 0.1/0.06e, (Figure 4k,n), and at a distance of 2.14/3.37 Å for (Mos-Nm)/(Cs-Cm) bonds, (Figure 4l,m). The NO is also chemisorbed on BN@MoS2 (I) at (HBN, H MoS2) with energy of 2.29 eV, (Figure 4j), a charge transfer of −0.1e, (Figure 4k), and at a distance of 2.14 Å (Mos-Nm) (Figure 4l). The pristine and hybrid structures thus adsorb NO more strongly than CO. The adsorption of NO/CO on the hybrid structures is generally stronger than that of graphene (0.03/0.01 eV [60]) and h-BN (0.03/0.02) eV [61]. Adsorption of NO/CO on the hybrid systems is also superior to that on MoS2 doped Au, Pd, Pt, and Ni (1.62/1.38 eV for NO/CO [62]), which indicates that our hybrid systems may be considered for NO/CO filtration. Summarizing our results for the diatomic molecules, the hybrid structures (especially G@MoS2 (I)) are suitable for the physisorption and chemisorption for N2, NO, and CO. However, all the considered structures adsorb the H2 very weakly. For charge transfer, OH and H2 act as acceptors, while N2 and CO act as donors.
We now move to triatomic gases and begin our discussion by H2S. Our calculated H–S bond length and H-S-H angle for the isolated molecule are 1.37 Å and 92.1°, in good agreement with the corresponding published values (1.34 Å and 92.1° [63]). For adsorption on most systems, we observe no significant change in the bond length, while the angle slightly increases to approximately 92.5°. BN@MoS2 (II) at (HBN, N1) adsorbs the H2S chemically with the energy of 2.40 eV (Figure 5a) with a large charge transfer of 0.51e, (Figure 5b), and the distance of 2.07 Å (Bs-Sm) (Figure 5c). H2S dissociates on BN@MoS2 (II) while it is physisorbed on the remaining gases.
For SO2, the bond length S–O and the O–S–O angle are 1.48 Å and 120.2°, respectively, in good agreement with published values (1.43 Å and 119.5° [64]). When we place SO2 on the considered sheets the bond length does not change but the angle changes to (118.97°, 116.82°) for G@MoS2 (I), (118.33°, 117.67°) for G@MoS2 (II), (100.46°, 112.15°) for BN@MoS2 (I) and (118.00°, 118.59°) for G@MoS2 (II) at the two possible final positions of the molecule. SO2 is chemisorbed by BN@MoS2(I) at (HMoS2, B1) with an energy of 2.71 eV (Figure 5d), a charge transfer of –0.57e (Figure 5e), and a distance of 1.38 Å (Bs-Om) (Figure 5f). The largest physisorption for H2S is on BN@MoS2 (I) at (HBN, HBN) with energy, charge transfer, and distance of 1.96 eV, –0.29e and 1.58 Å (Bs-Om), respectively, (Figure 5d–f).
For NO2, the bond length and the angle of the isolated molecule are 1.21 Å and 133.5°, respectively, which agree with the reported values (1.20 Å and 134.3° [65]). On G@MoS2 (II), NO2 has a bond length of 1.24 Å and an angle of 125.1°. It is physisorbed at (Mo, Mo) with an energy of 0.47 eV, a charge transfer of −0.31e, and a distance of 2.76 Å (Cs-Om) (Figure 5h,i). On BN@MoS2 (II), the bond length and angle are reduced to (1.22 Å,130.00°) and (0.93 Å,106.30°) for its two instances, (Mo, N2) and (HBMo, HMoS2). The molecule is chemisorbed in both cases with energies of 2.59 and 4.83 eV (Figure 5g), charge transfers of –0.1e and –0.15e (Figure 5h) and (Bs-Om) distances of 3.15 and 2.12 Å (Figure 5i), respectively. On all other systems, NO2 dissociates.
The last triatomic gas we study is CO2. Our calculated C-O bond length and O-C-O angle for the free gas are 1.18 Å and 180° (the corresponding literature values are 1.16 Å and 180°.00 [65]). There is no significant change in the bond length and the angle when we add the CO2 to the different studied systems. The molecule is weakly physisorbed on all structures, with an energy of a fractional eV. The adsorption energy ranges from 0.15 to 0.38 eV, which is better than the corresponding values (0.14 to 0.25 eV) obtained for 2H-@MoS2 nanosheets, nanotubes, and nanopores [66].
Turning to the last gases group, polyatomic gases (COOH, NH3, and CH4), the carboxyl molecule COOH (Figure 6a–c) has an angle (∠O-C-O) of 131.23° with two bond lengths of 1.19 Å and 1.34 Å [67]. When the COOH is adsorbed on the pristine and hybrid sheets, the angle slightly changes to: 129.47° for pristine, (128.58°, 127.88°) for G@MoS2(I), (125.50°, 125.50°) for G@MoS2(II), (124.96°, 124.90°) for BN@MoS2(I), and (129.90°, 129.71°) for BN@MoS2 (I), at the two different final positions for every hybrid structure. However, the bond lengths of COOH did not change significantly. We also notice that the molecule is closest to the sheet with a Cs-Cm distance of 1.52 Å for the G@MoS2(II) system (Figure 6c). In all cases, the charge transfer with the sheets is very weak. Most importantly, COOH is chemically adsorbed by G@MoS2 (II) at (HGMo, C1) with an energy of 3.65 eV without any charge transfer (indicating covalent bond). All other hybrid sheets physically adsorb the COOH gas with an average energy of ~1.2 eV. Our calculations show that the adsorption energy of COOH reaches 1.75 eV on our hybrid structures compared to 1.6 on hybrid 1T-@2H-MoS2 monolayer which may be utilized in many applications such as the decomposition of organic dyes [34].
Regarding the isolated NH3 and CH4 gases, the bond length and angles are 107° and 1.02 Å for NH3 [68], and 109.47° and 1.10 Å for CH4 [68]. When they are adsorbed on the considered sheets, the bond lengths and the characteristic angles of these molecules do not significantly change compared to the corresponding isolated cases. The largest physisorption for NH3 (Figure 6d) is on BN@MoS2 (I) with1.80 eV at (Mo, HBN) with a distance of 1.58 Å (Bs-Nm) and a charge transfer of 0.50e (Figure 6e,f). BN@MoS2 (I) improves the adsorption energy of NH3 compared to pristine G and h-BN (0.03 eV [60,61]). For CH4, the most significant adsorption energy is 2.66 eV for BN@2H-MoS2(II) at (Mo, B1) and the closest distance between the molecule and the sheet is 2.71 Å (Cs-Hm) with a charge transfer of −0.04e (Figure 6g–i). All considered monolayers adsorb them with energy less than 2.00 eV (physisorption). To summarize, the adsorption energies of COOH are larger than those of NH3 and CH4 of the ability to redistribute the charge over the length of COOH. We also notice that NH3 acts as a donor, which matches some experimental results of NH3 adsorption on a G sheet [69].
Although we have considered hybrid structures with a small G/BN patch, we expect our results to be applicable to structures with bigger patches of various shapes. This is because the adsorption properties largely depend on the structural defects at the border of the G/BN patch rather than the inner part of the patch. The adsorption capacity will vary with the G/BN concentration but will roughly depend on the square root of the concentration.

5. Conclusions

In this work, first principle calculations are employed to study the structure, electronic, and molecular adsorption properties of graphene/hexagonal boron nitride@2H-molybdenum disulfide (G/BN@MoS2) monolayers. We consider systems where the G/BN patch is at the Mo plane (model I) and the S plane (model II). The G@MoS2 systems are metallic, while the BN@MoS2 (I) is n-type semiconducting, and BN@MoS2 (II) is semiconducting. Compared to the pristine G, BN, and MoS2, the hybrid systems have higher adsorption energies for the considered gases (diatomic gases: H2, OH, N2, NO, CO, triatomic gases: CO2, NO2, H2S, SO2, and polyatomic gases: COOH, CH4, and NH3). OH is physisorbed on G@MoS2 (I,II), which can be used for oxygen reduction reactions. NH3 is physisorbed on BN@MoS2 (I,II), making them a suitable material for NH3-based hydrogen production. H2, CO2, and CH4 are weakly physisorbed on all hybrid structures. We also find that chemisorption occurs for: NO and CO on G@MoS2 (I), SO2 on BN@MoS2 (I), and H2S and NO2 on BN@MoS2 (II), which makes these hybrid systems suitable for use as filter materials for these toxic gases.

Author Contributions

Conceptualization, A.A.M.; Data curation, A.A.-K.; Formal analysis, A.A.-K., F.A. and M.M.F.; Investigation, A.A.-K., M.M.F., F.A. and A.A.M.; Methodology, A.A.M.; Project administration, A.A.M.; Resources, A.A.-K., F.A. and A.A.M.; Software, A.A.-K. and F.A.; Supervision, A.A.M.; Validation, M.M.F.; Visualization, A.A.-K., M.M.F. and F.A.; Writing—original draft, A.A.-K.; Writing—review and editing, M.M.F., F.A. and A.A.M. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Data Availability Statement

The data presented in this study are available in the article.


The authors would like to acknowledge the use of the resources of the Supercomputing Laboratory at KAUST, and the resources and technical services provided by the Scientific and High-Performance Computing Center at Imam Abdulrahman Bin Faisal University, Dammam, Saudi Arabia.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Novoselov, K.S.; Jiang, D.; Schedin, F.; Booth, T.J.; Khotkevich, V.V.; Morozov, S.V.; Geim, A.K. Two-dimensional atomic crystals. Proc. Natl. Acad. Sci. USA 2005, 102, 10451. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Osada, M.; Sasaki, T. 2D Inorganic Nanosheets: Two-Dimensional Dielectric Nanosheets: Novel Nanoelectronics from Nanocrystal Building Block. Adv. Mater. 2012, 24, 209. [Google Scholar] [CrossRef]
  3. Xu, M.; Liang, T.; Shi, M.; Chen, H. Graphene-like two-dimensional materials. Chem. Rev. 2013, 113, 3766. [Google Scholar] [CrossRef] [PubMed]
  4. Neto, A.C.; Guinea, F.; Peres, N.M.; Novoselov, K.S.; Geim, A.K. The electronic properties of graphene. Rev. Mod. Phys. 2009, 81, 109. [Google Scholar] [CrossRef] [Green Version]
  5. Darwish, A.A.; Fadlallah, M.M.; Maarouf, A.A. Adsorption of Sugars on Al- and Ga-doped Boron nitride Surfaces: A Computational Study. App. Surf. Sci. 2016, 377, 9. [Google Scholar] [CrossRef] [Green Version]
  6. Bafekry, A.; Faraji, M.; Hieu, N.N.; Khatibani, A.B.; Fadlallah, M.M.; Gogova, D.; Ghergherehchi, M. Tunable electronic properties of porous graphitic carbon nitride (C6N7) monolayer by atomic doping and embedding: A first-principle study. Appl. Surf. Sci. 2022, 583, 152270. [Google Scholar] [CrossRef]
  7. Bafekry, A.; Faraji, M.; Fadlallah, M.M.; Sarsari, A.; Jappor, H.R.; Fazeli, S.; Ghergherehchi, M. Two-dimensional porous graphitic carbon nitride C6 N7 monolayer: First-principles calculations. App. Phys. Lett. 2021, 119, 142102. [Google Scholar] [CrossRef]
  8. Das, S.; Zhang, W.; Demarteau, M.; Hoffmann, A.; Dubey, M.; Roelofs, A. Tunable transport gap in phosphorene. Nano Lett. 2014, 14, 5733. [Google Scholar] [CrossRef]
  9. Bafekry, A.; Faraji, M.; Fadlallah, M.M.; Khatibani, A.B.; Ziabari, A.A.; Ghergherehchi, M.; Gogova, D. Tunable electronic and magnetic properties of MoSi2 N4 monolayer via vacancy defects, atomic adsorption and atomic doping. Appl. Surf. Sci. 2021, 559, 149862. [Google Scholar] [CrossRef]
  10. Abdelati, M.A.; Maarouf, A.A.; Fadlallah, M.M. Substitutional transition metal doping in MoSi2 N4 monolayer: Structural, electronic and magnetic properties. Phys. Chem. Chem. Phys. 2022, 24, 3035. [Google Scholar] [CrossRef]
  11. Bafekry, A.; Fadlallah, M.M.; Faraji, M.; Shafique, A.; Jappor, H.R.; Sarsari, I.A.; Ang, Y.S.; Ghergherehchi, M. Two-dimensional penta-like PdPSe with a puckered pentagonal structure: A first-principles study. Phys. Chem. Chem. Phys. 2022, 24, 9990. [Google Scholar] [CrossRef] [PubMed]
  12. Gillen, R.; Robertson, J.; Maultzsch, J. Indirect doping effects from impurities in MoS2 /h-BN heterostructures. Phys. Rev. B 2014, 90, 075437. [Google Scholar] [CrossRef] [Green Version]
  13. Helal, M.A.; El-Sayed, H.M.; Maarouf, A.A.; Fadlallah, M.M. Metal dichalcogenide nanomeshes: Structural, electronic and magnetic properties. Phys. Chem. Chem. Phys. 2021, 23, 21183. [Google Scholar] [CrossRef] [PubMed]
  14. Fan, F.R.; Wu, W. Emerging devices based on two-dimensional monolayer materials for energy harvesting. Research 2019, 2019, 7367828. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Lin, Y.C.; Dumcenco, D.O.; Komsa, H.P.; Niimi, Y.; Krasheninnikov, A.V.; Huang, Y.S.; Suenaga, K. Properties of individual dopant atoms in single-layer MoS2: Atomic structure, migration, and enhanced reactivity. Adv. Mater. 2014, 26, 2857. [Google Scholar] [CrossRef] [Green Version]
  16. Liu, H.; Grasseschi, D.; Dodda, A.; Fujisawa, K.; Olson, D.; Kahn, E.; Terrones, M. Spontaneous chemical functionalization via coordination of Au single atoms on monolayer MoS2. Sci. Adv. 2020, 6, eabc9308. [Google Scholar] [CrossRef]
  17. Ghorbani-Asl, M.; Kretschmer, S.; Spearot, D.E.; Krasheninnikov, A.V. Two-dimensional MoS2 under ion irradiation: From controlled defect production to electronic structure engineering. 2D Mater. 2017, 4, 025078. [Google Scholar] [CrossRef]
  18. Komsa, H.P.; Krasheninnikov, A.V. Native defects in bulk and monolayer MoS2 from first principles. Phys. Rev. B 2015, 91, 125304. [Google Scholar] [CrossRef] [Green Version]
  19. Dolui, K.; Rungger, I.; Pemmaraju, C.D.; Sanvito, S. Possible doping strategies for MoS2 monolayers: An ab initio study. Phys. Rev. B 2013, 88, 075420. [Google Scholar] [CrossRef] [Green Version]
  20. Sukhanova, E.V.; Kvashnin, D.G.; Popov, Z.I. Induced spin polarization in graphene via interactions with halogen doped MoS2 and MoSe2 monolayers by DFT calculations. Nanoscale 2020, 12, 23248. [Google Scholar] [CrossRef]
  21. Wang, Y.; Li, S.; Yi, J. Electronic and magnetic properties of Co doped MoS2 monolayer. Sci. Rep. 2016, 6, 1. [Google Scholar] [CrossRef] [PubMed]
  22. Fu, S.; Kang, K.; Shayan, K.; Yoshimura, A.; Dadras, S.; Wang, X.; Yang, E.H. Enabling room temperature ferromagnetism in monolayer MoS2 via in situ iron-doping. Nat. Commun. 2020, 11, 2034. [Google Scholar] [CrossRef] [PubMed]
  23. Gong, Y.; Liu, Z.; Lupini, A.R.; Shi, G.; Lin, J.; Najmaei, S.; Lin, Z.; Elías, A.L.; Berkdemir, A.; You, G.; et al. Band Gap Engineering and Layer-by-Layer Mapping of Selenium-Doped Molybdenum Disulfide. Nano Lett. 2014, 14, 442. [Google Scholar] [CrossRef] [PubMed]
  24. Li, Q.; Liu, M.; Zhang, Y.; Liu, Z. Hexagonal Boron Nitride–Graphene Heterostructures: Synthesis and Interfacial Properties. Small 2016, 12, 32. [Google Scholar] [CrossRef] [PubMed]
  25. Kim, G.; Kim, S.-S.; Jeon, J.; Yoon, S.I.; Hong, S.; Cho, Y.J.; Misra, A.; Ozdemir, S.; Yin, J.; Ghazaryan, D.; et al. Planar and van der Waals heterostructures for vertical tunnelling single electron transistors. Nat. Commun. 2019, 10, 230. [Google Scholar] [CrossRef] [Green Version]
  26. Wei, W.; Pan, J.; Euaruksakul, C.; Yang, Y.; Cui, Y.; Fu, Q.; Bao, X. Dynamic observation of in-plane h-BN/graphene heterostructures growth on Ni(111). Nano Res. 2020, 13, 1789. [Google Scholar] [CrossRef]
  27. Chang, K.; Chen, W. L-cysteine-assisted synthesis of layered MoS2/graphene composites with excellent electrochemical performances for lithium ion batteries. ACS Nano 2011, 5, 4720. [Google Scholar] [CrossRef]
  28. Gong, Y.; Lin, J.; Wang, X.; Shi, G.; Lei, S.; Lin, Z.; Ajayan, P.M. Vertical and in-plane heterostructures from WS2 /MoS2 monolayers. Nat. Mater. 2014, 13, 1135. [Google Scholar] [CrossRef] [Green Version]
  29. Zhang, K.; Guo, Y.; Larson, D.T.; Zhu, Z.; Fang, S.; Kaxiras, E.; Huang, S. Spectroscopic Signatures of Interlayer Coupling in Janus MoSSe/MoS2 Heterostructures. ACS Nano 2021, 15, 14394. [Google Scholar] [CrossRef]
  30. Cheng, R.; Li, D.; Zhou, H.; Wang, C.; Yin, A.; Jiang, S.; Duan, X. Electroluminescence and photocurrent generation from atomically sharp WSe2 /MoS2 heterojunction p–n diodes. Nano Lett. 2014, 14, 5590. [Google Scholar] [CrossRef]
  31. Zhai, X.; Xu, X.; Peng, J.; Jing, F.; Zhang, Q.; Liu, H.; Hu, Z. Enhanced optoelectronic performance of CVD-grown metal–semiconductor NiTe2 /MoS2 heterostructures. ACS Appl. Mater. Interfaces 2020, 12, 24093. [Google Scholar] [CrossRef] [PubMed]
  32. Tang, X.; Wang, Z.; Huang, W.; Jing, Q.; Liu, N. Construction of N-doped TiO2 /MoS2 heterojunction with synergistic effect for enhanced visible photodegradation activity. Mater. Res. Bull. 2018, 105, 126. [Google Scholar] [CrossRef]
  33. Le, K.; Zhang, X.; Zhao, Q.; Liu, Y.; Yi, P.; Xu, S.; Liu, W. Controllably doping nitrogen into 1T/2H MoS2 heterostructure nanosheets for enhanced supercapacitive and electrocatalytic performance by low-power N2 plasma. ACS Appl. Mater. Interfaces 2021, 13, 44427. [Google Scholar] [CrossRef] [PubMed]
  34. Omar, A.M.; Metwalli, O.I.; Saber, M.R.; Khabiri, G.; Ali, M.E.; Hassen, A.; Khalil, M.M.H.; Maarouf, A.A.; Khalil, A.S.G. Revealing the role of the 1T phase on the adsorption of organic dyes on MoS2 nanosheets. RSC Adv. 2019, 9, 28345. [Google Scholar] [CrossRef] [Green Version]
  35. Huang, L.; Huang, X.; Yan, J.; Liu, Y.; Jiang, H.; Zhang, H.; Tang, J.; Liu, Q. Research progresses on the application of perovskite in adsorption and photocatalytic removal of water pollutants. J. Hazard. Mater. 2022, 442, 130024. [Google Scholar] [CrossRef] [PubMed]
  36. Bafekry, A.; Faraji, M.; Ziabari, A.; Fadlallah, M.M.; Nguyen, C.V.; Ghergherehchi, M.; Feghhi, S.A.H.; van der Waals, A. Heterostructure of MoS2 /MoSi2N4: A first-principles study. New J. Chem. 2021, 45, 8291. [Google Scholar] [CrossRef]
  37. Liu, C.; Hong, H.; Wang, Q.; Liu, P.; Zuo, Y.; Liang, J.; Liu, K. Strong-coupled hybrid structure of carbon nanotube and MoS2 monolayer with ultrafast interfacial charge transfer. Nanoscale 2019, 11, 17195. [Google Scholar] [CrossRef]
  38. Bhanu, U.; Islam, M.R.; Tetard, L.; Khondaker, S.I. Photoluminescence quenching in gold-MoS2 hybrid nanoflakes. Sci. Rep. 2014, 4, 1. [Google Scholar] [CrossRef] [Green Version]
  39. Chang, X.; Qiao, X.; Li, K.; Wang, P.; Xiong, Y.; Li, X.; Xue, Q. UV assisted ppb-level acetone detection based on hollow ZnO/MoS2 nanosheets core/shell heterostructures at low temperature. Sens. Actuators B Chem. 2020, 317, 128208. [Google Scholar] [CrossRef]
  40. Alhajri, F.; Fadlallah, M.M.; Alkhaldi, A.; Maarouf, A.A. Hybrid MXene-Graphene/Hexagonal Boron Nitride Structures: Electronic and Molecular Adsorption Properties. Nanomaterials 2022, 12, 2739. [Google Scholar] [CrossRef]
  41. Giannozzi, P.; Baroni, S.; Bonini, N.; Calandra, M.; Car, R.; Cavazzoni, C.; Ceresoli, D.; Chiarotti, G.L.; Cococcioni, M.; Dabo, I.; et al. QUANTUM ESPRESSO: A Modular and Open-Source Software Project for Quantum Simulations of Materials. J. Phys. Condens. Matter. 2009, 21, 395502. [Google Scholar] [CrossRef] [PubMed]
  42. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 1996, 77, 3865. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Dion, M.; Rydberg, H.; Schröder, E.; Langreth, D.C.; Lundqvist, B.I. Van Der Waals Density Functional for General Geometries. Phys. Rev. Lett. 2004, 92, 246401. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Wilson, J.A.; Yoffe, A.D. The Transition Metal Dichalcogenides Discussion and Interpretation of the Observed Optical, Electrical and Structural Properties. Adv. Phys. 1969, 18, 193. [Google Scholar] [CrossRef]
  45. Liu, X.; Gao, J.; Zhang, G.; Zhang, Y.W. MoS2-graphene in-plane contact for high interfacial thermal conduction. Nano Res. 2017, 10, 2944. [Google Scholar] [CrossRef] [Green Version]
  46. Liu, F.; Ziffer, M.E.; Hansen, K.R.; Wang, J.; Zhu, X. Direct determination of band-gap renormalization in the photoexcited monolayer MoS2. Phys. Rev. Lett. 2019, 122, 246803. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Pan, J.; Wang, Z.; Chen, Q.; Hu, J.; Wang, J. Band Structure Engineering of Monolayer MoS2 by Surface Ligand Functionalization for Enhanced Photoelectrochemical Hydrogen Production Activity. Nanoscale 2014, 6, 13565. [Google Scholar] [CrossRef]
  48. Lu, S.C.; Leburton, J.P. Electronic structures of defects and magnetic impurities in MoS2 monolayers. Nanoscale Res. Lett. 2014, 9, 1. [Google Scholar] [CrossRef] [Green Version]
  49. Zhao, S.; Xue, J.; Kang, W. Gas adsorption on MoS2 monolayer from first-principles calculations. Chem. Phys. Lett. 2014, 595, 35. [Google Scholar] [CrossRef] [Green Version]
  50. Ferreira, F.; Carvalho, A.; Moura, Í.J.; Coutinho, J.; Ribeiro, R.M. Adsorption of H2, O2, H2O, OH and H on monolayer MoS2. J. Condens. Matter Phys. 2017, 30, 035003. [Google Scholar] [CrossRef]
  51. Demaison, J.; Herman, M.; Liévin, J. The equilibrium OH bond length. Int. Rev. Phys. 2007, 26, 391. [Google Scholar] [CrossRef]
  52. Demaison, J.; Császár, A.G. Equilibrium CO bond lengths. J. Mol. Struct. 2012, 1023, 7. [Google Scholar] [CrossRef]
  53. Yue, Q.; Shao, Z.; Chang, S.; Li, J. Adsorption of gas molecules on monolayer MoS2 and effect of applied electric field. Nanoscale Res. Lett. 2013, 8, 1. [Google Scholar] [CrossRef] [Green Version]
  54. Enriquez, J.I.G.; Al Rey, C.V. Hydrogen adsorption on pristine, defected, and 3d-block transition metal-doped penta-Graphene. Int. J. Hydrog. Energy 2016, 41, 12157. [Google Scholar] [CrossRef]
  55. Krishnan, S.; Vadapoo, R.; Riley, K.E.; Velev, J.P. Dispersion-corrected density functional theory comparison of hydrogen adsorption on boron-nitride and carbon nanotubes. Phys. Rev. B 2011, 84, 165408. [Google Scholar] [CrossRef] [Green Version]
  56. Zhang, W.; Zou, G.; Choi, J.H. Adsorption Behavior of the Hydroxyl Radical and Its Effects on Monolayer MoS2. ACS Omega 2020, 5, 1982. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Carey, F.A.; Sundberg, R.J. Chemical bonding and molecular structure. In Advanced Organic Chemistry; Springer: Berlin, Germany, 2007; pp. 1–117. [Google Scholar]
  58. Li, H.; Huang, M.; Cao, G. Markedly different adsorption behaviors of gas molecules on defective monolayer MoS2: A first-principles study. Phys. Chem. Chem. Phys. 2016, 18, 15110. [Google Scholar] [CrossRef]
  59. Wang, Z.; Zhang, Y.; Ren, Y.; Wang, M.; Zhang, Z.; Zhao, W.; Yun, J. NO gas adsorption properties of MoS2 from monolayer to trilayer: A first-principles study. Mater. Res. Express 2021, 8, 015024. [Google Scholar] [CrossRef]
  60. Leenaerts, O.; Partoens, B.; Peeters, F.M. Adsorption of H2O, NH3, CO, NO2, and NO on graphene: A first-principles study. Phys. Rev. B 2008, 77, 125416. [Google Scholar] [CrossRef] [Green Version]
  61. Kim, G.; Jung, S.C.; Han, Y.K. Selectively Strong Molecular Adsorption on Boron Nitride Monolayer Induced by Transition Metal Substrate. Curr. Appl. Phys. 2013, 13, 2059. [Google Scholar] [CrossRef]
  62. Ma, D.; Ju, W.; Li, T.; Zhang, X.; He, C.; Ma, B.; Yang, Z. The adsorption of CO and NO on the MoS2 monolayer doped with Au, Pt, Pd, or Ni: A first-principles study. Appl. Surf. Sci. 2016, 383, 98. [Google Scholar] [CrossRef]
  63. Hellmann, R.; Bich, E.; Vogel, E.; Vesovic, V. Ab Initio Intermolecular Potential Energy Surface and Thermophysical Properties of Hydrogen Sulfide. Phys. Chem. Chem. Phys. 2011, 13, 13749. [Google Scholar] [CrossRef] [PubMed]
  64. Grabowsky, S.; Luger, P.; Buschmann, J.; Schneider, T.; Schirmeister, T.; Sobolev, A.N.; Jayatilaka, D. The Significance of Ionic Bonding in Sulfur Dioxide: Bond Orders from X-ray Diffraction Data. Angew. Chem. Int. Ed. 2012, 51, 6776. [Google Scholar] [CrossRef] [PubMed]
  65. Carmichael, I.; Bentley, J. Comparison of the Magnetic Properties and Harmonic Force Fields of Nitrogen Dioxide and Carbon Dioxide (1-)(CO2-) by ab initio calculation. J. Phys. Chem. 1985, 89, 2951. [Google Scholar] [CrossRef]
  66. Aguilar, N.; Aparicio, S. Theoretical insights into CO2 adsorption by MoS2 nanomaterials. J. Phys. Chem. C 2019, 123, 26338. [Google Scholar] [CrossRef]
  67. Ignatchenko, A.V. Density functional theory study of carboxylic acids adsorption and enolization on monoclinic zirconia surfaces. J. Phys. Chem. C 2011, 115, 16012. [Google Scholar] [CrossRef]
  68. Ullah, H.; Ayub, K.; Ullah, Z.; Hanif, M.; Nawaz, R.; Bilal, S.; Ali Shah, U.H. A Theoretical Insight of Polypyrrole Ammonia Gas Sensor. Synth. Met. 2013, 172, 14. [Google Scholar] [CrossRef]
  69. Schedin, F.; Geim, A.K.; Morozov, S.V.; Hill, E.W.; Blake, P.; Katsnelson, M.I.; Novoselov, K.S. Detection of individual gas molecules adsorbed on graphene. Nat. Mater. 2007, 6, 652. [Google Scholar] [CrossRef]

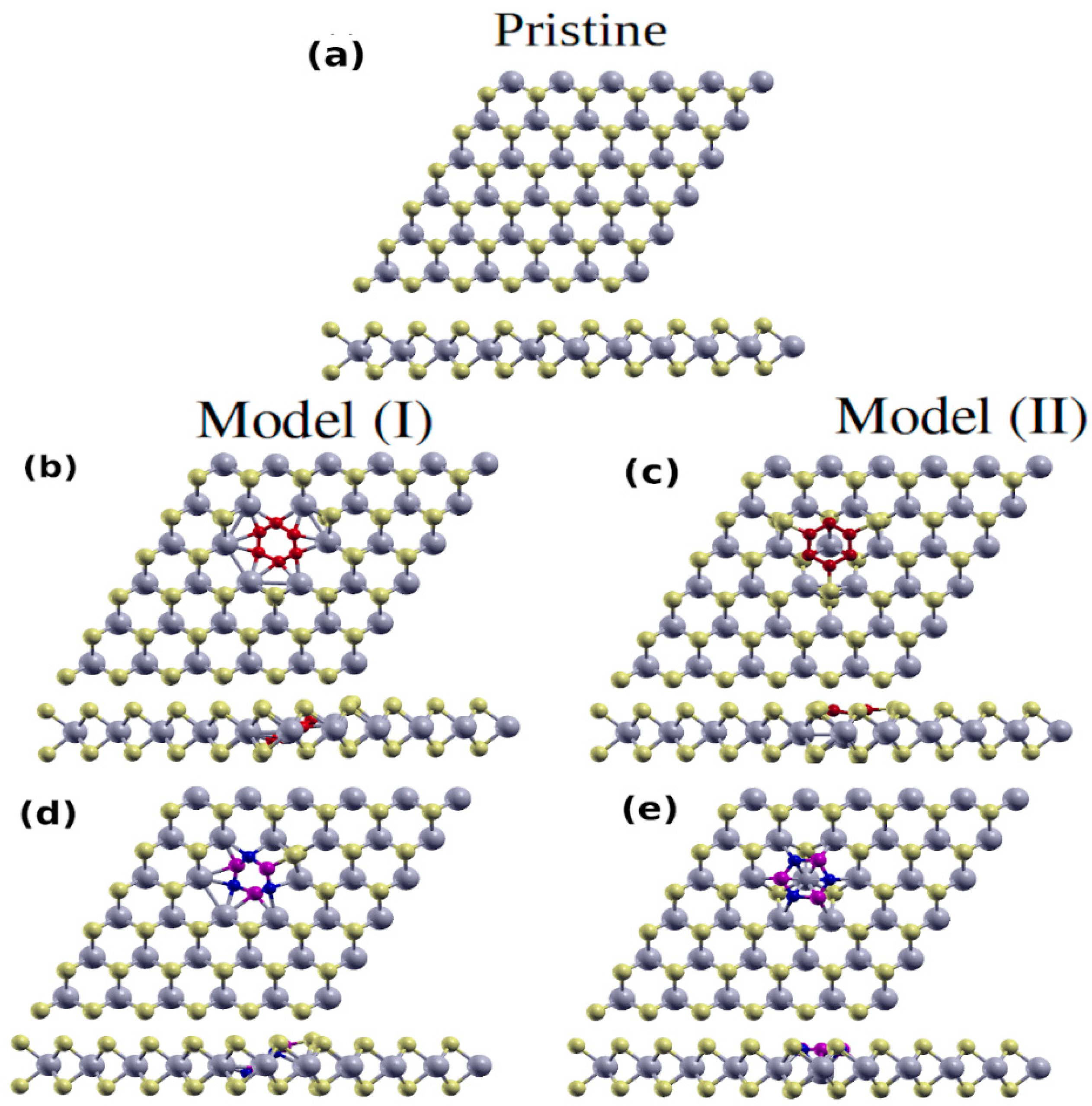

Figure 1. Top and side views of (a) pristine optimized structures of MoS2, (b) G@MoS2 model I, (c) MoS2 model II, (d) h-BN@MoS2 model I, and (e) h-BN@MoS2 model II.
Figure 1. Top and side views of (a) pristine optimized structures of MoS2, (b) G@MoS2 model I, (c) MoS2 model II, (d) h-BN@MoS2 model I, and (e) h-BN@MoS2 model II.
Nanomaterials 12 04351 g001

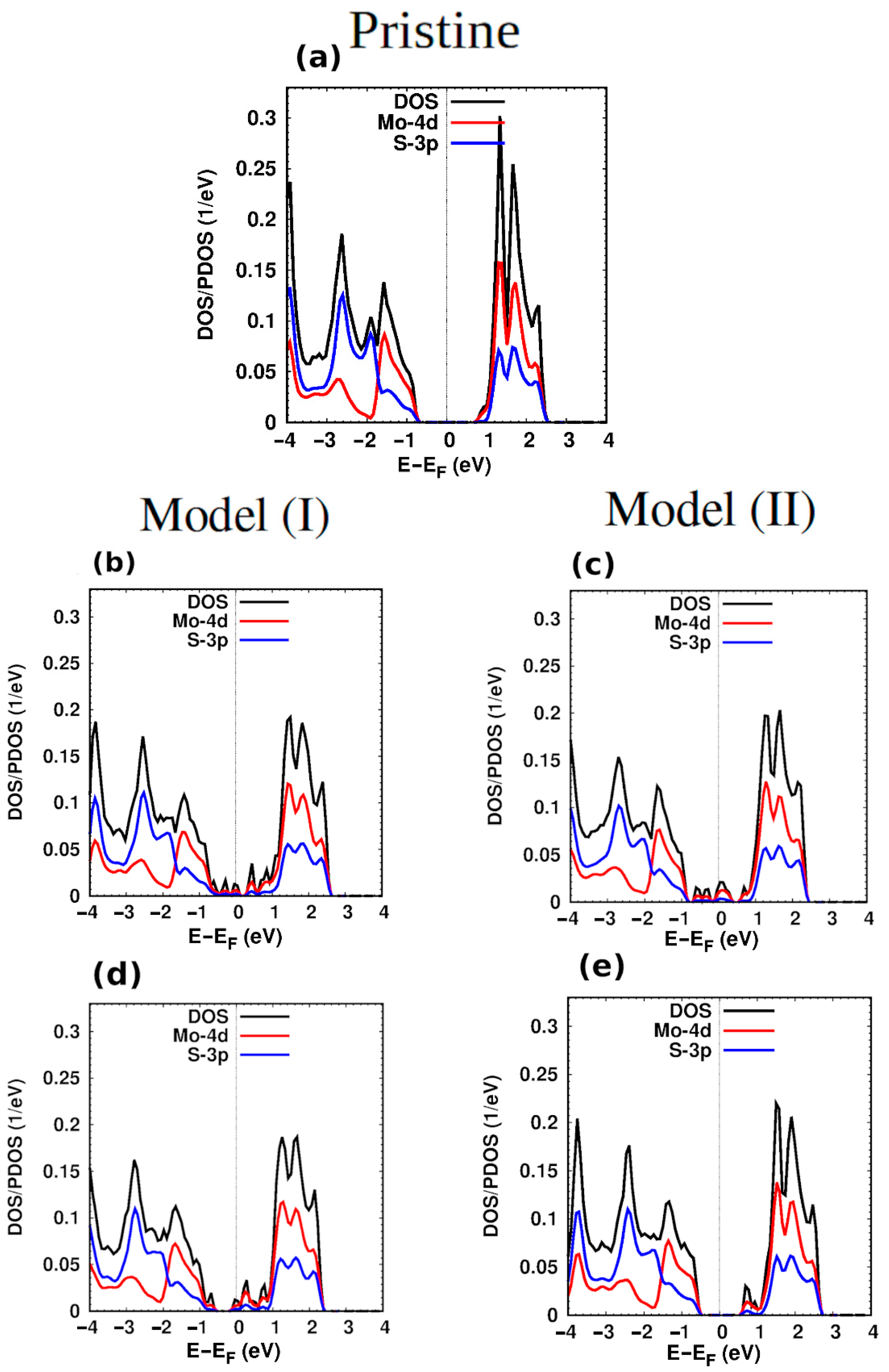

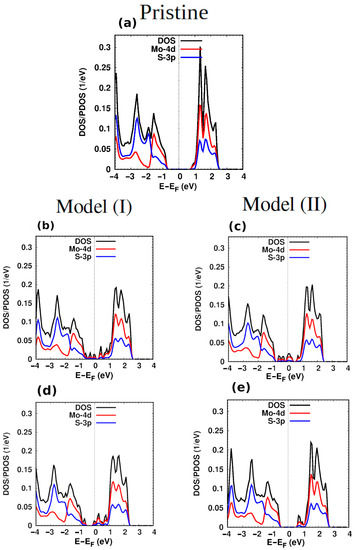

Figure 2. DOS/PDOS of (a) pristine MoS2, (b) G@MoS2 model I, (c) G@MoS2 model II, (d) h-BN@MoS2 model I, and (e) h-BN@MoS2 model II.
Figure 2. DOS/PDOS of (a) pristine MoS2, (b) G@MoS2 model I, (c) G@MoS2 model II, (d) h-BN@MoS2 model I, and (e) h-BN@MoS2 model II.
Nanomaterials 12 04351 g002

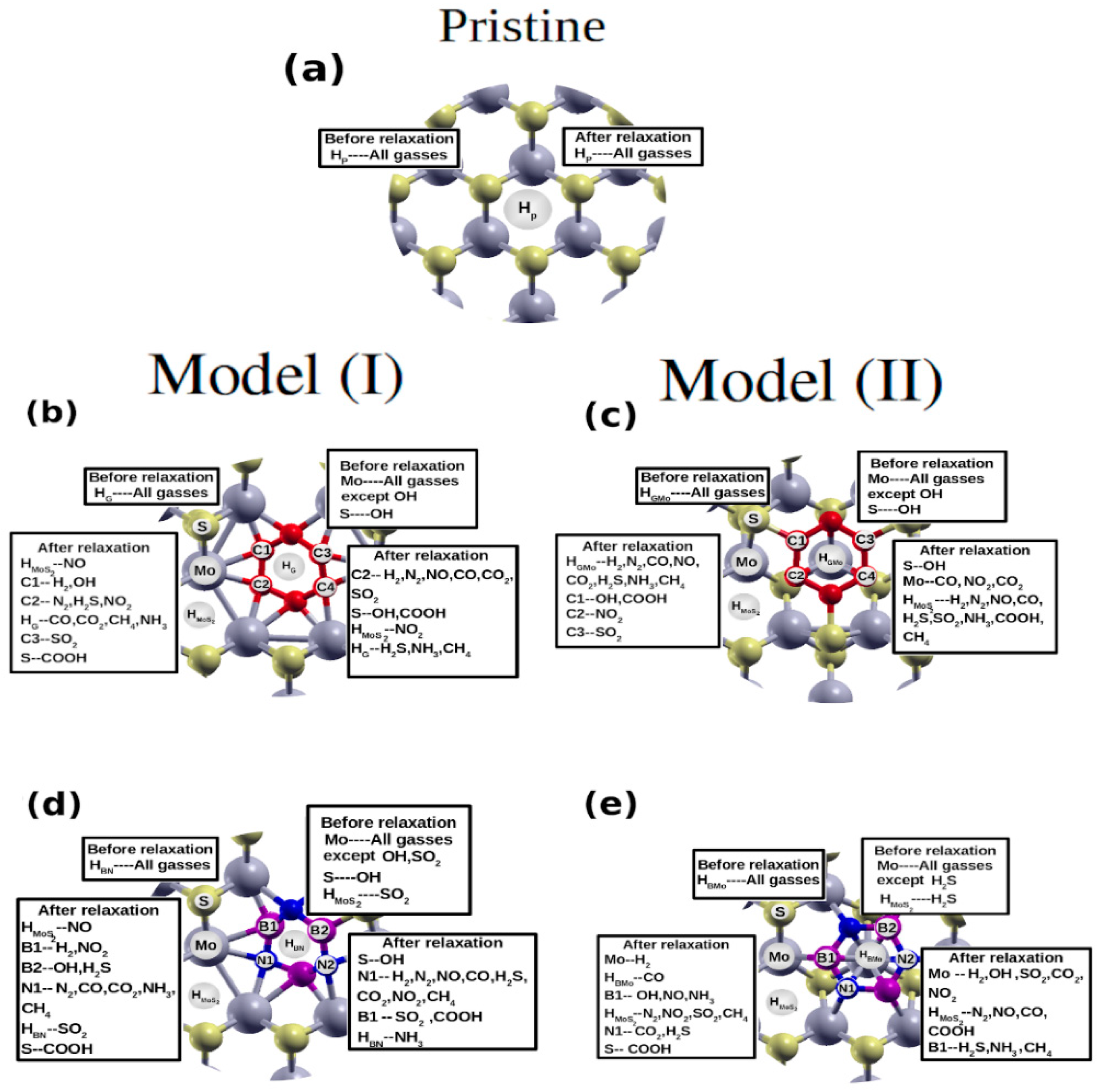

Figure 3. The positions of the adsorbed molecules before and after optimization of (a) pristine MoS2, (b) G@MoS2 model I, (c) G@MoS2 model II, (d) h-BN@MoS2 model I, and (e) h-BN@MoS2 model II.
Figure 3. The positions of the adsorbed molecules before and after optimization of (a) pristine MoS2, (b) G@MoS2 model I, (c) G@MoS2 model II, (d) h-BN@MoS2 model I, and (e) h-BN@MoS2 model II.
Nanomaterials 12 04351 g003

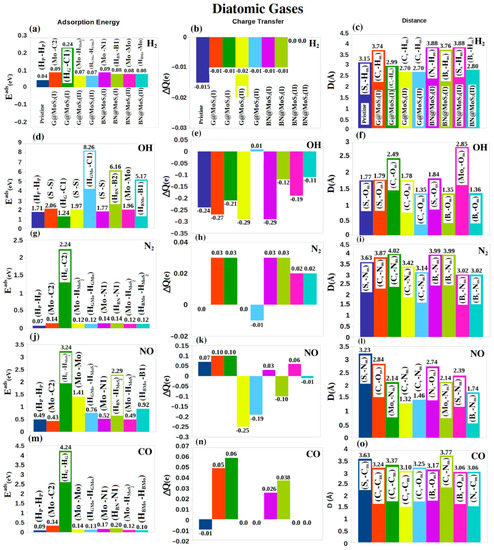

Figure 4. (ao) From left to right, the adsorption energy (Ead (eV)), charge transfer (ΔQ (e)) and the and closest distance (D(Å)) between the gas (Xm) and the sheet (Xs) for diatomic gases. From top to bottom H2, OH, N2, NO, and CO gases are considered. The initial and final positions (Y, Z) of the adsorbed gases before and after optimization are shown in the adsorption energy figures (first column).
Figure 4. (ao) From left to right, the adsorption energy (Ead (eV)), charge transfer (ΔQ (e)) and the and closest distance (D(Å)) between the gas (Xm) and the sheet (Xs) for diatomic gases. From top to bottom H2, OH, N2, NO, and CO gases are considered. The initial and final positions (Y, Z) of the adsorbed gases before and after optimization are shown in the adsorption energy figures (first column).
Nanomaterials 12 04351 g004

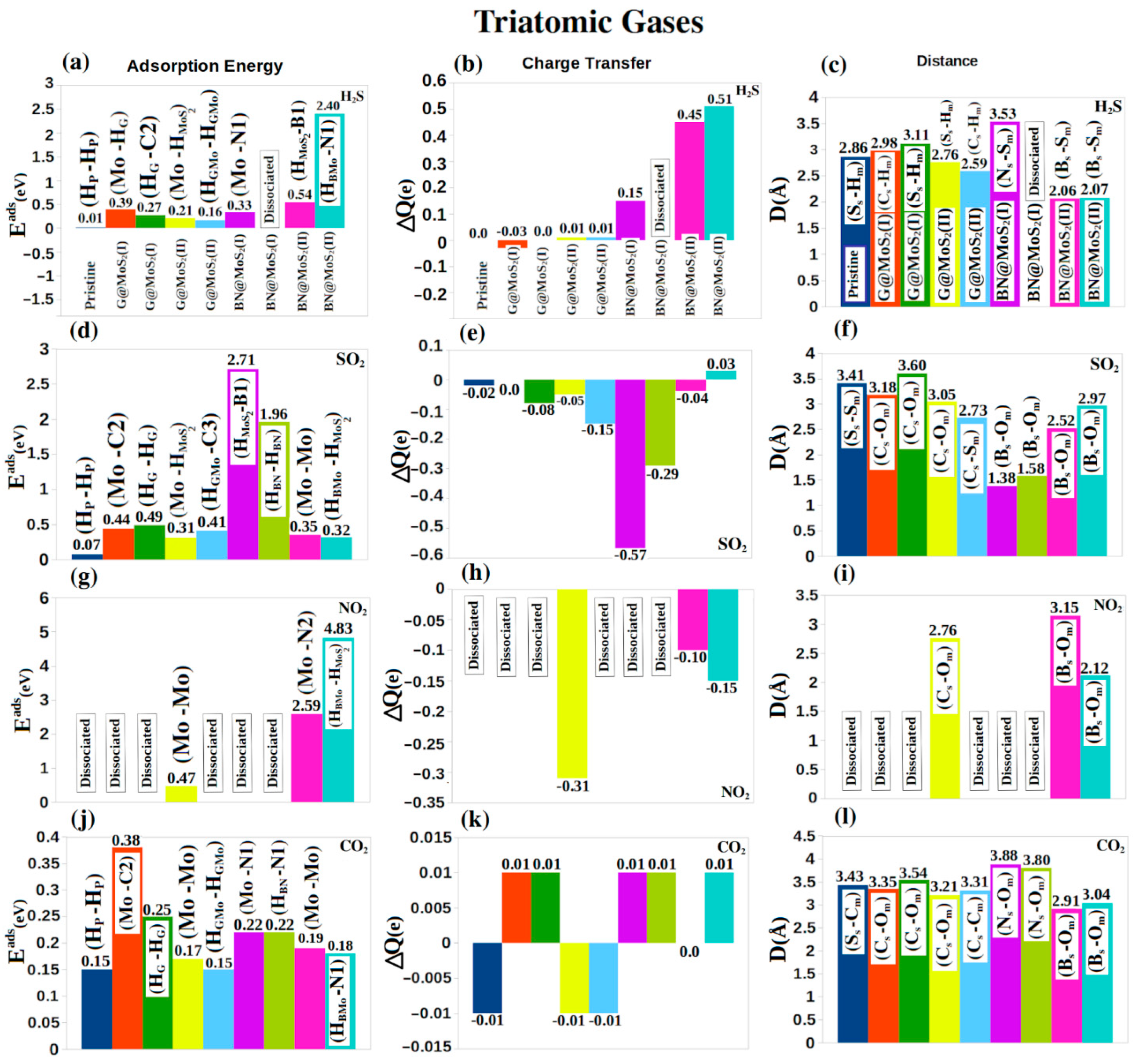

Figure 5. (al) From left to right, the adsorption energy (Ead (eV)), charge transfer (ΔQ (e)) and the closest distance (D(Å)) between the gas (Xm) and the sheet (Xs) for triatomic gases. From top to bottom H2S, SO2, NO2, and CO2 gases are considered. The initial and final positions (Y, Z) of the adsorbed gases before and after optimization are shown in the adsorption energy figures (first column).
Figure 5. (al) From left to right, the adsorption energy (Ead (eV)), charge transfer (ΔQ (e)) and the closest distance (D(Å)) between the gas (Xm) and the sheet (Xs) for triatomic gases. From top to bottom H2S, SO2, NO2, and CO2 gases are considered. The initial and final positions (Y, Z) of the adsorbed gases before and after optimization are shown in the adsorption energy figures (first column).
Nanomaterials 12 04351 g005

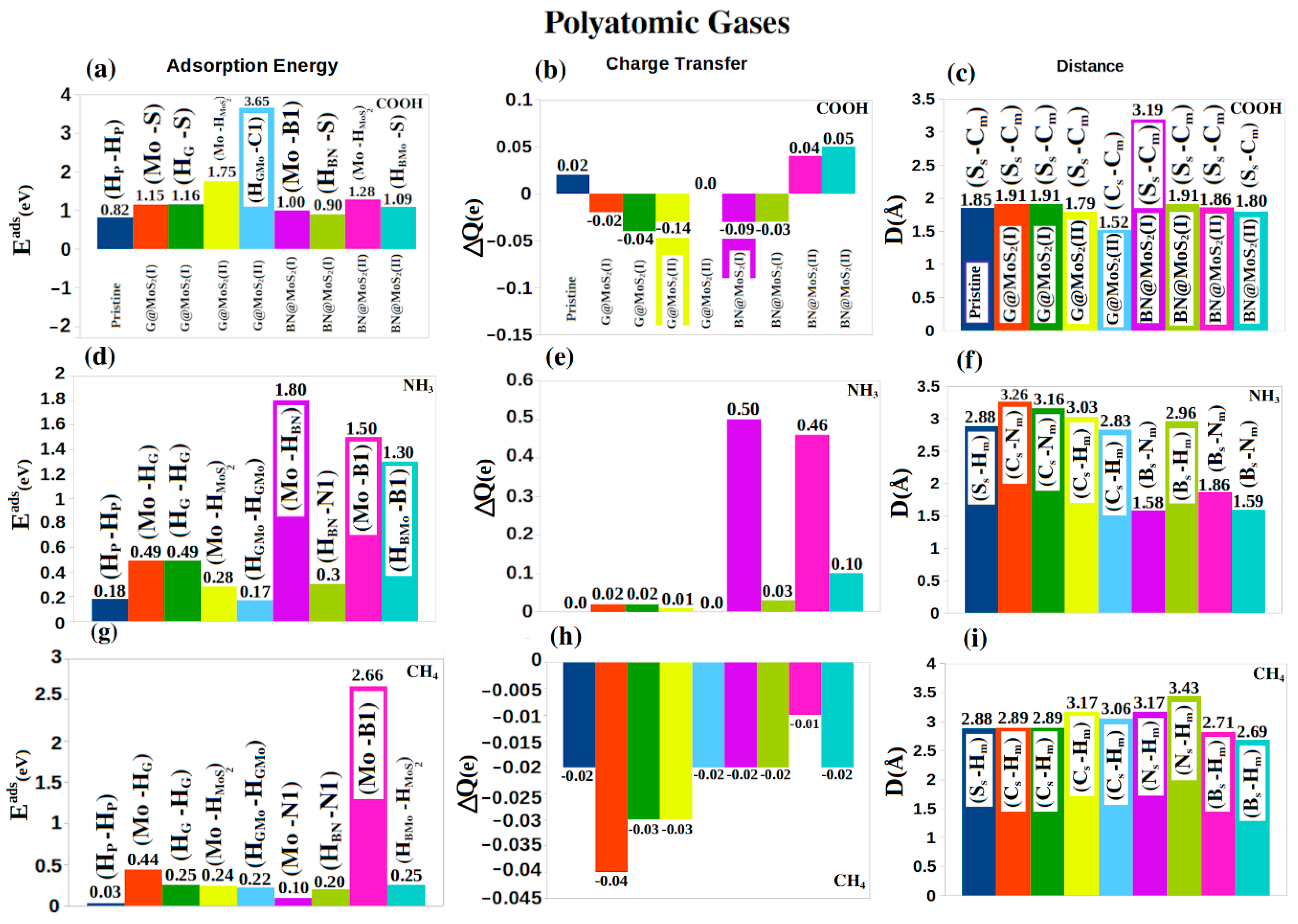

Figure 6. (ai) From left to right, the adsorption energy (Ead (eV), charge transfer (ΔQ (e) and the closest distance (D(Å)) between the gas molecule (Xm) and the sheet (Xs) for polyatomic gases. From top to down COOH, NH3, and CH4 gases are considered. The initial and final positions (Y, Z) of the adsorbed gases before and after optimization are shown in the adsorption energy figures (first column).
