#
Stress-Tuned Optical Transitions in Layered 1T-MX_{2} (M=Hf, Zr, Sn; X=S, Se) Crystals

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

_{2}; DFT; bulk; band structure; pressure coefficients; transition metal dichalcogenides

## 1. Introduction

## 2. Methods and Materials

## 3. Results

#### 3.1. Theoretical Analysis

#### 3.2. Comparison with Experiment

## 4. Summary

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Sample Availability

## Abbreviations

CB | Conduction band |

CBM | Conduction band minimum |

DFT | Density functional theory |

GGA | Generalized gradient approximations |

mBJ | modified Becke–Johnson |

PBE | Perdew–Burke–Ernzerhof |

SO | Spin-orbit |

TMDs | Transition metal dichalcogenides |

VB | Valence band |

VBM | Valence band maximum |

vdW | van der Waals |

XC | Exchange-correlation |

## Appendix A. Band Gap Dependence on Geometrical Parameters

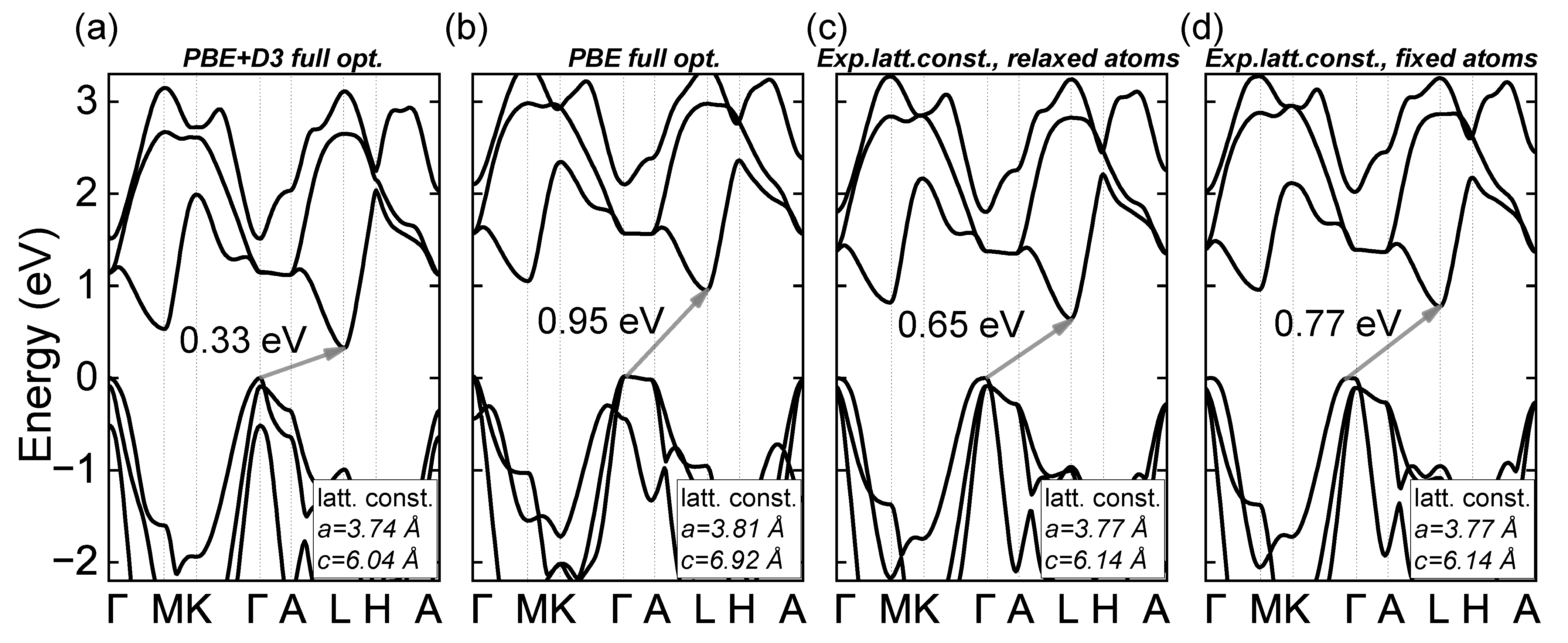

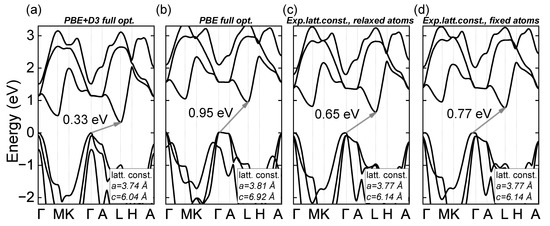

**Figure A1.**Band structures of ZrSe${}_{2}$ calculated with mBJ on top of geometry obtained with full PBE optimization (

**a**) with vdW D3−BJ correction, (

**b**) without vdW correction, and experimental lattice constants (

**c**) with relaxed atomic positions and (

**d**) with fixed atomic positions.

## Appendix B. Stress vs. Strain Dependencies

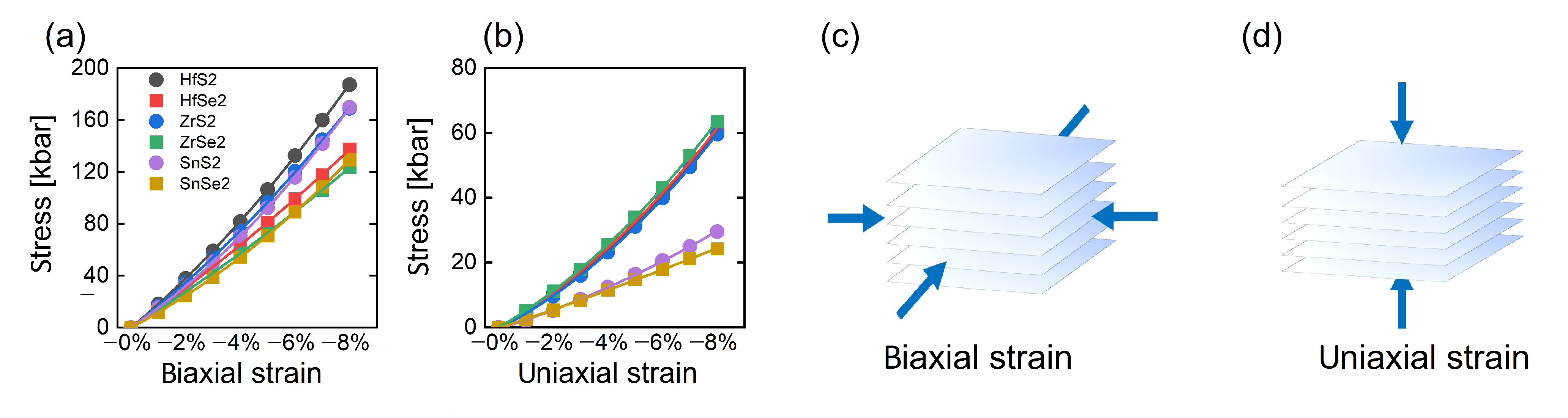

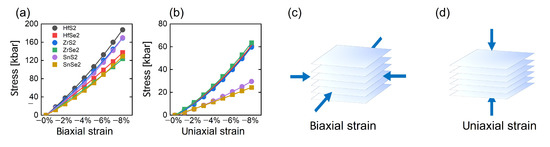

**Figure A2.**Stresses (${\sigma}_{1}$ = ${\sigma}_{2}$ for biaxial, ${\sigma}_{3}$ for uniaxial) due to (

**a**) biaxial (${\epsilon}_{1}$ = ${\epsilon}_{2}$) (

**b**) uniaxial (${\epsilon}_{3}$) strain for all system, applied as illustrated in (

**c**,

**d**), respectively.

## Appendix C. Indirect Transition

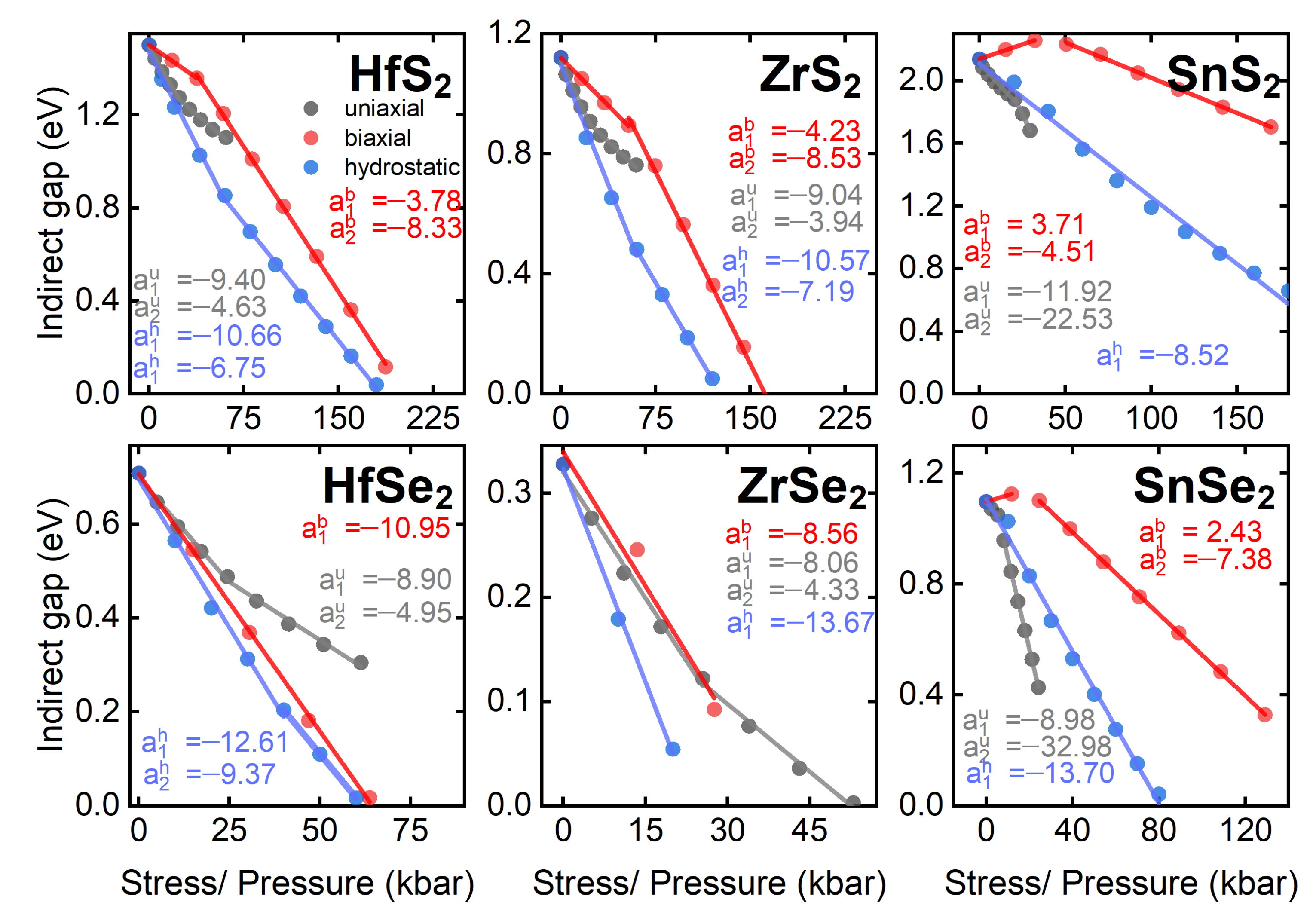

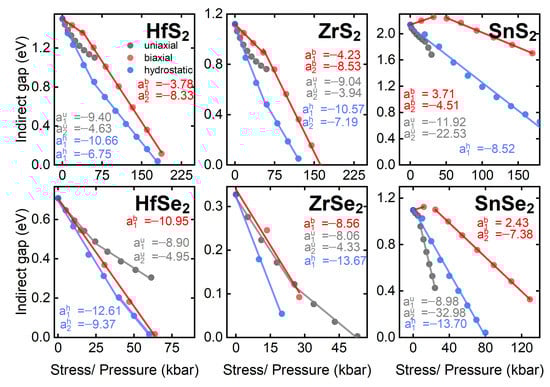

**Figure A3.**Stress/pressure dependence of the fundamental indirect transition energy for all studied compounds. The values of pressure coefficients from linear fitting in selected pressure ranges are provided.

**Table A1.**Pressure ranges and linear pressure coefficients of fundamental indirect transitions in all studied compounds.

Pressure Range of ${\mathit{a}}_{\mathit{n}}^{\mathit{h}}$ (kbar) | Stress Range of ${\mathit{a}}_{\mathit{n}}^{\mathit{u}}$ (kbar) | Stress Range of ${\mathit{a}}_{\mathit{n}}^{\mathit{b}}$ (kbar) | ||||
---|---|---|---|---|---|---|

I | II | I | II | I | II | |

HfS${}_{2}$ | [0–60] | [60–180] | [0–23.5] | [23.5–60.9] | [0–58.5] | [58.5–239.5] |

HfSe${}_{2}$ | [0–40] | [40–60] | [0–24.5] | [24.5–61.3] | [0-62.9] | |

ZrS${}_{2}$ | [0–60] | [60–120] | [0–23.2] | [23.2–53.01] | [0–53.8] | [53.8–169.0] |

ZrSe${}_{2}$ | [0–20] | [0–25.5] | [25.5–63.5] | [0–27.56] | ||

SnS${}_{2}$ | [0–180] | [0–20.6] | [20.6–29.5] | [0–32.3] | [50.5–169.8] | |

SnSe${}_{2}$ | [0–80] | [0–5.26] | [8.2–25.2] | [0–11.8] | [25.6–129.2] | |

${\mathit{a}}_{\mathit{n}}^{\mathit{h}}$(meV/kbar) | ${\mathit{a}}_{\mathit{n}}^{\mathit{u}}$ (meV/kbar) | ${\mathit{a}}_{\mathit{n}}^{\mathit{b}}$ (meV/kbar) | ||||

n | I | II | I | II | I | II |

HfS${}_{2}$ | −10.66 | −6.75 | −9.40 | −4.63 | −3.78 | −8.33 |

HfSe${}_{2}$ | −12.61 | −9.37 | −8.90 | −4.95 | −10.95 | |

ZrS${}_{2}$ | −10.57 | −7,19 | −9.04 | −3.94 | −4.23 | −8.53 |

ZrSe${}_{2}$ | −13.67 | −8.06 | −3.84 | −8.56 | ||

SnS${}_{2}$ | −8.52 | −11.92 | −22.53 | 3.71 | −4.51 | |

SnSe${}_{2}$ | −7.19 | −13.70 | −32.98 | 2.43 | −7.38 |

## Appendix D. Tables with Pressure Coefficients

Point | v | c | E | $\mathit{\sigma}$ | ${\mathbf{a}}_{\mathbf{I}}^{\mathbf{h}}$ | ${\mathbf{a}}_{\mathbf{II}}^{\mathbf{h}}$ | ${\mathbf{a}}_{\mathbf{III}}^{\mathbf{h}}$ | ${\mathbf{a}}_{\mathbf{I}}^{\mathbf{u}}$ | ${\mathbf{a}}_{\mathbf{II}}^{\mathbf{u}}$ | ${\mathbf{a}}_{\mathbf{III}}^{\mathbf{u}}$ | ${\mathbf{a}}_{\mathbf{I}}^{\mathbf{b}}$ | ${\mathbf{a}}_{\mathbf{II}}^{\mathbf{b}}$ | ${\mathbf{a}}_{\mathbf{III}}^{\mathbf{b}}$ |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

${\mathbf{HfS}}_{\mathbf{2}}$ | |||||||||||||

L | VB | CB | 2.076 | ‖/ ⊥ | −7.61 | −5.45 | −5.05 | −5.16 | −2.91 | −1.72 | −5.49 | −6.99 | −7.68 |

$\mathrm{\Gamma}$ | VB | CB | 2.448 | ⊥ | −6.64 | −3.56 | −3.78 | −12.83 | −9.51 | −8.00 | 1.08 | -6.29 | −9.26 |

n.$\mathrm{\Gamma}$A | VB | CB | 2.687 | ‖ | −4.19 | −1.71 | −0.96 | −9.16 | −7.96 | −7.03 | −1.71 | −2.07 | −2.98 |

$\mathrm{\Gamma}$ | VB-1 | CB | 2.690 | ‖ | 0.87 | 0.66 | 0.66 | −0.21 | 0.14 | 0.25 | −1.63 | −6.74 | −9.75 |

L | VB-1 | CB | 2.781 | ‖/ ⊥ | −2.63 | −1.26 | −0.94 | 1.06 | 2.63 | 3.50 | −6.89 | −4.89 | −4.98 |

A | VB | CB | 2.833 | ‖ | 0.98 | 0.84 | 0.80 | 2.44 | 2.34 | 2.23 | −1.56 | −1.85 | −2.06 |

$\mathrm{\Gamma}$ | VB-2 | CB+1 | 2.842 | ‖ | −1.54 | −1.06 | −1.06 | −0.26 | 0.33 | 0.54 | −0.73 | 2.32 | 2.52 |

A | VB-1 | CB+1 | 2.955 | ‖ | 0.86 | 0.85 | 0.85 | 2.42 | 2.37 | 2.28 | −1.85 | −1.84 | −2.18 |

M | VB | CB | 3.120 | ‖ | −0.89 | −0.91 | −0.93 | 5.29 | 4.73 | 4.44 | −6.07 | −5.50 | −5.59 |

$\mathrm{\Gamma}$ | VB | CB+2 | 3.134 | ⊥ | −8.26 | −5.23 | −3.57 | −8.88 | −5.68 | −4.29 | −4.98 | −4.13 | −2.76 |

$\mathrm{\Gamma}$ | VB-1 | CB+2 | 3.356 | ‖ | −4.00 | −3.50 | −2.55 | 3.10 | 3.57 | 3.65 | −6.57 | −3.70 | −2.70 |

n.AL | VB-2 | CB+1 | 3.486 | ⊥ | 0.03 | 1.07 | 1.38 | −6.03 | −5.59 | −5.65 | 4.10 | 2.86 | 2.07 |

A | VB | CB+2 | 3.841 | ‖ | 0.84 | 0.44 | 0.32 | 3.97 | 3.43 | 3.16 | −3.82 | −4.60 | −5.40 |

A | VB-1 | CB+2 | 4.082 | ⊥ | 0.74 | 0.37 | 0.25 | 3.97 | 3.45 | 3.18 | −3.92 | −4.67 | −5.47 |

${\mathbf{HfSe}}_{\mathbf{2}}$ | |||||||||||||

$\mathrm{\Gamma}$ | VB | CB | 1.699 | ‖ | −9.04 | −6.57 | −5.79 | −10.77 | −8.70 | −7.94 | −8.15 | −13.52 | −14.72 |

$\mathrm{\Gamma}$ | VB-1 | CB | 1.716 | ‖/ ⊥ | −4.02 | −4.06 | −4.79 | 0.84 | 1.03 | 1.13 | −4.34 | −12.03 | −13.93 |

L | VB | CB | 1.758 | ‖/ ⊥ | −10.18 | −8.11 | −6.97 | −3.32 | −2.02 | −1.26 | −8.63 | −9.98 | −9.97 |

$\mathrm{\Gamma}$ | VB-1 | CB+1 | 1.811 | ‖ | −2.92 | −2.33 | −1.96 | 0.34 | 0.71 | 0.94 | 0.40 | −2.10 | −2.58 |

A | VB | CB | 1.962 | ‖ | 1.32 | 1.02 | 0.79 | 4.02 | 3.63 | 3.57 | −3.06 | −3.65 | −4.49 |

$\mathrm{\Gamma}$ | VB-1 | CB+2 | 2.140 | ⊥ | −5.78 | −4.69 | −3.47 | 3.35 | 3.89 | 4.34 | −3.46 | −2.85 | −2.77 |

$\mathrm{\Gamma}$ | VB | CB+2 | 2.161 | ‖ | −10.81 | −7.20 | −4.47 | −8.26 | −5.84 | −4.72 | −7.27 | −4.35 | −3.57 |

L | VB-1 | CB | 2.183 | ‖/ ⊥ | −9.48 | −7.63 | −6.59 | −1.24 | 1.46 | 3.00 | −5.95 | −5.51 | −5.32 |

$\mathrm{\Gamma}$ | VB-2 | CB | 2.256 | ⊥ | −5.25 | −4.32 | −4.75 | −1.68 | 0.11 | 0.64 | −3.39 | −5.52 | −5.64 |

A | VB-1 | CB | 2.317 | ‖ | 1.35 | 1.05 | 0.81 | 3.93 | 3.52 | 3.47 | −2.93 | −3.52 | −4.36 |

A | VB-1 | CB+1 | 2.318 | ‖ | 1.09 | 0.86 | 0.69 | 3.79 | 3.45 | 3.44 | −2.92 | −3.07 | −2.89 |

$\mathrm{\Gamma}$ | VB-2 | CB+1 | 2.341 | ‖ | −4.15 | −2.60 | −1.92 | −2.18 | −0.21 | 0.45 | 1.34 | 4.41 | 5.71 |

M | VB | CB | 2.476 | ‖ | −0.15 | −0.65 | −0.82 | 6.80 | 5.87 | 5.79 | −7.30 | −7.71 | −7.66 |

$\mathrm{\Gamma}$ | VB-2 | CB+1 | 2.673 | ‖/ ⊥ | −7.02 | −4.96 | −3.41 | 0.83 | 2.97 | 3.85 | −2.52 | 3.66 | 5.52 |

A | VB | CB+2 | 2.728 | ‖ | 1.41 | 0.86 | 0.54 | 5.45 | 4.57 | 4.38 | −5.38 | −7.07 | −7.29 |

A | VB-1 | CB+2 | 3.055 | ‖ | 1.45 | 0.89 | 0.57 | 5.35 | 4.46 | 4.27 | −5.25 | −6.94 | −7.15 |

n.AL | VB-2 | CB | 3.433 | ⊥ | 2.28 | 2.00 | 1.83 | −0.26 | −0.81 | −1.32 | −2.76 | −7.23 | −7.53 |

Point | v | c | E | $\mathit{\sigma}$ | ${\mathbf{a}}_{\mathbf{I}}^{\mathbf{h}}$ | ${\mathbf{a}}_{\mathbf{II}}^{\mathbf{h}}$ | ${\mathbf{a}}_{\mathbf{III}}^{\mathbf{h}}$ | ${\mathbf{a}}_{\mathbf{I}}^{\mathbf{u}}$ | ${\mathbf{a}}_{\mathbf{II}}^{\mathbf{u}}$ | ${\mathbf{a}}_{\mathbf{III}}^{\mathbf{u}}$ | ${\mathbf{a}}_{\mathbf{I}}^{\mathbf{b}}$ | ${\mathbf{a}}_{\mathbf{II}}^{\mathbf{b}}$ | ${\mathbf{a}}_{\mathbf{III}}^{\mathbf{b}}$ |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

${\mathbf{ZrS}}_{\mathbf{2}}$ | |||||||||||||

$\mathrm{\Gamma}$ | VB | CB+1 | 1.777 | ‖ | −5.41 | −2.53 | −1.69 | −11.51 | −8.27 | −7.22 | −3.73 | −3.09 | −2.86 |

L | VB | CB | 1.949 | ‖/ ⊥ | −7.64 | −5.70 | −5.30 | −5.17 | −2.70 | −1.52 | −1.68 | −1.01 | −0.60 |

$\mathrm{\Gamma}$ | VB-1 | CB+2 | 2.073 | ‖ | −4.41 | −4.44 | −4.10 | 3.65 | 4.20 | 4.69 | 1.18 | 1.57 | 1.86 |

$\mathrm{\Gamma}$ | VB-2 | CB+1 | 2.164 | ‖ | −1.37 | −0.96 | −0.78 | −0.16 | 0.23 | 0.40 | −0.05 | 0.09 | 0.16 |

A | VB | CB | 2.209 | ‖ | 1.36 | 1.11 | 1.13 | 2.96 | 2.67 | 2.63 | 0.96 | 1.00 | 1.04 |

L | VB-1 | CB+1 | 2.259 | ‖ | 0.83 | 1.32 | 1.45 | −2.60 | −2.09 | −2.03 | −0.84 | −0.78 | −0.80 |

A | VB-1 | CB+1 | 2.299 | ‖ | 1.40 | 1.15 | 1.15 | 2.93 | 2.67 | 2.64 | 0.95 | 1.00 | 1.05 |

A | VB-1 | CB+2 | 2.331 | ‖ | 1.32 | 0.64 | 0.48 | 5.45 | 4.53 | 4.34 | 1.76 | 1.69 | 1.72 |

$\mathrm{\Gamma}$ | VB | CB+2 | 2.547 | ⊥ | −8.45 | −5.98 | −5.00 | 5.45 | −4.29 | −2.90 | −2.51 | −1.61 | −1.15 |

M | VB | CB | 2.702 | ‖ | −0.07 | −0.45 | −0.82 | 6.52 | 5.76 | 5.73 | 2.11 | 2.15 | 2.27 |

$\mathrm{\Gamma}$ | VB-1 | CB | 2.834 | ‖ | −1.38 | −1.03 | −1.55 | −0.16 | 0.16 | 0.29 | −0.05 | 0.06 | 0.11 |

$\mathrm{\Gamma}$ | VB-2 | CB+2 | 2.927 | ‖ | −4.41 | −4.42 | −4.08 | 3.58 | 4.21 | 4.72 | 1.16 | 1.57 | 1.87 |

M | VB-1 | CB+1 | 3.366 | ‖ | 5.93 | 3.13 | 3.71 | 2.94 | 0.01 | −1.80 | 0.95 | 0.01 | −0.71 |

n.AL | VB-2 | CB | 3.400 | ⊥ | −2.42 | −0.46 | −0.35 | −6.41 | −4.89 | −4.47 | −2.07 | −1.83 | −1.77 |

A | VB | CB+2 | 3.486 | ‖ | 1.33 | 0.64 | 0.49 | 5.47 | 4.53 | 4.34 | 1.77 | 1.69 | 1.72 |

M | VB-2 | CB | 3.894 | ‖/ ⊥ | −1.71 | −2.81 | −2.88 | −2.25 | −2.04 | −1.70 | −0.73 | −0.76 | −0.67 |

L | VB | CB+1 | 4.272 | ‖ | −0.01 | 1.55 | 1.90 | −9.14 | −7.58 | −7.38 | −2.96 | −2.83 | −2.93 |

${\mathbf{ZrSe}}_{\mathbf{2}}$ | |||||||||||||

$\mathrm{\Gamma}$ | VB | CB+1 | 1.151 | ‖ | −6.76 | −3.50 | −2.46 | −8.29 | −5.75 | −4.92 | −2.92 | −3.48 | 0.60 |

n.$\mathrm{\Gamma}$A | VB | CB | 1.252 | ‖ | −5.31 | −2.36 | −1.46 | −10.08 | −7.87 | −7.06 | −3.62 | −10.30 | −12.88 |

$\mathrm{\Gamma}$ | VB-1 | CB | 1.252 | ‖ | −2.87 | −2.88 | −5.39 | 1.34 | 1.38 | 1.34 | −1.65 | −12.33 | −9.91 |

L | VB | CB | 1.320 | ‖/ ⊥ | −10.03 | −7.75 | −7.10 | −3.25 | −1.86 | −0.98 | −9.22 | −10.43 | −10.32 |

A | VB | CB | 1.460 | ‖ | 1.64 | 1.33 | 0.89 | 4.46 | 3.91 | 3.87 | −2.94 | −3.10 | −3.34 |

A | VB | CB+1 | 1.465 | ‖ | 1.68 | 1.35 | 0.90 | 4.49 | 3.92 | 3.87 | −2.95 | −3.01 | −3.11 |

$\mathrm{\Gamma}$ | VB | CB+2 | 1.513 | ⊥ | −11.36 | −7.40 | −3.97 | −5.66 | −2.54 | −1.15 | −10.02 | −3.77 | 0.50 |

$\mathrm{\Gamma}$ | VB-1 | CB+2 | 1.604 | ‖ | −7.28 | −5.86 | −3.40 | 3.19 | 4.04 | 4.75 | −6.41 | −1.67 | −2.53 |

L | VB-1 | CB | 1.653 | ‖ | −9.60 | −7.59 | −6.93 | −0.65 | 2.10 | 3.65 | −6.73 | −5.97 | −5.78 |

$\mathrm{\Gamma}$ | VB-2 | CB+1 | 1.663 | ‖ | −3.23 | −1.94 | −1.76 | 0.42 | 0.65 | 0.79 | 0.23 | 3.85 | 5.16 |

A | VB-1 | CB+1 | 1.798 | ‖ | 1.82 | 1.47 | 1.02 | 4.37 | 3.79 | 3.72 | −2.70 | −2.77 | −2.88 |

$\mathrm{\Gamma}$ | VB-2 | CB+2 | 2.031 | ‖/ ⊥ | −7.83 | −5.84 | −3.27 | 3.04 | 3.86 | 4.55 | −6.87 | 3.56 | 5.06 |

M | VB | CB | 2.133 | ‖ | 0.49 | −0.12 | −0.51 | 7.90 | 6.75 | 6.63 | −7.60 | −7.90 | −7.85 |

A | VB | CB+2 | 2.379 | ‖ | 1.63 | 0.92 | 0.45 | 7.07 | 5.78 | 5.53 | −6.55 | −8.38 | −9.36 |

A | VB-1 | CB+2 | 2.663 | ‖ | 1.78 | 1.05 | 0.57 | 6.95 | 5.65 | 5.37 | −6.30 | −8.13 | −9.12 |

L | VB-1 | CB+1 | 3.939 | ‖ | 0.52 | 1.86 | 2.21 | −4.54 | −2.68 | −2.17 | 7.12 | 8.78 | 8.82 |

L | VB | CB+2 | 4.107 | ‖ | 1.98 | 3.16 | 3.19 | −7.75 | −7.38 | −7.74 | 6.45 | 4.05 | 2.07 |

M | VB | CB+1 | 4.272 | ‖ | 9.62 | 8.37 | 7.57 | 5.71 | 4.46 | 4.00 | 4.14 | 4.85 | 4.91 |

H | VB-1 | CB | 4.372 | ‖/ ⊥ | 2.58 | −0.12 | 0.03 | −5.76 | −5.51 | −5.96 | 2.37 | 0.99 | 0.32 |

L | VB-1 | CB+2 | 4.413 | ‖ | 2.41 | 3.33 | 3.36 | −5.16 | −3.42 | −3.12 | 8.93 | 8.51 | 6.61 |

K | VB-1 | CB | 4.500 | ‖/ ⊥ | 5.25 | 4.87 | 4.64 | −4.69 | −4.92 | −5.46 | 9.90 | 9.73 | 1.37 |

Point | v | c | E | $\mathit{\sigma}$ | ${\mathbf{a}}_{\mathbf{I}}^{\mathbf{h}}$ | ${\mathbf{a}}_{\mathbf{II}}^{\mathbf{h}}$ | ${\mathbf{a}}_{\mathbf{III}}^{\mathbf{h}}$ | ${\mathbf{a}}_{\mathbf{I}}^{\mathbf{u}}$ | ${\mathbf{a}}_{\mathbf{II}}^{\mathbf{u}}$ | ${\mathbf{a}}_{\mathbf{III}}^{\mathbf{u}}$ | ${\mathbf{a}}_{\mathbf{I}}^{\mathbf{b}}$ | ${\mathbf{a}}_{\mathbf{II}}^{\mathbf{b}}$ | ${\mathbf{a}}_{\mathbf{III}}^{\mathbf{b}}$ |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

${\mathbf{SnS}}_{\mathbf{2}}$ | |||||||||||||

$\mathrm{\Gamma}$ | VB | CB | 2.595 | ⊥ | −4.73 | 0.22 | 1.28 | −28.59 | −25.78 | −24.78 | 13.08 | 1.03 | −1.09 |

L | VB-2 | CB | 3.786 | ‖/ ⊥ | 2.20 | 4.21 | 8.71 | −4.56 | −1.89 | −0.30 | 4.32 | 1.38 | −2.14 |

H | VB | CB | 3.871 | ‖ | 3.01 | 3.00 | 2.85 | −2.63 | −3.11 | −3.71 | 3.84 | 2.21 | 1.42 |

H | VB-1 | CB | 3.889 | ‖ | 2.89 | 3.01 | 2.85 | −2.48 | −2.99 | −3.60 | 3.78 | 2.16 | 1.38 |

K | VB | Cb | 3.953 | ‖ | 3.87 | 2.52 | 1.65 | 1.38 | 0.96 | 0.55 | 2.64 | 1.52 | 0.96 |

L | VB-1 | CB | 3.960 | ‖ | 11.38 | 9.33 | 3.81 | 14.60 | 18.29 | 20.07 | 1.79 | 1.56 | 1.23 |

A | VB-2 | CB | 4.439 | ‖ | 13.55 | 9.42 | 3.37 | 9.98 | 8.16 | 7.35 | 6.32 | 4.01 | 2.43 |

${\mathbf{SnSe}}_{\mathbf{2}}$ | |||||||||||||

$\mathrm{\Gamma}$ | VB | CB | 1.446 | ‖/ ⊥ | −5.31 | −0.15 | 1.17 | −34.07 | −31.48 | −32.20 | 11.54 | −0.14 | −2.98 |

$\mathrm{\Gamma}$ | VB-2 | CB | 1.959 | ‖ | 3.18 | 8.11 | 8.06 | −6.45 | −5.74 | 2.35 | 4.45 | 0.08 | −2.75 |

H | VB | CB | 2.969 | ‖/ ⊥ | 2.74 | 3.00 | 2.56 | −4.41 | −5.21 | −6.68 | 4.16 | 2.25 | 1.21 |

L | VB-2 | CB | 2.986 | ‖/ ⊥ | 4.16 | 4.95 | 4.96 | 1.36 | 5.21 | 8.35 | 1.66 | −2.95 | −4.30 |

H | VB-1 | CB | 3.056 | ‖ | 2.92 | 3.12 | 2.66 | −3.91 | −4.71 | −6.15 | 4.02 | 2.13 | 1.10 |

K | VB | CB | 3.072 | ‖ | 4.17 | 3.24 | 1.43 | 0.47 | −0.52 | −1.76 | 2.73 | 1.42 | 0.69 |

K | VB-1 | CB | 3.158 | ‖ | 3.56 | 2.52 | 2.16 | −0.38 | −1.65 | −3.34 | 2.75 | 1.42 | 0.67 |

A | VB-2 | CB | 3.620 | ‖ | 16.97 | 12.85 | 5.78 | 14.57 | 12.49 | 11.58 | 5.25 | 2.93 | 0.86 |

A | VB | CB+1 | 3.676 | ‖ | −0.08 | 0.27 | 5.86 | −6.28 | −6.90 | −8.13 | 4.06 | 3.08 | 2.62 |

A | VB-1 | CB+1 | 3.937 | ‖ | 0.01 | 0.33 | 5.92 | −6.45 | −7.13 | −8.36 | 4.29 | 3.29 | 2.83 |

$\mathrm{\Gamma}$ | VB-1 | CB+1 | 3.955 | ‖ | 6.62 | 1.84 | 1.78 | 6.22 | 7.03 | −0.44 | 7.55 | 2.74 | 2.37 |

M | VB-2 | CB | 4.092 | ‖ | 16.77 | 12.96 | 11.78 | 24.12 | 24.44 | 26.34 | −2.00 | −2.70 | −3.50 |

K | VB-2 | CB | 4.445 | ⊥ | −10.08 | −6.11 | −5.83 | −25.72 | −26.06 | −29.05 | 6.28 | 3.92 | 2.70 |

## References

- Khan, K.; Tareen, A.K.; Aslam, M.; Wang, R.; Zhang, Y.; Mahmood, A.; Ouyang, Z.; Zhang, H.; Guo, Z. Recent developments in emerging two-dimensional materials and their applications. J. Mater. Chem. C
**2020**, 8, 387–440. [Google Scholar] [CrossRef] - Bao, Q.; Hoh, H.Y. 2D Materials for Photonic and Optoelectronic Applications; Elsevier: Amsterdam, The Netherlands, 2020; p. 326. [Google Scholar]
- Li, N.; Wang, Y.; Sun, H.; Hu, J.; Zheng, M.; Ye, S.; Wang, Q.; Li, Y.; He, D.; Wang, J.; et al. Resistive switching behaviors and mechanisms of HfS
_{2}film memory devices studied by experiments and density functional theory calculations. Appl. Phys. Lett.**2020**, 116, 063503. [Google Scholar] [CrossRef] - Yin, J.; Zhu, F.; Lai, J.; Chen, H.; Zhang, M.; Zhang, J.; Wang, J.; He, T.; Zhang, B.; Yuan, J.; et al. Hafnium Sulfide Nanosheets for Ultrafast Photonic Device. Adv. Opt. Mater.
**2019**, 7, 1801303. [Google Scholar] [CrossRef] - Gedi, S.; Minnam Reddy, V.R.; Pejjai, B.; Park, C.; Jeon, C.W.; Kotte, T.R.R. Studies on chemical bath deposited SnS
_{2}films for Cd-free thin film solar cells. Ceram. Int.**2017**, 43, 3713–3719. [Google Scholar] [CrossRef] - Feng, T.; Zhang, D.; Li, X.; Abdul, Q.; Shi, Z.; Lu, J.; Guo, P.; Zhang, Y.; Liu, J.; Wang, Q.J. SnS
_{2}Nanosheets for Er-Doped Fiber Lasers. ACS Appl. Nano Mater.**2020**, 3, 674–681. [Google Scholar] [CrossRef] - He, K.; Poole, C.; Mak, K.F.; Shan, J. Experimental Demonstration of Continuous Electronic Structure Tuning via Strain in Atomically Thin MoS2. Nano Lett.
**2013**, 13, 2931–2936. [Google Scholar] [CrossRef] - Shi, H.; Pan, H.; Zhang, Y.W.; Yakobson, B.I. Quasiparticle band structures and optical properties of strained monolayer MoS
_{2}and WS_{2}. Phys. Rev. B**2013**, 87, 155304. [Google Scholar] [CrossRef] - Conley, H.J.; Wang, B.; Ziegler, J.I.; Haglund, R.F.; Pantelides, S.T.; Bolotin, K.I. Bandgap Engineering of Strained Monolayer and Bilayer MoS
_{2}. Nano Lett.**2013**, 13, 3626–3630. [Google Scholar] [CrossRef] - Scalise, E.; Houssa, M.; Pourtois, G.; Afanas’ev, V.; Stesmans, A. Strain-induced semiconductor to metal transition in the two-dimensional honeycomb structure of MoS
_{2}. Nano Res.**2012**, 5, 43–48. [Google Scholar] [CrossRef] - Ghorbani-Asl, M.; Borini, S.; Kuc, A.; Heine, T. Strain-dependent modulation of conductivity in single-layer transition-metal dichalcogenides. Phys. Rev. B
**2013**, 87, 235434. [Google Scholar] [CrossRef] [Green Version] - Castellanos-Gomez, A.; Singh, V.; van der Zant, H.S.J.; Steele, G.A. Mechanics of freely-suspended ultrathin layered materials. Ann. Der Phys.
**2015**, 527, 27–44. [Google Scholar] [CrossRef] - Bertolazzi, S.; Brivio, J.; Kis, A. Stretching and Breaking of Ultrathin MoS2. ACS Nano
**2011**, 5, 9703–9709. [Google Scholar] [CrossRef] [PubMed] - Griffith, A.A.V.I. The phenomena of rupture and flow in solids. Philos. Trans. R. Soc. Lond. A
**1921**, 221, 163–198. [Google Scholar] [CrossRef] - Dybała, F.; Polak, M.P.; Kopaczek, J.; Scharoch, P.; Wu, K.; Tongay, S.; Kudrawiec, R. Pressure coefficients for direct optical transitions in MoS
_{2}, MoSe_{2}, WS_{2}, and WSe_{2}crystals and semiconductor to metal transitions. Sci. Rep.**2016**, 6, 26663. [Google Scholar] [CrossRef] [PubMed] - Oliva, R.; Laurien, M.; Dybala, F.; Kopaczek, J.; Qin, Y.; Tongay, S.; Rubel, O.; Kudrawiec, R. Pressure dependence of direct optical transitions in ReS
_{2}and ReSe_{2}. NPJ 2D Mater. Appl.**2019**, 3, 20. [Google Scholar] [CrossRef] - Oliva, R.; Woźniak, T.; Dybala, F.; Tołłoczko, A.; Kopaczek, J.; Scharoch, P.; Kudrawiec, R. Valley polarization investigation of GeS under high pressure. Phys. Rev. B
**2020**, 101, 235205. [Google Scholar] [CrossRef] - Oliva, R.; Woźniak, T.; Dybala, F.; Kopaczek, J.; Scharoch, P.; Kudrawiec, R. Hidden spin-polarized bands in semiconducting 2H-MoTe
_{2}. Mater. Res. Lett.**2020**, 8, 75–81. [Google Scholar] [CrossRef] - Pang, X.; Zhang, Q.; Shao, Y.; Liu, M.; Zhang, D.; Zhao, Y. A Flexible Pressure Sensor Based on Magnetron Sputtered MoS2. Sensors
**2021**, 21, 1130. [Google Scholar] [CrossRef] - Yang, C.; Zhang, D.; Wang, D.; Chen, X.; Luan, H. Ultra-sensitive, stretchable, and bidirectional wearable strain sensor for human motion detection. J. Mater. Chem. C
**2022**, 10, 7076–7086. [Google Scholar] [CrossRef] - Lee, J.; Feng, P.X.L. Atomically-Thin MoS
_{2}Resonators for Pressure Sensing. In Proceedings of the 2014 IEEE International Frequency Control Symposium (FCS), UFFC; Asia Pacific Metrol Programme; Minist Sci & Technol; NAR Labs; Instrument Technol Res Ctr; Sensors & Actuators Tech. Tsing Hua Univ, Taipei, Taiwan, 19–22 May 2014; pp. 276–279. [Google Scholar] - Manzeli, S.; Ovchinnikov, D.; Pasquier, D.; Yazyev, O.V.; Kis, A. 2D transition metal dichalcogenides. Nat. Rev. Mater.
**2017**, 2, 17033. [Google Scholar] [CrossRef] - Omkaram, I.; Hong, Y.K.; Kim, S. Transition Metal Dichalcogenide Photodetectors. In Two-Dimensional Materials for Photodetector; Nayak, P.K., Ed.; IntechOpen: Rijeka, Croatia, 2017; Chapter 2. [Google Scholar] [CrossRef]
- Gong, C.; Zhang, H.; Wang, W.; Colombo, L.; Wallace, R.M.; Cho, K. Band alignment of two-dimensional transition metal dichalcogenides: Application in tunnel field effect transistors. Appl. Phys. Lett.
**2013**, 103, 053513. [Google Scholar] [CrossRef] - Xu, K.; Wang, Z.; Wang, F.; Huang, Y.; Wang, F.; Yin, L.; Jiang, C.; He, J. Ultrasensitive Phototransistors Based on Few-Layered HfS
_{2}. Adv. Mater.**2015**, 27, 7881–7887. [Google Scholar] [CrossRef] [PubMed] - Fiori, G.; Bonaccorso, F.; Iannaccone, G.; Palacios, T.; Neumaier, D.; Seabaugh, A.; Banerjee, S.K.; Colombo, L. Electronics based on two-dimensional materials. Nat. Nanotechnol.
**2014**, 9, 768–779. [Google Scholar] [CrossRef] [PubMed] - Zhou, X.; Gan, L.; Tian, W.; Zhang, Q.; Jin, S.; Li, H.; Bando, Y.; Golberg, D.; Zhai, T. Ultrathin SnSe
_{2}Flakes Grown by Chemical Vapor Deposition for High-Performance Photodetectors. Adv. Mater.**2015**, 27, 8035–8041. [Google Scholar] [CrossRef] [PubMed] - Yang, E.; Ji, H.; Jung, Y. Two-Dimensional Transition Metal Dichalcogenide Monolayers as Promising Sodium Ion Battery Anodes. J. Phys. Chem. C
**2015**, 119, 26374–26380. [Google Scholar] [CrossRef] - Ibáñez, J.; Woźniak, T.; Dybala, F.; Oliva, R.; Hernández, S.; Kudrawiec, R. High-pressure Raman scattering in bulk HfS
_{2}: Comparison of density functional theory methods in layered MS2 compounds (M=Hf, Mo) under compression. Sci. Rep.**2018**, 8, 12757. [Google Scholar] [CrossRef] - Grzeszczyk, M.; Gawraczyński, J.; Woźniak, T.; Ibáñez, J.; Muhammad, Z.; Zhao, W.; Molas, M.; Babiński, A. Pressure-Driven Phase Transitions in Bulk HfS
_{2}. Acta Phys. Pol. A**2022**, 141, 95–98. [Google Scholar] [CrossRef] - Hong, M.; Dai, L.; Hu, H.; Zhang, X.; Li, C.; He, Y. High-pressure structural phase transitions and metallization in layered HfS
_{2}under different hydrostatic environments up to 42.1 GPa. J. Mater. Chem. C**2022**, 10, 10541–10550. [Google Scholar] [CrossRef] - Rahman, S.; Saqib, H.; Liang, X.; Errandonea, D.; Resta, A.; Molina-Sanchez, A.; Gao, G.; Wang, L.; Tian, Y.; Mao, H.K. Pressure-induced metallization and robust superconductivity in pristine 1T-HfSe
_{2}. Mater. Today Phys.**2022**, 25, 100698. [Google Scholar] [CrossRef] - Kresse, G.; Furthmüller, J. Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. Comput. Mater. Sci.
**1996**, 6, 15–50. [Google Scholar] [CrossRef] - Holzwarth, N.A.W.; Tackett, A.R.; Matthews, G.E. A Projector Augmented Wave (PAW) code for electronic structure calculations, Part I: Atom paw for generating atom-centered functions. Comput. Phys. Commun.
**2001**, 135, 329–347. [Google Scholar] [CrossRef] - Paier, J.; Hirschl, R.; Marsman, M.; Kresse, G. The Perdew–Burke–Ernzerhof exchange-correlation functional applied to the G2-1 test set using a plane-wave basis set. J. Chem. Phys.
**2005**, 122, 234102. [Google Scholar] [CrossRef] [PubMed] - Monkhorst, H.J.; Pack, J.D. Special points for Brillouin-zone integrations. Phys. Rev. B
**1976**, 13, 5188–5192. [Google Scholar] [CrossRef] - Birowska, M.; Milowska, K.; Majewski, J.A. Van Der Waals Density Functionals for Graphene Layers and Graphite. Acta Phys. Pol. A
**2011**, 120, 845–848. [Google Scholar] [CrossRef] - Birowska, M.; Marchwiany, M.E.; Draxl, C.; Majewski, J.A. Assessment of approaches for dispersive forces employing semihydrogenated graphene as a case study. Comput. Mater. Sci.
**2021**, 186, 109940. [Google Scholar] [CrossRef] - Grimme, S.; Ehrlich, S.; Goerigk, L. Effect of the damping function in dispersion corrected density functional theory. J. Comput. Chem.
**2011**, 32, 1456–1465. [Google Scholar] [CrossRef] [PubMed] - Zhao, Q.; Guo, Y.; Si, K.; Ren, Z.; Bai, J.; Xu, X. Elastic, electronic, and dielectric properties of bulk and monolayer ZrS2, ZrSe2, HfS2, HfSe2 from van der Waals density-functional theory. Phys. Status Solidib
**2017**, 254, 1700033. [Google Scholar] [CrossRef] - Hedin, L. On correlation effects in electron spectroscopies and the GW approximation. J. Phys.: Condens. Matter
**1999**, 11, R489–R528. [Google Scholar] [CrossRef] - Becke, A.D.; Johnson, E.R. A simple effective potential for exchange. J. Chem. Phys.
**2006**, 124, 221101. [Google Scholar] [CrossRef] - Tran, F.; Blaha, P. Accurate Band Gaps of Semiconductors and Insulators with a Semilocal Exchange-Correlation Potential. Phys. Rev. Lett.
**2009**, 102, 226401. [Google Scholar] [CrossRef] - Gusakova, J.; Wang, X.; Shiau, L.L.; Krivosheeva, A.; Shaposhnikov, V.; Borisenko, V.; Gusakov, V.; Tay, B.K. Electronic Properties of Bulk and Monolayer TMDs: Theoretical Study Within DFT Framework (GVJ-2e Method). Phys. Status Solidi A
**2017**, 214, 1700218. [Google Scholar] [CrossRef] - Oliva, R.; Wozniak, T.; Faria, P.E.; Dybala, F.; Kopaczek, J.; Fabian, J.; Scharoch, P.; Kudrawiec, R. Strong Substrate Strain Effects in Multilayered WS
_{2}Revealed by High-Pressure Optical Measurements. ACS Appl. Mater. Interfaces**2022**, 14, 19857–19868. [Google Scholar] [CrossRef] [PubMed] - Gajdo, M.; Hummer, K.; Kresse, G.; Furthmüller, J.; Bechstedt, F. Linear optical properties in the projector-augmented wave methodology. Phys. Rev. B
**2006**, 73, 045112. [Google Scholar] [CrossRef] - Manjón, F.J.; Segura, A.; Muñoz Sanjosé, V.; Tobías, G.; Ordejón, P.; Canadell, E. Band structure of indium selenide investigated by intrinsic photoluminescence under high pressure. Phys. Rev. B
**2004**, 70, 125201. [Google Scholar] [CrossRef] - Errandonea, D.; Segura, A.; Manjón, F.J.; Chevy, A.; Machado, E.; Tobias, G.; Ordejón, P.; Canadell, E. Crystal symmetry and pressure effects on the valence band structure of γ-InSe and ϵ-GaSe: Transport measurements and electronic structure calculations. Phys. Rev. B
**2005**, 71, 125206. [Google Scholar] [CrossRef] - Jiang, H. Band gaps from the Tran-Blaha modified Becke-Johnson approach: A systematic investigation. J. Chem. Phys.
**2013**, 138, 134115. [Google Scholar] [CrossRef] - Beal, A.R.; Knights, J.C.; Liang, W.Y. Transmission spectra of some transition metal dichalcogenides. II. Group VIA: Trigonal prismatic coordination. J. Phys. Solid State Phys.
**1972**, 5, 3540–3551. [Google Scholar] [CrossRef] - Saigal, N.; Sugunakar, V.; Ghosh, S. Exciton binding energy in bulk MoS
_{2}: A reassessment. Appl. Phys. Lett.**2016**, 108, 132105. [Google Scholar] [CrossRef] - Arora, A.; Drüppel, M.; Schmidt, R.; Deilmann, T.; Schneider, R.; Molas, M.R.; Marauhn, P.; Michaelis de Vasconcellos, S.; Potemski, M.; Rohlfing, M.; et al. Interlayer excitons in a bulk van der Waals semiconductor. Nat. Commun.
**2017**, 8, 639. [Google Scholar] [CrossRef] [Green Version] - Jung, E.; Park, J.C.; Seo, Y.S.; Kim, J.H.; Hwang, J.; Lee, Y.H. Unusually large exciton binding energy in multilayered 2H-MoTe
_{2}. Sci. Rep.**2022**, 12, 4543. [Google Scholar] [CrossRef] - Birowska, M.; Faria Junior, P.E.; Fabian, J.; Kunstmann, J. Large exciton binding energies in MnPS
_{3}as a case study of a van der Waals layered magnet. Phys. Rev. B**2021**, 103, L121108. [Google Scholar] [CrossRef] - Brotons-Gisbert, M.; Segura, A.; Robles, R.; Canadell, E.; Ordejón, P.; Sánchez-Royo, J.F. Optical and electronic properties of 2H-MoS
_{2}under pressure: Revealing the spin-polarized nature of bulk electronic bands. Phys. Rev. Mater.**2018**, 2, 054602. [Google Scholar] [CrossRef] - Hodul, D.T.; Stacy, A.M. Anomalies in the properties of Hf(S
_{2-x}Te_{x})_{1-y}and Hf(Se_{2-x}Te_{x})_{1-y}near the metal-insulator transition. J. Solid State Chem.**1984**, 54, 438–446. [Google Scholar] [CrossRef] - Greenaway, D.; Nitsche, R. Preparation and optical properties of group IV–VI2 chalcogenides having the CdI
_{2}structure. J. Phys. Chem. Solids**1965**, 26, 1445–1458. [Google Scholar] [CrossRef] - Terashima, K.; Imai, I. Indirect absorption edge of ZrS
_{2}and HfS_{2}. Solid State Commun.**1987**, 63, 315–318. [Google Scholar] [CrossRef] - Gaiser, C.; Zandt, T.; Krapf, A.; Serverin, R.; Janowitz, C.; Manzke, R. Band-gap engineering with HfS
_{x}Se_{2-x}. Phys. Rev. B**2004**, 69, 075205. [Google Scholar] [CrossRef] - Lee, P.; Said, G.; Davis, R.; Lim, T. On the optical properties of some layer compounds. J. Phys. Chem. Solids
**1969**, 30, 2719–2729. [Google Scholar] [CrossRef] - Roubi, L.; Carlone, C. Resonance Raman spectrum of HfS
_{2}and ZrS_{2}. Phys. Rev. B**1988**, 37, 6808–6812. [Google Scholar] [CrossRef] - Starnberg, H.I.; Brauer, H.E.; Hughes, H.P. Photoemission studies of the conduction band filling in and Cs-intercalated and. J. Phys.: Condens. Matter
**1996**, 8, 1229–1234. [Google Scholar] [CrossRef] - Moustafa, M.; Zandt, T.; Janowitz, C.; Manzke, R. Growth and band gap determination of the ZrS
_{x}Se_{2-x}single crystal series. Phys. Rev. B**2009**, 80, 035206. [Google Scholar] [CrossRef] - Julien, C.; Eddrief, M.; Samaras, I.; Balkanski, M. Optical and electrical characterizations of SnSe, SnS
_{2}and SnSe_{2}single crystals. Mater. Sci. Eng. B**1992**, 15, 70–72. [Google Scholar] [CrossRef] - Fong, C.Y.; Cohen, M.L. Electronic Energy-Band Structure of SnS
_{2}and SnSe_{2}. Phys. Rev. B**1972**, 5, 3095–3101. [Google Scholar] [CrossRef] - Zhang, X.; Liu, B.; Liu, S.; Li, J.; Liu, R.; Wang, P.; Dong, Q.; Li, S.; Tian, H.; Li, Q.; et al. Semiconductor-to-metal transition in HfSe
_{2}under high pressure. J. Alloys Compd.**2021**, 867, 158923. [Google Scholar] [CrossRef] - Zhai, H.; Qin, Z.; Sun, D.; Wang, J.; Liu, C.; Min, N.; Li, Q. Pressure-induced phase transition, metallization and superconductivity in ZrS
_{2}. Phys. Chem. Chem. Phys.**2018**, 20, 23656–23663. [Google Scholar] [CrossRef] - Martino, E.; Santos-Cottin, D.; Le Mardelé, F.; Semeniuk, K.; Pizzochero, M.; Čerņevičs, K.; Baptiste, B.; Delbes, L.; Klotz, S.; Capitani, F.; et al. Structural Phase Transition and Bandgap Control through Mechanical Deformation in Layered Semiconductors 1T–ZrX
_{2}(X = S, Se). ACS Mater. Lett.**2020**, 2, 1115–1120. [Google Scholar] [CrossRef] - Zhang, X.; Dai, L.; Hu, H.; Hong, M.; Li, C. Pressure-induced coupled structural–electronic transition in SnS
_{2}under different hydrostatic environments up to 39.7 GPa. RSC Adv.**2022**, 12, 2454–2461. [Google Scholar] [CrossRef] - Zhen, Z.Q.; Wang, H.Y. Density Functional Study of the Electronic, Elastic, and Lattice Dynamic Properties of SnS
_{2}. Acta Phys. Pol. A**2020**, 137, 1095–1100. [Google Scholar] [CrossRef] - Javed, Y.; Mirza, S.M.; Rafiq, M.A. Effect of Pressure on Mechanical and Thermal Properties of SnSe
_{2}. Int. J. Thermophys.**2021**, 42, 146. [Google Scholar] [CrossRef]

**Figure 1.**Top and side views of the (

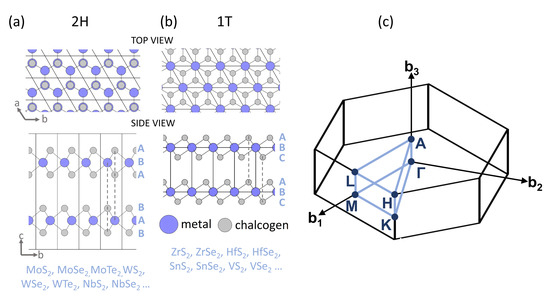

**a**) trigonal prismatic (2H) and (

**b**) octahedral (1T) polytypes of MX${}_{2}$. (

**c**) The first Brillouin zone (BZ) with high-symmetry k-points and lines denoted in blue.

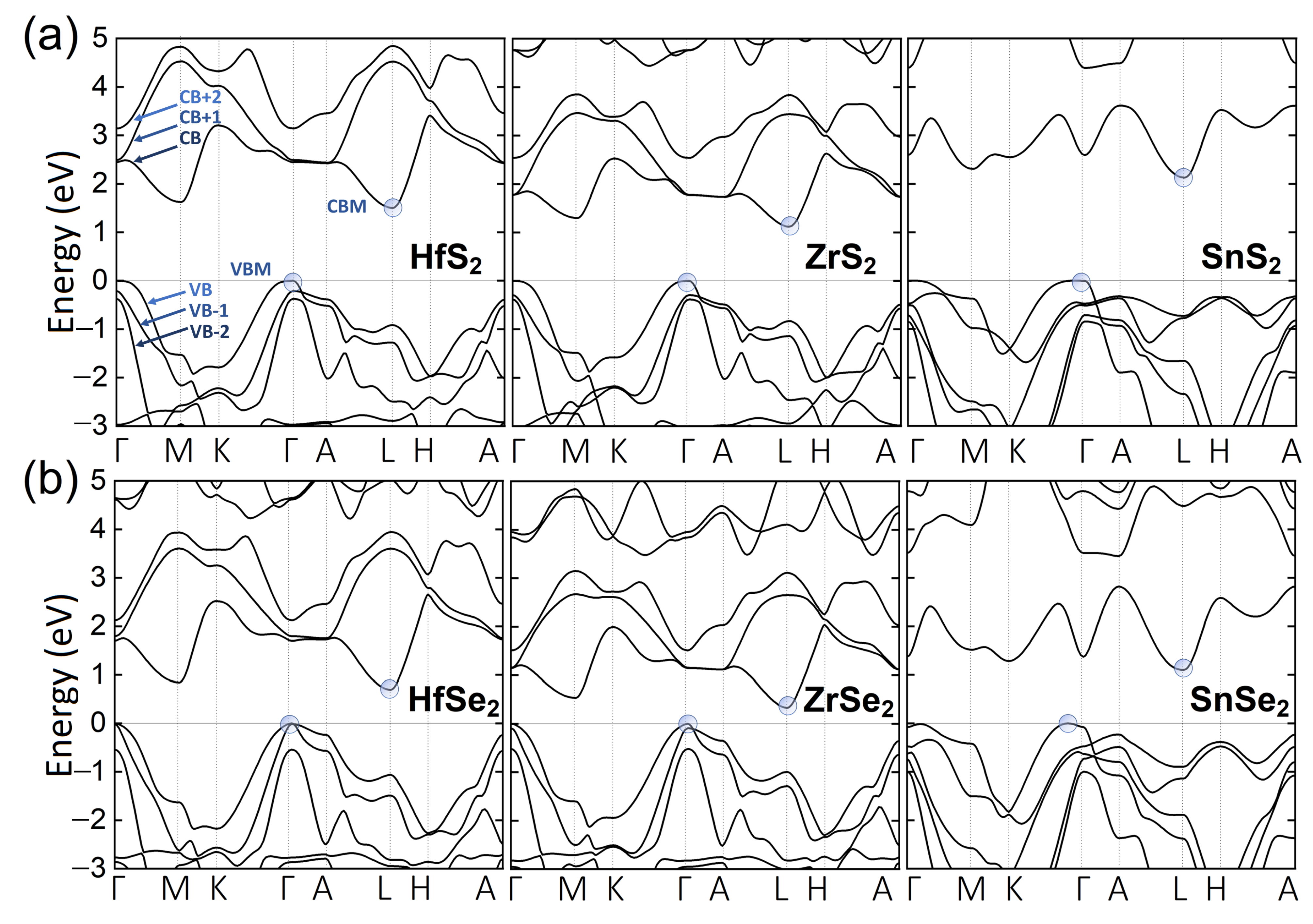

**Figure 2.**The electronic structure of bulk MS${}_{2}$ (M=Hf, Zr, Se) for (

**a**) and MSe${}_{2}$ for (

**b**) high symmetry lines in BZ obtained using mBJ potential on the top of PBE+D3-BJ+SO geometry optimization. The VBM and CBM are denoted in blue circles.

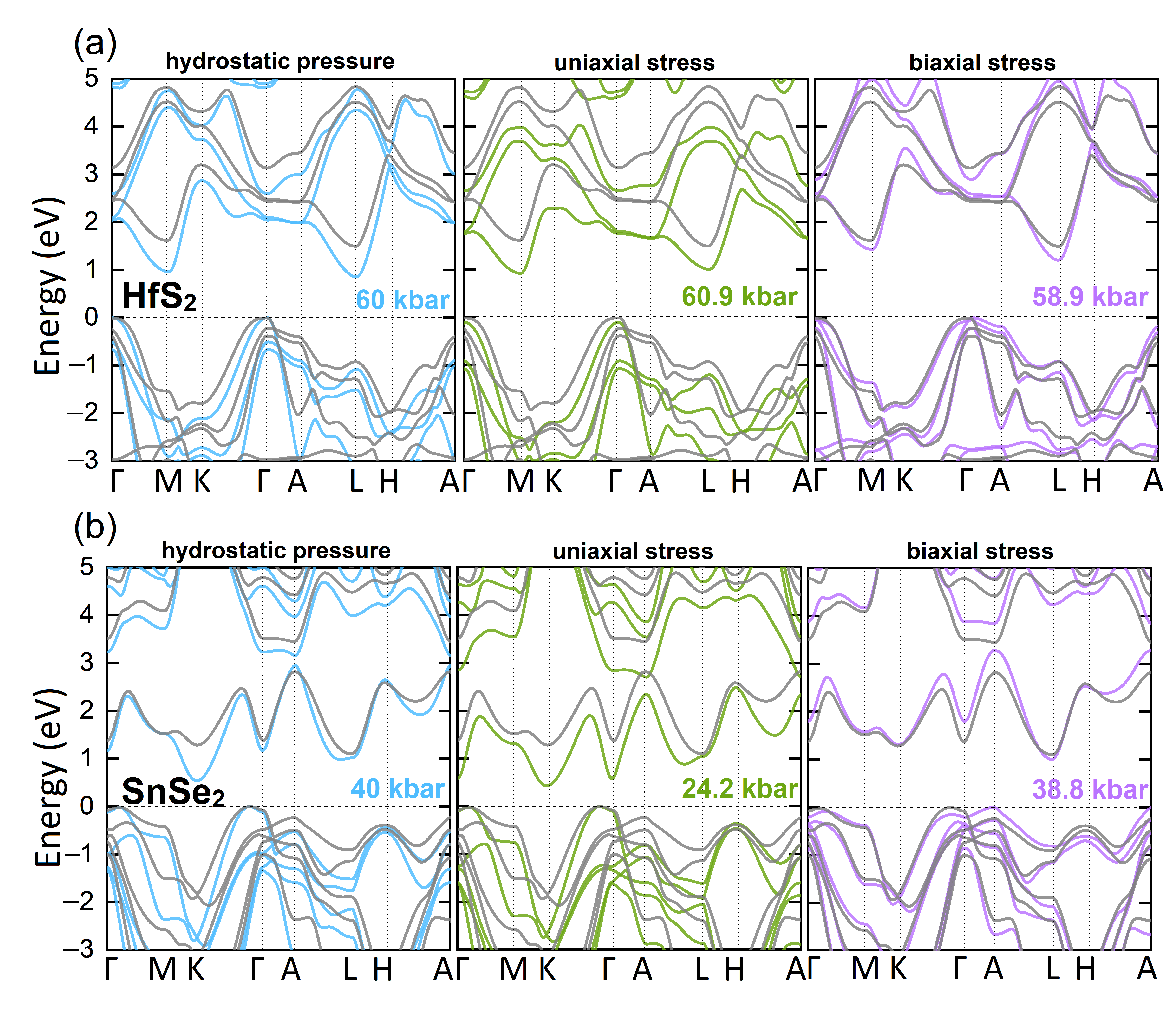

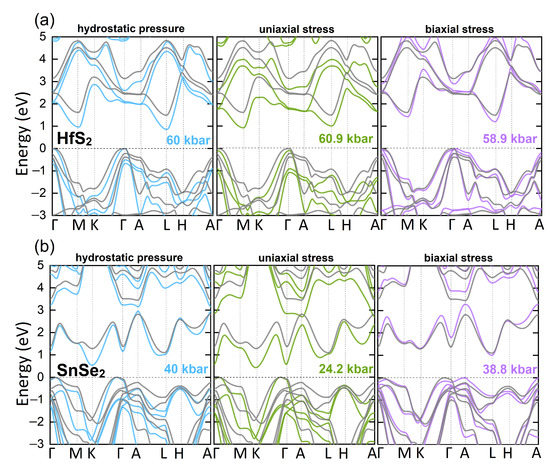

**Figure 3.**The electronic band structure for unstressed (grey lines) and stressed samples under hydrostatic pressure (blue lines), uniaxial stress (green lines), biaxial stress (violet lines), respectively, for (

**a**) HfS${}_{2}$ and (

**b**) SnSe${}_{2}$. The uniaxial and biaxial stresses correspond to $-8\%$ and $-2$% strains, respectively. Zero in energy is rigidly set to the VBM.

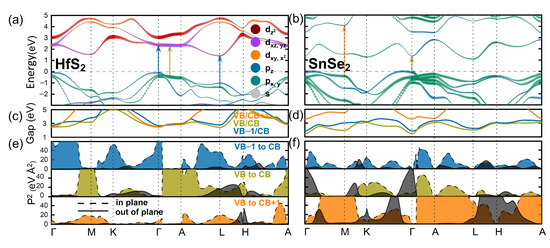

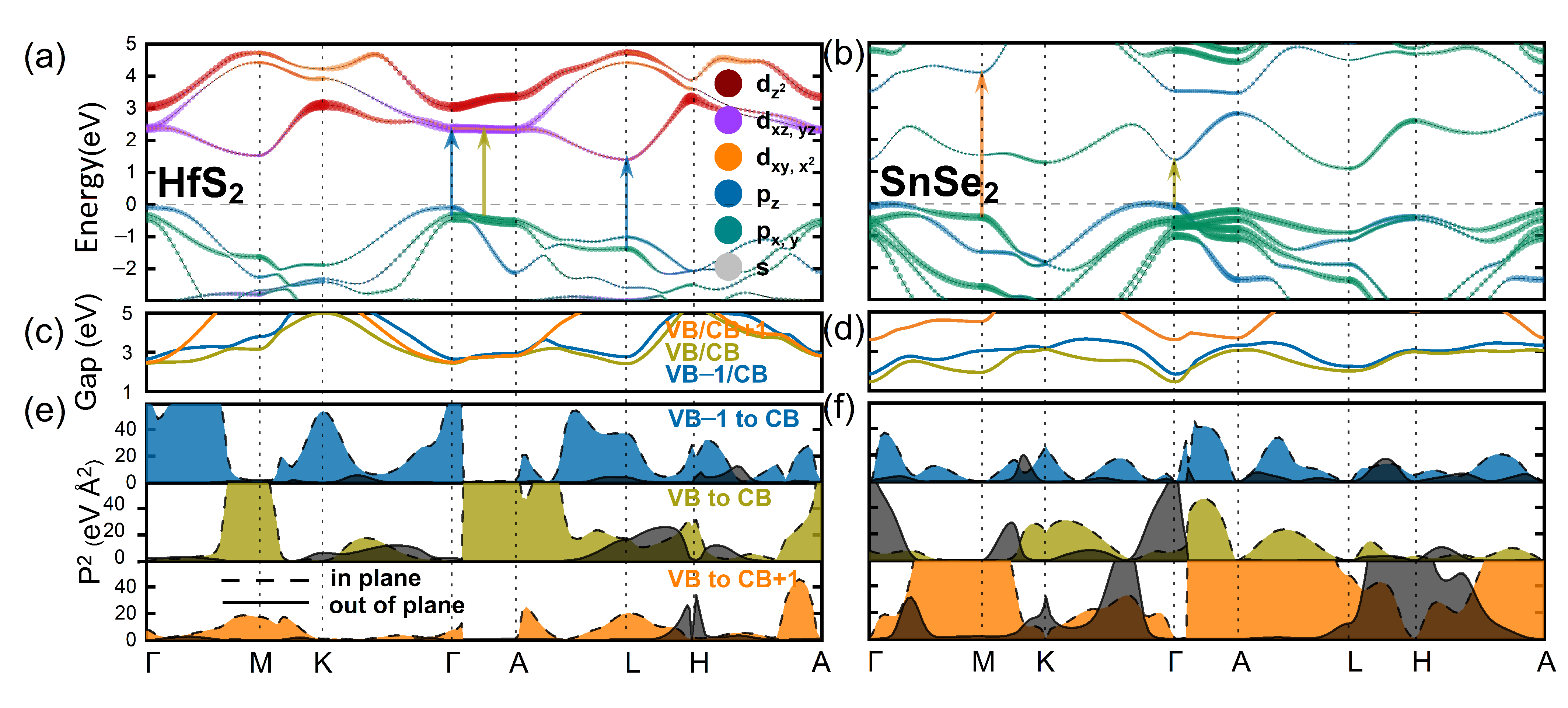

**Figure 4.**Electronic band structures with orbital projections for (

**a**) HfS${}_{2}$, (

**b**) SnSe${}_{2}$. The arrows in (

**a**,

**b**) mark the optically active transitions with highest intensities. The color of the arrow reflects the position from which the transition occurs. For instance, the blue arrow denotes the transition from VB-1 to CB, whereas the light green—from VB to CB. (

**c**,

**d**) graphs show energy of direct transition between selected bands (the other pairs of bands are omitted for the sake of clarity), and (

**e**,

**f**) demonstrate the corresponding dipole strengths and polarizations of transitions.

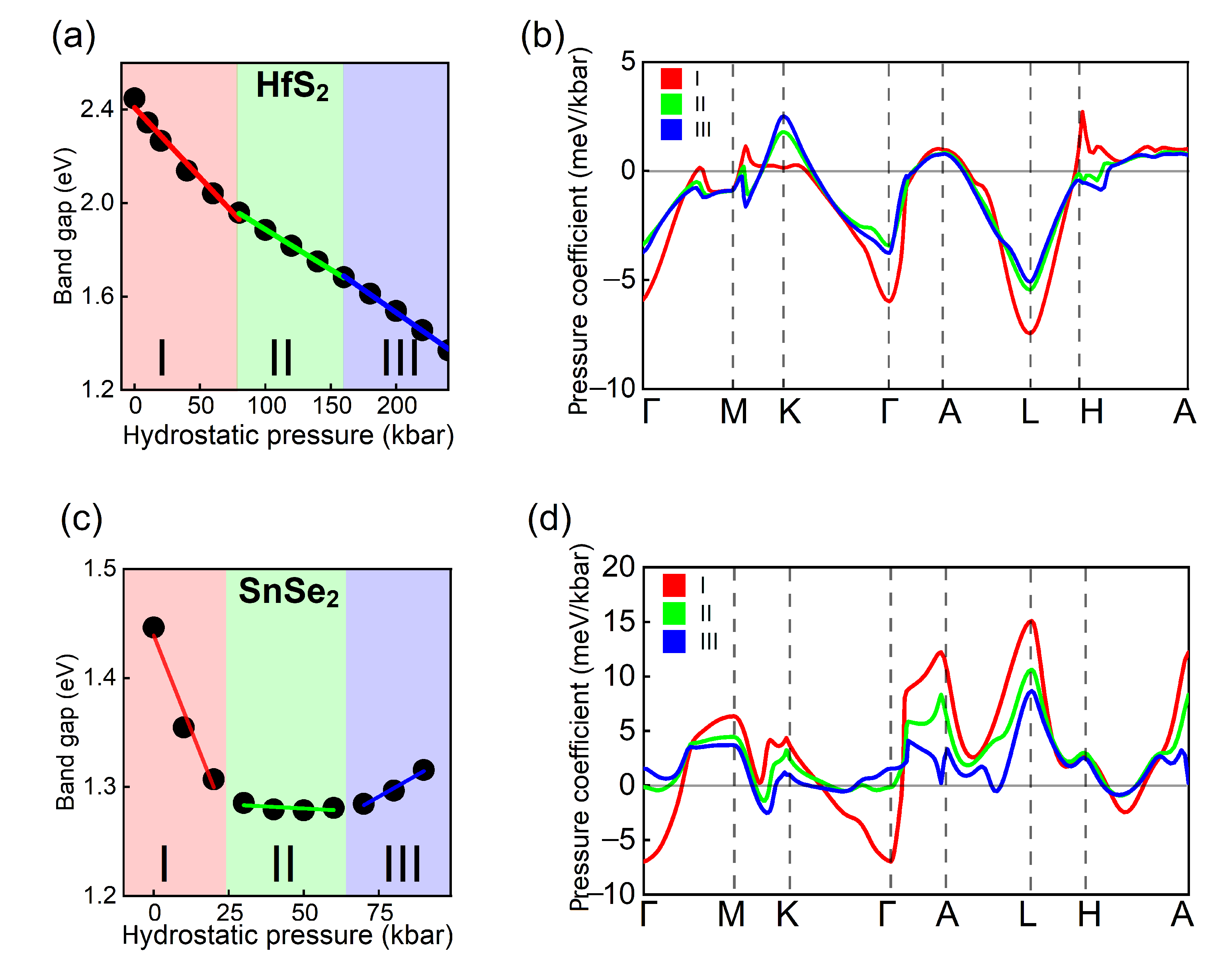

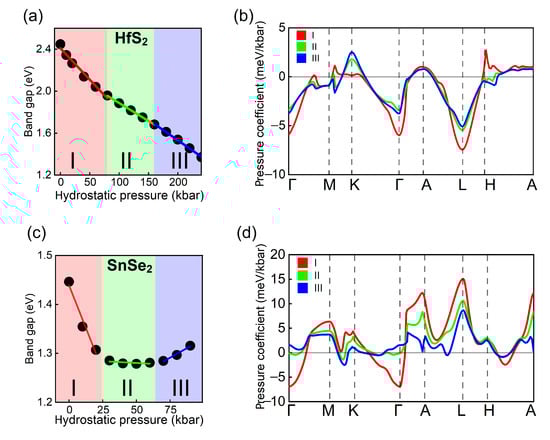

**Figure 5.**The energy transition under the hydrostatic pressure at $\mathrm{\Gamma}$ point for (

**a**) HfS${}_{2}$ (

**c**) SnSe${}_{2}$ bulk structures. Three linear ranges have been selected (I, II, III), different for both systems. Corresponding pressure coefficients for HfS${}_{2}$ and SnSe${}_{2}$, are presented in (

**b**,

**d**), respectively, along the entire k-path.

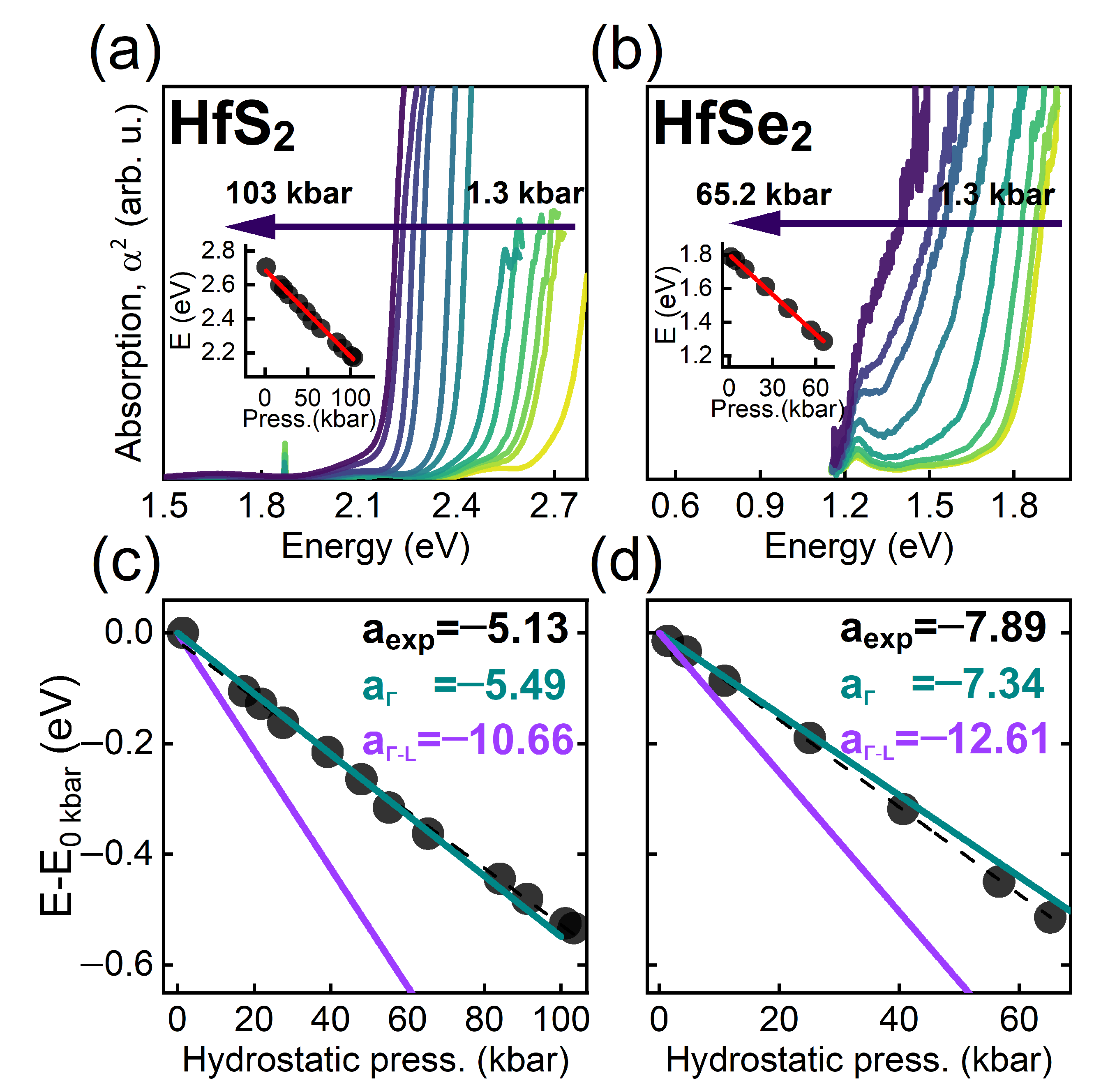

**Figure 6.**Pressure dependence of absorption spectra measured at room temperature for (

**a**) HfS${}_{2}$ and (

**b**) HfSe${}_{2}$. Inset shows the absorption edge determined from the absorption spectra (solid circles) together with the linear fit (red lines). Pressure dependencies of the absorption edge energy (black points) and calculated VB-CB transition at $\mathrm{\Gamma}$ (green) and fundamental indirect transition $\mathrm{\Gamma}$-L (violet) as a linear fit of points on the same range and derived pressure coefficients (meV/kbar) for (

**c**) HfS${}_{2}$ and (

**d**) HfSe${}_{2}$.

System | ${\mathbf{a}}^{\mathbf{DFT}}$ (Å) | ${\mathbf{c}}^{\mathbf{DFT}}$ (Å) | ${\mathbf{E}}_{\mathbf{g}}^{\mathbf{DFT}}$ (eV) | ${\mathbf{a}}^{\mathbf{exp}}$ (Å) | ${\mathbf{c}}^{\mathbf{exp}}$ (Å) | ${\mathbf{E}}_{\mathbf{g}}^{\mathbf{exp}}$ (eV) |
---|---|---|---|---|---|---|

HfS${}_{2}$ | 3.59 | 5.75 | 1.50 | 3.63 [56] | 5.86 [56] | 1.96 [57], 1.80 [58], 1.87 [59] |

HfSe${}_{2}$ | 3.70 | 6.08 | 0.71 | 3.67 [56] | 6.00 [56] | 1.13 [57], 1.15 [58] |

ZrS${}_{2}$ | 3.63 | 5.72 | 1.12 | 3.66 [57] | 5.82 [57] | 1.68 [57], 1.70 [60], 1.78 [61] |

ZrSe${}_{2}$ | 3.74 | 6.04 | 0.33 | 3.77 [57] | 6.14 [57] | 1.20 [60], 1.10 [62], 1.18 [63] |

SnS${}_{2}$ | 3.67 | 5.80 | 2.14 | 3.65 [64] | 5.90 [64] | 2.88 [65] |

SnSe${}_{2}$ | 3.84 | 6.00 | 1.10 | 3.82 [64] | 6.14 [64] | 1.63 [65] |

**Table 2.**Direct optical transitions for particular high symmetry k-points for all employed compounds. The $n.XY$ represents the nesting bands transition between the X and Y k-points, whereas the v (valence band) and c (conduction band) indicate positions for which the transition occurs. The E, ${P}_{\Vert}^{2}$ and ${P}_{\perp}^{2}$ denote the energy of transition, intensity of in-plane and out-of plane polarization of light (given in $e{V}^{2}$Å${}^{2}$), respectively. The last nine columns indicate the pressure coefficients (given in $meV/kbar$), where the lower index denotes the pressure regions defined in Appendix C, and the upper index indicates the type of pressure: h—hydrostatic, u—uniaxial, and b—biaxial.

Point | v | c | E | ${\mathbf{P}}_{\Vert}^{2}$ | ${\mathbf{P}}_{\perp}^{2}$ | ${\mathbf{a}}_{\mathbf{I}}^{\mathbf{h}}$ | ${\mathbf{a}}_{\mathbf{II}}^{\mathbf{h}}$ | ${\mathbf{a}}_{\mathbf{III}}^{\mathbf{h}}$ | ${\mathbf{a}}_{\mathbf{I}}^{\mathbf{u}}$ | ${\mathbf{a}}_{\mathbf{II}}^{\mathbf{u}}$ | ${\mathbf{a}}_{\mathbf{III}}^{\mathbf{u}}$ | ${\mathbf{a}}_{\mathbf{I}}^{\mathbf{b}}$ | ${\mathbf{a}}_{\mathbf{II}}^{\mathbf{b}}$ | ${\mathbf{a}}_{\mathbf{III}}^{\mathbf{b}}$ |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

${\mathbf{HfS}}_{\mathbf{2}}$ | ||||||||||||||

L | VB | CB | 2.076 | 21 | 11 | −7.61 | −5.45 | −5.05 | −5.16 | −2.91 | −1.72 | −5.49 | −6.99 | −7.68 |

$\mathrm{\Gamma}$ | VB | CB | 2.448 | 0 | 3 | −6.64 | −3.56 | −3.78 | −12.83 | −9.51 | −8.00 | 1.08 | -6.29 | −9.26 |

n.$\mathrm{\Gamma}$A | VB | CB | 2.687 | 67 | 0 | −4.19 | −1.71 | −0.96 | −9.16 | −7.96 | −7.03 | −1.71 | −2.07 | −2.98 |

$\mathrm{\Gamma}$ | VB-1 | CB | 2.690 | 66 | 0 | 0.87 | 0.66 | 0.66 | −0.21 | 0.14 | 0.25 | −1.63 | −6.74 | −9.75 |

L | VB-1 | CB | 2.781 | 30 | 2 | −2.63 | −1.26 | −0.94 | 1.06 | 2.63 | 3.50 | −6.89 | −4.89 | −4.98 |

${\mathbf{HfSe}}_{\mathbf{2}}$ | ||||||||||||||

$\mathrm{\Gamma}$ | VB | CB | 1.699 | 52 | 0 | −9.04 | −6.57 | −5.79 | −10.77 | −8.70 | −7.94 | −8.15 | −13.52 | −14.72 |

$\mathrm{\Gamma}$ | VB-1 | CB | 1.716 | 5 | 5 | −4.02 | −4.06 | −4.79 | 0.84 | 1.03 | 1.13 | −4.34 | −12.03 | −13.93 |

L | VB | CB | 1.758 | 14 | 14 | −10.18 | −8.11 | −6.97 | −3.32 | −2.02 | −1.26 | −8.63 | −9.98 | −9.97 |

$\mathrm{\Gamma}$ | VB-1 | CB+1 | 1.811 | 22 | 0 | −2.92 | −2.33 | −1.96 | 0.34 | 0.71 | 0.94 | 0.40 | −2.10 | −2.58 |

A | VB | CB | 1.962 | 68 | 0 | 1.32 | 1.02 | 0.79 | 4.02 | 3.63 | 3.57 | −3.06 | −3.65 | −4.49 |

${\mathbf{ZrS}}_{\mathbf{2}}$ | ||||||||||||||

$\mathrm{\Gamma}$ | VB | CB+1 | 1.777 | 4 | 0 | −5.41 | −2.53 | −1.69 | −11.51 | −8.27 | −7.22 | −3.73 | −3.09 | −2.86 |

L | VB | CB | 1.949 | 10 | 20 | −7.64 | −5.70 | −5.30 | −5.17 | −2.70 | −1.52 | −1.68 | −1.01 | −0.60 |

$\mathrm{\Gamma}$ | VB-1 | CB+2 | 2.073 | 11 | 0 | −4.41 | −4.44 | −4.10 | 3.65 | 4.20 | 4.69 | 1.18 | 1.57 | 1.86 |

$\mathrm{\Gamma}$ | VB-2 | CB+1 | 2.164 | 41 | 0 | −1.37 | −0.96 | −0.78 | −0.16 | 0.23 | 0.40 | −0.05 | 0.09 | 0.16 |

A | VB | CB | 2.209 | 61 | 0 | 1.36 | 1.11 | 1.13 | 2.96 | 2.67 | 2.63 | 0.96 | 1.00 | 1.04 |

${\mathbf{ZrSe}}_{\mathbf{2}}$ | ||||||||||||||

$\mathrm{\Gamma}$ | VB | CB+1 | 1.151 | 14 | 0 | −6.76 | −3.50 | −2.46 | −8.29 | −5.75 | −4.92 | −2.92 | −3.48 | 0.60 |

n.$\mathrm{\Gamma}$A | VB | CB | 1.252 | 54 | 0 | −5.31 | −2.36 | −1.46 | −10.08 | −7.87 | −7.06 | −3.62 | −10.30 | −12.88 |

$\mathrm{\Gamma}$ | VB-1 | CB | 1.252 | 53 | 0 | −2.87 | −2.88 | −5.39 | 1.34 | 1.38 | 1.34 | −1.65 | −12.33 | −9.91 |

L | VB | CB | 1.320 | 23 | 6 | −10.03 | −7.75 | −7.10 | −3.25 | −1.86 | −0.98 | −9.22 | −10.43 | −10.32 |

A | VB | CB | 1.460 | 60 | 0 | 1.64 | 1.33 | 0.89 | 4.46 | 3.91 | 3.87 | −2.94 | −3.10 | −3.34 |

${\mathbf{SnS}}_{\mathbf{2}}$ | ||||||||||||||

$\mathrm{\Gamma}$ | VB | CB | 2.595 | 0 | 61 | −4.73 | 0.22 | 1.28 | −28.59 | −25.78 | −24.78 | 13.08 | 1.03 | −1.09 |

L | VB-2 | CB | 3.786 | 3 | 35 | 2.20 | 4.21 | 8.71 | −4.56 | −1.89 | −0.30 | 4.32 | 1.38 | −2.14 |

H | VB | CB | 3.871 | 4 | 0 | 3.01 | 3.00 | 2.85 | −2.63 | −3.11 | −3.71 | 3.84 | 2.21 | 1.42 |

H | VB-1 | CB | 3.889 | 7 | 0 | 2.89 | 3.01 | 2.85 | −2.48 | −2.99 | −3.60 | 3.78 | 2.16 | 1.38 |

K | VB | CB | 3.953 | 20 | 0 | 3.87 | 2.52 | 1.65 | 1.38 | 0.96 | 0.55 | 2.64 | 1.52 | 0.96 |

${\mathbf{SnSe}}_{\mathbf{2}}$ | ||||||||||||||

$\mathrm{\Gamma}$ | VB | CB | 1.446 | 8 | 67 | −5.31 | −0.15 | 1.17 | −34.07 | −31.48 | −32.20 | 11.54 | −0.14 | −2.98 |

$\mathrm{\Gamma}$ | VB-2 | CB | 1.959 | 112 | 0 | 3.18 | 8.11 | 8.06 | −6.45 | −5.74 | 2.35 | 4.45 | 0.08 | −2.75 |

H | VB | CB | 2.969 | 3 | 3 | 2.74 | 3.00 | 2.56 | −4.41 | −5.21 | −6.68 | 4.16 | 2.25 | 1.21 |

L | VB-2 | CB | 2.986 | 14 | 14 | 4.16 | 4.95 | 4.96 | 1.36 | 5.21 | 8.35 | 1.66 | −2.95 | −4.30 |

K | VB | CB | 3.072 | 22 | 0 | 4.17 | 3.24 | 1.43 | 0.47 | −0.52 | −1.76 | 2.73 | 1.42 | 0.69 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Rybak, M.; Woźniak, T.; Birowska, M.; Dybała, F.; Segura, A.; Kapcia, K.J.; Scharoch, P.; Kudrawiec, R.
Stress-Tuned Optical Transitions in Layered 1T-MX_{2} (M=Hf, Zr, Sn; X=S, Se) Crystals. *Nanomaterials* **2022**, *12*, 3433.
https://doi.org/10.3390/nano12193433

**AMA Style**

Rybak M, Woźniak T, Birowska M, Dybała F, Segura A, Kapcia KJ, Scharoch P, Kudrawiec R.
Stress-Tuned Optical Transitions in Layered 1T-MX_{2} (M=Hf, Zr, Sn; X=S, Se) Crystals. *Nanomaterials*. 2022; 12(19):3433.
https://doi.org/10.3390/nano12193433

**Chicago/Turabian Style**

Rybak, Miłosz, Tomasz Woźniak, Magdalena Birowska, Filip Dybała, Alfredo Segura, Konrad J. Kapcia, Paweł Scharoch, and Robert Kudrawiec.
2022. "Stress-Tuned Optical Transitions in Layered 1T-MX_{2} (M=Hf, Zr, Sn; X=S, Se) Crystals" *Nanomaterials* 12, no. 19: 3433.
https://doi.org/10.3390/nano12193433
