Size-Dependent Phonon-Assisted Anti-Stokes Photoluminescence in Nanocrystals of Organometal Perovskites

Kairolla Sekerbayev
Yerzhan Taurbayev
Gauhar Mussabek
Saule Baktygerey
Nikolay S. Pokryshkin
Valery G. Yakunin
Zhandos Utegulov
2 and
Victor Yu. Timoshenko
Institute of Experimental and Theoretical Physics, Al-Farabi Kazakh National University, Almaty 050040, Kazakhstan
Department of Physics, School of Sciences and Humanities, Nazarbayev University, Nur-Sultan 010000, Kazakhstan
Institute of Information and Computational Technologies, 125, Pushkin Str., Almaty 050000, Kazakhstan
Phys-Bio Institute, University “MEPhI”, 115409 Moscow, Russia
Faculty of Physics, Lomonosov Moscow State University, 119991 Moscow, Russia
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(18), 3184;
Submission received: 26 August 2022 / Revised: 5 September 2022 / Accepted: 8 September 2022 / Published: 14 September 2022


Anti-Stokes photoluminescence (ASPL), which is an up-conversion phonon-assisted process of the radiative recombination of photoexcited charge carriers, was investigated in methylammonium lead bromide (MALB) perovskite nanocrystals (NCs) with mean sizes that varied from about 6 to 120 nm. The structure properties of the MALB NCs were investigated by means of the scanning and transmission electron microscopy, X-ray diffraction and Raman spectroscopy. ASPL spectra of MALB NCs were measured under near-resonant laser excitation with a photon energy of 2.33 eV and they were compared with the results of the photoluminescence (PL) measurements under non-resonant excitation at 3.06 eV to reveal a contribution of phonon-assisted processes in ASPL. MALB NCs with a mean size of about 6 nm were found to demonstrate the most efficient ASPL, which is explained by an enhanced contribution of the phonon absorption process during the photoexcitation of small NCs. The obtained results can be useful for the application of nanocrystalline organometal perovskites in optoelectronic and all-optical solid-state cooling devices.

1. Introduction

It is known that materials with efficient phonon-assisted up-conversion photoluminescence (PL) have potential applications in the field of the optical cooling of condensed phase materials. The conversion of absorbed low-energy photons into high-energy photons by a medium is called the light up-conversion process. This up-conversion process is also called anti-Stokes photoluminescence (ASPL), which has been observed in various systems spanning from atoms and molecules [1,2] to polymers [3,4], rare-earth doped materials [5,6], organic dyes [7,8], carbon nanotubes [9], II-VI semiconducting nanobelts [10,11] and colloidal semiconductor nanocrystals (NCs) [12,13,14]. Up-conversion optical processes have many applications including multi-color displays [15], dynamical imaging microscopy [16], bio-imaging systems [17,18], unconventional lasers [19] and solid-state optical refrigeration devices [20,21].
Due to their direct bandgap and large optical absorption, lead halide perovskite NCs exhibit efficient PL with a high quantum yield (QY) which makes them an attractive optoelectronic material [22]. NCs and films of organometal perovskites as methylammonium lead halide (CH3NH3PbX3, where X = I, Br, Cl) have been explored for applications in such optoelectronics devices as solar cells, photodetectors, light-emitting devices and lasers [23,24,25]. A high QY is also required for the optical cooling application of perovskites [20,26]. The ASPL process in perovskite NCs has been broadly studied over the past decade [27,28]. ASPL was demonstrated in the NCs of all-inorganic perovskite as CsPbX3 [28,29] and in organometal ones [30]. The optical cooling effect was investigated for both the bulk and nanostructured perovskites [31,32]. The optical cooling in relatively large perovskite NCs with sizes comparable with the optical wavelength can be enhanced by coupling with Mie resonances [33]. The efficiency of ASPL optical cooling can be improved by the size-tunable control of the absorption and the PL band of perovskite NCs due to the quantum confinement [31]. Additionally, colloidal solutions and films of perovskite NCs can be prepared by the inexpensive wet chemistry approach [34]. To the best of our knowledge, size-dependent ASPL in methylammonium lead bromide (MALB) has been insufficiently studied before, while such studies can be useful to assess the potential of MALB NC for optical cooling and other photonic applications.
In this work, the size-dependent ASPL efficiency in MALB perovskite NCs excited by photons with energies within the PL band is investigated. Sample PL properties are also probed by excitations with photon energies exceeding the PL band. The obtained results indicate a difference in ASPL processes in large and small NCs. In small NCs, enhanced phonon-assisted light absorption promotes ASPL excitation.

2. Materials and Methods

Methylammonium bromide (CH3NH3Br), lead bromide (PbBr2), octylamine, dimethylformamide, toluene, oleic acid and benzyl alcohol were acquired from Sigma-Aldrich (Sigma-Aldrich Chemie GmbH, Taufkirchen, Germany).
MALB nanocrystals were synthesized by the ligand-assisted reprecipitation (LARP) technique [35]. In this colloidal chemistry method, the perovskite precursors dissolved in “pro-solvent” were added into “anti-solvent” containing organic ligands such as octylamine, oleic acid and benzyl alcohol [36]. The “anti-solvent” typically triggers perovskite crystallization, while the organic ligands impede the crystal growth. According to this method, 22.4 mg of CH3NH3Br and 73.4 mg of PbBr2 were dissolved in 1 mL of dimethylformamide, resulting in a solvent solution containing MALB perovskite components. The “anti-solvent” solution consists of 5 mL of toluene, 10–30 μL of octylamine, 1 mL of oleic acid and 1 mL of benzyl alcohol. NC size was controlled by the octylamine concertation, which was changed from 0.2 to 0.6%. A total of 150 μL of perovskite solution was injected into this “anti-solvent” solution and was stirred for 5 min. The obtained NC suspension was centrifuged for 10 min at 6000 rpm, which formed a supernatant (the top part of the solution) and precipitate. The supernatant was discarded, and the precipitate was dispersed in the mixture of 2 mL of toluene and 2 μL of octylamine. The obtained suspension was subsequently centrifuged for 5 min at 8000 rpm. The precipitate was dispersed in 2 mL of toluene. Both the supernatant and precipitate suspensions contained NCs and were used in perovskite NC film preparations. NC thin film for spectroscopic investigations was prepared by the drop casting of the MALB NC suspensions on a quartz substrate followed by drying in air. The film thickness was controlled with the amount of the drop-casted suspension and was about 1 micrometer.
The structural properties and morphology of the MALB NCs were characterized by using a Crossbeam 540 (Carl Zeiss) scanning electron microscope (SEM) and a JEM-1400 Plus (JEOL) transmission electron microscope (TEM) for the samples deposited on an optically polished crystalline silicon wafer and carbon-coated gold grid, respectively. The X-ray diffraction (XRD) patterns were collected by using a Radian-02 X-ray diffractometer with a Cu-Kα radiation source.
A Raman confocal microscope Confotec MR350 (SOL Instruments) with continuum wave (CW) 532 nm laser excitation was used to measure the ASPL and PL. The laser incident intensity was 1 kW/cm2. Additionally, non-resonant excitation by LED at 405 nm with an intensity of 0.1 kW/cm2 was used. The PL and ASPL spectra were detected with a grating MS 3504i monochromator equipped with an Andor iStar 340T intensified CCD detector. For suppressing 532 nm of excitation light, a Bragg grating notch filter centered at 532 nm (with spectral windows of 4 nm) was placed in the entrance of the monochromator. Non-resonant PL measurements were carried out with the same filter. All the measurements were conducted at room temperature in air.

3. Results and Discussion

According to the SEM and TEM data (Figure 1), the synthesized MALB NCs were characterized by their cubic shape and average lateral sizes of 5.5 ± 1.5, 46 ± 4 and 120 ± 2 nm for the samples obtained with different concentrations of octylamine. The measured size distributions are typical for the perovskite NCs obtained by the LARP technique because of the spontaneous NC growth [35,36]. The larger the concentration of octylamine, the smaller the size of the NCs, as shown in Table 1.
The obtained XRD patterns (Figure 2) for the samples of the series of M and L demonstrated sharp peaks inherent for the cubic MALB crystals [37]. While the pattern for the NCs of the S series also exhibited features of the (100) and (200) atomic planes of the cubic MALB lattice, the corresponding peaks were noticeably weaker and broadened. The latter was obviously caused by the small NC size. Additional narrow peaks of the XRD signals were also observed in the samples of series M and S at about 17°, 25° and 29°. These angles can be related to the residual perovskite precursor PbBr2 [38]. Overlapping with these precursors’ peaks can explain the observed shift in the (110) and (200) peaks in the samples of series M and S. Thus, the XRD analysis confirms that the synthesized samples were predominately composed of the cubic MALB NCs.
Figure 3 shows typical Raman spectra of the prepared MALB NCs of all the series. The spectra consisted of typical lines of MALB perovskites at ν1 = 322 cm–1, ν2 = 967 cm−1, ν3 = 1478 cm–1, ν4 = 1581 cm–1 and ν5 = 2965 cm–1, which can be assigned to the MA+ rotation, C–N stretching, NH3+ symmetric deformation, C–N stretching and CH3 symmetric stretching modes, respectively, [39] as summarized in Table 2. Besides the Raman lines of MALB, the spectra exhibited lines at 1083, 1301, 1430 and 1655 cm–1, which can be related to the vibration modes in oleic acid ligands [40,41]. While the MALB Raman peak intensities decreased while the NC size decreased, the ligand-related peaks became more intensive. This fact is explained by the increased surface-to-bulk ratio in the small MALB NCs that resulted in a larger contribution of the residual ligands.
PL spectra of MALB NCs under 405 and 532 nm laser excitation are shown in Figure 4. One can see that small NCs (S series) showed more intense ASPL emissions in comparison with the NCs of the L series. The sample with 6 nm sized NCs exhibited the PL band shift to the high energy region by ~0.1 eV compared to that for the samples of the L series. This PL band shift to the high energy region is related to the quantum confinement effect due to the small size of the MALB NCs [42]. The observed PL spectra broadening is related to the size distribution of the NCs and the electron–phonon interaction [43].
Both the anti-Stokes and Stokes parts of MALB NCs PL had a nearly linear dependence on excitation power, as shown in Figure 5. The linear dependence on excitation power indicates a one-photon excitation process and is typical for NCs [12,44]. The observed non-linear rise of the PL intensity of the M series samples at excitation intensity > 1 kW/cm2 can be related to a contribution of the bimolecular mechanism of charge carrier recombination in interconnected MALB NCs [42]. This mechanism does not seem to be efficient in smaller NCs because of a larger influence of the surface trapping and an additional enhancement of the Auger recombination due to the breaking the phonon selection rules [43].
Figure 6 shows the ratio of the anti-Stokes and Stokes parts of the PL integral intensities depending on the mean size of MALB NCs. The anti-Stokes and Stokes parts are calculated as follows:
I A S = λ 1 λ 0 I P L ( λ ) d λ   ,         I S = λ 0 λ 2 I P L ( λ ) d λ
where λ1 = 499 nm, λ0 = 532 nm and λ2 = 577 nm, which are chosen according to the PL measurement conditions.
The Stokes part of the PL intensity was larger than the anti-Stokes one for the samples of series L with the largest NCs. The samples of series M with medium sizes of NCs had almost equal the Stokes and anti-Stokes parts of the PL spectra. The anti-Stokes part was almost eight times larger than the Stokes one for the samples of series S with the smallest NCs. The enhancement of ASPL in the latter series was correlated with the decrease in the Raman intensity, as shown in Figure 6.
The phonon-assisted excitation process probability increased in the smaller NCs. This can explain the high ASPL efficiency in the samples of the L series. In small semiconductor NCs, the electron–phonon interaction can be more effective when the selection rules for phonon-assisted optical transitions are violated [45].
When the photon energy in small MALB NCs is insufficient to generate an exciton state, the lacking energy should be provided from phonons in order to realize the ASPL excitation. The simultaneous absorption of one or more phonons followed by photon absorption can be related to the phonon contribution in ASPL. As it is known from the Raman spectroscopy, MALB perovskites vibration modes include: the MA+ rotation (ν1 =40 meV), C-N (ν2 = 120 meV) and NH3+ symmetric breathing (ν3 =183 meV). Under excitation with 2.33 eV, all of these modes can contribute to the exciton generation. In the direct gap semiconductors due to the quasi-momentum conservation, the ASPL process requires two phonons to be absorbed. Therefore, in large MALB NCs, the two-phonon absorption can be the main process of the ASPL excitation. In contrast, in small NCs, the selection rule breaking also allows for optical transitions accompanied with one-phonon absorption. At room temperature and high phonon energy, the latter seems to be more probable than the two-phonon process due to both the temperature-dependent Bose–Einstein statistics, which controls the population of the phonon states. Since the ASPL spectrum of the small MALB NCs corresponds with the exciton energies of 2.43–2.55 eV, which are 100–200 meV above the exciting photon energy, the ASPL excitation can be efficiently realized via the one-phonon absorption for the phonon modes as ν2, ν3 and ν4 (see Table 2).
Figure 7a,b shows schematic representations of the energy diagrams for the ASPL excitation and emission in large and small perovskite NCs, respectively. In large nanocrystals, a photon can form an exciton without the contribution of phonons, since its energy is high enough to excite an electron from the valence band to the exciton state. This exciton recombines with the energy nearby the exciting photon one and emits Stokes PL, while ASPL can be excited due to either the simultaneous absorption of two phonons with zero total quasi-momentum or it can be realized in a small NC fraction with exciton energies above the exciting photon one. In small NCs, those band gaps that are below the exciting photon energy of an exciton can be generated only because of an additional energy provided by the phonons, and the one-phonon assisted light absorption is responsible for the ASPL excitation, as shown schematically in Figure 7b.

4. Conclusions

Size-dependent phonon-assisted anti-Stokes photoluminescence was observed in MALB perovskite NCs under excitation within the PL band. The observed enhancement of ASPL intensity upon reduction in the mean size of NCs can be explained by the strong electron–phonon interaction promoting the simultaneous absorption of exciting photons and phonons in smaller nanocrystals. Further details of the contribution of phonons to the ASPL process in perovskite NCs can be obtained, for example, by using time-resolved optical measurements.

Author Contributions

Conceptualization, K.S., G.M. and V.Y.T.; methodology, K.S., Y.T. and Z.U.; software, K.S. and N.S.P.; validation, K.S., G.M. and N.S.P.; formal analysis, all authors; investigation, K.S., S.B., N.S.P. and Y.T.; resources, Y.T., Z.U. and V.Y.T.; data curation, G.M., Z.U., V.G.Y. and V.Y.T.; writing—original draft preparation, K.S. and V.Y.T.; writing—review and editing, all authors; visualization, K.S., G.M., Y.T. and N.S.P.; supervision, Y.T. and V.Y.T.; project administration, Y.T. and G.M.; funding acquisition, Y.T. All authors have read and agreed to the published version of the manuscript.


This work was supported by the Ministry of Education and Science of the Republic of Kazakhstan (AP08052623). G.M. is grateful to Al-Farabi Kazakh National University for a Scholarship in the Postdoctoral Fellowship program. Z.U. and K.S. acknowledge funding by Nazarbayev University CRP, grant number 11022021CRP1504.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Shen, Y.R. The Principles of Nonlinear Optics; Wiley-Interscience: Hoboken, NJ, USA, 2003; 576p. [Google Scholar]
  2. Pope, M.; Swenberg, C.E. Electronic Processes in Organic Crystals and Polymers; Oxford University Press: Oxford, UK, 1999. [Google Scholar]
  3. Soos, Z.G.; Kepler, R.G. Two-photon-absorption spectrum of poly(di-n-hexylsilane) films. Phys. Rev. B 1991, 43, 11908–11912. [Google Scholar] [CrossRef] [PubMed]
  4. Lemmer, U.; Rischer, R.; Feldmann, J.; Mahrt, R.F.; Yang, J.; Greiner, A.; Bassler, H.; Gobel, E.O.; Heesel, H.; Kurz, H. Time-resolved studies of two-photon absorption processes in poly(p-phenylenevinylene)s. Chem. Phys. Lett. 1993, 203, 28–32. [Google Scholar] [CrossRef]
  5. Shalav, A.; Richards, B.S.; Trupke, T.; Krämer, K.W.; Güdel, H.U. Application of NaYF4:Er3+ up-converting phosphors for enhanced nearinfrared silicon solar cell response. Appl. Phys. Lett. 2005, 86, 013505. [Google Scholar] [CrossRef]
  6. Yamamoto, K.; Fuji, M.; Sowa, S.; Imakita, K.; Aoki, K. Upconversion luminescence of rare-earth-doped Y2O3 nanoparticle with metal nano-cap. J. Phys. Chem. C 2015, 119, 1175–1179. [Google Scholar] [CrossRef]
  7. Prasad, P.N.; Bhawalkar, J.D.; He, G.S.; Zhao, C.F.; Gvishi, R.; Ruland, G.E.; Zieba, J.; Cheng, P.C.; Pan, S.J. Two-Photon Upconverting Dyes and Applications. U.S. Patent 5,912,257, 15 June 1999. [Google Scholar]
  8. Yang, H.R.; Han, C.M.; Zhu, X.J.; Liu, Y.; Zhang, K.Y.; Liu, S.J.; Zhao, Q.; Li, F.Y.; Huang, W. Upconversion luminescent chemodosimeter based on NIR organic dye for monitoring methylmercury in vivo. Adv. Funct. Mater. 2016, 26, 1945–1953. [Google Scholar] [CrossRef]
  9. Akizuki, N.; Aota, S.; Mouri, S.; Matsuda, K.; Miyauchi, Y. Efficient near-infrared up-conversion photoluminescence in carbon nanotubes. Nat. Commun. 2015, 6, 8920. [Google Scholar] [CrossRef]
  10. Zhang, J.; Li, D.H.; Chen, R.J.; Xiong, Q.H. Laser cooling of a semiconductor by 40 Kelvin. Nature 2013, 493, 504–508. [Google Scholar] [CrossRef]
  11. Zhang, Q.; Liu, X.F.; Utama, M.I.B.; Xing, G.C.; Sum, T.C.; Xiong, Q.H. Phonon-assisted anti-Stokes lasing in ZnTe nanoribbons. Adv. Mater. 2016, 28, 276–283. [Google Scholar] [CrossRef]
  12. Wang, X.Y.; Yu, W.W.; Zhang, J.Y.; Aldana, J.; Peng, X.G.; Xiao, M. Photoluminescence upconversion in colloidal CdTe quantum dots. Phys. Rev. B 2003, 68, 125318. [Google Scholar] [CrossRef]
  13. Chen, W.; Joly, A.G.; McCready, D.E. Upconversion luminescence from CdSe nanoparticles. J. Chem. Phys. 2005, 122, 224708. [Google Scholar] [CrossRef]
  14. Jakubek, Z.J.; DeVries, J.; Lin, S.Q.; Ripmeester, J.; Yu, K. Exciton recombination and upconverted photoluminescence in colloidal CdSe quantum dots. J. Phys. Chem. C 2008, 112, 8153–8158. [Google Scholar] [CrossRef]
  15. Downing, E.; Hesselink, L.; Ralston, J.; Macfarlane, R. A three-color, solid-state, three-dimensional display. Science 1993, 273, 1185–1189. [Google Scholar] [CrossRef]
  16. Fujino, T.; Fujima, T.; Tahara, T. Femtosecond fluorescence dynamics imaging using a fluorescence up-conversion microscope. J. Phys. Chem. B 2005, 109, 15327–15331. [Google Scholar] [CrossRef] [PubMed]
  17. Kachynski, A.V.; Kuzmin, A.N.; Pudavar, H.E.; Prasad, P.N. Three-dimensional confocal thermal imaging using anti-Stokes luminescence. Appl. Phys. Lett. 2005, 87, 023901. [Google Scholar] [CrossRef]
  18. Pena, A.-M.; Strupler, M.; Boulesteix, T.; Schanne-Klein, M.-C. Spectroscopic analysis of keratin endogenous signal for skin multiphoton microscopy. Opt. Express 2005, 13, 6268–6274. [Google Scholar] [CrossRef]
  19. Macfarlane, R.M.; Tong, F.; Silversmith, A.J.; Lenth, W. Violet cw neodymium upconversion laser. Appl. Phys. Lett. 1988, 52, 1300–1302. [Google Scholar] [CrossRef]
  20. Luo, X.; Eisaman, M.D.; Gosnell, T.R. Laser cooling of a solid by 21 K starting from room temperature. Opt. Lett. 1998, 23, 639–641. [Google Scholar] [CrossRef]
  21. Thiede, J.; Distel, J.; Greenfield, S.R.; Epstein, R.I. Cooling to 208 K by optical refrigeration. Appl. Phys. Lett. 2005, 86, 154107. [Google Scholar] [CrossRef]
  22. Kojima, A.; Teshima, K.; Shirai, Y.; Miyasaka, T. Organometal halide perovskites as visible-light sensitizers for photovoltaic cells. J. Am. Chem. Soc. 2009, 131, 6050–6051. [Google Scholar] [CrossRef]
  23. Tan, Z.K.; Moghaddam, R.S.; Lai, M.L.; Docampo, P.; Higler, R.; Deschler, F.; Price, M.; Sadhanala, A.; Pazos, L.M.; Credgington, D.; et al. Bright light-emitting diodes based on organometal halide perovskite. Nat. Nanotechnol. 2014, 9, 687–692. [Google Scholar] [CrossRef]
  24. Ye, J.; Byranvand, M.M.; Martínez, C.O.; Hoye, R.L.; Saliba, M.; Polavarapu, L. Defect passivation in lead-halide perovskite nanocrystals and thin films: Toward efficient LEDs and solar cells. Angew. Chem. Int. Ed. 2021, 60, 21636–21660. [Google Scholar] [CrossRef] [PubMed]
  25. Kovalenko, M.V.; Protesescu, L.; Bodnarchuk, M.I. Properties and potential optoelectronic applications of lead halide perovskite nanocrystals. Science 2017, 358, 745–750. [Google Scholar] [CrossRef] [PubMed]
  26. Prochazkova, A.J.; Mayr, F.; Gugujonovic, K.; Hailegnaw, B.; Krajcovic, J.; Salinas, Y.; Scharber, M.C. Anti-Stokes photoluminescence study on a methylammonium lead bromide nanoparticle film. Nanoscale 2020, 12, 16556–16561. [Google Scholar] [CrossRef] [PubMed]
  27. Zhang, W.; Ye, Y.; Liu, C.; Wang, J.; Ruan, J.; Zhao, X.; Han, J. Two-step Anti-Stokes photoluminescence of CsPbX3 nanocrystals. Adv. Opt. Mater. 2021, 9, 2001885. [Google Scholar] [CrossRef]
  28. Granados del Águila, A.; Do, T.T.H.; Xing, J.; Jee, W.J.; Khurgin, J.B.; Xiong, Q. Efficient up-conversion photoluminescence in all-inorganic lead halide perovskite nanocrystals. Nano Res. 2020, 13, 1962–1969. [Google Scholar] [CrossRef]
  29. Ye, S.; Yu, M.; Zhao, M.; Song, J.; Qu, J. Low temperature synthesis of high-quality all-inorganic cesium lead halide perovskite nanocrystals in open air and their upconversion luminescence. J. Alloy. Compd. 2018, 730, 62–70. [Google Scholar] [CrossRef]
  30. Sekerbayev, K.S.; Mussabek, G.K.; Pokryshkin, N.S.; Yakunin, V.G.; Taurbayev, Y.T.; Shabdan, Y.; Utegulov, Z.N.; Chirvony, V.S.; Timoshenko, V.Y. Effect of nanocrystal size on Anti-Stokes photoluminescence in lead perovskites. JETP Lett. 2021, 114, 447–450. [Google Scholar] [CrossRef]
  31. Ha, S.T.; Shen, C.; Zhang, J.; Xiong, Q. Laser cooling of organic–inorganic lead halide perovskites. Nat. Photonics 2016, 10, 115–121. [Google Scholar] [CrossRef]
  32. Roman, B.J.; Villegas, N.M.; Lytle, K.; Sheldon, M. Optically cooling cesium lead tribromide nanocrystals. Nano Lett. 2020, 20, 8874–8879. [Google Scholar] [CrossRef]
  33. Tonkaev, P.; Zograf, G.; Makarov, S. Optical cooling of lead halide perovskite nanoparticles enhanced by Mie resonances. Nanoscale 2019, 11, 17800–17806. [Google Scholar] [CrossRef] [Green Version]
  34. Shamsi, J.; Urban, A.S.; Imran, M.; De Trizio, L.; Manna, L. Metal halide perovskite nanocrystals: Synthesis, post-synthesis modifications, and their optical properties. Chem. Rev. 2019, 119, 3296–3348. [Google Scholar] [CrossRef] [PubMed]
  35. Prochazkova, A.J.; Scharber, M.C.; Yumusak, C.; Jančík, J.; Másilko, J.; Brüggemann, O.; Weiter, M.; Sariciftci, N.S.; Krajcovic, J.; Salinas, Y.; et al. Synthesis conditions influencing formation of MAPbBr3 perovskite nanoparticles prepared by the ligand-assisted precipitation method. Sci. Rep. 2020, 10, 15720. [Google Scholar] [CrossRef] [PubMed]
  36. Veldhuis, S.A.; Tay, Y.K.E.; Bruno, A.; Dintakurti, S.S.; Bhaumik, S.; Muduli, S.K.; Li, M.; Mathews, N.; Sum, T.C.; Mhaisalkar, S.G. Benzyl alcohol-treated CH3NH3PbBr3 nanocrystals exhibiting high luminescence, stability, and ultralow amplified spontaneous emission thresholds. Nano Lett. 2017, 17, 7424–7432. [Google Scholar] [CrossRef] [PubMed]
  37. Priante, D.; Dursun, I.; Alias, M.S.; Shi, D.; Melnikov, V.A.; Ng, T.K.; Ooi, B.S. The recombination mechanisms leading to amplified spontaneous emission at the true-green wavelength in CH3NH3PbBr3 perovskites. Appl. Phys. Lett. 2015, 106, 081902. [Google Scholar] [CrossRef]
  38. Liu, Y.; Yang, Z.; Cui, D.; Ren, X.; Sun, J.; Liu, X.; Zhang, J.; Wei, Q.; Fan, H.; Yu, F.; et al. Two-inch-sized perovskite CH3NH3PbX3 (X = Cl, Br, I) crystals: Growth and characterization. Adv. Mater. 2015, 35, 5176–5183. [Google Scholar] [CrossRef] [PubMed]
  39. Nakada, K.; Matsumoto, Y.; Shimoi, Y.; Yamada, K.; Furukawa, Y. Temperature-dependent evolution of Raman spectra of methylammonium lead halide perovskites, CH3NH3PbX3 (X=I, Br). Molecules 2019, 24, 626. [Google Scholar] [CrossRef]
  40. Fan, Y.; Li, S.; Xu, D.P. Raman spectra of oleic acid and linoleic acid. Spectrosc. Spectr. Anal. 2013, 33, 3240–3243. [Google Scholar]
  41. Tyagi, P.; Arveson, S.M.; Tisdale, W.A. Colloidal organohalide perovskite nanoplatelets exhibiting quantum confinement. J. Phys. Chem. Lett. 2015, 6, 1911–1916. [Google Scholar] [CrossRef]
  42. Sekerbayev, K.S.; Shabdan, Y.; Mikhailova, S.L.; Pryadun, V.V.; Taurbayev, Y.T.; Taurbayev, T.I.; Timoshenko, V.Y. Bias voltage-dependent photoinduced current and photoluminescence in organometal perovskite layers on silicon substrates. Phys. B Condens. Matter 2020, 582, 412025. [Google Scholar] [CrossRef]
  43. Takagahara, T. Electron-phonon interactions in semiconductor nanocrystals. J. Lum. 1996, 70, 129–143. [Google Scholar] [CrossRef]
  44. Xiong, Y.; Liu, C.; Wang, J.; Han, J.; Zhao, X. Near-infrared anti-Stokes photoluminescence of PbS QDs embedded in glasses. Opt. Express 2017, 25, 6874–6882. [Google Scholar] [CrossRef] [PubMed]
  45. Kovalev, D.; Heckler, H.; Polisski, G.; Koch, F. Optical properties of Si nanocrystals. Phys. Stat. Sol. B 1999, 215, 871–932. [Google Scholar] [CrossRef]
Figure 1. (ac) SEM images of MALB perovskite NCs of series L (a), M (b) and S (c); (df) TEM images for the samples of series L (d), M (e) and S (f) with corresponding size distributions shown in insets where red lines are lognormal fits.
Figure 1. (ac) SEM images of MALB perovskite NCs of series L (a), M (b) and S (c); (df) TEM images for the samples of series L (d), M (e) and S (f) with corresponding size distributions shown in insets where red lines are lognormal fits.
Nanomaterials 12 03184 g001
Figure 2. XRD patterns of thin layers of MALB NCs of L series (black line), M (red line) and S (blue line) deposited on quartz substrates.
Figure 2. XRD patterns of thin layers of MALB NCs of L series (black line), M (red line) and S (blue line) deposited on quartz substrates.
Nanomaterials 12 03184 g002

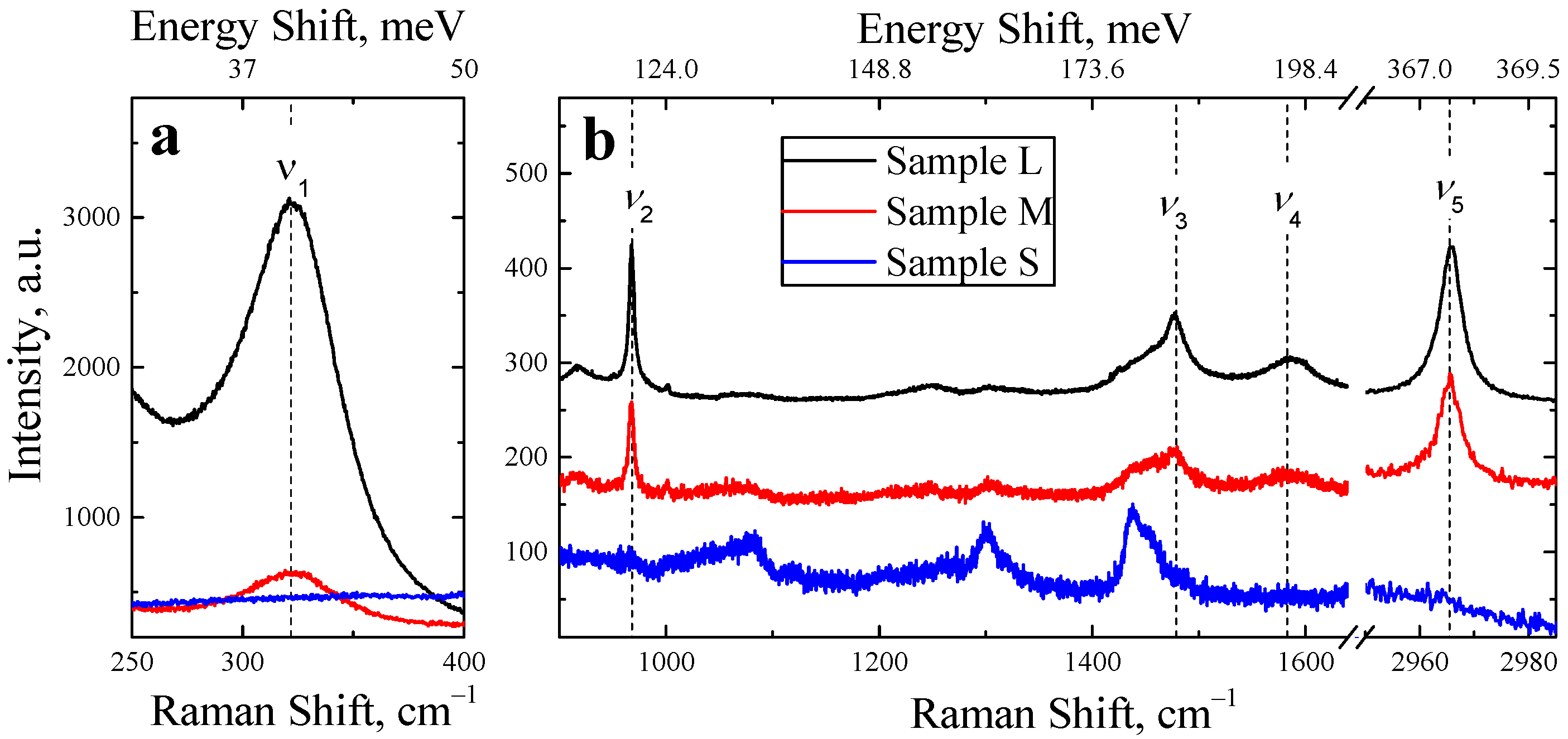

Figure 3. (a) Raman spectra of thin films of MALB NCs of L series (black line), M (red line) and S (blue line), 50 nm and 130 nm in the spectral regions of 250–400 cm–1; (b) Raman spectra of the same samples in the region of 900–3000 cm–1. Vertical dashed lines refer to vibration frequencies of the MALB lattice.
Figure 3. (a) Raman spectra of thin films of MALB NCs of L series (black line), M (red line) and S (blue line), 50 nm and 130 nm in the spectral regions of 250–400 cm–1; (b) Raman spectra of the same samples in the region of 900–3000 cm–1. Vertical dashed lines refer to vibration frequencies of the MALB lattice.
Nanomaterials 12 03184 g003

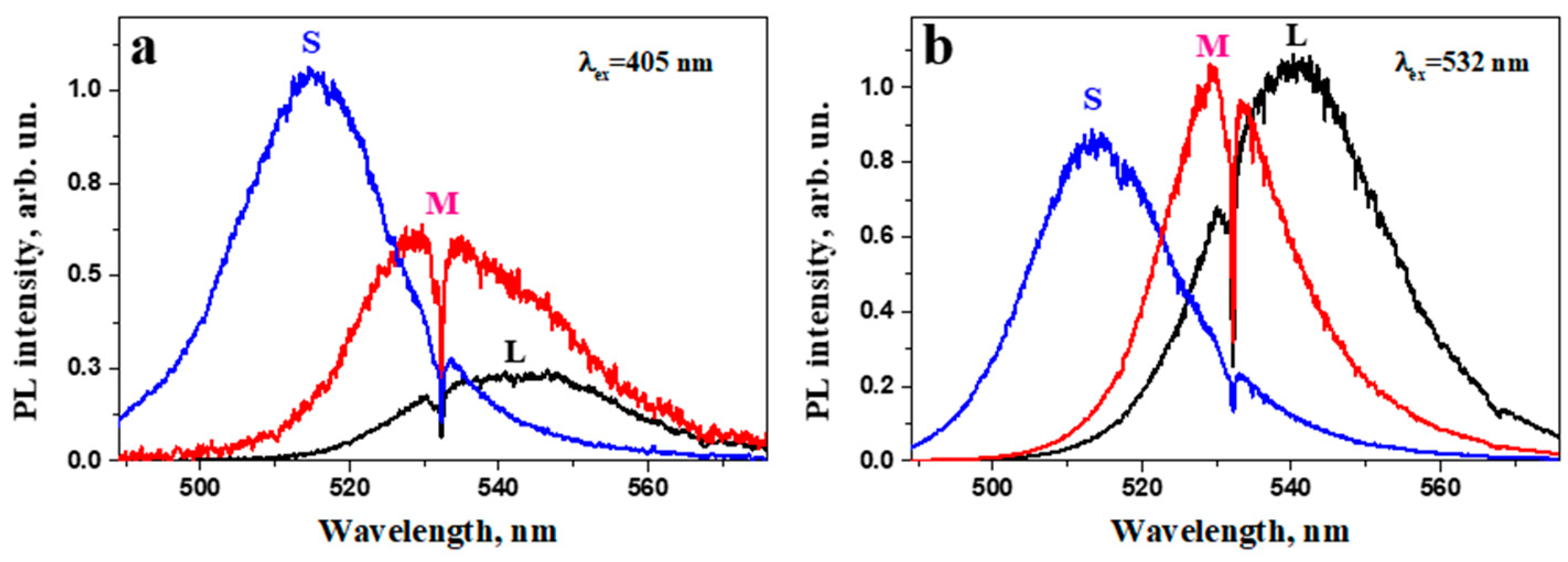

Figure 4. PL spectra for the samples L (black line), M (red line) and S (blue line) excited at 405 nm (a) and 532 nm (b). The spectral dip at 532 nm was caused by the notch filter.
Figure 4. PL spectra for the samples L (black line), M (red line) and S (blue line) excited at 405 nm (a) and 532 nm (b). The spectral dip at 532 nm was caused by the notch filter.
Nanomaterials 12 03184 g004

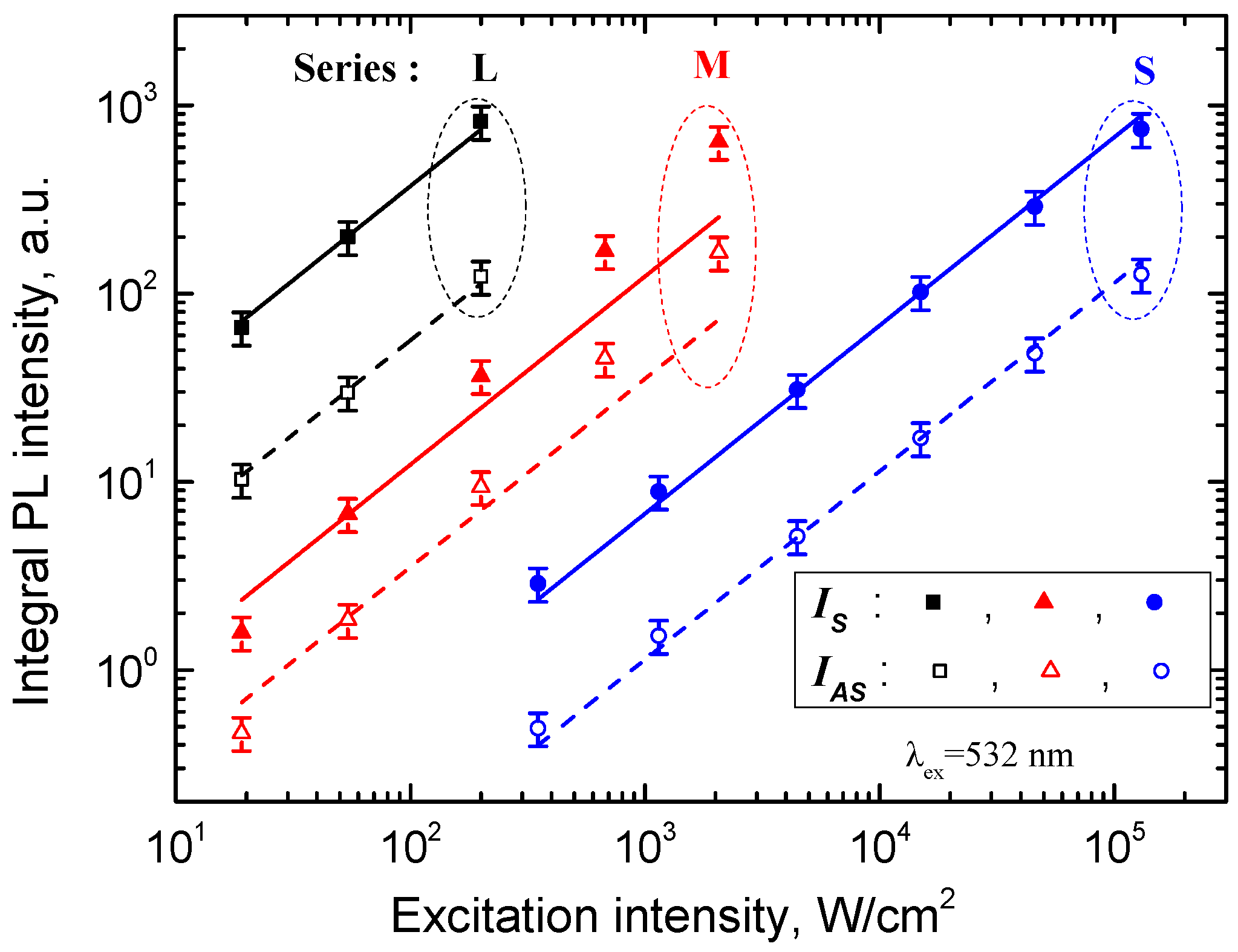

Figure 5. Dependences of the integrated PL intensities of the Stokes (solid symbols) and anti-Stokes (open symbols) parts for series L (black symbols), M (red symbols) and S (blue symbols) on intensity of the excitation at 532 nm. The corresponding linear fits are plotted by solid and dashed lines for the Stokes and anti-Stokes PL intensities, respectively.
Figure 5. Dependences of the integrated PL intensities of the Stokes (solid symbols) and anti-Stokes (open symbols) parts for series L (black symbols), M (red symbols) and S (blue symbols) on intensity of the excitation at 532 nm. The corresponding linear fits are plotted by solid and dashed lines for the Stokes and anti-Stokes PL intensities, respectively.
Nanomaterials 12 03184 g005

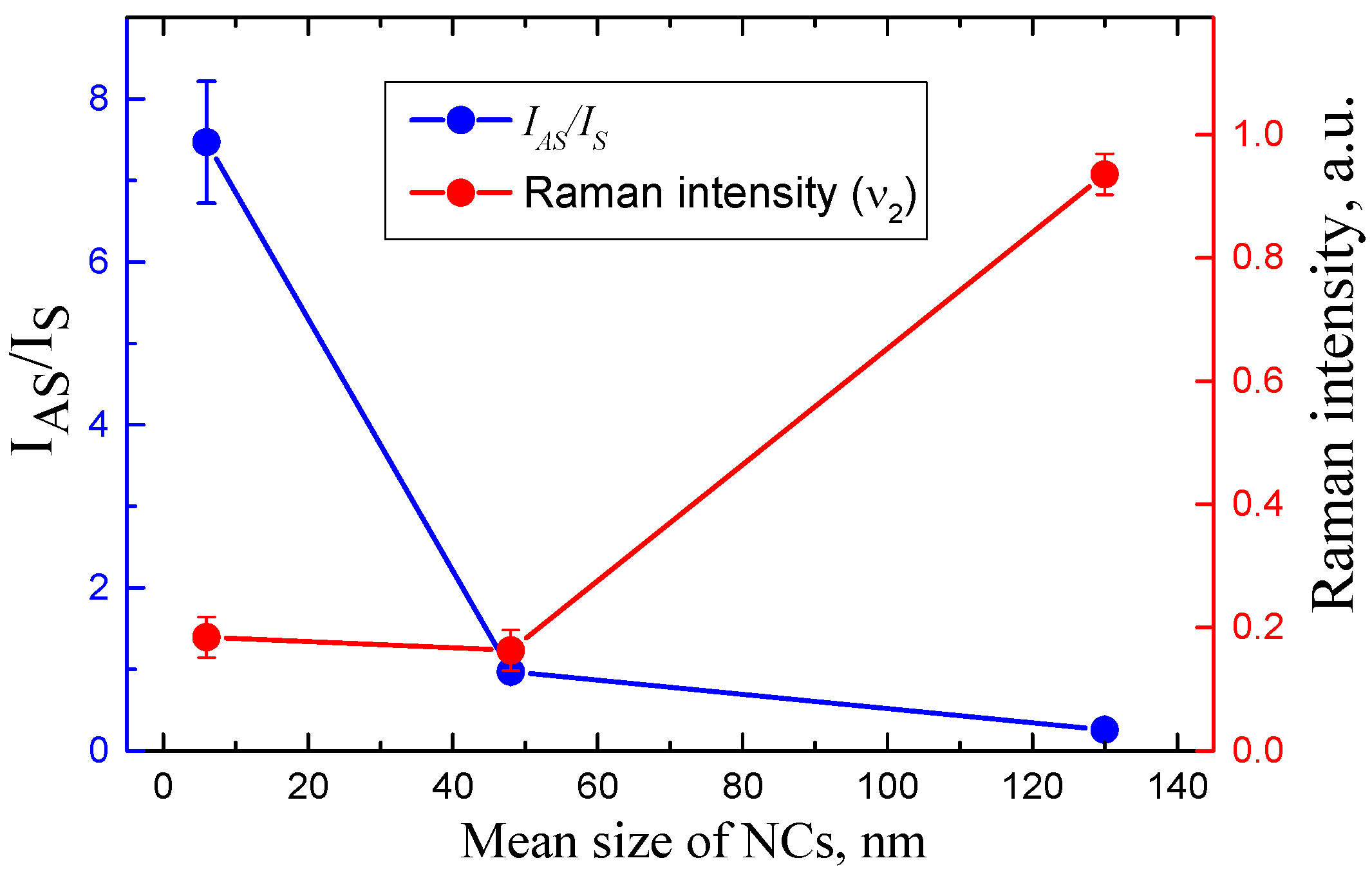

Figure 6. Dependences of the I A S / I S ration and intensity of the Raman signal on mean size of MALB NCs.
Figure 6. Dependences of the I A S / I S ration and intensity of the Raman signal on mean size of MALB NCs.
Nanomaterials 12 03184 g006

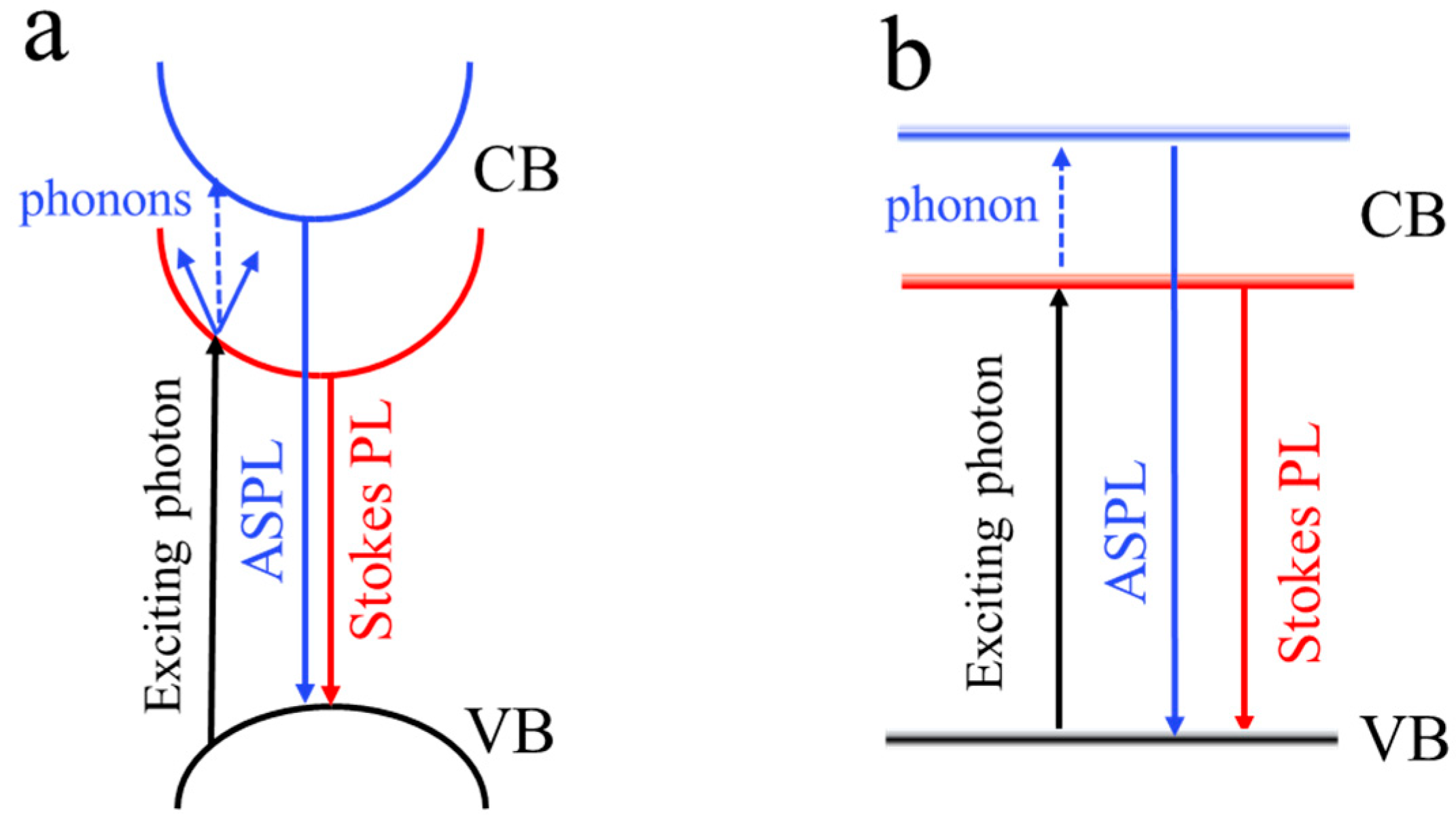

Figure 7. Energy diagrams of the excitation, PL and ASPL in large (a) and small (b) MALB NCs.
Figure 7. Energy diagrams of the excitation, PL and ASPL in large (a) and small (b) MALB NCs.
Nanomaterials 12 03184 g007
Table 1. Prepared series of MALB NCs with different mean sizes and PL band wavelengths according to the TEM data and PL measurements under non-resonant excitation, respectively.
Table 1. Prepared series of MALB NCs with different mean sizes and PL band wavelengths according to the TEM data and PL measurements under non-resonant excitation, respectively.
Series of SamplesOctylamine, %NCs Mean Size, nmPL Wavelength, nm
S (small NCs)0.65.5 ± 1.5515 ± 1
M (medium NCs)0.446.0 ± 4.0534 ± 1
L (large NCs)0.2120 ± 24543 ± 1
Table 2. Vibrational mode assignment for the Raman spectrum of MALB perovskites.
Table 2. Vibrational mode assignment for the Raman spectrum of MALB perovskites.
Mode NotationFrequency, cm−1 (meV)Description
ν1322 (40)MA rotation
ν2967 (120)C–N stretching
ν31478 (183)NH3+ symmetric deformation
ν41581 (196)C–N twisting
ν52965 (368)CH3 symmetric stretching
