Structural Assessment of Interfaces in Projected Phase-Change Memory

IBM Research Europe—Zurich Research Laboratory, CH-8803 Rüschlikon, Switzerland
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(10), 1702; https://doi.org/10.3390/nano12101702
Submission received: 5 April 2022 / Revised: 27 April 2022 / Accepted: 9 May 2022 / Published: 17 May 2022
(This article belongs to the Special Issue Synthesis, Properties and Applications of Germanium Chalcogenides)

Abstract

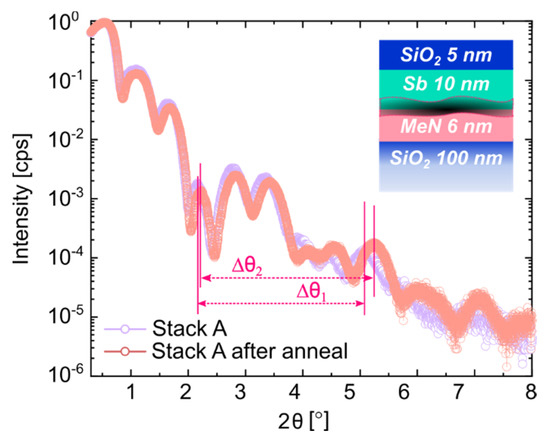

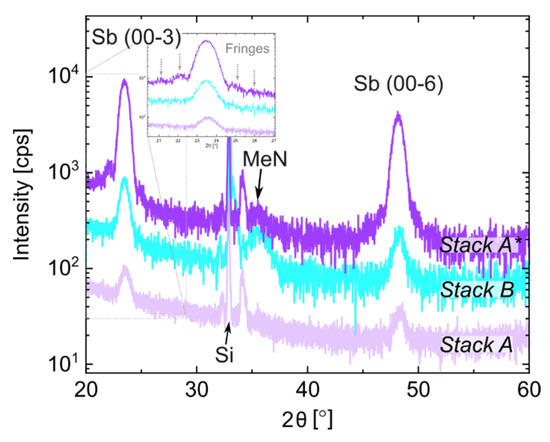

Non-volatile memories based on phase-change materials have gained ground for applications in analog in-memory computing. Nonetheless, non-idealities inherent to the material result in device resistance variations that impair the achievable numerical precision. Projected-type phase-change memory devices reduce these non-idealities. In a projected phase-change memory, the phase-change storage mechanism is decoupled from the information retrieval process by using projection of the phase-change material’s phase configuration onto a projection liner. It has been suggested that the interface resistance between the phase-change material and the projection liner is an important parameter that dictates the efficacy of the projection. In this work, we establish a metrology framework to assess and understand the relevant structural properties of the interfaces in thin films contained in projected memory devices. Using X-ray reflectivity, X-ray diffraction and transmission electron microscopy, we investigate the quality of the interfaces and the layers’ properties. Using demonstrator examples of Sb and Sb2Te3 phase-change materials, new deposition routes as well as stack designs are proposed to enhance the phase-change material to a projection-liner interface and the robustness of material stacks in the devices.
Keywords: in-memory computing; projected phase-change memory; interface engineering; confined phase-change material; sputtering deposition; X-ray reflectivity; STEM in-memory computing; projected phase-change memory; interface engineering; confined phase-change material; sputtering deposition; X-ray reflectivity; STEM
