Fast Fabrication of Solid-State Nanopores for DNA Molecule Analysis

1
Jiangsu Key Laboratory for Design and Manufacture of Micro-Nano Biomedical Instruments, School of Mechanical Engineering, Southeast University, Nanjing 211189, China
2
China Aerospace Science & Industry Nanjing Chenguang Group, Nanjing 210006, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2021, 11(9), 2450; https://doi.org/10.3390/nano11092450
Submission received: 31 August 2021 / Revised: 16 September 2021 / Accepted: 16 September 2021 / Published: 20 September 2021
(This article belongs to the Special Issue New Trends of Bio- and Chemo- Sensors with Nanomaterials)

Abstract

:
Solid-state nanopores have been developed as a prominent tool for single molecule analysis in versatile applications. Although controlled dielectric breakdown (CDB) is the most accessible method for a single nanopore fabrication, it is still necessary to improve the fabrication efficiency and avoid the generation of multiple nanopores. In this work, we treated the SiNx membranes in the air–plasma before the CDB process, which shortened the time-to-pore-formation by orders of magnitude. λ-DNA translocation experiments validated the functionality of the pore and substantiated the presence of only a single pore on the membrane. Our fabricated pore could also be successfully used to detect short single-stranded DNA (ssDNA) fragments. Using to ionic current signals, ssDNA fragments with different lengths could be clearly distinguished. These results will provide a valuable reference for the nanopore fabrication and DNA analysis.

1. Introduction

Over the past three decades, nanopores have been developed as a class of powerful single-molecule sensors and wildly utilized in biophysics, chemistry, biology, and medicine [1,2,3,4,5,6,7]. Nanopore detection is based on the measurement of ionic current modulation from individual analytes’ translocation through the nanopore, which reveals the physical characteristics of the analytes. To facilitate nanopore detection, the size of the nanopores must be similar to that of the analytes. Because of the atomic precision of the required dimensions, engineered protein nanopores achieved the first read of DNA sequences [8] and subsequently blossomed into a commercial sequencing platform [9]. However, protein nanopores also have some inherent drawbacks, such as the instability of the supported lipid bilayer membrane and the fixed pore size/geometry. Solid-state nanopores have emerged as a versatile substitute for protein nanopores because of the advantages of robustness, durability, and tunable size [10,11]. Moreover, because of the integration compatibility of solid-state nanopores with various platforms [12], resistive-pulse sensing is easily coupled with other detection modalities based on plasmonic sensing [13], fluorescence spectroscopy [14], force spectroscopy [15], field effect transistors [16,17,18] and quantum tunnelling [19]. To date, solid-state nanopores have been used broadly for the detection of RNA [20,21], proteins [22,23], viruses [24], exosomes [25], and some other bionanoparticles [26,27], as well as DNA [28]. Solid-state nanopores also enable measuring the physical characteristics of nanomaterials, including not only the size but also the shape [29] and stiffness [30]. At the outset, approaches for fabricating solid-state pores with diameters below 10 nm mainly relied on focused ion [31] or electron [32] beams. However, these techniques require high-cost instrumentation and advanced skill, which limits the availability of nanopore analytics to a wider range of applications [33].
To overcome this bottleneck, Kwok et al. [34,35] pioneered an alternate simple fabrication technique via controlled dielectric breakdown (CDB) of an insulating silicon nitride membrane in aqueous solution. Subsequently, some research groups sought to improve CDB by using different breakdown voltage profiles to automatically control the pore size [36] and pore shape [37]. Now, CDB has become a popular approach to creating nanopores with angstrom-level precision in a variety of materials such as SiNx [38], SiO2 [39], and HfO2 [40]. In a typical CDB process, the external electric field applied across an insulating membrane is in a range of 0.4–1 V/nm. It has been reported that high electric fields increase the risk of generating multiple pores [41,42,43], whereas low transmembrane potential (<0.5 V/nm) leads to the exponential extension of time-to-pore formation on the order of several thousand seconds [34,44] and results in low throughput of pore fabrication. Membrane properties also play an active role in determining the time to breakdown. Carlsen et al. [41] employed a helium ion microscope to selectively thin a SiN membrane and induce defects, which reduced the time of CDB. Mayer’s group [42] proposed a CDB platform assisted by a focused laser beam, which was able to locally accelerate defect formation and improve pore formation efficiency. However, these approaches still required extra specialized facilities and trained operators. The pH of the solution is another major factor that affects time-to-pore-formation. Tabard-Cossa’s group [34] demonstrated that proton incorporation or hole injection leads to an impact-ionization-induced avalanche. Therefore, low pH speeds up the dielectric breakdown process. However, most nanopore detection experiments need to be conducted in neutral solution. Furthermore, the character of the solution–membrane interface is also crucial in the CDB process. Air/oxygen plasma is often used to clean and hydrophilize SiN membranes. Although some researchers treated the membrane by plasma before CDB [34,36,41], they did not realize the importance of this treatment in improving CDB efficiency. In this paper, we sought to explore the effects of plasma treatment on time-to-pore-formation and breakdown voltage. Here, the functionality of CDB-fabricated nanopores was validated by λ-DNA translocation experiments. In addition, we detected short ssDNAs and investigated their electrokinetic behaviors using pores of various sizes.

2. Materials and Methods

Chip fabrication: as shown in Figure 1a, the nanopore chip fabrication processes began with the growth of 1 μm-thick SiO2 insulating layers on both sides of a Si wafer (RDMICRO Inc., Suzhou, China) by wet oxidation. The next step was the deposition of 60 nm-thick low-stress SiNx membranes on the SiO2 layers by low-pressure chemical vapor deposition (LPCVD). Then, a 2 μm-diameter circular region of the top SiNx membrane was thinned from 60 to 20 nm by UV lithography (UVL) and reactive ion etching (RIE). After that, a 323 μm × 323 μm square etch window was opened on the bottom deposition layer by UVL and RIE. Finally, the wafer went through a KOH wet etching process and a HF wet etching process to remove the Si substrate and SiO2 layer, respectively.
Fabrication of nanopores by CDB: a nanopore chip was treated in an air–plasma cleaner with a radiofrequency power of 30 W for 30 s on both sides and then mounted into a custom-built polymethylmethacrylate (PMMA) flow cell. The cis chamber and trans chamber of the flow cell were filled with degassed and filtered 1 M KCl solution (buffered with 10 mM Tris-HCl and 1 mM EDTA to pH 8) and separated by the chip. As shown in Figure 1b, two Ag/AgCl electrodes were connected to a sourcemeter (Keithley 2612A, Tektronix Inc., Beaverton, OR, USA) and immersed into two electrolyte compartments to set up a constant or pulse voltage and monitor the induced leakage current with a sampling rate of 20 Hz. The CDB procedure was controlled by a custom-designed program. To maintain accurate control over the nanopore size, we employed the applied square pulse voltage at 20 Hz to minimize the amount of membrane material removed during each leakage current feedback loop.
Detection of DNA translocations through nanopores: DNA samples were purchased from Sangon Biotech Co., Ltd. (Shanghai, China) and added in the cis chamber. Ionic current traces were recorded by a resistive feedback amplifier (Axon MultiClamp 700B, Molecular Devices LLC, San Jose, CA, USA) at 250 kHz with a 10 kHz low-pass filter. In the DNA detection experiments, the trans chamber was electrically grounded, and positive or negative potentials were applied to the cis chamber. All nanopore-based detection experiments were conducted inside a dark Faraday cage.

3. Results and Discussion

During the CDB process, the transmembrane potential induced defect accumulation in the SiNx membrane. Once a subnanometer diameter pore was created, the leakage current suddenly increased, as shown in Figure 1c,d. After observation of this initial pore creation event, the electric field was turned off immediately or reduced to slowly enlarge the nanopore. Figure 1e shows the measured current–voltage (I–V) curves of various-sized nanopores fabricated by CDB in 1 M KCl solution. The effective diameter of a cylindrical nanopore can be calculated from the ionic conductance of the pore, G, based on Equation (1) [45]:
G = σ 4 l π d p o r e 2 + 1 d p o r e 1
where σ is the bulk electrolytic conductivity (for 1 M KCl, σ = 10.5 S/m at 23 °C) and l is the length of the nanopore.
Here, we fabricated nanopores by using constant and pulse voltage profiles. A set of chips was treated in plasma for 30 s at 30 W before the CDB procedure. As shown in Figure 2a, the time-to-pore-formation exponentially decreased as the applied voltage increased regardless of other conditions, which is consistent with previously reported work [34,44]. Interestingly, the time-to-pore-formation under constant voltage was more than an order of magnitude longer than that under pulse voltage, although the duty cycle of the pulse voltage was 50%. Furthermore, after plasma treatment, the breakdown process sped up by orders of magnitude and required lower breakdown voltage. As shown in Figure 2b, the use of voltages in a range 2–7 V could steadily produce nanopores with sub-10 nm diameters. When the transmembrane voltage reached 8 V or above, instantaneous breakdown events were observed, and the resulting pore size was larger than 15 nm. Previous studies have represented the mechanism of CDB as follows: (i) oxidation reactions of chloride ions (or reduction reactions of hydrogen ions) occur at the solution–membrane interface to supply (or remove) electrons; (ii) the electrons travel through charge traps in the SiNx membrane, which forms a highly conductive path and increases damage due to Joule heating [43,46,47]. Here, we measured the leakage current traces for the SiNx membrane before and after plasma treatment at a 600 mV applied voltage. Figure 2c shows the leakage current increased after plasma treatment. We supposed that the influence of plasma treatment on the current flow derived from two aspects. On one hand, air plasma markedly hydrophilized the surface of SiNx membrane, which may enhance oxidation/reduction reactions at solution–membrane interface. On the other hand, plasma exposure also induced damage in the membrane [48,49], which may facilitate electron transport across the membrane. To confirm these hypotheses, we exposed the plasma-treated SiNx membrane to ambient atmosphere for 4 h and measured the I–V curve again. As shown in Figure 2d, the conductance of the SiNx membrane recovered to its pretreatment level after storage in air for 4 h, as did the nature of the membrane–liquid interface. This indicates that the dominant factor by which plasma treatment sped up the CDB process was enhancing oxidation/reduction reactions rather than inducing defects in the membrane.
In order to obtain larger-sized pores with controllable diameters, bipolar square pulses were employed after pore creation to enlarge the size of plasma-treated pores. By applying a 3 V transmembrane potential, pore diameter could enlarge to >30 nm within 10 min. Figure 3a shows the I–V curves of two nanopores before and after enlargement breakdown. Based on Equation (1), it was estimated that: the initial size of pore #1 was 9 nm, that of pore #2 was 13.3 nm, the final size of pore #1 was 32.9 nm, and that of pore #2 was 45.5 nm. Previous studies have demonstrated the formation of multiple pores during the enlargement process [50,51,52]. In our study, there was a thinned region in the SiNx membrane where the electric field was stronger and additional pores may have been created [41]. However, scanning electron microscope (SEM) images (Figure 3b) indicate that there was only a single nanopore in the thinned area after enlargement breakdown, even though the 3 V transmembrane potential was able to break down the plasma-treated membrane. Furthermore, the measured pore diameters were comparable to the calculated value, which further confirmed that only a single pore existed on the SiNx membrane. There are two reasons why no other pores were formed. First, after a nanopore formed, the electric field concentrated in the pore, which caused the electric field strength to reduce in other regions of the membrane. Second, in our work, the expansion electric field strength was 0.15 V/nm, which is less than the strength of the fields used in previous studies that resulted in multiple pore formation [41,50,52].
To validate the functionality of our CDB-fabricated nanopores, we first detected λ-DNA molecules by using an 8 nm-diameter nanopore in 1 M KCl. The ionic current trace at 200 mV bias voltage is shown in Figure 4a, in which pulse signals indicate the events corresponding to λ-DNA molecule translocation through the pore from the cis chamber to the trans chamber. Figure 4b presents the scatter plot of translocation dwell time versus current blockade, ∆I, with various voltages ranging from 100 to 1000 mV. As we expect, ∆I generally increased with the applied voltage. Histograms of conductance change ∆G caused by λ-DNA molecule translocation through the pore are plotted in Figure 4c. Red curves are Gaussian fits to the ∆G distributions. As shown in Figure 4d, the fitting peaks of ∆G almost remained constant, with a mean value of 1.27 nS. These results exhibit the stability of our CDB-fabricated nanopore at every applied voltage. ∆G also can be estimated by Kowalczyk’s model [45]:
Δ G = G d p o r e G d w i t h   D N A
where d w i t h   D N A = d p o r e 2 d D N A 2 is the effective diameter of the nanopore when a DNA molecule is in the pore. Taking dDNA = 2.2 nm and dpore = 8 nm, the calculated value of ∆G is 1.35 nS, which corresponds closely to the measured ∆G. This further verifies the presence of a single pore on the membrane.
We next conducted translocation experiments of 20 nt and 50 nt short single-stranded DNA (ssDNA) fragments by using a 6 nm-diameter pore and an 11.5 nm-diameter pore in 1 M KCl. The ssDNA fragments were added into the cis chamber, where +400 or −400 mV voltage was applied. The trans chamber was electrically grounded. Notably, the ±400 mV applied voltage slowly enlarged the pore size during the ssDNA detection experiments. However, as estimated by Equation (1), the pore diameter grew only by several angstroms after more than 30 min of nanopore sensing. This barely affected the blockade current signals caused by DNA translocation events.
As shown in Figure 5a, the translocation events of 20 nt ssDNAs were observed in the ionic current trace when the applied voltage was +400 mV. It is well known that the surface of ssDNA and SiNx is negatively charged in neutral solution. The direction of electrophoretic force (FEP) acting on the ssDNAs was from the trans side to the cis side. The electroosmotic flow (EOF), as well as the 20 nt ssDNAs, moved in the same direction as the electric field. Therefore, the translocation of 20 nt ssDNAs through the 6 nm nanopore was dominated by electroosmotic force (FEO). Oppositely, the 50 nt ssDNA molecules could be driven through the same pore only by FEP at −400 mV. Therefore, the electrokinetic behaviors of ssDNA through a nanopore are governed by the competition of FEO and FEP, as shown in Figure 5c. When this is the case, ssDNAs with different length can be easily distinguished and separated by nanopore. However, for the 11.5 nm-diameter pore, both 20 nt and 50 nt ssDNAs were driven through the pore by EOF, as shown in Figure 5b. The relationship among ssDNA direction of movement, ssDNA length, and pore size has been well studied in our previous work [53]. In order to further analyze the electroosmotic events, we plotted a scatter chart of dwell time versus current blockade for 20 nt and 50 nt ssDNAs transporting through the 11.5 nm-diameter pore in Figure 5d. Interestingly, this plot clearly shows that the ∆I induced by 50 nt ssDNA was larger than that induced by 20 nt ssDNA. In Figure 5e, Gaussian distribution was used to fit the ∆I histograms, and the fitting peaks for 20 nt and 50 nt ssDNA were 203.7 pA and 409.8 pA, respectively. This indicates that the 50 nt ssDNA occupied a larger volume in the pore than the 20 nt ssDNA. The short ssDNA in the large-sized pore may not be ideally parallel to the pore axis. For instance, the length of 20 nt ssDNA is only 6.8 nm, which is smaller than the pore diameter (11.5 nm). Driven by EOF, it could enter into the pore with any orientation. However, for a relatively long ssDNA, its orientation is restricted by the pore size, and the incline of the long ssDNA in the pore induces larger ∆I. This could be the reason why ∆I depends on the chain length of the ssDNA. Figure 5f shows histograms of dwell time for the electroosmotic translocation events. Events with dwell time larger than 0.5 ms were more frequent for 50 nt ssDNA than for 20 nt ssDNA. This signifies that 50 nt ssDNA is more likely to interact with the pore wall because its length is larger than the pore diameter. In addition, the distributions of measured dwell-time were fitted by a 1D drift-diffusion model [54,55,56]:
F 1 t = l 4 π D t 3 e l v t 2 / 4 D t
where D is the diffusion coefficient and v refers to the velocity of the ssDNA passing through the pore. The calculated D20nt (0.441 nm2/μs) was larger than the calculated D50nt (0.382 nm2/μs), which agrees with the Stokes–Einstein equation [57,58]. The value of v20nt was equal to 104.9 nm/ms, which was also larger than v50nt (98.25 nm/ms). This can be attributed to the fact that the 20 nt ssDNA takes less negative charge than 50 nt ssDNA, which results in a smaller FEP.

4. Conclusions

In this study, we demonstrated that air–plasma treatment could speed up the CDB process by orders of magnitude. Only the use of the voltages in a range of 2–7 V could steadily produce nanopores with sub-10 nm diameters. Furthermore, pore size could further enlarge to >30 nm with the use of 3 V bipolar square pulses within 10 min and without causing additional pores in the SiNx membrane. The results of λ-DNA detection experiments showed clear ionic pulse signals from translocation events of λ-DNA molecules, which validates the functionality of our fabricated nanopore. In addition, we used the nanopores to distinguish short ssDNA fragments with different lengths and investigate their electrokinetic behaviors. The experimental results indicated that short ssDNA fragments could enter into the pore driven by electrophoretic force or electroosmotic force, depending on the pore size and chain length of the ssDNA. Furthermore, the current blockade and dwell time of ssDNA electroosmotic translocation events increased with the chain length.

Author Contributions

Conceptualization, Y.Z. and J.S.; methodology, Y.Z. and D.M.; validation, Z.G. and D.M.; formal analysis, Y.Z. and L.Z.; investigation, D.M. and Z.G.; resources, Y.Z.; data curation, Y.Z. and L.Z.; writing—original draft preparation, D.M. and Y.Z.; writing—review and editing, Y.Z. and J.S.; visualization, Z.G.; supervision, Y.Z. and J.S.; project administration, Y.Z. and J.S.; funding acquisition, Y.Z. and J.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant numbers 52005102 and 52075099; the Natural Science Foundation of Jiangsu Province, grant number BK20180400; Primary Research & Development Plan of Jiangsu Province, grant number SBE2020741118; Scientific Research Project of Jiangsu Health Commission, grant number ZDA2020012 and the Fundamental Research Funds for the Central Universities, grant number 2242021k30057.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Miles, B.N.; Ivanov, A.P.; Wilson, K.A.; Dogan, F.; Japrung, D.; Edel, J.B. Single molecule sensing with solid-state nanopores: Novel materials, methods, and applications. Chem. Soc. Rev. 2013, 42, 15–28. [Google Scholar] [CrossRef]
  2. Muthukumar, M.; Plesa, C.; Dekker, C. Single-molecule sensing with nanopores. Phys. Today 2015, 68, 40–46. [Google Scholar] [CrossRef] [Green Version]
  3. Deamer, D.; Akeson, M.; Branton, D. Three decades of nanopore sequencing. Nat. Biotechnol. 2016, 34, 518–524. [Google Scholar] [CrossRef] [PubMed]
  4. Shi, W.; Friedman, A.K.; Baker, L.A. Nanopore Sensing. Anal. Chem. 2017, 89, 157–188. [Google Scholar] [CrossRef] [Green Version]
  5. Charalampous, T.; Kay, G.L.; Richardson, H.; Aydin, A.; Baldan, R.; Jeanes, C.; Rae, D.; Grundy, S.; Turner, D.J.; Wain, J.; et al. Nanopore metagenomics enables rapid clinical diagnosis of bacterial lower respiratory infection. Nat. Biotechnol. 2019, 37, 783–792. [Google Scholar] [CrossRef] [PubMed]
  6. Roozbahani, G.M.; Chen, X.; Zhang, Y.; Wang, L.; Guan, X. Nanopore Detection of Metal Ions: Current Status and Future Directions. Small Methods 2020, 4, 2000266. [Google Scholar] [CrossRef] [PubMed]
  7. Gu, W.; Deng, X.; Lee, M.; Sucu, Y.D.; Arevalo, S.; Stryke, D.; Federman, S.; Gopez, A.; Reyes, K.; Zorn, K.; et al. Rapid pathogen detection by metagenomic next-generation sequencing of infected body fluids. Nat. Med. 2020, 27, 115–124. [Google Scholar] [CrossRef] [PubMed]
  8. Manrao, E.A.; Derrington, I.M.; Laszlo, A.H.; Langford, K.W.; Hopper, M.K.; Gillgren, N.; Pavlenok, M.; Niederweis, M.; Gundlach, J.H. Reading DNA at single-nucleotide resolution with a mutant MspA nanopore and phi29 DNA polymerase. Nat. Biotechnol. 2012, 30, 349–353. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Rusk, N. MinION takes center stage. Nat. Methods 2015, 12, 12. [Google Scholar] [CrossRef] [PubMed]
  10. Xue, L.; Yamazaki, H.; Ren, R.; Wanunu, M.; Ivanov, A.P.; Edel, J.B. Solid-state nanopore sensors. Nat. Rev. Mater. 2020, 5, 931–951. [Google Scholar] [CrossRef]
  11. Yuan, Z.; Wang, C.; Yi, X.; Ni, Z.; Chen, Y.; Li, T. Solid-State Nanopore. Nanoscale Res. Lett. 2018, 13, 56. [Google Scholar] [CrossRef]
  12. Rahman, M.; Sampad, M.J.N.; Hawkins, A.; Schmidt, H. Recent advances in integrated solid-state nanopore sensors. Lab Chip 2021, 21, 3030–3052. [Google Scholar] [CrossRef] [PubMed]
  13. Garoli, D.; Yamazaki, H.; Maccaferri, N.; Wanunu, M. Plasmonic Nanopores for Single-Molecule Detection and Manipulation: Toward Sequencing Applications. Nano Lett. 2019, 19, 7553–7562. [Google Scholar] [CrossRef] [Green Version]
  14. Soni, G.V.; Singer, A.; Yu, Z.; Sun, Y.; McNally, B.; Meller, A. Synchronous optical and electrical detection of biomolecules traversing through solid-state nanopores. Rev. Sci. Instrum. 2010, 81, 014301. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Nelson, E.M.; Li, H.; Timp, G. Direct, Concurrent Measurements of the Forces and Currents Affecting DNA in a Nanopore with Comparable Topography. ACS Nano 2014, 8, 5484–5493. [Google Scholar] [CrossRef]
  16. Xie, P.; Xiong, Q.H.; Fang, Y.; Qing, Q.; Lieber, C.M. Local electrical potential detection of DNA by nanowire-nanopore sensors. Nat. Nanotechnol. 2012, 7, 119–125. [Google Scholar] [CrossRef] [Green Version]
  17. Traversi, F.; Raillon, C.; Benameur, S.M.; Liu, K.; Khlybov, S.; Tosun, M.; Krasnozhon, D.; Kis, A.; Radenovic, A. Detecting the translocation of DNA through a nanopore using graphene nanoribbons. Nat. Nanotechnol. 2013, 8, 939–945. [Google Scholar] [CrossRef] [PubMed]
  18. Parkin, W.M.; Drndić, M. Signal and Noise in FET-Nanopore Devices. ACS Sensors 2018, 3, 313–319. [Google Scholar] [CrossRef]
  19. Tsutsui, M.; Taniguchi, M.; Yokota, K.; Kawai, T. Identifying single nucleotides by tunnelling current. Nat. Nanotechnol. 2010, 5, 286–290. [Google Scholar] [CrossRef] [PubMed]
  20. Wanunu, M.; Dadosh, T.; Ray, V.; Jin, J.; McReynolds, L.; Drndic, M. Rapid electronic detection of probe-specific microRNAs using thin nanopore sensors. Nat. Nanotechnol. 2010, 5, 807–814. [Google Scholar] [CrossRef]
  21. Skinner, G.M.; van den Hout, M.; Broekmans, O.; Dekker, C.; Dekker, N.H. Distinguishing Single- and Double-Stranded Nucleic Acid Molecules Using Solid-State Nanopores. Nano Lett. 2009, 9, 2953–2960. [Google Scholar] [CrossRef] [PubMed]
  22. Restrepo-Perez, L.; Joo, C.; Dekker, C. Paving the way to single-molecule protein sequencing. Nat. Nanotechnol. 2018, 13, 786–796. [Google Scholar] [CrossRef] [Green Version]
  23. Varongchayakul, N.; Song, J.; Meller, A.; Grinstaff, M.W. Single-molecule protein sensing in a nanopore: A tutorial. Chem. Soc. Rev. 2018, 47, 8512–8524. [Google Scholar] [CrossRef] [PubMed]
  24. Taniguchi, M.; Minami, S.; Ono, C.; Hamajima, R.; Morimura, A.; Hamaguchi, S.; Akeda, Y.; Kanai, Y.; Kobayashi, T.; Kamitani, W.; et al. Combining machine learning and nanopore construction creates an artificial intelligence nanopore for coronavirus detection. Nat. Commun. 2021, 12, 3726. [Google Scholar] [CrossRef]
  25. Ryuzaki, S.; Yasui, T.; Tsutsui, M.; Yokota, K.; Komoto, Y.; Paisrisarn, P.; Kaji, N.; Ito, D.; Tamada, K.; Ochiya, T.; et al. Rapid Discrimination of Extracellular Vesicles by Shape Distribution Analysis. Anal. Chem. 2021, 93, 7037–7044. [Google Scholar] [CrossRef]
  26. Im, J.; Lindsay, S.; Wang, X.; Zhang, P.M. Single Molecule Identification and Quantification of Glycosaminoglycans Using Solid-State Nanopores. ACS Nano. 2019, 13, 6308–6318. [Google Scholar] [CrossRef]
  27. Houghtaling, J.; List, J.; Mayer, M. Nanopore-Based, Rapid Characterization of Individual Amyloid Particles in Solution: Concepts, Challenges, and Prospects. Small 2018, 14, 1802412. [Google Scholar] [CrossRef] [PubMed]
  28. Liu, Z.; Wang, Y.; Deng, T.; Chen, Q. Solid-State Nanopore-Based DNA Sequencing Technology. J. Nanomater. 2016, 2016, 5284786. [Google Scholar] [CrossRef]
  29. Ryuzaki, S.; Tsutsui, M.; He, Y.; Yokota, K.; Arima, A.; Morikawa, T.; Taniguchi, M.; Kawai, T. Rapid structural analysis of nanomaterials in aqueous solutions. Nanotechnology 2017, 28, 155501. [Google Scholar] [CrossRef]
  30. Goyal, G.; Darvish, A.; Kim, M.J. Use of solid-state nanopores for sensing co-translocational deformation of nano-liposomes. Analyst 2015, 140, 4865–4873. [Google Scholar] [CrossRef] [PubMed]
  31. Li, J.; Stein, D.; McMullan, C.; Branton, D.; Aziz, M.J.; Golovchenko, J.A. Ion-beam sculpting at nanometre length scales. Nature 2001, 412, 166–169. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Storm, A.J.; Chen, J.H.; Ling, X.S.; Zandbergen, H.W.; Dekker, C. Fabrication of solid-state nanopores with single-nanometre precision. Nat. Mater. 2003, 2, 537–540. [Google Scholar] [CrossRef] [PubMed]
  33. Fried, J.P.; Swett, J.L.; Nadappuram, B.P.; Mol, J.A.; Edel, J.B.; Ivanov, A.P.; Yates, J.R. In situ solid-state nanopore fabrication. Chem. Soc. Rev. 2021, 50, 4974–4992. [Google Scholar] [CrossRef] [PubMed]
  34. Kwok, H.; Briggs, K.; Tabard-Cossa, V. Nanopore Fabrication by Controlled Dielectric Breakdown. PLoS ONE 2014, 9, e92880. [Google Scholar]
  35. Briggs, K.; Kwok, H.; Tabard-Cossa, V. Automated fabrication of 2-nm solid-state nanopores for nucleic acid analysis. Small 2014, 10, 2077–2086. [Google Scholar] [CrossRef]
  36. Yanagi, I.; Akahori, R.; Hatano, T.; Takeda, K. Fabricating nanopores with diameters of sub-1 nm to 3 nm using multilevel pulse-voltage injection. Sci. Rep. 2014, 4, 5000. [Google Scholar] [CrossRef] [Green Version]
  37. Ying, C.; Zhang, Y.; Feng, Y.; Zhou, D.; Wang, D.; Xiang, Y.; Zhou, W.; Chen, Y.; Du, C.; Tian, J. 3D nanopore shape control by current-stimulus dielectric breakdown. Appl. Phys. Lett. 2016, 109, 063105. [Google Scholar] [CrossRef]
  38. Yanagi, I.; Fujisaki, K.; Hamamura, H.; Takeda, K. Thickness-dependent dielectric breakdown and nanopore creation on sub-10-nm-thick SiN membranes in solution. J. Appl. Phys. 2017, 121. [Google Scholar] [CrossRef]
  39. Wang, Y.F.; Chen, Q.; Deng, T.; Liu, Z.W. Self-Aligned Nanopore Formed on a SiO2 Pyramidal Membrane by a Multipulse Dielectric Breakdown Method. J. Phys. Chem. C 2018, 122, 11516–11523. [Google Scholar] [CrossRef]
  40. Wang, Y.; Chen, Q.; Deng, T.; Liu, Z. Nanopore fabricated in pyramidal HfO2 film by dielectric breakdown method. Appl. Phys. Lett. 2017, 111, 143103. [Google Scholar] [CrossRef]
  41. Carlsen, A.T.; Briggs, K.; Hall, A.R.; Tabard-Cossa, V. Solid-state nanopore localization by controlled breakdown of selectively thinned membranes. Nanotechnology 2017, 28, 085304. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Ying, C.; Houghtaling, J.; Eggenberger, O.M.; Guha, A.; Nirmalraj, P.; Awasthi, S.; Tian, J.; Mayer, M. Formation of Single Nanopores with Diameters of 20–50 nm in Silicon Nitride Membranes Using Laser-Assisted Controlled Breakdown. ACS Nano 2018, 12, 11458–11470. [Google Scholar] [CrossRef] [PubMed]
  43. Dong, M.; Tang, Z.; He, X.; Guan, W. Direct Observation of Redox-Induced Bubble Generation and Nanopore Formation Dynamics in Controlled Dielectric Breakdown. ACS Appl. Electron. Mater. 2020, 2, 2954–2960. [Google Scholar] [CrossRef]
  44. Briggs, K.; Charron, M.; Kwok, H.; Le, T.; Chahal, S.; Bustamante, J.; Waugh, M.; Tabard-Cossa, V. Kinetics of nanopore fabrication during controlled breakdown of dielectric membranes in solution. Nanotechnology 2015, 26, 084004. [Google Scholar] [CrossRef] [PubMed]
  45. Kowalczyk, S.W.; Grosberg, A.Y.; Rabin, Y.; Dekker, C. Modeling the conductance and DNA blockade of solid-state nanopores. Nanotechnology 2011, 22, 315101. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Fried, J.P.; Swett, J.L.; Nadappuram, B.P.; Fedosyuk, A.; Sousa, P.M.; Briggs, D.P.; Ivanov, A.P.; Edel, J.B.; Mol, J.A.; Yates, J.R. Understanding Electrical Conduction and Nanopore Formation During Controlled Breakdown. Small 2021, 17, 2102543. [Google Scholar] [CrossRef] [PubMed]
  47. Yanagi, I.; Takeda, K.-i. Current–Voltage Characteristics of SiN Membranes in Solution. ACS Appl. Electron. Mater. 2020, 2, 2760–2771. [Google Scholar] [CrossRef]
  48. Kuyama, T.; Eriguchi, K. Optical and electrical characterization methods of plasma-induced damage in silicon nitride films. Jpn J. Appl. Phys. 2018, 57, 06JD03. [Google Scholar] [CrossRef]
  49. Luhmann, N.; Jachimowicz, A.; Schalko, J.; Sadeghi, P.; Sauer, M.; Foelske-Schmitz, A.; Schmid, S. Effect of oxygen plasma on nanomechanical silicon nitride resonators. Appl. Phys. Lett. 2017, 111, 063103. [Google Scholar] [CrossRef]
  50. Zrehen, A.; Gilboa, T.; Meller, A. Real-time visualization and sub-diffraction limit localization of nanometer-scale pore formation by dielectric breakdown. Nanoscale 2017, 9, 16437–16445. [Google Scholar] [CrossRef]
  51. Yanagi, I.; Hamamura, H.; Akahori, R.; Takeda, K.-I. Two-step breakdown of a SiN membrane for nanopore fabrication: Formation of thin portion and penetration. Sci. Rep. 2018, 8, 10129. [Google Scholar] [CrossRef]
  52. Wang, Y.; Ying, C.; Zhou, W.; de Vreede, L.; Liu, Z.; Tian, J. Fabrication of multiple nanopores in a SiNx membrane via controlled breakdown. Sci. Rep-Uk 2018, 8, 1234. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Zhan, L.; Zhang, Y.; Si, W.; Sha, J.; Chen, Y. Detection and Separation of Single-Stranded DNA Fragments Using Solid-State Nanopores. J. Phys. Chem. Lett. 2021, 12, 6469–6477. [Google Scholar] [CrossRef] [PubMed]
  54. Li, J.; Talaga, D.S. The distribution of DNA translocation times in solid-state nanopores. J. Phys. Condens. Matter 2010, 22, 454129. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Ling, D.Y.; Ling, X.S. On the distribution of DNA translocation times in solid-state nanopores: An analysis using Schrodinger’s first-passage-time theory. J. Phys. Condens. Matter 2013, 25, 375102. [Google Scholar] [CrossRef] [Green Version]
  56. Szabo, A.; Schulten, K.; Schulten, Z. First passage time approach to diffusion controlled reactions. J. Chem. Phys. 1980, 72, 4350–4357. [Google Scholar] [CrossRef]
  57. Stellwagen, E.; Lu, Y.; Stellwagen, N.C. Unified Description of Electrophoresis and Diffusion for DNA and Other Polyions. Biochemistry 2003, 42, 11745–11750. [Google Scholar] [CrossRef]
  58. Edward, J.T. Molecular volumes and the Stokes-Einstein equation. J. Chem. Educ. 1970, 47, 261. [Google Scholar] [CrossRef]

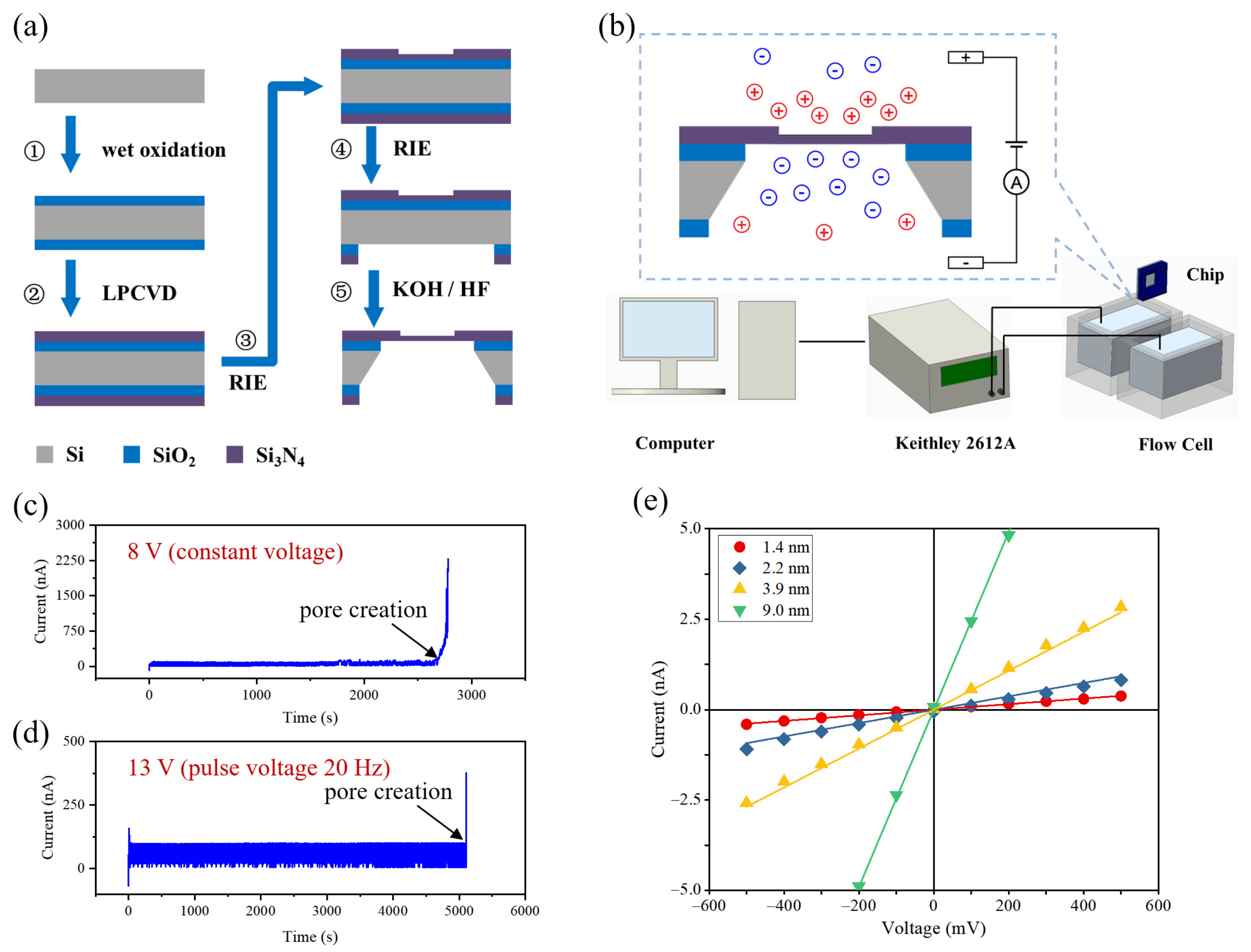

Figure 1. Schematic illustrations of (a) the chip fabrication process; (b) the nanopore fabrication setup; leakage current traces at (c) 8 V constant voltage and (d) 13 V pulse voltage on a 20 nm-thick SiNx membrane in 1 M KCl at pH 8. (e) I–V curves for 4 nanopores with various diameters.
Figure 1. Schematic illustrations of (a) the chip fabrication process; (b) the nanopore fabrication setup; leakage current traces at (c) 8 V constant voltage and (d) 13 V pulse voltage on a 20 nm-thick SiNx membrane in 1 M KCl at pH 8. (e) I–V curves for 4 nanopores with various diameters.
Nanomaterials 11 02450 g001

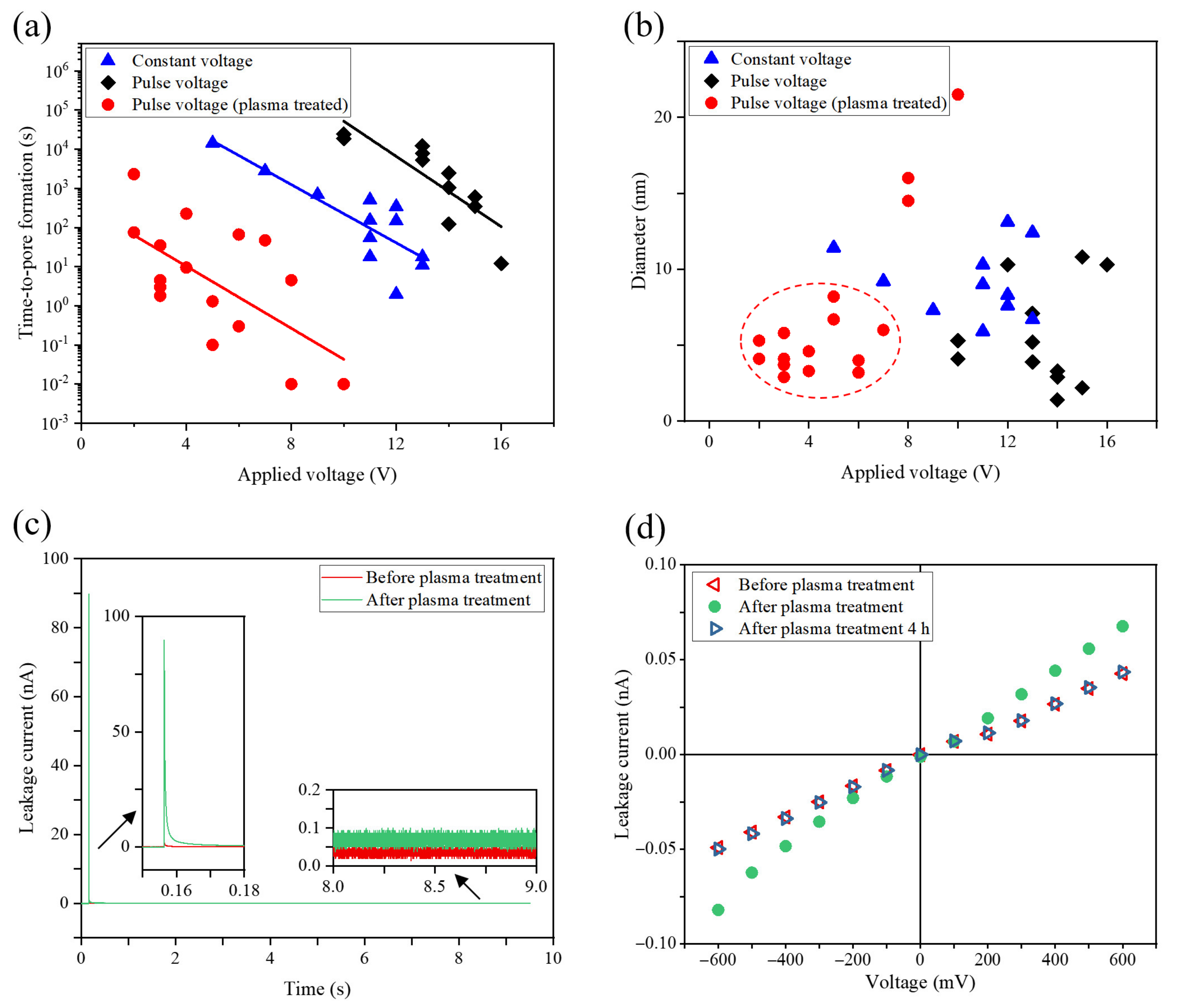

Figure 2. (a) Semi-log plot of time-to-pore-fabrication as a function of applied voltage for nanopores fabricated in 20 nm-thick SiNx membranes in 1 M KCl solution; (b) scatter plot of pore diameter versus applied voltage; (c) leakage current trace of a SiNx membrane before and after plasma treatment at a 600 mV applied voltage; (d) I–V curves for the SiNx membrane.
Figure 2. (a) Semi-log plot of time-to-pore-fabrication as a function of applied voltage for nanopores fabricated in 20 nm-thick SiNx membranes in 1 M KCl solution; (b) scatter plot of pore diameter versus applied voltage; (c) leakage current trace of a SiNx membrane before and after plasma treatment at a 600 mV applied voltage; (d) I–V curves for the SiNx membrane.
Nanomaterials 11 02450 g002

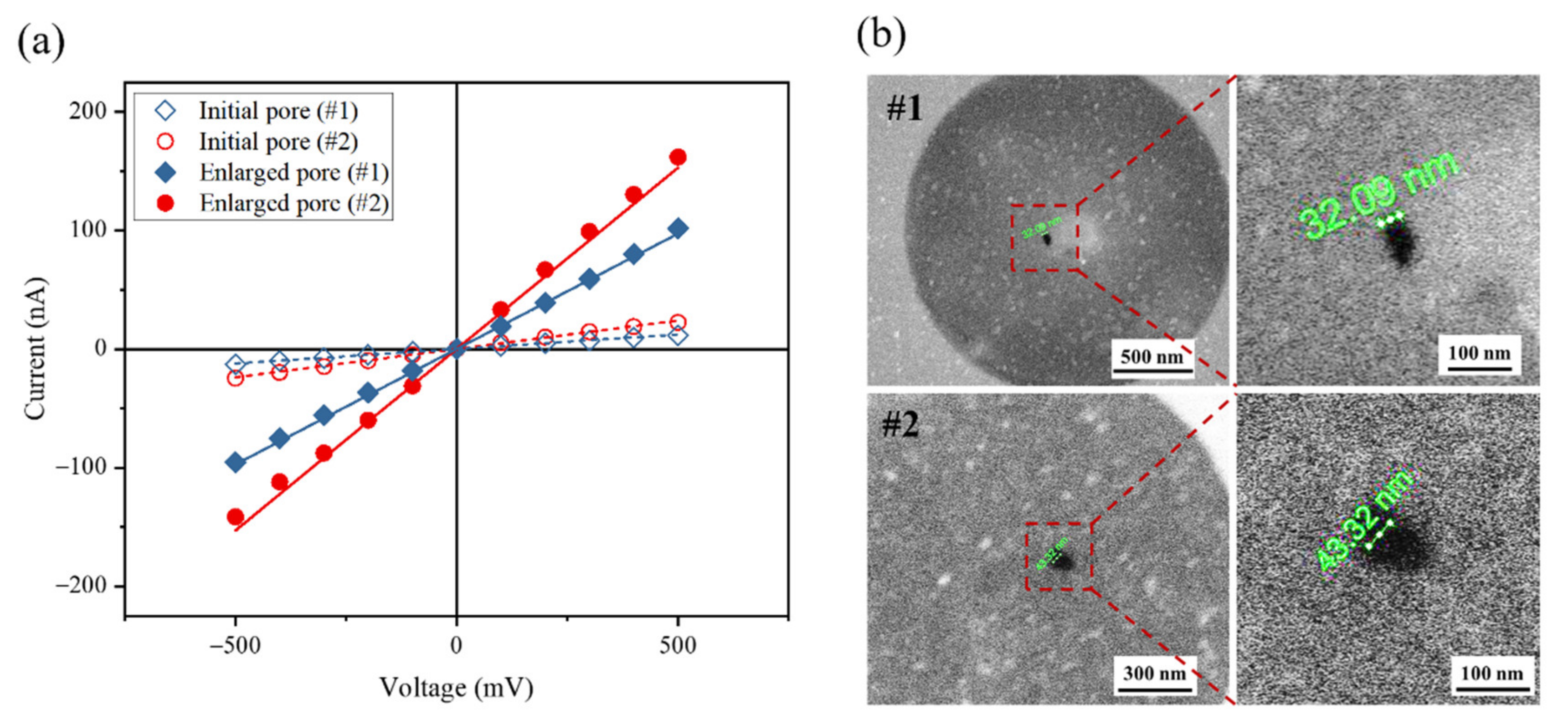

Figure 3. (a) I–V curves of nanopores before and after enlargement breakdown; (b) SEM images of nanopores after enlargement breakdown.
Figure 3. (a) I–V curves of nanopores before and after enlargement breakdown; (b) SEM images of nanopores after enlargement breakdown.
Nanomaterials 11 02450 g003

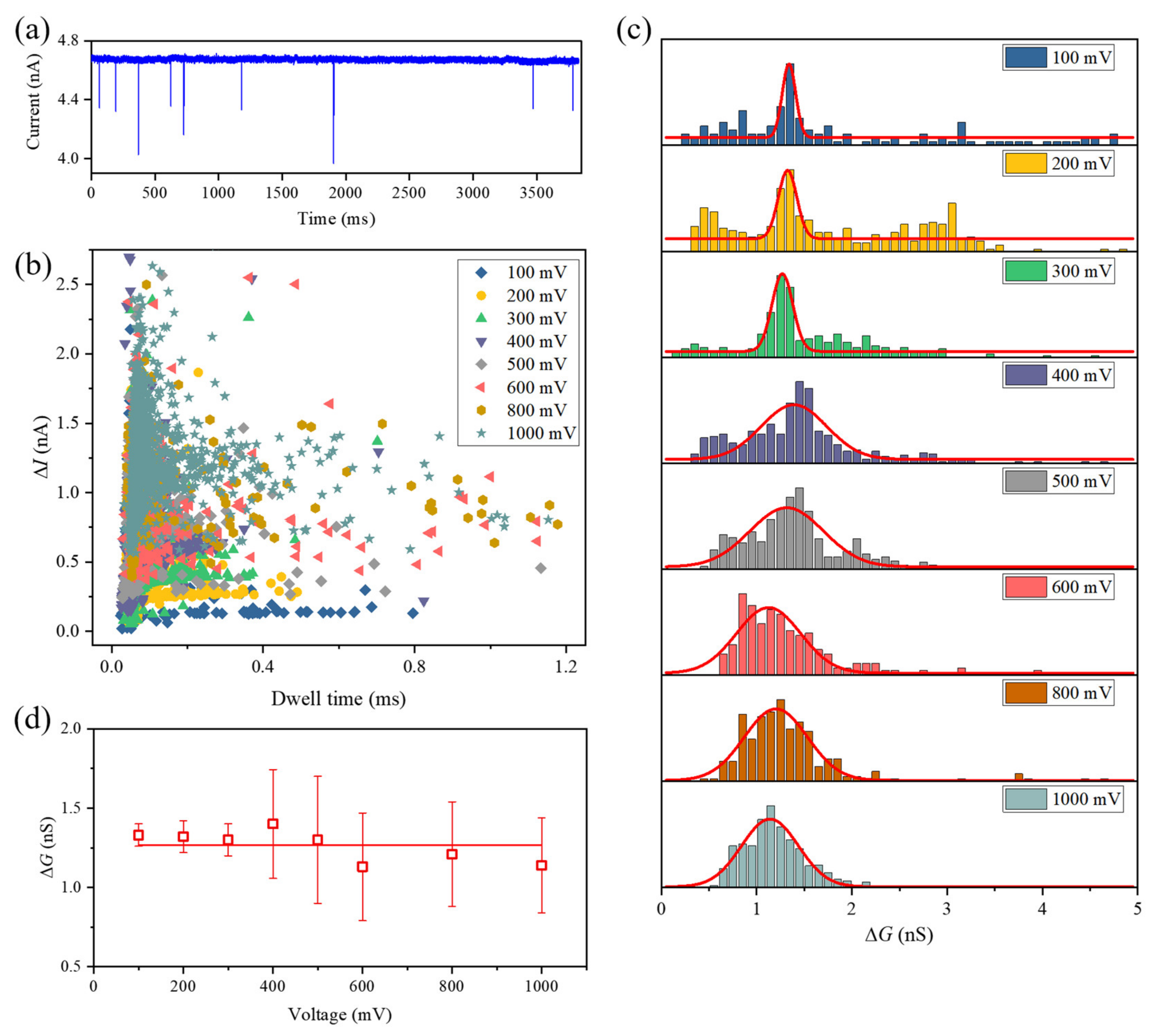

Figure 4. (a) Ionic current trace of the translocation of λ-DNA molecules through an 8 nm-diameter nanopore in 1 M KCl with an applied voltage of 200 mV; (b) scatter plot of dwell time versus current blockade at various voltages, ranging from 100 to 1000 mV; (c) histograms of ∆G for λ-DNA molecule translocation through the nanopore. Solid red lines represent the fit of a Gaussian distribution to the experimental data, from which we extracted the mean ∆G; (d) mean ∆G of translocation events with various voltages.
Figure 4. (a) Ionic current trace of the translocation of λ-DNA molecules through an 8 nm-diameter nanopore in 1 M KCl with an applied voltage of 200 mV; (b) scatter plot of dwell time versus current blockade at various voltages, ranging from 100 to 1000 mV; (c) histograms of ∆G for λ-DNA molecule translocation through the nanopore. Solid red lines represent the fit of a Gaussian distribution to the experimental data, from which we extracted the mean ∆G; (d) mean ∆G of translocation events with various voltages.
Nanomaterials 11 02450 g004

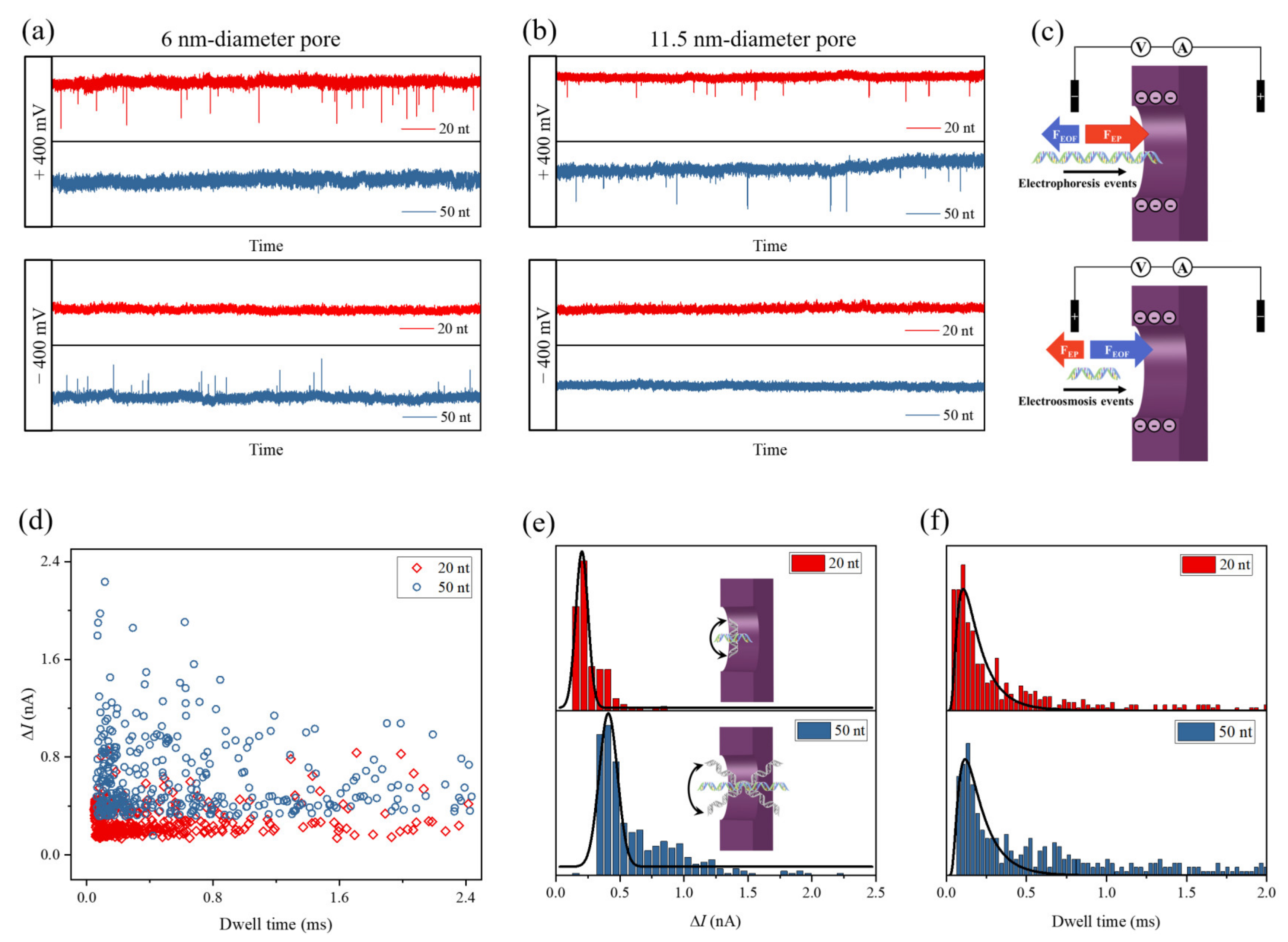

Figure 5. Ionic current traces with the translocations of 20 nt (red) and 50 nt (blue) ssDNA fragments through (a) 6 nm and (b) 11.5 nm diameter nanopores. The ssDNA fragments were added in the cis chamber filled with 1 M KCl solution. The applied voltage on the cis chamber was +400 or −400 mV, and the trans chamber was electrically grounded; (c) schematic of an ssDNA transport through the pore, governed by the competition of FEO and FEP; (d) scatter plot of dwell time versus current blockade for 20 nt and 50 nt ssDNAs electroosmotically transported through a 11.5 nm-diameter pore; (e) histograms of ∆I for electroosmotic translocation events, which were fitted by Gaussian distribution; (f) histograms of dwell time for electroosmotic translocation events, which were fitted by first-passage-time distribution.
Figure 5. Ionic current traces with the translocations of 20 nt (red) and 50 nt (blue) ssDNA fragments through (a) 6 nm and (b) 11.5 nm diameter nanopores. The ssDNA fragments were added in the cis chamber filled with 1 M KCl solution. The applied voltage on the cis chamber was +400 or −400 mV, and the trans chamber was electrically grounded; (c) schematic of an ssDNA transport through the pore, governed by the competition of FEO and FEP; (d) scatter plot of dwell time versus current blockade for 20 nt and 50 nt ssDNAs electroosmotically transported through a 11.5 nm-diameter pore; (e) histograms of ∆I for electroosmotic translocation events, which were fitted by Gaussian distribution; (f) histograms of dwell time for electroosmotic translocation events, which were fitted by first-passage-time distribution.
Nanomaterials 11 02450 g005
