Article

Magnetic Nanoprobes for Spatio-Mechanical Manipulation in Single Cells

1
Experimental Medical Physics, Heinrich-Heine University Düsseldorf, 40225 Düsseldorf, Germany
2
Colloids and Nanooptics, Heinrich-Heine University Düsseldorf, 40225 Düsseldorf, Germany
3
Peter Grünberg Institute, Electronic Properties (PGI-6), Forschungszentrum Jülich, 52425 Jülich, Germany
4
Center for Nanointegration (CENIDE), Faculty of Physics, University of Duisburg-Essen, 47057 Duisburg, Germany
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Nanomaterials 2021, 11(9), 2267; https://doi.org/10.3390/nano11092267
Received: 30 July 2021 / Revised: 25 August 2021 / Accepted: 27 August 2021 / Published: 31 August 2021
(This article belongs to the Special Issue Multi-Functional Nanoparticles for Therapy and Diagnostics)

Abstract

:
Magnetic nanoparticles (MNPs) are widely known as valuable agents for biomedical applications. Recently, MNPs were further suggested to be used for a remote and non-invasive manipulation, where their spatial redistribution or force response in a magnetic field provides a fine-tunable stimulus to a cell. Here, we investigated the properties of two different MNPs and assessed their suitability for spatio-mechanical manipulations: semisynthetic magnetoferritin nanoparticles and fully synthetic ‘nanoflower’-shaped iron oxide nanoparticles. As well as confirming their monodispersity in terms of structure, surface potential, and magnetic response, we monitored the MNP performance in a living cell environment using fluorescence microscopy and asserted their biocompatibility. We then demonstrated facilitated spatial redistribution of magnetoferritin compared to ‘nanoflower’-NPs after microinjection, and a higher magnetic force response of these NPs compared to magnetoferritin inside a cell. Our remote manipulation assays present these tailored magnetic materials as suitable agents for applications in magnetogenetics, biomedicine, or nanomaterial research.

1. Introduction

Functional magnetic nanoscale particles (MNPs) are widely employed in biotechnology and nanomedicine to study fundamental biological processes as well as to develop enhanced diagnostic and treatment strategies, the most prominent examples being smart drug delivery, contrast enhancement in imaging, magnetic separation of molecules, magnetic particle hyperthermia [1], regenerative medicine concepts [2], and a combination of diagnostics and therapy [3]. In addition, for subcellular applications in fundamental studies, their manipulation via magnetic tweezers demonstrated benefit in the study of organelles, proteins, and biomolecules within the cell environment [4,5].
Iron oxide nanoparticles (NPs) are one of the most popular compounds for biomagnetics studies due to their versatile applicability and biocompatibility [6,7,8,9]. Interest in iron oxide NPs rises because they can be synthesized in various shapes, sizes, and in large amounts (e.g., via thermal decomposition or laser target evaporation) enabling cost-effective production. Previous studies demonstrated successful NP delivery into living tissues, their spatial manipulation by external magnetic fields [10,11], as well as their controlled heating [12]. Recent studies, however, indicate that these nanoprobes need to reconcile a variety of demands which are difficult to achieve simultaneously [1,13]. First, NPs need to be biocompatible. Second, they need to be sufficiently monodisperse in terms of size, surface charge, and functional motifs in order to respond similarly to an external magnetic stimulus (DC or AC field). Finally, they need to be functionalized to specifically target particular biological sites as well as to make the particle chemically inert. Here, we characterize a new class of ‘nanoflower’-shaped multicore iron oxide NPs, called synomag, and discuss possible applications.
Semisynthetic particles are another new class of NPs which can be tailored to meet the listed demands. Highly successful examples are NPs made of proteins belonging to ferritins, a group of proteins which naturally store iron in an organism to maintain its iron homeostasis [14,15]. For example, human ferritin (Ft) is a globular protein cage of this family, consisting of 24 subunits, 12 heavy and 12 light chains. Interestingly, the heavy-chain-ferritin (HCF) subunit exhibits ferroxidase activity [15,16] which can be exploited in Fenton-like reactions to synthesize a magnetic crystal into the cage. Previously, it was shown that a superparamagnetic iron oxide core can be grown within the cage [17]. This is particularly beneficial for subcellular applications where particle chain formation due to magnetic dipole–dipole interactions should be prevented. Moreover, due to their unique protein structure, these NP templates are biocompatible by nature and exhibit a well-defined size with a strict upper size limit along with shape uniformity [18]. In addition, the protein cage can serve as a scaffold for bio-orthogonal tagging, and, via genetically encodable tags, precise control over the tag number is achieved. Such genetically modified human ferritin, henceforth termed ‘magnetoferritin’ (MFt), is the second MNP presented in this work.
If an MNP exhibits the desired superparamagnetic, biofunctional, and biocompatible properties, it is imperative to evaluate the MNP in conjunction with an applied magnetic field. Any spatial, mechanical, or thermal stimulus to be transferred to a biological entity of interest will heavily depend on both the NP magnetic responses and the externally applied field. For example, for localized MNP heating, the dissipated heat is proportional to the AC susceptibility of the NP and the square of the magnetizing field [19]. In case of force applications, the product of the NP’s magnetic moment and the magnetic field gradient have to be known. The localized heat or applied force may then be used to switch molecular activity states and to eventually influence a cellular function. Such a remote and finely tunable magnetic manipulation approach is commonly referred to as Magnetogenetics. Several recent studies demonstrate how these stimuli (heat, force, or spatial redistribution) enable active probing of fundamental cell signaling functions, such as action potential formation in neuronal cells [20], cell signaling for differentiation or migration [11,21], or tumorigenesis [22]. Hence, Magnetogenetics can provide a rich toolkit to study fundamental processes in individual cells. An overview of intriguing biological and medical questions is reviewed in Monzel et al. [23] and Pankhurst et al. [19], along with information about the required magnetic fields and gradients.
Here, we first characterized two new classes of MNPs: semisynthetic single core magnetoferritin (MFt) and multicore synomag MNPs. We then assessed their biocompatibility and uptake by cells. Finally, two different modes of MNP–cell transfer (microinjection and incubation) were applied. A magnetic tip for microscale MNP manipulation was characterized and used to subject MNPs to a magnetic attraction force for spatio-mechanical manipulation.

2. Materials and Methods

Ferritin Cage Expression and Purification: monomeric enhanced green fluorescent protein (mEGFP)-tagged heavy chain ferritin (HCF) plasmid (mEGFP::HCF) was a kind gift from the Coppey/Hajj Lab at Laboratoire Physico-Chimie, Institut Curie, Paris, France and Piehler Lab at University Osnabrück, Germany. For site-specific targeting of proteins, mEGFP was fused to the N-terminus of HCF containing 6 amino acids as linker by cassette cloning as described before [21]. For bacterial expression of mEGFP::HCF in E.coli BL21-CodonPlus (DE3)-RIPL Competent Cells (Agilent Technologies, Santa Clara, CA, USA), the cDNA of the fusion protein was cloned in pET21a (Merck KGaA, Darmstadt, Germany). For preparative overexpression, the E. coli BL21 were transformed with the plasmid and the culture was grown from a single colony in 2xYT medium at 37 °C up to an OD600 of 0.6 to 0.8. Plasmid expression was induced with 1 mM IPTG (Sigma-Aldrich, St. Louis, MO, USA), and the culture was grown further at 16 °C overnight. Harvested cells were washed in Phosphate Buffered Saline (PBS) and finally resuspended in HEPES-1 buffer (50 mM HEPES, 150 mM NaCl, pH 8.0). The obtained cell suspension was treated with Protease Inhibitor Cocktail and PMSF to protect the protein from degradation during the following cell disruption via a homogenizer (M110P Microfluidizer, Microfluidics, Westwood, MA, USA). After centrifugation, the supernatant containing mEGFP::HCF was purified by heat shock (70 °C, 15 min). Subsequently, mEGFP-tagged ferritin particles were cleaned up using ammonium sulfate precipitation, first at 200 g/L, then at 300 g/L, to precipitate proteins of different solubility than the desired protein. After the last step, the pellet containing ferritin was resuspended and dialyzed overnight in HEPES-2 buffer (20 mM HEPES, 100 mM NaCl, pH 8.0). The resulting sample was loaded onto a size exclusion column (HiPrep 16/60 Sephacryl S400 High Resolution, GE Healthcare, Chicago, IL, USA) equilibrated with filtered (0.2 µm) and degassed HEPES-2 buffer. All chromatography steps were performed in an FPLC system (Äkta Explorer, GE Healthcare, Chicago, IL, USA). We used 12% sodium dodecyl sulphate–polyacrylamide gel electrophoresis (SDS-PAGE) to confirm the purity of the final product as well as the effectiveness of each individual purification step (Figure S1) [24].
Coupling of methoxy-PEG2000-NHS: methoxy-(polyethylene glycol)-N-hydroxysuccinimid (Molecular Weight (MW): 2000 Da) was purchased from Sigma-Aldrich (St. Louis, MO, USA). Methoxy-PEG2000-NHS (30 μL of 100 mM in dry DMSO) was added to 100 μL mEGFP::HCF (10 μM) in HEPES-2 buffer. The reaction mixture was incubated for 2 h at room temperature on a rotator. PEGylated mEGFP-tagged ferritin was purified with PD10 desalting columns (GE Healthcare) equilibrated with HEPES-2 buffer. The integrity and physicochemical properties of PEGylated mEGFP::HCF were examined by SDS-PAGE. The protein concentration was determined by UV-Vis absorption spectroscopy (NanoDrop 2000, Thermo Fisher Scientific Inc., Waltham, MA, USA).
Iron Oxide Core Synthesis in Ferritin Cages: purified PEGylated ferritin cages were used to synthesize a magnetite core inside the cage using 1 mg/mL protein concentration diluted in 25 mL of 100 mM NaCl (Sigma-Aldrich, St.Louis, MO, USA). A solution of 30 mM ammonium iron(II) sulfate hexahydrate (Sigma-Aldrich, St.Louis, MO, USA) was used as an iron source and added to the reaction vessel at a constant rate of 211 µL/min, at an excess of about 5000 Fe atoms per ferritin cage. Hydrogen peroxide H2O2 of 5 mM was simultaneously syringe-pumped into the vessel at the same rate. During the synthesis, the reaction vessel was kept at 65 °C under positive N2 pressure and the pH was maintained dynamically at 8.5 with 100 mM NaOH by an automatic titrator (Titration Excellence T5, Mettler-Toledo, Columbus, OH, USA). During the oxidation process, the green-toned solution became evenly yellow-brown. Once magnetic loading was done, 200 μL of 300 mM sodium citrate was added to chelate any free iron. Synthesized MNPs were treated by centrifugation at 19,000× g for 30 min at 4 °C and 0.2 μm PTFE filtering to remove potential iron oxide aggregates formed outside of the cages. The final product was stored at −80 °C to prevent protein degradation till further experiments were performed.
Synomag NPs: ‘nanoflower’-shaped iron oxide particles were commercially available from micromod GmbH (Rostock, Germany). Since some of the NPs exhibited free amine groups on their surface, coupling of PEG2000-COOH was performed to generate a passivation surface according to the protocol given above (‘Coupling of methoxy-PEG2000-NHS’).
Transmission electron microscopy (TEM): ferritin cages in buffer solution were dropped onto Formvar coated nickel grids (200 mesh, S162N-100, Plano GmbH, Wetzlar, Germany) and left to sediment for 1 min. Solution remaining on the grid was removed between each step using filter paper. After sedimentation, the sample was negatively stained twice for 3 to 5 s and 30 s by subsequently placing the grid onto two separate drops of 2% uranyl acetate. The remaining solution was removed and the grid was left to air dry.
Imaging was performed on a Jeol JEM-2100Plus (Akishima, Tokyo, Japan), operating in bright field mode at an acceleration voltage of 80 kV. The average size, obtained by statistical analysis using Fiji [25], was 275-347 NPs for synomag, stained ferritin shells, and unstained magnetic cores in ferritin NPs, respectively.
Dynamic light scattering (DLS) and electrophoretic light scattering (ELS): measurements were carried out on Zetasizer Nano ZS (Malvern Panalytical Ltd., Malvern, UK) equipped with a He–Ne laser working at a wavelength of 633 nm. Data was recorded using a detection angle of 173°. For DLS, 5 subsequent measurements containing 50 sub-runs were taken (each sub-run duration was 10 s). Reported hydrodynamic diameters DH refer to the peak value of the log-normal fit applied to the DLS number distributions. For ELS, stabilizing buffers showed a conductivity of about 10–15 mS/cm (measured conductivity of deionized water is below 0.1 mS/cm); thus, measurements were carried out at a reduced voltage of 40 V to protect measuring cell electrodes from deterioration. Reported results represent averages from 10 measurements; 30 sub-runs each along with standard deviations.
Magnetometry: buffers from the samples were diluted to reduce the amount of salts. Liquid samples were dried using a rotational evaporator. Dried powders (~10 mg) were compacted into synthetic sample holders for vibrating sample magnetometry (VSM) in a PPMS DynaCool system (Quantum Design GmbH, Darmstadt, Germany). The magnetic response was measured up to 4 T at 5–300 K, and zero-field-cooling/field-warming sequences (ZFC/FW) were recorded at 5 mT.
Cell Handling: HeLa wild type cells (ATCC® CCL-2™, ATCC, Manassas, VA, USA) were cultivated at 37 °C, 5% CO2 in Dulbecco’s Modified Eagle Medium (DMEM) supplemented with 10% fetal calf serum (FCS) and 1% PenStrep; all from Thermo Fisher Scientific. Cell splitting trypsin-based standard protocol was carried out once the cells density reached about 70% confluency. For experiments, cells were passaged no higher than passage 30.
Cell Viability Assay: to assess possible negative effects of MNPs on cell viability, a standard CellTiter-Blue (CTB) Assay from Promega (Fitchburg, WI, USA) was carried out for both empty ferritin cages and synomag samples. This assay is based on the conversion of resazurin to resorufin by living cells. This reduction causes a shift in the dye’s fluorescence. In a 96-well plate, about 25,000 cells were seeded per well and grown in the incubator (37 °C; 5% CO2) overnight. Afterwards, cells were incubated with increasing amounts of MNPs. Untreated cells and cells incubated only with the MNP-containing medium served as positive control. Incubation with MNPs was carried out for 24 h. As negative control, untreated cells were exposed to 0.1% Triton 30 min before CTB addition. After incubation, cells were washed with DPBS and incubated for 4 h in a mixture of DMEM and CTB (9:1). The emission of the supernatant at 590 nm was measured (excitation: 560 nm) in a plate reader (infinite M200 Pro, TECAN, Männedorf, Switzerland). The obtained signal was linearly proportional to the number of living cells inside the sample. CTB results were evaluated from 3 biological replicates. For each replicate, fluorescence intensity was determined from five separate measurements; each averaged over 25 flashes.
Imaging, nanoparticle incubation and microinjection; image analysis: for imaging and manipulation, HeLa wild type (WT) cells were plated on sterilized glass coverslips in 35 mm cell-culture dishes at about 50% confluency. Prior to experiments, cells were washed with a PBS buffer and re-incubated in preheated Leibovitz medium (L15, Thermo Fisher Scientific, Waltham, MA, USA), supplemented with 10% fetal calf serum (FCS) and 1% PenStrep (Thermo Fisher Scientific, Waltham, MA, USA). Imaging was performed in a heating chamber preheated to 37 °C and placed on an inverted microscope (IX83 from Olympus, Shinjuku, Tokyo, Japan) equipped with a 60× oil-objective with N.A. 1.25 and phase contrast Ph3. For fluorescent optical MNPs detection and microinjection, cells were seeded to adhere in 8-well rectangular chambers equipped with a glass bottom (Sarstedt, Nümbrecht, Germany) overnight in an incubator at 37 °C, 5% CO2. MNPs were centrifuged (19,000 g for 10 min) and filtered through PTFE filters with 0.2 µm cutoff (Filtropur S 0.2, Sarstedt, Nümbrecht, Germany). After this cleaning routine, cells were incubated for either 6 or 24 h with MNP concentrations of 0.1–1.0 mg/mL. Directly before microscope imaging, cells were washed with preheated PBS and immediately incubated in L15 medium supplemented with FCS and PenStrep as before. MNPs were injected into cells using a micro manipulation system (InjectMan 4 and FemtoJet 4i, Eppendorf, Hamburg, Germany) with microinjection capillaries (Femtotip II, inner diameter of 500 nm, Eppendorf, Hamburg, Germany). For injection, a concentration of 3 mg/mL for each MNP system was used and capillary pressures were set to a pressure difference between the needle tip and the environment of 10 to 20 hPa. The range of image intensities was adjusted manually to optimize visualization of MNPs localizations at the sites of interest.
The MNP uptake and temporal change inside the cells were analyzed using an in-house developed analysis routine written in Matlab (R2019b, The Mathworks Inc., Natick, MA, USA) and ImageJ (version 1.49v, U. S. National Institutes of Health, Bethesda, MD, USA). For their detection, phase contrast and fluorescence image recordings were used. Cells borders were detected using a canny edge detection algorithm. If necessary, cell borders were corrected manually. Single cells were then numbered, and cellular fluorescence intensity was attributed to each corresponding cell. The intensity by area was determined by the quotient of fluorescence intensity over cell area for each cell.
Magnetic Tip Configuration: the magnetic tip was constructed from two magnets (cube: NdFeB, side length 5 mm, gold-plated, product number W-05-G; cuboid: NdFeB, 10 × 4 × 1.2 mm, gold-plated, product number: Q-10-4-1.2-G; both from supermagnete.de by Webcraft GmbH, Gottmadingen, Germany), with a 0.4 mm diameter polished steel wire (product number 1416, from Röslau Stahldraht, Röslau, Germany) attached to it. During the remote manipulation experiments, the magnetic tip was brought to the HeLa WT cell edge at a moderate distance of 10–20 µm for 10–15 min and removed thereafter.
Simulations of the magnetic tip stray field distribution were performed using COMSOL Multiphysics® software (COMSOL Inc., Stockholm, Sweden) with an AC/DC electromagnetics module. The magnetization curve of a neodymium magnet was implemented into the COMSOL library as material reference. According to the mentioned tip wire material, spring steel was chosen as material reference for the tip wire. This data was used to simulate the field distribution of the magnetic tip in the configuration used for remote manipulation experiments.

3. Results and Discussion

Magnetoferritins (MFts) and synomag are two structurally and bio-functionally complementary particles, which were chosen to test their suitability for the manipulation of biological functions inside cells. In case of MFts, the ferritin protein cages served as templates, which were further tailored to feature cytosolic stealth properties as well as to fluoresce for microscopic observation. To this end, we used a bacterial expression vector of the heavy chain subunit of the ferritin protein (HCF) with an mEGFP genetically fused to it. Note that the mEGFP was pointing away from the ferritin surface, as any encapsulation of the fluorescent molecules inside the cage structure was sterically inhibited. In order to render ferritin cages chemically inert and mobile within the living cell environment, a polyethylene glycol (PEG) coupling to its surface with 2 kDa PEG was performed as previously described [21]. The PEGylation was suggested to not only result in cytosolic stealth properties but also to improve cage stability during the magnetic core synthesis at 65 °C [18].
We synthesized a pure magnetic iron oxide core into the functionalized cage by taking advantage of the intrinsic ferroxidase activity of the heavy chain ferritin subunit in a Fenton-like reaction. For details of the MFt synthesis, refer to the Materials and Methods section of this work as well as Lisse et al. [21]. On the other hand, the fully synthetic core-shell MNPs, synomag, were used. These consist of iron oxide cores embedded into a dextran shell, forming an inhomogeneous sphere-like morphology [26]. Due to their production via co-precipitation, synomag are produced at much higher quantities than MFt, albeit with a larger variety in size. Thus, in subsequent steps, their size distribution was narrowed via separation in high gradient magnetic fields. Synomag are commercially available with amine-reactive surface groups for covalent coupling of a biofunctional molecule such as carboxyl-polyethylene glycol (COOH-PEG). While synomag MNPs previously proved to be highly suitable for magnetic hyperthermia [27] and magnetic particle imaging [28,29], they are probed herein with regard to their force and spatial manipulation capability.

3.1. MNP Characterization

To characterize both MNPs, we performed structural and morphological analyses of MFt and synomag particles; the schematic representations are shown in Figure 1a partially created using the CCP4mg Molecular-Graphics Software [30]. Dynamic light scattering (DLS) was used to determine the hydrodynamic particle size and polydispersity. The data of both particles showed a narrow, monomodal size distribution (Figure 1b) from which the effective hydrodynamic diameter DH was extracted. The peak value of the number distribution revealed a DH of 39 ± 3 nm and 39 ± 2 nm for MFt and synomag, respectively. Moreover, from the DLS measurement, a polydispersity index (PDI) of 0.11 (MFt) and 0.17 (PEGylated synomag) was derived. Overall, both particles showed appropriate and comparable size homogeneity. Such size monodispersity is important to enable a robust determination of particle properties.
It is also essential for any bio-technological or bio-medical application, since the MNPs’ response to a magnetic stimulus should be similar. The effective hydrodynamic diameter of <50 nm is suitable for subcellular applications, since cytoplasmic non-specific interactions between a nanoprobe and the proteins/fibers in the cytoplasm dramatically increase above 50 nm, as previously reported [31,32,33].
Transmission electron microscopy (TEM) images in Figure 1c–e were recorded to determine particle sizes and morphologies. TEM images of synomag MNPs (Figure 1c) confirmed the ‘nanoflower’-like structure of the NPs with irregular surface texture. MFt protein cages were visualized using uranyl acetate (Figure 1d) and showed the predicted uniform spherical structure. Note that mEGFP and PEG on the cage surface were likely to give rise to the increase in roughness of the outer cage. Magnetic cores, after their synthesis into MFts, were depicted in the unstained TEM sample (Figure 1e). Each TEM image was supplemented with a histogram of MNP size and the number of counted MNPs. The average diameter of synomag was 34 ± 8 nm, whereas dried MFt cores and cages were 5 ± 1 nm and 16 ± 2 nm, respectively (Table 1).
In the case of MFt, the sizes compared well with the protein crystalline structure, with a cage inner diameter of 8 nm and an outer diameter of 12 nm [34]. Based on structural considerations, mEGFP and PEG were predicted to add ~3 nm to the surface thickness [21]. Hence, the theoretically expected outer diameter of 18 nm compares well with our TEM results [35]. A comparison with the hydrodynamic diameters showed that synomag exhibited an 8.3 nm smaller diameter than its hydrodynamic diameter, which may be well explained by a ~4 nm hydrodynamic shell around the NPs [26]. MFt cages turned out to be about two times smaller than the hydrodynamic diameter. This discrepancy may have arisen from the additional hydrodynamic drag the PEG shell causes, whereby the size is overestimated during the DLS measurement, as previously reported [36]. Other potential explanations are the presence of larger iron oxide cores which form outside of the protein cages during the core synthesis step, or from remaining particle–particle interactions wherever the PEG passivation was insufficient to suppress all non-specific interactions.
Finally, differences between the solid size and the size in the solution were expected from theoretical considerations, since the hydrodynamic size determination assumes diffusion of an ideal sphere, as reported before [37,38,39]. Subsequently, electrophoretic light scattering (ELS) measurements were performed to determine the NP surface potential; the so-called ζ-potential. For synomag and MFt, the ζ-potential distribution exhibited a monomodal peak, confirming their surface homogeneity (data not shown) [39]. For both NPs, the ζ-potential turned out to be weakly negative: −3.7 mV for MFt and −2.0 mV for synomag (Table 1). While both of these ζ-potential values deviate only slightly from zero, their negative charge may support colloidal stability, cellular uptake, and cytoplasmic stealth properties, given the negative charge of many membrane and intracellular molecules [40,41]. Colloidal stability of synomag NPs was qualitatively assessed over the duration of 1 month (Figure S2). In addition, NPs of weak negative ζ-potential between −2 to −15 mV were recently shown to exhibit high intracellular mobility [32,42].
A major challenge in realizing a remote and efficient manipulation of MNPs in the cell environment is to adjust the NPs’ magnetic properties, such as their magnetization and magnetic anisotropy, to the external magnetic fields. To characterize the magnetic response of the herein presented NPs, conventional magnetic field- and temperature-dependent vibrating sample magnetometry (VSM) were conducted. Figure 2a,b shows magnetization curves for MFt and synomag. At T = 300 K, both samples exhibited superparamagnetic behavior and saturation magnetizations of 42 Am2/kg (MFt) and 69 Am2/kg (synomag). The insets of Figure 2a,b present the low field region. The superparamagnetic behavior is essential to reduce magnetic dipole–dipole interactions between the particles and hence their propensity to form chains. Exhibiting this property at physiological temperatures is further important to enable a manipulation of each particle individually without any application of torque to the NPs. At T = 5 K, both samples exhibited a hysteresis loop with coercive fields of 31 mT and 8 mT for MFt and synomag, respectively. This is a typical signature of the ferrimagnetic nature of the respective Fe oxides. The saturation magnetization at T = 5 K was 56 Am2/kg for MFt and 81 Am2/kg for synomag, which are both higher than the values at T = 300 K, as expected, but lower than the volume magnetizations of bulk magnetite (92 Am2/kg) and maghemite (82 Am2/kg) [43].
Figure 2c,d shows zero-field-cooling/field-warming (ZFC/FW) experiments. MFt exhibited a broad maximum centered at 86 K, which indicates the effective blocking temperature TB, and an irreversibility point at about 150 K. The MFt ZFC/FW maximum at 86 K found in this work is significantly larger than the TB reported in [44] (TB = 40 K) and in [45] (TB = 13 K). This shift in TB may have resulted from reduced distances and dipole–dipole interactions between cores in the powdered samples after the drying process. Here, in order to minimize paramagnetic contributions to the VSM data, the salt in the medium was strongly diluted, which in turn may have affected protein cage stability. Other contributions may arise from interactions between cores synthesized outside of the cages. Since the relation 21⋅kBTBKeffV holds [45] for VSM measurements with an averaging time of 1 s and blocking temperature TB, the effective magnetic anisotropy value Keff can be estimated with the particle volume V. Using the mean particle diameter of 5–6 nm, we obtained Keff = 2–4 · 105 J/m3. This value is reasonable for Fe oxide MNPs of small sizes, exhibiting a large surface to volume ratio. Here, magnetic moments at the surface of an MNP experience broken symmetry and crystal deterioration leading to a larger surface anisotropy compared to volumetric magnetite [43,46]. Such increasing effective magnetic anisotropies are typically observed with reduced MNP sizes [47,48,49].
For synomag, experimental magnetic field and temperature dependencies of the magnetization obtained in this work complement the characterization previously reported in [27]. We obtained a broad distribution of blocking temperatures with an anticipated center slightly above physiological temperature (see Figure 2d). This indicates that synomag MNPs are designed to effectuate maximal hysteretic losses in radio-frequency alternating magnetic fields and thus exhibit good heating capabilities for magnetic particle hyperthermia [19,27]. Taken together, both MNP systems possessed the key magnetic properties (superparamagnetism, sufficient magnetic response) necessary to realize a remote manipulation in external magnetic fields.

3.2. MNP Cellular Uptake

Despite protective coatings, iron oxide MNPs are still cautiously applied in nanomedicine due to potential side effects they could implicate after being injected into living tissue or cells [1,50]. Here, HeLa WT cells were used with the CellTiter-Blue assay to test the cell viability of both MNP systems, within the concentration range of 0.1–4.0 mg/mL. MNPs were transferred into the cells via a standard incubation protocol. As controls, untreated cells in DMEM and cells treated with MNP buffers were used. As an additional control, cells were killed by addition of 0.1% Triton-X for 30 min before imaging was started. As shown in Figure 3, traceable harmful effects for both samples appeared only at concentrations above 1.0 mg/mL. For ferritin cages (Figure 3a), a small reduction in viability was also detected in the control measurement with HEPES-2 buffer. Similarly, a viability drop for synomag only occurred at concentrations above 1.0 mg/mL. Addition of PBS did not affect the cell viability. In conclusion, both MNPs can be safely brought into the cell environment at concentrations up to 2.0 mg/mL. Hence, for subsequent particle incubation experiments, the upper concentration limit was set to 1.0 mg/mL (equals to 6.4 µM for MFt and 18.3 pM for synomag) to rule out any negative MNP-related effect. Previous studies investigating the effects of iron oxide NPs on cell viability reported similar results, where multi-core iron oxide NPs passivated with citrate of up to 5 mM showed little negative effects on cells [51]. Additionally, PEGylation and passivation was reported to reduce cellular damage upon uptake [52,53], supporting our particle passivation strategy.
In order to characterize the process of particle incubation and uptake further, and in view of subsequent magnetic manipulation, where an efficient particle delivery into the cell is desirable, we evaluated the intracellular NP amount via image data analysis of their fluorescence. NP uptake by HeLa WT cells was monitored at distinct incubation times of 6 and 24 h to probe different long-time temporal effects as well as for concentrations between 0.1–1.0 mg/mL. In this study, PEGylated Ft cages without a magnetic core were used, since magnetoferritin is freshly produced only in small amounts and since the magnetic properties are not relevant for this assay. Care was taken to record the cell samples at identical imaging settings, in order to not bias the detected fluorescence intensities. Obtained data was evaluated using a custom-written Matlab algorithm. Therein, the intensity per pixel inside each cell as a function of NP concentration was extracted and normalized to the amount of cells found (see Figure 4a for Ft cages and Figure 4d for synomag MNPs). Ft cages demonstrated a substantially larger cellular uptake compared to synomag, with an increase of the MNP concentration inside the cell if incubated with higher MNP concentration. Evaluation of the uptake for different concentrations after 6 h of incubation showed only a slight increase in the recorded intensity of both particles, even at the highest concentration of 1 mg/mL (Figure 4d). After 24 h, a higher amount of MNPs was taken up, and this increased with increasing particle concentration in the medium. Figure 4b,e show phase contrast images of the cells and Figure 4c,f are the corresponding fluorescence images indicating the MNP distribution after 24 h of incubation. In Figure 4c, Ft cages show a cloud-like accumulation around the nucleus. This is a typical signature of particles which are taken up via the endosomal pathway. Here, after initial encapsulation within the endosome, the cargo is transported towards the endoplasmic reticulum or Golgi apparatus, where it is further processed. In contrast, synomag MNPs were more sparsely distributed, accumulating around the nucleus as well as in spots across the cell (see Figure 4f). Interestingly, according to Figure 4a,d, Ft NPs were taken up more efficiently compared to synomag MNPs. This may be attributed to the twofold difference in their solid diameters. Previous studies already reported a positive effect of a decreasing particle size on cellular uptake [54]. The slight negative ζ-potential (see Tables S1 and S2) measured for both NPs may also enhance particle uptake, since most intracellular proteins and lipids are negatively charged. The negative surface charge can further protect NPs against non-specific interactions inside the cell, preventing their entrapment [32]. For our MNPs, the stealth properties were further enhanced by modifying the NPs surface using PEG as passivating agent, as previously suggested [38,42,54].

3.3. Magnetic Tip Characterization

After successful uptake, we then sought to realize the remote and localized manipulation of MNPs inside cells using a magnetic tip. To this end, first the magnetic tip and the generated magnetic flux density gradient had to be characterized. The magnetic tip was set up as a combination of two permanent magnets and a string wire was attached to the lower magnet (Figure 5a, inset). The string wire was made of spring steel and pulled into a tip of parabolic-like shape.
To characterize the magnetic flux density generated by the magnetic tip, 3D finite element modeling as well as an in vitro calibration assay were performed. In case of finite element modeling, the magnetic flux density was simulated for 2, 3, and 4 mm lengths of the tip wire and plotted against the distance from the tip (see Figure 5a). Unsurprisingly, the 2 mm long tip exhibited the highest magnetic flux densities at small distances that were critical for remote manipulation. Moreover, the strong dependency of the absolute magnetic flux density values indicates how important an accurate choice of wire length is. The grey area in Figure 5a corresponds to the grey line in Figure 5b, where the simulated magnetic flux density around the magnetic tip is shown as 2D projection from the top. Figure 5c depicts the magnetization curve of the tip material with a saturation magnetization of 19.2 Am2/kg and a coercive field of 1.2 mT. Figure 5d shows the result of an in vitro assay, which was introduced to measure the magnetic force generated by the magnetic tip over 100 µm distance. This is the relevant scale for particle manipulation experiments in single cells.
To realize this assay, precise positioning of the tip inside the sample was achieved using an InjectMan 4 micromanipulator, where the three spatial axes as well as the angle of the magnetic tip could be adjusted with 20 nm spatial precision. The tip was positioned in a mixture of 85% glycerin and 15% distilled water, to mimic intracellular viscosity conditions. As magnetic nanoparticle probes, Nanomag-D with 250 nm hydrodynamic diameter (micromod GmbH, Rostock, Germany) were used. These enabled individual detection and reliable tracking with phase contrast microscopy. MNPs within the glycerin–water mixture were attracted toward the tip, and the trajectories of several 100 particles were recorded. Thereafter, the Fiji plugin, TrackMate, and self-written routines were used to trace the particle trajectories and to calculate the velocity vectors along the particle trajectory [55]. Using Stokes’ law,
F m a g = 6 π η R v ,
the magnetic force generated by the tip was calculated, which typically lay within the range of 10–100 fN. Here, η is the dynamic viscosity of the medium as determined in [32], R is the MNP radius, and υ is the velocity of MNPs extracted from the single-particle trajectories.

3.4. MNP Manipulation in Cells

Having established the above prerequisites for the magnetic manipulation approach, we probed MNP transfer into HeLa WT cells and their subsequent intracellular mobility via two approaches: MNP injection using a microneedle (Figure 6) and MNP incubation (Figure 7).
In both cases, MNP localization was recorded via fluorescence microscopy in the presence of the magnetic tip for about 30 min followed by recordings in the magnetic tip’s absence. Fluorescence intensity distribution inside a single cell was monitored and plotted as a function of time for regions within the magnetic tip’s sphere of action. The mean intensity I for this region as a function of time was fitted by an exponential fit function to obtain the characteristic accumulation τacc and relaxation τrel times:
I a c c = A · e t + B τ a c c + C
and
I r e l = A · e t B τ r e l + C
where A is a fit parameter reflecting the intensity plateau of the exponential function on long time scales, B represents the temporal off-set of the starting point of attraction/relaxation, C stands for the intensity offset, and τacc and τrel are characteristic accumulation and relaxation times, respectively.
Injection was performed using a microinjector (FemtoJet 4i) in combination with a micromanipulator (InjectMan 4). For particle delivery, a microinjection capillary (Femtotip II) with an inner diameter of 500 nm was used. Dispersed particles should effortlessly pass through this capillary, underlining the importance of using a highly homogeneous and non-reactive MNP sample. MFt with PEGylated surface was readily injected. Synomag with a NH2 coating was tested initially, but experienced aggregation inside the injection needle, which irreversibly blocked it. Since surface passivated MNPs are expected to exhibit reduced particle–particle interactions and to be less prone to aggregation, the PEGylation protocol for MFt was also conducted for synomag NPs. The effective hydrodynamic diameter after PEGylation changed from 42 ± 1 to 39 ± 2 (Table S2, Supplementary Information) and was hence similar to the one of MFt (Figure 1). This PEG passivation indeed facilitated synomag microinjection.
Injected MFts (see Figure 6a–d) were instantaneously homogeneously distributed after microinjection into the cell. It was possible to both attract and accumulate particles using a magnetic tip. Once the magnetic tip was removed, MFts returned to the initial homogeneous distribution within minutes. Figure 6e shows the relatively fast kinetics with a characteristic accumulation time τacc of 2.2 ± 0.1 min and a relaxation time τrel of 3.1 ± 0.1 min. Very similar values were reported in a previous study, where PEGylated core-shell maghemite–silica particles with diameters of about 40 nm were accumulated within τacc of ~1 min, whereas the relaxation times τrel were ~10 min with a large distribution between 2 and 35 min [31].
In contrast, obtaining a homogeneous particle distribution after synomag injection appeared to be more difficult than with MFt. An example of microinjection of PEGylated synomag into HeLa WT is given in Figure 6f–i. Synomag MNPs exhibited heterogeneous particle distribution inside cells and, despite the PEG passivation, were still prone to entrapment in the cytoplasm. Nevertheless, in some cases, MNPs could be attracted via the magnetic tip. After magnetic tip removal, the relaxation dynamics were recorded and exhibited significant loss in mobility for synomag compared to MFt. Attraction and relaxation times for the case shown in Figure 6 increased to τacc = 5.1 ± 0.1 min and τrel = 7.7 ± 0.2 min. Here, in contrast to magnetoferritin, particles did not fully redisperse but accumulated at a slightly different position inside the cell. Intriguingly, synomag attraction towards the magnetic tip could be monitored for distances up to 100 µm. This can be attributed to the higher saturation magnetization and magnetic moment (Figure 2b), corresponding to higher forces of synomag compared to MFt. Thus, higher forces can develop and attract particles across the cell over large distances, despite increasing non-specific interactions. Qualitatively, successful particle attraction was observed in around 10% of the analyzed cells, of which 50% exhibited a relaxation of particle distributions after tip removal.
In the case of magnetic manipulation after particle incubation, we considered the results of our particle uptake study as presented in Figure 4. Choosing incubation conditions of 0.5 mg/mL of MFt in the extracellular medium over 24 h led to the expected high particle uptake. However, MFts could not be attracted by a magnetic tip, not even over distances less than 10 µm. Most probably this was due to increasing intracellular interactions and particle recognition by the cell’s autophagy machinery on long time scales. Therefore, shorter incubation times of 1, 2, 3, 4, and 5 h with 0.5 mg/mL of MFt in the extracellular medium were tested. Cells were washed and, upon observation under the microscope, those cells exhibiting sufficient MFt signal were monitored for 1 h while approaching and removing a magnetic tip.
Figure 7a–d shows a cell after incubation with MFt for 5 h. Here, prior to magnetic manipulation, MFts were evenly distributed across the cell. Magnetic particles were attracted with a characteristic time of τacc = 0.56 ± 0.04 min and redistribution in absence of the magnetic tip occurred with a characteristic time of τrel = 0.53 ± 0.03 min. These values are distinctively smaller than values from injection studies. Changes in the attraction kinetics may, in general, also be attributed to variable distances between the magnetic tip and the MNPs, since the magnetic attraction force scales proportional to 1/r2, where r is the distance. However, in this case, both attraction and relaxation dynamics evolved on fast timescales, suggesting that MFts did not enter the highly viscous cytoplasm of the cell. Instead, after the short incubation time used, MFts may be attached on the outer side of the cell plasma membrane, wherefore particles could be more easily attracted towards the tip. In conclusion, manipulation of MFts after incubation was difficult to realize as, in most of the cases, MFt remained immobile. Thus, magnetic forces in the fN range will only attract the MNPs when the applied force surpasses any intracellular interaction. Note that for longer measurement times the magnetic tip became increasingly fluorescent due to freely moving MFt particles in the extracellular medium. These were present despite several washing steps prior to imaging. While this was disturbing during imaging, the MNP attraction by the tip provided evidence that the particles were still magnetic after 24 h incubation (see Figure 7c).
In Figure 7f–j, an example of incubation and manipulation of PEGylated synomag is shown. In contrast to MFt, synomag manipulation was possible even after 24 h of incubation. The cell shown in Figure 7f was incubated with a concentration of 0.5 mg/mL for 24 h, washed, and then analyzed under the microscope. Although being mostly located around the nucleus, PEGylated synomag MNPs were still attracted by the magnetic tip. The accumulation time τacc amounted to 21.8 ± 0.3 min, and was significantly higher than for MFt and synomag after MNP injection. As discussed in the context of Figure 4, this may be attributed to an entrapment of synomag inside cellular vesicles during particle uptake. In line with this interpretation, no intensity relaxation and particle redistribution after magnetic tip removal was observed (Figure 7j). Instead, similarly to Figure 7c, the magnetic tip gradually accumulated remaining MNPs from the extracellular medium and showed a fluorescent signal, confirming their magnetic response even after 24 h of incubation. However, as a result of this attraction, a distinct drop of intensity was observed upon tip removal, after which intensities remained constant (see Figure 7j). Accordingly, the fit for the relaxation time determination in this case became obsolete. Based on the aforementioned results concerning synomag, we hence conclude that higher magnetic forces exerted by PEGylated synomag—in contrast to MFt—can exceed the non-specific interaction forces. The particles, as well as any coupled molecule, may then be pulled across the cell. Such pulling may also affect the cytoskeletal organization in those cases, where MNPs encapsulated in endosomes would couple to cytoskeletal filaments. The measured attraction/relaxation kinetics are sufficiently slow to allow for some spatial relocalization. Staining of intracellular filaments and their monitoring during manipulation may be of interest for further studies on cell cytoskeletal mechanics.
In both approaches, we cannot rule out that biodegradation would affect the success rate of our magnetic manipulation approach. However, successful manipulation experiments show that magnetically responding particles and the fluorescence signal are colocalized during attraction toward the magnetic tip. In addition, in a previous study [21], one of the authors showed how surface PEGylation on magnetoferritin helps to elude intracellular xenorecognition and biodegradation. To clarify the intracellular state of MNP integrity, further assays need to be developed.
The possibility to manipulate MNPs after incubation and uptake by cells is of particular interest, since MNP incubation affects multiple cells simultaneously and is considered a multicellular approach. Understanding MNP incubation and uptake is further useful in magnetic cell sorting studies, as suggested by Massner et al. [45]. In addition, the possibility to transfer localized forces to the cell is important whenever mechanical forces influence a cellular process. For example, Tseng et al. showed that the cell orientation during cell division is susceptible to MNP-mediated force application [56], and Seo et al. [11] demonstrated how mechanosensitive receptors on the cell surface influence cell expression. Here, MNP attraction was realized over distances as far as 100 µm, applying forces in the fN regime. An upscaling to larger manipulation distances might be achieved with a different magnetic manipulation setup, where similar magnetic field gradients (~104 T/m) at larger distances (~mm) are generated. In this case, an in vivo manipulation can also be envisaged. In this work, we have provided a proof of principle, under which conditions a spatial relocalization or a force stimulus can be applied. This may be further used for the manipulation of intracellular cell organization as well as for the stimulation of single cell signaling.

4. Conclusions

In this work, we compared two new classes of MNPs: semisynthetic single core magnetoferritin (MFt) and multicore synomag MNPs, in view of future magnetic manipulation studies in single cells. Both particles fulfilled the prerequisite of size monodispersity and high biocompatibility up to MNP concentrations of 2 mg/mL. Efficient intracellular transfer of MNPs was realized by simple MNP incubation, which is advantageous for nanomedicine applications compared to other transfer methods. We attributed higher transfer efficiencies in MFts compared to synomag to the smaller size and the slightly more negative ζ-potential. The difference in magnetic core size further gave rise to varying forces in in vitro experiments, with the larger magnetic moments of synomag developing higher magnetic force responses than MFts. These MNP characteristics were ultimately tested in two subcellular manipulation approaches: (1) particle microinjection, where free particle motion in the cell cytoplasm and reversible particle redistribution via a magnetic tip was realized. In this first approach, MFts exhibited higher mobility and reversible attraction–relaxation kinetics compared to synomag NPs. The second manipulation approach was based on (2) particle incubation and uptake by cells. In this second approach, most NPs accumulated at cell organelles and exhibited reduced mobility. Magnetic field gradients probed the NP mechanical force response, which successfully led to synomag attraction across the cell, whereas MFts remained immobile. Hence, MFts are more suitable for non-invasive spatial manipulation approaches in cells, whereas synomag are well utilized to mediate nanoscale forces. The experimental assays described and the values reported for MNPs provide benchmarks for future magnetic manipulation experiments, whenever a spatial or mechanical manipulation of a biological process is envisaged.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/nano11092267/s1, Figure S1: SDS-PAGE analysis of purification steps of ferritin shells; Table S1: Hydrodynamic size, polydispersity index and ζ-potential for subsequent steps of magnetoferritin synthesis; Table S2: Hydrodynamic size, polydispersity index and ζ-potential for synomag nanoparticles with three surface modifications. Figure S2. Qualitative assessment of the colloidal stability for synomag nanoparticles over time from 1 min up to 1 month.

Author Contributions

Conceptualization, C.M. and I.P.N.; methodology, C.M., I.P.N., A.N., U.W. and N.B.; software, A.N. and J.-S.B.; investigation, I.P.N., A.N., J.-S.B., U.W., M.R.S. and M.O.; resources, C.M., M.K. and M.F.; writing—original draft preparation, I.P.N.; writing—review and editing, C.M., I.P.N., A.N. and U.W.; visualization, I.P.N. and A.N.; supervision, C.M. and I.P.N.; project administration, I.P.N.; funding acquisition, C.M., M.K. and M.F. All authors have read and agreed to the published version of the manuscript.

Funding

C.M. acknowledges financial support of the Deutsche Forschungsgemeinschaft (DFG) through SFB1208 ‘Identity and Dynamics of Membrane Systems’ (A12). C.M., I.N. and A.N. acknowledge financial support via the ‘Freigeist fellowship’ of VolkswagenFoundation. This work was performed on synomag particles purchased from Micromod Partikeltechnologie GmbH with financial support from Fonds der Chemischen Industrie. The authors acknowledge the DFG and the State of North Rhine–Westphalia for funding the cryo-TEM (INST 208/749-1 FUGG).

Data Availability Statement

We can provide original data upon request.

Acknowledgments

We acknowledge C. Seidel and L. Schmitt and their groups for sharing their biochemistry equipment and expert knowledge on its handling. We thank the group of M. Coppey and B. Hajj at the Laboratoire Physico-Chimie, Institut Curie, Paris, France for providing the mEGFP::HCF plasmid. C.M. acknowledges Maxime Dahan, Institut Curie, for introduction to the topic. We thank Daniel Kuckla for microscopy support, optimization of magnetic core loading setup, and useful comments to improve the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Anik, M.I.; Hossain, M.K.; Hossain, I.; Mahfuz, A.M.U.B.; Rahman, M.T.; Ahmed, I. Recent Progress of Magnetic Nanoparticles in Biomedical Applications: A Review. Nano Sel. 2021, 2, 1146–1186. [Google Scholar] [CrossRef]
  2. Kim, C.; Kim, H.; Park, H.; Lee, K.Y. Controlling the Porous Structure of Alginate Ferrogel for Anticancer Drug Delivery under Magnetic Stimulation. Carbohydr. Polym. 2019, 223, 115045. [Google Scholar] [CrossRef] [PubMed]
  3. Pavlov, A.M.; Gabriel, S.A.; Sukhorukov, G.B.; Gould, D.J. Improved and Targeted Delivery of Bioactive Molecules to Cells with Magnetic Layer-by-Layer Assembled Microcapsules. Nanoscale 2015, 7, 9686–9693. [Google Scholar] [CrossRef] [PubMed]
  4. Moghram, W.I.; Kruger, A.; Sander, E.A.; Selby, J.C. Magnetic Tweezers with Magnetic Flux Density Feedback Control. Rev. Sci. Instrum. 2021, 92, 034101. [Google Scholar] [CrossRef] [PubMed]
  5. Li, J.H.; Santos-Otte, P.; Au, B.; Rentsch, J.; Block, S.; Ewers, H. Directed Manipulation of Membrane Proteins by Fluorescent Magnetic Nanoparticles. Nat. Commun. 2020, 11, 4259. [Google Scholar] [CrossRef]
  6. Pankhurst, Q.A.; Thanh, N.K.T.; Jones, S.K.; Dobson, J. Progress in Applications of Magnetic Nanoparticles in Biomedicine. J. Phys. D Appl. Phys. 2009, 42, 224001. [Google Scholar] [CrossRef][Green Version]
  7. Sangaiya, P.; Jayaprakash, R. A Review on Iron Oxide Nanoparticles and Their Biomedical Applications. J. Supercond. Nov. Magn. 2018, 31, 3397–3413. [Google Scholar] [CrossRef]
  8. Kurlyandskaya, G.V.; Novoselova, I.P.; Schupletsova, V.V.; Andrade, R.; Dunec, N.A.; Litvinova, L.S.; Safronov, A.P.; Yurova, K.A.; Kulesh, N.A.; Dzyuman, A.N.; et al. Nanoparticles for Magnetic Biosensing Systems. J. Magn. Magn. Mater. 2017, 431, 249–254. [Google Scholar] [CrossRef]
  9. Avugadda, S.K.; Wickramasinghe, S.; Niculaes, D.; Ju, M.; Lak, A.; Silvestri, N.; Nitti, S.; Roy, I.; Samia, A.C.S.; Pellegrino, T. Uncovering the Magnetic Particle Imaging and Magnetic Resonance Imaging Features of Iron Oxide Nanocube Clusters. Nanomaterials 2021, 11, 62. [Google Scholar]
  10. Etoc, F.; Lisse, D.; Bellaiche, Y.; Piehler, J.; Coppey, M.; Dahan, M. Subcellular Control of Rac-GTPase Signalling by Magnetogenetic Manipulation Inside Living Cells. Nat. Nanotechnol. 2013, 8, 193–198. [Google Scholar] [CrossRef]
  11. Seo, D.; Southard, K.M.; Kim, J.; Lee, H.J.; Farlow, J.; Lee, J.; Litt, D.B.; Haas, T.; Alivisatos, A.P.; Cheon, J.; et al. A Mechanogenetic Toolkit for Interrogating Cell Signaling in Space and Time. Cell 2016, 165, 1507–1518. [Google Scholar] [CrossRef] [PubMed][Green Version]
  12. Huang, H.; Delikanli, S.; Zeng, H.; Ferkey, D.M.; Pralle, A. Remote Control of Ion Channels and Neurons through Magnetic-Field Heating of Nanoparticles. Nat. Nanotechnol. 2010, 5, 602–606. [Google Scholar] [CrossRef] [PubMed]
  13. Liang, Y.; Xie, J.; Yu, J.; Zheng, Z.; Liu, F.; Yang, A. Recent Advances of High Performance Magnetic Iron Oxide Nanoparticles: Controlled Synthesis, Properties Tuning and Cancer Theranostics. Nano Sel. 2021, 2, 216–250. [Google Scholar] [CrossRef]
  14. Chasteen, N.D.; Harrison, P.M. Mineralization in Ferritin: An Efficient Means of Iron Storage. J. Struct. Biol. 1999, 126, 182–194. [Google Scholar] [CrossRef][Green Version]
  15. Aronovitz, N.; Neeman, M.; Zarivach, R. Ferritin Iron Mineralization and Storage: From Structure to Function. In Iron Oxides: From Nature to Applications, 1st ed.; Faivre, D., Ed.; Wiley-VCH: Weinheim, Germany, 2016; pp. 117–141. [Google Scholar]
  16. Meldrum, F.C.; Heywood, B.R.; Mann, S. Magnetoferritin: In Vitro Synthesis of a Novel Magnetic Protein. Science 1992, 257, 522–523. [Google Scholar] [CrossRef]
  17. Klem, M.T.; Resnick, D.A.; Gilmore, K.; Young, M.; Idzerda, Y.U.; Douglas, T. Synthetic Control over Magnetic Moment and Exchange Bias in All-Oxide Materials Encapsulated within a Spherical Protein Cage. J. Am. Chem. Soc. 2007, 129, 197–201. [Google Scholar] [CrossRef]
  18. Yang, C.; Cao, C.; Cai, Y.; Xu, H.; Zhang, T.; Pan, Y. Effects of PEGylation on Biomimetic Synthesis of Magnetoferritin Nanoparticles. J. Nanoparticle Res. 2017, 19, 101. [Google Scholar] [CrossRef]
  19. Pankhurst, Q.A.; Connolly, J.; Jones, S.K.; Dobson, J. Applications of Magnetic Nanoparticles in Biomedicine. J. Phys. D Appl. Phys. 2003, 36, R167–R181. [Google Scholar] [CrossRef][Green Version]
  20. Chen, R.; Romero, G.; Christiansen, M.G.; Mohr, A.; Anikeeva, P. Wireless Magnetothermal Deep Brain Stimulation. Science 2015, 347, 1477–1480. [Google Scholar] [CrossRef][Green Version]
  21. Liße, D.; Monzel, C.; Vicario, C.; Manzi, J.; Maurin, I.; Coppey, M.; Piehler, J.; Dahan, M. Engineered Ferritin for Magnetogenetic Manipulation of Proteins and Organelles Inside Living Cells. Adv. Mater. 2017, 29, 1700189. [Google Scholar] [CrossRef] [PubMed]
  22. Fernández-Sánchez, M.E.; Barbier, S.; Whitehead, J.; Béalle, G.; Michel, A.; Latorre-Ossa, H.; Rey, C.; Fouassier, L.; Claperon, A.; Brullé, L.; et al. Mechanical Induction of the Tumorigenic β-Catenin Pathway by Tumour Growth Pressure. Nature 2015, 523, 92–95. [Google Scholar] [CrossRef]
  23. Monzel, C.; Vicario, C.; Piehler, J.; Coppey, M.; Dahan, M. Magnetic Control of Cellular Processes Using Biofunctional Nanoparticles. Chem. Sci. 2017, 8, 7330–7338. [Google Scholar] [CrossRef][Green Version]
  24. Laemmli, U.K. Cleavage of Structural Proteins during the Assembly of the Head of Bacteriophage T4. Nature 1970, 227, 680–685. [Google Scholar] [CrossRef]
  25. Schindelin, J.; Arganda-Carreras, I.; Frise, E.; Kaynig, V.; Longair, M.; Pietzsch, T.; Preibisch, S.; Rueden, C.; Saalfeld, S.; Schmid, B.; et al. Fiji: An Open-Source Platform for Biological-Image Analysis. Nat. Methods 2012, 9, 676–682. [Google Scholar] [CrossRef][Green Version]
  26. Gavilán, H.; Kowalski, A.; Heinke, D.; Sugunan, A.; Sommertune, J.; Varón, M.; Bogart, L.K.; Posth, O.; Zeng, L.; González-Alonso, D.; et al. Colloidal Flower-Shaped Iron Oxide Nanoparticles: Synthesis Strategies and Coatings. Part. Part. Syst. Charact. 2017, 34, 1700094. [Google Scholar] [CrossRef][Green Version]
  27. Bender, P.; Fock, J.; Frandsen, C.; Hansen, M.F.; Balceris, C.; Ludwig, F.; Posth, O.; Wetterskog, E.; Bogart, L.K.; Southern, P.; et al. Relating Magnetic Properties and High Hyperthermia Performance of Iron Oxide Nanoflowers. J. Phys. Chem. C 2018, 122, 3068–3077. [Google Scholar] [CrossRef][Green Version]
  28. Vogel, P.; Kampf, T.; Rückert, M.; Grüttner, C.; Kowalski, A.; Teller, H.; Behr, V. Synomag®: The New High-Performance Tracer for Magnetic Particle Imaging. Int. J. Magn. Part. Imaging 2021, 7, 1–6. [Google Scholar]
  29. Griese, F.; Knopp, T.; Gruettner, C.; Thieben, F.; Müller, K.; Loges, S.; Ludewig, P.; Gdaniec, N. Simultaneous Magnetic Particle Imaging and Navigation of Large Superparamagnetic Nanoparticles in Bifurcation Flow Exper-Iments. J. Magn. Magn. Mater. 2020, 498, 166206. [Google Scholar] [CrossRef][Green Version]
  30. McNicholas, S.; Potterton, E.; Wilson, K.S.; Noble, M.E.M. Presenting Your Structures: The CCP4mg Molecular-Graphics Software. Acta Crystallogr. Sect. D Biol. Crystallogr. 2011, 67, 386–394. [Google Scholar] [CrossRef] [PubMed][Green Version]
  31. Etoc, F.; Vicario, C.; Lisse, D.; Siaugue, J.-M.; Piehler, J.; Coppey, M.; Dahan, M. Magnetogenetic Control of Protein Gradients Inside Living Cells with High Spatial and Temporal Resolution. Nano Lett. 2015, 15, 3487–3494. [Google Scholar] [CrossRef]
  32. Etoc, F.; Balloul, E.; Vicario, C.; Normanno, D.; Liße, D.; Sittner, A.; Piehler, J.; Dahan, M.; Coppey, M. Non-Specific Interactions Govern Cytosolic Diffusion of Nanosized Objects in Mammalian Cells. Nat. Mater. 2018, 17, 740–746. [Google Scholar] [CrossRef] [PubMed][Green Version]
  33. Gupta, A.K.; Gupta, M. Synthesis and Surface Engineering of Iron Oxide Nanoparticles for Biomedical Applications. Biomaterials 2005, 26, 3995–4021. [Google Scholar] [CrossRef]
  34. Harrison, P.M.; Arosio, P. The Ferritins: Molecular Properties, Iron Storage Function and Cellular Regulation. Biochim. Biophys. Acta-Bioenerg. 1996, 1275, 161–203. [Google Scholar] [CrossRef][Green Version]
  35. Fan, K.; Cao, C.; Pan, Y.; Lu, D.; Yang, D.; Feng, J.; Song, L.; Liang, M.; Yan, X. Magnetoferritin Nanoparticles for Targeting and Visualizing Tumour Tissues. Nat. Nanotechnol. 2012, 7, 459–464. [Google Scholar] [CrossRef]
  36. Kusterle, M.; Jevsevar, S.; Porekar, V.G. Size of Pegylated Protein Conjugates Studied by Various Methods. Acta Chim. Slov. 2008, 55, 594–601. [Google Scholar]
  37. Novoselova, I.P.; Safronov, A.P.; Samatov, O.M.; Medvedev, A.I.; Kurlyandskaya, G.V. Biocompatible Ferrofluids with Iron Oxide Nanoparticles Fabricated by Laser Target Evaporation. IEEE Magn. Lett. 2015, 6, 6–9. [Google Scholar] [CrossRef]
  38. Debayle, M.; Balloul, E.; Dembele, F.; Xu, X.; Hanafi, M.; Ribot, F.; Monzel, C.; Coppey, M.; Fragola, A.; Dahan, M.; et al. Zwitterionic Polymer Ligands: An Ideal Surface Coating To Totally Suppress Protein-Nanoparticle Corona Formation? Biomaterials 2019, 219, 119357. [Google Scholar] [CrossRef][Green Version]
  39. Lim, J.; Yeap, S.P.; Che, H.X.; Low, S.C. Characterization of Magnetic Nanoparticle by Dynamic Light Scattering. Nanoscale Res. Lett. 2013, 8, 381. [Google Scholar] [CrossRef][Green Version]
  40. Forest, V.; Cottier, M.; Pourchez, J. Electrostatic Interactions Favor the Binding of Positive Nanoparticles on Cells: A Reductive Theory. Nano Today 2015, 10, 677–680. [Google Scholar] [CrossRef][Green Version]
  41. Schavemaker, P.E.; Śmigiel, W.M.; Poolman, B. Ribosome Surface Properties May Impose Limits on the Nature of the Cytoplasmic Proteome. eLife 2017, 6, e30084. [Google Scholar] [CrossRef] [PubMed]
  42. Liße, D.; Richter, C.P.; Drees, C.; Birkholz, O.; You, C.; Rampazzo, E.; Piehler, J. Monofunctional Stealth Nanoparticle for Unbiased Single Molecule Tracking Inside Living Cells. Nano Lett. 2014, 14, 2189–2195. [Google Scholar] [CrossRef]
  43. Coey, J.M.D. Magnetism and Magnetic Materials, 1st ed.; Cambridge University Press: Cambridge, UK, 2010. [Google Scholar]
  44. Skoropata, E.; Desautels, R.D.; Falvo, E.; Ceci, P.; Kasyutich, O.; Freeland, J.W.; van Lierop, J. Intra–and Interparticle Magnetism of Cobalt-Doped Iron-Oxide Nanoparticles Encapsulated in a Synthetic Ferritin Cage. Phys. Rev. B. 2014, 90, 174424. [Google Scholar] [CrossRef][Green Version]
  45. Massner, C.; Sigmund, F.; Pettinger, S.; Seeger, M.; Hartmann, C.; Ivleva, N.P.; Niessner, R.; Fuchs, H.; Hrabě de Angelis, M.; Stelzl, A.; et al. Genetically Controlled Lysosomal Entrapment of Superparamagnetic Ferritin for Multimodal and Multiscale Imaging and Actuation with Low Tissue Attenuation. Adv. Funct. Mater. 2018, 28, 1706793. [Google Scholar] [CrossRef]
  46. Aragón, R. Cubic Magnetic Anisotropy of Nonstoichiometric Magnetite. Phys. Rev. B. 1992, 46, 5334–5338. [Google Scholar] [CrossRef]
  47. Efremova, M.V.; Nalench, Y.A.; Myrovali, E.; Garanina, A.S.; Grebennikov, I.S.; Gifer, P.K.; Abakumov, M.A.; Spasova, M.; Angelakeris, M.; Savchenko, A.G.; et al. SIze-Selected Fe3O4–Au Hybrid Nanoparticles for Improved Magnetism-Based Theranostics. Beilstein J. Nanotechnol. 2018, 9, 2684–2699. [Google Scholar] [CrossRef][Green Version]
  48. Phong, P.T.; Oanh, V.T.K.; Lam, T.D.; Phuc, N.X.; Tung, L.D.; Thanh, N.T.K.; Manh, D.H. Iron Oxide Nanoparticles: Tunable Size Synthesis and Analysis in Terms of the Core–Shell Structure and Mixed Coercive Model. J. Electron. Mater. 2017, 46, 2533–2539. [Google Scholar] [CrossRef]
  49. Nayek, C.; Manna, K.; Imam, A.A.; Alqasrawi, A.Y.; Obaidat, I.M. Size-Dependent Magnetic Anisotropy of PEG Coated Fe3O4 Nanoparticles; Comparing Two Magnetization Methods. IOP Conf. Ser. Mater. Sci. Eng. 2018, 305, 012012. [Google Scholar] [CrossRef]
  50. Jiang, Z.; Shan, K.; Song, J.; Liu, J.; Rajendran, S.; Pugazhendhi, A.; Jacob, J.A.; Chen, B. Toxic Effects of Magnetic Nanoparticles on Normal Cells and Organs. Life Sci. 2019, 220, 156–161. [Google Scholar] [CrossRef]
  51. Lartigue, L.; Hugounenq, P.; Alloyeau, D.; Clarke, S.P.; Lévy, M.; Bacri, J.-C.; Bazzi, R.; Brougham, D.F.; Wilhelm, C.; Gazeau, F. Cooperative Organization in Iron Oxide Multi-Core Nanoparticles Potentiates Their Efficiency as Heating Mediators and MRI Contrast Agents. ACS Nano 2012, 6, 10935–10949. [Google Scholar] [CrossRef]
  52. Guardia, P.; Di Corato, R.; Lartigue, L.; Wilhelm, C.; Espinosa, A.; Garcia-Hernandez, M.; Gazeau, F.; Manna, L.; Pellegrino, T. Water-Soluble Iron Oxide Nanocubes with High Values of Specific Absorption Rate for Cancer Cell Hyperthermia Treatment. ACS Nano 2012, 6, 3080–3091. [Google Scholar] [CrossRef]
  53. Curcio, A.; Silva, A.K.A.; Cabana, S.; Espinosa, A.; Baptiste, B.; Menguy, N.; Wilhelm, C.; Abou-Hassan, A. Iron Oxide Nanoflowers @ CuS Hybrids for Cancer Tri-Therapy: Interplay of Photothermal Therapy, Magnetic Hyperthermia and PhotoDynamic Therapy. Theranostics 2019, 9, 1288–1302. [Google Scholar] [CrossRef]
  54. Salatin, S.; Dizaj, S.M.; Khosroushahi, A.Y. Effect of the Surface Modification, Size, and Shape on Cellular Uptake of Nanoparticles. Cell Biol. Int. 2015, 39, 881–890. [Google Scholar] [CrossRef] [PubMed]
  55. Tinevez, J.Y.; Perry, N.; Schindelin, J.; Hoopes, G.M.; Reynolds, G.D.; Laplantine, E.; Bednarek, S.Y.; Shorte, S.L.; Eliceiri, K.W. TrackMate: An Open and Extensible Platform for Single-Particle Tracking. Methods 2017, 115, 80–90. [Google Scholar] [CrossRef]
  56. Tseng, P.; Judy, J.W.; Di Carlo, D. Magnetic Nanoparticle-Mediated Massively Parallel Mechanical Modulation of Single-Cell Behavior. Nat. Methods 2012, 9, 1113–1119. [Google Scholar] [CrossRef][Green Version]

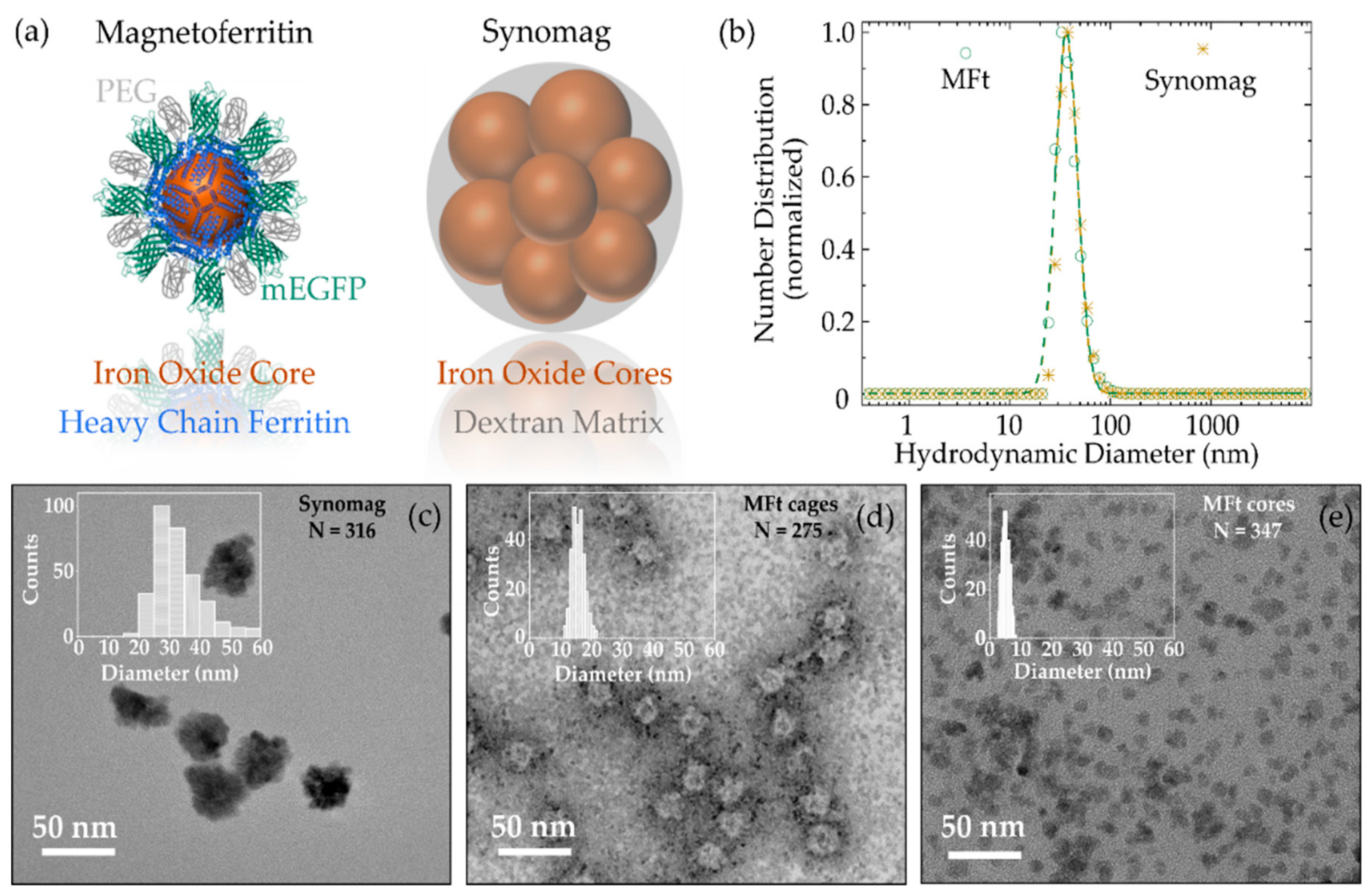

Figure 1. (a) Morphology sketches for magnetoferritin (MFt, parts created with permission of [30]) and synomag nanoparticles (NPs). (b) Number distribution for MFt (green) and PEGylated synomag (yellow) obtained by dynamic light scattering. Transmission electron microscopy images of (c) synomag, (d) MFt protein cages stained with uranyl acetate, and (e) MFt cores unstained. PEG = polyethylene glycol, mEGFP = monomeric enhanced green fluorescent protein, DH = hydrodynamic diameter, N = number of evaluated NPs.
Figure 1. (a) Morphology sketches for magnetoferritin (MFt, parts created with permission of [30]) and synomag nanoparticles (NPs). (b) Number distribution for MFt (green) and PEGylated synomag (yellow) obtained by dynamic light scattering. Transmission electron microscopy images of (c) synomag, (d) MFt protein cages stained with uranyl acetate, and (e) MFt cores unstained. PEG = polyethylene glycol, mEGFP = monomeric enhanced green fluorescent protein, DH = hydrodynamic diameter, N = number of evaluated NPs.
Nanomaterials 11 02267 g001

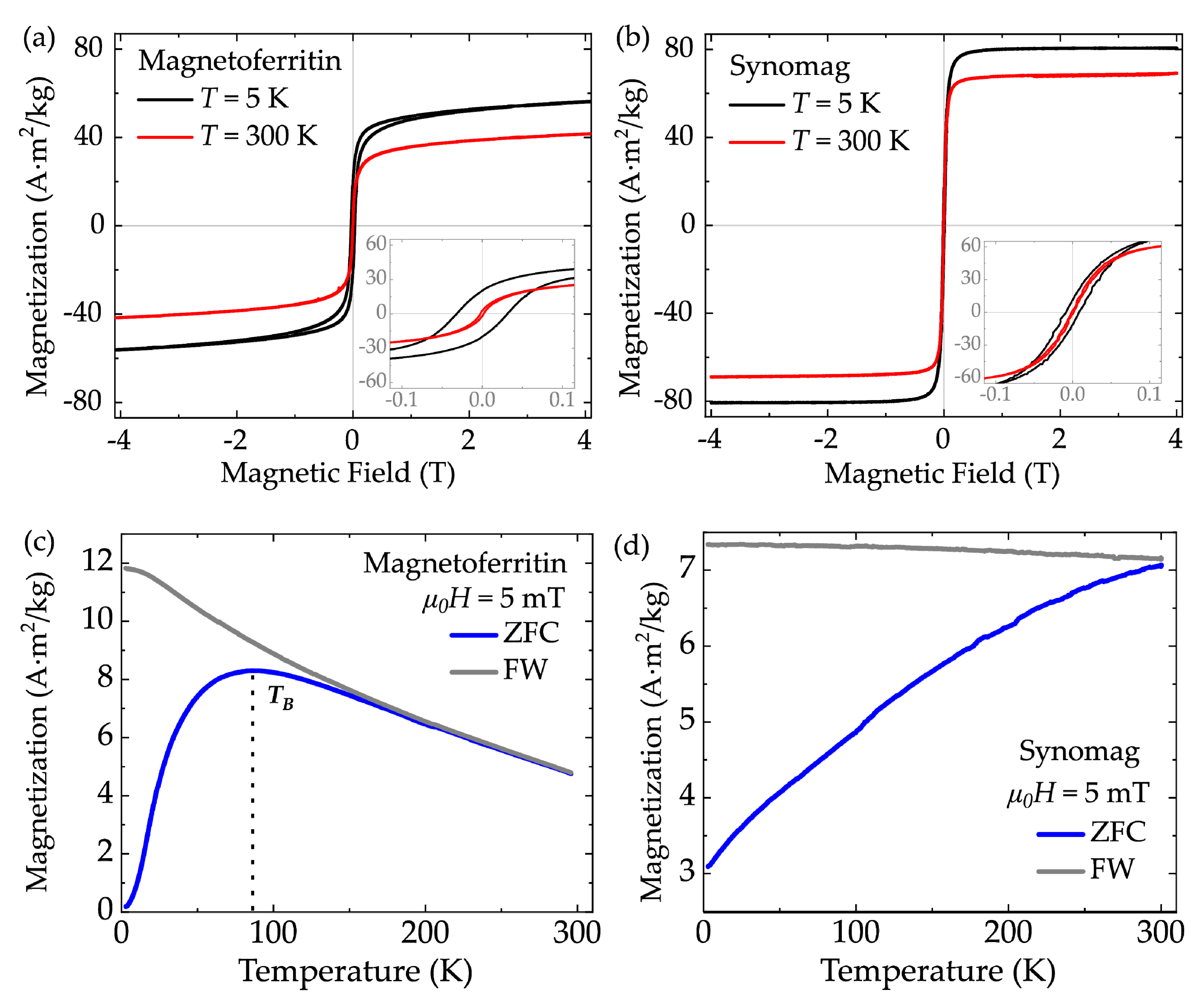

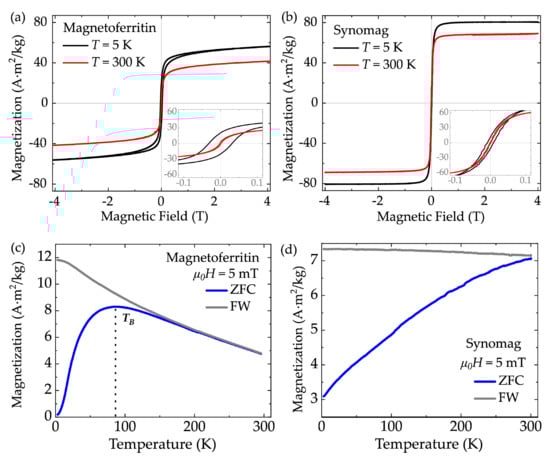

Figure 2. Magnetization as function of magnetic field for (a) magnetoferritin and (b) synomag nanoparticles. ZFC/FW for (c) magnetoferritin and (d) synomag measured in 5 mT. TB = characteristic blocking temperature, ZFC = zero field cooling, FW = field warming.
Figure 2. Magnetization as function of magnetic field for (a) magnetoferritin and (b) synomag nanoparticles. ZFC/FW for (c) magnetoferritin and (d) synomag measured in 5 mT. TB = characteristic blocking temperature, ZFC = zero field cooling, FW = field warming.
Nanomaterials 11 02267 g002

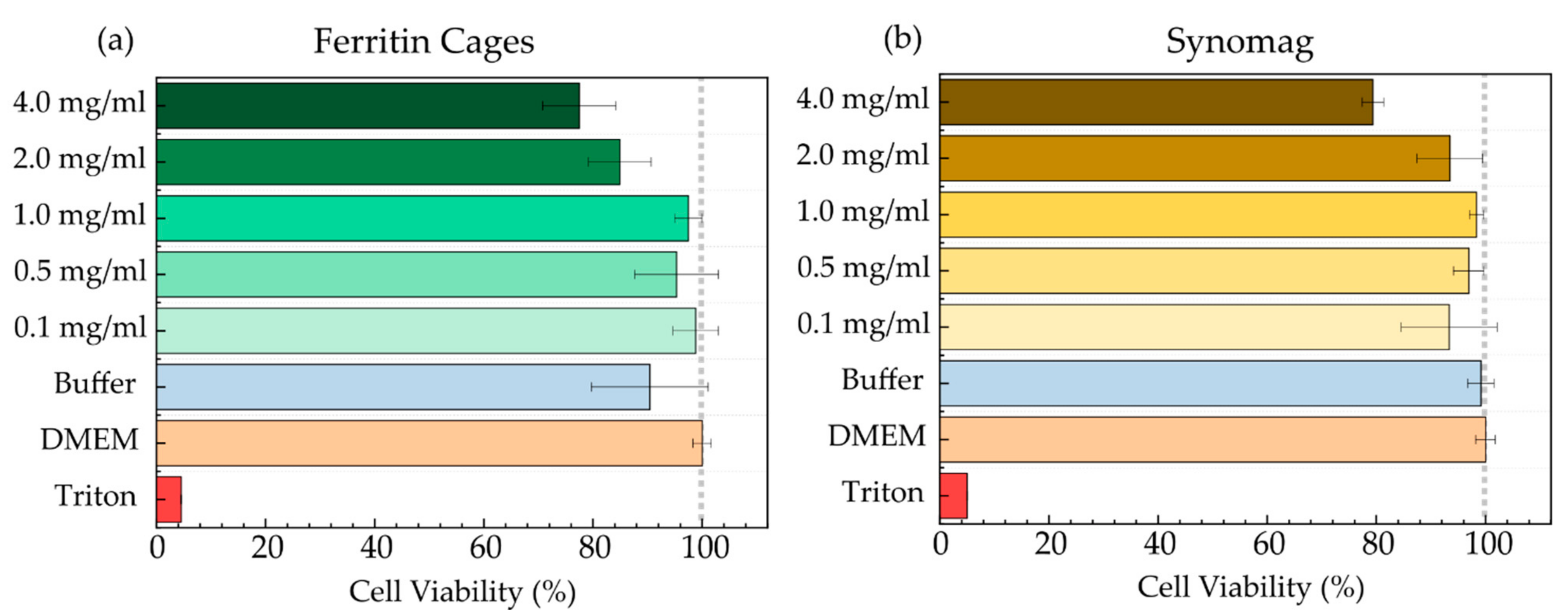

Figure 3. Cell viability Assay (CellTiter-Blue from Promega) measured after 24 h in HeLa WT cells for (a) ferritin cages and (b) synomag. Data was normalized to DMEM as positive control with untreated cells. Triton at 0.1% leads to cell death and was therefore used as negative control. The buffer control determines the effect of plain buffer on cell viability. The highest volume of MNP solution that was added during MNP addition was used here. Buffers were HEPES-2 for ferritin and PBS (pH 7.4) for synomag. Error bars represent the standard deviation of five measurements carried out for three biological replicates per concentration.
Figure 3. Cell viability Assay (CellTiter-Blue from Promega) measured after 24 h in HeLa WT cells for (a) ferritin cages and (b) synomag. Data was normalized to DMEM as positive control with untreated cells. Triton at 0.1% leads to cell death and was therefore used as negative control. The buffer control determines the effect of plain buffer on cell viability. The highest volume of MNP solution that was added during MNP addition was used here. Buffers were HEPES-2 for ferritin and PBS (pH 7.4) for synomag. Error bars represent the standard deviation of five measurements carried out for three biological replicates per concentration.
Nanomaterials 11 02267 g003

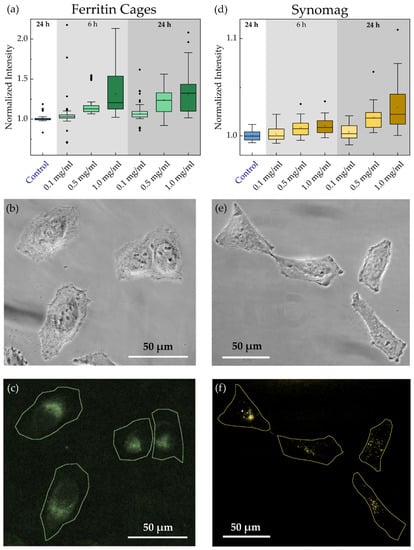

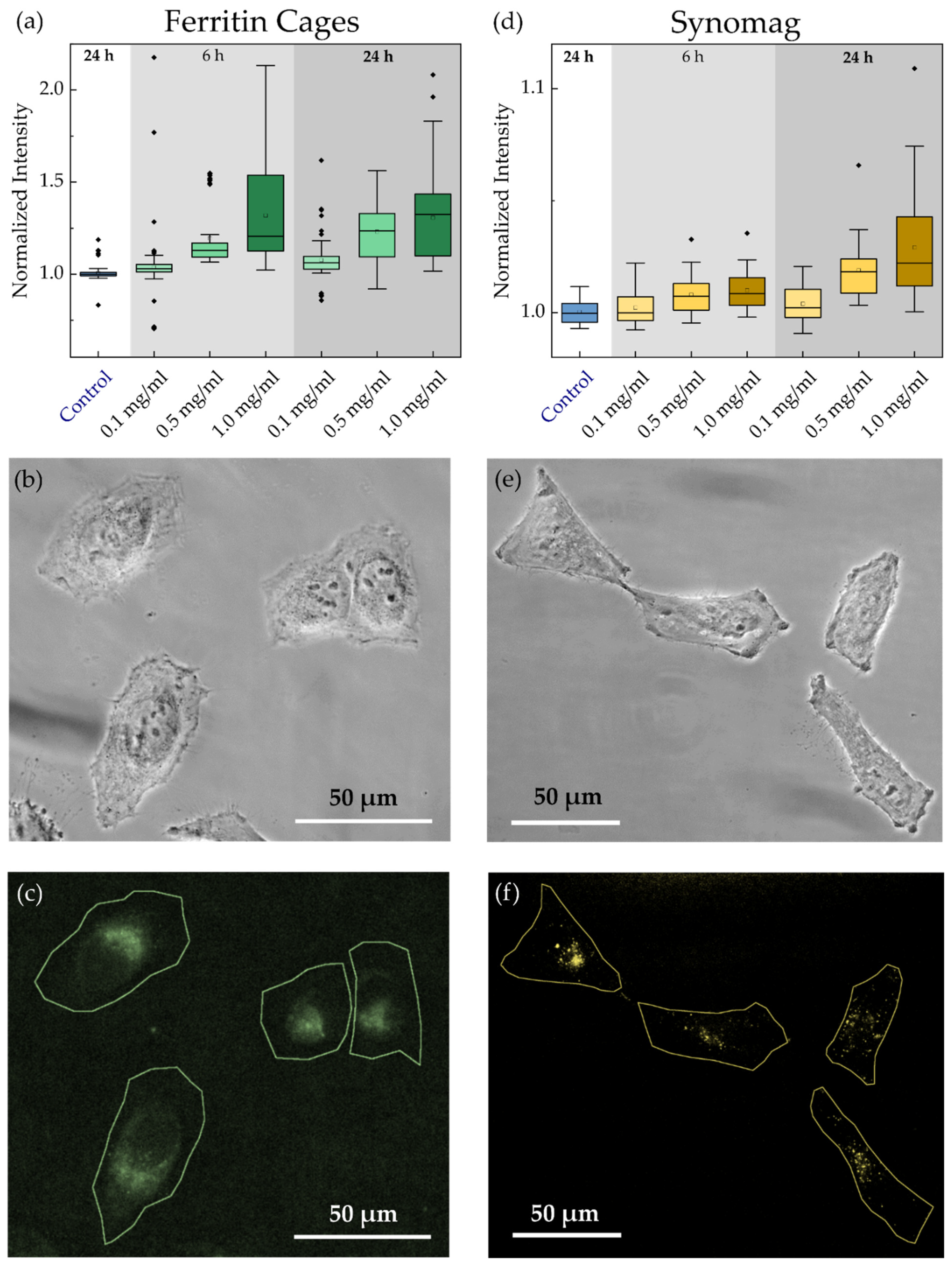

Figure 4. Normalized HeLa WT cellular uptake of (a) ferritin cages and (d) synomag nanoparticles (NH2 surface) as function of concentration. Intensity is given as intensity per pixel inside the cell. Particle systems were transferred into the cells via incubation for 6 or 24 h. (b,c) Phase contrast image and corresponding fluorescent image with cell outlines recorded using 470/525 nm filter for ferritin cages. (e,f) Phase contrast image and corresponding fluorescent image with cell outlines recorded using 545/620 nm filter for synomag NPs. Box plots show the distribution of 100–260 cells recorded in each of five independent measurements per condition.
Figure 4. Normalized HeLa WT cellular uptake of (a) ferritin cages and (d) synomag nanoparticles (NH2 surface) as function of concentration. Intensity is given as intensity per pixel inside the cell. Particle systems were transferred into the cells via incubation for 6 or 24 h. (b,c) Phase contrast image and corresponding fluorescent image with cell outlines recorded using 470/525 nm filter for ferritin cages. (e,f) Phase contrast image and corresponding fluorescent image with cell outlines recorded using 545/620 nm filter for synomag NPs. Box plots show the distribution of 100–260 cells recorded in each of five independent measurements per condition.
Nanomaterials 11 02267 g004

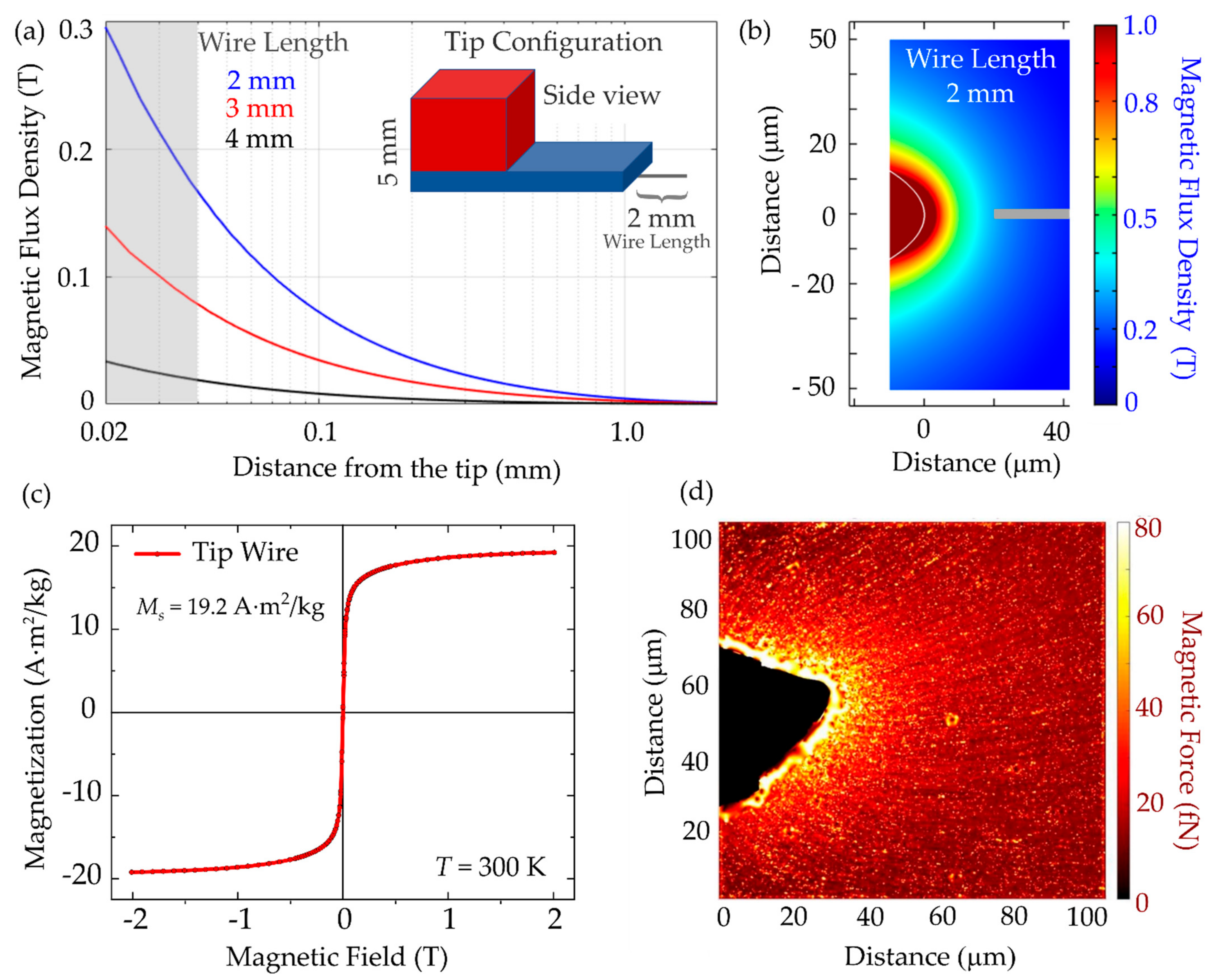

Figure 5. Magnetic tip for remote manipulation. Simulated magnetic flux density (a) for a tip wire extending 2, 3, or 4 mm from the magnet as a function of distance from the tip, and (b) as 2D projection from the top with 2 mm long tip wire. Grey line in (b) indicates the position from where the data in (a)—highlighted by the grey area—was extracted for the 2 mm tip wire. Inset in (a) shows a sketch of the tip configuration consisting of two magnets (red, blue) and a tip wire of 2 mm attached to the magnets. (c) Magnetization curves of the tip wire measured at T = 300 K. (d) Magnetic force measured via nanoparticle attraction to the magnetic tip with 2 mm tip wire. The line texture resulted from the tracked particles.
Figure 5. Magnetic tip for remote manipulation. Simulated magnetic flux density (a) for a tip wire extending 2, 3, or 4 mm from the magnet as a function of distance from the tip, and (b) as 2D projection from the top with 2 mm long tip wire. Grey line in (b) indicates the position from where the data in (a)—highlighted by the grey area—was extracted for the 2 mm tip wire. Inset in (a) shows a sketch of the tip configuration consisting of two magnets (red, blue) and a tip wire of 2 mm attached to the magnets. (c) Magnetization curves of the tip wire measured at T = 300 K. (d) Magnetic force measured via nanoparticle attraction to the magnetic tip with 2 mm tip wire. The line texture resulted from the tracked particles.
Nanomaterials 11 02267 g005

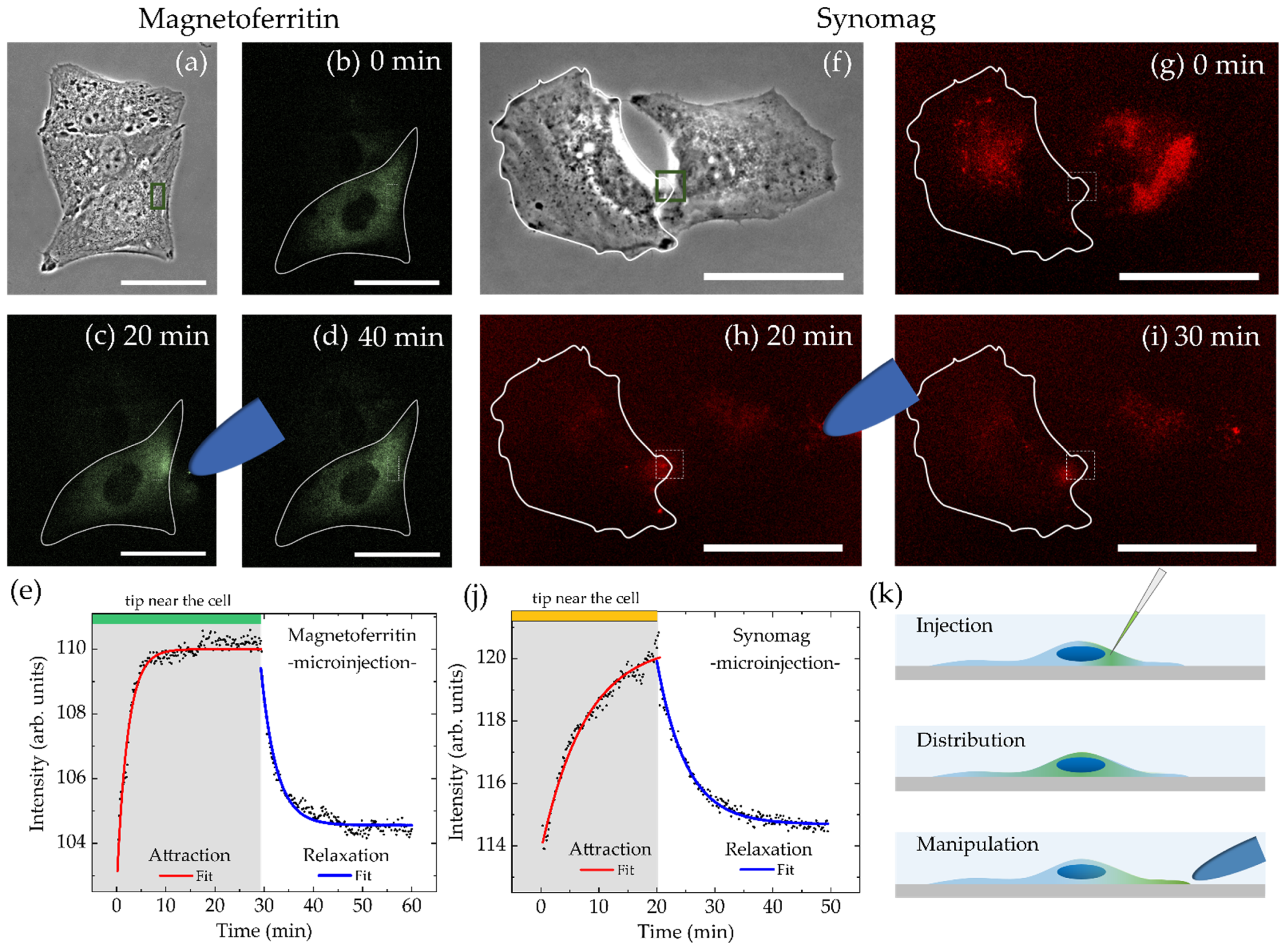

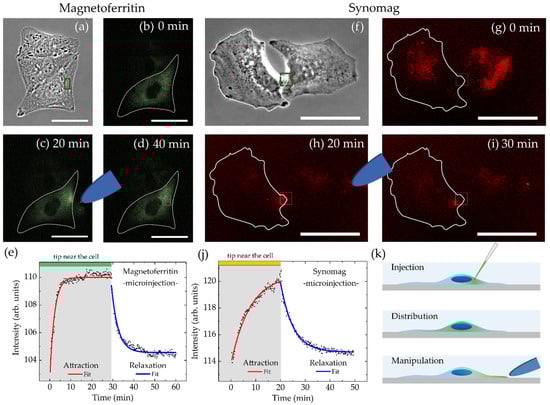

Figure 6. Spatial manipulation of (ad) magnetoferritin and (fi) synomag nanoparticles dispersed inside cytoplasm of living HeLa WT cells after microinjection recorded over 40 min. Scale bars are 50 µm. (e,j) show corresponding mean intensities over time with fit functions to characterize nanoparticle accumulation near the magnetic tip (green box in (a,f)) and relaxation after tip removal. Distance between magnetic tip and analyzed region was (MFt) 6 µm or (synomag) 75 µm, respectively. (k) illustrates the experimental setup for microinjection.
Figure 6. Spatial manipulation of (ad) magnetoferritin and (fi) synomag nanoparticles dispersed inside cytoplasm of living HeLa WT cells after microinjection recorded over 40 min. Scale bars are 50 µm. (e,j) show corresponding mean intensities over time with fit functions to characterize nanoparticle accumulation near the magnetic tip (green box in (a,f)) and relaxation after tip removal. Distance between magnetic tip and analyzed region was (MFt) 6 µm or (synomag) 75 µm, respectively. (k) illustrates the experimental setup for microinjection.
Nanomaterials 11 02267 g006

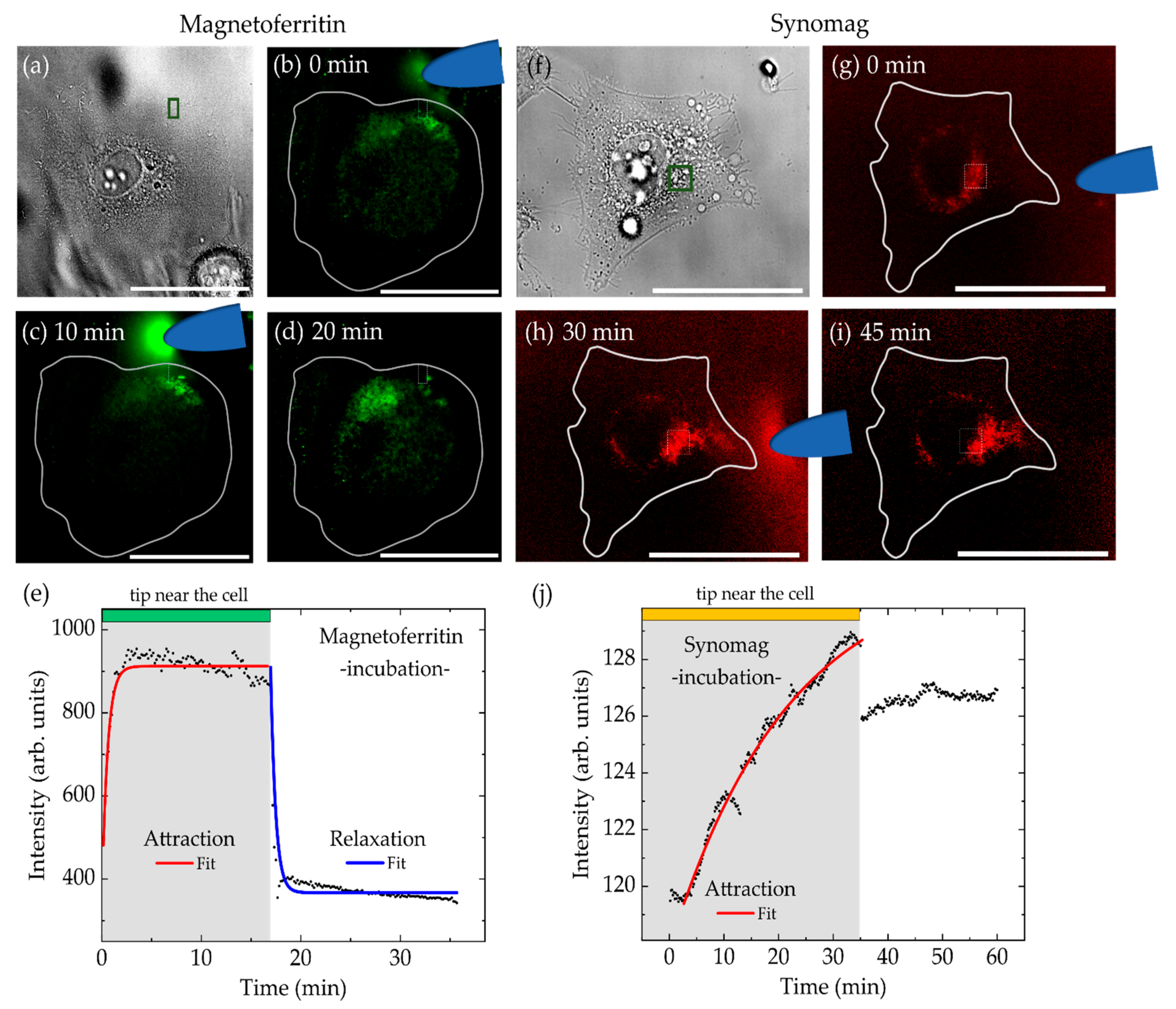

Figure 7. Spatial manipulation of (ae) magnetoferritin and (fj) synomag nanoparticles transferred by cellular uptake. MNPs were possibly localized on the outer membrane or within cellular vesicles of single HeLa WT cells after 5 and 24 h incubation, respectively. Scale bars are 50 µm. (e,j) show corresponding mean intensity over time along with the fit to characterize accumulation time near the magnetic tip (green box in (a,f)) and relaxation time after the tip removal. Distance between magnetic tip and analyzed region (green box in (a,f)) was (MFt) 10 µm or (synomag) 30 µm, respectively.
Figure 7. Spatial manipulation of (ae) magnetoferritin and (fj) synomag nanoparticles transferred by cellular uptake. MNPs were possibly localized on the outer membrane or within cellular vesicles of single HeLa WT cells after 5 and 24 h incubation, respectively. Scale bars are 50 µm. (e,j) show corresponding mean intensity over time along with the fit to characterize accumulation time near the magnetic tip (green box in (a,f)) and relaxation time after the tip removal. Distance between magnetic tip and analyzed region (green box in (a,f)) was (MFt) 10 µm or (synomag) 30 µm, respectively.
Nanomaterials 11 02267 g007
Table 1. Physical parameters for MFt and PEGylated synomag: polydispersity index (PdI) from dynamic light scattering (DLS), DTEM solid NP diameter from transmission electron microscopy (TEM), DH hydrodynamic diameter from DLS, and ζ-potential from electrophoretic light scattering (ELS). MFt was stabilized in HEPES-2 buffer, synomag in PBS (pH 7.4). Additional data can be found in Tables S1 and S2, Supplementary Information.
Table 1. Physical parameters for MFt and PEGylated synomag: polydispersity index (PdI) from dynamic light scattering (DLS), DTEM solid NP diameter from transmission electron microscopy (TEM), DH hydrodynamic diameter from DLS, and ζ-potential from electrophoretic light scattering (ELS). MFt was stabilized in HEPES-2 buffer, synomag in PBS (pH 7.4). Additional data can be found in Tables S1 and S2, Supplementary Information.
SamplePdIDH, nmDTEM, nmζ-Potential, mV
PEGylated magnetoferritin0.11 ± 0.0139 ± 3Cages: 16 ± 2
Cores: 5 ± 1
−3.7
PEGylated Synomag0.17 ± 0.0339 ± 234 ± 8−2.0
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Novoselova, I.P.; Neusch, A.; Brand, J.-S.; Otten, M.; Safari, M.R.; Bartels, N.; Karg, M.; Farle, M.; Wiedwald, U.; Monzel, C. Magnetic Nanoprobes for Spatio-Mechanical Manipulation in Single Cells. Nanomaterials 2021, 11, 2267. https://doi.org/10.3390/nano11092267

AMA Style

Novoselova IP, Neusch A, Brand J-S, Otten M, Safari MR, Bartels N, Karg M, Farle M, Wiedwald U, Monzel C. Magnetic Nanoprobes for Spatio-Mechanical Manipulation in Single Cells. Nanomaterials. 2021; 11(9):2267. https://doi.org/10.3390/nano11092267

Chicago/Turabian Style

Novoselova, Iuliia P., Andreas Neusch, Julia-Sarita Brand, Marius Otten, Mohammad Reza Safari, Nina Bartels, Matthias Karg, Michael Farle, Ulf Wiedwald, and Cornelia Monzel. 2021. "Magnetic Nanoprobes for Spatio-Mechanical Manipulation in Single Cells" Nanomaterials 11, no. 9: 2267. https://doi.org/10.3390/nano11092267

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
