Application of MXenes in Perovskite Solar Cells: A Short Review

Abstract

Application of MXene materials in perovskite solar cells (PSCs) has attracted considerable attention owing to their supreme electrical conductivity, excellent carrier mobility, adjustable surface functional groups, excellent transparency and superior mechanical properties. This article reviews the progress made so far in using Ti₃C₂T_x MXene materials in the building blocks of perovskite solar cells such as electrodes, hole transport layer (HTL), electron transport layer (ETL) and perovskite photoactive layer. Moreover, we provide an outlook on the exciting opportunities this recently developed field offers, and the challenges faced in effectively incorporating MXene materials in the building blocks of PSCs for better operational stability and enhanced performance.

1. Introduction

Sunlight is identified as the most abundant, low-cost and clean energy source for sustainably satisfying the energy requirements of society. Converting sunlight directly to electricity using solar cells is the most efficient and practical way to harness energy from sunlight. Among the various generations of solar cells being developed, those based on Earth-abundant silicon (Si) are dominating the market with power conversion efficiencies (PCEs) of over 26% and an average panel life expectancy of 25 years [1,2,3]. However, the initial fabrication cost associated with Si solar cells is considerably high, shifting the research focus on more affordable alternatives such as dye-sensitized solar cells (DSSCs), quantum dot solar cells (QDSCs), organic solar cells (OSCs) and perovskite solar cells (PSCs).

Among all these emerging PV technologies, PSCs are the most viable alternate offering a comparable PCE to the mature silicon solar cells. In addition, their lower cost, adjustable bandgap, low-temperature solution processability, lower exciton binding energy, high light absorption coefficients, long charge carrier diffusion lengths, multiple options of performance enhancement and significantly simpler mass production techniques bring in added advantages that conventional Si based technologies lack [4,5,6,7,8,9,10]. Furthermore, unlike conventional Si solar cells, PSCs also have high performance in diffused or dim lights, making them ideal for indoor applications [11]. Since the first report on all solid state PSC in 2012, the efficiencies have skyrocketed from 9.7% in 2012 to 25.5% in 2021, much thanks to the development of various architectures, fabrication protocols, advancements in materials, chemical compositions and phase stabilization techniques [12,13,14,15].

Although tremendous progress has been made in achieving state-of-the-art perovskite solar cell, considerable gap still exists between the highest reported efficiency and its theoretical maximum [16,17]. Moreover, questions are raised over stability issues of PSCs, as a thin film solar product must pass the IEC 61646 testing standards, regarding the environmental stability before being commercially viable [18]. Currently, a great deal of research is focused on optimizing the performance and enhancing the stability of PSCs. Various approaches have been reported for performance and stability improvement of PSCs such as use of solar concentrators, spectral modification, bandgap engineering, interfacial passivation and modification, solvent manipulation, additive manufacturing, compositional engineering and use of novel materials [19,20,21,22,23,24,25,26,27,28].

In the last couple of years many groups have reported promising applications of Ti₃C₂T_x MXene materials in perovskite solar cells. First discovered in 2011 by Gogotsi and coworkers, transition metal carbides or nitrides (MXenes) emerged as star materials and have shown promising applications in various fields such as energy storage [29,30,31,32,33,34], catalysis [35,36,37,38,39,40], health care [41,42,43,44,45], defense [46,47,48], aerospace [49,50,51,52] and electronics [53,54,55,56]. However, for solar cell applications this field is relatively new as the very first study of MXene materials in perovskite solar cell was reported in 2018, where Guo and group incorporated Ti₃C₂T_x as an additive in the photoactive layer of methyl ammonium lead iodide (MAPbI₃) based perovskite solar cells (PSCs) [57]. Since then, MXene fever has taken the photovoltaic community by storm and its applications have extended from simple additives in the photoactive layer and HTL/ETL to being used as electrode and HTL/ETL.

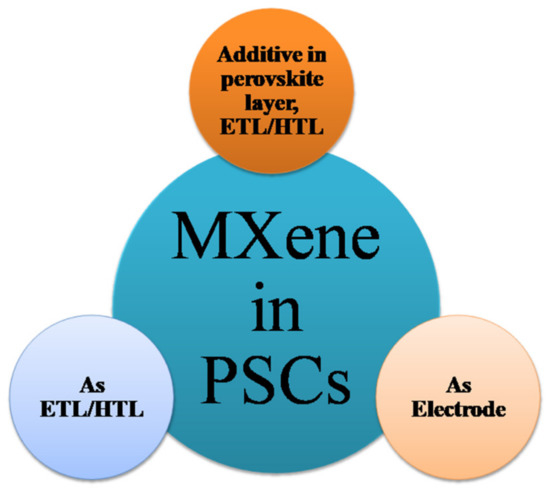

In view of the tremendous research interest attracted by use of Ti₃C₂T_x MXene in perovskite solar cells; this short review aims to summarize all the work reported so far on the incorporation of MXene in PSCs to improve solar energy harvesting and enhance operational stability. We begin with a quick overview of the most common architectures of PSCs. Moving forward, the focus of this review then shifts towards understanding all the possible interactions of 2D MXenes within the PSCs by highlighting all the experimental and theoretical studies reporting the incorporation of MXene in PSCs, with special emphasis being placed on classifying them according to the major role these materials play in PSCs such as additives, electrodes and HTL/ETL as shown in Figure 1. Furthermore, an outlook on the opportunities this emerging field offers, and the challenges faced in effectively using MXene materials in PSCs for improved operational stability and enhanced performance is provided.

2. Structure of PSCs

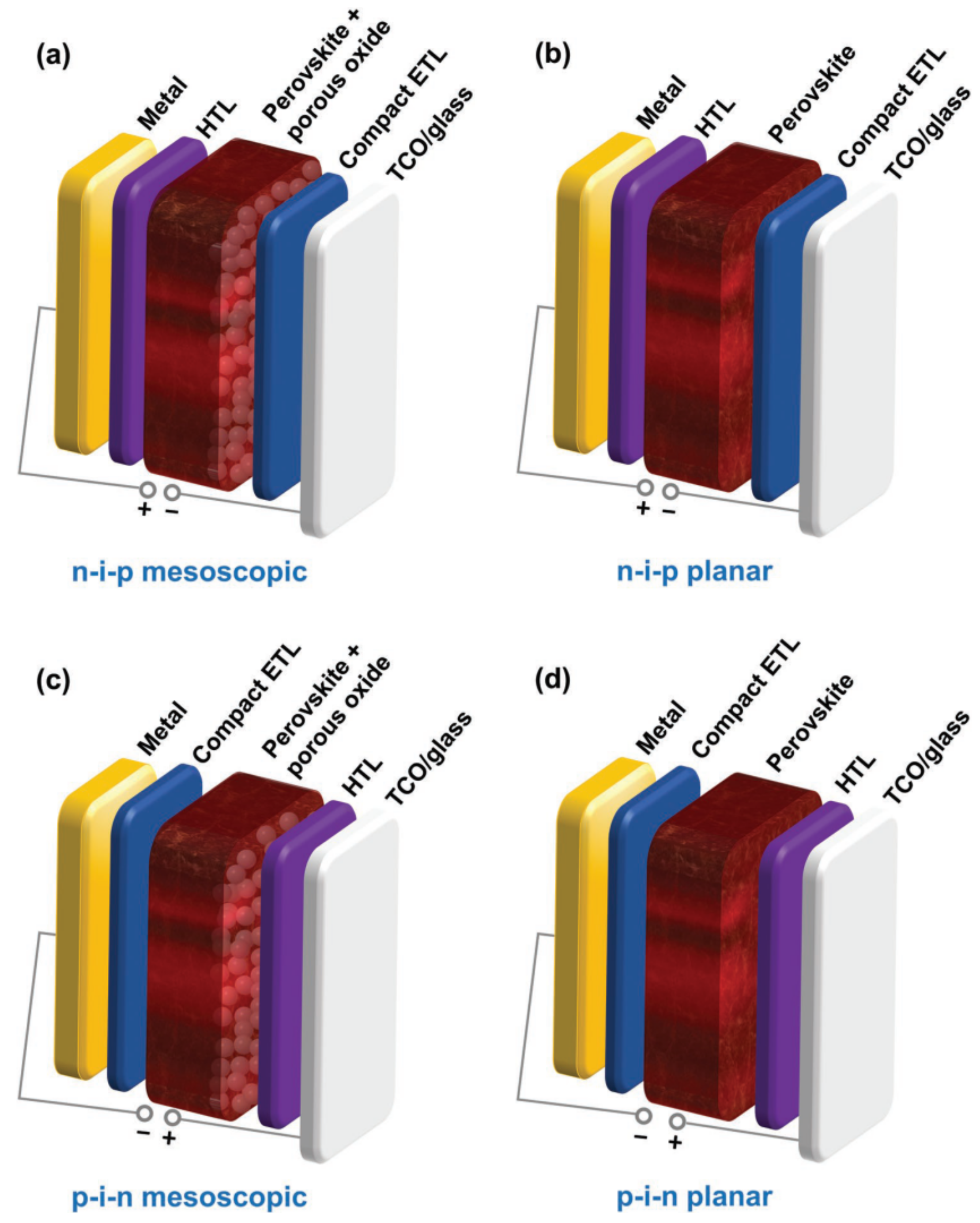

PSCs can broadly be divided into two categories, the regular (n-i-p) structure and the inverted (p-i-n) structure as shown in Figure 2. This classification of PSCs is based on the charge transport layer (ETL/HTL) that is first encountered by the incident light. These two types of architectures can further be divided into mesoscopic and planar structures, respectively. The mesoscopic structure incorporates additional mesoscopic layer acting as a scaffold for the perovskite absorber to improve the charge collection, whereas the planar structure consists of all planar layers [58]. Mesoscopic devices have structural similarity with typical dye sensitized solar cells (DSSCs) and are the dominating device architecture of PSCs. However, unlike DSSC a much thinner mesoporous layer is used in PSCs, where the photoactive perovskite layer fills the interstice of mesoporous charge-transporting layer before forming an overlayer on top of it. Compared to the complex mesoscopic architecture, the planar structure of PSCs is much simpler and is better suited for flexible devices because of its low temperature processing. Planar structure uses multiple stacked thin layers, such as the photoactive perovskite layer is sandwiched between the HTL and ETL. As the detail investigations of basic principles, fabrication protocols, materials and methods of PSCs are beyond the scope of current study, for more details we encourage readers to refer to recently published reviews [59,60,61].

3. Applications of MXenes in PSCs

3.1. MXene as Additive in Photoactive Perovskite Layer, ETL and HTL of PSCs

Despite rapid improvements in the PCE, the performance of PSC is still limited by excessive charge carrier recombinations inside the photoactive perovskite layer and at perovskite/ETL, perovskite/HTL interfaces. To bridge the gap between current PCE and the theoretical efficiency limit of PCSs, improvements in charge carrier management is critical. In addition, the inherent instability of perovskite in moisture and elevated temperatures and poor device scalability must be overcome before mass production. In recent years 2D nanomaterials with unique properties have been explored as additives in photoactive perovskite layer or ETL/HTL of PSCs. To improve the crystallization and surface coverage of perovskite films, additive engineering has proven to be an effective method. For example, Hagfeldt and coworkers incorporated nitrogen doped graphene into the photoactive layer of PSCs for affectively increasing the perovskite grain size and reducing recombinations through surface passivation [62]. Other such fascinating recently explored 2D materials for PSCs applications include g-C₃N₄ [63], WS₂ [64], MoS₂ [65] and black phosphorus [66].

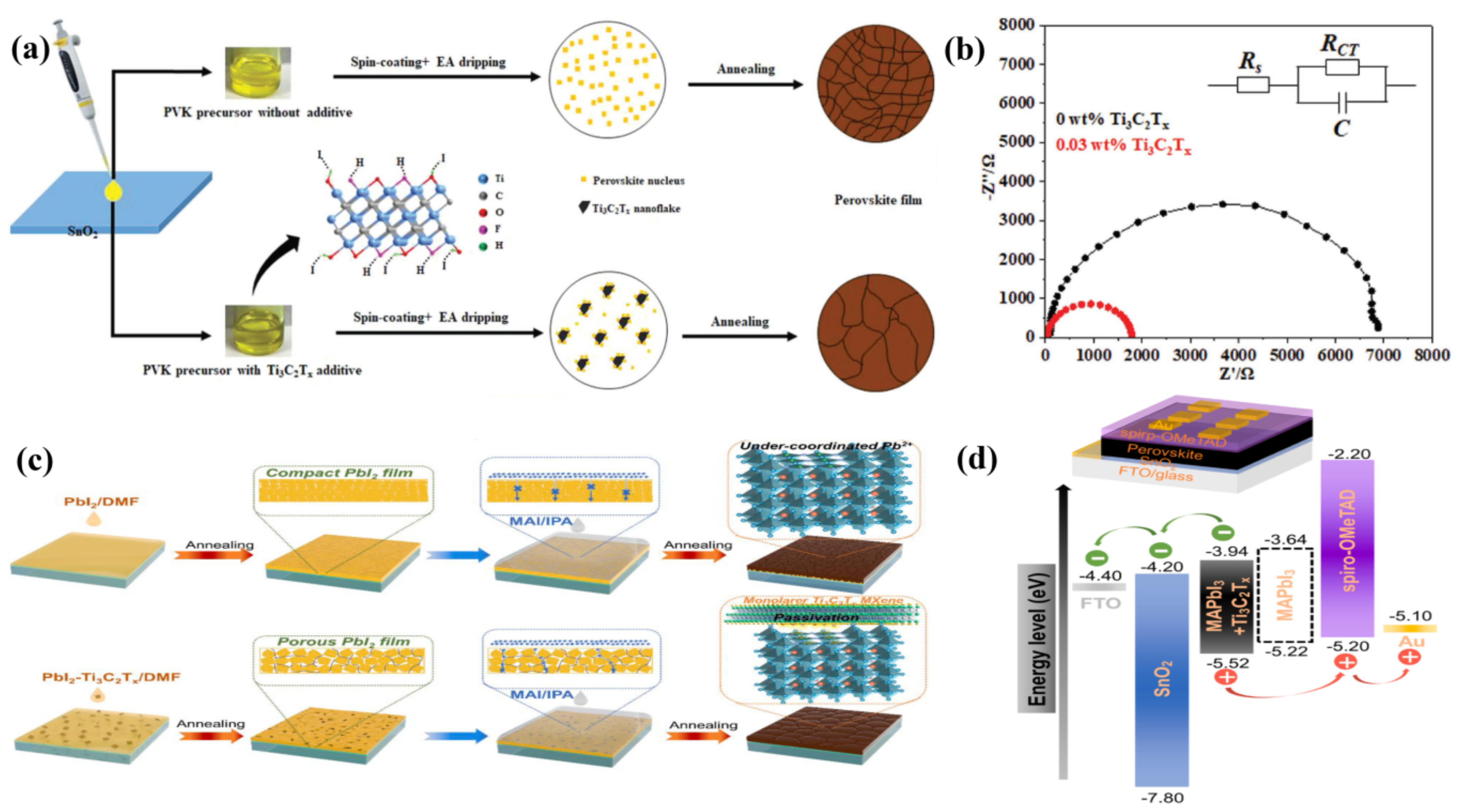

Guo et al., were the first to report Ti₃C₂T_x as an additive into the photoactive layer of PSCs (Figure 3a) [57]. The termination groups of Ti₃C₂T_x slowed the perovskite crystallization rate, resulting in increased crystal sizes. Moreover, the superior electrical properties of Ti₃C₂T_x enhanced the charge transfer dynamics of PSCs as can be seen in Figure 3b, to achieve a power conversion efficiency (PCE) of 17.41% with J_SC of 22.26 mA cm⁻², which corresponded to 12% and 7.6% increase in PCE and J_SC, respectively, with respect to the control device (PCE of 15.54% and J_SC of 20.67 mA cm⁻²). This increase in PCE and J_SC was attributed to the high electrical conductivity of MXene that resulted in superior charge transfer dynamics, faster electron extraction and reduced recombinations. As can be seen from Figure 3b, the charge transfer resistance R_CT reduced from 7000 to 1800 Ω signifying the considerable increase in conductivity of perovskite film upon Ti₃C₂T_x MXene incorporation.

One of the most important possible applications of 2D materials is the ability to easily modify their electronic structure, such as bandgap or work function (WF) via suitable functionalization. The WF can be fine-tuned as per need resulting in optimal energy level alignment for a perfect energy offset between the perovskite active layer and ETL/HTLs, eventually inducing built-in potential for efficient charge transport dynamics [68]. Agresti et al., incorporated Ti₃C₂T_x MXene in MAPbI₃ PSCs to favorably adjust the WF of perovskite film and ETL, improving the PCE by 26% as compared to Ti₃C₂T_x free control devices [68]. Di Vito and group performed first-principles calculations based on DFT on Ti₃C₂/MAPbI₃ perovskite coupled system and linked the WF tuning with varying the relative concentrations of OH, O, and F MXene terminations, and concluded that OH groups have the strongest effect in lowering of WF [69].

Recently, Zhao et al., reported MXene nanosheets as multifunctional additive into PbI₂ layer during the first step of CH₃NH₃PbI₃ formation. Such an introduction of MXene nanosheets into PbI₂ facilitated a complete transformation of both reactants (PbI₂ and CH₃NH₃I) into CH₃NH₃PbI₃ during the second step of MAPbI₃ formation, leaving no residue PbI₂ in the perovskite film and enlarging the grain size of perovskite [67]. In addition, the incorporation of Ti₃C₂T_x nanosheets in perovskite layer increased the WF of MAPbI₃ by 0.3 eV shifting it from 3.82 eV to 4.12 eV, rendering the conduction band (CB) of MAPbI₃-Ti₃C₂T_x much closer to the CB of the ETL as can be seen from Figure 3d, resulting in efficient electron extraction. As a result of the multiple enhancement effects of the Ti₃C₂T_x MXene nanosheets introduction, the optimized device with Ti₃C₂T_x dosage of 0.03 wt%, achieved a champion PCE of 19.27% with a V_OC of 1.12 V, a J_SC of 23.48 mA cm⁻² and a FF of 0.736, which corresponded to almost 18%, 3.7%, 9% and 4.3% increases in the PCE, V_OC, J_SC, and FF, respectively, as compared to the pristine PSCs (16.54%).

In 2020, Zhang and group reported the synthesis of MAPbBr₃ nanocrystals (NCs) on the surface of few-layer MXene (Ti₃C₂T_x) nanosheets forming heterostructures employing an in situ solution growth method [70]. The heterostructures, ensured efficient electron injection from the MAPbBr₃ NCs to the Ti₃C₂T_x MXene because of the well aligned energy levels. In a first for its kind, Chen et al., utilized ultrathin Ti₃C₂T_x quantum dots (TQDs) for dual interfacial modifications, simultaneously engineering the photoactive absorber and the perovskite/TiO₂ ETL interface, as can be seen in Figure 4a [71]. PSCs were fabricated employing c-TiO₂/m-TiO₂-TQD/TQD-perovskite/Spiro-OMeTAD-Cu_1.8S architecture to enhance the PCE and stability of devices simultaneously achieving a champion hysteresis-free PCE of 21.64% with significantly higher long-term air and light stability compared to 18.31% for control devices. The electrochemical impedance spectroscopy (EIS) study of devices revealed that addition of TQD in perovskite layer and ETL significantly increased the charge recombination resistance (R_rec) from 613 Ω for control device to 993.7 Ω for optimized device. The improved performance was attributed to several factors such as suppressed charge carrier recombination because of the well-matched energy levels (Figure 4e), facilitating electron extraction efficiency at the semiconductor/perovskite interface and reduced trap state densities within the perovskite film, resulted from the effective passivation of TQD toward grain boundaries.

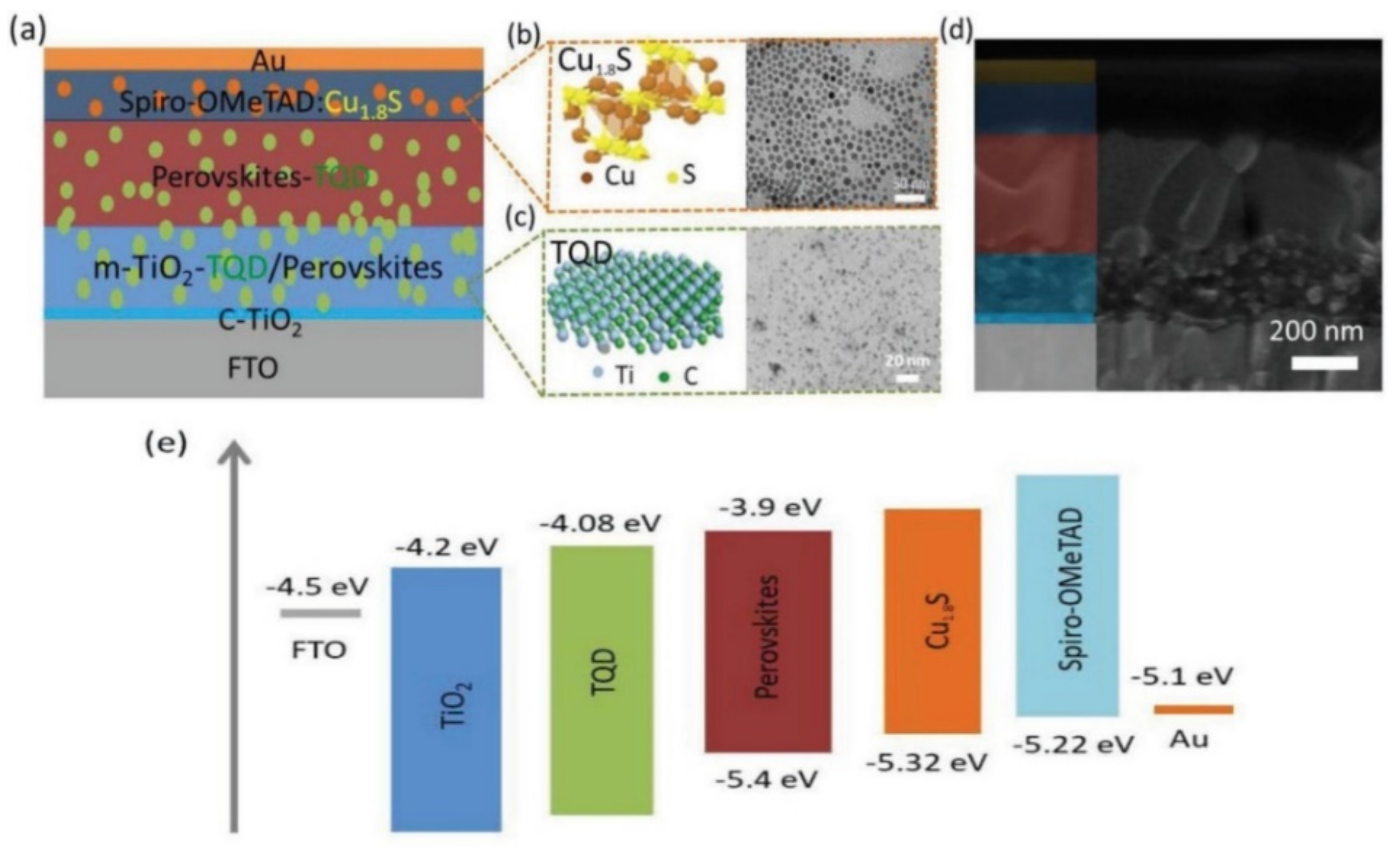

As a new field, the full potential of MXene materials in PSCs is yet to be explored. However, different groups reported unique strategies of benefitting from the superior electrical conductivity offered by 2D MXene materials. One such attempt was made very recently by Zhao and group, reporting a charge behavior modulation in PSCs by simultaneous use of 2D Ti₃C₂ nanosheets and 0D Ti₃C₂ QDs in ETL and perovskite layer respectively [72]. While the introduction of Ti₃C₂ QDs into the perovskite layer effectively passivated the defects of perovskite film, addition of Ti₃C₂ nanosheets into the TiO₂ ETL significantly increased the electron mobility and extraction rate. Hence, the device based on 0D Ti₃C₂ QD–modified photoactive layer and 2D Ti₃C₂ nanosheets-modified TiO₂-ETL achieved a PCE of 17.1%, while the control device only delivered a PCE of 12.0%. Jin et al., introduced 2D Ti₃C₂T_x MXene nanosheets as nanosized additives in 2D Ruddlesden-Popper PSCs. Thanks to the enhanced crystallinity, optimized orientation, lower charge transfer resistance and passivated trap states, the PCE, V_OC, J_SC and FF of 2D PSCs increased from 13.69%, 1.09 V, 18.84 mA cm⁻², and 66.7% (control device without any MXene additive) to 15.71%, 1.11 V, 20.87 mA cm⁻² and 67.84%, respectively [73].

Yang et al., reported SnO₂-Ti₃C₂ MXene nanocomposites as electron transport layers (ETLs) in planar PSCs [74]. SnO₂ with different Ti₃C₂ MXene weight ratios (0, 0.5, 1.0, 2.0, 2.5 wt.%) was used as ETL and PSCs with ITO/ETL/MAPbI₃/Spiro-OMeTAD/Ag configuration were fabricated. The addition of Ti₃C₂T_x enhanced the conductivity of ETL, facilitating electron transport. Moreover, the addition of Ti₃C₂T_x optimized the energy level alignment further enhancing charge transport dynamics and reduced recombinations. The optimized device with 1.0 wt.% Ti₃C₂ achieved overall PCE of 18.34%, corresponding to an increase of 6.4% compared to the PCE of control device without Ti₃C₂T_x addition (17.23%).

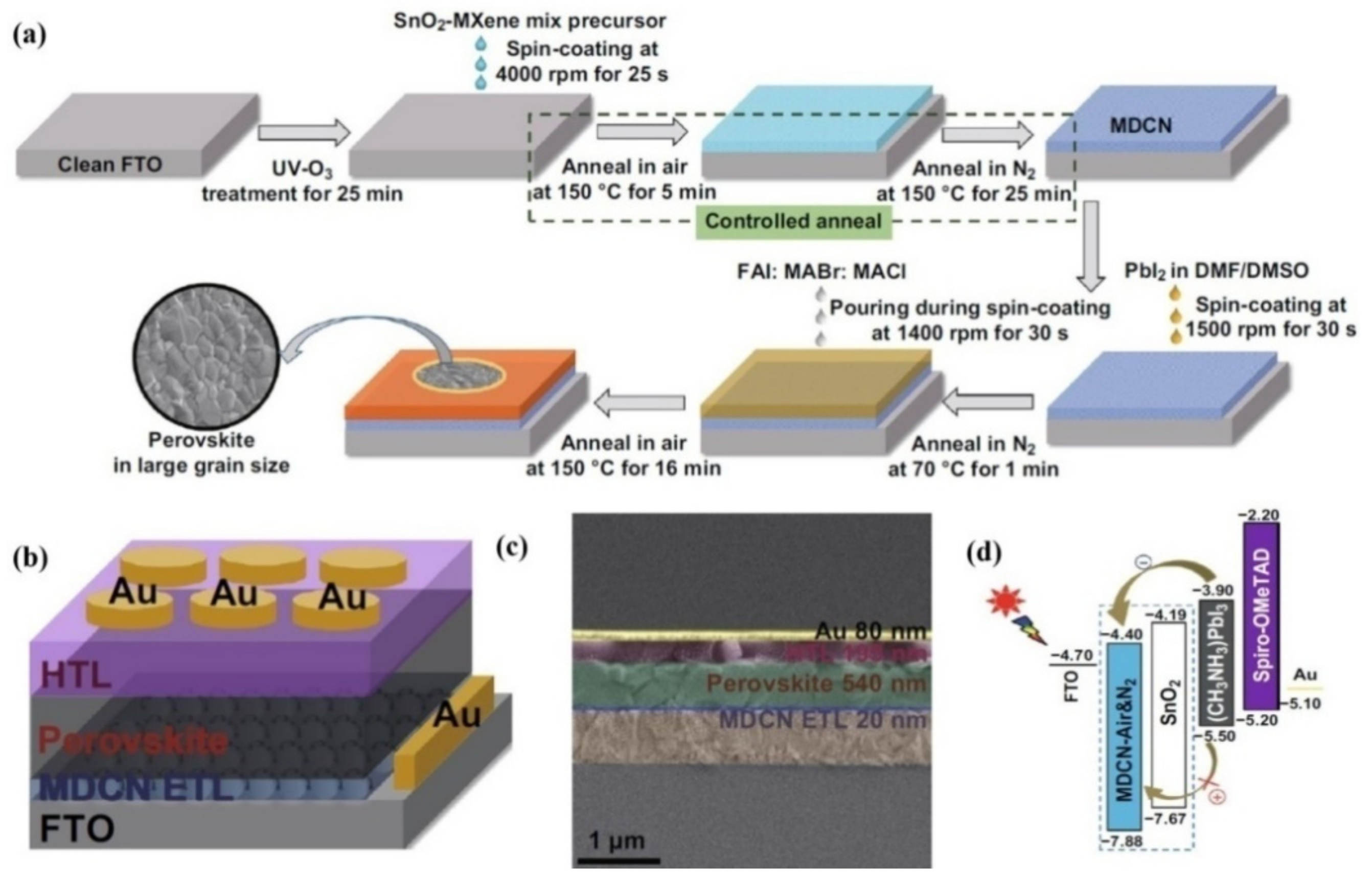

Huang and coworkers took the work of Yang et al., a step further by surrounding the 2D Ti₃C₂T_x sheets with 0D anatase TiO₂ QDs to form effective TiO₂/SnO₂ heterojunctions, which they named a multi-dimensional conductive network (MDCN) structure, as can be seen in Figure 5b,c [75]. Due to the favorable energy-level alignment (Figure 5d) between the ETL, mix cation (FAPbI₃)_0.97(MAPbBr₃)_0.03 perovskite and the FTO, an enhancement of PCE from 16.83% to 19.14% was achieved. Moreover, the V_OC, J_SC and FF increased from 1.07 V, 24.07 mA cm⁻² and 73.61 to 1.1 V, 24.52 mA cm⁻² and 77.97, respectively. In addition, the MDCN-incorporated device exhibited superior moisture-resistance and retained almost 85% of the initial performance even after 45 days in 30–40% humidity. This superior stability was attributed to an oxygen vacancy scramble effect.

Very recently, Yang et al., reported the modulation of perovskite crystallization rate using MXene QDs-modified SnO₂ ETL [76]. The Ti₃C₂T_x QDs-modified SnO₂ (MQDs-SnO₂) ETL effectively modulated the crystallization rate by rapidly inducing perovskite nucleation from the precursor solution, producing an intermediate phase upon anti-solvent treatment. This process considerably improved the crystal quality and enhanced the phase stability of the as-fabricated perovskite film. Moreover, the addition of MXene QDs in SnO₂ added extra advantage of superior charge extraction of the ETL, providing a PCE of up to 23.3%, with outstanding stability of over 500 h against humidity and light soaking. The same group also reported using Ti₃C₂T_x nanosheets incorporated TiO₂ as ETL for Cs₂AgBiBr₆ double-PSCs [77]. Not only did the incorporation of Ti₃C₂T_x nanosheets in TiO₂ improved the electrical conductivity and electron extraction of ETL, but also modified the surface wettability of ETL to promote optimized and efficient crystallization of double perovskite layer. Owing to these beneficial effects the modified device yielded a hysteresis free PCE of 2.81% and remained stable for more than 15 days under ambient conditions.

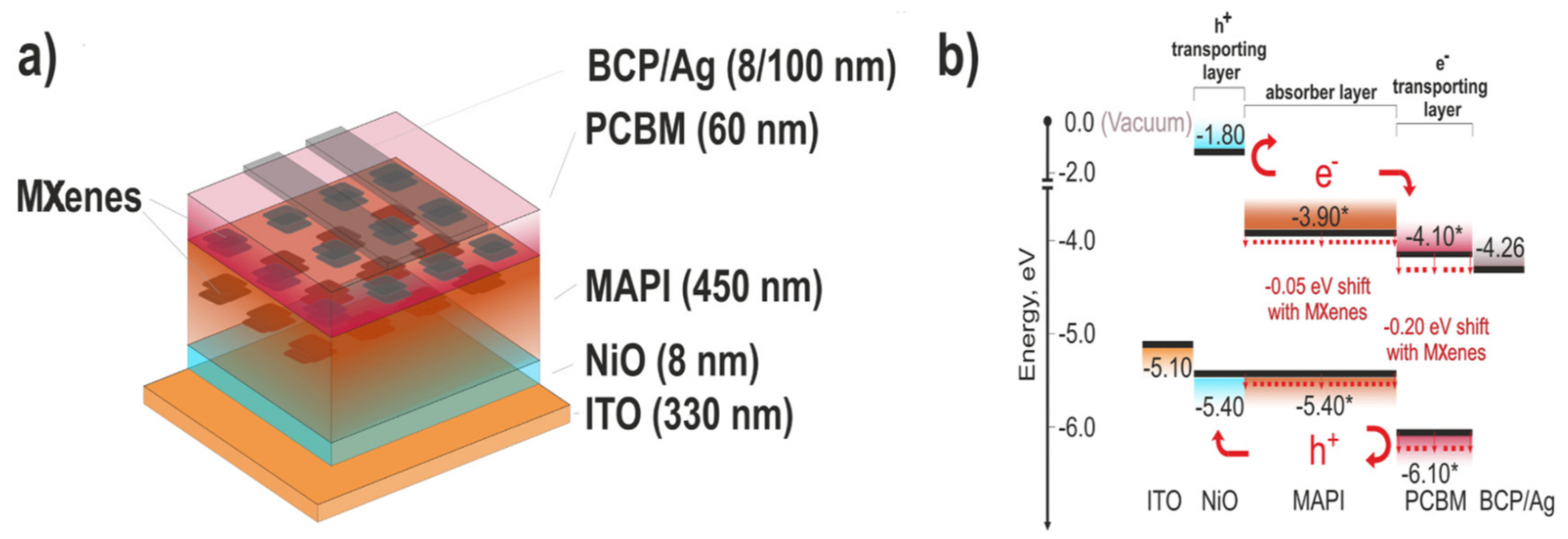

In 2021, Saranin and coworkers doped MXenes into both the photoactive perovskite layer and ETL in NiO-based p-i-n PSCs, simultaneously tuning the energy level alignment at perovskite/charge transport layer interfaces and passivating the traps states within the device, resulting in improved charge collection/extraction at the electrodes. PSCs having NiO/MAPbI₃/PCBM/bathocuproine (BCP)/Ag structure were fabricated with Ti₃C₂T_x MXene doped in both PCBM and perovskite layer (Figure 6a). Thanks to the optimized energy level alignment (Figure 6b) and suppressed trap states, the MXene-based improvised devices achieved superior performance, with 19.2% PCE and significantly improved stabilized power output as compared to control devices [78].

Incorporating Ti₃C₂T_x into the HTL can also have a profound impact on device performance as was demonstrated recently by Hou et al., for organic solar cells (OSCs). Where addition of Ti₃C₂T_x MXene into the HTLs improved device performance by 11% [79]. Not only did the addition of Ti₃C₂T_x MXene into PEDOT:PSS achieved better PCE, it also improved the long-term stability compared to Ti₃C₂T_x free based devices. Although these results prove the promising prospects of PEDOT:PSS/Ti₃C₂T_x composite films in highly efficient and stable photovoltaic devices, to the best of our knowledge, no such study has been undertaken for PSCs to explore the addition of MXene into HTL of PSCs. The use of 2D MXene materials as additives in perovskite active layers and ETL/HTL is still in its early stages of development. There’s still a lot to be done in order to enhance the PSC efficiency. However, we believe a significant breakthrough in this cutting-edge technology can be expected in the near future.

3.2. MXene as an ETL/HTL in PSCs

Electron transport layer (ETL) and hole transport layer (HTL) play an important role in improving the photovoltaic performance and stability of perovskite solar cells (PSCs). The ETL essentially has the vital role of collecting and transferring the electrons from the perovskite layer and block the backflow of holes, effectively separating charges and suppressing charge recombination [80]. The major role of HTL is to extract and transport the holes from the photoactive perovskite layer to the electrode, simultaneously acting as an energy barrier preventing the transfer of electrons to the anode. In addition, the HTL effectively separates the photoactive perovskite layer from the anode and isolates the moisture in the air, enhancing the stability of PSCs by suppressing degradation and corrosion [59]. The charge selective transport layers are critical not only in the extraction and transport of charge carriers, but also in the optimization of perovskite thin film growth in those high-efficiency PSC devices. Furthermore, they are critical to the scalability and stability of devices. In general, efficient PSCs have two key interfaces, such as the ETL/perovskite heterojunction interface and the perovskite/HTL interface, which should both ensure effective charge collection and separation [81]. Inefficient charge transport can result in inhomogeneous charge accumulation and significant interfacial recombination, whereas a high-quality ETL and HTL not only collects and transfers charge carriers, but also effectively separates charges and suppresses charge recombination. As a result, it is crucial to develop and manufacture high-quality ETLs and HTLs in order to ensure efficient charge transfer and consequently ensure efficient photovoltaic performance of devices.

Due to the outstanding intrinsic properties of Ti₃C₂T_x MXene material, such as very high conductivity, adjustable surface functional groups and easily tunable WF, its potential application as ETL/HTL in PSCs have recently attracted significant research interest. In 2019, Chen et al., reported a novel architecture incorporating the Ti₃C₂-MXene into the CsPbBr₃ perovskite to fabricate a HTL-free inorganic PSC with (FTO/TiO₂/CsPbBr₃/Ti₃C₂-MXene/C) structure. The 2D Ti₃C₂-MXene interlayer served the function of HTL by ensuring improved energy level alignment between the perovskite film and carbon electrode and accelerated the hole extraction. The introduction of Ti₃C₂-MXene significantly enhanced the hole extraction while simultaneously blocking the electron from reaching counter electrode. Additionally, the functional groups of Ti₃C₂T_x well passivated the CsPbBr₃ grains, resulting in reduced trap defects in the perovskite film. The cell without Ti₃C₂-MXene interlayer achieved a poor PCE of 8.21% with V_OC of 1.423 V, a J_SC of 7.96 mA cm⁻² and a FF of 72.48%. Increased charge carrier recombinations at the interface were identified as the primary cause of lower efficiency. In contrast, thanks to a much reduced energy level mismatch, enhanced hole extraction rate and suppressed recombinations, the CsPbBr₃/Ti₃C₂-MXene based device achieved a high PCE of 9.01% (Voc of 1.444 V, Jsc of 8.54 mA cm⁻² and FF of 73.08%) with a surprising long-term stability of over 1900 h [82].

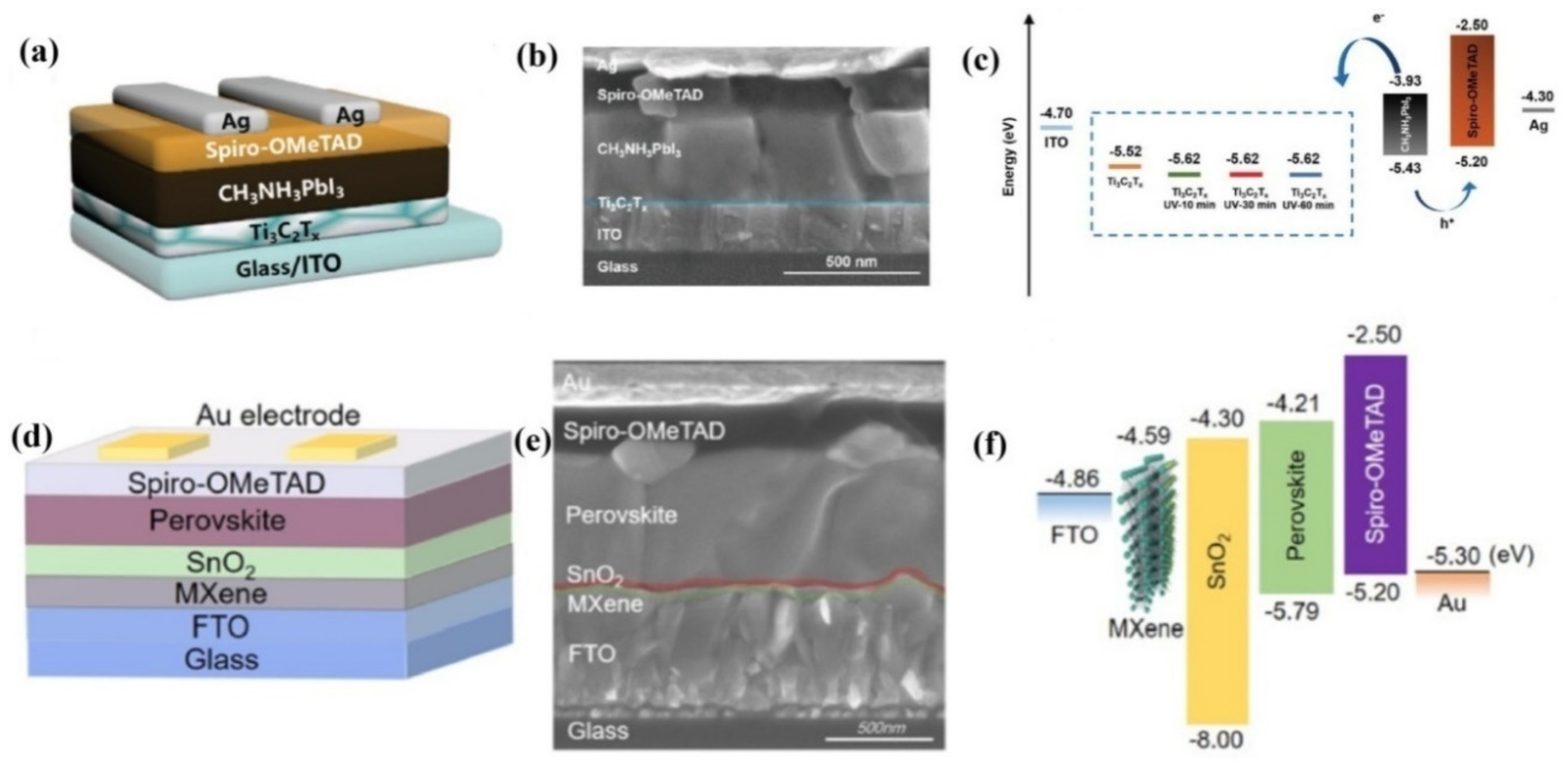

In the same year, Yang et al., reported the use of surface-modified metallic Ti₃C₂T_x MXene as ETL for planar PSCs, as can be seen from Figure 7a,b [83]. Using UV-ozone treatment, the WF of Ti₃C₂T_x MXene was downshifted from −5.52 to −5.62 eV, as shown in Figure 5c. Devices fabricated employing 30 min UV-ozone treated Ti₃C₂T_x nanosheets as ETL resulted in a high PCE of 17.17%. It was observed that the UV-ozone treatment of Ti₃C₂T_x improved the Ti₃C₂T_x/perovskite interface properties because additional oxide-like Ti–O bonds were formed on the surface of Ti₃C₂T_x. In addition, the downward shifting of WF because of the treatment, made the Ti₃C₂T_x more efficient towards transmitting electrons and blocking holes, eventually reducing recombination, leading to much higher PCE than those without the UV-ozone treatment. EIS was used to gain better insight into the charge transport mechanism of the devices, which revealed the smallest charge transfer resistance of 27.86 Ω for the device with 30 min UV-ozone treated Ti₃C₂T_x as compared to all other devices.

Very recently, Yang and group used a similar approach of WF modifications by oxidation of Ti₃C₂T_x in air and employing them as ETL in PSCs [85]. Oxidation of Ti₃C₂T_x formed Ti–O bonds significantly improving the interface properties of the MXene/perovskite junction and reduced the macroscopic defects in the photoactive layer spin coated ontop of MXene layer. At light oxidation, while the metallic character of Ti₃C₂T_x remained similar, the WF shifted from −5.35 to −6.88 eV, owing to the newly formed TiO₂. However, at heavy oxidation a transition from metallic material to semiconductor was observed. When PSCs were fabricated using a mix of oxidized and pristine Ti₃C₂T_x as ETL, a much better alignment of energy levels between ETL and perovskite layer was obtained, rendering a very high PCE of 18.29%.

In 2020, Wang et al., reported a champion stabilized PCE of 20.65% with a V_OC of 1.11 V and highly improved J_SC of 24.34 mA·cm⁻², by introducing a thin layer of Ti₃C₂T_x MXene between the SnO₂ ETL and electrode of PSC [84]. As can be seen from Figure 7f, the introduction of Ti₃C₂T_x MXene layer between SnO₂ ETL and electrode optimized the conduction band alignment, resulting in improved charge transfer kinetics and better performance. A lower series resistance of 2.98 Ω.cm⁻² was obtained for MXene-modified device compared to the 3.84 Ω.cm⁻² of control device. Furthermore, the incorporation of MXene resulted in much smoother and hydrophobic surface of SnO₂ ETL compared to SnO₂ surface without underlying MXene, thus facilitating growth of uniform and defect free perovskite films with significantly low trap density. Thanks to the synergetic effects introduced by MXene layer, such as significantly reducing non-radiative recombinations, improving homogeneity and suppressing carrier transport loss, the fabricated device achieved a stabilized PCE of 20.65%, which was almost 8.6% higher than that of the control device without MXene thin layer (19%).

To suppress MXene oxidation at elevated temperatures and further improve the conductivity of MXene within the PSC, very recently, Bati et al., introduced MXene-CNTs hybrids between SnO₂ ETL and perovskite layer [86]. It was revealed that the synergetic effects introduced by MXene and metallic SWCNTs hybrids and the reduced trap density resulted from introduction of MXene-CNTs hybrids can significantly optimize the SnO₂/perovskite charge dynamics. When the ratio of MXene/m-SWCNTs was kept at 2:1 w/w, a champion PCE of 21.42% was recorded with an astonishing increase observed in fill factor (FF) from ≈0.69 to ≈0.80, whereas the R_CT decreased substantially from 165 Ω to 33.5 Ω. From the above discussion it is evident that MXene material is an ideal substitute for the ETL and HTL materials currently in use for PSCs. The use of MXene not only proved beneficial for a fast charge collection/extraction dynamics, hence providing a much better PCE, it also effectively isolated the perovskite layer from the humidity in turn improving the stability and shelf life of devices.

3.3. MXene as an Electrode in PSCs

An electrode is one of the major constituents of a PSC governing the process of charge collection, playing a key role in long term stability, and determines the total cost of device. Some of the recently reported electrode materials for PSCs include metal thin-film electrode, nano-structured metal electrode [87], graphene electrode [88] and carbon electrodes [89,90]. Ti₃C₂T_x MXene emerged as the most suitable choice for potential application as electrode in PSCs because of its many excellent properties such as high intrinsic electrical conductivity [91], high optical transparency [92], outstanding biocompatibility, remarkable flexibility, environment-friendliness and adjustable WF [93].

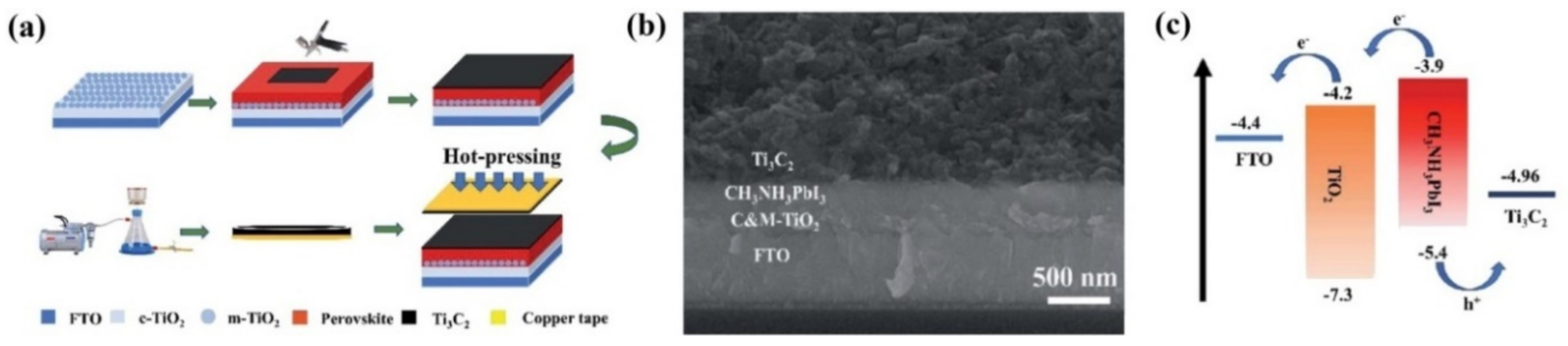

In 2019, Cao et al., reported the very first use of 2D MXene material (Ti₃C₂) as a back electrode in hole transport materials and noble-metal-free PSCs [94]. A simple hot-pressing technique was employed to form a direct interfacial contact between the MAPBI₃-photoactive perovskite layer and the Ti₃C₂ MXene electrode as can be seen in Figure 8a. As is evident from Figure 8c, the WF of Ti₃C₂ electrode (4.96 eV), matched very well with the valence band of MAPbI₃, facilitating charge transfer. After careful optimization of the Ti₃C₂ electrode, a high PCE of 13.83% with a Voc of 0.95 V, Jsc of 22.97 mA cm⁻², and FF of 63% was obtained, which corresponded to almost 27% increase in PCE compared to that of the reference devices using carbon electrodes. This enhancement in PCE was attributed to a much better charge extraction capability and a much lower square resistance of the Ti₃C₂ electrode compared to the carbon electrodes. Moreover, the seamless interfacial contact between the MXene electrode and the MAPBI₃ perovskite film also helped improve the overall stability of PSC based on MXene electrode.

Very recently, Jiang and group reported a mixture of 1-D carbon nanotubes (CNTs), 2D Ti₃C₂-MXene nanosheets and commercial carbon paste as electrode material in CsPbBr₃-PSC to achieve a respectable PCE of 7.09% [95]. Not only did the introduction of CNTs and MXene effectively enhance the conductivity, it also provided a multi-dimensional route for improved charge extraction and transport dynamics.

Table 1. Summary of the works reporting the incorporation of MXene (Ti₃C₂T_x) in PSCs.

Device Architecture	Application Mode	VOC (V) Pristine/ Improved	JSC (mA cm−2) Pristine/ Improved	FF (%) Pristine/ Improved	PCE (%) Pristine/ Improved	Enhancement in PCE (%)	Year	Ref.
ITO/SnO2/perovskite: Ti3C2Tx/Spiro-MeOTAD/Au	Additive into the photoactive layer	1/ 1.03	20.67/ 22.26	75/ 76	15.54/ 17.41	12	2018	[57]
FTO/SnO2/perovskite: Ti3C2Tx/Spiro-MeOTAD/Au	Additive into the photoactive layer	1.08/ 1.12	21.53/ 23.48	70.4/ 73.6	16.45/ 19.27	18	2021	[67]
FTO/c-TiO2 +MXene/ m-TiO2 + MXene/MXene/perovskite + MXene/ spiro-OMeTAD/Au	Additive into the photoactive layer and ETL	-/1.09	-/23.82	-/77.6	-/20.14	26.5	2019	[68]
c-TiO2/m-TiO2-TQD/TQD- perovskite/ Spiro-OMeTAD-Cu1.8S	Additive into the photoactive layer and ETL	-/1.13	-/23.64	-/77.5	18.36/ 21.72	18.18	2020	[71]
FTO/c-TiO2/ m-TiO2-2D MXene/ perovskite-0D Ti3C2 QDs/Spiro-OMeTAD/Au	Additive into the photoactive layer and ETL	0.927/-	19.6/-	66.0/-	12/ 17.1	42.5	2020	[72]
ITO/SnO2/(BA)2(MA)4Pb5I16-Ti3C2 MXene/Spiro-OMeTAD/Ag	Additive into the photoactive layer	1.09/ 1.11	18.84/ 20.87	66.7/ 67.8	13.69/ 15.71	14.7	2021	[73]
ITO/SnO2-Ti3C2 MXene/MAPbI3/Spiro-OMeTAD/ Ag	Additive in ETL	1.05/ 1.06	22.83/ 23.14	72/ 75	17.23/ 18.34	6.4	2019	[74]
FTO/SnO2-MXene/ (FAPbI3)0.97(MAPbBr3)0.03/spiro-OMeTAD	Additive in ETL	1.07/ 1.1	24.07/ 24.52	73.6/ 77.9	16.83/ 19.14	13.7	2020	[75]
ITO/SnO2-MQDs/perovskite/ Spiro/MoO3/Au	Additive in ETL	1.14/ 1.17	24.26/ 24.96	75.8/ 79.8	20.96/ 23.34	11.35	2021	[76]
FTO/Ti3C2Tx@TiO2 (0.2 wt%)/Cs2AgBiBr6/Spiro/MoO3/Ag	Additive in ETL	0.93/ 0.96	3.29/ 4.14	65/ 70	2.0/ 2.81	40.5	2021	[77]
NiO/MAPbI3/PCBM/BCP/Ag	Additive into the photoactive layer and ETL	1.09/ 1.09	21.41/ 22.88	77/ 77	17.97/ 19.20	8.3	2021	[78]
FTO/TiO2/CsPbBr3/ Ti3C2-MXene/C	As HTL	1.423/ 1.444	7.96/ 8.54	72.48/ 73.08	8.21/ 9.01	9.7	2019	[82]
ITO/Ti3C2Tx/CH3NH3PbI3/ Spiro-OMeTAD/Ag	As ETL	-/1.08	-/22.63	-/70	-/17.17	-	2019	[83]
ITO/HO-Ti3C2Tx@Ti3C2Tx/CH3NH3PbI3/ Spiro-OMeTAD/Ag	As ETL	-/1.07	-/23.11	-/74	-/18.29	23	2021	[85]
FTO/MXene-SnO2/Perovskite/Spiro-OMeTAD/Au	As separate layer between SnO2 and FTO	-/1.11	-/24.34	-	19/ 20.65	8.6	2020	[84]
ITO/SnO2/ MXene:m-SWCNTs(2:1)/Perovskite/Spiro-OMeTAD/Au	As separate layer between perovskite and SnO2	1.043/ 1.073	24.71/ 25.09	73/ 80	18.84/ 21.42	13.7	2021	[86]
FTO/TiO2/CH3NH3PbI3/ MXene	As electrode	0.84/ 0.95	21.39/ 22.96	60/ 63	10.87/ 13.83	27	2019	[94]
FTO/c-TiO2/CsPbBr3/C+ CNTs+MXene	As electrode	1.250/ 1.357	5.81/ 7.16	65.68/ 72.97	4.77/ 7.09	48.6	2020	[95]

summarizes all the work reported till date on the incorporation of 2D-MXenes in the building blocks of perovskite solar cells. From the above discussion and Table 1, it can be concluded that introduction of 2D-MXenes (Ti₃C₂T_x) as additive in perovskite layer and ETL/HTL or its use as ETL/HTL and electrode causes improvement of the chemical and electrical properties of the PSCs due to their high conductivity, WF adjustment capability and improved charge collection/transport properties. The Ti₃C₂T_x also resulted in uniform and smooth perovskite films with minimum trap state density, leading to improved performance with minimum recombinations. Furthermore, in few cases the Ti₃C₂T_x layers helped isolate the sensitive perovskite layer from outside humidity, considerably improving the shelf life and device stability upon prolonged illumination.

4. Prospects and Challenges

Application of MXenes in perovskite solar cells (PSCs) is an emerging field and has opened a wide spectrum of research. Despite many significant developments, we believe the reported work only represents the tip of the iceberg and many important discoveries are on their way. Given the fact that within few years, more than 20 different MXenes have been produced, many more can be expected in the coming years, with different compositions, various surface terminations, variable band structures and adjustable work functions. The possibilities are countless, promising huge potential for PSCs applications.

Going forward, we believe, apart from the experimental work reported so far, more theoretical work is needed in order to gain insight into charge transport/extraction behavior and work function modification of new MXene compositions, MXene/perovskite, MXene/ETL and MXene/HTL interfaces. Detailed investigations are desired on the impact of MXene surface modifications, various termination groups, work functions modifications and energy level alignment on the photovoltaic parameters of MXene-based PSCs.

MXene dopant concentration has a profound impact on the photovoltaic performances of PSCs; therefore, the doping concentration must be optimized. For very low concentrations no improvement is achieved in the uniformity and defects passivation of perovskite films. However, a too high dopant concentration can adversely affect the quality of perovskite films and result in a rougher film. Moreover, an optimized concentration is necessary to achieve good crystallization of perovskite films such that the MXene must be homogeneously distributed along the longitudinal and transverse directions of the perovskite film.

The electronic structure of MXenes is dictated by the functional groups on the surface, inevitably shifting the WF. An optimized energy-level alignment between the perovskite and ETL can ensure effective charge transfer dynamics while simultaneously suppressing the recombinations in the inner perovskite layer and at the different interfaces involved in PSCs. A thorough investigation into understanding the fascinating phenomenon of work function modification is required to unravel the effects of parameters such as synthesis conditions, post-synthesis thermal/UV-Ozone treatment and chemical treatment.

Apart from the good flexibility and high electrical conductivity, MXenes should be transparent in the photovoltaic response range of PSCs. Moreover, for commercial applications of MXene in PSCs various issues must be considered, such as environment friendly incorporation techniques that allow large scale production and stability under ambient conditions. Beside the advantages offered by MXene in terms of material qualities and performance, methods and procedures connected to fabrication of MXene must ensure competitive pricing, environmental friendliness, long-term reliability and sustainable manufacturing.

5. Conclusions

The last decade has witnessed dramatic technological advancements in perovskite solar cells (PSCs). The transition from traditional architectures to tandem structures, the shift from single cation-based perovskites to mix cation perovskties, and the emergence of low temperature fabrication techniques has all without a doubt proved beneficial in enhancing the PCE/stability of PSCs, yet many challenges must be overcome before mass production. Among the latest trends adopted for performance improvement of PSCs such as solvent engineering, interface modifications, use of solar concentrators, incorporating scattering effects, spectral modification and use of novel materials, the use of 2D MXenes emerged as the most attractive and effective technique for real world applications. Introduction of 2D Ti₃C₂T_x MXene material into the building blocks of PSCs are summarized in this short review. Recent advances in using MXene as ETL/HTL and electrode have been diligently combined and summarized. It can be safely concluded that the important parameters determining the successful incorporation of MXene materials in PSCs are their concentration, surface terminations, WF, the major constituent into which they are added and composition and thickness of the host constituent (ETL, perovskite layer, HTL).

In the majority of the cases, upon successful addition of 2D Ti₃C₂T_x MXene, stability and performance of PSCs considerably improved, owing to their superior charge transport properties and WF modifications. Well-adjusted electrical properties improved charge transport/extraction dynamics and well aligned energy levels, uniform film growth, suppressed trap state density, reduced recombinations, optimized interface properties and good film quality can be expected after introducing 2D Ti₃C₂T_x MXene materials into the perovskite layer or ETL of PSCs owing to the superior charge transport, perfect band alignment and WF adjustment of 2D Ti₃C₂T_x MXene materials.
