Cellular SPION Uptake and Toxicity in Various Head and Neck Cancer Cell Lines

by
Matthias Balk
1,
Theresa Haus
1,2,
Julia Band
1,
Harald Unterweger
1,
Eveline Schreiber
1,
Ralf P. Friedrich
1,*,
Christoph Alexiou
1,† and
Antoniu-Oreste Gostian
1,†
1
Department of Otorhinolaryngology, Head and Neck Surgery, Section of Experimental Oncology and Nanomedicine (SEON), Else Kröner-Fresenius-Stiftung Professorship, Universitätsklinikum Erlangen, 91054 Erlangen, Germany
2
Friedrich-Alexander-Universität Erlangen-Nürnberg (FAU), 91054 Erlangen, Germany
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Nanomaterials 2021, 11(3), 726; https://doi.org/10.3390/nano11030726
Submission received: 12 February 2021 / Revised: 5 March 2021 / Accepted: 8 March 2021 / Published: 13 March 2021
(This article belongs to the Special Issue Nanomaterials-Cell Interaction: Cytotoxicity/Therapeutic Potential)
Browse Figures
Review Reports Versions Notes

Abstract

:
Superparamagnetic iron oxide nanoparticles (SPIONs) feature distinct magnetic properties that make them useful and effective tools for various diagnostic, therapeutic and theranostic applications. In particular, their use in magnetic drug targeting (MDT) promises to be an effective approach for the treatment of various diseases such as cancer. At the cellular level, SPION uptake, along with SPION-mediated toxicity, represents the most important prerequisite for successful application. Thus, the present study determines SPION uptake, toxicity and biocompatibility in human head and neck tumor cell lines of the tongue, pharynx and salivary gland. Using magnetic susceptibility measurements, microscopy, atomic emission spectroscopy, flow cytometry, and plasma coagulation, we analyzed the magnetic properties, cellular uptake and biocompatibility of two different SPION types in the presence and absence of external magnetic fields. Incubation of cells with lauric acid and human serum albumin-coated nanoparticles (SPIONLA-HSA) resulted in substantial particle uptake with low cytotoxicity. In contrast, uptake of lauric acid-coated nanoparticles (SPIONLA) was substantially increased but accompanied by higher toxicity. The presence of an external magnetic field significantly increased cellular uptake of both particles, although cytotoxicity was not significantly increased in any of the cell lines. SPIONs coated with lauric acid and/or human serum albumin show different patterns of uptake and toxicity in response to an external magnetic field. Consequently, the results indicate the potential use of SPIONs as vehicles for MDT in head and neck cancer.

1. Introduction

Squamous cell carcinoma of the head and neck is the sixth most common malignant tumor in the world, with 500,000 new cases every year [1]. In particular, alcohol and tobacco consumption, as well as the human papilloma virus, are among the main causes of these head and neck tumors [2,3]. Therapy usually includes ablative surgical procedures and/or chemoradiotherapy, especially for advanced tumor stages [4]. Notwithstanding the emerging era of immunotherapy, cisplatin remains the standard cytostatic agent in the first-line and second-line treatment of advanced head and neck tumors [5,6,7]. However, in addition to its efficacy, cisplatin also causes potentially severe and thus therapy-limiting systemic side effects, e.g., about one-third of patients develop acute renal failure after high-dose cisplatin administration [3,8,9]. A potentially effective way to circumvent the systemic toxicity of cytostatic drugs is to develop targeted drug delivery methods [10]. In particular, nanomaterials have a high potential to serve as diagnostic tools and efficient drug delivery systems to target various cancers [11,12,13,14,15,16]. In this regard, magnetic drug targeting (MDT) has already demonstrated its efficacy and feasibility to accumulate chemotherapeutic agents in the targeted tumor lesions, thereby enhancing the therapeutic effect while reducing adverse drug effects [17,18,19]. In past studies, superparamagnetic iron oxide nanoparticles (SPIONs) functionalized with chemotherapeutic agents were successfully directed into tumor regions via external magnetic fields in animal models, confirming the in vivo applicability of MDT [20]. In the aforementioned study, more than half of the cytostatic drug mitoxantrone (MTO) could be accumulated in the tumor region after intra-arterial application of MTO-functionalized SPION compared with less than 1% after conventional systemic intravenous administration. In addition, MDT also reduced the renal load of the cytostatic drug by more than 60%. However, the application of MDT using SPIONs in head and neck tumors has not received much attention to date. The work presented here focuses on the biological impact of SPIONs coated with lauric acid (SPIONLA) and SPIONs coated with lauric acid and human serum albumin (SPIONLA-HSA) on various head and neck cancer cell lines. Accordingly, the primary objective of the present work was to investigate the effects of both SPION systems on viability, cell proliferation and uptake in head and neck tumor cell lines of squamous cell carcinoma of the pharynx, tongue and parotid gland. In addition, the influence of magnetically enhanced SPION accumulation, as a prerequisite for their suitability as potential vehicles for MDT, was investigated by culturing the cells either without or on magnetic plates. Furthermore, biocompatibility with human blood representing the requirement for future in vivo applications served as secondary objective and was analyzed using coagulation assays with human blood plasma.

2. Materials and Methods

2.1. Materials

Iron (II) chloride tetrahydrate (FeCl2⋅4H2O), iron (III) chloride hexahydrate (FeCl3⋅6H2O) and Sartorius ultrafiltration tubes Vivaspin 20, PES with a molecular weight cut-off (MWCO) of 100 kDa were purchased from VWR, Darmstadt, Germany. Iron reference standards were bought from Bernd Kraft GmbH, Duisburg, Germany. Glass coverslips, sterile Rotilabo® syringe filters with cellulose mixed ester membranes, dialysis bags (Repligen, Spectra/Por 6, MWCO 10 kDa), nitric acid, DMSO, trypsin, PBS, ethanol, disodium hydrogen phosphate, gelatin and formalin were supplied by Roth, Karlsruhe, Germany. Propidium iodide (PI), Triton X-100, lauric acid and Ribonuclease A were purchased from Sigma-Aldrich, St. Louis, MO, USA. Anexin V-FITC (AxV-FITC), Hoechst 33342, Alexa Fluor 488 Phalloidin and 1,1′,3,3,3′,3′-hexamethylindodicarbocyanine iodide (DiIC1(5)) were purchased from Life Technologies, Darmstadt, Germany. Ringer’s solution were purchased from Fresenius Kabi AG, Bad Homburg, Germany. Fetal calf serum (FCS) superior, were purchased from Thermo Fisher Scientific, Waltham, MA, USA. EMEM, DMEM: F-12 and McCoy’s 5A Medium were purchased from ATCC®, Manassas, VA, USA. Hydrocortisone was purchased from Pfizer, New York City, NY, USA. Ferucarbotran (Resovist®) were purchased from I’rom Group, Tokyo, Japan and Ferumoxytol (Rienso®) was purchased from Takeda Pharmaceutical Company Limited, Osaka, Japan. Water used in all experiments was of ultrapure quality produced by the Milli-Q® system from Merck, Darmstadt, Germany. Other materials and equipment used in this study includes: Human serum albumin (HSA) solution (Recombumin Elite, 10% w/v, Albumedix Nottingham, UK); Agilent 4200 microwave plasma-atomic emission spectrometer (MP-AES) (Agilent Technologies, Santa Clara, CA, USA); Malvern Zetasizer (Malvern Instruments, Worcestershire, England); MS2G Susceptometer, Bartington® Instruments, Oxon, UK); aPTT Kit and 25 mM CaCl2 solution (DiaSys Deutschland Vertriebs-GmbH, Flacht, Germany); MC4 plus plasma coagulometer (Merlin medical, Lemgo, Germany); Magnetic plates (Fa. Karl Lettenbauer, Erlangen, Germany); S-15-08-N magnets (Webcraft GmbH, Gottmadingen, Germany); FaDu (ATCC® HTB-43™), SCC-9 (ATCC® CRL-1629™), A-253 (ATCC® HTB-41™) and Detroit 562 (ATCC® CCL-138™) cell lines (ATCC®, Manassas, VA, USA); Gallios cytofluorometer and Kaluza software version 2.0 (Beckman Coulter, Fullerton, CA, USA); Incucyte® (Sartorius, Göttingen, Germany); xCELLigence (Agilent, Santa Clara, CA, USA); Mounting Medium (Dako North America, Carpinteria, CA, USA); Zeiss Axio Observer. Z1 fluorescent microscope (Carl Zeiss AG, Oberkochen, Germany); Nanolive Fluo-3D Cell Explorer® and Steve software v.1.6.3496® (NanoLive, Tolochenaz, Switzerland), Thermal mixer (Eppendorf, Hamburg, Germany), KrosFlo® Tangential flow ultrafiltration equipment (Repligen, Rancho Dominguez, CA, USA).

2.2. Synthesis of Lauric Acid-Coated Iron Oxide Nanoparticles (SPIONLA)

SPIONLA was synthesized according to the protocol of Zaloga et al., 2014 [21]. Briefly, Fe (II) chloride and Fe (III) chloride were dissolved in ultrapure water and co-precipitated under stirring at 80 °C in alkaline media under an argon atmosphere. Subsequently, the particles were coated with lauric acid. The suspension was homogenized for 30 min at 90 °C, then dialyzed several times (MWCO of 10 kDa) and dissolved in ultrapure water.

2.3. Synthesis of Lauric Acid- and Human Serum Albumin-Coated Iron Oxide Nanoparticles (SPIONLA-HSA)

The coating of SPIONLA particles with human serum albumin (HSA) was performed according to a protocol of Zaloga et al., 2016 [22]. Briefly, using a sterile filter (0.22 µm), human serum albumin (HSA) solution was transferred into dialysis bags (MWCO 10 kDa) and dialyzed against 4.5 L of ultrapure water (4 water changes, 5 h). Subsequently, the solution was concentrated by tangential flow ultrafiltration as previously described [23]. The HSA solution was stirred at room temperature and SPIONLA was added dropwise through a filter (0.8 µm). Excess HSA was removed by tangential flow ultrafiltration and the suspension was filtered through a sterile filter (0.22 µm).

2.4. Iron Quantification of Nanoparticles

The iron content of the of both particle types was determined using an Agilent 4200 microwave plasma-atomic emission spectrometer (MP-AES). 50 µL of the aqueous diluted suspension was dissolved in 50 µL 65% HNO3 and incubated for 10 min at 95 °C. The sample was then further diluted in 1900 µL ultrapure water and measured with MP-AES. A commercial iron solution was used as external standard.

2.5. Dynamic Light Scattering (DLS) and Zeta Potential Measurements

A Malvern Zetasizer was used to determine the hydrodynamic size of the particles in water, FCS-free medium (EMEM) and medium with 10% FCS. The particles were diluted to an absolute iron content of 50 µg/mL and measured in triplicate at 25 °C.

2.6. Magnetic Susceptibility Measurements

As measure of the magnetizability, the magnetic susceptibility of the particles was determined using a commercial MS2G susceptometer and normalized to the iron content of the suspension. Similarly, the magnetic susceptibility of Resovist® and Rienso® was analyzed as a reference.

2.7. Plasmacoagulation Assay

The coagulation of plasma in presence of particles was investigated using 10 mL freshly drawn human citrate blood samples and the aPTT Kit with BasiCon1 and BasiCon2 as controls. The blood samples were centrifuged 15 min at 2500 rcf and the plasma-containing supernatant was separated from the sedimented cells. 30 µL of particle dilutions in the concentration 500, 1000 and 1500 µg/mL were added to 270 µL citrate stabilized plasma and incubated for 30 min at 37 °C. Using the MC4 plus plasma coagulometer, 100 µL plasma-particle suspension were mixed with 100 µL aPTT solution and incubated for 2 min. The coagulation time was automatically monitored after adding 100 µL 25 mM CaCl2. The use of human blood was approved by the local ethics committee at Universitätsklinikum Erlangen (reference no. 257-14 B).

2.8. Design of the Magnetic Plates

Magnetic plates are exerting a maximum magnetic force of 380 mT on the bottom of the cell culture plates. The 3-layer construction of the magnetic plates in the dimension 124 mm × 82.8 mm have a total thickness of 14 mm and consists of a top plate made of 8.1 mm flat milled “Plexiglas GS” with 4 × 6 holes with a diameter of 15.5 mm for round magnets (15 mm × 8 mm, S-15-08-N, Neodym, magnetization N42, holding force approx. 6.2 kg (=60.8 N), a middle plate made of 2 mm magnetic v2a sheet metal, drilled and countersunk for screwing to the upper plate and a bottom plate of 4 mm polyoxymethylene (POM) with deeply countersunk mounting holes for screwing to the middle plate and the top plate (Supplementary Figure S1).

2.9. Cell Culture Conditions

Four human carcinoma cell lines from the head and neck area were purchased from ATCC®. FaDu is a cell line derived from a primary hypopharyngeal tumor, SCC-9 is derived from a primary tumor of the tongue, A-253 was isolated from a primary submaxillary salivary gland tumor and Detroit 562 was isolated from a metastasis of a pharyngeal tumor. Cells were cultivated according to manufacturer’s instructions.

2.10. Cellular SPION Toxicity and SPION Uptake by Flow Cytometry

To measure the cellular toxicity, uptake and attachment of the different SPIONs, cells were seeded in 6-well plates in a total volume of 2.7 mL per well. After a confluence of ≈60% was reached, 300 µL SPIONLA or SPIONLA-HSA were added at total iron concentrations of 50 µg/mL, 100 µg/mL and 150 µg/mL, respectively. Instead of SPION solutions, the negative control contained the same amount of H2O and the toxicity control DMSO (final DMSO concentration 2%). After SPION addition, samples were further incubated either in the absence of an external magnetic field or on magnetic plates. Controls were incubated in absence of magnetic fields. After an incubation period of 48 h, the cells were harvested using trypsin. Subsequently, the samples containing the harvested cells, all media and washing solutions, were centrifuged at 300 rcf for 5 min and washed twice with 3 mL phosphate-buffered saline (PBS). After the last centrifugation step, the pellet was resuspended in 0.5 mL PBS. The cell suspension were used for the subsequent analysis by flow cytometry and MP-AES. The effects of SPIONs on cellular cytotoxicity and granularity was determined by flow cytometry using a Gallios cytofluorometer [24,25]. To measure cell viability and granularity, 40 µL cell suspension were incubated with 250 µL freshly prepared staining solution containing 10 pg/mL AxV-FITC, 10 µg/mL Hoechst 33342, and 2.04 µg/mL DiIC1(5), 66.6 ng/mL propidium iodide (PI) in Ringer’s solution for 20 min at 4 °C [24]. To determine the DNA status, 200 µL of the cell suspension were fixed with 3 mL 70% ice-cold ethanol and stored at −20 °C for at least one hour. After centrifugation (5 min at 400 rcf), the cells were washed once with PBS and then absorbed into 0.5 mL PBS. 0.5 mL DNA extraction buffer (192 mL 0.2 M Na2HPO4, 8 mL Triton X-100 (0.1%) was added and incubated for 5 min at room temperature. After centrifugation (5 min at 400 rcf) the supernatant was aspirated to 0.1 mL and incubated with 0.4 mL staining solution (20 µg/mL PI and 20 µg/mL Ribonuclease A in PBS) for 30 min dark at room temperature. The amount of cellular nanoparticles was determined by changes in granularity represented by alteration in the side scatter (SSc) intensity. Increases in SSc caused by apoptotic and necrotic processes were excluded by gating on viable cells. All flow cytometry analyses were conducted in four independent experiments with triplicates. Electronic compensation was used to eliminate bleed through fluorescence. Data analysis was performed with Kaluza software version 2.0.

2.11. Cellular SPION Amount Measured by MP-AES

200 µL of the cell suspension was centrifuged for 5 min at 5000 rcf. After drying the cell pellets at 95 °C for 30 min in a thermal mixer, the pellets were dissolved with 50 µL HNO3 (65%) for 15 min at 95 °C and then diluted with 950 µL ultrapure water. The iron content of the sample was determined by MP-AES and normalized to the cell numbers.

2.12. Cell Proliferation Monitored by Live Cell Imaging and Impedance-Based Technology

Growth curves were determined by Incucyte® and xCELLigence. In short, the cells were seeded in 96-well plates in a volume of 180 µL. After 24 h incubation time, 20 µL SPION solution were added to achieve total SPION concentrations of 50 µg/mL, 100 µg/mL and 150 µg/mL. Additionally, the same amount of H2O and DMSO (final concentration 2%) served as controls. The growth of the cells were recorded over seven days by live cell imaging with IncuCyte® and with the impedance based technology from xCELLigence®. The experiments were performed in three independent experiments with eight replicates each.

2.13. Cellular SPION Uptake Visualized by Fluorescence Microscopy

For fluorescence imaging of SPION-treated cells, 24-well plates were equipped with gelatin-coated glass coverslips before cells were seeded in a volume of 900 µL. After a confluence of ≈60% was reached, 100 µL SPIONs were added at a final concentration of 100 µg/mL. H2O and DMSO (final concentration 2%) served as controls. Samples were incubated for 48 h with and without magnetic plates. Cells were washed with PBS and fixed with 0.5 mL formalin (4% in PBS) for 30 min. After another washing step with PBS, the cells were permeabilized with 0.5 mL TritonX-100 (0.2% in PBS) for 3 min. After washing twice with PBS, Alexa Fluor 488 Phalloidin (1:100) and Hoechst 3334 (1:2000) were added to the samples and cells were incubated for another 30 min. Subsequently, the cells were washed twice with PBS and embedded in Mounting Medium. Cells were imaged with a Zeiss Axio Observer. Z1 fluorescent microscope.

2.14. Holotomographic Imaging

For three dimensional (3D) imaging by holotomography, 5000 cells were seeded into 32 mm µ-Dishes (Ibidi, Gräfelfing, Germany) in a volume of 2.7 mL. After 24 h, 300 µL SPIONLA and SPIONLA-HSA were added to a final iron concentration of 100 µg/mL, whereas control samples were supplemented with the same amount of ultrapure water. Cells were incubated for another 48 h, with half of the samples placed on a magnetic plates. After washing with PBS, cells were imaged using the live cell 3D holotomographic microscop Nanolive Fluo-3D Cell Explorer® [26]. Steve software v.1.6.3496® was used for digital staining, 3D rendering and data export. Digital staining of high refractive index (RI) in red representing nanoparticle clusters in particular, and low RI in green representing cellular structures such as cytoplasm, nuclei etc., allowed quantification of the cellular volume of high RI and thus the determination of nanoparticle clusters. From each sample, the RI of at least 30 images with a total of 100–250 single cells were analyzed. The RI volumes of each image were then normalized to the cell number and data sets were analyzed using Microsoft Excel.

3. Results

3.1. Physicochemical SPION Characterization

Since the cellular uptake and biocompatibility of SPIONs are primarily determined by their intrinsic properties, we first analyzed the hydrodynamic size and zeta potential using dynamic light scattering (DLS) (Table 1, Supplementary Figure S2). The zeta potential of SPIONLA and SPIONLA-HSA in ultrapure water showed a negative value of −35.0 mV and −20.3 mV, respectively. The suitability of the particles for further in vitro experiments was ensured by measuring the hydrodynamic diameters not only in ultrapure water but also in cell culture medium containing 0% FCS and in medium containing 10% FCS. In water, the particles exhibited hydrodynamic sizes of 46 nm (SPIONLA) and 69 nm (SPIONLA-HSA) without the appearance of larger aggregates, indicating very high stability. The slight size increase found for SPIONLA-HSA particles indicates the successful formation of a HSA protein corona. In addition, when diluting SPIONLA-HSA in cell culture media, regardless of the presence or absence of FCS, the size was not strongly altered. The measured decrease in numerical value from 69 nm to 50 nm in media containing 10% FCS is most likely due to a forced leftward shift of the size curves caused by small protein particles (11 nm) within the FCS (Supplementary Figure S2). In contrast to SPIONLA-HSA, SPIONLA agglomerated in media without FCS, resulting in a size of about 2.5 µm. However, the colloidal stability is restored in FCS-containing media, indicating the formation of a stabilizing protein corona and confirming the suitability of both particle systems for subsequent in vitro experiments. Magnetically assisted SPION uptake is dependent on the magnetizability of the particles. Compared to the magnetic susceptibility of Resovist® (7.72 × 10−3) and the relatively low value of Rienso® (1.49 × 10−3), SPIONLA (7.27 × 10−3) and SPIONLA-HSA (7.37 × 10−3) demonstrated magnetic properties very similar to the well-known contrast agent Resovist® which has been shown to be suitable not only for magnetic resonance imaging but also for regenerative medicine and MDT [27,28,29].

3.2. Cellular SPION Uptake Visualized by Fluorescent Microscopy

Differences in magnetically enhanced particle uptake were first analyzed using bright-field and fluorescence microscopy. We explicitly investigated cellular uptake efficiency without fluorescent SPION-labelling, as this affects the physicochemical properties of the particles and their binding behavior to cells [30]. Although light microscopy only allows acquisition of 2D images, the increase in high contrast vesicles and their perinuclear localization pattern in images taken by differential interference contrast (DIC) and phase contrast suggests an increase in cellular or cell-associated particles. (Figure 1, Supplementary Figures S3–S5). Incubation with SPIONLA or SPIONLA-HSA resulted in a clear increase in cellular nanoparticle uptake or binding. In general, SCC-9 and A-253 cells (Figure 1, Supplementary Figure S5) showed a higher amount of cellular particles than Detroit 562 and FaDu cells (Supplementary Figures S3 and S4), indicating cell line-dependent differences in the efficiency of SPION uptake. In addition, applying a magnetic field enhanced the SPION uptake more clearly in SCC-9 and A-253 cells than in the other two cell lines. Moreover, compared with SPION uptake in Detroit 562 and FaDu cells, differences in cellular uptake between SPIONLA and SPIONLA-HSA were more pronounced in SCC-9 and A-253 cells, suggesting particle- and cell-dependent uptake efficiency.

3.3. Cellular SPION Amount Determined by Holotomography

Recently, we demonstrated that cellular uptake of fluorescently unlabeled nanoparticles can be reliably monitored and quantified by holotomographic imaging [26]. Here, this technique was utilized to further confirm the data obtained by optical microscopy. After addition of SPIONLA and SPIONLA-HSA to the cell culture, Petri dishes were incubated for 48 h, with half of the samples placed on a magnetic plates. Cells were imaged by 3D refractive index scanning and digital staining of high RI in reddish-brown representing nanoparticle clusters in particular, and low RI in green representing cellular structures such as cytoplasm, nuclei etc., and allowed quantification of nanoparticle clusters. Figure 2 and Supplementary Figures S6–S8 clearly shows enrichment of both SPIONLA and SPIONLA-HSA in the presence of a magnetic field. In addition, the images indicate a substantially stronger accumulation of SPIONLA compared to SPIONLA-HSA. These observations were confirmed after quantification of the RI signal, which also shows that the amount of cellular SPIONLA is significantly higher than that of SPIONLA-HSA (Figure 3).

3.4. Cellular SPION Quantification by Flow Cytometry

The presence and accumulation of cellular particles were further validated by flow cytometric side scatter (SSc) analysis in viable cells (Figure 4) [25]. Furthermore, SSc analysis provided additional data on particle- and cell line-dependent differences in the efficiency of cellular particle accumulation. All cell lines showed a significant dose-dependent increase in SSc intensity. In addition, the SSc increase was significantly higher at concentrations above 100 µgFe/mL when cells were incubated with SPIONLA compared with SPIONLA-HSA, reaching up to a 2.5-fold SSc increase at a SPION concentration of 150 µgFe/mL. Moreover, the SSc increase was higher when SPION-treated cells were incubated on a magnet, indicating magnetically forced cellular accumulation. Thus, the findings are in very good agreement with the trends identified in the analysis of holotomographic microscopy images (Figure 3). This becomes even more evident when comparing the quantification of holotomographic images of cells incubated with 100 µgFe/mL with SSc results obtained with the same SPION concentration. Thus, analyses of morphological changes in SPION-treated cells using light scattering and refractive index-based technologies provide concordant results for the presence of cellular SPIONs.

3.5. Cellular SPION Quantification by Atomic Emission Spectroscopy

A reliable and precise quantification of elemental iron and thus determination of the amount SPIONs can be performed using highly sensitive spectroscopic methods, such as atomic absorption spectroscopy (AAS) and atomic emission spectroscopy (AES) [25]. We therefore incubated the head and neck cancer cell lines with different concentrations of SPIONLA-HSA or SPIONLA, either in presence (+) or in absence (−) of a magnetic force. We then analyzed the cellular iron content by microwave plasma-atomic emission spectrometry (MP-AES) as well as compared the data with the results of holotomography and flow cytometry (Figure 5). Without magnetic force, the maximum cellular iron amount was below 2 pgFe/cell in all cell lines after incubation with SPIONLA-HSA. After incubation of cells on magnetic plates, the cellular iron amount was significantly higher, reaching up to 11.7, 7.0, 28.8, and 15.3 pgFe/cell in FaDu, Detroit-562, A-253 and SCC-9 cells, respectively. Compared to SPIONLA-HSA, cellular uptake of SPIONLA was clearly increased even without incubation on magnetic plates. Without magnets, incubation of FaDu, Detroit-562, A-253 and SCC-9 cells with 100 µgFe/mL SPIONLA resulted in a cellular iron loading of 3.0, 2.2, 5.1, and 8.1 pgFe/cell, respectively, and with the magnetically enhanced approach 17.7, 14.3, 42.3, and 104.3 pgFe/cell, respectively. Thus, using MP-AES, we confirmed a dosage-dependent cellular SPION uptake or binding and a significantly higher uptake efficiency of SPIONLA compared with SPIONLA-HSA. Furthermore, cellular SPION content was significantly increased in cells incubated in the presence of an external magnet compared to samples incubated without a magnet.

3.6. Cellular SPION Toxicity

After the extensive investigation of cellular SPION uptake, we used flow cytometry to determine the influence of SPIONLA and SPIONLA-HSA on viability, necrosis, apoptosis, mitochondrial membrane integrity, DNA fragmentation, and cell cycle (Figure 6, Supplementary Figures S9 and S10) [31,32,33]. Determination of the amount of viable, necrotic, and apoptotic cells after treatment with both SPION types showed a clear dose-dependent decrease in viability for all cell lines (Figure 6). Of note, SPIONLA had a comparably greater detrimental effect on cell viability compared to SPIONLA-HSA. Interestingly, despite the strong increase in SPION uptake in the presence of a magnetic field (Figure 3, Figure 4 and Figure 5), only FaDu cells showed a slight decrease in viability, whereas the viability of Detroit 562, A-253, and SCC-9 cells did not deteriorate in the presence of external magnets.
The lower cytotoxicity of SPIONLA-HSA compared with SPIONLA was confirmed by mitochondrial membrane potential (mmp) measurements using flow cytometry after DiIC1(5) and Hoechst staining (Supplementary Figure S9). All cell lines showed a dose-dependent increase in the number of cells with impaired mmp. Again, the changes in mmp were more pronounced after incubation with SPIONLA than after SPIONLA-HSA treatment, and the influence of external magnets was detectable only in FaDu cells and not in Detroit 562, A-253 and SCC-9 cells. The effect of SPION treatment on cell cycle and DNA degradation was measured by flow cytometry after PI/Triton X-100 (PIT) staining (Supplementary Figure S10). The measurements showed that SPIONLA-HSA did not significantly affect the amount of degraded DNA even with increasing concentration and in presence of external magnets. In contrast, treatment of all cell lines with SPIONLA above a concentration of 100 µgFe/mL resulted in a significant increase in degraded DNA at the expense of double diploid DNA. Thus, the impact on DNA-degradation is clearly SPION-specific. In addition to viability experiments using flow cytometry, we investigated the effect of SPION treatment on proliferation using impedance- and optical-based life cell imaging (Figure 7, Supplementary Figure S11). The effect of SPIONLA was similar for all cell lines. At a concentration of 50 µgFe/mL, SPIONLA barely affected cellular growth, whereas cell growth was distinctly inhibited at 100 µgFe/mL SPIONLA. Further increase of SPIONLA concentration resulted in a rapid decrease of the growth curves, most likely representing cell death. In comparison, SPIONLA-HSA was substantially more biocompatible with all cell lines tested. In particular, for SCC-9 cells, cell proliferation was essentially affected only at the highest concentration (150 µgFe/mL). At 50 and 100 µgFe/mL, SPIONLA-HSA had no negative effect on cell proliferation. At the lowest concentration, cell growth was even enhanced, indicating a known effect of SPION-induced enhanced cell growth at lower concentrations that is reduced or abolished at increasing SPION concentrations due to cytotoxic effects [34].

3.7. Influence of SPIONs on Plasma Coagulation

Finally, after determining SPION-based cytotoxicity, we investigated the biocompatibility of the particles with human blood, which is crucial for potential clinical applications. An important parameter for testing the in vivo suitability of nanomaterials is their influence on the coagulation process. Therefore, SPIONLA and SPIONLA-HSA were added in ascending concentrations to fresh human citrate-stabilized plasma. After addition of activated partial thromboplastin time (aPPT) solution, coagulation was started with CaCl2 solution and clotting time was automatically monitored (Figure 8). The results demonstrated that SPIONLA increased the clotting time from 36 s to more than 50 s. In contrast, SPIONLA-HSA did not affect the clotting time regardless of the SPION concentration used, indicating a good biocompatibility for in vivo applications.

4. Discussion

We have previously demonstrated the biocompatibility of various SPIONs to different breast cancer cell lines [35]. In that study, SPIONLA-HSA showed excellent biocompatibility and SPIONLA only slightly enhanced cytotoxicity towards the selected tumor cells. In addition, the magnetic properties exhibited sufficient response to magnetic fields, which is a prerequisite for MDT. While the feasibility and efficacy of MDT have already been demonstrated in vitro, ex vivo, and in animal models [20,36,37,38,39], there are only very sparse studies on the use of SPIONs for MDT of head and neck tumors [40]. For the present study we therefore investigated the effects of selected SPIONs on different head and neck cancer cell lines. The work revealed several cell line-, particle-, concentration-, and magnetic force-dependent effects on cellular particle uptake and cytotoxicity. Since the investigated particle systems differed only by an additional protein corona of human serum albumin on SPIONLA-HSA, which is not present on SPIONLA, detected differences in cellular uptake and biocompatibility were mainly determined by the surface coating [22]. Compared to SPIONLA, the stabilizing protein coating of SPIONLA-HSA led to a significantly lower cellular uptake and to a higher biocompatibility. Investigation of the physicochemical properties, in particular of SPIONLA particles, revealed that medium-based changes in surface coating can have a significant influence on the behavior of the particles (Table 1). Size determinations in different media, especially of SPIONLA, showed strong agglomeration in FCS-free medium, while in FCS-containing medium the particles were stabilized, most likely by a forming protein corona [41]. Even if particles are stabilized in medium or in physiological fluids by a corona formation, it cannot be excluded that particles sediment over time, and the sedimentation rate may well differ between different nanoparticles [42,43,44]. Moreover, previous studies revealed a stronger sedimentation tendency of SPIONLA compared to SPIONLA-HSA, even at different FCS concentrations [35]. Consequently, a stronger sedimentation most likely results in significantly increased particle-cell interactions that may lead to increased particle uptake and toxicity. This hypothesis offers a potential explanation of the dose-dependent effects on uptake and the various degrees of toxicity induced by the two SPION types in the cell lines studied.
The application of external magnetic fields additionally increases the sedimentation of SPIONs and thus the cellular interaction and uptake (Figure 5). At a SPION concentration of 100 µgFe/mL SPIONLA-HSA, the magnetic flux density of up to 380 mT applied here leads to a cell-dependent (7.9-fold to 13.8-fold) increase in cellular particles. Interestingly, after incubation with SPIONLA at the same concentration, the increase for iron detected by MP-AES was very similar (5.9-fold to 12.9-fold), indicating the presence of a similar magnetic susceptibility for SPIONLA and SPIONLA-HSA. Thus, the presence of a magnetic field allows a 5.9-fold to 13.8-fold increase in particle uptake, which is similar for all cell lines and particles studied. However, there are significant cell type-dependent differences in absolute SPION uptake. While cells derived from tongue carcinoma (SCC-9) incorporated the most particles, closely followed by salivary gland carcinoma cells (A-253), the efficiency of cells derived from metastases of the hypopharynx (FaDu) and pharynx (Detroit 562) to take up particles was significantly lower. These cell-based differences were enhanced after application of a magnetic field. Thus, the observed variations in SPION uptake on a cellular level are not only due to the physicochemical properties of the coating but also to the different characteristics of head and neck cancer cells. Interestingly, despite an enhanced uptake, application of an external magnetic field revealed only a slight effect on cell viability in FaDu cells, whereas there was no obvious impairment of cell viability in Detroit 562, A-253, or even SCC-9 cells, which exhibited the highest SPION loadings. This is a surprising result, as increased SPION content can be expected to increase cytotoxicity. However, the magnetic field could induce the formation of larger aggregates that are only deposited on the cell membrane and do not enter the cell by active uptake mechanisms. Previously, a study addressing the magnetic settling of SPIONs demonstrated that magnetic fields lead to particle aggregation and a faster settling of magnetic nanoparticles [45]. Another study using small-angle neutron scattering confirmed the magnetic-field-induced transition of colloidal dispersed iron oxide nanoparticles to 1D chains and finally to 3D superstructures [46]. In addition, Min et al., investigated the effects of pulsed and constant magnetic fields on nanoparticle transport through cellular barriers [47]. While pulsed fields enhanced cellular uptake by increasing particle accumulation, the application of constant magnetic fields resulted in inhibition of cellular transport by the formation of aggregates larger than two micrometers, which exceeded the size of endocytic vesicles. This explains the differences in the quantification of cellular particle loading using different methods. During sample preparation for holotomographic imaging, cells had to be rigidly washed to avoid interference from any loosely bound or detached particle aggregates. Excessive particle deposition on the cell membrane would result in strong light refraction that would prevent detailed imaging of localization (exemplarily presented in Supplementary Figure S6 in the 2D and 3D images of SPIONLA -incubated cells). Flow cytometric quantification via SSc also underrepresents the particle amount because detached particle aggregates were gated out and apoptotic and necrotic cells, which may contain high particles quantities, were excluded from SSc determination to avoid including the increased SSc of dying cells (Figure 4). Similar to the two previously mentioned methods, quantification by MP-AES revealed higher uptake of SPIONLA compared to SPIONLA-HSA and increased SPION uptake of both particles in the presence of a magnetic field (Figure 5). This was due to the fact that the iron concentration of all cells, i.e., also apoptotic and necrotic cells, was included in the calculation. In addition, the samples were not washed as extensively, so that loosely bound cellular particle aggregates could also be taken into account. It should be emphasized that the fluorescence microscopic images shown do not always correspond to the quantification methods applied, which give very similar results among themselves. This is due to the fact that the microscopic images taken with a conventional fluorescence microscope were mostly focused on the cell nuclei and not on one of the planes in which particle-filled vesicles were located. Since fluorescence microscopy is difficult to completely visualize non-fluorescently labeled structures in the cell, other methods should be used for quantification where the 3-dimensional distribution of particles is not important, e.g., holotomographic microscopy, flow cytometric SSc analysis or atomic emission spectroscopy. Interestingly, in flow cytometric viability experiments and growth curve generation using live cell imaging and impedance-based technology, both SPIONLA-HSA and SPIONLA particles caused very little cytotoxicity at lower concentrations, even compared to control samples to which the appropriate volume of water was added. In a previous study, Gohlami et al., investigated the effect of different SPION systems on liver carcinoma cells and reported similar observations that SPIONs had a dose- and coating-dependent effect on cell viability [34]. At low SPION concentrations, the positive effect on cell viability was attributed to additional available iron as a metabolite. Because the expression of many molecules involved in cell cycle progression and proliferation is regulated by intracellular iron levels, tumor cells have increased iron requirements due to their increased proliferation rate. In contrast to the beneficial effects of moderate iron concentrations, iron deprivation has been reported to lead to cell cycle arrest in tumor cells [48].
Our study is consistent with Poller et al., who demonstrated that breast cancer cells incubated with SPIONLA-HSA had moderate SPION uptake with little effect on cytotoxicity, whereas SPIONLA showed a stronger effect on cellular uptake with a concomitant increase in cellular toxicity [35]. Notably, a comparison of the SPION uptake of breast cancer cell lines and head and neck tumor cell lines after 48 h of incubation with 50 µgFe/mL each of SPIONLA-HSA and SPIONLA revealed very similar values (Supplementary Table S1). The detected iron content ranged from 0.4 to 1.0 pg/cell after SPIONLA-HSA incubation in the breast cancer cell lines and head and neck tumor cell lines and from 0.7 to 1.1.7 pg/cell after incubation with SPIONLA. Only incubation of SPIONLA with primary human umbilical human endothelial cells (HUVECs), showed a comparatively higher particle uptake of 3.0 pg/cell. However, comparing the results is limited as breast cancer cells were not exposed to a magnetic field and incubated with the highest SPION concentration of 75 μgFe/mL. The results presented strongly suggest that despite the heterogeneity of cellular origin, the feasibility of MDT may be expanded to various entities beyond breast and head and neck cancer cell lines. However, SPIONLA exhibited substantial toxicity and decreased biocompatibility compared with SPIONLA-HSA (Figure 8). Based on this, SPIONLA-HSA is to be considered as the more appropriate particle to be used for MDT in head and neck cancer.

5. Conclusions

The present work provides new results on the interaction of SPIONs with head and neck cancer cell lines. The examined cell lines demonstrated a distinct ability to take up superparamagnetic iron oxide nanoparticles. Applying an external magnetic field does not impair cell growth and viability. Accordingly, the results indicate that head and neck cancers may serve as potential candidates for magnetic drug targeting using SPIONs.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/11/3/726/s1, Figure S1: Design of the magnetic plates, Figure S1: Size measurements of SPIONLA and SPIONLA-HSA by dynamic light scattering (DLS), Figures S3–S5: Optical imaging of Detroit 562, FaDu and A-253 cells incubated with SPIONs in presence and absence of external magnets, Figure S6 – S8: Holotomographic imaging of Detroit 562, FaDu and A-253 cells after incubation with SPIONs, Figure S9: Changes in the mitochondrial membrane potential (mmp) after SPION treatment in the presence or absence of an external magnet, Figure S10: DNA degradation and cell cycle analysis by propidium iodide-triton X (PIT) staining, Figure S11: Growth curves of head and neck tumor cell lines generated by optical live cell imaging, Table S1: Cellular SPION uptake of SPIONs in different cells.

Author Contributions

Conceptualization, M.B., A.-O.G., R.P.F. and C.A.; methodology, R.P.F. and H.U.; validation, T.H., R.P.F., H.U. and E.S.; formal analysis, T.H. and R.P.F.; investigation, T.H., R.P.F., H.U., E.S. and J.B.; resources, C.A.; data curation, R.P.F.; writing—original draft preparation, T.H. and R.P.F.; writing—review and editing, R.P.F., A.-O.G., H.U., M.B., J.B., E.S. and C.A.; visualization, T.H., R.P.F. and J.B.; supervision, R.P.F.; project administration, R.P.F.; funding acquisition, C.A., R.P.F., A.-O.G. and M.B. All authors agree to take responsibility and be accountable for the contents of the article. The present work was performed in fulfillment of the requirements for obtaining the degree “Dr. med”. (Theresa Haus) at the Friedrich-Alexander-Universität (FAU), Erlangen-Nürnberg, Germany. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the ELAN funding of the Medical Faculty of the Universitätsklinikum Erlangen (18-03-07-1-Balk), the Manfred-Roth-Stiftung, Fürth, Germany, the Forschungsstiftung Medizin at the University hospital Erlangen, Germany and Hans Wormser, Herzogenaurach, Germany.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Institutional Ethics Committee of Universitätsklinikum Erlangen (reference no. 257-14 B, date of approval 06 February 2018).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data is available on reasonable request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Alsahafi, E.; Begg, K.; Amelio, I.; Raulf, N.; Lucarelli, P.; Sauter, T.; Tavassoli, M. Clinical update on head and neck cancer: Molecular biology and ongoing challenges. Cell Death Dis. 2019, 10, 540. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Hashibe, M.; Brennan, P.; Benhamou, S.; Castellsague, X.; Chen, C.; Curado, M.P.; Dal Maso, L.; Daudt, A.W.; Fabianova, E.; Fernandez, L.; et al. Alcohol drinking in never users of tobacco, cigarette smoking in never drinkers, and the risk of head and neck cancer: Pooled analysis in the International Head and Neck Cancer Epidemiology Consortium. J. Natl. Cancer Inst. 2007, 99, 777–789. [Google Scholar] [CrossRef]
  3. Chow, L.Q.M. Head and Neck Cancer. N. Engl. J. Med. 2020, 382, 60–72. [Google Scholar] [CrossRef] [PubMed]
  4. Kaidar-Person, O.; Gil, Z.; Billan, S. Precision medicine in head and neck cancer. Drug Resist. Updat. 2018, 40, 13–16. [Google Scholar] [CrossRef] [PubMed]
  5. Burtness, B.; Harrington, K.J.; Greil, R.; Soulieres, D.; Tahara, M.; de Castro, G., Jr.; Psyrri, A.; Baste, N.; Neupane, P.; Bratland, A.; et al. Pembrolizumab alone or with chemotherapy versus cetuximab with chemotherapy for recurrent or metastatic squamous cell carcinoma of the head and neck (KEYNOTE-048): A randomised, open-label, phase 3 study. Lancet 2019, 394, 1915–1928. [Google Scholar] [CrossRef]
  6. Ferris, R.L.; Blumenschein, G., Jr.; Fayette, J.; Guigay, J.; Colevas, A.D.; Licitra, L.; Harrington, K.; Kasper, S.; Vokes, E.E.; Even, C.; et al. Nivolumab for Recurrent Squamous-Cell Carcinoma of the Head and Neck. N. Engl. J. Med. 2016, 375, 1856–1867. [Google Scholar] [CrossRef] [PubMed]
  7. Pignon, J.P.; le Maitre, A.; Maillard, E.; Bourhis, J.; Group, M.-N.C. Meta-analysis of chemotherapy in head and neck cancer (MACH-NC): An update on 93 randomised trials and 17,346 patients. Radiother. Oncol. 2009, 92, 4–14. [Google Scholar] [CrossRef]
  8. Ozkok, A.; Edelstein, C.L. Pathophysiology of cisplatin-induced acute kidney injury. BioMed Res. Int. 2014, 2014, 967826. [Google Scholar] [CrossRef]
  9. Strojan, P.; Vermorken, J.B.; Beitler, J.J.; Saba, N.F.; Haigentz, M., Jr.; Bossi, P.; Worden, F.P.; Langendijk, J.A.; Eisbruch, A.; Mendenhall, W.M.; et al. Cumulative cisplatin dose in concurrent chemoradiotherapy for head and neck cancer: A systematic review. Head Neck 2016, 38 (Suppl. 1), E2151–E2158. [Google Scholar] [CrossRef] [Green Version]
  10. Iqbal, J.; Anwar, F.; Afridi, S. Targeted Drug Delivery Systems and Their Therapeutic Applications in Cancer and Immune Pathological Conditions. Infect. Disord. Drug Targets 2017, 17, 149–159. [Google Scholar] [CrossRef]
  11. Ashfaq, U.A.; Riaz, M.; Yasmeen, E.; Yousaf, M.Z. Recent Advances in Nanoparticle-Based Targeted Drug-Delivery Systems Against Cancer and Role of Tumor Microenvironment. Crit. Rev. Ther. Drug Carrier Syst. 2017, 34, 317–353. [Google Scholar] [CrossRef]
  12. Unterweger, H.; Janko, C.; Schwarz, M.; Dezsi, L.; Urbanics, R.; Matuszak, J.; Orfi, E.; Fulop, T.; Bauerle, T.; Szebeni, J.; et al. Non-immunogenic dextran-coated superparamagnetic iron oxide nanoparticles: A biocompatible, size-tunable contrast agent for magnetic resonance imaging. Int. J. Nanomed. 2017, 12, 5223–5238. [Google Scholar] [CrossRef] [Green Version]
  13. Unterweger, H.; Dezsi, L.; Matuszak, J.; Janko, C.; Poettler, M.; Jordan, J.; Bauerle, T.; Szebeni, J.; Fey, T.; Boccaccini, A.R.; et al. Dextran-coated superparamagnetic iron oxide nanoparticles for magnetic resonance imaging: Evaluation of size-dependent imaging properties, storage stability and safety. Int. J. Nanomed. 2018, 13, 1899–1915. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Rahn, H.; Gomez-Morilla, I.; Jurgons, R.; Alexiou, C.; Odenbach, S. Microcomputed tomography analysis of ferrofluids used for cancer treatment. J. Phys. Condens. Matter 2008, 20, 204152. [Google Scholar] [CrossRef]
  15. Brunke, O.; Odenbach, S.; Jurgons, R.; Alexiou, C.; Hilger, I.; Beckmann, F. Determination of the magnetic particle distribution in tumour tissue by means of x-ray tomography. J. Phys. Condens. Matter 2006, 18, 2903–2917. [Google Scholar] [CrossRef] [Green Version]
  16. Ansari, M.O.; Ahmad, M.F.; Shadab, G.G.H.A.; Siddique, H.R. Superparamagnetic iron oxide nanoparticles based cancer theranostics: A double edge sword to fight against cancer. J. Drug Deliv. Sci. Technol. 2018, 45, 177–183. [Google Scholar] [CrossRef]
  17. Vangijzegem, T.; Stanicki, D.; Laurent, S. Magnetic iron oxide nanoparticles for drug delivery: Applications and characteristics. Expert Opin. Drug Deliv. 2019, 16, 69–78. [Google Scholar] [CrossRef]
  18. Tietze, R.; Zaloga, J.; Unterweger, H.; Lyer, S.; Friedrich, R.P.; Janko, C.; Pottler, M.; Durr, S.; Alexiou, C. Magnetic nanoparticle-based drug delivery for cancer therapy. Biochem. Biophys. Res. Commun. 2015, 468, 463–470. [Google Scholar] [CrossRef] [PubMed]
  19. Lyer, S.; Tietze, R.; Unterweger, H.; Zaloga, J.; Singh, R.; Matuszak, J.; Poettler, M.; Friedrich, R.P.; Duerr, S.; Cicha, I.; et al. Nanomedical innovation: The SEON-concept for an improved cancer therapy with magnetic nanoparticles. Nanomedicine (Lond) 2015, 10, 3287–3304. [Google Scholar] [CrossRef] [Green Version]
  20. Tietze, R.; Lyer, S.; Durr, S.; Struffert, T.; Engelhorn, T.; Schwarz, M.; Eckert, E.; Goen, T.; Vasylyev, S.; Peukert, W.; et al. Efficient drug-delivery using magnetic nanoparticles--biodistribution and therapeutic effects in tumour bearing rabbits. Nanomedicine 2013, 9, 961–971. [Google Scholar] [CrossRef]
  21. Zaloga, J.; Janko, C.; Nowak, J.; Matuszak, J.; Knaup, S.; Eberbeck, D.; Tietze, R.; Unterweger, H.; Friedrich, R.P.; Duerr, S.; et al. Development of a lauric acid/albumin hybrid iron oxide nanoparticle system with improved biocompatibility. Int. J. Nanomed. 2014, 9, 4847–4866. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Zaloga, J.; Pöttler, M.; Leitinger, G.; Friedrich, R.P.; Almer, G.; Lyer, S.; Baum, E.; Tietze, R.; Heimke-Brinck, R.; Mangge, H.; et al. Pharmaceutical formulation of HSA hybrid coated iron oxide nanoparticles for magnetic drug targeting. Eur. J. Pharm. Biopharm. 2016, 101, 152–162. [Google Scholar] [CrossRef] [PubMed]
  23. Zaloga, J.; Stapf, M.; Nowak, J.; Pottler, M.; Friedrich, R.P.; Tietze, R.; Lyer, S.; Lee, G.; Odenbach, S.; Hilger, I.; et al. Tangential Flow Ultrafiltration Allows Purification and Concentration of Lauric Acid-/Albumin-Coated Particles for Improved Magnetic Treatment. Int. J. Mol. Sci. 2015, 16, 19291–19307. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Munoz, L.E.; Maueroder, C.; Chaurio, R.; Berens, C.; Herrmann, M.; Janko, C. Colourful death: Six-parameter classification of cell death by flow cytometry--dead cells tell tales. Autoimmunity 2013, 46, 336–341. [Google Scholar] [CrossRef]
  25. Friedrich, R.P.; Janko, C.; Poettler, M.; Tripal, P.; Zaloga, J.; Cicha, I.; Durr, S.; Nowak, J.; Odenbach, S.; Slabu, I.; et al. Flow cytometry for intracellular SPION quantification: Specificity and sensitivity in comparison with spectroscopic methods. Int. J. Nanomed. 2015, 10, 4185–4201. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Friedrich, R.P.; Schreiber, E.; Tietze, R.; Yang, H.; Pilarsky, C.; Alexiou, C. Intracellular Quantification and Localization of Label-Free Iron Oxide Nanoparticles by Holotomographic Microscopy. Nanotechnol. Sci. Appl. 2020, 13, 119–130. [Google Scholar] [CrossRef]
  27. Le, T.A.; Zhang, X.; Hoshiar, A.K.; Yoon, J. Real-Time Two-Dimensional Magnetic Particle Imaging for Electromagnetic Navigation in Targeted Drug Delivery. Sensors 2017, 17, 2050. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Wang, Y.X.; Idee, J.M. A comprehensive literatures update of clinical researches of superparamagnetic resonance iron oxide nanoparticles for magnetic resonance imaging. Quant. Imaging Med. Surg. 2017, 7, 88–122. [Google Scholar] [CrossRef] [Green Version]
  29. Connell, J.J.; Patrick, P.S.; Yu, Y.; Lythgoe, M.F.; Kalber, T.L. Advanced cell therapies: Targeting, tracking and actuation of cells with magnetic particles. Regen. Med. 2015, 10, 757–772. [Google Scholar] [CrossRef]
  30. Yin, L.; Wang, W.; Wang, S.; Zhang, F.; Zhang, S.; Tao, N. How does fluorescent labeling affect the binding kinetics of proteins with intact cells? Biosens. Bioelectron. 2015, 66, 412–416. [Google Scholar] [CrossRef] [Green Version]
  31. Almutary, A.; Sanderson, B.J. The MTT and Crystal Violet Assays: Potential Confounders in Nanoparticle Toxicity Testing. Int. J. Toxicol. 2016, 35, 454–462. [Google Scholar] [CrossRef] [PubMed]
  32. Kumar, G.; Degheidy, H.; Casey, B.J.; Goering, P.L. Flow cytometry evaluation of in vitro cellular necrosis and apoptosis induced by silver nanoparticles. Food Chem. Toxicol. 2015, 85, 45–51. [Google Scholar] [CrossRef]
  33. Janko, C.; Munoz, L.; Chaurio, R.; Maueroder, C.; Berens, C.; Lauber, K.; Herrmann, M. Navigation to the graveyard-induction of various pathways of necrosis and their classification by flow cytometry. Methods Mol. Biol. 2013, 1004, 3–15. [Google Scholar] [CrossRef] [PubMed]
  34. Gholami, A.; Rasoul-amini, S.; Ebrahiminezhad, A.; Seradj, S.H.; Ghasemi, Y. Lipoamino Acid Coated Superparamagnetic Iron Oxide Nanoparticles Concentration and Time Dependently Enhanced Growth of Human Hepatocarcinoma Cell Line (Hep-G2). J. Nanomater. 2015, 2015, 451405. [Google Scholar] [CrossRef] [Green Version]
  35. Poller, J.M.; Zaloga, J.; Schreiber, E.; Unterweger, H.; Janko, C.; Radon, P.; Eberbeck, D.; Trahms, L.; Alexiou, C.; Friedrich, R.P. Selection of potential iron oxide nanoparticles for breast cancer treatment based on in vitro cytotoxicity and cellular uptake. Int. J. Nanomed. 2017, 12, 3207–3220. [Google Scholar] [CrossRef] [Green Version]
  36. Nguyen, K.; Nuss, B.; Muhlberger, M.; Unterweger, H.; Friedrich, R.P.; Alexiou, C.; Janko, C. Superparamagnetic Iron Oxide Nanoparticles Carrying Chemotherapeutics Improve Drug Efficacy in Monolayer and Spheroid Cell Culture by Enabling Active Accumulation. Nanomaterials (Basel) 2020, 10, 1577. [Google Scholar] [CrossRef] [PubMed]
  37. Alev, M.; Egenberger, L.; Muhleisen, L.; Weigel, B.; Frey, B.; Friedrich, R.P.; Pottler, M.; Alexiou, C.; Janko, C. Targeting of drug-loaded nanoparticles to tumor sites increases cell death and release of danger signals. J. Control. Release 2018, 285, 67–80. [Google Scholar] [CrossRef] [PubMed]
  38. Roeth, A.A.; Slabu, I.; Baumann, M.; Alizai, P.H.; Schmeding, M.; Guentherodt, G.; Schmitz-Rode, T.; Neumann, U.P. Establishment of a biophysical model to optimize endoscopic targeting of magnetic nanoparticles for cancer treatment. Int. J. Nanomed. 2017, 12, 5933–5940. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Tietze, R.; Rahn, H.; Lyer, S.; Schreiber, E.; Mann, J.; Odenbach, S.; Alexiou, C. Visualization of superparamagnetic nanoparticles in vascular tissue using XmuCT and histology. Histochem. Cell Biol. 2011, 135, 153–158. [Google Scholar] [CrossRef]
  40. Koppolu, B.; Bhavsar, Z.; Wadajkar, A.S.; Nattama, S.; Rahimi, M.; Nwariaku, F.; Nguyen, K.T. Temperature-sensitive polymer-coated magnetic nanoparticles as a potential drug delivery system for targeted therapy of thyroid cancer. J. Biomed. Nanotechnol. 2012, 8, 983–990. [Google Scholar] [CrossRef]
  41. Rahman, M.; Laurent, S.; Tawil, N.; Yahia, L.H.; Mahmoudi, M. Protein-Nanoparticle Interactions: The Bio-Nano Interface. Protein-Nanoparticle Interact. 2013, 21–44. [Google Scholar]
  42. Hinderliter, P.M.; Minard, K.R.; Orr, G.; Chrisler, W.B.; Thrall, B.D.; Pounds, J.G.; Teeguarden, J.G. ISDD: A computational model of particle sedimentation, diffusion and target cell dosimetry for in vitro toxicity studies. Part. Fibre Toxicol. 2010, 7, 36. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Cho, E.C.; Zhang, Q.; Xia, Y. The effect of sedimentation and diffusion on cellular uptake of gold nanoparticles. Nat. Nanotechnol. 2011, 6, 385–391. [Google Scholar] [CrossRef] [PubMed]
  44. Allouni, Z.E.; Cimpan, M.R.; Hol, P.J.; Skodvin, T.; Gjerdet, N.R. Agglomeration and sedimentation of TiO2 nanoparticles in cell culture medium. Colloids Surf. B Biointerfaces 2009, 68, 83–87. [Google Scholar] [CrossRef]
  45. Prigiobbe, V.; Ko, S.; Huh, C.; Bryant, S.L. Measuring and modeling the magnetic settling of superparamagnetic nanoparticle dispersions. J. Colloid Interface Sci. 2015, 447, 58–67. [Google Scholar] [CrossRef] [PubMed]
  46. Fu, Z.; Xiao, Y.; Feoktystov, A.; Pipich, V.; Appavou, M.S.; Su, Y.; Feng, E.; Jin, W.; Bruckel, T. Field-induced self-assembly of iron oxide nanoparticles investigated using small-angle neutron scattering. Nanoscale 2016, 8, 18541–18550. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Min, K.A.; Shin, M.C.; Yu, F.; Yang, M.; David, A.E.; Yang, V.C.; Rosania, G.R. Pulsed magnetic field improves the transport of iron oxide nanoparticles through cell barriers. ACS Nano 2013, 7, 2161–2171. [Google Scholar] [CrossRef] [Green Version]
  48. Le, N.T.; Richardson, D.R. The role of iron in cell cycle progression and the proliferation of neoplastic cells. Biochim. Biophys. Acta 2002, 1603, 31–46. [Google Scholar] [CrossRef]
Nanomaterials 11 00726 g001 550
Figure 1. Optical imaging of SCC-9 cells incubated with SPIONs in the presence and absence of external magnets. Cells were treated with (a,b) SPIONLA-HSA and (d,e) SPIONLA (100 μgFe/mL) in the presence (+) or absence (−) of a magnet, or with the corresponding amount of (c) H2O or (f) DMSO (final concentration of 2%) for 48 h and visualized by phase contrast (first column), DIC (middle column) or fluorescence staining of nuclei (Hoechst 33342, red) and actin cytoskeleton (Alexa Fluor 488 Phalloidin, green) (last column). Abbreviations: SPION, superparamagnetic iron oxide nanoparticles; SPIONLA, lauric acid-coated SPIONs; SPIONLA-HSA, lauric acid- and human serum albumin-coated SPIONs; DIC, differential interference contrast; DMSO, dimethyl sulfoxide.
Figure 1. Optical imaging of SCC-9 cells incubated with SPIONs in the presence and absence of external magnets. Cells were treated with (a,b) SPIONLA-HSA and (d,e) SPIONLA (100 μgFe/mL) in the presence (+) or absence (−) of a magnet, or with the corresponding amount of (c) H2O or (f) DMSO (final concentration of 2%) for 48 h and visualized by phase contrast (first column), DIC (middle column) or fluorescence staining of nuclei (Hoechst 33342, red) and actin cytoskeleton (Alexa Fluor 488 Phalloidin, green) (last column). Abbreviations: SPION, superparamagnetic iron oxide nanoparticles; SPIONLA, lauric acid-coated SPIONs; SPIONLA-HSA, lauric acid- and human serum albumin-coated SPIONs; DIC, differential interference contrast; DMSO, dimethyl sulfoxide.
Nanomaterials 11 00726 g001
Nanomaterials 11 00726 g002 550
Figure 2. Holotomographic imaging of SCC-9 cells after incubation with SPIONs. Cells were incubated with SPIONs in the presence and absence of an external magnet. Cells were treated with unlabeled (a) SPIONLA-HSA and (b) SPIONLA (100 μgFe/mL) in the presence (+) or absence (−) of a magnet or with the corresponding amount of (c) H2O for 48 h and visualized by differences in refractive index. The 2D black and white images depict X-Y sections of the 3D RI composition. The 3D RI hologram is digitally colored, showing structures with low RI (cell nuclei, nucleoli and cytoplasm) in green and high RI (SPION clusters) in reddish-brown. The colored images show the top view of the 3D holograms. Abbreviations: SPION, superparamagnetic iron oxide nanoparticles; SPIONLA, lauric acid-coated SPIONs; SPIONLA-HSA, lauric acid- and human serum albumin-coated SPIONs; RI, refractive index.
Figure 2. Holotomographic imaging of SCC-9 cells after incubation with SPIONs. Cells were incubated with SPIONs in the presence and absence of an external magnet. Cells were treated with unlabeled (a) SPIONLA-HSA and (b) SPIONLA (100 μgFe/mL) in the presence (+) or absence (−) of a magnet or with the corresponding amount of (c) H2O for 48 h and visualized by differences in refractive index. The 2D black and white images depict X-Y sections of the 3D RI composition. The 3D RI hologram is digitally colored, showing structures with low RI (cell nuclei, nucleoli and cytoplasm) in green and high RI (SPION clusters) in reddish-brown. The colored images show the top view of the 3D holograms. Abbreviations: SPION, superparamagnetic iron oxide nanoparticles; SPIONLA, lauric acid-coated SPIONs; SPIONLA-HSA, lauric acid- and human serum albumin-coated SPIONs; RI, refractive index.
Nanomaterials 11 00726 g002
Nanomaterials 11 00726 g003 550

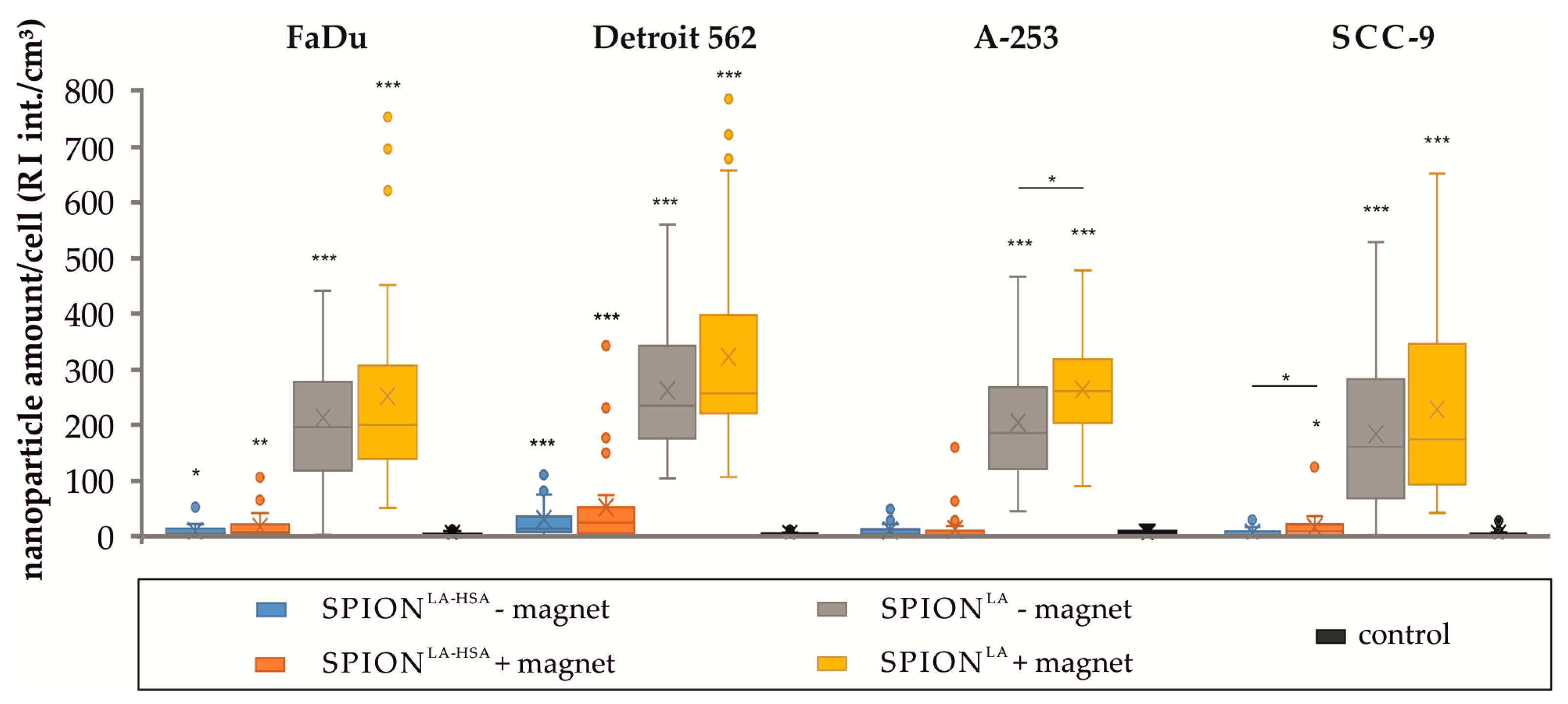

Figure 3. Nanoparticle amount quantified by RI analysis. The amount of SPIONs in different head and neck tumor cell lines treated with 100 μgFe/mL SPIONLA or SPIONLA-HSA in the presence or absence of external magnets was determined by the presence and quantification of structures with high RI. Statistical significances are indicated with *, ** and ***. The respective confidential intervals are p ≤ 0.05, p ≤ 0.01, and p ≤ 0.001 and were calculated via t-test analysis. Asterisks on individual bars indicate the significance between SPION-treated cells and control samples and asterisks on connecting lines indicate the significance between samples incubated with SPIONs in presence or absence of magnets. Abbreviations: SPION, superparamagnetic iron oxide nanoparticles; SPIONLA, lauric acid-coated SPIONs; SPIONLA-HSA, lauric acid- and human serum albumin-coated SPIONs; RI int., refractive index intensity.
Figure 3. Nanoparticle amount quantified by RI analysis. The amount of SPIONs in different head and neck tumor cell lines treated with 100 μgFe/mL SPIONLA or SPIONLA-HSA in the presence or absence of external magnets was determined by the presence and quantification of structures with high RI. Statistical significances are indicated with *, ** and ***. The respective confidential intervals are p ≤ 0.05, p ≤ 0.01, and p ≤ 0.001 and were calculated via t-test analysis. Asterisks on individual bars indicate the significance between SPION-treated cells and control samples and asterisks on connecting lines indicate the significance between samples incubated with SPIONs in presence or absence of magnets. Abbreviations: SPION, superparamagnetic iron oxide nanoparticles; SPIONLA, lauric acid-coated SPIONs; SPIONLA-HSA, lauric acid- and human serum albumin-coated SPIONs; RI int., refractive index intensity.
Nanomaterials 11 00726 g003
Nanomaterials 11 00726 g004 550

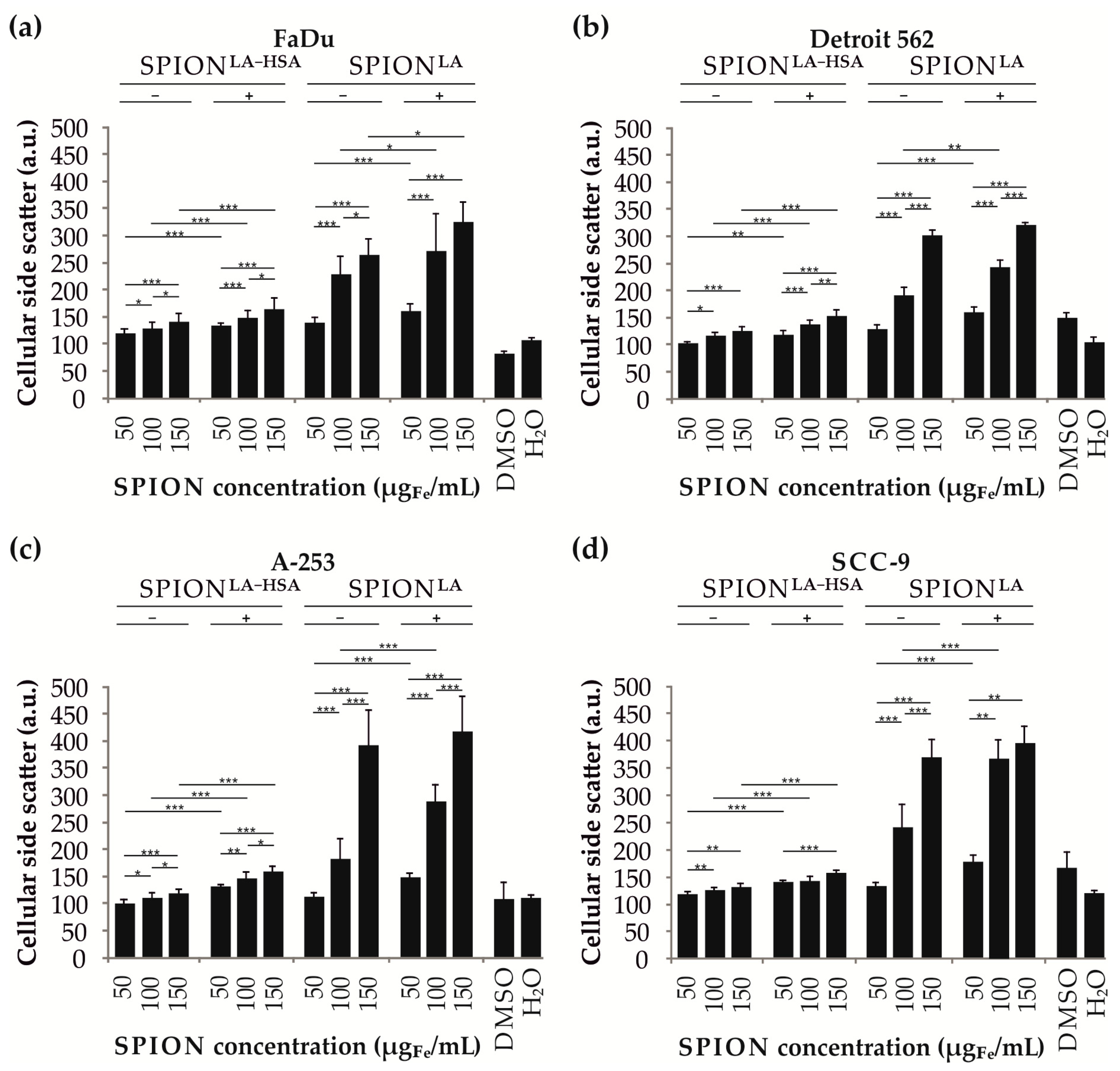

Figure 4. Evaluation of cellular nanoparticle uptake by changes in flow cytometric side scatter intensity. Head and neck tumor cell lines (a) FaDu, (b) Detroit 562, (c) A-253 and (d) SCC-9 were treated with 0, 50, 100 and 150 µgFe/mL SPIONLA and SPIONLA-HSA for 48h. Control samples contained the appropriate amount of ultrapure water and toxicity controls DMSO (final concentration 2%). Bars show the arithmetic mean of SSc intensity. Error bars indicate the standard deviation of n = 4 with quadruplicates. Statistical significances are indicated with *, ** and ***. The respective confidential intervals are p ≤ 0.05, p ≤ 0.01, and p ≤ 0.001 and were calculated via Student’s t-test analysis. Abbreviations: SPION, superparamagnetic iron oxide nanoparticles; SPIONLA, lauric acid-coated SPIONs; SPIONLA-HSA, lauric acid- and human serum albumin-coated SPIONs; DMSO, dimethyl sulfoxide; SSc, side scatter; a.u., arbitrary unit.
Figure 4. Evaluation of cellular nanoparticle uptake by changes in flow cytometric side scatter intensity. Head and neck tumor cell lines (a) FaDu, (b) Detroit 562, (c) A-253 and (d) SCC-9 were treated with 0, 50, 100 and 150 µgFe/mL SPIONLA and SPIONLA-HSA for 48h. Control samples contained the appropriate amount of ultrapure water and toxicity controls DMSO (final concentration 2%). Bars show the arithmetic mean of SSc intensity. Error bars indicate the standard deviation of n = 4 with quadruplicates. Statistical significances are indicated with *, ** and ***. The respective confidential intervals are p ≤ 0.05, p ≤ 0.01, and p ≤ 0.001 and were calculated via Student’s t-test analysis. Abbreviations: SPION, superparamagnetic iron oxide nanoparticles; SPIONLA, lauric acid-coated SPIONs; SPIONLA-HSA, lauric acid- and human serum albumin-coated SPIONs; DMSO, dimethyl sulfoxide; SSc, side scatter; a.u., arbitrary unit.
Nanomaterials 11 00726 g004
Nanomaterials 11 00726 g005 550
Figure 5. Quantification of the cellular nanoparticle load via MP-AES. The cell lines FaDu (a), Detroit 562 (b), A-253 (c) and SCC-9 (d) were spiked with 50, 100 and 150 µgFe/mL SPIONLA-HSA or SPIONLA and further cultured either without (−) or on magnetic plates (+). Due to increased toxicity and low cell numbers, data sets obtained with 150 µg/mL SPIONLA in presence of magnets were removed for reliability reasons. Control samples contained the corresponding amount of H2O or DMSO at a final concentration of 2%. Data are expressed as mean standard deviation (n = 3 with technical triplicates). Statistical significances are indicated with *, ** and ***. The respective confidential intervals are p ≤ 0.05, p ≤ 0.001, and p ≤ 0.0001 and were calculated via Student’s t-test. Abbreviations: MP-AES, microwave plasma-atomic emission spectroscopy; SPION, superparamagnetic iron oxide nanoparticles; SPIONLA, lauric acid-coated SPIONs; SPIONLA-HSA, lauric acid- and human serum albumin-coated SPIONs; DMSO, dimethyl sulfoxide.
Figure 5. Quantification of the cellular nanoparticle load via MP-AES. The cell lines FaDu (a), Detroit 562 (b), A-253 (c) and SCC-9 (d) were spiked with 50, 100 and 150 µgFe/mL SPIONLA-HSA or SPIONLA and further cultured either without (−) or on magnetic plates (+). Due to increased toxicity and low cell numbers, data sets obtained with 150 µg/mL SPIONLA in presence of magnets were removed for reliability reasons. Control samples contained the corresponding amount of H2O or DMSO at a final concentration of 2%. Data are expressed as mean standard deviation (n = 3 with technical triplicates). Statistical significances are indicated with *, ** and ***. The respective confidential intervals are p ≤ 0.05, p ≤ 0.001, and p ≤ 0.0001 and were calculated via Student’s t-test. Abbreviations: MP-AES, microwave plasma-atomic emission spectroscopy; SPION, superparamagnetic iron oxide nanoparticles; SPIONLA, lauric acid-coated SPIONs; SPIONLA-HSA, lauric acid- and human serum albumin-coated SPIONs; DMSO, dimethyl sulfoxide.
Nanomaterials 11 00726 g005
Nanomaterials 11 00726 g006 550
Figure 6. Viability of cell lines after SPION treatment in the presence or absence of magnets. Shown are the amount of viable (Ax- PI-), apoptotic (Ax+ PI-), and necrotic (PI+) cells after treatment of FaDu (a), Detroit 562 (b), A-253 (c) and SCC-9 cells (d) with SPIONLA or SPIONLA-HSA at concentrations of 50, 100, and 150 µgFe/mL without (-) or on (+) magnetic plates. Positive controls contain 2% DMSO and negative controls contain H2O instead of the SPION suspension. Data are expressed as mean standard deviation (n = 3 with technical triplicates). Statistical significance of viable cells at increased SPION concentration are marked with *, ** and ***. The respective confidential intervals are p ≤ 0.05, p ≤ 0.001, and p ≤ 0.0001 and were calculated using Student’s t-test analysis. Abbreviations: SPION, superparamagnetic iron oxide nanoparticles; SPIONLA, lauric acid-coated SPIONs; SPIONLA-HSA, lauric acid- and human serum albumin-coated SPIONs; Ax-PI-, annexin V-FITC-negative and propidium iodide-negative cells; Ax+PI-, annexin V-FITC-positive and propidium iodide-negative cells; PI+, propidium iodide-positive cells.
Figure 6. Viability of cell lines after SPION treatment in the presence or absence of magnets. Shown are the amount of viable (Ax- PI-), apoptotic (Ax+ PI-), and necrotic (PI+) cells after treatment of FaDu (a), Detroit 562 (b), A-253 (c) and SCC-9 cells (d) with SPIONLA or SPIONLA-HSA at concentrations of 50, 100, and 150 µgFe/mL without (-) or on (+) magnetic plates. Positive controls contain 2% DMSO and negative controls contain H2O instead of the SPION suspension. Data are expressed as mean standard deviation (n = 3 with technical triplicates). Statistical significance of viable cells at increased SPION concentration are marked with *, ** and ***. The respective confidential intervals are p ≤ 0.05, p ≤ 0.001, and p ≤ 0.0001 and were calculated using Student’s t-test analysis. Abbreviations: SPION, superparamagnetic iron oxide nanoparticles; SPIONLA, lauric acid-coated SPIONs; SPIONLA-HSA, lauric acid- and human serum albumin-coated SPIONs; Ax-PI-, annexin V-FITC-negative and propidium iodide-negative cells; Ax+PI-, annexin V-FITC-positive and propidium iodide-negative cells; PI+, propidium iodide-positive cells.
Nanomaterials 11 00726 g006
Nanomaterials 11 00726 g007 550

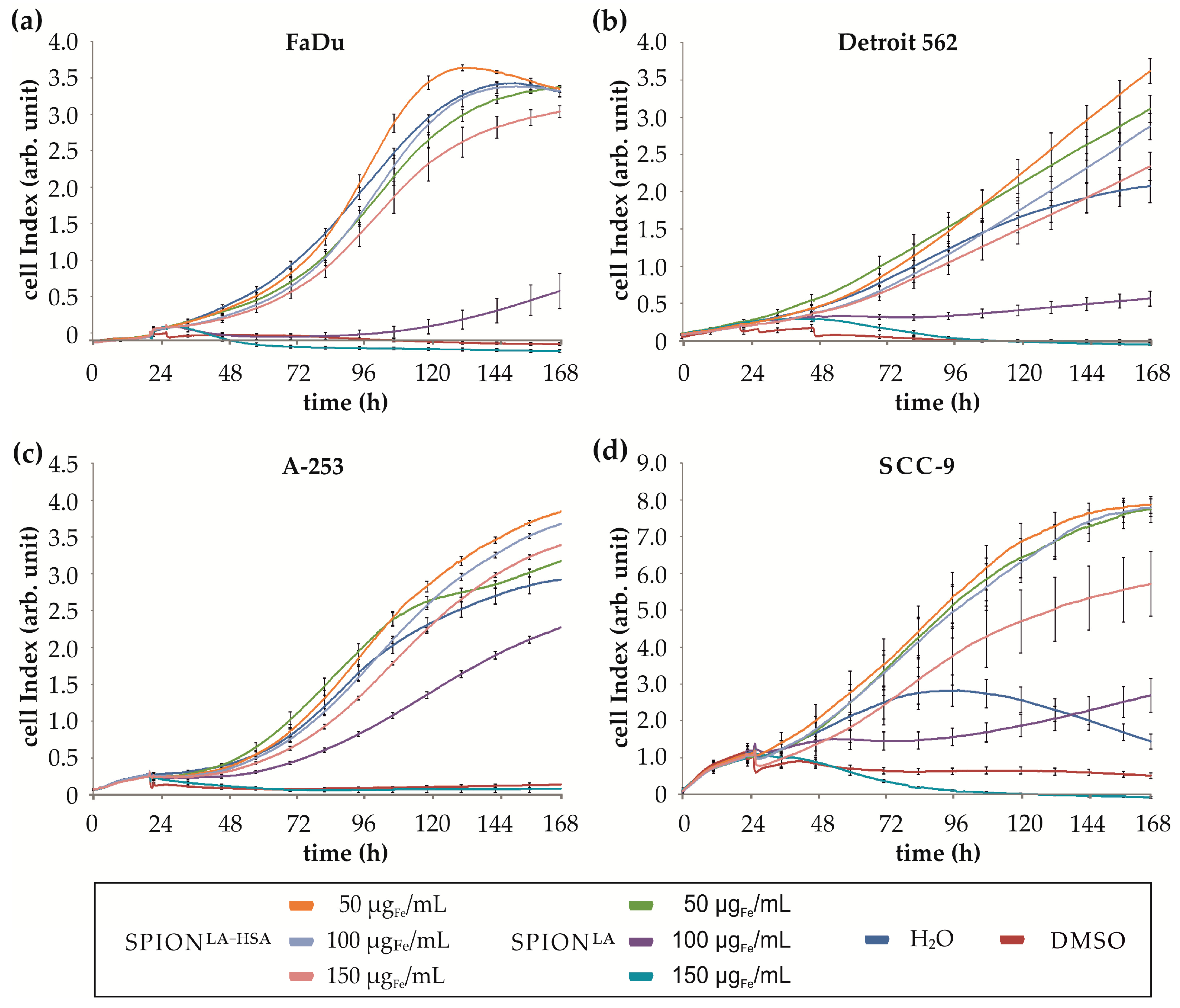

Figure 7. Impedance-based real-time analysis of cell growth. Growth curves of FaDu (a), Detroit 562 (b), A253 (c) and SCC-9 (d) cells were generated by monitoring the change in impedance after addition of SPIONLA or SPIONLA-HSA at concentrations of 50, 100 and 150 µgFe/mL cell culture medium. The positive control contains 2% DMSO, and the negative control H2O instead of the SPION suspension. Data are expressed as standard error of the mean (n = 4 with 8-fold replicates). Abbreviations: SPION, superparamagnetic iron oxide nanoparticles; SPIONLA, lauric acid-coated SPIONs; SPIONLA-HSA, lauric acid- and human serum albumin-coated SPIONs; arb. unit, arbitrary unit.
Figure 7. Impedance-based real-time analysis of cell growth. Growth curves of FaDu (a), Detroit 562 (b), A253 (c) and SCC-9 (d) cells were generated by monitoring the change in impedance after addition of SPIONLA or SPIONLA-HSA at concentrations of 50, 100 and 150 µgFe/mL cell culture medium. The positive control contains 2% DMSO, and the negative control H2O instead of the SPION suspension. Data are expressed as standard error of the mean (n = 4 with 8-fold replicates). Abbreviations: SPION, superparamagnetic iron oxide nanoparticles; SPIONLA, lauric acid-coated SPIONs; SPIONLA-HSA, lauric acid- and human serum albumin-coated SPIONs; arb. unit, arbitrary unit.
Nanomaterials 11 00726 g007
Nanomaterials 11 00726 g008 550

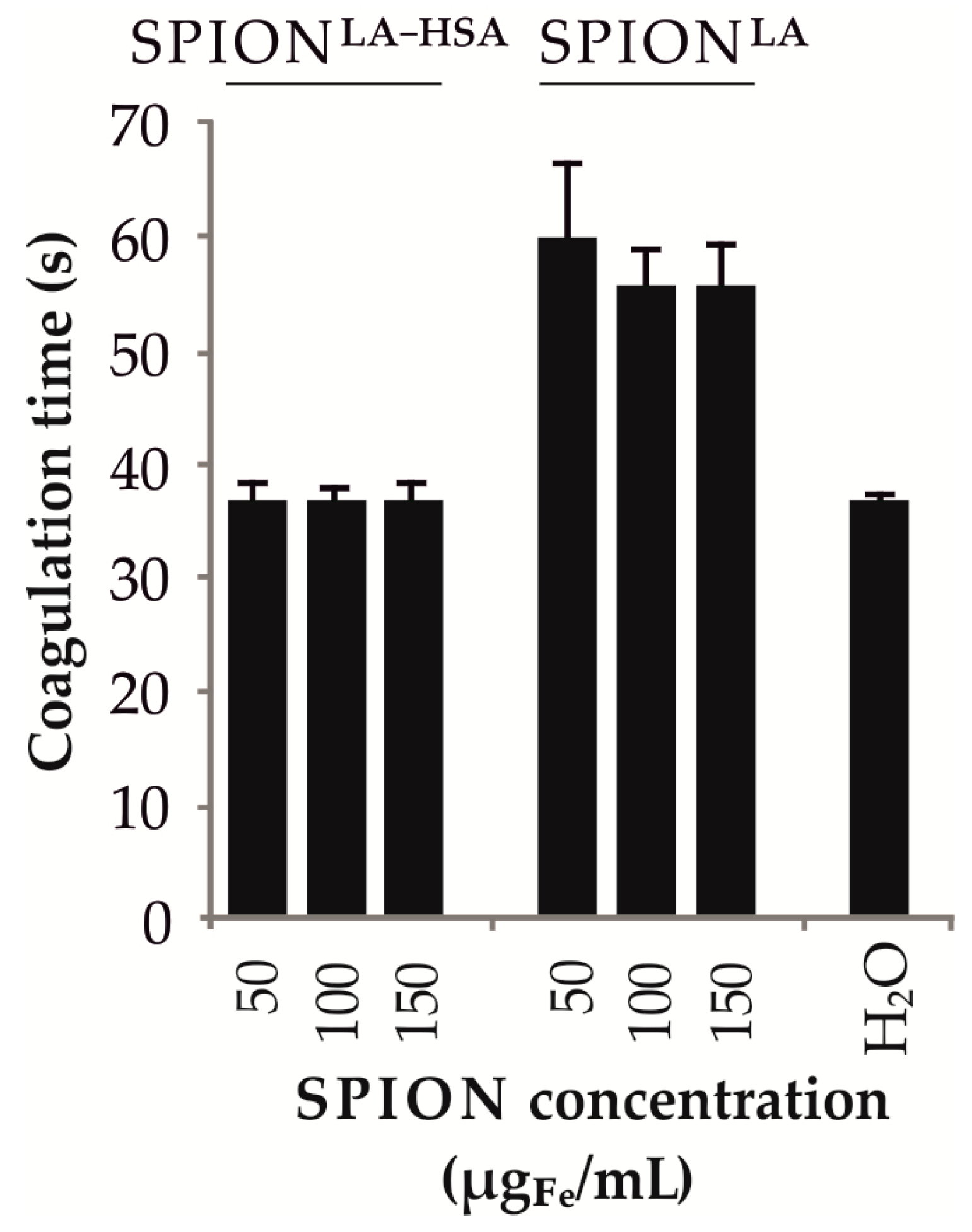

Figure 8. Influence of SPIONs on plasma coagulation. SPIONLA-HSA and SPIONLA were added to citrate-stabilized human blood at increasing concentrations. H2O served as control. After addition of aPTT solution, coagulation was induced by CaCl2 solution and coagulation time was automatically measured. Abbreviations: SPION, superparamagnetic iron oxide nanoparticles; SPIONLA, lauric acid-coated SPIONs; SPIONLA-HSA, lauric acid- and human serum albumin-coated SPIONs; aPPT, activated partial thromboplastin time.
Figure 8. Influence of SPIONs on plasma coagulation. SPIONLA-HSA and SPIONLA were added to citrate-stabilized human blood at increasing concentrations. H2O served as control. After addition of aPTT solution, coagulation was induced by CaCl2 solution and coagulation time was automatically measured. Abbreviations: SPION, superparamagnetic iron oxide nanoparticles; SPIONLA, lauric acid-coated SPIONs; SPIONLA-HSA, lauric acid- and human serum albumin-coated SPIONs; aPPT, activated partial thromboplastin time.
Nanomaterials 11 00726 g008
Table
Table 1. Physicochemical characterization of superparamagnetic iron oxide nanoparticles. The hydrodynamic diameter of SPIONLA and SPIONLA-HSA were determined in H2O, media with 0% FCS and media with 10% FCS. Zeta potential and magnetic susceptibility were measured in water. Abbreviations: SPION, superparamagnetic iron oxide nanoparticles; SPIONLA, lauric acid-coated SPIONs; SPIONLA-HSA, lauric acid- and human serum albumin-coated SPIONs; FCS, fetal calf serum; Z ave. Ø, mean diameter.
Table 1. Physicochemical characterization of superparamagnetic iron oxide nanoparticles. The hydrodynamic diameter of SPIONLA and SPIONLA-HSA were determined in H2O, media with 0% FCS and media with 10% FCS. Zeta potential and magnetic susceptibility were measured in water. Abbreviations: SPION, superparamagnetic iron oxide nanoparticles; SPIONLA, lauric acid-coated SPIONs; SPIONLA-HSA, lauric acid- and human serum albumin-coated SPIONs; FCS, fetal calf serum; Z ave. Ø, mean diameter.
ParametersSPIONLASPIONLA-HSA
Z ave. Ø in H2O (nm)46 ± 0.269 ± 0.4
Z ave. Ø in media with 0% FCS (nm)2497 ± 27868 ± 0.6
Z ave. Ø in media with 10% FCS (nm)90 ± 0.250 ± 0.2
Zeta potential in H2O at pH ≈ 6.7 (mV)−35 ± 0.4−20 ± 0.8
Magnetic susceptibility normalized to 1 mgFe/mL (in SI units)7.27 × 10−37.37 × 10−3
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Balk, M.; Haus, T.; Band, J.; Unterweger, H.; Schreiber, E.; Friedrich, R.P.; Alexiou, C.; Gostian, A.-O. Cellular SPION Uptake and Toxicity in Various Head and Neck Cancer Cell Lines. Nanomaterials 2021, 11, 726. https://doi.org/10.3390/nano11030726

AMA Style

Balk M, Haus T, Band J, Unterweger H, Schreiber E, Friedrich RP, Alexiou C, Gostian A-O. Cellular SPION Uptake and Toxicity in Various Head and Neck Cancer Cell Lines. Nanomaterials. 2021; 11(3):726. https://doi.org/10.3390/nano11030726

Chicago/Turabian Style

Balk, Matthias, Theresa Haus, Julia Band, Harald Unterweger, Eveline Schreiber, Ralf P. Friedrich, Christoph Alexiou, and Antoniu-Oreste Gostian. 2021. "Cellular SPION Uptake and Toxicity in Various Head and Neck Cancer Cell Lines" Nanomaterials 11, no. 3: 726. https://doi.org/10.3390/nano11030726

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
